Green route to fabrication of Semal-ZnO nanoparticles for efficient solar-driven catalysis of noxious dyes in diverse aquatic environments

This work successfully demonstrates a sustainable and environmentally friendly approach for synthesizing Semal-ZnO nanoparticles (NPs) using the aqueous leaf extract of Bombax ceiba L. These NPs exhibit an absorption peak at approximately 390 nm in the UV-visible spectrum and an energy gap (E_g) of 3.11 eV. Detailed analyses of the morphology and particle size using various spectroscopic and microscopic techniques, XRD, FE-SEM with EDS, and HR-TEM reveal crystallographic peaks attributable to the hexagonal phase, with an average crystal size of 17 nm. The Semal-ZnO NPs also exhibit a notable photocatalytic efficiency for degrading methylene blue (MB) and methyl orange (MO) under sunlight in different water samples collected from diverse natural sources, indicating that they are promising photocatalysts for environmental remediation. The photocatalytic efficiency of the biofabricated Semal-ZnO NPs is impressive, exhibiting a photodegradation rate of up to 99% for MB and 79% for MO in different water samples under exposure to sunlight. The novel phytofabricated Semal-ZnO NPs are thus a beacon of hope for the environment, with their desirable photocatalytic efficiency, pseudo-first-order kinetics, and ability to break down noxious dye pollutants in various aquatic environments.

Introduction

Industrialization and technological progress are considered the backbone of development of any nation, but they are equally responsible for the accumulation of life-threatening wastes in water (Marimuthu et al., 2020; Amdeha and Mohamed, 2021; Lemessa et al., 2023; Manna and Sen, 2023). Water is one of the most precious natural resources that should not be challenged by human industrialization and everyday use as a commodity (Chelliah et al., 2023). Massive population growth, exponentially increasing industrial processes, and innovative developments have adversely affected the global water quality (Xiao et al., 2023). Industrial processes involving the manufacture of cosmetics, textiles, leather, paper, plastic, and dyes often result in the discharge of wastewater contaminated with complex and vividly colored dyes, which ultimately leads to contamination of water resources and reservoirs (Nagajyothi et al., 2020; Alamier et al., 2023; Khader et al., 2023; Peng et al., 2023). These dye molecules are aromatic, chemically stable, toxic, potentially mutagenic, and carcinogenic, in addition to being typically persistent and resistant to natural degradation processes (Suhaimi et al., 2022; Aslam et al., 2023; El Sharkawy et al., 2023; Geldasa et al., 2023; Vievard et al., 2023). Their presence in water bodies has substantial detrimental effects on aquatic life and the overall ecosystem, posing significant environmental challenges and threats to human life if left untreated (Alfei et al., 2023; Warren-Vega et al., 2023). Therefore, dye degradation is a pivotal component of wastewater treatment in terms of sustainable removal of the dye pollutants contaminating industrial effluents and is essential for safeguarding the quality of water resources.

Traditional treatment methods involving coagulation, adsorption, and osmotic pressure have been used to remove dyes from rivers and other water bodies; however, each method has its limitations in efficiently eliminating dyes from wastewater, necessitating advanced and efficient degradation techniques (Ekennia et al., 2021; Zewde and Geremew, 2022). Innovative catalytic photodegradation has emerged as a promising solution to address the challenges posed by wastewater contaminated with organic dyes (Mutukwa et al., 2022; El Sharkawy et al., 2023). Catalytic photodegradation is easy to achieve, is affordable, and has a straightforward instrumental procedure as well as non-selective oxidation. Moreover, it ensures complete degradation of the organic dyes into simpler and less harmful substances, making the wastewater suitable for discharge or further treatment (Khan et al., 2023; Motelica et al., 2023).

Catalytic photodegradation harnesses the power of catalysts, which are usually semiconductor materials like titanium dioxide (TiO₂) or zinc oxide (ZnO), in combination with light energy to initiate breakdown of the dye molecules (Geldasa et al., 2023; Kaushik et al., 2023; Kumari et al., 2023). This approach offers several advantages, including high efficiency, reduced chemical usage, and the potential for treating a wide range of dye types by breaking them down into simpler, less harmful substances (Marimuthu et al., 2020; Khan et al., 2023). A photocatalyst, upon exposure to light, generates reactive oxygen species (ROS) like hydroxyl radicals that initiate the degradation reactions (Sarkar et al., 2020). Both visible and UV radiation may be utilized to create and excite the electron–hole pairs necessary for breakdown of the impurities depending on the bandgap energies of the semiconductors used (Ahmad and Kalra, 2020; Gadore et al., 2023). In this context, the synthesis of biogenic nanoparticles (NPs) for photodegradation is a groundbreaking yet ecofriendly solution for addressing the challenges of environmental remediation and sustainable water resource management (Kumari et al., 2023; Salmi et al., 2023; Yadav et al., 2023). Traditional approaches to nanoparticle syntheses often involve chemical and physical methods that may introduce toxic reagents and generate hazardous byproducts (Masood et al., 2023). In recent years, there has been a growing interest in the synthesis of NPs using biogenic methods by harnessing the potential of biological entities, such as microorganisms, plants, and algae (Sharma et al., 2016; Al-Askar et al., 2023; Supin et al., 2023). By leveraging the reducing and stabilizing abilities of the biomolecules, such as the enzymes, proteins, and biochemicals, of such biological entities, biogenic NPs have been synthesized that are not only environmentally benign but also cost-effective and easily scalable (Alprol et al., 2023; Chamaraja et al., 2023; Fouda et al., 2023). The photocatalytic activities of the biogenic NPs are attributed to their specific surface chemistry and morphologies, which facilitates generation of ROS upon exposure to light (Gul et al., 2023). The unique properties of these biogenic NPs offer numerous advantages, such as biocompatibility, reduced toxicity, and enhanced catalytic efficacy, making them well suited for catalytic photodegradation of harmful dyes (Aaga and Anshebo, 2023; Malik et al., 2023; Meena et al., 2023). In the present study, an aqueous leaf extract of the Semal tree was used to synthesize zinc oxide (Semal-ZnO) NPs in an environmentally friendly manner. The cosmopolitan Semal tree Bombax ceiba is a member of the Malvaceae family and has great medicinal and ethnobotanical significance as its different plant parts like root, stem, leaves, flowers, and seeds possess various bioactive substances, such as lupeol, β-sitosterol, shamimicin, ceibanaphthoquinone, simalin-A, simalin-B, mangiferin, epicatechin-3-O-b-xylopyranoside, epicatechin-7-O-b-xylopyranoside, shamiminol, stigmasta-3,5-diene, lupenone, opuntiol, quercetin, shamimin, palmitic acid, and polysaccharides (Chauhan et al., 2018; Khurshid Alam et al., 2018; Nikita and Shweta, 2020; Shukla et al., 2020).

Therefore, the present work explores a green synthesis method for biogenic NPs by emphasizing their eco-friendly nature and potential for large-scale production. The structural and morphological properties were also investigated to understand their suitability and modes of action for catalytic photodegradation applications. Furthermore, their performance and efficacy for degrading dye pollutants in natural freshwater samples as well as potential for integration into wastewater treatment systems under environmentally benign and ambient conditions were explored.

Materials and methods

Materials

The green leaves of B. ceiba (Semal) were obtained locally from the botanical garden of the Department of Botany, University College of Science, Mohanlal Sukhadia University, Udaipur, Rajasthan, India. Zinc nitrate hexahydrate [Zn(NO₃)∙6H₂O], methylene blue (MB; molecular weight = 319.85 g/mol), and methyl orange (MO; molecular weight = 327.33 g/mol) were procured from Sigma-Aldrich and Merck. Deionized water (CDH, India) was used throughout the reaction process.

Methods

The green leaves of B. ceiba (Semal) collected locally were carefully washed with running tap water and distilled water to remove dust and dirt, followed by drying for 2 weeks at room temperature (RT) in a dust-free environment to reduce the moisture content before finally being homogenized into a fine powder. The aqueous pale-yellow solution was filtered using Whatman filter paper No. 1, and the resulting filtrate was either utilized immediately for NP synthesis or maintained in storage at 4°C for future use.

Synthesis of Semal-ZnO NPs

The NP production process involved combining 1 g of zinc nitrate hexahydrate with 25 mL of the preheated pale-yellow aqueous solution (pH 10), and the mixture was agitated and heated up to 60°C using a magnetic stirrer heater until it transformed into a suspension with a vivid yellow tint. The suspension was carefully poured into a ceramic crucible and annealed in a muffle furnace at 400°C for 2 h. The annealing process was carefully monitored until a white crystalline powder was obtained. This powder was then expertly ground using a mortar and pestle and stored in high-quality Borosil^® glass vials for the necessary physicochemical characterizations.

Characterizations of Semal-ZnO NPs

The optical absorption spectrum of the ZnO NPs was obtained in the scanning range of 300–600 nm using a double-beam UV-visible spectrophotometer (Shimadzu 1900i, Japan). The powder X-ray diffraction (PXRD) pattern was then obtained using a powder diffractometer (X-ray diffractometer Ultima IV, Rigaku, Japan) with Cu-Kα radiation (λ = 0.154060 nm) in the 2θ range from 200° to 800° to determine the crystallinity, particle size, and purity of the biogenic NPs. Electron micrographs were obtained via high-resolution transmission electron microscopy (HR-TEM) for sample size >200 as well as field-emission scanning electron microscopy (FE-SEM) at 200 kV (JEOL JEM-2100F, Japan) with energy dispersive X-ray spectroscopy (EDS) at 30 kV (JEOL JSM-7600F, Japan) and examined using ImageJ software to determine the morphological features and elemental constituents. To provide the molecular composition of the biosynthesized material and elucidate the role of the biomolecule in the formation of NPs, the aqueous extract and phytofabricated samples were subjected to Fourier-transform infrared (FT-IR) spectroscopy.

Photocatalytic activity

The photocatalytic activity of the NPs was assessed using two noxious dyes, namely, MB (pH 8.0) and MO (pH 4.0), under solar irradiation in April and May. The photodegradation of the dyes was carried out as follows: initially, each dye was dissolved in deionized water, and the aqueous dye solution (10 mg/L) to be decomposed was taken along with 25 mg of the catalyst (ZnO NPs) in a glass conical flask of volume 50 mL (Borosil^®) and constantly stirred in the dark at RT for 30 min to achieve the adsorption–desorption equilibrium before irradiation. Aliquots (4.0 mL each) were pipetted out periodically from the reaction mixture at 10-min intervals. The periodic measurements of MB and MO concentrations were performed at different wavelengths of 664 and 463 nm, respectively, using a UV-vis spectrophotometer (Shimadzu 1900i, Japan).

The photocatalytic degradation performance was defined using the following equation:

$\text{Degradation\hspace{0.17em}}\left(\%\right)=\left(\text{Co\hspace{0.17em}}–\text{\hspace{0.17em}Ct}\right)/\text{Co}*100,$

where Co is the initial concentration (t = 0) and Ct is the final concentration of the dye in the solution at a given time (t = t min).

The following kinetic equation was used to further analyze the results:

$\text{kt}=\ln \left(\text{Co}/\text{Ct}\right),$

where Co and Ct are the respective dye concentrations before and after irradiation, k is the rate constant, and t is the reaction time consumed during photodegradation of the organic dye.

Efficiency of Semal-ZnO NPs for photodegradation in natural water samples

The photocatalytic efficiency of the Semal-ZnO NPs was determined using two noxious dyes, MB (pH 8.0) and MO (pH 4.0), dissolved in different water samples and exposure to sunlight. The water samples were collected from different natural freshwater sources, namely, Fateh Sager (FS), Pichola Lake (PL), Ayad River (AD), borewell (BL), and tap water (TP), in the City of Lakes, Udaipur, India, at different time intervals in 250-mL glass reagent bottles (Borosil^®). These water samples collected from different sources were filtered using Whatman filter paper No. 1, pooled, and stored separately at 4.0°C for further analyses.

Results and discussion

Optical studies

The UV-visible spectrophotometer was used to monitor the formation of the green synthesized Semal-ZnO NPs in the range of 300–600 nm. The maximum absorption depends on the NP morphology, dimensions, and surface microstructure. A broad absorption peak centered at approximately 390 nm was the characteristic of the Semal-ZnO NP formation in the range of 350–400 nm and was attributed to the binding of various capping molecules with the ZnO NPs, resulting in increased bandgap (Figure 1A) (Abdelbaky et al., 2022; Sharma et al., 2022; Ramesh et al., 2023). The absorption peak observed in this study may be attributed to the intrinsic bandgap formed by electron transitions from the valence band (E_V) to the conduction band (E_C) of the Semal-ZnO NPs (Mageswari et al., 2023). This peak confirms the efficient synthesis of Semal-ZnO NPs from B. ceiba (Semal) leaf extract. The Tauc plot was used to determine the optical bandgap energy (E_g) as 3.11 eV (Figure 1A) for the Semal-ZnO NPs. The bandgap value (E_g) for the green synthesized Semal-ZnO NPs was in good agreement with the values of 2.88 and 3.10 eV (Ekennia et al., 2021); 3.10, 3.12, and 3.07 eV (Almarhoon et al., 2022); and 3.26 and 3.3 eV (Alharthi et al., 2020) noted in literature using the equations E_g = (hc/ʎ)*eV and E_g = (1240/ ʎ)*eV, where E_g is the bandgap energy (eV), h is Planck’s constant (6.626 × 10^–34 Js), c is the velocity of light in vacuum (3 × 10⁸ m/s), and λ is the wavelength (nm) (Tauc et al., 1966).

Figure 1

Figure 1. (A) UV-vis absorbance spectrum and Tauc plot, (B) PXRD pattern, and (C) FT-IR spectrum of the biofabricated Semal-ZnO NPs.

PXRD patterns

The crystalline phase of the green synthesized Semal-ZnO NPs from B. ceiba leaf extract was characterized by PXRD analysis. All the observed diffraction peaks were well indexed with the hexagonal phase (wurtzite structure) of Semal-ZnO when compared to the standard values of ZnO (JCPDS no. 1-079-2205), which was used as the reference with lattice parameters a = 3.2501 Å and c = 5.2071 Å using X’Pert HighScore Plus software (Figure 1B) (Abdelbaky et al., 2022; Chandrasekaran et al., 2023). The diffraction pattern revealed that all samples were in the same position and that no additional peaks of any alternative species were found, proving that all of the precursors were completely decomposed during the process (Figure 1B) (Sreelekshmi et al., 2023). The results also demonstrated that diffraction peaks corresponding to impurities were absent in the PXRD patterns, confirming the high purity of the synthesized Semal-ZnO NPs (Meena et al., 2023; Mishra et al., 2023). For rearrangement of the atomic grouping, high heat treatment would probably supply enough kinetic energy for formation of the NP crystal structure. Furthermore, this method produces Semal-ZnO at a sufficiently high temperature of approximately 400°C, resulting in a crystalline structure (Eissa et al., 2022). The sharp and narrow peaks of the biosynthesized Semal-ZnO NPs appear to have a high degree of crystallization (Shochah and Jabir, 2023). The crystallite sizes and degree of crystallinity of the Semal-ZnO NPs were assessed through the Debye–Scherrer formula.

$\mathrm{D}=0.94\mathrm{\lambda }/\mathrm{\beta }\cos \mathrm{\theta },$

where λ is the wavelength of the X-ray, β is the full-width at half maximum (FWHM) in radians, and θ is the diffraction angle. Some other parameters, such as the d-spacing, area under the main peaks, and FWHM of these peaks, were also analyzed. The results show that the crystallite size of the green synthesized Semal-ZnO NPs is in the range of 5–40 nm.

Functional group analysis

The FT-IR spectra were recorded for both the aqueous Semal leaf extract and a representative sample of the Semal-ZnO NPs in the infrared scanning range from 4,000 to 400 cm^-1 at RT using KBr pellets to evaluate the functional groups of the plant metabolites involved in the reduction and stabilization of the Semal-ZnO NPs (Figure 1C) (Ekennia et al., 2021; Supin et al., 2023). The peaks observed at 3,855 cm^-1 to 3,017 cm^-1 were interpreted as the sharp stretching vibrations of the O-H group in water, alcohol, and phenol present in the Semal leaf extract (Abdullah et al., 2023; Elbrolesy et al., 2023). The O=C=O strong stretching of carboxylic acid was observed at 2392 cm^-1 and 2328 cm^-1; the C=C medium stretching of the alkane groups was attributed to the band at 1,460 cm^-1 (Meena et al., 2023), and the bands at 1,382 cm^-1 and 874 cm^-1 were associated with C-O strong stretching in the aliphatic ether compounds and C-H strong banding in the 1,3-disubstituted compounds, respectively (Vinayagam et al., 2020). The strong sharp peak at 522 cm^-1 accompanying the Zn-O stretching vibrations in the spectrum verified the formation of the Semal-ZnO NPs (Lanjwani et al., 2023; Supin et al., 2023). The FT-IR results suggest that the range of functional groups (alcohols, phenols, ether, amines, and aromatic and aliphatic amines) present in the aqueous Semal leaf extract is likely associated with different phytochemicals, such as alkaloids, saponins, tannins, phenols, terpenoids, triterpenoids, flavonoids, and steroids. These phytochemicals would have likely played dominant roles in the green synthesis process and probably participated in the reduction and stabilization process during formation of the NPs in the aqueous medium.

FE-SEM analysis

FE-SEM is a high-resolution surface imaging technique that provides insights into nanostructures at the microscopic level (Hussein and Mohammed, 2021; Abdelbaky et al., 2022). This technique employs an electron beam to capture surface images with higher magnification and larger field depth, providing surface topological information of various nano-objects depending on the electron density of the surface (Saif et al., 2019; Pillai et al., 2020). Figures 2A,B show the surface morphologies of the Semal-ZnO NPs under different magnifications; the SEM images show that most of the Semal-ZnO NPs are spherical and have a synthesized diameter range of 5–35 nm. The green Semal-ZnO NPs are also found to be aggregated and homogeneous owing to the stacking morphology (Abdelbaky et al., 2022; Purkait et al., 2023; Sreelekshmi et al., 2023; Supin et al., 2023). The agglomerated particles indicate larger sizes with low surface-to-volume ratios. The size and shape of the NPs depend upon the nature of the capping agent present in the aqueous extract of Semal leaves (Almarhoon et al., 2022). The SEM-EDS examinations confirmed the purity and elemental composition of the Semal-ZnO NPs synthesized from the aqueous leaf extract of B. ceiba. The SEM-EDS micrographs show the presence of zinc and oxygen elements in the spectrum, with strong signal energy peaks for Zn and weak signal energy peaks for O in the atomic percentage of 66.93% and 33.07%, respectively. No additional peaks were observed in the micrographs, indicating the high purity of the Semal-ZnO NPs synthesis.

Figure 2

Figure 2. (A, B) FE-SEM images and (C) EDS spectrum showing the elemental constituents of the biofabricated Semal-ZnO NPs.

HR-TEM analysis

HR-TEM was used to ascertain the sizes, shapes, and crystalline makeup of the phytofabricated NPs, and the resulting electron micrographs exhibit that the Semal-ZnO NPs are spherical with an average size of 17 nm (Figures 3A,B,E), which is in line with the findings of some recent literature (Kamaraj et al., 2022; Sreelekshmi et al., 2023; Tejaswini et al., 2023; Yassin et al., 2023). The micrographs show a homogeneous distribution, but agglomeration of the Semal-ZnO NPs was also visible (Abdullah et al., 2023; Meena et al., 2023), probably owing to the elevated surface energy of the NPs and chemical makeup of the surface-bound capping and reducing agents (Abdullah et al., 2023). Furthermore, there is a propensity for the NPs to attract each other and form larger clusters in an aqueous medium, thereby altering the properties of the synthesized materials (Alprol et al., 2023). Fringes were observed in the TEM selected area electron diffraction (SAED) pattern at distances of 3.0125, 2.7129, and 2.4157, respectively, corresponding to the (100), (002), and (101) hkl planes (Baruah et al., 2021) (Figures 3C,D), indicating the crystalline nature of the NPs. This is strongly corroborated by the XRD results, which demonstrates that the particles were crystalline (Rambabu et al., 2021; Shobha et al., 2023).

Figure 3

Figure 3. (A–D) HR-TEM images and (E) particle size distribution histogram of the biofabricated Semal-ZnO NPs.

Photocatalytic activity

The efficacy of the Semal-ZnO NPs was assessed in terms of their photocatalytic performance via degradation of MB and MO over different time intervals under ambient conditions, thus providing insights into their potential application in wastewater treatment. Experiments were performed by adding the Semal-ZnO NPs to water samples containing these two dyes, and the hues of the solutions changed significantly from blue and orange to colorless for MB and MO, respectively. Periodic measurements of the MB and MO concentrations were performed using UV-vis spectroscopy at wavelengths of 664 and 463 nm, respectively, and the absorption peaks decreased steadily with increasing exposure time, indicating the photocatalytic degradation of both MB and MO (Figures 4A,B). The total degradation percentages of MB and MO using Semal-ZnO NPs was found to be 99% and 79%, respectively, after 130 min of exposure to sunlight (Figure 5). The phytofabricated Semal-ZnO NPs exhibited a remarkably high capacity for MB degradation in the presence of sunlight than MO dye.

Figure 4

Figure 4. Time-dependent UV-vis absorption spectra of the photocatalytic degradations of (A) MB and (B) MO dyes in the presence of the biofabricated Semal-ZnO NPs.

Figure 5

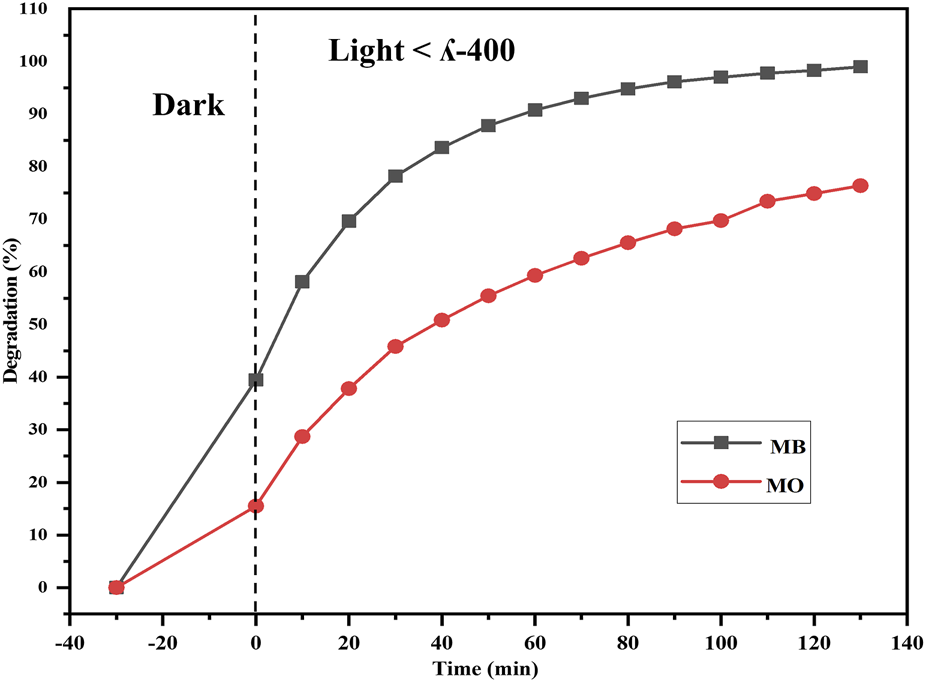

Figure 5. Degradations (%) of the MB and MO dyes using the biofabricated Semal-ZnO NPs.

The organic dye molecules are initially adsorbed onto the active sites of the Semal-ZnO NPs due to their high activity and specific surface area, following the principles of heterogeneous reactions. When the Semal-ZnO NPs are exposed to solar energy higher than their bandgap, holes are created in the valance band (h VB⁺) and electrons are created in the conduction band (e⁻ CB^–). These photogenerated electron–hole pairs are essential for the breakdown of the dye molecules. The excited dye molecules from solar radiation can also introduce electrons into the conduction band of the ZnO NPs.

$\text{Semal}-\text{ZnO}+\text{hv\hspace{0.17em}}\to \text{Semal}-\text{ZnO\hspace{0.17em}}\left({\mathrm{e}}^{-}{\text{CB}}^{-}+\mathrm{h}{\text{VB}}^{+}\right)$

$\text{Dyes}+\text{hv\hspace{0.5em}}\to {\text{Dyes}}^{*}\left(\text{MB},\text{MO}\right)$

$\text{Dyes}+\text{Semal}-\text{ZnO\hspace{0.5em}}\to \text{Dyes}+\text{ZnO\hspace{0.17em}}\left({\mathrm{e}}^{-}{\text{CB}}^{-}\right)$

The h VB⁺ reacts with H₂O or OH⁻ to form hydroxyl radicals (HO•) or can even directly oxidize the dye molecules to form degradation products.

$\text{Semal}-\text{ZnO\hspace{0.17em}}\left(\mathrm{h}{\text{VB}}^{+}\right)+{\mathrm{H}}_2\mathrm{O}\to \text{Dye}+\text{Semal}-\text{ZnO}+{\mathrm{H}}^{+}+{\text{HO}}^{\bullet }$

$\text{Semal}-\text{ZnO\hspace{0.17em}}\left(\mathrm{h}{\text{VB}}^{+}\right)+{\text{OH}}^{-}\to \text{\hspace{0.17em}Semal}-\text{ZnO}+{\text{HO}}^{.}$

$\text{Semal}-\text{ZnO\hspace{0.17em}}\left(\mathrm{h}{\text{VB}}^{+}\right)+\text{Dye\hspace{0.17em}products\hspace{0.17em}}\to \text{Degradation\hspace{0.17em}of\hspace{0.17em}dyes}$

While following the necessary sequence of events, (e^- CB^-) reacts with the O₂ molecules adsorbed on the surface of the ZnO NPs to create HO..

$\text{Semal}-\text{ZnO\hspace{0.17em}}\left({\mathrm{e}}^{-}{\text{CB}}^{-}\right)+{\mathrm{O}}_2\to \text{Semal}-\text{ZnO}+{\mathrm{O}}_2^{.-}$

${\mathrm{O}}_2^{.-}+{\mathrm{H}}^{+}\to {\text{HO}}_2^{.}$

$2{\text{HO}}_2^{.}{\to \mathrm{H}}_2{\mathrm{O}}_2+{\mathrm{O}}_2$

${\mathrm{H}}_2{\mathrm{O}}_2+{\mathrm{O}}_2^{.}{\to \text{HO}}^{.}+{\text{OH}}^{-}+{\mathrm{O}}_2$

${\mathrm{H}}_2{\mathrm{O}}_2+\text{Semal}-\text{ZnO\hspace{0.17em}}\left({\mathrm{e}}^{-}{\text{CB}}^{-}\right)\to \text{Semal}-\text{ZnO}+{\text{HO}}^{.}+{\text{OH}}^{-}$

${\mathrm{H}}_2{\mathrm{O}}_2+\text{hv\hspace{0.17em}}\to 2{\text{HO}}^{.}$

The hydroxyl radicals produced are very powerful oxidizers, and they react with the dye molecules along with other oxidant species such O₂•^- and HO₂^. to produce the degradation products (Alharthi et al., 2020; Golmohammadi et al., 2020; Aldeen et al., 2022; Albo Hay Allah and Alshamsi, 2023; Meena et al., 2023).

$\text{MB}*/{\text{MO}}^{*}+{\text{HO}}^{.}\to \text{Degradation\hspace{0.17em}of\hspace{0.17em}organic\hspace{0.17em}pollutants}$

${\text{MB}}^{*}/{\text{MO}}^{*}+{\mathrm{O}}_2^{.}-\to \text{\hspace{0.17em}Degradation\hspace{0.17em}of\hspace{0.17em}organic\hspace{0.17em}pollutants}$

${\text{MB}}^{*}/{\text{MO}}^{*}+{\text{HO}}_2^{.}\to \text{Degradation\hspace{0.17em}of\hspace{0.17em}organic\hspace{0.17em}pollutants}$

The eco-friendly synthesis of ZnO NPs from the aqueous leaf extract of Semal in this study reduces the chemically induced toxicity while increasing the dye degradation efficiency, which is consistent with the findings of previous studies that have shown the strong photocatalytic activities of biologically synthesized ZnO NPs (Nguyen-Hong et al., 2021; Rambabu et al., 2021; Wongrerkdee et al., 2023).

Adsorption kinetics

Adsorption kinetics in the context of dye degradation is crucial for environmental remediation and wastewater treatment as it indicates how the dyes are removed or degraded from industrial effluents or stagnant water bodies by adsorption onto solid surfaces; this is because dyes can be harmful to the environment and human health if released into water channels and aquifers (Khan et al., 2021; Haleem et al., 2023). Adsorption kinetics studies help to determine a suitable adsorbent material, predict the required contact time, and optimize the operating conditions to achieve efficient dye degradation (Ghaffar et al., 2023; Usman et al., 2023). The kinetics of dye degradation through adsorption involves understanding the rates at which dye molecules are adsorbed onto the adsorbent materials and can be described using various mathematical models, with the most commonly used types being the pseudo-first-order and pseudo-second-order kinetics (Borah et al., 2023; Jaramillo-Fierro et al., 2023; Singh et al., 2023; Usman et al., 2023).

The present study focuses on the photocatalytic degradation of two dyes, MB and MO, under ambient conditions via graphs plotted using the ratio of dye concentration C to initial dye concentration Co (C/Co) at various durations of exposure to sunlight.

The following kinetic equation was used to further analyze the results:

$\text{kt}=\ln \left(\text{Co}/\text{Ct}\right)\dots \dots \dots \dots \dots \dots .\left(\text{Pseudo\hspace{0.17em}}-\text{first}\hspace{0.17em}\text{order\hspace{0.17em}kinetics\hspace{0.17em}equation}\right),$

where Co and Ct are the dye concentrations before and after irradiation, k is the rate constant, and t is the reaction time consumed during photodegradation of the organic dye (Ebrahimian et al., 2021; Lanjwani et al., 2023).

The plots of ln(Co/C) against time (Figures 6A–D) allow visualization of how the concentrations of the MB and MO dyes change over time during the photodegradation process, and the photodegradation of both MB and MO is seen to follow a pseudo-first-order kinetic model (Asif et al., 2023). This means that the rates of degradation of MB and MO are directly proportional to the remaining concentrations of the dyes, and the natural logarithm of the ratio (Co/C_t) exhibits a linear relationship with time and is in line with the findings of other reports (Farouq, 2022; Singh et al., 2023).

Figure 6

Figure 6. Photodegradation curves of (A, B) MB and (C, D) MO dyes treated with the biofabricated Semal-ZnO NPs showing pseudo-first-order kinetics.

Adsorption mechanism

With respect to the common mechanisms of adsorption of charged molecules like dyes, the surface charges and porosities of the particles, functional groups present on the adsorbents, and types of adsorbate have significant impacts on the effectiveness of adsorption (Amdeha, 2023; Kumari et al., 2023). Cationic and anionic dyes have different charges and are thus attracted differentially to the charged surface of an adsorbent, which can lead to different interactions like electrostatic interactions and hydrogen bonding with the surface of the adsorbent (Tan et al., 2015; Chauhan et al., 2020; Nguyen-Hong et al., 2021). Cationic (positively charged) dyes may experience attractive electrostatic interactions with the negatively charged functional groups on the adsorbent surface (e.g., O-H groups); similarly, anionic (negatively charged) dyes may experience attractive electrostatic interactions and hydrogen bonding with the surface functional groups (Baek et al., 2022; Filice et al., 2022).

In the present work, cationic and anionic dyes were adsorbed differentially on the surface of the Semal-ZnO NPs. The presence of several functional groups like O-H, C=O=C, C=C, and C-H on the surface of the Semal-ZnO NPs, as revealed by FT-IR spectroscopy (Figure 1C), may have played a crucial role in the adsorption of these dyes. The aforementioned functional groups can interact with cationic and anionic dyes through various chemical interactions, such as electrostatic interactions and hydrogen bonding, either alone or in combination. Hence, differential adsorption of MB and MO on Semal-ZnO NPs would depend of different factors, such as the surface charge (point zero charge), different functional groups on the Semal-ZnO NP surfaces, chemical interactions, and nature of the dyes (cationic and anionic) themselves (Khan et al., 2021; Nguyen-Hong et al., 2021).

Furthermore, the Semal-ZnO NPs have a wide bandgap energy (3.11 eV), a high surface area, and crystallinity, which allows them to absorb solar light in the ultraviolet region. Given the narrow molecular sizes of the MB dye particles and the high surface area of Semal-ZnO NPs, there may be more active sites for the adsorption of MB dye molecules than MO. Hence, during adsorption under dark conditions, the dye molecules bind to more of the active sites present on the ZnO NPs. Then, when the ZnO NPs are exposed to solar light, electron–hole pairs are generated by the excitation of electrons from the valence to conduction bands. These photogenerated electron–hole pairs play a crucial role in the photocatalytic degradation process; the specific energy levels of the electrons and holes may also favor the degradation of MB over MO.

It is noted that several other factors, such as intraparticle diffusion, pore diffusion, and operating conditions (e.g., temperature and pH), may also influence the overall adsorption kinetics (Suhaimi et al., 2022; Amdeha, 2023; Gadore et al., 2023; Kanwal et al., 2023; Saharan et al., 2023); therefore, additional experiments may be needed to comprehensively characterize the adsorption kinetics of the degradations of both dyes.

Application to natural water systems

The efficiencies of the ZnO NPs against MB and MO were investigated in different water samples collected from various natural freshwater sources, namely, FS, PL, AD, BL, and TP, at different time intervals. These water samples were collected periodically from their sources and were pooled and stored separately for further analyses.

To demonstrate catalytic photodegradation, approximately 25 mg of the photocatalyst (Semal-ZnO NPs) was added to a dye solution containing 10 mg/L of MB and MO and different pooled water samples from the natural water sources. The effectiveness of the Semal-ZnO NPs in degrading the dyes was found to be dependent on the water source as well as specific type of dye used. For MB, the rate of photocatalytic degradation was observed to be highest with TP (98.4%) and lowest with PL (90.3%) samples over 90 min of light exposure (Figure 7A). It is worth noting that the rate of photodegradation of MB dye was 99% over 130 min of exposure to sunlight (Figure 4A). Contrarily, the rate of catalytic photodegradation of MO was highest with PL (63.2%) and lowest with TP (49.7%) samples over 90 min of light exposure (Figure 7B).

Figure 7

Figure 7. Degradations (%) of the (A) MB and (B) MO dyes in different water samples (FS, PL, AD, BL, and TP) from the Udaipur region using the biofabricated Semal-ZnO NPs.

The presence of competing cationic/anionic species, such as Na⁺, Ca⁺, Fe³⁺, K⁺, Cl⁻, NO₃⁻, SO₄^2–, and HCO₃⁻, as well as other chemicals in real water samples may account for the slightly higher and lower percentage degradations of MB and MO in different natural water samples (Khan et al., 2022; Ahmad et al., 2023; Gul et al., 2023). Moreover, the specific characteristics of the natural water sources, differential total dissolved solids (TDS), and pH may have influenced the rates of photocatalytic degradation of the cationic and anionic dyes (Fouda et al., 2021; Bhattacharjee et al., 2022; Kumari et al., 2023). The differential photodegradation rates of different dyes in different natural water sources may be correlated with the dissimilar nature and ionic states of the dyes. The rates of photocatalytic degradation in the different water samples used in this study were observed to be TP > BL ≥ FS > AD > PL for the cationic dye MB and PL > FS > AD > BL > TP for the anionic dye MO in the presence of Semal-ZnO NPs as the photocatalyst (Figures 7A,B). Thus, the phytofabricated Semal-ZnO NPs were highly effective and efficient for the degradation of the cationic dye MB in the present pilot experiment.

The present research demonstrates the potential of Semal-ZnO NPs for degrading dyes in natural water samples; however, various other factors, including the nature of the water, its source, and the properties of the dyes, may influence the degradation process significantly in real-world applications.

Conclusion

In this work, Semal-ZnO NPs were successfully prepared in an environmentally friendly, non-toxic, cost-effective, and sustainable manner using the aqueous leaf extract of B. ceiba as the reducing and capping agent as well as synthesis precursor. The formation of the Semal-ZnO NPs was confirmed through its UV-vis spectrum at approximately 390 nm and E_g value of 3.11 eV. The morphology and particle size of the Semal-ZnO NPs were evaluated by FT-IR spectroscopy, XRD, FE-SEM with EDS, and HR-TEM; the average grain size was found to be 17 nm. The photodegradation efficiencies of MB and MO dyes were observed to be 99% and 79%, respectively, under solar irradiation when employing the phytofabricated Semal-ZnO NPs as the catalyst. In summary, the results show that the phytofabricated Semal-ZnO NPs are far more effective photocatalysts for the breakdown of MB dye than MO dye in a variety of natural water samples under ambient conditions. To the best of the authors’ knowledge, this is a pioneering report on the utilization of the aqueous leaf extract of the Semal tree in the phytofabrication of Semal-ZnO NPs and their role in water purification. The Semal (B. ceiba) tree also offers a high-potential green route for producing Semal-ZnO NPs. This phytofabrication synthesis route using the Semal tree may also pave the path for biosyntheses of other metals, alloys, and their oxide NPs. The Semal-ZnO NPs are expected to have extensive use as powerful agents for environmental remediation and wastewater treatment as they can be robust nano-photocatalysts for the degradation of dyes and potentially other harmful substances in water bodies.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries may be directed to the corresponding author.

Author contributions

RL: conceptualization, data curation, formal analysis, investigation, methodology, validation, visualization, writing–original draft, writing–review and editing, and software. TG: formal analysis, investigation, visualization, and writing–review and editing. ND: writing–review and editing and methodology. NS: methodology, writing–review and editing, data curation, formal analysis, and writing–original draft. JY: data curation, writing–review and editing, investigation, validation, and visualization. AK: methodology and writing–review and editing. AJ: methodology and writing–review and editing. LA: writing–review and editing, conceptualization, data curation, formal analysis, validation, writing–original draft, and software. YS: conceptualization, data curation, formal analysis, writing–review and editing, and investigation. KS: conceptualization, data curation, formal analysis, writing–review and editing, investigation, methodology, resources, software, supervision, validation, visualization, and writing–original draft.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. The authors are grateful for the financial support from the UGCDAE Consortium for Scientific Research, University Grants Commission [No. 30-476/2019(BSR)], RUSA 2.0, Govt. of India and Govt. of Rajasthan, and the Council of Scientific and Industrial Research (CSIR), New Delhi, for the CSIR-SRF fellowship (No. 09/172(0091)/2019-EMR-I).

Acknowledgments

The authors sincerely thank SAIF at Panjab University for the FE-SEM, EDS, and HR-TEM analyses. The authors also wish to thank Prof. N. Laxmi (Department of Physics), Dr. P. S. Ranawat, and Dr. Prabhat Baroliya (Department of Chemistry) at the University College of Science, MLS University, Udaipur, Rajasthan, India, for the XRD and FT-IR analyses.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Abbreviations

ZnO NPs, zinc oxide nanoparticles; MB, methylene blue (cationic dye); MO, methyl orange (anionic dye); B. ceiba, Bombax ceiba Linn. (Semal); Zn(NO₃)∙6H₂O, zinc nitrate hexahydrate.

References

Aaga, G. F., and Anshebo, S. T. (2023). Green synthesis of highly efficient and stable copper oxide nanoparticles using an aqueous seed extract of Moringa stenopetala for sunlight-assisted catalytic degradation of Congo red and alizarin red s. Heliyon 9, e16067. doi:10.1016/j.heliyon.2023.e16067

PubMed Abstract | CrossRef Full Text | Google Scholar

Abdelbaky, A. S., Abd El-Mageed, T. A., Babalghith, A. O., Selim, S., and Mohamed, A. M. H. A. (2022). Green synthesis and characterization of ZnO nanoparticles using Pelargonium odoratissimum (L.) aqueous leaf extract and their antioxidant, antibacterial and anti-inflammatory activities. Antioxidants 11, 1444. doi:10.3390/antiox11081444

PubMed Abstract | CrossRef Full Text | Google Scholar

Abdullah, J. A. A., Rosado, M. J., Guerrero, A., and Romero, A. (2023). Eco-friendly synthesis of ZnO-nanoparticles using Phoenix dactylifera L., polyphenols: physicochemical, microstructural, and functional assessment. New J. Chem. 47, 4409–4417. doi:10.1039/d3nj00131h

CrossRef Full Text | Google Scholar

Ahmad, S., Almehmadi, M., Janjuhah, H. T., Kontakiotis, G., Abdulaziz, O., Saeed, K., et al. (2023). The effect of mineral ions present in tap water on photodegradation of organic pollutants: future perspectives. WaterSwitzerl. 15, 175. doi:10.3390/w15010175

CrossRef Full Text | Google Scholar

Ahmad, W., and Kalra, D. (2020). Green synthesis, characterization and anti-microbial activities of ZnO nanoparticles using Euphorbia hirta leaf extract. J. King Saud. Univ. Sci. 32, 2358–2364. doi:10.1016/j.jksus.2020.03.014

CrossRef Full Text | Google Scholar

Alamier, W. M., Oteef, M. D. Y., Bakry, A. M., Hasan, N., Ismail, K. S., and Awad, F. S. (2023). Green synthesis of silver nanoparticles using Acacia ehrenbergiana plant cortex extract for efficient removal of rhodamine B cationic dye from wastewater and the evaluation of antimicrobial activity. ACS Omega 8, 18901–18914. doi:10.1021/acsomega.3c01292

PubMed Abstract | CrossRef Full Text | Google Scholar

Al-Askar, A. A., Hashem, A. H., Elhussieny, N. I., and Saied, E. (2023). Green biosynthesis of Zinc oxide nanoparticles using Pluchea indica leaf extract: antimicrobial and photocatalytic activities. Molecules 28, 4679. doi:10.3390/molecules28124679

PubMed Abstract | CrossRef Full Text | Google Scholar

Albo Hay Allah, M. A., and Alshamsi, H. A. (2023). Facile green synthesis of ZnO/AC nanocomposites using Pontederia crassipes leaf extract and their photocatalytic properties based on visible light activation. J. Mater. Sci. Mater. Electron. 34, 1263. doi:10.1007/s10854-023-10636-y

CrossRef Full Text | Google Scholar

Aldeen, T. S., Ahmed Mohamed, H. E., and Maaza, M. (2022). ZnO nanoparticles prepared via a green synthesis approach: physical properties, photocatalytic and antibacterial activity. J. Phys. Chem. Solids 160, 110313. doi:10.1016/j.jpcs.2021.110313

CrossRef Full Text | Google Scholar

Alfei, S., Grasso, F., Orlandi, V., Russo, E., Boggia, R., and Zuccari, G. (2023). Cationic Polystyrene-based hydrogels as efficient adsorbents to remove methyl orange and fluorescein dye pollutants from industrial wastewater. Int. J. Mol. Sci. 24, 2948. doi:10.3390/ijms24032948

PubMed Abstract | CrossRef Full Text | Google Scholar

Alharthi, F. A., Alghamdi, A. A., Alothman, A. A., Almarhoon, Z. M., Alsulaiman, M. F., and Al-Zaqri, N. (2020). Green synthesis of ZnO nanostructures using Salvadora persica leaf extract: applications for photocatalytic degradation of methylene blue dye. Cryst. (Basel) 10, 441. doi:10.3390/cryst10060441

CrossRef Full Text | Google Scholar

Almarhoon, Z. M., Indumathi, T., and Kumar, E. R. (2022). Optimized green synthesis of ZnO nanoparticles: evaluation of structural, morphological, vibrational and optical properties. J. Mater. Sci. Mater. Electron. 33, 23659–23672. doi:10.1007/s10854-022-09125-5

CrossRef Full Text | Google Scholar

Alprol, A. E., Mansour, A. T., El-Beltagi, H. S., and Ashour, M. (2023). Algal extracts for green synthesis of zinc oxide nanoparticles: promising approach for algae bioremediation. Materials 16, 2819. doi:10.3390/ma16072819

PubMed Abstract | CrossRef Full Text | Google Scholar

Amdeha, E. (2023). Biochar-based nanocomposites for industrial wastewater treatment via adsorption and photocatalytic degradation and the parameters affecting these processes. Biomass Convers. Biorefin. doi:10.1007/s13399-023-04512-2

CrossRef Full Text | Google Scholar

Amdeha, E., and Mohamed, R. S. (2021). A green synthesized recyclable ZnO/MIL-101(Fe) for Rhodamine B dye removal via adsorption and photo-degradation under UV and visible light irradiation. Environ. Technol. (United Kingdom) 42, 842–859. doi:10.1080/09593330.2019.1647290

CrossRef Full Text | Google Scholar

Asif, N., Shehzadi, S., Fatima, S., and Fatma, T. (2023). Photocatalytic degradation of synthetic dyes using Cyanobacteria-derived Zinc oxide nanoparticles. Bionanoscience 13, 365–375. doi:10.1007/s12668-023-01096-z

CrossRef Full Text | Google Scholar

Aslam, A., Abid, M. Z., Rafiq, K., Rauf, A., and Hussain, E. (2023). Tunable sulphur doping on CuFe₂O₄ nanostructures for the selective elimination of organic dyes from water. Sci. Rep. 13, 6306. doi:10.1038/s41598-023-33185-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Baek, S., Ghaffari, Y., and Bae, J. (2022). Synthesis of Fe₂O₃/Mn₂O₃ nanocomposites and impregnated porous silicates for dye removal: insights into treatment mechanisms. Catalysts 12, 1045. doi:10.3390/catal12091045

CrossRef Full Text | Google Scholar

Baruah, R., Yadav, A., and Das, A. M. (2021). Livistona jekinsiana fabricated ZnO nanoparticles and their detrimental effect towards anthropogenic organic pollutants and human pathogenic bacteria. Spectrochim. Acta A Mol. Biomol. Spectrosc. 251, 119459. doi:10.1016/j.saa.2021.119459

PubMed Abstract | CrossRef Full Text | Google Scholar

Bhattacharjee, N., Som, I., Saha, R., and Mondal, S. (2022). A critical review on novel eco-friendly green approach to synthesize zinc oxide nanoparticles for photocatalytic degradation of water pollutants. Int. J. Environ. Anal. Chem. 104, 489–516. doi:10.1080/03067319.2021.2022130

CrossRef Full Text | Google Scholar

Borah, S. J., Gupta, A., Dubey, K. K., and Kumar, V. (2023). Fabrication of highly efficient encapsulated SnO2@Alginate beads as regenerative nanosorbents for anionic dye pollutants removal from aqueous solution. Mater Adv. 4, 5160–5174. doi:10.1039/D3MA00615H

CrossRef Full Text | Google Scholar

Chamaraja, N. A., Mahesh, B., and Rekha, N. D. (2023). Green synthesis of Zn/Cu oxide nanoparticles by Vernicia fordii seed extract: their photocatalytic activity toward industrial dye degradation and their biological activity. Inorg. Nano-Metal Chem. 53, 388–400. doi:10.1080/24701556.2022.2069123

CrossRef Full Text | Google Scholar

Chandrasekaran, S., Anbazhagan, V., and Anusuya, S. (2023). Green route synthesis of ZnO nanoparticles using Senna auriculata aqueous flower extract as reducing agent and evaluation of its antimicrobial, antidiabetic and cytotoxic activity. Appl. Biochem. Biotechnol. 195, 3840–3854. doi:10.1007/s12010-022-03900-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Chauhan, A. K., Kataria, N., and Garg, V. K. (2020). Green fabrication of ZnO nanoparticles using Eucalyptus spp. leaves extract and their application in wastewater remediation. Chemosphere 247, 125803. doi:10.1016/j.chemosphere.2019.125803

PubMed Abstract | CrossRef Full Text | Google Scholar

Chauhan, S., Sharma, A., Upadhyay, N. K., Singh, G., Lal, U. R., and Goyal, R. (2018). In-vitro osteoblast proliferation and in-vivo anti-osteoporotic activity of Bombax ceiba with quantification of Lupeol, gallic acid and β-sitosterol by HPTLC and HPLC. BMC Complement. Altern. Med. 18, 233. doi:10.1186/s12906-018-2299-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Chelliah, P., Wabaidur, S. M., Sharma, H. P., Jweeg, M. J., Majdi, H. S., Munthir Mohammed, M. M. R., et al. (2023). Green synthesis and characterizations of cobalt oxide nanoparticles and their coherent photocatalytic and antibacterial investigations. WaterSwitzerl. 15, 910. doi:10.3390/w15050910

CrossRef Full Text | Google Scholar

Ebrahimian, J., Mohsennia, M., and Khayatkashani, M. (2021). Catalytic and photocatalytic activity of Urtica dioica-mediated Ud-ZnO nanoparticles. Opt. Mater (Amst) 120, 111404. doi:10.1016/j.optmat.2021.111404

CrossRef Full Text | Google Scholar

Eissa, D., Hegab, R. H., Abou-Shady, A., and Kotp, Y. H. (2022). Green synthesis of ZnO, MgO and SiO₂ nanoparticles and its effect on irrigation water, soil properties, and Origanum majorana productivity. Sci. Rep. 12, 5780. doi:10.1038/s41598-022-09423-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Ekennia, A. C., Uduagwu, D. N., Nwaji, N. N., Oje, O. O., Emma-Uba, C. O., Mgbii, S. I., et al. (2021). Green synthesis of biogenic zinc oxide nanoflower as dual agent for photodegradation of an organic dye and tyrosinase inhibitor. J. Inorg. Organomet. Polym. Mater 31, 886–897. doi:10.1007/s10904-020-01729-w

CrossRef Full Text | Google Scholar

Elbrolesy, A., Abdou, Y., Elhussiny, F. A., and Morsy, R. (2023). Novel green synthesis of UV-sunscreen ZnO nanoparticles using Solanum lycopersicum fruit extract and evaluation of their antibacterial and anticancer activity. J. Inorg. Organomet. Polym. Mater 33, 3750–3759. doi:10.1007/s10904-023-02744-3

CrossRef Full Text | Google Scholar

El Sharkawy, H. M., Shawky, A. M., Elshypany, R., and Selim, H. (2023). Efficient photocatalytic degradation of organic pollutants over TiO₂ nanoparticles modified with nitrogen and MoS2 under visible light irradiation. Sci. Rep. 13, 8845. doi:10.1038/s41598-023-35265-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Farouq, R. (2022). Coupling adsorption-photocatalytic degradation of methylene blue and maxilon red. J. Fluoresc. 32, 1381–1388. doi:10.1007/s10895-022-02934-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Filice, S., Bongiorno, C., Libertino, S., Gradon, L., Iannazzo, D., and Scalese, S. (2022). Photo-fenton degradation of methyl orange with dunino halloysite as a source of iron. Catalysts 12, 257. doi:10.3390/catal12030257

CrossRef Full Text | Google Scholar

Fouda, A., Hassan, S. E. D., Saied, E., and Hamza, M. F. (2021). Photocatalytic degradation of real textile and tannery effluent using biosynthesized magnesium oxide nanoparticles (MgO-NPs), heavy metal adsorption, phytotoxicity, and antimicrobial activity. J. Environ. Chem. Eng. 9, 105346. doi:10.1016/j.jece.2021.105346

CrossRef Full Text | Google Scholar

Fouda, A., Saied, E., Eid, A. M., Kouadri, F., Alemam, A. M., Hamza, M. F., et al. (2023). Green synthesis of zinc oxide nanoparticles using an aqueous extract of Punica granatum for Antimicrobial and Catalytic Activity. J. Funct. Biomater. 14, 205. doi:10.3390/jfb14040205

PubMed Abstract | CrossRef Full Text | Google Scholar

Gadore, V., Mishra, S. R., and Ahmaruzzaman, M. (2023). Metal sulphides and their heterojunctions for photocatalytic degradation of organic dyes-A comprehensive review. Environ. Sci. Pollut. Res. 30, 90410–90457. doi:10.1007/s11356-023-28753-w

PubMed Abstract | CrossRef Full Text | Google Scholar

Geldasa, F. T., Kebede, M. A., Shura, M. W., and Hone, F. G. (2023). Experimental and computational study of metal oxide nanoparticles for the photocatalytic degradation of organic pollutants: a review. RSC Adv. 13, 18404–18442. doi:10.1039/d3ra01505j

PubMed Abstract | CrossRef Full Text | Google Scholar

Ghaffar, S., Abbas, A., Naeem-ul-Hassan, M., Assad, N., Sher, M., Ullah, S., et al. (2023). Improved photocatalytic and antioxidant activity of olive fruit extract-mediated ZnO Nanoparticles. Antioxidants 12, 1201. doi:10.3390/antiox12061201

PubMed Abstract | CrossRef Full Text | Google Scholar

Golmohammadi, M., Honarmand, M., and Ghanbari, S. (2020). A green approach to synthesis of ZnO nanoparticles using jujube fruit extract and their application in photocatalytic degradation of organic dyes. Spectrochim. Acta A Mol. Biomol. Spectrosc. 229, 117961. doi:10.1016/j.saa.2019.117961

PubMed Abstract | CrossRef Full Text | Google Scholar

Gul, T., Khan, I., Ahmad, B., Ahmad, S., Alsaiari, A. A., Almehmadi, M., et al. (2023). Efficient photodegradation of methyl red dye by kaolin clay supported zinc oxide nanoparticles with their antibacterial and antioxidant activities. Heliyon 9, e16738. doi:10.1016/j.heliyon.2023.e16738

PubMed Abstract | CrossRef Full Text | Google Scholar

Haleem, A., Shafiq, A., Chen, S. Q., and Nazar, M. (2023). A comprehensive review on adsorption, photocatalytic and chemical degradation of dyes and nitro-compounds over different kinds of porous and composite materials. Molecules 28, 1081. doi:10.3390/molecules28031081

PubMed Abstract | CrossRef Full Text | Google Scholar

Hussein, B. Y., and Mohammed, A. M. (2021). Green synthesis of ZnO nanoparticles in grape extract: their application as anti-cancer and anti-bacterial. Mater Today Proc. 42, A18–A26. doi:10.1016/j.matpr.2021.03.729

CrossRef Full Text | Google Scholar

Jaramillo-Fierro, X., Gaona, S., Ramón, J., and Valarezo, E. (2023). Porous Geopolymer/ZnTiO₃/TiO₂ composite for adsorption and photocatalytic degradation of methylene blue dye. Polym. (Basel) 15, 2697. doi:10.3390/polym15122697

CrossRef Full Text | Google Scholar

Kamaraj, C., Gandhi, P. R., Ragavendran, C., Sugumar, V., Kumar, R. C. S., Ranjith, R., et al. (2022). Sustainable development through the bio-fabrication of ecofriendly ZnO nanoparticles and its approaches to toxicology and environmental protection. Biomass Convers. Biorefin, 1–17. doi:10.1007/s13399-022-03445-6

CrossRef Full Text | Google Scholar

Kanwal, A., Shahzadi, T., Riaz, T., Zaib, M., Khan, S., Habila, M. A., et al. (2023). Photocatalytic degradation studies of organic dyes over novel Cu/Ni loaded reduced graphene oxide hybrid nanocomposite: adsorption, Kinetics and Thermodynamic Studies. Molecules 28, 6474. doi:10.3390/molecules28186474

PubMed Abstract | CrossRef Full Text | Google Scholar

Kaushik, R., Aggarwal, N., Panwar, R. S., and Kumar, N. (2023). Exploring heavy metal detection efficacy in industrial waste water using Ficus Benjamina leaf extract-mediated TiO2 nanoparticles. J. Mater. Sci. Mater. Electron. 34, 184. doi:10.1007/s10854-022-09634-3

CrossRef Full Text | Google Scholar

Khader, E. H., Khudhur, R. H., Abbood, N. S., and Albayati, T. M. (2023). Decolourisation of anionic azo dye in industrial wastewater using adsorption process: investigating operating parameters. Environ. Process. 10, 34. doi:10.1007/s40710-023-00646-7

CrossRef Full Text | Google Scholar

Khan, I., Saeed, K., Zekker, I., Zhang, B., Hendi, A. H., Ahmad, A., et al. (2022). Review on methylene blue: its properties, uses, toxicity and photodegradation. WaterSwitzerl. 14, 242. doi:10.3390/w14020242

CrossRef Full Text | Google Scholar

Khan, K. A., Shah, A., Nisar, J., Haleem, A., and Shah, I. (2023). Photocatalytic degradation of food and juices dyes via photocatalytic nanomaterials synthesized through green synthetic route: a systematic review. Molecules 28, 4600. doi:10.3390/molecules28124600

PubMed Abstract | CrossRef Full Text | Google Scholar

Khan, M., Ware, P., and Shimpi, N. (2021). Synthesis of ZnO nanoparticles using peels of Passiflora foetida and study of its activity as an efficient catalyst for the degradation of hazardous organic dye. SN Appl. Sci. 3, 528. doi:10.1007/s42452-021-04436-4

CrossRef Full Text | Google Scholar

Khurshid Alam, A. H. M., Sharmin, R., Islam, M., Hasan Joarder, Md. H., Alamgir, Md. M., and Mostofa, Md. G. (2018). Antidiabetic and hepatoprotective activities of Bombax ceiba young roots in alloxan-induced diabetic mice. J. Nutr. Health Food Sci. 6, 1–7. doi:10.15226/jnhfs.2018.001140

CrossRef Full Text | Google Scholar

Kumari, H., Sonia, S., Ranga, R., Chahal, S., Devi, S., Sharma, S., et al. (2023). A review on photocatalysis used for wastewater treatment: dye degradation. Water Air Soil Pollut. 234, 349. doi:10.1007/s11270-023-06359-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Lanjwani, M. F., Khuhawar, M. Y., Khuhawar, T. M. J., Lanjwani, A. H., Memon, S. Q., Soomro, W. A., et al. (2023). Photocatalytic degradation of Eriochrome black T dye by ZnO nanoparticles using multivariate factorial, kinetics and isotherm models. J. Clust. Sci. 34, 1121–1132. doi:10.1007/s10876-022-02293-8

CrossRef Full Text | Google Scholar

Lemessa, F., Simane, B., Seyoum, A., and Gebresenbet, G. (2023). Assessment of the impact of industrial wastewater on the water quality of rivers around the bole lemi industrial park (BLIP), Ethiopia. Sustain. Switz. 15, 4290. doi:10.3390/su15054290

CrossRef Full Text | Google Scholar

Mageswari, K., Prabukanthan, P., and Madhavan, J. (2023). Microwave-assisted synthesis of ZnO nanoparticles using different capping agents and their photocatalytic application. Environ. Sci. Pollut. Res. 30, 40174–40188. doi:10.1007/s11356-022-25097-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Malik, A. Q., Mir, T. ul G., Kumar, D., Mir, I. A., Rashid, A., Ayoub, M., et al. (2023). A review on the green synthesis of nanoparticles, their biological applications, and photocatalytic efficiency against environmental toxins. Environ. Sci. Pollut. Res. 30, 69796–69823. doi:10.1007/s11356-023-27437-9

CrossRef Full Text | Google Scholar

Manna, M., and Sen, S. (2023). Advanced oxidation process: a sustainable technology for treating refractory organic compounds present in industrial wastewater. Environ. Sci. Pollut. Res. 30, 25477–25505. doi:10.1007/s11356-022-19435-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Marimuthu, S., Antonisamy, A. J., Malayandi, S., Rajendran, K., Tsai, P. C., Pugazhendhi, A., et al. (2020). Silver nanoparticles in dye effluent treatment: a review on synthesis, treatment methods, mechanisms, photocatalytic degradation, toxic effects and mitigation of toxicity. J. Photochem Photobiol. B 205, 111823. doi:10.1016/j.jphotobiol.2020.111823

PubMed Abstract | CrossRef Full Text | Google Scholar

Masood, A., Iqbal, T., Ashraf, M., Nazir, A., Ali, F., Ranjha, Q. A., et al. (2023). Synthesis and characterization of Cadmium doped Zinc oxide nanoparticles for visible light driven catalytic removal of MB and RhB dye: experimental and computational analysis. J. Inorg. Organomet. Polym. Mater 33, 1841–1854. doi:10.1007/s10904-023-02618-8

CrossRef Full Text | Google Scholar

Meena, J., Pavithra, G., Anusha, D., Kumar, A. S., and Santhakumar, K. (2023). The green approach of ZnO NPs and its Antioxidant, hemolytic, and photocatalytic activity and functionalized r-GO-ZnO for energy storage application. J. Mater. Sci. Mater. Electron. 34, 1131. doi:10.1007/s10854-023-10373-2

CrossRef Full Text | Google Scholar

Mishra, D., Chitara, M. K., Negi, S., Pal Singh, J., Kumar, R., and Chaturvedi, P. (2023). Biosynthesis of Zinc oxide nanoparticles via leaf extracts of Catharanthus roseus (L.) G. don and their application in improving seed germination potential and seedling vigor of Eleusine coracana (L.) gaertn. Adv. Agric. 2023, 1–11. doi:10.1155/2023/7412714

CrossRef Full Text | Google Scholar

Motelica, L., Oprea, O. C., Vasile, B. S., Ficai, A., Ficai, D., Andronescu, E., et al. (2023). Antibacterial activity of solvothermal obtained ZnO nanoparticles with different morphology and photocatalytic activity against a dye mixture: methylene blue, rhodamine b and methyl orange. Int. J. Mol. Sci. 24, 5677. doi:10.3390/ijms24065677

PubMed Abstract | CrossRef Full Text | Google Scholar

Mutukwa, D., Taziwa, R. T., and Khotseng, L. (2022). Antibacterial and photodegradation of organic dyes using Lamiaceae-mediated ZnO nanoparticles: a review. Nanomaterials 12, 4469. doi:10.3390/nano12244469

PubMed Abstract | CrossRef Full Text | Google Scholar

Nagajyothi, P. C., Prabhakar Vattikuti, S. V., Devarayapalli, K. C., Yoo, K., Shim, J., and Sreekanth, T. V. M. (2020). Green synthesis: photocatalytic degradation of textile dyes using metal and metal oxide nanoparticles-latest trends and advancements. Crit. Rev. Environ. Sci. Technol. 50, 2617–2723. doi:10.1080/10643389.2019.1705103

CrossRef Full Text | Google Scholar

Nguyen-Hong, Y. X., Luu, T. V. H., and Doan, V. D. (2021). Green synthesis of Ce-doped ZnO nanoparticles using Hedyotis capitellata Leaf extract for efficient photocatalytic degradation of Methyl Orange. Vietnam J. Chem. 59, 648–659. doi:10.1002/vjch.202100031

CrossRef Full Text | Google Scholar

Nikita, S., and Shweta, S. (2020). Ethnomedicinal, phytoconstituents and phytopharmacology of Bombax ceiba L. A review. Int. J. Pharmacogn. 311 (IJP 7), 311–315. doi:10.13040/IJPSR.0975-8232.IJP.7(11).311-15

CrossRef Full Text | Google Scholar

Peng, X., Jiang, Y., Chen, Z., Osman, A. I., Farghali, M., Rooney, D. W., et al. (2023). Recycling municipal, agricultural and industrial waste into energy, fertilizers, food and construction materials, and economic feasibility: a review. Environ. Chem. Lett. 21, 765–801. doi:10.1007/s10311-022-01551-5

CrossRef Full Text | Google Scholar

Pillai, A. M., Sivasankarapillai, V. S., Rahdar, A., Joseph, J., Sadeghfar, F., Anuf A, R., et al. (2020). Green synthesis and characterization of zinc oxide nanoparticles with antibacterial and antifungal activity. J. Mol. Struct. 1211, 128107. doi:10.1016/j.molstruc.2020.128107

CrossRef Full Text | Google Scholar

Purkait, P., Bhattacharyya, A., Roy, S., Maitra, S., Das, G. C., and Ghosh Chaudhuri, M. (2023). Green synthesis of ZnO nanoparticle using Trema orientalis (L) leaf: an efficient photocatalyst for degradation of zoxamide fungicide in aqueous organic media under UV light irradiation. Int. J. Environ. Anal. Chem. 103, 307–325. doi:10.1080/03067319.2020.1857750

CrossRef Full Text | Google Scholar

Rambabu, K., Bharath, G., Banat, F., and Show, P. L. (2021). Green synthesis of zinc oxide nanoparticles using Phoenix dactylifera waste as bioreductant for effective dye degradation and antibacterial performance in wastewater treatment. J. Hazard Mater 402, 123560. doi:10.1016/j.jhazmat.2020.123560

PubMed Abstract | CrossRef Full Text | Google Scholar

Ramesh, S., Karthikeyan, C., Hajahameed, A. S., Afsar, N., Sivasamy, A., Lee, Y. J., et al. (2023). Nanorod-like structure of ZnO nanoparticles and Zn₈O₈ clusters using 4-Dimethylamino benzaldehyde liquid to study the physicochemical and antimicrobial properties of pathogenic bacteria. Nanomaterials 13, 166. doi:10.3390/nano13010166

CrossRef Full Text | Google Scholar

Saharan, P., Kumar, V., Kaushal, I., Mittal, A., Shukla, S. K., Kumar, D., et al. (2023). A comprehensive review on the metal-based green valorized nanocomposite for the remediation of emerging colored organic waste. Environ. Sci. Pollut. Res. 30, 45677–45700. doi:10.1007/s11356-023-25998-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Saif, S., Tahir, A., Asim, T., Chen, Y., Khan, M., and Adil, S. F. (2019). Green synthesis of ZnO hierarchical microstructures by Cordia myxa and their antibacterial activity. Saudi J. Biol. Sci. 26, 1364–1371. doi:10.1016/j.sjbs.2019.01.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Salmi, C., Souhaila, M., Salah Eddine, L., Mohammed, H. A. M., Hasan, G. G., and Mahboub, M. S. (2023). Biosynthesis of Mn₃O₄/PVP nanocomposite for enhanced photocatalytic degradation of organic dyes under sunlight irradiation. J. Clust. Sci. 35, 201–215. doi:10.1007/s10876-023-02475-y

CrossRef Full Text | Google Scholar

Sarkar, S., Ponce, N. T., Banerjee, A., Bandopadhyay, R., Rajendran, S., and Lichtfouse, E. (2020). Green polymeric nanomaterials for the photocatalytic degradation of dyes: a review. Environ. Chem. Lett. 18, 1569–1580. doi:10.1007/s10311-020-01021-w

PubMed Abstract | CrossRef Full Text | Google Scholar

Sharma, A., Sharma, S., Sharma, K., Chetri, S. P., Vashishtha, A., Singh, P., et al. (2016). Algae as crucial organisms in advancing nanotechnology: a systematic review. J. Appl. Phycol. 28, 1759–1774. doi:10.1007/s10811-015-0715-1

CrossRef Full Text | Google Scholar

Sharma, P., Urfan, M., Anand, R., Sangral, M., Hakla, H. R., Sharma, S., et al. (2022). Green synthesis of zinc oxide nanoparticles using Eucalyptus lanceolata leaf litter: characterization, antimicrobial and agricultural efficacy in maize. Physiol. Mol. Biol. Plants 28, 363–381. doi:10.1007/s12298-022-01136-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Shobha, B., Ashwini, B. S., Ghazwani, M., Hani, U., Atwah, B., Alhumaidi, M. S., et al. (2023). Trichoderma-Mediated ZnO nanoparticles and their antibiofilm and antibacterial activities. J. Fungi 9, 133. doi:10.3390/jof9020133

PubMed Abstract | CrossRef Full Text | Google Scholar

Shochah, Q. R., and Jabir, F. A. (2023). Green synthesis of Au/ZnO nanoparticles for anticancer activity and oxidative stress against MCF-7 cell lines. Biomass Convers. Biorefin. doi:10.1007/s13399-022-03697-2

CrossRef Full Text | Google Scholar

Shukla, R. K., Nandan, K., Shukla, A., and Kaur, A. (2020). Phytochemical analysis and nutritive value of Bombax ceiba Linn. (Petals). Plant Arch. (09725210) 20 (1).

Google Scholar

Singh, S., Atri, A. K., Qadir, I., Sharma, S., Manhas, U., and Singh, D. (2023). Role of different fuels and sintering temperatures in the structural, optical, magnetic, and photocatalytic properties of Chromium-containing Nickel ferrite: kinetic study of photocatalytic degradation of rhodamine B dye. ACS Omega 8, 6302–6317. doi:10.1021/acsomega.2c06249

PubMed Abstract | CrossRef Full Text | Google Scholar

Sreelekshmi, P. B., Pillai, R. R., Unnimaya, S., Anju, A. L., and Meera, A. P. (2023). Biofabrication of novel ZnO nanoparticles for efficient photodegradation of industrial dyes. Clean. Technol. Environ. Policy. doi:10.1007/s10098-023-02469-4

CrossRef Full Text | Google Scholar

Suhaimi, N. A. A., Kong, C. P. Y., Shahri, N. N. M., Nur, M., Hobley, J., and Usman, A. (2022). Dynamics of diffusion- and immobilization-limited photocatalytic degradation of dyes by metal oxide nanoparticles in binary or ternary solutions. Catalysts 12, 1254. doi:10.3390/catal12101254

CrossRef Full Text | Google Scholar

Supin, K. K., Parvathy Namboothiri, P. N., and Vasundhara, M. (2023). Enhanced photocatalytic activity in ZnO nanoparticles developed using novel Lepidagathis ananthapuramensis leaf extract. RSC Adv. 13, 1497–1515. doi:10.1039/d2ra06967a

PubMed Abstract | CrossRef Full Text | Google Scholar

Tan, K. B., Vakili, M., Horri, B. A., Poh, P. E., Abdullah, A. Z., and Salamatinia, B. (2015). Adsorption of dyes by nanomaterials: recent developments and adsorption mechanisms. Sep. Purif. Technol. 150, 229–242. doi:10.1016/j.seppur.2015.07.009

CrossRef Full Text | Google Scholar

Tauc, J., Grigorovici, R., and Vancu, A. (1966). Optical properties and electronic structure of amorphous germanium. Phys. status solidi (b) 15 (2), 627–637. doi:10.1002/pssb.19660150224

CrossRef Full Text | Google Scholar

Tejaswini, G., Lakshmi Kishore, P., Kiran Kumar, P., Lakshmi Rekha, B., and Bhagya Lakshmi, K. (2023). Bio designed ZnO nanoparticles with leaves of Elaeocarpus sylvestris and investigation of photocatalyst for dye degradation and antimicrobial applications. Arab. J. Sci. Eng. 49, 181–193. doi:10.1007/s13369-023-07944-0

CrossRef Full Text | Google Scholar

Usman, M., Taj, M. B., and Carabineiro, S. A. C. (2023). Gum-based nanocomposites for the removal of metals and dyes from waste water. Environ. Sci. Pollut. Res. 30, 102027–102046. doi:10.1007/s11356-023-29389-6

CrossRef Full Text | Google Scholar

Vievard, J., Alem, A., Pantet, A., Ahfir, N. D., Arellano-Sánchez, M. G., Devouge-Boyer, C., et al. (2023). Bio-based adsorption as ecofriendly method for wastewater decontamination: a review. Toxics 11, 404. doi:10.3390/toxics11050404

PubMed Abstract | CrossRef Full Text | Google Scholar

Vinayagam, R., Selvaraj, R., Arivalagan, P., and Varadavenkatesan, T. (2020). Synthesis, characterization and photocatalytic dye degradation capability of Calliandra haematocephala-mediated zinc oxide nanoflowers. J. Photochem Photobiol. B 203, 111760. doi:10.1016/j.jphotobiol.2019.111760

PubMed Abstract | CrossRef Full Text | Google Scholar

Warren-Vega, W. M., Campos-Rodríguez, A., Zárate-Guzmán, A. I., and Romero-Cano, L. A. (2023). A current review of water pollutants in american continent: trends and perspectives in detection, health risks, and treatment technologies. Int. J. Environ. Res. Public Health 20, 4499. doi:10.3390/ijerph20054499

PubMed Abstract | CrossRef Full Text | Google Scholar

Wongrerkdee, S., Wongrerkdee, S., Boonruang, C., and Sujinnapram, S. (2023). Enhanced photocatalytic degradation of methylene blue using Ti-Doped ZnO nanoparticles synthesized by rapid combustion. Toxics 11, 33. doi:10.3390/toxics11010033

CrossRef Full Text | Google Scholar

Xiao, J., Gao, D., Zhang, H., Shi, H., Chen, Q., Li, H., et al. (2023). Water quality assessment and pollution source apportionment using multivariate statistical techniques: a case study of the Laixi River Basin, China. Environ. Monit. Assess. 195, 287. doi:10.1007/s10661-022-10855-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Yadav, S., Shakya, K., Gupta, A., Singh, D., Chandran, A. R., Varayil Aanappalli, A., et al. (2023). A review on degradation of organic dyes by using metal oxide semiconductors. Environ. Sci. Pollut. Res. 30, 71912–71932. doi:10.1007/s11356-022-20818-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Yassin, A. Y., Abdelghany, A. M., Salama, R. S., and Tarabiah, A. E. (2023). Structural, optical and antibacterial activity studies on CMC/PVA blend filled with three different types of green synthesized ZnO nanoparticles. J. Inorg. Organomet. Polym. Mater 33, 1855–1867. doi:10.1007/s10904-023-02622-y

CrossRef Full Text | Google Scholar

Zewde, D., and Geremew, B. (2022). Biosynthesis of ZnO nanoparticles using Hagenia abyssinica leaf extracts; their photocatalytic and antibacterial activities. Environ. Pollut. Bioavailab. 34, 224–235. doi:10.1080/26395940.2022.2081261

CrossRef Full Text | Google Scholar
