High pressure study of sodium trihydride

Tomas MarqueoTomas Marqueño1Mikhail A. KuzovnikovMikhail A. Kuzovnikov1Israel OsmondIsrael Osmond1Phillip Dalladay-SimpsonPhillip Dalladay-Simpson2Andreas HermannAndreas Hermann1Ross T. Howie,Ross T. Howie1,2Miriam Pea-Alvarez
Miriam Peña-Alvarez1*
  • 1Centre for Science at Extreme Conditions (CSEC), The School of Physics and Astronomy, The University of Edinburgh, Edinburgh, United Kingdom
  • 2Center for High Pressure Science and Technology Advanced Research, Shanghai, China

The reactivity between NaH and H2 has been investigated through a series of high-temperature experiments up to pressures of 78 GPa in diamond anvil cells combined with first principles calculations. Powder X-ray diffraction measurements show that heating NaH in an excess of H2 to temperatures around 2000 K above 27 GPa yields sodium trihydride (NaH3), which adopts an orthorhombic structure (space group Cmcm). Raman spectroscopy measurements indicate that NaH3 hosts quasi-molecular hydrogen (H2δ) within a NaH lattice, with the H2δ stretching mode downshifted compared to pure H2ν ∼−120 cm−1 at 50 GPa). NaH3 is stable under room temperature compression to at least 78 GPa, and exhibits remarkable P-T stability, decomposing at pressures below 18 GPa. Contrary to previous experimental and theoretical studies, heating NaH (or NaH3) in excess H2 between 27 and 75 GPa does not promote further hydrogenation to form sodium polyhydrides other than NaH3.

1 Introduction

The synthesis of metallic alloys hosting hydrogen at high pressures has attracted significant interest, especially after the suggestion of their potential high-temperature superconductivity (Ashcroft, 2004). This was demonstrated by the pioneering work on LaH10 with a critical temperature (Tc) of Tc = 250 K at 170 GPa (Drozdov et al., 2019; Somayazulu et al., 2019). However, there are essential aspects of high pressure hydrides that must be understood in order to provide an efficient route towards desired target properties. The alkali metal lithium was one of the first systems studied as a promising hydrogen host for superconductivity (Zurek et al., 2009). However, experimentally these compounds have proven difficult to synthesize, with some spectroscopic evidence that LiH reacts with H2 and transforms into LiH2 and LiH6 above 130 GPa hosting molecular hydrogen, which would prevent any favorable electron phonon coupling (Howie et al., 2012; Pépin et al., 2015).

Subsequent first principles simulations predicted that all of the heavier alkali metals could form highly stoichiometric hydrides (Baettig and Zurek, 2011; Hooper and Zurek, 2012; Shamp et al., 2012; Hooper et al., 2013; Shipley et al., 2021). Some of them such as KHn with n > 1 could also form stable polyhydrides at pressures as low as 3 GPa (Hooper and Zurek, 2012). Despite these theoretical predictions, only the hydrides of lithium (Pépin et al., 2015) and sodium (Struzhkin et al., 2016) have been experimentally approached. This is due to the experimental difficulties arising from studying alkali elements, which instantly react with the oxygen and water present in the atmosphere. The high reactivity of the alkali metals is the cause why there are very few studies on their polyhydrides.

Structural searches suggest that alkali metal polyhydrides are some of the best candidates for high Tc superconductivity among all possible binary hydrides (Shipley et al., 2021), with high predicted Tc values at lower pressures than those required for previously observed superconducting rare earth hydrides. In particular, superconductivity is predicted in Na2H11 (Tc ∼ 150 K at 100 GPa) and in NaH6, where Tc predictions range from 180 to 260 K at 50 and 100 GPa respectively (Chen et al., 2021; Shipley et al., 2021). The Na-H system has previously been studied experimentally up to 50 GPa, forming NaH3 (Cmcm) and NaH7 (Cc) above 40 GPa and 2000 K Struzhkin et al. (2016). Analogous to the lithium polyhydrides, NaH3 and NaH7 have been described to host quasi-molecular hydrogen. Thus, the sodium-hydrogen system remains experimentally unexplored above 50 GPa.

In this work, we explore the reactivity of the NaH-H2 system up to pressures of 78 GPa and temperatures in excess of 2000 K using X-ray diffraction (XRD) and Raman spectroscopy diagnostics, combined with first principles calculations. Laser heating NaH in an excess H2 medium at pressures above 27 GPa yields Cmcm-NaH3, which remains the only product up to pressures of 78 GPa. The Raman spectrum of NaH3 is dominated by an intense mode (at 4120 cm−1) related to the intramolecular stretching modes of quasi-molecular H2δ units within the NaH3 structure. Relative to pure H2 (Sharma et al., 1980; Howie et al., 2013), this mode is at lower frequencies, and upshifts monotonically in frequency up to 75 GPa, indicating a shortening of the H-H bonds, with no evidence of change in its pressure-frequency dependence. NaH3 exhibits remarkable pressure-temperature stability, decomposing into hydrogen and sodium monohydride upon room temperature decompression below 18 GPa.

2 Experimental details

Diamond anvil cells were prepared with diamond culet sizes of 80–200 μm, with the sample chamber formed by pre-indentation and laser drilling of a Re gasket. Sodium monohydride (Sigma Aldrich, 95% dry) was loaded into the sample chambers in an inert argon atmosphere glove box to prevent the oxidation of NaH. This was loaded together with small grains of gold powder used as a pressure calibrant for XRD experiments (Fei et al., 2007). The DACs were subsequently loaded with research grade (99.9999%) hydrogen gas at 2000 bar. The samples were heated using a 1,064 nm YAG laser. A summary of the experiments performed with each sample is given in Supplementary Table S1 in the Supplementary Data.

The XRD measurements were performed at the Sector 13 (GSECARS) beamline at the Advanced Photon Source (ANL, United States) (Shen et al., 2005; Prakapenka et al., 2008) and the P02.2 Extreme Conditions Beamline at PETRA-III (DESY, Germany) (Liermann et al., 2015). The relevant details of the beamline regarding our experiments are summarized in Supplementary Table S2 (Supplementary Data). The integration of the XRD patterns was performed using DIOPTAS (Prescher and Prakapenka, 2015). The analysis and refinement of the obtained XRD patterns were carried out using the software packages PowderCell and GSAS-II (Kraus and Nolze, 1996; Toby and Von Dreele, 2013).

Raman measurements of the samples were acquired using a custom-built confocal microfocused Raman setup with 514.5 nm Ar-ion laser excitation source, equipped with a PyLoN:100 cryogenically cooled CCD camera (1,340 × 100 sensor). In order to measure Raman spectra in a wide range of frequencies, a grating of 300 lines/mm was used. Pressure was monitored in Raman measurements using the frequency of the vibron of excess H2 (Howie et al., 2013), and cross-checked with the frequency of the stressed Raman edge of diamond (Akahama and Kawamura, 2006).

3 Computational details

Total energy density functional theory calculations were performed with the VASP package, using plane wave basis sets in conjunction with projector augmented wave (PAW) atomic data sets (Kresse and Furthmüller, 1996; Kresse and Joubert, 1999). The plane wave energy cutoff was 800 eV, Brillouin zone sampling used regular grids with linear k-point densities of 40/Å−1, and ‘hard’ PAW datasets that consider the 1s1/2s22p63s1 states as valence electrons, and have cutoff radii 0.8/2.2 Bohrs for H/Na, respectively. The structures were fully optimized over a range of pressures between 10 and 90 GPa, and until all atomic force components were below 1 meV/Å. Electronic exchange-correlation effects were described within the generalized gradient approximation, using the Perdew–Burke–Ernzerhof (PBE) parameterization (Perdew et al., 1996) and, for comparison, the semi-empirical Grimme D3 dispersion correction (Grimme et al., 2011) as well as the nonlocal vdW-DF optB88-vdW functional (Klimeš et al., 2010) (Supplementary Data, Supplementary Figure S1). Phonon calculations were performed using the finite-displacement method in suitable supercells of all Na-H compounds considered here (see Supplementary Material for details, Supplementary Figure S2); they were set up and analyzed using the phonopy and phonopy-spectroscopy packages (Togo and Tanaka, 2015; Skelton et al., 2017). Reaction enthalpies between NaH, NaH6, H2 to form NaH3 are shown in Supplementary Figure S3 (Supplementary Data).

4 Results

4.1 X-ray diffraction experiments

At room pressure and temperature, sodium hydride (NaH-I) crystallizes in a fcc structure analogous to that of NaCl (rock salt), in which hydrogen atoms occupy octahedral interstitial sites (Shull et al., 1948). Above 30 GPa, NaH undergoes a phase transition from a fcc to a CsCl-type (simple cubic, NaH-II) structure (Duclos et al., 1987). Both NaH-I and II contain atomic hydrogen, which partially forms ionic bonds with sodium. The unit-cells of these NaH-I and II structures are shown in Figures 1A, B respectively.

FIGURE 1
www.frontiersin.org

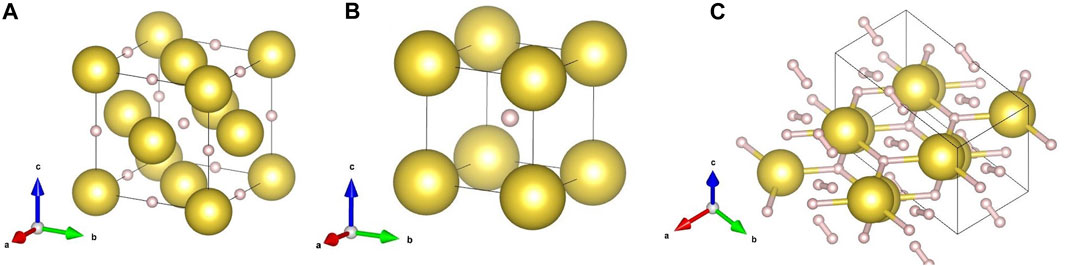

FIGURE 1. Relevant crystal structures of the Na-H system in our study: (A) NaH-I (Fm3̄m), (B) NaH-II (Pm3̄m) and (C) NaH3 (Cmcm). Yellow and white spheres represent Na and H atoms, respectively. The structures were taken from Shull et al. (1948), Duclos et al. (1987) and Struzhkin et al. (2016).

NaH in H2 was compressed to 50 GPa and we did not observe the formation of any higher hydride with a larger hydrogen content, as shown in the bottom panel of 2 a). Since there are likely to be energy barriers preventing the chemical reaction between NaH and H2, we laser heated our sample at 50 GPa until thermal emission was visible. The estimated maximum temperatures on the laser-heated surface range from 1,500 to 2100 K, according to the thermal emission of blackbody radiation from the sample. As shown in Figure 2A, the quenched sample is mainly composed of non-reacted NaH-I (fcc) and a second phase which we identify as Cmcm-NaH3. The unit-cell of NaH3 is shown in Figure 1C. NaH3 has a distorted hexagonal close-packed (hcp) lattice of sodium atoms. According to the DFT-based first principles predictions (Struzhkin et al., 2016), the hydrogen in NaH3 is present in the form of H anions with planar triangular coordination within the hcp planes of metal atoms, and H2δ quasi-molecular units filling the octahedral interstitial sites. At 49.5 GPa, the lattice parameters of NaH3 after the LeBail refinement are a = 3.218 Å, b = 6.251 Å and c = 4.027 Å (Vf.u. = 20.25 Å3). The evolution of the lattice parameters and unit-cell volume are in reasonably good agreement with the observations reported by Struzhkin et al. (2016) and our own DFT calculations (Figure 3). As further verification for the NaH3 stoichiometry, we estimate the minimum amount of hydrogen using the Le Châtelier principle regarding volume change:

VNaHnVNaH+n1V12H2(1)

in which we can use the volumes of NaH and H2 reported in the literature (Duclos et al., 1987; Loubeyre et al., 1996). The sum of the individual volumes per formula unit (f.u.) of NaH and H2 is displayed in Figure 3B for n = 1, 2 and 3 (Eq. 1). Experimental volumes are above and below the curves corresponding to n = 2 and 3, respectively. Thus, both XRD patterns and experimental volumes support the assignment to Cmcm-NaH3.

FIGURE 2
www.frontiersin.org

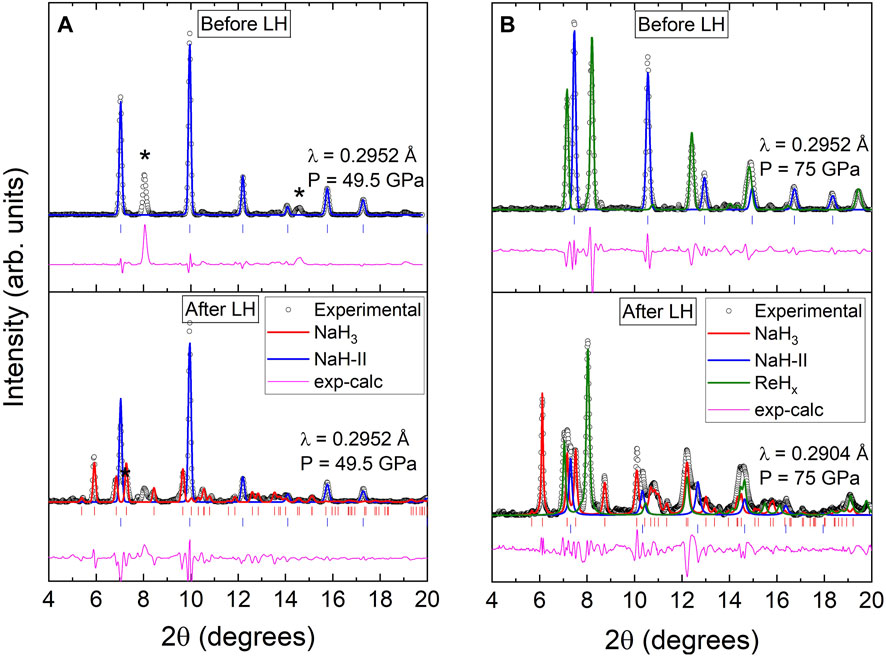

FIGURE 2. (A) & (B) Powder XRD pattern and LeBail refinements of two different samples before and after laser heating at 49.5 GPa and 75 GPa, respectively. Experimental data is represented by circles. The calculated contributions from NaH-II, Cmcm-NaH3 and hcp-ReHx phases are shown by the blue, red, and green curves, respectively. The reflections corresponding to NaH3 and NaH are indicated with red and blue ticks respectively. Asterisks in (A) indicate reflections associated with ReHx.

FIGURE 3
www.frontiersin.org

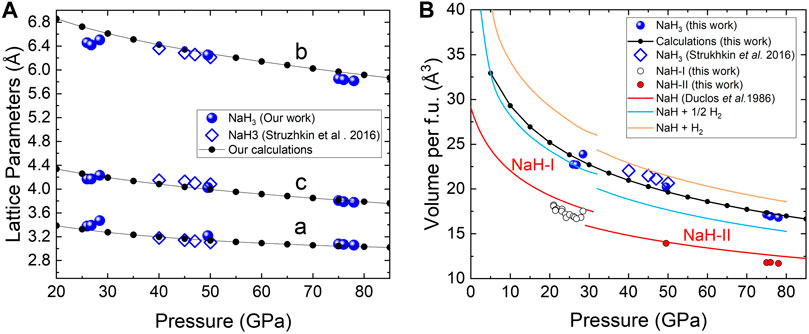

FIGURE 3. Pressure dependence of the (A) lattice parameters and (B) volume per formula unit of NaH3. The data obtained in our experiments is represented with blue spheres; small connected black dots stand for the results of our calculations. The data reported by Struzhkin et al. (2016) is depicted with diamonds. The red solid line stands for the volume-pressure curves of NaH (phases I and II) reported by Duclos et al. (1987). Blue and orange solid lines stand for the volume sums V(NaH) + 12V(H2) and V(NaH) + V(H2), respectively (Duclos et al., 1987; Loubeyre et al., 1996).

To investigate the stability range of NaH3, we heated subsequent samples below 50 GPa to temperatures in excess of 2000 K, where synthesis could be achieved as low as 30 GPa (see Supplementary Figure S4 in the Supplementary Data). Heating NaH + H2 at 75 GPa to similar temperatures converted a greater proportion of NaH to NaH3 than heating at either 27 GPa or 49.5 GPa. This could indicate greater stability and lower kinetic barriers to formation at higher pressure, but could also be due to differences in sample morphology. However, we did not observe any signatures of any other polyhydride compounds upon laser heating in the 30–75 GPa pressure range, with traces of the already reported NaH7 polyhydride (Struzhkin et al., 2016). These results agree with our theoretical predictions, which indicate that within the experimentally explored conditions NaH3 should form from NaH and H2, irrespective of exchange-correlation functional used (Supplementary Data, Supplementary Figures S1–S3). In the case of recently suggested NaH6 (Chen et al., 2021; Shipley et al., 2021), our calculations suggest that this polyhydride should react with NaH to form NaH3 at any pressure below 100 GPa (Supplementary Figure S3).

4.2 Raman scattering experiments

Prior to the heating of the sample, NaH-II exhibited no Raman activity, as it is shown in Supplementary Figure S6 (Supplementary Data) for a sample at 50 GPa. After laser heating, the Raman spectrum changes significantly, with intense activity attributed to the formation of NaH3. Figures 4A, B show the spectra of different samples of NaH3 at different pressures. The spectral distribution of the modes is in good agreement with our simulated Raman spectra for NaH3, which are shown in Figure 4C. Remarkably, the Raman signatures of NaH3 are experimentally observed down to 18 GPa upon decompression, with the absence of any Raman activity below this pressure suggesting that the decomposition products are NaH and H2.

FIGURE 4
www.frontiersin.org

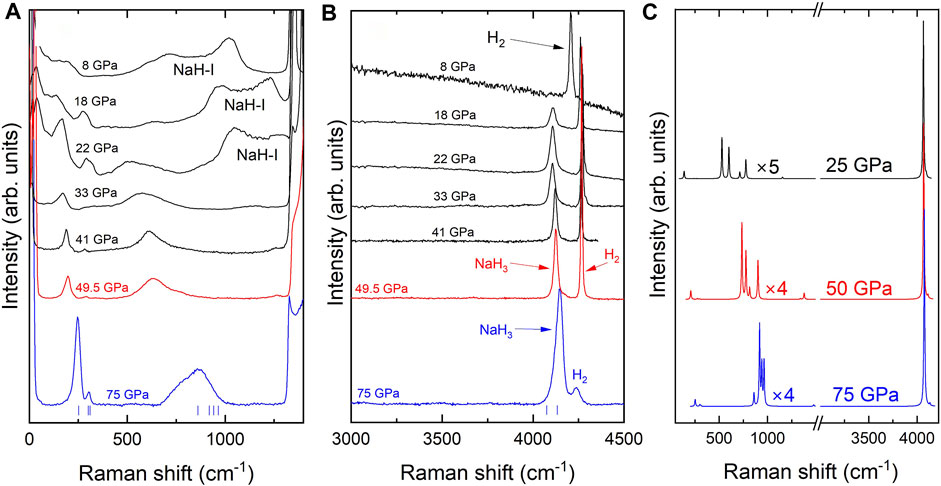

FIGURE 4. (A,B) Raman spectra of NaH3 samples. Blue and red solid lines correspond to NaH3 samples at 75 and 49.5 GPa, respectively, which were discussed in Figure 2. The black solid lines correspond to a different Raman experiment on NaH3 upon decompression from 41 to 8 GPa. Blue vertical ticks represent the simulated Raman frequencies of NaH3 at 75 GPa. (C) Simulated Raman spectra of NaH3 at 75, 50 and 25 GPa (blue, red and black lines, respectively). The peak intensities of the spectra below 1,500 cm−1 have been magnified by the indicated factors.

At frequencies below 1,200 cm−1, the Raman spectrum of NaH3 at 75 GPa is characterized by an intense, sharp mode at ∼ 250 cm−1, together with a lower intensity satellite mode at ∼ 300 cm−1 and a broad band at 800 cm−1. Our DFT calculations relate the first two bands to a Bg mode, and to the overlap of an Ag and B3g modes respectively. Both bands are then associated with Na and atomic H displacements in opposite directions coupled to one H2 libration. The broad band at ∼ 800 cm−1 can be ascribed to the overlap of four Raman modes: B3g, B1g, B2g and Ag. These modes involve both librational and translational vibrations of the quasi-molecular H2δ units, coupled with displacements of the atomic hydrogen, while the Na atoms remain almost stationary. On decompression, below 30 GPa, we observe the growth of wide contributions between 1,000 and 1,300 cm−1, Figure 4A. Our XRD results do not show any symmetry change due to possible structural transitions in NaH3, which remains Cmcm down to 18 GPa, Therefore, since these new bands appear after the transition from NaH-II (sc) to NaH-I (fcc), they could be related to second-order Raman modes of NaH-I, similar to those observed in isomorphic LiH (fcc), so we labelled them as “NaH-I”. (Ho et al., 1997; Howie et al., 2012).

At high frequency, the Raman spectrum of NaH3 is dominated by an intense mode at 4,145 cm−1 (at 75 GPa), which is directly related to the H-H stretching vibrations from quasi-molecular H2δ units in NaH3. In hydride systems containing H2 units, the surrounding metallic lattice and the resulting charge transfer leads to modified H-H bond lengths when compared to that of pure hydrogen, causing a frequency downshift in the H2δ vibron (Peña-Alvarez et al., 2022). In this frequency regime, two Raman modes are predicted to be present at similar frequencies, Ag and B3g. However the intensity of the B3g is expected to be significantly lower, i.e., I(B3g)/I(Ag) ∼ 1.2%, according to our calculations. The eigenmode of the Ag vibration is depicted in Figure 5A showing its correspondence to the H-H stretching mode.

FIGURE 5
www.frontiersin.org

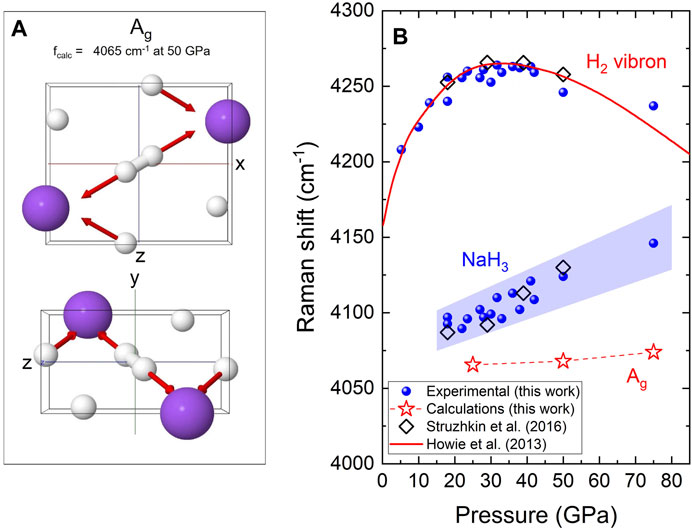

FIGURE 5. (A) Eigenmode corresponding to the H2δ vibron of NaH3 under different perspectives according to primitive unit-cell coordinates. Na and H atoms are represented by purple and white spheres, respectively. The red arrow represents the motion associated with each atom. The calculated frequency fcalc is 4,065 cm−1 at 50 GPa. (B) Pressure evolution of the vibron frequencies of H2 and NaH3. Our experimental data is represented with blue spheres, with the area shaded in blue depicting the FWHM of the peaks associated with NaH3. Calculated data is shown with connected stars. Dashed lines are for visual guidance. Diamonds represent the experimental data reported by Struzhkin et al. (2016). The pressure evolution of the pure H2 vibron reported by Howie et al. (2013) is shown as a solid red line.

Interestingly, some NaH samples exhibited an intense photoluminescence background signal after exposure to X-ray radiation and IR laser used for heating. This can be attributed to the formation of color centers, which have previously been observed in studies of pure NaH Duclos et al. (1987); Williams (1962) and reported for isoelectronic alkaline halides such as NaF (Bryukvina et al., 2014). Furthermore, whilst the samples undergo a visual color change, appearing orange after X-ray irradiation at 75 GPa (Supplementary Figure S5B [Supplementary Data]), XRD mapping of the samples showing this photoluminescence did not reveal the formation of any other product or phase transition.

Figure 5B presents the Raman shift as a function of pressure of the NaH3 H2δ vibron, from our experimental and theoretical results, together with that of pure H2 (Howie et al., 2013). Comparing the Raman spectra of NaH3 and H2, we observe that the quasi-molecular H2δ vibron is at lower frequencies than that of pure hydrogen. For instance, at 50 GPa in NaH3 the H2δ vibron is at 4,124 cm−1, whereas in pure H2 the vibron is at 4,246 cm−1ν = −122 cm−1). It is known that the compression of hydrogen leads to an initial upshift of its vibron, up to a maximum at 30–40 GPa, after which intermolecular interactions lead to a vibron downshift upon further compression (Sharma et al., 1980; Howie et al., 2012; Howie et al., 2013). In NaH3, however, the H2δ vibron monotonically upshifts upon compression, going from 4,092 cm−1 at 18 GPa to 4,146 cm−1 at 75 GPa. This indicates that, in contrast to pure H2, pressure does not favor the lengthening of the H-H bond in NaH3, which is responsible for the eventual vibron downshift in pure hydrogen.

Similar behavior is also observed in previous measurements on the lithium-hydride system. IR absorption measurements show that while the vibron of pure H2 is located at around 4,450 cm−1 at 240 GPa (Zha et al., 2013), the vibrons of LiH2 and LiH6 are around 3900 cm−1 and 2,600 cm−1 at 160 GPa, respectively (Pépin et al., 2015). Like NaH3, these vibrons in LiH2 and LiH6 display a positive frequency shift with pressure. For instance, in LiH2 the vibron upshifts from 3900 at 160 GPa to 4,250 cm−1 at 220 GPa. These results contrast with the experimental observations on alkaline earth tetrahydrides (MH4 with M = Ca, Sr, Ba) which also contain quasi-molecular hydrogen (Peña-Alvarez et al., 2022). In these tetrahydrides, the frequency of the H2δ vibron downshifts upon compression, which is directly related to a progressive elongation of the intramolecular bond.

The pressure induced H-H lengthening in binary hydrides has been suggested to be directly related to the charge transfer from the host element to the H2δ unit, populating the σ* orbitals (Wang et al., 2012; Bi and Zurek, 2021). This would lead to an increase in the repulsion of the anti-bonding orbitals and the subsequent weakening of the bond. However, more recent studies have shown that the stretching of the H-H bond under compression results from a combination of charge transfer and the confinement of the molecule to small interstitial locations (Peña-Alvarez et al., 2022).

According to our calculations, shown in Table 1, the charge of the Na cation goes from +0.7842 at 25 GPa to +0.7490 at 75 GPa. Similarly, the charge of the H anions goes from −0.6690 to −0.6274 at 25 and 75 GPa, respectively. Thus, most of the charge is transferred from sodium to the monoatomic hydrogen, while there is some charge on the H2δ quasi-molecular units, which remains almost constant over this pressure range (δ ∼ 0.12). With very little charge transfer into the H2δ units, there is no substantial increase in the occupation of the antibonding states of the H2δ units, which is compatible with the shortening of the H-H quasi-molecular bond upon compression. Factors such as the relative arrangement of the elements within the crystal structure and the size of the cation are also expected to play an important role in the observed pressure dependence (Peña-Alvarez et al., 2022). For example, in NaH3, the H2δ units are located between hexagonal layers of Na-H, whereas in alkali-earth tetrahydrides H2δ units occupy the interstitial positions of 3D-compact network structures (Peña-Alvarez et al., 2022). Therefore, our observations on the quasi-molecular Raman vibron of NaH3 can be justified by 1) the constant charge of the H2δ units and 2) the location of the H2δ units between Na-H layers.

TABLE 1
www.frontiersin.org

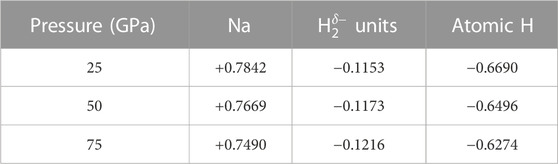

TABLE 1. Calculated average charges for sodium, quasi-molecular and atomic hydrogen inside of the Cmcm-NaH3 structure at different pressures.

The results presented here show that the previous study on the Na-H misinterpreted their Raman spectra by attributing the characteristic Ag mode of Cmcm-NaH3 to Cc-NaH7 (Struzhkin et al., 2016). Furthermore, the Raman modes assigned to NaH3 by Struzhkin et al. (2016) can be explained by the formation of CH4-H2 compounds from the high temperature reaction between the diamond anvil and the H2 medium (Peña-Alvarez et al., 2021; Ranieri et al., 2022). Our XRD and Raman results provide no evidence for the existence of Cc-NaH7 in the 25–75 GPa pressure range, which is within the synthesis conditions previously reported. We can as well rule out the formation of any of the predicted sodium polyhydrides (Baettig and Zurek, 2011; Chen et al., 2021; Shipley et al., 2021), to at least 78 GPa.

5 Conclusion

We have synthesized NaH3 from NaH and H2 at the high hydrogen pressures of ∼ 30, 40, 50 and 75 GPa and temperatures of 2000 K using laser heating. XRD measurements at 27, 49.5 and 75 GPa show that the crystal structure of the metal sublattice of NaH3 is compatible with the orthorhombic space group Cmcm. The Na volume expansion corresponds to a NaH3 stoichiometry. The unit-cell lattice parameters and unit-cell volume experimental points as a function of pressure are in good agreement with our DFT calculations for NaH3 and the previously reported data below 50 GPa (Struzhkin et al., 2016). Different and independent samples of NaH3 at 75 and 50 GPa were measured by Raman spectroscopy. Further Raman experiments were performed on an additional sample to characterize NaH3 upon decompression from 41 to 8 GPa. The NaH3 Raman spectrum is characterized by a phonon near 4,125 cm−1 (50 GPa), assigned to the stretching vibration of quasi-molecular H2δ units trapped inside of the structure, visible at lower frequencies than that of pure H2. In contrast to pure H2, the stretching mode from H2δ units in NaH3 upshifts during compression, indicating that chemical pre-compression is not favored. Despite several experimental attempts, we were unable to identify any sodium polyhydride with a hydrogen content higher than NaH3, suggesting that NaH3 may be the only stable hydride below 78 GPa.
