Shahram Heidari
Ali Zarnegaryan
Zahra Dehbanipour- Department of Chemistry, Yasouj University, Yasouj, Iran
This paper focused on the synthesis of phenylthiocarbamide-grafted graphene oxide (GO)-supported Cu complex (Cu-PTC@GO) as a highly efficient and recyclable catalyst synthesis by various analytical techniques such as TG, FT-IR, XRD, BET, N2 adsorption–desorption isotherms, SEM, EDX, and elemental mapping analysis. Cu-PTC@GO showed outstanding results in preparing various imidazoles with higher yields, reduced reaction time, ease of product separation, and a simple procedure. In addition, the catalyst demonstrated appreciable recyclability up to five successive runs, and there was no substantial loss in catalytic performance. The result indicated that the heterogeneous base GO catalyst performed high activity and excellent recyclability in synthesizing various imidazoles and their derivatives, owing to the unique state of the GO-supported copper complex.
1 Introduction
Benzimidazoles are some of the most effective heterocyclic organic compounds used as valuable intermediates in organic synthesis (Tejada-Casado et al., 2016; Li et al., 2020; Duan et al., 2020). Benzimidazole derivatives were synthesized from the condensation of aldehydes and 1,2-phenylenediamine with aromatic aldehydes under oxidative or strongly acidic conditions (Hisano et al., 1982; Czarny et al., 1996; Bello et al., 2019; Li et al., 2020). To date, various heterogeneous catalysts have been reported for benzimidazole design by utilizing the oxidative cyclization pathway (Hisano and Nanda, 2018; Marzouk et al., 2018; Shi et al., 2018; Fang et al., 2019). The heterogenization synthetic process is carried out by attaching the desired newly homogeneous catalyst to proper support via the non-covalent or covalent interactions (Lopez and Liu, 2020). Many efforts have been made on the heterogenization of copper catalysts on the surface of different supports, including mesoporous materials (Costa et al., 2021), functionalized polymers (Chaudhary and Sharma, 2021), resins (Xiong et al., 2021), carbon nanotubes (Şen and Gokagac, 2007; Mohd Nurazzi et al., 2021), and silica (Farhadian et al., 2021). However, few works have reported on using graphene oxide (GO) as support for the attachment of this type of catalyst and its catalytic performance (Maleki et al., 2021; Rezaei-Seresht et al., 2021; Boroumand et al., 2022; Laffafchi et al., 2022). Compared with different supports, GO is an appealing two-dimensional carbon-based material with attractive properties like mechanical stability and excellent thermal stability (Khojastehnezhad et al.,2019; Lee et al., 2021). GO possesses a unique nanostructure (just a few stacked layers or a monolayer), thermal stability, a large specific surface area, and great oxygen-carrying functionalities (Gilliland et al., 2018; Chakraborty et al., 2019). A new type of carbon nanomaterial, including a monolayer of sp2 carbon atoms, GO sheets are prominent due to their unique chemical properties. GO has a vast domain of applications, such as photocatalysts, catalysts, sensors, supercapacitors, wastewater treatment, energy storage, hydrogen storage, biomedical devices, and drug delivery (Daşdelen et al., 2017; Rana et al., 2019; Zarnegaryan et al., 2019; Deng et al., 2021; Kargar et al., 2021; Niakan and Masteri-Farahani, 2021; Rana et al., 2021; Xu et al., 2021; Zarnegaryan and Dehbanipour, 2021).
We report herein the synthesis of a new nanocatalyst Cu-PTC@GO, where copper complexes are immobilized on a GO support (Scheme 1). The catalytic potential of the new nanocatalyst is also demonstrated, for the first time, in the synthesis of a series of pharmaceutically important benzimidazoles from aldehydes and 1,2-diaminobenzenes, under the optimized reaction conditions.

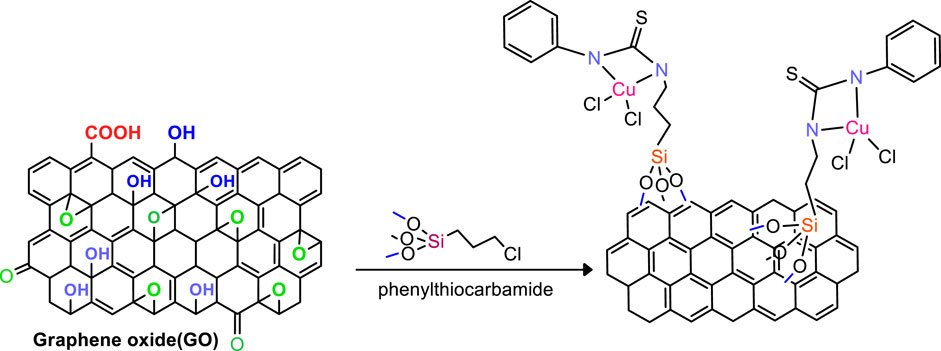

SCHEME 1. Schematic diagram of the preparation of the Cu-PTC@GO nanocatalyst.
2 Experiments
2.1 Synthesis of GO-Cl
GO was prepared by a suitable modification reported by Hummers and Offerman. (1958). The chloro-functionalized GO was prepared by a slightly modified procedure (Zhang et al., 2014). In the first step, 1.0 g GO was entirely dispersed in toluene (18 mL) at 60°C. Then, (3-chloropropyl)triethoxysilane (0.5 g) was slowly added to a solution and stirred for 24 h under reflux. The GO-Cl obtained was washed with ethanol and dried under a vacuum.
2.2 Synthesis of PTC@GO
To immobilize a phenylthiocarbamide (PTC) ligand on GO-Cl, in a stirred solution GO-Cl (2.50 g) in CH3CN solvent (18 mL) at 80°C, a solution of a phenylthiocarbamide ligand (1.5 g) in ethanol (15 mL) was added dropwise. The reaction was stirred at 75°C for 24 h. Finally, the material was washed with ethanol four times and dried at 50°C overnight.
2.3 Synthesis of Cu-PTC@GO
To immobilize Cu metal on (PTC)@GO, a stirred solution (PTC)@GO (0.20 g) in ethanol solvent (10 mL) at 80°C, a solution of CuCl2 (0.1 g) in EtOH (8 mL) was added dropwise. The reaction mixture was stirred at reflux for 24 h. The nanocatalyst was then isolated by vacuum filtration. Finally, the material was washed with ethanol four times and dried at 40°C overnight. The ICP demonstrates loading of 0.52 mmol g−1 Cu for Cu-PTC@GO.
2.4 Catalytic tests
The general procedure for preparation of imidazoles: a mixture of aldehyde (1 mmol), phenylenediamine (1 mmol), and Cu-PTC@GO (12 mg containing 0.0062 mmol Cu(II)) in CH3CN (12 mL) was heated to 80°C. The reaction progress was monitored by thin-layer chromatography (TLC) using a mixture of ethyl acetate and hexane (1:2). During workup, the nanocatalyst was separated by filtration, and 5 mL of H2O and 5 mL of CH2Cl2 were added.
3 Results and discussion
In this paper, a copper phenylthiocarbamide complex was covalently grafted onto chloro-functionalized GO sheets. The FT-IR spectra of the synthesized GO, GO@ Cl, and Cu-PTC@GO catalyst are shown in Figure 1. The spectrum of GO (Figure 1A) demonstrates characteristic bands at 3382, 1717, 1621, 1223, and 1059 cm–1 (Figure 1A), corresponding to the presence of hydroxyl groups (O–H, H2O, and COOH), edge carbonyls C=O), sp2-hybridized aromatic compounds in a plane (C=C), and bonds of epoxides (COC and C–O), respectively (Jing et al., 2015; Ramezanzadeh et al., 2015). This issue indicates that a partial reduction process occurred by the oxidation of graphite, thus the GO fabrication. The peaks at 2839 and 2936 cm–1 are assigned to the vibrations of the C–H bonds of the -CH2 and the C–N stretching vibration (1223 cm–1) (Figure 1B). In addition, the observation of vibration bands 1066 and 3418 cm–1, assigned to Si–O–Si, and O–H vibration, respectively. The vibration band of Cu–N and Cu–S appeared at 654 and 540 cm–1 in the spectrum of the catalyst (Figure 1C) (Khojastehnezhad et al., 2019).

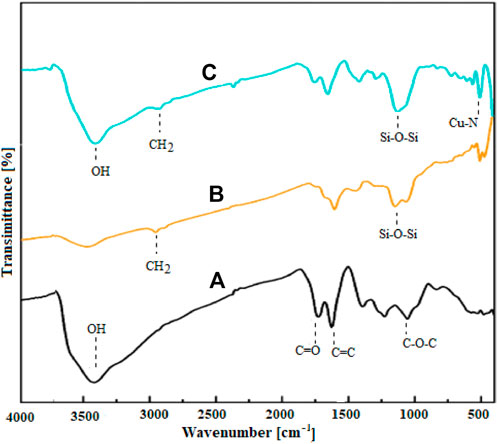

FIGURE 1. FT-IR spectra of (A) GO, (B) GO-Cl, and (C) Cu-PTC@GO.
SEM studied the surface characteristics and morphology of the synthesized GO and Cu-PTC@GO nanocatalyst; the results are illustrated in Figure 2. As shown in Figure 2A, there are large flakes of GO with macroscopic wrinkling. Compared to the GO sheets, the FE-SEM image of Cu-PTC@GO (Figure 2B) exhibited that the nanocatalyst roughly comprises a wrinkled layered structure.
FIGURE 2. FE-SEM image of (A) GO and (B) Cu-PTC@GO.
Figure 3 shows the corresponding EDX spectrum of Cu-PTC@GO (Figure 3). The presence of Cu, O, Si, Cl, S, and N in the texture of Cu-PTC@GO was confirmed by the EDX spectrum.

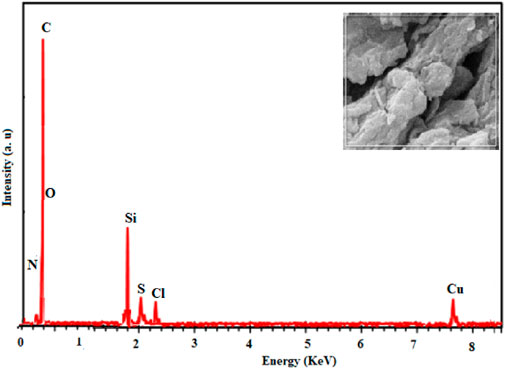

FIGURE 3. EDX analysis of Cu-PTC@GO.
Figure 4 represents the element mapping images of the Cu-PTC@GO catalyst surface, with different colors indicating the presence of various elements after supporting Cu (PTC) onto surface GO.

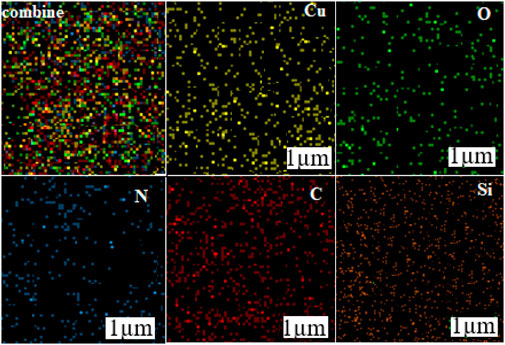

FIGURE 4. SEM-EDX element mapping of Cu-PTC@GO.
Figure 5 represents the thermal gravimetric analysis (TGA) of the GO and Cu-PTC@GO nanocatalyst. The TGA analysis was performed using the heating rate of 10°C min−1 from 25°C to 600°C in an argon flow at a rate of 100 mL min−1. The weight loss (Figures 5A, B) for GO and Cu-PTC@GO below 140°C is assigned to decomposing oxygen-carrying functionalities and evaporation adsorbed water (Li et al., 2014a; Du et al., 2018). As the temperature increased, the disintegration of GO appeared from 150°C to 350°C, resulting from the pyrolysis of the oxygen involving functions such as epoxy, carboxyl, and hydroxyl groups (Zhang et al., 2009; Wu et al., 2012). The other two weight loss processes (Figure 5B) observed in the temperature at around 230°C–384°C and 385°C–490°C are mainly related to the degradation of the grafted urethane chains, respectively (Kumar et al., 2019).

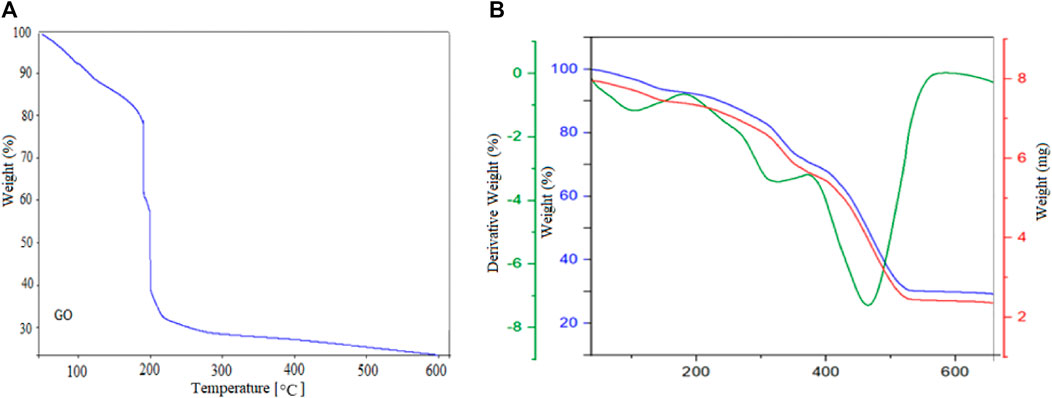

FIGURE 5. TGA curves of (A) GO and (B) Cu-PTC@GO.
N2 physisorption experiment results of GO and the Cu-PTC@GO nanocatalyst are shown in Figure 6. The specific surface area of GO before modification was 84.73 m2g−1, and the average pore diameter was 26.53 nm.

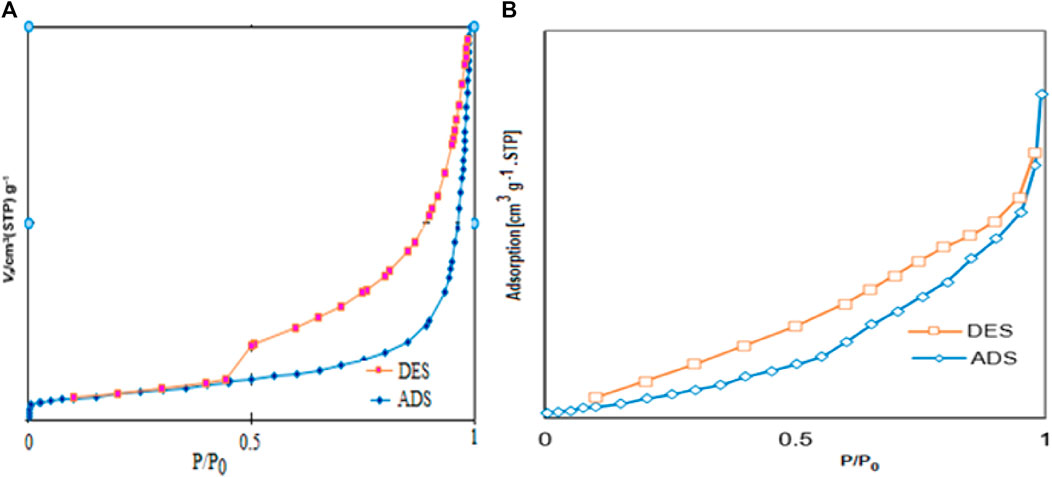

FIGURE 6. Nitrogen adsorption–desorption isotherms of (A) GO and (B) Cu-PTC@GO.
The isotherms of the Cu-PTC@GO nanocatalyst match well with the type V BET catalysts with hysteresis loops in the relative pressure range of 0.2–1.0. The surface area was 28.4 m2 g−1 for the Cu-PTC@GO nanocatalyst.
X-ray diffraction (XRD) patterns of GO and Cu-PTC@GO are exhibited in Figure 7. In the primary GO (Figure 7A), the peak at 2θ = 11.1° belongs to the (001) reflection of graphene oxide (Li et al., 2014b; Zhang, et al., 2009). In contrast, the XRD powder patterns of Cu-PTC@GO (Figure 7B) do not present a peak characteristic of GO, while a broad band centered at ca. 2θ = 30.58° is observed. However, for Cu-PTC@GO, the peaks shifted to lower angles, owing to the support of the copper complex and increasing the spacing between the nanosheets.

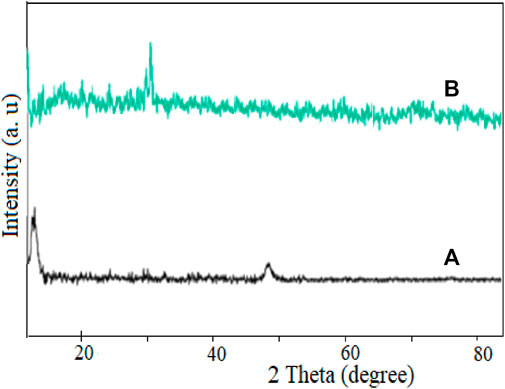

FIGURE 7. XRD patterns of (A) GO and (B) Cu-PTC@GO.
3.1 Catalytic tests of Cu-PTC@GO
To investigate the catalytic activity of the synthesized Cu-PTC@GO catalyst, after wide characterization by different techniques, it was evaluated as a catalyst for the fabrication of imidazole. Afterward, various factors were investigated to achieve the standard condition for this reaction. The catalytic activity was explored with phenylenediamine (1 mmol), benzaldehyde (1 mmol), and Cu-PTC@GO (12 mg) in CH3CN as the solvent under reaction conditions (Table 1). Regarding the solvent effect, the model reaction employed various solvents, ethanol, toluene, acetonitrile, methanol, tetrahydrofuran, n-hexane, and dichloromethane ethyl acetate, and solvent-free condition with Cu-PTC@GO (12 mg) (entries 1–8). Among different solvents, CH3CN solvent gave the highest yield. We have tested the effect of a catalyst using CuCl2.2H2O, PTC@GO, and Cu-PTC@GO (Table 1, entries 8–10).
TABLE 1. Optimization of reaction condition.
The results showed that the Cu-PTC@GO nanocatalyst furnished a 98% yield after 2 h. The nanocatalyst loading of Cu-PTC@GO (entries 11 and 12) was also analyzed. Interestingly, the catalytic activities of Cu-PTC@GO were found to be maximum at 12 mg of the nanocatalyst at 80°C. Furthermore, the temperature was evaluated and the model reaction was carried out at 40°C–85°C (entries 13–15). The yield remained constant when the temperature decreased below 80°C (entries 13 and 14) and increased above 80°C (entry 15).
With the stipulated optimized reaction conditions, the substrate scope for the catalyst is explored for the diverse range of several aromatic and aliphatic aldehydes with phenylenediamine (Table 2). Aliphatic aldehydes took a longer reaction time and provided moderate yields compared to aromatic aldehydes. The aromatic aldehydes produced the corresponding products in better yields than the aliphatic aldehydes. Aromatic aldehydes involving the electron-donating group yielded better than the electron-withdrawing group.

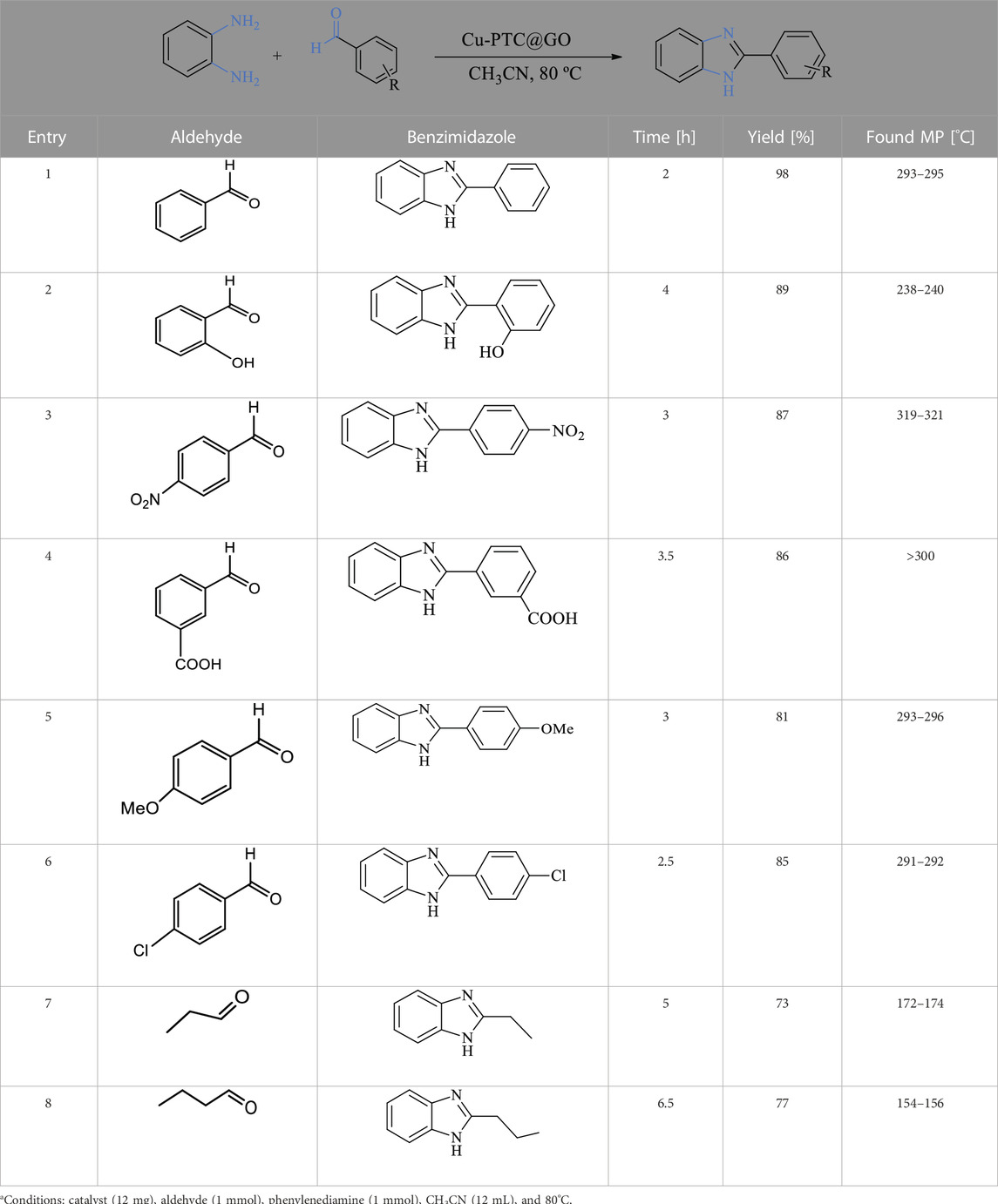

TABLE 2. Investigation of the substrate scope.a
3.2 Catalyst reusability and stability
The reusability of a nanocatalyst is important from economic and environmental points of view. Therefore, the reusability and recyclability of Cu-PTC@GO were investigated for synthesizing benzimidazoles under optimized conditions (CH3CN = 12 mL, T = 80°C, catalyst = 0.05 mol%, benzaldehyde = 1 mmol, and phenylenediamine = 1 mmol). Subsequently, after each run, the nanocatalyst was recovered by centrifugation, washed with CH3CN, and dried at 60°C. The recovered nanocatalyst was utilized in another experiment to estimate its reusability. As shown in Figure 8, no noticeable change in the catalytic activity of Cu-PTC@GO was observed even after five cycles. The leach metal in the filtrate was determined by ICP analysis and found to be 0.14 ppm Cu.

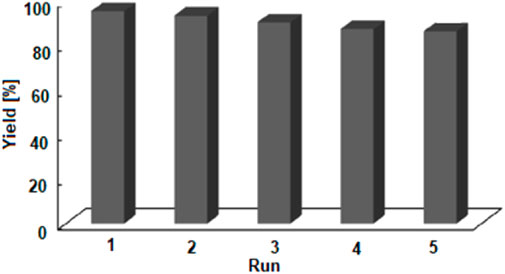

FIGURE 8. Recycling experiments of Cu-PTC@GO.
3.3 Hot filtration test
To investigate the heterogeneous nature of the catalyst, a hot filtration test was conducted for benzimidazoles under the optimized reaction conditions in the presence of a heterogeneous catalyst (Figure 9). After 1 h, the reaction was paused and the catalyst was separated through filtration from the reaction mixture under hot conditions, which resulted in a 65% yield of the product. The filtrate was again transferred into a reaction flask and heated at 80°C for 3 h. No enhancement in the yield of the product could be obtained after the removal of the catalyst from the reaction mixture, which confirmed the heterogeneous nature of the catalyst. The results obtained from ICP showed that no significant amounts of Cu are leached during the reaction.

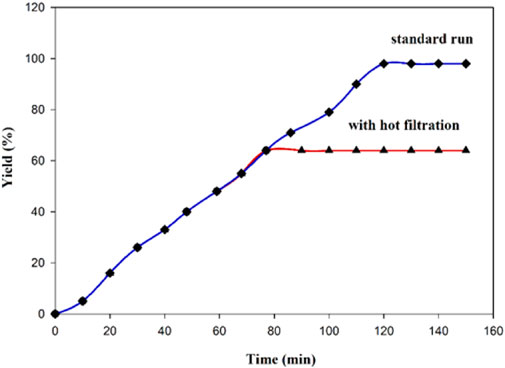

FIGURE 9. Hot filtration test of benzimidazoles.
The results obtained for the preparation of imidazole were compared with the previously reported procedures to show the performance of the Cu-PTC@GO catalyst (Table 3). As a result, it showed that this Cu-PTC@GO catalyst has better activity in reaction time and product yield.

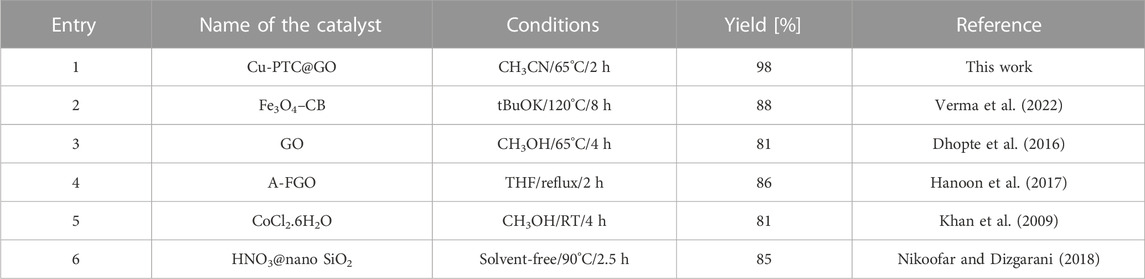

TABLE 3. Comparison catalytic activity of Cu-PTC@GO with similar systems.
A mechanism was introduced to prepare the imidazole heterocyclic compound from phenylenediamine and aromatic aldehydes using the Cu-PTC@GO catalyst (Scheme 2). The reaction between an amine and an aldehyde proceeds via the condensation reaction mechanism, which forms a Schiff base and includes the oxidative cyclization reaction (Verma et al., 2022). The activation of the ring aldehyde on the GO surface enhances the electrophilicity of the C=O group, thereby facilitating the formation of imine. Thus, the ring closure reaction occurs via the nucleophilic attack between the substituted amine and imine intermediate. Finally, the desired heterocyclic product was achieved.

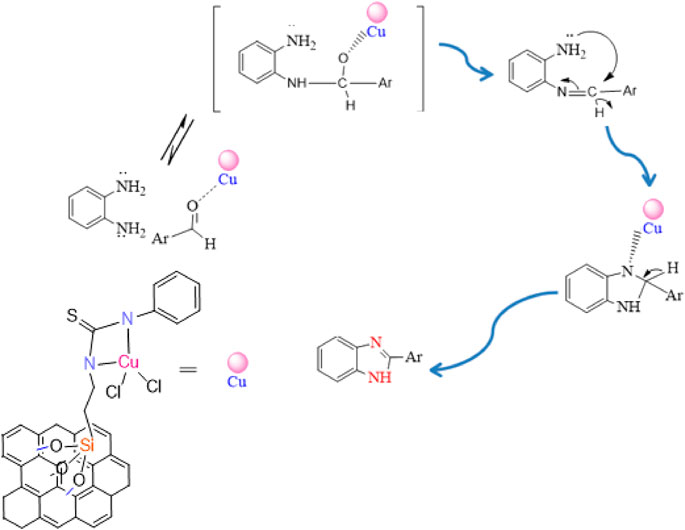

SCHEME 2. Plausible mechanism pathway for the synthesis of benzimidazole.
4 Conclusion
The GO was employed as a support for preparing the copper complex. Different characterization methods characterized the properties of the prepared catalyst. The catalytic efficiency of the catalyst was evaluated in the synthesis of imidazole derivatives. The heterogonous catalyst was used for the synthesis of imidazoles with excellent yields. This catalyst was employed for five runs without losing activity, demonstrating its recoverability, easy separation, reusability, and efficiency. These features make this nanocatalyst an appropriate heterogeneous catalyst for synthesizing imidazoles.
