Skip to main content

ORIGINAL RESEARCH article

Front. Chem., 26 August 2022
Sec. Solid State Chemistry
This article is part of the Research Topic Synthesis, Crystal Structure and Energetic Performance Prediction of Energetic Nitrogen-rich Salts View all 5 articles

2-(1,2,4-triazole-5-yl)-1,3,4-oxadiazole as a novel building block for energetic materials

Zheting DongZheting Dong1Zhengqiang WuZhengqiang Wu1Qiang ZhangQiang Zhang2Yuangang Xu
Yuangang Xu1*Guo-Ping Lu
Guo-Ping Lu1*
  • 1School of Chemistry and Chemical Engineering, Nanjing University of Science and Technology, Nanjing, China
  • 2School of Chemistry and Life Sciences, Suzhou University of Science and Technology, Suzhou, China

The exploration of novel nitrogen-rich heterocyclic building blocks is of importance in the field of energetic materials. A series of 2-(1,2,4-triazole-5-yl)-1,3,4-oxadiazole derivatives based on a new energetic skeleton have been first synthesized by a simple synthetic strategy. All three compounds are well-characterized by IR spectroscopy, NMR spectroscopy and thermal analysis. The compounds 5 and 8 are further characterized by single-crystal X-ray diffraction analysis. 8 and its salts (8a-8c) possess relative high decomposition temperature and low sensitivity, while 5 exhibits low decomposition temperature and high sensitivity. According to EXPLO5 calculation results of detonation performance, both 5 and 8 display acceptable detonation velocities (D) of 8450 m/s and 8130 m/s and detonation pressures (P) of 31.6 GPa and 29.2 GPa, respectively. Furthermore, 5 containing a rare diazonium ylide structure shows high impact sensitivity (4.5 J), making it has a potential as a primary explosive.

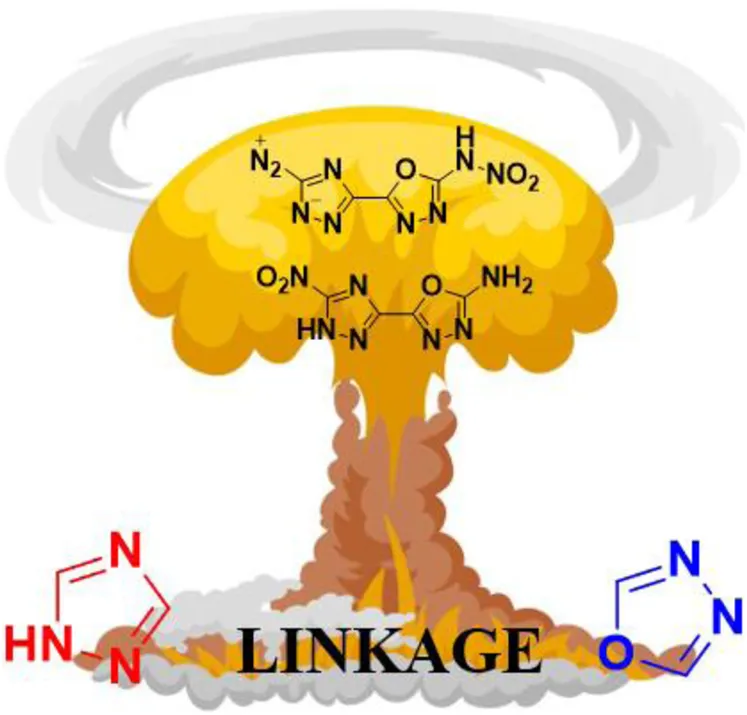

GRAPHICAL ABSTRACT
www.frontiersin.org

GRAPHICAL ABSTRACT

1 Introduction

Energetic materials are a class of special compounds that are extensively used in both military and civilian fields. In the past few decades, the development of new energetic materials has attracted considerable interest (Klapötke et al., 2007; Vo et al., 2014; Bélanger-Chabot et al., 2015; Zhang et al., 2017; Chen et al., 2018), and various high performance energetic materials have been disclosed. (Archibald et al., 1990; Zhang et al., 2000; Fischer et al., 2012) Although high detonation performance is always the primary requirement, there has been increased interest in the stability of energetic materials owing to the increase in the number of security-related issues in practical applications. (Klapötke and Witkowski, 2016; Tian et al., 2016) Thus, there is considerable demand to explore novel energetic materials that have a good balance between energetic performance and stability. (Xia et al., 2019) On the other hand, primary explosives and initiators represent a class of sensitive energetic materials that can be easily detonated by a small external stimulus such as flame, heat, impact, friction, electric spark, etc. (Deng et al., 2019) Lead azide (LA) and 2-diazo-4,6-dinitrophenol (DDNP) are the most widely used primary explosives, but both of them suffer limitations including high toxicity, much high sensitivity and poor detonation performance. (Giles, 2004; U.S. Environmental Protection Agency, 2014; Cao et al., 2016; Yuan et al., 2016; Wei et al., 2018)

Although the fabrication of energetic salts and crystals form known nitrogen-rich heterocyclic compounds are introduce to investigate next-generation energetic materials (Kumar et al., 2017; Tang et al., 2017; Yin et al., 2017), the construction of new covalent polynitrogen heterocyclic compounds is still the most fundamental area of this field. (Wang et al., 2019) In general, the combination of different N-heterocycles is one of the most significant methods to access novel energetic molecules. (Joo and Shreeve, 2010; Pang et al., 2018; Xu et al., 2018) 1,2,4-Triazole has been widely employed in the synthesis of energetic materials owing to its high enthalpy of formation. usually, amino group on 1,2,4-triazole is easier to convert into a diazo structure, resulting in a higher mechanical sensitivity of the whole system. The introduction of nitrogen-rich heterocycles into this framework is the common strategy to improve its stability. Meanwhile, the connection of nitrogen-rich heterocycles can increase the modifiability of energetic materials, so more explosive groups can be introduced into the energetic skeleton to improve their detonation performance. 1,3,4-oxadiazole has not received much attention in the field of energetic materials synthesis due to its low enthalpy of formation (51 kJ/mol). (Tang et al., 2015; Yu et al., 2017; Zheng et al., 2022) The formation enthalpy, detonation performance and stability of energetic materials can be effectively improved when 1,3,4-oxadiazole is connected with other nitrogen-rich heterocycles and explosive group (-NO2, -N3 and -NHNO2). In recent years, a large number of energetic materials with 1,3,4-oxadiazole rings linking other nitrogen-rich heterocycles and explosive groups with good detonation performance have been synthesized. (Zhang et al., 2017; Wang et al., 2019; Yan et al., 2020; Ma et al., 2021)

With these above molecular properties as guidelines, we reason that the connection of 1,2,4-triazole and 1,3,4-oxadiazole can not only increase the formation enthalpy of energetic molecules, but also reduce their mechanical sensitivity. Herein, we have firstly disclosed the synthesis of 2-(1,2,4-triazol-5-yl)-1,3,4-oxadiazole derivatives by three-step reactions with high yields (Scheme 2). Interestingly, we accidentally obtained a diazonium ylide 5, because HNO2 is generated during the nitration reaction, the amino group on the 1, 2, 4 triazole ring is more easily converted into a diazo group. Meanwhile, to further explore the nitration reaction conditions of compound 4, we tried different nitration conditions (Table 1). It might be a promising organic primacy explosive owing to its excellent detonation properties and certain sensitivity to external mechanical stimuli.

SCHEME 2
www.frontiersin.org

SCHEME 2. Synthesis of compounds 4–8 and 8a-8c.

TABLE 1
www.frontiersin.org

TABLE 1. Nitrification reaction conditions of 4

2 Result and discussion

The synthetic routes of compounds 5, 8, 8a, 8b and 8c are shown in Scheme 1. 5-Amino-1H-1,2,4-triazole-3-carbohydrazide 3 and sodium 5-nitro-1H-1,2,4-triazole-3-carbohydrazide 2 were prepared according to the previous method. (Dachs et al., 2013; Dippold and Klapötke, 2013; Zhang et al., 2018) Compounds 4 and 8 could be obtained by the reactions of 3 or 7 with cyanic bromide respectively. The compound 4 was nitrated with fuming nitric acid (98%) to obtain 5. Compounds 8a, 8b and 8c were obtained through treatment of 8 in ammonium hydroxide (25%), hydrazine hydrate (80%), and hydroxylamine solution (50%) respectively. All these compounds were fully determined by IR, NMR (1H and 13C) spectroscopy. The density of these newly synthesized compounds was measured using a gas pycnometer at room temperature. (Yan et al., 2020) The structures of compounds 5, 8 and 8a were further determined by single X-ray diffraction.

SCHEME 1
www.frontiersin.org

SCHEME 1. Energetic materials with 1,3,4-oxadiazole fragment.

All these compounds were fully dried at 40°C before testing their physicochemical properties. Differential scanning calorimetry (DSC) was used to determine the thermal stabilities of these energetic materials at a heating rate of 5°C/min under N2 flow (Figure 1). 5 exhibits low thermal stabilities (Tdec = 120.9°C) (Figure 1A). 8 and its energetic salts (8a and 8b) exhibit high thermal stabilities (Tdec = 187.9–229.6°C), but the decomposition temperature of 8c is low (133.1°C) (Figure 1B). Compounds 8 and 8c lost intramolecular crystal water at 99.7°C and 70.3°C, respectively. In general, the storage and working temperatures of munitions are less than 70°C (Yin et al., 2016), so all the compounds can satisfy most military and civilian demands.

FIGURE 1
www.frontiersin.org

FIGURE 1. (A) DSC plots of compound 5 (B) DSC plots of compounds of 8, 8a, 8b and 8c (measured at a heating rate of 5°C/min under N2 flow).

Sensitivities (impact and friction) were determined using BAM technology. (Sheng et al., 2015) Compound 5 has high sensitivities (IS = 4.5 J, FS = 59 N), but lower than those of DDNP (IS = 1 J; FS = 24.7 N) and LA (IS = 2.5–4 J; FS = 0.1–1 N) (Table 2), making it more safe in practical application. The heats of formation (HOF) of these compounds were calculated using Gaussian 09 (Revision D.02) program. (Frisch et al., 2009; Fischer et al., 2016) Based on the calculated HOF values and experimental densities, detonation velocities (Dv) and detonation pressures (P) were determined using EXPLO5 (v6.01).3. (Suceska, 2013) As shown in Table 2, 5 possess higher density (1.84 g/cm3) than DDNP, and better detonation performances (Dv = 8450 m/s; p = 31.6 GPa) than LA and DDNP. Based on these above results, 5 has the potential to become an effective and green primary explosive owing to its safety, good detonation performance and free of heavy metal.

TABLE 2
www.frontiersin.org

TABLE 2. Properties of compound 5.

The crystal structure of 5 can further explain its properties. The molecular structure of 5 crystallizes in monoclinic system and belong to the C2/c space group with four molecules per unit cell (Z = 4). More details on crystallographic date of 5 are provide in Supplementary Materials (Supplementary Table S1). The compound 5 are nearly coplanar, as confirmed by the torsion angles of 1,2,4-triazole, 1,3,4-oxadiazole (O3-C2-C3-N5: 179.02 (14)°, O3-C2-C3-N7: 0.9 (2)°, N3-C2-C3-N5: 1 (3)°, N4-C2-C3-N7: 177.12 (16)°), and nitro group (O1-N1-N2-C1: 178.09 (15)°, O2-N1-N2-C1: 1.9 (2)°) (Figures 2A,B, Table S2). H3 are bonded to N3 in the oxadiazole ring (Figure 2A). Such structural feature results in intramolecular hydrogen-bonding between H3 and O2 (2.141 Å), which fixes the rotation of nitro group, thereby causing the coplanarity of nitro group with 1,3,4-oxadiazole ring. In addition, there are a large number of intermolecular hydrogen bonds in compound 5 (Figure 2C). The bond of C-N2+ (1.385 Å) are slightly longer than common C-N bond (1.321–1.358 Å) and the N-NO2 (1.366 Å), and the crystal packing of 5 shows a staggered π-π stacking mode (Figure 2D), both of which are the main reasons for its high sensitivities towards impact and friction. (Zhang et al., 2008)

FIGURE 2
www.frontiersin.org

FIGURE 2. The molecule and crystal stacking structure of 5. (A) The crystal structure of 5. (B) The planar molecular geometry of 5. (C) The intermolecular hydrogen bonds of 5. (D) The crystal stacking structure of 5.

The two-dimensional (2D)-fingerprint of crystal 5 and relevant Hirshfeld surfaces were performed to further understand their stability. (Spackman and Jayatilaka, 2009; Tests were conducted according to, 2009; Wang et al., 2018) The 2D fingerprint showed that O H and N H hydrogen bonding interactions occupy a smaller proportion 42.4% (Figure 3A).And the C-O interaction and C-N interaction (π-π stacking interaction) account for 7% and 4.2% of the total weak interactions, respectively. A higher proportion of the π-π interaction is manifested in its smaller interlayer distance, which results in a higher density of compound 5 (1.84 g/cm3). In compound 5, the N H and O H hydrogen bonding interactions occupy a smaller proportion, which is an important reason for the low stability of compound 5.

FIGURE 3
www.frontiersin.org

FIGURE 3. (A) Hirshfeld surface and the percentage contribution of every atomic contact for 5; (B) fingerprint plot for 5.

Both 8 and 8a are insensitive (IS > 40 J, FS > 360 N), while 8b and 8c have better insensitivity to mechanical stimulation than TNT (8b: IS = 23 J; FS = 260 N and 8c: IS = 19 J; FS = 220 N) (Table 3). Compound 8 and 8c shows the acceptable detonation velocity and pressure, which are comparable with that of TNT, TATB and RDX. The acceptable detonation performance, insensitivity and thermal stability of 8 demonstrate its potential as new secondary explosives. Further modification of the amino group in 8 can theoretically obtain energetic molecules with better performance. Some attempts have been made by our group, but no desired product has been obtained yet.

TABLE 3
www.frontiersin.org

TABLE 3. Properties of compounds 8 - 8c.

In order to obtain furtherinsights the relationship between the structure and properties of 8 and 8a, their single crystal structures were detected by single-crystal X-ray diffraction (Figures 4A,D). The molecules structure of 8 and 8a crystallize in monoclinic system and belong to the P21/c and C2/c space group, with four and eight molecules per unit cell, respectively. More details of crystallographic data are provided in Supplementary Materials (Supplementary Table S1, S3 and S4). The crystal densities of 8 and 8a are 1.78 g/cm3 and 1.74 g/cm3, respectively, which are consistent with their theoretical densities. All active hydrogens (H1A, H1B and H4) of 8 and water take part in the formation of intra- and intermolecular hydrogen bonds including N1-H1A O1, N1-H1B N2, N4-H4 N3, N4-H4 N5, N4-H4···O4, O4-H4B N3 O4-H4B N2 (Figures 4A,B). The intermolecular hydrogen bonding interactions are beneficial to increase stability of molecules. The molecular structure of both 8 and 8a are nearly coplanar, and conjugated systems which are verified by the torsion angles of O2-N7-C4-N5 -5.8 (4)°, N3-C2-C3-N4 2.2 (4)°; C2-O1-C1-N1 -179.4 (2)° of compound 8 (Table S3), the compound 8a can be verified by O2-N1-C1-N2 -177.48 (12)°; N3-C2-C3-N5 2.3 (2)°; N4-C2-C3-N1 -1.74.44 (13)°; N5-N6-C4-N7 -179.86 (14)° (Table S4). As for the packing diagram (Figures 4C,E), both 8 and 8a have face-to-face stacking and the distance between two planes are 3.22 Å and 3.34 Å respectively. The geometrical distance of traditional aromatic π-π interactions is 3.65–4.00 Å (Yan et al., 2020), so there are strong π-π interactions between layers, which may explain their high crystal density and insensitivity to mechanical stimulation to a certain extent.

FIGURE 4
www.frontiersin.org

FIGURE 4. (A) The crystal structure and intramolecular hydrogen bonds of 8. (B) Intermolecular hydrogen bonds in 8. (C) The crystal packing of 8. (D) The crystal structure of 8a. (E) The crystal packing of 8a.

Similarly, the two-dimensional (2D)-fingerprint of crystals 8 and 8a and relevant Hirshfeld surfaces also were used to further understand their stability. Both 8 and 8a contain planar π-conjugated structure and appear in plate shapes, which is helpful for enhancing π-π stacking (Zhang et al., 2013) (Figures 5A,D). It is observed from the 2D fingerprint plot that O H and N H hydrogen bonding interactions (a pair of remarkable spikes on the bottom left) constitute 61.0% (8) and 59.4% (8a) of the total weak interactions, respectively (Figures 5B,E). The C-O interaction (π-π stacking interaction) ratio of 8 (2.7%) is higher than that of 8a (1.4%). The ratio of O-O interactions in 8a is 6.1%, which is higher than that in 8 (5.1%). There are two conclusions according to the above results. (1) High ratio of hydrogen bonding interactions and strong π-π stacking interactions contribute greatly to the molecular stability of 8 and 8a. (2) 8 contains higher hydrogen bonding and C-O interactions but lower O-O interactions than 8a, so 8 should be more stable than 8a (Zhang et al., 2015), which is consistent with experimental results.

FIGURE 5
www.frontiersin.org

FIGURE 5. (A), (D) Hirshfeld surface of 8 and 8a; (B), (E) fingerprint plot for 8 and 8a; (C), (F) the percentage contribution of every atomic contact for 8 and 8a.

3 Synthesis

Caution: All the products are dangerous materials, explosions of which may occur in certain conditions. Although we have no difficulties on synthesizing and handing the compounds, proper safety precautions such as safety glasses, plastic spatulas and face shields must be used, especially when the experiments is performed on a large scale.

Synthesis of 5-(5-amino-1H-1,2,4-trizol-3-yl)-1,3,4-oxadiazol-2-amine (4): Compound 3 (2.84 g 20 mmol) and potassium bicarbonate (2.21g, 22 mmol ) were slurried with methanol (30 ml) at room temperature then cyanogen bromide (2.12 g, 20 mmol) was added dropwise. It was stirred at room temperature for 72 h, then the temperature was raised to reflux for another 72 h. After reaction completed, the resulting yellow precipitate was filtered, washed with water and dried to yield 4 (2.84 g, 85%). 1H NMR (500 MHz DMSO-d6): δ = 6.26 (s, 2H NH2) 7.21 (s, 2H NH2) and 12.50 (s, 1H, NH) ppm. 13C NMR (126 MHz DMSO-d6): δ = 148.00, 152.81, 157.94 and 164.02 ppm. IR (KBr): ṽ 3680, 3320, 3030, 2930, 1650, 1540, 1280, 1020, 835, 768, 577, 549, 474, 468, 430, 416, 409 cm−1.

Synthesis of 5-(diazo-1,2,4-triazol-3-yl)-1,3,4-oxadiazol-2-nitroamino (5): Compound 4 (1g 6 mmol) was added by portions into smoothly stirred fuming HNO3 (98% 8 ml) which was cooled by ice. Then, the reaction was allowed to warm to room temperature and continued for about 48 h. After a yellow precipitate appeared, the mixture was poured into ice water and filtered to obtain a yellow precipitate. After washing with small amount of water, the yellow solid was dried naturally, and pure 5-(diazo 1,2, 4-triazol-3-yl)-1,3,4-oxadiazol-2-nitroamino was obtained 5 as a yellow powder (1.1 g, 82%). 13C NMR (126 MHz DMSO-d6): δ = 135.79, 150.56, 150.83 and 161.82 ppm. DSC (5°C/min): Tdec. = 120.9°C. IR (KBr): ṽ 3470, 3400, 3340, 2990, 2930, 2250, 1670, 1580, 1470, 1350, 1310, 1200, 1090, 1020, 996, 946, 853, 797, 755, 734, 637, 578, 532, 446, 421 cm−1

Synthesis of ethyl-nitro-1H-1,2,4-triazole-3-carboxylate (6): Compound 2 (0.5 g, 30 mmol) in 20% sulfuric acid (6 ml) was added dropwise to a solution of sodium nitrite (30 equiv, 6.8 g, 98 mmol) in water (10 ml) at 40°C. The mixture was stirred at 50°C for 1 h. After cooling down to room temperature, the mixture was acidified with sulfuric acid (20%) until no evolution of NO2 could be observed. The reaction mixture was extracted with ethyl acetate, dried over MgSO4, and the solvent was evaporated to yield 6 (0.41 g, 74%) as a yellow solid. 1H NMR (500 MHz DMSO-d6): δ = 1.32 (s, 3H, CH3), 4.39 (s, 2H, CH2) ppm. 13C NMR (126 MHz DMSO-d6): δ = 14.29, 63.09, 148.03, 156.51 and 162.63 ppm.

Synthesis of sodium 5-nitro-1,2,4-triazole-3-carbohydrazide (7): Compound 6 (10 g, 54 mmol) was added to a 100 ml saturated sodium hydrogen carbonate solution, and the solvent was evaporated. Ethyl alcohol 50 ml was added and stirring 0.5h, The insoluble matter was removed by filtration, then hydrazine hydrate (3 equiv, 9.5 g, 162 mmol) was added the temperature was raised to reflux maintain 2h. Cooled to room temperature and the precipitated solid was filtered, air-dried to afford 7 as a yellow solid (9.2 g, 88%). 1H NMR (500 MHz DMSO-d6): δ = 4.42(s, 2H, NH2), 9.47(s, 1H, NH) ppm. 13C NMR (126 MHz DMSO-d6): δ = 157.06, 160.87 and 165.66 ppm.

Synthesis of 5-(5-nitro -1H-1,2,4-trizol-3-yl)-1,3,4-oxadiazol-2-amine (8): Compound 7 (3.88 g, 20 mmol) potassium bicarbonate (2.21 g, 22 mmol ) was slurried with methyl alcohol (30 ml) at room temperature. Then cyanogen bromide (2.12 g, 20 mmol) was added dropwise. It was stirred at room temperature for 72 h, then the temperature was raised to reflux for another 72 h. The concentrated hydrochloric acid (1.97 g, 20 mmol) was added stirring another 0.5h at room temperature, the resulting yellow precipitate was filtered, washed with water and dried to yield 8 (2.84 g, 72%). 1H NMR (500 MHz DMSO-d6): δ = 7.76 (s, 2H, NH2) ppm. 13C NMR (126 MHz DMSO-d6): δ = 144.57, 148.91, 163.16 and 165.02 ppm. DSC (5°C/min): Tdec. = 229.6°C. IR (KBr): ṽ 3670, 3330, 3160, 2990, 2900, 1670, 1620, 1500, 1410, 1380, 1310, 1060, 1030, 1010, 950, 844, 706, 647, 533, 490, 472, 436, 430 cm−1

General procedure for synthesis of salts (8a-8c)

To a water/methanol solution (7 ml/7 ml) of 8 (300 mg, 1.52 mmol), the corresponding base (25% ammonia solution (0.21 g, 1.52 mmol), 85% hydrazine hydrate (0.09 g, 1.52 mmol), 50% hydroxylamine solution (0.1 g, 1.52 mmol)) was added. The resulting solution was stirred at room temperature for 30 min, then the solids were collected by filtration, dried at room temperature.

Ammonia 3-(5-amino-1,3,4-oxadiazol-2-yl)-5-nitro-1,2,4-triazolate hydrate (8a)

Yield 80% (260 mg, 1.22 mmol) as a yellow solid.

1H NMR (500 MHz DMSO-d6): δ = 7.27 (s, 2H, NH2). 13C NMR (126 MHz DMSO-d6): δ = 150.79, 153.66, 163.85 and 166.17 ppm. DSC (5°C/min): Tdec. = 207.0°C.

Hydrazine 3-(5-amino-1,3,4-oxadiazol-2-yl)-5-nitro-1,2,4-triazolate hydrate (8b)

Yield 75% (260 mg, 1.14 mmol) as a yellow solid.

1H NMR (500 MHz DMSO-d6): δ = 7.27 (s, 2H, NH2). 13C NMR (126 MHz DMSO-d6): δ = 150.79, 153.66, 163.85 and 166.17 ppm. DSC (5°C/min): Tdec. = 187.9°C.

Hydroxylamine 3-(5-amino-1,3,4-oxadiazol-2-yl)-5-nitro-1,2,4-triazolate hydrate (8c)

Yield 81% (283 mg, 1.23 mmol) as a yellow solid.

1H NMR (500 MHz DMSO-d6): δ = 7.27 (s, 2H, NH2). 13C NMR (126 MHz DMSO-d6): δ = 150.79, 153.66, 163.85 and 166.17 ppm. DSC (5°C/min): Tdec. = 133.1°C.

4 Conclusion

A novel family of energetic derivatives based on 2-(1,2,4-triazol-5-yl)-1,3,4-oxadiazole as the building block have been developed. Compound 5 possesses a low decomposition temperature (Tdec = 120.9°C) and high mechanical sensitivity (IS = 4.5 J; FS = 59 N), and has several advantages over conventional primary explosives including good detonation performance and free of heavy metal, so it has potential prospects in the application of primary explosives. The presence of diazo group and staggered π-π stacking mode are the main reasons for its high sensitivities towards impact and friction. The good thermal stability and insensitivity of 8 and 8a is owing to the presence of extensive hydrogen-bonding and strong π–π stacking interactions. Although the detonation performance of 5 and 8 is lower than that of RDX, their structure can be further improved. For example, the diazo group of 5 can be further cyclized with nitroacetonitrile or malononitrile and its amino group of 8 can be nitrated, which may further enhance the detonation performance of this molecule. Follow-up work is going on in our group.

Accession codes

CCDC 2180404, 2180405 and 2180395 contain the supplementary crystallographic date for this paper. There date can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author contributions

ZD as the first author, completed the experiment and the paper writing, ZW collected and tested some data, QZ calculated some data in the article, YX and G-PL as corresponding auther proposed the experimental plan and the content of the article, and revised the article.

Acknowledgments

We gratefully acknowledge the Fundamental Research Funds for the National Natural Science Foundation of China (no. 22105102), Young Elite Scientist Sponsorship Program by CAST (no. YESS20210074), and the Central Universities (30920021120, 30921011204) for financial support.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.996812/full#supplementary-material

References

Archibald, T. G., Gilardi, R., Baum, K., and George, C. (1990). Synthesis and x-ray crystal structure of 1, 3, 3-trinitroazetidine. J. Org. Chem. 55 (9), 2920–2924. doi:10.1021/jo00296a066

CrossRef Full Text | Google Scholar

Bélanger-Chabot, G., Rahm, M., Haiges, R., and Christe, K. O. (2015). Ammonia-(Dinitramido)boranes: High-Energy-Density materials. Angew. Chem. Int. Ed. Engl. 127 (40), 11896–11900. doi:10.1002/ange.201505684

CrossRef Full Text | Google Scholar

Cao, J., Xiong, Z., Yuan, Y., Lai, B., and Yang, P. (2016). Treatment of wastewater derived from dinitrodiazophenol (DDNP) manufacturing by the Fe/Cu/O3 process. RSC Adv. 6 (97), 94467–94475. doi:10.1039/C6RA19095B

CrossRef Full Text | Google Scholar

Chen, D., Yang, H., Yi, Z., Xiong, H., Zhang, L., Zhu, S., et al. (2018). C8N26H4: An environmentally friendly primary explosive with high heat of formation. Angew. Chem. Int. Ed. Engl. 130 (8), 2103–2106. doi:10.1002/ange.201711220

CrossRef Full Text | Google Scholar

Dachs, M., Dippold, A. A., Gaar, J., Holler, M., and Klapotke, T. M. (2013). A comparative study on insensitive energetic derivatives of 5-(1, 2, 4-triazol-C-yl)-tetrazoles and their 1-Hydroxy-tetrazole analogues. Z. Anorg. Allg. Chem. 639 (12‐13), 2171–2180. doi:10.1002/zaac.201300304

CrossRef Full Text | Google Scholar

Deng, M., Feng, Y., Zhang, W., Qi, X., and Zhang, Q. (2019). A green metal-free fused-ring initiating substance. Nat. Commun. 10, 1339. doi:10.1038/s41467-019-09347-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Dippold, A. A., and Klapötke, T. M. (2013). Synthesis and characterization of 5-(1, 2, 4-Triazol-3-yl)tetrazoles with various energetic functionalities. Chem. Asian J. 8 (7), 1463–1471. doi:10.1002/asia.201300063

PubMed Abstract | CrossRef Full Text | Google Scholar

Fischer, D., Gottfried, J. L., Klapötke, T. M., Karaghiosoff, K., Stierstorfer, J., and Witkowski, T. G. (2016). Synthesis and investigation of advanced energetic materials based on bispyrazolylmethanes. Angew. Chem. Int. Ed. Engl. 128 (52), 16366–16369. doi:10.1002/ange.201609267

CrossRef Full Text | Google Scholar

Fischer, N., Fischer, D., Klapötke, T. M., Piercey, D. G., and Stierstorfer, J. (2012). Pushing the limits of energetic materials – The synthesis and characterization of dihydroxylammonium 5, 5′-bistetrazole-1, 1′-diolate. J. Mat. Chem. 22 (38), 20418–20422. doi:10.1039/C2JM33646D

CrossRef Full Text | Google Scholar

Frisch, M. J., G. W. Trucks, , Schlegel, H. B., Scuseria, G. E., Robb, M. A., Cheeseman, J. R., et al. (2009). Gaussian 09, revision a.02. Wallingford, CT: Gaussian, Inc.

Google Scholar

Giles, J. (2004). Collateral damage. Nature 427 (6975), 580–581. doi:10.1038/427580a

PubMed Abstract | CrossRef Full Text | Google Scholar

Joo, Y. H., and Shreeve, J. M. (2010). High-density energetic mono- or bis(oxy)-5-nitroiminotetrazoles. Angew. Chem. Int. Ed. Engl. 122 (40), 7478–7481. doi:10.1002/ange.201003866

PubMed Abstract | CrossRef Full Text | Google Scholar

Klapötke, T. M., Krumm, B., Ilg, R., Troegel, D., and Tacke, R. (2007). The sila-explosives Si(CH2N3)4 and Si(CH2ONO2)4:  silicon analogues of the common explosives pentaerythrityl tetraazide, C(CH2N3)4, and pentaerythritol tetranitrate, C(CH2ONO2)4. J. Am. Chem. Soc. 129 (21), 6908–6915. doi:10.1021/ja071299p

PubMed Abstract | CrossRef Full Text | Google Scholar

Klapötke, T. M., and Witkowski, T. G. (2016). Covalent and ionic insensitive high‐explosives. Propellants Explos. Pyrotech. 41 (3), 470–483. doi:10.1002/prep.201600006

CrossRef Full Text | Google Scholar

Kumar, D., Imler, G. H., Parrish, D. A., and Shreeve, J. M. (2017). Aminoacetonitrile as precursor for nitrogen rich stable and insensitive asymmetric N-methylene-C linked tetrazole-based energetic compounds. J. Mat. Chem. A Mat. 5 (32), 16767–16775. doi:10.1039/C7TA05394K

CrossRef Full Text | Google Scholar

Ma, J., Chinnam, A. K., Cheng, G., Yang, H., Zhang, J., and Shreeve, J. M. (2021). 1, 3, 4‐oxadiazole bridges: A strategy to improve energetics at the molecular level. Angew. Chem. Int. Ed. Engl. 133 (10), 5557–5564. doi:10.1002/ange.202014207

CrossRef Full Text | Google Scholar

Pang, F., Wang, G., Lu, T., Fan, G., and Chen, F. X. (2018). Preparation and characteristics of 1, 2, 4-oxadiazole-derived energetic ionic salts with nitrogen linkages. New J. Chem. 42 (6), 4036–4044. doi:10.1039/C7NJ03548A

CrossRef Full Text | Google Scholar

Sheng, D. L., Chen, L. K., Zhu, Y. H., and Yang, B. (2015). Synthesis and performance of a primary explosive resisting high temperature named cadmium azide. Explos. Mat. 44, 12–15. doi:10.3969/j.issn.1001-8352.2015.03.003

CrossRef Full Text | Google Scholar

Spackman, M. A., and Jayatilaka, D. (2009). Hirshfeld surface analysis. CrystEngComm 11 (1), 19–32. doi:10.1039/B818330A

CrossRef Full Text | Google Scholar

Suceska, M. (2013). ́EXPLO5 6.01. Zagreb, Croatia: Brodarski Institute.

Google Scholar

Tang, Y., Zhang, J., Mitchell, L. A., Parrish, D. A., and Shreeve, J. M. (2015). Taming of 3, 4-Di(nitramino)furazan. J. Am. Chem. Soc. 137 (51), 15984–15987. doi:10.1021/jacs.5b09831

PubMed Abstract | CrossRef Full Text | Google Scholar

Tang, Y., He, C., Imler, G. H., Parrish, D. A., and Shreeve, J. M. (2017). High-performing and thermally stable energetic 3, 7-diamino-7H-[1, 2, 4]triazolo[4, 3-b] [1, 2, 4]triazole derivatives. J. Mat. Chem. A Mat. 5 (13), 6100–6105. doi:10.1039/C7TA01111C

CrossRef Full Text | Google Scholar

Tests were conducted according to the UN recommendations on the transport of dangerous goods, Manual of Tests and criteria, United Nations Publication, New York, 5th edn, 2009.

Google Scholar

Tian, Y., Han, Y., and Yang, G. (2016). Some Underst. Think. insensitive high Explos. Chin. J. Energy Mater 22, 1132–1135. doi:10.11943/j.issn.1006-9941.2016.12.00X

CrossRef Full Text

U.S. Environmental Protection Agency (U.S. EPA.). Toxic and priority pollutants under the clean water act. 40 CFR Part 423, Appendix A. 2014.

Google Scholar

Vo, T. T., Parrish, D. A., and Shreeve, J. M. (2014). Tetranitroacetimidic acid: A high oxygen oxidizer and potential replacement for ammonium perchlorate. J. Am. Chem. Soc. 136 (34), 11934–11937. doi:10.1021/ja5074036

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Q., Shao, Y., and Lu, M. (2019). Azo1, 3, 4-oxadiazole as a novel building block to design high-performance energetic materials. Cryst. Growth Des. 19 (2), 839–844. doi:10.1021/acs.cgd.8b01404

CrossRef Full Text | Google Scholar

Wang, Y., Liu, Y., Song, S., Yang, Z., Qi, X., Wang, K., et al. (2018). Accelerating the discovery of insensitive high-energy-density materials by a materials genome approach. Nat. Commun. 9, 2444. doi:10.1038/s41467-018-04897-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Wei, L., Chen, W., Li, Q., Gu, Z. p., and Zhang, A. p. (2018). Treatment of dinitrodiazophenol industrial wastewater in heat-activated persulfate system. RSC Adv. 8 (37), 20603–20611. doi:10.1039/C8RA01995A

PubMed Abstract | CrossRef Full Text | Google Scholar

Xia, H., Zhang, W., Jin, Y., Song, S., Wang, K., and Zhang, Q. (2019). Synthesis of thermally stable and insensitive energetic materials by incorporating the tetrazole functionality into a fused-ring 3, 6-dinitropyrazolo-[4, 3-c]Pyrazole framework. ACS Appl. Mat. Interfaces 11 (49), 45914–45921. doi:10.1021/acsami.9b17384

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, Z., Cheng, G., Zhu, S., Lin, Q., and Yang, H. (2018). Nitrogen-rich salts based on the combination of 1, 2, 4-triazole and 1, 2, 3-triazole rings: A facile strategy for fine tuning energetic properties. J. Mat. Chem. A Mat. 6 (5), 2239–2248. doi:10.1039/C7TA08941D

CrossRef Full Text | Google Scholar

Yan, T., Cheng, G., and Yang, H. (2020). 1, 3, 4-oxadiazole based thermostable energetic materials: Synthesis and structure–property relationship. New J. Chem. 44 (16), 6643–6651. doi:10.1039/D0NJ00518E

CrossRef Full Text | Google Scholar

Yin, P., Mitchell, L. A., Parrish, D. A., and Shreeve, J. M. (2016). EnergeticN-Nitramino/N-Oxyl-Functionalized pyrazoles with versatile π-π stacking: Structure-property relationships of high-performance energetic materials. Angew. Chem. Int. Ed. Engl. 128 (46), 14621–14623. doi:10.1002/ange.201608499

PubMed Abstract | CrossRef Full Text | Google Scholar

Yin, P., Zhang, J., Imler, G. H., Parrish, D. A., and Shreeve, J. M. (2017). Polynitro-functionalized dipyrazolo‐1, 3, 5‐triazinanes: Energetic polycyclization toward high density and excellent molecular stability. Angew. Chem. Int. Ed. Engl. 129 (30), 8960–8964. doi:10.1002/ange.201704687

PubMed Abstract | CrossRef Full Text | Google Scholar

Yu, Q., Yin, P., Zhang, J., He, C., Imler, G. H., Parrish, D. A., et al. (2017). Pushing the limits of oxygen balance in 1, 3, 4-oxadiazoles. J. Am. Chem. Soc. 139 (26), 8816–8819. doi:10.1021/jacs.7b05158

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, Y., Cao, P., Lai, B., Yang, P., and Zhou, Y. (2016). Treatment of ultra-high concentration 2-diazo-4, 6-dinitrophenol (DDNP) industry wastewater by the combined Fe/Cu/air and Fenton process. RSC Adv. 6 (42), 35539–35549. doi:10.1039/C6RA05371H

CrossRef Full Text | Google Scholar

Zhang, C., Wang, X., and Huang, H. (2008). π-Stacked interactions in explosive crystals: Buffers against external mechanical stimuli. J. Am. Chem. Soc. 130 (26), 8359–8365. doi:10.1021/ja800712e

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, C., Xue, X., Cao, Y., Zhou, Y., Li, H., Zhou, J., et al. (2013). Intermolecular friction symbol derived from crystal information. CrystEngComm 15 (34), 6837–6844. doi:10.1039/C3CE40817E

CrossRef Full Text | Google Scholar

Zhang, G., Chen, Y., Liao, L., Lu, H., Zhang, Z., Ma, Q., et al. (2018). 5-Amino-1H-1, 2, 4-triazole-3-carbohydrazide and its applications in the synthesis of energetic salts: A new strategy for constructing the nitrogen-rich cation based on the energetic moiety combination. Dalton Trans. 47 (38), 13391–13401. doi:10.1039/c8dt01760c

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, J., Zhang, Q., Vo, T. T., Parrish, D. A., and Shreeve, J. M. (2015). Energetic salts with π-stacking and hydrogen-bonding interactions Lead the way to future energetic materials. J. Am. Chem. Soc. 137 (4), 1697–1704. doi:10.1021/ja5126275

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, M. X., Eaton, P. E., and Gilardi, R. (2000). Hepta-and octanitrocubanes. Angew. Chem. Int. Ed. Engl. 39 (2), 401–404. doi:10.1002/(SICI)1521-3773(20000117)39:2<401:AID-ANIE401>3.0.CO;2-P

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, W., Zhang, J., Deng, M., Qi, X., Nie, F., and Zhang, Q. (2017). A promising high-energy-density material. Nat. Commun. 8 (1), 181–187. doi:10.1038/s41467-017-00286-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, X., Yan, T., Qian, L., Yang, H. W., and Cheng, G. B. (2022). The integration of dinitropyrazole and 1, 3, 4-oxadiazole: A novel hybrid heterocyclic skeleton for balancing energy and stability. Def. Technol. doi:10.1016/j.dt.2022.03.003

CrossRef Full Text | Google Scholar

Keywords: 1,2,4-triazole, 1,3,4-oxadiazole, energetic material, primary explosive, diazonium ylide

Citation: Dong Z, Wu Z, Zhang Q, Xu Y and Lu G-P (2022) 2-(1,2,4-triazole-5-yl)-1,3,4-oxadiazole as a novel building block for energetic materials. Front. Chem. 10:996812. doi: 10.3389/fchem.2022.996812

Received: 18 July 2022; Accepted: 01 August 2022;
Published: 26 August 2022.

Edited by:

Yao Cheng, Fujian Institute of Research on the Structure of Matter (CAS), China

Reviewed by:

Li Shenghua, Beijing Institute of Technology, China
Kangcai Wang, China Academy of Engineering Physics, China

Copyright © 2022 Dong, Wu, Zhang, Xu and Lu. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Yuangang Xu, yuangangxu@163.com; Guo-Ping Lu, glu@njust.edu.cn

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
