Computation-accelerated discovery of the K2NiF4-type oxyhydrides combing density functional theory and machine learning approach

The emerging K₂NiF₄-type oxyhydrides with unique hydride ions (H⁻) and O^2- coexisting in the anion sublattice offer superior functionalities for numerous applications. However, the exploration and innovations of the oxyhydrides are challenged by their rarity as a limited number of compounds reported in experiments, owing to the stringent laboratory conditions. Herein, we employed a suite of computations involving ab initio methods, informatics and machine learning to investigate the stability relationship of the K₂NiF₄-type oxyhydrides. The comprehensive stability map of the oxyhydrides chemical space was constructed to identify 76 new compounds with good thermodynamic stabilities using the high-throughput computations. Based on the established database, we reveal geometric constraints and electronegativities of cationic elements as significant factors governing the oxyhydrides stabilities via informatics tools. Besides fixed stoichiometry compounds, mixed-cation oxyhydrides can provide promising properties due to the enhancement of compositional tunability. However, the exploration of the mixed compounds is hindered by their huge quantity and the rarity of stable oxyhydrides. Therefore, we propose a two-step machine learning workflow consisting of a simple transfer learning to discover 114 formable oxyhydrides from thousands of unknown mixed compositions. The predicted high H⁻ conductivities of the representative oxyhydrides indicate their suitability as energy conversion materials. Our study provides an insight into the oxyhydrides chemistry which is applicable to other mixed-anion systems, and demonstrates an efficient computational paradigm for other materials design applications, which are challenged by the unavailable and highly unbalanced materials database.

1 Introduction

Mixed-anion compounds beyond homoanionic materials impart intriguing properties by the virtual of the anionic diversity in ionic radius, electronegativities and polarizability (Kageyama et al., 2018; Kobayashi et al., 2018; Zapp et al., 2021; Maeda et al., 2022). In particular, oxyhydrides with the coexistence O^2- and H⁻ in the anion sublattice offer a superior functionality for materials design, as exemplified in electrolytes (Kobayashi et al., 2016; Takeiri et al., 2019; Matsui et al., 2020; Nawaz et al., 2020; Takeiri et al., 2022), catalysts (Kobayashi et al., 2017) and precursors for topochemical reaction (Masuda et al., 2015; Yajima et al., 2015; Mikita et al., 2016). The lightest mass, large polarizability and high redox potential (-2.3 V) of hydride ions enable the oxyhydrides as novel energy storage and conversion materials (Kobayashi et al., 2016; Liu et al., 2019; Takeiri et al., 2019; Matsui et al., 2020; Nawaz et al., 2020; Lavén et al., 2021; Maeda et al., 2022; Takeiri et al., 2022), and the complex interplay between H⁻ with unique electronic configurations and O^2- qualifies the oxyhydrides as magnetic devices (Hayward et al., 2002; Bridges et al., 2005; Yajima et al., 2022). Thanks to the unique characteristics of hydride ions, the discovery of oxyhydrides standing for the frontier of chemistry will open an exciting chemical space serving various applications.

In contrast to massive single-anion compounds, the stable oxyhydrides necessitate robust structural frameworks to accommodate distinctive H⁻ and O^2-, resulting in the scarcity of the materials (Yamaguchi, 2016; Bai et al., 2018; Kageyama et al., 2018; Kobayashi et al., 2018). Recently, a series of oxyhydrides in the K₂NiF₄-type structure with an A₂BH_1+xO_3-x (x = 0, 1, 2) formula were synthesized in experiments and drew a broad interest with promising properties (Figure 1A) (Kobayashi et al., 2016; Fjellvåg et al., 2019; Takeiri et al., 2019; Matsui et al., 2020; Nawaz et al., 2020; Takeiri et al., 2022). The K₂NiF₄-type structure belongs to a member of Ruddlesden-Popper family consisting of a rock salt and perovskite layer stacked along the c direction (Figure 1A) (Kobayashi et al., 2018). A breakthrough study successfully utilized La₂LiHO₃ as solid-state electrolytes with hydride ions as charge carriers, and demonstrated the exceptionally high H⁻ conductivities in its A-mixed LaSrLiH₂O₂ analogs as 0.12 mS/cm at 573 K (Kobayashi et al., 2016). In addition to ionic conductors, Hayward et al. discovered La₂CoH_0.7O₃ as magnetic devices arising from its anionic ordering (Hayward et al., 2002; Bridges et al., 2005). Thus, a perovskites-related structural framework provides a tunable sublattice to stabilize the oxyhydrides with excellent functionalities (Bai et al., 2018).

FIGURE 1

FIGURE 1. (A) Crystal structure of the A₂BH_1+xO_3-x (x = 0, 1, 2) oxyhydrides in the K₂NiF₄-type framework. (B) Computational workflow to study the chemistry of the oxyhydrides.

Despite of the rigid framework and attractive properties, the innovations and developments of the K₂NiF₄-type oxyhydrides are still in their infancy as only tens of materials (<20) reported in laboratories (Takeiri et al., 2022). The rarity of oxyhydrides is aggravated by the stringent experimental conditions (Tassel et al., 2016; Iwasaki et al., 2018; Kageyama et al., 2018). While the reducing nature of H⁻ demands the strict air/water-free environments (Kageyama et al., 2018), the versatility of anion sublattice to adopt distinctive ions consequently requests the high temperature and pressure conditions (Tassel et al., 2016; Iwasaki et al., 2018). The paucity of the oxyhydrides hinders the progression of applications, and therefore highlights the necessity of expanding their chemistry with high efficiency. High-throughput density functional theory (HT-DFT) computations are demonstrated as efficient tools to explore the uncharted chemical space (Emery et al., 2016; Sun et al., 2019; He et al., 2020; Shen et al., 2021; Wang et al., 2021), helping to guide the laboratory synthesis. In light of the stabilities data generated by the HT-DFT, the stability trend as a function of compound chemistry and their physical origin can be uncovered via the informatics tools (Sun et al., 2019; Ouyang et al., 2021).

Apart from the unmixed crystals (e.g., La₂LiHO₃), mixed-cation compounds (e.g., LaSrLiH₂O₂) constitute a large portion of compositional space and offer a new dimensionality for targeted properties (Kobayashi et al., 2016; Ye et al., 2018; Matsui et al., 2020). The highest conductivity of a series of the oxyhydrides can be achieved in the A-mixed compounds LaSrLiH₂O₂ with 0.21 mS/cm at 590 K (Kobayashi et al., 2016). However, the survey of the mixed materials is challenged by an enormous quantity of their configurations, and therefore calls for more robust search methods such as machine learning (ML) algorithm (Ye et al., 2018; Chenebuah et al., 2021; Talapatra et al., 2021; Tao et al., 2021). While using the ML model to survey materials with promising properties can be extremely powerful, a key roadblock in our task and many similar studies (Cubuk et al., 2019; Jha et al., 2019; Hashimoto et al., 2020; Chen and Ong, 2021; Hanaoka, 2022) to utilize ML approach often points to the unavailability of the database due to their huge quantity. Even though the HT-DFT can be applied to generate the small size database by randomly selecting compounds, the paucity of stable-labeled compounds may disable its usability owing to the highly unbalanced data distribution, which calls for an optimized method that creates the valid database. Since mixed materials share similarity with unmixed compounds in many aspects, it is reasonable to transfer the stability rules learned from the calculated unmixed compounds to preliminarily screen the mixed compounds. Then, the shortlist mixed compounds with high possibility to be stable can be accurately calculated to generate the valid database with a reasonable data distribution for the further ML survey.

In this study, we employed a suite of materials design tools involving HT-DFT, informatics and the ML algorithm to discover and explain the stability relationship of the K₂NiF₄-type oxyhydrides (Figure 1B). First, we investigated the stability landscape of the unmixed A₂BH_1+xO_3-x oxyhydrides covering 1856 compounds by HT-DFT computations, and identified hundreds of new meta/stable compounds. Then, the genuine materials database inspired us to reveal geometric constraints and electronegativities of cationic elements as significant factors governing the oxyhydrides stabilities via informatics tools. Finally, the mixed-cation oxyhydrides were explored by the two-step ML screening, consisting of a simple transfer learning trained by the unmixed compounds to generate reasonable database and a sequential voting classifier survey. Then, the high hydride conductivities of the selected mixed oxyhydrides indicate their promising applications as energy conversion materials. Our study enhances the understanding of the oxyhydrides chemistry applicable to other mixed-anion systems, and formulates the simple and effective computational workflow for other materials design applications, where a large volume of data is unavailable and the data distribution is highly unbalanced.

2 Methods

2.1 First principles calculations

All density functional theory (DFT) calculations were performed utilizing the Vienna Ab initio Simulation Package (VASP) (Kresse and Furthmüller, 1996) with the projector augmented-wave (PAW) (Blöchl, 1994) approach and the Perdew–Burke–Ernzerhof (PBE) generalized-gradient approximation (GGA) functional (Perdew et al., 1996). The parameters used in spin-polarized calculations were consistent with the Materials Project (Jain et al., 2011), ensuring the total energies converged to 1 meV per atom. The reciprocal k-mesh density was set as 200 per number of atoms to balance the computational cost and accuracy. The valence states of hydrogen in materials were investigated by the Bader (Henkelman et al., 2006; Tang et al., 2009) and Mulliken population analysis implemented in the LOBSTER program (Maintz et al., 2016; Nelson et al., 2020). With reference to the Bader charge of H⁻ in synthesized La₂LiHO₃ as -0.64 e⁻ (Bai et al., 2018), we relax the criterion of the hydrogen Bader charge < -0.5 e⁻ to ensure the valence states of H⁻ in all compounds.

Ab initio molecular dynamics (AIMD) simulations were performed in the representative A-mixed oxyhydrides to investigate H⁻ conduction. A Γ-centered 1 × 1 × 1 k-point mesh and a time step of 2 fs in NVT ensemble using Nose-Hoover thermostat (Nosé, 1984; Hoover, 1985) were adopted in nonspin-polarized AIMD simulations. Relaxed structures were assigned an initial temperature of 100 K in line with the Boltzmann distribution, and then heated to multiple target temperatures by velocity scaling during 2 ps. The total time of AIMD simulations was at least 50 ps until the diffusivity achieved converged (He et al., 2018). Diffusivities, activation energies and ionic conductivities of hydride ions in the oxyhydrides were obtained based on the established methods (Mo et al., 2011; Bai et al., 2018; He et al., 2018).

2.2 High-throughput computations for the oxyhydrides

All calculations for the oxyhydrides were based on supercells with 3 × 3 × 1unit cells and 18 formula units of A₂BH_1+xO_3-x (x = 0, 1, 2). An orthorhombic unit cell of La₂LiHO₃ was used as a prototype structure for A₂BHO₃, while a tetragonal unit cell of Sr₂LiH₃O served for A₂BH₂O₂ and A₂BH₃O compositions following experimental characterizations (Kobayashi et al., 2016). Possible cationic configurations of A₂BH_1+xO_3-x were prepared by enumerating elements from the periodic table excluding H, O, S, Se, Te, F, Cl, Br, I, radioactive and noble gas elements. In terms of the common oxidation states for constituting elements (Talapatra et al., 2021), 1856 charge-balanced compounds were selected to be fully optimized via DFT computations. Considering the site selectivity of anions in oxyhydrides (Figure S1 in Supplementary Material) (Kobayashi et al., 2016; Bai et al., 2018), two configurations with the preference of H⁻ over apical and equatorial sites were constructed for each compound, respectively. Thermodynamic stability of the material with the lowest energy was evaluated by the energy above the hull ΔE_hull (Ong et al., 2008) with respect to competing phases in Materials Project containing 144595 available compounds (Jain et al., 2013). A-mixed A₁A₂BH₂O₂ compounds with cation mixing were calculated based on the structural model of LaSrLiH₂O₂ adopting the La/Sr order with the lowest energies obtained as previous studies (Bai et al., 2018).

2.3 Machine learning setup

2.3.1 General work flow

The mixed-cation oxyhydrides were explored by the two-step ML screening. The first ML model was trained and optimized based on the unmixed oxyhydrides to identify compounds with a threshold of ΔE_hull as 100 meV/atom. Then the trained classification model was transferred to search the A-mixed A₁A₂BH₂O₂ oxyhydrides, and the mixed compounds predicted to be meta/stable with the possibility >50% were selected and calculated by DFT. The new model was trained and fully optimized based on the newly calculated mixed materials to screen the unstable-labeled materials identified by the initial ML model to retrieve formable compounds for the accurate DFT calculations. The transfer learning in our study refers to transferring the stability rules learned by the unmixed compounds to classify and label the similar A-mixed oxyhydrides, which corresponds to the first round ML training and screening. Since the first- and second-ML models were trained based on the different database, their hyperparameters were fully optimized. All ML computations were performed on the Intel Xeon Platinum 8124M CPU with 18 × 2 cores.

2.3.2 Features generation

The permutation-based importance of 25 features (Table S1 in supplementary material) consisting of 20 elemental properties and five structural/compositional descriptors were evaluated by the random forest algorithm (Breiman, 2001) upon classifying oxyhydrides stabilities. Those empirically considered descriptors are commonly used in other studies to predict unmixed compounds’ stabilities and to analyze stability relationship (Balachandran et al., 2018; Bartel et al., 2019; Chenebuah et al., 2021). The tolerance factor t_bv (Matsui et al., 2020) that measures the degree of geometric mismatch in the layered-perovskite (K₂NiF₄-type) structure is defined as:

$t_{bv}=\frac{d_{A-X}}{\sqrt{2}{d}_{B-X}}$

where d_A-X or d_B-X refers to the bond length between anions X and cation A or B, respectively. The d_A-X and d_B-X were estimated based on the bond valence theory as previous studies (Zhang et al., 2007; Balachandran et al., 2018). The permutation-based feature importance (König et al., 2021) used in calculations can reduce the bias from high cardinality and correlated features, ensuring the accuracy of our analysis.

Due to the complexity of the mixed-cation oxyhydrides, we constructed a dataset of 70 descriptors (Table S2) by applying mathematical operations (e.g., subtract, average, standard deviation) to the original descriptors to identify the stable materials. In order to use the ML model trained by the unmixed compounds to screen the mixed compounds, the feature dimension of the mixed compounds was kept as the unmixed ones. The A-site elemental properties (f_A) were estimated by the arithmetic mean of the two mixed ions (i.e., f_A = (f_A1 + f_A2)/2) following previous studies (Bartel et al., 2019; Chenebuah et al., 2021; Liu et al., 2022).

2.3.3 Models and features selection

Seven algorithms, i.e., the voting classifier (Kumari et al., 2021) (Note S1), the extra trees classifier (Geurts et al., 2006), the random forest classifier (RFC) (Breiman, 2001), the support vector classifier (SVC) (Shi et al., 2018), the XGBoost (Chen et al., 2015), the gradient boosting classifier (Friedman, 2001) and the decision tree classifier were trained based on the unmixed oxyhydrides to differentiate compounds with a threshold of ΔE_hull as 100 meV/atom. While multiple metrics (e.g., accuracy and f1 score defined in Note S2) can evaluate the performance of models, f1 score from ten-fold cross-validation was selected as the benchmark for model and features selection, since the number of stable-labeled samples are much fewer (∼5%) than the unstable-labeled samples (∼95%). For each classifier, the sequential forward floating selection algorithm (Note S3) (Ferri et al., 1994; Pudil et al., 1994) was employed to generate a subset of descriptors yielding the highest f1 score from total 70 features and to reduce the overfitting. The classifier with the best f1 score on the validation data and fewer descriptors was applied to predict the formability of A-mixed oxyhydrides following the work flow. The selected features and computation time for each classifier was provided in Table S3-5.

2.3.4 Hyperparameters optimization

The GridSearchCV method implemented in the scikit-learn (Pedregosa et al., 2011) was used to optimize the important hyperparameters of each classifier. The ten-fold cross-validated f1 score were adopted to evaluate the performance of the model during the search. Initially, hyperparameters of each classifier were optimized covering all features for the sequential forward floating selection. After the feature selection, the hyperparameters optimization for each classifier was performed based on the selected features to ensure the better performance. The computation time, parameters search space and their optimized values for each model were in provided in Table S4-7.

3 Results

3.1 Stability map in the compositional space

We first evaluated phase stabilities of the A₂BH_1+xO_3-x (x = 0, 1, 2) chemical space by calculating the energy above the hull ΔE_hull at 0 K. ΔE_hull of a compound refers to an absolute value of the decomposition energy with reference to competing phases, and serves as an indicator of evaluating the experimental synthesizability, which is widely used in multiple studies (Ong et al., 2008; Sun et al., 2019; Ouyang et al., 2021; Shen et al., 2021; Talapatra et al., 2021; Wang et al., 2021). 80% formable compounds reported from the Inorganic Crystal Structure Database (ICSD) exhibits ΔE_hull ≤ 100 meV/atom, and the materials with large ΔE_hull (e.g., ≥100 meV/atom) suffer from the tendency of decomposition and are difficult to synthesize (Sun et al., 2016). Regarding Ba₂YHO₃ exhibiting the highest ΔE_hull as 65 meV/atom in all synthesized oxyhydrides (Table S8) (Nawaz et al., 2020), we relax this criterion and consider a oxyhydride with ΔE_hull ≤ 100 meV/atom exhibiting a high likelihood of experimental synthesizability. We observe a gaussian-like distribution (Figure 2) of the oxyhydrides as a function of ΔE_hull, with a median ΔE_hull as 395 meV per atom and a small portion of compounds at the left and right extreme. Only 4.5% oxyhydrides exhibit ΔE_hull less than 100 meV/atom (Figure 2) awaiting the future experimental realization. The shape of the oxyhydrides distribution with ΔE_hull is similar to those of oxynitrides and oxyfluorides reported in other studies (Wang et al., 2021), suggesting a similar formation trend in mixed anion systems. The paucity of synthesizable compounds confirmed by our study highlights the necessity of efficient HT computations for materials discovery.

FIGURE 2

FIGURE 2. Distribution (left y-axis) and the cumulative fraction (right y-axis) of the A₂BH_1+xO_3-x (x = 0, 1, 2) oxyhydrides as a function of ΔE_hull. The shaded area indicates the oxyhydrides with ΔE_hull ≤ 100 meV/atom and a high likelihood of experimental synthesizability.

The effect of chemical compositions on the oxyhydrides stability was investigated by constructing stability map (Figure 3) in terms of elements at A and B sites, respectively. While 67 considered elements for the A₂BH_1+xO_3-x composition can yield ∼4400 configurations, many compounds fail to satisfy the charge balance criterion (gray blocks in Figure 3) due to the high oxidation states of constituent elements. For example, the elements (e.g., rare earth, B, Al, Ga, In, N, P, As, Sb, Bi, Y and Sc) with +3 oxidation state at A sites can hardly form charge-neutral compositions in the A₂BH_1+xO_3-x formula (Figure 3) except for +1 cations (e.g., alkali metals and Ag) at B sites. We excluded those charge-unbalanced compounds from further computations owing to their inherently Coulombic instabilities.

FIGURE 3

FIGURE 3. Stability map of the A₂BH_1+xO_3-x (x = 0, 1, 2) oxyhydrides with elements occupying A and B sites, respectively. Stable (ΔE_hull = 0 meV/atom) and metastable (0 < ΔE_hull ≤ 100 meV/atom) oxyhydrides are shown in green and blue, respectively, while unstable oxyhydrides with ΔE_hull larger than 100 meV/atom are plotted in red. Compounds in gray are not calculated mostly due to the lack of charge-balanced compositions. The blocks marked by black crosses indicate synthesized compounds in experiments. Elements are ordered by the Mendeleev number.

As for other 1856 charge-balanced oxyhydrides, 7 and 77 compounds are found to be thermodynamically stable (ΔE_hull = 0 meV/atom) and metastable (0 < ΔE_hull ≤ 100 meV/atom), respectively (Table 1 and S8). The valence states of H⁻ in those newly predicted compounds are confirmed by the Bader analysis (Table S8). All synthesized compounds, i.e., Ln₂LiHO₃ (Ln = La, Pr, Nd, Sm) (Kobayashi et al., 2016; Iwasaki et al., 2018), Ba₂MHO₃ (M = Y and Sc) (Takeiri et al., 2019; Nawaz et al., 2020) and M₂LiH₃O (M = Sr and Ba) (Kobayashi et al., 2016; Takeiri et al., 2022), were identified as meta/stable materials by our compositional screening (Figure 3 and Table 1), confirming the validity of our computations. We note ∼60% synthesized oxyhydrides exhibiting metastability with ΔE_hull less than 100 meV/atom (Figure 3; Table 1 and Table S8), demonstrating the accessibility of the metastable compounds in laboratory and the essentiality of exploring those materials. Apart from eight synthesized compounds, 76 oxyhydrides are predicted to be meta/stable with a high likelihood of experimental synthesizability, greatly enlarging a library of the oxyhydrides.

TABLE 1

TABLE 1. Statistics of the known and newly predicted oxyhydrides in terms of ΔE_hull and compositions. There are eight experimentally synthesized compounds, which are Ln₂LiHO₃ (Ln = La, Pr, Nd, Sm) (Kobayashi et al., 2016; Iwasaki et al., 2018), Ba₂MHO₃ (M = Sc, Y) (Takeiri et al., 2019; Nawaz et al., 2020) and M₂LiH₃O (M = Sr, Ba) (Kobayashi et al., 2016; Takeiri et al., 2022).

The preference of elements occupying A and B sites was visualized by constructing the periodic table in terms of the element’s occurrence in meta/stable A₂BH_1+xO_3-x (Figure 4). We observe a high frequency of alkali and alkaline earth metals on the A site with transition metals and p-block elements (e.g., Mg, Al and Ga) on the B site (Figures 3, 4 and Table S8), such as Na₂AlH₃O, K₂ScH₃O, Sr₂MgH₂O₂ and Na₂NbHO₃. Such pattern of the constituting elements in the oxyhydrides in the K₂NiF₄ framework is similar to that of perovskites reported by multiple experimental and computational studies due to their structural similarity (Figure 1A) (Emery et al., 2016; Talapatra et al., 2021; Tao et al., 2021).

FIGURE 4

FIGURE 4. Periodic table showing the frequency of elements in A₂BH_1+xO_3-x (x = 0, 1, 2) oxyhydrides with ΔE_hull ≤ 100 meV/atom occupying A and B sites. Each block represents an element that is colored based on the occurrences on A (upper left triangle) and B sites (lower right triangle) in the meta/stable oxyhydrides, respectively. Elements in gray blocks are not considered in the calculations.

We note the preference of Li over B sites with lanthanides at A sites in meta/stable compounds (Figures 3, 4), which is consistent with multiple Ln₂LiHO₃ (Ln = La, Pr, Nd, Sm) oxyhydrides reported in experiments (Kobayashi et al., 2016; Takeiri et al., 2022). However, other alkali metals except Li cannot form meta/stable oxyhydrides with lanthanides. The physical origin of the distinctive behaviors in alkali metals to form the stable oxyhydrides will be illustrated in Section 3.2. In addition to the explored oxyhydrides, various meta/stable compounds containing novel cations (e.g., Cr, Al, Ga and Mn) at B site are recognized by our computations (Figures 3, 4), with most of those unexplored in experiments. The HT-DFT calculations expand the chemistry of K₂NiF₄-type oxyhydrides by providing formable materials with new compositions, and allow us to obtain a complete stability picture in the uncharted chemical space.

3.2 Stability trends in the oxyhydrides

Understanding why certain elements can form stable compounds is a fundamental question that explores the oxyhydrides. We rationalize crucial factors governing materials’ formability by quantifying their contribution to the oxyhydrides stabilities through the random forest (Figure 5) and decision tree analysis (Figure S2). Twenty-five features, including 20 basic elemental properties (e.g., Shannon ionic radius r, Pauling electronegativities χ, Mendeleev number M, atomic number Z, and electrons valence e⁻: the number of valence electrons) and five structural/compositional features (e.g., tolerance factor t_bv, H and O content in composition), are considered as possible factors that influence structural stabilities. Those considered descriptors are commonly used in other studies to predict compounds’ stabilities and to analyze stability relationship (Balachandran et al., 2018; Bartel et al., 2019; Chenebuah et al., 2021). We present the contribution of those variables to oxyhydrides stabilities by ranking their feature importance in classifying the oxyhydrides with ΔE_hull = 100 meV/atom as a threshold (Figure 5, Figure S2). Geometrical descriptors (i.e., t_bv and r_B) and electronegativities of constituting elements are identified as the most important features differentiating the oxyhydrides. The physical insight relating those features to the oxyhydrides stabilities will be explored in the next subsection.

FIGURE 5

FIGURE 5. Feature importance to classify oxyhydrides stability based on the permutation method using the random forest model, where 25 features, including 20 basic elemental properties (e.g., Shannon ionic radius r, Pauling electronegativities χ, Mendeleev number M, atomic number Z, electrons valence e⁻: the number of valence electrons and I₁: the first ionization energy) and five structural/compositional features (e.g., tolerance factor t_bv, H and O content in composition) are considered. Subscripts of symbols denote corresponding properties of elements at A and B sites, respectively. Errors bars indicate the standard deviation upon shuffling features.

3.2.1 Geometric factors

We examined the influence of geometry on the oxyhydrides stability by plotting structure map of A₂BH_1+xO_3-x (x = 0, 1, 2) oxyhydrides with r_A vs r_B (Figure 6A). While some stable perovskites still have smaller ions at A sites (Emery et al., 2016), all meta/stable oxyhydrides appear in the lower-right region with r_A > r_B (Figure 6A), and demonstrate a tendency of clustering within the rectangular box (0.55 Å < r_B < 1.05 Å, 1.20 Å < r_A < 1.95 Å), implicating the strictly geometric requirement to form the stable K₂NiF₄ structures. The preference of ionic radius results from the difference between the coordination number of A and B sites and the corresponding space to accommodate the cations, where A-site cations are coordinated by nine anions in comparison with six anions surrounding B sites (Figure 1A). We also utilize the decision tree algorithm to analyze the influence of r_A and r_B on the oxyhydrides stabilities (Figure S3). Most stable oxyhydrides (74 out of 93) belong to the node with r_B < 1.005 Å and r_A > 1.314 Å (Figure S3). The decision tree analysis indicates stable oxyhydrides tend to have r_A > r_B, which is consistent with our analysis based on the structure map (Figure 6A).

FIGURE 6

FIGURE 6. (A) Structure map of A₂BH_1+xO_3-x (x = 0, 1, 2) oxyhydrides with the Shannon ionic radius of ion at A site (r_A) vs that at B site (r_B). Up-pointing triangles indicate meta/stable oxyhydrides (ΔE_hull ≤ 100 meV/atom), which are colored as a function of ΔE_hull. Those meta/stable compounds are clustered within the rectangular box (0.55 Å < r_B < 1.05 Å, 1.20 Å < r_A < 1.95 Å). Down-pointing triangles indicate unstable oxyhydrides (ΔE_hull > 100 meV/atom). The upper and right curves represent the distribution of meta/stable oxyhydrides as a function of r_A and r_B, respectively. (B) Distribution of the oxyhydrides as a function of the tolerance factor t_bv, where the left and right y-axis refer to the number of unstable and meta/stable oxyhydrides, respectively.

In addition to ionic radius, tolerance factors t_bv of the oxyhydrides were investigated, in reference to t_bv of an ideal K₂NiF₄ structure as 1. Most oxyhydrides tend to be meta/stable within the range of 0.8 ≤ t_bv ≤ 1.2 (Figure 6B), which is consistent with the experimental observation (Matsui et al., 2020). The decision tree analysis also demonstrates most stable oxyhydrides (85 out of 93) are within the range of 0.838 ≤ t_bv ≤ 1.109 (Figure S4), which is consistent with our analysis based on the t_bv distribution plot (Figure 6B). This can explain the absence of the stable oxyhydrides with larger alkali metal cations (except Li) occupying B sites and smaller lanthanides at A sites mentioned in Section 3.1 (Figures 3, 4), since their t_bv are out of range. While there is a high degree of clustering of meta/stable compounds with respect to ionic radius and t_bv, many compounds satisfying those criterions are still unstable (Figure 6), indicating the insufficiency of geometric factors to describe the oxyhydrides stabilities.

3.2.2 Electronegativities

Apart from geometric constraints, the electronic origin of the oxyhydrides stability can be rationalized by analyzing the charge transfer between cations and hydride ions. To ensure the negative charge of hydride ions, electron density should be donated by cations to hydrogen, as schematically illustrated in Figure 7A. The opposite direction of charge transfer causes the oxidation of hydrogen, and destabilizes the compounds (Figure 7A). Since electronegativities of elements are crucial factors influencing the charge distribution in chemical bonding, we plotted the structure map of the oxyhydrides (Figure 7B) as a function of electronegativity of an element at A site (χ_A) vs that at B site (χ_B). In all meta/stable oxyhydrides (ΔE_hull ≤ 100 meV/atom), electronegativities of cationic elements at A/B sites are smaller than the electronegativity of H as 2.20 (Figure 7B). Smaller electronegativities of A/B-site elements can prevent the charge transferring from hydrogen to cations and the consequent hydrogen oxidation, contributing to stabilizing the oxyhydrides.

FIGURE 7

FIGURE 7. (A) Schematic of the charge transfer in hydride bonding to stabilize the oxyhydrides, with bond length of A-H longer than that of B-H. (B) Structure map of the oxyhydrides exhibiting the electronegativity of an element at A site (χ_A) vs that at B site (χ_B). The upper and right curves represent the distribution of meta/stable oxyhydrides as a function of χ_A and χ_B, respectively. (C) Structure map of the oxyhydrides with χ_A-1.25 vs χ_B-1.25. The structure map is categorized into four parts (I, II, III and IV) with respect to the threshold of χ = 1.25. Five representative oxyhydrides are highlighted, i.e., (A) Ba₂ScHO₃ (ΔE_hull = 0 meV/atom), A1: Hg₂ScHO₃ (ΔE_hull = 366 meV/atom), (B) Sr₂GaHO₃ (ΔE_hull = 22 meV/atom), B1: Tl₂GaH₃O (ΔE_hull = 199 meV/atom) and (C) La₂LiHO₃ (ΔE_hull = 20 meV/atom). Up-pointing triangles indicate stable and metastable oxyhydrides (ΔE_hull ≤ 100 meV/atom), which are colored as a function of ΔE_hull. Down-pointing triangles indicate unstable oxyhydrides (ΔE_hull > 100 meV/atom). (D) Distribution of t_bv for the oxyhydrides belonging to category I and III in Figure 7C, respectively.

In addition to the inhibition of hydrogen oxidation as a requisite to stabilize the materials, there should be extremely electropositive cations contributing electrons to hydrogen. A large electronegativity between the cationic element and H can facilitate the charge transfer. We find 98% meta/stable oxyhydrides possess at least one extremely electropositive element with χ < 1.25 (Figure 7C) to mainly supply electron density. To better visualize the stability trend as a function of electronegativities, compounds are classified into four categories with respective to χ_Α/χ_Β − 1.25, and 82 out of 84 meta/stable oxyhydrides fall into the category I and II (Figure 7C). Meta/stable compounds belonging to category I with χ_Α < 1.25 and χ_Β > 1.25 have A-site cations mainly acting as electron donors to ensure the valence states of hydride ions and to stabilize materials. Those materials (e.g., Ba₂ScHO₃ and Sr₂GaHO₃) correspond to the high frequency of alkali and alkaline earth metals on the A site with transition metals and p-block elements on the B site as observed in the periodic table (Figure 4). Compounds in category II benefit from two potential electron donors with small χ < 1.25, which correspond to multiple Ln₂LiHO₃ (Ln = La, Pr, Nd and Sm) oxyhydrides already explored in experiments (Figure 3 and La₂LiHO₃ in Table 2). Although the materials in category III possess B-site cations with χ < 1.25, the lack of formable oxyhydrides in this group originates from the geometric perspective. t_bv of compounds in this category exhibit the obvious deviation from the optimal range as 0.8–1.2 (Figure 7D), because the electropositive B-site cations always have large ionic radius to distort the layer-perovskite structures. Few meta/stable oxyhydrides are found in category IV due to the absence of electropositive cations. The exception of Tl₂PHO₃ and Hg₂PH₃O as metastable compounds in this category might result from the lack of competing phases in the materials database, which underestimates their decomposition energies.

TABLE 2

TABLE 2. χ_A, χ_B, t_bv, ΔE_hull, Bader and Mulliken charge of hydrogen in Ba₂ScHO₃ (A), Hg₂ScHO₃ (A1), Sr₂GaHO₃ (B), Tl₂GaH₃O (B1) and La₂LiHO₃ (C).

Two groups of representative materials (i.e., A: Ba₂ScHO₃, A1: Hg₂ScHO₃ and B: Sr₂GaHO₃, B1: Tl₂GaH₃O) are highlighted to illustrate the strong correlation among electronegativity, charge transfer and phase stability (Figure 7C and Table 2). In contrast to Ba₂ScHO₃ (A) and Sr₂GaHO₃ (B), the absence of extreme electropositive cations in Hg₂ScHO₃ (A1) and Tl₂GaH₃O (B1) impedes the charge transfer to anions, which can be manifested by the decreased negative charge of hydrogen from the Bader charge and Mulliken population analysis (Table 2). The failure of the electronic stabilization leads to the increase of ΔE_hull for those materials (Table 2). Such trend can also be confirmed by the decision tree analysis (Figure S5), where stable oxyhydrides (81 out of 93) belongs to the node with χ_B < 1.82 and χ_A < 1.225. Thus, the electronic stabilization of the oxyhydrides demands the constituting elements with χ < χ_H and at least one extremely electropositive cation.

By applying the aforementioned geometric and electronegativity constraints, 228 compounds were selected from 1856 hypothetical compositions, with 74 of those candidates predicted to be meta/stable. The high ratio (32%) of formable oxyhydrides in shortlisted compounds in comparison with 5% by the random guess demonstrates the geometric constraints and elemental electronegativity as significant factors affecting the oxyhydrides stabilities.

3.3 Extension to A-mixed oxyhydrides

Besides fixed stoichiometry compounds, mixed-cation oxyhydrides are promising materials, as they provide an enhancement of compositional tunability for targeted properties. For example, A-mixed LaSrLiH₂O₂ demonstrated the highest H⁻ conductivity as 0.21 mS/cm at 590 K in experiments (Kobayashi et al., 2016; Matsui et al., 2020). However, an enormous number of possible configurations cause mixed oxyhydrides relatively untapped, placing computational materials discovery as an efficient tool. Taking the A₁A₂BH₂O₂ oxyhydrides as an example, the quantity of 17618 charge-neutral compounds disables the enumerated DFT calculations due to great expanse, calling for a more robust survey tool. An obvious tendency of the materials stability with respect to elemental and structural features (Section 3.2) reminds us of employing the ML algorithm to differentiate stable mixed-cation compounds.

Since LaSrLiH₂O₂ of the A₁A₂BH₂O₂ composition exhibits the best conduction properties, we choose the A₁A₂BH₂O₂ oxyhydrides as a model to illustrate our workflow handling the enormous compositional possibilities. Initially, seven candidate classifiers were trained based on the unmixed oxyhydrides dataset and 70 descriptors (Table S2) to differentiate meta/stable compounds (ΔE_hull ≤ 100 meV/atom). While their classification performance can be evaluated by multiple metrics (e.g., accuracy, f1 score and precision), the highly imbalanced database containing fewer meta/stable oxyhydrides imposes f1 score as a major index for model assessment (Note S2). Among all classifiers, the voting classifier demonstrates the highest cross-validated f1 score as 0.88 with fewer descriptors utilized (Figure 8A; Figure S6; Table 3 and Table S3). Its excellent performance is also proved by the high precision (0.93) and recall rate (0.84) in the precision-recall curve (Figure 8B), with good accuracy (0.99) and separability indicated by the confusion matrix (Figure 8C) and the ROC curve (Figure 8D). Outstanding metrics of the voting model to identify meta/stable compounds indicate its capability of capturing overarching factors impacting oxyhydrides stabilities.

FIGURE 8

FIGURE 8. (A) Ten-fold cross-validated f1 score as a function of feature quantity in the voting classification model to categorize the unmixed oxyhydrides. The shaded region represents the standard deviation of f1 score upon cross validation. (B) Precision-recall, (C) confusion matrix and (D) receiver operating characteristic (ROC) curves of the voting classification model to categorize the unmixed oxyhydrides upon the ten-fold cross validation.

TABLE 3

TABLE 3. Best f1 scores and the corresponding number of selected features using distinct classifiers models based on the cross-validated data.

We then transfer the trained classification model to search A-mixed A₁A₂BH₂O₂ oxyhydrides with good formability (Figure 9A). Among all 17618 electrically neutral configurations, the voting classifier predicts 527 compounds to be meta/stable with a probability larger than 50%. We further performed DFT calculations on those 527 shortlisted materials to determine their thermodynamic stabilities, yielding 110 formable compounds with ΔE_hull ≤ 100 meV/atom. The simple transfer learning not only accelerates the discovery of stable mixed oxyhydrides, but provides the valid database of the A-mixed oxyhydrides with a reasonable number of stable-labeled compounds for the further ML. Then, a new voting classifier was trained based on those calculated mixed ones to learn the stability rules of the A-mixed oxyhydrides. The retrained model demonstrates the ten-fold cross-validated accuracy and f1 score to identify stable mixed materials as 0.91 ± 0.04 and 0.80 ± 0.09, respectively, demonstrating its excellent ability to identify stable A-mixed crystals (Figure 9B). The new model was used to screen the unstable-labeled materials identified by the initial ML model to retrieve possibly formable compounds for further DFT calculations.

FIGURE 9

FIGURE 9. (A) Workflow of the sequential machine leaning approach to search formable A-mixed oxyhydrides. (B) Cross-validated precision-recall curve of the voting classifier trained from the calculated mixed compounds.

After the two-round ML and DFT screening, 114 A-mixed oxyhydrides are finally found to have ΔE_hull ≤ 100 meV/atom with a high likelihood of synthesizability (Figure 9A and Table S9). All experimentally synthesized materials (i.e., LnSrLiH₂O₂, Ln = La, Nd, Pr, Sm, Gd) (Kobayashi et al., 2016; Matsui et al., 2020) were recognized as formable materials, validating our computation scheme. In addition, the occurrence of new cations (e.g., Zr⁴⁺, Ce⁴⁺ at A sites) in the A-mixed oxyhydrides highlights the compositional tunability in mixed compounds (Table S9).

Since ionic conductivity is a key parameter for energy storage materials, we performed AIMD simulations in five randomly selected A-mixed compounds to study their H⁻ diffusivities (Table 4 and Figure S7). Four out of five compounds were predicted to exhibit the facile H⁻ diffusion with σ_Η− larger than 0.1 mS/cm at 573 K, except for the σ_Η− of KCeMgH₂O₂ merely smaller as 0.07 mS/cm. High H⁻ conductivities in those materials demonstrate the potential of the K₂NiF₄-type oxyhydrides for a wide range of energy conversion applications, e.g., hydride conductors and fuel cells. Since a library of promising oxyhydrides explored by our data-driven tools constitutes a valuable resource for further discovery, we look forward to a comprehensive investigation on properties of the oxyhydrides to explore their multifunctionality.

TABLE 4

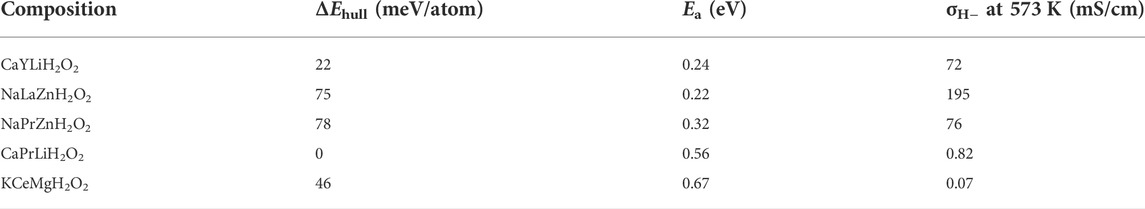

TABLE 4. Hydride conduction properties of the newly predicted A₁A₂BH₂O₂ oxyhydrides.

4 Discussion

Despite of the emerging functionality, the stringent experimental condition causes the oxyhydrides relatively undiscovered, with up to 20 compounds realized in laboratory. Using HT-DFT computations and ML algorithms, we constructed a large stability map of A₂BH_1+xO_3-x oxyhydrides. Besides all synthesized compounds identified by our calculations, 185 new compositions with good intrinsic thermodynamic stabilities were discovered to expand the chemical space of the oxyhydrides by ten times. Our prediction of novel oxyhydrides provides a guidance for experimental synthesis, which serves as a first step awaiting future researches that detail their properties.

Based on the established database, underlying features dominating the oxyhydrides stabilities and their physical origin were revealed via informatic tools. Since the meta/stable K₂NiF₄-type oxyhydrides exhibit a similar range of t_bv as 0.8–1.2 with that in perovskite oxides (Li et al., 2013; Emery et al., 2016), we speculate the similar constraint of t_bv in other stable mixed-anion systems sharing perovskite-related frameworks, such as oxynitrides and oxyfluorides (e.g., ABN_xO_3-x and A₂BF_1+xO_3-x) (Li et al., 2013). The criterion of tolerance factor from our analysis can serve as a screening threshold to promote the discovery of other mixed-anion materials from geometric aspect.

In addition to the structural distortion, the bonding between cations and anions plays a crucial role in stabilizing mixed-anion materials. While the upper limit of electronegativities for cationic elements is determined by the anion with a smaller electronegativity in the mixed-anion compounds, the extremely reducing nature of H⁻ further demands a highly electropositive cation to contribute electron density, such as alkali and alkaline earth metals. The trend of cationic electronegativity to stabilize materials may remain valid in other mixed-anion systems due to the similar bonding environment. Taking oxynitrides and oxyfluorides as an example, their requirements of cations in electropositive aspect is more tolerant than that of the oxyhydrides due to their electronegative anions (i.e., N^3- and F⁻). Such trend is proved by many compounds (e.g., PbReNO₂, AgCuF₂O, TlBiF₂O) (Wang et al., 2021) containing less electropositive ions realized in experiments. Thus, the rarity of the A₂BH_1+xO_3-x oxyhydrides can be attributed to the stringent constraint of cations with far small electronegativity ascribed to the reducing nature of hydride ions.

In order to evaluate the necessity of using the complex voting classifier, we also utilized the widely-used random forest method to search the stable A-mixed oxyhydrides following the two-step ML workflow (Table 5, Table S10 and Figure S8). While the training time of random forest is shorter than of the voting classifier, the hitting rate of the random forest (109/917) is smaller than that of the voting classifier (114/620), leading to calculating additional 300 compounds. The higher precision of the voting classifier may originate from its better performance (e.g., higher f1 score) to identify stable compounds than that of the random forest (Table 3, 5 and Figure S9). Given the computation time of a A-mixed compound by DFT as ∼ 5 hours, calculating 300 more compounds would consume thousands of hours, which is far longer than the difference between the two models’ training time. Thus, it is reasonable to use the voting classifier with the best performance in all classifiers for screening with an acceptable cost. In order to use the ML model trained by the unmixed compounds to screen the mixed compounds, we keep the feature dimension of the mixed compounds as same as the unmixed ones by designating the A-site properties as the arithmetic averages of the mixed ions. Such approximation of the properties for the mixed components is widely used in multiple ML studies (Bartel et al., 2019; Chenebuah et al., 2021; Liu et al., 2022). While the ML algorithm is challenged to learn the complicated effect of the cation mixing on materials’ stabilities (e.g., site miscibility) by averaging site properties (Ouyang et al., 2021) and including those effects by further feature engineering may improve its performance (Talapatra et al., 2021), the ML model still shortlists candidate compounds containing all known materials from thousands of possible configurations, and increases the success rate of finding the formable A-mixed oxyhydrides from ∼0.5% (114/17618) of the random guess to ∼20% (114/620). Thus, estimating the site-related properties of the mixed component by their average is viable in our study.

TABLE 5

TABLE 5. Comparison between the voting and random forest classifiers in model training time, the number of calculated and meta/stable A-mixed oxyhydrides.

In addition to the oxyhydrides chemistry explored by the informatics, we propose a simple and effective computational workflow targeting the discovery of mixed compounds with huge quantity. Unlike many applications of ML to identify stable materials such as single or double perovskites, a roadblock of our task to identify mixed oxyhydrides mainly lie on two aspects, i.e., the lack of detected database and the rarity of stable oxyhydrides. Even though the HT-DFT methods used to deal with unmixed compounds can generate the small size dataset of the mixed materials by randomly selecting materials, the paucity of stable ones (<5%) can lead to the highly unbalanced data distribution and disable the validity of the database. To handle the issue of insufficient labeled data and unbalanced data distribution, we demonstrate a simple two-step ML and HT-DFT paradigm to identify stable mixed oxyhydrides. The first-round selection based on the ML model transferred from the unmixed ones can provide the valid database of the A-mixed oxyhydrides with a reasonable number of stable labeled compounds. Then, the validated model (f1 score as 0.80) retrained from the mixed materials database can minimize the misclassification of the previous screening. Our workflow demonstrates its efficiency by successfully identifying hundreds of stable mixed oxyhydrides with reasonable cost, which includes all experimentally synthesized materials. In addition to the specific scenario demonstrated in our research, our method consisting of a simple transfer leaning can be applied to many materials design applications, where a large volumes data is unavailable and the data distribution is highly unbalanced.

5 Conclusion

We employed comprehensive computations to investigate the stability relationship of the K₂NiF₄-type oxyhydrides amid their paucity. The large stability map of the A₂BH_1+xO_3-x (x = 0, 1, 2) oxyhydrides was constructed by the HT-DFT calculations covering 1856 charge-neutral compositions, with only 5% of the total compounds exhibiting ΔE_hull ≤ 100 meV/atom. In addition to all laboratory synthesized compounds, our works identified new 76 compositions with good intrinsic thermodynamic stabilities to guide the experimental synthesis. Geometric factors standing for structural distortion and electronegativities accounting for the charge transfer in hydride bonding were unveiled to dominate the oxyhydrides stabilities, and to explain the scarcity of the materials. In addition to the unmixed compounds, we demonstrated an efficient two-step ML workflow consisting of a simple transfer learning to survey the cation-mixed compounds. 114 meta/stable A-mixed oxyhydrides were identified out of total 17618 possible configurations. Facile H⁻ diffusion in the selected compounds indicates the suitability of the oxyhydrides as energy storage and conversion materials. Our study facilitates the discovery of the oxyhydrides, and formulates the computational paradigm for the exploration of other uninvestigated compositional spaces.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author contributions

QB: computational simulation, formal analysis, writing-review and editing, funding acquisition. YD: formal analysis, conceptualization, funding acquisition. JL: formal analysis. XW: conceptualization, funding acquisition, resources. All authors approved the current version.

Funding

This work was financially supported by the National Natural Science Foundation of China (Grant No. 22109113, 52072256 and U1810115) and the Natural Science Foundation of Shanxi Province (No. 20210302124105, 20210302124096).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.964953/full#supplementary-material
