Shibo Lin
Xiaohong Gan- Department of Pharmacy, Chengdu Second People’s Hospital, Chengdu, China
The palladium-catalyzed decarboxylative reactions of phenols and vinyl ethylene carbonate to produce allylic aryl ethers under mild conditions have been established. Adopting an inexpensive PdCl2(dppf) catalyst promotes the efficient conversion of phenols to the corresponding allylic aryl ethers via the formation of a new C-O bond in good isolated yields with complete regioselectivities, acceptable functional group tolerance and operational simplicity. The robust procedure could be completed smoothly by conducting a scaled-up reaction with comparable efficiency to afford the target product.
Introduction
Aryl ethers are common structural elements found in physiologically important molecules as well as complicated natural substances. (Trost and Toste 1998; Cao et al., 2002; Tanaka et al., 2003; Trost et al., 2003; Sawayama et al., 2004; Trost 2004; Trost et al., 2004; Pochetti et al., 2010). Among the many different varieties, allylic aryl ethers have gotten a lot of interest because of their wide range of uses in academia and industry (Trost and Tang 2002; Parker and Fokas 2006; Varghese and Hudlicky 2014; Zhang et al., 2019a; Zhang et al., 2019b), and selective functionalization of the motif has acted as a foundation for the synthesis of novel bioactive compounds (Figure 1). The divergent synthesis of allylic aryl ethers from simple substrates, on the other hand, remains a difficult process that has yet to be fully explored. As a result, developing effective synthetic techniques and strategies to produce such therapeutically relevant compounds is of tremendous synthetic and applied importance (Consiglio and Waymouth 1989; Malkov et al., 1999; Trost et al., 2002; López et al., 2003; Mbaye et al., 2003; Ashfeld et al., 2004; Miyabe et al., 2005; Helmchen et al., 2007; Kawatsura et al., 2007; Trost and Brennan 2007; Bandini and Eichholzer 2009).

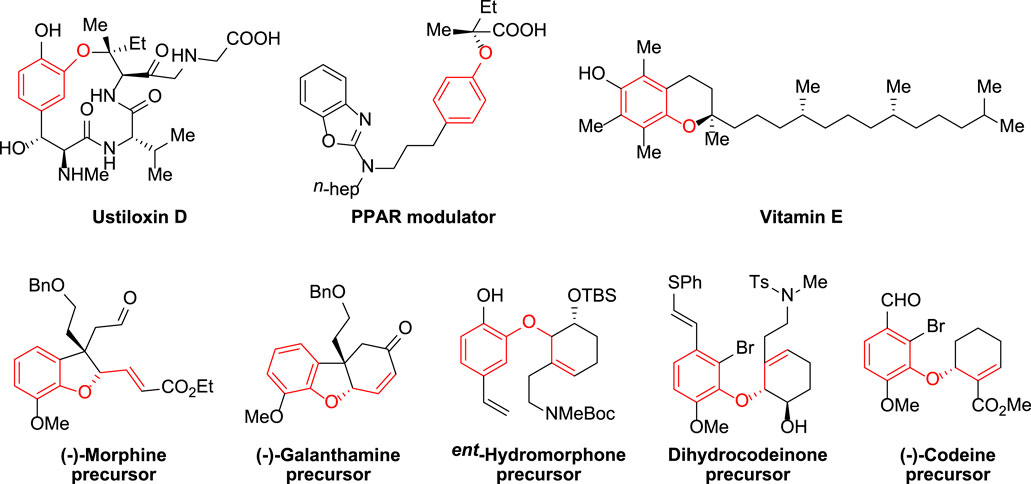

FIGURE 1. Representative important molecules containing aryl ether fragments.
Wandless and Trost, respectively, pioneered Pd-catalyzed allylic alkylation of phenol with π-allyl precursors (Sawayama et al., 2004) and intramolecular cyclization of phenol allyl carbonates (Trost and Toste 1998), which give effective methodologies for the synthesis of allylic C-O bonds. Nonetheless, the response yield is frequently inadequate. Trost (Trost et al., 2003) reported a viable decarboxylative allyl etherification process that employed vinyl epoxides as allylic donors and 4-methoxybenzyl alcohol as an interceptor to produce tertiary-alcohol derivatives in high yields (Figure 2A). For vinyl epoxides, methyl-substituted vinyl epoxides can be readily prepared by isoprene oxidation. Other 2-vinyl oxiranes with various 2-substituents, on the other hand, are difficult to obtain and rather unstable, limiting the reaction substrate’s extension. Recently, vinyl ethylene carbonates (VECs) have been created as adaptable allylic donors with more stable five-membered ring topologies and easier preparation techniques (Khan et al., 2017; Khan et al., 2019). The decarboxylative transformation of vinyl ethylene carbonates catalyzed by transition metals has shown to be a flexible approach for the creation of diverse allylic scaffolds (Shang and Liu 2011; Zhao and Szostak 2019). Kleij’s group reported the palladium-catalyzed decarboxylative allylation of VEC with phenol-based nucleophilic reagents (Xie et al., 2017), which afforded the branched product in high yields in the strong base condition (Figure 2B). It was shown that Cs2CO3 was critical for the formation of the branched products, and the presence of metal cations induced nucleophilic attack to occur at the central carbon of the palladium intermediate, thus generating the target compounds. This mild protocol is characterized by a fair scope in reaction partners, overall good yields and appreciable enantioinduction. In the same year, Zhang’s group reported the formation of tertiary alcohols or ethers from the reaction of water or alcohol as oxygen donors with VECs (Khan et al., 2017). The experimental process allowed smooth access in high yields, and the mechanism study indicated that the boron reagent played a key part in the reaction (Figure 2C). The process allowed rapid access to valuable tertiary alcohols and ethers in high yields with complete regioselectivities and high enantioselectivities. Work done by the Trost group (Trost and Toste 1999) had established that Pd π-allyl species undergo nucleophilic attack at the secondary carbon in preference to the primary carbon to deliver tertiary centers over secondary ones. This selectivity presumably arises from the greater carbocation-like character of the more highly substituted carbon center following ionization by the Pd (0) metal (Sawayama et al., 2004).

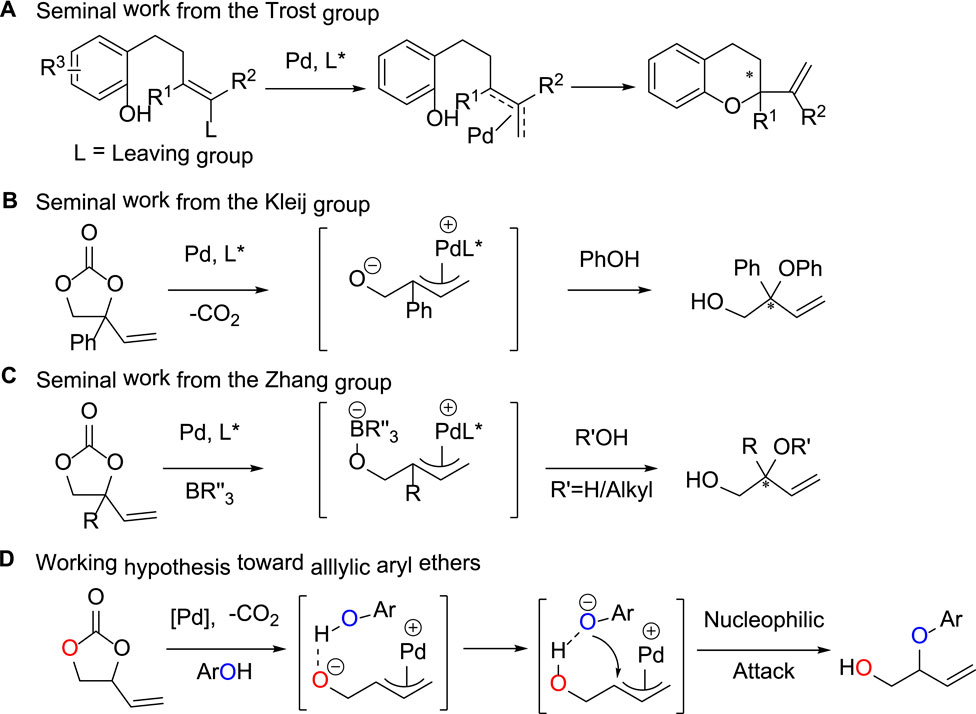

FIGURE 2. Strategy for Pd-catalyzed decarboxylative reactions of VEC with phenols.
Inspired by the above research results, we envisioned that, in the presence of an appropriate transition-metal catalyst, allylic aryl ethers could be constructed through decarboxylative etherification of VEC with activated phenolic nucleophilic reagents. As illustrated in Figure 2D, we hypothesized that the palladium-catalyzed decarboxylation of VEC could afford reactive amphiphilic π-allyl palladium intermediate, which subsequently forms the desired allylic ethers upon nucleophilic attack by phenols. Herein, we report the palladium-catalyzed conversion of VEC with phenols to construct functionalized allylic aryl ethers in high yields with excellent efficiencies and complete regioselectivities.
Results and discussion
We commenced our studies by examining the decarboxylative etherification of an easily accessible 1-naphthol 1aa and VEC 2 as standard reaction partners with using palladium catalysis. The results are summarized in Table 1. Initially, a mixture of 1aa, 2, PdCl2(dppf) as the catalyst, and Cs2CO3 as the additive was heated in acetonitrile solvent at 80°C. We were pleased to isolate the desired product, 3aa, in 72% yield after 15 h (Table 1, entry 1). Subsequently, different palladium sources such as PdCl2(dppf)·CH2Cl2, Pd2 (dba)3, and PdCl2·(bipy) were screened for the reaction under similar conditions, respectively, but most of them obtained no target compound (Table 1, entries 2–4). In addition, no reaction was observed in the absence of palladium catalyst (Table 1, entry 5). With the efficient PdCl2(dppf) catalysis in hand, we then tested various additives to evaluate their effects on the reaction outcome. Fortunately, with the help of additives, the reaction efficiency could be promoted to different degrees. Cs2CO3 achieved the most excellent results in facilitating the reaction, while other additives, including CsOAc, DBU, K2CO3, and KOH, led to lower isolated yields (Table 1, entries 6–9). Note that the inferior result would be obtained without the help of additives (Table 1, entry 10). Furthermore, solvents such as DMF, DMSO, PhMe, 1,4-dioxane, DCM, DCE, and THF were screened based on the established catalytic system, and MeCN was determined to be the optimal solvent (Table 1, entries 11–17). To our delight, reducing the reaction temperature to 70°C increased the yield of 3aa from 72 to 81% (Table 1, entry 18). However, turning the temperature down continuously resulted in the remaining unreacted substrates, which was detrimental to the reaction yield (Table 1, entries 19–20). Therefore, the established optimized reaction conditions were 1aa (0.20 mmol) and 2 (0.30 mmol) as the substrates, PdCl2(dppf) (5 mol%) as the catalyst, and Cs2CO3 as the additive in acetonitrile (2 ml) for 15 h at 70°C.

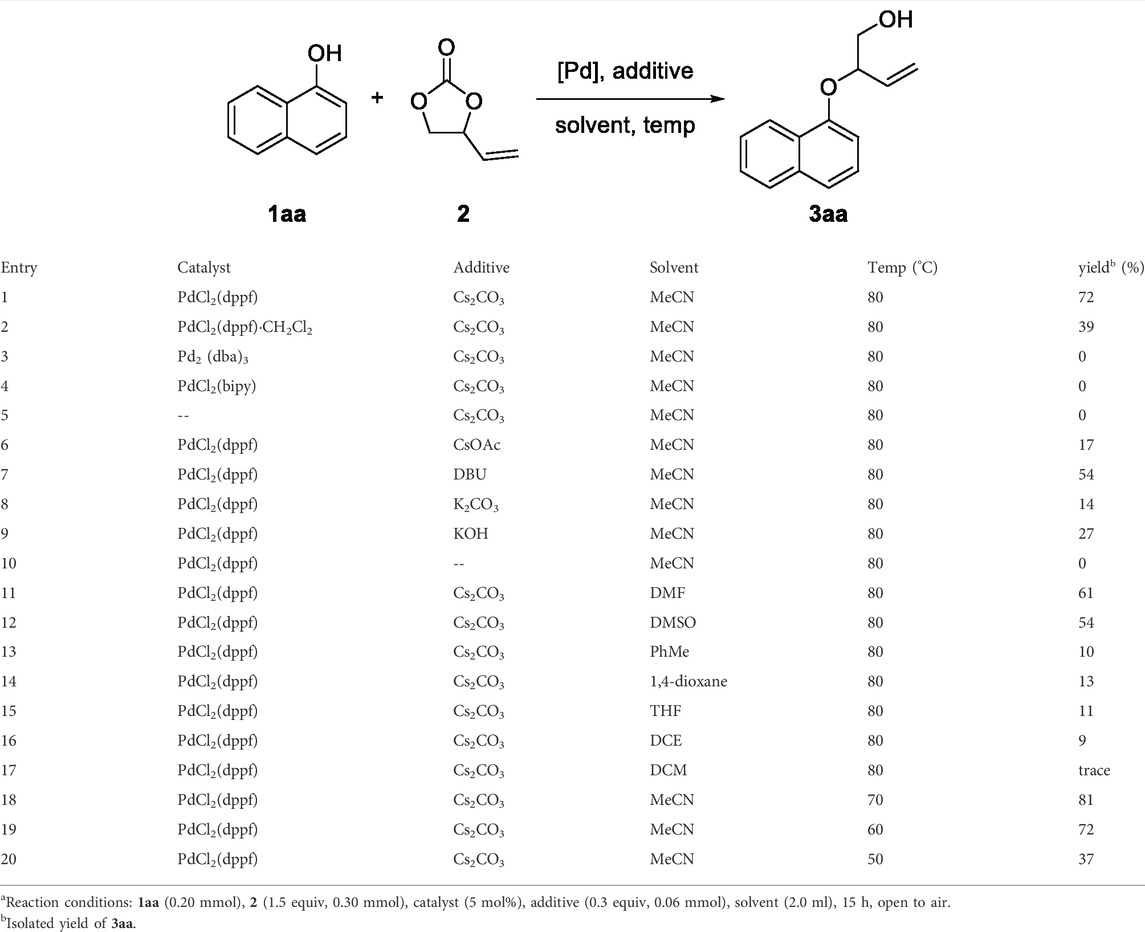

TABLE 1. Optimization of the reaction conditionsa.
As depicted in Figure 3, we investigated the substrate scope of the allylic etherifications under the optimal conditions. The reaction exhibited good functional group tolerance and was a generalized method to construct aryl allyl ether fragments facilely. First, we explored the effect of diverse monosubstituted phenol derivatives as substrates on the reaction. Halogens such as fluoro-, chloro-, and bromo-substituted phenols were well tolerated under identical conditions, affording the corresponding products in good to moderate yield (3b-3f). Further exploration found that the substitution position of halogen groups on the benzene ring greatly influences the reaction. For instance, halogen substitutions at the ortho-position of the phenyl ring (3b, 3c) generated much higher yields than did substitutions at the para and meta-positions (3d-3f). Notably, 2-Br substitution on the benzene ring afforded the target compound with an excellent yield of 90% (3b). Besides halogen groups, monosubstituted functional groups bearing electron-donating groups (-Me, -Et, -Ph) and electron-withdrawing groups (-CN, -NO2, -CF3, -COMe) on the phenol ring underwent the reaction smoothly to transform into designed products in moderate yields (3ab, 3g–3o). The reaction was also available to achieve phenols with multiple substituents, giving the etherified derivatives satisfyingly (3p–3t). Unfortunately, pyridyl ethers could not be prepared from hydroxy pyridine through the standard reaction conditions. Subsequently, we were prompted to check the feasibility of allylic etherification of quinolinol and isoquinolinol, which were demonstrated to be appropriate substrates, affording the desired product in 62 and 71% yields, respectively (3u, 3v). In addition, differently substituted naphthol and dibenzofuranol substrates performed high reactivity, and the corresponding naphthol allyl ethers were satisfyingly prepared (3w–3z). When both ortho-positions of the phenol ring are occupied, the reaction will not take place owing to the presence of higher magnitude of steric hindrance.

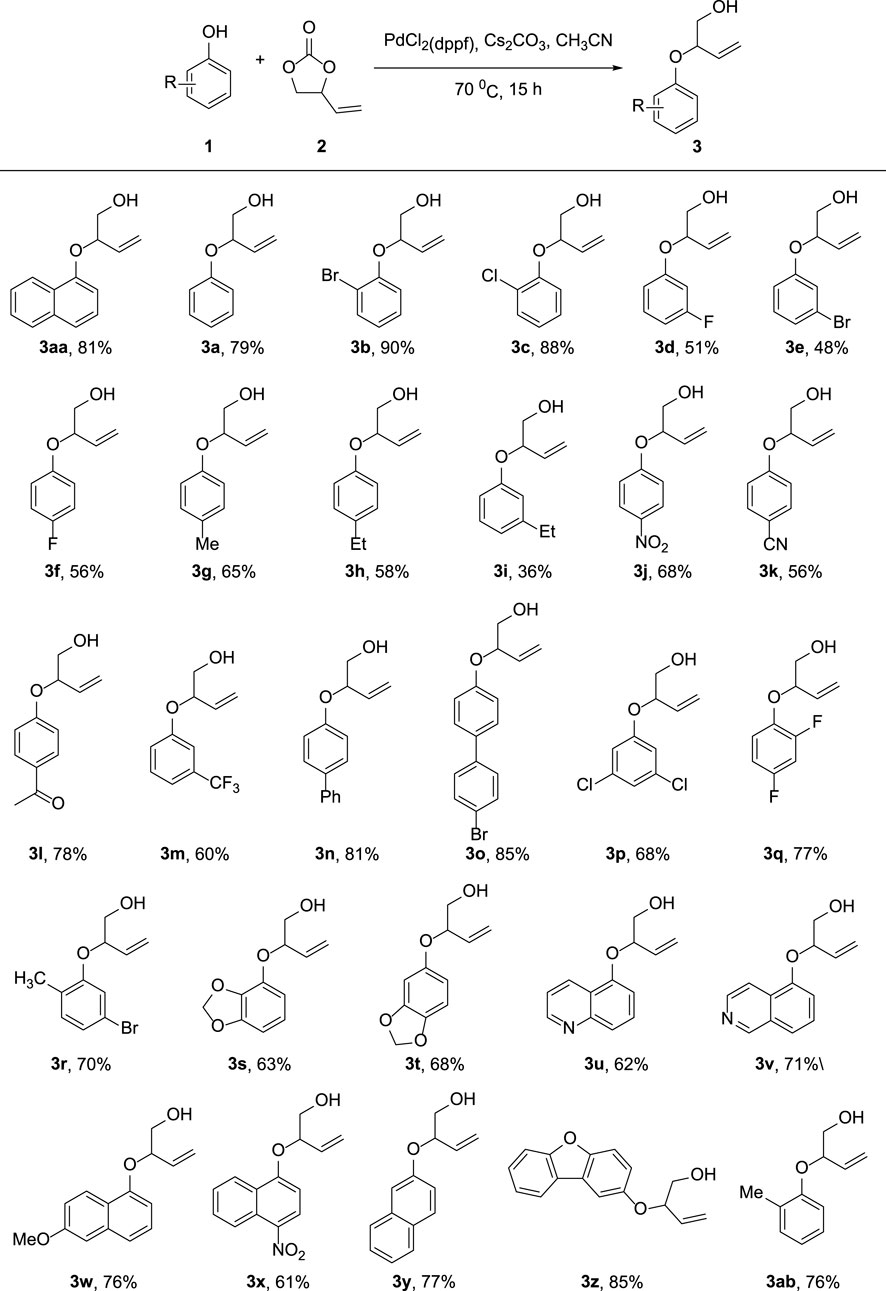

FIGURE 3. Substrate Scope of phenols. Reaction conditions: Phenol 1 (0.20 mmol), 2 (0.30 mmol), PdCl2(dppf) (5 mol%), Cs2CO3 (0.06 mmol), MeCN (2 ml), 70°C, 15 h. Isolated yields are reported.
The synthetic utility of the transformation was explored by conducting a gram-scale reaction of 1-naphthol 1aa and VEC 2 under the ideal condition, which provided the target compound 3aa with an isolated yield of 52%. Furthermore, competition experiments between differently substituted phenols revealed the preferential conversion of electron-deficient arenes (Figure 4).

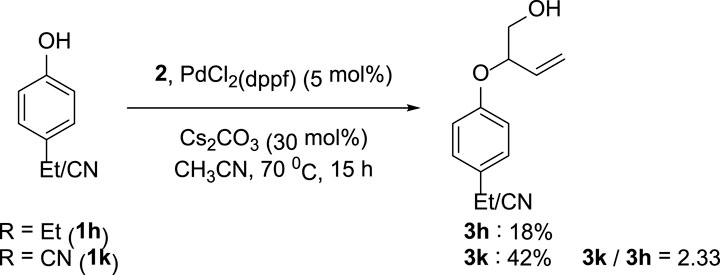

FIGURE 4. Competition experiments between 1h and 1k.
Conclusion
In summary, we have disclosed a general strategy for the synthesis of allylic aryl ethers through palladium-catalyzed O-H activation followed by decarboxylative reactions of aryl phenols and vinyl ethylene carbonate. Under mild conditions, allylic aryl ethers tolerating a broad scope of substitution types and functional groups could be obtained efficiently in good to excellent yield with complete regioselectivities. Notably, a scaled-up reaction could be conducted smoothly via this protocol.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Author contributions
YY and XG designed the project. SL, XZ, LH, XL, QJ, and LX performed the experiments. SL analyzed the data. SL wrote the manuscript. All authors contributed to the article and approved the submitted version.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.962355/full#supplementary-material
