A review on gasification and pyrolysis of waste plastics

Gasification and pyrolysis are thermal processes for converting carbonaceous substances into tar, ash, coke, char, and gas. Pyrolysis produces products such as char, tar, and gas, while gasification transforms carbon-containing products (e.g., the products from pyrolysis) into a primarily gaseous product. The composition of the products and their relative quantities are highly dependent on the configuration of the overall process and on the input fuel. Although in gasification, pyrolysis processes also occur in many cases (yet prior to the gasification processes), gasification is a common description for the overall technology. Pyrolysis, on the other hand, can be used without going through the gasification process. The current study evaluates the most common waste plastics valorization routes for producing gaseous and liquid products, as well as the key process specifications that affected the end final products. The reactor type, temperatures, residence time, pressure, the fluidizing gas type, the flow rate, and catalysts were all investigated in this study. Pyrolysis and waste gasification, on the other hand, are expected to become more common in the future. One explanation for this is that public opinion on the incineration of waste in some countries is a main impediment to the development of new incineration capacity. However, an exceptional capability of gasification and pyrolysis over incineration to conserve waste chemical energy is also essential.

1 Introduction

Plastics are adaptable, flexible, and lightweight, allowing them to be used in a wide variety of applications. In recent years, the political agenda has focused on the economic, environmental, and social influences of plastics, with an emphasis on sustainable manufacturing and the decoupling of negative ecological outcomes from waste generation. Waste plastics disposal has become a significant global environmental issue. Around 55 million tons of postconsumer plastic waste are produced annually in the United States, Japan, and Europe (Sun et al., 2021). Previously, these waste products were discarded in landfills, which was an unsustainable and environmentally unsound practice. Furthermore, the number of landfill sites and their capabilities are steadily declining, and landfill regulation is becoming more stringent in most countries. Recycling is being considered as another option for managing plastic waste in order to reduce its disposal in landfills. Because of the restrictions on water pollution and insufficient separation prior to recycling, which is labor intensive, recycling plastic has proved difficult and expensive (Jaafar et al., 2022). Since plastics come in a variety of colors, resin compounds, and transparencies, separation is required. Plastics that are pigmented or dyed typically have a lower market value. Manufacturers choose clear transparent plastics because they can be colored and turned into new goods, giving them more flexibility (Thompson, 2022). Recycling plastic has become difficult in recent years due to the strict requirements for obtaining high-value products.

The disposal of plastic waste presents a significant problem that must be tackled immediately. As a result, plastics’ low degradability poses significant ecological issues, particularly in marine environments (de Sousa, 2021). Furthermore, insufficient waste plastics management contributes to environmental concerns due to the depletion of essential and limited resources obtained from petroleum. As a result, in recent years, public policies aimed at strengthening waste plastics management have been promoted. In fact, in Europe over the last decade, the quantity of plastic waste disposed of in landfills has decreased by 38% while the fraction of waste plastics used for energy valorization and recycling has increased by 46% and 64%, respectively (Plastics, 2016). Although the situation with waste plastics management in developed countries is slowly improving, it is still far from satisfactory, and in developed countries, plastics management is obviously less promising. Different methods, such as reuse, recycling, energy recovery, and waste minimization are being considered with the goal of minimizing the volume of waste that is disposed of in landfills. However, neither minimization nor reuse has been extensively utilized in the case of waste plastics (Aguado et al., 2008). Combustion is a viable valorization route due to the high calorific value of plastics, but it is hampered by the emissions generated (Thimoteo et al., 2022). Chemical recycling routes have been the best chance of being implemented on a wide scale because these permit the formation of syngas/hydrogen, chemicals, and fuels from plastic waste. Figure 1 depicts the major chemical valorization pathways for waste plastics. Pyrolysis of waste plastics is widely recognized as the most efficient method for producing chemicals and fuels from plastic waste (Aguado et al., 2008), (Al-Salem et al., 2009; Al-Salem et al., 2010; Butler et al., 2011; Wong et al., 2015; Anuar Sharuddin et al., 2016; Kunwar et al., 2016; Ma et al., 2016; Yu et al., 2016; Lopez et al., 2017).

FIGURE 1

FIGURE 1. Primary chemical routes for plastic waste valorization.

The solid waste incineration is an attractive technology for thermal energy generation and reducing the volume of landfill waste. However, municipal waste incineration involves climate-relevant emissions (CO₂, SOx, NOx, and N₂O). One tonne incineration of municipal waste generates about 0.7–1.7 tonnes of CO₂, thus making significant greenhouse effect contribution. When compared to other conventional plastic recycling techniques (such as gasification and pyrolysis), the energy produced by incineration has significantly high emissions of greenhouse gases (340 g CO₂ eq per kWh). Therefore, waste incineration is not an environmentally friendly alterative due to subsequent greenhouse gas emissions.

Various plastic pyrolysis processes have been developed for the selective processing of waxes (Berrueco et al., 2002; Arabiourrutia et al., 2012a; Yansaneh and Zein, 2022), light olefins (Milne et al., 1999; Mastral et al., 2006a; Hernandez et al., 2007; Elordi et al., 2011; Artetxe et al., 2013a), and monomers (Achilias et al., 2007; Mo et al., 2014). Furthermore, in recent years, plastic waste and biomass co-pyrolysis have gained a lot of attention (Xue et al., 2015; Zhang et al., 2016a). Despite the growing interest in plastic waste pyrolysis, it is still in the developmental stages of implementation (Butler et al., 2011). Waste plastics and their derivatives, such as pyrolysis wax oil products, can also be fed into traditional refinery units to produce fuels (Arandes et al., 1997; Lopez et al., 2017; Lovás et al., 2017; Palos et al., 2022a).

Numerous studies have been conducted on the potential of different plastic types for gasification and pyrolysis procedures to produce gas and liquid products. It is important to note that the setup parameters have a significant impact on product quality and yield. Therefore, this review concentrates on the various plastic gasification and pyrolysis processes that have been investigated along with the key factors that affect these processes and those that require attention in order to maximize the production of gas and liquid oil and improve the quality of the final product. The primary parameters include pressure, residence time, the reactor type, temperature, the use of various catalysts, and the type and flow rate of the fluidizing gas. The obtained results from various valorization methodologies have been compared, and their potential values have been discussed critically. Furthermore, this study also presents some important discussion concerning product yield optimization.

2 Gasification

By partial oxidation with a gasification agent, gasification refers to the chemical and thermal conversion of carbon-based materials into a primarily gaseous output (usually air, oxygen, or steam). If gasification is preceded by pyrolysis, the pyrolysis outputs (gas, tar, and char) can be improved further by partial oxidation of the more complex hydrocarbons, particularly those found in the char and tar.

Temperature range from 800 to 1,100°C when using air as an oxidant, and up to 1,500°C when using oxygen. While most gasification processes are exothermal, that is, they generate heat, some of the associated reactions are endothermal and require heat, which could be provided by steam as the gasification agent. In general, the products of gasification are

Solid: non-volatile metals and other inorganic elements are found in ashes. Solids may account for 30–50% of the input weight.

Liquid: smaller amounts of oil and tar, about 10–20% by weight of the input, are used in some conditions.

Gas: same as pyrolysis gas but with higher CO₂ fractions. The heating value varies depending on the gasification agent, but it is usually 3–12 MJ/Nm³ with oxygen as the gasification agent. By weight of the supply, the gas yield can range from 30 to 60% (Belgiorno et al., 2003; Hu et al., 2021; Tezer et al., 2022).

Like pyrolysis products, gasification products are strongly influenced by the temperature, waste input, and overall process framework. The waste input, in particular, is often underrepresented in the literature, and the waste is frequently composed of distinct industrial segments instead of mixed MSW. The heating value for the gas output can therefore be considered as the upper limit for MSW. Char and tar formed by pyrolysis reactions are further converted to CO₂, CO, CH₄, and H₂ by heating to higher temperatures than pyrolysis and adding a gasification agent. The gasification agent used has a considerable impact on the processed gas composition, and “dilution” from the gasification agent has a substantial impact on the gas heating value, again contingent on the agent (medium) used. For example, air gasification is less expensive than using pure oxygen as a gasification agent but produces a gas that contains up to 60% nitrogen (Tezer et al., 2022).

3 Chemical reactors for gasification of plastic waste

Plastic waste gasification processes are exactly the same as those used to gasify other feedstocks such as coal and biomass. However, the unique properties of plastic wastes, particularly their high volatility and high thermal resistivity; sticky, viscous, and adhesive nature; and exceptional tar production, obstruct their processing in traditional gasification technologies and pose a significant challenge for process realization. As a result, an adequate gasifier design for plastic handling must incorporate the following characteristics: it should 1) be capable of providing high rates of heat transfer aiming to facilitate rapid depolymerization of plastic waste, 2) evade operative issues caused by the sticky and adhesive behavior of plastics by maintaining a tight control over the operating parameters and conditions, 3) have adequate residence time dispensation to favor the cracking of tar and enable the use of primary (fundamental) catalyst in situ while maintaining virtuous contact with the catalyst.

Traditional waste gasification systems are fixed bed, entrained flow, downdraft, updraft, fluidized bed, plasma reactor, and rotary kiln (Heidenreich and Foscolo, 2015; Ahmad et al., 2016; Mahinpey and Gomez, 2016; Molino et al., 2016; Ud Din and Zainal, 2016; Sansaniwal et al., 2017). However, because of the complexities of waste plastics, some of these technologies have been limited in their application. Each gasification system is available in a number of basic configurations, each with benefits for a specific product or feedstock applications. Each system type’s basic design revolves around the reaction chamber with feedstock insertion, but each has a unique air entry, heating mechanism, and syngas removal area.

3.1 Spouted conical bed gasifier

Conical spouted reactors are a substitute for heterogeneous fluidized beds (FBRs) for waste valorization processes due to their unique characteristics. As a result, these reactors have high mass and heat transfer rates, appropriate fluidization, and excellent solid mixing (Makibar et al., 2011). Furthermore, their dynamic solid cyclic circulation eliminates agglomeration and de-fluidization issues and facilitates the manipulation of irregular and discrete particulates, particles with a wide distribution size, and adhesive substances. In gasification processes, the primary drawbacks are the volatiles’ short residence (stay) time, which impedes the cracking tar reactions (Erkiaga et al., 2014). In bench-scale units, this technology is extensively applied in the pyrolysis of various solid wastes (Lopez et al., 2009; Lopez et al., 2010; Amutio et al., 2012; Artetxe et al., 2013a; Alvarez et al., 2015). Furthermore, the biomass pyrolysis process has been effectively generalized up to 25 kg/h (Fernandez-Akarregi et al., 2013; Makibar et al., 2015). The first time the spouted beds were used in the gasification processes, coal was used as the feedstock (Foong et al., 1981; Teo and Watkinson, 1986; Sueaquan et al., 1995; Fernandez et al., 2022). Gasification of different feedstocks (raw materials) has recently been added to this technology, such as waste plastics and biomass (Erkiaga et al., 2013a; Erkiaga et al., 2013b; Bernocco et al., 2013; Erkiaga et al., 2014; Lopez et al., 2015a; McCullough et al., 2015). To decrease the content of tar and improve the efficiency of the process in the gaseous product, various primary (fundamental) catalysts have been investigated in situ (Erkiaga et al., 2013a; Erkiaga et al., 2013b), or in a second reactor, secondary catalysts have been utilized (Lopez et al., 2015b). Figure 2 depicts a spouted conical bed gasifier design.

FIGURE 2

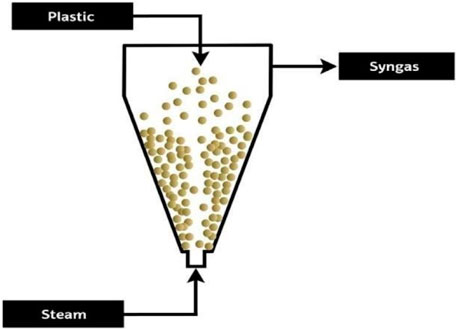

FIGURE 2. Spouted conical bed gasifier.

3.2 Fixed (packed) bed reactor

Packed bed reactors are used in the gasification of plastic because of the ease in their operation and design, and their low investment cost, with the key problem being scaling up, limited gas–solid contact, continuous operation, and a low heat transfer rate. There are many different designs of fixed-bed reactors, but they all have one thing in common: they are used in small-scale units (Ahmed and Gupta, 2009; Wu and Williams, 2010a; Wu and Williams, 2010b; Wu and Williams, 2010c; Friengfung et al., 2014; Parparita et al., 2015; Baloch et al., 2016). Usually, plastic waste gasification (Ponzio et al., 2006; HeMXiao et al., 2009a; Wang et al., 2012; Lee et al., 2014; Ongen, 2016) or their coprocessing with biomass and coal (Straka and Bicáková, 2014a; Akkache et al., 2016; Singh et al., 2022) in fixed-bed reactors has received little attention. Ahmed and Gupta (2009) used a laboratory-scale fixed-bed (packed) reactor operating in the batch mode for steam co-gasification of polystyrene and plastic–wood samples (Singh et al., 2022). Moreover, experiments were performed in a bench-scale fixed-bed reactor designed by HeMXiao et al. (2009b) at a plastic continuous feed rate of 0.3 kg/h, and the impact of utilizing reforming in situ Ni/Al₂O₃ catalyst was investigated. Li et al. (2012) also developed a similar continuous-mode experimental setup for MSW steam gasification. Lee et al.( 2014) conducted their research in a semi-batch laboratory-scale reactor with a steam (condensation) atmosphere. Guo et al. (2015, 2016) investigated polyurethane air gasification by utilizing various in situ catalysts in a laboratory-scale fixed-bed (packed) reactor.

3.3 Fluidized bed reactors

In gasification processes, two classes of fluidized bed reactors have traditionally been utilized: circulating fluidized beds (CFBs) and bubbling fluidized beds (BFBs) (Mahinpey and Gomez, 2016; Molino et al., 2016). Despite the intriguing characteristics of CFBs for the gasification of plastic waste operations, particularly the ability to achieve low tar and high conversion yields (McKendry, 2002), plastic gasification research has been limited to BFBs. The primary benefits of BFBs are their excellent gas–solid contact, high mass and heat transfer rates, good temperature control and flexibility, and good solid-mixing regime. Their primary drawbacks are their limitations in particle size both in feed and bed, high investment cost, unreacted material entrainment, and defluidization issues (Molino et al., 2016). These reactors run in a continuous mode and have a high scale and development degree, with various research being conducted in pilot plant scale units (Arena et al., 2010; Arena et al., 2011; Ruoppolo et al., 2012; Martínez-Lera et al., 2013a; Wilk and Hofbauer, 2013; Arena and Di Gregorio, 2014; Brachi et al., 2014; Narobe et al., 2014). In the co-gasification with coal and biomass or in plastic waste gasification, these are generally used with air as the gasifying medium (Sancho et al., 2008; Kim et al., 2011; Toledo et al., 2011; Ruoppolo et al., 2012; Cho et al., 2013a; Martínez-Lera et al., 2013b; Martínez-Lera et al., 2013c; Arena and Di Gregorio, 2014; Brachi et al., 2014). Despite the low gas heating value obtained, this approach offers functional benefits like lesser content of tar in the product gas and autothermal process (Gil et al., 1999; Devi et al., 2003). Mastellone and Arena (2008), Arena et al. (2009), and Arena et al. (2010) conducted research with continuous feed rates in a pilot plant up to 100 kg/h, while gasifiers have been employed by other researchers with feed rates of plastic ranging from 1 to 4 kg/h, running in a continuous mode (Xiao et al., 2007; Sancho et al., 2008; Toledo et al., 2011). Because steam gasification is considerably endothermic, it has high requirements of energy that are resolved in biomass gasification by utilizing dual fluidized bed (DFB) reactors, which combine a fast fluidized bed puffed with air with a steam-blown fluidized bed, where the residual char is burned (Goransson et al., 2011; Schneider et al., 2022). The research group led by Prof. Hofbauer used this operating methodology to gasify waste plastics in a pilot plant with a capacity of 15 kg/h (Martínez-Lera et al., 2013a; Narobe et al., 2014). However, as a result of the low yield of char and the problem in maintaining the heat balance between the combustion and gasification operations, issues may arise. Figure 3 depicts various types of gasifier schemes.

FIGURE 3

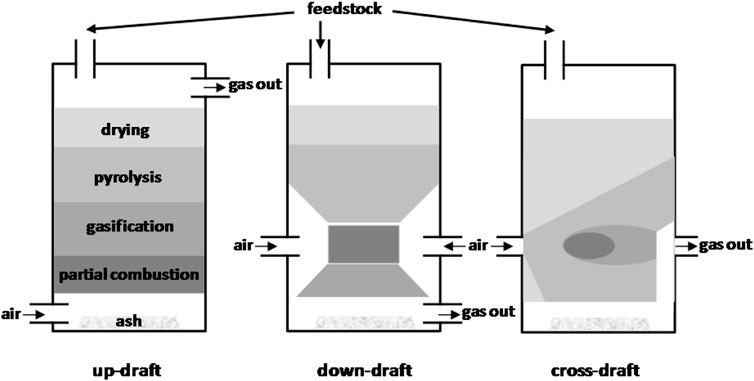

FIGURE 3. Gasification system types.

3.4 Plasma gasification reactors

The primarily use of plasma gasification is in industries where hazardous waste is disposed of at relatively high temperatures. The plasma torch in the gasifier (Figure 4) generates high temperatures (up to 10,000°F). There are two plasma gasification arrangements available depending on where the plasma torch is used in the gasification process. The first is plasma-assisted gasification, and the second is plasma-assisted gasification combined with traditional thermal gasification. This methodology has been utilized sparingly for the gasification of plastic waste, and studies have usually been conducted on a small scale (Tang and Huang, 2007; Rutberg et al., 2013a; Gibadullina et al., 2015; VishwajeetPawlak-Kruczek et al., 2022). However, the level of development achieved by Hlina et al. (2014) in their gasification unit, which works in a continuous mode with 11 kg/h plastic feed rate, is remarkable. Park et al. (2016) proposed combining continuous pyrolysis processes with 1.3 kg/h feed rate in a plasma reactor with gasification–pyrolysis (in-line) of volatiles.

FIGURE 4

FIGURE 4. Plasma gasification (Oliveira et al. 2022).

4 Temperature and heating rate

The temperature reached in the reactor is critical because temperature changes affect the majority of the chemical reactions for waste conversion. Higher temperatures, in general, alleviate lower tar content and higher carbon conversion in the waste in the gas phase, but in the case of gasification, a lower heating value of the gas may also result. In pyrolysis, higher temperatures produce more gas, while lower temperatures produce more liquid. Figure 5 depicts a relationship between temperature and output products, demonstrating that temperature is a very important factor and that uniform distribution of temperature across the reactor is crucial.

FIGURE 5

FIGURE 5. Reactor temperature (°C; RT) and mass yields (wt%, MY) correlation (Tezer et al., 2022).

Another factor that affects the outputs significantly is the heating rate (Hu et al., 2021). Char generation is increased by slow heating rates combined with relatively low final temperatures (e.g., slow heating at relatively low temperatures is required for the production of charcoal from wood). Mild heating rates up to mild temperatures give a more even weight distribution of pyrolysis outputs. High heating rates to high temperatures, possibly accompanied by rapid quenching, are commonly referred to as flash pyrolysis and can result primarily in a liquid product; however, the oils can be further broken down to enhance the gas output, if quenching is evading. Slow heating rates to high final temperatures typically result in a primarily gaseous product.

Some gasification processes use steam as the gasification agent and operate at high pressures (up to about 20 bar). High pressure favors the gas yield, though these processes may be circumscribed in their use with fuel as waste.

5 Gasification mechanism

The plastics gasification aims for the highest possible conversion to a syngas or gas product, with char and tar being the most unwanted derivatives. Gasification is a complex process and consists of many chemical reactions. Figure 6 depicts these steps. The importance of these steps in terms of kinetics and process performance is determined by the gasification conditions and feedstock properties. The main steps of gasification are

• Drying: around temperatures between 20 and 100°C, moisture is converted into steam. The feedstock is not decomposed, and no chemical reaction occurs at these temperatures. The predominant part of the gasification system is feedstock with a moisture content ranging from 10 to 20% for a high calorific value of produced gas.

• Pyrolysis: is devolatilization (thermal degradation), at temperatures between 150 and 700°C in the absence of oxygen, of the dry feedstock, liberating the volatile elements and a residue consisting of ash and char. The produced volatiles are a mixture of hydrogen, CO₂, tar, CO, water vapor, and light hydrocarbons.

• Oxidation: in a gasification scenario, various oxidation chemical reactions occur, liberating the heat required for endothermic reactions. Carbon dioxide is produced due to the reaction between oxygen and char. Water is produced by oxidizing the hydrogen in the feedstock. Substoichiometric amounts of oxygen are present; partial oxidation of carbon may transpire, ensuing carbon monoxide production.

• Reduction: due to the consumption of oxygen in oxidation reactions, several chemical reactions, primarily endothermic ones occur in the absence of O₂. CH₄, CO, and H₂ are the reduction reactions' main products.

FIGURE 6

FIGURE 6. Potential gasification routes (Aguado et al., 2008).

The following is a list of the most important chemical reactions that take place during the gasification process:

$\mathrm{C}\mathrm{a}\mathrm{r}\mathrm{b}\mathrm{o}\mathrm{n}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{C}+{\mathrm{C}\mathrm{O}}_2\to 2\mathrm{C}\mathrm{O}+172\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(1)$

$\mathrm{W}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{r}-\mathrm{g}\mathrm{a}\mathrm{s}\mathrm{o}\mathrm{r}\mathrm{s}\mathrm{t}\mathrm{e}\mathrm{a}\mathrm{m}\mathrm{C}+{\mathrm{H}}_2\mathrm{O}\to \mathrm{C}\mathrm{O}+{\mathrm{H}}_2+131\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(2)$

$\mathrm{H}\mathrm{y}\mathrm{d}\mathrm{r}\mathrm{o}\mathrm{g}\mathrm{a}\mathrm{s}\mathrm{i}\mathrm{f}\mathrm{i}\mathrm{c}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{C}+2{\mathrm{H}}_2\to {\mathrm{C}\mathrm{H}}_4–74.8\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(3)$

$\mathrm{C}+0.5{\mathrm{O}}_2\to {\mathrm{C}\mathrm{H}}_4–111\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(4)$

$\mathrm{O}\mathrm{x}\mathrm{i}\mathrm{d}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{C}+{\mathrm{O}}_2\to {\mathrm{C}\mathrm{O}}_2–394\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(5)$

$\mathrm{C}\mathrm{O}+0.5{\mathrm{O}}_2\to {\mathrm{C}\mathrm{O}}_2–284\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(6)$

${\mathrm{C}\mathrm{H}}_4+2{\mathrm{O}}_2\to {\mathrm{C}\mathrm{O}}_2–803\mathrm{M}\mathrm{L}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(7)$

${\mathrm{H}}_2+0.5{\mathrm{O}}_2\to {\mathrm{H}}_2\mathrm{O}–242\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(8)$

Shift reaction

$\mathrm{C}\mathrm{O}+{\mathrm{H}}_2\mathrm{O}\to {\mathrm{C}\mathrm{O}}_2+{\mathrm{H}}_2\mathrm{O}–41\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(9)$

$\mathrm{M}\mathrm{e}\mathrm{t}\mathrm{h}\mathrm{a}\mathrm{n}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}2\mathrm{C}\mathrm{O}+2{\mathrm{H}}_2\to {\mathrm{C}\mathrm{H}}_4+{\mathrm{C}\mathrm{O}}_2–247\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(10)$

$\mathrm{C}\mathrm{O}+3{\mathrm{H}}_2\to {\mathrm{C}\mathrm{H}}_4+{\mathrm{H}}_2\mathrm{O}–206\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(11)$

${\mathrm{C}\mathrm{O}}_2+4{\mathrm{H}}_2\to {CH}_4+2{\mathrm{H}}_2\mathrm{O}–165\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(12)$

Steam reforming reaction

${\mathrm{C}\mathrm{H}}_4+0.5{\mathrm{O}}_2\to \mathrm{C}\mathrm{O}+2{\mathrm{H}}_2–36\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(13)$

${\mathrm{C}\mathrm{H}}_4+{\mathrm{H}}_2\mathrm{O}\to CO+3{\mathrm{H}}_2+206\mathrm{M}\mathrm{J}/\mathrm{k}\mathrm{m}\mathrm{o}\mathrm{l}(14)$

The gasification process, as far as can be determined, is globally endothermic, with the required heat obtained in one of the two ways: direct (autothermal) gasification occurs when heat is generated inside the reactor as a result of exothermic reactions, while indirect (allothermal) gasification occurs when the required heat is generated outside of the reactor (Milhé et al., 2013).

6 Processes involved in gasification of plastic waste

Valorization of waste plastics through gasification processes has been considered using a variety of schemes, with the goal of producing syngas of various compositions and potential applications. Research on the gasification of waste plastics is still in its early stages, and the number of studies is restricted. On the other hand, investigations on biomass and coal co-gasification have been conducted.

Due to process simplification, air gasification is the most widely used process as there are no external energy prerequisites. Moreover, as compared with steam gasification, tar content is typically lower in the gas products (Gil et al., 1999). As a result, this gas is primarily used in the production of energy (Arena et al., 2010; Arena, 2012). Steam gasification produces an H₂-rich syngas with high ratios of H₂/CO, which is more suitable for chemical synthesis applications than direct air gasification syngas (Erkiaga et al., 2013a). The main difficulty with this alternative is the amount of heat that must be introduced into the reactor in order to perpetrate the endothermic steam reforming reactions.

Direct air gasification is the utmost investigated of these, compassing a gas product with a comparatively low heating value because of the diluting result of nitrogen.

Gasification with pure O₂ is an alternative to air and steam that combines the benefits of both gasifying agents. Although, due to the operating costs and high capital assets for air separation, this choice is more expensive and complex for medium-size utilizations in particular (Xiao et al., 2007). Recently, pyrolysis–reforming (in-line) of pyrolysis volatiles has been intended as a favorable waste plastics H₂ production valorization route (Czernik and French, 2006; Wu and Williams, 2010a; Park et al., 2010; Namioka et al., 2011; Barbarias et al., 2016a; Barbarias et al., 2016b). Furthermore, this alternative makes use of highly active reforming catalysts, which enable the production of tar-free syngas, overcoming the key problem in standard gasification of plastics.

6.1 Steam gasification

Plastic steam gasification has received little attention in the literature. In contrast to air gasification studies, which have almost entirely been conducted in fluidized bed reactors, plastics waste steam gasification has been investigated in various reactor types (Table 1), such as fluidized beds (FBRs) (Martínez-Lera et al., 2013a), fixed (packed) bed (HeMXiao et al., 2009a; Wang et al., 2012; Friengfung et al., 2014; Lee et al., 2014), and conical spouted beds reactors (CSBRs) (Erkiaga et al., 2013a; Lopez et al., 2015b). Heat requirement and the content of tar in the product gas are the challenges that steam gasification faces. To overcome this limitation, Wilk and Hofbauer (2013) investigated steam gasification of various plastics in a dual fluidized bed reactor, with a 100-kW pilot plant. At 850°C, the gasification reactor runs an in situ primary catalyst of olivine with an S/P ratio of 2.

TABLE 1

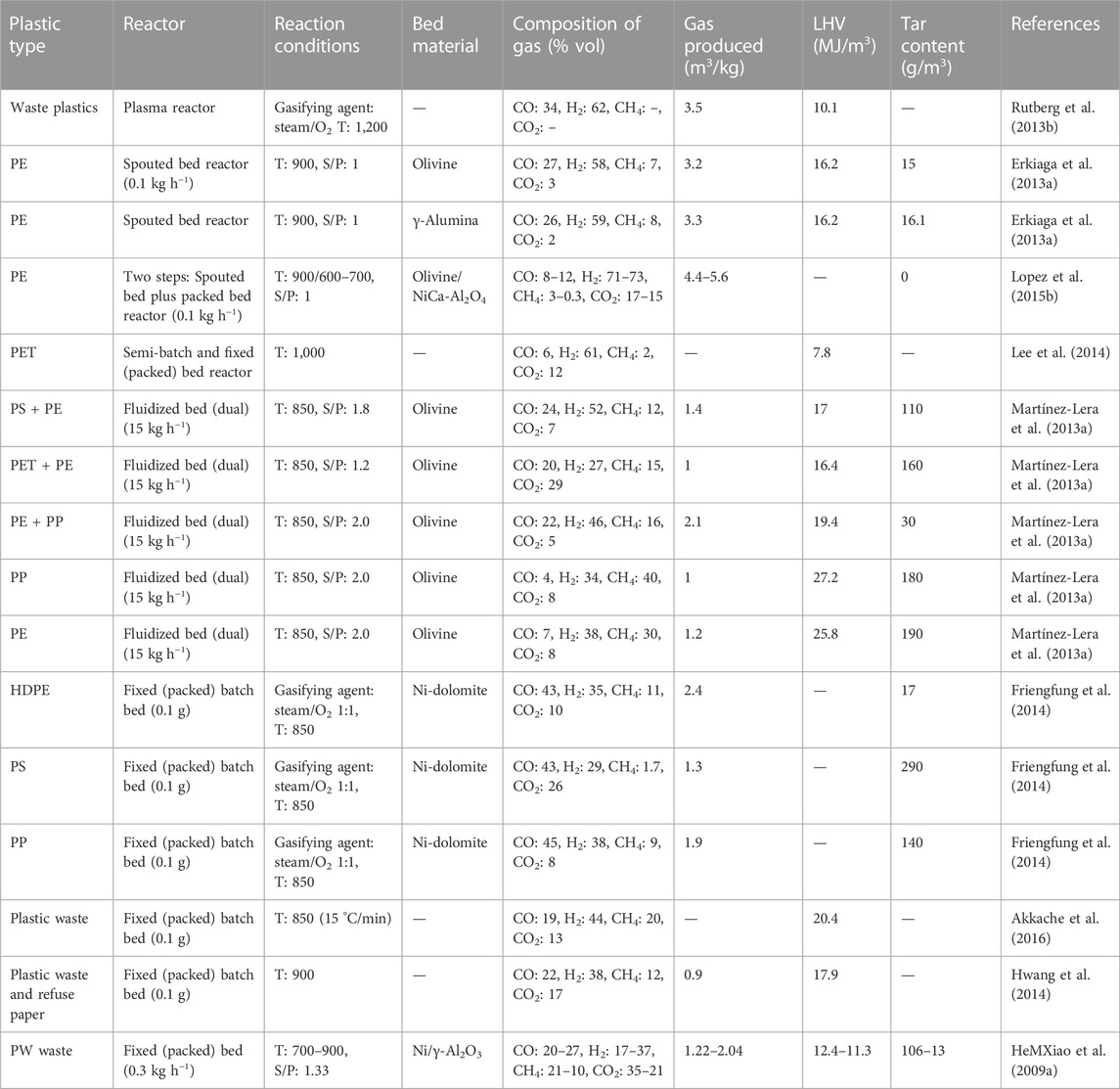

TABLE 1. Different gas compositions obtained by authors in steam plastics waste gasification.

Erkiaga et al. (2013a) investigated the HDPE steam gasification in a spouted bed conical continuous bench scale reactor (0.1 kg/h) operating at temperatures ranging from 800 to 900°C. Operating at temperatures above 850°C and with an S/P of 1, the product stream H₂ content was slightly higher than 60%, accounting for an 18 wt% production. Because of the decrease in hydrocarbon content, the gas heating value decreased from 19.3 to 15.4 MJ/m³ as the gasification temperature was raised. At the highest temperature investigated for an inert sand bed, a minimal tar content of 16.8 g/m³ was obtained, and this tar was interestingly composed primarily of single-ring aromatics. In the syngas, the tar content was slightly reduced and had little effect on the gas composition, by utilizing γ-alumina and olivine as the primary catalysts. The same authors used Ni reforming commercial catalyst with a fixed-bed (packed) reactor connected in-line with the spouted conical bed gasifier in a subsequent study (Lopez et al., 2015b). The operating temperature of the fixed bed is between 600 and 700°C with gasification experimental parameters being the same as those used in a previous study. The production of H₂ increased up to 36.5 wt% by the addition of a catalytic reforming step and also enabled the full reforming of tar and hydrocarbons.

The gasification of PP and PE generates syngas with up to 40% H₂ concentration, accordingly with 4–3 wt% of H₂ production rates (gH₂ 100 g/plastic). However, the most notable aspect of the composition gas product were the high concentrations of CH₄ (40% and 30%, respectively) and C₂H₄ (11% and 15%) in the PP and PE gasification. The heating value of the produced gas up to 25 MJ/m³ due to high hydrocarbon content. However, the high concentration of light hydrocarbons and methane as previously investigated by other authors is a clear indication for the presence of tar (Pohorelyl et al., 2006; Mastellone and Arena, 2008; Pinto et al., 2009a; Mastellone et al., 2010a), and for both plastics, the values of tar content were higher than 120 g/m³, with naphthalene as the prevailing compound. In utilizing the same experimental parameters in biomass gasification, lower tar values have been reported by the same authors (Schneider et al., 2022).

Using an Ni-Al₂O₃ catalyst, HeMXiao et al. (2009a) investigated the PE gasification (0.3 kg/h) with 1.33 S/P ratio between 700 and 900°C in a fixed (packed) bed reactor. The production and concentration of H₂ improved significantly to 3.7 and 6.6 wt%; conversion of plastic improved with temperature increase; and at 900 C, gases' yield reached 2.04 m³/kg. On steaming after 3 h time, no deactivation was evident by reforming the (Ni-based) catalyst. The gas product heating value ranged from 12.3 to 11.4 MJ/m³, at the lowest temperature, with the highest value being obtained.

Dou et al. (2016) recently conceived a laboratory-scale continuous reaction system consisting of a fluidized bed (FBR) gasifier followed by CO₂/steam reforming adsorption in a moving bed reactor. The combination of steam reforming on CO₂ retention on CaO and a Ni-Al₂O₃ catalyst resulted in the high production of H₂; however, they discovered that below 700°C, adsorption of CO₂ was only effective.

In the literature, the values of H₂ production with high concentrations of H₂ vary between 3 and 18 wt% (g 100 g/plastic) of polyolefins steam gasification (HeMXiao et al., 2009a; Erkiaga et al., 2013a; Martínez-Lera et al., 2013a). Furthermore, the syngas obtained is suitable for the synthesis of various fuels (methanol, DME, and hydrocarbons) (Zhang, 2010). Temperature is the most critical and important parameter in the steam gasification of plastics. Its increase facilitates the cracking and reforming of endothermic reactions that include tar and light hydrocarbons, which facilitates the yield of both gas (Figure 7A) and H₂ (Figure 7B). However, for synthesis applications in the gaseous stream, the tar content must be considerably decreased to achieve stringent tar content constraints (Devi et al., 2003). Steam gasification of plastic waste, as previously reported, results in high concentrations of tar in the gas product, even exceeding 100 g/m³ (HeMXiao et al., 2009a; Martínez-Lera et al., 2013a). In fact, it is widely acknowledged that air gasification results in less tar than that obtained through steam gasification (Gil et al., 1999; Devi et al., 2003), and as compared with the gasification of biomass and coal, the gasification of plastic waste yields more tar (Pinto et al., 2009b; Mastellone et al., 2010b; Martínez-Lera et al., 2013a).

FIGURE 7

FIGURE 7. (A) Temperature effect on yield of gas in steam plastic waste gasification. (B) Temperature effect on H₂ production.

By using fixed-bed batch reactor, Friengfung et al. (2014) studied the laboratory-scale gasification of steam/O₂ (0.1 g of sample) of various plastics. By utilizing (Ni-impregnated) dolomite and dolomite at 850°C, the experiments were carried out without a catalyst. In all cases, the tar production was higher (more than 80 wt%) and the results obtained without a catalyst with various polyolefins, PP, LDPE, and HDPE were poor. In the HDPE case, promising results were achieved by utilizing Ni-impregnated dolomite catalyst for which a tar production of 10 wt% or below was achieved. The gasification efficiency is enhanced by utilizing a dolomite catalyst, but the tar production was on the higher side (more than 50 wt%). For full-scale development, steam gasification faces considerable challenges due to its high process heat requirement, however N₂ absence improves the gas heating value over 15 MJ/m³ (Erkiaga et al., 2013a; Martínez-Lera et al., 2013a; Hwang et al., 2014). In fact, the well-designed dual fluidized beds scheme is also scarce by the low fixed carbon of waste plastics, which impedes the heat balance closure process (Wilk and Hofbauer, 2013; Schneider et al., 2022). Generally, steam gasification of waste plastics has received little attention and development and is not as advanced and promising when compared to air gasification.

6.2 Air gasification

The main challenge of gasification of plastic processes, regardless of the gasifying agent utilized, is the yield of the gas product tar, though when O₂ or air is utilized in the place of steam, the tar yield is lower (Gil et al., 1999; Devi et al., 2003). Thus, the content of tar must be less than 10 mg N/m³ for the utilization of syngas for the production of energy in turbines and engines but much lower for synthesis applications (Devi et al., 2003). Deposition in the process equipments, especially in heat exchangers, and the characteristics of tar, mainly its dew point, play a vital role in the problems that it causes (Guan et al., 2016). The dew point is determined by the amount of tar present, and its composition, since single-ring aromatic hydrocarbons are non-condensable even at concentrations of 10 g N/m³. At the concentration of just 1 mg N/m³, polyaromatics with more than four rings condense, resulting in serious operational problems (Anis and Zainal, 2011).

Air gasification studies on plastic waste have primarily been conducted in fluidized bed reactors (FBRs), with substantial advancement in experimental units, especially the bench scale or pilot plants functioning in a continuous mode. Table 2 summarizes the important outcomes in air gasification of plastic waste. Air gasification has been broadly examined by the research group of Prof. Arena. They used plastic mixtures and different plastics in a pilot plant fluidized bubbling bed with a surmised capacity between 30 and 100 kg/h (Mastellone and Arena, 2008; Arena et al., 2009; Arena et al., 2010; Arena et al., 2011; Arena and Di Gregorio, 2014). Their early research focused on PE waste gasification with equivalence ratios (ERs) in between 0.21 and 0.33 at 850°C to investigate the role of olivine as the main catalyst for tar diminution (Mastellone and Arena, 2008; Arena et al., 2009). The gasification process efficiency improved significantly with the use of olivine, resulting in significant tar content reduction in the product gas. This result is linked not only to direct tar cracking but also to the removal of its promoters, i.e., light olefins. By improving the reforming reactions, the composition of the gas was also improved, resulting in a significant increase in H₂ content. Thus, in experiments using inert silica powder, the content of tar in the product gas was about 100 g N/m³, while when calcined olivine was utilized in situ as the catalyst, the tar was almost completely removed. The efficiency of carbon conversion, or the fraction of carbon in the feed that is altered into products in the stream outlet, has been shown to increase the overall process output when olivine is used. At low ERs, this parameter increased by 60%–66%, while at high ERs, it increased by 70%–82%. In the gas product, the increase in equivalence ratio had a positive impact on the content of tar yield. However, the dilution effect due to the increased gas output for high ER values may also be a factor. The same authors have equated the gasification efficiency of various plastic waste mixtures retrieved from MSW and postconsumer packaging in a subsequent study (Arena et al., 2010). The in situ waste gasification of a mixture of polyolefin with olivine yields a gas fraction composition, process efficiency, and tar yield that are close to those which have result with pure PE, demonstrating the versatility of this valorization path. Poor results however have been obtained in the case of complex plastic mixture gasification with low process efficiencies and high tar yields. This is due to the reduction in the performance of the primary olivine catalyst.

TABLE 2

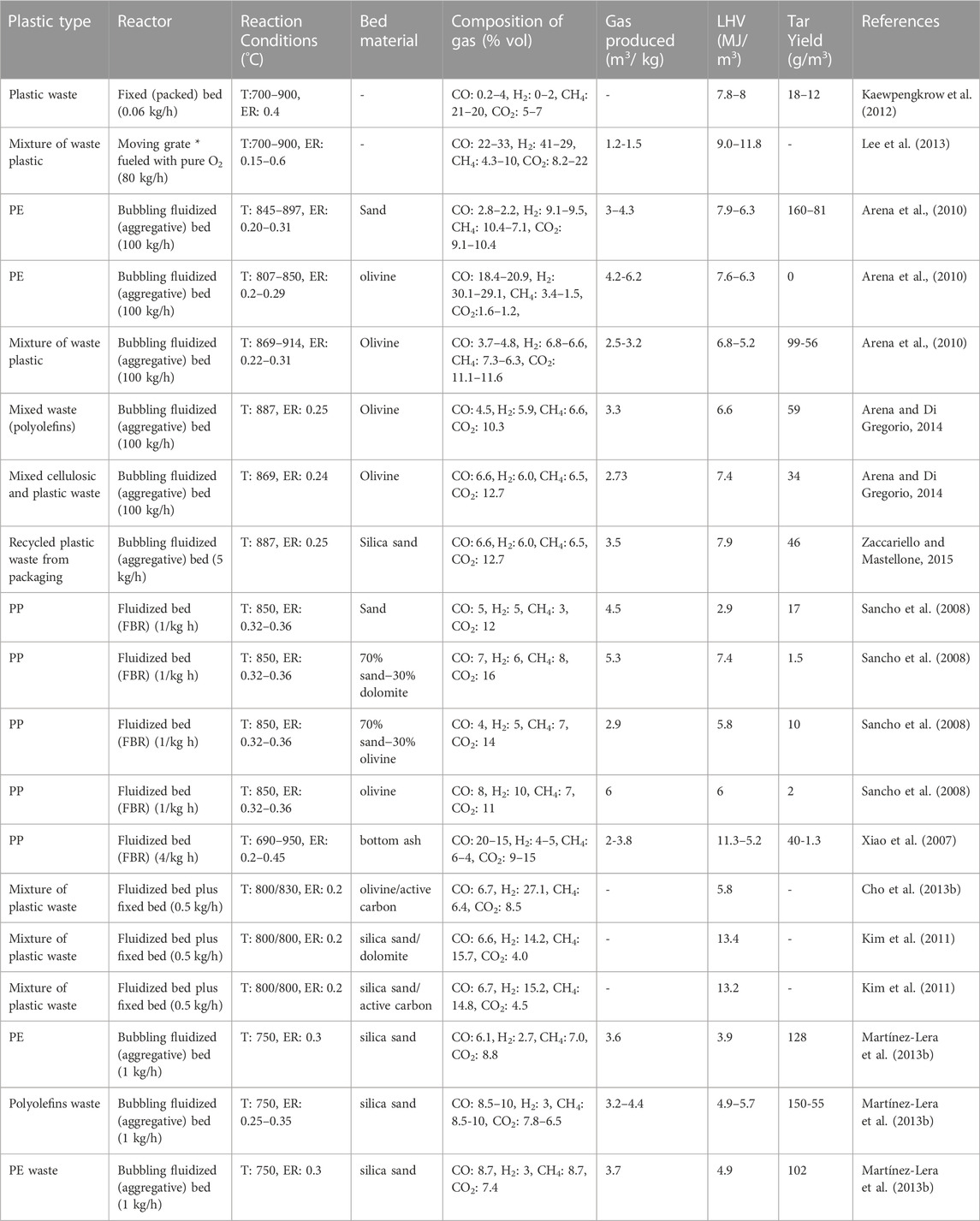

TABLE 2. Gas compositions achieved by various researchers in air gasification of plastics waste.

In a bench scale two-step unit, Kim et al. (2011) investigated air gasification with a continuous feed rate of 0.50 kg/h of plastic waste mixture composed of polyolefins and other waste plastics (PET, PVC, and PS). Both phases were conducted at about 800°C in fluidized bed reactors, with the first containing sand, followed by the second, i.e., tar cracking catalysts. Dolomite and activated carbon were among the catalysts investigated, with activated carbon proving to be a better option for tar removal. Apart from reducing the tar content, the utilization of activated carbon as a primary catalyst significantly improved the content of H₂ in gas products. Based on experimental parameters, the tar yields ranged from 3 to 7 wt% with the impact of catalytic bed mass being particularly noticeable. The same authors suggested a similar approach in a subsequent study conducted under similar conditions, but they substituted sand with olivine in the first bed and dolomite as the primary cracking catalyst (Cho et al., 2013a; Cho et al., 2013b). The fraction of gas composition improved significantly with the utilization of dolomite. Furthermore, combining both these catalysts in the first bed with active carbon in the second bed provided a tar yield of less than 2 wt%. In bubbling fluidized bed gasifier (4 kg/h bench scale), Xiao et al. (2007) investigated the impact of various operating variables like equivalence ratio, gas velocity, and residence time on PP air gasification. The presence of Fe, Al, Mg, and Ca caused tar cracking activity in the bottom ash from a boiler. The most important variable analyzed was ER, which induced a substantial increase in the temperature of the gasifier from 705 to 917 °C when ER was increased from 0.23 to 0.47. Furthermore, in the ER range investigated, the gas product tar content decreased from 40.3 to 0.25 g N/m³. A higher yield of gas and the high temperature were both responsible for this reduction. For high ER values, the authors found that the equivalence ratio should be thoroughly calibrated to prevent a decrease in the heating value of the gas product.

At 850°C, Sancho et al. (2008) studied PP air gasification in a continuous fluidized bed reactor (bench scale) with an equivalence ratio of about 0.35 at 1 kg/h. This study evaluated the catalytic efficiency of dolomite and olivine as the primary catalysts and compared the findings to those procured with inert sand. They found that the use of dolomite is restricted by its low physical ability, which drives it to be ejected from the gasifier. Moreover, olivine has material characteristics that make it ideal for use in fluidized beds, with a catalytic activity that is just marginally lower than dolomite. As a result of the use of olivine, the content of tar in the product gas was decreased from 17 g N/m³ achieved with sand to 2 g N/m³. Furthermore, olivine facilitates reforming hydrocarbon reactions, which increases the amount of hydrogen in the syngas. The same authors went on to investigate the use of olivine in PP air gasification, demonstrating olivine permanence over long gasification runs (Toledo et al., 2011). Furthermore, the values of the equivalence ratio were dropped from 0.37 to 0.24 to increase the heating value of the gas product while maintaining the tar content at a low. This was accomplished by raising the gasifier freeboard region temperature up to 915°C by using an external heat source.

In a moving grate pilot plant gasifier, Lee et al. (2013) studied the gasification of waste plastics with an output of 80 kg/h. The gasifying agent used was pure oxygen. Under these parameters, the ideal equivalence ratio was between 0.30 and 0.45, and the gas yield was from 1.35 to 1.48 m³/kg with the heating value above 10 MJ/m³. Plastic waste air gasification is an intriguing option for producing a gas stream adequate for a variety of energy applications, the most viable one being electricity generation in engines and turbines (Heikkinen et al., 2004). As shown in Figure 8A (ER 0.2 and 0.45), the heating value is 3–12 MJ/m³ of produced gas. This heating value is primarily influenced by two factors: 1) equivalence ratio and 2) waste plastics composition. In the gasification of plastic waste, the heating value (average) is approximately 6–8 MJ/m³ (Table 2).

FIGURE 8

FIGURE 8. (A) ER effect on gas LHV product in air plastic waste gasification. (B) ER effect on the yield of gas by Lee et al. (2013).

The air gasification of pure PP, PE, and PE waste has been studied by Martínez-Lera et al. (2013c) in a bubbling fluidized bed bench-scale gasifier with a capacity of 1 kg/h. The bed was composed of inert silica sand with an equivalence ratio of 0.25–0.35, and the experiments were carried out at 750°C. Pure PP and PE gasification produced similar gas compositions and yields. However, waste PE gasification produced better results than pure polyolefins gasification. As a result, the gas yield achieved with PE waste was 92.7%, while that of pure PE was 90.6%, with the tar content difference being more substantial. The tar content obtained from pure PE and waste plastics was 127 g N/m³ and 103 g N/m³. Despite the fact that the ER was only changed to a small degree (0.25–0.35), it had a significant impact on the process efficiency, especially tar yield. As a result, it was lower from around 150 g N/m³ to below 60 g N/m³ in the case of PE waste. A semiempirical model was developed by Martínez-Lera and Pallarés Ranz (2017) for polyolefin in FBR gasification, with the model predictions confirmed by previously described findings and others from the literature.

The equivalence ratio is undoubtedly the most significant parameter in terms of impact on air gasification operating conditions since it specifies the composition and yield of the gas (Xiao et al., 2007; Martínez-Lera et al., 2013c). Increased ER contributes to higher gas production, but it also reduces the gas heating value (Figure 8B). In the gas product, the presence of N₂ increases with an increase in ER value, and the combustion of CH₄, CO, and H₂ and the resulting increase in CO₂. An increase in the ER usually reduces the gas product tar content, which not only increases the gasifier temperature but also the volumetric gas yield.

The gasifier’s design is also essential for improving tar removal quality. To favor the cracking of tar in FBRs, an increase in temperature and residence time in the freeboard area is typically sought (Toledo et al., 2011; Martínez-Lera et al., 2013b). In fluidized bed gasifiers, the feed location also affects the tar yield (Wilk et al., 2013; Brachi et al., 2014). Secondary air injections in the gasifier’s free board are another popular technique for improving tar cracking and increasing the temperature in this region (Narváez et al., 1996; Pan et al., 1999). In a plastic waste air gasification, the amount of tar in the gas produced by different researchers varies greatly and depends on various factors, i.e., catalyst utilization, design of the reactor, the composition of plastics, and experimental parameters, in particular residence time, temperature, and equivalence ratio (Table 2). In general, the contents of tar are higher than biomass gasification (Pinto et al., 2009b; Mastellone et al., 2010b; Pinto et al., 2016), whose average value in the FBR reactors is 10 g/m³ (Anis and Zainal, 2011).

Since the content of tar has a significant impact on the direct use of the gas generated, various strategies for eliminating or reducing it have been suggested. As a result, using a primary catalyst in situ reduces the tar content of the gas component substantially (Sancho et al., 2008; Arena et al., 2009; Toledo et al., 2011). While in tar cracking, dolomite is more effective than olivine (Rapagna et al., 2000; Corella et al., 2004; Sancho et al., 2008; de Andres et al., 2011). In FBR reactors, olivine is the more commonly utilized catalyst because of its refined mechanical characteristics (Sancho et al., 2008; Arena et al., 2010; Toledo et al., 2011; Arena and Di Gregorio, 2014). The olivine catalytic function is generally linked to the content of iron (II) oxide (Kumar and Singh, 2011), with interest stemming from not only the enhanced removal of tar promoters but also the ability of the catalyst in the direct cracking of tar, preventing further formation of tar in the gasification system (Arena et al., 2010; Schneider et al., 2022). Different catalysts, like active carbon (Kim et al., 2011; Cho et al., 2013a; Cho et al., 2013b), zeolite (Cho et al., 2014), dolomite (Kim et al., 2011; Cho et al., 2013b), and active carbon filled with Ni (Cho et al., 2015), have been proposed for catalytic cracking of tar in secondary beds. Furthermore, for the removal of tar from the gas product, electrostatic precipitators and filters have been recommended (Kim et al., 2011; Cho et al., 2013a).

6.3 Co-gasification

The degree to which the product distribution is dependent on the composition of the feed is a notable differentiation between gasification and pyrolysis processes. As a result, the yield and composition of the products derived from pyrolysis of various solid wastes are extremely different. Moreover, the variations in gasification of various feed materials are limited to the composition of gas and small byproduct yields such as char and tar. The analysis of waste plastics co-gasification has been aided by the flexibility of the gasification process, and the higher advancement level of the gasification of biomass and coal.

Pinto et al. (2003) used a fluidized bed gasifier (5.5 kg/h) to investigate coal air/steam co-gasification with lower concentrations of PE and biomass (20% each). Plastic co-feeding increased the hydrocarbon content in the product gas; however, this result could be prevented by working at higher ERs or temperatures. A similar pattern was observed in the formation of tar. In order to achieve an appropriate performance for each mixture of feedstock, they found that the gasifier operating parameters had to be thoroughly calibrated. The same authors were able to fully eliminate tar by using two secondary fixed-bed (packed) tar cracking reactors, the first of which used dolomite and the second of which used Ni-Al₂O₃ (Pinto et al., 2009b). Surprisingly, holding unwanted halogen and sulfur mixtures in the dolomite bed bettered the durability and performance of the Ni-based catalyst. Pinto et al. recently investigated rice husk co-gasification (80%)/PE (20%) in a fluidized bed gasifier utilizing various gasifying agents, such as air, pure oxygen, steam, and mixtures of these agents (Kaewpengkrow et al., 2012; Pinto et al., 2016). The findings show that working with steam and pure oxygen produces the best gas, but that the usage of pure oxygen is restricted due to high oxygen production cost, thereby considering enriched air as a viable alternative.

Pinto et al. (2002) investigated the PE/biomass mixture steam gasification (continuous) in an FBR. The PE maximum content studied (60%) resulted in effective conversion, as demonstrated by a particular gas yield and a heating value, i.e., 1.96 kg/m³ and 18.3 MJ/m³. Furthermore, an increase in PE feed resulted in an increase in methane concentrations and H₂ (to 52%) on the one side, but a decrease in CO₂ and CO concentrations on the other.

Despite the fact that plastic waste has mostly been co-gasified with biomass (Pinto et al., 2002; Wilk and Hofbauer, 2013; Alvarez et al., 2014; Narobe et al., 2014; Lopez et al., 2015a; Zaccariello and Mastellone, 2015; Arena and Di Gregorio, 2016; Singh et al., 2022), it has also been co-processed with ternary mixtures (Ahmed and Gupta, 2011; Jung et al., 2013; Lopez et al., 2016) and coal (Mastellone et al., 2010b; Kriz and Bicakova, 2011; Straka and Bicáková, 2014b). Steam, air, or their mixtures were used as the gasifying agent in these experiments. Table 3 summarizes the key findings in the co-gasification of plastic waste.

TABLE 3

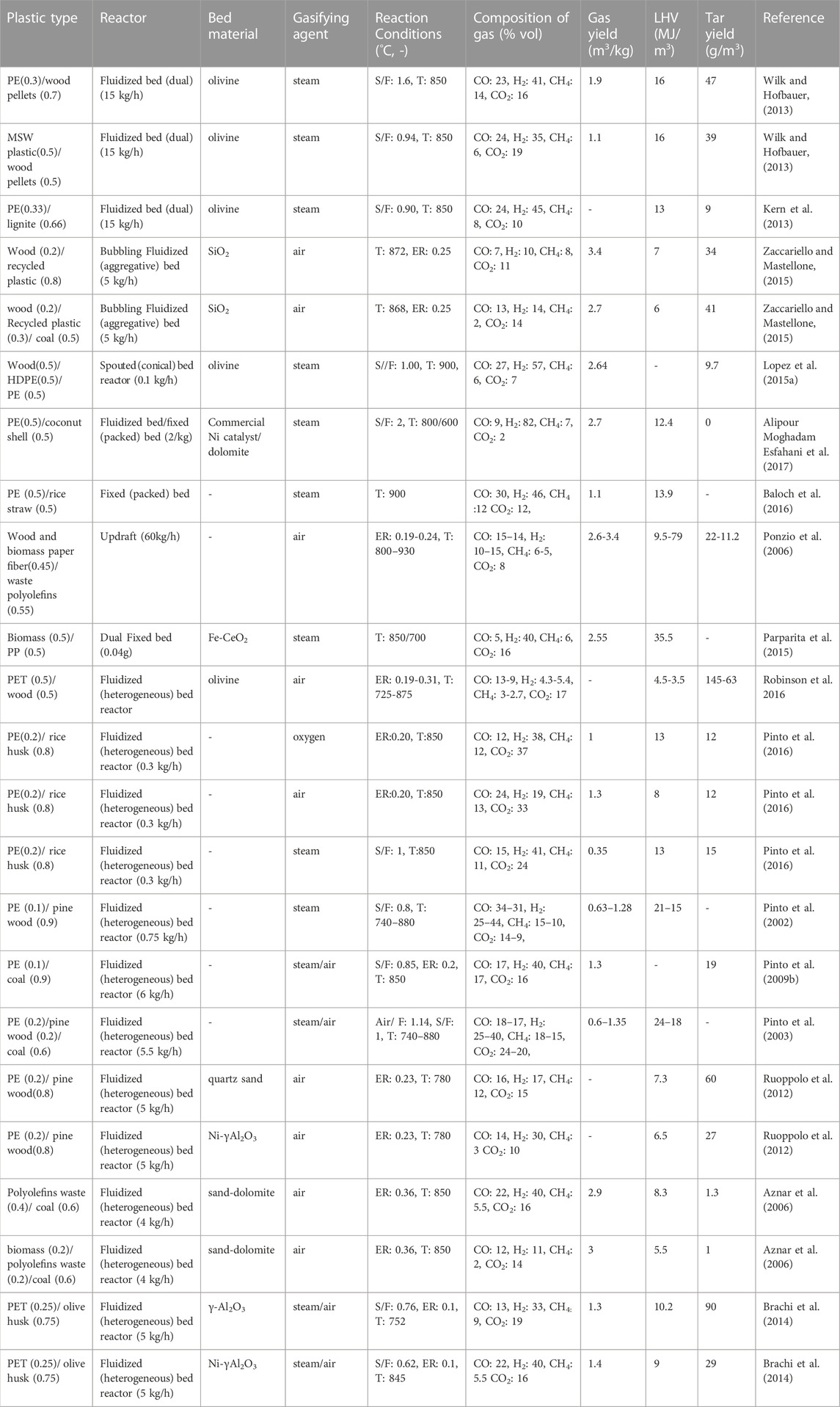

TABLE 3. Gas compositions obtained by authors in the plastics waste co-gasification.

At 900°C in a laboratory fixed-bed batch reactor, Ahmed and Gupta (2011) studied PE steam co-gasification and wood chips. In the co-processing of biomass and plastics, they also discussed the synergistic impact on gas yields, hydrocarbons, and hydrogen, as well as on thermal performance. Furthermore, in the feed, the optimized content of plastic was found to be within 65 and 80%. Lopez et al. (2015a) confirmed the previously recorded synergistic effects in a spouted bed conical gasifier (0.1 kg/h) using biomass and PE co-gasification. This effect is particularly noticeable at a 1/1 blending ratio.

The gas product tar content of a 1/1 mixture of biomass and PE gasification was decreased to 9.5 N/m³ with an S/F ratio of 1, by utilizing a primary olivine catalyst operating at 900 °C. Furthermore, while the gas yield (2.67 kg/m³) was close to the theoretical value predicted in accordance with the results achieved for biomass and PE particular feeds, a synergistic impact on the char yield reduction and H₂ content in the syngas was observed.

By utilizing olivine as the bed material in the dual fluidized bed gasifier (15 kg/h), Wilk and Hofbauer (2013) investigated biomass pellets steam co-gasification with various waste plastics types and their mixtures (such as PE). Thus, a 16 MJ/m³ LHV value of 1.6 m³/kg gas yield was reported for 1/1 ratio of blended HDPE/biomass, which is significantly less than that obtained with pure plastic. Moreover, when plastics and biomass were co-gasified, a synergistic effect on the formation of tar was observed, with the tar contents being less than that predicted based on their particular gasification. Furthermore, tar composition was also affected by an increase in the content of plastic in the feed thus lowering furan and phenol while enhancing naphthalene content. Similarly, by utilizing different blending ratios, non-linear patterns were perceived, and the composition of the gas product cannot be directly evaluated from the outcomes achieved with particular feedstocks. The impact of lignite co-feeding in the PE steam gasification was investigated by the same authors (Kern et al., 2013). Furthermore, lignite co-feeding was found to have a synergistic impact on cold gas efficacy, and lignite co-feeding also enabled a reduction in the content of tar when contrasting with those results from pure plastic.

In a fluidized bed pilot scale gasifier, Ruoppolo et al. (2012) explored pellets gasification containing 20% PE and 80% wood, and correlated the results to those from pure biomass. Ni-Al₂O₃ and inert quartzite catalyst were utilized as bed materials. Mixtures of air and air/steam were utilized as gasifying agents, and they discovered that by improving the reforming reactions, air/steam mixtures resulted in a higher hydrogen concentration and a lower content of tar. The high concentration of H₂ obtained during PE pellets gasification was the most promising result (30% vol.). Despite their utilization of comparatively low Ni-Al₂O₃ catalyst and the content of plastic in the pellets, the tar content as compared with biomass (below 30 g N/m³) was significantly higher (around 46 g N/m³). Therefore, the above synergies in steam gasification were apparently less pronounced when air was used as the gasifying agent. The same authors investigated gasification of pellets composed of olive PET (25%) and husk (75%) with mixtures of steam/air, but with low ERs to increase syngas efficiency (Brachi et al., 2014). When a nickel-based catalyst (Ni-Al₂O₃) was compared with an Al₂O₃ catalyst, the former produced better gas composition and tar content. Furthermore, when the effects of feeding from a bed middle point were compared to those from the top bed feeding, a substantial increase in gasifier efficiency was observed.

A two-step gasification framework was developed by Park et al. (2016) that included oxidative pyrolysis at 526°C and a plasma thermal reactor operating at 626°C. Different mixing ratios and equivalence ratios were used to investigate the biomass and HDPE co-gasification. With an ER of 0.46 and 70% biomass in the feed, the best results were achieved.

In a fluidized bed pre-pilot gasifier, Mastellone et al. (2010b), Mastellone et al. (2012), and Zaccariello and Mastellone (2015) investigated the air gasification of ternary mixtures composed of biomass, coal along with plastic mixtures, and coal. Because of the higher light hydrocarbon content, the key result of plastics co-feeding was an improvement in heating value and gas yield. When plastics were used in the feed, they found a rise in tar formation and a decrease in H₂ concentration, i.e., for various ERs (0.21–0.31), the co-gasification of coal/plastics tar contents ranged from 26 to 48 gm⁻³. Surprisingly, biomass had the opposite effect than that predicted, which is tar formation reduction. As a result, the authors assessed that by promoting synergistic effects in the feed by using appropriate component proportions, the process’ viability can be increased.

Moghadam et al. (2014) and Alipour Moghadam Esfahani et al. (2017) proposed a two-stage method for HDPE steam gasification and a palm kernel shell/coconut shell mixture between 660 and 880°C in FBR using in situ Ni catalyst (powder), followed by cracking of tar in an FBR dolomite reactor at 600 °C. This method produces syngas with high H₂ content and allows for effective tar removal. Hence, at the maximum gasification (880 °C) temperature, a hydrogen yield of 29.4 wt% was recorded, with an 87% concentration (by vol).

Furthermore, plastics in the feed had a positive effect on the content of tar and gas heating value; but on tar formation, this effect was found to be the opposite of that stated by other authors (Ruoppolo et al., 2012; Wilk and Hofbauer, 2013; Zaccariello and Mastellone, 2015). Thus, for binary and ternary mixtures, very low contents of tar (1.35 gm⁻³) were achieved by operating at 850°C, utilizing dolomite as the primary catalyst and with an ER of 0.36, with heating values in the range of 5–8 MJ/m³ due to the high equivalence ratio used.

Aznar et al. (2006) studied air co-gasification of binary and ternary mixtures in a fluidized bed reactor. The mixtures were made up of plastic waste, i.e., PP and PE, biomass, and coal. In binary mixtures, the content of plastics was comparatively high (40%), while in ternary mixtures, the content was low (10–20%). The concentration of hydrocarbon in the gas production increased due to the presence of plastics in the feed while lowering H₂, CO_2, and CO.

According to these results, plastic waste co-gasification with various feedstocks produces fascinating synergies, highlighting the strategy’s utility (Wilk and Hofbauer, 2013; Lopez et al., 2015a; Singh et al., 2022). The reciprocations between product polymer degradation and biomass chars are usually due to these synergies (Antelava et al., 2021), with a positive correlation in their thermal joint degradation being well established (Zhang et al., 2016b; Lopez et al., 2017). As shown in Figures 9A,B, increasing the content of plastics in its co-gasification with coal and biomass increases both H₂ concentration and gas yield. These outputs are explicated by the higher content of carbon and H₂ in waste plastics when compared to coal and biomass, as well as the lower or non-existent char yield. An increase in the formation of tar is the key plastics co-feeding disadvantage as shown in Figure 10A. The higher gas heating value generated when compared to that in the gasification of biomass, as shown in Figure 10B, also facilitates the plastic co-feeding benefit (Pinto et al., 2016). Another benefit of co-gasification of plastic and biomass is that this reduces plastics gasification operational issues, such as formation of fine char particulates and reactor feeding (Pinto et al., 2002).

FIGURE 9

FIGURE 9. (A) The effect of the feed’s plastic content on the yields of gas in plastics co-gasification with coal and biomass. (B) Plastic content effect in the feed on the production of H₂ in plastics co-gasification with coal and biomass.

FIGURE 10

FIGURE 10. (A) Plastic content effect in the feed on the content of tar in the produced gas in plastics co-gasification with coal and biomass. (B) Plastic content effect in the feed on the produced gas heating value in plastics co-gasification with coal and biomass.

7 Pyrolysis

Pyrolysis is organic matter thermal decomposition without oxidizing agents like CO₂, oxygen, or steam. The temperature for pyrolysis processes is generally inbetween 300 and 850°C, depending on various process parameters. Usually, pyrolysis processes are endothermic, which means that energy is required to proceed with the process. The energy content and composition of pyrolysis products are dependent largely on the input of waste and can differ significantly (Hu et al., 2021; Tezer et al., 2022):

• Solid: a char-like substance that contains residual solid products, such as sand, glass, and metals. The heating values and char content (by weight) are around 10–35 MJ/kg and 20–50%, respectively, which may have substantial content of ash (10–50%).

• Liquid: a complex mixture of hydrocarbons, such as organic acids, phenols, PAHs, and alcohols, made up of water, tar, and oil. The heating values and liquid amount (by weight) are around 5–15 MJ/kg and 30–50%.

• Gas: a mixture of CO, CH₄, CO₂, H₂, and other volatile waste constituents. The heating value and gas yield may be around 3–12 MJ/Nm³ and 20–50%, respectively.

Moisture is released and waste is dried during the pyrolysis process, which involves heating the waste to about 100–120°C. Following this process, a series of complex reactions take place, resulting in the release of volatile compounds and the breakdown of more complex carbon-containing compounds into simpler ones. Gaseous outputs are formed by breaking nitrogen, hydrogen, and oxygen bonds at temperatures ranging from about 200°C to 800 C (see Table 4). The primary reactions are those that result in the production of gas and tar/oil, while the secondary reactions are those that result in the conversion of gas and tar/oil. During gasification, these secondary reactions can also occur. Secondary reactions convert further tar to gases and char, along with the enhancement in the concentrations of CH₄ and CO₂ in the gas product.

TABLE 4

TABLE 4. Temperature-dependent pyrolysis reactions (Bilitewski et al., 1997).

Pyrolysis product heating values and mass yields differ greatly from one process to another and also depend highly on the composition of the waste input. With well-sorted solid recovered fuel (SRF), automotive shredder residue (ASR), or biomass waste as a process input, the above values can only be considered suggestive and typically representing an upper limit. Mixed plastics generally produce high amounts of inorganic residues and char, whereas high quality plastic waste and rubber promote higher oils and gases ratios.

The amount of water in the waste input has an impact on both the process conditions and outputs, especially on the liquid and gas outputs. Heat is mostly supplied indirectly via the reactor walls, but waste compaction and friction can also lead to waste heating. Pyrolysis takes place in an inert atmosphere, but in practice, it occurs in the pyrolysis gaseous atmosphere that go through various secondary conversion reactions.

8 Pyrolysis of waste plastics

Plastics come in a variety of compositions which are usually stated based on their proximate analysis. The proximate analysis includes the determination of volatile matter, moisture content, fixed carbon, and waste sample ash content. If samples of solid waste are to be utilized as a fuel, all of these characteristics are very significant (Kreith, 1998). The main factors that affect the yield of liquid oil in the pyrolysis process are ash content and volatile matter. A high content of ash decreases the liquid oil yield, while high volatile matter enhances the production of liquid oil (Abnisa and Wan Daud, 2014). The proximate study of various plastics is summarized in Table 5, which shows that all plastics have high volatile matter and low ash content. These properties show that plastics have a high capacity for pyrolysis to produce significant amounts of liquid oil.

TABLE 5

TABLE 5. Proximate analysis of plastics (Abnisa and Wan Daud, 2014).

8.1 High-density polyethylene

Polyethylene is the most popular plastic in the world. It is the most basic of all commercial thermoplastics in terms of structure. Its molecules are made up of long-chain carbon atoms joined by two atoms of hydrogen. The straight chain (no branching) is called high-density polyethylene (HDPE) or linear PE, short for high-density polyethylene. Although linear PE is far more durable than branched PE, branched PE is easier to manufacture and less expensive. Its different uses account for 17.6% of the plastic waste group, which is the third most common plastic form of MSW (Michael, 2010). HDPE is therefore suitable for applications like weaving, Raschel knitting, reinforcement applications, and braiding. Many studies on the pyrolysis of HDPE at various operating conditions have been performed to determine the yield of the product.

Using a batch reactor, Marcilla et al. (2009a) explored the pyrolysis of HDPE at 550°C. The gaseous product produced was 16.4 wt% and the yield of liquid oil was 84.8 wt%. The findings showed that at higher temperatures, more liquid oil yield could be produced, but there was also a drawback that should be observed; since the process had reached the utmost thermal decomposition stage, too high temperatures would increase the gaseous product while decreasing the yield of liquid oil. Mastral et al. (2001) studied the pyrolysis of HDPE at 650 °C in an FBR. During experimentation, they noted that the production of the gaseous product was 31.7 wt% and liquid oil yield was 68.3 wt%. They found that when the temperature exceeds 550°C, the liquid further cracks into the gaseous products.

Kumar and Singh (2011) investigated the thermal pyrolysis of HDPE at 400–550°C utilizing a semi-batch reactor. At 550°C, gaseous product (24.73 wt%) and the maximum liquid yield (79.06 wt%) were obtained, while at temperatures of 500–550°C, wax began to dominate the fraction of the product. The pyrolysis produced a dark brownish oil with no clear residue and a boiling point ranging from 83 to 351°C. This indicated that the oil contained a mixture of components of various oils, like diesel, kerosene, and gasoline, which coordinated the characteristics of conventional fuel (see Table 6). In addition, the pyrolytic oil of HDPE had a very low sulfur content (0.018%), making it environmentally friendly.

TABLE 6

TABLE 6. Properties comparability of conventional fuel and pyrolytic HDPE oil.

In a micro steel reactor, Ahmad et al. (2014) explored the pyrolysis of HDPE by utilizing nitrogen as a fluidizing medium at 5–10°C/min heating rate at 300–400°C. They discovered that the maximum total conversion occurred at 350°C, with liquid yield as the primary product (80.83 wt%). At 300°C, the solid residue was fairly significant (33.07 wt%), but it decreased to 0.53 wt% at the maximum temperature of 400 °C.

8.2 Low-density polyethylene

Low-density polyethylene (LDPE) is a semi-rigid, translucent plastic polymer. It has a large proportion of long and short side-chain branching than HDPE. Tubular and stirred autoclave processes are the two most used methods for producing LDPE. Because it has greater rates of ethylene conversion, the tubular method is becoming more popular than the autoclave method. Squeeze bottles, containers, carrier bags, wash bottles, laboratory molded apparatus, and high-frequency insulation are among the most common uses for LDPE. Plastic bags are the most common use for LDPE, therefore day by day, LDPE waste has been accrued and is now the second most used plastic after PP in MSW (Michael, 2010). Apart from that, LDPE also has the potential for energy recovery, i.e., converting it into liquid and gaseous products.

Uddin et al. (1996) investigated the pyrolysis of LDPE at 430 °C in a batch reactor. The yield of liquid product was about 75.7 wt%. By utilizing a similar reactor type as Uddin et al. (1996), Aguado et al. (2007) obtained a yield of 74.6 wt% at 450 °C which is closer to the yield obtained by Uddin et al. However, even at lower temperatures in the reactor, when pressure was applied during the operation, the yield of liquid oil could be increased. Onwudili et al. (2009) demonstrated this at 425 °C in LDPE pyrolysis using a pressurized batch reactor (0.7–4.2 MPa). They obtained 0.4 wt% char, 10 wt% gaseous products, and 89.6% liquid oil from the experiment. This suggests that pressure can have an effect on the pyrolysis product’s composition.

With a 10 °C/min heating rate, Bagri and Williams (2001) at 500 °C in a fixed-bed (packed) reactor studied the pyrolysis of LDPE by utilizing nitrogen as the fluidizing gas. During the experimentation, it was discovered that a 95% liquid yield was achieved with a low gas and char yield. Marcilla et al. (2009a) at 550 °C also investigate the LDPE pyrolysis in a batch reactor with a 5 °C/min heating rate. During experimentation, a high yield of liquid oil was obtained (93.2 wt%), while the gas yield was notably low.

8.3 Polyvinyl chloride

Polyvinyl chloride (PVC) is a thermoplastic resin that is widely utilized in the manufacturing of a wide range of products. PVC is a cost-effective and versatile polymer that is used in a variety of industries, such as the packaging, construction, automotive, and medical industries. PVC is different from other thermoplastics in terms that it is made up of a combination of carbon (43%) and chlorine (57%) (British Plastics Federation, 2015). Due to the content of chlorine in PVC, recycling it is more complex and challenging than recycling other polymers such as PET. To recycle PVC plastics, dechlorination is required.

In batch reactors under vacuum, Miranda et al. (1998) studied PVC pyrolysis at a 10°C/min heating rate, with applied pressure of 2 kPa, and at a temperature between 220 and 520°C. The accumulation of tar increased dramatically as the temperature increased and reached 19.5%, which was even higher than the liquid oil yield (12.78%). From the experiment, the primary product yield was hydrogen chloride (HCl) (58.32 wt%). When heated mildly, HCl is toxic and corrosive, resulting in equipment damage. This was one of the key reasons for the pyrolysis pilot plant in Germany (Ebenhausen), being shut down (Miranda et al., 1998). Therefore, PVC is not an ideal material for the pyrolysis process. There are two major reasons for this: firstly, PVC waste accumulation in MSW is very less (less than 3%) (Michael, 2010), and secondly, the presence of HCl in the liquid product is very harmful to the process equipment due to its corrosive properties. PVC dechlorination is required to overcome the problem and to make the pyrolysis process effective. This is possible through various techniques like catalytic pyrolysis, adding adsorbents to PVC, and stepwise pyrolysis (López et al., 2011). As a result, when an extra dechlorination phase is necessary, the PVC pyrolysis requires an additional cost, which has been one of the industry’s drawbacks.

8.4 Polyethylene terephthalate

Polyethylene terephthalate (PET) polymer is utilized in several applications, such as sheets, packaging, and industrial parts. PET has outstanding mechanical strength, transparency, and gas barrier characteristics. Printing pads, electrical insulations, photographic films, and X-ray and magnetic tapes and films are some of the other uses of PET (Çepeliog˘ ullar Ö Pütün, 2013). PET is the most extensively used and highly recycled plastic in the world. As reported by the PET Resin Association (PETRA), the PET recycling rate in the EU is about 52%, whereas in the United States the rate is 31%.

The recycling rate in the United States dropped below 29% in 2016. Over 1.8 billion pounds of PET had been recycled in 2015 and was utilized to produce a range of products. PET containers are estimated to account for 1% of MSW in the United States, according to the EPA. As a result, other options for the recovery of PET, like the pyrolysis process, have been investigated, and the yield of products has been studied by a number of researchers. Cepeliogullar et al. (2013) studied the pyrolysis of PET in a fixed-bed reactor by using nitrogen as the sweeping gas at a 10 °C/min heating rate and at a temperature of 500°C. The authors found that the yield of liquid oil (23.2 wt%) was significantly lower than the gaseous product (76.90 wt%). There was no solid residue left after the process. As shown in Table 5, the volatile content of PET is 86.83%, which is relatively low when compared to that of other plastics, which is the main reason for the low liquid oil yield. Unfavorably, GC-MS (gas chromatography mass spectroscopy) studies have revealed that benzoic acid is the primary product in the oil composition, which is about 49.93%. The acidic characteristic of the pyrolysis oil is unfavorable because of its corrosiveness, which degrades the fuel efficiency (Cepeliogullar et al., 2013). Moreover, the benzoic acid content in pyrolysis oil is generally sublime and can clog the piping of heat exchangers, necessitating close monitoring if used on an industrial scale (Shioya et al., 2005; Wan Ho, 2015).

8.5 Polypropylene

Polypropylene (PP) is a crystalline, rigid, and tough polymer made from the monomer of propylene (or propene). It is a hydrocarbon resin with a linear structure. PP is a polymer that belongs to the family of polyolefin and is one of the top three most extensively utilized plastics in the world. PP is a material that can also be used as a fiber and plastic in the furniture market, the automobile industry, consumer goods, and industrial applications. Polypropylene accounts for around 24.3% of the total amount of plastics contained in MSW (Michael, 2010). The pyrolysis of polypropylene has been investigated by many researchers, which are given below.

Ahmad et al. (2014) investigated PP pyrolysis in a micro steel reactor with temperatures between 250 and 400°C. They found that at 300°C, the yield of liquid oil obtained was 69.82 wt%, which was the highest at this temperature with 98.66% of total conversion. They also noted that an increase in temperature (400°C) increased the solid residue (1.33–5.70 wt%) and decreased the conversion of the product (94.30%). This means that at higher temperatures, coke formation increases. Sakata et al. (1999) explored the pyrolysis of polypropylene at 380°C. They obtained an 80.10 wt% yield of liquid oil, along with a 6.6 wt% gaseous yield and 13.30 wt% solid residue. Fakhrhoseini and Dastanian (2013) also explored the pyrolysis PP at 500°C. They obtained a higher yield of liquid product (82.12 wt%), but an increase in temperature above 500°C decreased the production of liquid oil. Demirbas (2004) proved this by investigating PP pyrolysis in a batch reactor at a very high temperature of 740°C. The yield of liquid produced was 48.8 wt%, with 49.6 wt% of gaseous product and 1.6 wt% of solid residue.

8.6 Polystyrene

Polystyrene (PS) is a versatile material that can be utilized in a wide range of customer goods. Its common applications are in products that demand limpidity, such as in laboratory ware and food packaging. PP is used to produce electronics, appliances, toys, automobile parts, and gardening pots when mixed with different additives, colorants, or polymers. Recycling of PS can be achieved in thermal, chemical, and mechanical ways. For mechanical recycling, high-impact polystyrene (HIP) is a propitious material because, despite several processing cycles, its properties remain the same. The liquid and gaseous products production depend highly on the reaction conditions. For the production of both gaseous and liquid products, high-selectivity catalysts are used.

In an autoclave pressurized batch reactor, Onwudili et al. (2009) investigated the pyrolysis of PS for a duration of 1 hour at 300–500°C. The experimental pressure was 0.32 MPa–1.6 MPa, and the rate of heating was 10°C/min. They noted that at 452°C, the gas yield production was only 2.6%, while the production of liquid oil was very high and around 97.0 wt%. Liu et al. (1999) investigated PS pyrolysis at 450–700°C in a fluidized bed reactor. At 600°C, the highest amount of liquid oil (98.7 wt%) was obtained. But at 450°C, the production of liquid oil was also considerably high which was 97.6 wt%. Demirbas (2004) also studied the pyrolysis of PS in batch reactors at 581 °C. From the experiments, the highest yield of liquid product was 89.5 wt% which is less when compared to those obtained by Onwudili et al. (2009) and Liu et al. (1999). Therefore, PS is not a favorable material for the pyrolysis process at a high temperature because of its effect on the end products.

8.7 Mixed plastics

The pyrolysis process has a benefit over recycling in that it does not require a thorough sorting process. Many plastics are incompatible with one another in their cycling processes and cannot be recycled together. For instance, a small PVC contamination quantity in the stream of PET recycling can degrade the whole resin of PET, turning it brittle and yellow, necessitating reprocessing (Hopewell et al., 2009). This demonstrates that the recycling process is so vulnerable to pollutants that all plastics must be sorted by transparency, color, and resin type. The pyrolysis process, on the other hand, appears to be more viable because liquid oil can still be obtained from any sort of plastic present in the feedstock. Donaj et al. (2012) explored the pyrolysis of mixed plastics in a bubbling fluidized bed reactor at temperatures between 650°C and 730°C. The plastics mixture comprised of 24 wt% PP, 30 wt% HDPE, and 75 wt% LDPE. They noted that at 650°C, the yield of liquid oil was 48 wt%. This oil fraction, on the one hand, was composed of 52% heavy fractions that included carbon black, wax, and heavy oil. The yield of liquid oil at 730°C (44 wt%), on the other hand, contained a liquid light fraction of up to 70%. Therefore, higher temperatures facilitate gaseous or light hydrocarbon liquids. Therefore, the distribution of the product changes dramatically when the temperature is increased to a high extent.

Kaminsky et al. (1996) studied mixed plastic pyrolysis, approximately composed of 25% PS and 75% polyolefins (PP, PE). The product yield contained a small amount of chlorine which demonstrated the presence of PVC content in the mixture (1 wt%). The yield of liquid oil obtained was 48.4 wt% at 730°C in an FBR. Demirbas (2004) also investigated mixed plastic pyrolysis that involved PS and polyolefins (PE, PP). The solid and gaseous yields were about 2.2 and 35 wt%, respectively. The yield of liquid oil was around 46.6 wt%, which was very similar to the yield obtained by Kaminsky et al. (1996). The composition of liquid oil also contained small amounts of chlorine (4 ppm) which was due to the presence of PVC in the feedstock. However, the presence of chlorine did not affect the quality of the liquid oil because its content was below 10 ppm. Moreover, the majority of the chlorine content was found in the solid residue. Therefore, in order to get a quality liquid oil yield, the feedstock’s chlorine content could not exceed 1 wt%. From the above results, it may be observed that when compared to the pyrolysis of single plastics, mixed plastics pyrolysis produces lower than 50 wt% liquid oil. Nonetheless, the produced oil had a composition similar to that of pyrolysis of the single plastic, making it suitable for petrochemical refineries for further processing.

9 Chemical reactors for pyrolysis of plastic waste

In the pyrolysis process, the reactor type used has a profound influence on the catalysts and plastics mixing, heat transfer, reaction efficiency, and residence time in order to achieve the desired final end product. At a lab scale, most of the experimentation is done in a fixed bed, fluidized bed, continuous flow, CSBR, and batch reactors.

9.1 Fixed-bed (packed) reactor and fluidized bed reactor

The catalyst is normally packed and palletized in a static bed in a fixed-bed reactor, as shown in Figure 11A. The key advantage of these is their design simplicity, but on the other hand, there are some limitations, like the irregular shape and size of the plastic particles used as feedstock, which during the feeding process cause difficulties. Another disadvantage is that the reaction’s access to the catalyst’s usable surface area is limited. For the pyrolysis of plastic waste, many researchers have utilized the fixed-bed reactor (Bagri and Williams, 2001; Ballice, 2001; Choi et al., 2010; Renzini et al., 2011; Cepeliogullar et al., 2013; Saad et al., 2015a). Because it is easy to feed the primary pyrolysis product into the fixed-bed reactor, which is usually composed of gaseous and liquid phases, these reactors in some cases are only used as secondary pyrolysis reactors (Fogler, 2010). Onu et al. (1998) and Vasile et al. (2000) studied different plastic pyrolysis using a two-step procedure. The two-step process for plastic pyrolysis does not get much attention because it is not cost-efficient, and the product composition procured is equivalent to that obtained using the single-step process.

FIGURE 11

FIGURE 11. Representations of (A) fixed-bed (packed) reactor and (B) fluidized bed reactor (FBR) (The University of York, 2013).

In plastics catalytic cracking, several studies have favored fluidized bed reactors to fixed-bed reactors (Sharratt et al., 1997; Garfoth et al., 1998; Williams and Williams, 1998; Liu et al., 1999; Mastral et al., 2001; Lin et al., 2004; Lin and Yen, 2005; Yan et al., 2005; Mastral et al., 2006b; Marcilla et al., 2007). Jung et al. (2010) studied the PE and PP pyrolysis processes in an FBR at temperatures between 290 and 850°C. The yield of liquid product was dramatically high because the reactor provides constant temperature with high heat and mass transfer, reliable mean time distribution, and uniform products spectrum. Luo et al. (2000) also studied the pyrolysis processes of PP and HDPE in an FBR at 500°C by utilizing a silica–alumina catalyst. The yield of liquid oil by HDPE was 85 wt%, while PP produced had a high liquid composition, which was 87 wt%.

In an FBR, unlike in a fixed-bed (packed) reactor, the catalyst sits on a distributor plate, as shown in Figure 11B, through which the fluidizing gas moves and the particulates are held in a fluid state. Since the catalyst is mixed thoroughly with the solvent, there is greater accessibility to the catalyst, resulting in a wider surface area for the reactions to take place (Kaminsky and Kim, 1999). With effective and viable heat transfer, this decreases process volatility. Furthermore, when compared to batch reactors, the FBR reactor is more flexible as it does not require regular feedstock charging, which makes the process steady. Therefore, because of the lower operating cost, the FBR will be the better reactor to use in the pilot plant on a traditional design scale.

Therefore, the FBR is more feasible to perform plastic catalytic degradation as it provides uniform catalyst mixing with the fluid, resulting in a high surface area for the reaction to take place. Furthermore, it does not require regular feedstock charging which makes the process steady. As a result, in terms of economics, the FBR will be the utmost appropriate reactor for large- and extensive-scale applications.

9.2 Batch and semi-batch reactors

Batch reactors are the most basic reactors used in chemical reactions. They are closed systems that work in an unsteady state, which means that no reactants or products inflow or outflow are possible during the reaction. In batch reactors, high residence time means higher conversion rate, which is one of their main advantages. The downsides of batch reactors are high labor cost and the difficulty in maintaining extensive production (Fogler, 2010). A semi-batch reactor, on the other hand, allows product removal and reactant addition at the same time. Concerning reaction selectivity, the semi-batch reactor has the advantage of being able to incorporate reactants over time. High labor cost and small-scale production are the main downsides of a semi-batch reactor.

Because of the easy configuration and ability to monitor the operating conditions readily, many researchers utilize batch and semi-batch reactors in the pyrolysis of plastic waste in laboratory-scale experiments (Cardona and Corma, 2000; Uemura et al., 2001; Kim and Kim, 2004; Miskolczi et al., 2004; García et al., 2005; Lee and Shin, 2007; Jan et al., 2010; Shah et al., 2010; Adrados et al., 2012; AdnanShah and Jan, 2014). The ideal temperature for catalytic and thermal pyrolysis in these reactors is in the range of 300–800°C. To increase the yield of hydrocarbons, many researchers have added catalysts to plastics. The main drawback of catalytic pyrolysis is the formation of coke on the catalyst surface which reduces the efficiency of the catalyst due to the blockage of its active sites, thus causing high residues during the reaction.

Abbas-Abadi et al. (2014) studied the pyrolysis of PP in semi-batch reactors and found a very high liquid yield of 92.3 wt%. The experiment was conducted at 450°C using an FCC catalyst. As shown in Figure 12, some batch reactors and semi-batch reactors were also fitted with stirrers that ran at various speed depending on the necessary setting. Seo et al. (2003) explored the pyrolysis of HDPE at 450 °C by utilizing the stirrer batch reactor. The speed of the stirrer was 200 RPM. They found a high yield of liquid oil of 84.0 wt% in thermal pyrolysis than did Sakata et al. (1999). Furthermore, by using a silica–alumina catalyst, the liquid oil obtained by Sakata et al. (1999) was 74.3 wt%, while Seo et al. (2003) obtained a high liquid oil yield which was 78 wt%. As a result, it has become clear that in the batch reactor, the stirrer improved the mixing of plastics and catalysts within the reactor, thus increasing the yield of liquid oil. Kyong et al. (2002), Lee (20080, and Abbas-Abadi et al. (2013) conducted additional research on semi-batch reactors with stirrers. Sakata et al. (1999) studied the HDPE and PP processes with and without catalysts at 430°C and 380 °C, respectively, in batch reactors. For certain catalysts, the liquid oil yield through catalytic pyrolysis was even less than that obtained through thermal pyrolysis. The yield of liquid in thermal pyrolysis from HDPE was 69.4 wt%, and 80.2 wt% from PP. In catalytic pyrolysis, the yield of liquid for both plastics was decreased to 49.9–67.7 wt% (HDPE) and 47–78 wt% (PP). This might be due to the formation of coke on the catalyst surface which degraded the catalyst efficiency. The catalysts used in the experimentation were HZSM-5 and silica–alumina (SA-1). However, for both plastics, the liquid yield increased very slightly about 1.0–7.0 wt% than the thermal pyrolysis, by utilizing mesoporous silica and silica–alumina (SA-2) catalysts. Thus, the reactivity of various catalysts to various plastic types might be different. Based on the above results, it was found that the batch reactors and semi-batch reactors are favorable and feasible to be utilized in waste plastics pyrolysis process because it is easy to monitor the parameters of these reactors which promote the high yield of liquid. These reactors were however not appropriate for catalytic plastic pyrolysis due to the formation of coke on the outer surface of the catalyst which would affect the overall product composition. These reactors are only suitable for laboratory experiments because, on a large scale, it is difficult to maintain per unit of production.

FIGURE 12

FIGURE 12. Batch reactor (sequential) with stirrer (The University of York, 2013).

9.3 Spouted bed reactors

The spouted bed reactor (CSBR) offers fine amalgamation and can accommodate a broad particle size distribution, different particle densities, and larger particles (Fogler, 2010). The CSBRs have been used by several researchers in the catalytic pyrolysis of plastics (Aguado et al., 2002; Elordi et al., 2009; Olazar et al., 2009; Arabiourrutia et al., 2012b; Elordi et al., 2012; Artetxe et al., 2013b). The CSBR, according to Olazar et al. (2009), have lower bed segregation and attrition when compared to the bubbling fluidized bed. The CSBR offers inconsiderable defluidization issues while processing sticky materials and also provides excellent heat transfer between the phases. However, the main downsides of this reactor are product collection, entrainment and feeding of the catalyst, and high operating cost (Lopez et al., 2009).

The CSBRs are particularly well suited for preventing problems of agglomeration in the polyolefins pyrolysis, even when the process is performed under maximum stickiness conditions. Aguado et al. (2005) investigated the LDPE, HDPE, and PP pyrolysis processes using the 1:30 g of plastic/sand ratio. The experiments were performed at 400, 500, 550, and 600°C. The authors found that, for a certain sand amount, the amount of plastic fed into the reactor increases almost linearly as the gas velocity rises, which results in increasing particle velocity. Moreover, the particles’ rapid velocity causes collisions that have enough energy to prevent agglomeration.

Elordi et al. (2007) studied the pyrolysis of HDPE illustrated in Figure 13 at 500 °C in the CSBR by utilizing HY zeolite catalyst. The gasoline fraction yield was 68.6 wt% (C5–C10). The octane number of the gasoline was RON 96.6, which is similar to the conventional gasoline quality. Arabiourrutia et al. (2012b) utilized the CSBR to investigate the depiction and wax yield from the pyrolysis processes of PP, LDPE, and HDPE at 450–600 C. They claimed that the CSBR has the ability to handle sticky solids that are difficult to handle in the FBR. The spouted bed scheme was specifically well suited to low-temperature wax pyrolysis. They found that with the temperature, the yield of waxes decreased. More wax is cracked into gaseous and liquid products at higher temperatures. The yield of waxes from the PP pyrolysis was 92 wt%, while that from LDPE and HDPE was very similar at 80 wt% waxes.

FIGURE 13

FIGURE 13. CSBR illustration in pyrolysis of HDPE in the presence of zeolite catalyst (Elordi et al., 2007).

Artetxe et al. (2015) studied the flash pyrolysis of PS in the CSBR for styrene recovery at 450–600°C. The results showed that gas velocity and temperature have a significant impact on the yield of styrene, having maximum recovery of the monomer (70.6 wt%) at 500°C. Regarding light olefins recovery, the same authors performed a two-step pyrolysis process in CSBR. The light olefins yield was 77 wt% in the second step at 900°C. Moreover, the yield of butene, propylene, and ethylene was 17.5%, 19.5%, and 40.4% respectively. On the other hand, the yield of aromatics was only 6.2 wt% (Artetxe et al., 2012; Barbarias et al., 2018). These results show that the CSBR enables optimizing wax yield and preventing problems of defluidization.

9.4 Microwave-assisted technology

Microwave heating is used in microwave pyrolysis, and it now provides a novel method for the recovery of waste through the process of pyrolysis. In this method, waste materials are mixed with a microwave-absorbent substance like particulate carbon. The microwave energy is absorbed by the microwave absorbent to generate enough thermal energy to reach the temperatures required for comprehensive pyrolysis (Lam and Chase, 2012). Microwave pyrolysis has a number of benefits over the traditional pyrolysis process, such as lower particle levels in bio-oils, ease of control, and standardized large biomass internal heating. In this process, the material is directly heated with microwave energy that is directly delivered by using molecular interactions with the electron beam (Fernandez et al., 2011). This would heat up the environment without wasting any time. Regardless of the benefits of microwave heating, there is a significant drawback that prevents this technique from being extensively investigated on the commercial scale, such as the lack of adequate evidence to measure the treated waste stream’s dielectric properties. Microwave heating efficiency is highly dependent on the material’s dielectric properties. Plastics, for example, have a low relative permittivity, so during pyrolysis, combining them with a microwave absorber (carbon) can allow more energy to be absorbed and altered into heat in less time (Lam and Chase, 2012). As a result, the heating efficacy of each material can vary, posing a significant problem to the industries.

Ludlow-Palafox and Chase (2001) studied microwave-assisted pyrolysis by using two different substances: i) HDPE small pallets and ii) toothpaste packaging combined with polyethylene laminates and aluminum. This experiment is unique in that it includes a 180-cm diameter quartz vessel reactor with a 6-RPM impeller that mounted within the microwave. With a microwave power of 5 kW, carbon is used as the absorber. The liquid oil yield from the pyrolysis of HDPE was 79–81 wt%, with a gaseous yield of 19–21 wt% and no solid residue at 500–600°C. On the other hand, no product was produced from polyethylene laminates and aluminum pyrolysis. Moreover, the authors have noted that at the same operating temperatures, there was no discernible variance in product yield between the HDPE pellets and laminates. The average molar mass was somewhat higher in both cases, but the molar mass distribution was corresponding. Since aluminum was easily removed by sieving, it had no effect on the product yield. They noticed a substance called titanium dioxide (TiO₂₎ adhered to the side walls of the reactor as a white powder during the experiment. TiO₂ can be seen on the toothpaste tube’s painted surface. Since it had segregated from the laminate’s organic content during pyrolysis, this material had no effect on the yield of the pyrolysis product. Conclusively, using the microwave-assisted pyrolysis process, real waste like toothpaste packaging was pyrolyzed successfully.

Undri et al. (2014) also studied the microwave heating technology in the pyrolysis process by utilizing two sorts of absorbers (carbon and tires). The waste plastics used were HDPE and PP (polyolefin). Microwave power ranging from 1.2 to 6.0 kW was used. They obtained 74.8 wt% liquid yield from PP, whereas they found the highest yield of 90 wt% from HDPE. Carbon was used as the microwave absorber in both experiments, with microwave powers varying from 3 to 6 kW because the polymers’ residence time in the oven was shortened by using high power. As a result, instead of non-condensable gases, more polymers were transfigured to liquid. The solid residue level increased to 33 wt% when tires were used as the microwave absorber, which was due to other non-pyrolyzable compounds in the tires. Due to the cocking phase, the accumulated solid residue was at its lowest at 0.4 wt% when compared to when using carbon as the microwave absorber. Carbon was found to be a strong microwave absorbent, with a high capability for converting and absorbing microwave energy into heat. In order to optimize the yield of liquid in microwave pyrolysis, special attention must be given to the absorber type and microwave power.

Khaghanikavkani (2013) also studied microwave technology and elaborated on multiple variables that effect the performance of microwave heating in the pyrolysis of plastic such as the design of microwave rotation, absorber type, and nitrogen volume velocity. Lam and Chase (2012), Fernandez et al. (2011), and Undri et al. (2011) have also published comprehensive analyses of the microwave heating technology in the plastic pyrolysis.

10 Process parameters that influence pyrolysis process

In any process, the parameters play an important role in the optimization of the product composition and yield. The yield of the final end products, for instance, char, liquid oil, and gas, can be influenced by the main process parameters in plastic pyrolysis. Monitoring the parameters at various settings will result in the required product. These parameters are elaborated on in the following section.

10.1 Residence time and pressure

Residence time is one of the key parameters that influences the end product yield and is defined as the amount of time (average) that a particle or substance takes in the reactor (Mastral et al., 2001). Prolonged residence time improves the primary products' conversion, resulting in more thermally persistent products like non-condensable gas and lower-molecular-weight compounds (Ludlow-Palafox and Chase, 2001). In the fluidized bed reactor, Mastral et al. (2003) explored the temperature effect and residence time on the HDPE pyrolysis product distribution. They discovered that high residence time yields a higher liquid product when the temperature does not exceed 685°C. At temperatures above 685°C, however, the influence of residence time is less on the yield of the gaseous and liquid products.

Murata et al. (2004) investigated the effect of pressure in a continuous stirred tank reactor on the HDPE pyrolysis at 0.1–0.8 MPa at an elevated temperature. They found that as the pressure increased from 0.1 to 0.8 MPa, the gaseous product yield increased dramatically from about 6 wt% to 13 wt% at 410°C, but only slightly at 440°C from 4 wt% to 6 wt%. This demonstrates that at elevated temperatures, pressure had a significant effect on the gaseous product distribution. At a high pressure, the liquid product carbon number distribution shifted to the smaller molecular weight side. Murata et al. (2004) discovered that when the pressure was increased, a decrease in the double bond formation occurs. This indicated that the C–C links scission rate in polymers was directly influenced by pressure, suggesting that pressure had a major impact on the rate of formation of double bonds. They also found out that at lower temperatures, pressure had a significant effect on residence time. As the temperature exceeded 430°C, however, the pressure effect on the residence time became less noticeable.

As a result, it was concluded that both residence time and pressure are temperature-dependent variables that at lower temperatures, may affect the product distribution of plastic pyrolysis. The yield of gaseous products improved at higher pressures and influenced the gaseous and liquid products' molecular weight distribution, but only at very high temperatures. The residence time effect at higher temperatures becomes less evident, which is why most of the researchers focus more on the temperature parameter rather than on residence time while conducting plastic waste pyrolysis studies. Furthermore, if the pressure factor is deemed, additional units like pressure transmitter and compressor must be augmented to the entire system, thus increasing the operating cost.

10.2 Temperature

In the pyrolysis process, temperature is one of the most important and key variables because it controls the polymer chain’s cracking process. The molecules are prevented from collapsing by the Van der Waals force which attracts them together. In the system, the molecules' vibration increases when the system temperature rises, thus causing the molecules to evaporate from the system surface. When the energy impelled by the intermolecular force along the polymer chains exceeds the C–C bond enthalpy in the chain, the carbon chain breaks (Sobko, 2008). The thermogravimetry analyzer is used to measure the plastics' thermal cracking behavior. The thermogravimetry analysis (TG) curve and derivative thermogravimetry analysis (DTG) curve are two types of graphs produced by the analyzer. The TG curve calculates a substance’s weight change as a function of temperature and time, while the DTG curve provides data on the degrading phase that occurs through the process, as shown by the number of peaks (Kumar and Singh, 2011). Cepeliogullar et al. (2013) studied the pyrolysis of PET in which they observed that at a temperature of 427.8°C, the material’s maximum weight loss occurred. At 400°C, actual degradation of PET started and when the temperature was between 200 and 400°C, small changes in weight loss occurred. They also noted that above 470°C, there were no considerable alterations. Hence, the temperature range of the PET thermal degradation is 350–520°C.

Cepeliogullar et al. (2013) studied the thermal behavior of PVC and reported two significant weight losses at two distinct temperature variations. The first temperature variation was 260–385°C, which resulted in a peak weight reduction of 62.26% when compared to the starting weight. The second temperature variation was between 385 and 520°C, which resulted in a decrease in weight of 21.76% when compared to the initial weight. The material weight loss became minimal as the temperature was increased to 800°C (1.63%). Thus, the PVC degradation temperature was between 200 and 520°C. Chin et al. (2014) studied the HDPE thermal degradation at the heating rates of 10–50°C/min. Based on the TG analysis, they observed that the thermal degradation of HDPE was completed almost at 517–538°C that began at 377–404°C. The weight loss was accelerated with higher heating rates, which increased the reaction rate. In a subsequent study conducted by Marcilla et al. (2005), the authors observed that at 468°C, the HDPE degradation rate was at its maximum.

Jung et al. (2010) investigated the temperature effect on the pyrolysis processes of HDPE and PP in a fluidized bed reactor and observed that the main HDPE and PP degradation started at 400–500°C according to the DTG curves. However, while comparing the PP and HDPE fractions, it was discovered that the PP fraction had begun losing weight at temperatures lower than 400°C. Marcilla et al. (2005), on the other hand, had found out that for HDPE, the greatest degradation temperature was at 467°C, while PP degraded at 447°C. In principle, the degradation rate of HDPE was slower than that of PP because of its linear structure which contains very little branching that has stronger intermolecular forces (Jung et al., 2010).

Marcilla et al. (2009b) found that at 360–385°C, a small volume of liquid oil was formed during the LDPE pyrolysis. At 469–494°C, the highest liquid yield was obtained. Onwudili et al. (2009) found that below 410°C, a brown waxy substance was produced, and at 410°C, the actual LDPE oil conversion had started. They also observed that at 425°C, the highest liquid yield was obtained. Marcilla et al. (2009a) had also observed the highest liquid oil yield at 550°C from LDPE degradation. Increasing the temperature to 600°C did not improve the liquid oil yield (Williams and Williams, 1998). Therefore, the optimum temperature for liquid oil production from LDPE is 360–550°C. Onwudili et al. (2009) explored the pyrolysis of PS in a batch reactor. At 350°C, they obtained highly viscous dark-colored oil, and no PS degradation occurred at 300 C. At 425°C, the highest yield of liquid oil was achieved. Higher temperatures up to 580°C increased the production of gaseous products while lowering the liquid oil yield (Demirbas, 2004). Therefore, PS thermal cracking temperature is estimated to be between 350 and 500°C.

As a result of the previous discussion, it has been established that the reaction rate depends mainly on temperature which greatly affects the output composition for all plastics. The product selectivity depends strongly on the operating temperature. Lower temperatures of 300–500°C yield liquid products while a higher temperature of 500°C or more yields char or gaseous products.

10.3 Catalysts

Catalysis refers to a substance’s ability to accelerate the rate at which a chemical reaction occurs. Catalysts help to make chemical production faster, easier, and safer. They do so by controlling the activation energy necessary to initiate chemical reactions. Because heat is the most costly factor in industries, using a catalyst for it could help save energy. As a result, catalytic degradation is especially appealing for obtaining commercially valuable products such as C2–C4 olefins and automobile fuel (gasoline and diesel) which are in high demand in the petrochemical industry (Elordi et al., 2009). Furthermore, many studies have employed catalysts for product enhancement to increase hydrocarbon distribution to generate pyrolysis liquid with qualities comparable to traditional fuels such as diesel and gasoline.

10.3.1 Zeolite-based catalysts

Zeolites are basically crystalline aluminosilicate (Al₂SiO₅) sieves with open pores that have ion exchange properties (Degnan, 2000; International Zeolite Association, 2005). The framework is made up of a three-dimensional structure that connects the tetrahedral sides with oxygen atoms. Zeolite catalyst is build by various SiO₂/Al₂O₃ ratio which depends largely on its type. The reactivity of zeolite is determined by the SiO₂/Al₂O₃ ratio, which influences the pyrolysis end product. The aromatics and light alkanes yield is also decreased when zeolite’s SiO₂/Al₂O₃ ratio is increased. Table 7 equates the gasoline fraction fuel qualities achieved with three types of HZSM-5 zeolite with varying SiO₂/Al₂O₃ ratios. As shown, the lowest catalyst acidity with the highest SiO₂/Al₂O₃ ratio resulted in higher olefin content but lower benzene and aromatics content and lower octane number. In the pyrolysis of HDPE, HZSM-5 zeolite’s SiO₂/Al₂O₃ ratio had a considerable impact on the yield of product fraction (Artetxe et al., 2013b). The zeolite’s low acidity was signified by a high SiO₂/Al₂O₃ ratio. When compared to the highly acidic catalyst (SiO₂/Al₂O₃ = 30), the low acidic catalyst (SiO₂/Al₂O₃ = 280) was less dynamic in breaking waxes, resulting in higher C12–C20 fractions and lower light olefins. The yield of light olefins decreased from 58.0 to 35.5 wt% when the SiO₂/Al₂O₃ ratio was increased from 30 to 280, but the yield of C12–C20 fraction had increased from 5.3 wt% to 28.0 wt%. Marcilla et al. (2008) investigated the performance of HZSM-5 and HUSY in a batch reactor at 550 °C with a 10 wt% polymer-to-catalyst ratio on HDPE and LDPE. The HZSM-5 catalyst produced more gaseous product (LDPE = 70.7 wt%, HDPE = 72.6 wt%). Conversely, when compared to the HZSM-5 catalyst (LDPE = 18.3 wt%, HDPE = 17.3 wt%), more liquid oil was obtained with the HUSY catalyst (LDPE = 61.6 wt%, HDPE = 41.0 wt%). Lin and Yen (2005) showed a similar tendency of product selectivity utilizing HUSY and HZSM-5 zeolites on the pyrolysis of PP. This demonstrates that product selectivity varies depending on the catalyst and different zeolite catalysts may have distinct product predilection in terms of selectivity. In the catalytic pyrolysis of plastics, HMOR and HUSY are extensively utilized zeolite catalysts. Garfoth et al. (1998) examined the efficacy of three zeolite catalysts for HDPE pyrolysis: HUSY, HMOR, and HZSM-5 with a 40 wt% polymer-to-catalyst (P/C) ratio. In their experimentation, they observed that the catalytic activity of HUSY and HMOR was less when compared to that of HZSM-5. HUSY and HMOR left 7.08 wt% and 8.94 wt% residues, while HZSM-5 left 4.53 wt% residue which indicates higher catalytic capabilities of HZSM-5 over HUSY and HMOR.

TABLE 7

TABLE 7. Comparison of gasoline fraction fuel properties achieved with various SiO₂/Al₂O₃ ratios using three HZSM-5 types (Artetxe et al., 2013b).

Miskolczi et al. (2009) studied the effect of zeolite catalyst in real municipal plastic waste pyrolysis. PP and HDPE waste sources were collected from packaging agriculture sectors, and before pyrolysis, they were chopped and washed. Both polymers (PP = 35 mg kg⁻¹ and HDPE = 238 mg kg⁻¹) contain sulfur according to the properties analysis, although more contaminants were found in the HDPE waste generated from agricultural sectors such as calcium (103 mg kg⁻¹), phosphorus (47 mg kg⁻¹), and nitrogen (963 mg kg⁻¹). The contaminants were most likely caused by fertilizer containing superphosphate and ammonium nitrate, which could have collected in the HDPE waste after the washing method failed to remove them. With 40 wt% HZSM-5 catalyst, the catalytic pyrolysis was performed at 520°C. The utilized structure of the catalyst was analyzed by EDAX and SEM after the pyrolysis. Aside from the silica–alumina HZSM-5 zeolite structure, traces of phosphorus, nitrogen, and sulfur were found on the catalyst surface (sodium, oxygen, magnesium, aluminum, calcium, silica, and potassium). This shows that the contaminants were derived from plastic waste. However, the product characteristics were not affected by the catalyst surface contaminants, which were influenced more by the catalytic pore structure and grain diameter. In fact, the plastic waste pyrolysis catalyst may be reused because the pore diameter is determined to be the same as that of the new catalyst (Miskolczi et al., 2009). In the pyrolysis of HDPE waste, sulfur content was reduced dramatically from 75 mg kg⁻¹–37 mg kg⁻¹ when the HZSM-5 catalyst was used which shows that the catalyst usage facilitates minimizing contaminants in the oil. The phosphorus and nitrogen content showed a similar reduction pattern. Calcium content was exclusively found in heavy fuel oil fraction, while no calcium was found in the light oil or gasoline fractions.

Seo et al. (2003) studied the HZSM-5 effect at 450°C in the pyrolysis of HDPE. They found that HZSM-5 produced a higher gaseous yield (63.6 wt%) but very low liquid product (35 wt%) with a 20 wt% catalyst-to-polymer ratio. Hernández et al. (2007) acquired a high gaseous yield (86.2 wt%) but lower liquid product (4.4 wt%) than did Seo et al. (2003) at 500 C. Lin and Yen (2005) obtained very low 2.31 wt% and 3.75 wt% liquid yield at 360 C in PP pyrolysis by utilizing HZSM-5 and HUSY zeolites with a 40 wt% catalyst-to-polymer ratio. However, the coking resistance of HZSM-5 was higher than that for HUSY when the product stream such as pentene and butane increased during the process while iso-pentanes and iso-butane persisted unaffected (Uemichi et al., 1998; Lin and Yen, 2005; Obeid et al., 2014).

Apart from direct plastic cracking, some authors have also studied the effectiveness of zeolite catalysts in two-step reaction processes incorporating catalytic and thermal reactors (Vasile et al., 2000; Syamsiro et al., 2014). In the two-step reaction process, Aguado et al. (2007) investigated the LDPE catalytic conversion in a batch reactor and fixed-bed reactor. In the batch reactor, the plastic would be thermally cracked, and in the fixed-bed reactor, the generated vapors were carried out where the catalyst HZSM-5 (10 wt%) was placed. Pyrolysis was carried out at a temperature of 425–475°C. Catalytic reforming with a zeolite catalyst increased the gas fraction significantly which was around 74.4 wt%, however, the liquid oil yield was only 22.0 wt% at the maximum temperature. As a result, the observed trend was extremely corresponding to catalytic direct degradation, which yielded a high gaseous product when the HZSM-5 catalyst was used.

10.3.2 Fluid catalytic cracking

Fluid catalytic cracking (FFC) catalysts are commonly employed in oil refinery processes to break the chains of high-molecular-weight hydrocarbons, which is required to maximize the amount of gasoline produced. Nowadays, FCC catalysts are made up of zeolitic materials and different promoters and binders (Humphries and Wilcox, 1989; Rajagopalan and Habib, 1992; Magee and Mitchell, 1993; Degnan, 2000). Due to its strong thermal stability and product selectivity, Zeolite-Y has been the major FCC catalyst component for over 40 years (Marcilly, 2000). Kyong et al. (2002) studied the spent FCC catalyst effect at 400°C on LDPE, HDPE, PS, and PP pyrolysis in a stirred semi-batch reactor at 7°C/min heating rate. They found that PS produced 90 wt% liquid yield which was the highest among all other plastics (others produced over 80 wt%). In terms of the gaseous product yield, PE produced the highest gaseous yield followed by PP and PS. The liquid product yields which had an opposing order with PS produced the highest followed by PP and PE (LDPE, HDPE). PS produced less gaseous product because it had a benzene ring that formed a more firm structure. Overall, spent FCC catalyst exhibits good catalytic efficacy, with liquid yields over 80% for all plastic specimens. Furthermore, because it is a “reused” catalyst, it is less expensive.

Using the same experimental conditions, Kyong et al. (2003) studied the spent FCC catalyst's efficiency in comparison to HDPE thermal pyrolysis without a catalyst, but with a temperature of 430°C. They observed that with the catalyst, the gaseous yield slightly reduced from 20.0 to 19.5 wt% while increasing the yield of liquid oil from 75.6 to 79.8 wt%. The presence of the catalyst also reduced the solid residue from 4.5 to 0.8 wt%. Furthermore, the formation of liquid oil from HDPE was observed at 350°C, which means that the FCC catalyst lowered the HDPE reaction's temperature. In the case of thermal pyrolysis, the initial liquid formed at 430 °C after 30 min. This means that in thermal pyrolysis, using the spent FCC catalyst improved the overall product conversion while also increasing the reaction rate.

Apart from this, the plastic pyrolysis product distribution may be affected by different FCC conditions. FCC steaming catalyst, for example, would change the composition and structure of the catalyst. Olazar et al. (2009) proved this by conducting a study on severe, mild, and fresh FCC catalyst steaming. Severe steaming was performed for 8 h at 816 °C, while mild steaming was performed for 5 h at 760°C. The results exhibited that steaming increased the FCC catalytic performance. As shown in Table 8, the fresh FCC catalyst yields a high gaseous fraction and low diesel fraction, while severe FCC steaming produced less gaseous products (C1–C4 hydrocarbon) and a high diesel fraction (C10 + hydrocarbon).

TABLE 8

TABLE 8. FCC fresh and steaming product distribution (Olazar et al., 2009).

Besides this, the polymer to catalyst ratio also greatly affects the product composition and yield. Abbas-Abadi et al. (2014) investigated the various HDPE to FCC catalyst ratios ranging from 10 to 60 wt% at 450°C in a stirred semi-batch reactor. They observed that the catalyst to polymer ratio of 20 wt% was the prime ratio for higher liquid yield conversion. The coke obtained was around 4.1 wt% with a very high liquid yield of 91.2 wt% and gaseous product of 4.7 wt%. A decrease in liquid production was observed by increasing more than 20 wt% of the catalyst to polymer ratio, thus producing high gaseous product and coke. This indicates that the catalyst/polymer ratio had to be constrained in order to improve the conversion of the product, particularly the yield of liquid oil and catalyst coke formation. Kyong et al. (2002) explored the effectiveness of the FCC catalyst with a catalyst to polymer ratio of 10 wt% to the various plastics types. The results showed that a high yield of liquid was produced (80–90 wt%) for PS, PP, HDPE, and LDPE, which shows the productivity of the FCC catalyst in the pyrolysis of different plastic waste. Similarly, Rodríguez et al. (2019) studied the pyrolysis of HDPE waxes using the FCC catalyst at 3, 5, and 7 g_cat g_oil⁻¹ ratio at 500–600°C and obtained HDPE waxes product distribution of 36.7–65.1 wt%. Furthermore, Palos et al. (2022b) under similar conditions used three FCC catalysts and obtained 82.0 wt% heavy cycle oil and 12.5 wt% light cycle oil. Moreover, Abbas-Abadi et al. (2014) also achieved a very high yield of liquid oil (92.3 wt%) at 450 °C in PP pyrolysis with a 10 wt% catalyst/polymer ratio. Conclusively, the utilization of the FCC catalyst was recommended in the pyrolysis of plastic to optimize the production of liquid oil. But in order to obviate the gaseous product and coke dominance, the catalyst/polymer ratio must not exceed 20 wt%.

10.3.3 Silica–alumina catalyst

The amorphous acidic catalyst silica–alumina has Bronsted acid sites with ionizable hydrogen atoms and Lewis acid sites which accept electrons. The SiO₂/Al₂O₃ molar ratio determines the acid content of silica–alumina catalyst. Opposite to zeolite, a high SiO₂/Al₂O₃ ratio means high silica–alumina catalyst acidic strength. For example, SiO₂/Al₂O₃ = 0.27 (SA-2) has a low acidic strength than SiO₂/Al₂O₃ = 4.99 (SA-1), and both are commercial silica–alumina (Sakata et al., 1997). The catalyst mode also plays an important role in product distribution and the product yield. This was proven by Sakata et al. (1997) on the pyrolysis of PP at 380°C by utilizing the silica–alumina catalyst with different contact modes: vapor phase and liquid phase. The catalyst was assorted with PP pallets and in the liquid phase was placed into the batch reactor. In contrast to the vapor phase, the catalyst was suspended 10 cm from the reactor’s bottom on a stainless steel net. From the experiment, they observed that a higher gaseous product (35 wt%) was produced when the catalyst was in the vapor phase and a low liquid product was produced because over the silica–alumina catalyst, the polymer decomposed further into the gaseous product. Alternatively, the catalyst in the liquid phase produced little gaseous product but a higher yield of liquid (68.8 wt%) because the wax residue over the silica–alumina catalyst disintegrated into a lighter hydrocarbon.

In plastic pyrolysis, the final end product is greatly influenced by the catalyst's acidic strength. At 430°C, Sakata et al. (1997) investigated catalysts' acidity effect on HDPE pyrolysis product distribution in semi-batch reactor where 10 g of HDPE was mixed with 1 g of the catalyst (SA-1, SA-2, ZSM-5). The catalysts' acidic strength was determined by using TPD (NH₃ temperature programmed desorption). From the results, it was shown that SA-1 had high acidity followed by ZSM-5 and SA-2. From the experimentation, they found the following liquid oil yield order: ZSM-5 (49.8 wt%) < SA-1 (67.8 wt%) < SA-2 (74.3 wt%). The catalyst with lower acidity (SA-2) produced high liquid oil, while ZSM-5 having strong acidic sites produced a low liquid yield when compared to the other catalysts but produced high gaseous product. Uddin et al. (1996), by using the same experimental conditions as Sakata et al. (1997), also investigated the SA-2 effect on LDPE and HDPE pyrolysis processes and obtained high liquid oil by using LDPE (80.2 wt%) than using HDPE (77.4 wt%). The LDPE structure was weaker than that of HDPE because of its branched chain, thus LDPE produced high amounts of liquid yield. Moreover, the catalyst reactivity can also be augmented under specific temperature ranges. Luo et al. (2000) studied PP and HDPE pyrolysis processes in a fluidized bed reactor at 500 °C by utilizing a silica–alumina catalyst, and they obtained higher liquid oil than did Sakata et al. (1999) and Uddin et al. (1996). The liquid product obtained was 90 wt% for PP pyrolysis and around 85.0 wt% for HDPE pyrolysis. This demonstrates that temperature is also crucial in maximizing catalyst effectiveness in the process of plastic pyrolysis to optimize the yield of the liquid oil product. In conclusion, the FCC catalyst is the ideal catalyst in plastic pyrolysis for optimizing liquid oil production. The FCC catalyst in the pyrolysis processes of PP and HDPE produced 90 wt% liquid oil while the highest yield of liquid for HDPE and PP by using silica–alumina was around 85–87 wt% (Luo et al., 2000; Abbas-Abadi et al., 2013; Abbas-Abadi et al., 2014). This shows the effectiveness of the FCC catalyst in plastic pyrolysis for product optimization and is also more economically attractive than zeolite-based catalysts.

10.4 Fluidizing (medium) gas effect in the pyrolysis process

Fluidizing gas (also known as inert gas) is a carrier gas that is only used to carry vaporized products and does not participate in the pyrolysis process. The reactivity of the fluidizing gas (each type) depends on its molar mass. Propylene, ethylene, hydrogen, argon, nitrogen, and helium are some of the fluidizing gases that can be utilized in the pyrolysis of plastics. According to Abbas-Abadi et al. (2014), the carrier gas’s molecular size aids in defining the product composition, which is also affected by temperature. The PP catalytic pyrolysis product distribution was affected by the carrier gas’s molecular weight, as shown in Table 9. High amounts of liquid oil (condensed product) were produced by the lighter gas; 33.8 wt% liquid was produced without using any carrier gas, while 96.7 wt% of the liquid oil was produced by using H₂ as shown in Table 9. This demonstrates the importance of carrier gas in improving pyrolysis product yield. Apart from this, it has been discovered that the carrier gas’s reactivity influenced the formation of coke. Ar coke formation was very high followed by N₂, propylene, and helium, while H₂ coke formation was very low. The molecular weights of nitrogen and ethylene were the same. However, the reactivity of ethylene was higher and produced lower coke and high liquid oil yield than nitrogen because it could cause the equilibrium to shift, resulting in a higher liquid yield (Abbas-Abadi et al., 2014). However, in plastic pyrolysis, propylene and hydrogen were used the least by many researchers because of the flammability risk, while nitrogen was the more commonly utilized fluidizing gas since it is safer and easier to handle.

TABLE 9

TABLE 9. The effect of carrier gas on the product yield and the condensed product composition (Abbas-Abadi et al., 2014).

Besides this, the flow rate of the fluidizing gas may also affect the final end product. This was proven by Lin and Yen (2005) by using the HUSY catalyst over PP pyrolysis at 360 °C. They observed that at 300 ml/min (the lowest fluidizing flow rate), the degradation rate decreased instantly. At a lower flow rate, the primary product contact time was high, leading the coke precursor formation to enhance with the by-product achieved despite the rate of degradation being slower (Lin and Yang, 2007). At 900 ml/min (highest fluidizing flowrate), the hydrocarbon gases and gasoline fractions were increased. As a result, in plastic pyrolysis, the rate and type of fluidizing gas are particularly important, as they certainly affect the composition of the end product.

11 Pyrolysis and in-line steam reforming

Because of the high production of H₂ and operational dominance, the two-step pyrolysis and in-line catalytic reforming of plastic waste (Table 10) is likely the most propitious (Wu and Williams, 2009a; Wu and Williams, 2010a; Namioka et al., 2011; Barbarias et al., 2016b; Arregi et al., 2017). Moreover, waste plastic contaminants remain in the reactor, avoiding contact which resulting catalyst deactivation (Wu and Williams, 2010c). The steam catalytic reforming and thermal degradation steps may potentially benefit from independent temperature maximization (Park et al., 2010). In addition, when compared to direct gasification, the process temperature is substantially lower, reducing reforming catalyst sintering issues and material costs (Barbarias et al., 2016a; Barbarias et al., 2016b). As a result, this process removes tars completely from the gaseous product because of the usage of the very active reforming catalyst, which is the main advantage of this process. This approach has also been shown to be useful in H₂ production from biomass (Xiao et al., 2013; Ma et al., 2014; Arregi et al., 2016). Furthermore, a new option for the plastic waste pyrolysis–reforming method has recently been presented, which entails producing carbon nanotubes and H₂, simultaneously utilizing various Fe- and Ni-based catalysts (Yang et al., 2015; YangRChuang and Wey, 2016; Bajad et al., 2017; Liu et al., 2017; Yao et al., 2017).

TABLE 10

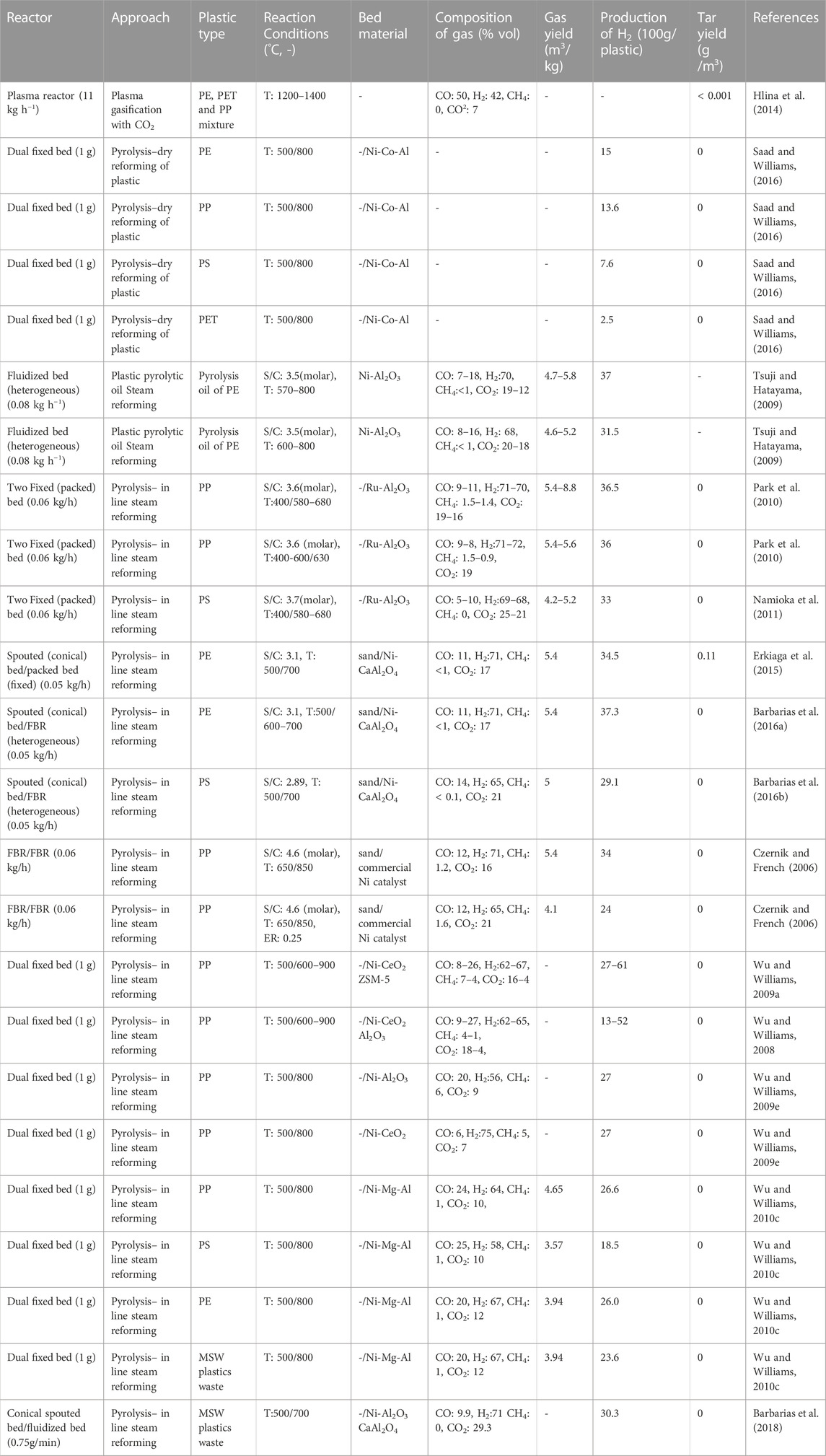

TABLE 10. Results obtained by different authors by using pyrolysis and steam reforming technique.

Prof. Williams conducted a detail study on the pyrolysis–reforming (in-line) method by using various catalysts on waste plastics (Wu and Williams, 2009b; Wu and Williams, 2009c; Wu and Williams, 2009d; Wu and Williams, 2009e; Wu and Williams, 2010a; Wu and Williams, 2010c; Acomb et al., 2014; Saad et al., 2015b). The experimental setup comprised of dual fixed-bed (packed) reactors operating in batches for the pyrolysis and reforming steps. At 40°C–500°C/min, the volatiles formed in the pyrolysis reactor were subsequently processed in the reforming packed bed reactor (800°C). The production of H₂ was 26.6 wt% when PP was fed, while PS produced only 18.5 wt% H₂. In both cases, the Ni-Mg-Al catalyst was used (Cho et al., 2013a). Furthermore, in the reforming of derived PP volatiles, the production of H₂ was approximately 65%. But this time, the authors used Ni-based commercial catalyst (Wu and Williams, 2008; Wu and Williams, 2009c). The same authors recently used CO₂ instead of steam to investigate the dry reforming of pyrolysis volatiles from plastics (Saad and Williams, 2016). This innovative approach is an intriguing CO₂ valorization technique since it achieves nearly complete conversion, with the produced syngas primarily consisting of CO and H₂. By using PET, PS, PP, and PE at 500 and 800°C, the values of H₂ production are the following: 2.5, 7.6, 13.6, and 15.0 wt%, respectively. The catalyst utilized was Ni-Mg-Al in the pyrolysis and reforming steps. These results are significantly inferior to those found in pyrolysis and in line with steam reforming.

Czernik and French (2006) studied pyrolysis and in-line steam reforming of PP by using commercial Ni-based catalyst at 650 and 800°C in two FBR reactors. The derived plastic volatiles were completely altered into gaseous stream free of tar, with 34 wt% H₂ production (34 g 100 g PP⁻¹). This yield is 80% of the highest stoichiometrically allowable. By co-feeding air with an equivalence ratio of 0.25 into the reforming step while operating under reforming autothermal parameters, the production of H₂ was lowered to 24 wt%.

Surprisingly, the process has been run successfully at a steady (equilibrium) state for 10 h without detecting any deactivation of the catalyst. Moreover, plastic pyrolysis and in-line reforming were also investigated by Erkiaga et al. (2015), who developed an experimental unit consisting of a CSBR reactor and fixed-bed (packed) reactor for pyrolysis and the steam catalytic reforming step. HDPE was pyrolyzed at 500 °C and then the reforming step was performed at 700°C using a commercial Ni catalyst. The reforming catalysts showed remarkable efficiency and completely converted the waste plastics into gaseous products, with 34.5 wt% of H₂ yield, which is 81.6% of the stoichiometric maximum allowable. The formation of coke (4.4 wt% of the feed) is the biggest issue in this process, as it obstructs the flow of the reactant in the reforming fixed-bed (packed) reactor. To avoid these operational and functional challenges, Barbarias et al. (2016a) replaced the fixed-bed reactor with the FBR reactor for the reforming step. During experimentation, they obtained a higher H₂ yield (38.1 wt%) than did Erkiaga et al. (2015), which accounts for 92.6% allowable stoichiometry. This demonstrates the benefits of employing an FBR reactor for the reforming process. Further research using PS validated the high efficiency of this setup (CSBR and FBR) for the pyrolysis and reforming process (Barbarias et al., 2016b). Namioka et al. (2011) also conducted studies on pyrolysis and in-line reforming, but they used PS instead of HDPE and obtained 29.1 wt% H₂ yield which was lower than that obtained by Barbarias et al. (2016a). The varying H₂ concentration of these polymers is related to this result. The deactivation kinetics, as well as the type of the deposited coke, are thus dependent on the hydrocarbons produced during the degradation of the polymer (Barbarias et al., 2016b; Barbarias et al., 2016c).

Park et al. (2010) and Namioka et al. (2011) developed a two-step PP pyrolysis and reforming method based on two fixed-bed (packed) reactors (1 g min⁻¹) operating in a continuous framework. The pyrolysis and reforming steps were carried out between 400–600°C and 580–680°C. The reforming step was performed on a Ru-Al₂O₃ commercial catalyst. Because of a considerable increase in the yield of coke at high temperatures, the optimal outcomes were achieved at 630°C, which is the average temperature studied. As a result, the hydrocarbon liquids were altered completely into coke and gaseous products at 630 °C and the production of H₂ reached 34.2 wt%. Using similar experimental conditions and units (Namioka et al., 2011), the same authors investigated the PS two-step pyrolysis and reforming process and obtained a lower H₂ yield (33.0 wt%) than obtained when using PP.

In comparison to conventional gasification, the pyrolysis two-step and in-line volatiles reforming process allow for 100% conversion, resulting in a gaseous stream with high H₂ concentration and no tar or liquid hydrocarbons. As a result, different authors have reported the values of H₂ production above 30 wt% (Tsuji and Hatayama, 2009; Park et al., 2010; Namioka et al., 2011; Erkiaga et al., 2015; Barbarias et al., 2016a; Barbarias et al., 2016b; Arregi et al., 2017). In the pyrolysis–reforming process, the most important parameters which affect the end products are the steam/carbon ratio and reforming phase temperature. Figure 14A depicts the effects of both factors on H₂ production, respectively. As shown in Figure 14A, the H₂ production improves by enhancing the reforming temperature, thus increasing the endothermic steam reforming reactions (ESRRs) comprising hydrocarbons, despite the water–gas shift (WGS) reaction equilibrium limiting this improvement. In the reaction environment, the partial steam pressure increases as the steam/carbon ratio rise, enhancing both the water–gas shift reaction and reforming processes, thus favoring the production of H₂, but at high steam/carbon ratios, this effect is reduced as seen in Figure 14B. However, the indirect approach for the production of H₂ via biomass oil (pyrolysis oil) reforming has been extensively investigated (Trane et al., 2012; Chen et al., 2017; Nabgan et al., 2017), and this route has been studied infrequently in the plastic waste case. Tsuji and Hatayama (2009) only studied the H₂ production indirect route from plastic waste. The oil produced by the pyrolysis of LDPE was evaporated at 600 and 800 °C and subjected to catalytic steam reforming in a fluidized bed reactor on a Ni-Al₂O₃ catalyst. The gas generated has an H₂ composition of roughly 70% volume, which is near the equilibrium value and contributes to 37.0 wt% of the total production. The oil reforming derived from PS pyrolysis has also been investigated, with the production of H₂ being 31.6 wt% in this case. Even under ideal conditions, the values of H₂ production produced in the pyrolysis and in-line reforming approach are substantially greater than those normally achieved in the steam plastics gasification, which are often below 20 wt% (HeMXiao et al., 2009a; Erkiaga et al., 2013a; Martínez-Lera et al., 2013a). Similarly, due to the high H₂ and carbon content in plastics, the production of H₂ achieved through biomass pyrolysis–reforming and steam gasification is significantly lower, ranging from 2–8 wt% (Rapagna et al., 2000; Luo et al., 2009; Umeki et al., 2010; Erkiaga et al., 2014) to 4–11 wt% (Xiao et al., 2013; Ma et al., 2014; Arregi et al., 2016). As a result, the pyrolysis–reforming technique for plastic waste valorization is a promising approach.

FIGURE 14

FIGURE 14. (A) Temperature effect on the production of H₂ in pyrolysis–reforming of plastic. (B) Steam/carbon ratio effect on the production of hydrogen in the reforming process of plastic waste.

12 Summary of pyrolysis of plastic waste

Table 11 outlines the various parameters which affect the composition of the final end products (gas, liquid, and solid) at different conditions in catalytic and thermal pyrolysis processes. The fluidizing media used in all of the studies was nitrogen gas. Compared with other plastics, PVC and PET generate very low liquid oil yield (based on Table 11), making them less commonly investigated by authors. In pyrolysis, PVC was not recommended since it produces toxic HCL acid and has a low liquid oil yield. Furthermore, the oil produced by PVC includes chlorinated compounds, which potentially decrease the quality of the oil and are also harmful to the environment.

TABLE 11

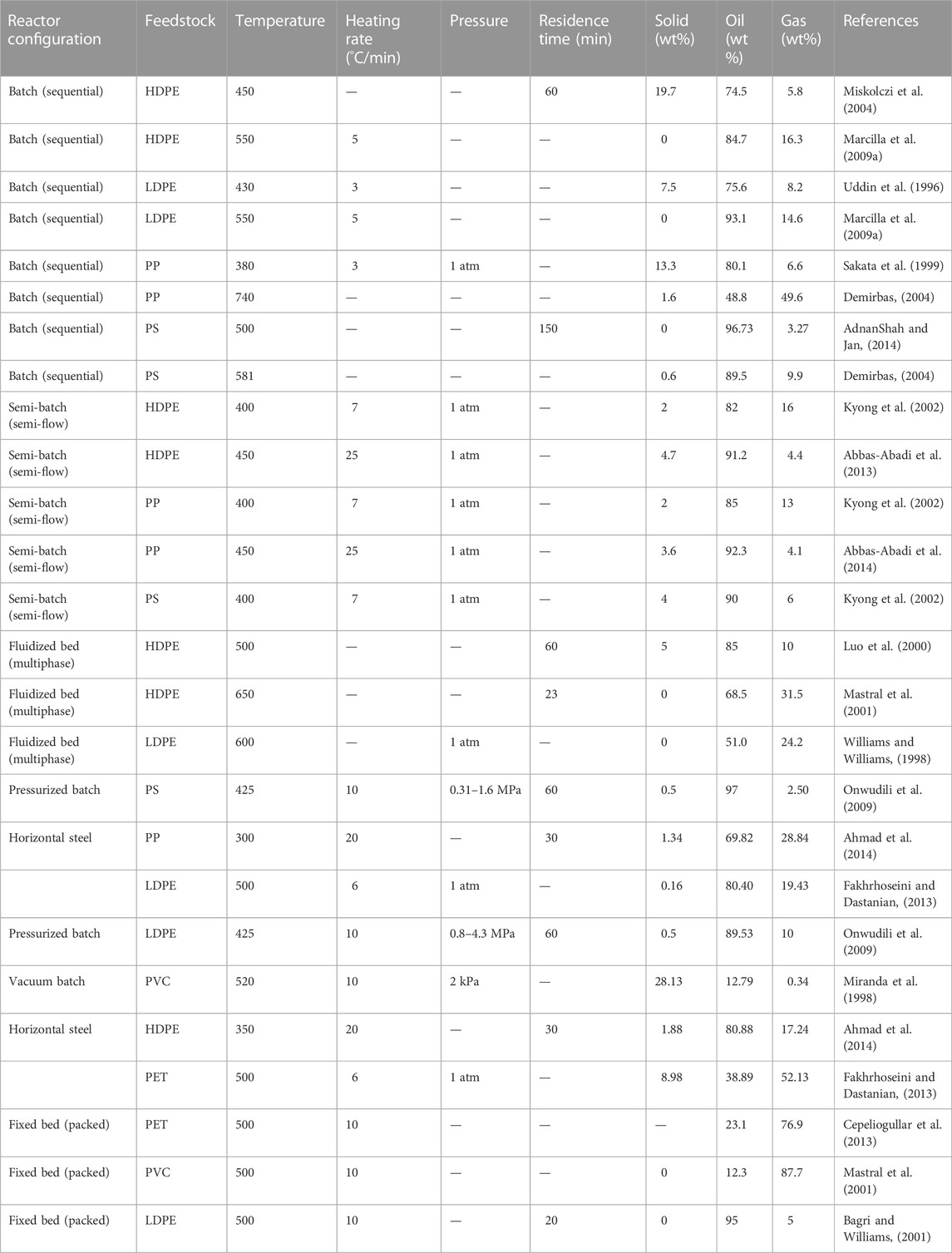

TABLE 11. Experimental results of pyrolysis of plastic waste by different authors.

In thermal degradation, the ideal temperature in plastic pyrolysis for maximizing liquid oil production is between 500 and 550°C as shown in Table 11. Nevertheless, the utilization of the catalyst in plastic waste pyrolysis allowed the optimal temperature to be decreased to 450°C, resulting in a significant increase in liquid yield production. Among the plastics, polystyrene (PS) is the best plastic for the pyrolysis process and produced 97 wt% of liquid oil without any catalyst compulsions (Onwudili et al., 2009). In terms of polyolefin plastic types in thermal pyrolysis, PP provided the lowest yield of liquid oil (82.12 wt%) and LDPE provided the highest (93.1 wt%). However, product optimization of 90 wt% or above is possible by using the appropriate catalysts and performing experiments at the right operating parameters.

The preparation of useful materials in tribology is also an interesting application of plastic waste recycling (Iqbal et al., 2020; Iqbal et al., 2022). This is another alternative to disposing of plastic waste and recycles it to develop lubricating oil for tribological applications. Recently, Hackler et al. (2021) compared the tribological performance of synthetic lubricants derived from HDPE, LLDPE, and bubble wrap with industrial-grade oils. Their findings suggest that the lubricants derived from the waste plastics outperformed the traditional mineral oil with a 43% improvement in wear volume when compared to Group III minerals. Furthermore, Sikdar et al. (2020) studied the frictional behavior of pyrolyzed oils derived from waste plastics, and their results indicate that these pyrolyzed plastic waste oils exhibit similar frictional behavior when compared to bio-based lubricants. Moreover, the waxes obtained during polyolefin plastics (PP and PE) fast pyrolysis and oil produced during tire pyrolysis together can be co-fed with the industrial current stream units. It is an opportunity for conventional refineries to operate as a waste refineries by co-feeding these feeds alternatively and adjusting the fuel characteristics and raw materials produced, to be tailored to commercial objectives within the oil economy framework (Palos et al., 2021).

Considering the Sustainable Development Goals (SDGs), lubricants derived from pyrolysis and gasification of plastic waste not only have the potential to reduce plastic pollution but also the potential to replace industrial-grade oils for tribological applications.

13 Conclusion

This study gives a comprehensive overview of gasification and plastic pyrolysis for each classification, as well as a discussion of the most important influencing aspects for optimizing H₂ production and liquid oil yield. In contrast to conventional combustion (incineration), one of the key contentions for gasification and pyrolysis is to enhance ecological performance and the possibility for ameliorating emission control. In the literature studies, most researchers have preferred pyrolysis process over gasification because it has the greatest potential for converting most of the waste plastics energy into useful char, gas, and liquid oil. The fundamental obstacle of gasification of plastic waste is the formation of tar, which leads to major operational challenges, thus reducing the gas yield and influencing the total process productivity. The pyrolysis process also has drawbacks, such as a more complex product stream and the inability to directly vent product gases due to high concentrations of CO. The composition and variable quality of the feed is a considerable challenge for all plastic conversion processes. The long-term viability of these processes are indisputable because by using these valorization routes, the management of waste becomes highly systematic, with less landfill space required, lower cost, and less pollution. As a final conclusion, the ideal way to encounter plastic pollution is to recycle plastic waste either by gasification or pyrolysis.

Author contributions

HS, MA, and AI suggested the idea of this work, wrote the manuscript and made the final improvements. HS, MA, and AI provided help with the alignment of this article. HS, MA, AI, IN, MK, AMS and AMG proofread, edited, and made improvements to this article. IN and MK provided the financial assistance.

Acknowledgments

Publication supported under the Excellence Initiative - Research University program implemented at the Silesian University of Technology, one year 2022 under the project no 32/014/SDU/10-22-25, Also Irfan Nadeem and Mitjan Kalin would like to acknowledge the partial financial support from the Slovenian Research Agency (ARRS), Slovenia (research core funding No. P2-0231).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, editors, and reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Abbreviations

MSW, municipal solid waste; PE, polyethylene; HDPE, high-density polyethylene; FBR, fluidized bed reactor; CBF, circulating fluidized bed; BFB, bubbling fluidized bed; DFB, dual fluidized bed; CSBR, conical spouted bed reactor; PP, polypropylene; LDPE, low-density polyethylene; MJ, mega joules; EDAX, energy-dispersive X-ray spectroscopy; WGS, water–gas shift; ER, equivalence ratio; PET, polyethylene terephthalate; PVC, polyvinyl chloride; PS, polystyrene; PETRA, the PET Resin Association; EPA, Environmental Protection Agency; GC-MS, gas chromatography–mass spectroscopy; HIP, high-impact polystyrene; RPM, revolutions per minute; TG, thermogravimetry analysis; DTG, derivative thermogravimetry analysis; SEM, scanning electron microscope; FFC, fluid catalytic cracking; SDG, sustainable development goal.

References

Abbas-Abadi, M. S., Haghighi, M. N., and Yeganeh, H. (2013). Evaluation of pyrolysis product of virgin high density polyethylene degradation using different process parameters in a stirred reactor. Fuel Process Technol. 109, 90–95. doi:10.1016/j.fuproc.2012.09.042

CrossRef Full Text | Google Scholar

Abbas-Abadi, M. S., Haghighi, M. N., Yeganeh, H., and McDonald, A. G. (2014). Evaluation of pyrolysis process parameters on polypropylene degradation products. J. Anal. Appl. Pyrol 109, 272–277. doi:10.1016/j.jaap.2014.05.023

CrossRef Full Text | Google Scholar

Abnisa, F., Daud, W. M. A. W., and Sahu, J. N. (2014). Pyrolysis of mixtures of palm shell and polystyrene: An optional method to produce a high-grade of pyrolysis oil. Environ. Prog. Sustain Energy 33, 1026–1033. doi:10.1002/ep.11850

CrossRef Full Text | Google Scholar

Abnisa, F., and Wan Daud, W. M. A. (2014). A review on co-pyrolysis of biomass: An optional technique to obtain a high-grade pyrolysis oil. Energy Convers. Manage 87, 71–85. doi:10.1016/j.enconman.2014.07.007

CrossRef Full Text | Google Scholar

Aboulkas, A., El harfi, K., El Bouadili, A., Jung, S-H., Cho, M-H., and Kang, B. (2010). Thermal degradation behaviors of polyethylene and polypropylene. Part I: Pyrolysis kinetics and mechanisms. Energy Convers. Manage 51, 1363–1369. doi:10.1016/j.enconman.2009.12.017

CrossRef Full Text | Google Scholar

Achilias, D. S., Kanellopoulou, I., Megalokonomos, P., Antonakou, E., and Lappas, A. A. (2007). Chemical recycling of polystyrene by pyrolysis: Potential use of the liquid product for the reproduction of polymer. Macromol. Mater Eng. 292, 923–934. doi:10.1002/mame.200700058

CrossRef Full Text | Google Scholar

Acomb, J. C., Wu, C., and Williams, P. T. (2014). Control of steam input to the pyrolysis-gasification of waste plastics for improved production of hydrogen or carbon nanotubes. Appl. Catal. B 147, 571–584. doi:10.1016/j.apcatb.2013.09.018

CrossRef Full Text | Google Scholar

Adnan, , , Shah, J., and Jan, M. R. (2014). Thermo-catalytic pyrolysis of polystyrene in the presence of zinc bulk catalysts. J. Taiwan Inst. Chem. Eng. 45, 2494–2500. doi:10.1016/j.jtice.2014.05.011

CrossRef Full Text | Google Scholar

Adrados, A., De Marco, I., Caballero, B., López, A., Laresgoiti, M., and Torres, A. (2012). Pyrolysis of plastic packaging waste: A comparison of plastic residuals from material recovery facilities with simulated plastic waste. Waste Manage 32, 826–832. doi:10.1016/j.wasman.2011.06.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Aguado, J., Serrano, D. P., and Escola, J. M. (2008). Fuels from waste plastics by thermal and catalytic processes: A review. Ind. Eng. Chem. Res. 47, 7982–7992. doi:10.1021/ie800393w

CrossRef Full Text | Google Scholar

Aguado, J., Serrano, D. P., San Miguel, G., Castro, M. C., and Madrid, S. (2007). Feedstock recycling of polyethylene in a two-step thermo-catalytic reaction system. J. Anal. Appl. Pyrol 79, 415–423. doi:10.1016/j.jaap.2006.11.008

CrossRef Full Text | Google Scholar

Aguado, R., Olazar, M., Gaisán, B., Prieto, R., and Bilbao, J. (2002). Kinetic study of polyolefin pyrolysis in a conical spouted bed reactor. Ind. Eng. Chem. Res. 41, 4559–4566. doi:10.1021/ie0201260

CrossRef Full Text | Google Scholar

Aguado, R., Prieto, R., José, M. J., Alvarez, S., Olazar, M., and Bilbao, J. (2005). Defluidization modelling of pyrolysis of plastics in a conical spouted bed reactor. Chem. Eng. Process. Process Intensif. 44 (2), 231–235. doi:10.1016/j.cep.2004.02.016

CrossRef Full Text | Google Scholar

Ahmad, A. A., Zawawi, N. A., Kasim, F. H., Inayat, A., and Khasri, A. (2016). Assessing the gasification performance of biomass: A review on biomass gasification process conditions, optimization and economic evaluation. Renew. Sustain Energy Rev. 53, 1333–1347. doi:10.1016/j.rser.2015.09.030

CrossRef Full Text | Google Scholar

Ahmad, I., Ismail Khan, M., Ishaq, M., Khan, H., Gul, K., and Ahmad, W. (2013). Catalytic efficiency of some novel nanostructured heterogeneous solid catalysts in pyrolysis of HDPE. Polym. Degrad. Stab. 98, 2512–2519. doi:10.1016/j.polymdegradstab.2013.09.009

CrossRef Full Text | Google Scholar

Ahmad, I., Khan, M. I., Khan, H., Ishaq, M., Tariq, R., Gul, K., et al. (2014). Pyrolysis study of polypropylene and polyethylene into premium oil products. Int. J. Green Energy 12, 663–671. doi:10.1080/15435075.2014.880146

CrossRef Full Text | Google Scholar

Ahmed, I. I., and Gupta, A. K. (2009). Hydrogen production from polystyrene pyrolysis and gasification: Characteristics and kinetics. Int. J. Hydrog. Energy 34, 6253–6264. doi:10.1016/j.ijhydene.2009.05.046

CrossRef Full Text | Google Scholar

Ahmed, I. I., and Gupta, A. K. (2011). Kinetics of woodchips char gasification with steam and carbon dioxide. Appl. Energy 88, 1613–1619. doi:10.1016/j.apenergy.2010.11.007

CrossRef Full Text | Google Scholar

Akkache, S., Hernández, A-, Teixeira, G., Gelix, F., Roche, N., and Ferrasse, J. H. (2016). Co-Gasification of wastewater sludge and different feedstock: Feasibility study. Biomass Bioenergy 89, 201–209. doi:10.1016/j.biombioe.2016.03.003

CrossRef Full Text | Google Scholar

Al-Salem, S. M., Lettieri, P., and Baeyens, J. (2009). Recycling and recovery routes of plastic solid waste (PSW): A review. Waste Manag. 29, 2625–2643. doi:10.1016/j.wasman.2009.06.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Al-Salem, S. M., Lettieri, P., and Baeyens, J. (2010). The valorization of plastic solid waste (PSW) by primary to quaternary routes: From re-use to energy and chemicals. Prog. Energy Combust. Sci. 36, 103–129. doi:10.1016/j.pecs.2009.09.001

CrossRef Full Text | Google Scholar

Alipour Moghadam Esfahani, R., Osmieri, L., Specchia, S., Yusup, S., Tavasoli, A., and Zamaniyan, A. (2017). H2- rich syngas production through mixed residual biomass and HDPE waste via integrated catalytic gasification and tar cracking plus bio-char upgrading. Chem. Eng. J. 308, 578–587. doi:10.1016/j.cej.2016.09.049

CrossRef Full Text | Google Scholar

Alvarez, J., Amutio, M., Lopez, G., Barbarias, I., Bilbao, J., and Olazar, M. (2015). Sewage sludge valorization by fl ash pyrolysis in a conical spouted bed reactor. Chem. Eng. J. 273, 173–183. doi:10.1016/j.cej.2015.03.047

CrossRef Full Text | Google Scholar

Alvarez, J., Kumagai, S., Wu, C., Yoshioka, T., Bilbao, J., Olazar, M., et al. (2014). Hydrogen production from biomass and plastic mixtures by pyrolysis-gasification. Int. J. Hydrog. Energy 39, 10883–10891. doi:10.1016/j.ijhydene.2014.04.189

CrossRef Full Text | Google Scholar

Amutio, M., Lopez, G., Artetxe, M., Elordi, G., Olazar, M., and Bilbao, J. (2012). Influence of tem-perature on biomass pyrolysis in a conical spouted bed reactor. Resour. Conserv. Recycl 59, 23–31. doi:10.1016/j.resconrec.2011.04.002

CrossRef Full Text | Google Scholar

Anis, S., and Zainal, Z. A. (2011). Tar reduction in biomass producer gas via mechanical, catalytic and thermal methods: A review. Renew. Sustain Energy Rev. 15, 2355–2377. doi:10.1016/j.rser.2011.02.018

CrossRef Full Text | Google Scholar

Antelava, A., Jablonska, N., Constantinou, A., Manos, G., Salaudeen, S. A., Dutta, A., et al. (2021). Energy potential of plastic waste valorization: A short comparative assessment of pyrolysis versus gasification. Energy Fuels 35 (5), 3558–3571. doi:10.1021/acs.energyfuels.0c04017

CrossRef Full Text | Google Scholar

Anuar Sharuddin, S. D., Abnisa, F., Wan Daud, W. M. A., and Aroua, M. K. (2016). A review on pyrolysis of plastic wastes. Energy Convers. Manag. 115, 308–326. doi:10.1016/j.enconman.2016.02.037

CrossRef Full Text | Google Scholar

Arabiourrutia, M., Elordi, G., Lopez, G., Borsella, E., Bilbao, J., and Olazar, M. (2012). Characterization of the waxes obtained by the pyrolysis of polyolefin plastics in a conical spouted bed reactor. J. Anal. Appl. Pyrolysis 94, 230–237. doi:10.1016/j.jaap.2011.12.012

CrossRef Full Text | Google Scholar

Arabiourrutia, M., Elordi, G., Lopez, G., Borsella, E., Bilbao, J., and Olazar, M. (2012). Characterization of the waxes obtained by the pyrolysis of polyolefin plastics in a conical spouted bed reactor. J. Anal. Appl. Pyrol 94, 230–237. doi:10.1016/j.jaap.2011.12.012

CrossRef Full Text | Google Scholar

Arandes, J. M., Abajo, I., Lopez-Valerio, D., Fernendez, I., Azkoiti, M. J., Olazar, M., et al. (1997). Transformation of several plastic wastes into fuels by catalytic cracking. Ind. Eng. Chem. Res. 36, 4523–4529. doi:10.1021/ie970096e

CrossRef Full Text | Google Scholar

Arena, U., Di Gregorio, F., Amorese, C., and Mastellone, M. L. (2011). A techno-economic comparison of fluidized bed gasification of two mixed plastic wastes. Waste Manag. 31, 1494–1504. doi:10.1016/j.wasman.2011.02.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Arena, U., and Di Gregorio, F. (2014). Energy generation by air gasification of two industrial plastic wastes ina pilot scale fluidized bed reactor. Energy 68, 735–743. doi:10.1016/j.energy.2014.01.084

CrossRef Full Text | Google Scholar

Arena, U., and Di Gregorio, F. (2016). Fluidized bed gasifi cation of industrial solid recovered fuels. Waste Manag. 50, 86–92. doi:10.1016/j.wasman.2016.02.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Arena, U., Zaccariello, L., and Mastellone, M. L. (2010). Fluidized bed gasifi cation of waste-derived fuels. Waste Manag. 30, 1212–1219. doi:10.1016/j.wasman.2010.01.038

PubMed Abstract | CrossRef Full Text | Google Scholar

Arena, U., Zaccariello, L., and Mastellone, M. L. (2009). Tar removal during the fluidized bed gasification of plastic waste. Waste Manag. 29, 783–791. doi:10.1016/j.wasman.2008.05.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Arena, U. (2012). Process and technological aspects of municipal solid waste gasification. A review. A Rev. Waste Manag. 32, 625–639. doi:10.1016/j.wasman.2011.09.025

PubMed Abstract | CrossRef Full Text | Google Scholar

Arregi, A., Amutio, M., Lopez, G., Artetxe, M., Alvarez, J., Bilbao, J., et al. (2017). Hydrogen-rich gas production by continuous pyrolysis and in-line catalytic reforming of pine wood waste and HDPE mixtures. Energy Convers. Manag. 136, 192–201. doi:10.1016/j.enconman.2017.01.008

CrossRef Full Text | Google Scholar

Arregi, A., Lopez, G., Amutio, M., Barbarias, I., Bilbao, J., and Olazar, M. (2016). Hydrogen production from biomass by continuous fast pyrolysis and in-line steam reforming. RSC Adv. 6, 25975–25985. doi:10.1039/c6ra01657j

CrossRef Full Text | Google Scholar

Artetxe, M., Lopez, G., Amutio, M., Elordi, G., Bilbao, J., and Olazar, M. (2013). Cracking of high density polyethylene pyrolysis waxes on HZSM-5 catalysts of different acidity. Ind. Eng. Chem. Res. 52, 10637–10645. doi:10.1021/ie4014869

CrossRef Full Text | Google Scholar

Artetxe, M., Lopez, G., Amutio, M., Elordi, G., Bilbao, J., and Olazar, M. (2013). Cracking of high density polyethylene pyrolysis waxes on HZSM-5 catalysts of different acidity. Ind. Eng. Chem. Res. 52, 10637–10645. doi:10.1021/ie4014869

CrossRef Full Text | Google Scholar

Artetxe, M., Lopez, G., Elordi, G., Amutio, M., Bilbao, J., and Martin, O. (2012). Production of light olefins from polyethylene in a two-step process: Pyrolysis in a conical spouted bed and downstream high-temperature thermal cracking. Industrial Eng. Chem. Res. 51 (43), 13915–13923. doi:10.1021/ie300178e

CrossRef Full Text | Google Scholar

Artetxe, M., Lopez, G., Amutio, M., Barbarias, I., Arregi, A., Aguado, R., et al. (2015). Styrene recovery from PS by flash pyrolysis in a conical spouted bed reactor. Waste Manage 45, 126–133.

PubMed Abstract | CrossRef Full Text | Google Scholar

Aznar, M. P., Caballero, M. A., Sancho, J. A., and Frances, E. (2006). Plastic waste elimination by co-gasification with coal and biomass in fluidized bed with air in pilot plant. Fuel Process Technol. 87, 409–420. doi:10.1016/j.fuproc.2005.09.006

CrossRef Full Text | Google Scholar

Bagri, R., and Williams, P. T. (2001). Catalytic pyrolysis of polyethylene. J. Anal. Appl. Pyrol 63, 29–41. doi:10.1016/s0165-2370(01)00139-5

CrossRef Full Text | Google Scholar

Bajad, G. S., Vijayakumar, R. P., Gupta, A. G., Jagtap, V., and Singh, Yp (2017). Production of liquid hydrocarbons, carbon nanotubes and hydrogen rich gases from waste plastic in a multi-core reactor. J. Anal. Appl. Pyrolysis 125, 83–90. doi:10.1016/j.jaap.2017.04.016

CrossRef Full Text | Google Scholar

Ballice, L. (2001). A kinetic approach to the temperature-programmed pyrolysis of low-and high-density polyethylene in a fixed bed reactor: Determination of kinetic parameters for the evolution of n-paraffins and 1-olefins. Fuel 80, 1923–1935. doi:10.1016/s0016-2361(01)00067-9

CrossRef Full Text | Google Scholar

Baloch, H. A., Yang, T., Li, R., Nizamuddin, S., Kai, X., and Bhutto, A. W. (2016). Parametric study of co-gasification of ternary blends of rice straw, polyethylene and polyvinylchloride. Clean. Technol. Environ. Policy 18, 1031–1042. doi:10.1007/s10098-016-1092-4

CrossRef Full Text | Google Scholar

Barbarias, I., Lopez, G., Alvarez, J., Artetxe, M., Arregi, A., Bilbao, J., et al. (2016). A sequential process for hydrogen production based on continuous HDPE fast pyrolysis and in-line steam reforming. Chem. Eng. J. 296, 191–198. doi:10.1016/j.cej.2016.03.091

CrossRef Full Text | Google Scholar

Barbarias, I., Lopez, G., Amutio, M., Artetxe, M., Alvarez, J., Arregi, A., et al. (2016). Steam re-forming of plastic pyrolysis model hydrocarbons and catalyst deactivation. Appl. Catal. A 527, 152–160. doi:10.1016/j.apcata.2016.09.003

CrossRef Full Text | Google Scholar

Barbarias, I., Lopez, G., Artetxe, M., Arregi, A., Santamaria, L., Bilbao, J., et al. (2016). Pyrolysis and in-line catalytic steam reforming of polystyrene through a two-step reaction system. J. Anal. Appl. Pyrolysis 122, 502–510. doi:10.1016/j.jaap.2016.10.006

CrossRef Full Text | Google Scholar

Barbarias, I., Lopez, G., Artetxe, M., Arregi, A., Bilbao, J., and Olazar, M. (2018). Valorisation of different waste plastics by pyrolysis and in-line catalytic steam reforming for hydrogen production. Energy Convers. manage. 156, 575–584. doi:10.1016/j.enconman.2017.11.048

CrossRef Full Text | Google Scholar

Belgiorno, V., De Feo, G., Della Rocca, C., and Napoli, R. M. A. (2003). Energy from gasification of solid wastes. Waste Manag. 23, 1–15. doi:10.1016/s0956-053x(02)00149-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Bernocco, D., Bosio, B., and Arato, E. (2013). Feasibility study of a spouted bed gasification plant. Chem. Eng. Res. Des. 91, 843–855. doi:10.1016/j.cherd.2012.09.012

CrossRef Full Text | Google Scholar

Berrueco, C., Mastral, E. J., Esperanza, E., and Ceamanos, J. (2002). Production of waxes and tars from the continuous pyrolysis of high density polyethylene. Influence of operation variables. flu Oper. Var. Energy Fuels 16, 1148–1153. doi:10.1021/ef020008p

CrossRef Full Text | Google Scholar

Bilitewski, B., Hardtle, G., Marek, K., and Weissbach, A. (1997). Waste management. Heidelberg, Germany: Springer-Verlag.

Google Scholar

Boundy, B., Diegel, S. W., Wright, L., and Davis, S. C. (2011). Biomass energy data book. 4th ed. US: Oak Ridge National Laboratory.

Google Scholar

Brachi, P., Chirone, R., Miccio, F., Miccio, M., Picarelli, A., and Ruoppolo, G. (2014). Fluidized bed co-gasification of biomass and polymeric wastes for a flexible end-use of the syngas: Focus on bio-methanol. Fuel 128, 88–98. doi:10.1016/j.fuel.2014.02.070

CrossRef Full Text | Google Scholar

British Plastics Federation (2015). Polyvinyl chloride (PVC). London.

Google Scholar

Butler, E., Devlin, G., and McDonnell, K. (2011). Waste polyolefi ns to liquid fuels via pyrolysis: Review of commercial state-of-the-art and recent laboratory research. Waste Biomass- Valor 2, 227–255. doi:10.1007/s12649-011-9067-5

CrossRef Full Text | Google Scholar

Cardona, S. C., and Corma, A. (2000). Tertiary recycling of polypropylene by catalytic cracking in a semibatch stirred reactor: Use of spent equilibrium FCC commercial catalyst. Appl. Catal. B Environ. 25, 151–162. doi:10.1016/s0926-3373(99)00127-7

CrossRef Full Text | Google Scholar

Cepeliogullar, O., and Putun, A. E. (2013). “Utilization of two different types of plastic wastes from daily and industrial life,” in ICOEST cappadocia 2013. Editors C. Ozdemir, S. Sahinkaya, E. Kalipci, and M. K. Oden (Turkey: ICOEST Cappadocia), 1–13.

Google Scholar

Chen, J., Sun, J., and Wang, Y. (2017). Catalysts for steam reforming of bio-oil: A review. Ind. Eng. Chem. Res. 56, 4627–4637. doi:10.1021/acs.iecr.7b00600

CrossRef Full Text | Google Scholar

Chin, B. L. F., Yusup, S., Al Shoaibi, A., Kannan, P., Srinivasakannan, C., and Sulaiman, S. A. (2014). Kinetic studies of co-pyrolysis of rubber seed shell with high density polyethylene. Energy Convers. Manage 87, 746–753. doi:10.1016/j.enconman.2014.07.043

CrossRef Full Text | Google Scholar

Cho, M., Choi, Y., and Kim, J. (2015). Air gasification of PVC (polyvinyl chloride)-containing plastic waste in a two-stage gasifier using Ca-based additives and Ni-loaded activated carbon for the production of clean and hydrogen-rich producer gas. Energy 87, 586–593. doi:10.1016/j.energy.2015.05.026

CrossRef Full Text | Google Scholar

Cho, M-, Mun, T-, Choi, Y-, and Kim, J- (2014). Two-stage air gasification of mixed plastic waste: Olivine as the bed material and e ffects of various additives and a nickel-plated distributor on the tar removal. Energy 70, 128–134. doi:10.1016/j.energy.2014.03.097

CrossRef Full Text | Google Scholar

Cho, M. H., Mun, T. Y., and Kim, J. S. (2013). Air gasification of mixed plastic wastes using calcined dolomite and activated carbon in a two-stage gasifier to reduce tar. Energy 53, 299–305. doi:10.1016/j.energy.2013.02.041

CrossRef Full Text | Google Scholar

Cho, M. H., Mun, T. Y., and Kim, J. S. (2013). Production of low-tar producer gas from air gasification of mixed plastic waste in a two-stage gasifier using olivine combined with activated carbon. Energy 58, 688–694. doi:10.1016/j.energy.2013.06.021

CrossRef Full Text | Google Scholar

Choi, S. J., Park, Y-K., Jeong, K-E., Kim, T-W., Chae, H-J., Park, S. H., et al. (2010). Catalytic degradation of polyethylene over SBA-16. Korean J. Chem. Eng. 27, 1446–1451. doi:10.1007/s11814-010-0281-9

CrossRef Full Text | Google Scholar

Corella, J., Toledo, J. M., and Padilla, R. (2004). Olivine or dolomite as in-bed additive in biomass gasification with air in a fluidized bed: Which is better? Energy fuels 18, 713–720. doi:10.1021/ef0340918

CrossRef Full Text | Google Scholar

Czernik, S., and French, R. J. (2006). Production of hydrogen from plastics by pyrolysis and catalytic steam reform. Energy fuels 20, 754–758. doi:10.1021/ef050354h

CrossRef Full Text | Google Scholar

de Andres, J. M., Narros, A., and Rodriguez, M. E. (2011). Behaviour of dolomite, olivine and alu-mina as primary catalysts in air/steam gasification of sewage sludge. Fuel 90, 521–527. doi:10.1016/j.fuel.2010.09.043

CrossRef Full Text | Google Scholar

de Sousa, F. D. B. (2021). Management of plastic waste: A bibliometric mapping and analysis. Waste Manag. Res. 39 (5), 664–678. doi:10.1177/0734242X21992422

PubMed Abstract | CrossRef Full Text | Google Scholar

Degnan, T. F. (2000). Applications of zeolites in petroleum refining. Top. Catal. 13, 349–356.

CrossRef Full Text | Google Scholar

Demirbas, A. (2004). Pyrolysis of municipal plastic wastes for recovery of gasoline-range hydrocarbons. J. Anal. Appl. Pyrol 72, 97–102. doi:10.1016/j.jaap.2004.03.001

CrossRef Full Text | Google Scholar

Devi, L., Ptasinski, K. J., and Janssen, F. J. J. G. (2003). A review of the primary measures for tar elimination in biomass gasi fi cation processes. Biomass Bioenergy 24, 125–140. doi:10.1016/s0961-9534(02)00102-2

CrossRef Full Text | Google Scholar

Donaj, P. J., Kaminsky, W., Buzeto, F., and Yang, W. (2012). Pyrolysis of polyolefins for increasing the yield of monomers’ recovery. Waste Manage 32, 840–846.

PubMed Abstract | CrossRef Full Text | Google Scholar

Dou, B., Wang, K., Jiang, B., Song, Y., Zhang, C., Chen, H., et al. (2016). Fluidized-bed gasification combined continuoussorption-enhanced steam reforming system to continuous hydrogen production from waste plastic. Int. J. Hydrog. Energy 41, 3803–3810. doi:10.1016/j.ijhydene.2015.12.197

CrossRef Full Text | Google Scholar

Elordi, G., Olazar, M., Aguado, R., Lopez, G., Arabiourrutia, M., and Bilbao, J. (2007). Catalytic pyrolysis of high density polyethylene in a conical spouted bed reactor. J. Anal. Appl. Pyrol 79, 450–455. doi:10.1016/j.jaap.2006.11.010

CrossRef Full Text | Google Scholar

Elordi, G., Olazar, M., Castaño, P., Artetxe, M., and Bilbao, J. (2012). Polyethylene cracking on a spent FCC catalyst in a conical spouted bed. Ind. Eng. Chem. Res. 51, 14008–14017. doi:10.1021/ie3018274

CrossRef Full Text | Google Scholar

Elordi, G., Olazar, M., Lopez, G., Amutio, M., Artetxe, M., Aguado, R., et al. (2009). Catalytic pyrolysis of HDPE in continuous mode over zeolite catalysts in a conical spouted bed reactor. J. Anal. Appl. Pyrol 85, 345–351. doi:10.1016/j.jaap.2008.10.015

CrossRef Full Text | Google Scholar

Elordi, G., Olazar, M., Lopez, G., Artetxe, M., and Bilbao, J. (2011). Continuous polyolefin cracking on an HZSM-5 zeolite catalyst in a conical spouted bed reactor. Ind. Eng. Chem. Res. 50, 6061–6070. doi:10.1021/ie2002999

CrossRef Full Text | Google Scholar

Erkiaga, A., Lopez, G., Amutio, M., Bilbao, J., and Olazar, M. (2014). Influence of operating conditions on the steam gasification of biomass in a conical spouted bed reactor. Chem. Eng. J. 237, 259–267. doi:10.1016/j.cej.2013.10.018

CrossRef Full Text | Google Scholar

Erkiaga, A., Lopez, G., Amutio, M., Bilbao, J., and Olazar, M. (2013). Steam gasification of biomass in a conical spouted bed reactor with olivine and γ-alumina as primary catalysts. Fuel Process Technol. 116, 292–299. doi:10.1016/j.fuproc.2013.07.008

CrossRef Full Text | Google Scholar

Erkiaga, A., Lopez, G., Amutio, M., Bilbao, J., and Olazar, M. (2013). Syngas from steam gasification of polyethylene in a conical spouted bed reactor. Fuel 109, 461–469. doi:10.1016/j.fuel.2013.03.022

CrossRef Full Text | Google Scholar

Erkiaga, A., Lopez, G., Barbarias, I., Artetxe, M., Amutio, M., Bilbao, J., et al. (2015). HDPE pyrolysis-steam reforming in a tandem spouted bed-fixed bed reactor for H2 production. J. Anal. Appl. Pyrolysis 116, 34–41. doi:10.1016/j.jaap.2015.10.010

CrossRef Full Text | Google Scholar

Fakhrhoseini, S. M., and Dastanian, M. (2013). Predicting pyrolysis products of PE. In PET using NRTL activity coefficient model. London, United Kingdom: Hindawi Publishing Corporation, 1–5.

CrossRef Full Text | Google Scholar

Fernandez, E., Santamaria, L., Amutio, M., Artetxe, M., Arregi, A., Lopez, G., et al. (2022). Role of temperature in the biomass steam pyrolysis in a conical spouted bed reactor. Energy 238, 122053. doi:10.1016/j.energy.2021.122053

CrossRef Full Text | Google Scholar

Fernandez, Y., Arenillas, A., and Menandez, J. A. (2011). “Microwave heating applied to pyrolysis,” in Advances in induction and microwave heating of mineral and organic materials (Spain: InTech).

CrossRef Full Text | Google Scholar

Fernandez-Akarregi, A. R., Makibar, J., Lopez, G., Amutio, M., and Olazar, M. (2013). Design and operation of a conical spouted bed reactor pilot plant (25 kg/h) for biomass fast pyrolysis. Fuel Process Technol. 112, 48–56. doi:10.1016/j.fuproc.2013.02.022

CrossRef Full Text | Google Scholar

Fogler, H. S. (2010). Elements of chemical reaction engineering. 4th ed New Jersey: Pearson Education Inc.

Google Scholar

Foong, S. K., Cheng, G., and Watkinson, A. P. (1981). Spouted bed gasification of Western Canadian coals. Can. J. Chem. Eng. 59, 625–630. doi:10.1002/cjce.5450590511

CrossRef Full Text | Google Scholar

Friengfung, P., Jamkrajang, E., Sunphorka, S., Kuchonthara, P., and Mekasut, L. (2014). NiO/dolo-mite catalyzed steam/O₂ gasification of different plastics and their mixtures. Ind. Eng. Chem. Res. 53, 1909–1915. doi:10.1021/ie401893s

CrossRef Full Text | Google Scholar

García, R. A., Serrano, D. P., and Otero, D. (2005). Catalytic cracking of HDPE over hybrid zeolitic–mesoporous materials. J. Anal. Appl. Pyrol 74, 379–386. doi:10.1016/j.jaap.2004.11.002

CrossRef Full Text | Google Scholar

Garfoth, A. A., Lin, Y. H., Sharratt, P. N., and Dwyer, J. (1998). Production of hydrocarbons by catalytic degradation of high density polyethylene in a laboratory fluidized-bed reactor. Appl. Catal. A Gen. 169, 331–342.

Google Scholar

Gibadullina, G. R., Tazmeev, A. H., and Tazmeeva, R. N. (2015). The creation of high temperature steam flow for plasma chemical gasification of polymer waste. Int. J. Appl. Eng. Res. 10, 45015–45021.

Google Scholar

Gil, J., Corella, J., Aznar, M. P., and Caballero, M. A. (1999). Biomass gasification in atmospheric and bubbling fluidized bed: Effect of the type of gasifying agent on the product distribution. Biomass- Bioenergy 17, 389–403. doi:10.1016/s0961-9534(99)00055-0

CrossRef Full Text | Google Scholar

Goransson, K., Soderlind, U., and Zhang, W. (2011). Experimental test on a novel dual fluidised bed biomass gasifier for synthetic fuel production. Fuel 90, 1340–1349. doi:10.1016/j.fuel.2010.12.035

CrossRef Full Text | Google Scholar

Guan, G., Kaewpanha, M., Hao, X., and Abudula, A. (2016). Catalytic steam reforming of biomass tar: Prospects and challenges. Renew. Sustain Energy Rev. 58, 450–461. doi:10.1016/j.rser.2015.12.316

CrossRef Full Text | Google Scholar

Guo, X., Wang, L., Li, S., Tang, X., and Hao, J. (2015). Gasification of waste rigid polyurethane foam: Optimizing operational conditions. J. Mater Cycl. Waste Manag. 17, 560–565. doi:10.1007/s10163-014-0281-7

CrossRef Full Text | Google Scholar

Guo, X., Zhang, W., Wang, L., and Hao, J. (2016). Comparative study of nitrogen migration among the products from catalytic pyrolysis and gasification of waste rigid polyurethane foam. J. Anal. Appl. Pyrolysis 120, 144–153. doi:10.1016/j.jaap.2016.04.018

CrossRef Full Text | Google Scholar

Hackler, R. A., Vyavhare, K., Kennedy, R. M., Celik, G., Kanbur, U., Griffin, P. J., et al. (2021). Synthetic lubricants derived from plastic waste and their tribological performance. ChemSusChem 14 (19), 4181–4189. doi:10.1002/cssc.202100912

PubMed Abstract | CrossRef Full Text | Google Scholar

Heidenreich, S., and Foscolo, P. U. (2015). New concepts in biomass gasification. Prog. Energy Combust. Sci. 46, 72–95. doi:10.1016/j.pecs.2014.06.002

CrossRef Full Text | Google Scholar

Heikkinen, J. M., Hordijk, J. C., de Jong, W., and Spliethoff, H. (2004). Thermogravimetry as a tool to classify waste components to be used for energy generation. J. Anal. Appl. Pyrol 71, 883–900. doi:10.1016/j.jaap.2003.12.001

CrossRef Full Text | Google Scholar

He, M., Xiao, B., Hu, Z., Liu, S., Guo, X., and Luo, S. (2009). Syngas production from catalytic gasification of waste polyethylene: Influence of temperature on gas yield and com-position. Int. J. Hydrog. Energy 34, 1342–1348. doi:10.1016/j.ijhydene.2008.12.023

CrossRef Full Text | Google Scholar

He, M., Xiao, B., Hu, Z., Liu, S., Guo, X., and Luo, S. (2009). Syngas production from catalytic gasification of waste polyethylene: Influence of temperature on gas yield and com-position. Int. J. Hydrog. Energy 34, 1342–1348. doi:10.1016/j.ijhydene.2008.12.023

CrossRef Full Text | Google Scholar

Hernandez, MdR., Gomez, A., Garcia, A. N., Agulló, J., and Marcilla, A. (2007). E ff ect of the temperature in the nature and extension of the primary and secondary reactions in the thermal and HZSM-5 catalytic pyrolysis of HDPE. Appl. Catal. A 317, 183–194. doi:10.1016/j.apcata.2006.10.017

CrossRef Full Text | Google Scholar

Hernández, MdR., Gómez, A., García, Á. N., Agulló, J., and Marcilla, A. (2007). Effect of the temperature in the nature and extension of the primary and secondary reactions in the thermal and HZSM-5 catalytic pyrolysis of HDPE. Appl. Catal. A Gen. 317, 183–194. doi:10.1016/j.apcata.2006.10.017

CrossRef Full Text | Google Scholar

Hlina, M., Hrabovsky, M., Kavka, T., and Konrad, M. (2014). Production of high quality syngas from argon/water plasma gasification of biomass and waste. Waste Manag. 34, 63–66. doi:10.1016/j.wasman.2013.09.018

PubMed Abstract | CrossRef Full Text | Google Scholar

Hong, S-J., Oh, S. C., Lee, H-P., Kim, H. T., and Yoo, K-O. (1999). A study on the pyrolysis characteristics of poly(vinyl chloride). J. Korean Inst. Chem. Eng. 37, 515–521.

Google Scholar

Hopewell, J., Dvorak, R., and Kosior, E. (2009). Plastics recycling: Challenges and opportunities. Philos. Trans. R. Soc. Lond. B Biol. Sci. 364, 2115–2126. doi:10.1098/rstb.2008.0311

PubMed Abstract | CrossRef Full Text | Google Scholar

Hu, Q., Cheng, W., Mao, Q., Hu, J., Yang, H., and Chen, H. (2021). Study on the physicochemical structure and gasification reactivity of chars from pyrolysis of biomass pellets under different heating rates. Fuel 314, 122789. doi:10.1016/j.fuel.2021.122789

CrossRef Full Text | Google Scholar

Humphries, A., and Wilcox, J. (1989). Zeolite components and matrix composition determine FCC catalyst performance. Oil Gas. J. 87.

Google Scholar

Hwang, I-, Kobayashi, J., and Kawamoto, K. (2014). Characterization of products obtained from pyrolysis and steam gasi fi cation of wood waste, RDF, and RPF. Waste Manag. 34, 402–410. doi:10.1016/j.wasman.2013.10.009

PubMed Abstract | CrossRef Full Text | Google Scholar

International Zeolite Association (2005). International zeolite association.

Google Scholar

Iqbal, A., Iqbal, A., Moskal, G., Yasir, M., Al-Mansour, A. I., Khan, M. A., et al. (2022). Long-term potentiodynamic testing and tribometric properties of amorphous alloy coatings under saline environment. Molecules 27 (4), 1421. doi:10.3390/molecules27041421

PubMed Abstract | CrossRef Full Text | Google Scholar

Iqbal, A., Siddique, S., Maqsood, M., Atiq Ur Rehman, M., and Yasir, M. (2020). Comparative analysis on the structure and properties of iron-based amorphous coating sprayed with the thermal spraying techniques. Coatings 10 (10), 1006. doi:10.3390/coatings10101006

CrossRef Full Text | Google Scholar

Jaafar, Y., Abdelouahed, L., El Hage, R., El Samrani, A., and Taouk, B. (2022). Pyrolysis of common plastics and their mixtures to produce valuable petroleum-like products. Polym. Degrad. Stab. 195, 109770. doi:10.1016/j.polymdegradstab.2021.109770

CrossRef Full Text | Google Scholar

Jan, M. R., Shah, J., and Gulab, H. (2010). Catalytic degradation of waste high-density polyethylene into fuel products using BaCO3 as a catalyst. Fuel Process Technol. 91, 1428–1437. doi:10.1016/j.fuproc.2010.05.017

CrossRef Full Text | Google Scholar

Jung, S-H, Cho, M-H, Kang, B-S, and Kim, J-S (2013). The influence of reaction parameters on characteristics of pyrolysis oils from waste high impact polystyrene and acrylonitrile-butadiene-styrene using a fluidized bed reactor. Fuel Process Technol. 116, 123–129. doi:10.1016/j.fuproc.2013.05.004

CrossRef Full Text | Google Scholar

Kaewpengkrow, P., Atong, D., and Sricharoenchaikul, V. (2012). Pyrolysis and gasification of land filled plastic wastes with Ni-Mg-La/Al2O3 catalyst. Environ. Technol. 33, 2489–2495. doi:10.1080/09593330.2012.680918

PubMed Abstract | CrossRef Full Text | Google Scholar

Kaminsky, W., and Kim, J-S. (1999). Pyrolysis of mixed plastics into aromatics. J. Anal. Appl. Pyrol 51, 127–134. doi:10.1016/s0165-2370(99)00012-1

CrossRef Full Text | Google Scholar

Kaminsky, W., Schlesselmann, B., and Simon, C. M. (1996). Thermal degradation of mixed plastic waste to aromatics and gas. Polym. Degrad. Stab. 53, 189–197. doi:10.1016/0141-3910(96)00087-0

CrossRef Full Text | Google Scholar

Kern, S. J., Pfeifer, C., and Hofbauer, H. (2013). Co gasification of polyethylene and lignite in a dual fluidized bed gasifier. Ind. Eng. Chem. Res. 52, 4360–4371. doi:10.1021/ie303453e

CrossRef Full Text | Google Scholar

Khaghanikavkani, E. (2013). Microwave pyrolysis of plastic. J. Chem. Eng. Process Technol. 04. doi:10.4172/2157-7048.1000150

CrossRef Full Text | Google Scholar

Kim, J. W., Mun, T. Y., Kim, J. O., and Kim, J. S. (2011). Air gasification of mixed plastic wastes using a two-stage gasifier for the production of producer gas with low tar and a high caloric value. Fuel 90, 2266–2272. doi:10.1016/j.fuel.2011.02.021

CrossRef Full Text | Google Scholar

Kim, S. S., and Kim, S. (2004). Pyrolysis characteristics of polystyrene and polypropylene in a stirred batch reactor. Chem. Eng. J. 98, 53–60. doi:10.1016/s1385-8947(03)00184-0

CrossRef Full Text | Google Scholar

Kreith, F. (1998). The CRC handbook of mechanical engineering. 2nd ed Boca Raton, Florida, United States: CRC Press.

Google Scholar

Kriz, V., and Bicakova, O. (2011). Hydrogen from the two-stage pyrolysis of bituminous coal/waste plastics mixtures. Int. J. Hydrog. Energy 36, 9014–9022. doi:10.1016/j.ijhydene.2011.03.136

CrossRef Full Text | Google Scholar

Kumar, S., and Singh, R. K. (2011). Recovery of hydrocarbon liquid from waste high density polyethylene by thermal pyrolysis. Braz J. Chem. Eng. 28, 659–667. doi:10.1590/s0104-66322011000400011

CrossRef Full Text | Google Scholar

Kunwar, B., Cheng, H. N., Chandrashekaran, S. R., and Sharma, B. K. (2016). Plastics to fuel: A review. Renew. Sustain Energy Rev. 54, 421–428. doi:10.1016/j.rser.2015.10.015

CrossRef Full Text | Google Scholar

Kyong, H. L., Nam, S. N., Dae, H. S., and Seo, Y. (2002). Comparison of plastic types for catalytic degradation of waste plastics into liquid product with spent FCC catalyst. Polym. Degrad. Stab. 78, 539–544. doi:10.1016/s0141-3910(02)00227-6

CrossRef Full Text | Google Scholar

Kyong, H. L., Sang, G. J., Kwang, H. K., Nam, S. N., Dae, H. S., Park, J., et al. (2003). Thermal and catalytic degradation of waste high density polyethylene (HDPE) using spent FCC catalyst. Korean J. Chem. Eng. 20, 693–697. doi:10.1007/bf02706909

CrossRef Full Text | Google Scholar

Lam, S. S., and Chase, H. A. (2012). A review on waste to energy processes using microwave pyrolysis. Energies 5, 4209–4232. doi:10.3390/en5104209

CrossRef Full Text | Google Scholar

Lee, J. W., Yu, T. U., Lee, J. W., Moon, J. H., Jeong, H. J., Park, S. S., et al. (2013). Gasification of mixed plastic wastes in a moving-grate gasifier and application of the producer gas to a power generation engine. Energy fuels 27, 2092–2098. doi:10.1021/ef301758z

CrossRef Full Text | Google Scholar

Lee, K-H., and Shin, D-H. (2007). Characteristics of liquid product from the pyrolysis of waste plastic mixture at low and high temperatures: Influence of lapse time of reaction. Waste Manage 27, 168–176. doi:10.1016/j.wasman.2005.12.017

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, K. H. (2008). Composition of aromatic products in the catalytic degradation of the mixture of waste polystyrene and high-density polyethylene using spent FCC catalyst. Polym. Degrad. Stab. 93, 1284–1289. doi:10.1016/j.polymdegradstab.2008.04.009

CrossRef Full Text | Google Scholar

Lee, U., Chung, J. N., and Ingley, H. A. (2014). High-temperature steam gasification of municipal solid waste, rubber, plastic and wood. Energy fuels 28, 4573–4587. doi:10.1021/ef500713j

CrossRef Full Text | Google Scholar

Li, J., Liao, S., Dan, W., Jia, K., and Zhou, X. (2012). Experimental study on catalytic steam gasification of municipal solid waste for bioenergy production in a combined fixed bed reactor. Biomass Bioenergy 46, 174–180. doi:10.1016/j.biombioe.2012.08.026

CrossRef Full Text | Google Scholar

Lin, Y. H., and Yang, M. H. (2007). Catalytic pyrolysis of polyolefin waste into valuable hydrocarbons over reused catalyst from refinery FCC units. Appl. Catal. A Gen. 328, 132–139. doi:10.1016/j.apcata.2007.05.039

CrossRef Full Text | Google Scholar

Lin, Y. H., Yang, M. H., Yeh, T. F., and Ger, M. D. (2004). Catalytic degradation of high density polyethylene over mesoporous and microporous catalysts in a fluidised-bed reactor. Polym. Degrad. Stab. 86, 121–128. doi:10.1016/j.polymdegradstab.2004.02.015

CrossRef Full Text | Google Scholar

Lin, Y. H., and Yen, H. Y. (2005). Fluidised bed pyrolysis of polypropylene over cracking catalysts for producing hydrocarbons. Polym. Degrad. Stab. 89, 101–108. doi:10.1016/j.polymdegradstab.2005.01.006

CrossRef Full Text | Google Scholar

Liu, X., Zhang, Y., Nahil, M. A., Williams, P. T., and Wu, C. (2017). Development of Ni- and Fe-based catalysts with different metal particle sizes for the production of carbon nanotubes and hydrogen from thermo-chemical conversion of waste plastics. J. Anal. Appl. Pyrolysis 125, 32–39. doi:10.1016/j.jaap.2017.05.001

CrossRef Full Text | Google Scholar

Liu, Y., Qian, J., and Wang, J. (1999). Pyrolysis of polystyrene waste in a fluidized-bed reactor to obtain styrene monomer and gasoline fraction. Fuel Process Technol. 63, 45–55. doi:10.1016/s0378-3820(99)00066-1

CrossRef Full Text | Google Scholar

López, A., de Marco, I., Caballero, B. M., Laresgoiti, M. F., and Adrados, A. (2011). Dechlorination of fuels in pyrolysis of PVC containing plastic wastes. Fuel Process Technol. 92, 253–260. doi:10.1016/j.fuproc.2010.05.008

CrossRef Full Text | Google Scholar

Lopez, G., Alvarez, J., Amutio, M., Arregi, A., Bilbao, J., and Olazar, M. (2016). Assessment of steam gasification kinetics of the char from lignocellulosic biomass in a conical spouted bed reactor. Energy 107, 493–501. doi:10.1016/j.energy.2016.04.040

CrossRef Full Text | Google Scholar

Lopez, G., Artetxe, M., Amutio, M., Bilbao, J., and Olazar, M. (2017). Thermochemical routes for the valorization of waste polyolefinic plastics to produce fuels and chemicals. A re-view. Renew. Sustain Energy Rev. 73, 346–368. doi:10.1016/j.rser.2017.01.142

CrossRef Full Text | Google Scholar

Lopez, G., Erkiaga, A., Amutio, M., Bilbao, J., and Olazar, M. (2015). E ffect of polyethylene co-feeding in the steam gasification of biomass in a conical spouted bed reactor. Fuel 153, 393–401. doi:10.1016/j.fuel.2015.03.006

CrossRef Full Text | Google Scholar

Lopez, G., Erkiaga, A., Artetxe, M., Amutio, M., Bilbao, J., and Olazar, M. (2015). Hydrogen production by high density polyethylene steam gasification and in-line volatile re-forming. Ind. Eng. Chem. Res. 54, 9536–9544. doi:10.1021/acs.iecr.5b02413

CrossRef Full Text | Google Scholar

Lopez, G., Olazar, M., Aguado, R., and Bilbao, J. (2010). Continuous pyrolysis of waste tyres in a conical spouted bed reactor. Fuel 89, 1946–1952. doi:10.1016/j.fuel.2010.03.029

CrossRef Full Text | Google Scholar

Lopez, G., Olazar, M., Amutio, M., Aguado, R., and Bilbao, J. (2009). Influence of tire formulation on the products of continuous pyrolysis in a conical spouted bed reactor. Energy fuels 23, 5423–5431. doi:10.1021/ef900582k

CrossRef Full Text | Google Scholar

Lovás, P., Hudec, P., Jambor, B., Hájeková, E., and Horňá, čekM. (2017). Catalytic cracking of heavy fractions from the pyrolysis of waste HDPE and PP. Fuel 203, 244–252. doi:10.1016/j.fuel.2017.04.128

CrossRef Full Text | Google Scholar

Ludlow-Palafox, C., and Chase, H. A. (2001). Microwave-induced pyrolysis of plastic wastes. Ind. Eng. Chem. Res. 40, 4749–4756. doi:10.1021/ie010202j

CrossRef Full Text | Google Scholar

Luo, G., Suto, T., Yasu, S., and Kato, K. (2000). Catalytic degradation of high density polyethylene and polypropylene into liquid fuel in a powder-particle fluidized bed. Polym. Degrad. Stab. 70, 97–102. doi:10.1016/s0141-3910(00)00095-1

CrossRef Full Text | Google Scholar

Luo, S., Xiao, B., Hu, Z., Liu, S., Guo, X., and He, M. (2009). Hydrogen-rich gas from catalytic steam gasification of biomass in a fixed bed reactor: Influence of temperature and-steam on gasification performance. Int. J. Hydrog. Energy 34, 2191–2194. doi:10.1016/j.ijhydene.2008.12.075

CrossRef Full Text | Google Scholar

Ma, C., Yu, J., Wang, B., Song, Z., Xiang, J., Hu, S., et al. (2016). Chemical recycling of brominated flame retarded plastics from e-waste for clean fuels production: A review. Renew. Sustain Energy Rev. 61, 433–450. doi:10.1016/j.rser.2016.04.020

CrossRef Full Text | Google Scholar

Ma, Z., Zhang, S-, Xie, D-, and Yan, Y- (2014). A novel integrated process for hydrogen production from biomass. Int. J. Hydrog. Energy 39, 1274–1279. doi:10.1016/j.ijhydene.2013.10.146

CrossRef Full Text | Google Scholar

Magee, J. S., and Mitchell, M. M. (1993). Fluid catalytic cracking: Science and technology. Elsevier.

Google Scholar

Mahinpey, N., and Gomez, A. (2016). Review of gasification fundamentals and new findings: Reactors, feedstock, and kinetic studies. Chem. Eng. Sci. 148, 14–31. doi:10.1016/j.ces.2016.03.037

CrossRef Full Text | Google Scholar

Makibar, J., Fernandez-Akarregi, A. R., Alava, I., Cueva, F., Lopez, G., and Olazar, M. (2011). Investigations on heat transfer and hydrodynamics under pyrolysis conditions of a pilot-plant draft tube conical spouted bed reactor. Chem. Eng. Process 50, 790–798. doi:10.1016/j.cep.2011.05.013

CrossRef Full Text | Google Scholar

Makibar, J., Fernandez-Akarregi, A. R., Amutio, M., Lopez, G., and Olazar, M. (2015). Performance of a conical spouted bed pilot plant for bio-oil production by poplar flash pyrolysis. Fuel Process Technol. 137, 283–289. doi:10.1016/j.fuproc.2015.03.011

CrossRef Full Text | Google Scholar

Marcilla, A., Beltran, M. I., and Navarro, I. (2008). Thermal and catalytic pyrolysis of polyethylene over HZSM-5 and HUSY zeolites in a batch reactor under dynamic conditions. Appl. Catal. B Environ. 86, 78–86. doi:10.1016/j.apcatb.2008.07.026

CrossRef Full Text | Google Scholar

Marcilla, A., Beltrán, M. I., and Navarro, R. (2009). Evolution of products during the degradation of polyethylene in a batch reactor. J. Anal. Appl. Pyrol 86, 14–21. doi:10.1016/j.jaap.2009.03.004

CrossRef Full Text | Google Scholar

Marcilla, A., Beltrán, M. I., and Navarro, R. (2009). Thermal and catalytic pyrolysis of polyethylene over HZSM5 and HUSY zeolites in a batch reactor under dynamic conditions. Appl. Catal. B Environ. 86, 78–86. doi:10.1016/j.apcatb.2008.07.026

CrossRef Full Text | Google Scholar

Marcilla, A., García-Quesada, J. C., Sánchez, S., and Ruiz, R. (2005). Study of the catalytic pyrolysis behaviour of polyethylene–polypropylene mixtures. J. Anal. Appl. Pyrol 74, 387–392. doi:10.1016/j.jaap.2004.10.005

CrossRef Full Text | Google Scholar

Marcilla, A., Hernández, MdR., and García, Á. N. (2007). Study of the polymer–catalyst contact effectivity and the heating rate influence on the HDPE pyrolysis. J. Anal. Appl. Pyrol 79, 424–432. doi:10.1016/j.jaap.2006.10.017

CrossRef Full Text | Google Scholar

Marcilly, C. R. (2000). Where and how shape selectivity of molecular sieves operates in refining and petrochemistry catalytic processes. Top. Catal. 13, 357–366. doi:10.1023/a:1009007021975

CrossRef Full Text | Google Scholar

Martínez-Lera, S., and Pallarés Ranz, J. (2017). On the development of a polyolefin gasification modelling approach. Fuel 197, 518–527. doi:10.1016/j.fuel.2017.02.032

CrossRef Full Text | Google Scholar

Martínez-Lera, S., Torrico, J., Pallarés, J., and Gil, A. (2013). Design and first experimental results of a bubbling fluidized bed for air gasification of plastic waste. J. Mater Cycles Waste Manag. 15, 370–380. doi:10.1007/s10163-013-0129-6

CrossRef Full Text | Google Scholar

Martínez-Lera, S., Torrico, J., Pallarés, J., and Gil, A. (2013). Thermal valorization of post-consumer fi lm waste in a bubbling bed gasifier. Waste Manag. 33, 1640–1647. doi:10.1016/j.wasman.2013.03.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Martínez-Lera, S., Torrico, J., Pallarés, J., and Gil, A. (2013). Thermal valorization of post-consumer film wastein a bubbling bed gasifier. Waste Manag. 33, 1640–1647. doi:10.1016/j.wasman.2013.03.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Mastellone, M. L., and Arena, U. (2008). Olivine as a tar removal catalyst during fluidized bed gasification of plastic waste. AIChE J. 54, 1656–1667. doi:10.1002/aic.11497

CrossRef Full Text | Google Scholar

Mastellone, M. L., Zaccariello, L., and Arena, U. (2010). Co-gasification of coal, plastic waste and wood in a bubbling fluidized bed reactor. Fuel 89, 2991–3000. doi:10.1016/j.fuel.2010.05.019

CrossRef Full Text | Google Scholar

Mastellone, M. L., Zaccariello, L., and Arena, U. (2010). Co-gasification of coal, plastic waste and wood in a bubbling fluidized bed reactor. Fuel 89, 2991–3000. doi:10.1016/j.fuel.2010.05.019

CrossRef Full Text | Google Scholar

Mastellone, M. L., Zaccariello, L., Santoro, D., and Arena, U. (2012). The O2-enriched air gasification of coal, plastics and wood in a fluidized bed reactor. Waste Manag. 32, 733–742. doi:10.1016/j.wasman.2011.09.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Mastral, F. J., Esperanza, E., Berrueco, C., Juste, M., and Ceamanos, J. (2003). Fluidized bed thermal degradation products of HDPE in an inert atmosphere and in air–nitrogen mixtures. J. Anal. Appl. Pyrol 70, 1–17. doi:10.1016/s0165-2370(02)00068-2

CrossRef Full Text | Google Scholar

Mastral, F. J., Esperanza, E., Garcia, P., and Juste, M. (2001). Pyrolysis of high-density polyethylene in a fluidised bed reactor. Influence of the temperature and residence time. J. Anal. Appl. Pyrol 63, 1–15. doi:10.1016/s0165-2370(01)00137-1

CrossRef Full Text | Google Scholar

Mastral, J. F., Berrueco, C., Gea, M., and Ceamanos, J. (2006). Catalytic degradation of high density polyethylene over nanocrystalline HZSM-5 zeolite. Polym. Degrad. Stab. 91, 3330–3338. doi:10.1016/j.polymdegradstab.2006.06.009

CrossRef Full Text | Google Scholar

Mastral, J. F., Berrueco, C., Gea, M., and Ceamanos, J. (2006). Catalytic degradation of high density polyethylene over nanocrystalline HZSM-5 zeolite. Polym. Degr. 91, 3330–3338. doi:10.1016/j.polymdegradstab.2006.06.009

CrossRef Full Text | Google Scholar

McCullough, D. P., van Eyk, P. J., Ashman, P. J., and Mullinger, P. J. (2015). Impact of sodium and sulfur species on agglomeration and defluidization during spouted bed gasification of south Australian lignite. Energy fuels 29, 3922–3932. doi:10.1021/acs.energyfuels.5b00367

CrossRef Full Text | Google Scholar

McKendry, P. (2002). Energy production from biomass (part 3): Gasification technologies. Bioresour. Technol. 83, 55–63. doi:10.1016/s0960-8524(01)00120-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Michael, P. A. (2010). Plastic waste total in MSW. Washington, D.C, United States of America: Society of the Plastic Industry.

Google Scholar

Milhé, M., Steene, L., Haube, M., Commandré, J.-M., Fassinou, W.-F., and Flamant, G. (2013). Autothermal and allothermal pyrolysis in a continuous fixed bed reactor. J. Anal. Appl. Pyrolysis2013 103, 102–111. doi:10.1016/j.jaap.2013.03.011

CrossRef Full Text | Google Scholar

Milne, B. J., Behie, L. A., and Berruti, F. (1999). Recycling of waste plastics by ultra-pyrolysis using an internally circulating fluidized bed reactor. J. Anal. Appl. Pyrolysis 51, 157–166. doi:10.1016/s0165-2370(99)00014-5

CrossRef Full Text | Google Scholar

Miranda, R., Jin, Y., Roy, C., and Vasile, C. (1998). Vacuum pyrolysis of PVC kinetic study. Polym. Degrad. Stab. 64, 127–144.

Google Scholar

Miskolczi, N., Angyal, A., Bartha, L., and Valkai, I. (2009). Fuels by pyrolysis of waste plastics from agricultural and packaging sectors in a pilot scale reactor. Fuel Process Technol. 90, 1032–1040. doi:10.1016/j.fuproc.2009.04.019

CrossRef Full Text | Google Scholar

Miskolczi, N., Bartha, L., Deák, G., Jóver, B., and Kalló, D. (2004). Thermal and thermo-catalytic degradation of high-density polyethylene waste. J. Anal. Appl. Pyrol 72, 235–242. doi:10.1016/j.jaap.2004.07.002

CrossRef Full Text | Google Scholar

Mo, Y., Zhao, L., Wang, Z., Chen, C-, Tan, G. Y. A., and Wang, J- (2014). Enhanced styrene recovery from waste polystyrene pyrolysis using response surface methodology coupled with Box-Behnken design. Waste Manag. 34, 763–769. doi:10.1016/j.wasman.2014.01.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Moghadam, R. A., Yusup, S., Uemura, Y., Chin, B. L. F., Lam, H. L., and Al Shoaibi, A. (2014). Syngas production from palm kernel shell and polyethylene waste blend in fluidized bed catalytic steam co-gasification process. Energy 75, 40–44. doi:10.1016/j.energy.2014.04.062

CrossRef Full Text | Google Scholar

Molino, A., Chianese, S., and Musmarra, D. (2016). Biomass gasification technology: The state of the art overview. J. Energy Chem. 25, 10–25. doi:10.1016/j.jechem.2015.11.005

CrossRef Full Text | Google Scholar

Murata, K., Sato, K., and Sakata, Y. (2004). Effect of pressure on thermal degradation of polyethylene. J. Anal. Appl. Pyrol 71, 569–589. doi:10.1016/j.jaap.2003.08.010

CrossRef Full Text | Google Scholar

Nabgan, W., Tuan Abdullah, T. A., Mat, R., Nabgan, B., Gambo, Y., Ibrahim, M., et al. (2017). Renewable hydrogen production from bio-oil derivative via catalytic steam re-forming: An overview. Renew. Sustain Energy Rev. 79, 347–357. doi:10.1016/j.rser.2017.05.069

CrossRef Full Text | Google Scholar

Namioka, T., Saito, A., Inoue, Y., Park, Y., Min, Tj, Roh, Sa, et al. (2011). Hydrogen-rich gas production from waste plastics by pyrolysis and low-temperature steam reforming over a ruthenium catalyst. Appl. Energy 88, 2019–2026. doi:10.1016/j.apenergy.2010.12.053

CrossRef Full Text | Google Scholar

Narobe, M., Golob, J., Klinar, D., Francetic, V., and Likozar, B. (2014). Co-Gasification of biomass and plastics: Pyrolysis kinetics studies, experiments on 100kW dual fluidized bed pilot plant and development of thermodynamic equilibrium model and balances. Bioresour. Technol. 162, 21–29. doi:10.1016/j.biortech.2014.03.121

PubMed Abstract | CrossRef Full Text | Google Scholar

Narváez, I., Orío, A., Aznar, M. P., and Corella, J. (1996). Biomass gasification with air in an atmospheric bubbling fluidized bed. Eff ect of six operational variables on the quality of the produced raw gas. Ind. Eng. Chem. Res. 35, 2110–2120. doi:10.1021/ie9507540

CrossRef Full Text | Google Scholar

Obeid, F., Zeaiter, J., Al-Muhtaseb, AaH., and Bouhadir, K. (2014). Thermo-catalytic pyrolysis of waste polyethylene bottles in a packed bed reactor with different bed materials and catalysts. Energy Convers. Manage 85, 1–6. doi:10.1016/j.enconman.2014.05.075

CrossRef Full Text | Google Scholar

Olazar, M., Lopez, G., Amutio, M., Elordi, G., Aguado, R., and Bilbao, J. (2009). Influence of FCC catalyst steaming on HDPE pyrolysis product distribution. J. Anal. Appl. Pyrol 85, 359–365. doi:10.1016/j.jaap.2008.10.016

CrossRef Full Text | Google Scholar

Oliveira, M., Ramos, A., Ismail, T. M., Monteiro, E., and Rouboa, A. (2022). A Review on Plasma Gasification of Solid Residues: Recent Advances and Developments. Energies 15, 1475. doi:10.3390/en15041475

CrossRef Full Text | Google Scholar

Ongen, A. (2016). Methane-rich syngas production by gasification of thermoset waste plastics. Clean. Technol. Environ. Policy 18, 915–924. doi:10.1007/s10098-015-1071-1

CrossRef Full Text | Google Scholar

Onu, P., Vasile, C., Ciocilteu, S., Iojoiu, E., and Darie, H. (1998). Thermal and catalytic decomposition of polyethylene and polypropylene. J. Anal. Appl. Pyrol 49, 145–153. doi:10.1016/s0165-2370(98)00109-0

CrossRef Full Text | Google Scholar

Onwudili, J. A., Insura, N., and Williams, P. T. (2009). Composition of products from the pyrolysis of polyethylene and polystyrene in a closed batch reactor: Effects of temperature and residence time. J. Anal. Appl. Pyrol 86, 293–303. doi:10.1016/j.jaap.2009.07.008

CrossRef Full Text | Google Scholar

Othman, N., Basri, N. E. A., Yunus, M. N. M., and Sidek, L. M. (2008). “Determination of physical and chemical characteristics of electronic plastic waste (Ep-Waste) resin using proximate and ultimate analysis method,” in International conference on construction and building technology, 169–180.

Google Scholar

Palos, R., Gutiérrez, A., Vela, F. J., Martin, O., Arandes, J. M., and Bilbao, J. (2021). Waste refinery: The valorization of waste plastics and end-of-life tires in refinery units. A review. Energy & Fuels 35 (5), 3529–3557. doi:10.1021/acs.energyfuels.0c03918

CrossRef Full Text | Google Scholar

Palos, R., Rodríguez, E., Gutiérrez, A., Bilbao, J., and Arandes, J. M. (2022). Cracking of plastic pyrolysis oil over FCC equilibrium catalysts to produce fuels: Kinetic modeling, 316. doi:10.1016/j.fuel.2022.123341FuelJanuary

CrossRef Full Text

Palos, R., Rodríguez, E., Gutiérrez, A., Bilbao, J., and Arandes, J. M. (2022). Cracking of plastic pyrolysis oil over FCC equilibrium catalysts to produce fuels: Kinetic modeling. Fuel 316, 123341. doi:10.1016/j.fuel.2022.123341

CrossRef Full Text | Google Scholar

Pan, Y. G., Roca, X., Velo, E., and Puigjaner, L. (1999). Removal of tar by secondary air in fluidised bed gasification of residual biomass and coal. Fuel 78, 1703–1709. doi:10.1016/s0016-2361(99)00118-0

CrossRef Full Text | Google Scholar

Park, J. H., Park, H., Choi, S., and Park, D. (2016). Effects of blend ratio between high density polyethylene and biomass on co-gasification behavior in a two-stage gasification system. Int. J. Hydrog. Energy 41, 16813–16822. doi:10.1016/j.ijhydene.2016.07.199

CrossRef Full Text | Google Scholar

Park, S. S., Seo, D. K., Lee, S. H., Yu, T-U., and Hwang, J. (2012). Study on pyrolysis characteristics of refuse plastic fuel using lab-scale tube furnace and thermogravimetric analysis reactor. J. Anal. Appl. Pyrol 97, 29–38. doi:10.1016/j.jaap.2012.06.009

CrossRef Full Text | Google Scholar

Park, Y., Namioka, T., Sakamoto, S., Min, Tj, Roh, Sa, and Yoshikawa, K. (2010). Optimum operating conditions for a two-stage gasification process fueled by polypropylene by means of continuous reactor over ruthenium catalyst. Fuel Process Technol. 91, 951–957. doi:10.1016/j.fuproc.2009.10.014

CrossRef Full Text | Google Scholar

Parparita, E., Uddin, M. A., Watanabe, T., Kato, Y., Yanik, J., and Vasile, C. (2015). Gas production by steam gasification of polypropylene/biomass waste composites in a dual-bed reactor. J. Mater Cycles Waste Manag. 17, 756–768. doi:10.1007/s10163-014-0308-0

CrossRef Full Text | Google Scholar

Pinto, F., André, R., Miranda, M., Neves, D., Varela, F., and Santos, J. (2016). Effect of gasification agent on co-gasification of rice production wastes mixtures. Fuel 180, 407–416. doi:10.1016/j.fuel.2016.04.048

CrossRef Full Text | Google Scholar

Pinto, F., Andre, R. N., Franco, C., Lopes, H., Gulyurtlu, I., and Cabrita, I. (2009). Co-Gasification of coal and wastes in a pilot-scale installation 1: e ff ect of catalysts in syngas treatment to achieve tar abatement. Fuel 88, 2392–2402. doi:10.1016/j.fuel.2008.12.012

CrossRef Full Text | Google Scholar

Pinto, F., Andre, R. N., Franco, C., Lopes, H., Gulyurtlu, I., and Cabrita, I. (2009). Co-Gasification of coal and wastes in a pilot-scale installation 1: e ff ect of catalysts in syngas treatment to achieve tar abatement. Fuel 88, 2392–2402. doi:10.1016/j.fuel.2008.12.012

CrossRef Full Text | Google Scholar

Pinto, F., Franco, C., Andre, R. N., Miranda, M., Gulyurtlu, I., and Cabrita, I. (2002). Co-gasification study of biomass mixed with plastic wastes. Fuel 81, 291–297. doi:10.1016/s0016-2361(01)00164-8

CrossRef Full Text | Google Scholar

Pinto, F., Franco, C., Andre, R. N., Tavares, C., Dias, M., Gulyurtlu, I., et al. (2003). Effect of experimental conditions on co-gasification of coal, biomass and plastics wastes with air/steam mixtures in a fluidized bed system. Fuel 82, 1967–1976. doi:10.1016/s0016-2361(03)00160-1

CrossRef Full Text | Google Scholar

Plastics – the Facts 2016. An analysis of European plastics production, Brussels - Belgium: demand and waste data; 2016.

Google Scholar

Pohorelyl, M., Vosecky, M., Hejdova, P., Puncochar, M., Skoblja, S., Staf, M., et al. (2006). Gasification of coal and PET in fluidized bed reactor. Fuel 85, 2458–2468. doi:10.1016/j.fuel.2006.04.022

CrossRef Full Text | Google Scholar

Polypropylene and polyethylene for the recovery of BTX aromatics using a fluidized bed reactor. Fuel Process Technol. 2010;91:277–284 .

Google Scholar

Ponzio, A., Kalisz, S., and Blasiak, W. (2006). Effect of operating conditions on tar and gas com-position in high temperature air/steam gasification (HTAG) of plastic containing waste. Fuel Process Technol. 87, 223–233. doi:10.1016/j.fuproc.2005.08.002

CrossRef Full Text | Google Scholar

Çepeliog˘ ullar ÖPütün, A. E. (2013). Thermal and kinetic behaviors of biomass and plastic wastes in co-pyrolysis. Energy Convers. Manage 75, 263–270. doi:10.1016/j.enconman.2013.06.036

CrossRef Full Text | Google Scholar

Rajagopalan, K., and Habib, E. (1992). Understand FCC matrix technology. Hydrocarb. Process 71.

Google Scholar

Rapagna, S., Jand, N., Kiennemann, A., and Foscolo, P. U. (2000). Steam-gasification of biomass in a fluidised-bed of olivine particles. Biomass Bioenergy 19, 187–197. doi:10.1016/s0961-9534(00)00031-3

CrossRef Full Text | Google Scholar

Renzini, M. S., Lerici, L. C., Sedran, U., and Pierella, L. B. (2011). Stability of ZSM-11 and BETA zeolites during the catalytic cracking of low-density polyethylene. J. Anal. Appl. Pyrol 92, 450–455. doi:10.1016/j.jaap.2011.08.008

CrossRef Full Text | Google Scholar

Robinson, T., Bronson, B., Gogolek, P., and Mehrani, P. (2016). Comparison of the air-blown bubbling fluidized bed gasification of wood and wood-PET pellets. Fuel 178, 263–71.

CrossRef Full Text | Google Scholar

Rodríguez, E., Gutiérrez, A., Palos, R., Vela, F. J., Arandes, J. M., and Bilbao, J. (2019). Fuel production by cracking of polyolefins pyrolysis waxes under fluid catalytic cracking (FCC) operating conditions. Waste Manage 93, 162–172. doi:10.1016/j.wasman.2019.05.005

CrossRef Full Text | Google Scholar

Ruoppolo, G., Ammendola, P., Chirone, R., and Miccio, F. H. (2012). H2-rich syngas production by fluidized bed gasification of biomass and plastic fuel. Waste Manag. 32, 724–732. doi:10.1016/j.wasman.2011.12.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Rutberg, P. G., Kuznetsov, V. A., Serba, E. O., Popov, S. D., Surov, A. V., Nakonechny, G. V., et al. (2013). Novel three-phase steam-air plasma torch for gasification of high-caloric waste. Appl. Energy 108, 505–514. doi:10.1016/j.apenergy.2013.03.052

CrossRef Full Text | Google Scholar

Rutberg, P. G., Kuznetsov, V. A., Serba, E. O., Popov, S. D., Surov, A. V., Nakonechny, G. V., et al. (2013). Novel three-phase steam-air plasma torch for gasification of high-caloric waste. Appl. Energy 108, 505–514. doi:10.1016/j.apenergy.2013.03.052

CrossRef Full Text | Google Scholar

Saad, J. M., Nahil, M. A., and Williams, P. T. (2015). Influence of process conditions on syngas production from the thermal processing of waste high density polyethylene. J. Anal. Appl. Pyrol 113, 35–40. doi:10.1016/j.jaap.2014.09.027

CrossRef Full Text | Google Scholar

Saad, J. M., Nahil, M. A., and Williams, P. T. (2015). Influence of process conditions on syngas production from the thermal processing of waste high density polyethylene. J. Anal. Appl. Pyrolysis 113, 35–40. doi:10.1016/j.jaap.2014.09.027

CrossRef Full Text | Google Scholar

Saad, J. M., and Williams, P. T. (2016). Pyrolysis-catalytic-dry reforming of waste plastics and mixed waste plastics for syngas production. Energy fuels 30, 3198–3204. doi:10.1021/acs.energyfuels.5b02508

CrossRef Full Text | Google Scholar

Sakata, Y., Uddin, M. A., and Muto, A. (1999). Degradation of polyethylene and polypropylene into fuel oil by using solid acid and non-acid catalysts. J. Anal. Appl. Pyrol 51, 135–155. doi:10.1016/s0165-2370(99)00013-3

CrossRef Full Text | Google Scholar

Sakata, Y., Uddin, M. A., Muto, A., Kanada, Y., Koizumi, K., and Murata, K. (1997). Catalytic degradation of polyethylene into fuel oil over mesoporous silica (KFS-16) catalyst. J. Anal. Appl. Pyrol 43, 15–25. doi:10.1016/s0165-2370(97)00052-1

CrossRef Full Text | Google Scholar

Sancho, J. A., Aznar, M. P., and Toledo, J. M. (2008). Catalytic air gasification of plastic waste (polypropylene) in fluidized bed. Part I: Use of in-gasifier bed additives. Ind. Eng. Chem. Res. 47, 1005–1010. doi:10.1021/ie071023q

CrossRef Full Text | Google Scholar

Sansaniwal, S. K., Pal, K., Rosen, M. A., and Tyagi, S. K. (2017). Recent advances in the development of biomass gasification technology: A comprehensive review. Renew. Sustain Energy Rev. 72, 363–384. doi:10.1016/j.rser.2017.01.038

CrossRef Full Text | Google Scholar

Schneider, T., Moffitt, J., Volz, N., Müller, D., and Karl, J. (2022). Long-term effects of ilmenite on a micro-scale bubbling fluidized bed combined heat and power pilot plant for oxygen carrier aided combustion of wood. Appl. Energy 314, 118953. doi:10.1016/j.apenergy.2022.118953

CrossRef Full Text | Google Scholar

Seo, Y-H., Lee, K-H., and Shin, D-H. (2003). Investigation of catalytic degradation of high-density polyethylene by hydrocarbon group type analysis. J. Anal. Appl. Pyrol 70, 383–398. doi:10.1016/s0165-2370(02)00186-9

CrossRef Full Text | Google Scholar

Shah, J., Jan, M. R., Mabood, F., and Jabeen, F. (2010). Catalytic pyrolysis of LDPE leads to valuable resource recovery and reduction of waste problems. Energy Convers. Manage 51, 2791–2801. doi:10.1016/j.enconman.2010.06.016

CrossRef Full Text | Google Scholar

Sharratt, P., Lin, Y-H., Garforth, A., and Dwyer, J. (1997). Investigation of the catalytic pyrolysis of high-density polyethylene over a HZSM-5 catalyst in a laboratory fluidized-bed reactor. Ind. Eng. Chem. Res. 36, 5118–5124. doi:10.1021/ie970348b

CrossRef Full Text | Google Scholar

Shioya, M., Kawanishi, T., Shiratori, N., Wakao, H., Sugiyama, E., Ibe, H., et al. (2005). “Development of waste plastics liquefaction technology, feedstock recycling in Japan,” in Feedstock recycling of plastics. Editors M. Muller-Hagedorn, and H. Bockhorn (Germany, 19–42.

Google Scholar

Sikdar, S., Siddaiah, A., and Menezes, P. L. (2020). Conversion of waste plastic to oils for tribological applications. Lubricants 8 (8), 78. doi:10.3390/lubricants8080078

CrossRef Full Text | Google Scholar

Singh, M., Salaudeen, S. A., Gilroyed, B. H., and Dutta, A. (2022). Simulation of biomass-plastic co-gasification in a fluidized bed reactor using Aspen plus. Fuel Amsterdam, Netherlands: March, 319, 123708. doi:10.1016/j.fuel.2022.123708

CrossRef Full Text | Google Scholar

Sobko, A. A. (2008). Generalized Van der Waals-Berthelot equation of state. Dokl. Phys. 53, 416–419. doi:10.1134/s1028335808080028

CrossRef Full Text | Google Scholar

Straka, P., and Bicáková, O. (2014). Hydrogen-rich gas as a product of two-stage co-gasification of lignite/waste plastics mixtures. Int. J. Hydrog. Energy 39, 10987–10995. doi:10.1016/j.ijhydene.2014.05.054

CrossRef Full Text | Google Scholar

Straka, P., and Bicáková, O. (2014). Hydrogen-rich gas as a product of two-stage co-gasification of lignite/waste plastics mixtures. Int. J. Hydrog. Energy 39, 10987–10995. doi:10.1016/j.ijhydene.2014.05.054

CrossRef Full Text | Google Scholar

Sueaquan, T., Cheng, G., and Watkinson, A. (1995). Coal-gasification in A pressurized spouted bed. Fuel 74, 159–164. doi:10.1016/0016-2361(95)92649-q

CrossRef Full Text | Google Scholar

Sun, Y., Liu, S., Wang, P., Jian, X., Liao, X., and Chen, W. Q. (2021). China’s roadmap to plastic waste management and associated economic costs. J. Environ. Manage. 309, 114686. doi:10.1016/j.jenvman.2022.114686

CrossRef Full Text | Google Scholar

Syamsiro, M., Saptoadi, H., Norsujianto, T., Noviasri, P., Cheng, S., Alimuddin, Z., et al. (2014). Fuel oil production from municipal plastic wastes in sequential pyrolysis and catalytic reforming reactors. Energy Proc. 47, 180–188. doi:10.1016/j.egypro.2014.01.212

CrossRef Full Text | Google Scholar

Tang, L., and Huang, H. (2007). Decomposition of polyethylene in radio-frequency nitrogen and water steam plasmas under reduced pressures. Fuel Process Technol. 88, 549–556. doi:10.1016/j.fuproc.2007.01.013

CrossRef Full Text | Google Scholar

Teo, K. C., and Watkinson, A. P. (1986). Rapid pyrolysis of Canadian coals in a miniature spouted bed reactor. Fuel 65, 949–959. doi:10.1016/0016-2361(86)90204-8

CrossRef Full Text | Google Scholar

Tezer, Ö., Karabağ, N., Öngen, A., Çolpan, C. Ö., and Ayol, A. (2022). Biomass gasification for sustainable energy production: A review. Int. J. Hydrogen Energy 7, 15419–15433. doi:10.1016/j.ijhydene.2022.02.158

CrossRef Full Text | Google Scholar

The University of York (2013). Chemical reactors. The essential chemical industry [online]. UK: The University of York.

Google Scholar

Thimoteo, F., Jorge, A., Sant, A., and Brigagão, G. V. (2022). Açaí waste valorization via mannose and polyphenols production: Techno - economic and environmental assessment, 0123456789. doi:10.1007/s13399-022-02681-0Biomass Convers. Biorefinery

CrossRef Full Text

Thompson, M. S. (2022). Current status and future roles of additives in 3D printing—a perspective. J. Vinyl Addit. Technol. 28 (1), 3–16. doi:10.1002/vnl.21887

CrossRef Full Text | Google Scholar

Toledo, J. M., Aznar, M. P., and Sancho, J. A. (2011). Catalytic air gasification of plastic waste (polypropylene) in a fluidized bed. Part II: Effects of some operating variables on the quality of the raw gas produced using olivine as the in-bed material. Ind. Eng. Chem. Res. 50, 11815–11821. doi:10.1021/ie200145p

CrossRef Full Text | Google Scholar

Trane, R., Dahl, S., Skjoth-Rasmussen, M. S., and Jensen, A. D. (2012). Catalytic steam reforming of bio-oil. Int. J. Hydrog. Energy 37, 6447–6472. doi:10.1016/j.ijhydene.2012.01.023

CrossRef Full Text | Google Scholar

Tsuji, T., and Hatayama, A. (2009). Gasification of waste plastics by steam reforming in a fluidized bed. J. Mater Cycl. Waste Manag. 11, 144–147. doi:10.1007/s10163-008-0227-z

CrossRef Full Text | Google Scholar

Ud Din, Z., and Zainal, Z. A. (2016). Biomass integrated gasification –sofc systems: Technology overview. Renew. Sustain Energy Rev. 53, 1356–1376. doi:10.1016/j.rser.2015.09.013

CrossRef Full Text | Google Scholar

Uddin, M. A., Koizumi, K., Murata, K., and Sakata, Y. (1996). Thermal and catalytic degradation of structurally different types of polyethylene into fuel oil. Polym. Degrad. Stab. 56, 37–44. doi:10.1016/s0141-3910(96)00191-7

CrossRef Full Text | Google Scholar

Uemichi, Y., Hattori, M., Itoh, T., Nakamura, J., and Sugioka, M. (1998). Deactivation behaviors of zeolite and silica–alumina catalysts in the degradation of polyethylene. Ind. Eng. Chem. Res. 37, 867–872. doi:10.1021/ie970605c

CrossRef Full Text | Google Scholar

Uemura, Y., Azeura, M., Ohzuno, Y., and Hatate, Y. (2001). Flash-pyrolyzed product distribution of major plastics in a batch reactor. J. Chem. Eng. Jpn. 34, 1293–1299. doi:10.1252/jcej.34.1293

CrossRef Full Text | Google Scholar

Umeki, K., Yamamoto, K., Namioka, T., and Yoshikawa, K. (2010). High temperature steam-only gasification of woody biomass. Appl. Energy 87, 791–798. doi:10.1016/j.apenergy.2009.09.035

CrossRef Full Text | Google Scholar

Undri, A., Rosi, L., Frediani, M., and Frediani, P. (2014). Efficient disposal of waste polyolefins through microwave assisted pyrolysis. Fuel 116, 662–671. doi:10.1016/j.fuel.2013.08.037

CrossRef Full Text | Google Scholar

Undri, A., Rosi, L., Frediani, M., and Frediani, P. (2011). “Microwave pyrolysis of polymeric materials,” in Microwave heating. Editor Usha Chandra (London, United Kingdom: InTech).

CrossRef Full Text | Google Scholar

Vasile, C., Pakdel, H., Mihai, B., Onu, P., Darie, H., and Ciocalteu, S. (2000). Thermal and catalytic decomposition of mixed plastics. J. Anal. Appl. Pyrol 57, 287–303. doi:10.1016/s0165-2370(00)00151-0

CrossRef Full Text | Google Scholar

Vishwajeet, , , Pawlak-Kruczek, H., Baranowski, M., Czerep, M., Chorazyczewski, A., Krochmalny, K., et al. (2022). Entrained flow plasma gasification of sewage sludge– proof-of-concept and fate of inorganics. Energies 15 (5), 1948. doi:10.3390/en15051948

CrossRef Full Text | Google Scholar

Wan Ho, M. (2015). Waste plastics into fuel oil? UK: Institute of Science in Society.

Google Scholar

Wang, J., Cheng, G., You, Y., Xiao, B., Liu, S., He, P., et al. (2012). Hydrogen-rich gas production by steam gasification of municipal solid waste (MSW) using NiO supported on modified dolomite. Int. J. Hydrog Energy 37, 6503–6510. doi:10.1016/j.ijhydene.2012.01.070

CrossRef Full Text | Google Scholar

Wilk, V., and Hofbauer, H. (2013). Co-Gasification of plastics and biomass in a dual fluidized-bed steam gasifier: Possible interactions of fuels. Energy fuels 27, 3261–3273. doi:10.1021/ef400349k

CrossRef Full Text | Google Scholar

Wilk, V., Schmid, J. C., and Hofbauer, H. (2013). Influence of fuel feeding positions on gasification in dual fluidized bed gasifiers. Biomass Bioenergy 54, 46–58. doi:10.1016/j.biombioe.2013.03.018

CrossRef Full Text | Google Scholar

Williams, P. T., and Williams, E. A. (1998). Fluidised bed pyrolysis of low density polyethylene to produce petrochemical feedstock. J. Anal. Appl. Pyrol 51, 107–126. doi:10.1016/s0165-2370(99)00011-x

CrossRef Full Text | Google Scholar

Wong, S. L., Ngadi, N., Abdullah, T. A. T., and Inuwa, I. M. (2015). Current state and future prospects of plastic waste as source of fuel: A review. Renew. Sustain Energy Rev. 50, 1167–1180. doi:10.1016/j.rser.2015.04.063

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2010). A novel Ni-Mg-Al-CaO catalyst with the dual functions of catalysis and CO2sorption for H₂ production from the pyrolysis-gasification of polypropylene. Fuel 89, 1435–1441. doi:10.1016/j.fuel.2009.10.020

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2008). Effects of gasification temperature and catalyst ratio on hydrogen production from catalytic steam pyrolysis-gasification of polypropylene. Energy fuels 22, 4125–4132. doi:10.1021/ef800574w

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2009). Hydrogen production by steam gasification of polypropylene with various nickel catalysts. Appl. Catal. B 87, 152–161. doi:10.1016/j.apcatb.2008.09.003

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2009). Hydrogen production from the pyrolysis-gasification of polypropylene: Influence of steam flow rate, carrier gas flow rate and gasification temperature. Energy fuels 23, 5055–5061. doi:10.1021/ef900278w

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2009). Hydrogen production from the pyrolysis/gasification of polypropylene: In fluence of steam flow rate, carrier gas flow rate and gasification temperature. Energy fuels 23, 5055–5061. doi:10.1021/ef900278w

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2010). Investigation of coke formation on Ni-Mg-Al catalyst for hydrogen production from the catalytic steam pyrolysis-gasification of polypropylene. Appl. Catal. B 96, 198–207. doi:10.1016/j.apcatb.2010.02.022

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2009). Investigation of Ni-Al, Ni-Mg-Al and Ni-Cu-Al catalyst for hydrogen production from pyrolysis-gasification of polypropylene. Appl. Catal. B 90, 147–156. doi:10.1016/j.apcatb.2009.03.004

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2009). Ni/CeO2/ZSM-5 catalysts for the production of hydrogen from the pyrolysis-gasification of polypropylene. Int. J. Hydrog. Energy 34, 6242–6252. doi:10.1016/j.ijhydene.2009.05.121

CrossRef Full Text | Google Scholar

Wu, C., and Williams, P. T. (2010). Pyrolysis-gasification of plastics, mixed plastics and real-world plastic waste with and without Ni-Mg-Al catalyst. Fuel 89, 3022–3032. doi:10.1016/j.fuel.2010.05.032

CrossRef Full Text | Google Scholar

Xiao, R., Jin, B., Zhou, H., Zhong, Z., and Zhang, M. (2007). Air gasification of polypropylene plastic waste in fluidized bed gasifier. Energy Convers. Manag. 48, 778–786. doi:10.1016/j.enconman.2006.09.004

CrossRef Full Text | Google Scholar

Xiao, X., Cao, J., Meng, X., Le, D. D., Li, L., Ogawa, Y., et al. (2013). Synthesis gas production from catalytic gasification of waste biomass using nickel-loaded Brown coal char. Fuel 103, 135–140. doi:10.1016/j.fuel.2011.06.077

CrossRef Full Text | Google Scholar

Xue, Y., Zhou, S., Brown, R. C., Kelkar, A., and Bai, X. (2015). Fast pyrolysis of biomass and waste plastic in a fluidized bed reactor. Fuel 156, 40–46. doi:10.1016/j.fuel.2015.04.033

CrossRef Full Text | Google Scholar

Yan, R., Liang, D. T., and Tsen, L. (2005). Case studies—Problem solving in fluidized bed waste fuel incineration. Energy Convers. Manage 46, 1165–1178. doi:10.1016/j.enconman.2004.06.021

CrossRef Full Text | Google Scholar

Yang, R., Chuang, K., and Wey, M. (2015). Eff ects of nickel species on Ni/Al2O3 catalysts in carbon nanotube and hydrogen production by waste plastic gasification: Bench and pilot-scale tests. Energy fuels 29, 8178–8187. doi:10.1021/acs.energyfuels.5b01866

CrossRef Full Text | Google Scholar

Yang, R, Chuang, K., and Wey, M. (2016). Carbon nanotube and hydrogen production from waste plastic gasification over Ni/Al-SBA-15 catalysts: Effect of aluminum content. RSC Adv. 6, 40731–40740. doi:10.1039/c6ra04546d

CrossRef Full Text | Google Scholar

Yansaneh, O. Y., and Zein, S. H. (2022). Recent advances on waste plastic thermal pyrolysis: A critical overview. Processes 10–2. doi:10.3390/pr10020332

CrossRef Full Text | Google Scholar

Yao, D., Wu, C., Yang, H., Zhang, Y., Nahil, M. A., Chen, Y., et al. (2017). Co-production of hydrogen and carbon nanotubes from catalytic pyrolysis of waste plastics on Ni-Fe bimetallic catalyst. Energy Convers. Manag. 148, 692–700. doi:10.1016/j.enconman.2017.06.012

CrossRef Full Text | Google Scholar

Yu, J., Sun, L., Ma, C., Qiao, Y., and Yao, H. (2016). Thermal degradation of PVC: A review. Waste Manag. 48, 300–314. doi:10.1016/j.wasman.2015.11.041

PubMed Abstract | CrossRef Full Text | Google Scholar

Zaccariello, L., and Mastellone, M. L. (2015). Fluidized-bed gasification of plastic waste, wood, and their blends with coal. Energies 8, 8052–8068. doi:10.3390/en8088052

CrossRef Full Text | Google Scholar

Zannikos, F., Kalligeros, S., Anastopoulos, G., and Lois, E. (2013). Converting biomass and waste plastic to solid fuel briquettes. J. Renew. Energy 2013, 1–9. doi:10.1155/2013/360368

CrossRef Full Text | Google Scholar

Zhang, W. (2010). Automotive fuels from biomass via gasification. Fuel Process Technol. 91, 866–876. doi:10.1016/j.fuproc.2009.07.010

CrossRef Full Text | Google Scholar

Zhang, X., Lei, H., Chen, S., and Wu, J. (2016). Catalytic co-pyrolysis of lignocellulosic biomass with polymers: A critical review. Green Chem. 18, 4145–4169. doi:10.1039/c6gc00911e

CrossRef Full Text | Google Scholar

Zhang, X., Lei, H., Chen, S., and Wu, J. (2016). Catalytic co-pyrolysis of lignocellulosic biomass with polymers: A critical review. Green Chem. 18, 4145–4169. doi:10.1039/c6gc00911e

CrossRef Full Text | Google Scholar
