Luanjing Li1
Jiahe Wang
Chunxia Li
Biao Dong- 1Sdu-Anu Joint Science College, Shandong University, Weihai, China
- 2State Key Laboratory on Integrated Optoelectronics, College of Electronic Science and Engineering, Jilin University, Changchun, China
- 3Department of Bioengineering, University of Washington, Seattle, WA, United States
- 4Institute of Frontier and Interdisciplinary Science, Shandong University, Qingdao, China
All forms of life have absolute request for metal elements, because metal elements are instrumental in various fundamental processes. Fluorescent probes have been widely used due to their ease of operation, good selectivity, high spatial and temporal resolution, and high sensitivity. In this paper, the research progress of various metal ion (Fe3+,Fe2+,Cu2+,Zn2+,Hg2+,Pb2+,Cd2+) fluorescent probes in recent years has been reviewed, and the fluorescence probes prepared with different structures and materials in different environments are introduced. It is of great significance to improve the sensing performance on metal ions. This research has a wide prospect in the application fields of fluorescence sensing, quantitative analysis, biomedicine and so on. This paper discusses about the development and applications of metal fluorescent probes in future.
1 Introduction
Metal cations and anions play an important role in the versatile physiological and pathological processes, including metabolism, osmotic regulation, catalysis and so on. It is well known that normal biological events can be adversely affected by maladjustment on the levels of certain ions in organisms (Park et al., 2020). It is because of these ions has certain pathophysiological significance, so we explore how these ions detection in biological systems of sensitive and selective is important.
In order to detect and quantify ions, researchers are committed to developing appropriate chemical sensors. Fluorescence in combination with appropriate probes is a good way to measure metal ions, because fluorescence has certain advantages, such as being faster, less destructive and more sensitive, which can present information about the location and quantity of the target (Li et al., 2017). Fluorescence probe method means that the photophysical properties of probe molecules change obviously before and after the specific binding between probe and analyte, so as to detect the change of fluorescence signal, realizing the detection of different molecular or ion content in the organism or the environment (Xu et al., 2016). In general, for the fluorometric determination of cations or anions, the sensor must consist of two components: a fluorescent carrier and an ionic carrier, which may be independent species or covalently linked on a molecule.
Fluorescent probes can be combined with bioluminescence imaging technology to achieve in vivo detection at the cellular level or animal level, which is considered to be the most potential tool for studying different components in the organisms. Fluorescent probe for metal ions, therefore, carries on the synthesis and design gradually become the research hot spot. It is of great significance in chemistry, biology, clinical medicine and agriculture to search for novel organic molecular recognition carriers with high selectivity and to design a novel fluorescent probe for metal ion detection (Xu and Xu, 2016). To have an extensive overview of present studies, we summarized popular fluorescent probes from literatures, classified them according to the types of ions being detected, and presented their structures and strategies. In addition, we focus on numerous strategies to improve the selectivity of fluorescent probes, including metal-organic backbones, central hydrophilic external hydrophobic strategies, etc., which will provide additional insights for biomedicine.
In this review, the latest research progress of fluorescent probes for iron, copper, zinc, mercury, lead, chromium and other metal ions are summarized (Figure 1), and the development trend and application prospect of this field are also discussed. Basic information on the fluorescent probes for the detection of various ions is listed in Table 1.

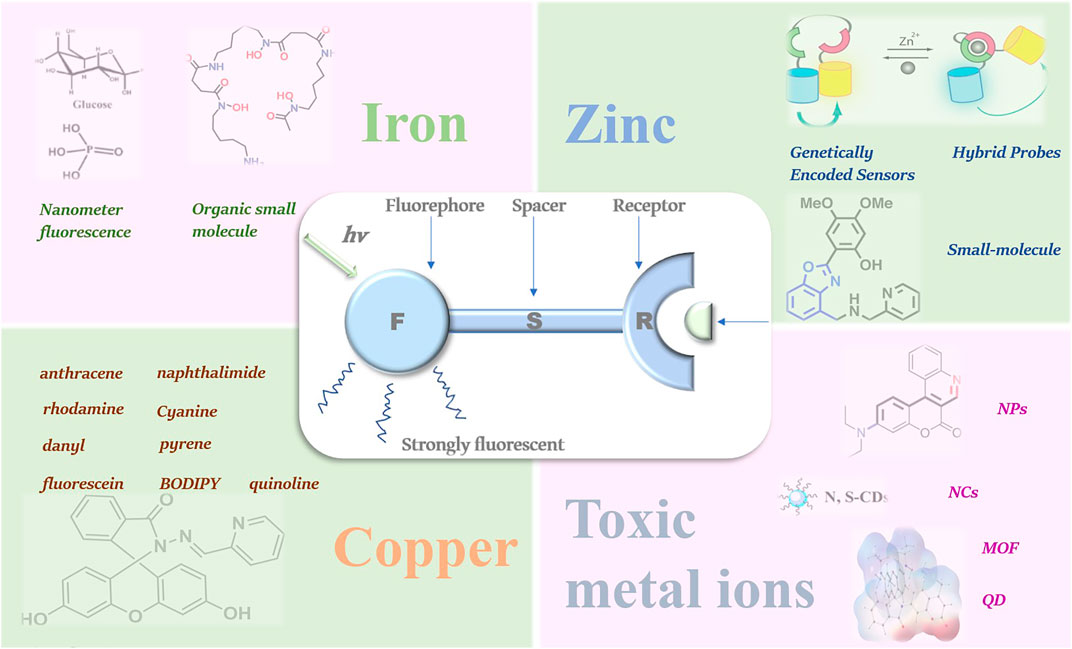

FIGURE 1. Various types of fluorescent probes for metal ion detection.
TABLE 1. List of methods of fluorescent probe detection of metal ions.
2 Probes For Iron
2.1 Probes For Detecting Fe3+
Fe3+ is considered among the most important metal ions in biological systems and exerts an unparalleled role in many biological processes one of the most vital metal ions in biological systems, such as RNA and DNA synthesis, metabolism and so on. To develop new fluorescent probes having low levels of cellular toxicity, good biocompatibility and high solubility in water is becoming more and more important and urgent.
Lytton and co-workers (Lytton et al., 1992) put forward the earliest reported about an iron fluorescent sensor, which is on the basis of the iron carrier desferrioxamine B (DFO) model, connect to the fluorescent carrier 7-nitrobenz-2-oxa-1, 3-diazole (NBD). By detecting and monitoring Fe3+ performance in solution, the NBD-DFO model proves its advantage in monitoring iron under various conditions of iron imbalance diseases. For the past few years, various fluorescent probes developed for selective detection of Fe3+ can be divided into four categories according to the fluorescence signal processing: Turn-Off, Turn-on, ratiometric and chemodosimeters.
2.1.1 Nanometer Fluorescence Probes
For the exploration of the iron ion, nano fluorescent probe plays an important role. Among them, one of the most well-studied materials is semiconductor nanoparticles, also known as quantum dots. In recent years, carbon dots (CDs) are widely used in fluorescent biological imaging and sensing (Zhu et al., 2013). However, the low quantum yield (QY) of CDs severely restricts its development and application. Chemically doped heteroatoms can effectively adjust electron density to improve the QY value of CDs. Therefore, the photochemical and physicochemical properties of carbon dots (CDs) can be efficiently regulated by chemical doping heteroatoms (Guo et al., 2015).
Shi et al. (Shi et al., 2016) synthesized N, P-CDs multi heteroatom (nitrogen and phosphorus co-doped carbon nanodots) fluorescence sensor, which has low cytotoxicity and high photostability, and measured its sensitivity to Fe3+. Liu et al. (Liu Z. et al., 2020) synthesized the non-toxic nitrogen-doped fluorescent carbon dots (N-CDs) that can detect ferric ions, at the same time can be used for fluorescent probe of Vero cell biological imaging (Figure 2A). Du et al. (Du et al., 2021) demonstrated that off-on switch fluorescent probe based on yellow emission carbon dots (y-CDs) provides a highly sensitive and selective method for the detection of ferric ions. Pu et al. (Pu et al., 2020) proposed a static quenching mechanism about the phenylalanine carbon dots (Phe-CDs), which kept its outstanding fluorescence intensity despite its extreme pH values. Atchudan et al. (Atchudan et al., 2021) reported that they synthesized fluorescent carbon dots (KN-CDs) by hydrothermal carbonization method as a good fluorescence sensor of Fe3+ based on the closing sensor of Fe (III) ions. Ju et al. (Ju and Chen, 2014) synthesized environmentally friendly nitrogen-doped graphene quantum dots (N-GQDs) for the unlabeled Fe3+ ions detection in various actual water (Figure 2B). Qi et al. (Qi et al., 2019) designed and demonstrated the promise of nitrogen-doped carbon quantum dots (N-CQDs) as probes for iron ions. Zhang et al. (Zhang Y. et al., 2021) obtained B1N2CQDs (core-shell carbon quantum dots), which has been proved that its detection of Fe3+ can be applied to both endocellular scenarios in biological system and river water samples due to its high stability and fluorescence quantum yield. Xu et al. (Xu Q. et al., 2015) synthesized Sulfur-doped carbon dots (S-doped C-dots), which can also be used to detect iron ions efficiently (Figure 2C).
FIGURE 2. (A) The schematic diagram of preparation of fluorescent N-CDs via hydrothermal treatment (Liu Z. et al., 2020); (B) Schematic representation of the procedure for synthesizing N-GQDs and the detection of Fe3+ (Ju and Chen, 2014); (C) Scheme of the synthesis of S-doped C-dots with blue luminescence (Xu Q. et al., 2015); (D) Schematic illustration the “on-off-on” fluorescent detection of Fe3+, AA using UiO-66-(OH)2 as sensor (Wang H. et al., 2021).
Qu et al. (Qu et al., 2013) took advantage of dopamine for light source synthetic photoluminescence carbon nanoparticles (CNPs), which can be used as a very powerful fluorescence sensitive stage and has been successfully applied to iron ion detection in some water samples. Based on hydroxy functional metal organic skeleton (MOF) UiO-66-(OH)2, Wang et al. (Wang H. et al., 2021) also proposed a “on—off—on” fluorescent switch nano prober (Figure 2D). Dong et al. (Dong et al., 2021) synthesized the NIR PL of GSH-capped gold nanoclusters (GSH-AuNCs), which exhibits excellent sensing performance.
2.1.2 Organic Small Molecules
Xu and co-workers (Xu H. et al., 2015) obtained a owns two one-dimensional channel unparalleled of three-dimensional TB - BTB (benzene-1, 3, 5-tribenzoate) framework for high sensitivity detection of Fe3+. Using an EuL3 (L = 4'-(4-carboxyphenyl)-2, 2':6', 2 "-tripyridine) fluorescence sensor, Zheng and co-workers (Zheng et al., 2013) designed a portable daily life iron ion test paper. Azmi et al. (Al-Azmi and John, 2021) produced a tricyanofuran hydrazone (TCFH) optical probe for better recognition of Fe (III) ions in the hydro environment. Zhang (Zhang et al., 2018) reported a new fluorescence and specific color probe containing both deoxycholic acid and rhodamine molecules and used the spectrum to achieve the measurement of iron ions.
In order to achieve better sensing performance and water-solubility of organic molecular probes, Liu et al. (Liu J. et al., 2020) proposed a method with great potential and development space. They linked the inner hydrophobic molecule tribromophenol with the outer hydrophobic molecule coumarin on the basis of the original iron fluorescence probe (Figure 3A). Besides, in view of the water-soluble dilemma of organic small molecules, Sun et al. (Sun et al., 2020) also adopted a similar structural strategy, and developed a unique vanilloid fluorescent probe for the assay of iron ions by increasing the nucleophilic substitution reaction of LaOBr (Figure 3B). Designing composite materials is of great significance to the change of the water solubility of organic small molecules, and it can also improve the probe’s sensitivity to ions.
FIGURE 3. (A) The trimeric phenolic coumarin (TPC) designed through the internal hydrophobic-external hydrophilic strategy achieves greatly enhanced Fe3+ sensing performance, and can be used for naked eye detection with sunlight excitation (Liu J. et al., 2020); (B) A schematic diagram showing the preparation of the LaOBr/DAT [N-(2-hydroxy-1,1-bis (hydroxymethyl) ethyl)-7-hydroxycoumarin-3-carboxamide] composite and the mechanism of Fe3+sensing (Sun et al., 2020).
High levels of trivalent iron ions can cause many diseases, including cancer, organ disorders of the heart, liver and pancreas, hepatitis, Parkinson’s disease, Alzheimer’s disease, etc. Therefore, the development of fluorescent probes for iron ions has greatly facilitated biomedical imaging in human cells and has contributed to disease diagnosis.
In last several years, lots of researchers have designed different methods of novel iron (III) fluorescence sensors, and successfully synthesized sensors for monitoring the concentration of environmental iron and studying iron migration in various microbial species. Most sensors are derived from the principle of fluorescence quenching, so future probes should be preferentially designed for absorption at longer wavelength to avoid the internal filtering effect of iron (III) absorption in the UV-vis region.
2.2 Probes For Detecting Fe2+
Although the iron in the cells has two forms of Fe2+ and Fe3+, it mainly exists with the form of Fe2+ because of the reductive microenvironment of cells (Ma et al., 2021). On the one hand, it is difficult to establish a highly specific probe for the detection of Fe2+, because the different oxidation states of Fe2+ and Fe3+ vary with each other. On the other hand, due to the strong force between paramagnetic Fe2+ and fluorophore, fluorescence quenching is usually induced, resulting in part of the constructed probes being “on-off” type, which is not easy to observe due to the influence of spontaneous fluorescence of organisms (Wei et al., 2020). Currently, the Fe2+ fluorescent probes mainly include N-oxides, nitroxyl radicals, endoperoxides, bionic ligands, heavy metals, imines and so on.
In order to achieve high-efficiency sensing of Fe2+, Yan et al. (Yan, 2017) proposed a dual-correspondence luminescence probe with optimized metal-Organic Framework (MOF) as the main body. The special feature of this probe is the use of various luminescent substances, such as lanthanide ions, carbon quantum dots, etc. Xu et al. (Xu and Yan, 2015) also synthesized a layer similar to MOF [MIL-124, or Ga2 (OH)4 (C9O6H4)], and further designed and developed a probe to detect Fe2+ ions. For Fe2+ detection, Yang et al. (Yang et al., 2021) reported on the aggregation-induced emission (AIE) based probe named QM-Fe, and verified the feasibility of Fe2+ detection in viable cells. Zhang et al. (Zhang D. et al., 2021) gained a new spiropyran-based fluorescent probe to detect Fe2+ ion. The results show that the addition of Fe2+ with the probe solution improved the magnetic intensity of fluorescence by 6-fold. Wei et al. (Wei et al., 2020) developed a “on-off” fluorescent probe based on a carbon point (CDs), which has been efficiently used to detect Fe2+ in BSA solution, tap water and living cells (Figure 4A). In order to realize real-time detection of unstable ferric divalent ions in living systems, Long et al. (Long et al., 2018) designed a fluorescent probe of coumarin by using a unique cyclization reaction. Gao et al. (Gao et al., 2020) constructed a practical and novel Fe2+ fluorescent probe via a unique strategy with Fe2+-induced reducing reaction, which can act in different monitoring of the environment, such as living cells. Khatun et al. (Khatun et al., 2020) developed a kind of “Turn-On” probe P-Fe (II), which is used to measure the exact amount of ferrous ion (Fe2+) in cosmetics or living cells (Figure 4B). Liang et al. (Liang et al., 2021) developed a new camphor-based fluorimetic probe (CBO) with a natural monoterpene ketone camphor as a base material for the detection of Fe2+ and it can be easily observed by fluorescence of Fe2+ ions in some animals and in plant cells Fe2+ imaging (Figure 4C).
FIGURE 4. (A) One-pot hydrothermal synthesis of fluorescent CDs as a highly efficient “on-off” fluorescent probe for the rapid detection of intracellular Fe2+ (Zhang X. et al., 2020); (B) The synthesis route of probe FeP1 (Khatun et al., 2020); (C) The synthesis route of probe CBO (Liang et al., 2021).
By stimulating the two-photon microscope fluorescence imaging at 680 nm, Yang et al. (Yang et al., 2019) reported for the first time a novel intramolecular charge transfer (ICT) based two-photon, near-infrared (NIR) -enabled fluorescent probe for detecting Fe2+, and applied to the actual living cells. In view of the test organisms or the ferrous ions in aqueous environment, Zhang et al. (Zhang X. et al., 2020) on the basis of nitrogen oxides reduction reaction, invented and created a new kind of “off—on” fluorescent probes the NT—Fe (4-Amino-1, 8-naphthalimide), which greatly improved the efficiency of Fe2+ detection in zebrafish.
During recent years, although there are not numerous reports on the detection of Fe2+ by the methods of fluorescent probes, some progress has been made. It can be roughly divided into “off-on” type Fe2+ fluorescent probes, “on-off” type Fe2+ fluorescent probes, ratio type and other types of Fe2+ fluorescent probes. These in-depth exploration and research will be of great significance for in-depth understanding of the specific functions of Fe2+ in organisms and the mechanism of action on diseases.
3 Probes For Detecting Copper
As we all know, copper ion (Cu2+) is another heavy metal ion found in very high concentrations in our people’s body. As a cofactor of many enzymes, copper ion is inseparable from various enzymatic catalysis and electron transfer processes, and it occupies a unique and key position in various physiological processes. Therefore, if copper homeostasis is out of whack, it can lead to a lot of neurodegenerative diseases that we don’t expect. In order to achieve an optimal measurement performance for copper ions, small polymer fluorescent probes have been extensively used in the procedure of microscopic image analysis due to their certain uniqueness.
So far, methods about the Cu2+ ions’ detection using small molecular fluorescent probes have generally included the UV-toO-NIR regions of anthracene, danyl,pyrene, quinazoline, cyanine dyes, naphthalimide, quinoline, rhodamine, fluorescein, BODIPY and so on (Sivaraman et al., 2018). However, many significant properties of fluorescent probes used in living cells and in vivo still need to be improved, such as slow response speed, high detection limit and poor selectivity (Kar et al., 2013).
Recently, Zhou et al. (Zhou et al., 2021) designed an open red fluorescent probe that can be used well and efficiently to detect copper ions (Cu2+) in some food samples and live zebrafish. Besides, Copper (Cu) has also been found to be indispensable and extremely important in the process of oxygen-containing photosynthesis in biological systems. Li et al. (Li et al., 2021) developed a novel “turn on” NIR probe DCM-Cu whose basic is DCM for the detection of copper ion (II). Due to its wonderful sensitivity and low cytotoxicity toward Cu2+ with a Stokes shift of 140 nm, the probe has been widely used by scholars. What’s more, by covalently linking carboxylate-modified red fluorescent cadmium telluride (CdTe) quantum dots (QDs) with fluorescent blue carbon nanodots functionalized with amino groups (CDs), Wang et al. (Wang et al., 2016) developed a ratio fluorescence nanosensor with good performance for Cu2+ detection (Figure 5A). In addition, Zhu et al. (Zhu et al., 2012)also adopted a ratio fluorescence detection method for copper ions, in particular, the CdSe@C quantum dots (QDs) with different fluorophore dual-emission were selected. This probe ion recognition higher and better stability (Figure 5B). Lin et al. (Lin et al., 2014) successfully designed a new type of high-fluorescence metal-organic structure (MOFs) for the determination of copper ion content in water in the environment. This strategy utilized a branched chain poly-ethylamine encapsulated carbon quantum dot material, thus improving the fluorescence quantum yield and detection effect. By using mesoporous silica (MS) spheres as the material of nanometer reactors, Zong et al. (Zong et al., 2014) improved the fluorescence probe of carbon point (CDs), and made a contribution to the detection of copper ions by synthesizing CDs as fluorescence probe by “off-on” method. Wang et al. (Wang L. et al., 2020) implemented the chemical probe formation of the copper (II) complex L- Cu2+ as a dual-channel recognition probe, allowing one to identify dramatic changes in color with the naked eye. Yao et al. (Yao et al., 2013) designed a ratiometric fluorescent probe based on hybridized dual-emission quantum dots (QDs) and demonstrated that it can visualize real-time monitoring of copper ions in natural environmental water sources, greatly improving efficiency. Ye et al. (Ye et al., 2015) first reported the use of a cadmium pamoate metal-organic framework as a bifunctional fluorescent sensor for the detection of trace amounts of 2, 4, 6-Trinitrophenol (TNP) and Cu2+, a study that greatly improved the sensitivity of the fluorescent probe for the recognition of copper ions. For the detection of copper ions in actual samples, Tang et al. (Tang et al., 2020) developed a pyridine amide (BTPPA) with aggregation-induced emission (AIE) properties as a probe, which achieved by aggregating switching strategies, through “on-off-on” variation of emissions.
FIGURE 5. (A) Schematic illustration of the formation of the dual-emission ratiometric fluorescence probe and the visual detection principle for copper ions (Wang et al., 2016); (B) Dual-emission fluorescent sensing of Cu2+ ions based on a CdSe@C-TPEA nanohybrid (Zhu et al., 2012); (C) Schematic representation of NS-CQDs synthesis synthesizing NS-CQDs from banana juice (Chaudhary et al., 2020); (D) Schematic illustration of the visual detection principle for Cu2+ using the tricolor probe (Cai et al., 2018).
Fluorescent probes for the detection of Cu(II) in water samples are also accessible from natural sources, such as Chaudhary et al. (Chaudhary et al., 2020)’s synthesized and published highly fluorescent N,S co-doped CQD (NS-CQD) at an excitation wavelength of 330 nm with an enhanced quantum yield (32%) (Figure 5C). For monitoring and identifying Cu2+, Wang et al. (Wang Z.-G. et al., 2020) developed a novel colorimetric/fluorescent probe (7-(diethylamino)-2-oxo-2H-chromen-3-yl)methylene)-4-(dimethylamino) benzohydrazide (HL). Furthermore, in order to improve the continuity of the process when detecting copper ions, Mohammadi et al. (Mohammadi and Ghasemi, 2020) developed a novel pyrimidine-based chemosensor (PyrCS) and was able to achieve an intuitive vivid colorimetric response for observation in a specific pH range. Song et al. (Song et al., 2018) designed a dual emission ratio fluorescence sensing membrane for copper ion detection. This double emission film managed to fabricate the chitosan, graphite carbonitride (G-C3N4) and Gold nanoclusters (Au NCs). The film has high sensitivity and portability, which opens up a new way for the detection of copper ions in the environment. Ranee et al. (Ranee et al., 2018) synthesized quinoline based novel fluorescent probes for the selectivity and sensitivity of detecting Cu2+ ions. Kumar et al. (Gujuluva Gangatharan et al., 2018) synthesized an easily available and portable “off-off” colorimetric and fluorescent probe with excellent results in the application of trace Cu2+ ions in real water samples. Cai et al. (Cai et al., 2018) reported a fluorescent test paper probe consisting of three different emitting quantum dots including blue (bCDs), green (gQDs), and red (rQDs), which enables a simple and rapid detection of Cu2+ ions in human urine by observing the color of the filter paper (Figure 5D). Abnormal levels of copper ions in living organisms can also cause many neurological related diseases, and therefore it is of great importance for biomedicine to have a variety of copper ion fluorescent probes for use in living cells.
4 Probes For Detecting Zinc
Zinc is the next most prevalent of the transition metal ions in the human body. In small amounts, Zn2+ is beneficial to people’s health, but at higher concentrations, it appears toxic. Zinc imbalances have been linked to serious neurological diseases, such as Alzheimer’s and Parkinson’s (Xu et al., 2012). So far, people have developed a variety of Zn2+ fluorescent sensors, and successfully applied in living cells, hippocampal slices, and Zn2+ imaging in zebrafish, especially Lippard and Nagano. In more recent years, zinc ion fluorometric probes have been arranged under different columns of fluorescent architecture, including unquinoline, rhodamine, naphthalene, coumarin, naphthalimide, pyrene, luciferin, derivatives of phenol and several other fluorophore groups (Wang F. et al., 2021).
Walkup et al. (Walkup et al., 2000) first prepared a novel, highly affinity, selective, membrane permeable Zn2+ fluorescence sensor. Roy et al. (Roy et al., 2007) investigated a DFP based sensor for the first time, which can be used as a fluorescent probe for the detection of zinc ions and applied under certain physiological conditions. Peng et al. (Peng et al., 2015) designed and synthesized a chromophore-based up-conversion nanoparticle (UCNPs) nano system as a fluorescent probe for Zn2+ by combining chromophore groups and lanthanide-doped UCNPs together. This method was demonstrated to significantly improve the efficiency of divalent Zn ion detection in specific animals, such as zebrafish. Kim et al. (Kim et al., 2013) reported a unique fluorogenic Zn2+ chemosensor based on a cap-typed tripodal Schiffbase. Zhou et al. (Zhou et al., 2010) designed a hydrazone-pyrene-based fluorescent probe with simplicity and efficiency in order to improve the selectivity of the fluorescent probe for Zn ions. Then they further expanded the application scenario of the probe and verified the feasibility of detecting Zn2+ ions in pancreatic β-cells, which made a contribution to the biomedical field. Hagimori et al. (Hagimori, 2013) reported that novel fluorescent probes based on pyridine-pyridone possess low molecular weight for zinc ion detection. Price et al. (Price et al., 2018) reported AQA-F, a fluorescent probe that can be used to detect zinc ions in prostate and prostate cancer cell lines in vitro. Zhang (Zhang et al., 2012) developed a pyrazoline based fluorescent probe and verified that this probe showed 40-fold enhanced fluorescence for Zn2+ compared to other metal ions, i.e., good selectivity for Zn ions, and that it could be well applied in living neuronal cells.
Zhang et al. (Zhang et al., 2016) reported two near-infrared fluorescent probes based on the fluorophore platform corresponding to Rhodol functionalized by dimethylamine Zn (II) binding groups, and this probe enables the detection of Zn (II) ions produced by intracellular metalloproteins. In addition to this, Fang et al. (Fang et al., 2016) similarly synthesized and studied two NIR fluorescent probes (A and B), but chose different material bases. One is a semicyano structure attached to dimethylamine (DPA) and the other is a dimethylamine derivative with pyridine substituted by pyrazine, which are very effective in detecting zinc ions in living cells. Among the various near-infrared fluorescence (NIR) probes, Zhang et al. (Zhang Y. et al., 2020) synthesized a near-infrared fluorescence (NIR) probe NR-Zn consisting of a dicyanoisophorone derivative and a dimethylamine molecule in a structure (Figure 6A). So far, this probe has proved to be successfully applicable for zinc ion recognition in Hela cells. Kang et al. (Kang et al., 2019) designed a sophisticated fluorescent probe test paper in the acyl hydrazine linkage mode that allows copper ion detection based on color change according to a 365 nm UV lamp (Figure 6B). In some specific scenarios, such as the detection of Zn2+ ions in CH3CN/HEPES solution (1/1, 10.0 mu M, pH = 7.0), a Schiff base fluorescent probe (L) designed by Chang et al. (Chang et al., 2020) can efficiently achieve this purpose. Wang et al. (Wang et al., 2018) devised and synthesized a novel coumarin based dual chemosensor (probe 1), which was observed by fluorescent cell imaging as a bio-imaging fluorescent sensor for detecting Zn2+ in human cancer cells (Figure 6C).
FIGURE 6. (A) The structure of the probe NR-Zn and its interaction mode with Zn (II) ion (Zhang Y. et al., 2020); (B) The synthesis route of DQCC (Kang et al., 2019); (C) The synthesis route of probe 1 (Wang et al., 2018).
5 Probes For Sensing Toxic Metal Ions
Among all kinds of heavy metal ions, lead, cadmium and mercury ions do great harm to the environment and human beings because of their dangerous properties. Since its high toxicity directly or indirectly affect human health, it has been widely concerned in the world. These three heavy metal ions are not biodegradable and can therefore accumulate in the environment, leading to food and water contamination. Heavy metal ions and proteins (or enzymes) can have a strong interaction in the human body, so that the protein inactivity, resulting in chronic poisoning (He and Lu, 2001). People exposed to even very low amount of lead, cadmium and mercury ions can lead to diseases of various systems of the human body. Therefore, a reliable, and convenient method to detect heavy metal ions, especially Hg2+, Pb2+ and Cd2+, has generated a lot of interest in recent years, which is of great significance not only in environmental research, but also in food research and industry and agriculture (Kim et al., 2012).
5.1 Probes For Detecting Hg2+
The detection of mercury ions is of great importance due to their high toxicity and wide distribution in the environment, through which they can enter the food chain and then have an impact on human life and health (Staudinger and Borisov, 2015). Therefore, there is an urgent need for simple, inexpensive and reliable mercury detection methods with high selectivity and sensitivity. In recent years, fluorescence probes used to detect mercury ions are classified according to the changes of fluorescence signal, including signal attenuation fluorescence probes, signal enhancement fluorescence probes and ratio fluorescence probes (Wang Y. et al., 2021). The applications of mercury ion probes can be broadly divided into two areas: environmental and biological.
In purpose of detecting ions in the environment, Lu et al. (Lu et al., 2012) reported for the first time a water-soluble fluorescent carbon nanoparticles (CPs) and used to detect Hg2+ in natural environmental lakes, a method that is environmentally friendly, economical and simple with greater universality. In addition, in order to detect Hg2+ in real lake water, Zhang et al. (Zhang and Chen, 2014) also tried another method, where they obtained nitrogen-doped carbon quantum dots (N-CQDs) using folic acid as the carbon and nitrogen sources, which proved to be highly luminescent with a detection limit of 0.23 μM. Wang et al. (Wang S. et al., 2021) synthesized thioctic acid-carbon dots (SCDs), which was used as an “off-on” type fluorescent probe in the detection of Hg2+. Xu et al. (Xu et al., 2018) expected to identify Hg2+ by changes in fluorescence spectra and fabricated a colorimetric long-wavelength type fluorescent probe Hg-P to obtain higher selectivity. Tao et al. (Tao et al., 2020) synthesized a fluorescent probe based on a simple coumarin derivative, which could recognize mercury Hg2+ selectively in aqueous solution.
In the field of biology, in order to identify Hg2+ in living cells, fluorescent probes with less cytotoxicity and better biocompatibility are needed, therefore Li et al. (Li et al., 2015) designed nitrogen-sulphur co-doped carbon dots (N,S/C-dots) and demonstrated their high fluorescence quantum yield (FLQY, 25%) and good practical application. Wu et al. (Wu and Tong, 2019) synthesized a nitrogen-sulfur co-doped carbon dots (N,S-CDs) as a fluorescent probe with good luminescence properties and high fluorescence quantum yield (16.1%), and achieved good results in Hg2+ ion recognition detection in HepG2 cells (Figure 7A). Li et al. (Liu et al., 2018) have done some research on nano sensors by developing a turn-on nanoprobe, which was prepared based on the principle of fluorescence resonance energy transfer (FRET) between long-chain inducer-functionalized upconversion nanoparticles (UCNPs) and short-chain inducer-functionalized gold nanoparticles (GNPs) (Figure 7B).
FIGURE 7. (A) Schematic Illustration of the Strategy for Hg2+ Ion and Sulfide Detection (Wu and Tong, 2019); (B) Schematic description of the UCNPs-aptamers-GNPs FRET sensor for Hg2+ (Liu et al., 2018).
Pan et al. (Pan et al., 2018) reported the first reaction-based fluorescent probe (ATC-Hg) that detects Hg (II), which was designed based on the “covalent assembly” principle and is now used to enable the detection of Hg ions in E. coli. Chen et al. (Chen et al., 2019) synthesized a reactive fluorescent probe PIC based on peramidine group, this probe is very high in selectivity due to the fluorescence can be enhanced by 42-fold and is a promising method for the determination of mercury ions. Zhou et al. (Zhou et al., 2017) designed and synthesized a novel small molecule ratiometric fluorescent probe P-Hg using the ESIPT/ICT mechanism, which can be better used to identify Hg2+. This probe can be applied to capture mercury ions both in the natural environment and in biological systems.
Given the diversity of both environmental conditions and biological environments, the field of innovative fluorescent probes for the selective detection of Hg2+ faces challenges such as endogenous active substance interference, leaky cells, and photostability. Fluorescent probes are generally constructed from organic molecular framework with poor stability. Hg2+, as a kind of toxic heavy metal ion, seriously disrupts the natural physiological activities of living organisms. It is of great significance to design powerful probe tools to study the effects of Hg2+ on the health of organisms (Wang Y. et al., 2021).
5.2 Probes For Detecting Pb2+
Lead is a highly toxic substance used in batteries, gasoline and paints. Lead contamination is a chronic concern that creates a lasting threat to our human health and the environment in which we live. Even very small amounts of lead can cause serious damage to various neurological and reproductive systems in our bodies, and can even cause hypertension, lower IQ and slower reactions. According to a large study of scholars, fluorescence and colorimetric sensors were well used, and roughly divided into several categories according to its receptors, including chemical sensor based on nanoparticles, polymer, small molecules, naphthalimide and nanoparticles (Kim et al., 2012).
A number of nanoparticle-based sensing systems have been investigated. Song et al. (Song et al., 2019) designed a fluorescent ion probe for achieving the measurement of lead ions in aquatic solutions using covalent binding fluorescence of 1, 8-naphthylamine dyes with cellulose nanocrystals (CNCs) (Figure 8A). Zhang et al. (Zhang J. et al., 2021) designed a new dual-functional oligonucleotide (OND) probe for the trace Pb (II) detection, in which the 5' end is a single fluorescent moiety using HEX labeling (Figure 8B). Chen et al. (Chen et al., 2020) developed a fluorometric nanoprobe for the determination of Pb (II) based on up-converted nanoparticles (UCNPs) and on magnetic Fe3O4-modified (MNPs) gold nanoparticles (GNPs) (Figure 8C).
FIGURE 8. (A) Schematic synthesis route of the covalent immobilization of 1,8-naphthalimide dye on the surface of CNC (Song et al., 2019); (B) Schematic diagram for illustrating the simultaneous detection of Pb (II) and Ag (I) ions utilizing single-labelled florescent OND probe (Zhang J. et al., 2021); (C) a Schematic presentation of fluorescent nanoprobe based on fluorescence resonance energy transfer (FRET) between UCNPs and GNPs-MNPs for detection of Pb2+ (Chen et al., 2020).
Several sensing systems based on polymers and small molecule particles have been developed. Chini et al. (Chini et al., 2019) reported a polymodal sensing method consisting of a highly fluorescent dansyl-labeled copolymer P (MMA-co-Dansyl-Ala-HEMA) (DCP) and a small molecule diketopyrrolopyrrole (DPP) for the assay of the heavy metal lead (Pb2+). Liu et al. (Liu J. et al., 2013) reported a highly selective Pb2+ fluorescent probe that is consisted of a BODIPY fluorescent moiety and a polyamide receptor. Anand et al. (Anand et al., 2015) synthesized a de novo probe 5-[(anthracene-9-methylene) amino] quinolin-10-ol (ANQ) on the anthracene platform. What’s more, Liu et al.(Liu et al., 2015) reported a fluorescent turn-on probe of an oxadiazole derivative (OXD) that is based on the Schiff base molecule and was used to detect lead ions.
Fluorescent sensors based on naphthalimide are also an essential structure. Jiang et al. (Jiang et al., 2021) prepared a chemical fluorescent probe by attaching thiocarbamate to a naphthylamine derivative and applied it for Pb2+ recognition in specific chemical reagents. Un et al. (Un et al., 2014) successfully developed a good performance naphthylamino fluorescent probe named NPA with Pb2+ recognition.
Other sensors based on receptors are still available for the detection of lead ions. Recently, Bi and co-workers (Bi et al., 2017) rationally designed and developed a unique near-infrared fluorescent probe (NIR-PbP) and verified the capability of probing Pb (II) ions in both solution and live cells. Mei et al. (Mei et al., 2020) designed a newly available fluorescent probe L for Pb2+ based phenanthroline derivative. Khandare et al. (Khandare et al., 2014) developed a fluorescent sensor based on aggregation-induced emission (AIE) using the intense affinity of lead ions for phosphate residues. Zhao et al. (Zhao et al., 2016) developed a fluorescent biosensor to detect Pb2+ that utilized a water-soluble derivative of cationic perylene (compound 1) with the characteristics of simplicity, label-free and high speed.
5.3 Probes For Detecting Cd2+
Cd ions are also toxic to cells, while there are few fluorescent tools to study Cd2+ toxicity. Due to the very similar binding properties of Cd2+ and Zn2+, this poses a great challenge and difficulty for the development of Cd2+ probes. The first HK-2 intracellular fluorescent probe for Cd2+ was a Liu Cd-1 consisting of fluorescein and thiocarbamate (Carter et al., 2014). Nowadays, various methods have been well developed for the determination of Cd2+, such as simultaneous radiation X-ray spectrometry, synchrotron X-ray spectrometry and atomic absorption chromatography. In recent years, researches on Cd2+ ion fluorescent probes include the following categories: Quinolone-based, coumarin-, benzothiazole based, rhodamine-based, dansyl based, and diarylethylene based Cd2+ fluorescent sensor, There are also other small organic molecules based Cd2+ sensor and nanosensor-based Cd2+ fluorescent sensor. In addition, fluorescence and colorimetric nano Cd2+ sensors, such as metal-organic framework (MOF), quantum dots (QD), nanoclusters (NCs) and nanoparticles (NPs), have also made good progress in recent years (Shi et al., 2021).
First, due to the ease of synthesis and precise control of the active site (Abdollahi et al., 2020), the synthesis and design of metal-organic framework (MOF) have been applied to the design of neutral architectures for anion recognition (Esrafili et al., 2020) and the selective capture of heavy metal ions (Esrafili et al., 2021). To detect Cd2+ in alkaline solutions, Hao et al. (Hao and Yan, 2015) reported the one of the first fluorescent probes for Cd2+ on the basis of lanthanide structure of functionalized metal-organic framework (MOF), and this sensor has the advantage of a high sensitivity. Liu et al. (Liu Q. et al., 2013) designed a kind of new fluorescent probe DQCd2 for Cd2+ based on 4-piperidinylquinoline by utilizing the ratiometric reaction in phosphate buffered saline solution (PBS) buffer, and its emission intensity was significantly enhanced. Tsukamoto et al. (Tsukamoto et al., 2016) a highly practical naphthalenyl Cd2+ fluorescent probe, which allows a good selectivity and is suitable for a range of pH values since this method has almost no background reaction. Furthermore, Shim et al. (Shim and Tae, 2011) also developed a rhodamine-hydroxylamine platform-based fluorescent probe consisting of a picolinic and a cycloalkene-binding unit (Figure 9A). Xin et al. (Xin et al., 2013) synthesized the first fluorescent probe on the basis of difluoroborane dibenzoyl for the determination of Cd2+. Liu et al. (Liu et al., 2010) developed DBITA, a ratiofluorescent sensor that can be used for the recognition of Cd2+ in live cells or aqueous media, with a Cd2+-induced emission redshift of 53 nm (Figure 9B). Sun et al. (Sun et al., 2016) reported a ratio-measured and reversible fluorescent probe for the recognition of Cd2+ in living cells that was based on a 6-(dimethylamino) quinaldine derivative. For Cd2+ in living human cells, Jiang et al. (Jiang et al., 2014) developed a novel fluorescence probe (L) for C-3-symmetric Schiff alkaloids on the basis of 8-hydroxy-2-methylquinoline. Liu et al. (Liu et al., 2014) synthesized a well-performing organic salt probe in the determination of Cd2+ based on bis-1, 3, 4-oxadiazole derivatives and BAPTA. Liu et al. (Liu et al., 2012) developed and synthesized a novel two-photon excited cadmium fluorescent probe (named TPCd) based on o-phenylenediamine derivatives and Prodan (6-acetyl-2-methoxynaphthalene) derivatives by a two-photon approach, and demonstrated that Cd2+ detection in organisms is feasible and versatile. Therefore, this is a very meaningful study.
FIGURE 9. (A) Binding of Rhodamine-Cyclen Probe 1 with Cd2+ (Shim and Tae, 2011); (B) Proposed Cd2+ binding mode of DBITA (Liu et al., 2010).
6 Conclusion
In summary, the identification and detection of biologically and environmentally critical species is already an important area of research in the field of the chemosensor. Fluorometry in combination with suitable probes is the preferred and excellent method of measuring these analytes due to the fast, nondestructive and sensitive nature of fluorometry measurements, and important progress has been realized in the definition and composition of fluorescent chemosensors predicated on various platforms. More and more researchers are engaged in this field, and have accumulated a lot of theoretical and practical experience in the development, synthesis and application of probes, accelerating further development of new fluorescent probes.
In this paper, the research progress of fluorescent probes for metal ion detection is reviewed. These fluorescent probes are mainly divided into organic small molecule probes and nano fluorescent probes. For different metal ions, different materials are selected to design and synthesize fluorescent probes, such as quantum dots, coumarin derivatives, benzene derivatives, etc. The development of sensing mechanisms plays an important role in improving the sensing performance of metal ions. For example, the solar excited naked eye Fe3+ detection is realized by improving the luminescence efficiency based on the central hydrophobic/external hydrophilic strategy (Sun et al., 2020). So far, the main efforts have been devoted to the study of new sensing mechanisms, strategies to expand the range of detected metal ions, and methods to improve sensitivity and selectivity. However, there are still limitations and unparalleled challenges in the practical application of fluorescent probes. The variation of pH, temperature and probe behavior in different environments, as well as the accompanying fluorescence burst effect in some fluorescent sensors, have raised high requirements for the design of fluorescent probes. Therefore, in future, lots of aspects need to be further improved, including compatibility of probes in organisms and accuracy of fluorescent probe sensing, etc., so they can be applicable to more complex detection environments. We believe that fluorescent probes will become a very powerful tool in the biomedical field and make great contributions to biology in future.
