Huancheng Hu
Fangyun Chen†- State Key Laboratory for Chemistry and Molecular Engineering of Medicinal Resources, School of Chemistry and Pharmaceutical Sciences, Guangxi Normal University, Guilin, China
Heterometallic metal-organic framework (MOF) as a kind of porous material is very important because of its excellent properties in catalysis, magnetic, sensor, and adsorption fields, but the reasonable design and syntheses of these are still challenging. Herein, we prepared one heterometallic MOF with the formula [Hf6(μ3-OH)8(OH)8][(Cu4I4) (ina)4]2·22DMF (NS-1, ina = isonicotinate). Single-crystal X-ray diffraction analysis revealed that NS-1 is a three-dimensional network with flu topology, constructed from 8-connected [Hf6(μ3-OH)8(OH)8]8+ and 4-connected [Cu4I4] clusters as second building units (SBUs). To our best knowledge, NS-1 is a rare example with two different metal clusters as SBUs in heterometallic Hf-based MOFs. Interestingly, NS-1 exhibits a reversible adsorption performance for iodine in the cyclohexane solution, the adsorption kinetics fits well with the pseudo-second-order equation, and the Freundlich model relating to multilayer adsorption better describes the process of iodine absorption.
Introduction
Iodine, which is a key raw material to synthesize thyroid hormones, plays an important role in the development of human nervous system. Once the content of iodine is lower than the normal value in the human body for a long period, people will suffer from iodine deficiency disorders. Meanwhile, the ingestion of excess iodine also can damage the health of humans (He et al., 2021; Xian et al., 2022). Nuclear technology has witnessed the development of society, but the disposal of nuclear waste becomes a worldwide issue owing to the occurrence of some accidents related to nuclear release. Taking radioactive iodine (129I and 131I) as an example, the half-time (t1/2) of 129I is 1.57 × 107 years and t1/2 = 8.02 days for 131I; when these species enter into the environment, they will threaten the health of plants, animals, and humans (Yin et al., 2012; Luo et al., 2022). Thus, the design and preparation of materials which can effectively adsorb iodine becomes a significant research field for scientists. In the past decades, various adsorbent materials (e.g., porous carbon, silver-containing mordenite, and molybdenum sulfide porous chalcogel) exhibited the adsorption capacity of iodine (Chapman et al., 2010; Subrahmanyam et al., 2015; Sun et al., 2019); however, these materials often possessed relatively low porosity compared with that of MOFs, leading to lower adsorption capacity than MOFs.
In the past two decades, hafnium-based metal-organic frameworks (Hf-MOFs) have been given much attention because of their fascinating structures, high surface area, and excellent chemical and thermal stabilities, which provide the theoretical basis for their promising applications in catalysis, sensing, adsorption and separation, drug delivery, etc (Hu et al., 2016; Cao et al., 2017; Abánades Lázaro and Forgan, 2019; Angeli et al., 2020). For example, Hf6(μ3-O)4 (μ3-OH)4(L)6 (H2L = 9,10-anthacenyl bis(benzoic acid)) could serve as an efficient X-ray scintillator (Wang et al., 2014), the partially dehydrated Hf-NU-1008 exhibited high catalytic activity of CO2 cycloaddition of styrene oxide (Lyu et al., 2019), [Hf6O4(OH)4 (ADC)6] (ADC = acetylenedicarboxylate) and [Hf6O4(OH)4(Fum-Cl)6] (Fum-Cl = chlorofumarate) show good water vapor absorption, and the latter also possesses the properties of adsorbing CO2 and molecular iodine vapor (Matemb Ma Ntep et al., 2019). But, heterometallic Hf-MOFs have been rarely reported. In addition, [CuxIy] cluster-based MOFs such as {[(CuI)2 (TPP)]·solvent}n and {[(Cu2I2) (TPP)]·solvent}n (TPP = tetra-4-(4-pyridyl)phenylmethane) (Kitagawa et al., 2013) and [Tb(Cu4I4) (INA)3 (DMF)] (INA = isonicotinate) (Hu et al., 2017) also exhibit good adsorption behavior of iodine. According to the Hard–Soft-Acid–Base theory, Hf(IV) usually forms coordination bonds with oxygen atoms to build the [HfxOy] cluster, especially for the [Hf6O8] core, while Cu(I) can coordinate with N and O atoms. Therefore, to gain stable heterometallic Hf-MOFs with the high adsorption value of iodine, we choose isonicotinic acid as a ligand to construct and prepare the heterometallic metal-organic framework featuring [Hf6O8] and [Cu4I4] clusters.
In this context, we herein choose isonicotinic acid as the organic linker and HfCl4, and CuI as the metal source, preparing one rare heterometallic cluster-based Cu-Hf metal-organic framework. The structure, characterization, iodine adsorption, and release experiments of NS-1 have been investigated in detail.
Experimental Section
Materials
All chemicals in our study were purchased from commercial companies and used without further purification.
Synthesis of NS-1
A mixture of isonicotinic acid (49.2 mg, 0.4 mmol), HfCl4 (32.0 mg, 0.1 mmol), CuI (19.0 mg, 0.1 mmol), DMF (4.00 ml), and HCOOH (2.05 ml) were added into teflon-lined stainless steel vessel, placed in an oven at 120°C for 2 days, and cooled down to room temperature at the rate of 2.5°C/h. Yellowish polyhedron-shaped crystals were collected by filtration and washed three times with fresh DMF.
Characterization
Single-crystal X-ray diffraction data were recorded on a Supernova diffractometer (Rigaku, Japan) equipped with graphite monochromated and Mo−Kα radiation (λ = 0.71073 Å). Powder X-ray diffraction (PXRD) patterns were collected using a D/Max-3c X-ray diffractometer (Rigaku, Japan). Four transform infrared spectroscopy (FT-IR) spectra were performed on a Spectrum Two spectrometer (PerkinElmer, United States). High-resolution mass spectrometry was performed on an Exactive mass spectrometer (Thermo Fisher Scientific, Germany). Thermogravimetric analysis (TGA) was performed on a Labsys evo TG-DTA/DSC analyzer (Setaram instrument, France) under an N2 atmosphere from 25 to 1000°C with the heating rate of 10°C min−1. UV−Vis absorption spectra were recorded on a CARY ECLIPSE JASCO-720 spectrophotometer (Agilent, United States). Raman spectra were measured on a Renishaw Invia Raman spectrometer (Invia, United Kingdom).
X-Ray Crystallography
The structure of NS-1 (CCDC 2149625) was solved via the direct method and refined using full-matrix least-squares on F2 by the SHELXTL and OLEX2 program packages (Dolomanov et al., 2009; Bourhis et al., 2015; Sheldrick, 2015). All nonhydrogen atoms were refined in anisotropic approximation, and all H atoms were treated with the riding model. Heavy disordered solvent molecules exist in the unit cells of NS-1; thus, SQUEEZE (PLATON) has been treated as a diffuse contribution to the overall scattering without specific atom positions. The electron counts in the voids calculated by PLATON SQUEEZE could roughly speculate the number of guest molecules in NS-1 (Sudik et al., 2005; Seo et al., 2011).
Iodine Adsorption of NS-1
At room temperature, 10.0 mg of fresh NS-1 was immersed in 5 ml cyclohexane solution of iodine with different initial concentrations (300–700 mg/L) under magnetic stirring. The residual concentration of iodine in cyclohexane was monitored by a UV–Vis spectrophotometer.
Iodine Desorption of Iodine-Loaded NS-1 (NS-1′)
1.0 mg of NS-1 was soaked in an iodine-dissolved cyclohexane solution (300 mg/L, 5 ml) for 5 h to obtain NS-1′ under room temperature and then the sample was immersed into 10 ml ethanol, and the release rate of iodine was detected by UV–Vis spectrophotometer.
Results and Discussion
Structural Description of NS-1
Single-crystal X-ray diffraction analysis revealed that NS-1 crystallizes in the tetragonal space group I4/mmm, containing two different second building units (SBUs) with 4-connected cube-like [Cu4I4] and 8-connected dodecahedral [Hf6(μ3-OH)8(OH)8] clusters, which is the isostructure with [Zr6 (μ3-OH)8(OH)8][Cu4I4(Ina)4]2·xguest (Tan et al., 2016). The Hf1 is surrounded by eight O atoms, which are derived from four μ3-OH and four isonicotinate anions; the Hf2 is also coordinated with eight O atoms, stemming from four μ3-OH, two OH− and two isonicotinate anions. Two Hf1 atoms are located in the axial plane, and four Hf2 atoms are located in the equatorial plane to build an octahedral [Hf6] core. The triangular planes of the [Hf6] octahedron are alternatively capped by eight µ3-OH groups to construct a dodecahedral [Hf6(μ3-OH)8] fragment. Each Cu center coordinates with three I− ions and one N atom from an isonicotinate anion, leading to tetrahedral geometry. Four Cu atoms and four I− ions construct a cube-like [Cu4I4] unit. Six [Hf6(μ3-OH)8(OH)8]8+ clusters, eight [Cu4I4] clusters, and 24 ina− linkers can form a cage in NS-1 (Supplementary Figure S1), and these cages are further packed together to build a 3D network (Supplementary Figure S2A). Each [Hf6(μ3-OH)8(OH)8]8+ cluster links to eight isonicotinate anions, each [Cu4I4] unit connects to four isonicotinate anions, and [Hf6(μ3-OH)8(OH)8]8+ and [Cu4I4] units are bridged together with one isonicotinate anion, resulting in a 4,8-connected network with flu topology (Supplementary Figure S2B). It is noteworthy that this type of topology has been reported in some pure Zr/Hf-based MOFs, which were constructed from the 8-connected [M6 (μ3-OH)8(OH)8]8+ (M = Zr and Hf) fragment and 4-connected organic linker, such as MOF-841 (Furukawa et al., 2014), PCN-902-X (X = O and CH2) (Wang et al., 2019), and MFM-133 (Yan et al., 2018), while it is rare for heterometallic Zr/Hf-based MOFs. Noteworthily, compared with the reported heterometallic Hf-based MOFs, NS-1 is an unusual example with different metal clusters as SBUs. In addition, the 3D network is packed with a rhombus channel of approximately 13.10 × 19.27 Å2 (Figure 1). Moreover, combining with some previous MOFs with different metal cores as SBUs, such as tp-PMBB-1-asc-1 based on trigonal-prismatic clusters [Cr3O(isonic)6(H2O)3]+ (isonic = pyridine-4-carboxylate) and Zn2+ cations (Schoedel et al., 2013), rht-MOFs are built from copper paddlewheel [Cu2(O2C)4] and triangular inorganic [Cu3O(N4−x (CH)xC)3] (x = 0, 1, or 2) units (Gao et al., 2015) and FDM-4−FDM-8 feature with dinuclear [Zn2]/tetranuclear [ZnII4O] and triangular CuI3(NN)3/CuII3(µ3-OH) (NN)3 cores (Tu et al., 2017; Tu et al., 2019); thus, selecting the organic molecules with both N and O atoms (eg. isonicotinate acid, 4-pyrazolecarboxylic acid, 5-tetrazolylisophthalic acid, 5-trizolylisophthalic acid) or mixing different kinds of multidentate organic linkers may be viewed as an effective synthetic strategy in the construction of heterometallic MOFs.

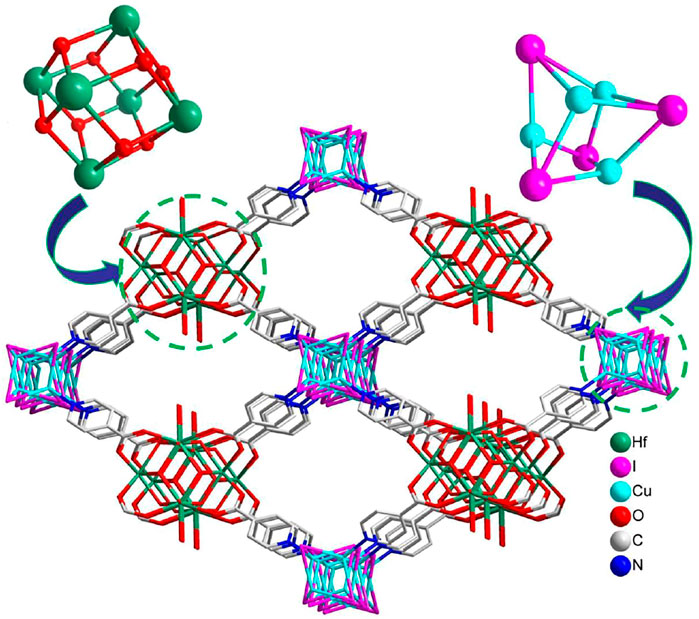

FIGURE 1. Three-dimensional network of NS-1; all hydrogen atoms were omitted for clarity.
Chemical Stability of NS-1
The powder X-ray diffraction (PXRD) pattern of the as-synthesized NS-1 was recorded, and it can match well with the simulated ones from single-crystal X-ray diffraction data, confirming the good purity of NS-1. Moreover, in order to explore the stability of NS-1 in cyclohexane solution, 50 mg of fresh NS-1 was soaked in cyclohexane solution for 12 h under room temperature, and then the PXRD pattern of the sample was measured, which is consistent with the as-synthesized ones (Supplementary Figure S3). In addition, high-resolution mass spectrometry (HRMS) test was carried out on the remaining solution after NS-1 was immersed in cyclohexane, and no obvious signal was detected, which is indicative of absence of NS-1 and the fragments related to NS-1 in the remaining solution. Both the PXRD pattern and HRMS test reveal the good stability of NS-1 after being soaked in cyclohexane solution.
Thermogravimetric Analysis of NS-1
The weight loss of NS-1 from room temperature to 276°C is 29.9%, which corresponds to the loss of DMF molecules in channels, being identical to the calculated 29.6% (Supplementary Figure S4); thus, NS-1 exhibited high thermal stability.
Iodine Adsorption of NS-1
[CuxIy] cluster-based MOFs usually exhibit good iodine adsorption capacity because of their strong interaction between the [CuxIy] core and iodine (Kitagawa et al., 2013). NS-1 possesses a large channel of 13.10 × 19.27 Å2 and provides the possibility of the iodine molecules with a diameter of 3.35 Å into the voids. Inspired by these features of NS-1, the iodine adsorption experiment of NS-1 was carried out. As shown in the inset of Figure 2B and Supplementary Figures S6B–S9B, the color of the iodine solution gradually faded, while the color of NS-1 changed from light yellow to brown. In addition, the absorbance of iodine solution decreased with the iodine absorbed by NS-1 (Figure 2A). These behaviors indicate that iodine molecules were adsorbed by NS-1.
FIGURE 2. (A) Temporal evolution of UV–Vis absorption spectra for the adsorption of iodine by NS-1 in cyclohexane and (B) the rate of iodine adsorption in NS-1 in cyclohexane (C0 = 300 mg/L).
In order to determine the capture value of iodine Qt (mg/g) and the iodine removal efficiency (R%) at any arbitrary time, the standard curve of iodine dissolved in cyclohexane was prepared by the following method: a 1,000 mg/L iodine solution was obtained by dissolving 50 mg iodine in 50 ml cyclohexane solution, and it was diluted to different concentrations using cyclohexane; the absorbance of these solutions was recorded by a UV–Vis spectrophotometer. As depicted in Supplementary Figure S5, the absorbance of 522 nm obviously increases with the increasing concentrations of iodine solution; as a result, the relationship between absorbance and concentration of iodine solution can be represented by the equation of y = 0.01032 + 0.00344x, where y is the absorbance of iodine solution and x is the concentration of iodine solution. Thus, we can calculate the concentration of iodine solution at an arbitrary time Ct (mg/L) after being absorbed by NS-1 via measuring the absorbance of the iodine solution. The values of Qt and R% were calculated by the equations
To investigate the iodine adsorption kinetics of NS-1, two common kinetic models (the pseudo-first- and pseudo-second-order kinetic models) were considered, and their corresponding equations are as follows:
where k1 (min−1) and k2 (g mg−1 min−1) are, respectively, the pseudo-first- and pseudo-second-order rate constant for the adsorption process and Qe (mg/g) is the equilibrium adsorption amount of iodine by NS-1.
As depicted in Figure 3, Supplementary Figures S10, S11, compared with the related fitting parameters obtained via the pseudo-first and pseudo-second order kinetic equations, the pseudo-second order kinetic equation better describes the iodine adsorption in cyclohexane by NS-1, revealing that multilayer chemisorption involving strong interactions between NS-1 and iodine molecules exists in the absorption progress (Kameda et al., 2020; Yadollahi et al., 2020).
FIGURE 3. Pseudo-first (A) and pseudo-second order (B) kinetic models for the iodine adsorption kinetics of NS-1 with the initial concentration of 300 mg/L cyclohexane solution.
In order to further explore the iodine absorption isotherm of NS-1, we choose two common isotherm models (Langmuir and Freundlich isotherm model) to simulate with the experimental iodine adsorption isotherm. The related parameters and R2 obtained via these two models are listed in Supplementary Table S3. These isotherm models are expressed by the following equations:
where Ce (mg/L) is the equilibrium concentration of the iodine solution; Qm (mg/g) is the theoretical maximum adsorption value; KL (L/mg) and KF (mg/g) represent the adsorption constants of Langmuir and Freundlich isotherm models, respectively; and n is the Freundlich linearity index.
As shown in Figure 4 and Supplementary Table S3, the Freundlich isotherm model fits the experimental adsorption isotherm better than the Langmuir isotherm models, namely, the Freundlich isotherm model which is more reasonable to describe the iodine adsorption behavior of NS-1. So, the iodine adsorption process of NS-1 may be attributed to the multilayer adsorption on the heterogenous surface of NS-1, which is coincident with the mechanism of iodine adsorption kinetics. This iodine adsorption process of NS-1 is similar to some previously reported MOFs such as Th-SINAP-8, MIL-101-NH2, and CAU-1 (Falaise et al., 2013; Li et al., 2020). Moreover, the 1/n value of 0.28 is located in the range of 0.1–0.5, which is indicative of the good iodine capture performance of NS-1.
FIGURE 4. Experimental iodine adsorption isotherms (black line) and the corresponding fitting lines of Langmuir (blue line) and Freundlich (red line) isotherm models.
To explore the possible species of iodine in NS-1′, Raman spectra of original NS-1 and iodine-loaded NS-1′ were recorded. As shown in Supplementary Figure S12, there is an obvious peak of 168 cm−1 for the original NS-1, which may be attributed to the Cu–I vibrations (He et al., 2014; Zhao et al., 2016). The peak occurring at 171 cm−1 for iodine-loaded NS-1′ is greatly intensified and shifted compared to that of NS-1, and this peak is close to the vibrational frequency of iodine solid and H...I vibrations. Thus, it is probably ascribed to the iodine molecule located in NS-1 and/or the formation of hydrogen bonds between the -OH from the network of NS-1 and iodine molecules (Zhang et al., 2017; Chen P. et al., 2020).
The reversibility of a potential iodine absorbent is very necessary; thus, the experiment of iodine releasing from iodine-loaded NS-1 was investigated as the similar method of iodine adsorption by NS-1 and the standard curve of iodine dissolved in ethanol as well was obtained (Figure 5 and Supplementary Figure S13). The absorbance of 290 and 360 nm increases with the soaking time, the release of iodine was very fast during the first 3 h and then the delivery of iodine became slow, and finally the release progress approached to the equilibrium state with a recovery rate of 95.4% after 24 h. This behavior implies that strong interactions exist between the network of NS-1 and iodine. Meanwhile, the PXRD pattern of the recovered NS-1 in ethanol was recorded, which can also agrees well with the as-synthesized ones, confirming the stability and renewability of NS-1 (Supplementary Figure S3).

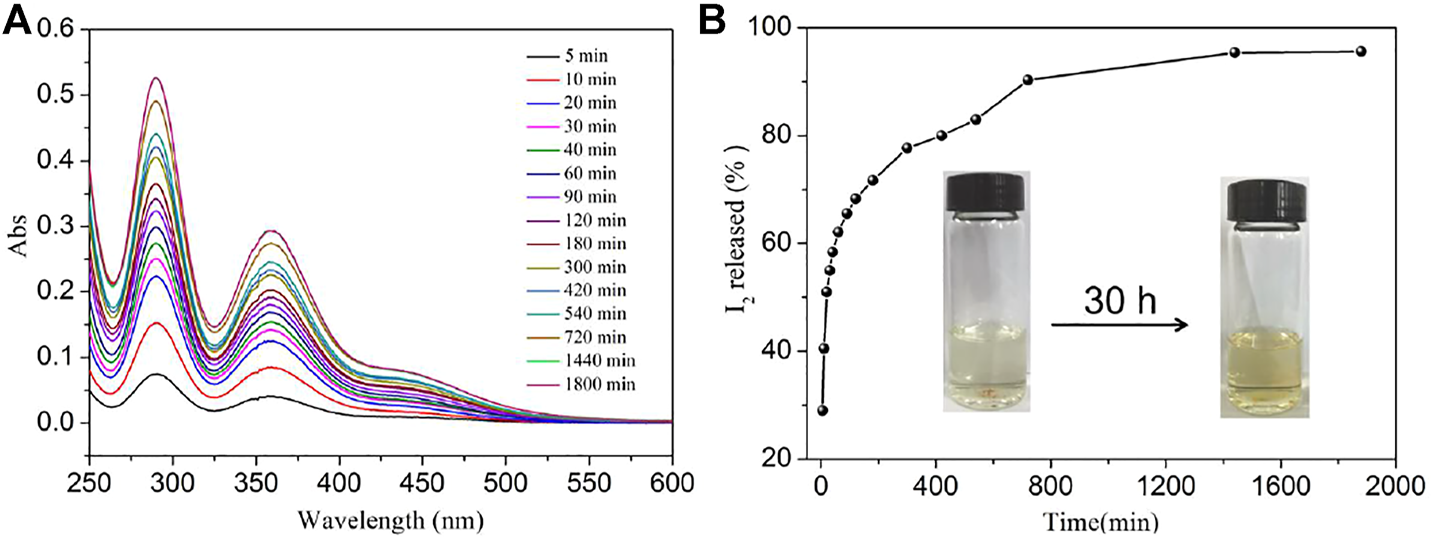

FIGURE 5. (A) Temporal evolution of UV–Vis absorption spectra for the release of iodine from NS-1′ in ethanol and (B) the rate of iodine release from NS-1′ in ethanol.
Conclusion
A three-dimensional heterometallic metal-organic framework with [Hf6(μ3-OH)8(OH)8]8+ and [Cu4I4] clusters have been synthesized and characterized in detail, which is a rare example with two different metal clusters as second building units in heterometallic Hf-based MOFs. Interestingly, our experiments show that this framework exhibits excellent capability of iodine adsorption. The kinetics of this adsorption process are further studied. This work will broaden the vision of constructing and preparing heterometallic hafnium-based MOFs with more than one type of cluster and designing materials with high iodine adsorption capacity.
Data Availability Statement
The datasets presented in this study can be found in online repositories. The name of the repository, accession number, and DOI can be found below: Cambridge Structural Database; CCDC 2149625; DOI: 10.5517/ccdc.csd.cc2b4vr3.
Author Contributions
HH and FC contributed equally to this work. The syntheses, analysis of data, and writing were performed by HH and FC. HH and ZC designed and guided the experiments. All authors reviewed the writing of this manuscript and approved to the final version of the manuscript.
Funding
This work was supported by the National Natural Science Foundation of China (Grant nos. 12064002, 21901050, and 22061004), Guangxi Natural Science Foundation of China (Grant nos. 2018GXNSFBA050031 and 2020GXNSFAA159132), Guangxi Technology Base and Talent Subject (Grant no. GUIKE AD19245002), and the Key Project of Guangxi Normal University (Grant no. 2018ZD003).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.864131/full#supplementary-material
