Nitrogen-rich energetic materials comprised of a combination of several heterocyclic subunits retain their leading position in the field of materials science. In this regard, a preparation of novel high-energy materials with balanced set of physicochemical properties is highly desired. Herein, we report the synthesis of a new series of energetic salts incorporating a (1,2,4-triazolyl) furoxan core and complete evaluation of their energetic properties. All target energetic materials were well characterized with IR and multinuclear NMR spectroscopy and elemental analysis, while compound 6 was further characterized by single-crystal X-ray diffraction study. Prepared nitrogen-rich salts have high thermal stability (up to 232°C), good experimental densities (up to 1.80 g cm⁻³) and high positive enthalpies of formation (344–1,095 kJ mol⁻¹). As a result, synthesized energetic salts have good detonation performance (D = 7.0–8.4 km s⁻¹; p = 22–32 GPa), while their sensitivities to impact and friction are quite low.

1 Introduction

Functional organic materials are one of the most important and emerging area of research in state-of-the-art materials science (Li and Yu, 2021; Liu et al., 2021). Construction of potential high-performance materials as well as their essential components is needed to be achieved according to modern requirements of sustainable and environmentally-focused society. This issue is still relevant in the field of energetic materials science (Fershtat and Makhova, 2020; O’Sullivan and Zdilla, 2020; Zhou et al., 2022). Performance and sensitivity of currently used high-energy compounds (TNT: 2,4,6-trinitrotoluene, RDX: 1,3,5-trinitro-1,3,5-triazinane, PETN: pentaerythritol tetranitrate) are usually unbalanced, while their ecological and toxicological profiles are unfavorable. In this regard, preparation of novel eco-friendly energetic materials with high nitrogen content and acceptable safety requirements remains urgent (Kuchurov et al., 2017; Zlotin et al., 2021).

In recent decade, synthesis of organic energetic materials is often performed through a combination of various polynitrogen and nitrogen-oxygen heterocyclic scaffolds: tetrazole-furazan (Liang et al., 2012; Huang et al., 2012; Liang et al., 2013), tetrazole-furoxan (Fershtat et al., 2015a; Larin et al., 2019), 1,2,4-triazole-furazan (Xu et al., 2018; Ma et al., 2019a; Ma et al., 2019b; Sheremetev et al., 2019; Aleksandrova et al., 2020; Ma et al., 2020; Chinnam et al., 2021), tetrazole-furoxan-1,2,4-oxadiazole (Liu et al., 2018) (Figure 1). A combination of structurally diversed nitrogen-rich heterocycles linked via N, N′-ethylene bridges was also reported as one of the promising approaches to balance energetic properties of the resulted energy-rich materials (Kumar et al., 2016a; Kumar et al., 2016b). Recently, our team reported a preparation of energetic (1,2,4-triazolyl) furoxans with good detonation performance and decreased sensitivity (Larin et al., 2022). However, it is known that NH-fragment of the 1,2,4-triazole ring is weakly acidic (Garratt, 1996) and may stimulate corrosivity which is undesired for any potential application. Although examples on the preparation of energetic salts bearing a 1,2,4-triazolate anion are rather scarce (except NTO-based those) (Parisi et al., 2021; Creegan et al., 2022), such strategy may serve as a convenient solution to overcome this issue. High-energy salts usually have acceptable thermal stability (>150°C) and moderate sensitivity to mechanical stimuli, while owing to the high nitrogen content these metal-free salts have a high level of environmental compatibility (Larin et al., 2019; Larin and Fershtat, 2021). Herein, we present the synthesis of a new series of energetic salts comprising a (1,2,4-triazolyl) furoxan core (Figure 1) and complete evaluation of their energetic properties.

FIGURE 1

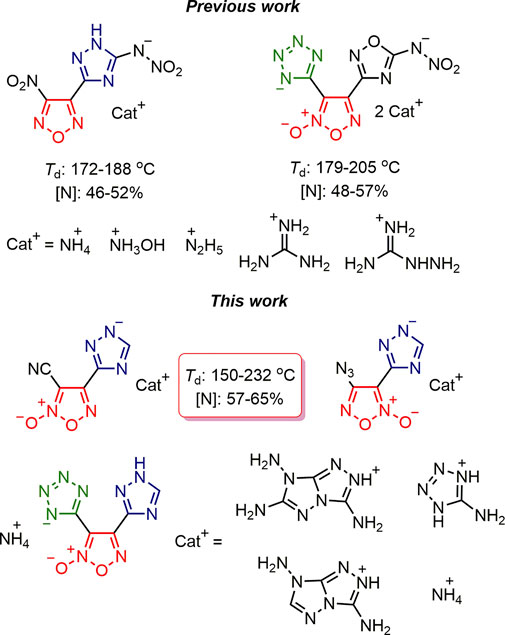

FIGURE 1. Selected examples of bi- and triheterocyclic energetic materials.

2 Materials and methods

CAUTION! Although we have encountered no difficulties during preparation and handling of the compounds described in this paper, they are potentially explosive energetic materials that are sensitive to impact and friction. Mechanical actions of these energetic materials, involving scratching or scraping, must be avoided. Any manipulations must be carried out by using appropriate standard safety precautions.

All reactions were carried out in well-cleaned oven-dried glassware with magnetic stirring. ¹H and ¹³C NMR spectra were recorded with a Bruker AM-300 (300.13 and 75.47 MHz, respectively) spectrometer and referenced to the residual solvent peak. ¹⁴N NMR spectra were measured with a Bruker AM-300 (21.69 MHz) spectrometer by using MeNO₂ [δ(¹⁴N) = 0.0 ppm] as an external standard. ¹⁵N NMR spectra were recorded with a Bruker DRX500 instrument (the frequency for ¹⁵N was 50.7 MHz) at room temperature. The chemical shifts are reported in ppm (δ). Coupling constants, J, are reported in Hertz. The IR spectra were recorded with a Bruker “Alpha” spectrometer in the range 400–4,000 cm⁻¹ (resolution 2 cm⁻¹). Elemental analyses were performed by the CHN Analyzer PerkinElmer 2,400. The melting points were determined with a Stuart SMP20 apparatus and are uncorrected. All standard reagents were purchased from Aldrich or Acros Organics and used without further purification. Amidrazones 2a (Fershtat et al., 2015b) and 2b (Larin et al., 2021), 3-cyano-4-(1H-1,2,4-triazol-3-yl)furoxan 3a and 4-azido-3-(1H-1,2,4-triazol-3-yl)furoxan 3b (Larin et al., 2022) were synthesized according to the literature.

2.1 X-ray diffraction study

The colorless single crystals of 6 were grown from DMF. At 100 K crystals of 6 (C₅H₆N₁₀O₂) are triclinic, space group P-1: a = 4.8372(2), b = 9.6045(4), c = 10.1054(4) Å, α = 94.895(3), β = 92.103(2), γ = 98.814(2), V = 461.66(3) ų, Z = 2, d_calc = 1.714 g cm⁻³, F(000) = 244. Intensities of 4,822 reflections were measured with a Bruker APEX II CCD diffractometer [λ(MoKα) = 0.71073 Å, ω-scans, 2θ < 58°] and 2,198 independent reflections [R_int = 0.0336] were used in further refinement. The structure was solved by direct method and refined by the full-matrix least-squares technique against F² in the isotropic-anisotropic approximation. The hydrogen atoms were found in difference Fourier synthesis and refined in the isotropic approximation. For 6, the refinement converged to wR2 = 0.1207, GOOF = 0.992 and R1 = 0.0429 for 1,602 independent reflections with I > 2σ(I). All calculations were performed using SHELXL-2014/6 (Sheldrick, 2015). CCDC 2193015 contains the supplementary crystallographic data for 6·H₂O. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge, CB21EZ, UK; or ZGVwb3NpdEBjY2RjLmNhbS5hYy51aw==).

2.2 Computational methods

All DFT calculations for 6, TILMEI and DUQGUT were performed with the Gaussian09 program (Frisch et al., 2016). The optimization procedures of all model structures (together with the optimization of hydrogen atoms positions for the isolated ions in crystal geometries) are done invoking the standard cutoff criteria and using the def2-TZVP basis set (Weigend and Ahlrichs, 2005; Weigend, 2006) and the PBE0 functional (Perdew et al., 1996; Adamo and Barone, 1999) with the Grimme et al. (2010) empirical dispersion correction and Becke-Johnson damping (Grimme et al., 2011). The non-specific solvation effects are modelled for 6 by means of the self-consistent reaction field within the polarizable continuum model (integral equation formalism, ε = 72, water) (Tomasi et al., 2005). According to the calculation of energy second derivatives (ultrafine grids), all fully optimized structures correspond to minima on potential energy surface.

The Δ_OED analysis for 6, TILMEI and DUQGUT were done based on the HF/3-21G electron densities calculated for the crystal fragments and the PBE0/def2-TZVP electron densities calculated for the isolated ions in crystal geometries. The X-H bond lengths for all these calculations were fixed on the values obtained upon the partial optimization of isolated ions in crystal geometries. The crystal fragments contain 24 anions and 24 cations for the DUQGUT structure, 23 anions and 23 cations for the TILMEI structure and 22 anions and 22 cations for 6. The partitioning of real space into atoms was done within the “Atoms in Molecules” theory. The volume integration (both, over the atomic basins for the central molecule in a cluster and over the volume enclosed by 0.0004 a.u. isosurface of electron density for isolated ions) was performed using the Multiwfn program (Lu and Chen, 2012). The SHELX (Sheldrick, 2015) atomic mass table was used to calculate density values.

The heat of formation calculations were carried out combining the atomization energy method (Eq. 1) (Ochterski et al., 1996; Montgomery et al., 2000) with CBS-4M electronic enthalpies (Klapötke, 2012; Khakimov et al., 2015). CBS-4M energies of the atoms were calculated with the Gaussian 09 software package (Frisch et al., 2016). Values for Δ_fH° (atoms) were taken from the NIST database.

${\mathrm{\Delta }}_{\mathrm{f}}{H}^{\circ }\left(\mathrm{g,298}\right)=H\left(\mathrm{Molecule,298}\right)-{\displaystyle \sum H^{\circ }\left(\mathrm{Atoms,298}\right)}+{\displaystyle \sum {\mathrm{\Delta }}_{\mathrm{f}}{H}^{\circ }\left(\mathrm{Atoms,298}\right)}(1)$

Geometric optimization of all structures for crystal packing calculation was carried out using the DFT/B3LYP functional and the aug-cc-PVDZ basis set with a Grimme (2011) D2 dispersion correction. The optimized structures were conformed to be true local energy minima on the potential-energy surface by frequency analyses at the same level.

In the calculation of lattice energy, the molecules were treated as rigid bodies with foxed point groups. We apply pairwise atom-atom potentials to describe the van der Waals and electrostatic point charges for Coulomb components of intermolecular energy. At the initial stage ‘6–12’ Lennard-Jones (LJ) type potential parameters were used (Momany et al., 1974). The electrostatic energy was calculated with a set of displaced point charge sites by program FitMEP (Dzyabchenko, 2008a). The lattice energy simulations were performed with the program PMC (Dzyabchenko, 2008b).

It is well known that the majority of organic crystal structures studied experimentally belong to a rather limited number of space groups (Belsky et al., 1995). For brief assessment of crystal packing, we get the following ordered list of the most likely structural classes: P2₁/c, P2₁2₁2₁, P-1, Pca2₁ and P1 with two independent molecules in cell, which cover more than 80% of the whole number of crystal structures in total (Belsky et al., 1995). Taking into account low deviation in crystal lattice energies of polymorphs, such calculation is considered reasonable.

Enthalpies of sublimation for 1a and 1b were calculated by formula:

$\mathrm{\Delta }{\mathrm{H}}_{\mathrm{sub1}}=-{\mathrm{E}}_{\mathrm{1at}}-2\mathrm{RT,}$

where R is the universal gas constant, E_lat is the lattice energy, T is temperature (298 K).

The new approach for salts proposes a technique based on modeling the crystal packing for a salt and a similar neutral compound (quasi-salt, cocrystal). The enthalpy of formation in this case is calculated as the average value between these two structures (Khakimov and Pivina, 2022).

Detonation performance parameters (detonation velocity at maximal density and Chapman-Jouguet pressure) were calculated by recently suggested set of empirical methods from PILEM application (Muravyev et al., 2022). Note, that the accuracy of the utilized in PILEM empirical methods is comparable to benchmark thermodynamic code EXPLO5.

2.3 Thermal analysis and sensitivity measurements

Thermal analysis of the substances was carried out with a Netzsch DSC 204 HP apparatus. Samples (0.2–3.0 mg, depending on their heat release rate) were placed in aluminum pans covered with pierced lids. The samples were heated up to 400°C at a constant rate of 5 K min⁻¹. Impact sensitivity tests were performed by using a BAM-type fallhammer according to STANAG 4489 standard. The reported values (IS) are the drop energies corresponding to 50% probability of explosion obtained by Bruceton analysis. Friction sensitivity was evaluated in agreement with STANAG 4487 standard. The reported quantity (FS) is the friction force corresponding to 50% probability of explosion. The details of safety test procedures can be found elsewhere (Muravyev et al., 2021).

2.4 Syntheses

General procedure for the preparation of (1,2,4-triazolyl)furoxans silver salts 3a,b. A solution of AgNO₃ (2.04 g, 12 mmol) in H₂O (50 ml) was added dropwise to a magnetically stirred solution of the corresponding 1H-1,2,4-triazol-3-yl-furoxan 1a,b (12 mmol) in MeOH (45 ml). The resulting mixture was stirred at ambient temperature for 5 h, the solid formed was filtered off, washed with water (3 × 100 ml) and dried in air.

Silver 3-(4-azido-2-oxido-1,2,5-oxadiazol-3-yl)-1,2,4-triazol-1-ide (3a): Yield 3.38 g (94%); white solid; elemental analysis calcd (%) for C₄HAgN₈O₂ (299.93): C 15.96, H 0.33, N 37.23; found: C 16.10, H 0.28, N 36.97.

Silver 3-(3-cyano-2-oxido-1,2,5-oxadiazol-4-yl)-1,2,4-triazol-1-ide (3b): Yield 3.01 g (88%); white solid; elemental analysis calcd (%) for C₅HAgN₆O₂ (283.92): C 21.07, H 0.35, N 29.49; found: C 20.90, H 0.47, N 29.12.

General procedure for the preparation of energetic salts 4a-c, 5a-c: Corresponding chloride (2 mmol) was added to a magnetically stirred suspension of the silver salt 3a,b (2 mmol) in H₂O (30 ml) at 20 C. The resulting mixture was stirred at 60°C for 24 h. Then AgCl was removed by filtration and the solvent was evaporated in vacuo. The residue was recrystallized from water and dried in a vacuum desiccator over P₂O₅ for 24 h.

3,6,7-Triamino-7H-[1,2,4]triazolo[4,3-b][1,2,4]triazol-2-ium 3-(4-azido-2-oxido-1,2,5-oxadiazol-3-yl)-1,2,4-triazol-1-ide (4a): Yield 0.54 g (78%); red solid; ¹H NMR (300 MHz, DMSO-d₆): δ = 8.87 (s, 1H), 6.79 (s, 2H), 6.72 (s, 2H), 5.69 (s, 2H); ¹³C{¹H} NMR (75.5 MHz, DMSO-d₆): δ = 159.7, 153.1, 148.7, 147.1, 146.0, 142.9, 105.5; ¹⁴N NMR (21.7 MHz, DMSO-d₆): δ = −147.6 (s, N₃); IR (KBr): 3,418, 3,306, 3,137, 2,163, 1,699, 1,634, 1,572, 1,545, 1,414, 1,385, 1,267, 1,231, 1,199, 985 cm⁻¹; elemental analysis calcd (%) for C₇H₈N₁₆O₂ (348.10): C 24.14, H 2.32, N 64.35; found: C 23.91, H 2.46, N 64.09; IS: 7.8 J, FS: >360 N.

5-Amino-1H-tetrazol-4-ium 3-(4-azido-2-oxido-1,2,5-oxadiazol-3-yl)-1,2,4-triazol-1-ide (4b): Yield 0.42 g (75%); dark yellow solid; ¹H NMR (300 MHz, DMSO-d₆): δ = 8.86 (s, 1H); ¹³C{¹H} NMR (75.5 MHz, DMSO-d₆): δ = 156.6, 153.1, 147.1, 146.0, 105.5; ¹⁴N NMR (21.7 MHz, DMSO-d₆): δ = −148.2 (s, N₃); IR (KBr): 3,445, 3,136, 2,164, 1,633, 1,546, 1,519, 1,413, 1,384, 1,267, 1,233, 1,199, 1,022, 985 cm⁻¹; elemental analysis calcd (%) for C₅H₅N₁₃O₂ (279.07): C 21.51, H 1.81, N 65.22; found: C 21.28, H 1.97, N 64.96; IS: 9 J, FS: 360 N.

3,7-Diamino-7H-[1,2,4]triazolo[4,3-b][1,2,4]triazol-2-ium 3-(4-azido-2-oxido-1,2,5-oxadiazol-3-yl)-1,2,4-triazol-1-ide (4c): Yield 0.53 g (80%); orange solid; ¹H NMR (300 MHz, DMSO-d₆): δ = 14.68 (br. s, 1H), 8.86 (s, 1H), 8.52 (s, 1H), 6.85 (s, 2H), 6.11 (s, 2H); ¹³C{¹H} NMR (75.5 MHz, DMSO-d₆): δ = 153.1, 151.4, 149.2, 147.1, 146.0, 143.4, 105.5; ¹⁴N NMR (21.7 MHz, DMSO-d₆): δ = −146.4 (s, N₃); IR (KBr): 3,440, 3,313, 3,102, 2,163, 1,698, 1,642, 1,590, 1,539, 1,412, 1,384, 1,266, 1,230, 1,199, 1,001, 957, 751 cm⁻¹; elemental analysis calcd (%) for C₇H₇N₁₅O₂ (333.09): C 25.23, H 2.12, N 63.05; found: C 25.46, H 1.98, N 62.81; IS: 5 J, FS: 260 N.

3,6,7-Triamino-7H-[1,2,4]triazolo[4,3-b][1,2,4]triazol-2-ium 3-(3-cyano-2-oxido-1,2,5-oxadiazol-4-yl)-1,2,4-triazol-1-ide (5a): Yield 0.55 g (83%); light orange solid; ¹H NMR (300 MHz, DMSO-d₆): δ = 8.96 (s, 1H), 6.66 (s, 2H), 6.35 (s, 2H), 5.65 (s, 2H); ¹³C{¹H} NMR (75.5 MHz, DMSO-d₆): δ = 159.9, 149.7, 149.1, 148.6, 146.6, 142.6, 107.2, 98.3; IR (KBr): 3,417, 3,330, 3,304, 2,253, 1,699, 1,641, 1,620, 1,538, 1,509, 1,452, 1,385, 1,346, 1,277, 1,056, 971, 832 cm⁻¹; elemental analysis calcd (%) for C₈H₈N₁₄O₂ (332.10): C 28.92, H 2.43, N 59.02; found: C 28.69, H 2.61, N 58.78; IS: 19 J, FS: 220 N.

5-Amino-1H-tetrazol-4-ium 3-(3-cyano-2-oxido-1,2,5-oxadiazol-4-yl)-1,2,4-triazol-1-ide (5b): Yield 0.47 g (90%); yellow solid; ¹H NMR (300 MHz, DMSO-d₆): δ = 8.93 (s, 1H), 6.43 (s, 2H); ¹³C{¹H} NMR (75.5 MHz, DMSO-d₆): δ = 156.5, 149.6, 149.1, 146.5, 146.2, 107.2, 98.2; IR (KBr): 3,452, 3,147, 2,252, 2,164, 1,632, 1,540, 1,452, 1,385, 1,274, 1,250, 1,058, 970, 832 cm⁻¹; elemental analysis calcd (%) for C₆H₅N₁₁O₂ (263.06): C 27.38, H 1.92, N 58.54; found: C 27.21, H 2.03, N 58.31; IS: 21 J, FS: 250 N.

3,7-Diamino-7H-[1,2,4]triazolo[4,3-b][1,2,4]triazol-2-ium 3-(3-cyano-2-oxido-1,2,5-oxadiazol-4-yl)-1,2,4-triazol-1-ide (5c): Yield 0.49 g (78%); dark yellow solid; ¹H NMR (300 MHz, DMSO-d₆): δ = 8.96 (s, 1H), 8.57 (s, 1H), 7.13 (s, 2H), 6.14 (s, 2H), 5.79 (s, 2H); ¹³C{¹H} NMR (75.5 MHz, DMSO-d₆): δ = 151.4, 149.7, 149.2, 149.1, 146.6, 143.4, 107.2, 98.3; ¹⁵N NMR (60.8 MHz, DMSO-d₆): δ = −3.6, −9.7, −11.3, −18.4, −94.6, −131.6, −136.2, −172.6, −172.8, −185.2, −242.8, −317.5, −328.7; IR (KBr): 3,313, 3,280, 3,103, 1700, 1,645, 1,622, 1,590, 1,536, 1,427, 1,384, 1,215, 1,114, 1,002, 960, 751 cm⁻¹; elemental analysis calcd (%) for C₈H₇N₁₃O₂ (317.08): C 30.29, H 2.22, N 57.40; found: C 30.52, H 2.06, N 57.21; IS: 22 J, FS: 350 N.

Synthesis of ammonium 3-(3-cyano-2-oxido-1,2,5-oxadiazol-4-yl)-1,2,4-triazol-1-ide (5d). Ammonia was bubbled through a solution of 1b (0.88 g, 4.9 mmol) in CH₃CN (10 ml). The saturated solution was stirred for 0.5 h. The precipitate was filtered off and washed with Et₂O (2 × 10 mL) to give energetic salt 5d. Yield 0.83 g (86%); light orange solid; ¹H NMR (300 MHz, DMSO-d₆): δ = 8.37 (s, 1H), 6.35 (br. s, 4H); ¹³C{¹H} NMR (75.5 MHz, DMSO-d₆): δ = 151.0, 150.8, 148.6, 107.8, 98.0; ¹⁴N NMR (21.7 MHz, DMSO-d₆): δ = −361.0 (br. s, NH₄); IR (KBr): 3,324, 3,146, 2,857, 2,252, 1,621, 1,583, 1,536, 1,453, 1,346, 1,276, 1,249, 1,178, 1,105, 1,057, 970, 874, 832 cm⁻¹; elemental analysis calcd (%) for C₅H₅N₇O₂ (195.05): C 30.78, H 2.58, N 50.24; found: C 30.74, H 2.76, N 49.98; IS: 11 J, FS: 260 N.

Synthesis of ammonium 5-(2-oxido-4-(1H-1,2,4-triazol-3-yl)-1,2,5-oxadiazol-3-yl)tetrazol-1-ide 6: TMSN₃ (2.5 mmol, 0.33 ml) and NH₄F (1 mmol, 0.037 g) were added to a magnetically stirred mixture of cyanofuroxan 3a (1 mmol) in MeCN (5 ml). The reaction mixture was stirred at 35°C for 10 h until full consumption of substrate 3a (TLC monitoring). Then, the precipitate formed was filtered off, washed with CH₃CN (5 ml) and dried in a vacuum desiccator over P₂O₅. Yield 0.20 g (84%); beige solid; ¹H NMR (300 MHz, DMSO-d₆): δ = 8.65 (s, 5H); ¹³C{¹H} NMR (75.5 MHz, DMSO-d₆): δ = 150.4, 149.8, 147.7, 147.4, 110.4; ¹⁴N NMR (21.7 MHz, DMSO-d₆): δ = −358.8 (s, NH₄); ¹⁵N NMR (60.8 MHz, DMSO-d₆): δ = 12.3, −8.0, −9.9, −12.3, −24.7, −58.3, −130.9, −358.1; IR (KBr): 3,342, 3,120, 2,989, 1,598, 1,523, 1,448, 1,416, 1,270, 1,220, 1,145, 1,076, 976, 969, 893, 835 cm⁻¹; elemental analysis calcd (%) for C₅H₆N₁₀O₂ (238.17): C 25.22, H 2.54, N 58.81; found: C 25.03, H 2.68, N 58.49; IS: 12 J, FS: >360 N.

3 Results and discussion

Parent biheterocyclic cores, namely 4-azido-3-(1H-1,2,4-triazol-3-yl)furoxan 1a and 3-cyano-4-(1H-1,2,4-triazol-3-yl)furoxan 1b were synthesized according to our recently reported procedure (Larin et al., 2022) via PTSA-catalyzed cyclocondensation of the available amidrazones 2a,b with trimethyl orthoformate. Thus formed biheterocyclic compounds 1a,b were treated with AgNO₃ to obtain corresponding silver salts 3a,b which were further subjected to a metathesis reaction with various nitrogen-rich bases (in a form of hydrochlorides) affording two arrays of high-nitrogen energetic salts 4a-c and 5a-d. Cyano group in compound 1a was also converted to the tetrazolate anion through cycloaddition with in situ generated TMSN₃ (Scheme 1). This approach enabled a selective formation of the (tetrazolyl)furoxan ammonium salt 6 bearing neutral 1,2,4-triazole scaffold.

SCHEME 1

SCHEME 1. Synthetic route to target energetic salts.

All newly synthesized compounds were fully characterized by IR and multinuclear (¹H, ¹³C, ¹⁴N) NMR spectroscopy as well as elemental analysis. Because the synthesized energetic salts have a high nitrogen content, several representatives, namely salts 5c and 6, were additionally characterized by ¹⁵N NMR spectroscopy (Figure 2). The signals were assigned by comparison with similar structures (Thottempudi and Shreeve, 2011; Tang et al., 2021). There are thirteen signals in the ¹⁵N NMR spectrum of 5c. The nitrogen atom signals of the two amino groups are observed in the upfield region (δ = −317.5 ppm (N7) and δ = −328.7 ppm (N8). The resonance peaks for N12 and N13 in the cation counter-part are nearly overlapping for structure 5c. The 1,2,4-triazolium anion has characteristic signals at δ = −9.6 (N4), δ = −11.2 (N5), δ = −94.6 (N6), while corresponding peaks of the furoxan ring are located at δ = 3.6 (N2) δ = −18.4 ppm (N3). Only eight signals are presented in the ¹⁵N NMR spectrum of 6. The chemical shift of the nitrogen atom of the ammonium cation (N1) is found at δ = −358.1 ppm which correlates with the corresponding ¹⁴N NMR spectrum of 6. Due to the symmetric structure of the tetrazolate anion in 6, two signals were found at δ = −24.7 ppm (N7, N10) and −58.3 ppm (N8, N9). Two signals of nitrogen atoms of the furoxan ring were observed in a downfield region at δ = 12.3 ppm (N2) and −8.0 ppm (N3).

FIGURE 2

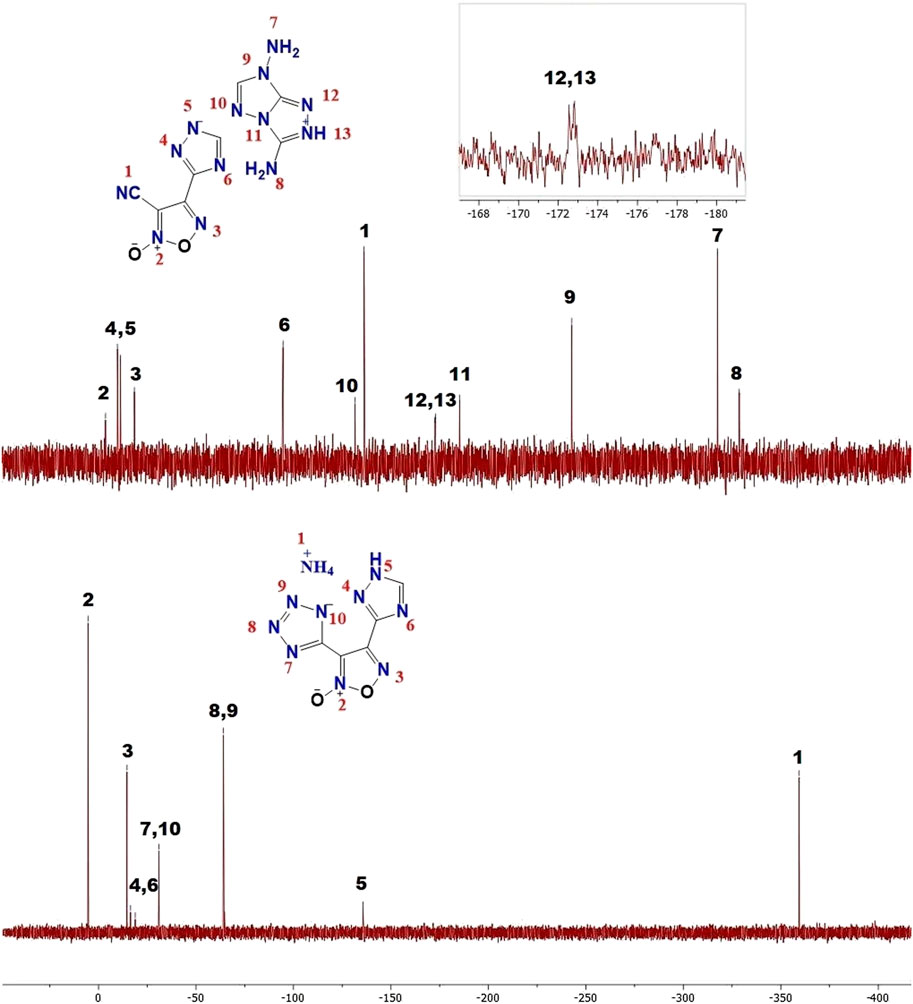

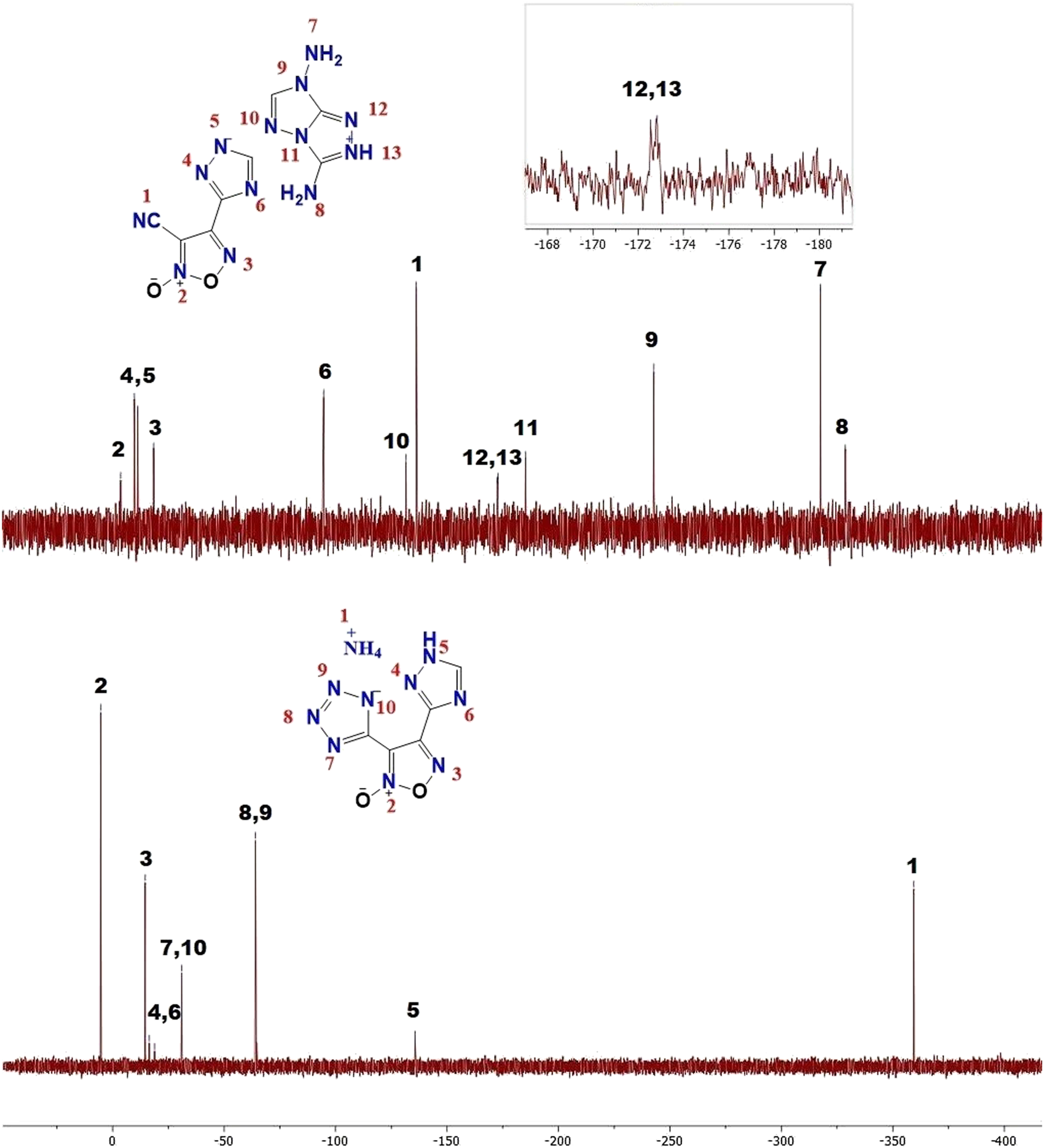

FIGURE 2. ¹⁵N NMR spectra for compounds 5c and 6.

The structure of compound 6 was further confirmed by X-ray diffraction study (Figure 3). In crystal, the anionic moiety is nearly planar: the C1C2C4N7 and C2C1C3N3 torsion angles are 1.95° and 6.36°, respectively, while the mean deviation from plane composed by non-hydrogen atoms is only 0.0436 Å. The main packing motif for 6 is the aggregation of anions into centrosymmetric dimers (Figure 4) by means of two bifurcate H-bonds between the N8(H) groups of triazolyl cycle and the N3 and N7 nitrogen atoms of tetrazole and triazolyl, respectively (N8…N3 and N8…N7 distances are 2.811 and 2.923 Å, correspondingly). The further binding of these dimers is determined by the ammonia cations (Supplementary Figure S1) which form 1) one weak bifurcate NH…O H-bond with exocyclic furoxan oxygen atoms (N…O 3.018 and 3.051 Å), 2) two moderate NH…N hydrogen bonds with the tetrazole fragments (N…N 2.876, 2.954 Å, ∠(NHN) 160.6–161.2°) and 3) one moderate NH…N H-bond with the triazole ring (N…N 2.936 Å, ∠(NHN) 167.2°). The two former types of H-bonds aggregate the nearly planar dianionic dimers into infinite columns which are additionally stabilized by furoxan…tetrazole and triazole…triazole stacking interactions (the interplane distance is 3.140 Å, Figure 5). Despite the whole crystal packing pattern resembles the layer-like supramolecular aggregation, the mentioned columns are shifted against each other due to the mentioned NH…N H-bonds between the cation and triazole ring (Figure 6).

FIGURE 3

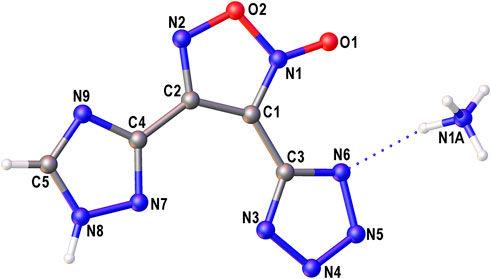

FIGURE 3. The general view of symmetry independent part of compound 6. Non-hydrogen atoms are drawn by probability ellipsoids of atomic displacements (p = 0.5).

FIGURE 4

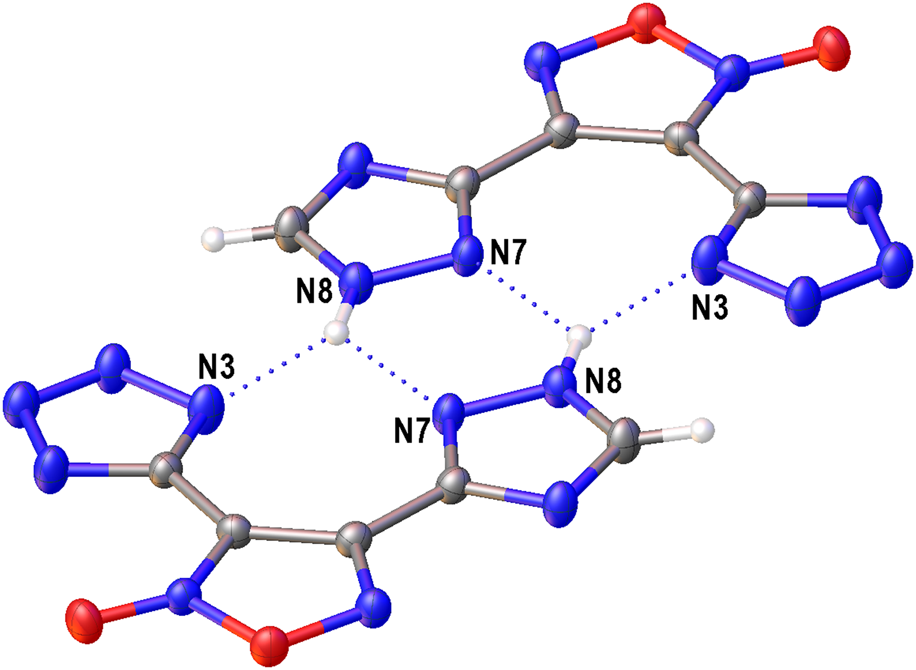

FIGURE 4. The centrosymmetric dimers of the anions in crystal of 6 stabilized by bifurcate H-bonds (dotted lines).

FIGURE 5

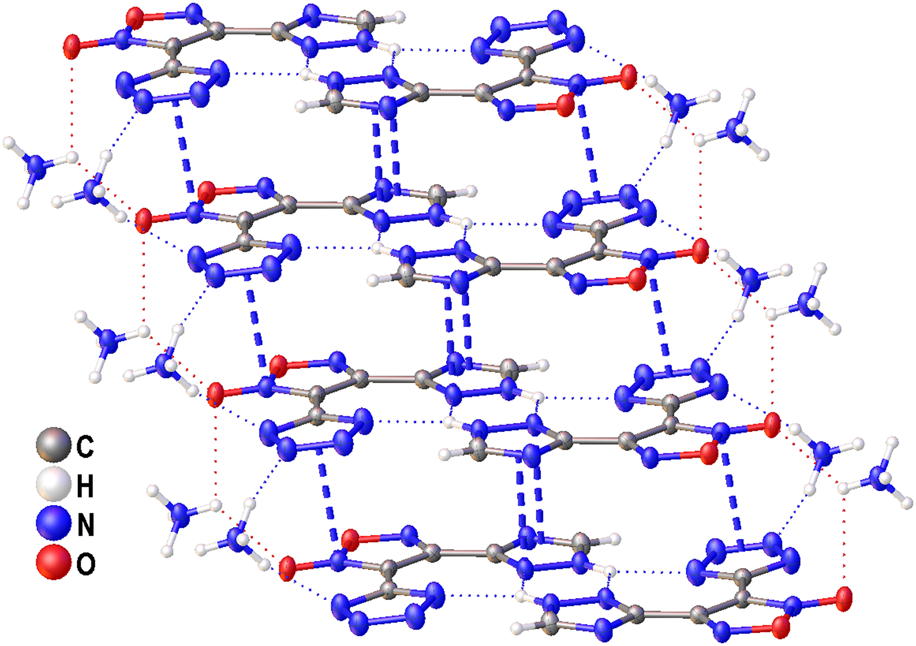

FIGURE 5. A fragment of infinite column in crystal of 6 stabilized by cation-anion H-bonds (dotted lines) and stacking interactions between anions (dashed lines).

FIGURE 6

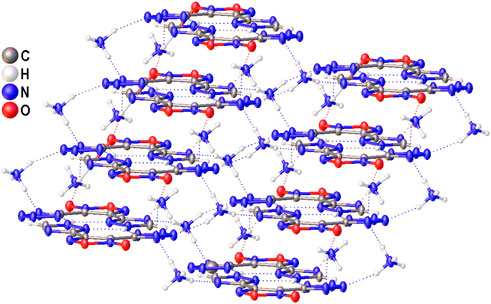

FIGURE 6. A fragment of crystal packing of 6 demonstrating the aggregation of infinite columns.

The compound 6 was found to be an excellent example of the influence of supramolecular forces on the molecular structure. Although the planar conformation of the anion is expected for this class of compounds according to the processing of Cambridge Structural Database (Groom et al., 2016), the DFT calculations of several isolated models demonstrate quite the opposite picture (Supplementary Figures S2–S8). For instance, the triazolyl cycle is perpendicular to the tetrazolyl-furoxan plane in the isolated anion even if the non-specific solvation effects are accounted for. The significant violation of π-conjugation is also found for the isolated clusters which were optimized using different fragments of crystal structure of 6 as starting geometries. Here, two factors should be noted: the interplay between triazole and tetrazole moieties to form π-conjugation with the central furoxan ring and the crystal media influence (see Supplementary Table S1 for the information on torsion angles). As an example, the SCRF calculations of isolated anion resulted in the increase of triazole-furoxan conjugation and the decrease of the tetrazole-furoxan one. In its turn, only the modelling of a cluster containing two anionic dimers stabilized by stacking interactions between them and NH…N H-bonds with four cations (see the discussion of crystal packing above) produced the conformation with rather small values of C1C2C4N7 and C2C1C3N3 torsion angles (19.4° and 12.9°, respectively). Note that the only one of the protonated isomers of 6 is totally planar (torsion angles less than 1°) that is rationalized by the presence of strong intramolecular N3-H…N7 hydrogen bond in this case (N3…N7 2.758 Å, Supplementary Figure S5).

The combination of mentioned strong interionic interactions in crystal of 6 together with its column-type crystal packing and non-favorable planar conformation of the anion may be the reason of moderate physicochemical properties of 6 (see below). Indeed, HEDMs with the layer packing are usually characterized by rather high impact sensitivity (IS) values (Tian et al., 2018), possibly due to the asymmetry of tensions in the equilibrium structure which should be worked upon impact. A similar behavior can be supposed for compounds with stressed conformations such as 6. At the same time, the formation of strong directional H-bonds can also decrease the density of a crystal. Keeping all this in mind, it is still interesting to compare structure-property relationships for 6 and two similar compounds—azidotetrazolylfuroxan (CSD refcode DUQGUT) (Fershtat et al., 2015a) and nitrotetrazolylfuroxan (CSD refcode TILMEI) (Liang et al., 2013). The TILMEI and DUQGUT structures have been already analyzed by us when the role of cation in physico-chemical properties of tetrazolyl-furoxan salts was under consideration (Larin et al., 2019). The comparison of these two structures with 6 is vital to determine the role of a furoxan’s substituent in these salts.

Despite similar composition of 6, TILMEI and DUQGUT, the IS value for 6 (12 J, see Table 1 below) is pronouncedly larger than that for the nitro and azido salts (2.0 and 2.2 J, respectively) (Liang et al., 2013; Larin et al., 2019). As mentioned above, this can be rationalized by the combination of factors. First of all, the crystal packings of TILMEI and DUQGUT structures are both more isotropic than the column-type packing of 6 (see Supplementary Figure S9). Furthermore, the crystal geometries of azidotetrazolylfuroxan and nitrotetrazolylfuroxan anions are rather close to those in the equilibrium isolated structures: the rmsd value for non-hydrogen atoms are 0.0703 and 0.2628 Å for DUQGUT and TILMEI (Supplementary Figure S10), whereas the energy difference between the isolated and crystal (optimized hydrogen atoms) geometries is 3.2 and 4.3 kcal mol⁻¹, respectively. The crystal structure of anion in 6 is significantly more stressed: the corresponding values are larger due to the mentioned rotation of triazole cycle (0.7295 Å and 8.1 kcal mol⁻¹). Finally, the low IS values for DUQGUT and TILMEI agree well with the presence of explosophoric N₃ group in the former and the dense packing of the latter (1.85 vs. 1.71 g cm⁻³ for 6).

TABLE 1

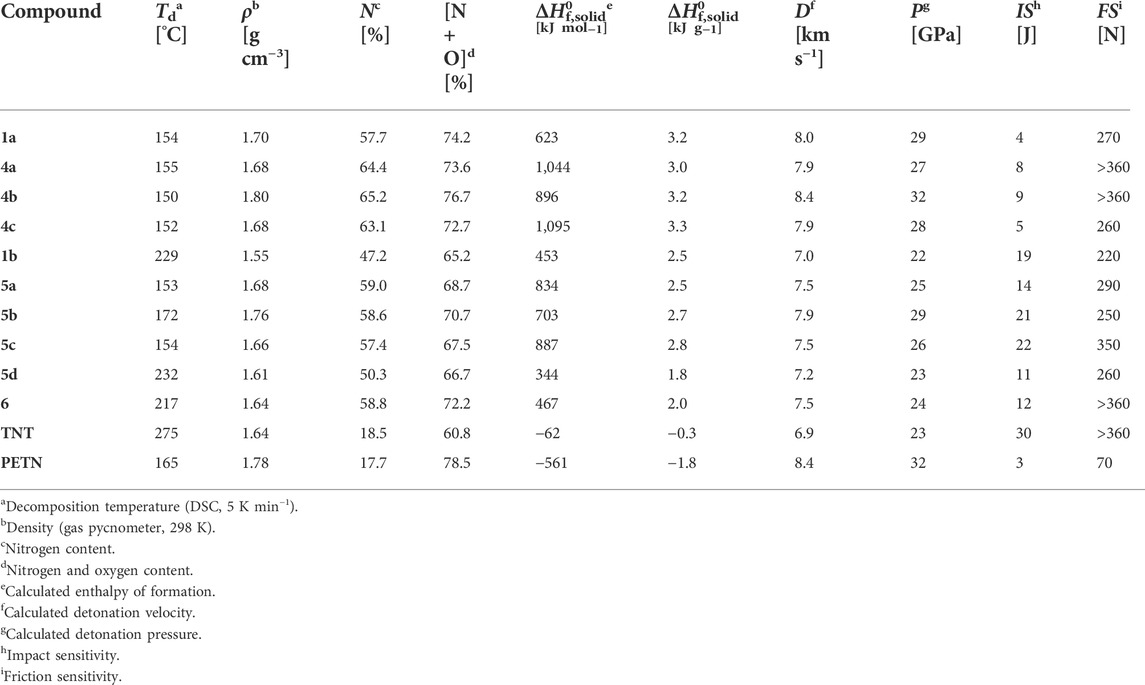

TABLE 1. Physical properties and detonation parameters.

It is interesting to note that the crystal density value does not correlate with the impact sensitivity for 6 and DUQGUT: crystals of azidotetrazolylfuroxan are slightly less dense (1.71 g cm⁻³). The Δ_OED formalism (Dalinger et al., 2018a; Dalinger et al., 2018b) was utilized to explore the influence of a substituent in tetrazolylfuroxan salts on density of their crystals. This approach allows to estimate densification (Δ_OED) of a system upon the gas-to-crystal transition as it is based on the comparison of volumes which are filled by a system in the isolated state (0.0004 a. u. isosurface of electron density function) and in crystal. More information can be gathered by means of the exhaustive partitioning of real 3D space (for example, by means of the “Atoms in Molecules” theory) that allows to decompose the crystal density into the density of chemically meaningful fragments. This technique was found to be particularly helpful for the analysis of salts and co-crystals (Larin et al., 2019). The details of such calculations for 6, DUQGUT and TILMEI are listed in Supplementary Table S2 of Supporting Information.

It was found that the presence of substituent with the increasing ability to be densified upon crystal formation positively affects the densification of the whole salt. In the isolated states, the triazole ring in 6 is less dense that the azide moiety in DUQGUT while it becomes considerably denser than N₃ in corresponding crystals. The large densification of triazole evidently produced by a greater number of short non-covalent interactions (rather strong H-bonds in the case of 6) increases the densification of all other fragments. As a result, the structure of 6 is slightly denser than that of DUQGUT. In the same manner, the dense NO₂ group usually decreases its volume to a large extent due to the participation in a number of shortened intermolecular contacts; the presence of this group in TILMEI leads to a pronounced densification of this salt and its large crystal density. Finally, it is interesting to note, that the statistical consideration of Δ_OED values for fragments of 6, DUQGUT and TILMEI also indicates the influence of crystal packing effects on the impact sensitivity. The sample variance is the same in TILMEI and DUQGUT (0.007 g² cm⁻⁶) while it is larger for 6 (0.010 g² cm⁻⁶). Indeed, a larger variance corresponds to a more dispersive densification of fragments that is obtained by less isotropic distribution of non-covalent interactions.

Physicochemical and sensitivity properties as well as detonation performance of all synthesized compounds were evaluated and the results are summarized in Table 1. As for thermal stability, most of the investigated salts have acceptable thermal decomposition onsets in the range of 150–172 ^оС. The exceptions are neutral compound 1b and two ammonium salts 5d and 6, which all have thermal stability in conventional linear heating DSC tests above 200°C (Figure 7).

FIGURE 7

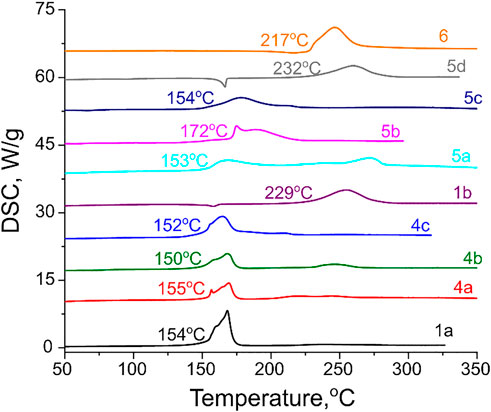

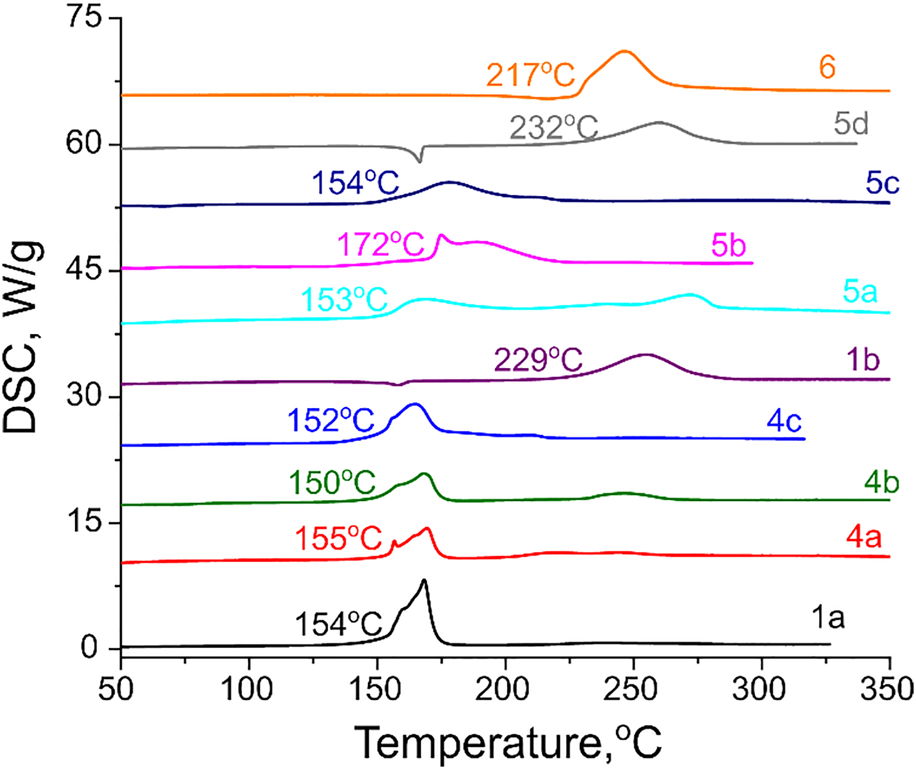

FIGURE 7. DSC traces for synthesized energetic compounds taken at 5 K min⁻¹ heating rate. The extrapolated onsets of exothermic decomposition peaks are indicated.

Synthesized compounds have good densities (1.61–1.80 g cm⁻³) and considerable amount of nitrogen and oxygen within the molecule (65%–74%). Calculated enthalpies of formation of the synthesized energetic salts are in a range of 344–1,095 kJ mol⁻¹. Based on the experimental densities and calculated enthalpies of formation, detonation performance of all synthesized energetic salts was estimated and compared to benchmark explosives TNT and PETN (all calculations were performed using PILEM software). Detonation velocity values were found to be within 7.0–8.4 km s⁻¹, while the calculated detonation pressures fall in a range of 22–32 GPa. Therefore, the energetic performance of these new compounds outperform benchmark explosive trinitrotoluene (TNT), but are inferior to booster explosive pentaerythritol tetranitrate (PETN). These two contemporary energetic materials also serve as limits for synthesized compounds from the mechanical sensitivity aspect. Impact sensitivity for (1,2,4-triazolyl)furoxan energetic salts varies from sensitive 5 J for 4c to less sensitive 5b,c with 21–22 J. Analyzed species are not very sensitive to friction stimulus, e.g., compounds 4a,b, 6 are even not sensitive at all.

4 Conclusion

In conclusion, an array of novel nitrogen-rich energetic salts comprising of the (1,2,4-triazolyl) furoxan core was designed and synthesized. All target high-energy materials were prepared in high yields starting from readily available furoxan precursors bearing amidrazone functionality and well characterized with IR and multinuclear NMR spectroscopy, elemental analysis and X-ray diffraction study. According to the X-ray diffraction study, the large densification of the 1,2,4-triazole heterocycle evidently produced by a greater number of short non-covalent interactions (rather strong H-bonds in the case of 6) increases the densification of all other fragments. Thermal stabilities of the synthesized energetic materials were determined using differential scanning calorimetry. It was found that most of the investigated salts have acceptable thermal decomposition onsets in the range of 150°С–172°С, while two ammonium salts 5d and 6 possess excellent thermal stabilities far above 200°C. A combination of good experimental densities (1.61–1.80 g cm⁻³) and high positive calculated enthalpies of formation (344–1,095 kJ mol⁻¹) provides good detonation performance of the synthesized energetic salts (D = 7.0–8.4 km s⁻¹; p = 22–32 GPa) exceeding that of benchmark explosive TNT (D = 6.9 km s⁻¹; p = 23 GPa) and reaching the limits of booster PETN (D = 8.4 km s⁻¹; p = 32 GPa). At the same time, sensitivities of the prepared (1,2,4-triazolyl) furoxan salts to impact are quite moderate, while their sensitivities to friction are even lower, mainly on the level of insensitive TNT. To the best of our knowledge, the present study is one of the rarely reported high-energy materials incorporating a 1,2,4-triazole heterocycle as an anion counter-part and a first example of (1,2,4-triazolyl) furoxan energetic salts.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession numbers can be found in the article/Supplementary Material.

Author contributions

AL contributed to the synthesis, purification and characterization of all compounds, AP performed physicochemical studies, thermal stability and sensitivity measurements, IA conducted single-crystal X-ray diffraction study and performed quantum chemical modelling, DK performed calculations of the enthalpies of formation, LF designed and supervised the research and revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

AL is grateful to the Russian Science Foundation (Grant 19-73-20074) for the support of synthetic part of this work and estimation of thermal stability and physicochemical parameters of the synthesized compounds. The X-ray diffraction study was supported by the Ministry of Science and Higher Education of the Russian Federation as part of the State Assignment of the Kurnakov Institute of General and Inorganic Chemistry of the Russian Academy of Sciences. IA is grateful to the Russian Science Foundation (project 22-13-00238) for the support of structural study and DFT computations. The authors are also grateful to Alexey A. Konnov for determination of experimental densities using gas pycnometer.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.1012605/full#supplementary-material

References

Adamo, C., and Barone, V. (1999). Toward reliable density functional methods without adjustable parameters: The PBE0 model. J. Chem. Phys. 110, 6158–6170. doi:10.1063/1.478522

CrossRef Full Text | Google Scholar

Aleksandrova, N. S., Monogarov, K. A., and Sheremetev, A. B. (2020). Synthesis of 4, 4'-bis[3-(fluorodinitromethyl)-1H-1, 2, 4-triazol-5-yl]azofurazan. Chem. Heterocycl. Compd. (N. Y). 56, 619–622. doi:10.1007/s10593-020-02709-1

CrossRef Full Text | Google Scholar

Belsky, V. K., Zorkaya, O. N., and Zorky, P. M. (1995). Structural classes and space groups of organic homomolecular crystals: New statistical data. Acta Crystallogr. A 51, 473–481. doi:10.1107/S0108767394013140

CrossRef Full Text | Google Scholar

Chinnam, A. K., Staples, R. J., and Shreeve, J. M. (2021). Selective synthesis of bis(3-(3-(trifluoromethyl)-1H-1, 2, 4-triazol-5-yl)-4, 4′-azo- and -azoxyfurazan derivatives. J. Org. Chem. 86, 7781–7786. doi:10.1021/acs.joc.1c00531

PubMed Abstract | CrossRef Full Text | Google Scholar

Creegan, S. E., Zeller, M., Byrd, E. F. C., and Piercey, D. G. (2022). Titanium superoxide for the oxidation of amines: Synthesis of bis(3-nitro-1H-1, 2, 4-triazol-5-yl)methane and its metal salts. Z. Anorg. Allge. Chem. 648, e202200007. doi:10.1002/zaac.202200007

CrossRef Full Text | Google Scholar

Dalinger, I. L., Kormanov, A. V., Suponitsky, K. Yu., Muravyev, N. V., and Sheremetev, A. B. (2018a). Pyrazole–tetrazole hybrid with trinitromethyl, fluorodinitromethyl, or (Difluoroamino)dinitromethyl groups: High-performance energetic materials. Chem. Asian J. 13, 1165–1172. doi:10.1002/asia.201800214

PubMed Abstract | CrossRef Full Text | Google Scholar

Dalinger, I. L., Serushkina, O. V., Muravyev, N. V., Meerov, D. B., Miroshnichenko, E. A., Kon'kova, T. S., et al. (2018b). Azasydnone – novel “green” building block for designing high energetic compounds. J. Mat. Chem. A 6, 18669–18676. doi:10.1039/C8TA06895J

CrossRef Full Text | Google Scholar

Dzyabchenko, A. V. (2008a). A multipole approximation of the electrostatic potential of molecules. Russ. J. Phys. Chem. A 82, 758–766. doi:10.1134/S0036024408050129

CrossRef Full Text | Google Scholar

Dzyabchenko, A. V. (2008b). From molecule to solid: The prediction of organic crystal structures. Russ. J. Phys. Chem. A 82, 1663–1671. doi:10.1134/S0036024408100075

CrossRef Full Text | Google Scholar

Fershtat, L. L., Epishina, M. A., Kulikov, A. S., Ovchinnikov, I. V., Ananyev, I. V., and Makhova, N. N. (2015a). An efficient access to (1H-tetrazol-5-yl)furoxan ammonium salts via a two-step dehydration/[3+2]-cycloaddition strategy. Tetrahedron 71, 6764–6775. doi:10.1016/j.tet.2015.07.034

CrossRef Full Text | Google Scholar

Fershtat, L. L., Epishina, M. A., Ovchinnikov, I. V., Kachala, V. V., and Makhova, N. N. (2015b). An effective synthesis of (1Н-1, 2, 4-triazol-3-yl)furoxans. Chem. Heterocycl. Compd. (N. Y). 51, 754–759. doi:10.1007/s10593-015-1771-9

CrossRef Full Text | Google Scholar

Fershtat, L. L., and Makhova, N. N. (2020). 1, 2, 5-oxadiazole-based high-energy-density materials: Synthesis and performance. ChemPlusChem 85, 13–42. doi:10.1002/cplu.201900542

CrossRef Full Text | Google Scholar

Frisch, M. J., Trucks, G. W., Schlegel, H. B., Scuseria, G. E., Robb, M. A., Cheeseman, J. R., et al. (2016). Gaussian 09, revision D.01. Wallingford CT: Gaussian, Inc.

Google Scholar

Garratt, P. J. (1996). in 1,2,4-Triazoles in comprehensive heterocyclic chemistry-II. Editors A. R. Katritzky, C. W. Rees, and E. F. V. Scriven, 127–163. ch. 4.02. doi:10.1016/B978-008096518-5.00080-0

CrossRef Full Text | Google Scholar

Grimme, S., Antony, J., Ehrlich, S., and Krieg, H. (2010). A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 132, 154104. doi:10.1063/1.3382344

PubMed Abstract | CrossRef Full Text | Google Scholar

Grimme, S. (2011). Density functional theory with London dispersion corrections. WIREs Comput. Mol. Sci. 1, 211–228. doi:10.1002/wcms.30

CrossRef Full Text | Google Scholar

Grimme, S., Ehrlich, S., and Goerigk, L. (2011). Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 32, 1456–1465. doi:10.1002/jcc.21759

PubMed Abstract | CrossRef Full Text | Google Scholar

Groom, C. R., Bruno, I. J., Lightfoot, M. P., and Ward, S. C. (2016). The Cambridge structural database. Acta Crystallogr. Sect. B 72, 171–179. doi:10.1107/S2052520616003954

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, H., Zhou, Z., Liang, L., Song, J., Wang, K., Cao, D., et al. (2012). Nitrogen-rich energetic monoanionic salts of 3, 4-bis(1H-5-tetrazolyl)furoxan. Chem. Asian J. 7, 707–714. doi:10.1002/asia.201100702

PubMed Abstract | CrossRef Full Text | Google Scholar

Khakimov, D. V., Dalinger, I. L., and Pivina, T. S. (2015). Quantum chemical modeling of the thermochemical characteristics and acidity of polynitroazole salts. Comput. Theor. Chem. 1063, 24–28. doi:10.1016/j.comptc.2015.03.017

CrossRef Full Text | Google Scholar

Khakimov, D. V., and Pivina, T. S. (2022). New method for predicting the enthalpy of salt formation. J. Phys. Chem. A 126, 5207–5214. in press. doi:10.1021/acs.jpca.2c01114

PubMed Abstract | CrossRef Full Text | Google Scholar

Klapötke, T. M. (2012). “Computational methods,” in Chemistry of high energy materials (Berlin–Boston: Walter de Gruyter), 89.

Google Scholar

Kuchurov, I. V., Zharkov, M. N., Fershtat, L. L., Makhova, N. N., and Zlotin, S. G. (2017). Prospective symbiosis of green chemistry and energetic materials. ChemSusChem 10, 3914–3946. doi:10.1002/cssc.201701053

PubMed Abstract | CrossRef Full Text | Google Scholar

Kumar, D., He, C., Mitchell, L. A., Parrish, D. A., and Shreeve, J. M. (2016a). Connecting energetic nitropyrazole and aminotetrazole moieties with N, N′-ethylene bridges: A promising approach for fine tuning energetic properties. J. Mat. Chem. A 4, 9220–9228. doi:10.1039/C6TA02387H

CrossRef Full Text | Google Scholar

Kumar, D., Mitchell, L. A., Parrish, D. A., and Shreeve, J. M. (2016b). Asymmetric N, N′-ethylene-bridged azole-based compounds: Two way control of the energetic properties of compounds. J. Mat. Chem. A 4, 9931–9940. doi:10.1039/C6TA03536A

CrossRef Full Text | Google Scholar

Larin, A. A., Ananyev, I. V., Dubasova, E. V., Teslenko, F. E., Monogarov, K. A., Khakimov, D. V., et al. (2022). Simple and energetic: Novel combination of furoxan and 1, 2, 4-triazole rings in the synthesis of energetic materials. Energ. Mater. Front. 3. doi:10.1016/j.enmf.2022.08.002

CrossRef Full Text | Google Scholar

Larin, A. A., and Fershtat, L. L. (2021). High-energy hydroxytetrazoles: Design, synthesis and performance. Energ. Mater. Front. 2, 3–13. doi:10.1016/j.enmf.2021.01.001

CrossRef Full Text | Google Scholar

Larin, A. A., Muravyev, N. V., Pivkina, A. N., Suponitsky, K. Yu., Ananyev, I. V., Khakimov, D. V., et al. (2019). Assembly of tetrazolylfuroxan organic salts: Multipurpose green energetic materials with high enthalpies of formation and excellent detonation performance. Chem. Eur. J. 25, 4225–4233. doi:10.1002/chem.201806378

PubMed Abstract | CrossRef Full Text | Google Scholar

Larin, A. A., Shaferov, A. V., Kulikov, A. S., Pivkina, A. N., Monogarov, K. A., Dmitrienko, A. O., et al. (2021). Design and synthesis of nitrogen-rich azo-bridged furoxanylazoles as high-performance energetic materials. Chem. Eur. J. 27, 14628–14637. doi:10.1002/chem.202101987

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, D., and Yu, G. (2021). Innovation of materials, devices, and functionalized interfaces in organic spintronics. Adv. Funct. Mat. 31, 2100550. doi:10.1002/adfm.202100550

CrossRef Full Text | Google Scholar

Liang, L., Huang, H., Wang, K., Bian, C., Song, J., Ling, L., et al. (2012). Oxy-bridged bis(1H-tetrazol-5-yl)furazan and its energetic salts paired with nitrogen-rich cations: Highly thermally stable energetic materials with low sensitivity. J. Mat. Chem. 22, 21954–21964. doi:10.1039/C2JM33873D

CrossRef Full Text | Google Scholar

Liang, L., Wang, K., Bian, C., Ling, L., and Zhou, Z. (2013). 4-Nitro-3-(5-tetrazole)furoxan and its salts: Synthesis, characterization, and energetic properties. Chem. Eur. J. 19, 14902–14910. doi:10.1002/chem.201301042

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, C.-Y., Lin, P.-H., and Lee, K.-M. (2021). Development of step-saving alternative synthetic pathways for functional π-conjugated materials. Chem. Rec. 21, 3498–3508. doi:10.1002/tcr.202100101

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., He, C., Tang, Y., Imler, G. H., Parrish, D. A., and Shreeve, J. M. (2018). Asymmetric nitrogen-rich energetic materials resulting from the combination of tetrazolyl, dinitromethyl and (1, 2, 4-oxadiazol-5-yl)nitroamino groups with furoxan. Dalton Trans. 47, 16558–16566. doi:10.1039/C8DT03616K

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, T., and Chen, F. M. (2012). Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 33, 580–592. doi:10.1002/jcc.22885

PubMed Abstract | CrossRef Full Text | Google Scholar

Ma, J., Tang, J., Yang, H., Yi, Z., Wu, G., Zhu, S., et al. (2019a). Polynitro-Functionalized triazolylfurazanate triaminoguanidine: Novel green primary explosive with insensitive nature. ACS Appl. Mat. Interfaces 11, 26053–26059. doi:10.1021/acsami.9b08363

PubMed Abstract | CrossRef Full Text | Google Scholar

Ma, J., Yang, H., Tang, J., Zhang, G., Yi, Z., Zhu, S., et al. (2020). A novel energetic framework combining the advantages of furazan and triazole: A design for high-performance insensitive explosives. Dalton Trans. 49, 4675–4679. doi:10.1039/D0DT00498G

PubMed Abstract | CrossRef Full Text | Google Scholar

Ma, J., Zhang, G., Gu, H., Tang, J., Wang, B., Yang, H., et al. (2019b). Polynitro-1, 2, 4-triazole-functionalized azo-furazans as high-performance and insensitive energetic materials. New J. Chem. 43, 8370–8375. doi:10.1039/C9NJ01065C

CrossRef Full Text | Google Scholar

Momany, F. A., Carruthers, L. M., McGuire, R. F., and Scheraga, H. A. (1974). Intermolecular potentials from crystal data. III. Determination of empirical potentials and application to the packing configurations and lattice energies in crystals of hydrocarbons, carboxylic acids, amines, and amides. J. Phys. Chem. 78, 1595–1620. doi:10.1021/j100609a005

CrossRef Full Text | Google Scholar

Montgomery, J. J. A., Frisch, M. J., Ochterski, J. W., and Petersson, G. A. (2000). A complete basis set model chemistry. VII. Use of the minimum population localization method. J. Chem. Phys. 112, 6532–6542. doi:10.1063/1.481224

CrossRef Full Text | Google Scholar

Muravyev, N. V., Meerov, D. B., Monogarov, K. A., Melnikov, I. N., Kosareva, E. K., Fershtat, L. L., et al. (2021). Sensitivity of energetic materials: Evidence of thermodynamic factor on a large array of CHNOFCl compounds. Chem. Eng. J. 421 (1), 129804. doi:10.1016/j.cej.2021.129804

CrossRef Full Text | Google Scholar

Muravyev, N. V., Wozniak, D. R., and Piercey, D. G. (2022). Progress and performance of energetic materials: Open dataset, tool, and implications for synthesis. J. Mat. Chem. A 10, 11054–11073. doi:10.1039/D2TA01339H

CrossRef Full Text | Google Scholar

Ochterski, J. W., Petersson, G. A., and Montgomery, J. J. A. (1996). A complete basis set model chemistry. V. Extensions to six or more heavy atoms. J. Chem. Phys. 104, 2598–2619. doi:10.1063/1.470985

CrossRef Full Text | Google Scholar

O’Sullivan, O. T., and Zdilla, M. J. (2020). Properties and promise of catenated nitrogen systems as high-energy-density materials. Chem. Rev. 120, 5682–5744. doi:10.1021/acs.chemrev.9b00804

PubMed Abstract | CrossRef Full Text | Google Scholar

Parisi, E., Landi, A., Fusco, S., Manfredi, C., Peluso, A., Wahler, S., et al. (2021). High-energy-density materials: An amphoteric N-rich bis(triazole) and salts of its cationic and anionic species. Inorg. Chem. 60, 16213–16222. doi:10.1021/acs.inorgchem.1c02002

PubMed Abstract | CrossRef Full Text | Google Scholar

Perdew, J. P., Ernzerhof, M., and Burke, K. (1996). Rationale for mixing exact exchange with density functional approximations. J. Chem. Phys. 105, 9982–9985. doi:10.1063/1.472933

CrossRef Full Text | Google Scholar

Sheldrick, G. M. (2015). Crystal structure refinement with SHELXL. Acta Crystallogr. C Struct. Chem. 71, 3–8. doi:10.1107/s2053229614024218

PubMed Abstract | CrossRef Full Text | Google Scholar

Sheremetev, A. B., Aleksandrova, N. S., Semyakin, S. S., Suponitsky, K. Y., and Lempert, D. B. (2019). Synthesis and characterization of 3-(5-(fluorodinitromethyl)-1H-1, 2, 4-triazol-3-yl)-4-nitrofurazan: A novel promising energetic component of boron-based fuels for rocket ramjet engines. Chem. Asian J. 14, 4255–4261. doi:10.1002/asia.201901280

PubMed Abstract | CrossRef Full Text | Google Scholar

Tang, Y., An, Z., Chinnam, A. K., Staples, R. J., and Shreeve, J. M. (2021). Very thermostable energetic materials based on a fused-triazole: 3, 6-diamino-1H-[1, 2, 4]triazolo[4, 3-b] [1, 2, 4]triazole. New J. Chem. 45, 85–91. doi:10.1039/D0NJ05152G

CrossRef Full Text | Google Scholar

Thottempudi, V., and Shreeve, J. M. (2011). Synthesis and promising properties of a new family of high-density energetic salts of 5-Nitro-3-trinitromethyl-1H-1, 2, 4-triazole and 5, 5′-Bis(trinitromethyl)-3, 3′-azo-1H-1, 2, 4-triazole. J. Am. Chem. Soc. 133, 19982–19992. doi:10.1021/ja208990z

PubMed Abstract | CrossRef Full Text | Google Scholar

Tian, B., Xiong, Y., Chen, L., and Zhang, C. (2018). Relationship between the crystal packing and impact sensitivity of energetic materials. CrystEngComm 20, 837–848. doi:10.1039/C7CE01914A

CrossRef Full Text | Google Scholar

Tomasi, J., Mennucci, B., and Cammi, R. (2005). Quantum mechanical continuum solvation models. Chem. Rev. 105, 2999–3094. doi:10.1021/cr9904009

PubMed Abstract | CrossRef Full Text | Google Scholar

Weigend, F. (2006). Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 8, 1057–1065. doi:10.1039/B515623H

PubMed Abstract | CrossRef Full Text | Google Scholar

Weigend, F., and Ahlrichs, R. (2005). Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 7, 3297–3305. doi:10.1039/B508541A

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, Z., Cheng, G., Yang, H., Zhang, J., and Shreeve, J. M. (2018). Synthesis and characterization of 4-(1, 2, 4-Triazole-5-yl)furazan derivatives as high-performance insensitive energetic materials. Chem. Eur. J. 24, 10488–10497. doi:10.1002/chem.201801597

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhou, J., Zhang, J., Wang, B., Qiu, L., Xu, R., and Sheremetev, A. B. (2022). Recent synthetic efforts towards high energy density materials: How to design high-performance energetic structures? FirePhysChem 2, 83–139. doi:10.1016/j.fpc.2021.09.005

CrossRef Full Text | Google Scholar

Zlotin, S. G., Churakov, A. M., Egorov, M. P., Fershtat, L. L., Klenov, M. S., Kuchurov, I. V., et al. (2021). Advanced energetic materials: Novel strategies and versatile applications. Mendeleev Commun. 31, 731–749. doi:10.1016/j.mencom.2021.11.001

CrossRef Full Text | Google Scholar
