Mono-/Bis-Alkenoic Acid Derivatives From an Endophytic Fungus Scopulariopsis candelabrum and Their Antifungal Activity

During a screening for antifungal secondary metabolites, six new mono-/bis-alkenoic acid derivatives (2–7) and one known alkenoic acid derivative (1) were isolated from an endophytic fungi Scopulariopsis candelabrum. Their chemical structures were identified by ¹H-NMR, ¹³C-NMR, 2D NMR, and high-resolution mass spectrometry, as well as comparisons with previously reported literatures. Among them, fusariumesters C‒F (2–5) are bis-alkenoic acid derivatives dimerized by an ester bond, while acetylfusaridioic acid A (6) and fusaridioic acid D (7) are alkenoic acid monomers. All the isolates were submitted to an antifungal assay against Candida albicans and the corn pathogen Exserohilum turcicum using the filter paper agar diffusion method. As a result, only compound 1 decorating with β-lactone ring turned out to be active against these two tested fungi. The broth microdilution assay against Candida albicans showed the minimum inhibitory concentration (MIC) value of 1 to be 20 μg/ml, while the minimum inhibitory concentration value of the positive control (naystatin) was 10 μg/ml. And the half maximal inhibitory concentration (IC₅₀) value (21.23 μg/ml) of 1 against Exserohilum turcicum was determined by analyzing its inhibition effect on the mycelial growth, using cycloheximide (IC₅₀ = 46.70 μg/ml) as the positive control.

Introduction

Candida albicans, as an opportunistic pathogenic fungus, normally maintain symbiosis with the human body in the skin, oral cavity, and gastrointestinal tract (Mishra and Koh, 2021). When the body’s homeostasis is destroyed, C. albicans transforms into pathogenic fungi, causing various fungal diseases from superficial skin infections to life-threatening systemic infections (Pappas et al., 2009; Hall and Noverr, 2017). According to statistics, four hundred thousand people are infected with C, albicans every year, and 75% of women suffer from vulvovaginal candidiasis at least once in their lives (Fidel et al., 2004; Yang et al., 2014; Rajendran et al., 2016). Even with drug treatment, the fatality rate of invasive C. albicans infection is still close to 40% (Lohse et al., 2018; Whitesell et al., 2019). Among immunocompromised people such as chemotherapy and organ transplantation, the mortality rate of fungal diseases caused by C. albicans is 33–50% (Krcmery et al., 2000; Winston, 1999; Levesque et al., 2015). Therefore, infections caused by C. albicans are still nonnegligible threats to human health.

As an antifungal agent, fluconazole is widely used in the treatment of fungal diseases caused by C. albicans because of its low price, low toxicity, and high efficiency (Lu et al., 2017). However, the drug resistance of C. albicans caused by the widespread use of fluconazole is becoming an increasingly serious problem, and the discovery for new antifungal drugs has become more and more urgent (Whaley et al., 2016; Lu et al., 2017; Lu et al., 2021). Fungal secondary metabolites, as an important source of antifungal drugs (Baker et al., 2007; Di Santo, 2010; Cantrell et al., 2012; Schueffler and Anke, 2014), have attracted much more attention from the researchers. In the past 10 years, 25% of antifungal active compounds are derived from fungi (Aldholmi et al., 2019). Among all the fungal microbial resources, plant endophytic fungi were thought as the valuable resources for the discovery of antifungal agents (Uzma et al., 2018; Newman and Cragg, 2020). Recently, a program to discover antifungal constituents from endophytic fungi associated with characteristic food resources of Yunnan Province, China, was conducted in our lab. Accordingly, an antifungal screening of the strain fermentation extracts against C. albicans targeted an endophytic fungus from stems of tea trees, Scopulariopsis candelabrum KIB-int20. Secondary metabolites reported from the genus Scopulariopsis were mainly cyclodepsipeptides (such as scopularides A and B) and some dihydroquinolin-2-one-containing alkaloids (Yu et al., 2008; Shao et al., 2015; Elbanna et al., 2019). In this study, seven mono-/bis-alkenoic acid derivatives (1–7, Figure 1) were isolated from S. candelabrum KIB-int20 during a screening for antifungal secondary metabolites. We herein report the isolation, structure elucidation and antifungal activity of these polyketides.

FIGURE 1

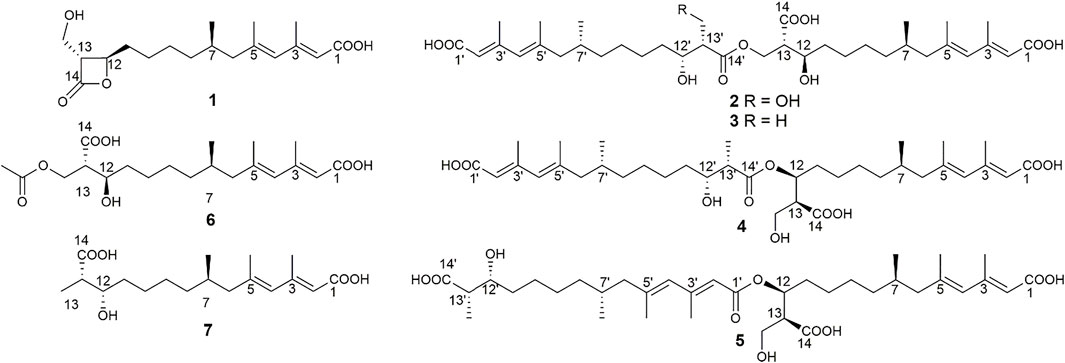

FIGURE 1. Chemical structures of compounds 1‒7.

Materials and Methods

General Experimental Procedures

Optical rotations were measured on an Autopol VI manufactured by Rudolph Research Analytical, Hackettstown, NJ, United States IR spectra were measured on a Nicolet iS10 FT-IR spectrometer (Thermo Fisher Scientific, United States) with KBr disks. NMR spectra were recorded in CDCl₃ (δ_H 7.26 ppm, δ_C 77.16 ppm) or DMSO-d₆ (δ_H 2.50 ppm, δ_C 39.52 ppm) using Bruker Avance III 600 or 800 MHz spectrometers (Bruker Corp, Switzerland). HR-ESI-MS analysis were carried out on a Shimadzu UPLC-IT-TOF mass spectrometer (Shimadzu Corp, Japan). Silica gel (100–200 mesh and 200–300 mesh, Qingdao Marine Chemical Inc, China) and Sephadex LH-20 (18–111 μm, Pharmacia Biotech Ltd, Sweden) were used for the chromatography column (CC). Precoated silica gel GF₂₅₄ plates (0.20–0.25 mm in thickness, Qingdao Marine Chemical Inc, China) were used for thin-layer chromatography (TLC) analyses. Semipreparative HPLC was conducted on a Hitachi Chromaster system (Hitachi Ltd, Japan), equipped with a DAD detector and a YMC-Triart C₁₈ column (250 × 10.0 mm i. d, 5 μm), using a flow rate of 3.0 ml/min at a column temperature at 28°C, and 0.1% (v/v) acetic acid was added to each HPLC mobile phase.

Strain Isolation and Cultivation

Strain S. candelabrum KIB-int20 was isolated from the stems of tea trees (Camellia sinensis (L.) O. Ktze) from Dali, Yunnan Province, China. It was identified as S. candelabrum by a combination of ITS sequence and fungal morphological identification. The internal transcribed spaces (ITS) region was amplified and sequenced using the general primers ITS1 (5′-TCC​GTA​GGT​GAA​CCT​GCG​G-3′) and ITS4 (5′-TCC​TCC​GCT​TAT​TGA​TAT​GC-3′). The ITS region of the fungus was a 605 bp DNA sequence (GenBank No. OK445701), which showed 99% identity to the ITS sequence of strain S. candelabrum (GenBank No. LM652483.1).

S. candelabrum KIB-int20 was first inoculated on a PDA (filtrate of boiled fresh potatoes 200 g/L, dextrose 20 g/L, agar 20 g/L) plate for 5 days, and then transferred to several PDA plates for another 7 days culture. About one-sixth of agar blocks with fungi mycelium was inoculated into a tissue culture vessel (370 ml) containing the fermentation medium. For each tissue culture vessel, 20 g cargo rice, 10 g peptone and 12 ml water were added and sterilized at 121°C for 30 min immediately. The inoculated medium was statically cultivated for 1 month in a dark environment at room temperature. Strain S. candelabrum KIB-int20 was finally fermented with 5 kg of cargo rice in total.

Extraction and Isolation

The fermentation solid of S. candelabrum KIB-int20 was extracted with acetone (10 L×2, d×2) at room temperature. The extracts were concentrated to remove organic solvent. The aqueous residue was then partitioned with EtOAc (2.5 L×4) to obtain an oily crude extract (50 g). The extract was then subjected to silica gel CC eluting with petroleum ether−EtOAc (1:0, 10:1, 5:1, 2:1, 1:1, 1:2, 1:5, 1:10 and 0:1, v/v) to give nine fractions (A−I). An antifungal screening of each fraction against C. albicans was conducted, and fraction D turned out to be active. The main metabolites in each fraction were further analyzed by DAD-HPLC. Main metabolites in fractions D and E shared the same UV absorptions. In this way, fractions D and E were selected for further study. Selected fraction E (petroleum ether−EtOAc 1:1) was first separated by Sephadex LH-20 CC (CH₂Cl₂−CH₃OH, 1:1), and divide it into six subfractions according to the detection results of thin layer chromatography (10% ethanol sulfate in EtOH was served as chromogenic agent). Further purification of these subfractions by semipreparative DAD-HPLC gave compounds 2 (78% methanol in H₂O, t_R = 19.8 min, 3.5 mg), 3 (78% methanol in H₂O, t_R = 33.0 min, 3.5 mg), 4 (78% methanol in H₂O, t_R = 38.0 min, 6.4 mg), and 5 (78% methanol in H₂O, t_R = 50.0 min, 5.4 mg). Another selected fraction D (petroleum ether−EtOAc, 2:1) was sequentially subjected to Sephadex LH-20 CC (CH₂Cl₂−CH₃OH, 1:1) and semipreparative DAD-HPLC to afford 1 (65% methanol in H₂O, t_R = 32.5 min, 8.2 mg), 6 (65% methanol in H₂O, t_R = 34 min, 6.9 mg), and 7 (65% methanol in H₂O, t_R = 42.0 min, 4.4 mg).

Fusariumester C (2): colorless oil [α]^19.9_D 4.5 (c 0.2, MeOH) UV (MeOH); λ_max (log ε) 196 (3.99), 232 (3.59), 269 (3.93) nm; IR (KBr) ν_max 3,419, 2,927, 2,856, 1712, 1,620, 1,382, 1,250, 1,176 cm^₋1. HR-ESI-MS: m/z 665.3909 [M ‒ H]^‒ (calcd for C₃₆H₅₇O₁₁, 665.3906). ¹H NMR (600 MHz, DMSO-d₆) data see Table 1, and ¹³C NMR (150 MHz, DMSO-d₆) data see Table 2.

TABLE 1

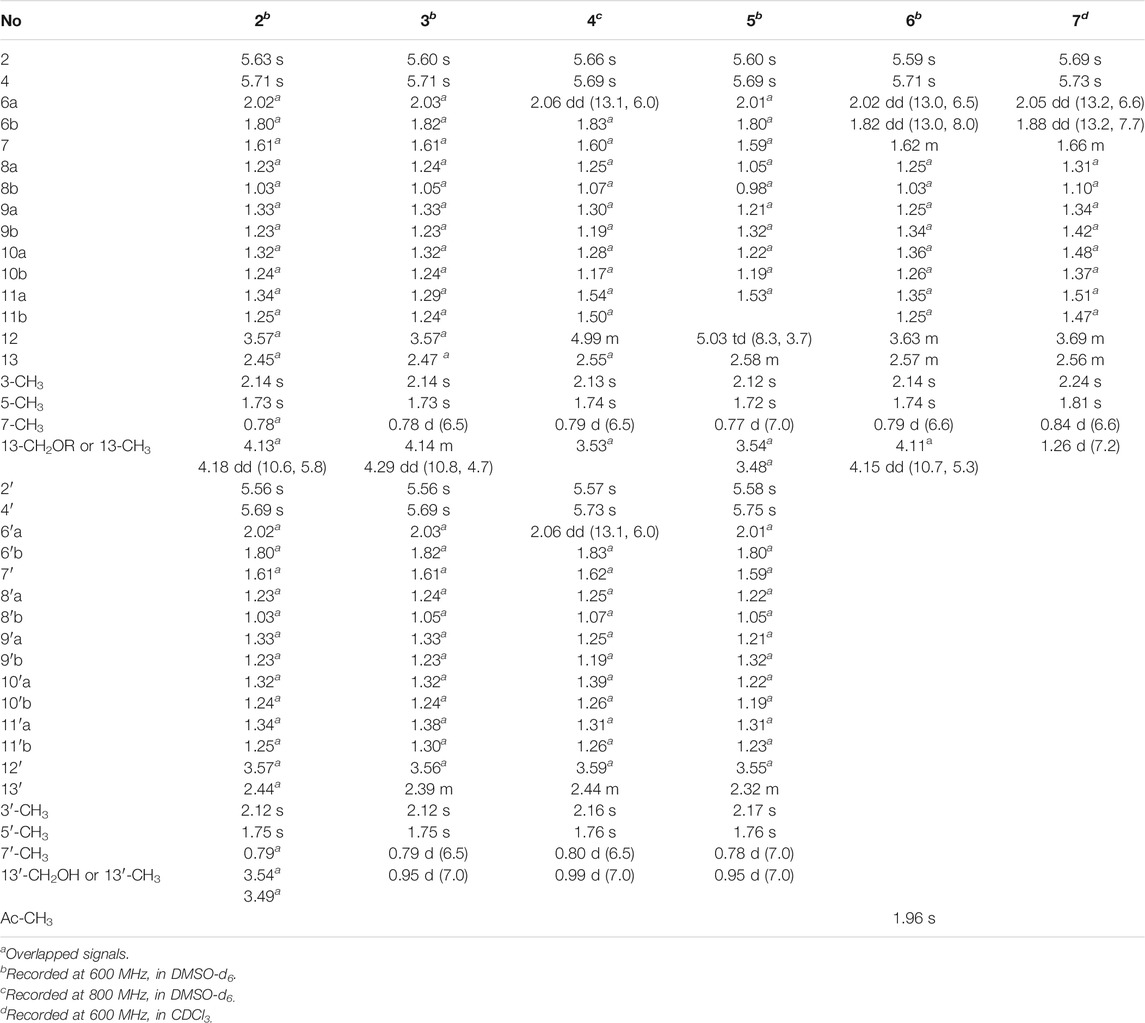

TABLE 1. ¹H NMR Data of Compounds 2–7 (δ in ppm, J in Hz).

TABLE 2

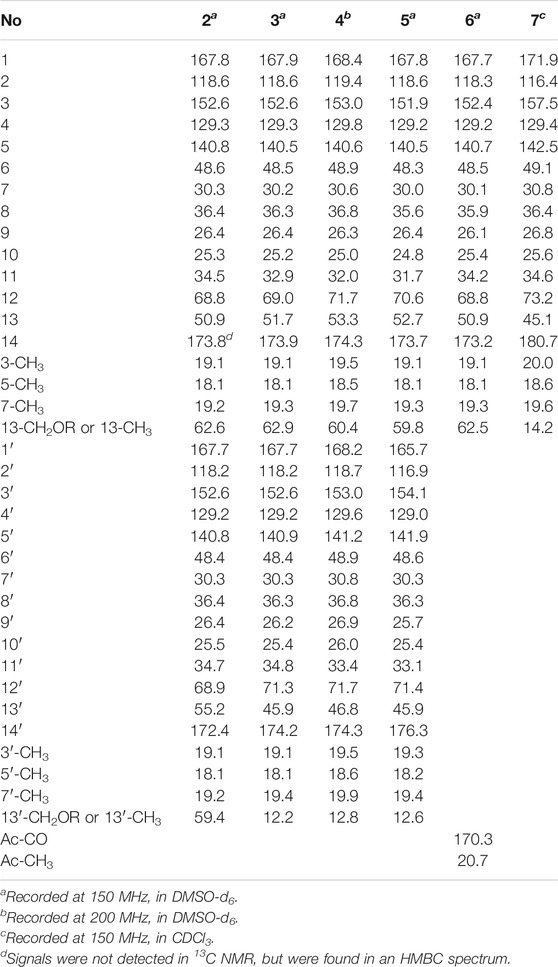

TABLE 2. ¹³C NMR Data of Compounds 2–7 (δ in ppm).

Fusariumester D (3): colorless oil [α]^19.9_D 3.2 (c 0.2, MeOH) UV (MeOH); λ_max (log ε) 196 (4.07), 232 (3.69), 270 (4.07) nm; IR (KBr) ν_max 3,659, 3,433, 2,927, 2,857, 2,011, 1,711, 1,621, 1,530, 1,378, 1,343, 1,324, 1,251, 1,176 cm^₋1. HR-ESI-MS: m/z 649.3952 [M‒H]^‒ (calcd for C₃₆H₅₇O₁₀, 649.3957). ¹H NMR (600 MHz, DMSO-d₆) data see Table 1, and ¹³C NMR (150 MHz, DMSO-d₆) data see Table 2.

Fusariumester E (4): colorless oil [α]^19.9_D 1.0 (c 0.2, MeOH) UV (MeOH); λ_max (log ε) 196 (4.22), 229 (3.86), 269 (4.32) nm; IR (KBr) ν_max 2,925, 2,854, 2,644, 2,566, 1,687, 1,604, 1,381, 1,325, 1,253, 1,178 cm^₋1. HR-ESI-MS: m/z 649.3959 [M‒H]^‒ (calcd for C₃₆H₅₇O₁₀, 649.3957). ¹H NMR (800 MHz, DMSO-d₆) data see Table 1, and ¹³C NMR (200 MHz, DMSO-d₆) data see Table 2.

Fusariumester F (5): colorless oil [α]^19.9_D ‒ 6.0 (c 0.2, MeOH) UV (MeOH); λ_max (log ε) 196 (4.35), 232 (3.96), 271 (4.38) nm; IR (KBr) ν_max 3,420, 2,927, 2,857, 2,644, 1,712, 1,619, 1,381, 1,234, 1,150 cm^₋1. HR-ESI-MS: m/z 649.3956 [M‒H]^‒ (cald for C₃₆H₅₇O₁₀, 649.3957). ¹H NMR (600 MHz, DMSO-d₆) data see Table 1, and ¹³C NMR (150 MHz, DMSO-d₆) data see Table 2.

Acetylfusaridioic acid A (6): colorless oil [α]^19.9_D 5.7 (c 0.15, MeOH) UV (MeOH); λ_max (log ε) 196 (3.85), 230 (3.48), 270 (3.95) nm; IR (KBr) ν_max 3,412, 2,928, 2,859, 2,645, 1,740, 1,716, 1,618, 1,382, 1,250, 1,184 cm^₋1. HR-ESI-MS: m/z 383.2074 [M‒H]^‒ (calcd for C₂₀H₃₁O₇, 383.2075). ¹H NMR (600 MHz, DMSO-d₆) data see Table 1, and ¹³C NMR (150 MHz, DMSO-d₆) data see Table 2.

Fusaridioic acid D (7): colorless oil [α]^19.9_D 7.2 (c 0.2, MeOH) UV (MeOH); λ_max (log ε) 196 (3.66), 230 (3.66), 269 (4.09) nm; IR (KBr) ν_max 3,400, 2,929, 2,858, 2,640, 2,229, 2,195, 2,179, 2,164, 2,153, 2,113, 2,056, 2,023, 2.011, 1,970, 1,959, 1,692, 1,622, 1,377, 1,324, 1,251, 1,175 cm^₋1. HR-ESI-MS: m/z 325.2023 [M‒H]^‒ (calcd for C₁₈H₂₉O₅, 325.2020). ¹H NMR (600 MHz, CDCl₃) data see Table 1, and ¹³C NMR (150 MHz, CDCl₃) data see Table 2.

Antifungal Activity Assay

Rough Antifungal Activity Test: The rough antifungal activity of compounds 1−7 was measured by the filter paper agar diffusion method (Xu et al., 2015). 1 ml suspension (1 × 10⁵ CFU cell or spore concentration) of C. albicans, or Exserohilum turcicum, Curvularia lunata, or Fusarium oxysporum in 20% glycerin was inoculated in a Petri dish containing PDA medium; autoclaved paper disks (6 mm diameter) were placed around the fungal inoculant on the same Petri dish, and each of the paper disks impregnated with 10 μg testing samples, nystatin (positive control) or an equivalent volume of methanol (blank control). Fungal inoculants were cultivated in dark at 30°C for 2 days, and then the size of the inhibition zones was analyzed. Each compound was retested three times.

Measurement of minimum inhibitory concentration (MIC) Values (Yu et al., 2016): A single colony of C. albicans on the SDA plate (1% peptone, 4% dextrose and 2% agar) was picked and inoculated into 5 ml YPD (1% yeast extract, 2% peptone and 2% dextrose) liquid medium and cultivated at 37°C, 200 r/min for 16 h to reach the logarithmic growth phase. According to the measured growth curve of C. albicans, the fungal inoculum was diluted with YPD liquid medium, ensuring the abundance of the strains was 3 × 10⁷ CFU/ml. Compound 1, nystatin (positive control) and equivalent methanol (blank control) were dispensed in single wells and mixed with diluted fungal inoculum to make the final concentrations of tested compounds were 10, 20, 40, 80, 160 and 320 μg/ml in a single well, respectively. After 48 h of shaking culture at 37°C and 200 r/min, the results were determined visually. The MIC was defined as the lowest concentration where there was no visible growth of C. albicans. All the experiments were carried out in triplicate.

Measurement of half maximal inhibitory concentration (IC₅₀) Values (Weidenborner et al., 1990): The IC₅₀ of compound 1 against E. turcicum was evaluated using 48-well culture plates. The conidia used in these experiments were collected from the 7-day-old culture of fungi grown on PDA. The conidia were collected and the suspension was diluted with sterile water and mix 1:1 with PDB (filtrate of boiled fresh potatoes 200 g/L, dextrose 20 g/L) solution for activity test. 1 ml 1/2 PDB spore suspension was added to single wells, and 1, 2, 4, 8, 16 or 32 μL compound 1 or cycloheximide (10 mg/ml) was added to make the final concentration is 9.99–310.07 μg/ml in a single well. After the 48-well plate was cultured at 200 r/min and 30°C for 7 days, the mycelium at each concentration were collected, dried and weighed. The inhibition rates were treated by nonlinear regression analysis of logistic dose–respond curves (Graph Pad Prism eight statistic software) to get the IC₅₀ value.

Results and Discussion

Structural Elucidation

A series of chromatographic methods were used for the isolation of monomeric compounds from the strain fermentation extracts, and diverse spectroscopic analyses were used for their structure elucidation. As a result, seven polyketides were isolated and identified, including one known compound, hymeglusin (1) (Kumagai et al., 1992; Tomoda et al., 1988), four new bis-alkenoic acid derivatives named fusariumesters C−F (2–5), and two new alkenoic acid monomers named acetylfusaridioic acid A (6) and fusaridioic acid D (7). The absolute configuration of hymeglusin (1) was previously determined by chemical degradation method and Mosher method (Chiang et al., 1988). The optical rotation of hymeglusin (1) was {[α]^19.4_D 24.56 (c 0.2, CHCl₃)} in our project, which reported in the literature was [α]²²_D 10.6 (c 0.1, CHCl₃) (Kanaida et al., 2021).

Compound 2 (fusariumester C) was isolated as colorless oil. Its molecular formula was determined to be C₃₆H₅₈O₁₁ by HR-ESI-MS analysis (m/z 665.3909 [M ‒ H]^‒, calcd for C₃₆H₅₇O₁₁, 665.3906, Supplementary Figure S9), suggesting eight degrees of unsaturation. The IR spectrum of 2 displayed characteristic adsorptions for carbonyl groups and carbon-carbon double bonds at 1,712 and 1,620 cm⁻¹, respectively. The ¹³C NMR data (Table 2) of 2 showed 36 carbon resonances, and all signals appeared in pairs. Moreover, each pair of the signals closely resembled those of fusaridioic acid A (Liu et al., 2018). Additionally, comparing the molecular weight (666 Da) of 2 with twice that of fusaridioic acid A (342 Da) yielded a difference of 18 Da. Accordingly, 2 was speculated to be an esterified dimer of fusaridioic acid A (Liu et al., 2018). Further detailed analysis of its NMR data (Supplementary Figures S3–8) supported this hypothesis. Based on the literature report (Liu et al., 2018), two ¹³C NMR signals at δ_C 167.7 and δ_C 167.8 were obviously assigned as carboxylic acid carbonyls connecting to quaternary olefinic carbons, while signals at δ_C 173.8 and δ_C 172.4 were assigned as aliphatic carboxylic acid carbonyl groups or ester carbonyl groups. The methines at δ_C 68.8 and δ_C 68.9 were attributed to hydroxy-substituted ones. The two methylenes at δ_C 62.6 and δ_C 59.4 were assigned to be oxygen-bearing ones, and the small difference between their chemical shifts may due to the formation of an ester bond for one of these two carbons. The ¹H NMR data (Table 1 and Supplementary Figure S3) of 2 revealed four olefinic proton signals at δ_H 5.56, 5.63, 5.71, 5.69. Detailed HMBC correlations associated with these four above-mentioned protons established the presence of two pairs of diene moieties conjugating with terminal carboxyls (the fragments from C-1 to C-6, and from C-1′ to C-6′, Figure 2). The ¹H NMR data of 2 also showed two overlapped doublets (δ_H 0.78 and 0.79) of methyls in the high field region (Supplementary Figure S3). Starting with these two above-mentioned methyl signals, two similar aliphatic carbon chains [7-Me(C-6)/C-7/C-8/C-9/C-10/C-11/C-12/C-13/13-CH₂O and 7′-Me(C-6′)/C-7′/C-8′/C-9′/C-10′/C-11′/C-12′/C-13′/13′-CH₂O, Figure 2] were deduced based on a combined analyses of its HSQC and ¹H–¹H COSY spectra. Lastly, the key HMBC correlations from the proton at δ_H 4.13 (one proton of 13-CH₂OR) to the carbons of C-12, C-13, C-14 and C-14′ demonstrated that two molecules of fusaridioic acid A were dimerized via the ester bond built by 13-CH₂OH and the carboxylic acid group at C-14′ (Figure 2). Thus, the planar structure of 2 was elucidated.

FIGURE 2

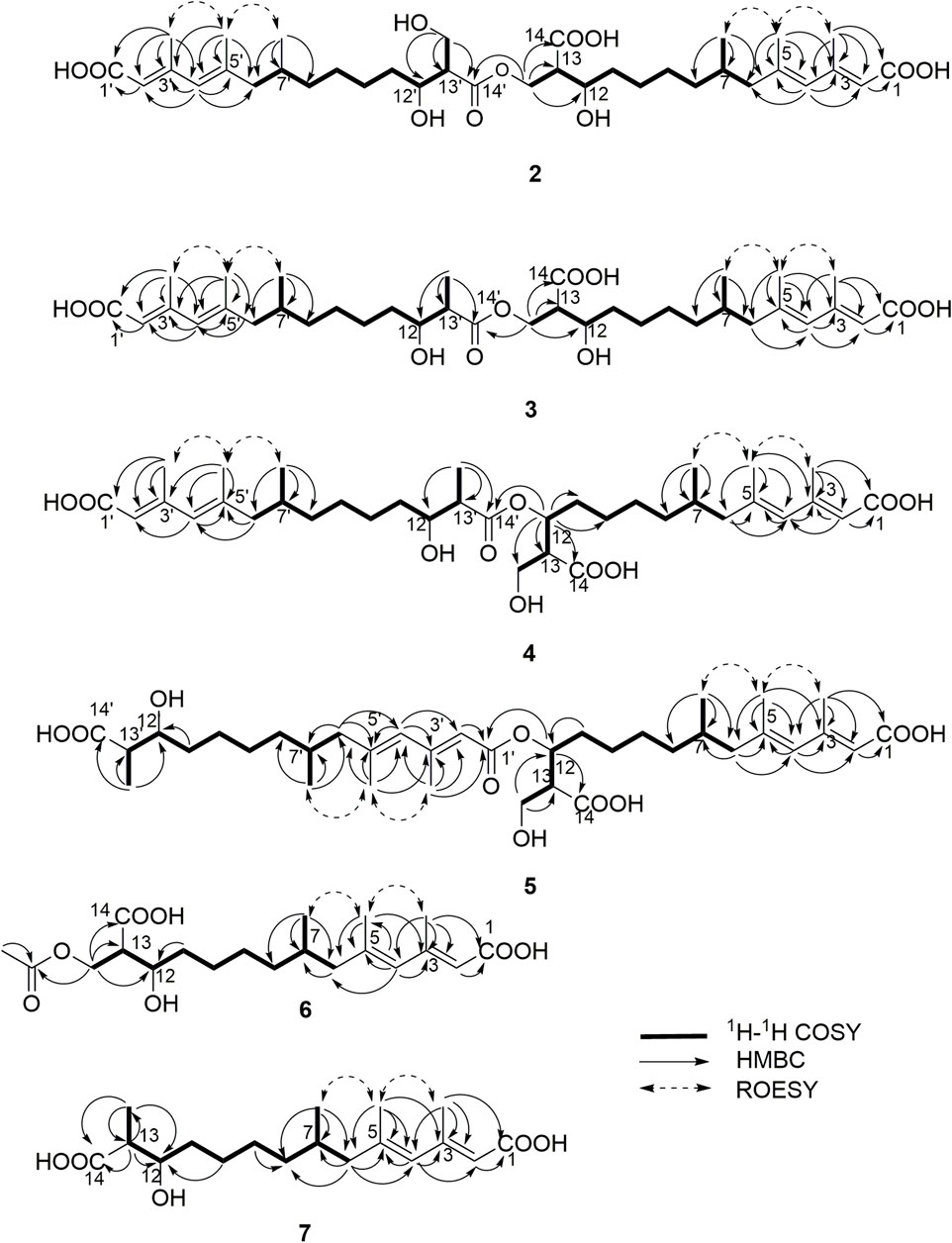

FIGURE 2. Key HMBC, ¹H–¹H COSY and ROESY correlations of compounds 2‒7.

The configurations of the four double bonds in 2 were revealed by the analysis of its ROESY spectrum (Figure 2 and Supplementary Figure S8). However, the ¹H NMR data of 2 were helpless for the determination of its stereochemistry because of signal overlapping. For the stereochemistry of reported mono-/bis-alkenoic acid derivatives, the configurations of C-7 (7′) and C-13 (13′) were conserved to be 7R (7′R) and 13S (13′S) (Liu et al., 2018; Niu et al., 2019; Tang et al., 2019), while the configuration of C-12 (12′) turned out to be 12 (12′) R or 12 (12′) S (Liu et al., 2018). Recently, it was reported that the configurations of fungal polyketides were conserved in general with few exceptions (Takino et al., 2021). Therefore, in view of the shared biosynthetic pathway of mono-/bis-alkenoic acid derivatives, as well as previous literature reports (Liu et al., 2018; Niu et al., 2019; Tang et al., 2019), the configurations of C-7 (7′) and C-13 (13′) in 2 were supposed to be 7R (7′R) and 13S (13′S), respectively. Compared with the ¹³C NMR and ¹H NMR chemical shifts of C-12 (12′) in the dimers reported in the literature (Liu et al., 2018, Supplementary Table S1), the absolute configurations of C-12 (12′) in compound 2 were determined to be 12R (12′R). In this way, the chemical structure of 2 was identified as shown in Figure 1. Since three similar alkenoic acid dimers were given the trivial names of fusariumesters A₁, A₂, and B (Liu et al., 2018) previously, compound 2 was named as fusariumester C.

Compound 3 (fusariumester D) was isolated as colorless oil. Its molecular formula was confirmed to be C₃₆H₅₈O₁₀ by HR-ESI-MS data (m/z 649.3952 [M ‒ H]^‒, calcd for C₃₆H₅₇O₁₀, 649.3957, Supplementary Figure S16), indicating eight degrees of unsaturation. The molecular weight of compound 3 (650 Da) was lower than that of compound 2 (666 Da) with a difference of 16 Da. The ¹H and ¹³C NMR spectra of 3 closely resembled those of 2 (Table 1 and Table 2), and the comparison of their ¹H and ¹³C NMR data (Supplementary Figures S10,11) indicated a methyl (13′-Me) in 3 instead of a hydroxymethyl (13′-CH₂OH) in 2. This hypothesis was confirmed by HMBC (Supplementary Figure S13) correlations from protons of 13′-CH₂OH to C-12′, C-13′, and C-14’ (Figure 2). Analogously, a group of HMBC correlations from the proton at δ_H 4.14 (one proton of 13-CH₂OR) to C-12, C-13, C-14, and C-14′ proved that 3 shared the same esterified dimerization way as 2.

Compound 4 (fusariumester E) is a colorless viscous oil. Its molecular formula was determined to be same with that of 3 based on the HR-ESI-MS analysis (m/z 649.3959 [M ‒ H]^‒, calcd for C₃₆H₅₇O₁₀, 649.3957, Supplementary Figure S23). The ¹H and ¹³C NMR data of 4 and 3 were highly similar (Table 1 and Table 2). The most striking differences between their ¹³C NMR data were that chemical shift of 13-CH₂OR was upfield shifted from 62.9 ppm in 3 to 60.4 ppm in 4, and the chemical shift of C-12 was downfield shifted from 69.0 ppm in 3 to 71.7 ppm in 4. In view of the same molecular formula shared by 3 and 4, this phenomenon implied that 4 might possess a different dimerization site. Key HMBC correlations from H-12 to C-10, C-11, C-13, C-14 and C-14′ certified that an ester bond was built in 4 with the carboxylic acid group in one monomer at C-14′ and the hydroxyl at C-12 in another monomer (Figure 2).

Compound 5 (fusariumester F) was also isolated as colorless oil. Its molecular formula was speculated to be C₃₆H₅₈O₁₀ by HR-ESI-MS analysis (m/z 649.3956 [M ‒ H]^‒, cald for C₃₆H₅₇O₁₀, 649.3957, Supplementary Figure S30). Comparing the ¹H and ¹³C NMR data of 5 with those of 2–4 (Table 1 and Table 2) predicted 5 also to be a bis-alkenoic acid derivative but decorating with another new esterified dimerization way. A vital HMBC (Supplementary Figure S27) cross peak of H-12/C-1′ defined that the hydroxyl at C-12 in one monomer and the terminal carboxylic acid at C-1′ contributed to the dimerized ester bond in 5.

Compound 6 (acetylfusaridioic acid A) was isolated as colorless oil. Its elemental composition was determined to be C₂₀H₃₂O₇ by HR-ESI-MS analysis (m/z 383.2074 [M ‒ H]^‒, calcd for 383.2075 C₂₀H₃₁O₇, Supplementary Figure S37), indicating five degrees of unsaturation. Its ¹H NMR and HSQC data distinctly showed two olefinic protons (δ_H 5.59 and 5.71), two oxygenated gem-protons (δ_H 4.11 and 4.15), and four methyl groups (three singlets at δ_H 2.14, 1.96, 1.74, and one doublet at δ_H 0.79). Three down-field shifted carbonyls (δ_C 173.2, 170.3, 167.7), four olefinic carbons (δ_C 152.4, 140.7, 129.2, 118.3), one oxygen-bearing methylene (δ_C 62.5), and four methyl groups (δ_C 20.7, 19.3, 18.1, 19.1) were observed in the ¹³C NMR spectrum of 6. Examination of its detailed ¹³C NMR data with those of fusaridioic acid A (Liu et al., 2018) suggested that 6 was the product of acetylation at 13-CH₂OH in fusaridioic acid A. Key HMBC (Supplementary Figure S34) correlations from protons (δ_H 4.11 and 4.15) of 13-CH₂O moiety to the carbonyl (δ_C 170.3) of the acetyl group supported this deduction (Figure 2). Like compound 2, the configurations of C-7 and C-13 in 6 were supposed to be 7R and 13S based on a thought of conserved biosynthetic logic. And the C-12 (12′) absolute configurations in compounds 3, 4, 5, and 6 were determined to be 12R (12′R), 12S (12′R), 12S (12′R), and 12R, respectively, by comparisons of their proton NMR data of H-12 (12′) with literature reports (Supplementary Table S1).

Fusaridioic acid D (7) was found to possess the molecular formula C₁₈H₃₀O₅ from the HR-ESI-MS data (m/z 325.2023 [M‒H]^‒, calcd for 325.2020 C₁₈H₂₉O₅, Supplementary Figure S44), corresponding to an unsaturation index of four. Detailed analyses of its ¹H and ¹³C NMR data (Table 1 and Table 2) revealed that 7 is one of the monomers involved in compound 3. That’s to say the chemical structure of 7 is a dehydroxylation product of fusaridioic acid A (Liu et al., 2018). This hypothesis was further proved by key HMBC (Supplementary Figure S41) correlations from a methyl (δ_H 1.26) to C-14, C-13, and C-12 in 7 (Figure 2). By referring to the ¹³C NMR and ¹H NMR chemical shifts of known compounds with similar structural units, the absolute configuration of C-12 in compound 7 was determined to be 12S (Supplementary Tables S1) (Ying and Hong, 2007; Bisek et al., 2008).

Evaluation of Antifungal Activity

The rough antifungal activity of compounds 1–7 were measured by the filter paper agar diffusion method (Xu et al., 2015). Compounds 2–7 showed no significant inhibitory activity against C. albicans, and only compound 1 could inhibit C. albicans (Supplementary Figure S49). The MIC value (20 μg/ml) of 1 against C. albicans was then determined by broth microdilution techniques (Yu et al., 2016), using nystatin (MIC = 10 μg/ml) as the positive control (Supplementary Figure S46). As the previous references reported the antifungal activity of alkenoic acids against plant pathogens (Liu et al., 2018; Niu et al., 2019; Tang et al., 2019), all the isolates were also submitted to an antifungal assay against three agricultural pathogenic fungi, Exserohilum turcicum, Curvularia lunata, and Fusarium oxysporum. As a result, only compound 1 showed a good inhibitory activity against E. turcicum, with an IC₅₀ value (21.23 μg/ml) significantly lower than the positive control, cycloheximide (IC₅₀ = 46.70 μg/ml) (Supplementary Figures S47,48). Except for hymeglusin (1), none of the isolated alkenoic acid derivatives could suppress the growth of tested pathogenic fungi. Therefore, it could be concluded that the β-lactone ring was a key moiety for the antifungal activity. Just as the previous reports, the antifungal activity of alkenoic acid derivatives is always accompanied by the appearance of the β-lactone ring (Liu et al., 2018; Niu et al., 2019; Tang et al., 2019). It was reported that the β-lactone ring played a key role in inhibiting fungal HMG-CoA (3-hydroxy-3-methylglutaryl-CoA) synthase activity (Greenspan et al., 1993; Tomoda et al., 2004; Skaff et al., 2012).

Conclusions

In recent years, 23 alkenoic acid derivatives were reported in total (Supplementary Figure S51) (Liu et al., 2018; Niu et al., 2019; Tang et al., 2019). Among them, most of the alkenoic acid derivatives are acyclic, and seven of them are decorating with terminal lactone rings, including β-lactone (such as fusarilactone A, fusarilactone B, hymeglusin, fusarisolin A, and fusariumester B), γ-lactone (such as fusarisolin B), and δ-lactone (such as fusarilactone C). For these reported alkenoic acids, oxidative modifications (carboxylic acids or hydroxyls) often occur at C-1, C-12, Me-13, and C-14. The stereochemistry of acyclic alkenoic acids is usually conserved with 7R and 13S, while the stereochemistry of C-12 with a hydroxy modification is hybrid with R (eg, fusarisolin D, fusaridioic acid A, and fusariumester A₂) or S (eg, fusariumester A₁ and L-660282) configuration. Preliminary biosynthetic study of 1233A (equal to F-244, L-659, 699, or hymeglusin) revealed that alkenoic acids are built via a type I polyketide synthase (PKS) logic (Kumagai et al., 1992; Kato et al., 2020). A plausible biosynthetic pathway of compounds 1–7 was also proposed in our project (Supplementary Figure S50).

To date, only three examples of dimerized alkenoic acid compounds (fusariumesters A₁, A₂, and B) have been reported (Liu et al., 2018), of which fusariumesters A₁ and A₂ are dimerized by an ester bond formed by the hydroxyl group at C-12 and the carboxyl group at C-14′, and fusariumester B is dimerized by an ester bond involving the hydroxyl group at C-12 and the carboxyl group at C-1′. In this paper, we reported six new mono-/bis-alkenoic acid derivatives (2–7) and one known alkenoic acid derivative (1) from an endophytic fungi S. candelabrum. Consistent with previous reports (Greenspan et al., 1987; Omura et al., 1987; Tomoda et al., 1988), the antifungal screening found that hymeglusin (1) with a β-lactone ring exhibited obvious activity against C. albicans (Tomoda et al., 1988) and E. turcicum. In addition, our discovery of these four new dimerized alkenoic acids (fusariumesters C−F, 2–5) expanded the structure diversity of this family of natural products. These alkenoic acid dimers may be formed via the esterification of the same or different monomers with the aid of one or more esterases (Xu et al., 2020). It is also possible that the dimerization is initiated by thioesterase catalysis (Du and Lou, 2010).

Data Availability Statement

All datasets for this study are included in the article/Supplementary Material.

Author Contributions

JT and XH contributed equally to this work. JT and XH isolated the compounds. JT, XH, and LW identified the chemical structures and prepared the original manuscript. M-HC isolated the strain and performed the strain fermentation. JT and ZW conducted the antifungal assay. YY identified the strain. JT, LW, ZY, J-PH, and S-XH revised the manuscript. S-XH, YY, J-PH, and LW provided financial supports for this project. S-XH designed and supervised the research. All authors approved of the final version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (Nos. 21977100 and 32000239), Yunnan Provincial Science and Technology Department (Nos. 2019FJ007, 2019FA034, and 202101AU070066), and Biological Resources Program of Chinese Academy of Sciences (No.KFJ-BRP-009).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2021.812564/full#supplementary-material
