Recent Advances in Hollow Gold Nanostructures for Biomedical Applications

The localized surface plasmon resonance of metallic nanoparticles has attracted much attention owing to its unique characteristics, including the enhancement of signals in sensors and photothermal effects. In particular, hollow gold nanostructures are highly promising for practical applications, with significant advantages being found in their material properties and structures: 1) the interaction between the outer surface plasmon mode and inner cavity mode leads to a greater resonance, allowing it to absorb near-infrared light, which can readily penetrate tissue; 2) it has anti-corrosiveness and good biocompatibility, which makes it suitable for biomedical applications; 3) it shows a reduced net density and large surface area, allowing the possibility of nanocarriers for drug delivery. In this review, we present information on the classification, characteristics, and synthetic methods of hollow gold nanostructures; discuss the recent advances in hollow gold nanostructures in biomedical applications, including biosensing, bioimaging, photothermal therapy, and drug delivery; and report on the existing challenges and prospects for hollow gold nanostructures.

Introduction

Owing to recent advances in the fabrication and analysis of metal nanoparticles, localized surface plasmon resonance (LSPR) has been extensively investigated and used in a broad range of fields. LSPR is the strong oscillation of the electron cloud of metal nanoparticles induced by incident light (Figure 1). This phenomenon increases the intensity of the electromagnetic field around the metal nanoparticles and is observed as a resonance absorption or scattering peak in the spectrum (Maier, 2007; Kreibig and Vollmer, 2013). The properties of LSPR can be affected by several factors, including the size and morphology of the nanoparticles, as well as the local dielectric environment (Jensen et al., 2000; Tran et al., 2020; Sekhon, 2021). By varying these factors, the LSPR peak can be tuned between visible and near-infrared light. The above-mentioned characteristics of LSPR allow us to apply it to various biomedical applications, such as biosensing (Lee et al., 2011), bioimaging (Feng et al., 2015), photothermal therapy (PTT) (Ding et al., 2014), and drug delivery (Bao et al., 2016). Gold nanostructures, a candidate material for effective LSPR, have been widely researched for their biomedical applications because of their large surface-to-volume (S/V) ratio, biocompatibility, and ease of surface modification (Chithrani et al., 2006; Lim et al., 2011). Gold nanostructures can be classified into two groups according to their structural symmetry: 1) isotropic, such as gold nanospheres, and 2) anisotropic, such as gold nanorods, nanoprisms, and nanostars. These gold nanostructures have unique optical and physical properties.

FIGURE 1

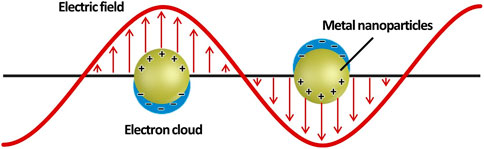

FIGURE 1. Schematic illustration of a metal nanoparticle’s electron cloud oscillation.

Among the aforementioned gold nanostructures, hollow gold nanostructures, which have hollow cavities inside them, have been intensively investigated owing to their unique advantages over pre-existing solid gold nanostructures (e.g., larger S/V ratio, enhanced resonance with the interaction of outer–inner plasmons, and availability of internal cavities to encapsulate other substances, which have the potential to be exploited in various biomedical applications) (Skrabalak et al., 2007; Goodman et al., 2014). Herein, we summarize the classification, characteristics, and synthetic methods of hollow gold nanostructures by focusing on their advantages and potential. The research trends and prospects of hollow gold nanostructures in biomedical applications corresponding to biosensors, bioimaging, PTT, and drug delivery are presented.

Characteristics and Synthesis of Hollow Gold Nanostructures

Characteristics of Hollow Gold Nanostructures

Similar to conventional gold nanostructures, hollow gold nanostructures are promising materials for biomedical applications, owing to their chemical stability, biocompatibility, and ease of surface modification. However, the most apparent difference between solid and hollow gold nanostructures is the existence of an inner cavity. The inner cavity provides additional functionalities to hollow gold nanostructures, such as anticancer drug loading and interaction between the inner and outer surfaces; thus, these structures can be utilized as a new strategy for chemo–photothermal therapy or light-responsive drug release systems. Hollow gold nanostructures can be synthesized with various sizes and morphologies (including hollow gold nanospheres, gold nanocages/frames, gold nanorings, hollow gold nanostars, hollow gold nanorods, and hollow gold nanoprisms) depending on several factors, including the synthetic protocol, reaction temperature, and reaction atmosphere (Figure 2). Although there are differences in morphology, these hollow gold nanostructures have a thin gold shell in common, and the LSPR characteristics can be tuned by controlling the shell properties, which is not the case for solid gold nanostructures.

FIGURE 2

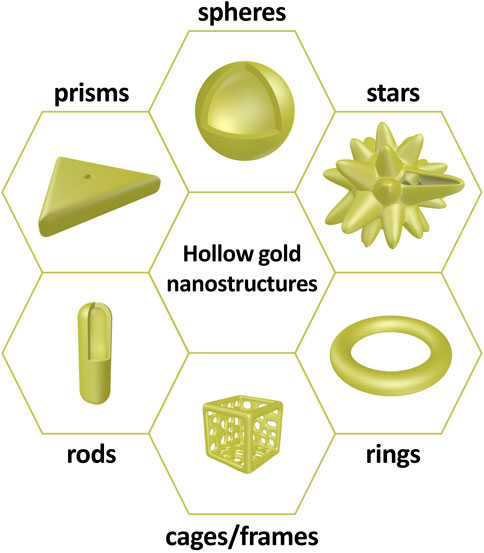

FIGURE 2. Schematic illustrations of hollow gold nanostructures: spheres, stars, rings, cages/frames, rods, and prisms.

Lindley et al. (2018) reported an improved size control method for Co₂B nanoparticles and the role of environmental oxygen for galvanic exchange, which gives two-fold tunability of hollow gold nanospheres. They synthesized two types of hollow gold nanospheres with different diameters and shell thicknesses: 1) identical outer diameters with different aspect ratios (the ratio of outer diameter to shell thickness), providing LSPR peak tunability (Figures 3A,B), and 2) different outer diameters with the same aspect ratio, providing identical LSPR peaks that allow a range of hollow gold nanoparticles to have uniform energy distributions (Figures 3C,D). Specifically, this two-fold tunability is caused by the hybridization of plasmons, which is the interaction between the outer- and cavity-surface plasmons. Prodan et al. (2003) reported the highly geometry-dependent plasmon response of hollow gold nanospheres based on the hybridization of plasmons. The outer and inner plasmons interact with each other owing to the finite thickness of the hollow gold nanosphere shell; therefore, this interaction can be controlled by changing the thickness. The above-mentioned results show that hollow gold nanostructures provide an additional factor (thickness of the shell layer) to control the LSPR properties, and these hollow structures are more viable than conventional solid gold nanostructures for various applications that require a certain particle size or specific LSPR peaks.

FIGURE 3

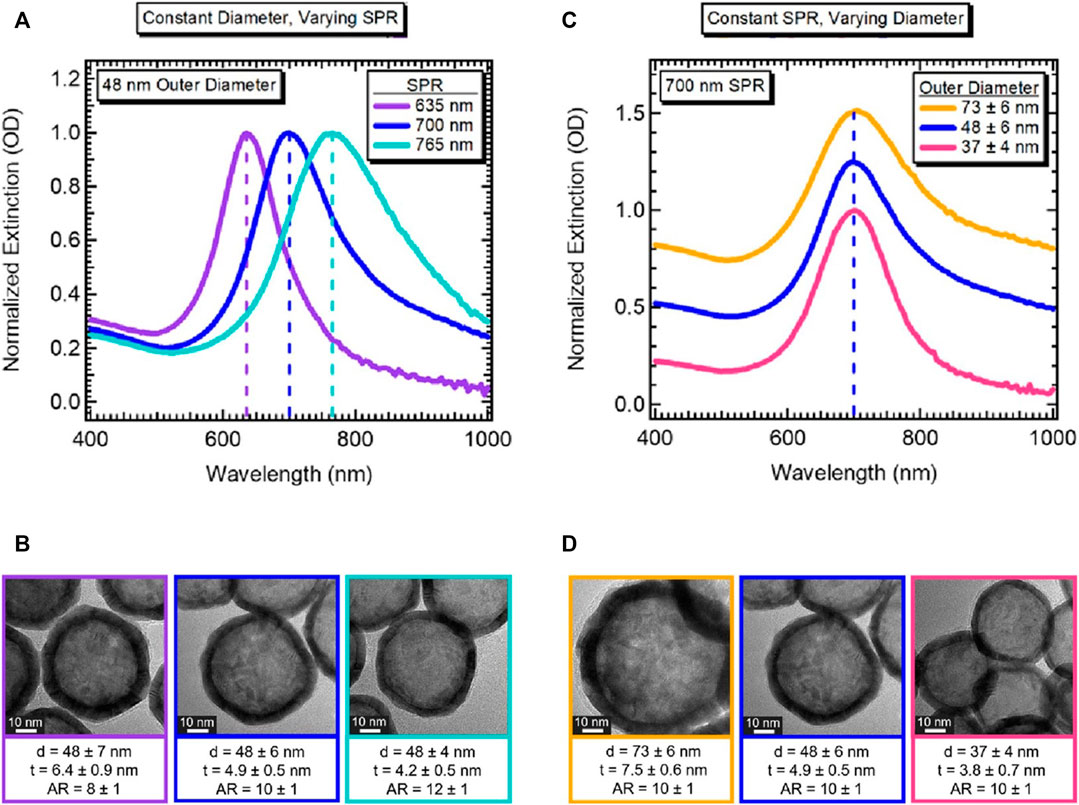

FIGURE 3. Demonstration of tunability of hollow gold nanospheres. (A) Normalized extinction for hollow gold nanospheres with the same outer diameter but different LSPR peaks. (B) Corresponding high-resolution transmission electron microscope (HRTEM) images with an average diameter (d), shell thickness (t), and aspect ratio (AR), as indicated; scale bar 10 nm. (C) Normalized extinction for hollow gold nanospheres with different outer diameters but the same LSPR peak. (D) Corresponding HRTEM images with d, t, and AR values as indicated (scale bar 10 nm). Reprinted with permission from Lindley et al. (2018). Copyright 2018, American Chemical Society.

Synthesis of Hollow Gold Nanostructures

Metal-Template-Based Synthesis (Galvanic Replacement)

Hollow gold nanostructures—even the same structures—have been synthesized by various methods; however, synthesis using galvanic replacement is significantly dominant (Xia et al., 2013). Galvanic replacement is driven by the difference in electrochemical potential between the solid metal (regarded as A), which has a lower reduction potential, and another metal ion (regarded as B⁺), which has a higher reduction potential. While the solid metal with the lower potential is oxidized and transformed into a metal ion (from A to A⁺), the metal ion with the higher potential is reduced and transformed into a solid metal (from B⁺ to B) at the contact surface. Through these processes, hollow nanostructures can be successfully synthesized with several characteristics: 1) tunable elemental compositions (Lu et al., 2007b), 2) easily controllable porous shells (by varying the amounts of precursors for galvanic replacement) (Sun and Xia, 2004), 3) closely similar shapes to sacrificial templates (Chen et al., 2006), 4) short reaction time (∼30 min) (Cobley and Xia, 2010), and 5) high S/V ratio (Oh et al., 2013). For hollow gold nanospheres and gold nanocages/frames, the typical synthetic methods use cobalt nanoparticles and silver nanocubes as sacrificial templates, respectively (Figures 4A,B). Liang et al. (2005) reported uniformly synthesized hollow gold nanospheres using cobalt nanoparticles as sacrificial templates for galvanic replacement; this synthetic method, with minor modifications, has been widely used to fabricate hollow gold nanospheres. The cobalt nanoparticle sacrificial templates were first synthesized by reducing Co²⁺ with NaBH₄ under a nitrogen atmosphere to avoid oxidation. The hollow gold nanostructures were then fabricated as Au⁺ and reduced onto the cobalt nanoparticles based on galvanic replacement and finally stirred under ambient conditions to ensure complete oxidation of the residual cobalt nanoparticles. The shape of the final hollow gold nanostructure depends on the shape of the sacrificial template employed, as well as the post-treatment processes. Sun and Xia (2004) and Lu et al. (2007a) reported gold nanocages and gold nanoframes using silver nanocubes as a sacrificial template. In this process, gold-silver nanoboxes are first fabricated as HAuCl₄ and reduced onto the silver nanocubes, then gold nanocages or gold nanoframes are synthesized depending on the following processes: 1) further galvanic replacement by HAuCl₄ (path [I] in Figure 4B, gold nanocages) or 2) selective removal of silver using wet etchants such as Fe(NO₃)₃ and NH₄OH (path [II] in Figure 4B, gold nanoframes).

FIGURE 4

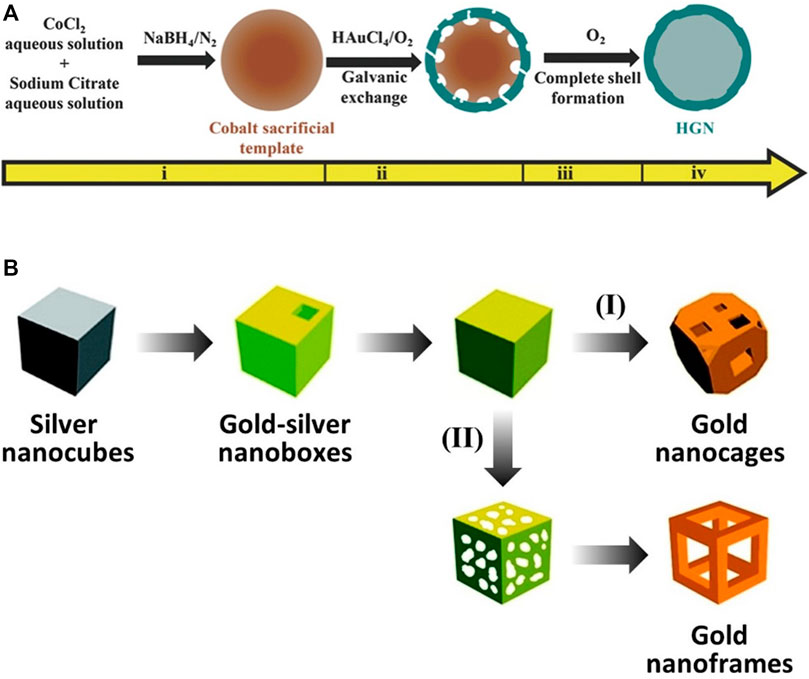

FIGURE 4. Schematic illustration of the synthesis of hollow gold nanostructures based on the galvanic replacement method. (A) Hollow gold nanospheres using cobalt nanospheres as sacrificial templates. (B) Gold nanocages/frames using silver nanocubes as sacrificial templates. (A) Reprinted with permission from Pu et al. (2017). Copyright 2016, WILEY-VCH Verlag GmbH and Co. KGaA, Weinheim. (B) Reprinted with permission from Skrabalak et al. (2008). Copyright 2008, American Chemical Society.

The hollow structures were confirmed using transmission electron microscopy (TEM). In addition to nanospheres (Figure 5A; cobalt nanoparticle-templated) and nanocages (Figure 5B; silver nanocube-templated), more complex hollow gold nanostructures, such as nanorods (Figure 5C; tellurium nanorod-templated) and octahedral nanoframes (Figure 5D; silver nanoparticle-templated), were successfully synthesized with uniform size and morphology by galvanic replacement. Unlike hollow gold nanospheres and nanocages/frames, hollow gold nanorods are fabricated using a new metallic sacrificial template; tellurium nanorods (Cai et al., 2018). They reported the synthesis of hollow gold nanorods with controllable aspect ratios using a selenium-doped tellurium nanorod-templated method for the first time. In addition to the hollow gold nanostructures in Figure 5, other hollow gold nanostructures, including nanostars (Zhu et al., 2020; cooper nanoparticle-templated), nanorings (Prieto et al., 2014; cobalt nanoparticle-templated), and nanoprisms (Aherne et al., 2010; silver nanoprism-templated) can also be synthesized by galvanic replacement. It is worth noting again that galvanic replacement is the major approach for the synthesis of hollow gold nanostructures.

FIGURE 5

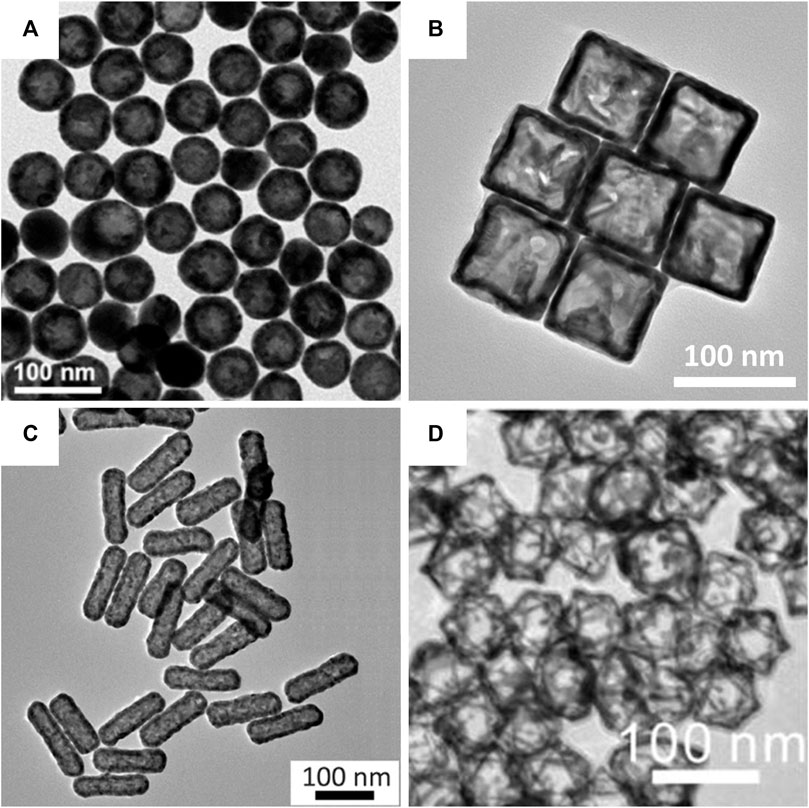

FIGURE 5. Transmission electron microscopy (TEM) images of hollow gold nanostructures based on the galvanic replacement method. (A) Hollow gold nanospheres. (B) Hollow gold nanocages. (C) Hollow gold nanorods. (D) Hollow gold octahedral nanoframes. (A) Reprinted with permission from Choi et al. (2020). Copyright 2020, Elsevier. (B) Reprinted with permission from Wang W. et al. (2015). Copyright 2015, Royal Society of Chemistry. (C) Reprinted with permission from Cai et al. (2018). Copyright 2018, American Chemical Society. (D) Reprinted with permission from Hong et al. (2012). Copyright 2012, American Chemical Society.

Non-galvanic Replacement-Based Synthetic Methods

Although galvanic replacement is a major synthetic method for hollow gold nanostructures, there are some drawbacks, such as 1) fragmentation or aggregation due to excessive galvanic replacement processes (Lee et al., 2014) and 2) the generation of insoluble byproducts that can be deposited on the surface of nanoparticles (Zhang et al., 2012). To overcome these issues, several other approaches have been tested as alternatives to galvanic replacement.

Wang et al. (2013) reported the successful fabrication of various hollow gold nanostructures, such as nanospheres, nanocapsules, and elongated nanocapsules, by employing a facile soft template approach (Figure 6A). Here, a cationic gemini surfactant, hexamethylene-1,6-bis(dodecyl dimethylammonium bromide) (C₁₂C₆C₁₂Br₂), played an important role as a soft template. C₁₂C₆C₁₂Br₂ is induced to self-assemble into various forms of vesicles, such as capsule-like or tube-like aggregates, depending on its concentration. Moreover, it provides structural stability during reduction because of its strong aggregation tendency. Wang H. et al. (2015) reported the synthesis of gold nanocages and hollow gold nanospheres from polystyrene (PS)@Au core–shell nanospheres using solvent thermal treatment in N, N-dimethylformamide (DMF) (Figure 6B). Specifically, PS@Au core–shell nanospheres were synthesized by attaching gold seeds to PS surfaces, which were further modified with branched polyethyleneimine to enhance the absorption of gold seeds onto the PS surfaces. Then, gold nanocages and hollow gold nanospheres were fabricated by removing the PS templates of the PS@Au core–shell nanospheres with thermal treatment in DMF, and the morphologies were affected by the core–shell structures or the temperature and time of thermal treatment.

FIGURE 6

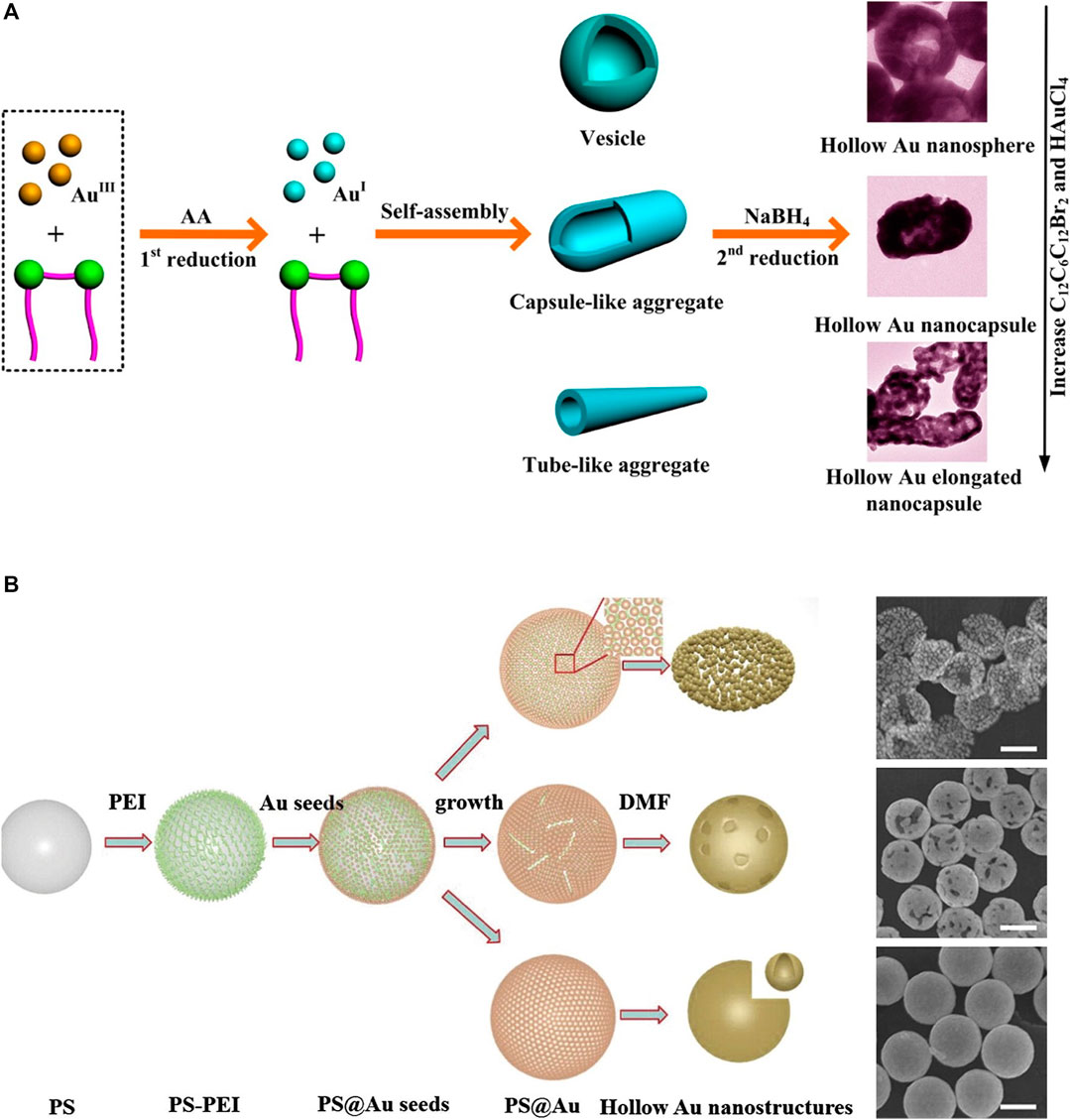

FIGURE 6. Schematic illustration of the synthesis of hollow gold nanostructures based on non-galvanic replacement method and its transmission electron microscopy (TEM) images. (A) Hollow gold nanostructure synthesis using the stepwise reduction method. (B) Hollow gold nanostructures from polystyrene (PS)@Au core–shell nanospheres, scale bar: 200 nm. (A) Reprinted with permission from Wang et al. (2013). Copyright 2013, American Chemical Society. (B) Reprinted with permission from Wang H. et al. (2015). Copyright 2014, Elsevier.

Biomedical Applications of Hollow Gold Nanostructures

Recently, inert and relatively biocompatible gold nanostructures have been adopted for various biomedical applications owing to their attractive chemical and physical properties (Tiwari et al., 2011; Ren et al., 2015; Zangabad et al., 2017). Gold nanostructures have significant potential benefits in biomedical and industrial applications, although they can have harmful effects on biological systems such as bioaccumulation, bioclearance, metabolism, and elimination. To resolve these limitations, many studies have been conducted to mitigate and improve adverse influences through modifications including diameter, coating, shape, dosage, administration route. (Lopez-Chaves et al., 2018). Among these families of gold nanostructures, hollow gold nanostructures are one of the most promising platforms in biomedical applications owing to their unique characteristics (Ko et al., 2013; Han et al., 2018). They are characterized by compact sizes of approximately 20–500 nm, simple and precise LSPR adjustments, and large absorption cross-sectional area per unit volume. These characteristics allow hollow gold nanostructures to be mass-produced in high quality with the capacity to load and release drugs owing to their hollow interiors.

Hollow gold nanostructures are also viable in complex in vivo environments owing to their high mechanical flexibility and stability; they can be used as suitable platforms for a variety of purposes, such as labeling with various ligands, biomolecules, and functionalization because of their atomically flat surfaces (Satija et al., 2015; Ye et al., 2020). Table 1 briefly shows recent studies in hollow gold nanostructures that can be used in various biomedical applications. Therefore, in this section, we summarize three types of biomedical applications using hollow gold nanostructures: biosensors (diagnosis), PTT, and bioimaging applications (theragnostics) (Figure 7).

TABLE 1

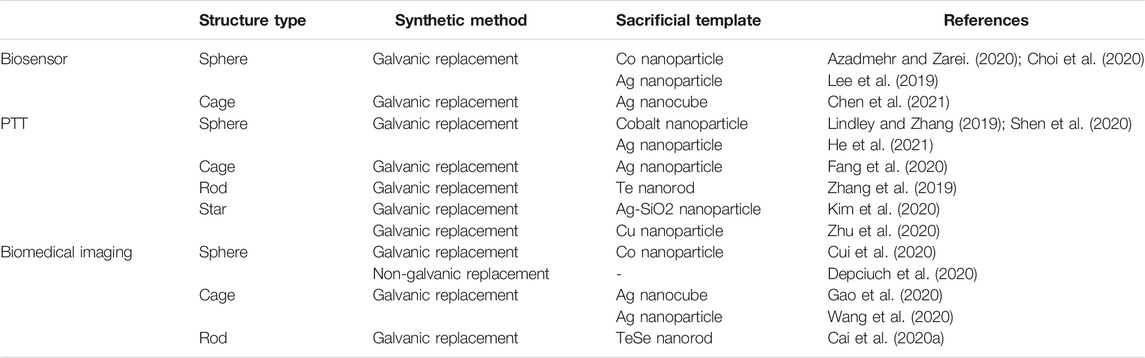

TABLE 1. Summary of recent studies in hollow gold nanostructures for biomedical applications.

FIGURE 7

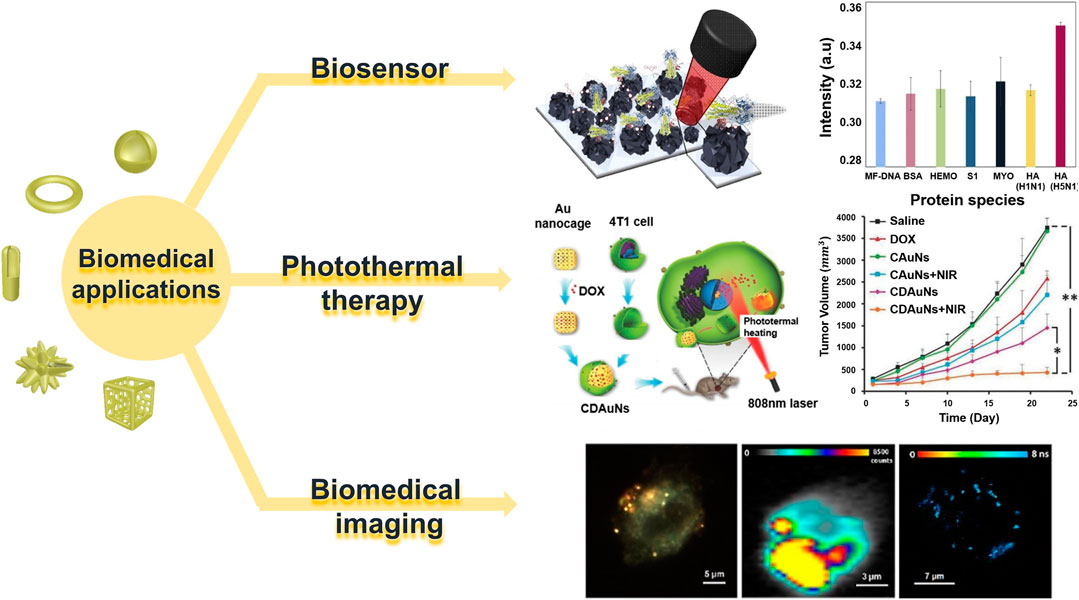

FIGURE 7. Various biomedical applications of hollow gold nanostructures. Reprinted with permission from Lee et al. (2019). Copyright 2018, Elsevier. Reprinted with permission from Sun et al. (2017). Copyright 2016, WILEY-VCH Verlag GmbH and Co. KGaA, Weinheim. Reprinted with permission from Nagy-Simon et al. (2017). Copyright 2017, American Chemical Society.

Biosensor: Diagnostics Application

Biosensors have been developed for various analyses across the fields of medicine, food testing, environmental sensing, and process control monitoring for research and industry. It is defined as a transducer that includes biological recognition components and consists of a three-factor system of bioreceptors, transducers, and signal processing devices (Conroy et al., 2009; Goode et al., 2015; Yoon et al., 2013). The distinct LSPR property is one of the most representative features of gold nanoparticles, and the peak position of LSPR is affected by the morphology, size, and surrounding medium of the nanoparticles; in particular, it is closely related to the refractive index (RI) of the material close to the nanoparticle surface. Because LSPR relies on RI around nanoparticles, it can be the basis for detecting interactions with molecules near nanoparticle surfaces (Ko et al., 2015; Zhang et al., 2018). The scattering spectrum of a single plasma resonance nanoparticle provides a single molecular event, and for nanoparticles, it can have a high RI sensitivity limited to nanometer-scale sensing volumes surrounding pointed tips. The LSPR-based biosensor uses a mechanism to observe noticeable changes in the peak wavelength of plasma resonance when a single giant molecule, such as a protein with a RI different from that of water, enters or leaves this sensing volume. Hollow gold nanostructures have higher RI sensitivities than solid gold nanostructures (Mayer et al., 2010; Ren et al., 2015; Zeng et al., 2020; Kim et al., 2020).

Detect of disease-related biomarkers plays an important role in the diagnosis and treatment. Among the various biosensors, surface-enhanced Raman spectroscopy (SERS)-based biosensor is one of the most powerful spectroscopic tools for biomedical field with high sensitivity and specific fingerprints and fast data collection speeds (Sutter et al., 2020; Cai et al., 2020b; Chung et al., 2015; Jeong et al., 2019). A hollow silver/gold nanosphere-based SERS probe was developed by Sun and Li (2018) for the diagnosis and treatment of acute myocardial infarction (AMI), a severe cardiovascular disease. This hollow nanostructure enables the ultra-high-sensitivity detection of AMI-related miRNA (miR-133a) using a target-catalyzed hairpin strategy. In this process, the target miRNA was used directly as a linker to capture SERS-based probes in sandwich mode, and a duplex linker with two sticky ends was selected in the target catalyst hairpin assembly strategy (Figures 8A–C). Polyacrylamide electrophoresis experiments were then performed to verify that hairpin DNA 1 and 2 (hp1 and hp2) were consumed to generate targets in SERS analysis and that miR-133a was used as a linker to hold probes on the substrate. Consequently, the presence of miR-133a became increasingly apparent as the new band moved slowly and increased in concentration, and the hp1, hp2 mixture disappeared from lanes to 6–8 (Figure 8B). In the SERS spectrum of miR-133a at various concentrations, the strength of the peak appeared to increase with increasing Raman dye (nitroblue tetrazolium) concentrations (Figure 8C) (Sun and Li, 2018).

FIGURE 8

FIGURE 8. miRNA-detection biosensor for acute myocardial infarction diagnosis. (A) Target-catalyzed hairpin assembly process and final structure for the surface-enhanced Raman spectroscopy detection platform. (B) Polyacrylamide gel electrophoresis results of the miR-133a-powered DNA molecular machine. (C) Representative SERS spectra corresponding to miR-133a with varying concentrations. Biosensor to detect brain damage-related proteins. (D) Illustration of SERS-based immunoassay for neuron-specific enolase (NSE) and S100 calcium-binding protein beta (S100-β) detection. (E) SERS spectra of the multiplex immunosensor after incubation with various concentrations of S100-β and NSE. Biosensor utilizing DNA to detect avian influenza virus. (F) Schematic image of the fabricated AIV detection biosensor based on the LSPR method. (G) Change in absorbance peak based on selectivity test with other protein reactions: cytochrome c (blue line), BSA (green line), spike protein (gray line), myoglobin (yellow line), HA protein (H1N1) (purple line), and HA protein (H5N1) (red line). (A, B, C) Reprinted with permission from Sun and Li (2018). Copyright 2018, American Chemical Society. (D, E) Reprinted with permission from Wang et al. (2018). Copyright 2018, The Royal Society of Chemistry. (F, G) Reprinted with permission from Lee et al. (2019). Copyright 2018, Elsevier.

For protein detection, an immune sensor to diagnose brain damage by detecting neuron-specific enolase (NSE) and S100-b proteins in the blood was developed (Wang et al., 2018). The active group of hollow gold nanospheres and the redox molecules 4-mercaptobenzoic acid (4-MBA) and Nile blue A incorporate antibodies and provide signals to design a simple label-free three-dimensional hierarchical plasmonic nanostructure (Figures 8D,E). In the presence of protein biomarkers, sandwich nanoparticles are captured on a substrate to develop a finite plasma field that amplifies Raman signals. Thus, as the S100-b and NSE protein concentrations increased, the peaks in the SERS spectrum became stronger (Figure 8E). In the case of hollow gold spike-like nanoparticles, a biosensor was also reported to detect avian influenza virus (AVI) with the introduction of a multi-functional DNA 3 way-junction (Figures 8F,G) (Lee et al., 2019). To detect AVI, each piece of the DNA 3 way-junction was adjusted to a hemagglutinin (HA) binding aptamer, 5′-fluorescein phosphoramidite (FAM) dye, or thiol group, respectively. In this system, the hollow gold spike-like gold nanoparticles were fixed to the ITO substrate to measure LSPR and immobilized onto the electrode via the thiol group. The fabricated biosensor detected HA proteins in phosphate-buffered saline (limit of detection (LOD): 1 pM) and diluted chicken serum (LOD: 1 pM) and confirmed that the LSPR peak increased as the concentration increased from 1 pM to 100 nM (Figure 8G).

Photothermal Therapy: Therapeutic Application

PTT is an effective cancer treatment method using nanoparticles that utilize a mechanism in which light is absorbed by nanoparticles and converted into heat within tumor tissues. When the local temperature in tumor tissue reaches 42–47°C, tumor cells—owing to their heat sensitivity being higher than that of normal cells—quickly undergo necrosis (Farokhnezhad and Esmaeilzadeh, 2019). This treatment is characterized by minimal invasiveness and excellent tissue penetration. Gold nanoparticles have received much attention because of their unique photothermal conversion properties and LSPR properties (Bi et al., 2019; Ling et al., 2021). The high affinity of tumor cells for the applied gold nanoparticles should have an efficient photothermal effect, so appropriate receptors or ligands should be modified on the particle surface to enable tumor-specific targeting (Grabowska-Jadach et al., 2019; Xu et al., 2021).

Gold nanostructures can be used to treat obesity. Their easy facile modification, superior stability, nontoxicity and biocompatibility make this possible. In addition, the properties of absorbing visible and near-infrared light to convert to thermal energy lead to effective photothermal treatment. Figures 9A,B achieves non-invasive photothermal ablation targeting abnormal adipose tissue through hyaluronic acid and peptides, and hollow gold nanosphere (Lee et al., 2017). This is transmitted through the subcutaneous, efficiently targeted at adipocytes, and enables highly effective photothermal ablation with NIR laser. The successful results were reported in Figure 9B through experiments in C57BL/6 obesity mice. After topical treatment of hollow gold nanosphere conjugated with hyaluronic acid and ATP in the abdominal region of mice, NIR lasers were investigated for photothermal lipolysis for 10 min. As a result, the significant reduction of photoacoustic signals in adipose tissue in the dotted area confirmed effective photothermal lipolysis, and no side effects were shown.

FIGURE 9

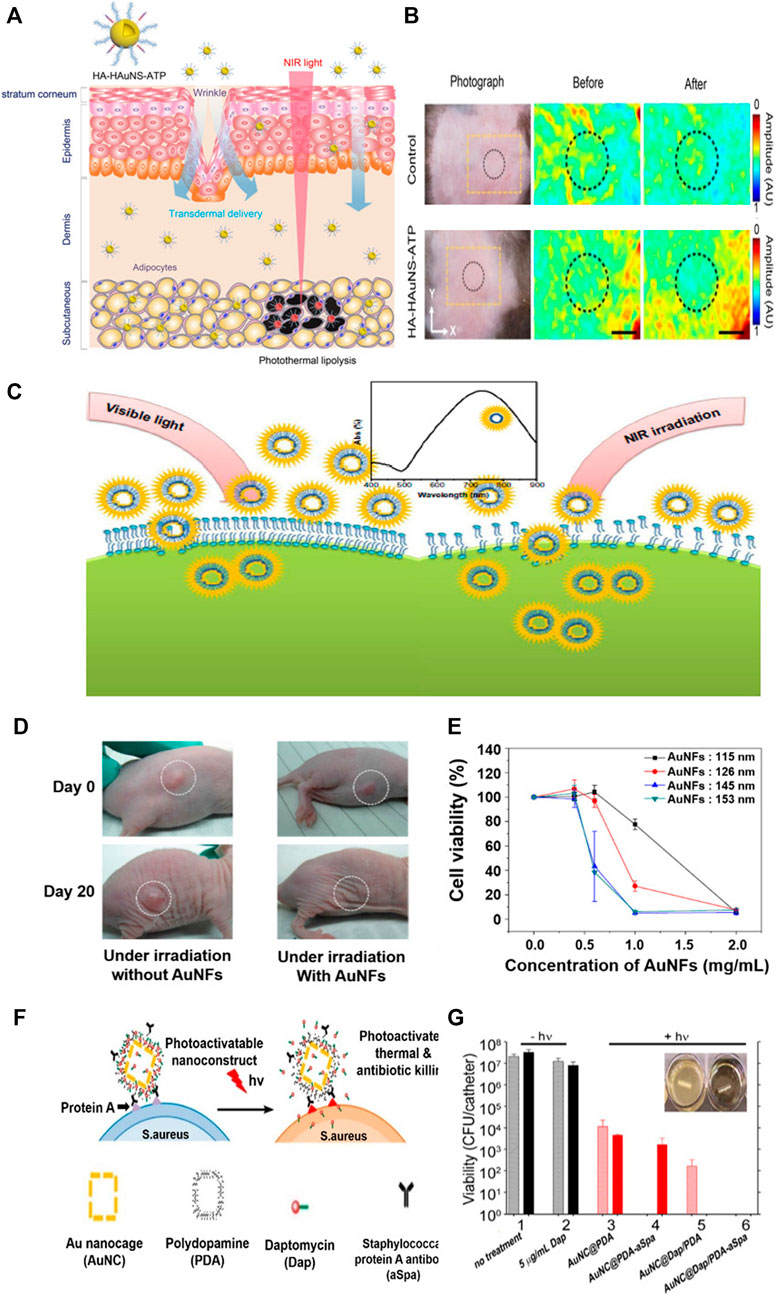

FIGURE 9. Transdermal hyaluronic acid-hollow gold nanosphere-ATP conjugate for obesity treatment. (A) Schematic illustration of the targeted photothermal lipolysis of adipocytes after noninvasive transdermal delivery. (B) Photoacoustic images of subcutaneous adipose tissues before and after NIR lasers. Hollow gold nanoflowers with strong photothermal effects in near-infrared (NIR) areas. (C) Schematic representation showing the photothermal effect of the gold nanoflowers (AuNFs) on endocytosis under NIR irradiation. (D) Photothermal effect on a nude mouse under NIR irradiation caused by the addition of gold nanoflowers. (E) Relationship between HeLa cell viabilities and the concentration of gold nanoflowers with laser irradiation (λ = 808 nm, 9 W/cm², 5 min). Gold nanocages (AuNC) loaded with antibiotics and coated with polydopamines (PDAs) to induce bacterial apoptosis. (F) Schematic illustration of the working mechanism of the targeted photoactivatable nanostructure for the synergistic photothermal and antibiotic treatment of S. aureus. (G) Bacterial cell killing using a biofilm model. Experimental groups are 1) no treatment, 2) 5 μg/ml Dap, and irradiation plus 3) AuNC@PDA, 4) AuNC@PDA−aSpa, 5) AuNC@DapHi/PDA, and 6) AuNC@DapHi/PDA−aSpa. Killing was assessed at 0 h (striped bars) and 24 h (solid bars) after treatment. Black bars indicate non-irradiated groups, and red bars indicate irradiated groups. (A, B) Reprinted with permission from Lee et al. (2017). Copyright 2017, American Chemical Society. (C, D, E) Reprinted with permission from Han et al. (2014). Copyright 2014, Dovepress. (F, G) Reprinted with permission from Meeker et al. (2016). Copyright 2016, American Chemical Society.

One of the advantages of hollow gold nanostructure is that it is easy to control LSPR, which can be adjusted in size of nanostructure from the visible light field to the near-infrared field for cancer photothermal therapy. Figures 9C–E shows a study that produced a hollow gold nanoflower structure to indicate high biological stability in visible light and very strong photothermal cytotoxicity to tumor cells in near-infrared environments (Han et al., 2014). Experiments were conducted with hollow gold nanoflowers using surfactant bis-(amidoethyl-carbamoylethyl) octadecylamine (C18N3) as templates with multi-amine head groups on a tumor-bearing mouse model. Therefore, tumor size increased in the control group. However, the tumor almost disappeared from the lesion after 20 days in the gold nanoflower-treated mice (Figure 9B). Figure 9E shows a substantial decrease in HeLa cell viability affected by 808 nm NIR laser, size, and concentration of gold nanoflowers.

Hollow gold nanostructures can be used to treat bacterial infections and cancers. Studies have demonstrated the synergistic treatment of bacterial infections by loading antibiotic daptomycin (Dap) into polydopamine (PDA)-coated gold nanocages (Figures 9F,G) (Meeker et al., 2016). To induce target binding to bacterial cell surface proteins (Spa) via anti-Spa, PDA was coated onto the surface and the nanostructure was activated by near-infrared radiation to convert photon energy into thermal energy, increasing the photothermal effect and degenerating the PDA coating to release the antibiotics (Figure 9F). Figure 9G shows the results of antibiotic treatment on 0.5 cm segments of catheter biofilm. Exposure to 5 μg/ml Dap in groups 1 and 2 had a slight effect on the number of viable bacteria per catheter compared to that in the control group, where nothing was processed. Exposure to untargeted gold nanocage@PDA after laser irradiation showed an insignificant decrease in the number of viable bacteria per catheter from 0 to 24 h (Group 3). With aSpa, the photothermal effect was increased immediately after irradiation on targeted gold nanocage@PDA, but it can be seen to increase from 24 h because of its failure to completely exterminate viable bacteria in the biofilm (Group 4). In group 5, a clear photothermal effect was observed shortly after laser irradiation of bacteria exposed to gold nanocage@ $\mathrm{Da}{\mathrm{p}}_{Hi}/PDA-aSpa$, and no viable bacteria were detected at 24 h. In addition, bacteria were not detected at either 0 or 24 h when the biofilm was laser-irradiated by exposure to gold nanocage@ $\mathrm{Da}{\mathrm{p}}_{Hi}/PDA-aSpa$. These results confirmed the synergistic effects of photothermal killing and targeted antibiotic release.

Hollow gold nanostructures have high photothermal conversion effects and excellent biocompatibility, can adjust the LSPR band in near-infrared (NIR) regions, and are suitable for drug delivery. The irradiation of gold nanoparticles with NIR lasers can accelerate the release of cargo by generated hyperthermia to the target location and ablate the tumor cells with favorable PTT (Gan et al., 2019; Sun et al., 2021).

By combining PTT with encapsulating drugs in the internal space of hollow gold nanostructures where LSPR control is easy, improved therapeutic results can be achieved compared to the existing method. But the innate structures of the hollow gold nanostructure can leak drugs early, which makes decreases targeting efficiency. To prevent this, utilizing biomimetic cell membrane-based drug delivery systems can significantly increase the stability of nanoparticles and prevent drug leakage. Research has been conducted using cancer cell membranes coated with gold nanocages to suppress breast cancer metastasis (Figures 10A–C) (Sun et al., 2017). In chemotherapy, nanostructures coated with biomimetic cell membranes can significantly increase stability with fewer drug leaks under physiological conditions. Light heat at 43°C can also increase the permeability and fluidity of the cell membrane, thereby improving the intracellular accumulation of drugs. Cancer cell membrane-coated gold nanocages were fabricated by loading the anticancer drug Doxorubicin (DOX) into the inner core of gold nanocages and then coating with the cancer cell membrane derived from 4T1 breast cancer cells. A sulforhodamine B assay to determine the antiproliferative effect of gold nanocages showed that the strongest antiproliferative effect was on tumor cells cultured with cancer cell membrane-coated gold nanocages, resulting from the accelerated release of DOX from gold nanocages by laser-induced high heat and induced phototoxicity (Figure 10B). The in vivo inhibitory effect of cancer cell membrane-coated gold nanocages on tumors and pulmonary metastasis is shown in Figure 10C. Evaluation of the 4T1 tumor transition model showed rapid tumor growth in the saline treatment group and excellent antitumor effects in the NIR investigation group.

FIGURE 10

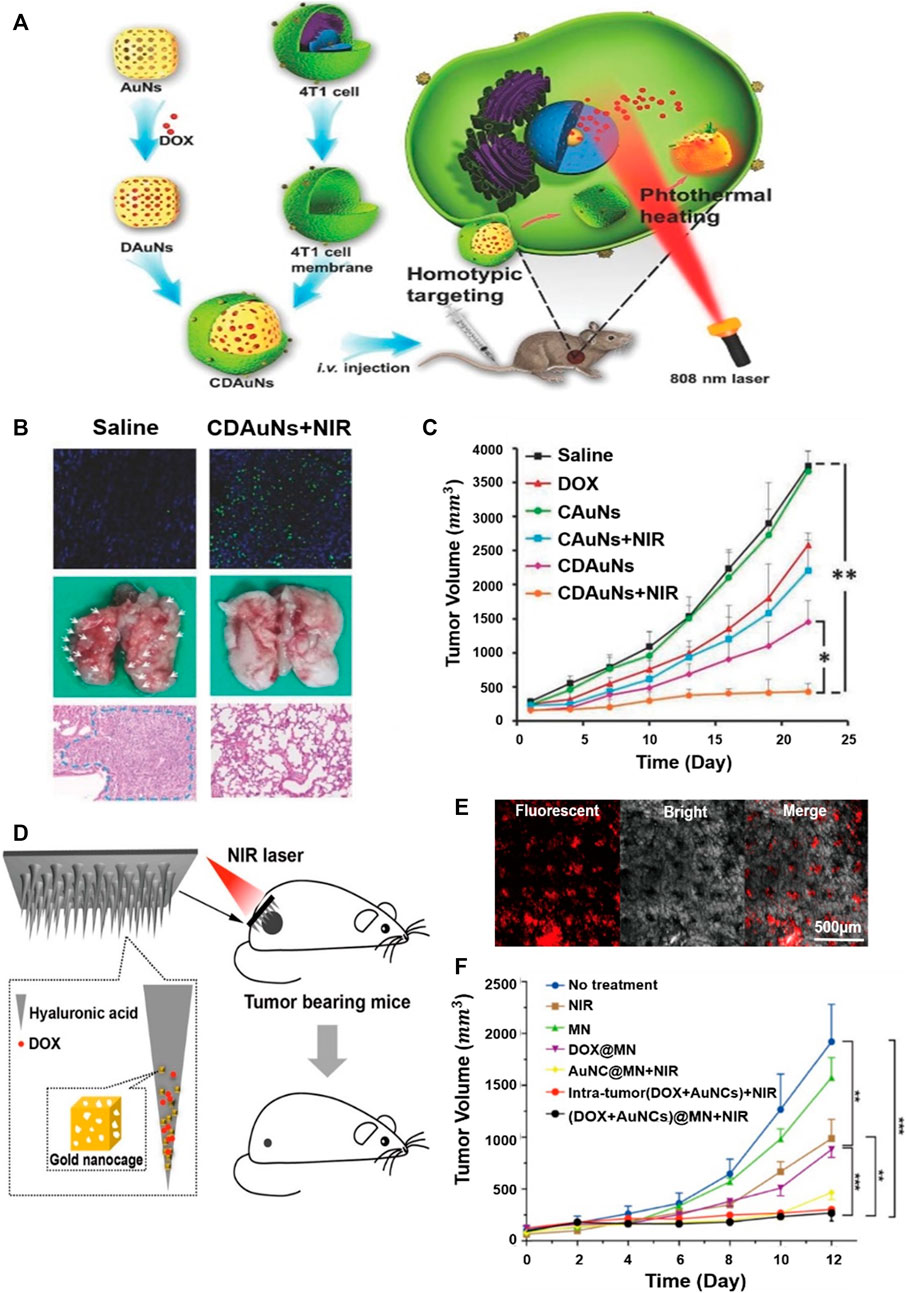

FIGURE 10. Gold nanocages that suppress high breast cancer metastasis by coating cancer cell membranes. (A) Schematic illustration of the 4T1 cancer cell membrane-coated gold nanocage for the hyperthermia-triggered release of doxorubicin (DOX) and homotypic targeted therapy of breast tumor growth and metastasis. (B) Terminal deoxynucleotidyl transferase (TdT)-mediated dUTP nick-end labeling (TUNEL) staining (200×) of the tumor tissues, the collected lungs, and H&E staining (Scale bar = 100 µm) of the lung tissue. White arrows indicate the metastatic models. (C)In vivo antitumor and antimetastasis effects of the nanoparticles in the 4T1 tumor-bearing nude mice of tumor growth profiles. Example of applying gold nanocages to microneedles for the local treatment of superficial skin tumors. (D) Schematic illustration showing drug/gold nanocage (AuNC)-loaded dissolving hyaluronic acid microneedle (HA MN) system for the combined chemotherapy and PTT of melanoma. (E) Confocal laser scanning microscope (CLSM) image, bright-field dermoscopy image, and merged image. The red fluorescence signal in the CLSM image indicated the penetration of AuNCs in the skin indicated, whereas the black dots in the bright-field image indicated the MN insertion sites. (F) Tumor volume of each group with increasing time for 12 days (A, B, C) Reprinted with permission from Sun et al. (2017). Copyright 2016, WILEY-VCH Verlag GmbH and Co. KGaA, Weinheim. (D, E, F) Reprinted with permission from Dong et al. (2018). Copyright 2018, American Chemical Society.

A minimally invasive transdermal drug delivery system is available to minimize the side effects and pains (Li et al., 2017; Pagneux et al., 2020). To achieve this goal, hyaluronic acid dissolving microneedle (MN) arrays were developed utilizing gold nanocages loaded with DOX (Figures 10D–F) (Dong et al., 2018). The fabricated MNs effectively penetrate the skin, dissolve, release drugs within the tumor, and exhibit photothermal and synergistic effects by near-infrared laser irradiation. The confocal laser scanning microscope (CLSM) provides a visual view of the release of gold nanocages perpendicular to the surface of the mouse skin (Figure 10E). In addition, red fluorescent arrays of gold nanocage spots were clearly detected in the skin. Fluorescent signals were strongly maintained between 150 and 230 μm and then decreased slowly, and the red spot in the CLSM and the black spot in the light field image almost overlapped in the merged image. This indicates that the released gold nanocages are directly inside the insertion path and only a small fraction spread into the surrounding tissue. Figure 10F shows the high tumor growth inhibition effect of gold nanocages with the simultaneous application of NIR and DOX within tumors.

Biomedical Imaging: Theranostic Application

In general, gold nanoparticles are potentially applicable to a wide variety of fields in optical imaging, cell imaging, ultrasound imaging, and positron emission tomography. Biomedical imaging is a non-invasive functional imaging technology that detects and monitors various human physiological and pathological conditions. Its use allows the early detection of tumors and other diseases, and guides precision treatment. Gold nanoparticles are well known for their ability to increase biological inactivity and spatial and temporal resolution for imaging (Singh et al., 2018; García-Álvarez et al., 2020; Si et al., 2021; Qambrani et al., 2021).

Hollow gold nanostructures can be used in various biomedical imaging fields, such as TEM, computed tomography, SERS imaging, and photoacoustic tomography (PAT). (Nagy-Simon et al., 2017) reported a new class of contrast medium containing NIR-reactive hollow gold nanospheres for the detection and multimodal imaging of CD19 (+) cancer lymphocytes (Figure 11A). The medium binds to an anti-CD19 monoclonal antibody based on hollow gold nanospheres and is denoted by the SERS active molecule Nile blue to complete the hollow gold nanosphere–Nile blue–PEG–anti-CD19 complex. TEM was used to investigate the specificity of this contrast medium, and dark-field, SERS, and two-photon excitation fluorescence lifetime imaging microscopy proved its interaction with TEM and the preferential internalization of the complex. Therefore, improvements in the SERS background occurred over the entire measurement interval and could only be observed in local areas corresponding to the accumulated nanoparticles. In conclusion, (Nagy-Simon et al., 2017) demonstrated that antibody complexes provide labeling molecules and SERS background signals for internalization and intracellular positioning, and are promising materials for non-invasive microscopic imaging.

FIGURE 11

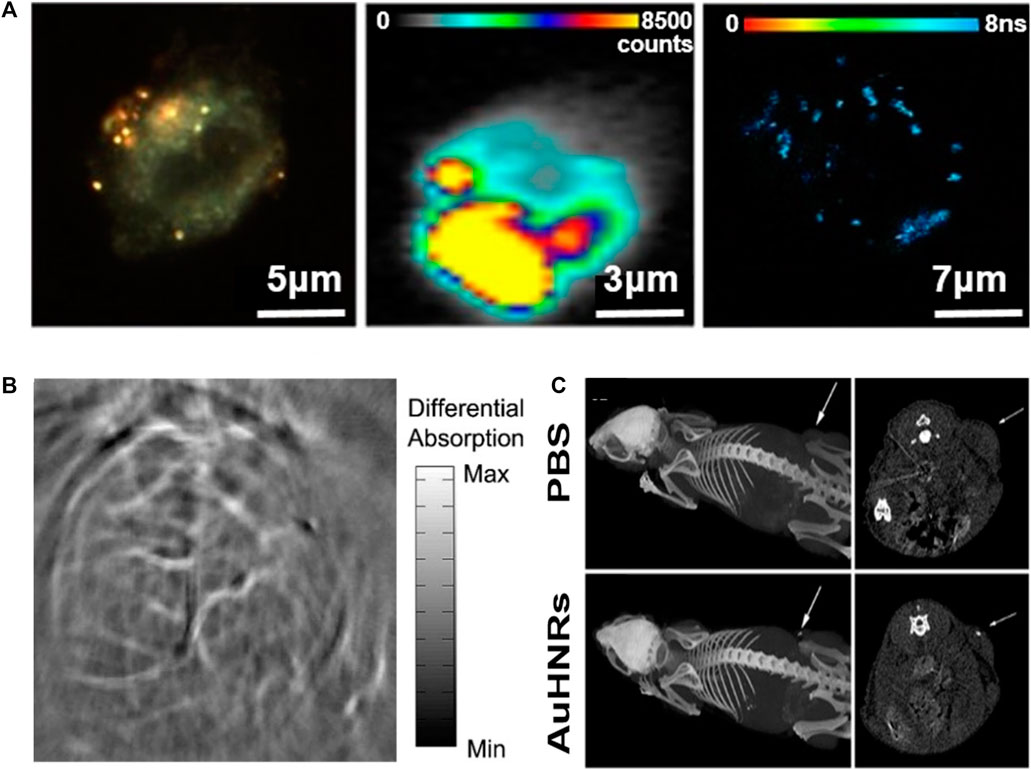

FIGURE 11. (A) Multimodal dark-field (left)/SERS (center)/two photon-FLIM imaging (right) of antibody-conjugated and Raman-tagged hollow gold nanospheres. Photoacoustic tomography (PAT) imaging of the mouse brain using gold nanostructures. (B) Non-invasive PAT imaging of a mouse brain in vivo employing polyethylene glycol (PEG)-hollow gold nanospheres and near-infrared (NIR) light at a wavelength of 800 nm. Hollow gold nanorods for bioimaging and combined chemo–photothermal therapy. (C) Computed tomography images of mice with an injection of phosphate-buffered saline and hollow gold nanorods. Arrows point to the tumor site. (A) Reprinted with permission from Nagy-Simon et al. (2017). Copyright 2017, American Chemical Society. (B) Reprinted with permission from Lu et al. (2010). Copyright 2009, Elsevier. (C) Reprinted with permission from Cai et al. (2018). Copyright 2018, American Chemical Society.

PAT, also referred to as optoacoustic tomography or photoacoustic imaging, is a powerful nonionizing optical imaging modality that integrates the advantages of both optical radiation and ultrasonic detection (Yao and Wang, 2011; von Knorring and Mogensen, 2020). This imaging technology can be monitored with an optical contrast agent, such as gold, which facilitates high sensitivity and specificity, separating the signal contributions of several optical absorbers by spectroscopy, enabling simultaneous molecular and functional imaging. Recently, hollow gold nanospheres have emerged as novel molecular contrast agents for PAT; they can be adjusted to the near-infrared range, show strong resonance absorption and absorption peaks at ∼800 nm, and allow surface coating with thiolated polyethylene glycol (PEG), which leads to significantly higher PA efficiency (Lu et al., 2010). The PEGylated hollow gold nanospheres clearly expressed a small cerebral vascular structure with a diameter of ∼100 nm in PAT images obtained within 2 h of intravenous administration of nude mice (Figure 11B); however, preliminary results have not shown acute toxicity to the liver, spleen, or kidneys of mice, and consequently show promise as contrast agents for PAT with relatively high spatial resolution and improved sensitivity.

These bioimaging applications can be combined with therapeutic applications, such as drug delivery and PTT, to simultaneously perform treatment and diagnosis to enable precision medicine that can be tailored to each patient (Moorkoth et al., 2021; Yang et al., 2021). Nanoscale particles can be targeted to desired positions through surface functionality (Wijetunga et al., 2020). In particular, the utilization of hollow gold nanostructures can enhance the efficiency of theranostics owing to their inherent characteristics. For example, nontoxic hollow gold nanorods can be used as chemo–photothermal therapy substances at the same time and as contrast agents for multimodal imaging for cancer theranostics (Figure 11C) (Cai et al., 2018). The platform is a new type of nano-agent with LSPR peaks in the NIR-II window (1,000–1,350 nm), which is more suitable for biological applications owing to its deeper tissue penetration capabilities and higher maximum permissible exposure than that of the NIR-I window (700–950 nm). Figure 11C demonstrates the ability of the computed tomography imaging contrast agent by injecting hollow gold nanorods into a tumor-bearing mouse to confirm the brightness in the tumor region. After loading DOX, the laser was examined to confirm the chemo–photothermal effect. Although the data are not indicated in this paper, when phototherapy and chemotherapy were applied at the same time, the tumor disappeared completely after approximately 10 days, confirming the synergistic effect. Thus, it can be seen that hollow gold nanostructures show improved ability when applied with PTT as well as bioimaging.

Conclusions and Future Perspectives

Hollow gold nanostructures have drawn attention for their biomedical applications because of their unique physical and optical properties, such as facile LSPR tunability, drug loading capacity, and enhanced photothermal activity, compared to those of conventional solid gold nanoparticles. In this review, we summarized the recent research trends in hollow gold nanostructures, including synthetic methods, physical/optical characteristics, and recent advances in biomedical applications. Various forms of hollow gold nanostructures can be synthesized by either hard- or soft-templating methods, but the majority of synthesis is based on galvanic replacement. While the LSPR peaks of solid gold nanoparticles depend solely on the overall size of the particles, those of hollow gold nanostructures are greatly influenced not only by the size, but also by the thickness of the shell. Therefore, the LSPR peaks can be easily adjusted while maintaining the overall size of the particles, which provides additional tunability of the SERS signal or photothermal activity. The voids in the interior also provide additional functionality to hollow gold nanostructures by being utilized as nanoscale storage for impregnating functional materials (e.g., anticancer drugs), which is not possible in solid gold nanoparticles. Based on these characteristics, various hollow gold nanostructures have been widely used in several biomedical applications, including biosensors, photothermal therapy, and biomedical imaging. It should be noted that there have been many studies aimed at the synergistic effects of simultaneously utilizing the various functionalities of hollow gold nanostructures, such as combined chemo–photothermal therapy, light-responsive drug release, and plasmonic nanostructure-based bioimaging.

Despite this progress, there are still many issues: 1) off- and on-target accumulation of hollow gold nanostructures and 2) preventing the aggregation and disassembly of hollow gold nanostructures. Large-sized hollow gold nanostructures (larger than 200 nm) can lead undesirable accumulation in the reticuloendothelial system (e.g., liver, spleen, and lungs); on the other hand, very small-sized one cannot provide sufficient on-target accumulation of them due to the short circulation time. Even if the size of these structures is suitable for selective accumulation, the aggregation and disassembly of hollow gold nanostructures in human body can decrease the LSPR intensity. Therefore, researchers should consider 1) appropriate size of nanostructures for sufficient on-target accumulation and prevention of off-target side effect of them; 2) antibody conjugation which enhance the capability of target adhesion; and 3) the stability of hollow gold nanostructures in human body to provide good LSPR properties. We strongly believe that the above-mentioned problems will be overcome by further research using advanced synthetic methods or surface modifications in the future; then, hollow gold nanostructures will become increasingly important in biomedical applications because it is clear that these unique structures have many advantages compared to conventional nanoparticles. We hope that this review will help readers to comprehend the recent advances in hollow gold nanostructures and will provide great inspiration for researchers.

Author Contributions

Conceptualization, J-HK and KK; investigation, J-MP, HC, J-HK, and KK.; writing—original draft preparation, J-MP, HC, DK, J-HK, and KK; writing—review and editing, J-HK and KK; visualization, J-MP and HC and KK; supervision, J-HK and KK; funding acquisition, J-HK and KK. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (Grant Nos. 2019R1A4A1024116, 2019R1F1A1062216, and 2018R1D1A3B07049650).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
