Sacraoxides A–G, Bioactive Cembranoids from Gum Resin of Boswellia sacra

Seven undescribed cembranoids, sacraoxides A–G (1, 3–8) were isolated from the gum resin of Boswellia sacra. Their structures were elucidated by extensive physicochemical and spectroscopic analysis, as well as ECD calculation, modified Mosher’s method and X-ray diffraction crystallography. Compounds 6 and 7 exhibited inhibitory activities on nitric oxide (NO) production induced by lipopolysaccharide in RAW264.7 cells with IC₅₀ values of 24.9 ± 1.7 and 36.4 ± 2.9 μM.

Introduction

Cembranoids are a class of diterpenes biosynthesized from the cyclization of geranylgeranyl diphosphate to generate a 14-membered ring backbone decorated with a variety of oxidation patterns (Li and Pattenden, 2011). Natural occurrence of cembranoids has been found from both terrestrial and marine organisms, which showed not only a large structural diversity but also a wide range of biological activities (Yang et al., 2012). Plant-derived cembranoids have a relatively limited distribution, and have been reported mainly from tobacco (Yan et al., 2016), as well as the genera of Croton, Euphorbia, Macaranga (Euphorbiaceae), Pinus (Pinaceae), Echinodorus (Alismataceae), and Boswellia (Burseraceae), etc (Wahlberg et al., 1992; Yang et al., 2012).

Olibanum is an aromatic oleogum resin that exudes from incisions in the bark of Boswellia trees and has been used as incense and perfumes since antiquity. Olibanum has also been used in traditional medicines for the purpose of relieving pain and removing blood stasis. Cembranoids and triterpenes were reported as the bioactive constituents responsible for these effects (Banno et al., 2006; Takada et al., 2006; Al-Harrasi et al., 2019). Boswellia sacra, known as Olibanum-tree or Frankincense, is a small deciduous tree that is native to the Arabian Peninsula and northeastern Africa, and is one of the plants known to produce olibanum. Previous chemical investigations on the gum resin from B. sacra have reported the isolation of a number of cembranoids with neuroprotective, hepatoprotective, anti-inflammatory and anti-depression activities (Moussaieff et al., 2012; Pollastro et al., 2016; Wang et al., 2020).

As part of a continuing research for the discovery of bioactive natural products from medicinal plants (Xia et al., 2017; Zhang et al., 2020), a chemical investigation was carried out on the gum resin of B. sacra. Herein, we report the isolation and structural elucidation of nine cembranoids (1–9) as well as their inhibitory activities against lipopolysaccharide (LPS)-induced NO production in RAW 264.7 mouse monocyte-macrophages.

Material and Methods

General Experimental Procedures

Optical rotations were measured on a JASCO P-2200 polarimeter (JASCO Corp., Tokyo, Japan) in a 0.5 dm cell. The UV spectra were obtained with a Shimadzu UV 2201 spectrophotometer (Shimadzu Corp., Tokyo, Japan). The ECD spectra were measured on a JASCO J-1500 spectropolarimeter (JASCO Corp., Tokyo, Japan) in a 10 mm cell. The ¹H and ¹³C NMR spectra were performed on Bruker AV-600 spectrometer (Bruker BioSpin, Zurich, Switzerland) or a JEOL ECA-500 spectrometer (JEOL Corp., Tokyo, Japan) with the measuring deuterated solvent as the internal reference. The chemical shifts are expressed in δ (ppm) and reported as s (singlet), d (doublet), t (triplet), dd (doublet of doublets), dt (doublet of triplets), ddd (doublet of doublet of doublets), ddt (doublet of doublet of triplets), hept (heptet), br (broad) and m (multiplet), respectively. HRESIMS was conducted using a Waters (Milford, MA) ACQUITY SYNAPTTM G2 high-definition mass spectrometer or a Q-Exactive Hybird Quadrupole Qrbitrap mass spectrometer (Thermo Electron Scientific Instrument Crop., WI, United States). Single-crystal X-ray diffraction measurements were conducted on a Bruker Smart Apex II diffractometer (Bruker BioSpin, Zurich, Switzerland) with a graphite monochromator. For preparative HPLC, a Waters 515 HPLC pump, equipped with a Shodex RI-101 Differential Refractometer detector and a JASCO UV-970 intelligent UV/VIS detector, was used. RP-HPLC separations were also conducted using an Shimadzu LC-6AD liquid chromatograph with a SPD-20A UV detector equipped with a YMC Pack ODS-A column (250 × 20 mm, 120 Å, 5 μm). Silica gel GF₂₅₄ (Qingdao Marine Chemical Factory, P. R. China) was used for TLC. Column chromatography (CC) was performed on Silica gel (200–300 mesh, Qingdao Marine Chemical Factory, P. R. China), Octadecyl silica gel (Merck Chemical Company Ltd., Germany), and Sephadex LH-20 (Amersham Pharmacia Biotech AB, Sweden). All reagents were of analytical grade (Concord Technology Co. Ltd., Tianjin, P. R. China).

Plant Material

The gum resin of Boswellia sacra Flueck. syn. Boswellia bhaw-dajiana Birdw. originated in Ethiopia, was furnished by Tianjin Tongrentang Group Co., Ltd. The resin was authenticated by Professor Lin Ma (Tianjin University of Traditional Chinese Medicine). The voucher specimen (accession number: 11037Q) was deposited in the School of Chinese Materia Medica, Tianjin University of Traditional Chinese Medicine, P. R. China.

Extraction and Isolation

The gum resin of B. sacra (6.8 kg) was powdered and extracted with 95% EtOH, then the extracts was evaporated to yield a residue (2.5 kg). The residue was separated by silica gel CC, and eluted sequentially with PE (petroleum ether), CH₂Cl₂ and MeOH. The CH₂Cl₂ fraction (513 g) was subjected to silica gel CC and eluted with a gradient of PE-EtOAc-MeOH to afford ten fractions (A-I).

Fraction B (12.9 g) was further subjected to an ODS CC, and eluted with a gradient of MeOH-H₂O to afford subfractions B-1 to B-4. Subfraction B-3 (457 mg) was separated by preparative-HPLC with MeOH-H₂O (9:1) to afford compound 5 (2.0 mg).

Fraction C (12.2 g) was subjected to ODS CC, and eluted with a gradient of MeOH-H₂O to afford subfraction C-2. Subfraction C-2 (2.1 g) was subjected to Sephadex LH-20 CC and eluted with CH₂Cl₂-MeOH (1:1) to afford subfractions C-2-1 and C-2–2. Subfraction C-2-2 was separated by preparative-HPLC with MeOH-H₂O (9:1) to afford compound 2 (15.4 mg).

Fraction D (23.5 g) was subjected to ODS CC and eluted with a gradient of MeOH-H₂O to afford subfractions D-1 to D-7. Subfraction D-3 (651 mg) was separated by preparative-HPLC with MeCN-H₂O (7:3) to afford compounds 9 (38.9 mg). Subfraction D-5 (1.2 g) was subjected to Sephadex LH-20 CC and eluted with CH₂Cl₂-MeOH (1:1), then the subfraction was separated by preparative-HPLC with MeCN-H₂O (13:7) to afford compound 6 (4.0 mg). Subfraction D-6 (504 mg) was subjected to Sephadex LH-20 CC and eluted with CH₂Cl₂-MeOH (1:1), and then the subfraction was separated by preparative-HPLC with MeCN-H₂O (7:3) to afford compound 4 (2.7 mg). Subfraction D-7 (336 mg) was separated by preparative-HPLC with MeCN-H₂O (7:3) to afford compound 7 (2.5 mg).

Fraction F (18.4 g) was subjected to silica gel CC, and eluted with a gradient of PE-EtOAc to afford subfractions F-1 to F-3. Subfraction F-3 (1.1 g) was subjected to silica gel CC, eluted with PE-Acetone (4:1), and then separated by preparative-HPLC with MeOH-H₂O (17:3) to afford compound 3 (11.3 mg).

Fraction H (8.3 g) was subjected to ODS CC, and eluted with a gradient of MeOH-H₂O to afford subfractions H-1 and H-2. Subfraction H-2 (1.3 g) was subjected to Sephadex LH-20 CC, eluted with MeOH, and then separated by preparative-HPLC with MeCN-H₂O (9:11) to afford compound 8 (9.4 mg).

Fraction I (10.6 g) was subjected to ODS CC and eluted with a gradient of MeOH-H₂O to afford subfractions I-1 to I-3. Subfraction I-2 (2.5 g) was subjected to Sephadex LH-20 CC, eluted with CH₂Cl₂-MeOH (1:1), and then separated by preparative-HPLC with MeOH-H₂O (7:3) to afford compound 1 (17.6 mg).

Sacraoxide A (1), colorless needles; mp 161–162°C [α]²⁵_D +15.0 (c 0.12, MeOH); UV (MeOH) λ_max (log ε) 201 (3.88) nm; ECD (c 1.6 × 10^-4 M, MeOH) λ_max (Δε) 204 (+30.89) nm; IR (film) ν_max 3357, 2959, 2921, 1655, 1448, 1383, 1089, 1061, 1033, 1021, 928, 892 cm⁻¹; ¹H and ¹³C NMR spectroscopic data, see Tables 1, 2; HRESIMS m/z 323.2574 [M + H]⁺ (calcd for C₂₀H₃₅O₃, 323.2581).

TABLE 1

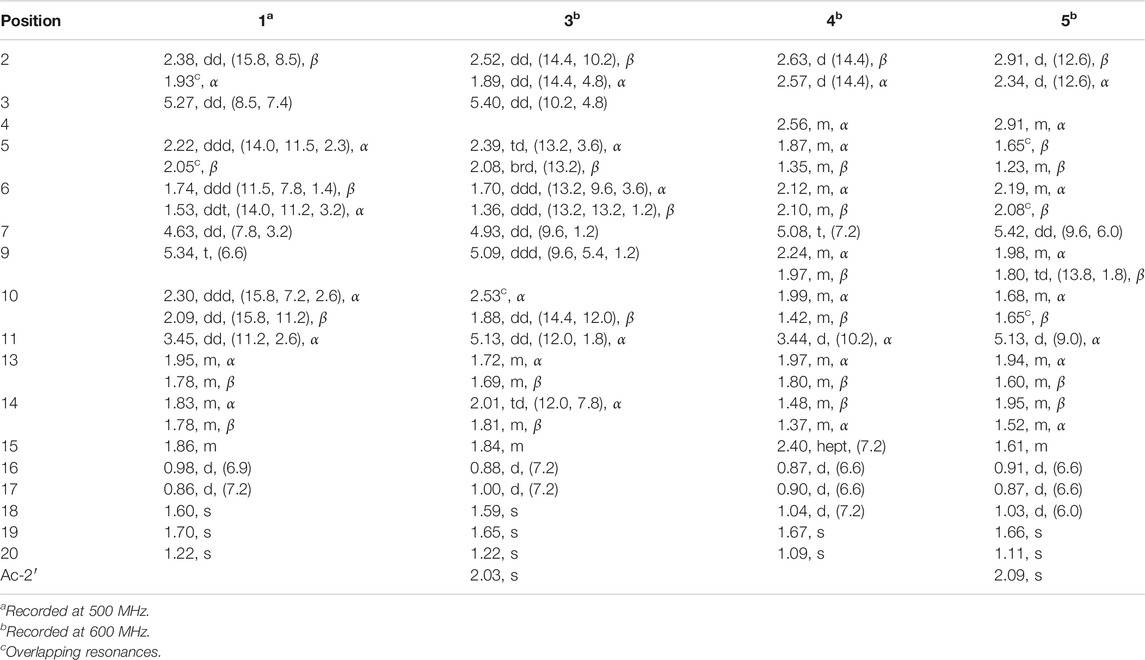

TABLE 1. ¹H NMR spectroscopic data of compounds 1, 3–5 (δ in ppm, and J in Hz, in CDCl₃).

TABLE 2

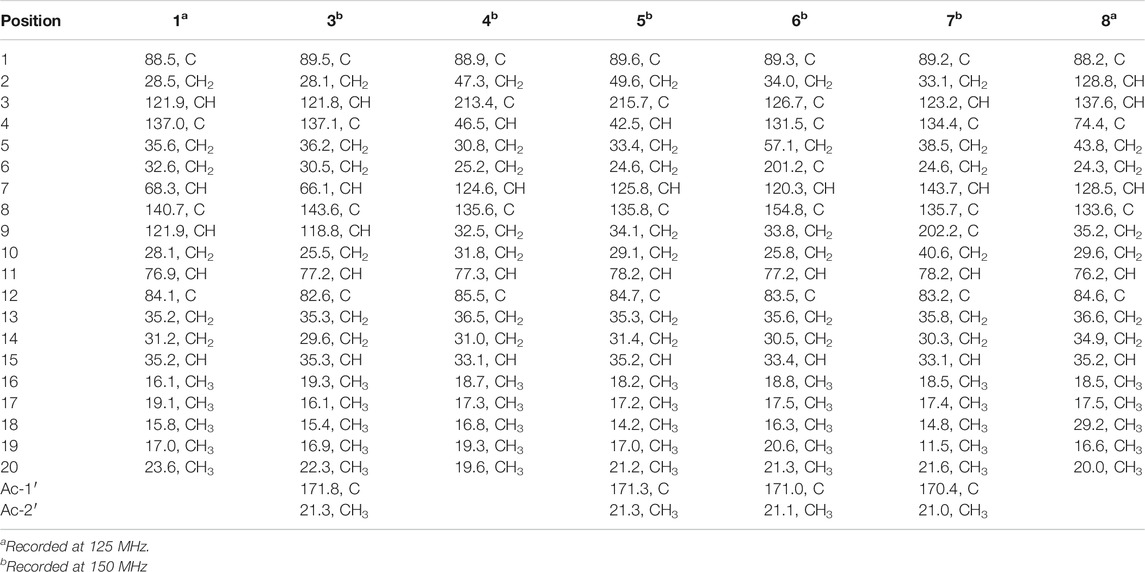

TABLE 2. ¹³C NMR spectroscopic data of compounds 1, 3–8 (δ in ppm, in CDCl₃).

Sacraoxide B (3), colorless oil [α]²⁵_D −4.1 (c 0.10, MeOH); UV (MeOH) λ_max (log ε) 202 (3.31) nm; ECD (c 1.6 × 10^-4 M, MeOH) λ_max (Δε) 195 (−5.62), 206 (+9.27) nm; IR (film) ν_max 3467, 2958, 2928, 1726, 1448, 1372, 1236, 1099, 1027, 925, 890 cm⁻¹; ¹H and ¹³C NMR spectroscopic data, see Tables 1, 2; HRESIMS m/z 387.2513 [M + Na]⁺ (calcd for C₂₂H₃₆O₄Na, 387.2511).

Sacraoxide C (4), colorless oil [α]²⁵_D +10.4 (c 0.10, MeOH); UV (MeOH) λ_max (log ε) 201 (3.18) nm; ECD (c 7.8 × 10^-5 M, MeOH) λ_max (Δε) 205 (+1.02), 239 (−0.04), 292 (+0.49) nm; IR (film) ν_max 3417, 2965, 2932, 2875, 1735, 1732, 1457, 1372, 1310, 1239, 1025, 1023, 923, 886 cm⁻¹; ¹H and ¹³C NMR spectroscopic data, see Tables 1, 2; HRESIMS m/z 323.2581 [M + H]⁺ (calcd for C₂₀H₃₅O₃, 323.2586); m/z 345.2401 [M + Na]⁺ (calcd for C₂₀H₃₄O₃Na, 345.2406).

Sacraoxide D (5), pale yellow oil [α]²⁵_D +47.7 (c 0.10, MeOH); UV (MeOH) λ_max (log ε) 201 (3.09) nm; ECD (c 6.8 × 10^-5 M, MeOH) λ_max (Δε) 207 (+1.48), 237 (−0.00), 295 (+2.00) nm; IR (film) ν_max 2965, 2931, 2875, 1732, 1728, 1457, 1372, 1238, 1110, 1023, 918, 886 cm⁻¹; ¹H and ¹³C NMR spectroscopic data, see Tables 1, 2; HRESIMS m/z 387.2515 [M + Na]⁺ (calcd for C₂₂H₃₆O₄Na, 387.2511).

Sacraoxide E (6), colorless oil [α]²⁵_D −64.0 (c 0.10, MeOH); UV (MeOH) λ_max (log ε) 201 (3.38), 234 (3.08) nm; ECD (c 6.9 × 10^-5 M, MeOH) λ_max (Δε) 203 (+0.60), 241 (−2.01), 280 (+0.02), 348 (−0.72) nm; IR (film) ν_max 2960, 2926, 1733, 1684, 1373, 1236, 1240, 1097, 1039, 976, 891 cm⁻¹; ¹H and ¹³C NMR spectroscopic data, see Tables 2, 3; HRESIMS m/z 385.2354 [M + Na]⁺ (calcd for C₂₂H₃₄O₄Na, 385.2355).

TABLE 3

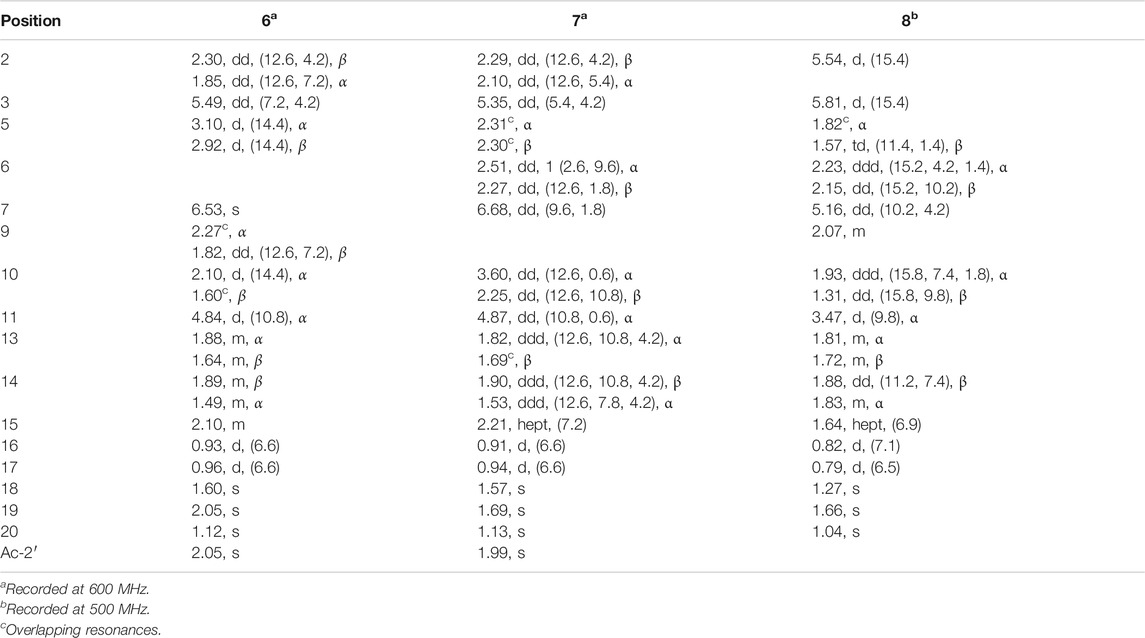

TABLE 3. ¹H NMR spectroscopic data of compounds 6–8 (δ in ppm, and J in Hz, in CDCl₃).

Sacraoxide F (7), pale yellow oil [α]²⁵_D +10.2 (c 0.10, MeOH); UV (MeOH) λ_max (log ε) 201 (3.50), 226 (3.10) nm; ECD (c 7.8 × 10^-5 M, MeOH) λ_max (Δε) 233 (−2.85), 287 (+0.18) nm; IR (film) ν_max 2960, 2929, 1733, 1684, 1374, 1236, 1028, 981, 854 cm⁻¹; ¹H and ¹³C NMR spectroscopic data, see Tables 2, 3; HRESIMS m/z 363.2504 [M + H]⁺ (calcd for C₂₂H₃₅O₄, 363.2535).

Sacraoxide G (8), white amorphous powder [α]²⁵_D +115.0 (c 0.11, MeOH); UV (MeOH) λ_max (log ε) 201 (3.29) nm; ECD (c 3.1 × 10^-4 M, MeOH) λ_max (Δε) 203 (+22.82) nm; IR (film) ν_max 3358, 2919, 2849, 1658, 1632, 1469, 1382, 1075, 977, 944 cm⁻¹; ¹H and ¹³C NMR spectroscopic data, see Tables 2, 3; HRESIMS m/z 305.2583 [M − H₂O + H]⁺ (calcd for C₂₀H₃₃O₂, 305.2475).

Boscartins AD (2), colorless oil; ¹H NMR (600 MHz, CDCl₃) δ 2.41 (1H, dd, J = 15.6, 6.6 Hz, H-2β), 1.91 (1H, dd, J = 15.6, 4.8 Hz, H-2α), 5.11 (1H, dd, J = 6.6, 4.8 Hz, H-3), 2.15 (1H, dd, J = 14.4, 9.0 Hz, H-5α), 1.94 (1H, brd, J = 14.4 Hz, H-5β), 1.83 (1H, overlap, H-6α), 1.62 (1H, overlap, H-6β), 4.72 (1H, t, J = 6.6 Hz, H-7), 5.57 (1H, dd, J = 12.0, 4.2 Hz, H-9), 2.93 (1H, dd, J = 13.2, 12.0 Hz, H-10α), 1.69 (1H, ddd, J = 13.2, 10.8, 4.2 Hz, H-10β), 3.20 (1H, d, J = 10.8 Hz, H-11), 2.07 (1H, m, H-13α), 1.74 (1H, m, H-13β), 1.80 (2H, m, H-14), 1.83 (1H, m, H-15), 0.97 (3H, d, J = 6.6 Hz, H₃-16), 0.88 (3H, d, J = 7.2 Hz, H₃-17), 1.62 (3H, s, H₃-18), 1.74 (3H, s, H₃-19), 1.16 (3H, s, H₃-20); ¹³C NMR (150 MHz, CDCl₃) δ 88.2 (C-1), 30.1 (C-2), 121.2 (C-3), 134.2 (C-4), 34.7 (C-5), 31.3 (C-6), 66.9 (C-7), 138.0 (C-8), 125.6 (C-9), 29.0 (C-10), 78.4 (C-11), 84.3 (C-12), 35.4 (C-13), 30.9 (C-14), 35.8 (C-15), 17.1 (C-16), 18.8 (C-17), 16.4 (C-18), 17.1 (C-19), 20.8 (C-20); HRESIMS m/z 305.2471 [M − H₂O + H]⁺ (calcd for C₂₀H₃₃O₂, 305.2475).

Boscartins L (10), pale yellow oil; ¹H NMR (600 MHz, CDCl₃) δ 2.42 (1H, dd, J = 16.2, 7.2 Hz, H-2β), 1.89 (1H, overlap, H-2α), 5.22 (1H, dd, J = 7.2, 5.4 Hz, H-3), 2.15 (1H, m, H-5β), 1.98 (1H, m, H-5α), 1.82 (1H, m, H-6α), 1.68 (1H, overlap, H-6β), 4.68 (1H, t, J = 6.6 Hz, H-7), 5.18 (1H, dd, J = 11.4, 4.2 Hz, H-9), 2.90 (1H, dd, J = 13.2, 11.4 Hz, H-10α), 1.88 (1H, ddd, J = 13.2, 11.4, 4.2 Hz, H-10β), 4.72 (1H, d, J = 11.4 Hz, H-11), 1.78 (1H, m, H-13α), 1.64 (1H, m, H-13β), 1.86 (1H, m, H-14β), 1.81 (1H, m, H-14α), 1.82 (1H, m, H-15), 0.88 (3H, d, J = 7.2 Hz, H₃-16), 0.96 (3H, d, J = 7.2 Hz, H₃-17), 1.65 (3H, s, H₃-18), 1.68 (3H, s, H₃-19), 1.18 (3H, s, H₃-20), 2.09 (3H, s, H₃-2′); ¹³C NMR (150 MHz, CDCl₃) δ 88.7 (C-1), 30.3 (C-2), 121.1 (C-3), 134.6 (C-4), 34.9 (C-5), 31.3 (C-6), 67.1 (C-7), 138.1 (C-8), 124.1 (C-9), 26.6 (C-10), 78.0 (C-11), 83.3 (C-12), 35.0 (C-13), 30.9 (C-14), 36.0 (C-15), 18.8 (C-16), 17.1 (C-17), 16.1 (C-18), 17.0 (C-19), 21.8 (C-20), 171.1 (C-1′), 21.3 (C-2′); HRESIMS m/z 387.2506 [M + Na]⁺ (calcd for C₂₂H₃₆O₄Na, 387.2511).

Crystal Structure Determination of 1

Crystal Data for C₂₀H₃₆O₄ (M = 340.49 g/mol): monoclinic, space group I2 (no. 5), a = 23.3651 (6) Å, b = 10.1181 (2) Å, c = 67.6869 (15) Å, β = 91.113 (2), V = 15,998.9 (6) Å3, Z = 32, T = 100.01 (11) K, μ(Cu Kα) = 0.608 mm^-1, Dcalc = 1.131 g/cm³, 58,130 reflections measured (4.026 ≤ 2θ ≤ 148.16), 25,373 unique (R_int = 0.1124, R_sigma = 0.1243) which were used in all calculations. The final R₁ was 0.0818 [I > 2σ(I)] and wR₂ was 0.2253 (all data).

Preparation of (R)- and (S)-MTPA Esters of 2

As described in previous literature (Li et al., 2007), compound 2 (2.0 mg) was dissolved in anhydrous pyridine (0.5 ml) and transferred into a dried bottle, and then 10 μL of S-(‒)-α-methoxy-α-(trifluoromethyl) phenylacetyl chloride (S-MTPA-Cl; Sigma-Aldrich Co., St. Louis, MO, United States) was added. After stirring at room temperature for 24 h, the reaction mixture was evaporated to give a residue, which was purified by semipreparative HPLC (MeOH-H₂O 9:1, v/v, 3 ml/min) to give the R-MTPA ester derivative of 2 (2a, t_R = 10.2 min, 2.1 mg). The S-MTPA ester derivative of 2 (2b, 1.8 mg) was obtained by using the same procedure as described above but using R-MTPA-Cl.

(R)-MTPA ester of 2 (2a), colorless oil; ¹H NMR (600 MHz, CDCl₃) δ 2.45 (1H, dd, J = 15.6, 7.2 Hz, H-2a), 1.87 (1H, overlap, H-2b), 5.16 (1H, dd, J = 7.2, 5.4 Hz, H-3), 1.97 (1H, m, H-5a), 1.94 (1H, m, H-5b), 1.97 (1H, m, H-6a), 1.70 (1H, m, H-6b), 5.96 (1H, dd, J = 7.2, 6.6 Hz, H-7), 5.72 (1H, dd, J = 12.0, 3.6 Hz, H-9), 3.14 (1H, dd, J = 13.2, 12.0 Hz, H-10a), 1.77 (1H, overlap, H-10b), 3.19 (1H, d, J = 10.8 Hz, H-11), 2.05 (1H, m, H-13a), 1.75 (1H, m, H-13b), 1.83 (2H, m, H-14), 1.81 (1H, m, H-15), 1.00 (3H, d, J = 7.2 Hz, H₃-16), 0.89 (3H, d, J = 6.6 Hz, H₃-17), 1.62 (3H, s, H₃-18), 1.69 (3H, s, H₃-19), 1.17 (3H, s, H₃-20); HRESIMS m/z 561.2809 [M + Na]⁺ (calcd for C₃₀H₄₁O₅F₃Na, 561.2804).

(S)-MTPA ester of 2 (2b), colorless oil; ¹H NMR (600 MHz, CDCl₃) δ: 2.45 (1H, dd, J = 16.2, 7.2 Hz, H-2a), 1.88 (1H, dd, J = 16.2, 5.4 Hz, H-2b), 5.16 (1H, dd, J = 7.2, 5.4 Hz, H-3), 2.07 (1H, m, H-5a), 1.99 (1H, m, H-5b), 2.05 (1H, m, H-6a), 1.78 (1H, m, H-6b), 5.91 (1H, dd, J = 6.6, 6.0 Hz, H-7), 5.69 (1H, dd, J = 12.0, 3.6 Hz, H-9), 3.14 (1H, dd, J = 13.2, 12.0 Hz, H-10a), 1.78 (1H, ddd, J = 13.2, 10.8, 4.2 Hz, H-10b), 3.19 (1H, d, J = 10.8 Hz, H-11), 2.06 (1H, m, H-13a), 1.74 (1H, m, H-13b), 1.83 (2H, m, H-14), 1.81 (1H, m, H-15), 0.99 (3H, d, J = 6.6 Hz, H₃-16), 0.89 (3H, d, J = 7.2 Hz, H₃-17), 1.50 (3H, s, H₃-18), 1.63 (3H, s, H₃-19), 1.17 (3H, s, H₃-20); HRESIMS m/z 561.2804 [M + Na]⁺ (calcd for C₃₀H₄₁O₅F₃Na, 561.2804).

ECD Calculations

The details of the quantum chemical ECD calculations for compounds 4, 6-8 are provided in Supplementary data.

NO Inhibitory Assay

The RAW 264.7 (ATCCTIB-71) mouse monocyte-macrophages were cultured in RPMI 1640 medium supplemented with penicillin G (100 units/mL), streptomycin (100 mg/ml) and 10% FBS. The cells were seeded in 96-well plastic plates with 1 × 10⁵cells/well and allowed to adhere for 24 h at 37°C in a humidified atmosphere containing 5% CO₂. Then the medium was replaced with fresh medium, containing LPS (1 μg/ml) together with test compounds at various concentrations and then incubated for 24 h. NO production was determined by measuring the accumulation of nitrite in the culture supernatant using Griess reagent. Briefly, 100 μL of the supernatant from incubates were mixed with equal volume of Griess reagent (1% sulfanilamide and 0.1% naphthylene-diamide dihydrochloride in 2.5% H₃PO₄) and were allowed to stand for 10 min at 37°C in a humidified atmosphere containing 5% CO₂. Absorbance at 540 nm was measured using microplate reader. The nitrite concentrations were calculated according to the literature (Jin et al., 2016).

Cell Viability

Cell viability was determined using the mitochondrial respiration-dependent MTT reduction method. After transferring the required supernatant to another plate for the Griess assay, the remaining supernatant was aspirated from the 96-well plates, 100 μL of fresh medium and 10 μL of MTT (5 mg/ml PBS) were added to each well. The cells were incubated at 37°C in a humidified atmosphere containing 5% CO₂. After incubating for 4 h, the medium was removed and the violet crystals of formazan in viable cells were dissolved in DMSO. Absorbance at 570 nm was measured using a microplate reader.

Results

A 95% EtOH extract of the gum resin of B. sacra was separated by multiple column chromatography (CC) including silica gel, Sephadex LH-20 and ODS CC, as well as preparative HPLC to afford nine cembranoids (1–9, Figure 1). The known compounds were identified as boscartin AD (2) and boscartin L (9) by detailed spectroscopic and physicochemical analyses and comparison of literature data (Wang J. J. et al., 2019; Wang Y. G. et al., 2019). The new compounds were named as sacraoxides A–G (1, 3–8), and their structures were elucidated as follows.

FIGURE 1

FIGURE 1. Chemical structures of compounds 1–9.

Sacraoxide A (1) was isolated as colorless needles (MeOH-H₂O) [α]²⁵_D +15.0 (c 0.12, MeOH). The molecular formula of 1 was established as C₂₀H₃₄O₃ from a protonated molecule at m/z 323.2574 [M + H]⁺ (calculated for C₂₀H₃₅O₃, 323.2581) in the HRESIMS spectrum. The cembranoid skeleton of 1 was indicated by the characteristic resonances for an isopropyl moiety at δ_H 1.86 (m, H-15), 0.98 (d, J = 6.9 Hz, H₃-16) and 0.86 (d, J = 7.2 Hz, H₃-17) in the ¹H NMR spectrum (Table 1), as well as their corresponding carbon resonances at δ_C 35.2 (C-15), 16.1 (C-16) and 19.1 (C-17) in the ¹³C NMR spectrum (Table 2) (Wang, et al., 2020). Compound 1 showed superimposable ¹H and ¹³C NMR resonances as the known compound 9, but lacked resonances for an acetyl moiety. In the ¹³C NMR spectrum of 1, two oxygenated tertiary carbons resonances at δ_C 88.5 (C-1) and 84.1 (C-12) were assignable to a tetrahydrofuran structure formed by cyclization between C-1 and C-12 through an ether bond, which was indicated by the HMBC correlations between H-15/C-14, H-15/C-1, H₃-20/C-12 and H₃-20/C-13 (Figure 2) (Wang J. J. et al., 2019; Wang Y. G. et al., 2019; Wang et al., 2020). Further functionalities were suggested to be two tri substituted olefins [δ_H 5.27 (H-3), δ_C 121.9 (C-3), 130.7 (C-4); δ_H 5.34 (H-9), δ_C 121.9 (C-9), 140.7 (C-8)] and two oxygenated methines [δ_H 4.63 (H-7), δ_C 68.3 (C-7); δ_H 3.45 (H-11), δ_C 76.9 (C-11)]. The assignment of a ∆^3,4 olefin moiety in 1 was accomplished by the HMBC correlations between H-3/C-1, H-3/C-18, and H₃-18/C-3, while a hydroxy group at C-11 was evident by the HMBC correlations between H-11/C-20 and H₃-20/C-11. On the other hand, the ∆^8,9 olefin and the second hydroxy group at C-7 were evident by the HMBC correlations between H-11/C-9, H-9/C-11, H₃-19/C-9, H₃-19/C-7, H-7/C-19, and H-9/C-19. Thus, the planar structure of compound 1 was concluded as 1:12-epoxy-cembra-3,8-dien-7,11-diol.

FIGURE 2

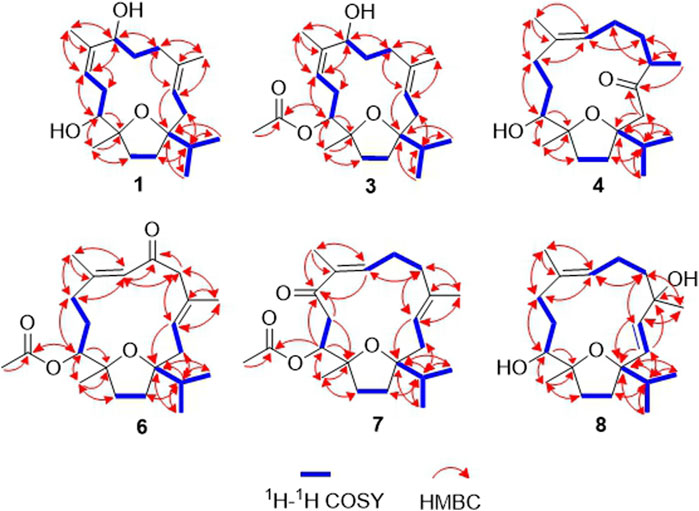

FIGURE 2. Key ¹H–¹H COSY and HMBC correlations of compounds 1, 3–4, 6–8.

The relative configurations were elucidated by interpretation of the NOESY data (Figure 3). The cis relationship between C-1 isopropyl moiety and C-12 methyl moiety was evident by the NOESY correlation between H-15/H₃-20. The β-orientation of OH-11 was deduced by the NOESY correlations between H₃-20/H-13β, and H-11/H-13α, while the β-orientation of OH-7 was deduced by the NOESY correlation between H-7/H-11. The 3E, 8Z configurations of the olefinic geometries were determined by NOESY correlations between H-3/H-5α, H₃-18/H-2β and H-9/H₃-19. Finally, the structure of 1 including the absolute configurations was determined by single-crystal X-ray diffraction analysis using Cu Kα radiation [CDCC number, 2035706, Flack parameter = −0.2 (2)] (Figure 4). Thus, the structure of sacraoxide A (1) was unambiguously determined as (1S,7S,11S,12R)-1:12-epoxy-cembra-3E,8Z-dien-7,11-diol.

FIGURE 3

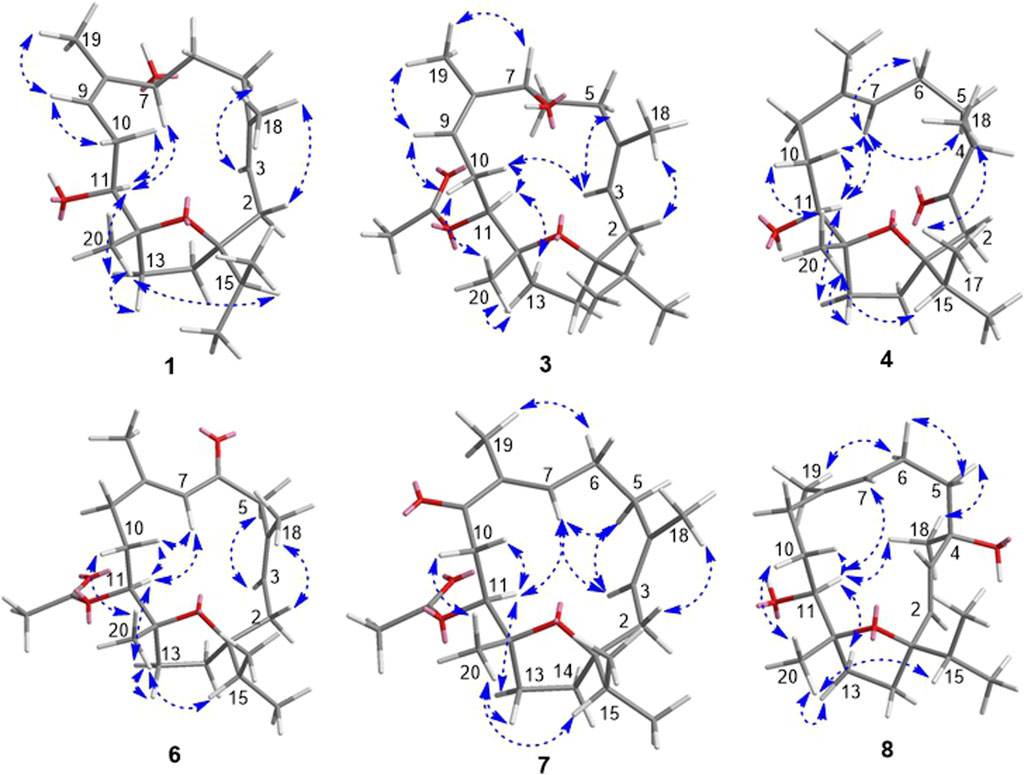

FIGURE 3. Key NOESY correlations of compounds 1, 3–4, 6–8.

FIGURE 4

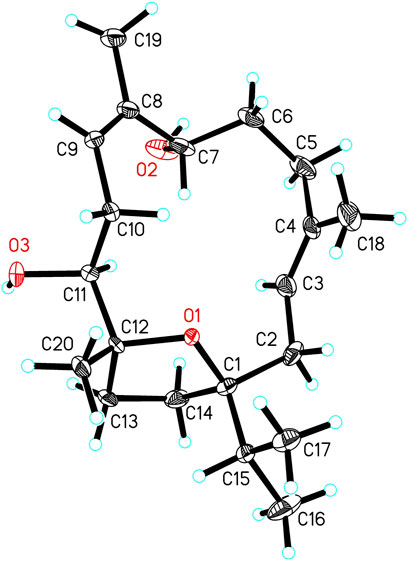

FIGURE 4. X-ray ORTEP drawing of compound 1.

Sacraoxide B (3) was isolated as colorless oil [α]²⁵_D −4.1 (c 0.10, MeOH). The molecular formula of 3 was established as C₂₂H₃₆O₄ from the HRESIMS positive-ion at m/z 387.2513 [M + Na]⁺ (calculated for C₂₂H₃₆O₄Na, 387.2511). The 1D and 2D NMR spectroscopic data of 3 were mostly compatible with those of the known compound 2, except for the downfield shifted H-11 resonance (δ_H 5.13) and the existence of a set of resonances for an acetyl group [δ_H 2.03 (H₃-2′), δ_C 21.3 (C-2′), 171.8 (C-1′)] (Tables 1, 2). The position of the acetyl group at C-11 was further determined by the HMBC correlation between H-11/C-1′. In the NOESY spectrum, a key correlation was observed between H-7/H₃-19 but not of H-7/H-11, indicating that OH-7 is α-orientated (Figure 3). Meanwhile, the ECD spectra of 3 and 2 also revealed high similarities, suggesting the same absolute configurations.

In order to determine the absolute configurations of compound 3, the modified Mosher’s method was carried out (Li et al., 2007). Compound 2 was separately esterified with (S) and (R)-MTPA chloride to give corresponding (R) and (S)-MTPA esters, 2a and 2b, respectively. As a result, only mono-substituted (R/S)-MTPA esters were obtained as the products, which were demonstrated by the HRESIMS and NMR spectroscopic data. The fact that OH-7 was esterified, was indicated by the downfield shifted H-7 resonances and the HMBC correlations between H-7/MTPA-C-1′ in 2a and 2b. The regioselectivity was in accordance with cis-relationship between CH₃-20 and OH-11 causing steric hindrance effect. The distribution of Δδ values between 2b and 2a indicated the 7R-configuration of 2 (Figure 5). Thus, the structure of sacraoxide B (3) was determined as (1S,7R,11S,12R)-1:12-epoxy-11-acetoxy-cembra-3E,8Z-dien-7-ol.

FIGURE 5

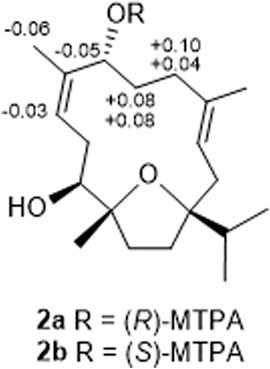

FIGURE 5. Results of compound 2 with the modified mosher’s method (Δδ_H = δ_S − δ_R).

Sacraoxide C (4) was isolated as colorless oil [α]²⁵_D +10.4 (c 0.10, MeOH). The molecular formula of 4 was established as C₂₀H₃₄O₃ from a protonated molecule at m/z 323.2581 [M + H]⁺ (calculated for C₂₀H₃₅O₃, 323.2586) in the HRESIMS spectrum. Compound 4 is a cembranoid possessing a tetrahydrofuran ring and 11-hydroxy group, which was deduced by the same NMR spectroscopic data analysis process as aforementioned in compound 1. However, in the ¹H and ¹³C NMR spectra of 4, the resonances of a methyl doublet at δ_H 1.04 (d, J = 7.2 Hz, H₃-18), and a carbonyl group at δ_C 213.4 (C-3) were observed (Tables 1, 2). Their positions were assigned by the HMBC correlations between H-15/C-2, H₂-2/C-3, H₃-18/C-3 (Figure 2). Meanwhile, the position of the trisubstituted olefin was determined at ∆^7,8 by the HMBC correlations between H₃-19/C-7, H-7/C-5, and H₃-18/C-5, as well as the ¹H–¹H COSY correlations between H₃-18/H-4, H-4/H-5, H-5/H-6, and H-6/H-7. The trans-olefinic geometry of ∆^7,8 was determined by the NOESY correlations between H-7/H-10α, and the absence of H-7/H₃-19 (Figure 3). Furthermore, OH-11 and CH₃-18 were both β-orientated, which were deduced by the NOESY correlations between H₃-20/H-13β, H-11/H-13α, and H₃-17/H₃-18.

The absolute configurations of 4 were determined by comparison of experimental and calculated ECD spectra. Time dependent density functional theory (TDDFT) at the B3LYP/6-311++G (2d,p) level with IEFPCM in MeOH was used to calculate the ECD spectra of two enantiomers of 4. The experimental ECD spectrum of 4 showed a positive cotton effect (CE) at 292 nm (n → π*), a negative CE at 239 nm (π → π*), and a positive CE at 205 nm (n → σ*), which coincided well with the calculated ECD spectrum of (1S,4R,7E,11S,12R)-4 (Figure 6), Thus, the structure of sacraoxide C (4) was determined as (1S,4R,11S,12R)-1:12-epoxy-11-hydroxy-cembra-7E-en-3-one.

FIGURE 6

FIGURE 6. Experimental and calculated ECD spectra of 4 and its enantiomer (red and blue calculated at the B3LYP/6–311++G (2d,p)//B3LYP/6–31+G (d,p) level in CH₃OH; black, experimental in CH₃OH).

Sacraoxide D (5) is an acetylated derivate of compound 4, which was indicated by both HRESIMS and NMR spectroscopic data. The acetoxy group was determined at C-11, since the proton resonance of H-11 (δ_H 5.13) was observed downfield shifted (Table 1), and the HMBC correlation between H-11/C-1′ was also observed. The ECD spectra of 5 and 4 revealed high similarities, suggesting the same absolute configurations. Thus, the structure of sacraoxide D (5) was determined as (1S,4R,11S,12R)-1:12-epoxy-11-acetoxy-cembra-7E-en-3-one.

Sacraoxide E (6) was isolated as colorless oil [α]²⁵_D −64.0 (c 0.10, MeOH). The molecular formula of 6 was established as C₂₂H₃₄O₄ from the HRESIMS positive-ion at m/z 385.2354 [M + Na]⁺ (calculated for C₂₂H₃₄O₄Na, 385.2355). Compound 6 is also a cembranoid, with a tetrahydrofuran ring and 11β-acetoxy group, which was suggested by its superimposable resonances in comparison with structurally similar compounds 9, 3, and 5. Other functionalities were suggested to be two trisubstituted olefin groups and a carbonyl moiety. One olefin was assigned to be a trans-∆^3,4 moiety by the HMBC correlations between H-3/C-1, H-3/C-18, and H₃-18/C-3, as well as the NOESY correlations between H-3/H-5α, and H-2β/H-18 (Figures 2, 3). In addition, the presence of an α,β-unsaturated ketone moiety was suggested by observation of a downfield olefinic proton at δ_H 6.53 (H-7) and a carbonyl carbon resonance at δ_C 201.2 (C-6), which were assigned as 7,8-en-6-one by the ³J-HMBC correlations between H₃-19/C-7, H-7/C-5, and H₃-18/C-5, as well as the ²J-HMBC correlations between H-5/C-6, and H-7/C-6. The trans-olefinic geometry of ∆^7,8 was evident by the NOESY correlation between H-10α/H-7. The experimental ECD spectrum of 6 showed a negative CE at 348 nm (n → π*), a positive CE at 280 nm (π → π*), a negative CE at 241 nm (π → π*), and a positive CE at 203 nm (n → σ*), which coincided well with the calculated ECD spectrum of (1S,3E,7E,11S,12R)-6 (Figure 7). Thus, the structure of sacraoxide E (6) was determined as (1S,11S,12R)-1:12-epoxy-11-acetoxy-cembra-3E,7E-dien-6-one.

FIGURE 7

FIGURE 7. Experimental and calculated ECD spectra of 6 and its enantiomer (red and blue calculated at the B3LYP/6–311++G (2d,p)//B3LYP/6–31+G (d,p) level in CH₃OH; black, experimental in CH₃OH).

Sacraoxide F (7) has the same molecular formula of C₂₂H₃₄O₄ as 6, which was established from a protonated molecule at m/z 363.2504 [M + H]⁺ (calculated for C₂₂H₃₅O₄, 363.2535) in the HRESIMS spectrum. The functionalities of the cembranoid skeleton of compound 7 included a tetrahydrofuran ring and 11β-acetoxy group, as well as two trisubstituted olefin groups and a carbonyl moiety. Detailed analyses of the 2D NMR spectroscopic data assigned the α,β-unsaturated ketone moiety as 7,8-en-9-one by the HMBC correlations between H₃-19/C-7, H₃-19/C-9, and H-11/C-9 (Figure 2). Additionally, the experimental ECD spectrum of 7 coincided well with calculated ECD spectrum of (1S,3E,7E,11S,12R)-7 (Figure 8). Thus, the structure of sacraoxide F (7) was determined as (1S,11S,12R)-1:12-epoxy-11β-acetoxy-cembra-3E,7E-dien-9-one.

FIGURE 8

FIGURE 8. Experimental and calculated ECD spectra of 7 and its enantiomer (red and blue calculated at the B3LYP/6–311++G (2d,p)//B3LYP/6–31+G (d,p) level in CH₃OH; black, experimental in CH₃OH).

Sacraoxide G (8) was isolated as white amorphous powder [α]²⁵_D +115.0 (c 0.11, MeOH). The molecular formula of 8 was established as C₂₀H₃₄O₃ from the HRESIMS positive-ion at m/z 305.2583 [M − H₂O + H]⁺ (calculated for C₂₀H₃₃O₂, 305.2475). Compound 8 is a cembranoid with a tetrahydrofuran ring and OH-11β group, which was suggested by its superimposable resonances in comparison with structurally similar compounds 1, 2 and 4. In comparison to compound 4, the different functionalities of 8 were suggested to be a disubstituted trans-olefin [δ_H 5.54 (d, J = 15.4 Hz, H-2), 5.81 (d, J = 15.4 Hz, H-3)], and an oxygenated quaternary carbon [δ_C 74.4 (C-4)] (Tables 2, 3). Their positions were assigned by the HMBC correlations between H-3/C-1, H-2/C-15, H₃-18/C-3, and H-2/C-4 (Figure 2). The β-orientation of OH-4 and OH-11 were evident by the NOESY correlations between H₃-20/H-13β, H-13α/H-11 and H₃-18/H-11 (Figure 3). The experimental ECD spectrum of 8 coincided well with the calculated ECD spectrum of (1R,2E,4R,7E,11S,12R)-8 (Figure 9). Thus, the structure of sacraoxide G (8) was determined as (1R,4R,11S,12R)-1:12-epoxy-cembra-2E,7E-dien-4,11-diol.

FIGURE 9

FIGURE 9. Experimental and calculated ECD spectra of 8 and its enantiomer (red and blue calculated at the B3LYP/6–311++G (2d,p)//B3LYP/6–31+G (d,p) level in CH₃OH; black, experimental in CH₃OH).

Nitric oxide (NO) plays significant roles in immune and inflammatory responses. The inhibition of NO release may be considered therapeutic in the treatment of inflammatory diseases (Strowig et al., 2012). Taking account of the traditional usage of the olibanum, cembranoids (1–9) were evaluated for their inhibitory activities against lipopolysaccharide (LPS)-induced NO production in RAW 264.7 mouse monocyte-macrophages. Compounds 6 and 7 showed the most potent inhibitory activities with the IC₅₀ values of 36.4 and 24.9 μM respectively, while the others were less active or inactive (Table 4). In addition, the MTT assay indicated that none of these compounds showed cytotoxicity in RAW264.7 cells at a concentration of 50 μM. The presence of an α,β-unsaturated carbonyl functionality seems essential for the inhibitory activity.

TABLE 4

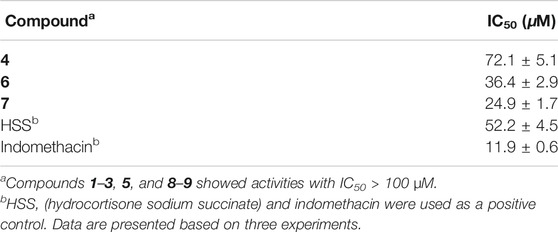

TABLE 4. Inhibitory activity of compounds 1–9 against NO production in RAW 264.7 cells.

Conclusion

A phytochemical investigation on the gum resin of B. sacra resulted in the isolation and structural elucidation of seven undescribed and two known cembranoids. These cembranoids possess a common tertrahydrofuran ring structure through an ether bond between C-1 and C-12. The structures including absolute configurations were determined by extensive physicochemical and spectroscopic analysis, as well as ECD calculation, modified Mosher's method and X-ray diffraction crystallography. Compounds 4, 6, and 7 displayed inhibitory activities against LPS-induced NO production in RAW 264.7 cells with IC₅₀ values ranging from 24.9 to 72.1 μM. These findings will be of particular value for further studies of structurally interesting cembranoids with biological activities from the genus of Boswellia.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author Contributions

BZ, DL, and WJ were responsible for the isolation of compounds. BZ and KO elucidated the structures. FZ and KH tested NO inhibitory effects of the compounds. BZ and WL interpreted the data, and wrote the paper. WL, KK, and FQ revised the manuscript. FQ was the project leaders organizing and guiding the experiment. All authors read and approved the final manuscript.

Funding

This research was supported financially by the National Key Research and Development Program of China (2019YFC1711000), and the High-end Manufacturing Innovation-driven Development Project of Xiqing District, Tianjin (cgzh-cgk-2018).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2021.649287/full#supplementary-material.
