ORIGINAL RESEARCH article

Front. Chem., 06 January 2021
Sec. Astrochemistry
This article is part of the Research Topic Theoretical Characterization of Astrophysical Species View all 8 articles

High-Level Rovibrational Calculations on Ketenimine

  • Institute for Theoretical Chemistry, University of Stuttgart, Stuttgart, Germany

From an astrochemical point of view ketenimine (CH2CNH) is a complex organic molecule (COM) and therefore likely to be a building block for biologically relevant molecules. Since it has been detected in the star-forming region Sagittarius B2(N), it is of high relevance in this field. Although experimental data are available for certain bands, for some energy ranges such as above 1200 cm−1 reliable data virtually do not exist. In addition, high-level ab initio calculations are neither reported for ketenimine nor for one of its deuterated isotopologues. In this paper, we provide for the first time data from accurate quantum chemical calculations and a thorough analysis of the full rovibrational spectrum. Based on high-level potential energy surfaces obtained from explicitly correlated coupled-cluster calculations including up to 4-mode coupling terms, the (ro)vibrational spectrum of ketenimine has been studied in detail by variational calculations relying on rovibrational configuration interaction (RVCI) theory. Strong Fermi resonances were found for all isotopologues. Rovibrational infrared intensities have been obtained from dipole moment surfaces determined from the distinguishable cluster approximation. A comparison of the spectra of the CH2CNH molecule with experimental data validates our results, but also reveals new insight about the system, which shows very strong Coriolis coupling effects.

1. Introduction

More than 200 molecules have been detected in the interstellar medium (ISM) or circumstellar shells (Müller et al., 2001, 2005; Endres et al., 2016; McGuire, 2018) presenting a chemical variety from rather stable to highly reactive species such as radicals, carbenes, and molecular ions. In a similar way, the size measured by the number of atoms varies substantially from simple diatomics (e.g., CO, CN, and OH; Weinreb et al., 1963; Jefferts et al., 1970; Wilson et al., 1970), to carbon-chain molecular species like cyanopolyynes (HCnN; Ohishi and Kaifu, 1998) and simple organic molecules like methanol (CH3OH; Ball et al., 1970), up to still larger compounds like polycyclic aromatic hydrocarbons (PAHs; Allamandola et al., 1989) and fullerenes (C60; Cami et al., 2010). Within the context of astrochemistry molecules with 6 or more atoms are usually referred to as complex molecules and when carbon is present also as complex organic molecules (COMs; Herbst and van Dishoeck, 2009). Such compounds are thought to be important building blocks for biologically relevant molecules (Woon, 2002; Theule et al., 2011; Ohishi, 2019) and accordingly, much attention has been paid to the study of formation pathways for COMs (Herbst and van Dishoeck, 2009; Öberg, 2016, and references therein).

Examples of such COMs are the class of imines (R-C=NH). They have been shown to be important intermediates for the hydrogenation of CN moieties (Theule et al., 2011; Krim et al., 2019). Recently, formation of imines has been reported for radiative-processing of ices. Vasconcelos et al. investigated the products from ion irradiation of N2-CH4 ice mixtures by in-situ Fourier transform infrared spectroscopy (FTIR) and, among others, methyleneimine was identified (Vasconcelos et al., 2020). In a similar fashion, Carvalho and Pilling (2020) detected ketenimine by FTIR spectroscopy upon irradiation of acetonitrile ice with X-rays (6–2000 eV). Ketenimine (H2C=C=NH) is one of only 4 imines which have been conclusively identified to be present in the ISM (Godfrey et al., 1973; Kawaguchi et al., 1992; Lovas et al., 2006; Zaleski et al., 2013). Using the 100 m Green Bank Telescope Lovas and coworkers observed three rotational transitions of ketenimine toward the star-forming region Sagittarius B2(N) (Lovas et al., 2006). It is known that temperatures in Sagittarius B2(N) vary between 40 K in the envelope and 300 K in the hot dense core (Martín-Pintado et al., 1996). Therefore, it could be possible that not only the rotational spectrum of ketenimine can be detected with radio telescopes, but also the rovibrational spectrum due to IR spectroscopy. Since Sagittarius B2(N) is a star forming region, the question arises whether ketenimine can be found in protoplanetary disks or even exoplanet atmospheres. Considering the recent successes in this field (Charbonneau et al., 2002; Mandell et al., 2013; Gandhi et al., 2020) as well as the upcoming space telescopes James Webb Space Telescope (JWST) and Atmospheric Remote-sensing Infrared Exoplanet Large-survey (ARIEL) with high sensitivity in this spectral range this is a feasible aim.

Given its importance as the simplest member of a larger class of chemically interesting molecules (Alajarin et al., 2012), ketenimine has been subject to a number of experimental spectroscopic investigations which revealed a complex rovibrational spectrum. The first spectroscopic investigation of ketenimine was reported by Jacox and Milligan (1963). Infrared transitions of the transient species were tentatively assigned following the reaction of NH with acetylene in argon matrix. The assignment was later confirmed and extended by Jacox (1979) in an argon matrix-isolation study of the photoisomerization of acetonitrile.

A gas phase rotational spectrum of ketenimine was obtained by Rodler and coworkers using microwave spectroscopy (Rodler et al., 1984). Ground-state rotational parameters of A0 = 201443.69, B0 = 9663.138, and C0 = 9470.127 MHz were determined from a fit to Watson's S-reduced rotational Hamiltonian (Watson, 1977) in the Ir representation. The latter parameters show that ketenimine is a near-prolate asymmetric top (asymmetry parameter κ = −0.998). Measurements of Stark-splittings (Rodler et al., 1984) yielded the ground state dipole moments  aμ0=0.431(1)D and  cμ0=1.371(6)D. Rodler et al. later carried out a high-resolution analysis in the 4–7 GHz region for the main as well as the ND isotopologue revealing small splittings in the former case, due to the imino inversion (Rodler et al., 1986). The latest study of the vibrational ground state rotational spectrum of ketenimine was performed by Degli Esposti at submillimeter wavelength (Degli Esposti et al., 2014). In total, 297 line frequencies were analyzed yielding spectroscopic parameters that allow for the accurate prediction of rotational transitions up to 1 THz.

The rovibrational spectrum of ketenimine has been studied by both, in low-resolution (August, 1986) as well as high-resolution (Ito et al., 1990; Ito and Nakanaga, 2010; Bane et al., 2011a,b,c). A gas phase spectrum of the ν~3=2044 cm−1 CCN-stretching vibration has been obtained by Ito et al. (1990) using FTIR spectroscopy. Analysis of the spectrum revealed a complicated structure due to several Coriolis-type interactions, which could only be analyzed approximately due to missing information on the perturbing states. Almost 20 years later Ito and Nakanaga reported the observation of the CNH bending rovibrational spectrum around ν~6=1000cm-1 using FTIR spectroscopy. Again, strong Coriolis perturbations precluded a detailed analysis of the ν6 state and only effective spectroscopic parameters for individual Ka sub-bands were obtained. The latter values allowed the ν10 (CH2 rocking) and ν11 (torsion) vibrations to be identified as likely perturbers, based on their large contribution to the vibration-rotation interaction constant α6A.

In a series of articles Bane and coworkers presented a thorough experimental analysis of the low lying fundamental bands of ketenimine (Bane et al., 2011a,b,c). The observed bands encompass the out-of-plane and in-plane CCN bending vibrations around ν~12=409 and ν~8=466cm-1 (Bane et al., 2011c), respectively, the CH2 wagging mode (ν~7=693cm-1; Bane et al., 2011b) and the CH2 rocking mode (ν~10=983cm-1) as well as the strong CNH bending mode ν6 (Bane et al., 2011a). Following the assignment of more than 6,000 rovibrational transitions and fitting of the spectrum, an intricate system of Coriolis-coupled states was revealed whereby all 5 observed states are coupled via Coriolis-coupling either directly (e.g., a-axis Coriolis coupled ν12 & ν8) or indirectly. The analysis required the inclusion of unobserved “dark states” 2ν8, ν8 + ν12, and 2ν12 which are also expected to be strongly Coriolis-coupled amongst themselves. While the global fit to Watson's S-reduced Hamiltonian (Ir) reproduced the observed rovibrational transition frequencies, Bane et al. noted that the torsion fundamental ν11 around 880 cm-1 probably also adds to the complex rovibrational coupling but considered inclusion of this interaction intractable.

Theoretical work on the rotational and rovibrational spectroscopy of ketenimine is rather scarce and either based on limited ab initio methods (Kaneti and Nguyen, 1982; Brown et al., 1985) or has been done only in support of dedicated experimental investigations (Ito et al., 1990; Ito and Nakanaga, 2010; Bane et al., 2011c). In the latter case, the work of Bane and coworkers (Bane et al., 2011c) provided the previously most accurate predictions of the fundamental frequencies with a root-mean-squared deviation of 11 cm-1. The results were obtained from B3LYP/cc-pVTZ harmonic frequencies which were uniformly scaled by a factor of 0.965. Given its possible importance in astrochemical reaction networks and the strong rovibrational couplings a more in-depth look at the rotational and rovibrational spectroscopy of ketenimine appears desirable.

Recently, some of us reported on the implementation of a new program for variational rovibrational calculations within the MOLPRO package of ab initio programs (Erfort et al., 2020a). The approach combines the well established MOLPRO capabilities (Werner et al., 2020) of obtaining multidimensional potential energy and dipole moment surfaces, comprehensive symmetry information and the accurate determination of vibrational wave functions with efficient calculation of partition functions, rovibrational transition frequencies, and transition dipole matrix elements in an almost black-box manner. Within this study here, we report about high-level ab initio calculations based on anharmonic potential energy surfaces obtained from explicitly correlated coupled-cluster theory, which allows for a detailed analysis of the (ro)vibrational spectra of the title compound. Compared to previous work the rovibrational calculations have been extended by pure rotational spectra, which is a newly implemented feature in MOLPRO.

2. Computational Details

Geometries, harmonic frequencies and normal coordinates of ketenimine (X1A′) and its Cs symmetric isotopologues were computed at the level of frozen-core explicitly correlated coupled-cluster theory, CCSD(T)-F12b, in combination with a basis set of triple-ζ quality, i.e., cc-pVTZ-F12 (Adler et al., 2007). Hartree-Fock energies were corrected by addition of the complementary auxiliary basis set singles correction (CABS) (Knizia and Werner, 2008).

n-mode expansions of the potential energy surface (PES) and the dipole moment surface (DMS) being truncated after 4th order were used in all calculations (Ziegler and Rauhut, 2018). A multi-level scheme has been employed throughout (Pflüger et al., 2005; Yagi et al., 2007), in which the 1D and 2D terms of the PES were computed at the CCSD(T)-F12b/cc-pVTZ-F12 level, while the explicitly correlated distinguishable clusters approach, DCSD-F12b, in combination with a smaller cc-pVDZ-F12 basis was used for the 3D and 4D terms. The 1D and 2D terms of the DMS were computed at the conventional DCSD/cc-pVTZ-F12 level and the 3D and 4D terms at the DCSD/cc-pVDZ-F12 level (Kats and Manby, 2013; Kats et al., 2015). In total about 170,000 ab initio points were used for representing the surfaces. Efficient Kronecker product fitting was employed to transform this grid representation into an analytical one consisting of 10 local B-splines per dimension (Ziegler and Rauhut, 2016).

Vibrational self-consistent field theory (VSCF) has been used to determine one-mode wavefunctions (modals) based on the Watson Hamiltonian (Watson, 1968). Vibrational angular momentum terms (VAM) were not included within the variational determination of the modals, but were added a posteriori to the state energies (Neff et al., 2011). A mode-dependent basis of 20 distributed Gaussians has been used throughout for representing the modals. Subsequent state-specific configuration-selective vibrational configuration interaction calculations (VCI) were used for calculating accurate state energies (Neff and Rauhut, 2009). The correlation space contained single to 6-tuple excitations up to the 8th root per mode and a maximum sum of quantum numbers of 15. This resulted in about 4·106 Hartree products (configurations) per irreducible representation. These calculations included VAM terms based on a constant μ-tensor. Eigenvalues were determined with our residuum based eigenvalue solver (RACE) (Petrenko and Rauhut, 2017).

Within the calculation of the rovibrational spectra we also use the Watson-operator (Watson, 1968)

HWatson=12αβJαμαβJβ-12αβ(Jαμαβπβ+παμαβJβ)+HVib,    (1)

where Jα denotes the total angular momentum operator, πα the vibrational angular momentum operator and μαβ refers to an element of the inverse effective moment of inertia tensor. The summations over α and β run over the three molecule fixed Cartesian space coordinates. The first term in Equation (1) gives the kinetic energy of rotational motion and the second term couples rotation and vibration and is referred to as Coriolis term. All other terms of the Watson Hamiltonian are purely vibrational operators and are thus summarized in the term denoted HVib. Within rovibrational configuration interaction (RVCI) theory the rovibrational wave functions are expanded in terms of products of VCI wave functions and rotational basis functions (Erfort et al., 2020a,b). The latter can be either primitive symmetric top eigenfunctions or Wang combinations of symmetric top functions (Wang, 1929; Špirko et al., 1985).

In the following, we will distinguish between rotational configuration interaction (RCI) and rovibrational configuration interaction (RVCI). RCI is an approximation, in which no rovibrational interaction between different vibrational states is considered. This corresponds to neglecting the second term, see Equation (1), as well as all terms off-diagonal in the vibrational quantum numbers, arising from the 1D and higher order expansion of the μ-tensor (centrifugal distortion). Since every RCI-matrix is thus constructed for a single VCI wave function, the vibrational state identity can be trivially assigned for every rovibrational state. In contrast, within RVCI all rovibrational interactions are considered. As a consequence the only “good” quantum number is the angular momentum quantum number J and the parity of the rovibrational state. In this sense, RVCI yields the physically meaningful results. However, we found that a comparison of RVCI with the RCI results is helpful to understand and visualize both the effects of Coriolis interaction and intensity borrowing mechanisms in general. Again, it shall be noted that for comparison with experiments only RVCI results should be used.

The rovibrational intensities are calculated according to

I=2π23NAϵ0h2c2e-E/kBT(1-e-(E-E)/kBT)Q(T)(E-E)R2.    (2)

In Equation (2), the first two prefactors contain only constants. The next factor corresponds to the thermal distribution function, with the temperature T, Boltzmann constant kB, the energy of the lower state E″ and the upper state E′ as well as the temperature dependent partition function Q(T). For the latter, we use the separability approximation Q = QvibQrot for several reasons. First, we are investigating a relatively low temperature regime up to 300 K, where the partition function converges quickly with increasing excitation, such that errors in energies for high-lying states have little influence. Second, we have shown in our previous work (Erfort et al., 2020a), that for H2CO and H2CS the differences between experimental Q(T) values and theoretically approximated QvibQrot values for the partition function are lower than 2 % up to 300 K. In addition to that, the partition function is the same global factor for every transition and since we are primarily interested in relative intensities rather than in absolute intensities, it is therefore not crucial for us. The last two factors in Equation (2) correspond to the frequency of the transition (E′ − E″) and the squared transition moment R2. The calculation of the latter within RVCI has been outlined previously (Erfort et al., 2020a). For ketenimine all nuclear spin statistical weights show the values of 24.

Further approximations are used to limit the calculation times. First of all, we are not considering hot bands. Due to relatively low temperatures and absence of fundamentals with particularly low energies, these bands have fairly low intensities and are mainly hidden behind significantly more intense transitions arising from the vibrational ground state. This is supported by a comparison to the results of Bane and coworkers (Bane et al., 2011c). Moreover, the inverse effective moment of inertia tensor μ is expanded to the 0th order for the RVCI calculation. Within these computations all fundamental bands, seven combination bands (ν3 + ν5, ν3 + ν6, ν5 + ν6, ν6 + ν10, ν7 + ν8, ν7 + ν12, and ν8 + ν12) and seven overtones (2ν6, 2ν7, 2ν8, 2ν10, 2ν12, 3ν8, and 3ν12) were simultaneously considered, giving in total Nvib = 27 vibrational states (including the ground state). As a convergence check we performed a calculation with angular momentum quantum number of J ≤ 70 and one with J ≤ 100. The VCI calculations were performed in parallel using 9 cores, with a total computational time of 100 h. The required memory for the subsequent serial RVCI treatment is less than 40 GB. As an example, the RVCI matrix for J = 70, with Nvib = 27 vibrational states is of size (2J + 1)Nvib = 3, 807. Although, this is relatively small in comparison to other rovibrational software, the results are nevertheless very accurate. A possible reason for this lies in the very accurate and compact vibrational basis, in the form of VCI wavefunctions. Computational timings on a single CPU core were about 83 min for RVCI energies and about 14 h for RVCI intensities for J ≤ 70. For the same upper bound of J there were 3.81 × 107 transitions considered and about 1.41 × 106 of them where found to be significant. For T = 300 K the partition function is converged to Q(T) = 2.05 × 105 at J = 71.

3. Results and Discussion

3.1. Geometrical Parameters, Rotational Constants, and Dipole Moments

Geometrical parameters of the main ketenimine isotopologue as well as two deuterated variants have been calculated and are provided in Table 1. The parameters obtained from the Born-Oppenheimer equilibrium geometry are denoted re. The only experimental geometrical parameter available for comparison is a mixed experimental-theoretical valence angle α(C2NH3) (Rodler et al., 1986). From a semi-rigid bender analysis of the 91,8-100,10 ground state rotational transition, Rodler and coworkers determined a value of 115.4 ± 0.6° for α(C2NH3) which is in excellent agreement with our optimized value of 114.76°. To account for vibrational effects ra and rg parameters have been calculated. While the former correspond to parameters obtained from atomic positions averaged over the VCI ground state wavefunction, the latter are instantaneous inter-nuclear distances calculated from an expectation value of the bond lengths expanded in terms of the normal coordinates. As is typically observed (Czakó et al., 2009; Dinu et al., 2020), both sets of vibrationally averaged bond lengths differ substantially from each other with the largest absolute difference of 0.0169 Å observed for r(NH3) in the main isotopologue. The CNH angle α(C2NH3) shows a slightly larger vibrational effect compared to other angles, in line with the inversion character of this coordinate. The barrier to planarity (C2v) was computed to be 5249 cm−1 at the CCSD(T)-F12b/cc-pVTZ-F12 level and is thus too high for tunneling effects in the fundamental modes to be of any importance. The semi-rigid bender analysis (Rodler et al., 1986) yielded a barrier height of 4700 ± 200 cm-1 which compares well with the present theoretical result. The imaginary frequency characterizing the transition state amounts to i908 cm-1. Note that there is no stationary point on the potential energy surface for a planar structure of neutral ketenimine.

TABLE 1
www.frontiersin.org

Table 1. Computed geometrical parameters of ketenimine and its deuterated isotopologues.

Calculated and experimental (Rodler et al., 1984, 1986) rotational parameters for ketenimine isotopologues are compared in Table 2. There, rotational parameters A, B, and C obtained from the equilibrium geometry are denoted by method re. Following the work of Czakó et al. (2009), vibrationally averaged rotational parameters are approximated from the expectation value of the μ-tensor (Watson, 1968) over VCI wavefunctions. An n-mode expansion of the μ -tensor up to 3D terms has been employed in these calculations. Since this approach does not account for Coriolis coupling contributions to the rotational parameters, these are added via a correction based on Vibrational second-order perturbation theory (VPT2) (Rauhut, 2015; Dinu et al., 2020). The final equation for the rotational parameters Bvα (α = a, b, c) within a vibrational state v is thus given by

Bvαμααv2+k2(Beα)2ωkl(ζklα)23ωk2+ωl2ωk2-ωl2(vk+12).    (3)

In Equation (3), 〈μααv is the expectation value of a diagonal μ-tensor element evaluated over the VCI wavefunction for state v. In the second term of Equation (3), constituting the VPT2 Coriolis correction, Beα is the equilibrium rotational constant with respect to rotation about an axis α, ωk are harmonic vibrational frequencies and ζklα are Coriolis constants that describe the coupling of vibrations k and l via rotation about the α-axis. Results obtained from Equation (3) for the vibrational ground state are denoted either 〈μαα0 or 〈μαα0+VPT2 in Table 2, depending on whether the Coriolis correction is included or not. Notice that in the evaluation of 〈μααv the μ-tensor has been expanded up to 3D terms.

TABLE 2
www.frontiersin.org

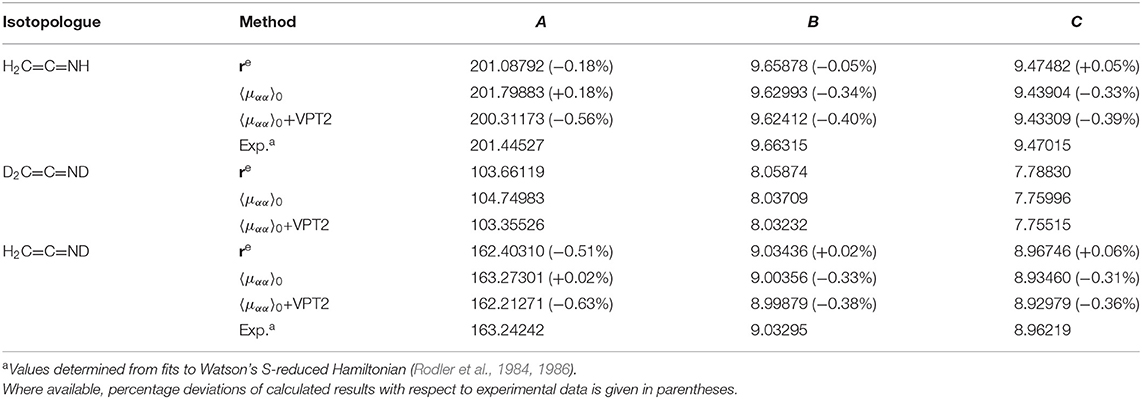

Table 2. Computed and experimental rotational constants in GHz.

Inspection of Table 2 shows rather large deviations of the Coriolis-corrected vibrationally averaged rotational parameters of −0.56, −0.40, and −0.39% with respect to experimental results (Rodler et al., 1984, 1986) for A0, B0, and C0, respectively. In contrast, the calculated equilibrium rotational parameters are in much better agreement with the experimental ground state rotational parameters, which is mainly due to error compensation. To confirm this, a geometry optimization at the all-electron CCSD(T)-F12b level of theory in conjunction with a cc-pCVTZ-F12 basis set (Hill et al., 2010) was carried out. This yields equilibrium rotational parameters (in GHz) for the main ketenimine isotopologue of 202.06657, 9.70127, and 9.51561 for Ae, Be, and Ce, respectively. Adding the corrections due to vibrational averaging and Coriolis-coupling results in A0 = 201.290 38 GHz (−0.08%), B0 = 9.666 61 GHz (+0.04%), and C0 = 9.464 40 GHz (+0.04%), where deviations with respect to the experimental results of Rodler et al. (1984, 1986) are given in parentheses. The agreement of these corrected results with the experimental ones is excellent, but it is well-known that core correlation effects should not be considered without the inclusion of high-level coupled-cluster terms, e.g., CCSDT(Q), at the same time, because they often partly compensate each other (Ruden et al., 2004; Meier et al., 2011; Puzzarini et al., 2020). Moreover, rovibrational intensities as considered below depend on several quantities and the impact of these additional corrections might be different for the individual quantities. Consequently, there is no unique answer, if the partial inclusion of these corrections will lead to better results. In any case, the inclusion of these high-level corrections is beyond the focus of this study and we neither did account for core correlation effects nor high-order coupled-cluster terms in the calculations presented below.

Experimental high-resolution spectroscopic investigations have revealed strong a-axis Coriolis coupling among the low lying vibrational states of ketenimine, especially for the pair of fundamentals ν8 and ν12 (Bane et al., 2011a,b,c). This can also be shown by comparing rotation-vibration coupling constants αiβ. From the rotational constants presented by Bane et al. (2011a) αiβ can be approximated by αiβ=B0β-Biβ. This yields 6185.3, −34.0, and -13.4 MHz for α12A, α12B, and α12C, respectively, and −2845.0, −8.1, and -22.1 MHz for α8A, α8B, and α8C, respectively. These values should be compared to our theoretical VPT2 results of 444.5, −34.2, and -14.7 MHz for α12A, α12B, and α12C, respectively, and 2497.5, −9.3 and -22.7 MHz for α8A, α8B and α8C, respectively. Following Papoušek and Aliev (1982), the latter values have been corrected for the a-axis Coriolis resonance between ν12 and ν8 in order to be comparable with the results of Bane and coworkers. To this end, the corresponding (i, j) = (12, 8) or (8, 12) term in the Coriolis contribution to αiβ (cf. second term in Equation 3) is replaced according to

(ζijβ)23ωi2+ωj2ωi2-ωj2-(ζijβ)2Beβ(ωi-ωj)2ωiωj(ωi+ωj) .

We have also investigated whether symmetry allowed off-diagonal contributions αkAC are important for ketenimine, following the work of Aliev and Watson (1985), but found their contribution to effective α~12β and α~8β after diagonalization of the respective Biαβ matrices negligible.

While the B and C components are in excellent agreement between experiment and theory, the A components show large differences. Moreover, the differences between experiment and theory for ν12 and ν8 are almost identical but of opposite sign (-5740.8 MHz for ν12 and 5342.5 MHz for ν8). For comparison, not accounting for Coriolis resonance yields unphysical VPT2 values of −59021.2 and 61996.7 MHz for α8A and α12A, respectively. Such effects are unambiguous indications of strong Coriolis coupling. The preceding discussion clearly shows that a simple treatment of the rotational problem and the rovibrational couplings in ketenimine, based on e.g., Equation (3) or VPT2, has to proceed with caution. A variational treatment employing the exact rovibrational Hamiltonian automatically includes all interactions necessary for a correct description of the internal dynamics.

Calculated dipole moments of ketenimine and its isotopologues are listed in Table 3. Our DMS yields equilibrium dipole moments for the main ketenimine isotopologue of  aμe=0.5008D and  cμe=1.4056D, where superscripts a and c refer to the principal axis components of the dipole vector μe. Symmetric H/D substitution results in a rotation of the a- and c- axis around the b axis. As a consequence, the components  aμe and  cμe of the dipole vector differ among the ketenimine isotopologues but the total dipole moment of |μe|=1.4912D is unchanged. The situation is different for the ground state dipole moments μ0 due to variations of vibrational averaging effects. Overall, vibrational averaging results in a lowering of both a- and c-axis components. The non-deuterated isotopologue shows slightly larger effects due to vibrational averaging, especially for the c-axis component. Rodler et al. (1984) determined the dipole vector components of the main isotopologue and from Stark shifts of the 202←101 and 211←110 rotational transitions. While the resulting  cμ0=1.371(6)D is in excellent agreement with our calculated value of 1.3766 D, a somewhat larger difference is observed between the experimental  aμ0=0.431(1)D and calculated 0.4587 D. This difference is in part due to a geometric effect. Using the optimized ae-CCSD(T)-F12b/CVTZ-F12 geometry, equilibrium dipole moments of  aμe=0.4854D (-0.0154 D) and  cμe=1.4029D (-0.0027 D) were obtained from DCSD/VTZ-F12 calculations, where values in parentheses correspond to the difference with respect to the values quoted in Table 3. Adding the vibrational averaging correction yields an approximate  aμ00.4433 D, closer to the experimental result. Again, the influence of high-order coupled-cluster terms would be required to further reduce the remaining error.

TABLE 3
www.frontiersin.org

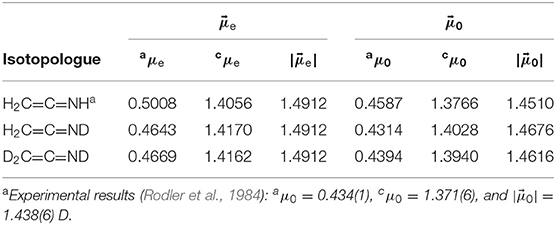

Table 3. Calculated dipole moments μ (in D) of ketenimine and its deuterated isotopologues.

3.2. Vibrational Spectrum

The purely vibrational transitions of ketenimine and its isotopologues are listed in Table 4. Clearly, for the deuterated species the majority of experimental assignments is missing and a comparison of the different experimental results for H2CCNH shows that these results bear an uncertainty of several wavenumbers.

TABLE 4
www.frontiersin.org

Table 4. Comparison of calculated VCI fundamental frequencies of H2C=C=NH and its deuterated isotopologues with experimental data.

Concerning the assignments for the non-deuterated ketenimine, a huge difference of more than 80 cm-1 between the computed and experimental values of Bane et al. (2011c) can be seen for mode ν4. An analysis showed that this mode shows a strong Fermi resonance with the overtone of ν7 and our calculated value of 1350.9 cm-1 for 2ν7 agrees nicely with the experimental value of 1355 cm−1. As our calculations clearly assign the transition at 1435.9 cm-1 to the fundamental mode, we believe that the experimental value of 1355 cm−1 belongs to the 2ν7 overtone, which is the lower state of this Fermi pair. The reason for this misassignment might be that the infrared intensity of the overtone is much stronger than that for the fundamental. A closer look at this particular resonance reveals a peculiar feature. While the band intensity at the VSCF level amounts to 3.42 km/mol for ν4 and 4.47 km/mol for 2ν7, almost all intensity is transferred to the overtone within the VCI calculations. This can be understood by comparison to a VPT2 based analysis that accounts for the Fermi resonance (Vázquez and Stanton, 2007). Then, the intensities of the Fermi dyad in question are predominantly determined by the mixed a-axis transition dipole moments aμv. The latter are obtained from the eigenvector components Cων of the Fermi resonance matrix and the (deperturbed; dp) transition dipole moments aμωdp evaluated over harmonic basis functions |ω〉 according to:

aμν4=Cω4ν4·aμω4dp+C2ω7ν4·aμ2ω7dp                    =0.78·0.033 D+0.62·0.044 D0.002 D

and

aμ2ν7=Cω42ν7·aμω4dp+C2ω72ν7·aμ2ω7dp                       =0.62·0.033 D+0.78·0.044 D0.055 D,

where the corresponding values have been inserted. As can be seen from above equations, the efficient intensity stealing results from a compensation of the signs of the eigenvectors and the deperturbed transition dipole moments. The analysis and composition of all observed resonances of the fundamental modes of all isotopologues based on VCI calculations is summarized in Table 5. For all other fundamental modes of the non-deuterated molecule the agreement of the VCI calculations with the experimental results is excellent and the maximum deviation is no larger than 6.2 cm-1, which is within the error bar of potential energy surfaces obtained from explicitly correlated coupled-cluster theory (Rauhut et al., 2009). In order to reduce this remaining error even further one would need to incorporate a number of corrections within the electronic structure calculations as for example high-order coupled-cluster terms, core-correlation effects, relativistic contributions, etc. (Ruden et al., 2004; Meier et al., 2011).

TABLE 5
www.frontiersin.org

Table 5. Resonances of the fundamental modes of ketenimine and its isotopologues.

The results for the fully deuterated isotopologue, i.e., D2CCND are of the same quality as for H2CCNH and thus the VCI results most likely provide reliable predictions for all fundamentals. Most remarkably for this isotopologue are the very strong intensities for ν3 and its resonance partners (cf. Table 5). The results for H2CCND look more inconsistent than for the other two isotopologues. While modes ν3 and ν5 are in excellent agreement with the experimental results, the VCI results for ν6 and ν7 deviate by 9.3 and 13.5 cm-1 from the experimental reference data, respectively. According to our VCI calculation, ν6 shows a weak Fermi resonance with the overtone of ν12 (due to its weak character it has not been listed in Table 5). As such coupling pairs are sensitive with respect to environmental effects as arising from the argon matrix, the deviation of 9.3 cm-1 may be explained this way. However, we consider this rather unlikely, but suspect difficulties in pinpointing the transition energies in the experiment, because Jacox reports that overlapping parent molecule absorptions and unassigned contributions of other products such as the partially deuterated methyl cyanides complicate the assignment of other absorptions to the partially deuterated ketenimines (Jacox, 1979). Note that for all isotopologues, ν4 shows strong Fermi resonances, but with different partners and in all cases the intensity of the overtone is stronger than for the fundamental.

3.3. Rotational Spectrum

In Figure 1, our computed RVCI rotational spectrum of ketenimine (Figure 1A) is compared with a simulated experimental spectrum (Figure 1B) for a temperature of T = 50 K. The latter spectrum has been calculated with the SPCAT program (Pickett, 1991) using the spectroscopic parameters of Degli Esposti et al. (2014) determined from the submillimeter wave spectrum, while intensities are based on the experimentally determined dipole moments in the vibrational ground state (Rodler et al., 1984). Intensities are given relative to the strongest line at T = 50 K, which corresponds to the 52,3 → 63,3 transition in both cases. Excellent agreement between the RVCI and the experimental spectrum is observed. Only very subtle frequency differences appear upon close inspection, which occur mainly due to the difference of about 0.3 GHz in the employed A rotational constants (compare Table 2). The overall shape of the spectrum, which is dominated by  cR10 branch progressions and the sharp cQ branches, is nicely reproduced by the RVCI spectrum.

FIGURE 1
www.frontiersin.org

Figure 1. Rotational spectrum of ketenimine in its ground vibrational state for T = 50 K. Comparison of the theoretical RVCI results (A) obtained from Molpro and (B) based on experimental results as determined by Degli Esposti et al. (2014) (see text for details).

We have studied the temperature dependence of the ground state rotational spectrum in the range 20 to 300 K and results are depicted in Figure 2. With increasing temperature the intensity of the rotational transitions decrease by about a factor of 2 and the rather sharp  cQ10 branches below 600 GHz broaden significantly. While for T = 20 K the  cR10 transitions originating in Ka = 1 states are the strongest up to 2 THz, with each increase in temperature the maximum shifts by one unit in Ka. Furthermore, the effect of asymmetry splitting in Ka = 1 states are clearly visible. All these observations originate in the Boltzmann distribution function resulting in a higher partition function and a shift in the thermal distribution toward higher Ka and J. The former is responsible for the emergence of higher energy branches and the latter for the shifts in the maximum for individual J-progressions, highlighting the importance of an accurate determination of the partition function.

FIGURE 2
www.frontiersin.org

Figure 2. Ground state rotational RVCI spectrum of ketenimine for different temperatures, (A) 20 K, (B) 50 K, (C) 100 K, (D) 200 K, (E) 300 K. Temperatures are considered only in the occupation numbers and not in line broadening. For the sake of clarity, the intensity axis of adjacent sub-figures are downscaled by a factor of two for increasing temperatures.

3.4. Rovibrational Spectrum

It is known that the rovibrational spectrum of ketenimine shows many strongly coupled rovibrational bands in the energy regime between 300 and 1200 cm−1 (Bane et al., 2011a,b,c). For this reason, we want to give a broad overview over this area with Figure 3. The figure shows the 5 fundamental bands ν5, ν6, ν7, ν8, ν11, as well as the overtone 2ν8 and the combination band ν12 + ν8. The comparison between RVCI and RCI spectra allows for a better understanding of the coupling and resonance effects. Two examples for these couplings can be seen around 400 and 900 cm-1. Therefore these areas are displayed in separate Figures 4 and 5 and will be discussed below. For the following figures, we did not use any line broadening, since no direct comparison with experimental results is depicted.

FIGURE 3
www.frontiersin.org

Figure 3. Overview of the low frequency range of the rovibrational spectrum of ketenimine. Comparison between RVCI (A) and RCI (B) results. Visible contributions are provided by the fundamental bands ν8 (at 464.4 cm−1, CCN in-plane bend, in light green), ν7 (at 691.2 cm−1, CH2 wagging, in purple), ν11 (at 876.2 cm−1, torsion, in light blue), ν6 (at 1007.1 cm−1, CNH bend, in orange), ν5 (at 1122.5 cm−1, CCN stretch, in dark blue) as well as the combination band ν8 + ν12 (at 880.7 cm−1 in dark green), and the overtone 2ν8 (at 927.3 cm−1 in yellow).

FIGURE 4
www.frontiersin.org

Figure 4. The two lowest fundamental bands ν12 (at 405.7 cm−1, CCN out-of-plane bend, VCI intensity 0.4 km/mol, in purple) and ν8 (at 464.4 cm−1, CCN in-plane bend, VCI intensity 19.8 km/mol, in light green) as well as small contributions of ν7 (at 691.2 cm−1, CH2 wagging, in orange). Comparison between RVCI (A) and RCI (B).

FIGURE 5
www.frontiersin.org

Figure 5. Rovibrational spectrum of ketenimine of the fundamental bands ν7 (at 691.2 cm−1, in purple), ν11 (at 876.2 cm−1, in light blue), ν10 (at 980.7 cm−1, in red, barely visible) and ν6 (at 1007.1 cm−1 in orange) and the combination band ν8 + ν12 (at 880.7 cm−1 in dark green), and the overtone 2ν8 (at 927.3 cm−1 in yellow). Comparison between RVCI (A) and RCI (B) results.

A good example for the strong Coriolis-coupling in this system can be seen in Figure 4 between ν8 and ν12. The bottom subplot (Figure 4B) shows the results of the RCI calculation, where Coriolis-coupling is not considered. ν12 has about two orders of magnitude less intensity then ν8, in line with the band intensities obtained from VCI (cf. Table 4). The in-plane CCN bending vibration ν8 clearly shows an A-type spectrum, whereas the out-of-plane CCN bend ν12 shows the expected B-type intensity pattern. Inclusion of Coriolis-coupling in the upper subplot (Figure 4A) results in ν12 gaining about one order of magnitude in intensity by intensity borrowing in the RVCI calculation. The missing intensity in the stronger band is hard to see, since the relative difference is smaller. Furthermore, ν12 can neither be assigned to an A-type nor a B-type band structure, due to the lifting of the typical selection rules via Coriolis-coupling. For the ν8 fundamental, the overall shape of an A-type transition is retained. Both bands show a rather asymmetric structure, with a supposed band center of the ν12 mode shifted by about 20 cm-1 to lower energies and visible transitions well below 350 cm-1. This is in contrast to ν8, where both branches gain intensity toward higher energies, with an overlapping region at about 470 cm-1. The high energy tails of the R-branch (around 530 cm-1) could also be influenced by the ν7 mode (orange in Figure 4). However, we expect that effect to be small, since the VCI energies of the two modes ν7 and ν8 are separated by more than 200 cm-1.

A comparison with the experimental and simulated spectra of Bane and coworkers (Figures 2A and B in Bane et al., 2011c) shows in general good agreement for ν12 (Figure 4 as well as in Supplementary Figure 1). This holds for both the number of progressions and their distribution over the spectral range from 330 to 410 cm-1. However, there seems to be a sudden drop in intensity at 410 cm-1 that can not be found in our calculated results. The slight shift of our RVCI-spectrum by about 4 cm-1 compared to experiment can be explained by our error in the VCI energy of 3.3 cm-1 (cf. Table 4). Comparing the spectra of Bane et al. for ν8 (Figures 2C and D in Bane et al., 2011c) with ours (compare also in Supplementary Figure 2) shows somewhat larger deviations. While the A-type P and R branch structure is still recognizable in Figure 4, the spectra of Bane et al. show a broader distribution of the Ka sub-bands leading to the A-type band shape being partially obscured. It should be mentioned that there are isolated peaks protruding both bands (see Bane et al., 2011c). Tests have shown (see Supplementary Figures 14) that such prominent peaks as well as the above discussed differences in the intensity patterns originate from line broadening. Since we do not use any broadening, those protruding peaks cannot be expected in our spectrum, but of course must appear in the experimental spectra.

In contrast to the previously considered modes, the CH2 wagging mode ν7 does not change its macroscopic shape due to Coriolis coupling. As can be seen in Figure 5, the general form of ν7 corresponds to a C-type transition of a near-prolate asymmetric top molecule. The main difference due to RVCI (in the top panel) is the splitting of the central Q-branches. In comparison with the work of Bane et al. (Figure 2B in Bane et al., 2011b), there are two small deviations besides the overall good agreement (compare also in Supplementary Figure 3). First, there is a small shift for the two high peaks in the middle of the mode. Second, the experiment seems to show a sudden drop in intensity between the middle (650 and 730 cm-1) and the outer parts of the progression (above 730 and 650 cm-1). As mentioned before, the distributed peaks shown in the paper of Bane et al. (2011b), are caused by a Gauss broadening of the experimental results and are therefore not to be expected in our spectra. The possible coupling of ν7 with higher energy modes (above 750 cm-1 in Figure 5) is not shown in the simulated spectrum of Bane et al. (2011b).

Another example of extensive rovibrational coupling occurs between 780 and 970 cm-1 (see Figure 5). The reason for this is the close proximity of three vibrational bands: one fundamental band (ν11 at 876.2 cm-1, torsion, A″ symmetry), one combination band (ν8 + ν12 at 880.7 cm-1, A″ symmetry) and one overtone (2ν8 at 927.3 cm-1, A′ symmetry) within 50 cm-1. Additionally, there is a further “dark state” involved, corresponding to the overtone of the out-of-plane CCN bending mode (2ν8 at 809.6 cm-1, A′ symmetry). While the overtones 2ν12 and 2ν8 are strongly coupled to the combination band ν8 + ν12 via a-axis Coriolis-coupling (ζ8,12a=-0.802), similar to the correspondingly coupled fundamentals, the ν11 fundamental has been shown to be in Fermi resonance with the combination band (cf. Table 5). The resulting rovibrational coupling leads to an almost complete loss of discernible band structure when comparing the RCI (bottom panel) and the RVCI spectrum (top panel). As a consequence, experimental assignment and interpretation of this spectral region will be highly difficult without reliable estimates of spectroscopic parameters obtained from theory.

Figure 6 reveals only very weak Coriolis coupling between ν3 and 2ν6, respectively 2ν10. One reason for this is that the largest non-vanishing ζ constants for ζ3,6α and ζ3,10α correspond to b and c direction, respectively. Hence the rotational constants along the b and c direction have to be considered. Since they are a factor of 20 smaller then the A rotational constant, the coupling is significantly weaker. In addition to that, Coriolis coupling between a fundamental band and the overtone of another band requires at least the first order in the μ-tensor expansion. Therefore, it is possible that in experiments a somewhat stronger coupling occurs, even though it is unlikely due to the small rotational constants. The only experimental results for this mode have been presented by Ito et al. (1990). While a direct comparison of spectra is ambiguous, due to relatively low resolution and a contamination of the experimental probe, Ito et al. do note signs of Coriolis perturbations in the fitted effective spectroscopic parameters of the ν3 band.

FIGURE 6
www.frontiersin.org

Figure 6. Rovibrational spectrum of ketenimine in the region of the strongest fundamental band ν3 (at 2041.8 cm−1, CCN stretch, in green). Additionally, the overtones 2ν10 (at 1955.0 cm−1, in purple), and 2ν6 (at 1975.1 cm−1, in orange), as well as the combination band ν5 + ν6 (at 2130.8 cm−1, in red) provide visible contributions in this spectral range. Comparison between RVCI (A) and RCI (B) results.

Figure 7 shows the XH stretching fundamental region between 3000 and 3500 cm−1. The corresponding fundamental bands are the symmetric (ν2) and antisymmetric (ν9) CH2 stretch vibrations and the NH stretching mode (ν1), in energetically ascending order. Additionally, the ν3 + ν5 and the ν3 + ν6 combination bands provide a significant contribution to the spectrum. All bands show the expected shapes of A-type (ν2, ν3 + ν5, and ν3 + ν6), B-type (ν1), and C-type (ν9) transitions. So far there were no experimental results published for any of these bands. The comparison between RCI (bottom) and RVCI results (top) gives no indications for substantial Coriolis coupling among the fundamental bands. This is supported by taking the corresponding Coriolis coupling constants into account, where the largest (absolute) value is found for ζ2,9c0.05. Due to the restriction to a constant μ-tensor, no direct Coriolis coupling between fundamentals νi and combination bands νj + νk is included in the RVCI-matrix. While a strong interaction between ν2 and ν3 + ν5 is unlikely because of very small ζ-constants (|ζ2jb|0.003), such a coupling might be relevant for the ν9 fundamental due to the close by ν3 + ν6 combination band and the substantial intensity difference. However, experimental observation of ν9 will be complicated by the fact that ν9 rovibrational transitions will most likely be hidden in between the stronger ν3 + ν6 band. Overall the rovibrational transitions in this spectral region have rather low intensity compared to other spectral regions. The VCI band intensity of the strongest vibrational transition ν1 (10.9 km/mol) is already a factor of about 20 lower than the two strongest fundamental bands (cf. Table 4).

FIGURE 7
www.frontiersin.org

Figure 7. Rovibrational spectrum of ketenimine in the region of XH stretching fundamentals. Three fundamental bands ν2 (at 3048.0 cm−1, symmetric CH2 stretch, in orange), ν9 (at 3132.5 cm−1, anti-symmetric CH2 stretch, in purple, barely visible) and ν1 (at 3315.4 cm−1, NH stretch, in light green) are shown, as well as the combination bands ν3 + ν5 (at 3042.0 cm−1, in blue) and ν3 + ν6 (at 3151.1 cm−1in red). Comparison between RVCI (A) and RCI (B) results.

3.5. Summary and Conclusions

The vibrational, rotational and rovibrational spectra of ketenimine have been studied by high-level ab initio methods for the first time. Based on a new series of almost black-box algorithms being implemented in the MOLPRO package of quantum chemical programs, it was possible to simulate and analyze the complex rovibrational features of this near-prolate asymmetric top molecule. Note, that the input information for these calculations comprises just the molecular structure and the call of the requested modules, which act in a highly optimized—with respect to memory requirements and CPU time—and automated manner. Agreement with available experimental data, i.e., ground state rotational constants, vibrational band origins, dipole moments or the rotational spectrum as a whole, was found to be excellent or at least very good. Beside the reliable reproduction of experimental reference data, many predictions could be provided, which we consider a trustworthy guidance for new experimental studies or astrochemical observations. The occurrence of several Fermi resonances even for fairly low lying transitions requested accurate potential energy and dipole surfaces, which has been accomplished by explicitly correlated coupled-cluster theory and the rather new distinguishable clusters approximation. A proper description of these resonances was found to be important for the subsequent rovibrational calculations. For example, the strong Fermi resonance of mode ν11 with the combination band ν8 + ν12 has significant impact on the spectrum, but was not discussed in the experimental work (Bane et al., 2011a). This example demonstrates the benefits, that can arise from combined experimental and theoretical studies to provide reliable reference data for astrophysical studies. Covering a wide spectral range and identifying signature areas within the spectrum are challenging goals in the future. Currently, work is in progress to include coupling terms originating from higher-order μ-tensor terms and hot bands.

Data Availability Statement

The original contributions generated for the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.

Author Contributions

MT performed all RVCI calculations, generated all figures, and wrote parts of the text. GR supervised the project, performed the VCI calculations, and wrote parts of the text. SE wrote large parts of the program being used for producing the data. BS performed VCI and RCI calculations, analyzed the spectra, and wrote parts of the text. All authors contributed to the article and approved the submitted version.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We are very grateful to Dr. Luca Bizzochi and Prof. Luca Dore for supporting us with their experimental results, allowing for a direct comparison of our theoretical results with experimental reference data. Financial support by the Studienstiftung des deutschen Volkes and the Deutsche Forschungsgemeinschaft (Project No. Ra 656/23-1) is kindly acknowledged.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2020.623641/full#supplementary-material
