Xiaosong Gu1†
Yujie Luo1†Qi Li1†Rui Wang2Shiqi Fu1Xiulong Lv1Qian He1Ying Zhang1Qiutong Yan1
Xuan Xu1*Fangying Ji1*Yan Qiu3*- 1Key Laboratory of Three Gorges Reservoir Region's Eco-Environment, Ministry of Education, Chongqing University, Chongqing, China
- 2Department of Physics, Center for Quantum Materials and Devices, Institute for Structure and Function, Chongqing University, Chongqing, China
- 3School of Architectural Engineering, Yunnan Agricultural University, Kunming, China
In this paper, first-principle calculations were performed to investigate the effects of oxygen (O) vacancies (Ovac) on the crystal structure, electronic distribution, adsorption energies of O2 and H2O and the density of states (DOS) of monoclinic bismuth vanadate (m-BiVO4). Ovac were stable when incorporated into m-BiVO4(001) and increased the adsorption energy of O2. Ovac changed the V3d orbitals of m-BiVO4(001) by adding a new band gap level, causing the redundant electrons of V atoms to become carriers and promoting the separation efficiency of electrons and holes. To verify the first-principle calculations, m-BiVO4 with different Ovac levels was prepared via hydrothermal synthesis. X-ray diffraction (XRD) patterns confirmed the existence of the (001) crystal surface of m-BiVO4. In addition, X-ray photoelectron spectroscopy (XPS) and electron spin resonance (ESR) spectroscopy of m-BiVO4 confirmed the presence of Ovac and demonstrated that, as the Ovac level increased, the number of superoxide radicals () and hydroxyl radicals (·OH) produced increased. In addition, m-BiVO4 with a higher Ovac level possessed superior photocatalytic properties to and degraded rhodamine B (RhB) dye nearly 2-fold faster than m-BiVO4 with a lower Ovac level. Finally, the removal rate of RhB increased from 23 to 44%. All experimental results were in good agreement with the first-principle calculated results.
Highlights
- A first-principles calculation simulation was used to construct the (001) crystal plane of BiVO4 containing oxygen vacancies (Ovac), and the effects of Ovac on the crystal were determined.
- Monoclinic bismuth vanadate (m-BiVO4) with different Ovac was prepared, and its photocatalytic performance was studied.
- Ovac content affects the V3d orbital of BiVO4(001), adds a new band gap energy level and improves the separation efficiency of electrons and holes.
- This study verified the first-principles calculation simulation results, confirming the mechanism by which Ovac enhance catalytic performance.
Introduction
Recently, environmental issues have increasingly become the focus of attention, and sustainable development has become a global consensus. Utilization of solar energy is a key solution for solving environmental issues. Thus, the development of photocatalytic semiconductors for organic pollutant degradation and hydrogen production (Liu et al., 2019; Lu et al., 2020) has become a hot research topic (Alsalka et al., 2018). Since the discovery of photoinduced decomposition of water (H2O) by TiO2 electrodes (Fujishima and Honda, 1972), many studies have focused on improving the photocatalytic degradation of pollutants in H2O.
At present, photocatalysts still have multiple problems with their use, including their low utilization of solar energy, high photogenerated electron-hole recombination rate and poor light stability (Zhang et al., 2019). To address these problems and improve the performance of photocatalytic materials, the further exploration of the catalytic mechanism of photocatalytic materials and a deeper understanding of the basic physical and chemical properties of these materials are necessary.
Density functional theory (DFT) is one of the most popular and common theories used in condensed matter physics, computational physics, and computational chemistry. DFT has been widely used in the theoretical study of catalyst performance parameters, including in the study of crystal defects and the adsorption energy differences that exist between different crystal surfaces (Wang J. et al., 2018; Wang Y. et al., 2018; Zhang et al., 2018). Thus, DFT is thus highly suitable for studying the basic properties of photocatalytic materials. For example, Yang et al. (2007) studied the effect of nitrogen (N) concentration on the formation energy and electronic band structure of N-doped TiO2 using DFT calculations. The study showed that, at low doping levels, N-doped anatase formed a localized N-2p state above the valence band, resulting in a decrease in photon transition energy and confirming a red shift was caused by the N-doping of TiO2. Similarly, the results obtained by Liu et al. (2011) confirmed the red shift produced by zinc oxide absorption was caused by carbon- (C-) doping using DFT calculations.
Bismuth vanadate (BiVO4) is a relatively new photocatalyst. In 1998, Kudo et al. (1998) reported the first application of BiVO4 in the field of photocatalysis. This study showed that, under visible light irradiation, BiVO4 photocatalytically decomposed hydrogen peroxide to produce oxygen (O) when silver ions were used as the electron capture agent. Recently, the use of BiVO4 as a photocatalytic material has received an increasing amount of attention. Its primary crystal structures include tetragonal and monoclinic phases, and the photocatalytic effect of the monoclinic phase is stronger than that of the tetragonal phase (Kudo et al., 1999; Tokunaga et al., 2001). As a photocatalytic material with a visible light response, the negative aspects of the low band gap energy of BiVO4 include the following properties: its electrons and holes are easily recombined, its migration ability is low, and its photocatalytic efficiency is low (Rao et al., 2014). To solve these problems, previous research performed by our group mixed BiVO4 with various C materials with high electronic conductivities, including C nanotubes and nanosheets (Zhao et al., 2016, 2017). Crystal defects, such as O vacancies (Ovac), can increase the charge carrier density in crystals, promoting the separation of the bulk charge and surface charge, and accelerate the charge transfer at the interface (Zhang et al., 2011; Li et al., 2015).
Although several studies have explored the effects of Ovac on the crystal structure, adsorption energy and band structure of monoclinic BiVO4 (m-BiVO4) (Yuan et al., 2017; Ullah et al., 2018; Wang et al., 2020), studies that include both theoretical calculations and photocatalytic experiments are rare. In addition, in those studies, the effects of adsorption energy and electron distribution of Ovac on photocatalytic materials were studied using theoretical calculations. The mechanism developed using theoretical calculations was verified experimentally by studying the degradation of pollutants using photocatalytic materials. Therefore, the physical origin of Ovac in photocatalytic materials remains to be explored.
This study focused on using DFT calculations to determine the effects of Ovac on m-BiVO4 with simulations and subsequent verification via experimentation. Because of limited computing resources and ease of use, the (001) crystal plane actually present in the crystal structure of m-BiVO4 was selected for this study. First, the (001) crystal surface of BiVO4 containing Ovac was constructed. The simulation and calculation of its basic properties, including its density of states (DOS), electron distribution and adsorption energy, showed Ovac change the energy band structure of BiVO4. The position of the Ovac is affected by electrons donated by the V atom, and the resulting new energy band enhanced the photocatalytic effect of BiVO4. To verify the simulation results, BiVO4 with different levels of Ovac was prepared, and the optical and catalytic properties of these different types of BiVO4 were characterized. The results showed Ovac increase the catalytic performance of BiVO4 without significantly changing the crystal structure of the material. In addition, Ovac significantly enhanced the separation of electrons and holes and increased the generation of free radicals during the photoreaction itself.
Computational Methodology and Results
Computational Methodology
The crystal structure of m-BiVO4 corresponds to a I2/b space group structure with the following lattice parameters: a = 5.1956 Å, b = 5.0935 Å, c = 11.7044 Å, and γ = 90.383° (Figure 1A) (Sleight et al., 1979). The m-BiVO4(001) plane structure was obtained from the optimized m-BiVO4 bulk unit cell using a vacuum region of 20 Å. A 9.69 × 10.75 × 22.15-Å3 supercell was constructed with six layers, and the bottom two layers were constrained (Figures 1B,C). The plane with Ovac was obtained based on the optimized m-BiVO4(001) plane by deleting an O atom (Figure 1D).
Figure 1. (A) Optimized unit cell of bulk m-BiVO4. (B,C) Optimized m-BiVO4(001) plane. (D) m-BiVO4(001) plane with Ovac. m-BiVO4(001) plane with eight Bi (purple), eight V (gray) and 32 O (red), amounting to a total of 48 atoms.
The original O2-BiVO4 (Figures 2A,C) and H2O–BiVO4 hybrid systems (Figures 2E,G) were obtained by adding O2 or H2O into the optimized m-BiVO4(001) plane both with and without Ovac.

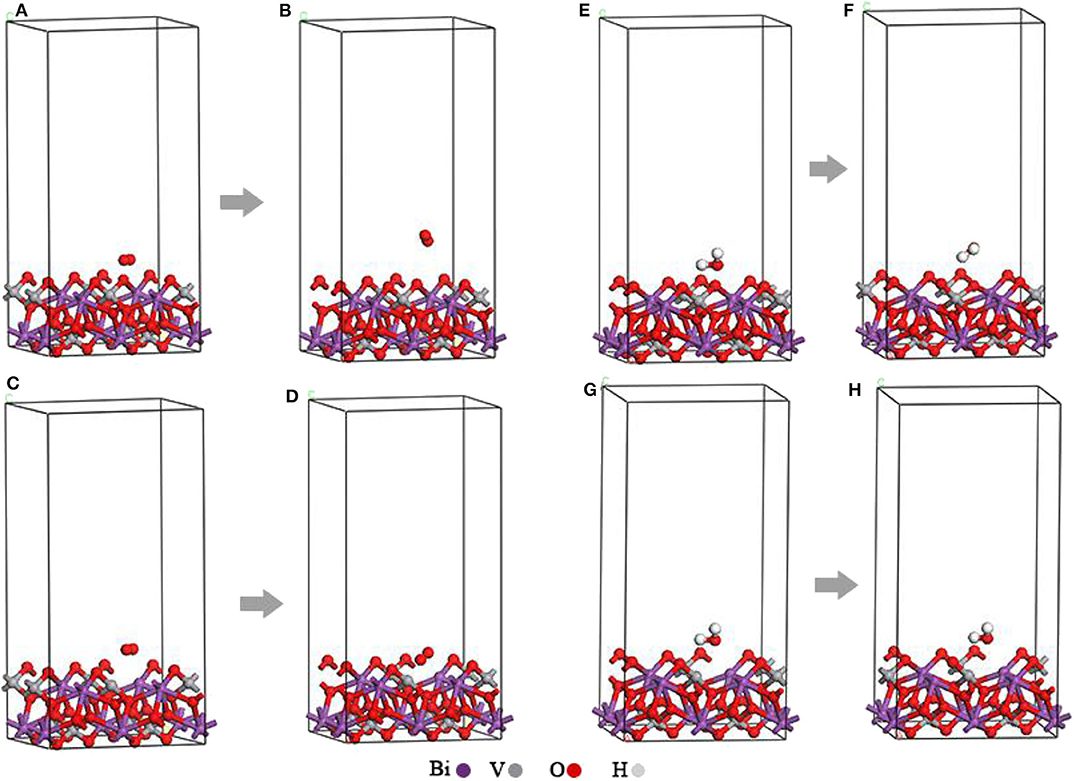

Figure 2. (A) Original O2-BiVO4 hybrid system. (B) Optimized O2-BiVO4 hybrid system. (C) Original O2-BiVO4-Ovac hybrid system. (D) Optimized O2-BiVO4-Ovac hybrid system. (E) Original H2O–BiVO4 hybrid system. (F) Optimized H2O–BiVO4 hybrid system. (G) Original H2O–BiVO4-Ovac hybrid system. (H) Optimized H2O–BiVO4-Ovac hybrid system.
In this work, all computations were performed within the framework of DFT as implemented in the Vienna ab initio simulation package (VASP) (Kresse and Furthmüller, 1996). The general gradient approximation (GGA) in the Perdew–Burke–Ernzerhof (PBE) form (Perdew et al., 1996) was used to express the exchange–correlation energy of the interacting electrons with the frozen–core full–potential projector augmented wave (PAW) method (Blochl, 1994). A plane–waves basis set with a cut-off energy of 450 eV and a conjugate gradient algorithm were applied to determine the electronic ground state using energy and force convergence thresholds of 1 × 10−5 eV and 0.01 eV Å−1, respectively. Monkhorst–Pack grids were used to perform the integrations over the Brillouin zone (Monkhorst and Pack, 1976). For the bulk m-BiVO4 unit cell, 10 × 10 × 6 k-point meshes were used; for the primitive cell of an O molecule, 1 × 1 × 1 k-point meshes were used; and for the m-BiVO4(001) plane and the supercells of the interface, 4 × 4 × 1 k-point meshes were used. Because DFT–GGA commonly underestimates the band gap of BiVO4(Kresse and Furthmüller, 1996), a more accurate screened Coulomb hybrid functional, HSE06, with 16% Hartree-Fock (HF) exchange (Wadnerkar and English, 2013; Zhou and Dong, 2017) was used to compute band structure and DOS. To reduce the HSE06 computational time, the band structure and DOS of the bulk m-BiVO4 were calculated using a k-point mesh of 5 × 5 × 3 for the exact-exchange HF kernel.
Traditional density functionals are unable to provide an accurate description of van der Waals (vdW) interactions because of the dynamical correlations between fluctuating charge distributions. In interface models, vdW interactions are expected to be dominant; thus, the DFT-D2 method of Grimme (2006) was adopted for this work. The total energy (Etotal) is represented by the following equation:
where EKS−DFT represents the conventional Kohn–Sham DFT energy and EvdW represents the dispersion correction (Blochl, 1994).
Computational Results
Crystal Structure
After optimizing the structures of the m-BiVO4 cell, perfect BiVO4(001) crystal plane and BiVO4(001) crystal plane with Ovac, the lattice parameters of the three systems were compared (Table 1). Ovac produced little effect on the crystal structure of BiVO4, and the lattice parameters did not change significantly.
Table 1. Calculated lattice constants of BiVO4 with and without Ovac.
Adsorption Energies of O2 and H2O
As shown in Figures 2A–D, the O2 molecules were incorporated into the perfect BiVO4(001) crystal plane and BiVO4(001) crystal plane with Ovac, respectively. These figures show the O2 molecule moved upward and away from the interface. At the interface of the crystal plane containing Ovac, the O2 molecule shifted downward and subsequently occupied the position of the original Ovac after structural optimization.
The Figures 2E,G show the H2O molecules were incorporated into the perfect BiVO4(001) crystal plane and BiVO4(001) crystal plane with Ovac, respectively. The initial distances of the O atom and the two H atoms between the Ovac (or the O atom) in H2O molecules were 1.392, 2.22, and 1.76 Å. After structural optimization, the distances of the O atom and the two H atoms between the Ovac (or the O atom) in H2O molecules were 2.568, 2.516, and 2.155 Å (Figures 2F,H). These figures show the H2O molecules migrated upward and away from the interface.
At the interface of the crystal plane containing Ovac, the H2O molecules did not migrate a significant distance after structural optimization.
The adsorption energies of these systems were calculated using the following equation (Xu et al., 2013):
where Ea represents the adsorption energy; EO and EH represent the total energies of the O and H2O molecules, respectively; EO−B and EH−B represent the total energies of the interface system of the O and H2O molecules, respectively; and EB represents the total energy of the BiVO4 system. When calculating the perfect crystal plane and the plane with Ovac, corresponding values need to be substituted. The corresponding calculation results are presented in Table 2.

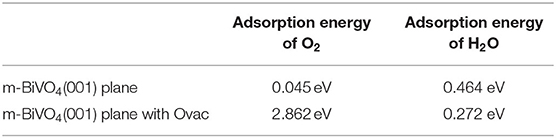

Table 2. Adsorption energy calculation results.
The adsorption energy calculation results (Table 2) showed the adsorption energy of O molecules at the Ovac interfaces increased significantly from 0.045 to 2.862 eV while the adsorption energy of H2O molecules decreased slightly by 0.192 eV, demonstrating Ovac produced little effect on the adsorption energy of H2O molecules. However, Ovac increased the adsorption energy between the system and O molecules by 2.817 eV, which was far beyond the range of vdW adsorption energies (Xu et al., 2013). Therefore, the adsorption of the O molecule at the Ovac was most likely due to chemical adsorption, and the O molecule most likely interacted with the Bi and V atoms in the Ovac. For the O molecule adsorbed to the Ovac, the length of the O-O bond changed from 1.236 to 1.368 Å and the activity of the O molecules increased.
DOS and Electron Localization Function (ELF)
As shown in Figure 3, the band gap of the BiVO4 cell was ~2.5 eV, which is near the actual value of 2.3–2.5 eV (Kudo et al., 1998; Sayama et al., 2006; Yuan et al., 2017). This result demonstrated the calculated parameters were correct.
Figure 3. DOS of m-BiVO4.
As shown in Figure 4, the band gap width of the perfect BiVO4(001) crystal plane was 2.75 eV, which was higher than that of a single cell. Most likely, this result was caused by interfacial effects. However, new energy levels were formed in the system with Ovac. Analysis of the new energy levels was performed to further elucidate their composition: the results showed these levels were formed by atoms 38 and 42, V and Bi located near the Ovac. These two atoms were the same atoms that bonded with the O atoms that originally existed in these locations. The newly generated energy levels were primarily composed of the corresponding V3d orbitals; thus, most likely, O molecules were primarily chemically adsorbed by V atoms.
Figure 4. DOS of the perfect BiVO4(001) plane and the BiVO4(001) plane with Ovac.
In addition, the results showed that when the newly generated energy levels produced by Ovac were not considered, the band gap width of the crystal plane containing Ovac was 2.75 eV. The band gap width of the perfect BiVO4(001) crystal plane and the crystal plane containing Ovac did not change significantly, indicating Ovac could not change the overall band gap width at a certain content and could only increase catalyst performance via the newly generated energy levels. The new energy levels acted as trapping centers for electrons and significantly increased the electron migration efficiency, a result consistent with how Ovac function as positive charge centers.
A more detailed analysis of the electronic distribution of the system was conducted to achieve a more thorough understanding of its chemical adsorption. The results of this analysis are presented in Figure 5.

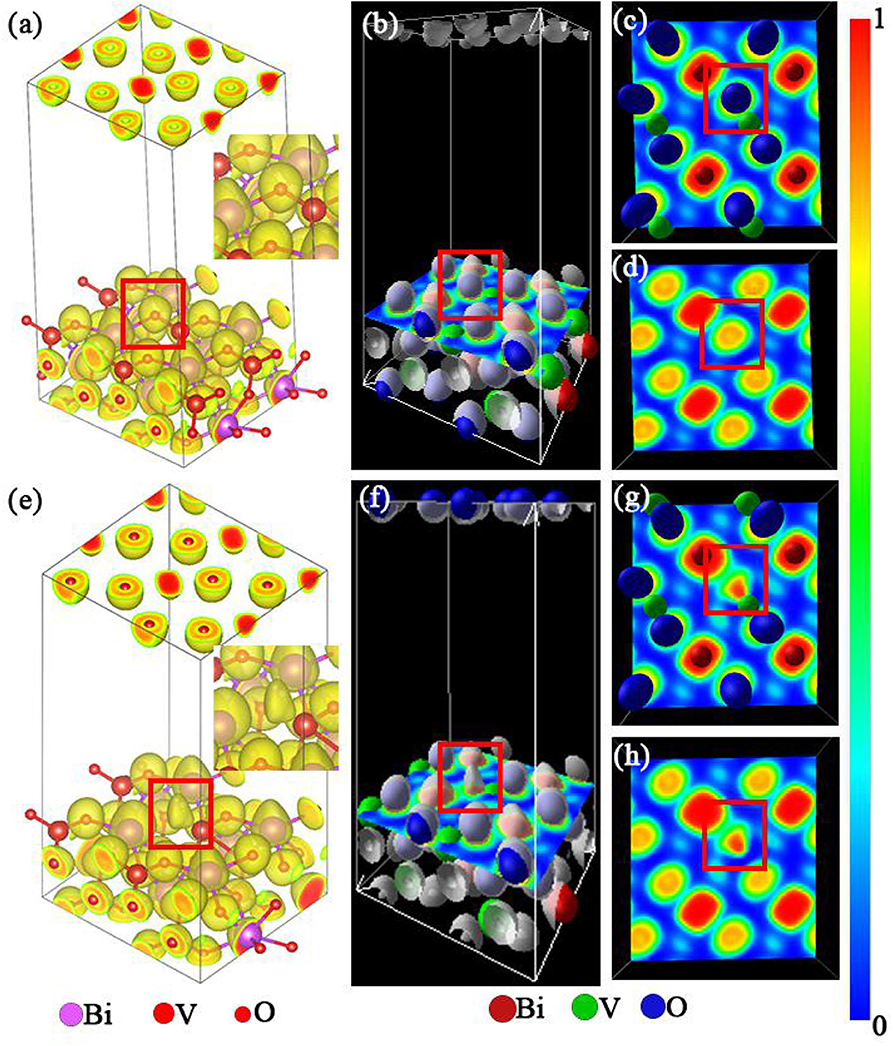

Figure 5. (a,e) Electronic distribution of the m-BiVO4(001) plane with and without Ovac, respectively. (b,f) Location of the m-BiVO4(001) plane cross-section. (c,d,g,h) Electron localization function (ELF) of the m-BiVO4(001) plane with (c,d) and without Ovac (g,h); (d,h) atoms were removed for observational clarity. Red boxes indicate the location of the Ovac.
Electron localization function (ELF) is a tool used for analyzing charge transfer between atoms. Becke and Edgecombe (1990) proposed a method for calculating local electron distribution using graphs. This method first analyzes electrons near the nuclear area, combination bonding area and lone pair electrons of a system. Second, this method determines the characteristics and types of chemical bonds (Burdett and McCormick, 1998). ELF produces values in the range of 0–1. An ELF value of 1 is indicative of a high localization of electrons, i.e., a high probability of electron localization (marked with red in Figure 5). An ELF value of l/2 is indicative of the uniform distribution of electrons in this location. An ELF value of 0 is indicative of the complete delocalization of electrons, i.e., no electrons are present in this location (marked with blue in Figure 5). Figure 5e shows the electron distribution of Ovac, although the electron cloud shape was different from that when O atoms were present (Figure 5a). Furthermore, as shown in Figures 5g,h, the ELF was near 1 when the Ovac was closer to the V atom, demonstrating that as the distance between the elections and V atom decreases, the localization of the elections increases. The results indicated the electrons in this region were primarily supplied by the V atom. When O atoms were present, V atoms provided electrons to bond with the O atoms. When O atoms were not present, the redundant electrons from V atoms became carriers in photocatalytic reactions.
Preparation and Characterization of Samples
Syntheses of Materials
Bismuth nitrate pentahydrate (Bi(NO3)3·5H2O), glycerol (C3H8O3), sodium metavanadate dihydrate (NaVO3·2H2O) and alcohol (C2H6O) were provided by Chengdu Kelong Chemical Reagent Factory (Chengdu, Sichuan, China). All reagents were analytical grade and were not purified further. Deionized H2O was used in all applicable experiments.
The O-containing photocatalyst was mixed with a specific reducing agent, either at room temperature or heated, to extract O from the crystal lattice to form Ovac. This study used reducing glycerin for sample preparation of samples with Ovac.
m-BiVO4 Ovac were prepared using a hydrothermal method in which 0.4 mmol of Bi(NO3)3·5H2O powder was dissolved in 16 mL of glycerol under vigorous stirring. The resulting solution was stirred for 1 h. In addition, 0.4 mmol of NaVO3·2H2O was dissolved in 16 mL of deionized H2O under vigorous stirring. The solution was stirred for 0.5 h at room temperature, at which point the solution became homogeneous and transparent. Subsequently, the NaVO3·2H2O solution was added dropwise to the Bi(NO3)3·5H2O solution under vigorous stirring over the course of 0.5 h, forming a yellowish suspension. The resulting suspension was heated for 8 h at 180°C in a 50-mL polytetrafluoroethylene-lined stainless steel autoclave. After cooling to room temperature, the precipitate was collected via centrifugation, thoroughly washed with distilled H2O and absolute ethanol and dried for 4 h at 60°C in air to yield m-BiVO4-Ovac. Ovac were expected to disappear during the redox reaction; thus, the obtained m-BiVO4-Ovac powder was then calcined at 300°C in a muffle furnace for 12 and 24 h in air, respectively. Subsequently, the powder was removed from the furnace, and the products were stored at 20°C in a hermetic bag. The resulting products are hereafter referred to as m-BiVO4-Ovac-12h and m-BiVO4-Ovac-24h.
Photocatalytic Activity
The light source used for the photocatalytic reactions was a 500-W Xe lamp (YM-GHX-VI, Shanghai Yuming Co., Ltd., China). The photocatalytic activities of the samples were determined by measuring the degradation rate of rhodamine B (RhB) dye under simulated solar irradiation. First, 20 mg of sample was dispersed in 50 mL of RhB solution (10 mg/L) via sonication for 10 min. Second, the solution was stirred for 30 min in the dark to establish adsorption-desorption equilibrium. Third, the light source was turned on, and the solution was stirred continuously for 8 h. A 5-mL sample was taken every 2 h. Fourth, the sample was centrifuged at 5000 r/min, the supernatant was separated from the precipitate and used to determine the RhB concentration. RhB degradation was monitored by measuring the absorbance of the supernatant at a wavelength of 554 nm with a UV-Vis spectrophotometer.
Characterization
The crystalline structures of all samples were characterized by X-ray diffraction (XRD) using a Rigaku D/Max-rB diffractometer with Cu Ka radiation. Scanning electron microscopy (SEM) images were acquired with a JOEL JSM-7800F microscope. Energy dispersive X-ray (EDX) images were acquired with an EDX100A-4. UV-Vis diffuse reflectance spectroscopy (DRS) was performed with a Hitachi U-3001 UV-Vis spectrometer. Electron spin resonance (ESR) spectroscopy was performed using a JES FA200 X-band ESR spectrometer operating in the X-band at 0.907 GHz and 0.998 mW.
Results and Discussion
In this study, verification of the existence of Ovac in experimental samples was important. ESR spectroscopy is useful for investigating unpaired electrons in materials and was used to provide evidence for the presence of Ovac in this study.
The ESR spectrum of BiVO4-Ovac exhibits a fingerprint signal at about g = 2.0 (Figure 6) (Shi et al., 2018; Qiu et al., 2019), which proved the existence of Ovac. The signal decreased as the calcination time increased, suggesting Ovac were removed during the high-temperature annealing process.

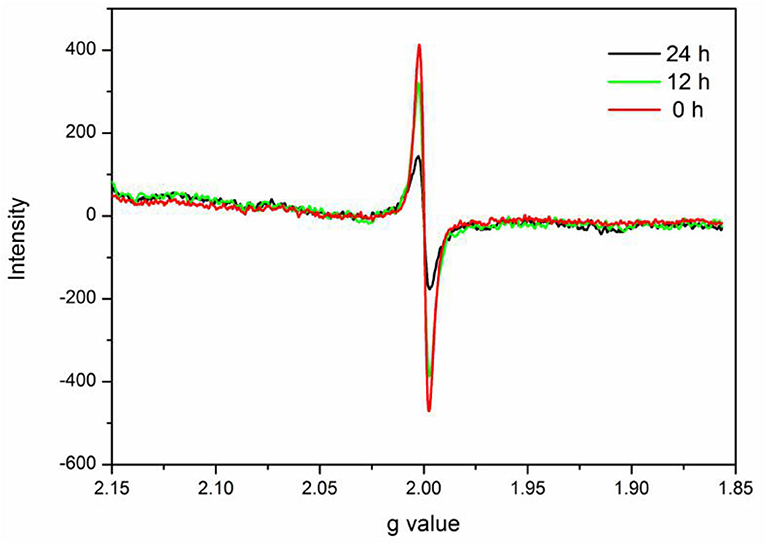

Figure 6. ESR spectra of m-BiVO4-Ovac, BiVO4-Ovac-12h, and BiVO4-Ovac-24h.
Morphology and Structure of Crystals
The results showed the prepared BiVO4 powder possessed a grain-like microstructure that was ~1 micron in length and 500 nm in width. The surface of the BiVO4 powder consisted of uneven particles. The corresponding energy dispersive spectroscopy (EDS) results also showed the uniform composition of Bi, V, and O elements in the particles (Figures 7D–F). The morphologies and structures of the three samples, which are shown in Figure 7, showed the microstructures of the three samples were identical and did not change upon the introduction of Ovac.

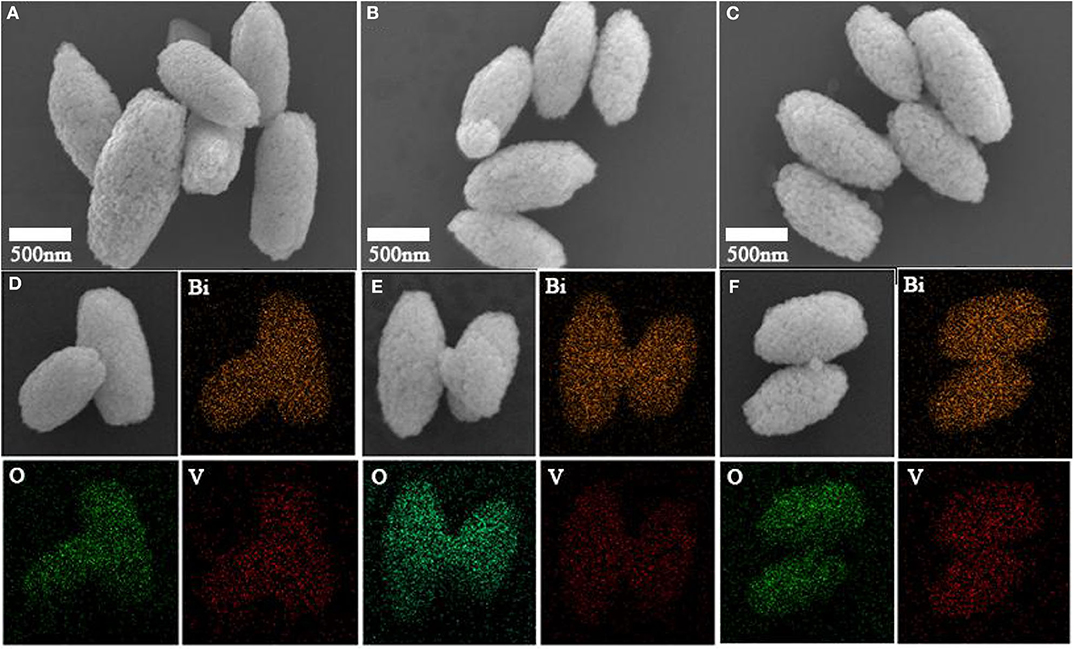

Figure 7. SEM images of (A) BiVO4-Ovac, (B) BiVO4-Ovac-12h, and (C) BiVO4-Ovac-24h. EDS of (D) BiVO4-Ovac, (E) BiVO4-Ovac-12h, and (F) BiVO4-Ovac-24h. The morphologies of BiVO4-Ovac, BiVO4-Ovac-12h, and BiVO4-Ovac-24h were olive-shaped and exhibited uniform size distributions.
The morphologies of BiVO4-Ovac, BiVO4-Ovac-12h, and BiVO4-OV-24h, shown in Figures 7A–C, respectively, were not significantly different. These results showed calcining did not change the morphology of BiVO4. In addition, changes in the level of Ovac did not significantly affect the morphology of BiVO4.
Generally, among the low-Miller-index surfaces, the (001) crystal plane tends to be the preferred growth orientation (Han et al., 2018; Lardhi et al., 2020). Furthermore, because Xi and Ye (2010) demonstrated the monoclinic phase of BiVO4 exists in the (001) crystal plane orientation, the (001) crystal plane was selected for theoretical simulations.
The crystal structures of the samples were all consistent with that of m-BiVO4. All diffraction peaks of the phases were characterized by XRD (JCPDS No. 83-1699). Figure 8 shows the peaks of the three samples were basically the same and the diffraction at 2θ = 30.5° was indicative of that of BiVO4(001), demonstrating calcining did not change the crystal structure of BiVO4 and the (001) crystal plane of BiVO4 was present. In addition, changes in the level of Ovac did not significantly affect the crystal structure of BiVO4.

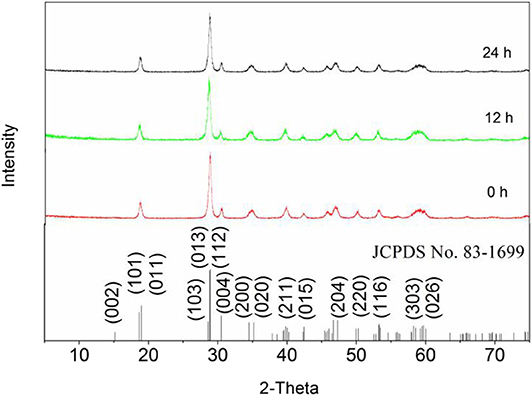

Figure 8. XRD patterns of the samples.
Optical Characteristics and Catalytic Performance
UV-Vis DRS was used to investigate the optical absorption characteristics of the samples. No significant changes were observed in the UV-Vis DRS spectra of the samples before and after calcination, as shown in Figure 9A. The energy band structure of a semiconductor determines its photocatalytic activity, and the band gaps of the samples were estimated using the following equation:
where A, h, υ, and Eg represent the absorption coefficient, Planck's constant, incident light frequency and band gap energy, respectively. Figure 9B shows the band gap of samples was estimated to be 2.48 eV. The results indicated the Ovac did not enhance absorption. In addition, changes in the Ovac level did not significantly affect the band gaps of the samples.

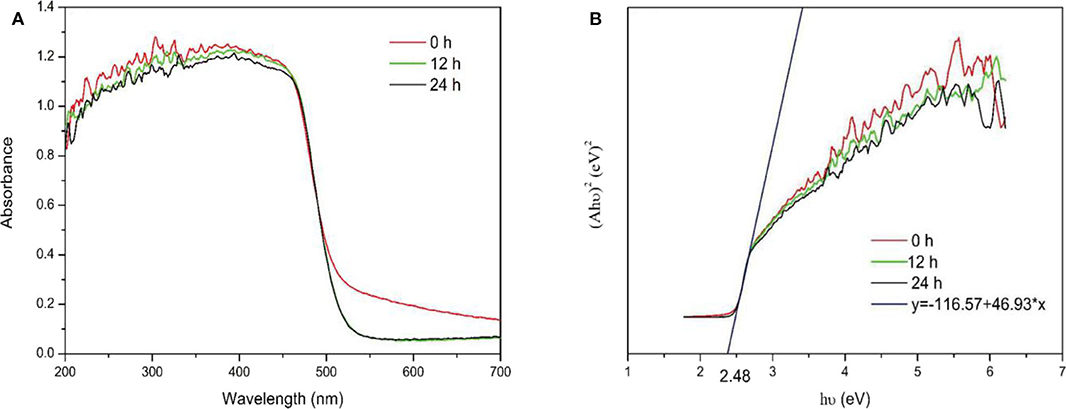

Figure 9. (A) UV-Vis DRS spectra of the samples. (B) (Ahυ)2 and hυ plots of the samples.
This result differed from the theoretical calculation results, which showed Ovac resulted in new energy levels. For the theoretical calculations, because of limited computing resources, a model using only 48 atoms and one Ovac was built. The solubility of Ovac in the model was very high. However, the surface Ovac concentration in the actual prepared samples were not as high as that in the theoretical calculations. In addition, the Ovac concentration did not vary significantly between samples; thus, the theoretical results should be different from the experimental results. If the computing resources had been sufficient, a larger number of atoms could have been used to construct a more accurate model. According to the theoretical model, using an Ovac concentration similar to that used in the experimental studies could have provided better results.
To further understand the effects of Ovac on the photocatalytic properties of the samples, the ability of the samples to produce free radicals was investigated.
Based on the ESR results, which are shown in Figures 10A,B, signals with intensities corresponding to the characteristic peaks of DMPO–superoxide (DMPO–) and DMPO–hydroxyl radical (DMPO–·OH) adducts were observed when the reactions were performed under visible light irradiation but not when the reactions were performed in the dark. The peak intensities further increased as the irradiation time increased. Furthermore, the peak intensities decreased as the calcination time increased. The results indicated the Ovac enhanced the ability of the samples to produce free radicals. The photocatalytic properties of the samples obtained herein were consistent with the ESR results.
Figure 10. 5,5-Dimethyl-1-pyrroline-N-oxide (DMPO) spin-trapping ESR spectra obtained under visible light for (A) DMPO–superoxide (DMPO–) samples and (B) DMPO–hydroxyl radical (DMPO–·OH) samples.
The photocatalytic performance of BiVO4 at different Ovac levels was determined by comparing their RhB degradation efficiencies. As shown in Figure 11, increasing the Ovac level increased the RhB degradation rate of the sample under simulated solar irradiation. The RhB degradation percentages in the presence of BiVO4-OV, BiVO4-OV-12h and BiVO4-OV-24h after 480 min of solar irradiation were 23, 36, and 44%, respectively (Figure 11). Thus, the presence of Ovac in BiVO4 enhanced the photocatalytic properties of the samples.

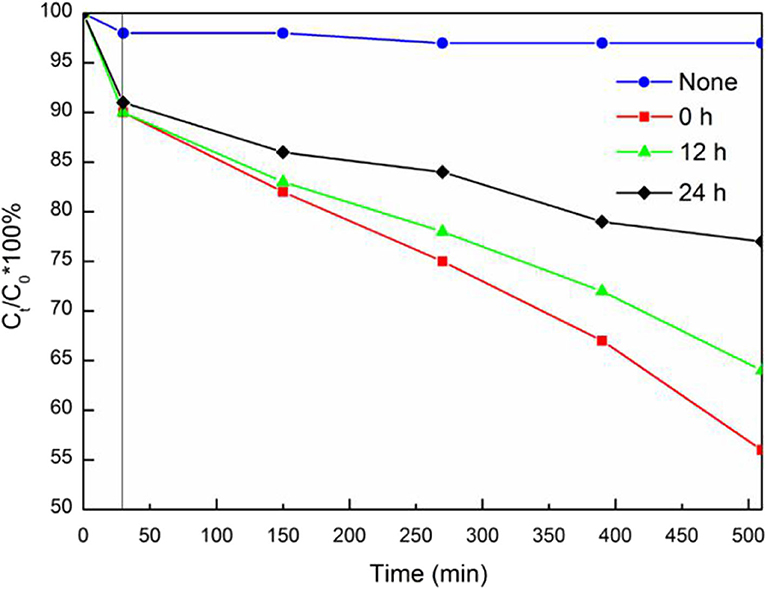

Figure 11. Degradation of rhodamine B by different samples.
Conclusion
The computational, SEM, XRD, and ESR results of this study demonstrated Ovac exhibited little effect on the crystal structure of BiVO4 and the lattice parameters did not change significantly. Changes in the Ovac level did not significantly change the morphology of BiVO4. Both the DOS and ELF results verified Ovac affected V3d orbitals, added a new band gap level, caused the redundant electrons from V atoms to become carriers, increased the adsorption energy of the O molecule and promoted the separation efficiency of electrons and holes. Although UV-Vis DRS showed the samples exhibited no change in band structure, the free radical detection results and photocatalytic reaction simulation experiments confirmed that Ovac improved the photocatalytic properties of materials. The results of this study showed the new energy level formed by the V atom did not significantly change the overall optical absorption of the material at a certain Ovac level; however, because the V atom had an electron capture center, the new energy level caused by a higher level of Ovac increased the electron migration rate and enhanced the photocatalytic performance of BiVO4.
Data Availability Statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding authors.
Author Contributions
XX, FJ, YQ, XG, QL, and YL conceived of the study and designed the experiments. XG, YL, SF, XL, QH, and YZ performed the experiments. XG, YL, QL, and QY analyzed the data. XX, FJ, YQ, and RW contributed reagents, materials, and analysis tools. XG and YL wrote the paper. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the National Key R&D Program of China (2018YFD1100501) and the Chongqing Research Program of Basic Research and Frontier Technology (cstc2017jcyjBX0080).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
Alsalka, Y., Granone, L., Ramadan, W., Hakki, A., Dillert, R., and Bahnemann, D. (2018). Iron-based photocatalytic and photoelectrocatalytic nano-structures: facts, perspectives, and expectations. Appl. Catal. B Environ. 244, 1065–1095. doi: 10.1016/j.apcatb.2018.12.014
Becke, A. D., and Edgecombe, K. (1990). A simple measure of electron localization in atomic and molecular systems. J. Chem. Phys. 92, 5397–5403. doi: 10.1063/1.458517
Blochl, P. E. (1994). Projector augmented-wave method. Phys. Rev. B Condensed Matter 50, 17953–17979. doi: 10.1103/PhysRevB.50.17953
Burdett, J., and McCormick, T. (1998). Electron localization in molecules and solids: the meaning of ELF. J. Phys. Chem. A 102, 6366–6372. doi: 10.1021/jp9820774
Fujishima, A., and Honda, K. (1972). Electrochemical photolysis of water at a semiconductor electrode. Nature 238, 37–38. doi: 10.1038/238037a0
Grimme, S. (2006). Semiempirical GGA-type density functional constructed with a long-range dispersion correction. J. Comput. Chem. 27, 1787–1799. doi: 10.1002/jcc.20495
Han, H. S., Shin, S., Kim, D. H., Park, I. J., Kim, J. S., Huang, P.-S., et al. (2018). Boosting the solar water oxidation performance of a BiVO4 photoanode by crystallographic orientation control. Energy Environ. Sci. 11, 1299–1306. doi: 10.1039/C8EE00125A
Kresse, G., and Furthmüller, J. (1996). Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 6, 15–50. doi: 10.1016/0927-0256(96)00008-0
Kudo, A., Omori, K., and Kato, H. (1999). A novel aqueous process for preparation of crystal form-controlled and highly crystalline BiVO4 powder from layered vanadates at room temperature and its photocatalytic and photophysical properties. J. Am. Chem. Soc. 121, 11459–11467. doi: 10.1021/ja992541y
Kudo, A., Ueda, K., Kato, H., and Mikami, I. (1998). Photocatalytic O2 evolution under visible light irradiation on BiVO4 in aqueous AgNO3 solution. Catal. Lett. 53, 229–230. doi: 10.1023/A:1019034728816
Lardhi, S., Cavallo, L., and Harb, M. (2020). Significant impact of exposed facets on the BiVO4 material performance for photocatalytic water splitting reactions. J. Phys. Chem. Lett. 11, 5497–5503. doi: 10.1021/acs.jpclett.0c01234
Li, D., Wang, W., Jiang, D., Zheng, Y., and Li, X. (2015). Surfactant-free hydrothermal fabrication of monoclinic BiVO4 photocatalyst with oxygen vacancies by copper doping. RSC Adv. 5, 14374–14381. doi: 10.1039/C4RA14318C
Liu, S., Li, C., Yu, J., and Xiang, Q. (2011). Improved visible-light photocatalytic activity of porous carbon self-doped ZnO nanosheet-assembled flowers. CrystEngComm 13, 2533–2541. doi: 10.1039/c0ce00295j
Liu, Y., Zhang, Z., Fang, Y., Liu, B., Huang, J., Miao, F., et al. (2019). IR-driven strong plasmonic-coupling on Ag nanorices/W18O49 nanowires heterostructures for photo/thermal synergistic enhancement of H2 evolution from ammonia borane. Appl. Catal. B Environ. 252, 164–173. doi: 10.1016/j.apcatb.2019.04.035
Lu, N., Sun, M., Wei, X., Zhang, P., and Zhang, Z. (2020). Facile synthesis of lacunary keggin-type phosphotungstates-decorated g-C3N4 nanosheets for enhancing photocatalytic H2 generation. Polymers 12:1961. doi: 10.3390/polym12091961
Monkhorst, H. J., and Pack, J. D. (1976). Special points for brillouin zone integrations. Phys. Rev. B Condensed Matter 13, 5188–5192. doi: 10.1103/PhysRevB.13.5188
Perdew, J., Burke, K., and Ernzerhof, M. (1996). Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865–3868. doi: 10.1103/PhysRevLett.77.3865
Qiu, W., Xiao, S., Ke, J., Wang, Z., Tang, S., Zhang, K., et al. (2019). Freeing the polarons to facilitate charge transport in BiVO4 from oxygen vacancies with an oxidative 2D precursor. Angewandte Chemie 58, 19087–19095. doi: 10.1002/anie.201912475
Rao, P. M., Cai, L., Liu, C., Cho, I. S., Lee, C. H., Weisse, J. M., et al. (2014). Simultaneously efficient light absorption and charge separation in WO3/BiVO4 core/shell nanowire photoanode for photoelectrochemical water oxidation. Nano Lett. 14, 1099–1105. doi: 10.1021/nl500022z
Sayama, K., Nomura, A., Arai, T., Sugita, T., Abe, R., Yanagida, M., et al. (2006). Photoelectrochemical decomposition of water into H2 and O2 on porous BiVO4 thin-film electrodes under visible light and significant effect of Ag ion treatment. J. Phys. Chem. B 110, 11352–11360. doi: 10.1021/jp057539+
Shi, C., Dong, X., Wang, X., Ma, H., and Zhang X (2018). Ag nanoparticles deposited on oxygen-vacancy-containing BiVO4 for enhanced near-infrared photocatalytic activity. Chin. J. Catal. 39, 128–137. doi: 10.1016/S1872-2067(17)62990-5
Sleight, A. W., Chen, H.-y., Ferretti, A., and Cox, D. E. (1979). Crystal growth and structure of BiVO4. Mater. Res. Bull 14, 1571–1581. doi: 10.1016/0025-5408(72)90227-9
Tokunaga, S., Kato, H., and Kudo, A. (2001). Selective preparation of monoclinic and tetragonal BiVO4 with scheelite structure and their photocatalytic properties. Chem. Mater. 13, 4624–4628. doi: 10.1021/cm0103390
Ullah, H., Tahir, A. A., and Mallick, T. K. (2018). Structural and electronic properties of oxygen defective and Se-doped p-type BiVO4(001) thin film for the applications of photocatalysis. Appl. Catal. B Environ. 224, 895–903. doi: 10.1016/j.apcatb.2017.11.034
Wadnerkar, N., and English, N. (2013). Density functional theory investigations of bismuth vanadate: effect of hybrid functionals. Comput. Mater. Sci. 74, 33–39. doi: 10.1016/j.commatsci.2013.03.015
Wang, J., Yu, L., Hu, L., Chen, G., Xin, H., and Feng, X. (2018). Ambient ammonia synthesis via palladium-catalyzed electrohydrogenation of dinitrogen at low overpotential. Nat. Commun. 9:1795. doi: 10.1038/s41467-018-04213-9
Wang, W., Strohbeen, P., Lee, D., Zhou, C., Kawasaki, J., Choi, K.-S., et al. (2020). The role of surface oxygen vacancies in BiVO4. Chem. Mater. 32, 2899–2909. doi: 10.1021/acs.chemmater.9b05047
Wang, Y., Qiao, M., Li, Y., and Wang, S. (2018). Tuning surface electronic configuration of NiFe LDHs nanosheets by introducing cation vacancies (Fe or Ni) as highly efficient electrocatalysts for oxygen evolution reaction. Small 14:e1800136. doi: 10.1002/smll.201800136
Xi, G., and Ye, J. (2010). Synthesis of bismuth vanadate nanoplates with exposed {001} facets and enhanced visible-light photocatalytic properties. Chem. Commun. 46, 1893–1895. doi: 10.1039/b923435g
Xu, P., Tang, Q., and Zhou, Z. (2013). Structural and electronic properties of graphene-ZnO interfaces: dispersion-corrected density functional theory investigations. Nanotechnology 24:305401. doi: 10.1088/0957-4484/24/30/305401
Yang, K., Dai, Y., and Huang, B. (2007). Study of the nitrogen concentration influence on N-doped TiO2 anatase from first-principles calculations. J. Phys. Chem. C 111, 12086–12090. doi: 10.1021/jp067491f
Yuan, Y., Huang, Y., Ma, F., Zhang, Z., and Wei, X. (2017). Effects of oxygen vacancy on the mechanical, electronic and optical properties of monoclinic BiVO4. J. Mater. Sci. 52, 8546–8555. doi: 10.1007/s10853-017-1069-7
Zhang, D., Cong, T., Xia, L., and Pan, L. (2019). Growth of black TiO2 nanowire/carbon fiber composites with dendritic structure for efficient visible-light-driven photocatalytic degradation of methylene blue. J. Mater. Sci. 54, 7576–7588. doi: 10.1007/s10853-019-03424-9
Zhang, Y., Zeng, W., Ye, H., and Li, Y. (2018). Enhanced carbon monoxide sensing properties of TiO2 with exposed (001) facet: a combined first-principle and experimental study. Appl. Surf. Sci 442, 507–516. doi: 10.1016/j.apsusc.2018.02.036
Zhang, Z., Wang, W., Gao, E., Shang, M., and Xu, J. (2011). Enhanced photocatalytic activity of Bi2WO6 with oxygen vacancies by zirconium doping. J. Hazard. Mater 196, 255–262. doi: 10.1016/j.jhazmat.2011.09.017
Zhao, D., Zong, W., Fan, Z., Fang, Y.-W., Xiong, S., Du, M., et al. (2017). Synthesis of carbon-doped nanosheets m-BiVO4 with three-dimensional (3D) hierarchical structure by one-step hydrothermal method and evaluation of their high visible-light photocatalytic property. J. Nanoparticle Res. 19:124. doi: 10.1007/s11051-017-3818-6
Zhao, D., Zong, W., Fan, Z., Xiong, S., Du, M., Wu, T., et al. (2016). Synthesis of carbon-doped BiVO4@multi-walled carbon nanotubes with high visible-light absorption behavior, and evaluation of their photocatalytic properties. CrystEngComm 18, 9007–9015. doi: 10.1039/C6CE01642A
