ORIGINAL RESEARCH article

Front. Chem., 04 May 2020
Sec. Medicinal and Pharmaceutical Chemistry
This article is part of the Research Topic The Chemistry of Biofilms and Their Inhibitors View all 10 articles

Hit Identification of New Potent PqsR Antagonists as Inhibitors of Quorum Sensing in Planktonic and Biofilm Grown Pseudomonas aeruginosa

  • 1School of Life Sciences, University of Nottingham Biodiscovery Institute, University of Nottingham, Nottingham, United Kingdom
  • 2The National Biofilms Innovation Centre, University of Nottingham, Nottingham, United Kingdom
  • 3School of Pharmacy, University of Nottingham Biodiscovery Institute, University of Nottingham, Nottingham, United Kingdom
  • 4Drug Delivery Group, Department of Pharmacy, Uppsala University, Uppsala, Sweden
  • 5Pharmacometrics Group, Department of Pharmaceutical Biosciences, Uppsala University, Uppsala, Sweden
  • 6Institut de Biologie Intégrative et des Systèmes, Université Laval, Quebec City, QC, Canada
  • 7The Swedish Drug Delivery Center, Department of Pharmacy, Uppsala University, Uppsala, Sweden

Current treatments for Pseudomonas aeruginosa infections are becoming less effective because of the increasing rates of multi-antibiotic resistance. Pharmacological targeting of virulence through inhibition of quorum sensing (QS) dependent virulence gene regulation has considerable therapeutic potential. In P. aeruginosa, the pqs QS system regulates the production of multiple virulence factors as well as biofilm maturation and is a promising approach for developing antimicrobial adjuvants for combatting drug resistance. In this work, we report the hit optimisation for a series of potent novel inhibitors of PqsR, a key regulator of the pqs system, bearing a 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio) acetamide scaffold. The initial hit compound 7 (PAO1-L IC50 0.98 ± 0.02 μM, PA14 inactive at 10 μM) was obtained through a virtual screening campaign performed on the PqsR ligand binding domain using the University of Nottingham Managed Chemical Compound Collection. Hit optimisation gave compounds with enhanced potency against strains PAO1-L and PA14, evaluated using P. aeruginosa pqs-based QS bioreporter assays. Compound 40 (PAO1-L IC50 0.25 ± 0.12 μM, PA14 IC50 0.34 ± 0.03 μM) is one of the most potent PqsR antagonists reported showing significant inhibition of P. aeruginosa pyocyanin production and pqs system signaling in both planktonic cultures and biofilms. The co-crystal structure of 40 with the PqsR ligand binding domain revealed the specific binding interactions occurring between inhibitor and this key regulatory protein.

Introduction

Pseudomonas aeruginosa is a Gram-negative pathogen able to infect a range of human body sites causing serious tissue damage, blood stream invasion, and systemic dissemination (Strateva and Yordanov, 2009). This opportunistic pathogen is particularly devastating for immuno-compromised patients and a leading cause of death for those with cystic fibrosis (Winstanley et al., 2016). Current treatments for P. aeruginosa infections rely mainly on antibiotics inhibiting essential bacterial targets required for survival. These therapies, whilst effective in some cases, impose selective pressures leading to the rapid emergence of resistance, particularly in biofilms (Blair et al., 2015). There are ~50,000 cases of P. aeruginosa infections in the USA every year and around 13% are due to multidrug-resistant strains (Ventola, 2015). Pseudomonas aeruginosa has developed resistance to most antibiotic classes including aminoglycosides, cephalosporins, fluoroquinolones and even carbapenems (Potron et al., 2015). Therefore, there is an urgent need to develop alternative strategies for effectively treating infections caused by this organism. The pathogenicity of P. aeruginosa stems from a wide range of secreted and cell-associated virulence factors (Gellatly and Hancock, 2013). Anti-virulence strategies, through the attenuation of virulence without interfering with bacterial growth, are viewed as a promising alternative approach to combat drug resistance since they exert less selective pressures on the pathogen (Muhlen and Dersch, 2016; Fleitas Martinez et al., 2019).

QS is a bacterial cell-to-cell communication mechanism that allows bacteria to coordinate gene expression in response to population density reflecting the local concentration of extracellular signaling molecules termed autoinducers (AIs). P. aeruginosa employs a quorum sensing (QS) network to regulate the production of a wide range of virulence traits including but not limited to, exoproducts such as pyocyanin, HCN, elastase, lectinA, pyoverdine, drug efflux pumps, and factors required for immune evasion (Williams and Camara, 2009). QS also plays a key role in controlling biofilm development and biofilm mediated resistance to antibiotics (Bjarnsholt et al., 2005; Thomann et al., 2016; Maura and Rahme, 2017; Soukarieh et al., 2018a). Pseudomonas aeruginosa has three highly interconnected QS systems: two N-acylhomoserine lactone (AHL)-dependent QS systems (the las and rhl systems) and the Pseudomonas Quinolone Signal (pqs) system which relies on alkylquinolone (AQ)-derived autoinducers (Lee and Zhang, 2015; Whiteley et al., 2017).

The P. aeruginosa pqs system uses the LysR-type transcriptional regulator PqsR (also known as MvfR), to control the expression of the pqsABCDE operon that encodes the enzymes required for the biosynthesis of 4-hydroxy-2-heptylquinoline (HHQ) which, upon the action of the mono-oxygenase PqsH, is converted to 2-heptyl-3-hydroxy-4-quinolone (PQS). PQS and HHQ interact with the C-terminal ligand binding domain of PqsR, resulting in a conformational change that leads to the activation of the pqs operon likely through the interaction of the helix-turn-helix DNA binding domain of this protein with the pqsA promoter. This triggers the production virulence factors and secondary metabolites through a range of PqsR-dependent and PqsR-independent mechanisms, some of which involve PqsE (Diggle et al., 2007; Ben Haj Khalifa et al., 2011; Rampioni et al., 2016).

The pqs system is crucial for P. aeruginosa pathogenicity and has been regarded as a promising therapeutic target to alleviate antibiotic-resistant infections (Fleitas Martinez et al., 2018). Several attempts to target the pqs system with various PqsR inhibitors have previously been reported (Soukarieh et al., 2018a,b). Of these inhibitors, M64 (Figure 1) was the first PqsR inhibitor to show in vivo activity in a mouse lung infection model (Starkey et al., 2014). Due to the lipophilic nature of the PqsR ligand binding site, finding a new series of pqs inhibitors, with improved drug-likeness remains a challenge (Ilangovan et al., 2013). In this work, we report the synthesis and biological evaluation of a new series of high potency PqsR inhibitors and demonstrate their ability to inhibit QS in both planktonic and biofilms cultures.

FIGURE 1
www.frontiersin.org

Figure 1. Chemical structure of the M64 PqsR inhibitor.

Materials and Methods

Data Management and Analysis

Instant JChem was used for Structure Database Management, Search and Prediction, Instant JChem 16.2.15.0 2016, ChemAxon (http://www.chemaxon.com). Sigmoidal dose-response curves and the representation of all data were prepared using GraphPad Prism.

General Chemistry

Reagents and anhydrous solvents were purchased from Sigma Aldrich, Alfa Aesar and Fisher Scientific, and were used without further purification. Nuclear magnetic resonance: 1H-NMR and 13C-NMR, were obtained at room temperature using a Bruker AV400 spectrometer operating at 400 MHz. The samples were prepared in deuterated solvent: DMSO-d6 and CDCl3. Chemical shifts (δ) were recorded in ppm and coupling constants (J) were recorded in Hz. The spectra were analyzed using MestReNova 12.0.1 software. Mass spectrometry: Analytical HPLC were performed on a Shimadzu UFLCXR system coupled to an Applied Biosystems API2000. Three columns thermostated at 40°C were used. Column one: Phenomenex Gemini-NX 3 μm C18, 50 × 2 mm Column two: Phenomenex Luna 3 μm (PFP2) 110A, 50 × 2 mm. Column three: Waters X terra MS C8 2.5 m, 4.6 × 30 mm. Flow rate 0.5 mL/min. UV detection at 220 (channel 2) and 254 nm (channel 1). Short gradient: Pre-equilibration run for one min at 5% B; then method run: 5–98% solvent B in 2 min, 98% B for 2 min, 98–5% B in 0.5 min then 5% for 1 min. Long gradient: Pre-equilibration run for one min at 5% B; then method run: 5% B for 0.5 min, 10–98% solvent B in 8 min, 98% B for 2 min, 98–5% B in 0.5 min then 5% B for 1 min. Solvent A: 0.1% Formic acid in water; solvent B: 0.1% Formic acid in MeCN. Chromatography: Thin-layer chromatography (TLC) was performed, UV light and standard TLC stains were used to visualize the Merck Silica gel 60 Å F254 plates. Compounds were purified via column chromatography using either a Thompson pump or normal phase Interchim Puriflash pre-packed cartridges consisting of 50 μM silica, or a glass column using Merck Geduran silica gel 60 Å (230–240 μm) Column size selected was generally 40–60 times the loading amount.

General Procedure A: Alkylation of Thiols With tert-butyl 2-Bromoacetate (3–4)

tert-Butyl 2-bromoacetate (1 mmol) was added dropwise to a suspension of 5-methyl-5H-[1,2,4]triazino[5,6-b]indole-3-thiols (1–2) (Sharma et al., 2014) (1 mmol) and triethylamine (1 mmol) in anhydrous toluene (10 mL) at 0°C under N2. The reaction mixture was allowed to slowly warm up to room temperature and stirred for 3 h and was quenched with water (5 mL) and stirred at room temperature for further 5 min. The mixture was then diluted with water (30 mL) and then extracted with EtOAc (20 mL × 3). The organic layers were combined and washed with brine and dried over Na2SO4. The crude compound was purified by column chromatography.

tert-Butyl 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetate (3). The title compound was prepared from 5-methyl-5H-[1,2,4]triazino[5,6-b]indole-3-thiol (1) (0.40 g, 1.83 mmol), tert-butyl 2-bromoacetate (0.280 g, 1.83 mmol) and triethylamine (0.185 g, 1.83 mmol) according to general procedure A. The crude product was purified by column chromatography (petroleum ether/EtOAc 4:1) to give a white solid (0.37 g, 62%). 1H NMR (400 MHz, DMSO-d6) δ 8.36 (d, J = 7.6 Hz, 1H), 7.79 (d, J = 4.1 Hz, 2H), 7.51 (dq, J = 8.0, 4.3 Hz, 1H), 4.10 (s, 2H), 3.83 (s, 3H), 1.42 (s, 9H). 13C NMR (101 MHz, CDCl3) δ 168.04, 166.84, 146.28, 141.42, 141.14, 130.74, 122.90, 122.12, 118.01, 109.84, 82.07, 34.54, 28.03, 27.22. LCMS m/z calc for C16H18N4O2S [M+H]+: 330.2, found 330.4 with tR 2.91 min, purity 95%.

tert-Butyl 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetate (4). The title compound was prepared from 8-bromo-5-methyl-5H[1,2,4]triazino[5,6-b]indole-3-thiol (2) (0.15 g, 0.53 mmol), tert-butyl 2-bromoacetate (0.081 g, 0.53 mmol) and triethylamine (0.53 g, 0.53 mmol) according to general procedure A. The crude product was purified by column chromatography (petroleum ether/EtOAc 4:1) to give a yellow solid (0.20 g, 88%): 1H NMR (400 MHz, DMSO-d6) δ 8.52 (d, J = 2.0 Hz, 1H), 7.94 (dd, J = 8.7, 2.0 Hz, 1H), 7.78 (d, J = 8.7 Hz, 1H), 4.11 (s, 2H), 3.81 (s, 3H), 1.42 (s, 9H), 13C NMR (101 MHz, CDCl3) δ 167.92, 167.77, 146.62, 140.30, 140.13, 133.28, 125.09, 119.92, 116.10, 111.39, 82.22, 34.61, 28.02, 27.41. LCMS m/z calc for C16H17BrN4O2S [M+H]+: 408.0, found 408.3 with tR 3.05 min, purity 95%.

General Procedure B: tert-butyl Ester Deprotection (5–6)

Intermediates (3–4) were dissolved in DCM (3 mL/mmol), 4M HCl in 1,4-dioxane (excess, 2 mL/mmol) was added to the suspension. The mixture was then allowed to stir at room temperature overnight. The solvent was removed under vacuum to yield a light yellow solid. The crude product was washed with diethyl ether and DCM and was used directly for next steps without further purification.

2-((5-Methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5). The title compound was prepared from tert-butyl 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetate (3) (0.40 g, 1.21 mmol) according to general procedure B. The product was obtained as a yellow solid (280 mg, 84.34%). 1H NMR (400 MHz, DMSO-d6) δ 8.34 (d, J = 7.7 Hz, 1H), 7.79 (d, J = 4.0 Hz, 2H), 7.51 (dq, J = 8.1, 4.5 Hz, 1H), 4.10 (s, 2H), 3.83 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 170.50, 166.81, 146.54, 142.14, 131.47, 123.40, 121.92, 117.75, 111.70, 79.46, 33.58, 27.81. LCMS m/z calc. for C12H10N4O2S [M+H]+: 274.4, found 274.3 with tR 2.40 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6). The title compound was prepared from tert-butyl 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetate (4) (0.19 g, 0.46 mmol) according to general procedure B. The product was obtained as a yellow solid (0.13 g, 81.7%): 1H NMR (400 MHz, DMSO-d6) δ 8.50 (d, J = 2.0 Hz, 1H), 7.94 (dd, J = 8.7, 2.0 Hz, 1H), 7.78 (d, J = 8.7 Hz, 1H), 4.14 (s, 2H), 3.81 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 168.10, 146.66, 140.93, 133.76, 124.20, 119.65, 115.51, 115.49, 113.88, 81.73, 34.30, 28.15. LCMS m/z calc for C12H9BrN4O2S [M+H]+: 353.2, found 353.2 with tR 2.63 min, purity 95%.

General Procedure C: HATU-Mediated Amide Bond Formation (7–28)

Carboxylic acids (5–6) (1.0 eq), HATU (1.5 equiv.), DMAP (0.10 equiv.) and various anilines (1.0 equiv.) were dissolved in anhydrous NMP (0.1 mmol/ 3 mL) and stirred at room temperature for 5 min before addition of DIPEA (6 equiv.). The reaction mixture was allowed to stir at room temperature for overnight. The reaction was monitored by TLC and quenched by addition of water (20 mL). The mixture was diluted with water (10 mL) and extracted with EtOAc (15 mL × 3) and the combined organic layers were washed with Sat. NaHCO3 (20 mL × 3) and brine (20 mL) and dried over Na2SO4. Solvent was removed under vacuum and the crude product was purified by column chromatography to afford the target compounds.

N-(4-Chlorophenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (7). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.050 g, 0.18 mmol) and 4-chloroaniline (0.023 g, 0.18 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.022 g, 31%). 1H NMR (400 MHz, DMSO-d6) δ 10.56 (s, 1H), 8.32 (d, J = 7.9 Hz, 1H), 7.81–7.72 (m, 2H), 7.71–7.63 (m, 2H), 7.48 (td, J = 6.9, 5.9, 2.2 Hz, 1H), 7.42–7.33 (m, 2H), 4.28 (s, 2H), 3.77 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.07, 166.92, 146.51, 142.05, 141.40, 138.50, 131.38, 129.19, 127.37, 123.32, 121.86, 121.11, 117.71, 111.62, 35.99, 27.72. LCMS m/z calc.for C18H14ClN5OS [M+H]+: 383.3, found 383.9 with tR 2.84 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4-chlorophenyl)acetamide (8). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.050 g, 0.1415 mmol) and 4-chloroaniline (0.020 g, 0.1562 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.010 g, 15%). 1H NMR (400 MHz, DMSO-d6) δ 10.57 (s, 1H), 8.50 (d, J = 2.0 Hz, 1H), 7.93 (dd, J = 8.7, 2.0 Hz, 1H), 7.76 (d, J = 8.7 Hz, 1H), 7.72–7.60 (m, 2H), 7.42–7.34 (m, 2H), 4.28 (s, 1H), 3.77 (s, 1H). 13C NMR (101 MHz, DMSO-d6) δ 167.86, 166.82, 146.71, 140.96, 140.55, 138.49, 133.71, 129.20, 127.38, 124.18, 121.11, 119.71, 115.45, 113.86, 36.01, 27.90. LCMS m/z calc. for C18H14BrClN5OS [M+H]+: 462.3, found 462.7 with tR 2.91 min, purity 95%.

2-((5-Methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-phenylacetamide (9). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.050 g, 0.18 mmol) and aniline (0.017 g, 0.18 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.013 g, 20%). 1H NMR (400 MHz, DMSO-d6) δ 10.42 (s, 1H), 8.33 (d, J = 7.8 Hz, 1H), 7.81–7.72 (m, 2H), 7.66–7.58 (m, 2H), 7.49 (ddd, J = 8.1, 5.2, 3.0 Hz, 1H), 7.32 (t, J = 7.9 Hz, 2H), 7.11–7.02 (m, 1H), 4.28 (s, 2H), 3.79 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.17, 166.70, 146.54, 142.07, 141.40, 139.56, 131.39, 129.27, 123.83, 123.34, 121.88, 119.57, 117.74, 111.65, 36.01, 27.75. LCMS m/z calc for C18H15N5OS [M+H]+: 349.4, found 349.4 with tR 2.72 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-phenylacetamide (10). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.050 g, 0.14 mmol) and aniline (0.013 g, 0.14 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.015 g, 25%). 1H NMR (400 MHz, DMSO-d6) δ 10.42 (s, 1H), 8.49 (d, J = 1.9 Hz, 1H), 7.93 (dd, J = 8.7, 2.0 Hz, 1H), 7.76 (d, J = 8.7 Hz, 1H), 7.62 (d, J = 7.9 Hz, 2H), 7.32 (t, J = 7.9 Hz, 2H), 7.06 (t, J = 7.4 Hz, 1H), 4.29 (s, 2H), 3.78 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.96, 166.60, 146.71, 140.94, 140.52, 139.54, 133.69, 132.07, 129.27, 129.14, 124.16, 123.84, 119.71, 119.57, 115.44, 113.85, 36.03, 27.91. LCMS m/z calc. for C18H14BrN5OS [M+H]+: 429.2, found 428.3 with tR 2.87 min, purity 95%.

N-(3-Chlorophenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (11). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.040 g, 0.15 mmol) and 3-chloroaniline (0.019 g, 0.15 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give white solid (0.013 g, 23%). 1H NMR (400 MHz, DMSO-d6) δ 10.62 (s, 1H), 8.34 (d, J = 7.8 Hz, 1H), 7.84 (t, J = 2.0 Hz, 1H), 7.78 (d, J = 3.9 Hz, 2H), 7.54–7.28 (m, 2H), 7.36 (t, J = 8.1 Hz, 1H), 7.18–7.05 (m, 1H), 4.29 (s, 2H), 3.78 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.19, 167.01, 146.55, 142.11, 141.46, 140.98, 133.60, 131.42, 131.02, 123.56, 123.35, 121.91, 119.00, 117.94, 117.74, 111.67, 36.01, 27.74. LCMS m/z calc.for C15H14ClN5OS [M+H]+: 383.8, found 383.9 with tR 2.87 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(3-chlorophenyl)acetamide (12). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.050 g, 0.14 mmol) and 3-chloroaniline (0.018 g, 0.14 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.010 g, 15.4%). 1H NMR (400 MHz, DMSO-d6) δ 10.63 (s, 1H), 8.50 (d, J = 1.9 Hz, 1H), 7.93 (dd, J = 8.7, 2.0 Hz, 1H), 7.84 (t, J = 2.1 Hz, 1H), 7.76 (d, J = 8.6 Hz, 1H), 7.52–7.45 (m, 1H), 7.35 (d, J = 8.1 Hz, 1H), 7.16–7.07 (m, 1H), 4.29 (s, 2H), 3.77 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.79, 167.09, 146.71, 140.96, 140.58, 133.71, 133.60, 131.02, 124.17, 123.57, 119.69, 119.00, 117.94, 115.45, 113.86, 36.03, 27.90. LCMS m/z calc. for C18H14BrClN5OS [M+H]+: 464.2, found 464.3 with tR 2.98 min, purity 95%.

N-(3,4-Dichlorophenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (13). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.070 g, 0.25 mmol) and 3,4-dichloroaniline (0.041 g, 0.25 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.005 g, 5%). 1H NMR (400 MHz, DMSO-d6) δ 10.73 (s, 1H), 8.33 (d, J = 7.8 Hz, 1H), 8.02 (d, J = 2.4 Hz, 1H), 7.84–7.74 (m, 2H), 7.60 (d, J = 8.8 Hz, 1H), 7.56–7.28 (m, 2H), 4.29 (s, 2H), 3.78 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.37, 166.94, 146.55, 142.12, 141.48, 139.62, 131.53, 131.44, 131.28, 125.26, 123.37, 121.91, 120.72, 119.61, 117.74, 111.69, 36.00, 27.75. LCMS m/z calc.for C18H13Cl2N5OS [M+H]+: 418.3, found 418.2 with tR 2.95 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(3,4-dichlorophenyl)acetamide (14). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.070 g, 0. 20 mmol) and 3,4-dichloroaniline (0.035 g, 0.21 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give white solid (0.005 g, 5%). 1H NMR (400 MHz, DMSO-d6) δ 10.73 (d, J = 7.6 Hz, 1H), 8.50 (d, J = 1.9 Hz, 1H), 8.02 (d, J = 2.3 Hz, 1H), 7.94 (dd, J = 8.7, 1.9 Hz, 1H), 7.76 (d, J = 8.7 Hz, 1H), 7.60 (d, J = 8.8 Hz, 1H), 7.53 (dd, J = 8.9, 2.4 Hz, 1H), 4.29 (s, 2H), 3.76 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.37, 166.94, 146.55, 142.12, 141.48, 139.62, 131.53, 131.44, 131.28, 125.26, 123.37, 121.91, 120.72, 119.61, 117.74, 111.69, 36.00, 27.75. LCMS m/z calc. for C18H12BrCl2N5OS [M+H]+: 497.2, found 497.19 with tR 3.06 min, purity 95%.

N-(4-Fluorophenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (15). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.070 g, 0.26 mmol) and 4-fluoroaniline (0.028 g, 0.26 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.030 g, 32%). 1H NMR (400 MHz, DMSO-d6) δ 10.48 (s, 1H), 8.33 (d, J = 7.8 Hz, 1H), 7.86–7.71 (m, 2H), 7.69–7.59 (m, 2H), 7.49 (ddd, J = 8.0, 5.3, 2.9 Hz, 1H), 7.16 (t, J = 8.9 Hz, 2H), 4.27 (s, 2H), 3.78 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.12, 166.64, 146.54, 142.08, 141.41, 135.96, 131.40, 123.34, 121.88, 121.38, 121.30, 117.74, 115.96, 115.74, 111.65, 35.91, 27.74. LCMS m/z calc.for C18H14FN5OS [M+H]+: 367.1, found 367.4 with tR 2.75 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4-fluorophenyl)acetamide (16). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.070 g, 0.20 mmol) and 4-fluoroaniline (0.022 g, 0.20 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.027 g, 30%): 1H NMR (400 MHz, DMSO-d6) δ 10.48 (s, 1H), 8.49 (d, J = 2.0 Hz, 1H), 7.92 (dd, J = 8.7, 2.0 Hz, 1H), 7.75 (d, J = 8.7 Hz, 1H), 7.68–7.57 (m, 2H), 7.16 (t, J = 8.9 Hz, 2H), 4.27 (s, 2H), 3.77 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.91, 166.55, 146.71, 140.95, 140.54, 135.92, 133.70, 124.17, 121.38, 121.30, 119.70, 115.96, 115.74, 115.45, 113.85, 35.93, 27.90. LCMS m/z calc. for C18H13BrFN5OS [M+H]+: 446.3, found 446.3 with tR 2.88 min, purity 95%.

2-((5-Methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(p-tolyl)acetamide (17). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.070 g, 0.26 mmol) and 4-methylaniline (0.027 g, 0.26 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.032 g, 35%). 1H NMR (400 MHz, DMSO-d6) δ 10.33 (s, 1H), 8.29 (d, J = 7.8 Hz, 1H), 7.74 (d, J = 6.8 Hz, 2H), 7.49 (dd, J = 17.2, 7.7 Hz, 3H), 7.12 (d, J = 8.0 Hz, 2H), 4.26 (s, 2H), 3.76 (s, 3H), 2.25 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.19, 166.28, 146.48, 142.00, 141.33, 137.06, 132.74, 131.33, 129.63, 123.29, 121.82, 119.58, 117.70, 111.57, 35.98, 27.72, 20.91. LCMS m/z calc. for C19H17N5OS [M+H]+: 363.4, found 363.4 with tR 2.78 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(p-tolyl)acetamide (18). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.070 g, 0.20 mmol) and 4-methylaniline (0.030 g, 0.20 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.015 g, 12 %). 1H NMR (400 MHz, DMSO-d6) δ 10.34 (s, 1H), 8.47 (d, J = 2.0 Hz, 1H), 7.91 (dd, J = 8.7, 2.0 Hz, 1H), 7.74 (d, J = 8.7 Hz, 1H), 7.51 (d, J = 8.4 Hz, 2H), 7.12 (d, J = 8.1 Hz, 2H), 4.27 (s, 2H), 3.77 (s, 3H), 2.25 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 168.00, 166.33, 146.69, 140.91, 140.49, 137.05, 133.67, 132.74, 129.63, 124.14, 119.70, 119.58, 115.44, 113.84, 36.00, 27.91, 20.92. LCMS m/z calc. for C19H16BrN5OS [M+H]+: 442.3, found 442.1 with tR 2.95 min, purity 95%.

N-(4-Methoxyphenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (19). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.070 g, 0.26 mmol) and 4-methoxy aniline (0.031 g, 0.26 mmol) according to general procedure C. The product was obtained as a yellow solid (0.095 g, 98%). 1H NMR (400 MHz, DMSO-d6) δ 10.27 (s, 1H, H-7), 8.32 (d, J = 7.7 Hz, 1H), 7.88–7.70 (m, 2H), 7.56–7.51 (m, 2H), 7.48 (ddd, J = 2.6, 5.6, 8.1 Hz, 1H), 6.96–6.71 (m, 2H), 4.25 (s, 2H, H-6), 3.79 (s, 3H), 3.72 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.20, 166.15, 155.75, 146.45, 142.06, 141.37, 132.70, 131.38, 123.33, 121.86, 121.13, 117.75, 114.37, 111.64, 38.71, 35.88, 27.74. LCMS m/z calc for C19H17N5O2S+ [M+H]+: 380.4, found 379.4 with tR 2.70 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4-methoxyphenyl)acetamide (20). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.070 g, 0.20 mmol) and 4-methoxyaniline (0.023 g, 0.20 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a light yellow solid (0.017 g, 18%). 1H NMR (400 MHz, DMSO-d6) δ 10.28 (s, 1H), 8.49 (d, J = 2.0 Hz, 1H), 7.93 (dd, J = 8.7, 2.0 Hz, 1H), 7.76 (d, J = 8.7 Hz, 1H), 7.56–7.49 (m, 2H), 6.93–6.85 (m, 2H), 4.25 (s, 2H, H5), 3.78 (s, 3H), 3.72 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 168.03, 166.05, 155.76, 146.72, 140.94, 140.50, 133.68, 132.69, 124.15, 121.13, 119.72, 115.44, 114.38, 113.85, 38.72, 35.90, 27.92. LCMS m/z calc. for C19H17BrN5O2S [M+H]+: 458.3, found 458.3 with tR 2.87 min, purity 95%.

2-((5-Methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4(trifluoromethoxy)phenyl)acetamide (21). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.050 g, 0.18 mmol) and 4-trifluoromethoxyaniline (0.032 g, 0.18 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.005 g, 6%). 1H NMR (400 MHz, DMSO-d6) δ 10.63 (s, 1H), 8.33 (d, J = 7.9 Hz, 1H), 7.84–7.62 (m, 4H), 7.49 (ddd, J = 8.1, 5.3, 2.8 Hz, 1H), 7.34 (d, J = 8.6 Hz, 2H), 4.29 (s, 2H), 3.78 (d, J = 1.7 Hz, 3H). 13C NMR (101 MHz, DMSO-d6) δ 178.30, 167.05, 167.00, 146.55, 142.10, 141.44, 138.74, 131.41, 123.35, 122.18, 121.90, 120.92, 117.74, 111.66, 35.95, 27.75. LCMS m/z calc. for C19H14F3N5O2S [M+H]+: 283.4, found 283.4 with tR 2.91 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4- (trifluoromethoxy)phenyl)acetamide (22). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.050 g, 0.14 mmol) and 4-trifluoromethoxyaniline (0.021 mL, 0.16 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.007 g, 9%). 1H NMR (400 MHz, DMSO-d6) δ 10.63 (s, 1H), 8.48 (d, J = 2.0 Hz, 1H), 7.92 (dd, J = 8.7, 2.0 Hz, 1H), 7.83–7.64 (m, 3H), 7.34 (d, J = 8.6 Hz, 2H), 4.29 (s, 2H), 3.77 (d, J = 5.3 Hz, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.83, 167.00, 166.91, 146.70, 142.09, 140.95, 140.56, 138.73, 133.70, 124.16, 122.18, 120.93, 119.69, 119.33, 115.45, 113.85, 111.66, 35.97, 27.74. LCMS m/z calc. for C19H13BrF3N5O2S [M+H]+: 512.1, found 512.3 with tR 3.05 min, purity 95%.

N-(4-(Cyanomethyl)phenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (23). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.080 g, 0.0.29 mmol) and 2-(4-aminophenyl)acetonitrile (0.028 g, 0.32 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (58.9 mg, 52%). 1H NMR (400 MHz, DMSO-d6) δ 10.52 (d, J = 10.1 Hz, 1H), 8.29 (d, J = 7.7 Hz, 1H), 7.95 (s, 1H), 7.78–7.68 (m, 2H), 7.67–7.60 (m, H), 7.46 (ddd, J = 1.8, 6.5, 8.0 Hz, 1H), 7.30 (d, J = 8.3 Hz, 2H), 4.27 (s, 2H), 3.97 (s, 2H), 3.76 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.12, 166.85, 146.49, 142.01, 141.34, 138.94, 131.39, 129.04, 126.39, 123.33, 121.84, 120.00, 119.81, 117.67, 111.58, 35.96, 27.70, 22.30. LCMS m/z calc. for C20H17N6OS [M+H]+: 389.4, found 389.3 with tR 2.66 min, purity > 95%.

2-((5-Methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4-phenoxyphenyl)acetamide (24). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.10 g, 0.36 mmol) and 4-phenoxyaniline (0.067 g, 0.36 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.094 g, 58%). 1H NMR (400 MHz, DMSO-d6) δ 10.45 (s, 1H), 8.35–8.27 (m, 1H), 7.82–7.71 (m, 2H), 7.70–7.60 (m, 2H), 7.48 (ddd, J = 8.1, 5.6, 2.6 Hz, 1H), 7.40–7.31 (m, 2H), 7.13–7.05 (m, 1H), 7.04–6.92 (m, 4H), 4.28 (s, 2H), 3.79 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 174.23, 166.53, 142.06, 141.39, 135.47, 131.38, 130.28, 123.46, 123.32, 121.86, 121.29, 119.98, 118.34, 117.74, 111.63, 35.93, 27.75. LCMS m/z calc. for C24H19N5O2S [M+H]+: 441.5, found 441.5 with tR 2.95 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4-phenoxyphenyl)acetamide (25). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.10 g, 0.28 mmol) and 4-phenoxy aniline (0.052 g, 0.28 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.027 g, 18%). 1H NMR (400 MHz, DMSO-d6) δ 10.46 (s, 1H), 8.47 (d, J = 2.0 Hz, 1H), 7.91 (dd, J = 8.7, 2.0 Hz, 1H), 7.74 (d, J = 8.7 Hz, 1H), 7.68–7.58 (m, 2H), 7.42–7.29 (m, 2H), 7.13–7.07 (m, 1H), 7.05–6.90 (m, 4H), 4.28 (s, 2H), 3.78 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 166.28, 157.78, 152.30, 146.68, 140.92, 140.51, 135.45, 133.67, 130.28, 124.13, 123.47, 121.29, 119.97, 119.68, 118.35, 115.44, 113.83, 35.96, 27.92 LCMS m/z calc. for C24H18BrN5O2S+ [M+H]+: 520.4, found 520.4 with tR 3.06 min, purity 95%.

N-(4-Bromophenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (26). The title compound was prepared from 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.070 g, 0.26 mmol) and 4-bromoaniline (0.044 g, 0.26 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.030 g, 27%). 1H NMR (400 MHz, DMSO-d6) δ 10.56 (s, 1H), 8.33 (d, J = 7.7 Hz, 1H), 7.89–7.72 (m, 2H), 7.69–7.57 (m, 2H), 7.55–7.28 (m, 3H), 4.28 (s, 2H), 3.77 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.08, 166.94, 146.55, 142.10, 141.28, 138.92, 132.11, 131.42, 123.36, 121.90, 121.50, 117.75, 115.40, 111.68, 36.01, 27.75. LCMS m/z calc. for C18H14BrN5OS [M+H]+: 428.3, found 428.3 with tR 2.87 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4-bromophenyl)acetamide (27). The title compound was prepared from 2-((8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (6) (0.070 g, 0.20 mmol) and 4-bromoaniline (0.034 g, 0.20 mmol) according to general procedure C. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a yellow solid (0.007 g, 7%). 1H NMR (400 MHz, DMSO-d6) δ 10.57 (s, 1H), 8.49 (d, J = 2.0 Hz, 1H), 7.93 (dd, J = 8.7, 2.1 Hz, 1H), 7.76 (d, J = 8.7 Hz, 1H), 7.64–7.56 (m, 2H), 7.55–7.44 (m, 2H), 4.28 (s, 2H), 3.76 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.08, 166.95, 146.55, 142.10, 141.44, 138.92, 132.11, 131.42, 123.36, 121.91, 121.50, 117.75, 115.39, 111.68, 36.01, 27.75. LCMS m/z calc. for C18H13Br2N5OS [M+H]+: 507.2, found 507.2 with tR 2.87 min, purity 95%.

2-((5-Methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4-(pyrimidin-2yloxy)phenyl)acetamide (28). 4-(pyrimidin-2-yloxy)aniline (0.065 g, 0.238 mmol), 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetic acid (5) (0.064 g, 0.238 mmol), HATU (0.135 g, 0.357 mmol), DIPEA (0.165 mL, 0.952 mmol), and DMAP (0.030 g, 0.0238 mmol) were dissolved in NMP (2 mL). The reaction mixture was allowed to stir at room temperature overnight and monitored by TLC. The crude product was purified by column chromatography (petroleum ether/EtOAc 1:1) to give a white solid (31 mg, 29%). 1H NMR (400 MHz, DMSO-d6) δ 10.50 (s, 1H), 8.63 (d, J = 4.8 Hz, 2H), 8.31 (d, J = 7.8 Hz, 1H), 7.75 (d, J = 5.2 Hz, 2H), 7.67 (d, J = 8.5 Hz, 2H), 7.47 (ddd, J = 2.6, 5.8, 8.2 Hz, 1H), 7.25 (t, J = 4.8 Hz, 1H), 7.16 (d, J = 8.4 Hz, 2H), 4.30 (s, 2H), 3.79 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.13, 166.67, 165.37, 160.47, 148.77, 146.53, 142.06, 141.40, 136.67, 131.38, 123.32, 122.46, 121.88, 120.83, 117.73, 117.30, 111.61, 35.96, 27.76. LCMS m/z calc. for C22H18N7O2S+ [M+H]+: 444.5, found 444.3 with tR 2.62 min, purity >95%.

General Procedure D: Acylation of Anilines to Form Bromoacetatamides (32–37)

Aniline, 4-chloroaniline or 4-chloro-N-methylaniline and Et3N (2 equiv.) were dissolved in anhydrous DCM at 0°C under N2 protection followed by addition of various bromoacetyl chlorides (29–31) (1.0 equiv.). The reaction mixture was allowed to slowly warm up to room temperature and stirred for 4 h with monitored by TLC. Once the reaction was complete, solvent was removed under vacuum and crude product was used directly for next step without further purification (Deora et al., 2019).

2-Bromo-N-(4-(pyridin-2-yloxy)phenyl)acetamide (33). The title compound was prepared according to general procedures B from 4-(Pyridin-2-yloxy) aniline (100 mg, 32.57 mmol), Et3N (3 equiv.) and 2-bromoacetyl chloride (29) (1.1 equiv.). The crude product was purified by column chromatography (petroleum ether/EtOAc 5:1) to give a solid (71 mg, 47%). 1H NMR (400 MHz, CDCl3) δ 8.19 (dd, J = 2.0, 5.1 Hz, 1H), 7.64 (ddd, J = 2.0, 7.1, 8.2 Hz, 1H), 6.99–6.90 (m, 3H), 6.83 (dd, J = 1.0, 8.3 Hz, 1H), 6.76–6.67 (m, 2H), 3.65 (s, 2H). 13C NMR (101 MHz, CDCl3) δ 164.54, 147.74, 146.04, 143.50, 139.19, 122.29, 117.88, 116.14, 110.78, 45.81. LCMS m/z calc. for C13H11BrN2O2 [M+H]+: 307.1, found 307.0 with tR 2.59 min, purity > 95%.

2-Bromo-N-(4-chlorophenyl)acetamide (37). The title compound was prepared from 2-bromopropanoyl chloride (30) (0.10 g, 0.71 mmol) and 4-chloro-N-methylaniline (0.12 g, 0.71 mmol) according to general procedure D. The crude product was purified by column chromatography (petroleum ether/EtOAc 6:1) to give a white solid (149 mg, 76%). 1H NMR (400 MHz, CDCl3) δ 7.44 (d, J = 8.3 Hz, 2H), 7.26 (d, J = 8.2 Hz, 2H), 4.24 (q, J = 6.6 Hz, 1H), 3.28 (s, 3H), 1.74 (d, J = 6.7 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 169.47, 141.35, 134.42, 130.22, 128.64, 38.78, 38.13, 21.74. LCMS m/z calc. for C8H8BrClNO [M+H]+: 249.5, found 250.0 with tR 2.63 min, purity > 95%.

General Procedure E: Alkylation of Thiols (1–2) With Bromoacetamides (32–37) to Give Thioethers (38–44)

The substituted 5-methyl-5H-[1,2,4]triazino[5,6-b]indole-3-thiol intermediates 1–2 (1 equiv.) and Et3N (2 equiv.) were dissolved in anhydrous DCM (0.1 mmol/5 mL) followed by addition of bromoacetamides (32–37) (1.0 equiv.) at 0°C under N2. The reaction mixture was allowed slowly warm up to room temperature and stir for 4 h. The reaction was monitored by TLC. Once the reaction finished, solvent was removed under vacuum. The crude product was purified by column chromatography.

N-(2-Chlorophenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (38). The title compound was prepared from 2-bromo-N-(2-chlorophenyl)acetamide (32) (Sun et al., 2014) (0.1 g, 0.41 mmol) and 5-methyl-5H-[1,2,4]triazino[5,6-b]indole-3-thiol (1) (0.088 g, 0.41 mmol) according to general procedure E. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.029 g, 18%). 1H NMR (400 MHz, DMSO-d6) δ 9.93 (s, 1H), 8.34 (d, J = 7.7 Hz, 1H), 7.87–7.73 (m, 3H), 7.50 (ddd, J = 7.7, 5.1, 2.4 Hz, 2H), 7.40–7.25 (m, 1H), 7.18 (td, J = 7.7, 1.6 Hz), 4.35 (s, 2H), 3.81 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.33, 166.90, 146.55, 142.14, 141.50, 135.29, 131.47, 129.94, 127.99, 126.66, 125.83, 123.39, 121.93, 117.74, 111.68, 35.28, 27.85. LCMS m/z calc. for C18H15ClN5OS [M+H]+: 384.2, found 383.8 with tR 2.82 min, purity 95%.

2-((8-Bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(2-chlorophenyl)acetamide (39). The title compound was prepared from 2-bromo-N-(2-chlorophenyl)acetamide (32) (0.1 g, 0.3387 mmol) and 8-bromo-5-methyl-5H[1,2,4]triazino[5,6-b]indole-3-thiol (2) (0.083 g, 0.3387 mmol) according to general procedure E. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.053 g, 35%). 1H NMR (400 MHz, DMSO-d6) δ 9.94 (s, 1H), 8.50 (t, J = 2.8 Hz, 1H), 7.93 (dt, J = 9.3, 2.7 Hz, 1H), 7.88–7.64 (m, 2H), 7.50 (dd, J = 7.9, 1.6 Hz, 1H), 7.28–7.25 (m, 1H), 7.23–7.08 (m, 1H), 4.36 (d, J = 3.3 Hz, 2H), 3.80 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 167.71, 167.22, 146.72, 140.99, 140.61, 135.28, 133.76, 129.96, 127.98, 126.70, 126.29, 125.94, 124.20, 119.69, 115.50, 113.88, 35.45, 28.00. LCMS m/z calc. for C18H13BrClN5OS [M+H]+: 462.7, found 462.7 with tR 3.01 min, purity 95%.

2-((5-Methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)-N-(4-(pyridin-2-yloxy)phenyl)acetamide (40). The title compound was prepared from 5-Methyl-5H-[1,2,4]triazino[5,6-b]indole-3-thiol (1) (0.030 g, 0.14 mmol), Et3N (1.5 equiv.) and 2-bromo-N-(4-(pyridin-2-yloxy)phenyl)acetamide (33) (0.051 g, 0.17 mmol) according to general procedure E. The reaction mixture was allowed slowly warm up to room temperature and stirred overnight and monitored by TLC. The crude product was purified by column chromatography (petroleum ether/EtOAc 1:1) to give a white solid (39 mg, 64%). 1H NMR (400 MHz, CDCl3) δ 9.87 (s, 1H), 8.46 (dt, J = 1.1, 7.8 Hz, 1H), 8.16 (ddd, J = 0.8, 2.1, 5.0 Hz, 1H), 7.77 (ddd, J = 1.2, 7.4, 8.5 Hz, 1H), 7.68–7.56 (m, 3H), 7.55–7.47 (m, 2H), 7.14–7.04 (m, 2H), 6.96 (ddd, J = 1.0, 5.0, 7.2 Hz, 1H), 6.86 (dt, J = 0.9, 8.3 Hz, 1H), 4.13 (d, J = 1.5 Hz, 2H), 3.87 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 167.21, 167.08, 150.16, 147.70, 146.55, 142.15, 139.35, 134.91, 131.51, 123.44, 122.66, 121.76, 121.07, 118.33, 117.96, 111.22, 110.16, 35.75, 27.53. LCMS m/z calc. for C23H19N6O2S [M+H]+: 443.5, found 443.2 with tR 2.78 min, purity > 95%.

N-(4-Chlorophenyl)-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)propanamide (41). The title compound (41) was prepared from (34) (Deora et al., 2019) (0.20 g, 0.93 mmol) and (1) (0.24 g, 0.93 mmol) according to the general procedure E. The crude product was purified by column chromatography (petroleum ether/EtOAc 2:1) to give a white solid (0.083 g, 22%). 1H NMR (400 MHz, DMSO-d6) δ 10.61 (s, 1H), 8.30 (d, J = 7.7 Hz, 1H), 7.75 (d, J = 5.9 Hz, 2H), 7.68 (d, J = 8.6 Hz, 2H), 7.47 (ddd, J = 8.0, 6.0, 2.3 Hz, 1H), 7.38 (d, J = 8.8 Hz, 2H), 4.85 (q, J = 7.0 Hz, 1H), 3.77 (s, 3H), 1.68 (d, J = 7.1 Hz, 3H). 13C NMR (101 MHz, DMSO-d6) δ 170.55, 166.85, 146.49, 142.08, 141.47, 138.40, 131.42, 129.19, 127.53, 123.33, 121.88, 121.25, 117.71, 111.61, 45.12, 27.76, 18.65. LCMS m/z calc. for C19H17ClN5OS+ [M]+: 398.8, found 397.8 with tR 3.03 min, purity 95%.

N-(4-Chlorophenyl)-N-methyl-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide (43). The title compound was prepared from 2-bromo-N-(4-chlorophenyl)-N-methylacetamide (36) (0.050 g, 0.19 mmol) and 5-methyl-5H-[1,2,4]triazino[5,6-b]indole-3-thiol (1) (0.041 g, 0.19 mmol) according to general procedure E. The crude product was purified by column chromatography (petroleum ether/EtOAc 1:1) to give a white solid (32.5 mg, 28%): 1H NMR (400 MHz, DMSO-d6) δ 8.32 (d, J = 7.8 Hz, 1H), 7.78 (d, J = 4.1 Hz, 2H), 7.65–7.35 (m, 5H), 4.05 (d, J = 22.3 Hz, 2H), 3.76 (s, 3H), 3.23 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δ 170.55, 166.85, 146.49, 142.08, 141.47, 138.40, 131.42, 129.19, 127.53, 123.33, 121.88, 121.25, 117.71, 111.61, 45.12, 27.76, 18.65. LCMS m/z calc. for C19H17ClN5OS [M+H]+: 398.2, found 397.8 with tR 3.03 min, purity 95%.

N-(4-Chlorophenyl)-N-methyl-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)propanamide (44). The title compound was prepared from 5-methyl-5H-[1,2,4]triazino[5,6-b]indole-3-thiol (1) (0.050 g, 0.23 mmol) and 2-bromo-N-(4-chlorophenyl)acetamide (37) (0.064 g, 0.23 mmol) according to general procedure E. The crude product was purified by column chromatography (petroleum ether/EtOAc 1:1) to give a gray solid (59 mg, 76%). 1H NMR (400 MHz, DMSO-d6) δ 8.33 (d, J = 7.7 Hz, 1H), 7.79 (d, J = 3.8 Hz, 2H), 7.69–7.40 (m, 3H), 7.36 (d, J = 8.0 Hz, 2H), 4.80 (q, J = 6.9 Hz, 1H), 3.70 (s, 3H), 3.20 (s, 3H), 1.51 (d, J = 6.9 Hz, 3H). 13C NMR (101 MHz, DMSO-d6) δ 171.18, 170.94, 166.01, 146.30, 142.40, 142.15, 141.44, 132.85, 131.49, 130.07, 129.96, 123.38, 121.91, 117.69, 111.61, 55.39, 44.54, 37.69, 27.62, 24.57, 22.19, 19.31. LCMS m/z calc. for C20H20ClN5OS [M+H]+: 412.9, found 412.2 with tR 2.90 min, purity > 95%.

N-(4-Chlorophenyl)-2-methyl-2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)propanamide (42). 5-Methyl-5H-[1,2,4]triazino[5,6-b]indole-3-thiol (1) (0.100 g, 0.46 mmol) was dissolved in anhydrous DMF (15 mL) under N2 protection in an ice bath, followed by addition of NaH 60% dispersion in mineral oil (0.020 g, 0.51 mmol) in one portion. The mixture was stirred for 45 min with ice bath cooling followed by addition of 2-bromo-N-(4-chlorophenyl)-2-methylpropanamide (35) (0.128 g, 0.46 mmol). The mixture was then slowly warmed up to room temperature and stirred overnight. Once the reaction was finished, the mixture was poured onto sat. NH4Cl (100 mL) and stirred vigorously for 10 min. The resulting suspension was extracted with EtOAc (30 mL × 3). The combined organic layers were washed with brine, dried over Na2SO4, and concentrated. The crude product was purified by column chromatography (petroleum ether/EtOAc 3:1) to give a yellow solid (0.140 g, 74%). 1H NMR (400 MHz, DMSO-d6) δ 9.98 (s, 1H), 8.29 (dt, J = 7.8, 1.0 Hz, 1H), 7.85–7.62 (m, 4H), 7.45 (ddd, J = 8.0, 6.7, 1.5 Hz, 1H), 7.38–7.17 (m, 2H), 3.73 (s, 3H), 1.81 (s, 6H). 13C NMR (101 MHz, DMSO-d6) δ 172.39, 166.56, 146.24, 141.98, 141.26, 138.68, 131.44, 128.76, 127.36, 123.33, 122.25, 121.90, 117.71, 111.60, 52.77, 27.78, 26.61. LCMS m/z calc. for C19H16ClN5OS [M+H]+: 411.9, found 411.9 with tR 2.99 min, purity 95%.

Results

Virtual Screening and Hit Identification of PqsR Inhibitors

In silico virtual screening was performed on the PqsR ligand binding domain (LBD) crystal structure [PDB: 4JVI; (Ilangovan et al., 2013)] using the University of Nottingham Managed Chemical Compound Collection (MCCC) containing 85,061 compounds. Molecular docking was performed using both the OpenEye docking (OpenEye Scientific Software Inc. (Hawkins et al., 2007) and Schrödinger Suite for molecular modeling (Friesner et al., 2004; Halgren et al., 2004). A cut off value of the docking score function was set to -9.0 and the resulting high scoring compounds were further examined (Friesner et al., 2004; Halgren et al., 2004). This gave a library of around 500 diverse molecules that were evaluated using in vitro screening in a P. aeruginosa PAO1-L mCTX::PPqsA-lux reporter assay (Diggle et al., 2011).

Compound 7 (Figure 2) with a PAO1-L IC50 of 0.98 μM, was chosen for further optimisation. Disappointingly, this compound proved inactive when screened against the P. aeruginosa strain PA14, harboring the mCTX::PPqsA-lux reporter. However, the hit compound 7 provided a good chemical starting point to undertake rapid optimisation.

FIGURE 2
www.frontiersin.org

Figure 2. Chemical structure of hit compound 7 and plans for chemical optimisation.

Optimisation of the PqsR Inhibitor Hit

The chemical exploration of 7 initially focused on modifying the 4-chloroanilide, investigating the effect of substitution on the 8-position of the tricyclic ring and exploration of the effect of the core linking group substituents (groups R3−5). The compounds were readily synthesized according to the methods outlined below (Scheme 1).

SCHEME 1
www.frontiersin.org

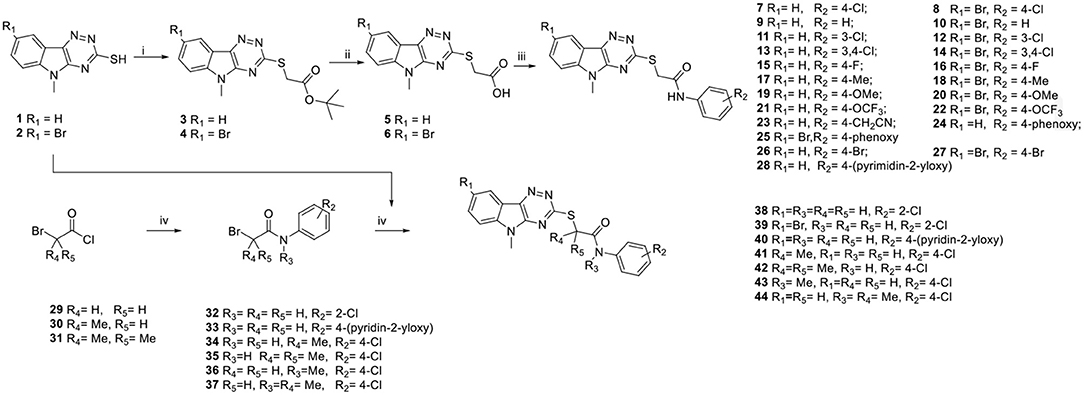

Scheme 1. Synthesis of 2-((5-methyl-5H-[1,2,4]triazino[5,6-b]indol-3-yl)thio)acetamide derivatives. Reagents and conditions: (i) tert-Butyl-2-bromoacetate, NEt3 toluene, 0°C to rt; (ii) 4M HCl in dioxane, rt; (iii) various anilines, HATU, DMAP, NMP), rt; (iv) NEt3, DCM, 0°C to rt.

The 1,2,4-triazino[5,6-b]indole-3-thiol derivatives (1&2) (Sharma et al., 2014) were functionalised in two steps through the alkylation using tert-butyl-2-bromoacetate and then deprotection to give the carboxylic acids (5–6). These key intermediates were either reacted with a wide range of anilines using HATU as the amide coupling agent to afford compounds (7–28) in high yield. In a complementary method, intermediates (1&2) were directly alkylated with 2-bromoacetamide intermediates (32–37) (Deora et al., 2019) to give compounds (3844) in high over all yield (Scheme 1).

Pharmacological Evaluation and Structure-Activity Relationship Studies

As shown in Table 1, introduction of a bromine atom to the 8-position of the 5-methyl-5H-[1,2,4]triazino[5,6-b]indole ring 8 maintained biological activity against PAO1-L and showed comparable activity against PA14. Limited SAR exploration of the core linking group showed that substitution led to a loss of biological activity (4144). SAR exploration of the terminal aryl group proved more interesting and demonstrated differences in biological activity between the unsubstituted and 8-bromo-substituted 5-methyl-5H-[1,2,4]triazino[5,6-b]indole analogs. Removing the chlorine atom abolished biological activity (9 and 10), however substitution of the 4-chlorine atom with a bromine atom 26 maintained biological activity against PAO1-L and PA14. Disappointingly, removing the bromine atom (R1 = H) 27 led to a reduction in biological activity against PAO1-L and inactivity against PA14 (compare 26 and 27). Moving the chlorine atom from the para- (7 and 8) to the meta-position (11 and 12) resulted in some level of biological activity against the PAO1-L strain however, 11 and 12 proved inactive against PA14. The ortho-chloro substituted analogs (38 and 39) were inactive against both strains and the 3, 4-dichloro analogs only showed activity in the 8-bromo substituted series (compare 14 vs. 13) demonstrating divergence of SAR between the 2 series (R1 = H vs. Br). This surprising SAR was also demonstrated with the 4-fluoro analogs (15 and 16), where only 16 showed biological activity against the PAO1-L strain, and the 4-methyl analog 17 which was active against the PAO1-L strain (compare 17 vs. 18). The 4-methoxy (19 and 20) and 4-trifluoromethoxy analogs (21 and 22) lost activity against both strains. Interestingly, the addition of a 4-cyanomethyl group 23 gave a compound with activity against both strains. Introduction of a phenoxy group 24 provided the activity in both strains with almost 2.5-fold higher in PAO1-L compared to 7, although activity was again lost in the 8-bromo-5-methyl-5H-[1,2,4]triazino[5,6-b]indole series 25. Introduction of a pyridine-2-yloxy group produced the most active compound 40 against both PAO1-L and PA14. Interestingly, increasing the number of heteroatoms on R2 28 led to decreased PqsR inhibition. On the basis that the phenoxy group of M64 formed a π-π stacking interaction with the side chain of Tyr258 (Kitao et al., 2018) and combined with docking studies, it is suggested that introducing a 6-membered heterocycle would lead to enhanced π-π stacking with Tyr258 in the PqsR LBD. The resulting pyridine-2-yloxy analog 40 displayed similar activity compared to M64 at PAO1-L and an enhanced inhibition in PA14 with IC50 values of 0.25 ± 0.12 and 0.34 ± 0.03 μM, respectively. The proposed π-π stacking interaction between 40 and Tyr258 was observed by obtaining the co-crystal structure of 40 in the PqsR LBD (Figure 3).

TABLE 1
www.frontiersin.org

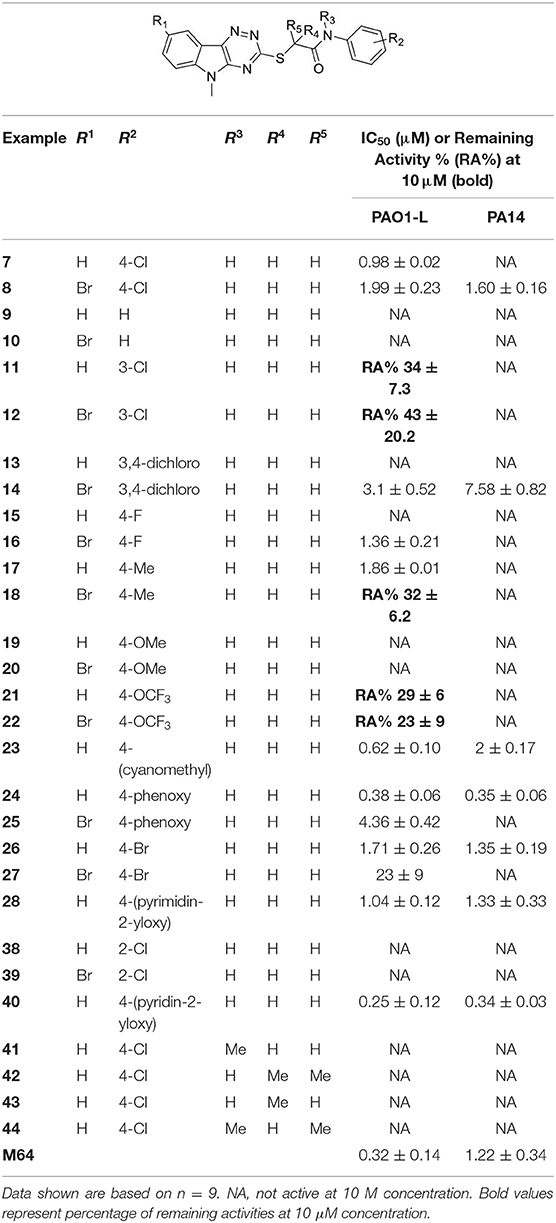

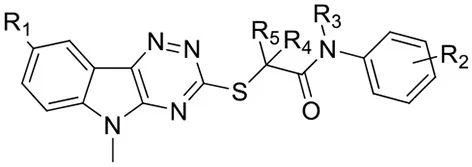

Table 1. Pseudomonas aeruginosa PpqsA-lux bioreporter assays of the compounds synthesized.

FIGURE 3
www.frontiersin.org

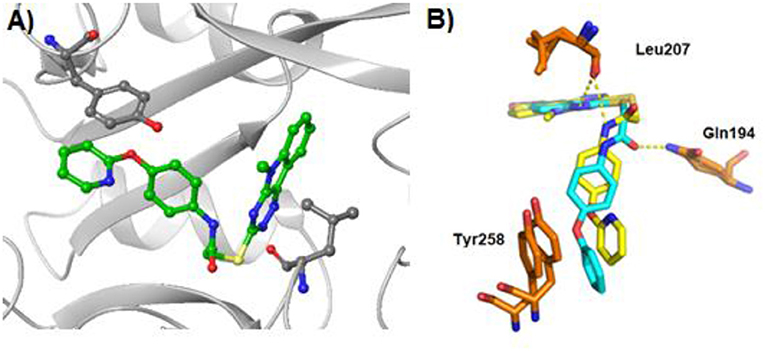

Figure 3. X-ray crystal structure of PqsR in complex with compound 40 and M64 (PDB:6B8A) (Kitao et al., 2018) (A) X-ray co-crystal structure of 40 bound to PqsR LBD. The protein structure is presented in gray and residues Tyr258 and Leu207 are labeled in black. (B) Overlapping crystal structures of 40 and M64 in complex with PqsR ligand binding domain. Compound 40 is represented in yellow and M64 in light blue.

Crystal Structure of PqsR LBD in Complex With 40

In order to determine the mode of binding of 40 to PqsR, the co-crystal structure with the PqsR LBD was obtained at resolution of 3.2 Å (Figure 3A). The ligand-bound complex reveals that the tricyclic head group inserts deeply into the hydrophobic pocket, whilst the thioacetamide linker was positioned in the outer narrow U-shaped channel. In a similar fashion to M64, the sulfur atom on the linker allowed 40 to adopt the required conformation to fit into the binding pocket. The aromatic tail group points outside this pocket and shows a π-π stacking interaction with Tyr258 with a distance of 4.55 Å. Interestingly, compared to the reported crystal structure of M64, compound 40 did not establish a hydrogen bond with Gln194 but instead formed a hydrogen bond with Leu207. In addition, the pyridinyl side chain of compound 40 had an enhanced overlap with Tyr258 compared to the phenyl side chain of M64 (Figure 3B), which suggests that 40 could have an enhanced π-π stacking interaction with Tyr258 (see Supplementary Figure 1 and Supplementary Table 1 for further poses and table of crystallographic properties and refinement).

Impact of PqsR Inhibitors on Pyocyanin Production

Pyocyanin is an important virulence factor for P. aeruginosa infections and in particular respiratory and urinary tract infections. Pyocyanin is a redox-active phenazine the production of which is regulated via PqsR and PqsE (Hall et al., 2016; Rampioni et al., 2016; Higgins et al., 2018). Therefore, pyocyanin production serves as an indirect readout of the activity of the pqs QS system. In this study, we measured pyocyanin expression in the presence of the most active pqs inhibitors in this series. The inhibitors showed a trend consistent with their corresponding IC50 values in the bioreporter assays. All the compounds showed inhibition of pyocyanin production of at least 50% compared with the control when used at a concentration three times higher than their IC50 (Figure 4). Compound 23 represented the most potent inhibitor in reducing pyocyanin production particularly in PA14. Compound 40 reduced pyocyanin production by over 80% in both strains in agreement with bioreporter assay results.

FIGURE 4
www.frontiersin.org

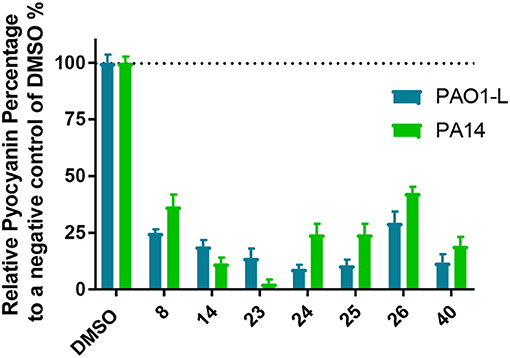

Figure 4. Pyocyanin production by Pseudomonas aeruginosa after treatment with pqs inhibitors 8, 14, 23, 34, 25, 26, and 40. Quantification of pyocyanin production after inhibitor treatment at 3 × IC50 for both PAO1-L and PA14. The graph represents the average of three independent experiments carried out in triplicate (n = 9).

Impact of 40 on AQ Production in Planktonic and Biofilm Cultures

Since PqsR controls expression of the pqsABCDE operon encoding the enzymes required for different stages of AQ biosynthesis, quantification of HHQ, and PQS provides a direct measurement for inhibition of the biosynthetic pathway. Compound 40 was evaluated for its effect on AQ biosynthesis at a concentration three times the corresponding IC50 values for PAO1-L and PA14. Inhibitor 40 was found to substantially reduce the production of HHQ and PQS in planktonic cultures of both P. aeruginosa strains (Figure 5).

FIGURE 5
www.frontiersin.org

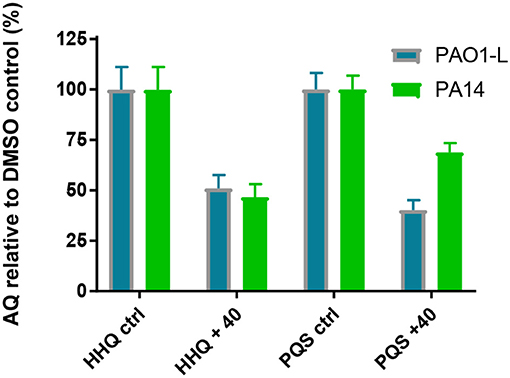

Figure 5. Effect of compound 40 on AQ production: Quantification of AQ concentrations after treatment with the PqsR inhibitor 40 at 3x IC50 value for PAO1-L and PA14 each strain. The graph represents the average of three independent experiments carried out in triplicate (n = 9) for both strains.

Biofilms are a major challenge in the treatment of chronic P. aeruginosa infections because of their resilience and protection of bacteria from environmental stresses such as those posed by the host immune system and antimicrobial agents (Flemming et al., 2007; Rybtke et al., 2015). Many genes that are involved in biofilm formation are directly linked to pqs QS signaling (Rampioni et al., 2016; Lin et al., 2018). To evaluate the effect of 40 on AQ signaling in biofilm cultures, PAO1-L was grown in M9 minimal medium and challenged with either DMSO control or of 40 (10 μM). Following incubation and cell removal, supernatants were subjected to LC/MS-MS analysis. Figure 5 shows that compound 40 was able to effectively inhibit the biosynthesis of AQ signals in biofilm cultures (Figure 6).

FIGURE 6
www.frontiersin.org

Figure 6. Quantification of AQ concentrations in PAO1-L biofilm cultures treated with 40 (10 μM). The y axis shows the % of AQs production in relation to a non-treated DMSO control. Biofilms were grown in M9 minimal medium for 18 h in 24-well glass bottom plates and supernatants extracted for AQ analysis.

Effect of 40 on Biofilm Viability

Biofilms are highly recalcitrant to the action of antimicrobials. Compound M64 has been shown to sensitize biofilms to antibiotics. To study whether 40 could also impact on biofilm formation this PqsR inhibitor was administered to pre-established PAO1-L biofilms (48 h) and their viability investigated using the LIVE/DEAD® BacLight™ bacterial viability kit and confocal laser scanning microscopy (CLSM). Moreover, to assess whether 40 can act as a non-growth inhibitory adjuvant to the broad spectrum antibiotic ciprofloxacin (CIP), combination therapy against mature PAO1-L biofilms was also tested. PAO1-L biofilms were established for 2 days before challenging with these treatments for 6 and 24 h followed by Live/Dead staining. Results showed that untreated biofilms presented only live bacteria but when the biofilms were exposed to 40 the growth of the community increased with respect to untreated controls after both 6 and 24 h (Figure 6). When the biofilms were exposed to CIP, some evidence of dead bacteria was obtained due to areas of red staining within the biofilm and, contrary to our hypothesis, treatment with the quorum sensing inhibitor 40 combined with CIP did not result in an enhanced biofilm killing (Figure 7) (see Supplementary Figures 2, 3).

FIGURE 7
www.frontiersin.org

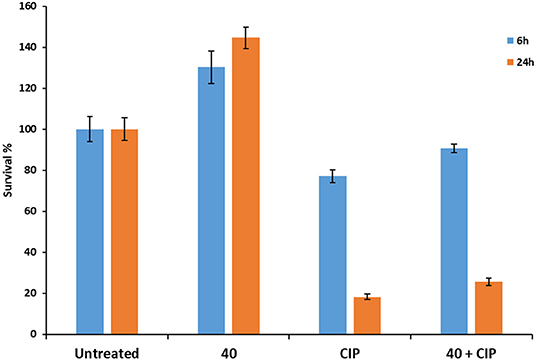

Figure 7. Bar chart showing PAO1-L biofilm viability quantified after treatment with different conditions for 6 or 24 h. The concentrations of the drugs used were ciprofloxacin 60 μg/mL (CIP), 40 10 μM.

Discussion

Here, we presented the results of a hit to lead optimisation process on compound 7 (PAO1-L IC50 0.98 ± 0.02 μM, PA14 inactive at 10 μM) which was discovered in an initial screening for PqsR antagonists using a bacterial cell-based reporter assay. A secondary aim of this work was to improve the potency against different P. aeruginosa strains. This aspect is of vital importance in antimicrobial drug discovery as the potency of inhibitors can vary widely in a strain dependent manner which has a detrimental downstream effects on their prospective success as antimicrobial agents (Jackson et al., 2018). In fact, the majority of published work in relation to PqsR inhibition has only been validated in a single strain. For this purpose, both PAO1-L and PA14 were chosen as two of the most studied laboratory strains belonging to the two major P. aeruginosa genomic clusters to account for any strain differences (Freschi et al., 2015).

To inform the structural variation of 7, crystal structures with the endogenous ligand [4-hydroxy-2-heptylquinoline (NHQ)] and the inhibitor M64 were used (Ilangovan et al., 2013; Kitao et al., 2018). The PqsR LBD is dominated by lipophilic interactions, therefore the current SAR exploration mainly focused on varying the aromatic tail substituents and examining the effect of 8-position substitution. The rationale for these modifications was primarily based on molecular docking studies that provided insights into the mode of binding of 7 and approaches intended to improve potency. The substituent at the para- position of the aromatic ring appeared to be crucial for biological activity due to the vital π-π stacking interaction of this group with Tyr258. Compound 40 demonstrated almost equal sub-micromolar potency in both bioreporter strains in which a chromosomal transcriptional fusion of PpqsA-lux was introduced to report on PqsR activation by HHQ and PQS. These strains emit light upon activation of PqsR by the endogenous production of these signal molecules. However, upon interaction with antagonists PqsR is unable to activate the PpqsA promoter and hence a reduction in bioluminescence is observed (Ilangovan et al., 2013; Soukarieh et al., 2018a). The results of the SAR in this assay highlight the importance of testing any prospective anti-virulence strategy on multiple genetically distinct P. aeruginosa strains as a means to reduce the chance of failure at both pre-clinical and clinical stages (Freschi et al., 2015).

However, compounds active in the PpqsA-lux reporter assay may either be inhibitors of PqsR or of the AQ biosynthetic enzymes. To confirm PqsR as the potential target for this series, the co-crystal structure of 40 with PqsR ligand binding domain was obtained. The crystal structure revealed the binding is dominated by the π-π stacking interaction with Tyr258 and the hydrogen bonding interaction between the amide linker of 40 and the side chain of Leu207, similar to that previously reported (Kitao et al., 2018).

To further confirm the inhibition of pqs system, the end products of this biosynthetic pathway were quantified and the inhibitory effect of 40 was clearly apparent in the phenotypic assays. The pqs inhibitor 40 reduced the expression of pyocyanin substantially at sub-micromolar concentrations and interfered with the biosynthesis of AQ signals leading to a significant decrease in their production in both P. aeruginosa genotypes corroborating the results of the bioreporter assay. Collectively, these results, along with the co-crystal structure, provide strong evidence for PqsR as the pqs pathway target of 40 (Zender et al., 2013; Lu et al., 2014a,b; Starkey et al., 2014). Interestingly, the inhibitory effect of 40 on AQ production extended beyond the planktonic growth of P. aeruginosa and was also significant in biofilm cultures where 40 drastically reduced the AQ levels. AQ signals and particularly PQS is involved in wide spectrum of functions including iron acquisition, cytotoxicity, and host immune response modulation, therefore it is of therapeutic benefit to reduce or deplete the concentration of these molecule in P. aeruginosa communities (Hooi et al., 2004; Diggle et al., 2007; Kim et al., 2010; Lin et al., 2018). Nevertheless, biofilm treated with 40 showed a slight increase in viability and hence growth compared to the untreated control contradicting our hypothesis. The reasons behind this observation were not investigated but may be due to multiple factors including biofilm permeability, the presence of efflux pumps or off target effects (Masi et al., 2017). Compounds with similar scaffolds were reported previously to act on PqsBC, a β-keto acyl synthase III enzyme responsible for the condensation of 2-ABA (Maura et al., 2017). Inhibition of PqsBC leads to the accumulation of 2-aminoanthranilic acid (2-AA) and 2,4-dihydroxyquinoline DHQ metabolites that increase P. aeruginosa persistence and promote chronic infections (Kesarwani et al., 2011; Gruber et al., 2016). Further investigation is required to ascertain the reasons behind the inability of 40 to potentiate killing by ciprofloxacin whilst being a robust inhibitor of PqsR, the production of alkylquinolones and pyocyanin.

Data Availability Statement

The datasets generated for this study can be found in the https://www.rcsb.org/ PDB: 6TPR.

Author Contributions

FS performed in silico and in vitro screening and directed the microbiology experiments. RL designed and performed syntheses, microbiology experiments, and contributed to writing and X-ray crystallography. FS, MS, PW, and MC designed, supervised the study and lead the writing of the manuscript. EO, MR, SR, SL, NQ, SA, SG, AM, and NH performed the experimental microbiology. WR and JE performed and designed crystallography experiments. SM, SH, TS, CB, IK-I, and RCL contributed to experimental design.

Funding

This work was supported by the Engineering and Physical Sciences Research Council [grant numbers EP/N006615/1 and EP/K005138/1, EP/N03371X/1] and JPI-AMR and MRC for funding SENBIOTAR program (Ref. MR/N501852/1). FS, MR, SR, PW, MS, JE, and MC are funded by the National Biofilms Innovation Centre (NBIC) which is an Innovation and Knowledge Centre funded by the Biotechnology and Biological Sciences Research Council, Innovate UK and Hartree Centre [Award Number BB/R012415/1. SL was funded by the Cystic Fibrosis Trust, UK VIA Award No: 062. SG and WR are funded via the Wellcome Trust doctoral training programme in antimicrobials and antimicrobial resistance (ref: 108876/B/15/Z).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2020.00204/full#supplementary-material
