Affinity-Based Detection of Biomolecules Using Photo-Electrochemical Readout

$\nAmanda Victorious&#x;$ Amanda Victorious¹^†

Sudip Saha¹^†

Richa Pandey²^†

Tohid F. Didar^1,3

Leyla Soleymani^1,2^*

¹School of Biomedical Engineering, McMaster University, Hamilton, ON, Canada
²Department of Engineering Physics, McMaster University, Hamilton, ON, Canada
³Department of Mechanical Engineering, McMaster University, Hamilton, ON, Canada

Detection and quantification of biologically-relevant analytes using handheld platforms are important for point-of-care diagnostics, real-time health monitoring, and treatment monitoring. Among the various signal transduction methods used in portable biosensors, photoelectrochemcial (PEC) readout has emerged as a promising approach due to its low limit-of-detection and high sensitivity. For this readout method to be applicable to analyzing native samples, performance requirements beyond sensitivity such as specificity, stability, and ease of operation are critical. These performance requirements are governed by the properties of the photoactive materials and signal transduction mechanisms that are used in PEC biosensing. In this review, we categorize PEC biosensors into five areas based on their signal transduction strategy: (a) introduction of photoactive species, (b) generation of electron/hole donors, (c) use of steric hinderance, (d) in situ induction of light, and (e) resonance energy transfer. We discuss the combination of strengths and weaknesses that these signal transduction systems and their material building blocks offer by reviewing the recent progress in this area. Developing the appropriate PEC biosensor starts with defining the application case followed by choosing the materials and signal transduction strategies that meet the application-based specifications.

Introduction

Biosensors are devices that are used for analyzing biologically-relevant species using specific biorecognition elements and transducers (Soleymani and Li, 2017). Based on the nature of the biorecognition event, biosensors are classified into biocatalytic and affinity-based devices (Zhao et al., 2015b). In biocatalytic biosensors, immobilized enzymes are used to recognize their specific substrate molecule, whereas affinity-based biosensors incorporate a synthetic or biological capture agent such as aptamers (Zhao et al., 2016), DNAzyme (Zhao et al., 2017a), single stranded DNA (Zhao et al., 2014), or antibodies (Zhao et al., 2018) to specifically capture the biologically-relevant target. The interaction between the analyte and the capture agent is translated into a readable signal by a transducer. To date, transduction methods relying on acoustic (Zhang et al., 2018d), optical (Špačková et al., 2016), gravimetric (DeMiguel-Ramos et al., 2017), electrochemical (Alizadeh and Salimi, 2018), electronic (Kirste et al., 2015), and photoelectrochemical mechanisms (Zhao et al., 2015b) have been reported for use in biosensing systems. Researchers often choose a transduction method that offers the right level of sensitivity, specificity, speed, and multiplexing for the desired application, and meets requirements with respect to instrumentation cost, size, and ease-of-use.

Due to the growing demand for rapid clinical diagnosis and health monitoring using handheld systems, there has been an increasing push for the development of new bioanalytical techniques that combine high sensitivity, specificity, and speed with portable and inexpensive readout instrumentation. Photoelectrochemistry is an emerging signal transduction method that has the potential to meet the stringent requirements of the field of biosensing. In photoelectrochemical (PEC) bioanalysis, biological interactions between the analyte and the biorecognition element result in a change in the generated PEC current or voltage. In these systems, the photo-electrode or PEC label used in the biosensor is activated upon optical excitation. This optical excitation or biasing reduces the reliance of PEC systems on electrical biasing, which allows them to be operated under low or no applied electric potential. It has been shown that a lower limit-of-detection can be achieved using PEC signal readout compared to a similar assay that is coupled to electrochemical readout (Yildiz et al., 2008; Golub et al., 2009). Although PEC biosensors rely on both optical and electrochemical mechanisms, they can be excited using low powered broad-spectrum light sources and read using inexpensive electrical circuits. As a result, it is possible to miniaturize PEC systems into inexpensive and integrated platforms that are similar in operation to handheld electrochemical readers (Golub et al., 2009). Additionally, PEC biosensors can be easily multiplexed by incorporating multiple individually accessible electrodes on the same platform.

Affinity-based PEC biosensors combine the high specificity of biorecognition agents such as ssDNA, antibodies, and aptamers, with the sensitivity of PEC biosensors, and are the focus of this review article. There are previously-published review articles that are focused on a specific type of biorecognition-target interaction such as DNA sensing (Zhao et al., 2014), immunoassays (Zhao et al., 2018), enzymatic sensing (Zhao et al., 2017a), and aptasensing (Deng et al., 2016; Zhao et al., 2016). However, our focus is on the elements that are important for building a PEC biosensor, regardless of the target analyte. Toward this goal we will discuss the construction of a photoelectrochemical cell, photoactive materials used in creating these devices, and the signal transduction mechanisms that are employed in PEC signal generation (Figure 1).

FIGURE 1

Figure 1. Schematic representation of the building blocks of a PEC biosensing system: the PEC cell, photoactive materials, and various signal transduction architectures.

Construction of a Photoelectrochemical Cell

Generally, a PEC cell consists of an optical excitation source, an electrochemical cell, and an electrochemical reader. The electrochemical cell consists of four main components (Figure 1): (i) a working electrode (WE) that is often constructed by immobilizing photoactive materials on a conductive substrate, (ii) a counter electrode (CE), (iii) a reference electrode, and (iv) an electrolyte to generate PEC signals using redox reactions. Upon illumination, the redox reactions driven by the electrochemically active species in the electrolyte generate an electric signal between the WE and the CE that is recorded by the electrochemical reader. To create an application-specific PEC biosensor, much attention has to be paid to the design of: (i) the sensing electrodes using photoactive species having the appropriate electronic and optical properties and/or conductive collectors; (ii) the transduction mechanism based on the target analyte and device application; and (iii) the electrolyte that contains the redox species that participate in the generation of the photoelectrochemical signal. The majority of the affinity-based PEC biosensing strategies reported to date rely on measuring photocurrents for signal readout (Zhao et al., 2018). To design a PEC bioassay, suitable for a specific application, it is important to have a comprehensive knowledge of these components and the strategies that are used in incorporating them in a synergistic fashion.

Photoactive Species for PEC Biosensors

Photoactive species are materials that respond to optical excitation by generating excited electronic states and converting optical energy to chemical and electrical energy (Bard et al., 1980). These species enable a PEC cell to generate or modify an electrochemical signal in response to light or electromagnetic radiation. In PEC biosensors, photoactive species are used as the building blocks of photoactive electrodes and/or as labels or reporters that associate with the biorecognition element (Fan et al., 2015), target analyte (Han et al., 2017a), or solution-borne surfaces such as magnetic beads and metallic nanoparticles (NPs) (Tu et al., 2018). Due to its instrumental role in signal transduction, choosing the right photoactive material is critical to the development of PEC biosensors.

The photoactive materials used in PEC biosensing are chosen based on their electronic and optical parameters (incident photon-to-current conversion efficiency (IPCE), carrier mobility, response time, energy levels, and absorption spectrum), size/structure, stability against photobleaching, and ability to functionalize and integrate into devices. One of the most important parameters for evaluating photoactive materials used in PEC devices is IPCE. IPCE measures the photocurrent collected per incident photon flux as a function of illumination wavelength, which allows researchers to compare the efficiency of the photoactive species at different regions of the electromagnetic spectrum (Chen et al., 2013). IPCE collectively evaluates the optical and electronic properties of materials such as their ability to absorb electromagnetic radiation and transport and collect charged carriers through the PEC cell. The electronic and optical properties of photoactive materials need to be selected such that the materials can supply charge carriers having sufficient energy (indicated by the band structure of the material) to drive the desired electrochemical reaction. It is also important for these electrochemical reactions to occur at high rates (measured using IPCE). The wavelength dependence of IPCE is important in understanding the type of optical excitation source that is required for designing a PEC biosensor (Kolesova et al., 2018). Fine-tuning the size and shape of photoactive species in the nanoscale is also important for enhancing the PEC performance of the biosensor as structural tunability on the nanoscale changes the band structure of the materials, and can be used to enhance the surface-to-volume ratio of electrodes created from photo-active materials (Fu and Zhang, 2018). Resilience to photobleaching is important because photoactive materials that degrade due to multiple cycles of photoinduction do not allow the target-induced changes in the photocurrent to be reliably measured in a PEC biosensor (Kolesova et al., 2018). Furthermore, for a photoactive material with the desired electronic, optical, and stability parameters to be used in a biosensing device, it is critical for it to have a chemical structure that can be easily functionalized with the typical termination chemistries of biorecognition elements (amine, thiol, carboxyl, aldehyde, to name a few). Finally, it is critical for these photoactive materials to have the sufficient level of mechanical robustness and adhesion to be integrated into miniaturized chips or strips used in biosensing platforms.

The three major classes of photoactive materials commonly used in PEC biosensors include (i) inorganic semiconductors, (ii) organic semiconductors, and (iii) hybrid semiconductors (Devadoss et al., 2015; Zhu et al., 2016), which will be discussed in detail in this section.

Inorganic Semiconductors

Semiconductors from non-carbonous materials are known as inorganic semiconductors. Generally, in inorganic semiconductor transducers, electrons are excited from the valence band (VB) to the conduction band (CB) upon absorption of photons with energies higher than that of their band gaps. This results in the generation of electron-hole pairs that can engage in redox reactions at the surface of the working electrode. The direction of the photocurrent (anodic or cathodic) depends on the applied electric field and the position of the semiconductor Fermi level with respect to the electrochemical potential of the electrolyte (Figure 2). In general, the mobile charge carriers (electrons for n-type and holes for p-type semiconductors) in the semiconductor traverse the bulk of the electrode while minority carriers take part in the redox reactions at its surface (Gratzel, 2001). Therefore, usually n-type semiconductors are used to produce anodic photocurrents, whereas p-type semiconductors are chosen for cathodic photocurrent generation (Zhao et al., 2014).

FIGURE 2

Figure 2. Operation of n-type semiconductor (left) and p-type semiconductor (right) in a PEC cell. Electron donors (D) in the redox couple are oxidized by the photoactive species, thereby resulting in the loss of an electron which is then relayed to the collector (underlying conductive substrate), thus yielding an anodic current. Alternatively, electron acceptors (A) in the redox couple gain an electron from the photoactive species following their reduction upon light illumination, subsequently giving rise to a cathodic current. E_g, E_f, WE, RE, CE represent band gap energy, fermi energy, working electrode, reference electrode and counter electrode respectively.

Inorganic semiconductors such as titanium dioxide (TiO₂) (Tian et al., 2018), cadmium telluride (CdTe) (Lin et al., 2016; Hao et al., 2017b; Li et al., 2018a), cadmium sulfide (CdS) (Gong et al., 2015; Ge et al., 2016a; Lv et al., 2017), Molybdenum disulphide (MoS₂) (Zang et al., 2016; Wang et al., 2019), cadmium selenide (CdSe) (Matylitsky et al., 2009; Wang et al., 2014c), and zinc oxide (ZnO) (Han et al., 2017b) are used extensively in affinity based PEC biosensors (Hong et al., 2015; Lin et al., 2016; Hao et al., 2017b; Li et al., 2018a). Inorganic semiconductors offer a few advantages over their organic counterparts as discussed in the following section. These materials typically exhibit longer stability under mechanical, electrical, and environmental stress (Yu et al., 2017b). High-performance inorganic semiconductors can be precisely fabricated into various structures at the nanoscale, matching the size of subcellular and molecular components and allowing better probing of biological targets (Jiang and Tian, 2018). Inorganic semiconductors usually require lower bias voltages (due to their higher charge mobility and charge-carrier separation efficiency) (Nelson, 2002), exhibit faster response time in the generation of charge carriers upon excitation, and allow for easier device passivation for use in physiological fluids as compared to organic SCs (Jiang and Tian, 2018).

Photochemical stability and high catalytic efficiency make TiO₂ a promising material for affinity-based PEC biosensing (Tomkiewicz and Woodall, 1977; Wang et al., 2014b). While promising, pristine TiO₂ suffers from a variety of problems such as poor response in the visible range owing to its wide band gap (Liu et al., 2010) and relatively fast recombination of photogenerated charge carriers (Chen and Mao, 2007). In order to overcome these limitations, scientists are turning to hybrid TiO₂ architectures that incorporate other materials such as metal cations and anions (Daghrir et al., 2013), semiconductors of M_xS_y (Du et al., 2017) and M_xO_y (Liu et al., 2017a) configuration, and carbon based materials (Komathi et al., 2016). CdTe is also widely used in PEC biosensing owing to its large bulk absorption coefficient (>10⁴ cm⁻¹ in the red, ~10⁵ cm⁻¹ in the blue) (Mitchell et al., 1977) and near-infrared band gap (E_g ≈ 1.5 eV) (Sarkar et al., 2012) making it suitable for operation in the visible region of the solar spectrum. One of the issues with CdTe is the low abundance of tellurium, which makes it economically inviable for biosensing (Wang et al., 2010). Due to the availability of precursors and ease of crystallization (Zhou et al., 2015), there is a move toward other chalcogenides of CdE (E = S, Se). These alternatives are mostly used as sensitizers due to their narrow band gaps (CdS = 2.4 eV, CdSe = 1.7 eV) (Zhou et al., 2015). In addition, they offer higher conduction bands edges compared to most metal oxides (ZnO, TiO₂), making them useful for reactions where electrons need to be transferred from the conduction band of these materials (Zhou et al., 2015). However, their inability to integrate into device fabrication due to their poor adhesion onto the substrate and the inherent toxicity of Cd limit the possibility of using Cd-based materials in commercial biosensing platforms (Yue et al., 2013). ZnO is another wide band gap (direct band gap of 3.37 eV in the near UV spectral region) semiconductor used in PEC biosensors, which offers biocompatibility, excellent photoactivity (large exciton binding energy at room temperature (Özgür et al., 2005), high charge carrier mobility, and thermal and chemical stability (Tu et al., 2011). ZnO can be structurally tuned and has been used in flower (Han et al., 2017a), rod (Kang et al., 2015), wire (Zhao et al., 2016), and pencil (Qiao et al., 2016) architectures for biosensing applications. Nevertheless, the photocatalytic performance of ZnO diminishes in aqueous solutions due to the fast recombination of photogenerated charge carriers (Liu et al., 2014). Apart from these materials, emerging inorganic semiconductors are being investigated for use in PEC biosensing. Specifically, MoS₂ is under investigation for use in PEC cells due to its ability to generate an internal electric field at the contact surface for photoinduced charge separation, which increases the carrier lifetime (Jiang et al., 2019). Additionally, Bi-X (X = S,V,O) materials are being investigated due to their tunable bandgap and photostability in acidic solutions (Jiang et al., 2019).

Inorganic semiconductors are widely used in developing PEC biosensors; however, a remaining challenge, as with other types of materials used in biosensors is related to non-specific adsorption causing interference to the signal by producing high noise levels or low reactivity (Rim et al., 2017). Hydrophilic coating strategies have been employed for metal oxides and sulfides but most of these strategies have downsides under severe biological conditions or where long-term stability is needed. Furthermore, conditions such as high temperature, high salinity, and non-neutral pH, intensify these effects (Cheng et al., 2008; Kadian et al., 2018). To overcome these challenges, researchers are focusing on integrating inorganic semiconductors into hybrid antifouling networks, which has been previously reviewed (Zhao et al., 2016).

Organic Semiconductors

Organic materials such as graphitic carbon nitride (g-C₃N₄), porphyrin, azo dyes, chlorophyll, bacteriorhodopsin, and polymers such as semiconducting polymer dots (Pdot), phthalocyanine, poly(thiophene), phenylenevinylene (PPV), and their derivatives have been used for constructing photoactive electrodes that can be applied to PEC biosensors (Ikeda et al., 2009; Da et al., 2018; Shi et al., 2018b). Some of the main advantages offered by organic semiconductors lies in their improved mechanical compliance (Xu et al., 2017), intrinsic stretchability (Xu et al., 2017), and their amenability to low-temperature all-solution-based processing (Zhao et al., 2017b; Jiang and Tian, 2018). This allows inexpensive fabrication of large-area films on flat, irregular, and flexible substrates, which provides opportunities for the development of flexible and printed electronic based biosensors used in wearable technology (Malliaras, 2001; Zhao et al., 2017b).

Graphitic carbon nitride (g-C₃N₄) is a metal-free two dimensional polymeric semiconductor, which is attractive for PEC biosensing due to its high physicochemical stability and inexpensive and earth abundant nature (Wang et al., 2017). It has a smaller band gap (~2.7 eV) (Su et al., 2010) compared to commercial TiO₂ NPs (~3.0-3.2 eV) and is able to absorb light in the visible portion of the solar spectrum up to 460 nm (Ong et al., 2016). G-C₃N₄ has a desirable electronic band structure due to the presence of π-conjugated sp² hybridized carbon and nitrogen. It is also electron-rich and has basic surface functionalities due to the presence of Lewis and Brönstead basic functions (Zhu et al., 2014). This has enabled g-C₃N₄ to be applied to the degradation of organic pollutants, hydrogen evolution reaction, biosensing, and energy conversion (Wu et al., 2015; Liu and Dai, 2016; Li et al., 2017a; Panneri et al., 2017; Tong et al., 2017; Shi et al., 2018a). Da et al. (2018) constructed a novel “signal-off” PEC aptasensor using an aptamer bridged DNA network in conjunction with g-C₃N₄ to detect vascular endothelial growth factor (VEGF165). This photo-electrode exhibited a stable photocurrent response with no severe decay under periodic off-on-off light excitation for nine cycles over a timeframe of 350 s. While g-C₃N₄ is a promising material, its low quantum yield in its pristine form (0.1% at 420–460 nm) (Maeda et al., 2009) remains an obstacle to its incorporation as a high-performance photoactive material for biosensing (Zheng et al., 2012; Zhang et al., 2013). In order to enhance the efficiency of this material, the use of g-C₃N₄ in conjunction with materials like TiO₂ and CdS has been reported for biosensing applications (Liu et al., 2015; Wang et al., 2016a; Fan et al., 2018). The formation of heterojunction with these materials helps to accelerate the charge transport and reduce the recombination rate by separating the charge carriers generated in g-C₃N₄ (Ong et al., 2016).

Porphyrins, a group of macrocyclic organic compounds composed of four pyrrole rings joined via methine (= CH-) bonds are being investigated for use as photoactive materials or sensitizers in PEC systems (Kesters et al., 2015) due to their wide availability in nature, high molar absorptivity and thermal stability (Lash, 2015). One such example is the use of porphyrin derivative, iron(III) meso-tetrakis (N-methylpyridinum-4-yl) porphyrin (FeTMPyP), in a PEC DNA biosensor (Zang et al., 2015). In this case, CdS quantum dots (QDs) modified with ssDNA formed the photo-active electrode. The porphyrin derivative specifically binds to dsDNA via groove interactions and reports the presence of dsDNA by catalyzing the oxidation of luminol to generate chemiluminescence. The photocurrent intensity of the biosensor did not show a detectable change after storage for 10 days, highlighting the stability of this biosensor. Porphyrin-based materials have been used in conjunction with inorganic semiconductors such as TiO₂ (Shu et al., 2015), ZnO (Tu et al., 2011), and CdTe (Shi et al., 2016) to enhance the IPCE of these systems. A major difficulty in the wide spread use of porphyrin is that its chemical synthesis usually requires several steps with low overall yield, amounting to a high material cost (Kwon et al., 2003; MedKoo Biosciences, 2009).

Pdots are a class of emerging photoactive nanomaterials that offer incredible photostability (photobleaching quantum yield of 10⁻⁷-10⁻¹⁰), tailorable electrical and optical properties, minimal toxicity, good biocompatibility and ease of processing (Wang et al., 2016b; Li et al., 2017b; Shi et al., 2018b; Zhang et al., 2018c). Pdots and PPV derivatives have recently been used in PEC biosensors (Shi et al., 2018b; Zhou et al., 2018) due to their extraordinary light harvesting ability resulting from their large two-photon absorption cross sections (Feng et al., 2010). However, their use in biosensing architectures are required to be thoroughly explored because of their pH dependence and tunability of photoelectrochemical properties according to their molecular weights (Wu and Chiu, 2013; Yu et al., 2017a). Moreover, the photoelectrochemical properties of these materials are highly dependent on the electron transfer processes within the π-conjugated bonds (Wang et al., 2018a), requiring a fundamental understanding of these processes to be able to design highly efficient photoelectrochemical biosensing devices.

Organic semiconductors are attractive due to their tunability, low cost, metal free nature, and relative abundance; however, their low quantum efficiency often requires them to be coupled with other photoactive materials for creating photoelectrodes. Unlike the ionic or covalent bond in inorganic semiconductors, organic semiconductors are made of molecular units held together by weak van der Waals interactions (Dyer-Smith and Nelson, 2012). As a consequence, the mobility of the charge carriers in organic materials is generally smaller with longer response times upon excitation as compared to their inorganic counterparts (Dyer-Smith and Nelson, 2012) leading to smaller conductivity (Kus et al., 2018). Consequently, more research is needed toward creating all organic photoelectrodes that can be used in biosensing.

Hybrid Semiconductors

Hybrid semiconductors are formed by: (i) coupling two inorganic semiconductors with different band gaps, (ii) complexation of organic and inorganic semiconductors (Zhao et al., 2014), and (iii) combining metal NPs (usually Au or Ag) with organic/inorganic semiconductors.

Coupling two or more inorganic semiconductors extends the absorption spectrum and increases the charge separation efficiency of the PEC system (Wen and Ju, 2016). As a result, hybrid material systems offer a higher photon-to-current conversion efficiency, which is important for enhancing the performance of biosensors (Zhao et al., 2014). For example, when TiO₂ NPs are used with CdS QDs in insulin detection (Wen and Ju, 2016), CdTe is excited using visible light, and the photo-induced electrons are transferred from CdTe to the conduction band of TiO-₂ NPs. Liu et al. (2017b) demonstrated improved sensitivity of microcystin detection by forming Z-scheme heterojunction of CdTe with Bi₂S₃ nanorods due to enhanced charge separation. Another strategy used to enhance the solar light harvesting efficiency of photoanodes composed of wide bandgap semiconductors (i.e. TiO₂, ZnO, etc.) is upconversion (Chen et al., 2018). This is a type of anti-stoke process in which emission of higher energy photons is achieved by the absorption of two or more low-energy photons (Naik et al., 2017). Qiu et al. (2018) developed a hybrid upconverting structure where the narrow absorption band of TiO₂ was improved by the use of core–shell NaYF₄:Yb,Tm@TiO₂ upconversion microrods. In this system, doped Yb³⁺ ions absorbed near-IR light, whereas the doped Tm³⁺ emitters produced the UV light through energy transfer upconversion (ETU). The upconverted photons were then absorbed by the TiO₂ NPs, thereby, yielding effective IR-UV upconversion (Qiu et al., 2018). This core-shell NaYF₄:Yb,Tm@TiO₂ structure was used to detect carcinoembryonic antigen (CEA), which is a biomarker for colorectal cancer.

Complexation of organic and inorganic semiconductors are used to overcome the low charge conductivity, narrow absorption spectrum, and strongly bound excitons that are encountered in organic semiconductors (Malliaras, 2001; Coropceanu et al., 2007). This class of transducers typically demonstrates improved PEC response and physical and chemical properties compared to their purely organic or inorganic counterparts (Zhao et al., 2016; Hao et al., 2017a). This type of complexation was demonstrated using TiO₂ mesocrystals (inorganic semiconductor) sensitized with polyethylenimine (organic polymer) (Dai et al., 2017). Polyethylenimine reduces the electron transport energy barrier of TiO₂ mesocrystals by reducing the work function and thereby increasing the generated photocurrent. This type of performance enhancement was also seen in reduced graphene oxide (RGO)/CdS/ZnS photoelectrode, where a widened light absorption range, spatial separation of photogenerated electron-hole pairs, accelerated electron transfer, and reduction of surface defects resulting from the coupling of ZnS (wide bandgap, ~3.8 eV) and CdS (narrow bandgap, ~2.4 eV) was observed (Zhao et al., 2016). By using RGO further enhancement of the photocurrent was achieved as it facilitates the excited electron transfer from the conduction band (CB) of CdS to the CB of ZnO. Ultrafast electron transport was also realized by Matylitsky et al. (2009) and Wang et al. (2014c) by adsorbing an electron acceptor, methyl viologen (MV) on the surface of CdSe QDs. Here, MV acted as an electron relay and facilitated ultrafast electron transport in a timeframe of ~70 fs. The ability of MV in enhancing IPCE by working as an electron relay was exploited by Long et al. (2011) to demonstrate ultrafast electron transport in cysteine bioanalysis by using a MV coated CdS QD based system. Surface sensitization of a wide band gap semiconductor with an organic material such as a dye is an alternative method of creating efficient hybrid materials. Here, an increase in efficiency of the excitation due to the injection of electrons directly into the CB of the semiconductor from the excited dye and expansion of excitation wavelength range results in higher photocurrent generation (Lim et al., 2017; Ma et al., 2018; Yan et al., 2018). Yotsumoto Neto et al. (2016) demonstrated the usefulness of such hybrid materials in sensing L-Dopamine by using iron phthalocyanine (FePc) dye sensitized TiO₂ system to enhance the PEC performance due to the charge transfer property of FePc. Additionally, the antioxidant character of FePc is also hypothesized to enhance stability of the biorecognition units used in this study by inhibiting PEC-induced damage to the attached biomolecules typically seen in the case of wide band gap semiconductors such as TiO₂.

The coupling of inorganic/organic semiconductors with metal nanoparticles is increasingly used in PEC devices due to the ability of metal NPs such as gold, platinum and silver to enhance the photoresponse of the system through surface-plasmon resonance (SPR). Han et al. (2017a) detected α-fetoprotein (AFP), a key clinical indicator used for diagnosing primary liver cancer, using Au-ZnO flower-rods. Here, Au NPs enhanced the anodic photocurrent of ZnO flower-rods by extending the absorption to the visible region and by enhancing charge separation. Besides the SPR effect, Au NPs have been shown to improve the charge transfer properties of the substrate. For example, Lv et al. (2017) deposited Au NPs on p-CuBi₂O₄ electrodes to reduce the charge transfer resistance and hence enhance the cathodic photocurrent of p-CuBi₂O₄. Another hybrid photoelectrode used in biosensing is created by Au NP-decorated hematite (α-Fe₂O₃) nanorods (Li et al., 2018b). Despite being widely used in other PEC applications (such as PEC water splitting, photovoltaic cells etc.), α-Fe₂O₃ has been rarely used in PEC biosensing due to poor electron mobility and lack of binding with capture biomolecules. Enhancement of electron mobility was achieved by decorating α-Fe₂O₃ with Au NPs. Moreover, Au NPs were also used to covalently attach capture biomolecules to the photoactive electrodes. Au NPs have also been used as anchors to deposit probe DNA and for improving the photocurrent of g-C₃N₄-based photoelectrodes (Wang et al., 2018b). In this work, Au NPs are used with g-C₃N₄ for detecting zeatin, one of the main cytokines found in plant tissues responsible for promoting plant growth.

Hybrid semiconductors are gaining popularity as transduction elements for PEC biosensors owing to their performance enhancement resulting from the coupling of desirable qualities of its constituent materials and the unique properties generated as a consequence of their complexation. To be able to achieve higher IPCE from these hybrid structures, it is important to carefully choose the materials and control their composition and morphology. Controlling interfacial defects is an important consideration for designing hybrid PEC systems. A summary of the photoactive materials used in PEC biosensing is presented in Table 1.

TABLE 1

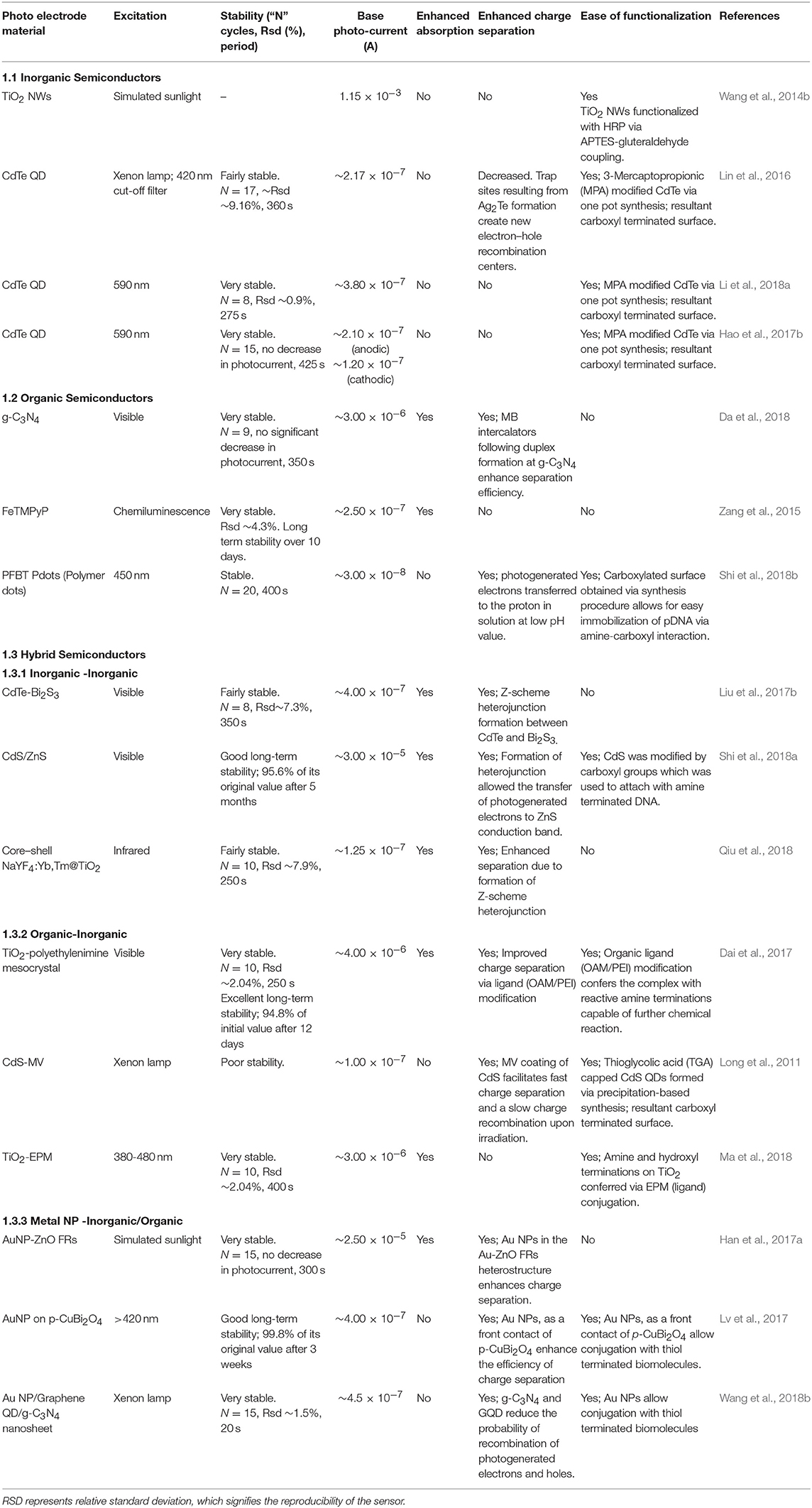

Table 1. Properties of various photoactive species used in PEC biosensing.

Transduction Mechanism

Several signal transduction strategies have been proposed to translate a biorecognition event to a PEC signal. The signal of a PEC biosensor depends on the properties of the photoactive material, applied potential, light intensity, wavelength, and the type and concentration of the electron donor or acceptor (Zang et al., 2017). Depending on the mechanism chosen, the PEC biosensor operates in either signal-on or signal-off mode. In the former case, the PEC signal increases upon target recognition, and in the latter case it decreases (Zhao et al., 2018). In this review, we have categorized the signal generation strategies used in affinity-based biosensors as: (i) introduction of photoactive species, (ii) generation of electron/hole donors, (iii) use of steric-hindrance, (iv) in situ induction of light, and (v) resonance energy transfer (Figure 3). In this section, we discuss the recent biosensing reports categorized under these mechanisms.

FIGURE 3

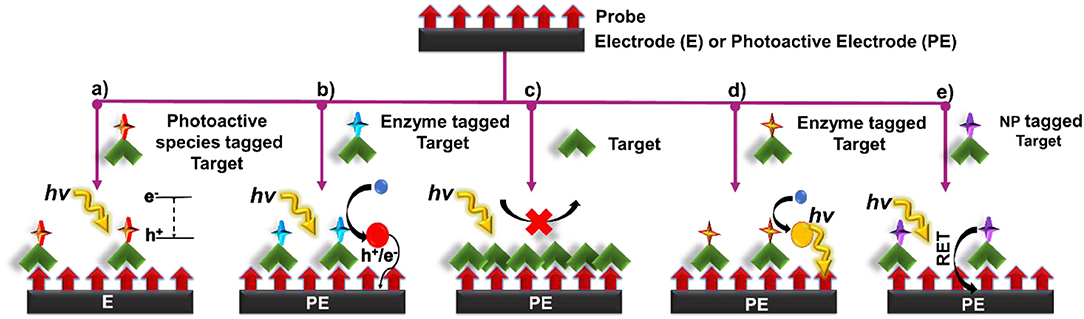

Figure 3. Principles of signal transduction in PEC biosensors (a) introduction of photoactive species, (b) generation of electron/hole donors, (c) use of steric hinderance, (d) in situ induction of light, and (e) resonance energy transfer.

Introduction of Photoactive Species

In this signal transduction strategy, the photoactive material is incorporated into the target/probe complex in the form of a label, which enhances or quenches the PEC response. Signal modulation is initiated by bringing the label into the close proximity of a conductive/ photoactive substrate following a biorecognition event. Once in proximity to the appropriate substrate, electron hole pairs are generated at the surface of the photoactive material upon light excitation. These electron-hole pairs then take part in chemical reaction with the redox species in the electrolyte or interact with the underlying substrate to either generate a measurable signal or enhance an existing one (Figure 3a). Different types of photoactive species, such as semiconductor nanocrystals (Yue et al., 2013), metallic nanoparticles (Wang et al., 2019) and organic semiconductors such as g-C₃N₄, PFP (poly(9,9-bis(6′-(N,N,N,-trimethylammonium)hexyl) fluorene-co-alt-1,4-phenylene) bromide, etc. (Dai et al., 2016; Liu et al., 2018) have been commonly used as a signal label. In this strategy, it is crucial to (i) minimize the size of bioconjugated labels to reduce steric hindrance, (ii) decrease the effect of the label on the mass transport and complexation of the biomolecule, and (iii) diminish non-specific protein adsorption to develop labels that do not interfere with assay functionality. Semiconductor nanocrystals possess dimensions in the order of 1–100 nm, making them an excellent choice as PEC labels. The PEC signal of QDs in a complex environment stems from a myriad of factors such as the intensity of excitation source, the magnitude of applied bias potential, the absence/presence of electron donors and acceptors, as well as the inherent photophysical properties of QDs (Zhao et al., 2015a). These materials are particularly appealing owing to their tunable excitation spectrum resulting from quantum confinement, narrow and symmetrical emission spectrum, high quantum yield and good optical stability (Smith and Nie, 2010). Noble metal NPs are also commonly exploited for this approach (Golub et al., 2009; Hao et al., 2019). Plasmonic features of these particles such as intensive localized electric field generation in the near field, strong far-field light scattering, large absorption cross section in plasmonic resonance band, and light induced charge separation exhibited by these labels offer photocurrent modulation (Malekzad et al., 2017; Hao et al., 2019).

In this sensing scheme, in addition to the type of labels used, the electrode material greatly influences the assay design. Here, the electrode is typically constructed from wide bandgap semiconducting materials such as TiO₂, g-C₃N₄, ZnO, p-CuBi₂O₄, and hematite (Fe₂O₃), where the photoactive label extends the absorption to the visible wavelength and improves the charge separation efficiency of the electrode. However, given that signal transduction is induced using a photoactive label, non-photoactive electrodes can also be used in these assays (Willner et al., 2001; Golub et al., 2009).

QDs are widely used as signal transduction reporters in PEC biosensors following the pioneering work of Willner et al. (2001) and Golub et al. (2009) in the early 2000s. In one of these works, ssDNA immobilized on a gold substrate was hybridized with CdS NP-tagged target DNA to a create a crosslinked CdS/DNA network (Yildiz et al., 2008; Golub et al., 2009). It was observed that the photocurrent emanating from these networks could be switched ‘on’ and ‘off’ using the light source through the photoejection of conduction-band electrons of CdS particles that were in contact with or at tunneling distances from the electrode using Ru(NH₃)₆ as an electron mediator. Using a similar strategy, Li et al. (2018a) reported an approach where they used DNA tetrahedron (TET) to deposit CdTe QDs and a methylene blue intercalator in the presence of the target analyte. Since the electrode was not photoactive, this system was operated at near-zero noise level and with a limit-of-detection of 17 aM and a linear range of 50 aM−50 pM in the presence of target miRNA-141 under light excitation (590 nm). When the DNA TET-CdTe QDs-MB complex was used as a signal probe, the PEC response (0.82 μA) was ~2.5-fold higher as compared to the PEC response based on the DNA TET-CdTe QDs complex alone (Figure 4A). In contrast to the previously discussed assays, the introduction of photoactive materials can also occur in the absence of the target analyte (Chu et al., 2018). In an assay of this type, the dsDNA capture probe contains a carboxyl-terminated ssDNA building block that is removed, through strand displacement, from the electrode upon target introduction. In the absence of the target strand, CuInS₂/ZnS (ZCIS) QDs, and n-doped carbon dots are captured and increase the PEC signal under xenon lamp excitation (spectral range 200–1,200 nm) (Figure 4B). This biosensor exhibited a limit-of-detection of 0.31 pM with a linear range of 1 pM−100 nM in the presence of target miRNA-21. Furthermore, single base mismatch studies conducted using miRNA-21 (target), SM miRNA-21 and miRNA-141 showed ~4 × higher response in the case of target as compared to the interfering miRNAs, showcasing the excellent selectivity of this sensor. In addition to nucleic acid sensing, QDs are widely used in PEC biosensors created for protein analysis. In an assay of this type, the presence of insulin instigated the formation of an immunocomplex containing DNA-labeled antibody, insulin, secondary DNA labeled antibody and CdTe-labeled reporter DNA (Wen and Ju, 2016). CdTe induces a sensitization effect on the CdS/TiO₂/ITO electrode, thereby enhancing the photocurrent under white light excitation (spectral range 200–1,200 nm) (Figure 4C). A limit-of-detection of 3 fM was exhibited by this sensor with a linear range of 10 fM−10 nM using insulin as the target. The fabricated sensor exhibited desirable long-term stability with no significant change in photocurrent following storage for 10 days and excellent selectivity when incubated with a solution containing interfering agents (IGF-1 and C-peptide). Micro-RNA (miRNA-155) detection has been shown by introducing Au NP functionalized N-doped porous carbon ZnO polyhedra (NPC-ZnO) on CdSe QD based photoelectrode (Meng et al., 2019). Following, miRNA hybridization with a hairpin structure probe, Au NP functionalized NPC-ZnO was brought close to the hybridized double-stranded RNA by using second hairpin DNA structure (Figure 4D). The NPC-ZnO is also photoactive and thereby generated a signal-on response under visible light excitation. This creative design strategy enabled ultrasensitive miRNA detection with a limit-of-detection of 49 aM (linear range of 0.1 fM−10 nM), which is much lower than the previously reported photoelectrochemical miRNA detection bioassays (Wen and Ju, 2016; Chu et al., 2018).

FIGURE 4

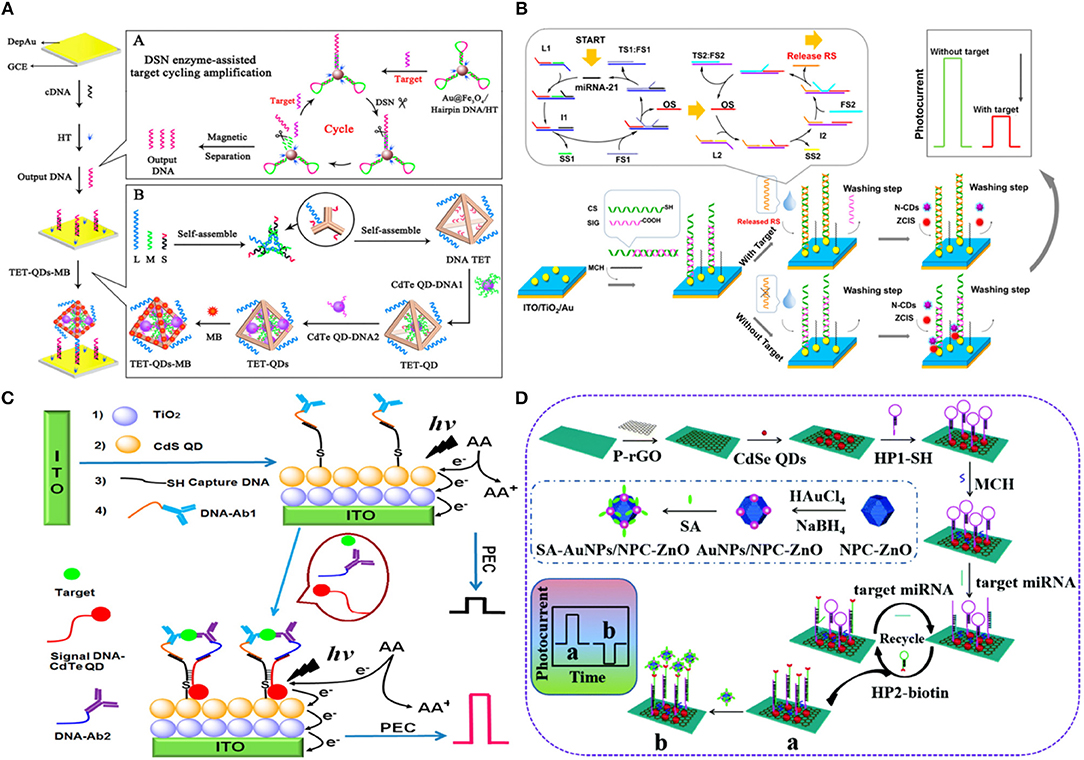

Figure 4. Introduction of QDs as Photoactive species: (A) Schematic Diagrams of PEC Biosensor for miRNA-141 detection using DSN enzyme-assisted target cycling amplification strategy and DNA TET-CdTe QDs-MB complex [Reprinted from Li et al. (2018a) with permission from American Chemical Society]. (B) Schematic illustration of the PEC detection of miRNA-21 by bringing photoactive N-doped carbon dots following hybridization of the target RNA [Reprinted from Chu et al. (2018) with permission from American Chemical Society]. (C) Schematic representation of ultrasensitive insulin detection based on CdTe QD labels brought into proximity of CdS/TiO₂/ITO electrode upon affinity-based binding of CdTe QD labeled insulin target [Reprinted from Wen and Ju (2016) with permission from American Chemical Society]. (D) Schematic representation of the detection of miRNA-155 based on NPC-ZnO labeled target. Here, NPC-ZnO performs the role of electron scavenger, thus generating a signal-on response [Reprinted from Meng et al. (2019) with permission from American Chemical Society].

Dai et al. (2016) demonstrated a multiplexed PEC immunoassay by using two different photoactive materials—graphitic carbon nitride (g-C₃N₄) which exhibited an anodic photocurrent and CS-AgI which exhibited a cathodic photocurrent—on a polyamidoamine dendrimer modified cube anatase TiO₂ mesocrystal (PAAD@CAM) substrate (Figure 5A). A competitive immunoassay was designed to analyze PSA and IL-6 biomarkers using anti-PSA and anti-IL-6 antibodies labeled with g-C₃N₄ and CS-AgI, respectively. Application of different bias voltages allowed each of the complexes to be individually analyzed with IL-6 having a dynamic range of 10⁻⁵-90 pg mL⁻¹ (3.3 × 10⁻⁵ pg mL⁻¹ limit-of-detection) and PSA having a dynamic range of 10⁻⁶-90 ng mL⁻¹ (3.3 × 10⁻³ pg mL⁻¹ limit-of-detection).

FIGURE 5

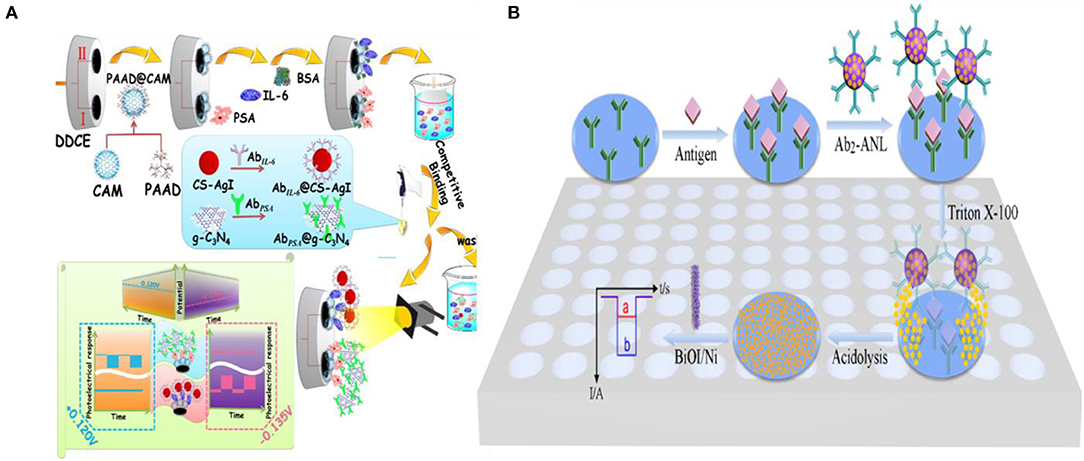

Figure 5. Introduction of photoactive species: (A) Schematic representation of two potentiometrically resolvable protein detection assays for PSA and human interleukin-6 involving the affinity-based binding of CS-AgI tagged IL-6 and CS-AgI tagged PSA [Reprinted from Dai et al. (2016) with permission from American Chemical Society]. (B) Liposomal PEC bioanalysis using photocathode and AgI/Ag; Reproduced with permission from [Reprinted from Yu et al. (2019) with permission from American Chemical Society].

Metal nanoparticles are used in combination with photoactive materials as signal reporters in PEC biosensors. In an assay of this kind, liposomes loaded with AgNP were labeled with IgG antibodies to detect IgG on a BiOI/Ni electrode (Yu et al., 2019). In a sandwich protein binding assay, the liposome-antibody conjugates were used to label the captured antigen. Upon binding, the Ag NPs were released using Triton X-100 and reacted with the p-type BiOI substrate to form an AgI/Ag/BiOI z-scheme heterojunction, enhancing the cathodic photocurrent of the electrode due to the reduction of dissolved O₂ by AgI and transferring electrons from the conduction band of BiOI to the valence band of AgI through metallic Ag upon illumination (410 nm excitation light source) (Figure 5B). This assay demonstrated a limit-of-detection of 100 fg mL⁻¹ and was linear in the 100 fg mL⁻¹-100 ng mL⁻¹ range.

As seen in the previous reports, target labeling provides the sensitivity and specificity that is needed for bioanalysis in complex biological samples. However, the introduction of photoactive species via labeling often impairs the rate and efficiency of bio-recognition, makes it difficult to perform quantitative analysis of biomolecular species in real time, and adds to the assay complexity due to the washing steps. An alternative method that can overcome some of the drawbacks of labeling is signal transduction via in situ generation of electron/hole donors, which is discussed in the following section.

Generation of Electron/Hole Donors

In this approach, target introduction releases free electron/hole donors (scavenging species) that interact with the photoactive electrode surface, induce charge separation, and modulate the photocurrent. A common method to produce electron/hole donors is by using an enzyme (Zang et al., 2017) to generate hydrogen peroxide (H₂O₂) or ascorbic acid (AA). Alkaline phosphatase (ALP) is used in DNA and protein sandwich assays (Zhang et al., 2016b; Ju et al., 2019) to catalyze the conversion of ascorbic acid 2-phosphate (AAP) to ascorbic acid (AA) upon target binding. AA acts as a hole scavenger and increases the lifetime of photo-induced carriers, which enhances the PEC current (Ju et al., 2019). Using a similar approach, an assay incorporating dual enzyme tags for multiplexed PEC detection was developed to differentiate between two cardiac markers—cardiac troponin I (cTnI) and C-reactive protein (CRP) (Zhang et al., 2016b). ALP-tagged antibody was used for troponin T detection, and acetylcholine esterase (AChE)-tagged antibody was used for detecting C-reactive protein (Zhang et al., 2016b). These tags generate electron donating ascorbic acid (AA) and thiocholine (TC) by specifically catalyzing the hydrolysis of AAP or acetylthiocholine (ATC) (Figure 6A). Under visible light irradiation, the generated electron donors scavenge photoinduced holes at the surface of the CdS QDs/TiO₂ electrode, inhibiting the recombination of the holes and electrons, thus enhancing the photocurrent. A linear range of 100 ng mL⁻¹-0.1 mg mL⁻¹ (a limit-of-detection of 50 ng mL⁻¹) was exhibited for CRP, and a linear range of 1 ng mL⁻¹-0.01 mg mL⁻¹ (a limit-of-detection of 0.1 ng mL⁻¹) was exhibited for cTnI.

FIGURE 6

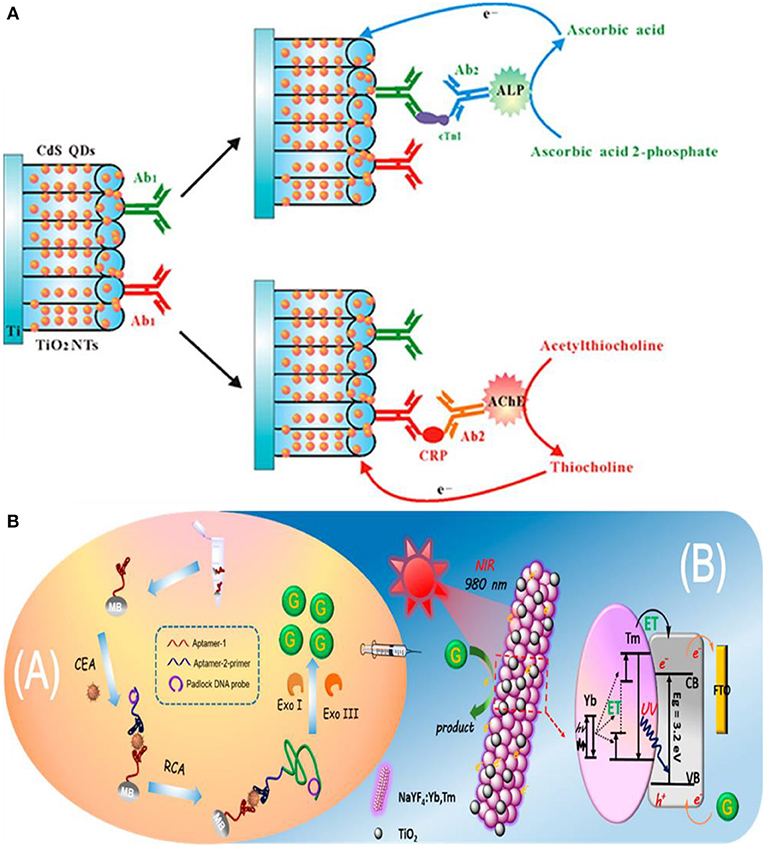

Figure 6. In situ generation of electron/hole donors: (A) Incorporation of dual enzyme tags for multiplexed cardiac troponin I (cTnI) and C-reactive protein (CRP) detection [Reprinted from Zhang et al. (2016a) with permission from American Chemical Society]. (B) Schematic Illustration of near infrared to ultraviolet light-mediated photoelectrochemical aptasensing for cancer biomarker detection and mechanism of signal generation in NaYF₄:Yb,Tm@TiO₂ photoactive electrode [Reprinted from Qiu et al. (2018) with permission from American Chemical Society].

In the previous assays, the biorecognition event, the generation of electron/hole donors, and signal measurement were performed on the electrode surface. However, it is possible to perform biorecognition and generate electron/hole donating species in solution and use the resultant species to modulate the PEC signal at an electrode surface. An assay of this type detects carcinoembryonic antigen (CEA) using a sandwich assay on the surface of magnetic beads (Qiu et al., 2018). Upon aptamer–CEA–aptamer reaction, the primer DNA on the terminus of the secondary aptamer initiates rolling circle amplification (RCA) reaction, resulting in the generation of long guanine (G) rich oligonucleotide strands (Figure 6B). Subsequent introduction of exonuclease I and III releases guanine (G) bases following digestion of the RCA product. The free guanine bases function as electron donors and enhance the photocurrent of the NaYF4:Yb,Tm@TiO₂ microrod electrodes under near-infrared light excitation. The limit-of-detection of the assay for CEA target was 3 pg mL⁻¹ with a linear range of 10 pg mL⁻¹-40 ng mL⁻¹. Furthermore, high specificity is demonstrated by this assay when tested against a complex mixture containing interferents such as PSA, TB, and human IgG.

In addition to using photoactive species and electron/hole donors separately, it is possible to combine these signal transduction mechanisms. For example, the synergistic effect of electron donor generation and photoactive species introduction was used to detect alpha-fetoprotein (AFP), which is a biomarker for liver cancer (Xu et al., 2015). In this assay, AFP-CdS-GOD complex was formed by conjugating AFP with CdS QD and glucose oxidase (GOD). In this work, chitosan which helps to covalently bind anti-AFP antibody was first deposited on the photoelectrode composed of ZnO inverse opal structure. Upon biorecognition with AFP-CdS-GOD, the photocurrent was enhanced. The enhancement of the photocurrent is attributed both to the increased absorption spectrum due to CdS QD and generation of H₂O₂ by GOD as electron donor. This bioassay showed a limit-of-detection of 0.01 ng mL⁻¹ (linear range is 0.1–500 ng mL⁻¹). Moreover, this assay showed good specificity against CEA, PSA and H₂O₂.

Although assays using electron/hole generation overcome the limitations encountered in labeled assays, they have some drawbacks that must be considered for using them in analyzing real-life samples. Enzymes that are typically used to induce the formation of local electron/hole donors are known for their instability, relatively low shelf life, and expensive reagent cost. Additionally, to ensure effective detection using this scheme, utmost importance must be paid to minimize interfering scavenging species found in native samples that may consume the locally generated electron/hole donors required to transduce the biorecognition events.

Steric-Hindrance Based Assay

Introduction of a biomolecule at the biosensor surface can sterically hinder the access of electrolyte to the photoactive transducer to modulate the measured PEC current. This transduction approach is one of the simplest mechanisms for developing a biosensor because it usually does not require labeling steps following the target capture. However, most of these sensors operate in a signal-off fashion (Pang et al., 2017; Zang et al., 2017; Fu et al., 2018).

In signal-off PEC biosensing, it is crucial to have a high photocurrent before target introduction because high concentrations of the target can completely diminish the PEC signal (Saha et al., 2018). Different approaches have been used to obtain high baseline PEC currents. Depositing photoactive materials into three-dimensional scaffolds such as wrinkled electrodes has been used to increase the photocurrent of PEC biosensors (Saha et al., 2018). The wrinkle electrodes showed 10 times higher photocurrent than a planar electrode composed of CdTe QDs. This wrinkled photoelectrode was used to detect single stranded DNA by simply hybridizing with the complementary sequence as a proof-of-concept. Moreover, it showed stable photocurrent following storage at 4°C in dark conditions for seven days and exhibited high specificity against single or multiple pair mismatch. Metal NPs are also deposited in combination with photoactive materials to enhance the photocurrent due to their plasmonic properties (Tu et al., 2016; Hao et al., 2018a). Fu et al. (2018) used Au NPs as a photoelectronic transfer promoter in photoactive molybdenum disulfide (MoS₂) nanosheets to detect micro-RNA. To obtain further reduction of photocurrent, bulky biotin-streptavidin coupling was used in conjunction with probe hairpin DNA and target microRNA to increase the signal changes caused by steric hindrance. This PEC sensor presented a broad linear range of 10 fM−1 nM (limit-of-detection of 4.21 fM) (Figure 7B). Signal transduction using steric hindrance is ideally suited for cellular detection because the large size of cells compared to biomolecules enhances their steric hindrance effect. A signal-off sensor was constructed to rapidly detect early apoptotic cells using phosphatidylserine binding peptide (PSBP) bound to the surface of TiO₂/Graphene/ZnIn₂S₄ photoelectrode as the biorecognition element (Wu et al., 2018). Here, the access of AA to the electrode surface was sterically hindered by the binding of the apoptotic cell decreasing the photocurrent. This biosensor exhibited an LOD of 3 cells mL⁻¹ with a linear range of 1 × 10³-5 × 10⁷ cells mL⁻¹ (Figure 7A). A paper-based cytosensor was reported for detecting breast cancer cells (MCF-7) constructed from ZnO spheres immobilized on Au nanorod-modified paper and sensitized with CdTe QDs and nanogold-assembled mesoporous silica nanoparticles (GMSNs) at their surface to create the photoactive portion of the biosensor (Ge et al., 2017). Multiple horseradish peroxidase (HRP) molecules and branched capture sites were then immobilized onto the GMSNs using double stranded DNA (Figure 7C). HRP was used in this assay to generate optical excitation through chemiluminescence. A signal decrease is observed upon capture of graphene quantum dot (GQD) labeled cancer cells as H₂O₂, the oxidant of luminol based chemiluminescence, is sterically hindered. These biosensors demonstrated a linear range of 63–1.0 × 10⁷ cells mL⁻¹ and limit-of-detection of 21 cells mL⁻¹. Lymphoblast (CCRF-CEM) cells were also detected based on steric hindrance in a PEC biosensor (Li et al., 2019). These cells were captured using hairpin DNA targeting overexpressed protein tyrosine kinase-7 on their surface. A decrease in PEC signal was exhibited on AgInS₂ NPs photoelectrodes due to steric hindrance of AA. A limit-of-detection of 16 cells mL⁻¹ and linear range of 1.5 × 10²-3.0 × 10⁵ cells mL⁻¹ were demonstrated.

FIGURE 7

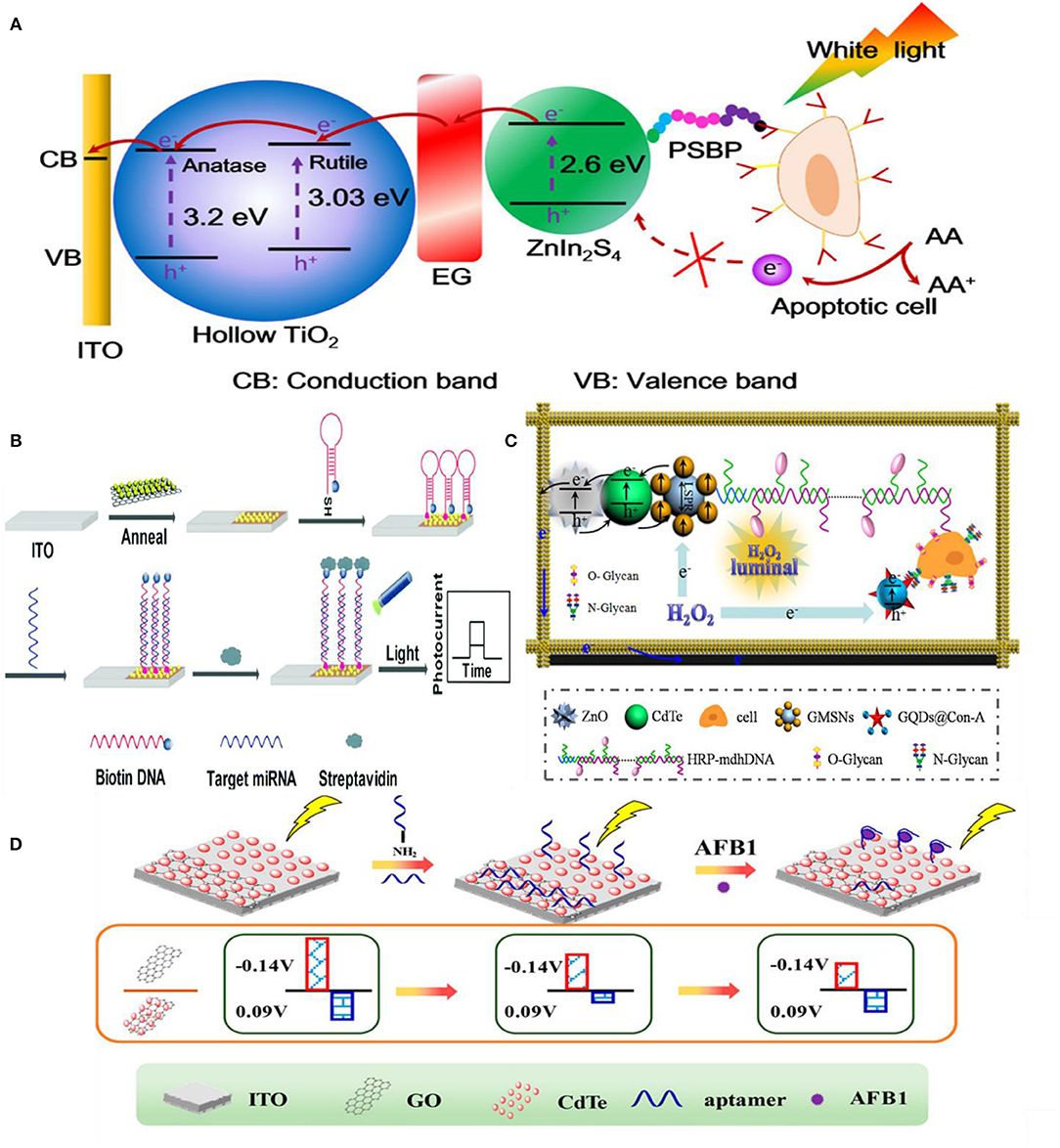

Figure 7. Steric-hindrance based biosensing: (A) Detection of apoptotic cells by TiO₂/EG/ZnIn₂S₄ electrodes [Reprinted from Wu et al. (2018) with permission from American Chemical Society]. (B) Use of Au NPs in conjunction with a semiconductor (MoS₂) to achieve higher photoresponse [Reprinted from Fu et al. (2018) with permission from The Royal Society of Chemistry]. (C) Detection of N glycan on ZnO₂/CdTe/GMSNs electrode modified with GQD@conA [Reprinted from Ge et al. (2017) with permission from American Chemical Society]. (D) Two-channel approach for detecting AFB1 [Reprinted from Hao et al. (2017b) with permission from American Chemical Society].

Another interesting signal transduction method involves the generation of a passivating compound as a result of target capture, which is used to decrease the PEC current generated on the photo-electrode (Zhuang et al., 2015; Qiu et al., 2018). An assay of this type combines biorecognition and isothermal target amplification in solution with signal modulation on the photoelectrode to detect T4 polynucleotide kinase (PNK), an important cellular regulator (Zhuang et al., 2015). In this detection scheme, a hairpin DNA (HP2) strand is phosphorylated upon the introduction of target PNK and is partially digested by λ-exo to yield an endogenous primer which initiates solution-based amplification generating DNA fragments. These DNA fragments activate the peroxidase-mimicking DNAzymes on the hairpin DNA probes immobilized on the photoelectrode (HP1) to catalyze the formation of insoluble precipitates at the electrode surface and attenuate the photocurrent response of the photoactive electrode. This target induced attenuation of current, and enabled PNK to be analyzed in the linear range of 2–100 mU mL⁻¹. Zhang et al. (2018a) used this strategy to detect prostate specific antigen (PSA) on a CdS nanorod electrode. The presence of PSA led to the formation of a sandwich complex on Au NPs that contained DNAzyme concatamers that catalyzed the precipitation of 4-chloro-1-naphthol onto the photoactive electrodes in the presence of H₂O₂. The insoluble precipitate resulted in an attenuation of signal by inhibiting electron transfer from the electron donor AA to the photoelectrode. PSA detection was achieved in the 0.005 ng mL⁻¹-50 ng mL⁻¹ range with a limit-of-detection of 1.8 pg mL⁻¹.

Multi-channel PEC biosensors operated based on steric hindrance have been developed for improved reliability (Zhang et al., 2017; Hao et al., 2018b; Hua et al., 2018). In an assay that uses sunlight instead of an external light source, a two-channel design enables the device to calibrate its photoresponse by considering the incoming sun light intensity (Hao et al., 2018b). In this assay, biorecognition event of aflatoxin B1 by the covalently bound aptamer with the underlying Ag/TiO₂/3D nitrogen-doped graphene hydrogel (3DNGH) resulted in a decrease of photocurrent. The decrement of the photocurrent is attributed to the enhanced steric hindrance of the electrolyte (0.1 M PBS) to the electrode surface. Using this ratiometric approach an LOD of 2.5 × 10⁻⁴ ng mL⁻¹ and linear range of 1.0 × 10⁻³-1.0 × 10³ ng mL⁻¹ were achieved for the detection of aflatoxin B1 (AFB1), a highly toxic carcinogen mainly found in agricultural and sideline products such as cereals and dairy products. Building on this strategy, Hao et al. (2017b) developed another two channel device using CdTe-graphene oxide (GO) and CdTe photoelectrodes for detecting AFB1. A signal increase was observed on the CdTe-GO electrode because the aptamer was released from the electrode surface upon target capture, which improved the access of electrolyte (0.1 M PBS) to the photoelectrode (Figure 7D). A signal decrease was observed on the CdTe electrode upon target capture by the immobilized aptamer. Using this detection strategy, a limit-of-detection of 0.01 ng mL⁻¹ and a linear range of 10 pg mL⁻¹-100 ng mL⁻¹ were observed. Compared to single channel PEC biosensors, this self-referencing design can provide better accuracy and reliability, thus providing a promising route for the future development of PEC biosensors.

Steric-hindrance based assays can also combined with other strategies, for example p53 (cell cycle regulator and tumor suppressor) detection has been shown by combining two detection strategies—(i) in situ generation of electron donors and (ii) the subsequent hindering of AA (Zhu et al., 2016). A protein G molecular membrane was used to immobilize ALP conjugate anti-p53 antibody on ordered TiO₂ nanotubes containing Au NPs. ALP enzymatic reaction in the presence of AAP generates AA for scavenging the holes localized on Au NPs. In this system, immunocomplexation with the target (p53) decreases the photocurrent signal due to (i) increased steric hindrance caused by the immunocomplex and (ii) a change in dielectric permittivity of the Au NPs-TiO₂ NTs interface following target capture, which in turn influences the energy coupling between Au NPs and TiO₂ NTs. This sensor demonstrated a limit-of-detection of 0.05 ng mL⁻¹ and a linear range of 20–100 ng mL⁻¹ under 410 nm light illumination. Additionally, excellent selectivity was demonstrated by the immunoassay when faced with interfering agents such as glucose oxidase (GOD), prostate specific antigen (PSA), lysozyme (LZM), and thrombin. Furthermore, given that the average level of p53 in lung cancer patient serum samples is 0.55 ng mL⁻¹, the limit-of-detection of this assay, along with its excellent selectivity point to its applicability for clinical use.

The simplicity of steric hinderance based signal transduction makes it appealing for use in PEC biosensing. However, due to its signal-off nature, this transduction method is associated with a higher incidence of false positives as compared to the other transduction methods discussed in this section. To overcome this, strategies such as multi-channel sensing with built-in calibration (Hao et al., 2017b) have been developed for more accurate and robust biosensing.

In situ Induction of Light

In conventional PEC biosensing, an external light-source is used for optical excitation, which imposes additional complexities for miniaturizing the biosensing platform (Tu et al., 2018). Elimination of the external light source is often achieved by employing chemiluminescence (CL) in the PEC biosensor for generating in situ light of various emission wavelengths (Ge et al., 2016b; Zang et al., 2017). In an assay of this type, prostate specific antigen (PSA) was captured and labeled in a sandwich assay with Au NPs modified with glucose oxidase (pAb₂-AuNP-GOx) (Shu et al., 2016). GOx generates H₂O₂ enhancing the CL of the system, which in turn increases the photovoltage generated on the graphene oxide-doped BiVO₄ photoelectrode (Figure 8A). This system showed a detection limit of 3 pg/mL and good specificity against CEA and AFP. A similar approach was used in a paper based PEC biosensor with porous Au/SnO₂/rGO photoelectrodes for detecting ATP (Wang et al., 2014b). In this assay, the aptamer for ATP detection was split into two oligonucleotides. One of them (SSDNA1) were immobilized initially at the electrode surface and the other (SSDNA2) was conjugated with luminol and GOx into Fe₃O₄@Au NP. This nucleotide conjugate NP was brought to the electrode surface following the ATP introduction and thereby formed the complex shown in Figure 8B. Once GOx is bound to the electrode, it catalyzes the CL reaction by generating H₂O₂, which further reacts with the luminol. The sensing platform demonstrated a limit-of-detection of 0.025 pM with specificity against guanosine triphosphate (GTP), cytidine triphosphate (CTP), and uridine triphosphate (UTP). A proof-of-concept PEC DNA assay was also shown using this approach on CdS/MoS₂ photoelectrodes (Zang et al., 2016). In this assay, target DNA is captured using an immobilized hairpin probe. Following the target-induced unfolding of the probe, the target DNA is displaced by a hemin-labeled DNA recycling probe. Hemin catalyzes luminol oxidation and generates CL, exciting the photoelectrode. This assay demonstrated a limit-of-detection of 0.39 fM and specificity against other forms of DNA (smDNA, tmDNA). The elimination of external light source makes this form of signal transduction appealing for the development of point-of-care devices. Yet another advantage of this method lies in the tunability of chemiluminescence by changing environmental factors such as the concentration of oxidizing species, environmental pH value, hydrophobicity of the solvent, and solution composition (Augusto et al., 2013; Fereja et al., 2013; He et al., 2014).

FIGURE 8

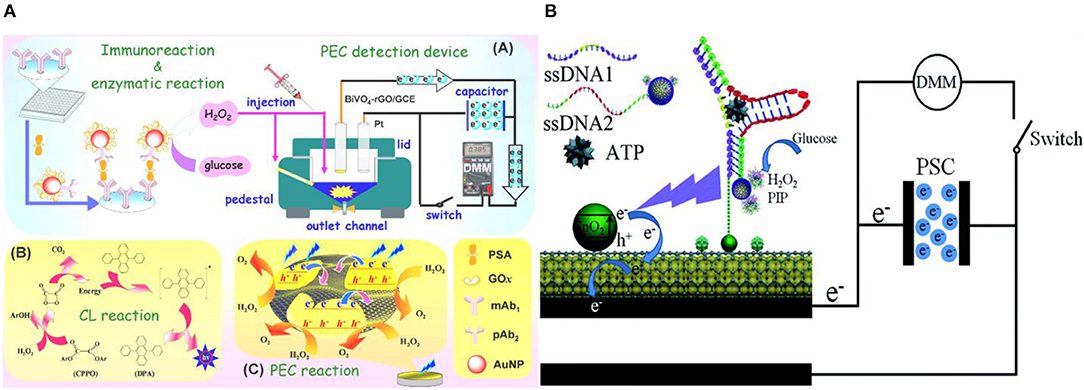

Figure 8. In situ generation of light. (A) PSA detection by coupling H₂O₂–triggered peroxyoxalate self-illuminated system with an external capacitor on the photoanode and digital multimeter as readout device [Reprinted from Shu et al. (2016) with permission from American Chemical Society]. (B) Schematic of the photocurrent generation mechanism in the modified paper sample zone of the Au-PWE under a CL light source [Reprinted from Wang et al. (2014a) with permission from Royal Society of Chemistry].

The signal transduction strategies elaborated thus far involved the reaction of photoactivated excitons with solution-based electron donors and acceptors to generate a measurable photocurrent, i.e., the signaling strategy established was based on the direct interfacial electron transfer between the photoactive material and ambient environment. The following section discusses signal transduction based on resonance energy transfer that involves the transfer of acquired electronic energy following photo-excitation.

Resonance Energy Transfer

A powerful mechanism for modulating the PEC activity of the photoactive material in response to biorecognition is resonance energy transfer (RET) (Shu and Tang, 2017). In this approach, the biorecognition event serves as a mediator to bring a noble-metal NPs (Generally Au or Ag) to the proximity of the photoelectrode (Zang et al., 2017). Noble-metal NPs have very high extinction coefficients (Hartland, 2011) and can function as either signal quenchers (Zhao et al., 2011) or amplifiers (Han et al., 2015) depending on the distance between the metal and the other photoactive materials. If the absorption spectrum of the metal NP overlaps with the emission spectrum of the photoactive material, a significant portion of the exciton energy is transferred to the metal NPs, subsequently decreasing the photocurrent (Yun et al., 2005). However, when excited at plasmonic absorption wavelengths, a high electric field can surround the metal NPs and enhance the photocurrent generated by the photoactive material (Li et al., 2014a). In these assays, metal NPs are excited by the emission of the semiconductor already present in the electrode which is different from the approach where to enhance the PEC current, metal NPs are introduced during biomolecule recognition followed by external light as described in section Introduction of Photoactive Species.

Semiconductor QDs are commonly used as photoactive materials for electrodes in this approach because it is possible to tune their emission wavelength by varying their size. Mi-RNA detection has been shown by using RET between CdS QDs and Ag NPs under the illumination at a wavelength of 410 nm (Ma et al., 2016b). As shown in Figure 9A, target microRNA induces conformational change in the Au NP labeled hairpin probe deposited on CdS QD. ALP causes Ag deposition on the Au NPs, which significantly amplifies the signal decrease that is measured on the photoelectrode. This assay has demonstrated a detection limit of 0.2 fM with a linear range of 1 fM−100 pM. The same group has also shown DNA detection without the Ag deposition-induced amplification strategy (Zhang et al., 2016a) using CdS QDs and Ag NPs and achieved a limit-of-detection of 0.3 pM and a linear range of 1 pM−10 nM. Ma et al. (2016a) also used energy transfer between CdS QDs and Ag NPs to detect TATA-binding protein and achieved a limit-of-detection of 1.28 fM (linear range of 2.6 fM−512.8 pM). The CdS QDs used in this work have an emission peak around 530 nm which overlaps with the absorption peak of Au NPs. DNA hybridization was used to bring Au NP into the proximity of the semiconductor QDs (Figure 9B). Tata binding protein can further bend this dsDNA structure and bring Au NPs even closer to the CdS QDs. The TATA binding protein increases the signal attenuation due to the combined effect of RET and steric hindrance. This assay showed excellent selectivity against AFP, CEA, lysozyme, PSA, and thrombin.

FIGURE 9

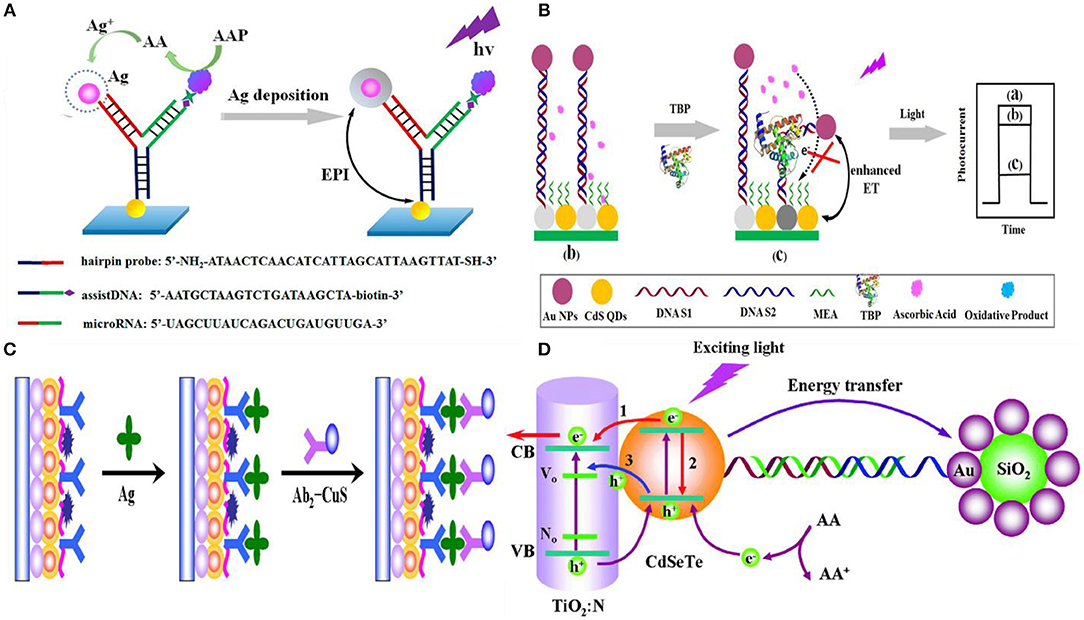

Figure 9. Resonance energy transfer based photoelectrochemical biosensors: (A) Energy transfer between CdS QDs and Ag NPs upon the ALP induced Ag deposition on Au NPs [Reprinted from Ma et al. (2016b) with permission from American Chemical Society]. (B) Tata binding protein bends the double-stranded DNA structure and brings CdS QD and Au NPs closer [Reprinted from Ma et al. (2016a) with permission from American Chemical Society]. (C) Schematic illustration of the signal-off sandwich type immunoassay was developed by using CuS nanocrystals as photocurrent quencher for early detection of CEA [Reprinted from Fan et al. (2016b) with permission from American Chemical Society]. (D) Thrombin detection using a PEC aptasensing platform based on exciton energy transfer between CdSeTe alloyed quantum dots and SiO₂@Au nanocomposites. In this approach, RET significantly reduces the photocurrent, which is then quickly restored following the target's competitive binding and subsequent release of the metal NP tagged capture probe [Reprinted from Fan et al. (2015) with permission from The Royal Society of Chemistry].

Although Au and Ag NPs are the most popular materials used for RET-based PEC biosensing, other materials can also be used in these assays. For example, a signal-off sandwich-type immunoassay was developed by using CuS nanocrystals as the photocurrent quencher for early detection of CEA on CdSeTe@CdS:Mn-sensitized TiO₂ NPs (Fan et al., 2016b). In this assay, CEA target antigens were captured using anti-CEA antibodies immobilized on the electrode surface, and a signaling antibody labeled with CuS was introduced to reduce the PEC current (Figure 9C). A limit-of-detection of 0.16 pg/mL with a linear range from 0.5 pg mL⁻¹ to 100 ng mL⁻¹ were achieved using this assay. The specificity of this assay was validated against PSA, AFP, carbohydrate antigen 19-9 and 15-3.

PEC biosensors that operate based on RET are highly sensitive. However, many of the RET biosensing assays reported to date are signal-off (Zang et al., 2017). It is possible to design a signal transduction method based on RET where the photocurrent is initially reduced and is turned on following target capture and the resultant removal of the metal NP (Shen et al., 2015; Liu et al., 2016). Thrombin detection was demonstrated using this approach where AuNP-decorated SiO₂ nanoparticles were initially immobilized on CdSeTe QD-photoelectrodes through a dsDNA construct containing a thrombin-selective aptamer. Upon target capture, the signal diminishing Au NPs were removed from the electrode vicinity and a limit-of-detection of 2.8 fM with a linear range of 10 fM−50 pM was achieved (Fan et al., 2015) (Figure 9D). Consequently, it is possible to combine the high sensitivity of RET with reliability of signal-on sensing to create a high-performance biosensor. A summary of these recently published affinity-based PEC biosensor including their sensing mechanism, transduction approach and LOD are depicted in Table 2.

TABLE 2

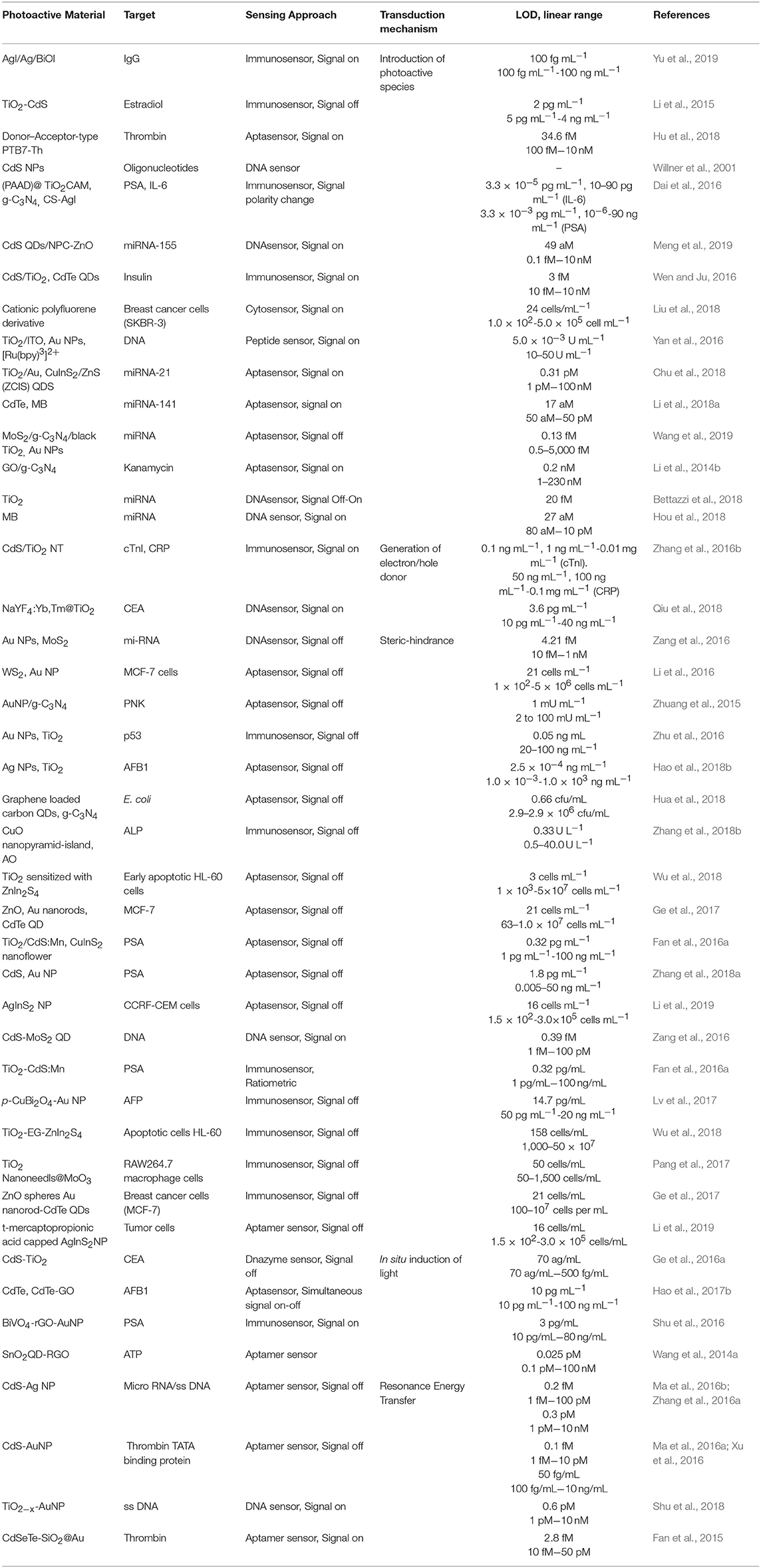

Table 2. Summary of the recent affinity-based PEC biosensor.

Challenges and Future Perspectives

Affinity based biosensors using photoelectrochemistry as their transduction mechanism have garnered a lot of interest over the past decade due to their exceptional limit-of-detection. Biosensor development starts with considering the target analyte of interest, required limit-of-detection and specificity, interference caused by the native sample, and constraints of the operating environment (point-of-care, lab-based, resource poor compatible). This review aims at helping the reader choose the building blocks—materials and signal transduction mechanisms—of a PEC biosensor based on the constraints imposed by the application.

Inorganic and organic semiconductors are used as the photoactive building blocks for PEC biosensors. In PEC devices, photoactive materials are primarily chosen based on their efficiency in converting optical energy to electrochemical current or voltage. Using these materials in PEC biosensing adds additional requirements in terms of stability, size/structure, integration, cost, and functionalization. Given that photoactive materials used in PEC biosensing directly interact with nanoscale biomolecules, solution-processed photoactive nanomaterials that can be readily used as labels, reporters, or building blocks for the photoelectrode are primarily used in these systems. An important challenge with using these materials is their varying performance and stability in biosensing conditions that often require operation in complex biological environments and under stringent washing protocols. Affinity-based PEC biosensors operate by measuring signal changes that occur upon target binding; consequently, the lack of stability can cause non-target related signal changes, leading to false-positive or false-negative results. A key development toward the practical use of PEC biosensors involves incorporating in situ calibration measures in the PEC system to account for signal variations that are caused by the instability of photoactive materials. It is also critical to integrate functionalized photoactive materials into biosensing chips, strips, or cartridges using fabrication methods that are amenable to large volume processing.

We have reviewed the five most widely used signal transduction mechanisms used in PEC biosensing: introduction of photoactive species, generation of electron/hole donating species, use of steric hindrance, in situ induction of light, and resonance energy transfer. It is evident that it is possible to use any of these mechanisms to detect various classes of targets including nucleic acids, proteins, and cells. Additionally, a low limit-of-detection is possible using all of these assays. However, these assays vary greatly in terms of their fabrication and operation complexity. Ultimately, biosensing devices that are fabricated using scalable materials and methods have a higher chance for commercialization. Additionally, assays that can be operated using robust reagents in a simple and rapid one-pot manner have a higher chance for wide-scale adoption and success compared to those that require a sequence of washing and labeling steps. Consequently, choosing the right transduction method can be achieved by considering the collective requirements of a biosensing platform for use in real-life settings.
