Heng Li1
Guigen Li
Bo Jiang- 1School of Chemistry and Materials Science, Jiangsu Key Laboratory of Green Synthetic Chemistry for Functional Materials, Jiangsu Normal University, Xuzhou, China
- 2Institute of Chemistry and BioMedical Sciences, Collaborative Innovation Center of Chemistry for Life Sciences, Nanjing University, Nanjing, China
- 3Department of Chemistry and Biochemistry, Texas Tech University, Lubbock, TX, United States
A new Fe(III)-catalyzed bicyclization reaction of yne-allenones with indoles has been established, enabling the direct construction of cyclobuta[a]naphthalen-4-ols with an all-carbon quaternary center in good to excellent yields. This reaction was performed by using low-cost FeCl3 as the catalyst and EtOH as the environmentally benign solvent, providing a green protocol for constructing the cyclobutarene framework with a high degree of atom economy and functional group compatibility. The reaction mechanism was proposed to proceed through a [2 + 2] cycloaddition/1,6-conjugate addition cascade.
Introduction
Development of practical and sustainable synthetic methods for the rapid construction of valuable cyclic target molecules, along with minimum environmental impacts, represents an endeavor of utmost importance in both academia, and industry (Anastas and Warner, 1998; Bruckmann et al., 2008; Martins et al., 2009; Jiang et al., 2010; Huang et al., 2018a). In this context, chemical transformations following the principles of atom-economy are generally believed to be green since such reactions enable different molecular fragments into integrated cyclic frameworks by recombining chemical bonds with maximum atom utilization and minimum generation of the chemical waste (Trost, 1995, 2002; Trost et al., 2003; Banert and Plefka, 2011; Kotha et al., 2013). The key to realize this goal is to implement reaction cascades, which allow the direct formation of multiple chemical bonds in a one-pot operation and can lead to a remarkable increase in resource efficiency for the overall process (Barluenga et al., 2009; Fuerstner, 2009; Tietze et al., 2009; Jones et al., 2010; Wang et al., 2015; Sugimoto and Matsuya, 2017; Zhang et al., 2017). Specifically, bicyclization cascades have emerged as an important platform for the synthesis of bioactive small-molecule libraries for their SAR studies (Dömling et al., 2012; Brauch et al., 2013; Vlaar et al., 2013; Koopmanschap et al., 2014; Rotstein et al., 2014; Huang et al., 2018b). Due to their annulation efficiency, economic and environmental aspects, and ease of operation as well as diminished waste disposals (Jia et al., 2014; Su et al., 2014; Tian et al., 2015; Chen et al., 2017; Huang et al., 2017; Liu et al., 2017b,c; Wang L. et al., 2017). In view of the environmental awareness of the chemical community, the combination of the presented bicyclization strategy and the use of environmentally benign solvents will furnish the transformations under avoidance of potential pollutants (Bihani et al., 2013; Wang J.-Y. et al., 2017; Sha et al., 2018a). Nevertheless, the design and development of environmentally compatible bicyclization cascades without generation of toxic waste and by-products holds considerable challenges.
Cyclobutarenes are a class of structurally unique bicarbocyclic molecules which show a wide spectrum of biological activity (Christophe et al., 1998; Sadana et al., 2003). Due to the thermodynamic stability associated with the aromatic system and the kinetic reactivity of the strained cyclobutene ring (Cava and Napier, 1956; Mehta and Kotha, 2001), these molecules behave as reliable and synthetically useful feedstocks (Christophe et al., 1998) and have been extensively applied in natural product syntheses (Funk and Vollhardt, 1977, 1979; Grieco et al., 1980; Taber et al., 1987; Nemoto et al., 1995; Michellys et al., 2001). With these contributions in mind, great efforts to establish synthetic protocols for cyclobutarene synthesis have been developed which include 1,4-elimination-cycloaddition of functionalized arenes (Gray et al., 1978; Schirch et al., 1979; Sekine et al., 1979; Lenihan and Shechter, 1994, 1998; Chou et al., 1995), Parham cyclization (Bradsher and Hunt, 1981; Buchwald et al., 1987a,b; Beak and Selling, 1989; Aidhen and Ahuja, 1992), photo-induced cycloadditions (Parham et al., 1976; Kaneko and Naito, 1979; Neckers and Wagenaar, 1981; Kaneko et al., 1982; Kanao et al., 1983; Sato et al., 1987; Hoffmann and Pete, 1996), thermal extrusion reactions (Toda et al., 1988; D'Andrea et al., 1990; Hickman et al., 1991; Shimada et al., 1993; Andersen et al., 1996; Craig et al., 1998), intramolecular addition of carbanions to benzynes (Bunnett and Skorcz, 1962; Krohn et al., 1978; Gowland and Durst, 1979), [2 + 2 + 2] cycloadditions of 1,5-hexadiyne (Peter and Vollhardt, 1977, 1984; Funk and Vollhardt, 1980; McNichols and Stang, 1992), ring expansion of cycloproparenes (Birch et al., 1964; Iskander and Stansfield, 1965; Buckland et al., 1987; Kagabu and Saito, 1988; Müller et al., 1989), and [2 + 2] cycloadditions of allene precursors (Inanaga et al., 1992; Ezcurra and Moore, 1993; Toda et al., 1994) and other methods (Markgraf et al., 1969; Garratt and Nicolaides, 1972, 1974; Bilyard et al., 1979; Warrener et al., 1993). However, these methods encounter some drawbacks such as high temperatures (400°C-800°C), strong bases (n-BuLi and NaNH2), multiple steps, or a narrow substrate range. Moreover, indole derivatives stand for another important class of heterocyclic compounds present in a myriad of bioactive substances and natural products. Therefore, the development of general and sustainable entries toward cyclobutarene-indole pairs in atom- and pot-economic manner is of potential significance. Recently, we reported the combination of [2 + 2] cycloaddition with 1,4-radical addition reaction by treating yne-allenones with aryldiazonium salts and DABCO-bis(sulfur dioxide) (DABSO), affording functional cyclobuta[a]naphthalen-4-ols (Scheme 1a, Liu et al., 2017a). Subsequently, we developed a BF3•Et2O-catalyzed double [2 + 2] cycloaddition relay between yne-allenones and unactivated alkenes, enabling C-C triple bond cleavage to access phenanthren-9-ols (Scheme 1b, Li et al., 2018a). To continue our efforts in this project (Liu et al., 2017a; Wang J.-Y. et al., 2017; Li et al., 2018a,b; Sha et al., 2018b; Wang et al., 2018), we attempted to employ indoles 2 to be subjected with the reaction of yne-allenones 3 under our previous conditions (Li et al., 2018a) to assemble naphtho[1,2-a]carbazol-5-ols 4 (Scheme 1d), owing to indoles with C2 and C3 reactive sites could acted as C2 synthons for the synthesis of fused indoles (Haibach et al., 2011; Li et al., 2015; Liu et al., 2016; Ozaki et al., 2017). Unexpectedly, a double [2 + 2] cycloaddition relay did not occur. Instead, the reaction involved another [2 + 2] cycloaddition /1,6-addtition cascade to furnish 3-indolyl substituted cyclobuta[a]naphthalen-4-ols 3 by suitably adjusting the catalysts and solvents (Scheme 1c). Notably, the current green protocol represents an atom-economic and eco-friendly entry to structurally unique cyclobutarene-indole pairs through the combination of [2 + 2] cycloaddition with 1,6-conjugate addition by FeCl3 as a low-cost catalyst and EtOH as an environmentally benign solvent. Herein, we elaborate this attractive and benign transformation.
Scheme 1. Profiles for [2 + 2] cycloaddition of yne-allenones.
Results and Discussion
At the beginning of our studies, yne-allenone 1a and N-methylindole (2a) were chosen as the model substrates to explore the feasibility of double [2 + 2] cycloaddition relay reaction with our previous conditions (Table 1, entry 1). Instead of the expected naphtho[1,2-a]carbazol-5-ol 4a, 3-indolyl substituted cyclobuta[a]naphthalen-4-ol 3a was obtained in 60% yield. The following screening of solvents, such as N,N-dimethylformamide (DMF), 1,4-dioxane, tetrahydrofuran (THF), MeOH, and EtOH, showed that use of DMF and 1,4-dioxane as reaction media completely suppressed the reaction process (entries 2–3) whereas the latter three all made the transformations work more efficiently (entries 4–6). Among these, EtOH proved to be the best choice, providing the product 3a with the highest yield of 76% (entry 6). Increasing the component ratio to 1:2 is not beneficial for this transformation as a lower conversion was observed (63%, entry 7). In contrast, fine-tuning the component ratio to 1:1.2 could improve the reaction efficiency, resulting in a higher yield of 3a (81%, entry 8). As the next optimization step, we conducted the screening of a variety of Lewis acid catalysts, such as ZnCl2, Y(OTf)3 and FeCl3 that are often employed in the catalytic transformations, for this cyclization-addition cascade by using EtOH as the reaction media. The former two led to remarkably lower conversions (entries 9–10). Delightingly, the latter one showed the best catalytic performance in this transformation, delivering higher yield of 3a as compared with BF3•Et2O (85%, entry 11 vs. 8). It is found that the reaction efficiency was proven to display an important dependence on the loading of the Fe-catalyst. An increase in the FeCl3 loading had a detrimental impact on the reaction yield (entry 12) whereas reducing the catalytic amount of FeCl3 to 10 mol% could accelerate the conversion into 3a in an increased the yield to 88%. When the reaction temperature was elevated to 70°C, the reaction process was inhibited in some extent (entry 14). On the contrary, decreasing the reaction temperature to 30°C facilitated the current transformation and gave a higher yield of 90% (entry 15).

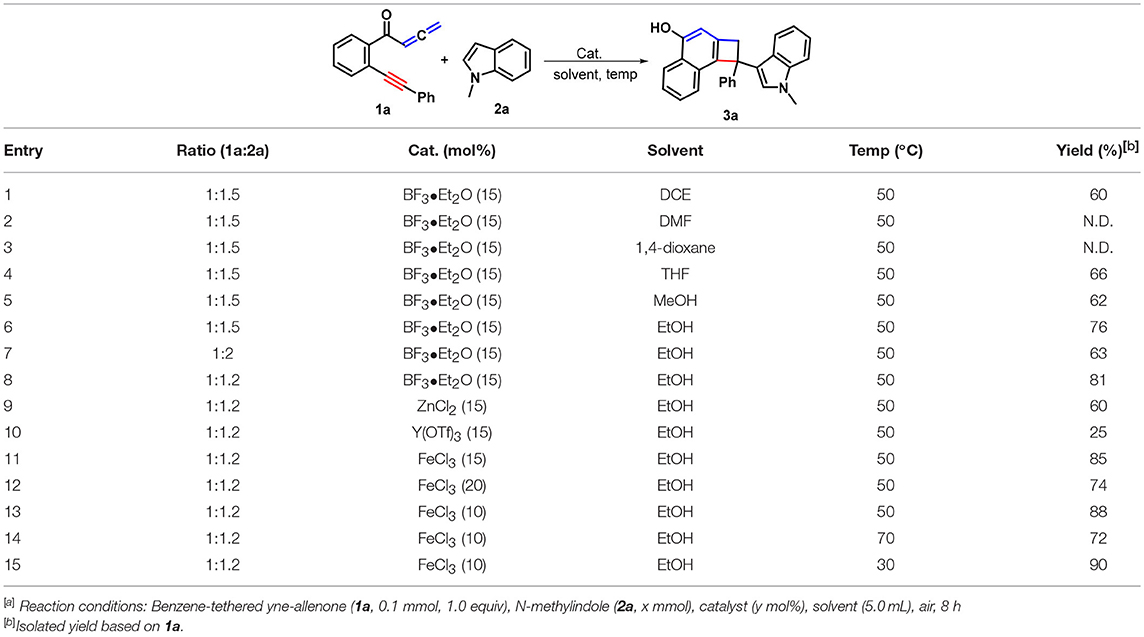

Table 1. Optimization of Reaction Conditions[a].
With these optimal conditions in hand (Table 1, entry 15), we set out to examine the scope of this Fe-catalyzed [2 + 2] cycloaddition /1,6-addition cascade by using a variety of yne-allenones and indoles. As depicted in Scheme 2, N-methylindole (2a) was first selected to evaluate the influence of substituents (R1) in the arylalkynyl moiety of yne-allenone 1. Both electron-poor and electron-rich groups at different positions of the arylalkynyl moiety (R1) can all tolerate this catalytic system, efficiently accessing the corresponding products 3b-3j in 75–98% yields. Diverse substituents, such as fluoro (1b), chloro (1c and 1d), bromo (1e), methyl (1f and 1g), methoxy (PMP = p-methoxyphenyl, 1h), ethyl(1i), t-butyl (1j) were suitable for this transformation. The presence of soft electron-withdrawing substituents (chloro, 1c and bromo, 1e) at the para-positions seemed to result in higher reactivity than that of electron-donating counterparts (3c and 3e vs. 3f and 3h-3j). Moreover, a sterically encumbered 1-naphthyl (1-Np) analog 1k was an effective candidate, which proceeded through a similar cyclization-addition process to give the corresponding product 3k in 77% yield. Besides, 2-thienyl counterpart 1l still showed high reactivity, delivering 2-thienyl product 3l in 91% yield. Next, we placed different functional groups (R2) including methoxy, methyl, and fluoro into the C4 or C5 position of the internal arene ring of substrates 1 and explored the synthetic utility of these substrates. Satisfyingly, all those substituents (1m−1u) would be compatible in the present reaction protocol, and the corresponding functionalized cyclobuta[a]naphthalen-4-ols 3m-3u in 72–92% yields were produced. Interestingly, the pyridine-tethered yne-allenone 1v could be successfully converted into cyclobutarene product 3v in 68% yield.
Scheme 2. Substrate scope for products 3.
Next, the scope with respect to indoles components was evaluated. As anticipated, the different substituents including methoxy (2b), chloro (1c and 1d), bromo (1e), methyl (1f and 1g), located at different positions of the indole ring would be accommodated, confirming the reaction efficiency, as the cyclobuta[a]naphthalen-4-ol products 3w-3bb were offered in 76–92% yields. Finally, the free indole turned out to be a suitable reaction partner, leading to the formation of products 3cc and 3dd in 78 and 81% yields, respectively. Products 3 were fully characterized by their NMR and HR-MS spectral analysis. In the case of product 3a, its structure was further confirmed by X-ray crystallography (Figure 1).

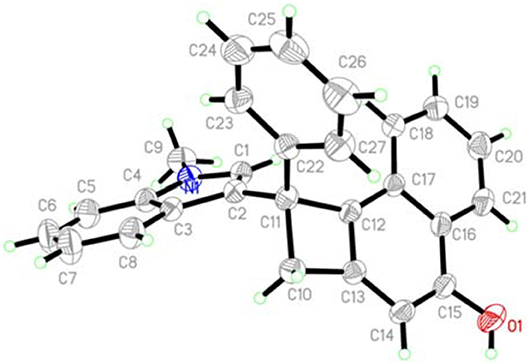

Figure 1. X-Ray structure of product 3a.
Mechanism
Based on the above experimental observations and literature reports (Haibach et al., 2011; Li et al., 2015, 2018a; Liu et al., 2016, 2017a; Ozaki et al., 2017; Sha et al., 2018b), a feasible mechanism for forming products 3 was proposed in Scheme 3. Initially, the intramolecular [2 + 2] cycloaddition of yne-allenones 1 rapidly occurs to yield cyclobutene intermediate A. In the presence of Fe-catalyst, 1,6-addition of indoles into intermediate B gives intermediate C, which converts into the final products 3 through proton transfer (PT), together with the regeneration of Fe-catalyst.

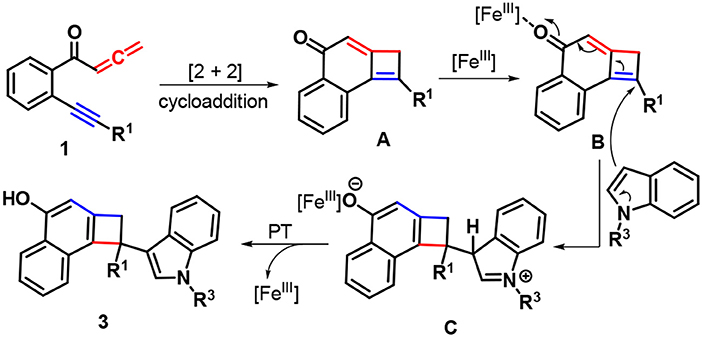

Scheme 3. Plausible reaction pathway.
Conclusion
In summary, starting from readily available yne-allenones and indoles, we have established a new Fe-catalyzed [2 + 2] cycloaddition/1,6-conjugate addition cascade for the high-efficient and benign synthesis of a variety of 3-indolyl cyclobuta[a]naphthalen-4-ols with good to excellent yields. The current green protocol has the advantages of broad scope of substrates, good tolerance of functional group and high atom utilization as well as mild reaction conditions. Further application of the resulting cyclobutarenes is underway in our laboratory.
Materials and Methods
General
All melting points are uncorrected. The NMR spectra were recorded in CDCl3 or DMSO-d6 on a 400 MHz instrument with TMS as internal standard. Chemical shifts (δ) were reported in ppm with respect to TMS. Data are represented as follows: chemical shift, mutiplicity (s = singlet, d = doublet, t = triplet, m = multiplet), coupling constant (J, Hz) and integration. HRMS analyses were carried out using a TOF-MS instrument with an ESI source. X-Ray crystallographic analysis was performed with a SMART CCD and a P4 diffractometer (the copies of NMR see Supplementary Material). All yne-allenones 1 are known compounds and their preparation followed the previously reported procedures (Wei et al., 2009; Liu et al., 2017a; Li et al., 2018b).
General Procedure for the Synthesis of 3

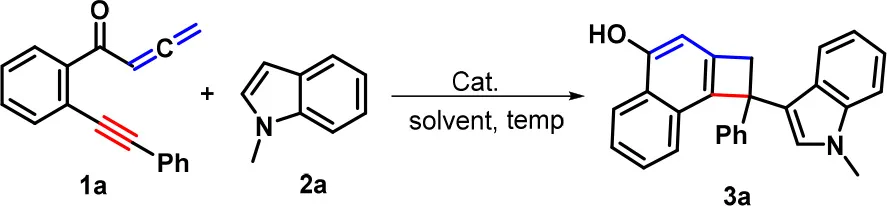

Example for the Synthesis of 3a
1-(2-(Phenylethynyl)phenyl)buta-2,3-dien-1-one (1a, 0.3 mmol, 73.2 mg) was added to a 10-mL reaction tubing under the air conditions. Then, N-methylindole (2a, 0.36 mmol, 47.2 mg) and EtOH (5 mL) were continuously added into the above reaction mixture. Subsequently, FeCl3 (10 mol%, 4.8 mg) was added to the reaction system. Then the mixture was stirred at 30°C for 8 h until complete consumption of 1a as monitored by TLC analysis. After the reaction was finished, the reaction mixture was concentrated in vacuum, and the resulting residue was purified by column chromatography on silica gel (eluent, petroleum ether/ethyl acetate = 20:1) to afford the desired product 3a as a white solid.
1-(1-methyl-1H-indol-3-yl)-1-phenyl-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3a)
White solid, 102 mg, 90% yield; mp 179-181°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.23 (s, 1H), 8.24 (d, J = 8.0 Hz, 1H), 7.51 (d, J = 7.6 Hz, 1H), 7.38 (m, 5H), 7.29 (m, 2H), 7.21 (m, 1H), 7.07 (m, 1H), 6.91-6.78 (m, 4H), 3.88 (m, 2H), 3.68 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.8, 146.1, 140.3, 137.7, 137.0, 130.1, 128.5, 128.1, 127.5, 127.4, 126.8, 126.5, 125.2, 124.4, 123.9, 122.4, 121.5, 120.1, 119.0, 118.8, 110.3, 104.9, 54.4, 47.7, 32.7; IR (KBr, ν, cm−1) 3341, 3044, 1579, 1474, 1228, 1181, 1024, 905, 806, 738; HRMS (APCI-TOF) m/z calcd for C27H20NO [M-H]− 374.1545; found 374.1546.
1-(4-fluorophenyl)-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3b)
White solid, 97 mg, 83% yield; mp 160-162°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.24 (s, 1H), 8.25 (d, J = 8.0 Hz, 1H), 7.49 (d, J = 8.0 Hz, 1H), 7.43-7.34 (m, 5H), 7.11 (m, 3H), 6.87 (m, 4H), 3.88 (m, 2H), 3.68 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 162.2 (1JCF = 240.5 Hz), 159.8, 154.9, 142.3 (4JCF = 2.9 Hz), 142.2, 140.3, 137.7, 136.8, 129.9, 129.4 (3JCF = 7.9 Hz), 129.3, 128.1, 127.5, 126.7, 125.2, 124.4, 123.9, 122.2, 121.6, 120.0, 119.1, 118.6, 115.3 (2JCF = 21.0 Hz), 115.1, 110.4, 105.0, 53.7, 47.9, 32.7; IR (KBr, ν, cm−1) 3399, 3051, 1573, 1464, 1226, 1188, 1014, 904, 808, 748; HRMS (APCI-TOF) m/z calcd for C27H19FNO [M-H]− 392.1451; found 392.1453.
1-(4-chlorophenyl)-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3c)
White solid, 114 mg, 93% yield; mp 170-172°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.27 (s, 1H), 8.24 (d, J = 8.0 Hz, 1H), 7.47 (d, J = 7.6 Hz, 1H), 7.44-7.31 (m, 7H), 7.12-7.06 (m, 1H), 6.93 (s, 1H), 6.87 (m, 3H), 3.82 (m, 2H), 3.69 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.9, 145.1, 140.3, 137.7, 136.5, 131.0, 129.9, 129.3, 128.5, 128.2, 127.6, 126.7, 125.2, 124.4, 124.0, 122.1, 121.6, 120.0, 119.1, 118.2, 110.4, 104.9, 53.7, 47.8, 32.7; IR (KBr, ν, cm−1) 3407, 3031, 1563, 1441, 1223, 1103, 1012, 909, 838, 741; HRMS (APCI-TOF) m/z calcd for C27H19ClNO [M-H]− 408.1156; found 408.1143.
1-(2-chlorophenyl)-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3d)
White solid, 92 mg, 75% yield; mp 177-179°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.31 (s, 1H), 8.30-8.19 (m, 1H), 7.65 (d, J = 7.6 Hz, 1H), 7.53 (d, J = 7.6 Hz, 1H), 7.44-7.28 (m, 6H), 6.99 (m, 1H), 6.93 (s, 1H), 6.79 (s, 1H), 6.69 (m, 1H), 6.60 (d, J = 8.0 Hz, 1H), 4.32 (d, J = 14.4 Hz, 1H), 3.71 (s, 1H), 3.66 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 155.2, 143.4, 140.3, 137.7, 135.9, 134.0, 131.0, 130.5, 130.1, 128.9, 127.9, 127.6, 127.4, 126.2, 125.2, 124.4, 123.9, 122.2, 121.1, 119.3, 118.9, 116.1, 110.2, 104.7, 55.3, 47.5, 32.7; IR (KBr, ν, cm−1) 3442, 3022, 1533, 1421, 1203, 1123, 1010, 903, 834, 721; HRMS (APCI-TOF) m/z calcd for C27H19ClNO [M-H]− 408.1156; found 408.1162.
1-(4-bromophenyl)-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3e)
White solid, 133 mg, 98% yield; mp 166-168°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.26 (s, 1H), 8.24 (d, J = 8.0 Hz, 1H), 7.48 (d, J = 8.4 Hz, 3H), 7.43-7.34 (m, 3H), 7.30 (d, J = 8.4 Hz, 2H), 7.09 (m, 1H), 6.93 (s, 1H), 6.92-6.83 (m, 3H), 3.81 (m, 2H), 3.69 (s, 3H). 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.9, 145.5, 140.3, 137.7, 136.5, 131.5, 129.9, 129.7, 128.2, 127.6, 126.7, 125.3, 124.4, 124.0, 122.1, 121.6, 120.0, 119.6, 119.1, 118.1, 110.4, 104.9, 53.8, 47.8, 32.7. IR (KBr, ν, cm−1) 3412, 3021, 1538, 1391, 1202, 1129, 1017, 906, 818, 733; HRMS (APCI-TOF) m/z calcd for C27H19BrNO [M-H]− 452.0651; found 452.0634.
1-(1-methyl-1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3f)
White solid, 94 mg, 80% yield; mp 155-157°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.20 (s, 1H), 8.23 (d, J = 8.0 Hz, 1H), 7.49 (d, J = 8.0 Hz, 1H), 7.42-7.34 (m, 3H), 7.26 (d, J = 8.0 Hz, 2H), 7.08 (d, J = 8.0 Hz, 3H), 6.92-6.79 (m, 4H), 3.80 (m, 2H), 3.68 (s, 3H), 2.26 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.7, 143.0, 140.3, 137.7, 137.2, 135.3, 130.0, 129.1, 128.0, 127.4, 127.3, 126.8, 125.2, 124.3, 123.8, 122.4, 121.5, 120.2, 119.0, 118.9, 110.3, 105.0, 54.0, 47.8, 32.7, 21.1; IR (KBr, ν, cm−1) 3418, 3009, 1541, 1401, 1192, 1121, 1012, 916, 813, 730; HRMS (APCI-TOF) m/z calcd for C28H22NO [M-H]− 388.1702; found 388.1723.
1-(1-methyl-1H-indol-3-yl)-1-(m-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3g)
White solid, 99 mg, 85% yield; mp 149-151°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.20 (s, 1H), 8.23 (d, J = 8.4 Hz, 1H), 7.51 (d, J = 8.0 Hz, 1H), 7.38 (m, 3H), 7.23 (s, 1H), 7.18 (d, J = 5.6 Hz, 2H), 7.09-7.01 (m, 2H), 6.85 (m, 4H), 3.82 (m, 2H), 3.68 (s, 3H), 2.22 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.7, 146.0, 140.3, 137.7, 137.4, 137.1, 128.4, 128.0, 127.4, 127.2, 126.8, 125.2, 124.8, 124.3, 123.8, 120.1, 118.9, 110.3, 105.0, 54.3, 47.7, 32.7, 21.8; IR (KBr, ν, cm−1) 3411, 2966, 1511, 1406, 1162, 1091, 1015, 911, 833, 727; HRMS (APCI-TOF) m/z calcd for C28H22NO [M-H]− 388.1702; found 388.1720.
1-(4-methoxyphenyl)-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3h)
White solid, 105 mg, 86% yield; mp 167-169°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.19 (s, 1H), 8.25 (d, J = 8.0 Hz, 1H), 7.50 (d, J = 8.0 Hz, 1H), 7.42-7.33 (m, 3H), 7.29 (d, J = 8.8 Hz, 2H), 7.07 (m, 1H), 6.91-6.81 (m, 6H), 3.79 (m, 2H), 3.70 (s, 3H), 3.67 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 157.9, 154.7, 140.3, 138.1, 137.7, 137.3, 130.0, 128.5, 128.0, 127.3, 126.8, 125.2, 124.4, 123.8, 122.4, 121.5, 120.2, 119.2, 118.9, 113.8, 110.3, 105.0, 55.4, 53.7, 47.9, 32.7; IR (KBr, ν, cm−1) 3417, 2996, 1517, 1403, 1177, 1096, 1013, 914, 845, 720; HRMS (APCI-TOF) m/z calcd for C28H22NO2 [M-H]− 404.1651; found 404.1638.
1-(4-ethylphenyl)-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3i)
White solid, 97 mg, 80% yield; mp 165-167°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.19 (s, 1H), 8.24 (d, J = 8.0 Hz, 1H), 7.50 (d, J = 8.0 Hz, 1H), 7.42-7.33 (m, 3H), 7.29 (d, J = 8.0 Hz, 2H), 7.13-7.04 (m, 3H), 6.90-6.77 (m, 4H), 3.80 (m, 2H), 3.68 (s, 3H), 2.56 (m, 2H), 1.15 (m, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.7, 143.3, 141.7, 140.3, 137.7, 137.2, 130.0, 128.0, 127.9, 127.4, 127.4, 126.8, 125.2, 124.3, 123.8, 122.4, 121.5, 120.2, 119.0, 118.9, 110.3, 105.0, 54.0, 47.8, 32.7, 28.2, 16.0; IR (KBr, ν, cm−1) 3387, 3013, 1510, 1406, 1167, 1091, 1012, 918, 832, 722; HRMS (APCI-TOF) m/z calcd for C29H24NO [M-H]− 402.1858; found 402.1874.
1-(4-(tert-butyl)phenyl)-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3j)
White solid, 104 mg, 80% yield; mp 178-180°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.19 (s, 1H), 8.24 (d, J = 8.4 Hz, 1H), 7.53 (d, J = 8.0 Hz, 1H), 7.35 (m, 7H), 7.07 (m, 1H), 6.93-6.78 (m, 4H), 3.81 (m, 2H), 3.68 (s, 3H), 1.25 (s, 9H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.7, 148.5, 143.0, 140.3, 137.7, 137.1, 130.1, 128.0, 127.4, 127.2, 126.8, 125.3, 125.2, 124.3, 123.8, 122.5, 121.5, 120.2, 119.0, 118.9, 110.3, 104.9, 54.0, 47.7, 34.5, 32.7, 31.6; IR (KBr, ν, cm−1) 3402, 3010, 1512, 1423, 1177, 1093, 1018, 933, 814, 711; HRMS (APCI-TOF) m/z calcd for C31H28NO [M-H]− 430.2171; found 430.2187.
1-(1-methyl-1H-indol-3-yl)-1-(naphthalen-1-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3k)
White solid, 98 mg, 77% yield; mp 162-164°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.25 (s, 1H), 8.27 (d, J = 8.0 Hz, 1H), 7.89-7.81 (m, 3H), 7.71 (d, J = 7.2 Hz, 1H), 7.57 (m, 2H), 7.47-7.34 (m, 5H), 7.08 (m, 1H), 6.95 (s, 1H), 6.91 (d, J = 6.0 Hz, 2H), 6.81 (m, 1H), 3.93 (s, 2H), 3.69 (m, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.9, 143.7, 140.4, 137.8, 137.1, 133.3, 132.1, 130.1, 128.2, 128.1, 127.8, 127.5, 126.9, 126.6, 126.5, 126.0, 125.3, 125.2, 124.4, 123.9, 122.3, 121.5, 120.1, 119.0, 118.6, 110.4, 105.1, 54.5, 47.5, 32.7; IR (KBr, ν, cm−1) 3422, 3014, 1510, 1413, 1171, 1088, 1015, 937, 825, 727; HRMS (APCI-TOF) m/z calcd for C31H22NO [M-H]− 424.1702; found 424.1713.
1-(1-methyl-1H-indol-3-yl)-1-(thiophen-2-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3l)
White solid, 104 mg, 91% yield; mp 158-160°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.26 (s, 1H), 8.26 (d, J = 8.4 Hz, 1H), 7.71 (d, J = 8.4 Hz, 1H), 7.48 (m, 1H), 7.43-7.36 (m, 2H), 7.31 (d, J = 4.8 Hz, 1H), 7.12 (m, 2H), 6.99 (d, J = 5.6 Hz, 2H), 6.92 (m, 2H), 6.85 (s, 1H), 3.98 (d, J = 13.6 Hz, 1H), 3.77 (d, J = 13.6 Hz, 1H), 3.69 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 155.0, 151.2, 140.1, 137.6, 136.8, 129.5, 127.5, 126.9, 126.6, 125.3, 124.6, 124.5, 124.4, 124.0, 122.4, 121.6, 120.2, 119.1, 119.0, 110.4, 105.0, 50.9, 48.9, 32.7; IR (KBr, ν, cm−1) 3427, 3050, 1517, 1421, 1178, 1068, 1020, 936, 821, 734; HRMS (APCI-TOF) m/z calcd for C25H18NOS [M-H]− 380.1110; found 380.1108.
6-methoxy-1-(1-methyl-1H-indol-3-yl)-1-phenyl-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3m)
White solid, 110 mg, 90% yield; mp 172-174°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.11 (s, 1H), 7.58 (d, J = 2.4 Hz, 1H), 7.43 (d, J = 8.8 Hz, 1H), 7.37 (m, 3H), 7.29 (m, 2H), 7.20 (m, 1H), 7.11-7.05 (m, 2H), 6.88-6.79 (m, 4H), 3.87 (d, J = 13.2 Hz, 1H), 3.84 (s, 3H), 3.76 (d, J = 13.6 Hz, 1H), 3.68 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 156.1, 153.7, 146.1, 137.7, 137.3, 137.2, 128.5, 128.1, 127.5, 126.8, 126.4, 126.2, 125.5, 124.0, 121.5, 120.1, 119.6, 118.9, 110.3, 105.4, 103.2, 55.5, 54.3, 47.7, 32.7; IR (KBr, ν, cm−1) 3387, 3045, 1507, 1422, 1172, 1058, 1011, 932, 827, 739; HRMS (APCI-TOF) m/z calcd for C28H22NO2 [M-H]− 404.1651; found 404.1630.
1-(4-chlorophenyl)-6-methoxy-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3n)
White solid, 121 mg, 92% yield; mp 175-177°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.15 (s, 1H), 7.59 (d, J = 2.4 Hz, 1H), 7.44-7.31 (m, 6H), 7.13-7.05 (m, 2H), 6.94-6.81 (m, 4H), 3.85 (s, 3H), 3.83-3.72 (m, 2H), 3.68 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 156.2, 153.9, 145.1, 137.7, 137.2, 136.7, 131.0, 129.3, 128.5, 128.1, 126.7, 126.3, 125.3, 123.8, 121.6, 120.0, 119.7, 119.1, 118.3, 110.4, 105.4, 103.2, 55.5, 53.7, 47.7, 32.7. IR (KBr, ν, cm−1) 3382, 3025, 1523, 1421, 1192, 1074, 1008, 934, 828, 736. HRMS (APCI-TOF) m/z calcd for C28H21NClO2 [M-H]− 438.1261; found 438.1277.
6-methoxy-1-(1-methyl-1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3o)
White solid, 102 mg, 81% yield; mp 170-172°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.09 (s, 1H), 7.59 (d, J = 2.4 Hz, 1H), 7.43 (d, J = 9.2 Hz, 1H), 7.35 (d, J = 8.0 Hz, 1H), 7.26 (d, J = 8.0 Hz, 2H), 7.07 (m, 4H), 6.89-6.80 (m, 4H), 3.84 (s, 3H), 3.83-3.72 (m, 2H), 3.67 (s, 3H), 2.26 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 156.1, 153.6, 143.1, 137.7, 137.4, 137.3, 135.3, 129.1, 128.0, 127.4, 126.8, 126.2, 125.5, 124.0, 121.5, 120.2, 119.5, 119.1, 118.9, 110.2, 105.4, 103.1, 55.5, 54.0, 47.7, 32.6, 21.1; IR (KBr, ν, cm−1) 3387, 3022, 1521, 1425, 1202, 1094, 1016, 942, 835, 721; HRMS (APCI-TOF) m/z calcd for C29H24NO2 [M-H]− 418.1808; found 418.1822.
7-methyl-1-(1-methyl-1H-indol-3-yl)-1-phenyl-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3p)
White solid, 84 mg, 72% yield; mp 147-149°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.12 (s, 1H), 8.14 (d, J = 8.8 Hz, 1H), 7.38 (m, 3H), 7.32-7.26 (m, 3H), 7.20 (m, 2H), 7.08 (m, 1H), 6.88 (d, J = 4.4 Hz, 2H), 6.86-6.77 (m, 2H), 3.86 (d, J = 13.6 Hz, 1H), 3.73 (d, J = 13.6 Hz, 1H), 3.69 (s, 3H), 2.32 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.8, 146.2, 140.5, 137.7, 136.6, 136.3, 130.4, 128.5, 128.1, 127.5, 126.8, 126.4, 126.0, 124.3, 123.5, 121.5, 121.3, 120.2, 118.9, 118.9, 110.3, 104.2, 54.4, 47.9, 32.7, 22.0; IR (KBr, ν, cm−1) 3507, 3052, 1522, 1420, 1201, 1098, 1015, 944, 841, 727; HRMS (APCI-TOF) m/z calcd for C28H22NO [M-H]− 388.1702; found 388.1727.
1-(4-chlorophenyl)-7-methyl-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3q)
White solid, 114 mg, 90% yield; mp 152-154°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.16 (s, 1H), 8.14 (d, J = 8.4 Hz, 1H), 7.40-7.33 (m, 5H), 7.25 (s, 1H), 7.19 (d, J = 8.8 Hz, 1H), 7.09 (m, 1H), 6.94-6.83 (m, 3H), 6.79 (s, 1H), 3.85 (d, J = 13.6 Hz, 1H), 3.73 (s, 1H), 3.70 (s, 3H), 2.33 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.9, 145.2, 140.4, 137.7, 136.7, 135.9, 131.0, 130.2, 129.4, 128.5, 128.2, 126.7, 126.1, 124.4, 123.5, 121.6, 121.1, 120.1, 119.1, 118.3, 110.4, 104.2, 53.7, 47.9, 32.7, 22.0; IR (KBr, ν, cm−1) 3495, 3042, 1520, 1402, 1221, 1084, 1016, 947, 831, 709; HRMS (APCI-TOF) m/z calcd for C28H21ClNO [M-H]− 422.1312; found 422.1314.
7-methyl-1-(1-methyl-1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3r)
White solid, 96 mg, 79% yield; mp 153-155°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.10 (s, 1H), 8.14 (d, J = 8.4 Hz, 1H), 7.36 (d, J = 8.4 Hz, 1H), 7.26 (d, J = 8.0 Hz, 3H), 7.18 (d, J = 8.8 Hz, 1H), 7.08 (m, 3H), 6.90 (d, J = 8.8 Hz, 2H), 6.83 (m, 1H), 6.79 (s, 1H), 3.88-3.69 (m, 2H), 3.68 (s, 3H), 2.32 (s, 3H), 2.26 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.7, 143.1, 140.4, 137.7, 136.5, 136.5, 135.3, 130.3, 129.1, 128.0, 127.4, 126.9, 126.0, 124.3, 123.4, 121.5, 121.3, 120.3, 119.0, 118.9, 110.3, 104.2, 54.0, 47.9, 32.7, 22.0, 21.1; IR (KBr, ν, cm−1) 3490, 3031, 1500, 1422, 1213, 1090, 1012, 948, 843, 719; HRMS (APCI-TOF) m/z calcd for C29H24NO [M-H]− 402.1858; found 402.1844.
7-fluoro-1-(1-methyl-1H-indol-3-yl)-1-phenyl-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3s)
White solid, 96 mg, 81% yield; mp 144-146°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.36 (s, 1H), 7.87 (m, 1H), 7.55 (m, 1H), 7.33 (m, 6H), 7.21 (m, 1H), 7.08 (m, 1H), 6.93 (s, 1H), 6.91-6.77 (m, 3H), 3.84 (m, 2H), 3.68 (s, 3H). 13C NMR (100 MHz, DMSO-d6; δ, ppm) 160.3 (1JCF = 239.4 Hz), 157.9, 154.2, 154.1, 145.8, 139.7 (6JCF = 2.4 Hz), 139.6, 137.7, 137.3, 128.6, 128.1, 127.5, 127.2, 126.8, 126.7 (3JCF = 19.7 Hz), 125.9 (5JCF = 8.1 Hz), 125.8, 125.1 (4JCF = 8.4 Hz), 125.0, 121.5, 120.0, 119.0, 118.6, 117.5, 117.3, 110.3, 108.0 (2JCF = 21.7 Hz), 107.8, 106.0, 54.4, 47.8, 32.7; IR (KBr, ν, cm−1) 3501, 3021, 1502, 1421, 1215, 1099, 1014, 962, 883, 712; HRMS (APCI-TOF) m/z calcd for C27H19FNO [M-H]− 392.1451; found 392.1459.
1-(4-chlorophenyl)-7-fluoro-1-(1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3t)
White solid, 117 mg, 91% yield; mp 149-151°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.44 (s, 1H), 8.30 (m, 1H), 7.41-7.32 (m, 5H), 7.24 (m, 1H), 7.12-7.04 (m, 2H), 6.98 (s, 1H), 6.86 (d, J = 13.2 Hz, 3H), 3.82 (m, 2H), 3.71 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 160.0 (1JCF = 231.6 Hz), 157.1, 155.3, 144.8, 142.4, 137.8, 136.2 (6JCF = 3.4 Hz), 136.1, 131.1, 130.5 (5JCF = 9.6 Hz), 130.4, 129.3, 128.6, 128.2, 127.8 (4JCF = 9.9 Hz), 126.6, 122.4, 121.6, 119.9, 119.2, 117.8, 113.9 (2JCF = 24.1 Hz), 113.6, 110.5, 105.5 (3JCF = 20.3 Hz), 105.3, 104.5, 53.7, 47.7, 32.7; IR (KBr, ν, cm−1) 3512, 3020, 1505, 1411, 1210, 1095, 1010, 966, 861, 740; HRMS (APCI-TOF) m/z calcd for C27H18ClFNO [M-H]− 426.1061; found 426.1066.
6-fluoro-1-(1-methyl-1H-indol-3-yl)-1-phenyl-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3u)
White solid, 97 mg, 82% yield; mp 148-150°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.41 (s, 1H), 8.30 (m, 1H), 7.38 (d, J = 8.8 Hz, 3H), 7.30 (m, 2H), 7.24 (m, 2H), 7.08 (m, 2H), 6.94 (s, 1H), 6.90-6.79 (m, 3H), 3.84 (m, 2H), 3.70 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 162.3 (1JCF = 243.8 Hz), 160.0, 155.1, 145.8, 142.4, 137.8, 136.7 (6JCF = 5.1 Hz), 130.7 (5JCF = 9.3 Hz), 130.6, 128.6, 128.1, 127.8, 127.7 (4JCF = 9.6 Hz), 127.4, 126.7, 126.6, 122.4, 121.5, 120.0, 119.0, 118.4, 113.8 (2JCF = 24.8 Hz), 113.5, 110.4, 105.7 (3JCF = 20.1 Hz), 105.5, 104.6, 54.3, 47.7, 32.7; IR (KBr, ν, cm−1) 3502, 3047, 1502, 1422, 1235, 1099, 1015, 946, 851, 733; HRMS (APCI-TOF) m/z calcd for C27H19FNO [M-H]− 392.1451; found 392.1450.
8-(1-methyl-1H-indol-3-yl)-8-(p-tolyl)-7,8-dihydrocyclobuta[h]quinolin-5-ol (3v)
White solid, 80 mg, 68% yield; mp 162-164°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.56 (s, 1H), 8.88 (m, 1H), 8.60 (d, J = 8.4 Hz, 1H), 7.72 (d, J = 8.0 Hz, 2H), 7.41 (dd, J = 8.4, 4.2 Hz, 1H), 7.32 (d, J = 8.0 Hz, 1H), 7.23 (d, J = 8.0 Hz, 1H), 7.07 (d, J = 8.0 Hz, 3H), 7.01 (s, 1H), 6.90 (s, 1H), 6.85 (m, 1H), 3.91 (m, 2H), 3.64 (s, 3H), 2.23 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 155.0, 151.2, 145.1, 143.9, 137.5, 137.1, 135.0, 132.7, 128.8, 128.3, 128.1, 126.5, 121.3, 120.4, 120.3, 120.1, 119.3, 118.8, 110.1, 105.3, 55.2, 46.1, 32.6, 21.1; IR (KBr, ν, cm−1) 3545, 3067, 1552, 1421, 1230, 1129, 1012, 949, 840, 730; HRMS (APCI-TOF) m/z calcd for C27H21N2O [M-H]− 389.1654; found 389.1657.
1-(4-chlorophenyl)-1-(5-methoxy-1-methyl-1H-indol-3-yl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3w)
White solid, 121 mg, 92% yield; mp 166-168°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.27 (s, 1H), 8.27 (d, J = 8.0 Hz, 1H), 7.48 (d, J = 8.0 Hz, 1H), 7.44-7.33 (m, 6H), 7.27 (d, J = 8.8 Hz, 1H), 6.88 (d, J = 10.8 Hz, 2H), 6.74 (m, 1H), 6.24 (d, J = 2.0 Hz, 1H), 3.81 (m, 2H), 3.64 (s, 3H), 3.49 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 155.0, 153.3, 145.0, 140.5, 136.5, 133.1, 131.1, 130.0, 129.4, 128.7, 128.5, 127.6, 127.0, 125.3, 124.4, 124.0, 122.2, 117.6, 111.0, 110.9, 104.8, 102.4, 55.5, 53.8, 47.7, 32.8; IR (KBr, ν, cm−1) 3504, 2997, 1534, 1401, 1233, 1149, 1010, 942, 847, 736; HRMS (APCI-TOF) m/z calcd for C28H21NClO2 [M-H]− 438.1261; found 438.1267.
1-(5-methoxy-1-methyl-1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3x)
White solid, 107 mg, 85% yield; mp 170-172°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.21 (s, 1H), 8.25 (d, J = 8.0 Hz, 1H), 7.49 (d, J = 8.0 Hz, 1H), 7.43-7.33 (m, 2H), 7.29 (d, J = 8.0 Hz, 2H), 7.25 (d, J = 8.8 Hz, 1H), 7.11 (d, J = 7.6 Hz, 2H), 6.88 (s, 1H), 6.82 (s, 1H), 6.72 (m, 1H), 6.22 (d, J = 2.0 Hz, 1H), 3.79 (m, 2H), 3.63 (s, 3H), 3.47 (s, 3H), 2.27 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.8, 153.1, 143.0, 140.5, 137.1, 135.3, 133.1, 130.2, 129.1, 128.6, 127.5, 127.4, 127.1, 125.2, 124.4, 123.8, 122.4, 118.4, 110.8, 110.7, 104.9, 102.6, 55.5, 54.1, 47.7, 32.8, 21.1; IR (KBr, ν, cm−1) 3487, 3022, 1520, 1422, 1200, 1097, 1012, 944, 833, 725; HRMS (APCI-TOF) m/z calcd for C29H24NO2 [M-H]− 418.1808; found 418.1838.
1-(7-chloro-1-methyl-1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3y)
White solid, 113 mg, 89% yield; mp 163-165°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.24 (s, 1H), 8.24 (d, J = 8.0 Hz, 1H), 7.48 (d, J = 7.6 Hz, 1H), 7.38 (m, 2H), 7.23 (d, J = 8.0 Hz, 2H), 7.06 (d, J = 8.4 Hz, 2H), 6.93 (s, 1H), 6.88-6.76 (m, 4H), 3.99 (s, 3H), 3.78 (s, 2H), 2.24 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.8, 142.5, 140.2, 136.9, 135.5, 132.6, 131.2, 130.2, 129.9, 129.2, 127.4, 127.3, 125.2, 124.4, 123.9, 123.0, 122.2, 120.1, 119.6, 119.3, 116.5, 104.9, 53.6, 47.6, 36.5, 21.0; IR (KBr, ν, cm−1) 3505, 3022, 1524, 1400, 1209, 1082, 1012, 945, 833, 719; HRMS (APCI-TOF) m/z calcd for C28H21ClNO [M-H]− 422.1312; found 422.1304.
1-(1,7-dimethyl-1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3z)
White solid, 93 mg, 77% yield; mp 165-167°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.17 (s, 1H), 8.23 (d, J = 8.0 Hz, 1H), 7.48 (d, J = 8.0 Hz, 1H), 7.37 (m, 2H), 7.22 (d, J = 8.0 Hz, 2H), 7.06 (d, J = 8.0 Hz, 2H), 6.85 (s, 1H), 6.79-6.64 (m, 4H), 3.93 (s, 3H), 3.77 (s, 2H), 2.68 (s, 3H), 2.25 (s, 3H). 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.6, 143.0, 140.3, 137.4, 136.3, 135.3, 129.9, 129.6, 129.1, 128.0, 127.3, 125.2, 124.3, 124.0, 123.8, 122.4, 121.8, 119.1, 118.5, 118.4(5), 118.3(9), 105.0, 53.8, 47.6, 36.6, 21.1, 19.7; IR (KBr, ν, cm−1) 3468, 3056, 1480, 1424, 1203, 1095, 1010, 958, 844, 722; HRMS (APCI-TOF) m/z calcd for C29H24NO [M-H]− 402.1858; found 402.1844.
1-(6-methoxy-1-methyl-1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3aa)
White solid, 96 mg, 76% yield; mp 171-173°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.18 (s, 1H), 8.23 (d, J = 8.0 Hz, 1H), 7.48 (d, J = 8.0 Hz, 1H), 7.41-7.32 (m, 2H), 7.26 (d, J = 8.0 Hz, 2H), 7.08 (d, J = 8.0 Hz, 2H), 6.89 (d, J = 2.0 Hz, 1H), 6.85 (s, 1H), 6.70 (d, J = 10.4 Hz, 2H), 6.48 (m, 1H), 3.81 (m, 2H), 3.75 (s, 3H), 3.63 (s, 3H), 2.26 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 156.0, 154.6, 143.1, 140.3, 138.5, 137.3, 135.3, 130.0, 129.1, 127.4, 127.3, 126.8, 125.2, 124.3, 123.8, 122.4, 121.1, 120.7, 119.1, 109.0, 105.0, 93.6, 55.7, 54.0, 47.8, 32.7, 21.1; IR (KBr, ν, cm−1) 3487, 3020, 1521, 1420, 1212, 1091, 1011, 944, 836, 729; HRMS (APCI-TOF) m/z calcd for C29H24NO2 [M-H]− 418.1808; found 418.1822.
1-(5-bromo-1-methyl-1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3bb)
White solid, 121 mg, 76% yield; mp 175-177°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.22 (s, 1H), 8.25 (d, J = 8.0 Hz, 1H), 7.46 (d, J = 8.0 Hz, 1H), 7.40 (m, 3H), 7.25 (d, J = 8.4 Hz, 2H), 7.20 (d, J = 8.0 Hz, 1H), 7.10 (d, J = 8.0 Hz, 2H), 6.95 (s, 1H), 6.93 (s, 1H), 6.86 (s, 1H), 3.84-3.74 (m, 2H), 3.69 (s, 3H), 2.27 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.8, 142.5, 140.3, 136.8, 136.5, 135.5, 129.9, 129.6, 129.2, 128.4, 127.5, 127.3, 125.2, 124.4, 124.0, 122.2, 118.8, 112.6, 111.6, 104.9, 53.7, 47.8, 32.9, 21.1; IR (KBr, ν, cm−1) 3531, 3050, 1522, 1404, 1242, 1121, 1017, 945, 836, 720; HRMS (APCI-TOF) m/z calcd for C28H21BrNO [M-H]− 466.0807; found 466.0815.
1-(1H-indol-3-yl)-1-(p-tolyl)-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3cc)
White solid, 88 mg, 78% yield; mp 156-158°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.86 (s, 1H), 10.20 (s, 1H), 8.26 (d, J = 8.4 Hz, 1H), 7.52 (d, J = 8.0 Hz, 1H), 7.38 (m, 3H), 7.27 (d, J = 8.4 Hz, 2H), 7.08 (d, J = 8.0 Hz, 2H), 7.02 (m, 1H), 6.96-6.88 (m, 3H), 6.81 (m, 1H), 3.82 (m, 2H), 2.25 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.6, 143.2, 140.3, 137.4, 137.4, 135.3, 130.0, 129.1, 127.4, 127.3, 126.6, 125.2, 124.4, 123.8, 123.7, 122.4, 122.0, 121.3, 120.0, 119.7, 118.8, 112.1, 105.0, 54.1, 47.6, 21.1; IR (KBr, ν, cm−1) 3501, 3408, 3051, 1520, 1402, 1240, 1118, 1010, 943, 816, 723; HRMS (APCI-TOF) m/z calcd for C27H20NO [M-H]− 374.1545; found 374.1529.
1-(6-methyl-1H-indol-3-yl)-1-phenyl-1,2-dihydrocyclobuta[a]naphthalen-4-ol (3dd)
White solid, 91 mg, 81% yield; mp 172-174°C; 1H NMR (400 MHz, DMSO-d6; δ, ppm) 10.72 (s, 1H), 10.18 (s, 1H), 8.25 (d, J = 8.4 Hz, 1H), 7.52 (d, J = 8.0 Hz, 1H), 7.44-7.34 (m, 4H), 7.26 (m, 3H), 7.18 (m, 1H), 6.86 (d, J = 6.8 Hz, 3H), 6.79 (s, 1H), 3.83 (s, 2H), 2.22 (s, 3H); 13C NMR (100 MHz, DMSO-d6; δ, ppm) 154.6, 146.2, 140.4, 137.5, 135.7, 129.9, 128.5, 127.3, 127.1, 126.9, 126.3, 125.2, 124.4, 123.8, 123.0, 122.4, 119.6, 119.0, 111.9, 105.0, 54.2, 47.5, 21.9; IR (KBr, ν, cm−1) 3518, 3401, 3050, 1570, 1392, 1242, 1110, 1023, 941, 826, 721; HRMS (APCI-TOF) m/z calcd for C27H20NO [M-H]− 374.1545; found 374.1553.
X-Ray Structure of Product 3a (CCDC 1867087)
The crystal of compound 3a belongs to Triclinic, space group P-1 with a = 8.5599(7) Å, b = 12.1512(11) Å, c = 12.5112(12) Å, α = 100.943(2)°, β = 94.2510(10)°, γ = 106.823(3)°, V = 1211.40(19) Å3, Mr = 433.53, Z = 2, Dc = 1.743 g/cm3, μ(MoKα) = 0.074 mm−1, F(000) = 460, the final R = 0.0495 and wR = 0.1118.
Author Contributions
HL, BJ, and GL designed the project. HL performed the experiments. HL, W-JH, and S-JT analyzed the data. HL, BJ, and GL wrote the manuscript.
Funding
We are grateful for financial support from the NSFC (Nos. 21332005, 21472071 and 21871112), the Outstanding Youth Fund of JSNU (YQ2015003) and Robert A. Welch Foundation (D-1361, USA).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2018.00599/full#supplementary-material
