Electrospun ZnO–SnO2 Composite Nanofibers and Enhanced Sensing Properties to SF6 Decomposition Byproduct H2S

Hydrogen sulfide (H₂S) is an important decomposition component of sulfur hexafluoride (SF₆), which has been extensively used in gas-insulated switchgear (GIS) power equipment as insulating and arc-quenching medium. In this work, electrospun ZnO-SnO₂ composite nanofibers as a promising sensing material for SF₆ decomposition component H₂S were proposed and prepared. The crystal structure and morphology of the electrospun ZnO-SnO₂ samples were investigated by X-ray diffraction (XRD), scanning electron microscopy (SEM) and transmission electron microscopy (TEM), respectively. The composition of the sensitive materials was analyzed by energy dispersive X-ray spectrometers (EDS) and X-ray photoelectron spectroscopy (XPS). Side heated sensors were fabricated with the electrospun ZnO-SnO₂ nanofibers and the gas sensing behaviors to H₂S gas were systematically investigated. The proposed ZnO–SnO₂ composite nanofibers sensor showed lower optimal operating temperature, enhanced sensing response, quick response/recovery time and good long-term stability against H₂S. The measured optimal operating temperature of the ZnO–SnO₂ nanofibers sensor to 50 ppm H₂S gas was about 250°C with a response of 66.23, which was 6 times larger than pure SnO₂ nanofibers sensor. The detection limit of the fabricated ZnO–SnO₂ nanofibers sensor toward H₂S gas can be as low as 0.5 ppm. Finally, a plausible sensing mechanism for the proposed ZnO–SnO₂ composite nanofibers sensor to H₂S was also discussed.

Introduction

Sulfur hexafluoride (SF₆) insulating gas has excellent insulation performance and arc quenching. It is widely applied in gas-insulated switchgear (GIS) of power system as electrical insulator as well as arc-quenching medium (Beroual and Haddad, 2017; Zhang X. et al., 2017). However, partial discharge and disruptive discharge might occur in GIS equipment during the long run, accounting for the SF₆ gas decomposing to various decomposition components, such as H₂S, SO₂, SOF₂, SO₂F₂ (Tsai, 2007; Liu et al., 2017). Previous researches have reported that these typical decomposition components are able to accelerate the corrosion rate of the GIS equipment and increase the paralysis possibility of the power system (Zhang X. et al., 2016; Li et al., 2017). Therefore, accurate and effective detection of SF₆ gas decomposition components is significant to estimate and optimize the operation state of GIS power equipment.

Semiconductor metal oxides such as SnO₂ (Qi et al., 2014; Li et al., 2016; Shahabuddin et al., 2017; Zhou et al., 2018a), ZnO (Zhou et al., 2013; Zuo et al., 2013; Zhu et al., 2018), TiO₂ (Zeng et al., 2012; Park et al., 2017; Zhang Y. X. et al., 2018), NiO (Zhang Y. et al., 2016; Zhou et al., 2018b,c) are the most investigated group for gas sensors owing to their outstanding gas response and selectivity. Sensing nanostructure with high surface area and full electron depletion is advantageous to enhance the sensing performances (Hao et al., 2012; Miller et al., 2014). In particular, the 1D nanostructures such as nanofibers (Jiang et al., 2016), nanorods (Zhang et al., 2014; Zou et al., 2016), and nanotubes (Kong et al., 2015) have been extensively applied to improve gas sensing properties (Li T. M. et al., 2015; Long et al., 2018). Besides, many studies indicated that the selectivity and other important sensing parameters of semiconductor metal oxide nanomaterials can be enhanced by compositing semiconductor metal oxides (Zhou et al., 2015; Tomer and Duhan, 2016; Wang et al., 2017). Jae-Hun Kim et al. systematically investigated the sensing applications of xSnO₂-(1-x)Co₃O₄ composite nanofibers and reported that the 0.5SnO₂-0.5Co₃O₄ sensor exhibited the most outstanding sensing characteristics (Kim et al., 2017). As one of the most important decomposition components of SF₆, H₂S has been widely studied in the past few years. A variety of composite metal oxides like Cu₂O-SnO₂ (Cui et al., 2013), CeO-SnO₂ (Fang et al., 2000), NiO-ZnO (Qu et al., 2016), and PdO-NiO (Balamurugan et al., 2017) have been reported as promising materials for H₂S gas sensing applications. However, the report of ZnO-SnO₂ composite nanofibers for H₂S gas sensing has been only investigated in a limited number of reports.

In this present work, we have successfully synthesized ZnO-SnO₂ nanofibers by electrospinning method and systematically investigated their sensing performances to H₂S gas. The prepared ZnO-SnO₂ nanofibers exhibited significantly improved sensing properties containing high response, low detection limit, low operating temperature and fast response/recovery times to H₂S gas detection, which can be ascribed to the large surface area of nanofiber structure and the formation of n-n heterojunctions at interface between ZnO and SnO₂. Finally, a plausible sensing mechanism for the proposed ZnO–SnO₂ composite nanofibers sensor to H₂S was also discussed.

Experimental

Materials Synthesis

Zinc nitrate hexahydrate (Zn(NO₃)₂·6H₂O), stannic chloride pentahydrate (SnCl₄·5H₂O), N,N-dimethylformamide (DMF), polyvinylpyrrolidone (PVP, Mw = 1,300,000) and ethanol were of analytical graded and used directly without further purification. All chemicals were purchased from Chongqing Chuandong Chemical Reagent Co., Ltd (Lu et al., 2018).

In the typical synthesis of ZnO-SnO₂ composite nanofibers, 0.7 g of SnCl₄·5H₂O and 0.6 g Zn(NO₃)₂·6H₂O (the molar ratio was 1:1) were dissolved in 5 ml of mixed solvents of ethanol and DMF (The volume ratio was 1:1) and stirred for 2 h. Then 2 g of PVP was added to the mixture and stirred for 24 h to form a viscous and homogeneous solution at room temperature. During electrospinning, the obtained mixture was delivered to a glass syringe. A voltage of 25 kV was applied between the flat aluminum foil and syringe at an electrode distance of 15 cm as shown in Figure 1 and the flow rate is 0.7 ml/h. Finally, the electrospun nanofibers were transferred to a tube furnace and the specimens were annealed at 600°C for 3 h in air for the removal of PVP. For comparison, the pure SnO₂ nanofibers were also synthesized without adding Zn(NO₃)₂·6H₂O. The schematic illustration of producing electrospun ZnO-SnO₂ composite nanofibers was shown in Figure 1 (Bai et al., 2018).

FIGURE 1

Figure 1. Schematic illustration of producing electrospun ZnO-SnO₂ nanofibers.

Materials Characterization

To investigate the structures of electrospun ZnO-SnO₂ nanofibers, X-ray diffraction (XRD, D/Max-1200X, Rigaku, Japan) analysis was carried out at room temperature using a Rigaku D/Max-1200X diffractometry with Cu-Kα radiation (λ = 1.542 Å) over Bragg angles from 20° to 75° and the scanning speed of 2 deg/min. The morphologies of the electrospun nanofibers were investigated with a field emission scanning electronic microscopy (FESEM, JSM-6700F, JEOL, Japan) and transmission electron microscopy (TEM, JEM-2100, JEOL, Japan) operated at 120 kV. The energy dispersive X-ray spectrum analysis (EDS, Oxford INCA 250, JEOL, Japan) and X-ray photoelectron spectroscopy analysis (XPS, KRATOS X SAM800, Kratos, Kingdom) were tested to analyze the elemental compositions of the sample (Lu et al., 2018).

Gas Sensor Measurements

Gas sensors were fabricated with a side heated structure as shown in Figure 2A and a theoretic diagram of the test circuit was showed in Figure 2B. As shown in Figure 2A, there are two gold electrodes connected with platinum wire at both ends of the ceramic tube. Firstly, the as-prepared powder was mixed with appropriate amount of anhydrous ethanol and deionized water to form a homogeneous paste (Xu et al., 2015). Then the obtained paste was coated onto a prefabricated ceramic tube to form the sensing film and dried at room temperature for 2 h. Next a Ni–Cr heating wire was inserted into the ceramic tube to finish the side heated H₂S gas sensor. Finally, the stability of the sensing materials was improved by putting the sensor on the aging instrument of the side heated sensor at 120°C for 10 days. The sensor response was defined as S = R_a/R_g (Zhang Q. Y. et al., 2017), where R_a and R_g were the resistances of the sensing material measured in air and in atmosphere containing target test gas H₂S, respectively (Zhu et al., 2017). Gas sensing properties of the obtained sensors were performed with the CGS-8 TP intelligent gas sensing analysis system (Chemical gas sensor-8, Beijing Elite Tech Co., Ltd., China). The response time was defined as the time required by the sensor to reach 90% of the final stable resistance when target gas in. The recovery time is the time required to return to 90% of its original baseline resistance when the sensor was exposed in air again (Nan et al., 2017). The sensing measurement were tested under laboratory condition with room temperature 25°C and constant humidity (50% relative humidity).

FIGURE 2

Figure 2. (A) Schematic structure of the ZnO-SnO₂ nanofibers gas sensor and (B) theoretic diagram of the test circuit.

Results and Discussion

Morphology and Structure

Figure 3 shows the XRD pattern of the electrospun ZnO-SnO₂ composite nanofibers. It can be seen from Figure 3 that the XRD peaks are in accordance with the hexagonal wurtzite ZnO and tetragonal rutile SnO₂, compared with the standard pattern of JCPDS card No. 36-1451 and No. 41-1445, respectively. There is neither apparent peak shift nor any other phase corresponding SnO, ZnSnO₃ and Zn₂SnO₄, confirming that there are only SnO₂ and ZnO co-exist in the prepared material. The result shows a possibility of developing n–n heterojunction at the interface between ZnO and SnO₂ nanomaterial (Bai et al., 2018). The crystallite sizes of nanoparticels were calculated using Scherrer's equation (D = kλ/βcosθ) (Lu et al., 2018), and the average crystallite sizes of nanofibers were calculated by diffraction peaks (100), (101) for ZnO, and (110), (101), (221) for SnO₂. After calculation, the average crystallite size of ZnO is 20.1 nm, while it is 19.8 nm of SnO₂.

FIGURE 3

Figure 3. XRD pattern of ZnO-SnO₂ nanofibers sensing material.

Figure 4 presents the FESEM and TEM images of the as-prepared ZnO-SnO₂ nanofibers after annealing. Figure 4a consists of randomly oriented nanofibers with diameters of 80–150 nm and lengths of 0.5–2 μm. Besides, the ZnO-SnO₂ nanofibers consist of nanoparticles and surface of nanofibers is rough, which can be attributed to thermal decomposition of PVP caused by annealing. More structural information of the ZnO-SnO₂ nanofibers is researched by TEM characterization as shown in Figure 4b, the single fiber is composed of grain-like nanoparticles with around 20 nm in size.

FIGURE 4

Figure 4. (a) FESEM image and (b) TEM image of electrospun ZnO-SnO₂ nanofibers.

Figure 5 demonstrates the EDS spectrum of the electrospun ZnO-SnO₂ nanofibers. It can be seen that the ZnO–SnO₂ composite nanofibers are composed of Zn, Sn, and O elements and the atomic ratio of Zn and Sn is about 19.63:20.76.

FIGURE 5

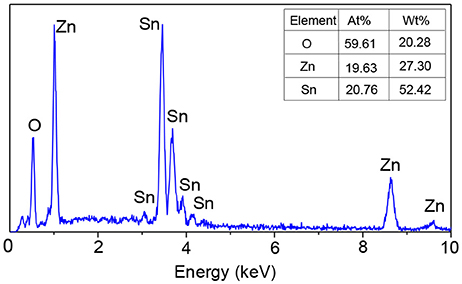

Figure 5. EDS pattern of electrospun ZnO-SnO₂ nanofibers sample.

To further analyze the compositions and element valences of the ZnO-SnO₂ nanofibers, XPS tests were investigated. Figure 6A shows the full range XPS survey spectra of the sample. It confirms the presence of Zn, O, Sn from prepared nanomaterial and C element which is due to the carbon contamination. The binding energies were calibrated using C 1 s hydrocarbon peak at 284.54 eV. Figures 6B,C demonstrate the high resolution spectra of the Zn 2p and Sn 3d energy state, respectively. The Zn 2p XPS spectrum (Figure 6B) presents the doublet peaks located at binding energies of 1045.6 eV and 1022.6eV, which corresponds to Zn 2p_1/2 and Zn 2p_3/2, respectively (Li W. Q. et al., 2015). The result indicates that the Zn²⁺ is the dominant species in the prepared material and in good agreement with the reported data for ZnO (Zhao et al., 2015). Figure 6C shows the binding energy of Sn 3d_5/2, Sn 3d_3/2 are 487.6eV and 496.1eV respectively, which are assigned to the highest oxidation state of Sn⁴⁺ for SnO₂ (Hamrouni et al., 2014; Chen et al., 2018). It further confirmed that ZnO and SnO₂ coexist in the samples.

FIGURE 6

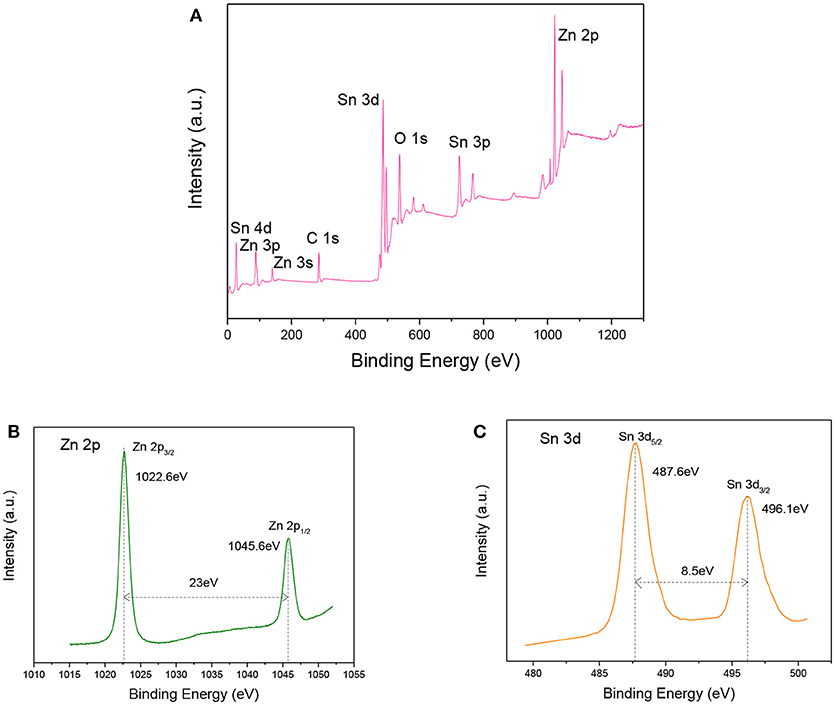

Figure 6. (A) Survey, (B) Zn 2p, (C) Sn 3d XPS spectra of electrospun ZnO–SnO₂ nanofibers.

Gas-Sensing Properties

The gas sensor responses of pure SnO₂ and ZnO-SnO₂ nanofibers sensors as a function of temperatures in the range of 100–375°C toward 50 ppm of H₂S gas were tested and shown in Figure 7. The sensing responses of all the prepared sensors increase with increasing temperature and attain a maximum value at 300 and 250°C for pure SnO₂ and ZnO-SnO₂ nanofibers sensor, respectively. With further increase in temperature, the sensing responses begin to decrease because desorption of H₂S is dominated and the amount of the adsorbed gas onto the surface decreases (Zhang et al., 2018). The response of gas sensor based on ZnO-SnO₂ nanofibers for 50 ppm H₂S gas at operating temperature of 250°C is 66.23, while it is 10.49 and 300°C for the pure SnO₂ nanofibers based sensor. The results indicate that ZnO-SnO₂ composite nanofibers can obviously improve the response to H₂S at different working temperatures and reduce the optimal operating temperature.

FIGURE 7

Figure 7. Response to 50 ppm H₂S at different operating temperature of SnO₂ and ZnO-SnO₂ nanofibers sensors.

Figure 8 shows the H₂S gas responses of pure SnO₂ and ZnO-SnO₂ nanofibers based sensors to different concentration of H₂S in the range of 0.5–100 ppm at their optimal operating temperatures measured above. The measured results show that gas responses of the as-prepared gas sensors increase in a good linear relationship from 0.5 to 100 ppm. The linear relationship of the response and gas concentration satisfies linear equation y = 1.1003x+6.90664 for electrospun ZnO-SnO₂ nanofibers gas sensor. The higher response of ZnO-SnO₂ nanofibers can be explained by the formation of n-n heterojunctions at the interface between ZnO and SnO₂. Moreover, the sensor detection limit was defined as the target gas concentration value at which the response is above 3. The response of the ZnO-SnO₂ nanofibers sensor to 0.5 ppm H₂S gas can reach up to 3.45, indicating that the detection limit of the sensor for detecting H₂S gas is as low as sub-ppm level.

FIGURE 8

Figure 8. Gas responses for H₂S gas (0.5–100 ppm) using pure SnO₂ and ZnO-SnO₂ nanofibers sensors at their optimal working temperature.

The dynamic response and recovery curve of the ZnO-SnO₂ nanofibers sensor for 1, 5, 30, and 50 ppm H₂S gas was performed and shown in Figure 9. The obtained sensing response values are about 7.25, 13.37, 40.31, and 66.23, respectively. The ZnO-SnO₂ nanofibers sensor responds rapidly and could recover to its initial value when it was exposed to air again, implying a satisfying stability and reproducibility of the proposed H₂S gas sensor.

FIGURE 9

Figure 9. Dynamic response-recovery curve of the sensor based upon ZnO-SnO₂ nanofibers at 250°C.

Figures 10A,B illustrate the response-recovery curve of electrospun ZnO-SnO₂ nanofibers sensor and pure SnO₂ nanofibers sensor to 50 ppm of H₂S gas at their optimal operating temperature mentioned above. From the curves, it is observed that the response and recovery time of the ZnO-SnO₂ nanofibers sensor is about 18 and 32 s, respectively, whereas for pure SnO₂ nanofibers sensor the corresponding values is 24 and 38 s, respectively.

FIGURE 10

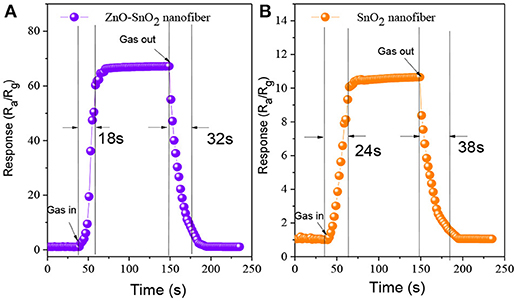

Figure 10. Response-recovery curve of the sensor bases on (A) ZnO-SnO₂ nanofibers (B) pure SnO₂ nanofibers.

Finally, the long-term stability of the fabricated ZnO-SnO₂ nanofibers sensor was measured to 10, 30, 50, and 100 ppm H₂S gas at 250°C for 30 days as shown in Figure 11. The measured results show that the response has little change for 30 days and confirm a good stability of the fabricated electrospun ZnO-SnO₂ nanofibers sensor.

FIGURE 11

Figure 11. Long term stability property of ZnO-SnO₂ nanofibers sensor.

Experimental results of ZnO-SnO₂ nanofibers sensor have been compared with the results reported by the other workers on H₂S sensors and presented in Table 1. It can be seen that electrospun ZnO-SnO₂ nanofibers sensor toward H₂S can reach a relatively higher response at lower temperature and the response time is relatively shorter than other sensors reported previously. The obtained results indicate that the electrospun ZnO-SnO₂ nanofibers sensor is promising for H₂S gas sensing.

TABLE 1

Table 1. Summary of the H₂S gas sensing performances of different gas sensor materials.

Sensing Mechanism

ZnO and SnO₂ belong to typical n-type semiconductors, characterized by their high free carrier concentration (Hong et al., 2017; Zhou et al., 2018d). The gas sensing mechanism of ZnO-SnO₂ nanofibers is shown in Figure 12. Due to the sensing mechanism of ZnO-SnO₂ sensor follows the surface controlled type, the gas sensing properties are ascribed to the change of the surface resistance, which controlled by the adsorption and desorption of oxygen on the surface of sensing materials (Wei et al., 2014). When ZnO-SnO₂ nanofibers sensor is exposed to air (Figure 12A), the resistance of gas sensor depends on the amount of chemisorbed oxygen species (O⁻, O${}_2^{-}$, and O²⁻). The free oxygen molecules are absorbed on the surface and capture electrons from the conduction band of the ZnO-SnO₂ nanofibers, which causes a depletion layer around the surface and the increasing the resistance (Cheng et al., 2014). When ZnO-SnO₂ nanofibers sensing materials are exposed to H₂S (Figure 12B), the target gas reacts with the adsorbed oxygen and then releases the captured electrons into the conduction band of ZnO-SnO₂ nanifibers to reduce the depletion layer and decrease the resistance.

FIGURE 12

Figure 12. A schematic of the H₂S sensing mechanism of the ZnO-SnO₂ nanofibers (A) when the gas sensor is exposed in air (B) when the gas sensor is exposed in H₂S (E_f is Fermi level; E_c is conduction band; E_v is valence band; E_g is band gaps).

It is well-known that the chemisorbed oxygen depends on the specific surface area of sensing materials and the operating temperature. ZnO-SnO₂ nanofibers show a big surface area as shown in Figure 4. It means that adsorption capability of ZnO-SnO₂ nanofibers was greatly enhanced (Zhang W. et al., 2017). Moreover, O²⁻ and O⁻ species are regarded as the most oxygen adsorption species at 250°C, and the following H₂S sensing reaction can be considered (Kolhe et al., 2017).

${\text{H}}_2\text{S}+3{\text{O}}^{-}\to {\text{SO}}_2+{\text{H}}_2\text{O}+3{\text{e}}^{-}(1)$

${\text{H}}_2\text{S}+3{\text{O}}^{2-}\to {\text{SO}}_2+{\text{H}}_2\text{O}+6{\text{e}}^{-}(2)$

In accordance with the definition about gas response (S = R_a/R_g), the increasing of R_a and decreasing of R_g cause that the response of ZnO-SnO₂ nanofibers is significantly enhanced. Additional electron consumption will occur at the boundaries of ZnO and SnO₂, which further enhances the gas response. The contact of ZnO and SnO₂ provides condition for electrons transfer from SnO₂ to ZnO, which has a higher work function of 5.2 eV compared to SnO₂ (4.9 eV). It results in the formation of an additional depletion layer in the vicinity region between the ZnO and SnO₂, eventually generating a potential barrier for electron flow (Choi et al., 2013). The boundary barrier may decrease when the gas sensor is exposed in H₂S. More electrons of oxygen species transfer to the sensing material by reaction of H₂S with oxygen species, which results the resistance of the sensing material decreases and the response of the sensor increases. However, pure SnO₂ does not provide reaction interface, leading to lower gas response. So the ZnO–SnO₂ composite nanofibers exhibit better sensing properties than the SnO₂ nanofibers.

Conclusions

In summary, ZnO-SnO₂ composite nanofibers were successfully synthesized by electrospinning method and characterized by various techniques. H₂S sensing properties of the electrospun nanofibers sensor were also investigated. Compared to the pure SnO₂ nanofiber sensor, the ZnO-SnO₂ composite nanofibers sensor shows excellent gas sensing response for H₂S gas, which is attributed to the large specific surface and the heterojunctions between SnO₂ and ZnO. The proposed ZnO-SnO₂ composite nanofibers sensor exhibits good linear relationship between sensing response and gas concentration in the range of 0.5~100 ppm and its detection limit is as low as sub-ppm level. Moreover, the proposed sensor achieves good repeatability and long-term stability, making it a promising candidate for detecting H₂S gas.

Author Contributions

ZL and ZW performed the experiments and analyzed the data with the help from LX and YG. ZL, QZ, and CW wrote and revised the manuscript with input from all authors. All authors read and approved the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work has been supported in part by the National Natural Science Foundation of China (No. 51507144), the China Postdoctoral Science Foundation Project (Nos. 2015M580771, 2016T90832), the Chongqing Science and Technology Commission (CSTC) (No. cstc2016jcyjA0400) and the project of China Scholarship Council (CSC).
