Adsorption and Photocatalytic Processes of Mesoporous SiO2-Coated Monoclinic BiVO4

The silicon dioxide (SiO₂)–coated bismuth vanadate (BiVO₄) composites as visible–driven–photocatalysts were successfully synthesized by the co–precipitation method. The effects of SiO₂ coating on the structure, optical property, morphology and surface properties of the composites were investigated by X–ray diffraction (XRD), UV–visible diffuse reflectance spectroscopy (DRS), transmission electron microscopy (TEM) and Brunauer–Emmette–Teller (BET) measurements. The photocatalytic activity of monoclinic BiVO₄ and BiVO₄/SiO₂ composites were evaluated according to the degradation of methylene blue (MB) dye aqueous solution under visible light irradiation. The SiO₂₋coated BiVO₄ composites showed the enhancing photocatalytic activity approximately threefold in comparison with the single phase BiVO₄.

Introduction

Nowadays, the advanced oxidation process is known as an effective method for water purification and wastewater treatment. One of the most famous advanced oxidation process is heterogeneous photocatalysis; the contaminant (i.e., organic compounds) containing in the water and wastewater is finally degraded to carbon dioxide (Legrini et al., 1993; Mukherjee and Ray, 1999). This process can remove the organic contaminant perfectly and does not generate the second contaminant (i.e., sludge and other organic compounds) which are required the further treatment and disposal. According to the heterogeneous photocatalysis, the titanium dioxide (TiO₂) has been played a role as the important catalyst to promote the photocatalytic activity. Due to its wide band gap of 3.2 eV, the photocatalyst of TiO₂ is typically activated under the UV light (the wavelength <390 nm is required), which accounts for 45–50% of solar radiation (Linsebigler et al., 1995; Bahnemann et al., 2007; Devipriya et al., 2012). This theoretical fact becomes the limitation and non-cost-effectiveness of actual photocatalytic system for purifying the water at the site.

Another catalyst of monoclinic bismuth vanadate (BiVO₄) has been proposed to overcome the drawback of photocatalytic system using TiO₂ and together with enhance the photocatalytic activity during implementation. Since BiVO₄ has narrow band gaps of 2.4 to 2.8 eV (Kudo et al., 2001; Xie et al., 2006; Li et al., 2008), this photocatalyst can be activated by the visible light and consequences the effective use of solar energy. However, the low specific surface area and poor surface textural property are the significant disadvantages of using BiVO₄ as the catalyst. Its low surface area and adsorption capacity cause the low efficiency of photocatalytic system for organic contaminant removal and also the long treatment period required. Therefore, the increase in specific surface area of BiVO₄ catalyst is necessary prior to imply the photocatalytic system to the actual wastewater.

Recently, alternative composite materials have been synthesized by combining metal oxide and porous materials (i.e., alumina, silica, zeolites, carbon black, charcoal) (Belessi et al., 2007; Wang et al., 2012; Xing et al., 2016) with the aim of improving the specific surface area, pore structure, and photocatalytic activity of catalysts (Gan et al., 2003; Kimura et al., 2003). For example, the enhancement of Ag–doped TiO₂ photocatalytic activity was suggested by adding the mesoporous SiO₂; the excellent efficiency of methyl orange (MO) removal was achieved by 2.5 h (Roldan et al., 2015). The increasing adsorption capacity of TiO₂ catalyst was observed when the catalyst was combined with SiO₂; the adsorption capacity was increased (Hu et al., 2012). The SiO₂ addition also enhance the separation rate of electron–hole pairs under UV excitation. Further, the deposition of gold nanoparticles (Au) on the porous SiO₂-WO₃ composite can enhance the methylene blue (MB) adsorption capacity; the adsorption capacity of Au–SiO₂-WO₃ was greater than SiO₂-WO₃ and WO₃ respectively (DePuccio et al., 2015). The complete MB removal was achieved by 300 min under visible light, and the fast kinetic of MB removal was found in Au–SiO₂-WO₃ catalyst, following by Au–WO₃ and WO₃ catalysts.

As all the above mentions, this study aimed to improve the surface morphology and photocatalytic activity of BiVO₄ catalyst by coating SiO₂. Various analytical techniques including X–ray diffraction (XRD), transmission electron microscopy (TEM), Brunauer–Emmett–Teller (BET) and UV–vis diffuse reflectance spectra (DRS) were used to clarify the better property of BiVO₄/SiO₂ composite rather than BiVO₄ and SiO₂. Further, the performance of BiVO₄/SiO₂ composites on wastewater treatment was preliminary studied in the batch test under visible light irradiation, and its performance was compared to the other two materials of BiVO₄ and SiO₂.

Experimental Procedure

All chemicals used were of analytical grade and were used as received without any further purification. The chemicals including tetraethyl orthosilicate (TEOS), bismuth (III) nitrate pentahydrate [Bi(NO₃)₃·5H₂O], ammonium metavanadate (NH₄VO₃), methylene blue powder, sodium hydroxide pellet (NaOH), ammonia solution (28%) and nitric acid (37% HNO₃) were obtained from Sigma-Aldrich. All solutions were prepared with deionized water.

Preparation of SiO₂ Particles

SiO₂ particles were prepared by the sol–gel method. Ammonia solution (28%) was added in 100 mL of a mixed solution of absolute ethanol/DI water (80: 20 v/v) and stirred under ultrasonic dispersion for 60 min. Then, 20 mL of tetraethyl orthosilicate (TEOS) was added drop by drop to the mixed solution and stirred for 120 min at room temperature. After the reaction was homogenized, the fine particles were separated by centrifugation with typical rotating speed of 6,000 rpm for 15 min, washed by DI water and dried at 80°C for 24 h in a hot air oven. Fine particles of SiO₂ were obtained as a white powder following heat treatment at 500°C for 1 h in ambient.

Preparation of Monoclinic BiVO₄ and SiO₂-Coated BiVO₄ Composites

Monoclinic BiVO₄ were obtained by the co–precipitation method. Firstly, 12 mmol of bismuth (III) nitrate pentahydrate [Bi(NO₃)₃·5H₂O] and the same volume of ammonium metavanadate (NH₄VO₃) were dissolved in 100 mL of 2 M nitric acid (HNO₃) under vigorous stirring. The pH of the mixed solution was adjusted to 9 by adding 3 M sodium hydroxide (NaOH). The yellow precipitate was then separated by centrifugation at 6,000 rpm for 15 min, washed thoroughly with distilled water and ethanol and finally dried in a hot air oven at 80°C for 24 h. Crystalline monoclinic BiVO₄ was formed after calcination at 550°C for 4 h.

BiVO₄-coated SiO₂ composites were also prepared by the same method for comparison with an additional step of adding SiO₂ powder to 100 mL of 2 M HNO₃.

Photocatalytic Reaction

Photocatalytic activities of the BiVO₄, SiO₂ and BiVO₄/SiO₂ composites were evaluated through degradation of methylene blue (MB) dye as a model organic pollutant under visible light. A total of 0.20 g of photocatalyst was added to 100 mL MB aqueous solution (initial concentration C₀ = 20 ppm) under magnetic stirring in darkness for 60 min to achieve adsorption–desorption equilibrium. The system was irradiated by three 18 W halogen lamps (Essential MR, Philips, Thailand) to investigate photocatalytic degradation. Reduction of MB concentration over time (C_t) was recorded every 15 min by measuring the intensity change of the characteristic absorption peak at 664 nm using UV–vis double beam spectroscopy (UV−6100, Mapada).

Characterisation

Crystal phase and structure of the prepared samples were characterized by powder X–ray diffraction (XRD, Philips X'Pert MPD) using Cu K_α (λ = 1.54056 Å) radiation. Morphological changes in the composite materials were monitored by transmission electron microscopy (TEM, JSM−2010, JEOL). Brunauer–Emmett–Teller (BET) measurements (Adtosorb 1 MP, Quantachrome) were performed to compare the specific surface area of the BiVO₄ and BiVO₄/SiO₂ composites. Measurement of UV–vis diffuse reflectance spectroscopy (DRS UV–vis, Shimadzu UV−3101PC) was carried out at room temperature to detect reflectance and absorbance spectra.

Results and Discussion

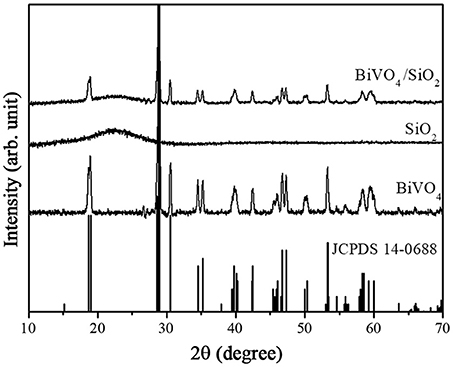

In Figure 1, the broad XRD peak at 2θ = 22–23° corresponded to the amorphous SiO₂. The XRD pattern of BiVO₄ without SiO₂ was assigned to the standard monoclinic BiVO₄ (JCPDS no. 14–0688) (Gotić et al., 2005). After coating BiVO₄ with SiO₂, the diffraction peaks matched well with the pure phase monoclinic BiVO₄ and no peaks of any other phases or impurities were recorded. However, the diffraction intensity of BiVO₄ decreased after coating SiO₂, because the amorphous substance had the negative effect on crystallinity. Alternatively, self–doped Si⁴⁺ ions in the BiVO₄ crystal structure might cause the decreasing crystallinity of BiVO₄/SiO₂ composites, and resulted in the broader peaks of the composite samples, which are similar to those reported by Phanichphant et al. (2016) for the binary composite CeO₂/SiO₂ photocatalyts and Kumar et al. for TiO₂/SiO₂ nanocomposites in solar cell applications (Arun Kumar et al., 2012).

FIGURE 1

Figure 1. XRD patterns of as–prepared BiVO₄, SiO₂, and BiVO₄/SiO₂.

As shown in Figure 2a, the BiVO₄ demonstrated the absorption edge of the visible region at 450 nm, corresponding to the optical band gap (E_g) of 2.60 eV which was calculated by the Kubelka–Munk function (see Figure 2b) (Sirita et al., 2007). Compared to BiVO₄/SiO₂ composites, the value of the graph intercept was estimated at 2.30 eV, corresponding to the strong absorption edge in the visible region at 523 nm. The band gap energy of BiVO₄ decreased from 2.60 to 2.30 eV in the composite materials, due to the influence of Si⁴⁺ ions doping into the lattice of BiVO₄ which created the abundant doping energy levels. The estimated band gap values in this study was similar to those of BiVO₄ reported by Jiang et al. (2012), who prepared the BiVO₄ photocatalysts with different morphologies using the hydrothermal method. Liu et al. (2015) observed that the band gap energy of BiVO₄/SiO₂ catalyst estimated to be 2.32 eV, which was almost the same as that of calculate by this study.

FIGURE 2

Figure 2. (A) Diffuse reflectance UV–visible spectra and (B) the plot of adsorption function vs. photon energy for determination of band gap (E_g).

The TEM images of SiO₂, BiVO₄ and BiVO₄/SiO₂ composites are presented in Figure 3. The SiO₂ image shows the aggregation of spherical–shaped particles with diameters ranging of 20–30 nm (Figure 3a), while Figure 3b shows the rod–like nanostructures of monoclinic BiVO₄ with the diameter of 10 nm and the length of 60 nm. Typical TEM images are used for characterizing the composite materials and proving the heterojunction formation between BiVO₄ and SiO₂, which demonstrated that the rod–like BiVO₄ core was covered by the SiO₂ particles growing on the surface (Figure 3c).

FIGURE 3

Figure 3. TEM images of (a) SiO₂, (b) BiVO₄, and (c) SiO₂-coated BiVO₄.

The N₂ adsorption-desorption isotherms (Figure 4a) show that the N₂ adsorption of BiVO₄/SiO₂ composites were relatively higher than that of the pure BiVO₄, however the value was much lower than that of the SiO₂. The specific surface areas of SiO₂, BiVO₄/SiO₂ composites, and BiVO₄ were found to be 106.9959, 37.6851, and 19.4964 m²/g, respectively. In the meanwhile, the pore size was calculated by using the BJH method, and the results were 9.0316, 11.0776, and 11.8111 nm for SiO₂, BiVO₄/SiO₂, and BiVO₄ respectively (as summarized in Table 1). The surface area and pore size are positively related to the photocatalytic activity, therefore the photocatalytic activity of BiVO₄/SiO₂ composites were higher than that of pure BiVO₄. Even though the surface area of SiO₂ was higher than the BiVO₄/SiO₂ composite, the adsorption of pollutant by SiO₂ with high specific surface area have only the ability to transfer pollutants to alternative phases, but not completely get rid of them. Therefore, the photocatalytic process based on using the hydroxyl radicals is required in this study.

FIGURE 4

Figure 4. (A), (B) N₂ adsorption-desorption isotherms, and (C) BET linear plot of relative pressure.

TABLE 1

Table 1. Surface properties of the prepared samples.

Figure 4b shows the N₂ adsorption-desorption isotherms of BiVO₄/SiO₂ composites in the relative pressure (P/P₀) range 0.00–1.00. The curve exhibited Type IV isotherm characteristic with a small hysteresis loop at the relative pressure of 0.80–1.00. This indicated the existence of mesopores in the sample with the pore diameter ranging of 2–50 nm (Brunauer et al., 1940; Bae et al., 2010).

The information from the isotherm can be used to determine the specific surface area from the mathematical relations in Equation (1) and Equation (2) below (Itodo et al., 2010; Thommes et al., 2015)

$\begin{array}{cc}\begin{array}{r}\frac{\text{P}/{\text{P}}_0}{\text{V}(1-\text{P}/{\text{P}}_0)}=\frac{1}{{\text{V}}_{m}C}+\frac{(\text{C}-1)}{{\text{V}}_{m}C}\frac{\text{P}}{{\text{P}}_0}\end{array}& (1)\end{array}$

where,

P₀, Initial pressure of N₂; P, Equilibrium pressure of N₂ adsorption; V_m, Monolayer capacity; V, Amount of N₂ adsorbed at standard temperature and pressure (STP).

$\begin{array}{cc}\begin{array}{r}\text{Specific Surface area}=\frac{{\text{V}}_{\text{m}}{N}_a\times A}{\text{m}\times 22400}\end{array}& (2)\end{array}$

where,

A, Cross-sectional area of the adsorbed N₂; m, Adsorbate molecular weight; N_a, Avogadro's number.

The intercept and slope of the plot in Figure 4c were used to calculate the maximum volume of gas adsorbed at the monolayer (V_m), it was 8.6569 cm³/g. The specific surface area was also calculated via the V_m value (see Equation 2). The result showed that the surface area of BiVO₄/SiO₂ composites was 37.6851 m²/g.

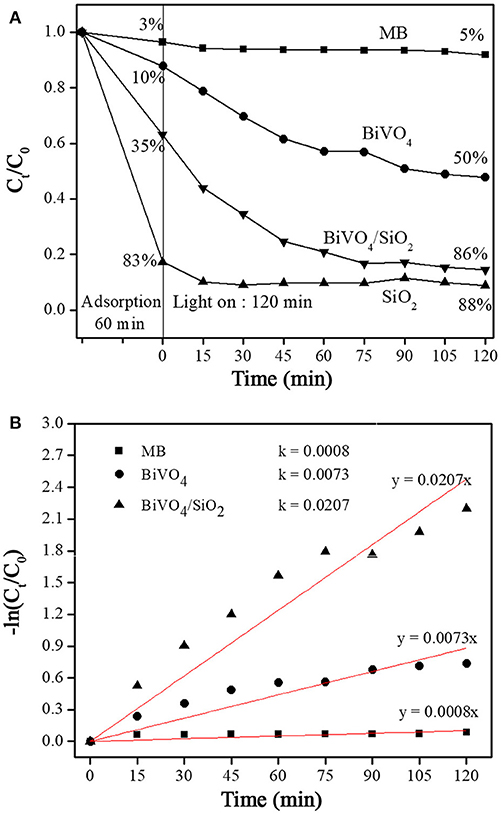

Figure 5a presents the degradation efficiency of MB as a function of C_t/C₀ and visible irradiation time. The C₀ was the initial concentration of MB before irradiation and C_t was the MB concentration at the interval irradiation time (t, min). For using the SiO₂ as catalyst, the MB was removed of 83% under the dark adsorption, and only 5% of MB was further degraded under the visible light. For using the single phase monoclinic BiVO₄, the MB was removed around 10% under the dark adsorption, and 40% of MB was further degreased under the visible light irradiation. When the BiVO₄/SiO₂ composites was used, the MB removal efficiency reached 35 and 86% under the dark adsorption and visible light irradiation. As above explanation, the specific surface area of BiVO₄/SiO₂ composites were increased from BiVO₄, due to the SiO₂ coating. The increasing specific surface area resulted in the high adsorption of MB molecules during 60 min of the darkness, and then the adsorbed MB was continuously degraded by photocatalytic activity during visible light. These results illustrated that the photocatalytic activity of BiVO₄ was enhanced by coating the SiO₂ particles.

FIGURE 5

Figure 5. MB concentration changes with irradiation time (A) C_t/C₀ and (B) –ln C_t/C₀.

The kinetics of MB degradation was analyzed using the pseudo–first order model, which was given in Equation (3) (Yetim and Tekin, 2017). In Figure 5b, the correlation of–ln C_t/C₀ and t were positive with linear equation; the kinetic constant (k) were 0.0073 min⁻¹ for BiVO₄ and 0.0207 min⁻¹ for BiVO₄/SiO₂ composites. The kinetic constant of MB degradation using BiVO₄/SiO₂ composites was approximately threefold higher than that using the single phase BiVO₄.

$\begin{array}{cc}\begin{array}{r}-\text{ln}({\text{C}}_{\text{t}}/C_0)=kt\end{array}& (3)\end{array}$

where k is the apparent rate constant of the pseudo–first order reaction (min⁻¹).

Since the photocatalytic degradation of dyes is associated with dye adsorption onto the surface of BiVO₄/SiO₂. Furthermore, photocatalytic degradation occurs at or near the surface of the catalyst rather than in the bulk solution. Thus the higher photocatalytic activity of BiVO₄/SiO₂ is consistent with the higher adsorption of MB on the surface of BiVO₄/SiO₂ photocatalyst. Mesoporous SiO₂ adsorbent enriches the MB molecules around the BiVO₄ surface as shown in Figure 6 and the visible–light photocatalytic activity of the BiVO₄ interface in the composite materials is then excited to generate electrons (e–) and holes (h⁺). Subsequently, photoexcited electrons in the valance band and hole in the conduction band of BiVO₄ react with oxygen, water and hydroxide ions to produce free superoxide radicals (O${}_2^{-•}$) and hydroxyl radicals (OH^•) as the main active oxidizing species, which then react with MB molecules during the photocatalytic process (Lin et al., 2014; Zhou et al., 2014). The final products of MB aqueous solution photocatalytic degradation are oxidized to CO₂, H₂O, CO₂, NH${}_4^{+}$, NO${}_3^{-}$, and SO${}_4^{2-}$ (Houas et al., 2001; Luan and Hu, 2012).

FIGURE 6

Figure 6. The proposed mechanism of photogenerated charge carriers of BiVO₄ in BiVO₄/SiO₂ heterojunction.

Conclusions

BiVO₄/SiO₂ composites consisting of spherical SiO₂ particles coated on BiVO₄ nanorods were successfully prepared by co–precipitation. The composites exhibited higher photocatalytic activity compared to single monoclinic BiVO₄ by degrading MB under visible–light irradiation due to the greater surface area of mesoporous SiO₂. Fabrication of heterogeneous semiconductors using mesoporous materials can produce promising alternative photocatalysts for wastewater treatment under light irradiation by combining adsorption and photocatalytic processes.

Author Contributions

DC designed and performed the experiments and wrote the manuscript. SP, AN advised the data analysis and edited manuscript. PJ and WK advised the data analysis. All authors reviewed the approved the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work has been supported by grant from the National Research Council of Thailand (NRCT) under Grant No. R2561B075. The Office of the Higher Education Commission and the Thailand Research Fund (TRF) under Grant No. MRG6080097 is also acknowledged for financial support.

References

Arun Kumar, D., Merline Shyla, J., and Xavier, F. P. (2012). Synthesis and characterization of TiO₂/SiO₂ nano composites for solar cell applications. Appl. Nanosci. 2, 429–436. doi: 10.1007/s13204-012-0060-5

CrossRef Full Text | Google Scholar

Bae, Y. S., Snurr, R. Q., and Yazaydin, O. (2010). Evaluation of the BET method for determining surface areas of MOFs and zeolites that contain ultra-micropores. Langmuir 26, 5479–5483. doi: 10.1021/la100449z

PubMed Abstract | CrossRef Full Text | Google Scholar

Bahnemann, W., Muneer, M., and Haque, M. M. (2007). Titanium dioxide-mediated photocatalysed degradation of few selected organic pollutants in aqueous suspensions. Catal. Today 124, 133–148. doi: 10.1016/j.cattod.2007.03.031

CrossRef Full Text | Google Scholar

Belessi, V., Lambropoulou, D., and Konstantinou, I. (2007). Structure and photocatalytic performance of TiO₂/clay nanocomposites for the degradation of dimethachlor. Appl. Catal. B. 73, 292–299. doi: 10.1016/j.apcatb.2006.12.011

CrossRef Full Text | Google Scholar

Brunauer, S., Deming, L. S., Deming, W. E., and Teller, E. (1940). On a theory of the van der waals adsorption of gases. J. Am. Chem. Soc. 62, 1723–1732. doi: 10.1021/ja01864a025

CrossRef Full Text | Google Scholar

DePuccio, D. P., Botella, P., O'Rourke, B., and Landry, C. C. (2015). Degradation of methylene blue using porous WO₃, SiO₂–WO₃, and their Au-loaded analogs: adsorption and photocatalytic studies. ACS Appl. Mater. Interfaces 7, 1987–1996. doi: 10.1021/am507806a

CrossRef Full Text | Google Scholar

Devipriya, S. P., Yesodharan, S., and Yesodharan, E. P. (2012). Solar photocatalytic removal of chemical and bacterial pollutants from water using Pt/TiO₂-coated ceramic tiles. Int. J. Photoenergy 1–8. doi: 10.1155/2012/970474

CrossRef Full Text | Google Scholar

Gan, L., Chen, L., and Zhang, X. (2003). Preparation of silica aerogels by non-supercritical drying. Acta Phys. Chim. Sin. 19, 504–508. doi: 10.3866/PKU.WHXB20030605

CrossRef Full Text | Google Scholar

Gotić, M., Musić, S., Ivand, M., Šoufek, M., and Popovi, S. (2005). Synthesis and characterisation of bismuth (III) vanadate. J. Mol. Struct. 744, 535–540. doi: 10.1016/j.molstruc.2004.10.075

CrossRef Full Text | Google Scholar

Houas, A., Lachheb, H., Ksibi, M., Elaloui, E., Guillard, C., and Herrmann, J. (2001). Photocatalytic degradation pathway of methylene blue in water. Appl. Catal. B 31, 145–157. doi: 10.1016/S0926-3373(00)00276-9

CrossRef Full Text | Google Scholar

Hu, S., Li, F., and Fan, Z. (2012). Preparation of SiO₂-coated TiO₂ composite materials with enhanced photocatalytic activity under UV Light. Bull. Korean Chem. Soc. 33, 1895–1899. doi: 10.5012/bkcs.2012.33.6.1895

CrossRef Full Text | Google Scholar

Itodo, A. U., Itodo, H. U., and Gafar, M. K. (2010). Estimation of specific surface area using langmuir isotherm method. J. Appl. Sci. Environ. Manage. 14, 141–145.

Google Scholar

Jiang, H., Meng, X., Dai, H., Deng, J., Liu, Y., Zhang, L., et al. (2012). High performance porous spherical or octapod-like single-crystalline BiVO₄ photocatalysts for the removal of phenol and methylene blue under visible-light illumination. J. Hazard. Mater. 217–218, 92–99. doi: 10.1016/j.jhazmat.2012.02.073

PubMed Abstract | CrossRef Full Text | Google Scholar

Kimura, I., Kase, T., Taguchi, Y., and Tanaka, M. (2003). Preparation of titania/silica composite microspheres by sol–gel process in reverse suspension. Mater. Res. Bull. 38, 585–597. doi: 10.1016/S0025-5408(03)00027-8

CrossRef Full Text | Google Scholar

Kudo, A., Tokunaga, S., and Kato, H. (2001). Selective preparation of monoclinic and tetragonal BiVO4 with scheelite structure, and their photocatalytic properties. Chem. Mater. 13, 4624–4628. doi: 10.1021/cm0103390

CrossRef Full Text | Google Scholar

Legrini, O., Oliveros, E., and Braun, A. M. (1993). Photochemical processes for water treatment. Chem. Rev. 93, 671–698. doi: 10.1021/cr00018a003

CrossRef Full Text | Google Scholar

Li, G., Zhang, D., and Yu, J. C. (2008). Ordered Mesoporous BiVO4 through nanocasting: a superior visible light-driven photocatalyst. Chem. Mater. 20, 3983–3992. doi: 10.1021/cm800236z

CrossRef Full Text | Google Scholar

Lin, H., Ye, H., Chen, S., and Chen, Y. (2014). One-pot hydrothermal synthesis of BiPO4/BiVO4 with enhanced visible-light photocatalytic activities for methylene blue degradation. RSC Adv. 4, 10968–10974. doi: 10.1039/c3ra45288c

CrossRef Full Text | Google Scholar

Linsebigler, A. L., Lu, G., and Yates, J. T. (1995). Photocatalysis on TiO2 surfaces: principles, mechanisms, and selected results. Chem. Rev. 95, 735–758. doi: 10.1021/cr00035a013

CrossRef Full Text | Google Scholar

Liu, B., Wang, Z., Zhou, S., and He, J. (2015). Synthesis and characterization of a novel BiVO₄/SiO₂ nanocomposites. Mater. Lett. 160, 218–221. doi: 10.1016/j.matlet.2015.07.104

CrossRef Full Text | Google Scholar

Luan, J., and Hu, Z. (2012). Synthesis, property characterization, and photocatalytic activity of novel visible light-responsive photocatalyst Fe2BiSbO7. Int. J. Photoenergy 2012, 1–11.

Google Scholar

Mukherjee, P. S., and Ray, A. K. (1999). Application photocatalysis for treatment of industrial waste water-A short review. Chem. Eng. Technol. 22, 253–260. doi: 10.1002/(SICI)1521-4125(199903)22:3< 253::AID-CEAT253>3.0.CO;2-X

CrossRef Full Text | Google Scholar

Phanichphant, S., Nakaruk, A., and Channei, D. (2016). Photocatalytic activity of the binary composite CeO₂/SiO₂ for degradation of dye. Appl. Surf. Sci. 387, 214–220. doi: 10.1016/j.apsusc.2016.06.072

CrossRef Full Text | Google Scholar

Roldan, M. V., Castro, Y., Pellegri, N., and Duran, A. (2015). Enhanced photocatalytic activity of mesoporous SiO₂/TiO₂ sol–gel coatings doped with Ag nanoparticles. J. Sol–Gel Sci. Technol. 76, 180–194. doi: 10.1007/s10971-015-3765-6

CrossRef Full Text | Google Scholar

Sirita, J., Phanichphant, S., and Meunier, F. C. (2007). Quantitative analysis of adsorbate concentrations by diffuse reflectance FT-IR. Anal. Chem. 79, 3912–3918. doi: 10.1021/ac0702802

PubMed Abstract | CrossRef Full Text | Google Scholar

Thommes, M., Kaneko, K., Neimark, A. V., Olivier, J. P., Reinoso, F. R., Rouquerol, J., et al. (2015). Performance of an activated carbon-ammonia adsorption refrigeration system. Pure Appl. Chem. 87, 1051–1069.

Google Scholar

Wang, X. D., Shi, F., Huang, W., and Fan, C. M. (2012). Synthesis of high quality TiO2 membranes on alumina supports and their photocatalytic activity. Thin Solid Films 520, 2488–2492. doi: 10.1016/j.tsf.2011.10.023

CrossRef Full Text | Google Scholar

Xie, B., Zhang, H., Cai, P., Qiu, R., and Xiong, Y. (2006). Simultaneous photocatalytic reduction of Cr(VI) and oxidation of phenol over monoclinic BiVO₄ under visible light irradiation. Chemosphere 63, 956–963. doi: 10.1016/j.chemosphere.2005.08.064

PubMed Abstract | CrossRef Full Text | Google Scholar

Xing, B., Shi, C., Zhang, C., Yi, G., Chen, L., Guo, H., et al. (2016). Preparation of TiO2/activated carbon composites for photocatalytic degradation of RhB under UV light irradiation. J. Nanomater. 2016, 1–10. doi: 10.1155/2016/8393648

CrossRef Full Text | Google Scholar

Yetim, T., and Tekin, T. (2017). A kinetic study on photocatalytic and sonophotocatalytic degradation of textile dyes, Period. Polytech. Chem. Eng. 61, 102–108.

Google Scholar

Zhou, P., Yu, J. G., and Jaroniec, M. (2014). All-solid-state Z-scheme photocatalytic systems. Adv. Mater. 26, 4920–4935. doi: 10.1002/adma.201400288

PubMed Abstract | CrossRef Full Text | Google Scholar
