Size-Tunable Natural Mineral-Molybdenite for Lithium-Ion Batteries Toward: Enhanced Storage Capacity and Quicken Ions Transferring

\r\nFeng JiangFeng Jiang1Sijie Li,Sijie Li2,3Peng Ge,Peng Ge2,3Honghu TangHonghu Tang2Sultan A. KhosoSultan A. Khoso1Chenyang ZhangChenyang Zhang1Yue YangYue Yang1Hongshuai Hou,Hongshuai Hou2,3Yuehua HuYuehua Hu1Wei Sun*Wei Sun1*Xiaobo Ji,*Xiaobo Ji2,3*
  • 1School of Minerals Processing and Bioengineering, Central South University, Changsha, China
  • 2College of Chemistry and Chemical Engineering, Central South University, Changsha, China
  • 3State Key Laboratory of Powder Metallurgy, Central South University, Changsha, China

Restricted by the dissatisfied capacity of traditional materials, lithium-ion batteries (LIBs) still suffer from the low energy-density. The pursuing of natural electrode resources with high lithium-storage capability has triggered a plenty of activities. Through the hydro-refining process of raw molybdenite ore, containing crushing–grinding, flotation, exfoliation, and gradient centrifugation, 2D molybdenum disulfide (MoS2) with high purity is massively obtained. The effective tailoring process further induce various sizes (5, 2, 1 and 90 nm) of sheets, accompanying with the increasing of active sites and defects. Utilized as LIB anodes, size-tuning could serve crucial roles on the electrochemical properties. Among them, MoS2-1 μm delivers an initial charge capacity of 904 mAh g−1, reaching up to 1,337 mAh g−1 over 125 loops at 0.1 A g−1. Even at 5.0 A g−1, a considerable capacity of 682 mAh g−1 is remained. Detailedly analyzing kinetic origins reveals that size-controlling would bring about lowered charge transfer resistance and quicken ions diffusion. The work is anticipated to shed light on the effect of different MoS2 sheet sizes on Li-capacity ability and provides a promising strategy for the commercial-scale production of natural mineral as high-capacity anodes.

Introduction

Lithium-ion batteries (LIBs) are renewable energy storage devices commonly used in consumer electronics, high-power tools, and electric vehicles because of their excellent capacities, such as high energy density, long cycle life, low self-discharge, no memory effect (Li et al., 2017; Yang et al., 2017; Zhang et al., 2018; Zheng et al., 2018). Graphite is the current commercial anode material due to its flat potential profile and great structure stability during cycling. However, six carbon atoms are required to accommodate one Li ion, and the theoretical specific capacity (372 mAh g−1) of graphite is insufficient to meet the increasing requirements of the ever-growing market of high-performance batteries(Shim and Striebel, 2003; Yoshio et al., 2003, 2004).

Two-dimensional (2D) metal dichalcogenides (MDCs) as an alternative material for graphite has received considerable attention(Chhowalla et al., 2013; Yang et al., 2015; Zhang et al., 2015; Ge et al., 2018a,b). Among them, molybdenum disulfide is a typical graphene analog, in which two adjacent S-Mo-S layers are linked by weak van der Waals forces. Given its novel mechanical, optical, electrical, and electrochemical properties, MoS2 has been widely studied for different applications in lubricants(Xiao et al., 2017; Wu et al., 2018), photocatalytic degradation catalysts(Li et al., 2014; Su et al., 2016; Liu et al., 2018), sensors(Liu et al., 2014; Wang and Ni, 2014), electrocatalytic hydrogen generation(Gao et al., 2015a,b; Zhu et al., 2015; Geng et al., 2016), field-effect transistors(Dankert et al., 2014; Roy et al., 2014), supercapacitors(Ma et al., 2013; Acerce et al., 2015), and electrode material for batteries(Liang et al., 2011; Yang et al., 2015; Hai et al., 2018). Compared with graphite, MoS2 has a wider lattice spacing (~0.65 nm), which is conducive to rapid insertion and extraction of alkali metal ions. After insertion, LixMoS2 can further react with Li+ ions to form Li2S and Mo atom, and the theoretical specific capacity of MoS2 in LIBs is 670 mAh g−1, which is much higher than that of graphite (Stephenson et al., 2014). Meanwhile, a number of studies reported that the capacity of MoS2 can reach >1,000 mAh g−1, which arises from Mo atoms accommodating a large amount of Li ions over prolonged discharging process (Wang et al., 2018).

Most previous studies synthesized MoS2 by chemical methods to obtain nanosheets with desired size and thickness. Hydrothermal, chemical vapor deposition, and hot injection are typical approaches that use molybdenum salts as precursors (Altavilla et al., 2011; Wang et al., 2014). Although the aforementioned chemical synthetic methods can be used for the large-scale preparation of MoS2 nanosheets, their industrial applications are limited by their rigid reaction conditions and environmentally pernicious reactants (Yang et al., 2016, 2018; Zhang et al., 2016). MoS2 is abundant in the form of molybdenite in nature and is generally extracted and processed into molybdenum metal and compounds through beneficiation, smelting and chemical synthesis. Thus, fabrication of MoS2 materials directly from natural molybdenite ore can eliminate many intermedia complex processes and reduce synthetic contaminants. In addition, the appropriate size of MoS2 for LIBs remains unknown. In view of the fact that size exerts a noteworthy influence on the electrochemical properties of many materials (Kim et al., 2005; Liu et al., 2005; Drezen et al., 2007; Wagemaker et al., 2007; Kiani et al., 2010; Jiang et al., 2017), understanding the effects of different sizes of MoS2 on battery performance and electrochemical properties is important to application of MoS2 in LIBs.

Herein, a hydro-refining technology combining crushing-grinding, flotation, mechanical exfoliation, and classification processes was developed to prepare a series of size-controlled MoS2 sheets directly from natural raw molybdenite ore. This method is simple, eco-friendly, and high-yielding. When used the as-prepared MoS2 sheets as LIB anodes, size displays an important effect on electrochemical properties. Among them, the MoS2-1 μm electrode demonstrated excellent electrochemical properties with lower charge transfer resistance and rapider Li ions diffusion, delivering a higher specific capacity and initial coulombic efficiency. These results suggest the proper MoS2 sheet size for LIBs and indicate the present approach is promising for industrial-scale production of natural molybdenite as high-capacity anodes.

Materials and Methods

Materials

Natural raw ore (rock size: 5–10 cm, MoS2 content: 1–2%) was received from China Molybdenum Co., Ltd. Raw ore was crushed to small stones (particle size ~2 mm) and then ball-milled with water at a concentration of 66.6% to reduce the granularity. Ball-milled production, which is also called pulp (particle size: 75% <74 μm), was transferred to flotation cell, and water was added to adjust the concentration to 33%. In brief, 333 mg/L sodium silicate as depressant, 35 mg/L kerosene as molybdenite collector, and 15 mg/L terpineol as foaming agent were added sequentially to the pulp during agitation. Then, the pulp was aerated, and flotation froth was generated above the pulp and collected as the rough molybdenite concentrate (MoS2 content: 2–5%), which then was reground to a fineness of 85% <37 μm by stirred mill. Finally, the reground rough concentrate was flotation cleaned eight times to improve the molybdenite concentrate grade. In the first cleaning operation, 2 g/L sodium sulfide was added to the pulp as the other sulfide minerals' depressant. Then, the obtained concentrate froth was transferred to the next cleaning operation, in which the sodium sulfide dosage was half of that used in the previous step. The final concentrate froth from the eighth cleaning operation was filtered and dried to achieve molybdenite concentrate (MoS2 content: ~92%).

Differently sized MoS2 sheets were prepared through an intense shearing process. Molybdenite concentrate (10 g), polyvinylpyrrolidone-K30 (0.25 g, PVP-K30), and deionized water (500 mL) were placed in a stainless steel homogenizer. The homogenizer was run at 12,000 rpm for 5 h to exfoliate the molybdenite content and acquire a MoS2 suspension. The homogeneous dispersion was gradient centrifuged at 1,000, 3,000, 5,500, and 10,000 rpm, and the precipitates were collected and rinsed by deionized water several times to remove the residual PVP. Afterward, the as-prepared differently sized MoS2 sheets were dried at 60°C in a vacuum oven for 24 h.

Material Characterization

The crystal structure of the as-prepared materials was identified by X-ray diffraction (XRD, Bruker D8 diffractometer with monochromatic Cu Kα radiation and wavelength of 1.5406 Å). The composition of the samples was characterized by X-ray fluorescence (XRF). The particle size distribution was measured by laser diffraction (Malvern Mastersizer 2000). The morphology was analyzed by field emission scanning electron microscopy (FEI Quanta 200, Japan) and atomic force microscopy (AFM, Bruker Multimode V, Germany).

Electrochemical Characterization

The active materials, carboxymethyl cellulose, and conductive additive (Super P, carbon black) were mixed in a weight ratio of 75:15:15 by using deionized water as the solvent. Then, the steady slurry was evenly painted on a copper foil. After drying at 80°C in a vacuum oven for 12 h, the copper foil was cut into wafer electrodes. The mass of the active material in each electrode was approximately 1.0 mg cm−2. The CR2016 coin-type cells were assembled in an argon-filled glovebox (MBRAUN, Germany) by using as-prepared electrodes as the anode, metallic lithium disk as the counter electrode, and LiClO4 (1 M) in ethylene carbonate and dimethyl carbonate (1:1, v/v) as the electrolyte. The capacities of Li-ion half cells were measured at different current densities in the voltage range of 0.01–3 V vs. Li+/Li by using an Arbin battery testing system (BT2000). Cyclic voltammetry (CV) was performed by CHI660D electrochemical station (Shanghai Chenhua, China) in the voltage range of 0.01–3 V vs. Li+/Li. Electrochemical impedance spectroscopy (EIS) was performed at the frequency range of 0.01 Hz to 100 kHz, and the excitation amplitude applied to the cells was 5 mV. All of the electrochemical tests were conducted at a temperature of 25°C.

Results and Discussion

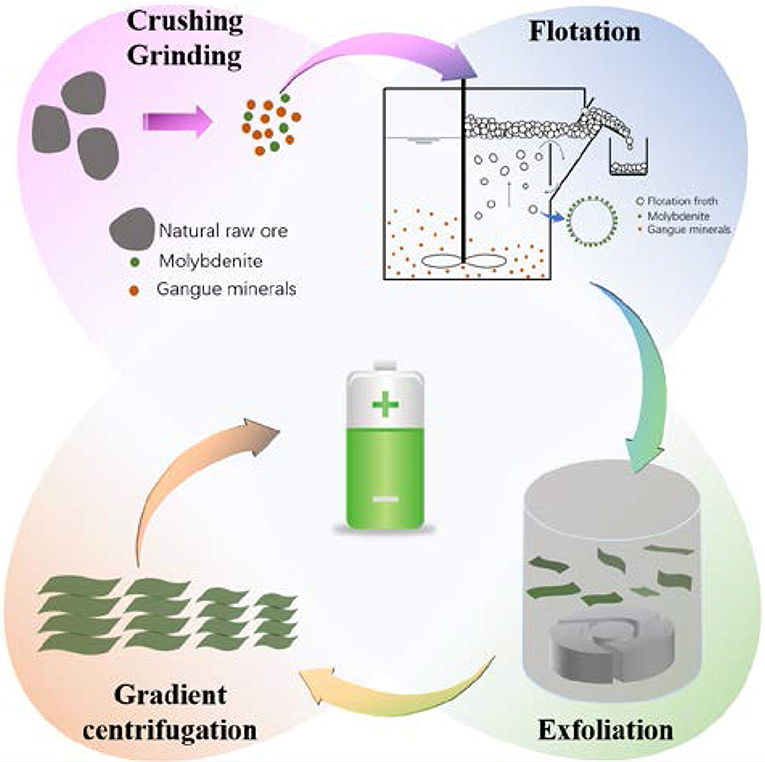

A schematic showing the hydro-refining process of preparing a series of size-controlled MoS2 sheets directly from natural raw ore is illustrated in Figure 1. Initially, the particle size of natural raw ore is reduced by crushing and ball milling. Using flotation, molybdenite in the form of concentrate froth is separated from other nontarget minerals, and the recovery rate of molybdenite is ~85%. The obtained molybdenite concentrate is further downsized by a homogenizer, which has a strong shearing force to exfoliate bulky molybdenite (i.e., MoS2). Finally, the MoS2 suspension is size-classified via high-speed gradient centrifugation. This method is low cost, environmental friendly, high-yielding, and is very promising for the large-scale preparation of MoS2 sheets with various sizes.

FIGURE 1
www.frontiersin.org

Figure 1. Schematic plan of hydro-refining process of natural raw ore.

The chemical composition of the natural raw ore and molybdenite concentrate is presented in Table 1. In natural raw ore, the dominant elements are O and Si, while the Mo content is only 0.82%, thus a facile and low-cost flotation process is indispensable to obtain pure molybdenite concentrate (Jiangang et al., 2012; Liu et al., 2012a). After flotation, the Mo content can reach to 55%, representing the high purity of the molybdenite concentrate. The slight oxidation of the natural molybdenite surface is due to the exposure to oxidative environment. The crystal structures and phases of the molybdenite concentrate and the differently sized MoS2 are investigated by XRD (Figure 2A). All of these samples exhibit similar XRD patterns, which match well with the 2H MoS2 phase (JCPDS no. 37-1492) (Ding et al., 2012; Xie et al., 2015; Sun et al., 2017). No extra peaks appear in the pattern, indicating their high purity, which agrees well with the XRF results. The peak at approximately 14.4° is the characteristic peak of (002) facet. Decreasing peak intensity and broadening peak width of (002) facet signify the thickness reduction of MoS2 sheets (Wang et al., 2013d). Using the results from the XRD patterns, we calculate the grain parameters of each sample by the Scherrer equation:

D=Kλ/βcosθ    (1)

Where, D is the grain size, K is the Scherrer constant (0.89), λ is the diffraction light (X-ray) wavelength (0.15406 nm), β is the full width at half maximum, and θ is the Bragg angle. As shown in Table 2, the MoS2-90 nm sample has the smallest grain size among them. Moreover, the volume average diameters of the samples are tested with a laser diffraction-based particle size analyzer. As shown in Figure 2B, the volume average diameters of the molybdenite concentrate and differently sized MoS2 are 25.964, 5.346, 1.978, 1.023, and 0.092 μm, respectively.

TABLE 1
www.frontiersin.org

Table 1. Chemical composition of natural raw ore and molybdenite concentrate.

FIGURE 2
www.frontiersin.org

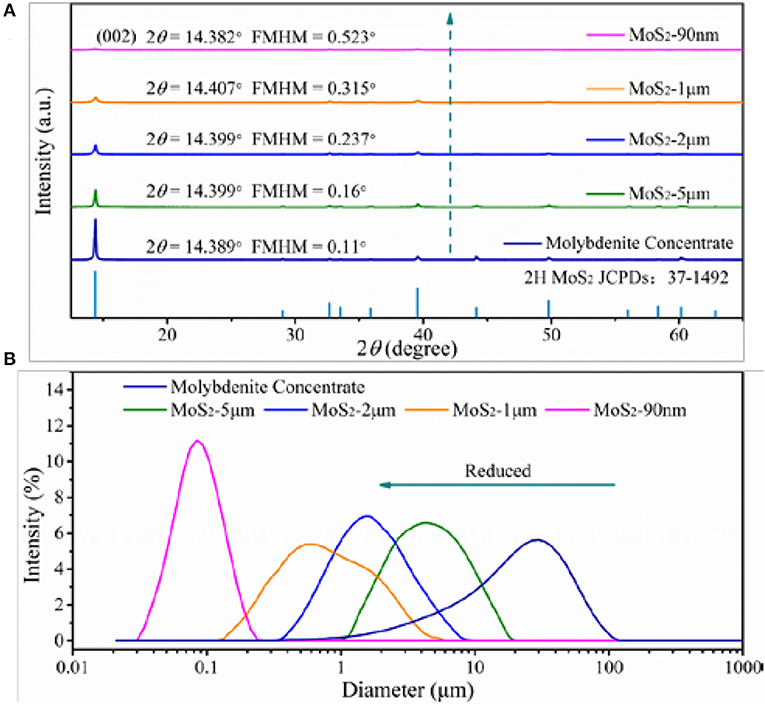

Figure 2. (A) XRD spectra of molybdenite concentrate and MoS2 samples. (B) Particle size analysis of molybdenite concentrate and MoS2 samples.

TABLE 2
www.frontiersin.org

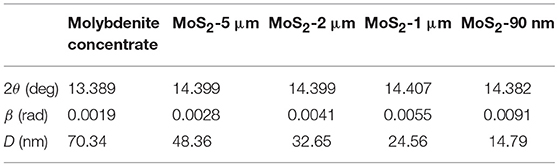

Table 2. Crystal parameters of molybdenite concentrate and MoS2 samples.

The morphological of the samples are conducted by SEM and shown in Figure 3. Figure 3A1 shows the morphology of the molybdenite concentrate where molybdenite particles exhibit various textures (flaky, blocky, and irregular shapes), and their size is mainly tens of microns, which can be attributed to the complex factors in natural mineralization. In addition, several small pieces of debris are found on the surface of large molybdenite particles with a size distribution from a few microns to submicron. From the higher-magnification observations, stacked compacted 2D layer structure is found distinctly in Figures 3A2,A3. By contrast, MoS2-5 μm, MoS2-2 μm, and MoS2-1 μm show a lamellar morphology. As shown in Figures 3B1–B3, several thick sheets with size of ~5 μm are distributed in the MoS2-5 μm sample, which thickness is around 300 nm. Meanwhile, stratified structure and uneven edges are detected, accompanying with an increasing of active sites and defects. In the SEM images of MoS2-2 μm and MoS2-1 μm, small sheets with average sizes of ~1 μm and ~500 nm can be observed. The curved sheets shown in the higher-magnification images of Figures 3C3,D3 indicate the thinness and flexibility of the MoS2 sheets, which significantly ease the volume expansion during the charge and discharge cycles and enhance the stability of the batteries. Figures 3E1,E2 show the compact agglomeration of nano-MoS2 sheets in the MoS2-90 nm sample, revealing the strong tendency of MoS2 nanosheets to aggregate because of their high surface area and energy. This agglomeration dramatically decreases the active sites of the material and hinder Li+ diffusion, which led to a low capacity. Figure 3F displays the compositions of molybdenite concentrate by energy disperse spectroscopy (EDS) analysis. No evident incidental element appears, and the atomic ratio of S to Mo is approximately 2, which further demonstrate the high purity of the molybdenite concentrate obtained from natural raw ore.

FIGURE 3
www.frontiersin.org

Figure 3. SEM images of (A1–A3) molybdenite concentrate, (B1–B3) MoS2-5 μm, (C1–C3) MoS2-2 μm, (D1–D3) MoS2-1 μm and (E1, E2) MoS2-90 nm. (F) Energy-dispersive spectrometry (EDS) of molybdenite concentrate.

For exploring the crystalline characteristics of MoS2 sample, TEM and HRTEM tests with various magnifications are performed. As shown in Figures S1A,B, thin sheets are detected in MoS2-1 μm, accompanying with clear 2D layer structure. Figure S1C shows the HRTEM image of MoS2-1 μm, revealing the abundant defects existing in MoS2 sheets. Stripes spaced 0.273 nm apart in the insetmap are in good accordance with the (100) facet of MoS2, as well as the single-crystal SAED pattern of MoS2-1 μm shows the typical hexagonal spot pattern (Figure S1D). AFM tests are further carried out to obtain detailed information about the morphologies of MoS2-5 μm, MoS2-2 μm, MoS2-1 μm, and MoS2-90 nm. As shown in Figures S2A2C2, the thickness of the MoS2 sheets in the MoS2-5 μm, MoS2-2 μm, and MoS2-1 μm samples gradually decrease from ~330 to ~170 nm and then to ~100 nm. The same trend is observed for the sheet diameter (Figures S2A1C1). Stratified structures and rough edges can also be observed in the 3D plots (Figures S2A3C3), indicating more active sites can be exposed for Li ions. The image of the MoS2-90 nm sample shown in Figure S2D1 displays three irregular particles with a thickness of ~230 nm and a diameter of ~1 μm. Similar to the SEM results, the AFM findings indicate that these uncommon particles are the agglomeration of nano-MoS2 sheets. When observing at a small height scale, two pieces of thin films are visible with a thickness of ~0.65 nm, indicating single-layer MoS2 films distributing in the MoS2-90 nm sample.

The electrochemical properties of the as-prepared samples are measured by galvanostatic charge–discharge test at various current densities. Figure 4A shows the initial charge and discharge curves of molybdenite concentrate and MoS2 samples at 100 mA g−1, where two potential plateaus at approximately 1.1 and 0.6 V vs. Li/Li+ in the first discharge (lithiation) of the electrodes are observed. The first plateau at 1.1 V could be attributed to the intercalation of Li+ into MoS2 interlayers (MoS2 + xLi+ + xe → LixMoS2), and the low plateau at 0.6 V is due to the conversion reaction of LixMoS2 to Mo metal and Li2S (LixMoS2 + (4 – x)Li+ + (4 – x)e → Mo + 2Li2S). Only one significant potential plateau at approximately 2.3 V appeared in the first charge (delithiation) process, and it corresponds to the delithiation of Li2S (Li2S – 2e → 2Li+ + S). This result demonstrates that the conversion reaction is irreversible (Xiao et al., 2010; Stephenson et al., 2014). The electrochemical behavior is further analyzed by CV (Figure 4B). In the first cathodic sweep, two peaks appear at approximately 0.93 and 0.23 V, which are attributed to the insertion and conversion reactions, respectively. Meanwhile, these two peaks weaken in subsequent cathodic cycles. Instead, a sharp reduction peak arises at approximately 1.84 V, which matches well with the behavior in Li-S battery and corresponds to the reaction of S to Li2S (Ji and Nazar, 2010; Elazari et al., 2011). In the anodic sweep, one shallow peak at 1.69 V and one sharp peak at 2.33 V are observed. The first oxidation peak is due to the delithiation of residual LixMoS2, and the latter peak represents the conversion of Li2S to S (Song et al., 2013; Stephenson et al., 2014).

FIGURE 4
www.frontiersin.org

Figure 4. (A) Initial charge and discharge curves of molybdenite concentrate and MoS2 samples at 100 mA g−1. (B) CV curves of the MoS2-1μm electrode for the initial 5 cycles at a scanning rate of 0.2 mV s−1. (C) Cycling performance of molybdenite concentrate and MoS2 samples at 100 mA g−1. (D) Coulombic efficiency of MoS2 samples at 100 mA g−1. (E) Discharge curves of MoS2 samples in the first cycle. Galvanostatic charge and discharge profiles of (F) MoS2-5 μm, (G) MoS2-2 μm, (H) MoS2-1 μm and (I) MoS2-90 nm electrodes at 100 mA g−1.

As shown in Figure 4A, the initial discharge specific capacities of molybdenite concentrate, MoS2-5 μm, MoS2-2 μm, MoS2-1 μm, and MoS2-90 nm are 688, 779, 868, 1134, and 1004 mAh g−1 at 100 mA g−1, respectively, while the initial charge capacities are 589, 653, 555, 904, and 611 mAh g−1. Among them, the MoS2-1 μm has a higher capacity owing to its compared richer active sites. Figure 4C shows the cycling performance of the molybdenite concentrate and MoS2 samples at 100 mA g−1. The molybdenite concentrate exhibits an unsatisfied stability, which capacity gradually decreases to 217 mAh g−1 after 125 cycles, showing a low capacity retention of 37%. MoS2-5 μm displays a specific capacity of ~600 mAh g−1 before 50 cycles with no evident fading, while fades quickly to 355 mAh g−1. The poor cycling stabilities of the molybdenite concentrate and MoS2-5 μm can be ascribed to the large volume expansion of bulk MoS2 during repeated charge/discharge processes, causing the harmful shedding of active materials. Meanwhile, MoS2-2 μm, MoS2-1 μm, and MoS2-90 nm show excellent stability without any capacity decay. As shown, the capacities of MoS2-2 μm, MoS2-1 μm, and MoS2-90 nm increase with the cycling going on, reaching up to 1013, 1337, and 881 mAh g−1 after 125 cycles. The data reported here are higher than most of the reported works (Table 3). The promotion in capacity may be attributed to the increased Mo atoms created by the irreversible redox reaction during repeated charge/discharge processes, bringing about better conductivity. Meanwhile, Mo atoms accommodate a large amount of Li ions over prolonged discharging process, increasing the electrode's Li-capacity. The significant differences between these prepared samples indicate that decreasing the particle size of MoS2 can significantly improve the cycling stability and capacity of batteries due to the stronger and more flexible structure and more active spots. However, MoS2-90 nm displays a lower capacity than MoS2-1 μm may due to the particle agglomeration, accompanying with the reduction in active spots.

TABLE 3
www.frontiersin.org

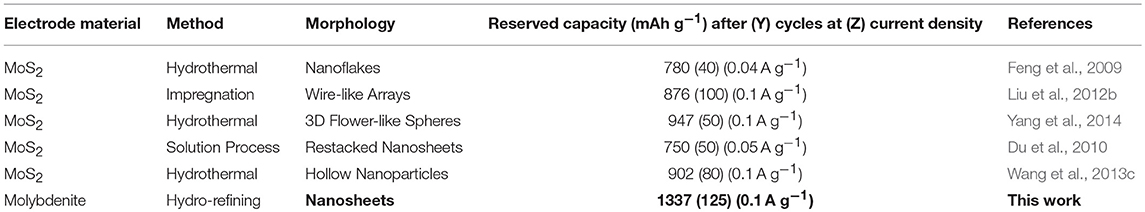

Table 3. Composition of this work and other previous reported results.

Figure 4D shows the coulombic efficiencies of the MoS2 samples at 100 mA g−1. The initial coulombic efficiencies of MoS2-5 μm, MoS2-2 μm, MoS2-1 μm, and MoS2-90 m are 83.9, 63.9, 79.7, and 60.9%, respectively, which rapidly increase to >97% after five cycles. The significant difference in initial coulombic efficiency between MoS2 samples can be explained through the electrochemical behavior during the first lithiation process. Unlike the conversion reaction, Li ion intercalation is a reversible reaction. Thus, a high ratio of intercalation capacity can result in a high initial coulomb efficiency. As shown in Figure 4E, the intercalation capacity ratios of MoS2-5 μm, MoS2-2 μm, MoS2-1 μm, and MoS2-90 m are calculated to be 23.06, 9.06, 23.05, and 8.26%, respectively, which correspond well to the initial coulombic efficiencies. Moreover, the initial coulombic efficiency is an important parameter that determines the industrial application feasibility of electrode materials. Individual MoS2-5 μm and MoS2-1 μm have much higher initial coulombic efficiencies, suggesting that they are more conducive to the application of full batteries than MoS2-2 μm and MoS2-90 nm.

The galvanostatic charge and discharge profiles of four MoS2 electrodes at 100 mA g−1 are shown in Figures 4F–I. Figure 4H shows that, different from the initial discharge curve, a new potential plateau emerges at 2.0 V vs. Li/Li+, and the two aforementioned potential plateaus at 1.1 and 0.6 V disappear in the second discharge profile. This appearance indicates that the dominant reaction of the discharge process turns into S lithiation (S + 2Li+ + 2e → Li2S) (Chang et al., 2013; Zhu et al., 2014), which is in good accordance with the aforementioned CV results. Figure 4F,G,I show the charge and discharge curves of the three other electrodes, which are similar to that of the MoS2-1 μm electrode.

Figure 5A shows the rate performances of MoS2-5μm, MoS2-2μm, MoS2-1μm, and MoS2-90nm. Apparently, the capacity of MoS2-1μm is much higher than those of MoS2-5μm, MoS2-2μm, and MoS2-90nm. The charge capacities of the MoS2-1μm anode at 0.5, 1.0, 2.0, and 5.0 A g−1 are 931, 900, 857, and 682 mAh g−1, respectively. When the current density reverts to 0.1 A g−1, the capacity recovers to a high value of 1,239 mAh g−1, indicating the strong tolerance of the electrode for the rapid charge–discharge process and the remarkable capacity recoverability of the MoS2-1 μm electrode. Meanwhile, the charge capacities of MoS2-5 μm are 516, 464, and 342 mAh g−1 at 0.5, 1.0, 2.0, and 5.0 A g−1, respectively, and then reverts to 597 mAh g−1 at 0.1 A g−1, which is close to the initial capacity. However, along with increasing loops, the capacity declines following a similar pattern to the previous result. The charge capacities of MoS2-2 μm and MoS2-90 nm are 355 and 217 mAh g−1 at 1.0 A g−1 and 146 and 76 mAh g−1 at 5.0 A g−1, respectively, which are unsatisfactory. Figures 5B–E display the comparation of the charge and discharge curves of MoS2-5 μm, MoS2-2 μm, MoS2-1 μm, and MoS2-90 nm at various current densities. As shown in Figure 5E, the MoS2-1 μm electrode keeps a similar charge and discharge curves even at a high current density, as well as considerable capacity retention, further revealing its excellent rate performance. While for MoS2-5 μm, MoS2-2 μm, and MoS2-90 nm, it is difficult for them to maintain the original charge and discharge behavior at high current densities, leading to a sharp declining in capacity (Figures 5B,C,F).

FIGURE 5
www.frontiersin.org

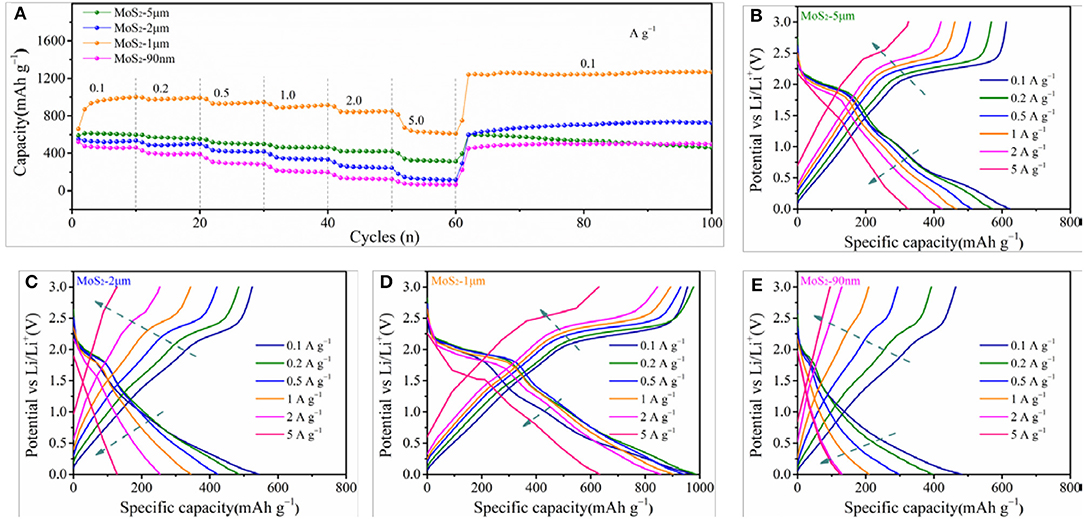

Figure 5. (A) Rate performance of MoS2 samples at various current densities. Comparation of the charge and discharge curves of (B) MoS2-5 μm, (C) MoS2-2 μm, (D) MoS2-1 μm, and (E) MoS2-90 nm at various current densities.

To confirm the difference in electrochemical performance of the differentially expressed MoS2, EIS tests are performed to analyze the electronic conductivity and ion diffusion rate of the samples. Figure 6A shows the Nyquist plots at fully uncharged-undischarged state, accompanied by fitted equivalent circuit. The semicircular loop at the high-middle frequencies is related to the resistance of solid electrolyte interface and charge transfer resistance (Rct), while the slope line at low frequencies represents the Warburg impedance, which is connected to Li ion diffusion of the electrode materials(Wang et al., 2013a). The smaller semicircle of MoS2-1 μm compared with MoS2-5 μm, MoS2-2 μm, and MoS2-90 nm indicates a lower Rct. Thus, MoS2-1 μm is more conducive to charge transfer compared with the other samples (Jiang et al., 2017). Figure 6D shows the relationship between Zr and negative square root of angular frequency (ω−1/2) in the low-frequency region at fully uncharged–undischarged state. Using the slope of the fitted line (Warburg coefficient), the Li ion diffusion coefficient can be calculated according to the following equation (Wu et al., 2016, 2017; Li et al., 2018):

DLi+=0.5R2T2/A2n4F4C2σ2    (2)

where DLi+ is the Li ion diffusion coefficient, R is the gas constant (8.314 J mol−1 K−1), T is the absolute temperature (298 K), A is the area of the electrode (1.53 cm2), n is the transfer electrons (for Li+, n = 1), F is the Faraday constant (96,485 C mol−1), C is the Li ion lattice concentration (0.001 mol cm−2), and σ is the Warburg coefficient. As shown in Figure 6G, at fully uncharged–undischarged state, the DLi+ values of MoS2-5 μm, MoS2-2 μm, MoS2-1 μm, and MoS2-90 nm are 7 × 10−15, 4.68 × 10−15, 7.56 × 10−13, and 3.21 × 10−15 cm2 s−1, respectively. Apparently, the Li ion diffusion coefficient of MoS2-1 μm is two orders of magnitude larger than those of the three other samples, which can reflect the higher initial capacity of MoS2-1μm (Figure 4C).

FIGURE 6
www.frontiersin.org

Figure 6. EIS curves of MoS2 samples at (A) fully uncharged/undischarged state, (B) first discharged to 1.1 V vs. Li/Li+ state, (C) first discharged to 0.6 V vs. Li/Li+ state. (D–F) The corresponding relationship between Zr and negative square root of angular frequency (ω−1/2) at various states. (G–I) The corresponding Li ion diffusion coefficient (DLi+) of MoS2 samples at various states.

Figures 6B,E show the Nyquist plots at initially discharged to 1.1 V vs. Li/Li+ state where Li ion intercalation occurs and the corresponding relationship between Zr and ω−1/2. The semicircles of MoS2-1 μm and MoS2-5 μm are smaller than those of MoS2-2 μm, and MoS2-90 nm, respectively. Thus, Rct is lower and charge transfer is much easier for MoS2-1 μm and MoS2-5 μm than for MoS2-2 μm and MoS2-90 nm. The calculated DLi+ values of MoS2-5 μm, MoS2-2 μm, MoS2-1 μm, and MoS2-90 nm at initially discharged to 1.1 V vs. Li/Li+ state are 2.46 × 10−13, 2.19 × 10−15, 4.80 × 10−13, and 5.43 × 10−14 cm2 s−1, respectively (Figure 6H). On the basis of the results of Rct and DLi+, the intensities of the Li ion intercalation can be ranked as MoS2-1 μm > MoS2-5 μm > MoS2-90 nm > MoS2-2 μm. As shown in Figure 6C, the semicircles of Nyquist plots, which at initially discharged to 0.6 V vs. Li/Li+ state where conversion reaction occurs, gradually enlarge from MoS2-1 μm to MoS2-5 μm. Simultaneously, the calculated DLi+ values for MoS2-5 μm, MoS2-2 μm, MoS2-1 μm, and MoS2-90 nm are 7.66 × 10−14, 1.9 × 10−13, 2.41 × 10−12, and 6.47 × 10−13 cm2 s−1, respectively (Figure 6I). These results indicate the significantly stronger conversion reactions of MoS2-1 μm than other samples.

CV tests are conducted to further investigate the electrochemical kinetics of the as-prepared samples. Figures 7A,B,D,E show the CV curves of the MoS2 samples at different scanning rates, where the four MoS2 samples display similar CV behaviors. The dominant oxidation and reduction peaks appear at approximately 2.48 and 1.80 V vs. Li/Li+, respectively. Moreover, the peak at 2.48 V splits into two parts, which agrees well with the gradient conversion from element S8 to polysulfides and then to Li2S (Xiao et al., 2011). As the scan rate increasing, the peak current elevates, and the oxidation peak potential shifts positively while the reduction peak potential toward negatively. As shown in Figure 7G, the peak intensities clearly show the following trend: MoS2-1 μm > MoS2-5 μm > MoS2-90 nm > MoS2-2 μm, indicating the largest capacity of MoS2-1 μm electrode (Chou et al., 2011). Figures 7C,F show the relationship between the peak current and square root of scan rate (v1/2), which can be expressed by the following equation (Wang et al., 2013b; Sun et al., 2017):

ip=2.69×105n32AD12v12C0    (3)

where ip is the peak current, v is the scan rate, n is the transfer electrons (for Li,+ n = 1), A is the area of the electrode (1.53 cm2), D is the Li ion diffusion coefficient, and ΔC0 is the change in Li+ concentration in the electrochemical reaction. Ion diffusion is a rate-determining step in the electrode. Thus, when scanning at a slow rate (<1 mV s−1), the peak current (ip) varied linearly with the square root of scan rate (v1/2). Hence, the slope can be utilized to characterize the Li ion diffusion coefficient (D). The results suggest that the fitting line slope of MoS2-1 μm is higher than that of the other samples (Figure 7H), revealing that MoS2-1 μm has better Li ion diffusion rate than the other samples, which is in good accordance with the EIS test results.

FIGURE 7
www.frontiersin.org

Figure 7. CV curves of (A) MoS2-5 μm, (B) MoS2-2 μm, (D) MoS2-1 μm and (E) MoS2-90 nm at various scanning rates from 0.1 to 0.9 mV s−1. The relationship between the peak current and square root of scan rate (v1/2) of (C) oxidation peak (Peak 1), (F) reduction peak (Peak 2). (G) Comparation of CV curves of MoS2 samples at 0.9 mV s−1. (H) Li ion diffusion coefficient (DLi+) of Peak 1 and Peak 2.

Conclusions

Herein, 2D MoS2 sheets were successfully prepared from abundant natural raw molybdenite ore by a low-cost, environmental-friendly and high-yielding hydro-refining technology, containing crushing–grinding, flotation, physical exfoliation, and gradient centrifugation. Furthermore, the efficient tailoring and classification processes realized a series of size-controlled (5μm, 2μm, 1μm, 90nm) MoS2 sheets to improve Li-capacity and stability. When used as LIB anodes, size displayed significant effects on electrochemical performance. The MoS2-1 μm electrode demonstrated a higher initial charge capacity of 904 mAh g−1, further increasing to 1,337 mAh g−1 over 125 cycles at 0.1 A g−1. The excellent rate performance of the MoS2-1 μm electrode showed considerable capacities of 857 and 682 mAh g−1 at 2.0 and 5.0 A g−1, respectively. Owing to extraordinary morphology brought from tailoring craft, the as-prepared sheets offering rich active sites and defects for interacting with Li ions. Meanwhile, flexible structure could relieve volume expansion, significantly promoting the cycling stability. What's more, in-depth electrochemical kinetic analysis disclosed that the MoS2-1 μm electrode shows a lower charge transfer resistance and higher Li ion diffusion coefficient at various states, resulted from the successful size-tuning process. This work presents the remarkable effect of different MoS2 sheet sizes on Li-storage performance and provides a promising strategy for the large-scale production of MoS2-based LIB anodes from natural molybdenite mineral.
