Theoretical Investigation of Mono- and Di-Chloro-Substitient Effects on the Insulation and Greenhouse Properties of Octafluorocyclobutane

Octafluorocyclobutane, c-C₄F₈, and its derivatives are regarded as promising replacements of insulation gaseous SF₆, which are currently widely used in electric equipment but suffer greatly from its greenhouse effect. Based on the recent finding that the dielectric and thermodynamics properties of insulating gases are greatly dependent on the molecule's microscopic electronic and vibrational parameters, in this work, we use density functional theory (DFT) to study the molecular structures, electron affinities, and IR-active vibrational frequencies as well as thermodynamic properties for c-C₄F₈ and a series of mono-, di-substituted c-C₄F₈ compounds. It is shown that DFT calculation of perfluoro-compounds is sensitive to the chosen functional. Although all chloro-substituted c-C₄F₈ molecules are found to have much larger electron affinities, only part of them have less IR intensity in the atmospheric IR “window” than c-C₄F₈. Such a study provides useful guideline for the pre-screening search for new insulation gases via electronic structure calculations.

Introduction

Because of its excellent electrical insulationc performance and high stability, Sulfur hexafluoride (SF₆) is nowadays the most widely used insulating gas in electric equipment [e.g., gas insulated switchgear (GIS)] in the world (Okubo and Beroual, 2011). However, the current usage of SF₆ suffers a great limitation because it is a greenhouse gas (GHG) regulated under the Kyoto Protocol with a global warming potential (GWP) of 23,900 over 100-year time horizon (Fang et al., 2013). As a consequence, nowadays investigations for new replacement gases for SF₆ becomes highly necessary.

Due to its strong dielectric and relative low global warming potential (GWP = 8700 = 36% GWP_SF6) (Christophorou and Olthoff, 2001), Octafluorocyclobutane, c-C₄F₈, and its derivatives as well as mixtures are now regarded as promising insulation gaseous substitutes of SF₆ (Itoh et al., 1991; Yamamoto et al., 2001; Yamaji and Nakamura, 2003; Yamaji et al., 2004; Wu et al., 2006; de Urquijo and Juárez, 2009; Li et al., 2014; Zhao et al., 2016). c-C₄F₈ has been known to have more superior dielectric properties than SF₆. The sparkover voltage of c-C₄F₈ is about 1.3 times that of SF₆ at atmospheric pressure for an ac waveform, and the lightning impulse voltage is 1.3–1.4 times that of SF₆ (Yamamoto et al., 2001). The critical reduced electric field strength (E/N)_cr, where E and N represent the electric field and the particle number density respectively, was determined to be 359~434 Td (Naidu et al., 1972; de Urquijo and Basurto, 2001; Liu et al., 2007), higher than that of SF₆ (362 Td). At the same time, c-C₄F₈ suffers from a severe shortcoming that the liquefaction temperature of c-C₄F₈ (−8°C at 0.1 MPa) is much higher than that of SF₆(−64°C at 0.1 MPa), which greatly limits its application in cold regions and high gas pressure GIS devices (Li et al., 2014).

Nowadays it is also well-known that the dielectric and thermodynamics properties of insulating gases are greatly dependent on the molecule's microscopic electronic and vibrational parameters. (Rabie et al., 2013; Zhang et al., 2016) The recent multiple regression analysis by us Zhang et al. (2016) and Rabie et al. (2013) have indicated that the gas's relative dielectric strength is proportional to the polarizability and electron affinity of the molecule and the liquefaction temperature is proportional to its polarizability and dipole moment. Therefore, for designing ideal insulation gas with high dielectric strength and low liquefaction temperature which can be widely used in electric equipment, molecules with small dipole moments, large electron affinities and balanced polarizability are expected to be selected through effective screening via electronic structure studies among a large number of candidate molecules. Of course the gas's greenhouse effect should be also examined by infrared spectroscopy investigations. In the past several years, there have been intensive studies on the structural, vibrational characteristics and the electron binding energies of c-C₄F₈ and its anion through Raman, infrared, photoelectron spectrums or electron-spin resonance (ESR) experiments as well as quantum chemical calculations. (Lemaire and Livingston, 1952; Bauman and Bulkin, 1966; Chang et al., 1971; Miller and Capwbll, 1971; Beagley et al., 1987; Mao et al., 1988; Purchase et al., 1997; Gallup, 2004; ElSohly et al., 2005; Bopp et al., 2007; Choi et al., 2013) However, very few research works on the electronic structures for c-C₄F₈ derivatives or their corresponding anions has been done, hindering the further rational design of new SF₆ replacement gases.

Motivated by the above facts, in this work we presented a systematic study for the geometries, electron affinities, and vibrational frequencies as well as thermodynamic properties for the mono-, di-chloro-substituted c-C₄F₈ based on first principles density functional theory DFT (Hohenberg and Kohn, 1964; Kohn and Sham, 1965).

The rest of the paper is organized as follows. Computational details are reported in Section Computational Methods. In Section Results and Discussion, the ground state geometries, bonding energies, vibrational spectra, electron affinities, dipole moments, as well as thermodynamic properties are presented and analyzed. In Section Conclusions, the main points of this work are summarized and perspectives for future research are outlined.

Computational Methods

In this work, c-C₄F₈ (1) and its mono- and di-chloro-substituted derivatives (one mono-substitute c-C₄F₇Cl and five di-substitutes c-C₄F₆Cl₂, see Figure 1) molecules (2-7) are selected and these molecules are studied using the first-principles DFT. DFT calculations are applied to optimize the molecule's geometry and describe its electronic structure of the selected molecules and corresponding negative ions, and frequency analysis is also performed. In our study, all the first-principle DFT calculations are performed using Gaussian09 D.01 software package (Frisch et al., 2009).

FIGURE 1

Figure 1. Optimized geometries for neutral c-C₄F_8−nCl_n (n = 0, 1, 2) series and their anions in their ground states. 1: c-C₄F₈, D_2d symmetry; 1⁻: c-C₄F${}_8^{-}$, D_4h symmetry; 2: c-C₄F₇Cl, C_s symmetry; 2⁻: c-C₄F₇Cl⁻, C_s symmetry; 3: c-C₄F₆Cl₂(a), C_s symmetry; 3⁻: c-C₄F₆Cl${}_2^{-}$(a), C_s symmetry; 4: c-C₄F₆Cl₂(b), C₁ symmetry; 4⁻: c-C₄F₆Cl${}_2^{-}$(b), C₁ symmetry; 5: c-C₄F₆Cl₂(c), C₂ symmetry; 5⁻: c-C₄F₆Cl${}_2^{-}$(c), C₁ symmetry; 6: c-C₄F₆Cl₂(d), C_2v symmetry; 6⁻: c-C₄F₆Cl${}_2^{-}$(d), C_s symmetry; 7: c-C₄F₆Cl₂(e), C_s symmetry; 7⁻: c-C₄F₆Cl${}_2^{-}$(e), C_s symmetry.

The electron affinities are evaluated as the difference of the molecule's energy in the following manner: the adiabatic electron affinity is determined by, EA_ad = E(optimized neutral) − E(optimized anion), the vertical electron affinity by, EA_vert = E(optimized neutral) − E(anion at optimized neutral geometry), and the vertical detachment energy of the anion by, VDE = E(neutral at optimized anion geometry) − E(optimized anion).

To benchmark the computational accuracy of our calculations for molecules with strong electronegative atoms like fluorine, seven DFT exchange-correlation functionals and four basis sets are tested, including GGA (Generalized gradient approximations) functional PBE (Perdew et al., 1996), hybrid functional B3LYP (Becke, 1993; Stephens et al., 1994) and M06 (Zhao and Truhlar, 2008), long-range corrected functional CAM-B3LYP (Yanai et al., 2004), ωB97-XD (Chai and Head-Gordon, 2008), and LC-ωPBE (Vydrov and Scuseria, 2006; Vydrov et al., 2006, 2007), as well as the newly developed meta-hybrid M06-2X (Zhao and Truhlar, 2008). The four tested basis sets include Pople basis sets (Krishnan et al., 1980; McLean and Chandler, 1980) 6–311+g(d) and 6–311+g(3df), and correlation-consistent basis sets aug-cc-pVTZ (Kendall et al., 1992) and aug-cc-pVQZ (Woon and Dunning, 1993).

Results and Discussion

Benchmark Tests for DFT Functional and Basis Set

It is well-known that electronic structure properties of the molecules, especially the electron affinity energy, are very sensitive to the DFT functionals and basis sets. In Figure 2, we plotted DFT calculated EA results with different functional and basis sets for c-C₄F₈ together with comparisons to experimental reference (0.63 ± 0.05 eV) (Chang et al., 1971). It is clearly shown that with basis set including f -type functions, long-range corrected or meta-hybrid functionals can generally give results much closer to experimental references than local or standard hybrid functions. Among them, M06-2X and ωB97-XD are shown to give smallest deviations (about −25 to 25% error). It is because in perfluoro-compounds, the large number of F atoms is associated with intense non-bonding interactions. Therefore, functional with long-range corrected or meta-hybrid functionals are required for the accurate calculation of the electronic structures of perfluoro-compounds.

FIGURE 2

Figure 2. Exchange-correlation functional and basis set test for DFT calculations of the adiabatic electron affinity energy (EA_ad) for c-C₄F₈.

As for the basis set, from Figure 2 one may also clearly notice that not only the diffused function but also f -type polarized function are necessary for an accurate theoretical prediction of EA for possible insulating gas molecules. It is shown that 6–311+g(d) basis set gives results with large deviations from experimental references for all of DFT functionals we adopted, while 6–311+g(3df), aug-cc-pVTZ and aug-cc-pVQZ basis sets can give more reasonable results. From the data shown in the Supporting Information, one can further notice that the basis set difference only causes slight distinctions in the optimized geometries and the EA difference by different basis sets mainly comes from the single point energy difference. Considering that the further incorporation of g-type (aug-cc-pVQZ) polarized function do not yield an obvious improvement of the calculated results, we finally decided to perform our further systematic DFT calculations with 6–311+g(3df) basis set to achieve a good compromise between accuracy and computational efficiency.

Optimized Geometries

The equilibrium structures of the optimized molecules (1–7) in their both neutral and anion forms obtained from geometry optimization by DFT calculation at M06-2X/6–311g+(3df) level were shown in Figure 1, and the key structural parameters are listed in Table 1. It is shown that the molecule symmetry is decreased from D_2d to C_2v or C_s, C₂ or even C₁ with the increasing n for neutral forms of c-C₄F_8−nCl_n (n = 0, 1, 2), due to the symmetry break by chlorine substitution. Interestingly we notice that while the geometry of neutral c-C₄F₈ (1) is bent with D_2d symmetry (∠C₂C₁C₃C₄ around 164.4°), that of its anion form (1⁻) becomes planar with D_4h symmetry (∠C₂C₁C₃C₄ being 180.0°). This finding is consistent with earlier ESR experiments (ElSohly et al., 2005) and theoretical calculations (Choi et al., 2013). The previous computational results have shown that the added electron to c-C₄F₈ is delocalized in a “pi-like” orbital extending over the entire molecule, strengthening the four C-C bonds via π-bonding interactions, and weakening the eight C-F bonds via σ*-antibonding interactions. However, such a bent-to-planar transition was not observed for c-C₄F₈ derivatives upon attachment of an electron, due to the decrease of the symmetry by mono- and di-chloro-substitutions.

TABLE 1

Table 1. Structural information of optimized molecules by DFT calculation at M06-2X/6–311g+(3df) level.

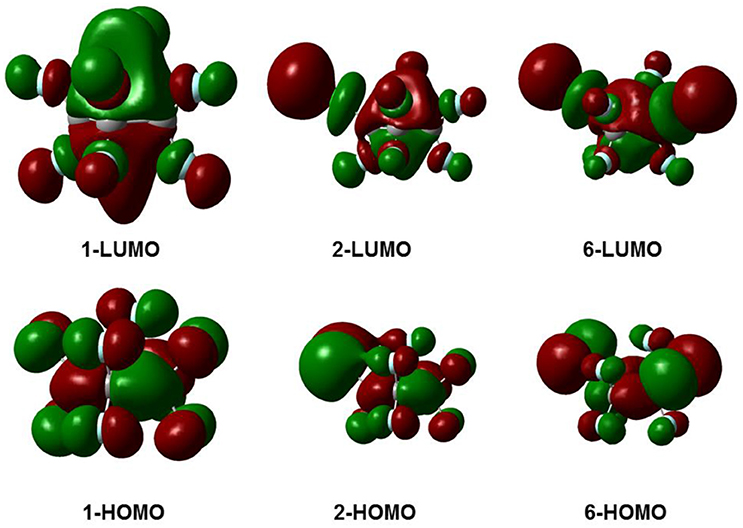

Figure 3 gives the highest occupied molecular orbitals (HOMO) and the lowest unoccupied molecular orbitals (LUMO) of the selected molecules 1, 2, and 6. For c-C₄F₈ (1), the LUMO is similar to a delocalized π-orbitals of the four carbon atoms, therefore, the attachment of an additional electron would make the carbon cycle more planar. On the contrary, for mono- and di-substituted molecules, the p-orbitals of chlorine atoms have much greater contributions to the LUMO, indicating a more localized feature at the Cl atom. As a consequence, the electron attached to the chloro-substitutes of c-C₄F₈ (2–7) will locate at the Cl atom to a great extent with an elongated C-Cl bond length and will not remarkably alter the planarity. This can be verified from the structure in Figure 1 and the data in Table 1, in which the ∠C₂C₁C₃C₄ change is less than 7° and the bond length difference between two C-Cl bonds are as large as 0.5–0.8 Å for the chloro-substitutes of c-C₄F₈ (2–7) upon electron attachment.

FIGURE 3

Figure 3. The frontier molecular orbitals for selected typical molecules (1, 2, 6).

The results for binding energies and dipole moments for c-C₄F_8−nCl_n (n = 0, 1, 2) are listed in Table 2. The c-C₄F₈ (1) molecule is found to have the highest binding energy as compared to its mono- and di-chloro-substituted derivatives (2–7), and a zero dipole moment due to its relatively high symmetry of D_2d. At the same time, we notice that the binding energy is not sensitive to the different conformations for the isomers of c-C₄F₆Cl₂ (3–7), but the dipole moment is found to be highly dependent on them. Because recent multiple regression analysis (Rabie et al., 2013; Zhang et al., 2016) have shown that the magnitudes of dipole moment are correlated to the liquefaction temperature of the gases, this implies that searching for new insulating gases which can work in extremely areas should carefully examine the molecule's possible different dipole moments caused by various isomerized conformations.

TABLE 2

Table 2. Binding energies and dipole moments of optimized molecules by DFT calculations at M06-2X/6–311g+(3df) level.

Electronic Affinities

As the electron affinity feature has been revealed to be highly correlated with the insulating properties of the potential new insulating gases (Rabie et al., 2013; Zhang et al., 2016), in this work we also performed calculations for various electron affinity parameters of c-C₄F_8−nCl_n (n = 0, 1, 2). The calculated EA_ad, EA_vert, and VDE by both ωB97-XD and M06-2X functionals are here listed in Table 3. As we have shown in Section Benchmark Tests for DFT Functional and Basis Set, by using suitable basis set (e.g., 6–311g+(3df)), DFT exchange-correlation functionals of ωB97-XD and M06-2X can yield very similar numerical results which are close to available experimental value. It is also shown that the electron affinity and VDA values are remarkably increased when the c-C₄F₈ (1) molecule is chloro-substituted. Considering that a larger EA value is beneficial to the improvement of relative electric strength (Rabie et al., 2013; Zhang et al., 2016), it would be useful to investigate the various halogen substitutions of currently used insulating gases of perfluoro-compounds for future improvement or replacement.

TABLE 3

Table 3. Adiabatic and vertical electron affinities of the neutral c-C₄F₈ and mono-, di-chloro-substituted c-C₄F₈ compounds as well as vertical detachment energies of their anions in units of eV.

Vibrational Frequencies and IR Intensities

For the purpose of studying the greenhouse effect of the c-C₄F₈ and its derivatives, here we list the total infrared (IR) intensities and the cumulative IR intensities in the atmospheric IR “window” (800–1200 cm⁻¹) in Table 4, the latter of which is widely used as a descriptor for qualitatively measuring the gas's greenhouse effect (Sturges et al., 2000). All these values can be calculated by frequency analysis using Gaussian09 D.01 package. It is clear that both the total IR intensity and cumulative IR intensity in the atmospheric IR “window” are increased upon the attachment of an electron for c-C₄F_8−nCl_n (n = 0, 1, 2). Meanwhile, most chloro-substituted c-C₄F₈ compounds (4, 5, 7) show higher IR intensity in the atmospheric IR “window” than c-C₄F₈, implying a worse greenhouse effect. However, there are also some chloro-substituted c-C₄F₈ compounds (2, 3, 6) showing lower IR intensity in the atmospheric IR “window” than the c-C₄F₈ (1) molecule, implying a decreased greenhouse effect. Especially, a di-chloro-substituted c-C₄F₈ (6) has much less IR intensity (222.8 km × mol⁻¹) in the atmospheric IR “window” than that of the c-C₄F₈ (1) molecule (411.4 km × mol⁻¹). Therefore, new c-C₄F₈ derivatives like 6 can be expected to be possibly used as new insulating gases in electric equipment with much suppressed environmental problems.

TABLE 4

Table 4. IR intensities by DFT calculations at M06-2X/6–311g+(3df) level.

Thermodynamic Properties

Basic thermodynamic properties such as zero-point vibrational energy (ZPVE) and entropy as well as heat capacity have been also calculated for c-C₄F_8−nCl_n (n = 0, 1, 2), and the results are presented in Table 5. It is shown that while all the translational, rotational and vibrational movements contribute considerably to the total entropy, only vibrational ones make the dominant contributions to the total heat capacity. It can be also noticed that the ZPVE decreases upon chloro-substitution, but the entropy and the heat capacity increase upon chloro-substitution.

TABLE 5

Table 5. Zero-point vibrational energy (ZPVE) and entropy as well as heat capacity of c-C₄F₈ and its mono-, di-chloro-substituted derivatives.

Conclusions

In this work, we use DFT to investigate the molecular structures, electron affinities, and IR-active vibrational frequencies as well as thermodynamic properties for c-C₄F₈ and a series of mono-, di-substituted c-C₄F₈ compounds. It is shown that functional with long-range corrected or meta-hybrid functionals and f-component containing basis set are obligatory for DFT calculations of the electronic structures of perfluoro-compounds to reproduce the experimental results.

We found that the bending geometry (D_2d symmetry) of neutral c-C₄F₈ becomes planar (D_4h symmetry) upon the attachment of an electron as its LUMO delocalized in a “p-like” orbital extending over the entire molecule. On the contrary, the chloro-substituted c-C₄F₈ molecules remains non-planar upon electron attachment because their LUMOs have great contributions from the Cl atoms and become asymmetric.

Although all chloro-substituted c-C₄F₈ molecules are found to have much larger electron affinities, only part of them have less IR intensity in the atmospheric IR “window” than c-C₄F₈. This implies that new insulation gas with improved dielectric and environmental properties can be fabricated from some chloro-substituted c-C₄F₈ molecules after careful selection.
