Copper mediated controlled radical copolymerization of styrene and 2-ethylhexyl acrylate and determination of their reactivity ratios

Copolymerization is an important synthetic tool to prepare polymers with desirable combination of properties which are difficult to achieve from the different homopolymers concerned. This investigation reports the copolymerization of 2-ethylhexyl acrylate (EHA) and styrene using copper bromide (CuBr) as catalyst in combination with N,N,N′,N″,N″- pentamethyldiethylenetriamine (PMDETA) as ligand and 1-phenylethyl bromide (PEBr) as initiator. Linear kinetic plot and linear increase in molecular weights vs. conversion indicate that copolymerization reactions were controlled. The copolymer composition was calculated using ¹H NMR studies. The reactivity ratio of styrene and EHA (r₁ and r₂) were determined using the Finemann–Ross (FR), inverted Finemann–Ross (IFR), and Kelen–Tudos (KT) methods. Thermal properties of the copolymers were also studied by using TGA and DSC analysis.

Introduction

The homopolymer and copolymers of 2-ethylhexyl acrylate (EHA) have very good film formation characteristics and have very good low temperature flexibility, because of the presence of branched and longer alkyl pendant group in the EHA. They have also low volume shrinkage. So the copolymers of EHA are widely used in paints, coating and adhesive applications (Skeist, 1977; Plessis et al., 2001; Webster and Crain, 2002). Copolymerization is an important synthetic tool which can control the thermal and mechanical properties of the polymers (Kavousian et al., 2004). In the copolymers of styrene and EHA, the properties of the copolymers can be monitored by controlled incorporation of the respective comonomers styrene and EHA. Polystyrene possess high glass transition temperature, T_g (~100°C) where as poly(2-ethylhexyl acrylate) (PEHA) has low T_g of −60°C. Copolymers of styrene and EHA are important components for hard coating (Plessis et al., 2001) and also are used as blend compatibilizers (Haldankar, 2001). Conventional free radical polymerization (FRP) leads to uncontrolled molecular weight and broad dispersity (Đ). There is also gel formation tendency, because of the several side reactions during FRP. This makes them difficult to apply for paints and coating material application owing to high viscosity (Solomon and Moad, 1995; Odian, 2004). Since 1990s there have been spectacular advances in the field of controlled radical polymerization (CRP). There were several CRP techniques namely, atom transfer radical polymerization (ATRP) (Kamigaito et al., 2001; Matyjaszewski and Jia, 2001; Kavitha and Singha, 2008), nitroxide-mediated polymerization (NMP) (Harth et al., 2001; Hawker et al., 2001), and reversible addition–fragmentation chain transfer (RAFT) (Chiefari et al., 1998; Moad et al., 2000; Moad, 2006; Barner-Kowollik, 2008). Among the different CRP techniques, ATRP is applicable to polymerize wide range of monomers and can be carried out at wide range of temperature (−20 to 200°C) (Haloi et al., 2009). ATRP has been successfully applied to synthesize a wide range of polymers with varied molecular weights, different architectures, functionalities etc. Transition metal catalyzed CRP known as ATRP is an important CRP method (Matyjaszewski, 2000) which is carried out in presence of an active alkyl halide using a transition metal halide as catalyst in combination with a suitable ligand (Matyjaszewski and Jia, 2001). A wide variety of copolymers can be prepared via ATRP with controlled molecular weight, functionality, and low dispersity. There are several reports on the copolymerization of different acrylate monomers using ATRP and determination of their reactivity ratios. The reactivity ratios are important parameters for a set of monomer. The reactivity ratios of monomers predict the copolymer composition as well as the sequence distribution of the comonomers. It also predicts the properties of the copolymer. ATRP provides random copolymer with similar chain compositions which is very much different from FRP (Matyjaszewski, 2002). During the polymerization reaction, the polymer chains grow simultaneously and thus all the polymer chains have same composition. However, in FRP macromolecular chains start growing at different times during the polymerization and the monomer composition continuously changes. As a result, in FRP the different chains will have different compositions in the end (Solomon and Moad, 1995). The reactivity ratios of co-monomers in a CRP are somewhat different from the same in FRP. This is because in CRP processes there is intermittent activation-deactivation of the active species which results in different rates of consumption of comonomers (Matyjaszewski, 2002; Braunecker and Matyjaszewski, 2007). For example, Mignard et al. reported the reactivity ratios of the copolymerization of styrene and butyl acrylate (BA) via NMP at 120°C in solution. They reported the reactivity ratios for styrene and BA within the range of 0.60–1.2 (r_styrene) and 0.16–0.29 (r_BA) respectively (Mignard et al., 2004). Arehart and Matyjaszewski reported the reactivity ratios of styrene and BA prepared via ATRP at 110°C in solution. They reported the reactivity ratios for styrene and BA as 0.68 < r_styrene < 0.82 and 0.22 < r_BA < 0.26 respectively (Arehart and Matyjaszewski, 1999). Chambard et al. reported the copolymerization of styrene and BA prepared in bulk via FRP. The reactivity ratios of styrene and BA prepared via FRP at 90°C were reported to be 0.95 and 0.20 respectively (Chambard et al., 1999). Ziegler and Matyjaszewski reported the variation in reactivity ratios of MMA and BA with the change in ligand from 4,4′-di(5-nonyl)-2,2′-bipyridine (dNbpy) (r_MMA = 2.52, r_BA = 0.26) to N,N,N′,N″,N″-pentamethyldiethylenetriamine (PMDETA) (r_MMA = 3.15, and r_BA = 0.37) (Ziegler and Matyjaszewski, 2001). Lessard et al. reported the reactivity ratios of styrene and tert-butyl acrylate(t-BA) prepared via NMP at 115°C in bulk as r_t-BA = 0.09–0.12 and r_Styrene = 0.40–0.49 (Lessard et al., 2007). We reported the ATRP of furfuryl methylacrylate and methyl methacrylate (Kavitha and Singha, 2007), 2-ethylhexyl acrylate and glycidyl methacrylate (Haloi et al., 2009). However, there is no report on the ATRP of styrene and EHA and to determine their reactivity ratios. The objective of this investigation is to study the copolymerization of styrene and EHA via ATRP and to determine their reactivity ratios. The reactivity ratios of styrene and EHA were calculated using Finemann–Ross (FR), inverted Finemann–Ross (IFR), and Kelen–Tudos (KT) methods (Fineman and Ross, 1950; Kelen et al., 1980; Makrikosta et al., 2005).

Materials and Methods

The monomers, 2-ethylhexyl acrylate (EHA) (Aldrich, USA) and styrene (Jyoti Chemicals, Mumbai) were purified by vacuum distillation. CuBr (Aldrich, USA) was purified by washing with glacial acetic acid, and then it was washed thoroughly with diethyl ether and was finally dried under vacuum. Phenyl ethylbromide (PEBr) (97%) and N,N,N′,N″,N″-pentamethyldiethylenetriamine (PMDETA) (97%) were purchased from Aldrich, USA and were used as received.

Characterization

Number average molecular weight (Mn, GPC) and dispersity (Đ) were determined by Gel Permeation Chromatography (GPC). GPC analysis was carried out at room temperature using a Viscotek GPC equipped with a refractive index detector (Model VE3580), two ViscoGEL GPC columns (model GMHHR-M # 17392) connected in series. GPC analysis was carried out using tetrahydrofuran as eluent at a flow rate of 1 ml/min. Linear and narrow disperse polystyrene was used as calibration standard and Viscotek OMNI-01 software was used for data processing.

¹H NMR spectra of the polymers were recorded on a 200 MHz Brucker NMR spectrometer using CDCl₃ as solvent which had a small amount of tetramethylsilane (TMS) as an internal standard.

Differential scanning calorimetry (DSC) analysis was carried out by using TA Instrument (DSC Q100 V8.1 Build 251) under nitrogen atmosphere at a heating rate of 10°C/min within a temperature range of −100°C to +150°C. The baseline calibration was done by scanning the temperature domain with the help of an empty pan. The enthalpy was calibrated by using indium standard and the heat capacity was calibrated by using the sapphire disc that was supplied by TA instrument. The glass transition temperature (T_g) was determined from the plot of heat flow vs. temperature in the second heating scan in the DSC analysis.

Thermogravimetric analysis (TGA) was carried out by using a TA Instrument (Q50) at a heating rate of 20°C/min in the temperature range of 30–600°C in nitrogen atmosphere. TGA analyzer consists of high precision balance with a pan which was placed in a small electrically heated oven. The temperature was measured accurately with the help of a thermocouple. From the plot of weight percent vs. temperature the polymer degradation temperature was determined.

Synthesis of Copolymers of Styrene and EHA via Atom Transfer Radical Copolymerization (ATRcP)

The polymerization reaction was carried out in a Schlenk tube. In a typical ATRP reaction EHA (4.82 g, 26.1 mmol), styrene (0.909 g, 8.7 mmol) and CuBr (0.050 g, 0.35 mmol) were accurately weighed and transferred to the Schlenk tube. The PMDETA ligand (0.0604 g, 0.35 mmol) was then added to the reaction tube. Oxygen was removed from the reaction mixture by passing nitrogen through the reaction tube. The polymerization was started by adding PEBr (0.0646 g, 0.35 mmol) and was carried out at 90°C. Aliquot samples were taken out at different time intervals and were used to calculate the conversion by gravimetric method. The samples were also used to find out the molecular weight by GPC. The final product was diluted with THF and was purified by passing through alumina column to remove the copper catalyst. The same procedure was adopted for other feed ratios of ATRcP (atom transfer radical copolymerization) of EHA and styrene.

Homopolymerization of Styrene via Atom Transfer Radical Polymerization (ATRP)

The homopolymerization of styrene was carried out in bulk in a Schlenk tube equipped with silicone septum and magnetic stirring bar. In the Schlenk tube styrene (4.5 g, 43.2 mmol), CuBr (0.031 g, 0.21 mmol) and PMDETA (0.037 g, 0.21 mmol) were weighed and degassed by passing nitrogen gas for 15 min. The reaction was started by adding PEBr (0.040 g, 0.21 mmol) in the mixture. The reaction was carried out at 110°C for 6 h. ¹H NMR (CDCl₃, 200 MHz): δ (in ppm) = 6.4–7.2 (phenyl protons of polystyrene) and 1.4–2.2 ppm (−CH₂− and >CH− protons).

Synthesis of Diblock Copolymer of Polystyrene with EHA via ATRP

The homopolymer of polystyrene (i.e., PS-Br) was used as macroinitiator for the synthesis of diblock copolymer of styrene and EHA. The macroinitiator, PS-Br (1.0 g, 0.066 mmol) was taken in a Schlenk tube and was dissolved in THF solvent into which CuBr (0.009 g, 0.069 mmol) and PMDETA (0.017 g, 0.10 mmol) were added followed by EHA (1 g, 5.4 mmol). The polymerization reaction was carried out at 90°C for 6 h. The polymer obtained was dissolved in THF and was purified by passing through basic alumina column and then precipitated in methanol.

Results and Discussion

Copolymerization of styrene and 2-ethylhexyl acrylate was carried out via ATRcP (shown in Scheme 1) at different feed ratios by using phenylethylbromide (PEBr) as initiator, CuBr as catalyst in combination with PMDETA as a ligand. From the kinetic plot of ln(1/1-X) (where X is the percent conversion of monomer) vs. time, it was observed that the value of ln(1/1-X) was linearly increased with time (Figure 1). This linear dependency is the characteristics of the controlled polymerization reaction which follows the first order kinetics. Figure 1 showed that with increase in styrene content in the feed the rate of polymerization increased (Jianying et al., 2006). Figure 2 infers that there was linear increase in molecular weight with conversion and dispersity (Đ) was relatively narrow. GPC traces of poly(styrene-co-EHA) (50:50) (sample 3 of Table 1) is shown in supplementary section (Figure S1). It indicates the controlled nature of the copolymerization reaction. Table 1 summarizes the feed ratio as well as the copolymer composition of the different copolymerization reactions.

SCHEME 1

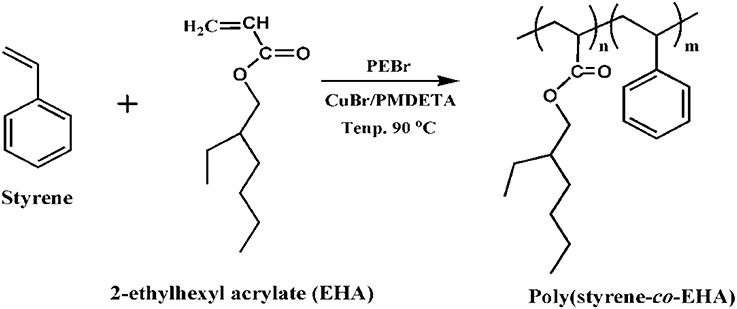

Scheme 1. Copolymerization of styrene and EHA via atom transfer radical polymerization (ATRP).

FIGURE 1

Figure 1. Kinetic plot of ln[1/(1-X)] vs time for copolymerization of styrene and EHA. [PEBr]: [M]_o:[CuBr]:[PMDETA] = 1:100:1:1, at 90°C.

FIGURE 2

Figure 2. Plot of M_n and Đ vs. conversion (%) for ATRcP of Styrene and EHA in bulk. [PEBr]: [M]_o:[CuBr]:[PMDETA] = 1:100:1:1, at 90°C.

TABLE 1

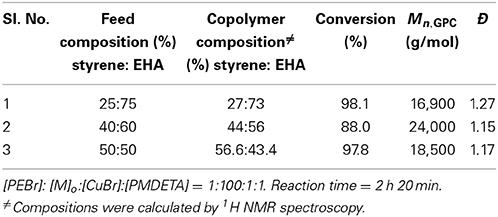

Table 1. Copolymerization of styrene and EHA in bulk at 90°C.

Structural Characterization and Copolymer Composition

The structural characterization and copolymer composition were determined by ¹H NMR spectroscopy. Figure 3 shows the ¹H NMR spectra of poly(styrene-co-EHA) of 40:60 feed ratio. The resonance at δ = 0.8 ppm is due to the –CH₃ protons of PEHA part. The broad resonances at δ = 1.0 to 2.1 ppm are due to the different –CH₂– and >CH– protons of pendant group of PEHA part as well as those of the main chain backbone of the copolymer. The resonances at δ = 6.5–7.1 ppm are due to the different aromatic protons of polystyrene part. The resonances at 3.8 ppm are due to –OCH₂– protons of PEHA part. The distinct resonances at 6.5–7.3 for five aromatic protons of styrene and 3.8 ppm for two protons of EHA were used to calculate the composition of the copolymer of styrene and EHA. The copolymer composition was determined by the equation (1) as shown below

$\begin{array}{cc}{F}_{EHA}=\frac{5A}{5A+2B}\times 100& \left(1\right)\end{array}$

where, A and B represent the integral area at δ = 3.7 and δ = 6.5–7.3 ppm for –OCH₂– protons in PEHA and aromatic protons of polystyrene unit respectively.

FIGURE 3

Figure 3. ¹H NMR spectrum of poly(styrene-co-EHA) with feed molar composition 50:50.

Reactivity Ratio Determination

In the copolymerization of styrene (1) and EHA (2) the reactivity ratio r₁ is defined as k₁₁/k₁₂, where k₁₁ is the rate constant of the reaction between the growing polymer chain carrying free radical of styrene as the terminal unit and styrene (homo propagation) and k₁₂ is the rate constant of the reaction between the same reactive chain end and the EHA monomer. Similarly the reactivity ratio r₂ is also defined as k₂₂/k₂₁, where k₂₂ is the rate constant of homo propagation reaction between the growing macromolecular chain having EHA active radical as the terminal unit and EHA and k₂₁ is the rate constant of the reaction between EHA active radical and styrene monomer (cross propagation). For determining the r₁ and r₂, copolymerization of styrene and EHA was carried out at different feed ratio of styrene (1) and EHA (2). In this case copolymerization was carried out at low conversion (~10%) and its molar composition was determined by ¹H NMR spectroscopy. Composition of the low conversion copolymer was used for the determination of monomer reactivity ratios. In this case FR, IFR, and KT methods were used to determine the reactivity ratio of the monomers.

In the FR method the following equation was used

$\text{M}-\frac{\text{M}}{\text{P}}=-{\text{r}}_2+{\text{r}}_1\frac{{\text{M}}^2}{\text{P}}$

where, M = molar feed ratio (M₁/M₂) and P = copolymer composition (m₁/m₂)

$\text{or},\text{G}=-{\text{r}}_2+{\text{r}}_1\text{H}$

where, G = M−M/P and H = M²/P

The plot of G vs. H gives the straight line (Figure 4). From this the slope and intercept were calculated to be r₁ = 1.24 and r₂ = 0.71 respectively.

FIGURE 4

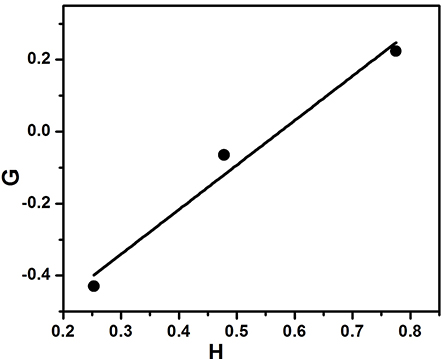

Figure 4. Finemann–Ross plot for copolymerization of styrene with EHA.

In the IFR method the equation used is

$\frac{\text{G}}{\text{H}}=-{\text{r}}_2\frac{1}{\text{H}}+{\text{r}}_1$

So, from the plot of G/H and 1/H (Figure 5) the reactivity ratios, r₁ and r₂ were calculated as 1.34 and 0.76 from the intercept and the slope respectively.

FIGURE 5

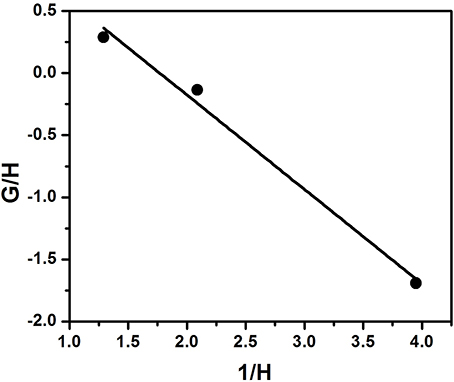

Figure 5. Inverted Finemann–Ross plot for copolymerization of styrene with EHA.

In KT method the reactivity ratio was determined by using the equation

$\eta =\left({\text{r}}_1+\frac{{\text{r}}_2}{\propto }\right)\xi -\frac{{\text{r}}_2}{\propto }$

where, η = G/(∝+H) and ξ = H/(∝+H) and ∝ = (H_min. H_max)^1/2, H_min = 0.253 and H_max = 0.775. H_min and H_max values are taken from Table 2.

TABLE 2

Table 2. Finemann–Ross, Inverted Finemann–Ross and Kelen–Tudos parameter for the copolymer of styrene and EHA in bulk*.

In the plot of η vs. ξ, (Figure 6) the slope gives the value of (r₁ + r₂/∝) and intercept provides r₂/∝. From these two values r₁ and r₂ were calculated as r₁ = 1.30 and r₂ = 0.73 respectively. All the parameters used for the three methods are given in Table 2.

FIGURE 6

Figure 6. Kelen-Tudos plot for copolymerization of styrene with EHA.

The reactivity ratios, r₁ and r₂ calculated by the different methods are tabulated in Table 3. They are quite comparable. The values; r₁ > 1, r₂ < 1 and r₂ < r₁ indicate that the styrene has much influence on the copolymer formation during the reaction (Jianying et al., 2006). Srivastava et al. (Srivastava and Rai, 1995) reported the copolymerization of styrene and EHA initiated by azobisisobutyronitrile (AIBN) in bulk in the presence of anhydrous ZnCl₂. They reported the reactivity ratios for styrene and EHA as 0.10 and 0.175 respectively. Moreover, Kavousian et al. reported the copolymerization of styrene and EHA via conventional radical polymerization (Kavousian et al., 2004). They reported the reactivity ratio of styrene and EHA as 0.926 and 0.238 respectively. There is a difference in the polymerization mechanism of ATRP and non-ATRP processes. In ATRP, atom transfer from an organic halide to a transition metal complex occurs to generate the active radical species, which are then quickly “deactivated” by back transfer of the atom from the transition metal to the radical species (Matyjaszewski, 2002; Braunecker and Matyjaszewski, 2007). So, there is difference in reactivity ratio values in comparison to FRP. Barim et al. studied the FRP and ATRP of phenoxycarbonylmethyl methacrylate (PCMMA) and styrene at 110°C. They reported the reactivity ratios of PCMMA and styrene prepared via ATRP were 0.33 and 0.96 respectively and the same prepared via FRP were 0.47 and 1.16 respectively (Barim et al., 2007). The reactivity ratio varies with the polymerization temperature (Chambard et al., 1999; McManus et al., 2002). We did the polymerization reaction via ATRP in bulk at 90°C. However, the reactivity ratios calculated in this work follow the same trend (r_EHA < r_styrene) as reported by the other authors. In addition, in ATRcP technique the product of the reactivity ratios is less than one. It shows the tendency of random copolymer formation, where the chances of incorporation of styrene is more in comparison to EHA.

TABLE 3

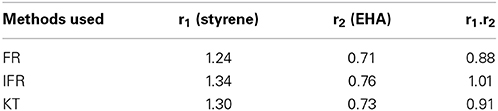

Table 3. Reactivity ratio of styrene (r₁) and EHA (r₂) determined by three different models.

The mean sequence length (l) of the copolymers were determined by using the equations (Pazhanisamy et al., 1997)

$l_1={\text{r}}_1\frac{{\text{M}}_1}{{\text{M}}_2}+1$

and

$l_2={\text{r}}_2\frac{{\text{M}}_2}{{\text{M}}_1}+1$

where, r₁ (styrene) = 1.29 and r₂ (EHA) = 0.73

The results of the mean sequence length in the copolymer are shown in Table 4. It indicates that the length of EHA increases as its content in the monomer feed increases.

TABLE 4

Table 4. The monomer composition and sequence length ratio.

Thermal Properties

The glass transition temperature (T_g) of the copolymer was determined by DSC analysis (shown in Figure 7). All the copolymers showed a single T_g and they are shown in Table 5. It indicates that as the EHA (T_g = −60^°C) content increases the T_g decreases. The T_g for the copolymers determined by DSC analysis was compared with the same (T_{g, F-F}) determined by Flory-Fox equation (Lijia et al., 1997). There is consistent difference between the T_g values at different content of two comonomers (Table 5). Table 5 shows that there is some discrepancy between the experimental T_g and T_g calculated by Flory-Fox equation. The Flory-Fox model is based on the free volume theory. The discrepancy in the T_g values is due to the fact that the effect of the chemical nature and organization of the monomers on the mobility of a polymer chain was not considered (Fernandez-Garcia et al., 1999).

FIGURE 7

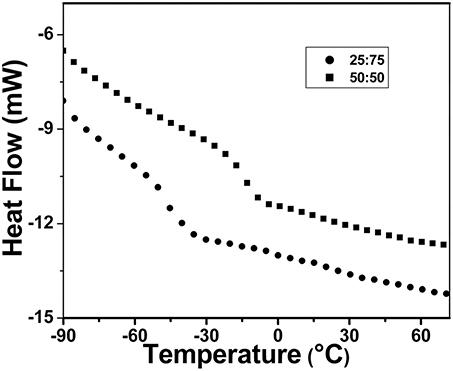

Figure 7. DSC thermogram of poly(styrene-co-EHA).

TABLE 5

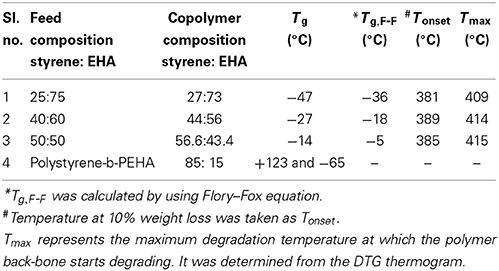

Table 5. Thermal properties of copolymers of styrene and EHA.

The block copolymer of styrene and EHA (PS-b-PEHA) was prepared by using polystyrene-Br as macroinitiator. The shift of GPC traces of the diblock copolymer toward lower elution volume indicated the successful preparation of block copolymer. (The GPC traces are shown in Figure S2). This block copolymer showed two T_gs, PEHA block at −64°C and polystyrene at +123°C (Figure 8). However, the copolymers, poly(styrene-co-EHA) showed only one T_g indicating the copolymers were not blocky in nature. Thermal stability of the copolymer was studied by TGA (Figure 9). It is clear that as the styrene content increases, there is a slight increase in T_onset. However, there was no significant change in T_max as shown in Table 5.

FIGURE 8

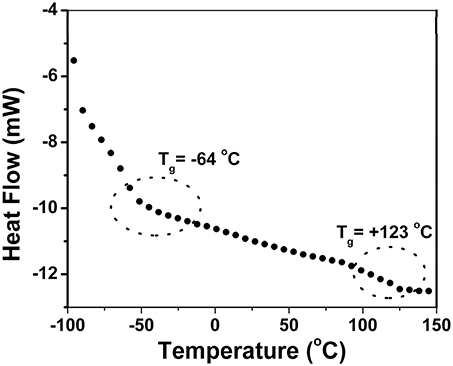

Figure 8. DSC thermogram of the polystyrene-b-PEHA.

FIGURE 9

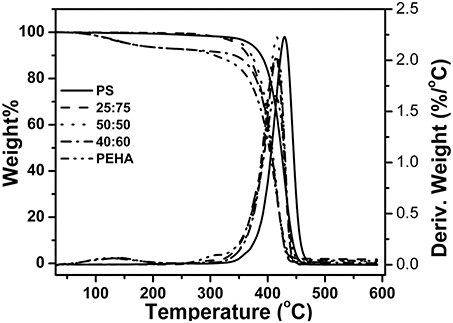

Figure 9. TGA thermogram of homopolymer and copolymers of styrene and EHA.

Conclusions

Copolymers of styrene and 2-ethylhexyl acrylate were synthesized successfully in bulk by using atom transfer radical copolymerization (ATRcP). The chemical composition was studied by ¹H NMR spectroscopy and the reactivity ratios of the two monomers were calculated by using FR, IFR, and KT methods. The reactivity ratios of styrene and EHA were somewhat different from the polymerization reaction of styrene and EHA using the FRP system. DSC analysis showed that the T_g of the copolymer increases on increasing styrene content.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgment

Bishnu P. Koiry gratefully acknowledges the fellowship from IIT, Kharagpur, India.

Supplementary Material

The Supplementary Material for this article can be found online at: http://www.frontiersin.org/journal/10.3389/fchem.2014.00091/abstract

Figure S1. GPC traces of poly(styrene-co-EHA), sample 3 of Table 1.

Figure S2. GPC traces of polystyrene macroinitiator and polystyrene-b-PEHA block copolymer.

References

Arehart, S. V., and Matyjaszewski, K. (1999). Atom transfer radical copolymerization of styrene and n-butyl acrylate. Macromolecules 32, 2221–2231. doi: 10.1021/ma981693v

CrossRef Full Text | Google Scholar

Barim, G., Demirelli, K., and Coskun, M. (2007). Conventional and atom transfer radical copolymerization of phenoxycarbonylmethyl methacrylate-styrene and thermal behavior of their copolymers. Express Polym. Lett. 1, 535–544. doi: 10.3144/expresspolymlett.2007.76

CrossRef Full Text | Google Scholar

Barner-Kowollik, C. (2008). Handbook of RAFT Polymerization. Weinheim: Wiley-VCH Verlag GmbH and Co. KGaA. doi: 10.1002/9783527622757

CrossRef Full Text | Google Scholar

Braunecker, W. A., and Matyjaszewski, K. (2007). Controlled/living radical polymerization: features, developments, and perspectives. Prog. Polym. Sci. 32, 93–146. doi: 10.1016/j.progpolymsci.2006.11.002

CrossRef Full Text | Google Scholar

Chambard, G., Klumperman, B., and German, A. L. (1999). Dependence of chemical composition of styrene/butyl acrylate copolymers on temperature and molecular weight. Polymer 40, 4459–4463. doi: 10.1016/S0032-3861(98)00690-9

CrossRef Full Text | Google Scholar

Chiefari, J., Chong, Y. K., Ercole, F., Krstina, J., Jeffery, J., Le, T. P. T., et al. (1998). Living free-radical polymerization by reversible addition-fragmentation chain transfer: the RAFT process. Macromolecules 31, 5559–5562. doi: 10.1021/ma9804951

CrossRef Full Text | Google Scholar

Fernandez-Garcia, M., Cuervo–Rodriguez, R., and Madruga, E. L. (1999). Glass transition temperatures of butyl acrylate–methyl methacrylate copolymers. J. Polym. Sci. B Polym. Phys. 37, 2512–2520. doi: 10.1021/ma001182k

CrossRef Full Text | Google Scholar

Fineman, M., and Ross, S. D. (1950). Liner method for determining monomer reactivity ratios in copolymerization. J. Polym. Sci. 5, 259–262. doi: 10.1002/pol.1950.120050210

CrossRef Full Text | Google Scholar

Haldankar, G. S. (2001). Compatibilizer for Polymer Blends. Frankfort, IL: The Sherwin-Williams Co. US Patent 6,541,571.

Google Scholar

Haloi, D. J., Roy, S., and Singha, N. K. (2009). Copper catalyzed atom transfer radical copolymerization of glycidyl methacrylate and 2-ethylhexyl acrylate. J. Polym. Sci. A Polym. Chem. 47, 6526–6533. doi: 10.1002/pola.23695

CrossRef Full Text | Google Scholar

Harth, E., Horn, B. V., and Hawker, C. J. (2001). Acceleration in nitroxide mediated ‘living’ free radical polymerizations. Chem. Commun. 9, 823–824. doi: 10.1039/b102145c

CrossRef Full Text | Google Scholar

Hawker, C. J., Bosman, A. W., and Harth, E. (2001). New polymer synthesis by nitroxide mediated living radical polymerization. Chem. Rev. 101, 3661–3688. doi: 10.1021/cr990119u

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

Jianying, H., Jiayan, C., Jiaming, Z., Yihong, C., Lizong, D., and Yousi, Z. (2006). Some monomer reactivity ratios of styrene and (meth)acrylates in the presence of TEMPO. J. Appl. Polym. Sci. 100, 3531–3535. doi: 10.1002/app.22512

CrossRef Full Text | Google Scholar

Kamigaito, M., Ando, T., and Sawamoto, M. (2001). Metal-catalyzed living radical polymerization. Chem. Rev. 101, 3689–3745. doi: 10.1021/cr9901182

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

Kavitha, A., and Singha, N. K. (2007). Atom-transfer radical copolymerization of furfuryl methacrylate (FMA) and methyl methacrylate (MMA): a thermally-amendable copolymer. Macromol. Chem. Phys. 208, 2569–2577. doi: 10.1002/macp.200700239

CrossRef Full Text | Google Scholar

Kavitha, A., and Singha, N. K. (2008). High temperature resistant tailor-made poly(meth)acrylates bearing adamantyl group via atom transfer radical polymerization. J. Polym. Sci. A Polym. Chem. 46, 7101–7113. doi: 10.1002/pola.23015

CrossRef Full Text | Google Scholar

Kavousian, A., Ziaee, F., Nekoomanesh, H., Leamen, M. J., and Penlidis, A. (2004). Determination of monomer reactivity ratios in styrene/2-ethylhexylacrylate copolymer. J. Appl. Polym. Sci. 92, 3368–3370. doi: 10.1002/app.20338

CrossRef Full Text | Google Scholar

Kelen, T., Tudos, F., and Turcsanyi, B. (1980). Confidence intervals for copolymerization reactivity ratios determined by the Kelen-Tudos method. Polym. Bull. 2, 71–76. doi: 10.1007/BF00275556

CrossRef Full Text | Google Scholar

Lessard, B., Graffe, A., and Maric, M. (2007). Styrene/t-Butyl acrylate random copolymers synthesized by nitroxide-mediated polymerization: effect of free nitroxide on kinetics and copolymer composition. Macromolecules 40, 9284–9292. doi: 10.1021/ma071689w

CrossRef Full Text | Google Scholar

Lijia, A. N., Dayong, H. E., Jlaokai, J., Zhigang, W., Donghong, Y. U., Jiang, B., et al. (1997). Effects of molecular weight and interaction parameter on the glass transition temperature of polystyrene mixture and its blends with polystyrene/poly(2,6-dimethyl-p-phenylene oxide). Eur. Polym. J. 33, 1523–1528. doi: 10.1016/S0014-3057(97)00089-X

CrossRef Full Text | Google Scholar

Makrikosta, G., Georgas, D., Siakali-Kioulafa, E., and Pitsikalis, M. (2005). Statistical copolymers of styrene and 2-vinylpyridine with trimethylsilyl methacrylate and trimethylsilyloxyethyl methacrylate. Eur. Polym. J. 41, 47–54. doi: 10.1016/j.eurpolymj.2004.08.001

CrossRef Full Text | Google Scholar

Matyjaszewski, K. (2000). “Controlled/Living radical polymerisation: progress in ATRP, NMP and RAFT,” in ACS Symposium Series (New Orleans, LA). doi: 10.1021/bk-2000-0768

CrossRef Full Text | Google Scholar

Matyjaszewski, K. (2002). Factors affecting rates of comonomer consumption in copolymerization processes with intermittent activation. Macromolecules 35, 6773–6781. doi: 10.1021/ma0208180

CrossRef Full Text | Google Scholar

Matyjaszewski, K., and Jia, J. (2001). Atom transfer radical polymerization. Chem. Rev. 101, 2921–2990. doi: 10.1021/cr940534g

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

McManus, N. T., Penlidis, A., and Dube, M. A. (2002). Copolymerization of alpha-methyl styrene with butyl acrylate in bulk. Polymer 43, 1607–1614. doi: 10.1016/S0032-3861(01)00738-8

CrossRef Full Text | Google Scholar

Mignard, E., Leblanc, T., Bertin, D., Guerret, O., and Reed, W. F. (2004). Online monitoring of controlled radical polymerization: nitroxide-mediated gradient copolymerization. Macromolecules 37, 966–975. doi: 10.1021/ma035589b

CrossRef Full Text | Google Scholar

Moad, G. (2006). The emergence of RAFT polymerization. Aust. J. Chem. 59, 661–662. doi: 10.1071/CH06376

CrossRef Full Text | Google Scholar

Moad, G., Chiefari, J., Chong, Y. K., Krstina, J., Mayadunne, R. T. A., Postma, A., et al. (2000). Living free radical polymerization with reversible addition–fragmentation chain transfer (the life of RAFT). Polym. Int. 49, 993–1001. doi: 10.1002/1097-0126(200009)49:9<993::AID-PI506>3.0.CO;2-6

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar

Odian, G. (2004). Principles of Polymerization. New Jersey, NJ: Wiley-Interscience publication. doi: 10.1002/047147875X

CrossRef Full Text

Pazhanisamy, P., Ariff, M., and Anwaruddin, Q. (1997). Copolymers of α-methylstyrene with N-cyclohexylacrylamide: synthesis, monomer reactivity ratios, and mean sequence length. J. Macromol. Sci. A Pure Appl. Chem. A34, 1045–1054. doi: 10.1080/10601329708015009

CrossRef Full Text | Google Scholar

Plessis, C., Arzamendi, G., Alberdi, J. M., Agnely, M., Leiza, J. R., and Asua, J. M. (2001). Intramolecular chain transfer to polymer in the emulsion polymerization of 2-ethylhexyl acrylate. Macromolecules 34, 6138–6143. doi: 10.1021/ma0018190

CrossRef Full Text | Google Scholar

Skeist, I. (1977). Handbook of Adhesives. New York, NY: Chapman & Hall.

Google Scholar

Solomon, D. H., and Moad, G. (1995). The Chemistry of Free Radical Polymerization. Oxford: Elsevier Science Ltd.

Google Scholar

Srivastava, N., and Rai, J. S. P. (1995). Kinetics, mechanism, and rheological properties of the copolymers of 2-ethylhexylacrylate and styrene. J. Macromol. Sci. A Pure Appl. Chem. A 32, 2049–2062. doi: 10.1080/10601329508011044

CrossRef Full Text | Google Scholar

Webster, D. C., and Crain, A. L. (2002). Synthesis of latexes containing diesters of 3-butene-1,2-diol. Prog. Org. Coat. 45, 43–48. doi: 10.1016/S0300-9440(02)00099-1

CrossRef Full Text | Google Scholar

Ziegler, M. J., and Matyjaszewski, K. (2001). Atom transfer radical copolymerization of methyl, methacrylate and n-butyl acrylate. Macromolecules 34, 415–424. doi: 10.1021/ma001182k

CrossRef Full Text | Google Scholar
