Lijun Liang
Qi Wang2
Yaoquan Tu- 1Division of Theoretical Chemistry and Biology, School of Biotechnology, KTH Royal Institute of Technology, Stockholm, Sweden
- 2Department of Chemistry and Soft Matter Research Center, Zhejiang University, Hangzhou, China
Owing to the potential use for real personalized genome sequencing, DNA sequencing with solid-state nanopores has been investigated intensively in recent time. However, the area still confronts problems and challenges. In this work, we present a brief overview of computational studies of key issues in DNA sequencing with solid-state nanopores by addressing the progress made in the last few years. We also highlight future challenges and prospects for DNA sequencing using this technology.
Introduction
Sequencing the human genome allows us to better understand the relationships among diseases, inheritance, and individuality. Although the increasing need for cheap and fast genome sequencing has promoted the development of new sequencing technologies, the cost of genomic sequencing is still far from the ideal price point of “the $1000 genome” (Porcu et al., 2013). This means that even cheaper and faster sequencing methods need to be developed. For this purpose, “single molecule” sequencing has been considered to be a promising technology (Harding and Keller, 1992; Pushkarev et al., 2009). In particular, “single molecule” sequencing with nanopores has been recommended as the next generation platform for DNA sequencing (Rhee and Burns, 2006; Maitra et al., 2012; Ku and Roukos, 2013).
The basic principle of DNA sequencing with a nanopore is illustrated in Figure 1. A DNA molecule, either double strand (dsDNA) or single-strand (ssDNA), dispersed in a salt solution (such as a KCl solution) is driven by an applied electric field to pass through a nanopore for sequencing. As the DNA translocates through the nanopore, the flow of ions is interrupted and the ionic current is blocked as a function of time. This phenomenon was first observed by Kasianowicz et al. in a study of a DNA molecule translocation through the α-haemolysin membrane pores (Kasianowicz et al., 1996). Later, it was found that the ionic current was associated with the particular nucleotides [adenine (A), cytosine (C), guanine (G), and thymine (T)] passing through the nanopore (Clarke et al., 2009). This makes it possible for nucleotides to be distinguished in terms of the detected current. DNA sequencing with a nanopore is thus to identify the composition of a DNA molecule from the pattern of the ionic current as the DNA passes through the nanopore in a salt solution (Purnell and Schmidt, 2009).

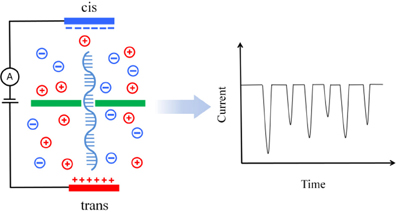

Figure 1. Illustration of translocation of a DNA molecule through a nanopore device. The pore divides the solution into two parts. A bias voltage is applied across the pore to generate an electric field perpendicular to the wall and to drive the DNA through the pore. The DNA translocation is monitored by the blockade current (schematically illustrated on the right) associated with the nucleotides through the nanopore.
Both biological and solid-state nanopores can be used for DNA sequencing. It has been reported that sequence information can be obtained with biological nanopores (Cherf et al., 2012; Manrao et al., 2012). This reflects that DNA sequencing with biological nanopores has achieved a significant progress. However, the fact that the lipid membrane used to fix biological nanopores is delicately sensitive to the temperature, pH value and salt concentration makes it difficult to control their stability. For this reason, solid-state nanopores have become the promising alternative to biological nanopores (Merchant et al., 2010; Schneider et al., 2010; Garaj et al., 2013).
DNA sequencing with solid-state nanopores has experienced fast development in recent years (see for example, Venkatesan and Bashir, 2011a,b; Yang et al., 2013 for reviews). Yet, it still confronts problems, such as that the error rate is too large (Schadt et al., 2010) and the DNA translocation speed is too high. Theoretical studies can help us to understand the molecular details of DNA translocation through a nanopore. In this mini-review, we focus on the recent progress in computational studies on key issues in DNA sequencing with solid-state nanopores, such as control of the DNA translocation speed and the electronic signature of the identity of bases. We also address future challenges and prospects of DNA sequencing with this technology.
Control of the DNA Translocation Speed in Solid-State Nanopores
One of the main challenges in DNA sequencing with a solid-state nanopore is to reduce the speed of the DNA molecule passing through the nanopore (Kowalczyk and Dekker, 2012). The DNA translocation speed is still too high using the currently available solid-state nanopores. However, the development in the field indicates that ideal speeds are expected to be achieved around 2015 (Venkatesan and Bashir, 2011a). DNA translocation through a nanopore is affected by many factors, such as the solvent viscosity, ion concentration, surface charge, and diameter of the pore. In theory, assuming that the end effects of a nanopore are negligible and that a DNA molecule can only move along the center axis of the pore, we can determine the translocation speed of the DNA in an applied electric field by solving a set of coupled differential equations (Ghosal, 2007; Kejian et al., 2009), i.e., the Stokes equation for the flow of the DNA to the pore surface and the Poission equation for the distribution of the electric potential in the pore. The resulting translocation speed is simply given as (Luan et al., 2012a):
where ε is the dielectric constant of the electrolyte, ζd and ζw are the zeta potentials on the DNA and pore surfaces, respectively, η is the viscosity of the electrolyte, and E is the bias electric field. According to Equation (1), we can tune the electric field, solvent viscosity, etc. to control the speed. Experiments as well as theoretical calculations have been carried out to study the translocation time by changing the electric field or solvent viscosity (Japrung et al., 2010; Luan et al., 2012a).
By lowering the temperature of a graphene nanopore, Fologea et al. decreased the translocation speed by a factor of ~2 (Fologea et al., 2005). Luan et al. demonstrated that the translocation speed of an ssDNA molecule could be reduced by 10 times in a SiO2 nanopore in a glycerol solvent (Luan et al., 2012a,b). By decreasing the size of the counter ions, for example from K+ to Na+ to Li+, Dekker et al. revealed that the translocation time of a DNA molecule through a solid-state nanopore increased significantly (Kowalczyk et al., 2012). Molecular dynamics (MD) simulations indicated that Li+ binds to DNA more strongly than K+ does. The stronger interaction of the ions with the DNA thus creates a much stronger drag because the movements of the ions and the DNA occur in the opposite directions (Kowalczyk et al., 2012).
In the above mentioned studies, the DNA translocation speed in the solid-state nanopores was indeed decreased. However, the variations in the translocation dynamics due to the DNA-pore interactions (Aksimentiev et al., 2004; Branton et al., 2008; Gierhart et al., 2008) were not reduced and accordingly the identification of different bases could not be enhanced. Computer modeling methods have been used to study the change of translocation dynamics of DNA passing through nanopores. Employing steered molecular dynamics (SMD) simulations, Luan et al. found that the translocation time was increased by chemical modification of the nanopore surface (Luan et al., 2010). The work of Luan et al. has enhanced our understanding of factors in decreasing the translocation speed in solid-state nanopores. By using a continuum-based model, Zhang et al. indicated that the local permittivity environment could reduce the DNA translocation speed (Zhang et al., 2012). Theoretical modeling has also been used to study the translocation time. Using the Lubensky-Nelson model (Lubensky and Nelson, 1999), Reimann et al. showed that the time distribution derived from the model matches the experimental data very well (Reimann et al., 2012). From Monte Carlo simulations, Polson et al. found that the translocation time is proportional to (N − NP)2, i.e., 〈τ〉 ∝ (N − NP)2 for a sufficiently narrow pore, where N means the polymer length and Np is the average number of monomers in the nanopore (Polson and Mccaffrey, 2013). In addition, a theoretical study reported by He et al. indicated that by utilizing the cross-pore thermal gradient, the DNA translocation speeds could be orders of magnitude slower than the electrophoretic counterpart (He et al., 2012).
Base Identification with Solid-State Nanopores
There have been many theoretical studies on detecting nucleotide differences by solid-state nanopores (Postma, 2010; Wells et al., 2012). As indicated from computer simulations, A-T and G-C base pairs could be discriminated using graphene nanopores (Sathe et al., 2011). Through theoretical modeling, Liang et al. illustrated that the DNA translocation time could be extended and the discrimination of the bases could be improved by narrowing the nanopores (Liang et al., 2013). Aksimentiev et al. showed that the hydrophobic interactions of the nucleotides with the graphene membrane led to a dramatic reduction in the conformational fluctuations of the nucleotides in the pore and that the resulting ionic current blockades were different for different DNA nucleotides (Wells et al., 2012). The results from SMD simulations indicated that each nucleotide, except for cytosine and thymine, in an ssDNA could be identified and characterized by the sub-2-nanometer nanopore (Qiu and Guo, 2012). Garaj et al. pointed out that a molecule-hugging graphene nanopore could have a resolution higher than 0.6 nm along the length of the molecule (Garaj et al., 2013). In addition, theoretical calculations have also shown that different nucleotides can be discriminated by the difference in the conductance spectra (Nelson et al., 2010; Avdoshenko et al., 2013). In these studies, the read lengths of the DNA molecules were very short (shorter than 100 base pairs) and the data may therefore not have reflected the complexity in experiment where the number of base pairs is often more than 1000. However, theoretical studies significantly enhance our understanding of base identification for DNA sequencing with solid-state nanopores, especially with graphene nanopores, and can lay a solid theoretical foundation for DNA sequencing with nanopores in the future.
Future Challenges and Outlook
In using solid-state nanopore-based devices for DNA sequencing, the major concerns are the range of DNA lengths, the sequencing speed, and the error rate in the sequencing. To decrease the DNA translocation speed we can adopt some measures such as using more sticky solvents or decreasing the temperature. However, by these measures, the DNA translocation dynamics, which originates from the DNA-pore interactions, cannot be changed. The most promising approach to change the DNA translocation dynamics is to change the nanopore material because we can evidently not change the properties of the DNA. A few studied ways to deal with this issue include those changing the pore diameter (Liang et al., 2013), pore geometry (Aksimentiev et al., 2004; Venkatesan et al., 2009), the charge on the pore surface (Luan and Aksimentiev, 2008), and using surfaces modified by SAM (Luan et al., 2010).
Normally, solid-state nanopores are made of silicon nitride, aluminum oxide, or silicon oxide. In recent years, graphene nanopores have been suggested as a potential material for sequencing DNA because of their unique electric and mechanical properties. However, our understanding of DNA sequencing with graphene nanopores is still rather limited, necessitating further studies in this area.
Simulations can greatly enhance our understanding of the atomic details of DNA translocation dynamics and DNA-pore interactions. We have addressed the use of simulations to study the DNA translocation in solid-state nanopores. Many simulation studies have captured important physical properties specific to DNA sequencing with nanopores. However, the underlying simulation models are relatively simple, and may not reflect the complexity of the real systems. Compared to the experimental conditions used, the applied voltages in the simulations are often too large, leading to too high translocation speeds. This may produce unpredictable influence on the translocation dynamics. In a real system, the charge on the nanopore surface can also change with the pH value, solvent, and ionic concentration. Furthermore, the nanopore geometry can greatly modulate the drag forces, something that is not considered in most simulations. In addition, the error rate of DNA sequencing has not been assessed in most computational studies since the read lengths of the DNA molecules used in these studies have been very short. All these issues need to be attended in the future. Given so many new opportunities and given the considerable progress we have witnessed in this field, it can be foreseen that studies of DNA sequencing with solid-state nanopores will remain active for years to come.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
Aksimentiev, A., Heng, J. B., Timp, G., and Schulten, K. (2004). Microscopic kinetics of DNA translocation through synthetic nanopores. Biophys. J. 87, 2086–2097. doi: 10.1529/biophysj.104.042960
Avdoshenko, S. M., Nozaki, D., Gomes Da Rocha, C., González, J. W., Lee, M. H., Gutierrez, R., et al. (2013). Dynamic and electronic transport properties of DNA translocation through graphene nanopores. Nano Lett. 13, 1969–1976. doi: 10.1021/nl304735k
Branton, D., Deamer, D. W., Marziali, A., Bayley, H., Benner, S. A., Butler, T., et al. (2008). The potential and challenges of nanopore sequencing. Nat. Biotechnol. 26, 1146–1153. doi: 10.1038/nbt.1495
Cherf, G. M., Lieberman, K. R., Rashid, H., Lam, C. E., Karplus, K., and Akeson, M. (2012). Automated forward and reverse ratcheting of DNA in a nanopore at 5-A precision. Nat. Biotechnol. 30, 344–348. doi: 10.1038/nbt.2147
Clarke, J., Wu, H. C., Jayasinghe, L., Patel, A., Reid, S., and Bayley, H. (2009). Continuous base identification for single-molecule nanopore DNA sequencing. Nat. Nanotechnol. 4, 265–270. doi: 10.1038/nnano.2009.12
Fologea, D., Uplinger, J., Thomas, B., McNabb, D. S., and Li, J. L. (2005). Slowing DNA translocation in a solid-state nanopore. Nano Lett. 5, 1734–1737. doi: 10.1021/nl051063o
Garaj, S., Liu, S., Golovchenko, J. A., and Branton, D. (2013). Molecule-hugging graphene nanopores. Proc. Natl. Acad. Sci. U.S.A. 110, 12192–12196. doi: 10.1073/pnas.1220012110
Ghosal, S. (2007). Effect of salt concentration on the electrophoretic speed of a polyelectrolyte through a nanopore. Phys. Rev. Lett. 98:238104. doi: 10.1103/PhysRevLett.98.238104
Gierhart, B. C., Howitt, D. G., Chen, S. J., Zhu, Z., Kotecki, D. E., Smith, R. L., et al. (2008). Nanopore with transverse nanoelectrodes for electrical characterization and sequencing of DNA. Sens. Actuators B Chem. 132, 593–600. doi: 10.1016/j.snb.2007.11.054
Harding, J. D., and Keller, R. A. (1992). Single-molecule detection as an approach to rapid DNA sequencing. Trends Biotechnol. 10, 55–57. doi: 10.1016/0167-7799(92)90170-Z
He, Y., Tsutsui, M., Scheicher, R. H., Bai, F., Taniguchi, M., and Kawai, T. (2012). Thermophoretic Manipulation of DNA translocation through nanopores. ACS Nano 7, 538–546. doi: 10.1021/nn304914j
Japrung, D., Henricus, M., Li, Q. H., Maglia, G., and Bayley, H. (2010). Urea facilitates the translocation of single-stranded DNA and RNA through the alpha-hemolysin nanopore. Biophys. J. 98, 1856–1863. doi: 10.1016/j.bpj.2009.12.4333
Kasianowicz, J. J., Brandin, E., Branton, D., and Deamer, D. W. (1996). Characterization of individual polynucleotide molecules using a membrane channel. Proc. Natl. Acad. Sci. U.S.A. 93, 13770–13773. doi: 10.1073/pnas.93.24.13770
Kejian, D., Sun, W. M., Zhang, H. Y., Peng, X. L., and Hu, H. G. (2009). Dependence of zeta potential on polyelectrolyte moving through a solid-state nanopore. Appl. Phys. Lett. 94, 014101–014104-3. doi: 10.1063/1.3065029
Kowalczyk, S. W., and Dekker, C. (2012). Measurement of the docking time of a DNA molecule onto a solid-state nanopore. Nano Lett. 12, 4159–4163. doi: 10.1021/nl301719a
Kowalczyk, S. W., Wells, D. B., Aksimentiev, A., and Dekker, C. (2012). Slowing down DNA translocation through a nanopore in lithium chloride. Nano Lett. 12, 1038–1044. doi: 10.1021/nl204273h
Ku, C. S., and Roukos, D. H. (2013). From next-generation sequencing to nanopore sequencing technology: paving the way to personalized genomic medicine. Expert Rev. Med. Devices 10, 1–6. doi: 10.1586/erd.12.63
Liang, L., Cui, P., Wang, Q., Wu, T., Agren, H., and Tu, Y. (2013). Theoretical study on key factors in DNA sequencing with graphene nanopores. RSC Adv. 3, 2445–2453. doi: 10.1039/c2ra22109h
Luan, B., Afzali, A., Harrer, S., Peng, H., Waggoner, P., Polonsky, S., et al. (2010). Tribological effects on DNA translocation in a nanochannel coated with a self-assembled monolayer. J. Phys. Chem. B 114, 17172–17176. doi: 10.1021/jp108865q
Luan, B., and Aksimentiev, A. (2008). Electro-osmotic screening of the DNA charge in a nanopore. Phys. Rev. E Stat. Nonlin. Soft Matter Phys. 78:021912. doi: 10.1103/PhysRevE.78.021912
Luan, B., Wang, D., Zhou, R., Harrer, S., Peng, H., and Stolovitzky, G. (2012b). Dynamics of DNA translocation in a solid-state nanopore immersed in aqueous glycerol. Nanotechnology 23:455102. doi: 10.1088/0957-4484/23/45/455102
Luan, B. Q., Stolovitzky, G., and Martyna, G. (2012a). Slowing and controlling the translocation of DNA in a solid-state nanopore. Nanoscale 4, 1068–1077. doi: 10.1039/c1nr11201e
Lubensky, D. K., and Nelson, D. R. (1999). Driven polymer translocation through a narrow pore. Biophys. J. 77, 1824–1838. doi: 10.1016/S0006-3495(99)77027-X
Maitra, R. D., Kim, J., and Dunbar, W. B. (2012). Recent advances in nanopore sequencing. Electrophoresis 33, 3418–3428. doi: 10.1002/elps.201200272
Manrao, E. A., Derrington, I. M., Laszlo, A. H., Langford, K. W., Hopper, M. K., Gillgren, N., et al. (2012). Reading DNA at single-nucleotide resolution with a mutant MspA nanopore and phi29 DNA polymerase. Nat. Biotechnol. 30, 349–353. doi: 10.1038/nbt.2171
Merchant, C. A., Healy, K., Wanunu, M., Ray, V., Peterman, N., Bartel, J., et al. (2010). DNA Translocation through Graphene Nanopores. Nano Lett. 10, 2915–2921. doi: 10.1021/nl101046t
Nelson, T., Zhang, B., and Prezhdo, O. V. (2010). Detection of nucleic acids with graphene nanopores: ab initio characterization of a novel sequencing device. Nano Lett. 10, 3237–3242. doi: 10.1021/nl9035934
Polson, J. M., and Mccaffrey, A. C. M. (2013). Polymer translocation dynamics in the quasi-static limit. J. Chem. Phys. 138, 174902–174912. doi: 10.1063/1.4803022
Porcu, E., Sanna, S., Fuchsberger, C., and Fritsche, L. G. (2013). Genotype imputation in genome-wide association studies. Curr. Protoc. Hum. Genet. 78, 1.25.1–1.25.14. doi: 10.1002/0471142905.hg0125s78
Postma, H. W. (2010). Rapid sequencing of individual DNA molecules in graphene nanogaps. Nano Lett. 10, 420–425. doi: 10.1021/nl9029237
Purnell, R. F., and Schmidt, J. J. (2009). Discrimination of single base substitutions in a DNA strand immobilized in a biological nanopore. ACS Nano 3, 2533–2538. doi: 10.1021/nn900441x
Pushkarev, D., Neff, N. F., and Quake, S. R. (2009). Single-molecule sequencing of an individual human genome. Nat. Biotechnol. 27, 847–850. doi: 10.1038/nbt.1561
Qiu, H., and Guo, W. (2012). Detecting ssDNA at single-nucleotide resolution by sub-2-nanometer pore in monoatomic graphene: a molecular dynamics study. Appl. Phys. Lett. 100, 083106–083104. doi: 10.1063/1.3686921
Reimann, P., Meyer, A., and Getfert, S. (2012). On the lubensky-nelson model of polymer translocation through nanopores. Biophys. J. 103, 889–897. doi: 10.1016/j.bpj.2012.07.036
Rhee, M., and Burns, M. A. (2006). Nanopore sequencing technology: research trends and applications. Trends Biotechnol. 24, 580–586. doi: 10.1016/j.tibtech.2006.10.005
Sathe, C., Zou, X. Q., Leburton, J. P., and Schulten, K. (2011). Computational investigation of DNA detection using graphene nanopores. ACS Nano 5, 8842–8851. doi: 10.1021/nn202989w
Schadt, E. E., Turner, S., and Kasarskis, A. (2010). A window into third-generation sequencing. Hum. Mol. Genet. 19, R227–R240. doi: 10.1093/hmg/ddq416
Schneider, G. F., Kowalczyk, S. W., Calado, V. E., Pandraud, G., Zandbergen, H. W., Vandersypen, L. M. K., et al. (2010). DNA translocation through graphene nanopores. Nano Lett. 10, 3163–3167. doi: 10.1021/nl102069z
Venkatesan, B. M., and Bashir, R. (2011a). Nanopore sensors for nucleic acid analysis. Nat. Nanotechnol. 6, 615–624. doi: 10.1038/nnano.2011.129
Venkatesan, B. M., and Bashir, R. (2011b). Solid-state nanopore sensors for nucleic acid analysis. Nanopores Sens. Fund. Biol. Interact. 1–33. doi: 10.1007/978-1-4419-8252-0_1
Venkatesan, B. M., Dorvel, B., Yemenicioglu, S., Watkins, N., Petrov, I., and Bashir, R. (2009). Highly Sensitive, Mechanically Stable Nanopore Sensors for DNA Analysis. Adv. Mater. 21, 2771. doi: 10.1002/adma.200803786
Wells, D. B., Belkin, M., Comer, J., and Aksimentiev, A. (2012). Assessing graphene nanopores for sequencing DNA. Nano Lett. 12, 4117–4123. doi: 10.1021/nl301655d
Yang, Y., Liu, R., Xie, H., Hui, Y., Jiao, R., Gong, Y., et al. (2013). Advances in nanopore sequencing technology. J. Nanosci. Nanotechnol. 13, 4521–4538. doi: 10.1166/jnn.2013.7756
