The satiety signaling neuropeptide perisulfakinin inhibits the activity of central neurons promoting general activity

The metabolic state is one of the determinants of the general activity level. Satiety is related to resting or sleep whereas hunger correlates to wakefulness and activity. The counterpart to the mammalian satiety signal cholecystokinin (CCK) in insects are the sulfakinins. The aim of this study was to resolve the mechanism by which the antifeedant activity of perisulfakinin (PSK) in Periplaneta americana is mediated. We identified the sources of PSK which is used both as hormone and as paracrine messenger. PSK is found in the neurohemal organ of the brain and in nerve endings throughout the central nervous system. To correlate the distributions of PSK and its receptor (PSKR), we cloned the gene coding for PSKR and provide evidence for its expression within the nervous system. It occurs only in a few neurons, among them are the dorsal unpaired median (DUM) neurons which release octopamine thereby regulating the general level of activity. Application of PSK to DUM neurons attenuated the spiking frequency (EC50=11pM) due to reduction of a pacemaker Ca²⁺ current through cAMP-inhibited pTRPγ channels. PSK increased the intracellular cAMP level while decreasing the intracellular Ca²⁺ concentration in DUM neurons. Thus, the satiety signal conferred by PSK acts antagonistically to the hunger signal, provided by the adipokinetic hormone (AKH): PSK depresses the electrical activity of DUM neurons by inhibiting the pTRPγ channel that is activated by AKH under conditions of food shortage.

Introduction

The metabolic state is related to general activity. While energy deficiency is related to wakefulness and activity thereby supporting behavioral tasks to overcome this potentially dangerous state, energy excess is related to resting or sleep. People say you cannot study on a full stomach. Although brain areas and messengers involved in this kind of homeostatic regulation have been identified (Castaneda et al., 2005 ; VanItallie, 2006 ), there is less information on underlying mechanisms at the cellular and molecular level. For the study of such mechanisms insects are particularly well-suited models because of the design of their nervous systems. Distinct functions are conferred by identified neurons which is in contrast to the mainly parallel processing within the vertebrate nervous system.

One of the messengers involved in regulating metabolic homeostasis in mammals is cholecystokinin (CCK). This peptide occurs in gut and brain and affects various tasks such as feeding, general activity, memory, and emotional states (Noble and Roques, 2002 ). When activating the CCK1 receptor, CCK acts as satiety signal and stops food-intake (Strader and Woods, 2005 ). CCK also reduces general activity thereby promoting sleep (Kapas et al., 1988 ).

Sulfakinins are insect peptides being structurally and functionally related to the mammalian CCK (Dockray, 2004 ). They belong to the large family of RF-amides (Nichols, 2003 ). These peptides bear a common RF-amide C-terminus but diverse N-terminal extensions. They are involved in the regulation of various physiological processes in invertebrates and vertebrates. There are two sulfakinins in the cockroach Periplaneta americana, perisulfakinin I (PSK I, EQFDDY-(SO₃)-GHMRF-amide), which is characterized by a sulfated tyrosine, and the unsulfated PSK II (pQSDDYGHMRF-amide (Veenstra, 1989 ). PSK I (further referred to as PSK) elicits hindgut contractions while PSK II does not. Also in other insects, such as in Drosophila (Kubiak et al., 2002 ), unsulfated sulfakinins show no or very weak biological activity. A large variety of physiological responses have been reported for sulfakinins, for example, myotropic effects (Nichols et al., 2002 ). Antifeedant activity as seen for CCK was also shown for sulfakinins in the locust (Wei et al., 2000 ) and in the German cockroach (Maestro et al., 2001 ).

The aim of this study was to unravel the cellular and molecular mechanism of PSK within the nervous system. For this purpose, we have cloned the perisulfakinin receptor (PSKR) and provided evidence that it is expressed within the central nervous system. However, only in a few neurons the receptor is localized in the soma membrane. Among them are dorsal unpaired median (DUM) neurons which belong to the octopaminergic system that—as insect counterpart to the mammalian adrenergic system—is involved in the regulation of general activity (Roeder, 2005 ) as well as in the modulation of peripheral structures such as visceral, heart, and skeletal muscles (Bräunig and Pflüger, 2001 ). The somata of efferent DUM neurons show, in contrast to most other insect neurons, endogenous electrical activity (Grolleau and Lapied, 2000 ). Investigations on isolated DUM cell somata indicate that they express various ionotropic and metabotropic receptors (e.g., Grolleau et al., 1996 ; Washio, 1994 ; Washio and Tanaka, 1992 ; Wicher et al., 2006b ) despite the fact that there are no synaptic structures. By demonstrating that PSK might be released within a cisterneal system of the extracellular matrix from which it diffuses to the soma membrane we propose a mechanism by which ligands may reach their receptors.

We further show by which mechanism PSK attenuates the excitability of DUM cells. Most intriguingly, PSK down-regulates the same ion current that is up-regulated by adipokinetic hormones (AKHs) which are released under energy deficient conditions (Wicher, 2007 ; Wicher et al., 2006b ).

Materials and Methods

Cloning of the perisulfakinin receptor (PSKR)

A combined degenerated PCR∕nested RACE strategy was used to clone the PSKR. According to the sulfakinin receptors from Drosophila and Anopheles degenerated primers were constructed amplifying a 1240-bp PSKR. The following primers were used for amplification: forward: 5′-CTGCTSGGYGTVYTCTGCATGCC-3′; reverse: 5′-GCAGTASGTGATSGGATTGCAGCA-3′. After direct DNA sequencing, RACE primers were constructed for two rounds of amplification of the cDNA ends. The following RACE primers were used: forward: 5′-GAAAGGACTTCGACGGGAAATCAGACAC-3′; 5′-CATGCCGCAGACAGCTCGAGAG-3′; reverse: 5′-GGGAGTTCCAGATGAGGCTAGCCAG-3′; 5′-CCGAGACTTGAGCGGCCTGCAGA-3′. RACE products were cloned into the pGEM-T vector and sequenced.

Localization of PSK and the PSKR

A nested PCR approach was used to show PSKR expression in neuronal tissue and in single DUM neurons. The following primers were used for single-cell PCR: forward: 5′-CGTCGTCATTTTTGTGCTGT-3′; 5′-TTCTTAATCTGGCGGTGTCC-3′; reverse: 5′-AACATGGCGTCCAAGAAAAT-3′; 5′-TTTGGATGGCCAATCTTCTC-3′. For single-cell RT-PCR analysis the cytosol of single DUM neurons was harvested with patch pipettes and directly transferred to the RT reaction mixture. RNA from P. americana brain and ganglia were isolated using the RNeasy Mini-Kit (Qiagen, Hilden, Germany). RT-reaction was performed with Sensiscript reverse transcriptase (Qiagen). The nested PCR reactions were performed with Advantage Taq 2 polymerase mixture (Clontech, Hamburg, Germany) with initial 60 seconds 94°C denaturation followed by 40 cycles 30 seconds 94°C, 30 seconds 55°C, and 60 seconds 68°C. PCR products of the second PCR reaction were visualized on a 2% agarose gel. As a positive control we amplified part of a ubiquitously expressed actin gene from P. americana in a nested PCR approach using a duplex reaction (PSKR and actin-PCR) as first PCR. To exclude false positive results due to genomic DNA contamination PCR-primers were intron spanning according to the Drosophila and Anopheles genomic sequences. All PCR products were directly sequenced to validate specificity for PSKR.

Two different antibodies to PSK were raised, one in rabbits and one in mice, each to a conjugate of the peptide EQFDDY-(SO₃)-GHMRF-amide-glutardialdehyd-thyroglobulin. PSK was synthesized by Bachem Holding AG (Bubendorf, Switzerland). Coupling of peptides to carrier proteins using glutardialdehyde, the immunization protocol for rabbits and mice and the purification of antisera were performed according to (Harlow and Lane, 1988 ).

The antibody to PSKR used for immunocytochemical demonstration as well as for immunoblots were raised in rabbits against a conjugate of the peptide motif AIKETERHKCR located in the loop between TMS4 and TMS5 coupled to kelim limpet hemocyanin. The peptide was synthesized and coupled to the carrier by Biotrend (Cologne, Germany).

Adult and embryonic P. americana were taken from laboratory colonies at the University of Jena (maintained at 27°C under 12∕12 hours light∕dark regime). Animals were anesthetized by cooling under crushed ice and decapitated. Whole ventral nerve cords, midguts, and the sixth abdominal ganglia were dissected from male animals under freshly prepared fixative: 4% formaldehyde in 0.1 M Millonings buffer (pH 7.35) overnight at room temperature.

Vibratome sections. The preparations were washed in Tris-HCl buffer (in millimoles: 146 NaCl, 50 Tris-OH; pH 7.4) for 12 hours at 4°C on a shaker. Thick sections (40 µm) of agar-embedded midguts and sixth abdominal ganglia were cut on a vibratome (Technical Products, St. Louis, USA). The washed free-floating slices were then incubated in rabbit anti-PSKR polyclonal antibody diluted 1:500 and in a mouse anti-PSK-polyclonal antibody diluted 1:1000 in a solution of Tris-HCl buffer containing 2% normal goat serum, 0.25% Triton-X, 3% skim milk powder, and 0.25% bovine serum albumin (BSA; MPB). Subsequently, the tissue was washed in MPB overnight and incubated in the Cy3-tagged secondary goat anti-rabbit (GAR) and in the Cy2-tagged secondary goat anti-mouse (GAM) antibody (Jackson, ImmunoResearch Laboratories, Inc., West Grove, USA) for 3 hours at a dilution of 1:800 in MPB.

Whole mounts. The ventral nerve cords of 22-day-old embryos were washed at 10°C for 48 hours and incubated for 48 hours in rabbit anti-PSK polyclonal antibody diluted 1:5000 in MPB. The whole nervous systems were then washed in MPB 48 hours and incubated for 48 hours at 10°C in a 1:800 GAR-Cy3 dilution.

The vibratome sections and whole mounts were mounted and embedded in Mowiol (Sigma, Deisenhofen, Germany). For the photographic documentation we used the bright-field optics on a Zeiss Axiophot microscope, a Hamamatsu digital camera C4742-95, and OpenLab software (Improvision Limited, Coventry, UK). We performed the following controls: (a) the primary antibody was omitted or replaced with an equivalent concentration of normal serum (negative controls); (b) the secondary antibody was omitted. Under these conditions, cells and fibers remained totally unstained. The cross-reactivity of the PSK antibody with other neuropeptides was tested by ELISA. In a dilution of 1:20 000 the antibody recognized the PSK-conjugate with maximal intensity (optical density, od = 3.0), yet a cross-reactivity to the insect-neuropeptides allatostatin A1, A3, B, proctolin, locustatachykinin, CCAP, AKH I, and corazonin was not detectable. There was, however, a moderate cross-reactivity to FMRF-amide conjugate (od = 1.3) and a very weak immunoreactivity to the leucomyosuppressin conjugate (od = 0.2). Both leucomyosuppressin and FMRF-amide are insect neuropeptides with C-terminal similarity to PSK. As shown in a competitive ELISA, the PSK antibody could solely be inhibited by PSK (total inhibition at 10 pM∕well) but hardly by leucomyosuppressin, FMRF-amide, and RF-amide (maximal inhibition by 20% at 1000 pM∕well; Veenstra, unpublished result).

Electron microscopy. After preparation of the abdominal tergites and rapid removal of the gut and fat tissue, the sixth abdominal ganglia were prefixed in situ. After 10 minutes, these ganglia were dissected from ventral nerve cord and continually fixed in vitro. As fixative we used 0.5% glutardialdehyde, 2% formaldehyde in 0.1 M HEPES buffer, pH 7.35 for 2 hours at 4°C, followed by washing overnight in 0.1 M HEPES buffer, and postfixation with 1% OsO₄ in 0.1 M HEPES buffer for 1 hour. After a brief wash, the tissue was dehydrated in a series of alcohol and embedded in Durcupan ACM. Ultrathin sections were cut with Reichert Ultracut E and mounted on Formvar carbon-coated single-slot nickel grids. Sections were first soaked for 10–20 minutes in drops of PBS containing 0.5% BSA. Incubation with the antibody to PSK (diluted 1:1000) was performed in a moist chamber for at least 24 hours at 4°C. After the grids had been washed 7–8 times by self rotation on a magnetic stirrer, incubation followed with gold₁₂-labeled GAR IgG (British Biocell, Cardiff, UK) for 12 hours at 4°C. After repeated washes with PBS, sections were double-stained with uranyl acetate and lead citrate. Sections were examined with a Zeiss EM 900 electron microscope.

Western blot analysis. Neuronal and intestinal tissue of P. americana was ground under liquid nitrogen, the tissue powder was homogenized in 250 mM sucrose, 10 mM triethanolamin hydrochloride pH 7.5 containing Complete Protease Inhibitor (Roche, Mannheim, Germany) and freed from larger particles by centrifugation at 1000 g for 10 minutes. Finally, the membrane fraction was collected by ultracentrifugation at 200 000 g for 1 hour at 4°C. For Western blot analysis 200 µg protein of both membrane fractions were loaded per lane on a 10% SDS–PAGE. After transfer to nitrocellulose membranes a standard immunodetection protocol with our PSKR antisera (1:1000 dilution), anti-rabbit IG-alkaline phosphates conjugate (Vector Lab Inc., Burlingame, CA, USA), and BCIP∕NBT color reaction was performed.

Electrophysiology

Isolation of cells was performed as described previously (Wicher et al., 1994 ). Briefly, the sixth abdominal ganglia of adult cockroaches (P. americana) were excised, desheathed, and incubated for 10 minutes at room temperature in standard bath solution (composition, in millimoles: 190 NaCl, 5 KCl, 5 CaCl₂, 2 MgCl₂, 10 HEPES; pH 7.4) containing 0.5 mg∕ml trypsin (type II, Sigma) and 0.5 mg∕ml collagenase (type I, Sigma). After thoroughly washing off the enzyme the ganglia were stored in saline for at least 1 hour. In the sixth abdominal ganglion, four octopaminergic DUM neurons form a cluster (Eckert et al., 1992 ). From this DUM cell cluster, which can be easily identified, the neurons were separated using thin metal needles.

Ionic currents of isolated DUM neurons were measured at room temperature using whole-cell patch-clamp. Pipettes having resistances of 0.5–0.8 MΩ were pulled from borosilicate capillaries (Hilgenberg, Malsfeld, Germany). Current measurements and data acquisition were performed using an EPC9 patch-clamp amplifier controlled by PULSE software (HEKA Elektronik, Lambrecht, Germany). Data were sampled at 10 kHz and filtered at 2.9 kHz. Capacitive and leakage currents were compensated using an on-line P∕n protocol with a holding potential for leakage measurement of −110 mV. The series resistance remaining after compensation did not exceed 1.3 MΩ. The holding potential (V _hold) was −90 mV.

Separation of Ca²⁺ currents in DUM neurons was performed as described elsewhere (Wicher and Penzlin, 1997 ). The pipette solution used for this separation contained (in millimoles): 100 choline methylsulfate (CMS), 60 CsOH, 8 CsCl, 30 tetraethylammonium (TEA)-Br, 2 Mg-ATP, 1 CaCl₂, 3 EGTA, 10 HEPES. The free Ca²⁺ concentration was calculated to amount to 63 nM (WEBMAXC v2.20, Patton et al., 2004 ). The bath solution for Ca²⁺ current measurements contained (in millimoles): 190 CMS, 2 CaCl₂, 10 HEPES, and 0.5 µM tetrodotoxin (TTX). When using Sr²⁺ as charge carrier the 2 mM Ca²⁺ in the bath solution were substituted by 1 mM Sr²⁺. For data analysis only such cells were used in which the run-down of currents was less than 10% within the time required for the investigations (∼15 minutes). For separation of Na⁺ currents (Wicher, 2001a ) pipette solution contained (in millimoles): 5 NaCl, 100 CMS, 30 TEA-Br, 3 CsCl, 60 CsOH, 2 Mg-ATP, 1 CaCl₂, 5 EGTA, and 10 HEPES; the bath solution contained (in millimoles): 60 Na isothionate, 90 CMS, 40 TEA-Br, 7 MgCl₂, 1 CdCl₂, and 10 HEPES. Total K⁺ currents were measured with pipette solution containing (in millimoles): 180 K-gluconate, 10 NaCl, 2 Mg-ATP, 1 CaCl₂, 5 mannitol, 3 EGTA, and 10 HEPES; the bath solution contained (in millimoles): 190 NaCl, 5 KCl, 5 CaCl₂, 2 MgCl₂, and 10 HEPES. To suppress Na⁺ currents and Na⁺-dependent K⁺ currents, 0.5 µM TTX was added to the bath. The pH value was adjusted to 7.4 (bath solutions) and 7.25 (pipette solutions). Liquid junction potentials between pipette and bath solutions were taken into account before establishing the seal.

Spiking of neurons was recorded under current-clamp conditions without current injection. Neurons were bathed in saline (cf. Cells) and patch pipettes (resistance >1.5 MΩ) were filled with a solution composed of (in millimoles) 190 K-gluconate, 5 NaCl, 1 CaCl₂, 3 EGTA, 2 Mg-ATP, and 10 HEPES (pH 7.25). Between recordings (duration 1 second) the cells were held under voltage clamp at a holding potential of −70 mV.

Application or washout of blocking agents was performed by transferring the cells (attached to the pipette tip) within a glass tube into the various solutions. A complete and fast solution exchange within a few milliseconds was achieved by sucking a small amount of solution into the tube.

PSK was obtained from Peninsula (Belmont, CA, USA), LOE908 from Boehringer (Ingelheim, Germany), TTX from Sigma, and ω-agatoxin IVA from Alomone (Jerusalem, Israel).

Data are given as means ± standard deviation (n = number of cells) unless otherwise stated. For data analysis including nonlinear fitting procedures Prism 4 software (Graph Pad Software, San Diego, CA, USA) was used. Current–voltage (I − V) relationships for Ca²⁺ peak currents were fitted taking into account current rectification according to the Goldman–Hodgkin–Katz (GHK) equation

where G is the total Ca²⁺ conductance, V_rev the Ca²⁺ reversal potential, V_0.5 the potential for half-maximal activation of total Ca²⁺ conductance, and S the slope factor of activation (cf. Hille, 1992 ).

Activation curves were fitted with the Boltzmann equation

where G_max is the maximal conductance, V_0.5 the voltage of half-maximal activation, and S the slope factor.

cAMP assay

DUM neurons were isolated as described in the previous section; 2 hours after isolation cultures were treated with 10 nM PSK (10–25 minutes) and∕or antisera anti-PSKR 1:100 (1 hour). Subsequently, neurons were fixed for 1 hour with 4% paraformaldehyde containing 5% (w∕v) sucrose in phosphate-buffer saline (PBS, pH 7.4). After fixation, cells were washed three times for 5 minutes each in PBS and 5 minutes in PBS containing 0.2% Triton X-100 (PBS-T). To block non-specific binding of the primary antibody, cell bodies were preincubated with 4% BSA in PBS-T for 1 hour. Primary antisera (rabbit anti-cyclic-AMP polyclonal antibody, Euromedex, Mundolsheim, France), diluted 1:800 in PBS-T, was applied overnight at 4°C. After repeated washing in PBS-T, the secondary antibody fluorescein isothiocyanate-labeled GAR IgG (Euromedex) diluted 1:150 in PBS-T containing 1% BSA was applied at 20°C for 3 hours in the dark. Isolated DUM neuron cell bodies were then rinsed in 4% BSA in PBS and mounted on glass slides in glycerol∕PBS. The fluorescence detection was captured using an Axiocam HRC camera mounted on a Zeiss Axioskop microscope; images were digitized using Axiovision (Carl Zeiss, Jena, Germany). The immunofluorescence quantification used to compare intensity of fluorescence was performed with ImageJ 1.34 s software (Scion corporation, Frederick, USA).

Measurement of intracellular calcium concentration

Cells were loaded with Fura-2 (Molecular Probes, Eugene, OR, USA) either by incubation in standard bath solution (cf. above) containing 2 µM Fura-2∕acetomethylester (AM) for 20 minutes or by intracellular perfusion with 10 µM K₅-Fura-2 added to the pipette solution used for spike recording (for calibration). In order to preserve cellular integrity most experiments were performed with Fura-2∕AM loading.

Free intracellular Ca²⁺ concentration [Ca²⁺]_i was determined with the fluorescence ratio method. Light exciting Fura-2 at 340 and 380 nm, provided by Polychrome II (T. I. L. L. Photonics, Gräfelfing, Germany), was coupled via an epifluorescence condenser into an Axioskop FS (Carl Zeiss) equipped with a water immersion objective (LUMPFL 40× W∕IR∕0.8; Olympus, Hamburg, Germany). Emitted light was separated by a 400 nm dichroic mirror and filtered with a 420 nm long-pass filter.

[Ca²⁺]_i was calculated according to the following equation:

K_eff, R_min, and R_max were determined using DUM neurons permeabilized with 2 µM ionomycin and three solutions with different concentrations of free Ca²⁺ (Ca²⁺ free; 5 mM Ca²⁺; 500 nM Ca²⁺; the composition of the 500 nM solution was calculated with WEBMAXC v.2.20, Patton et al., 2004 ). The values of K_eff, R_min, and R_max were 3.72 µM, 0.38, and 5.9, respectively.

Fluorescence images were acquired using a cooled CCD camera controlled by TILLVision 4.0 software (T. I. L. L. Photonics). The resolution was 640 × 480 pixel in a frame of 175 × 130 µm² (40×∕IR∕0.8 objective). Image pairs were obtained by excitation for 100 ms at 340 and 380 nm, for recording of image series intervening intervals of 10 seconds were chosen. Background fluorescence was subtracted.

Results

Localization of PSK within the nervous system

Sulfakinin-immunoreactive (ir) cells have been described in different insect species (e.g., Agricola and Bräunig, 1995 ; East et al., 1997 ). In the American cockroach, a specific antibody against PSK recognizes only a few neurons (Agricola and Bräunig, 1995 ; East et al., 1997 ). There are 24 PSK-ir cells in the pars intercerebralis that project into the corpora cardiaca (Figure 1 A). Using the immunogold technique we stained PSK-ir axon terminals in the storage lobe of the corpus cardiacum indicating that PSK acts as neurohormone (Figures 1 B and 1 C). Two types of axon profiles differing in the appearance of granula were strongly labeled (Figures 1 B and 1 C). A third type showed weak PSK-ir which may result from a RF-amide cross-reactivity (not shown).

FIGURE 1

Figure 1. PSK-ir neurons in the central nervous system of Periplaneta. (A) PSK-immunostaining (whole-mount) in adult brain. Bar, 100 µm. (B,C) Electron micrograms displaying immuno-gold labeling of axon terminals in the storage lobe of the corpus cardiacum. Bar, 100 µm. (D) PSK-immunostaining (whole-mount) in a 22-day-old embryo. Two cell pairs, the protocerebral descending sulfakinin-ir (PDS1 and PDS2) neurons run contralaterally to the SEG. The PDS1 neurons project longitudinally through all ganglia within the ventral nerve cord. By contrast, the PDS2 neurons turn back to the ipsilateral side in the posterior part of the SEG and ascend to the tritocerebrum. (E) Schematic view of D. Note the beginning development of arborizations of the PDS1 neurite within the thoracic areas. Other PSK-ir neurons are described in (Agricola and Bräunig, 1995 ). SEG, subesophageal ganglion; PTG, prothoracic ganglion; MoTG, mesothoracic ganglion; MaTG, metathoracic ganglion; AG, abdominal ganglion; TG, terminal ganglion. Bar, 200 µm. (F), PSK-immunostaining (whole-mount) in the sixth AG of an adult animal. Note the intense staining of the PDS1 neurite arborizations characterized by varicosities. At each side three bilateral main branches sprout from the primary neurite. Bar, 100 µm.

Furthermore, there is one pair of PSK-ir neurons in the brain, so-called protocerebral descending sulfakinin-ir (PDS) neurons (Agricola and Bräunig, 1995 ; Figures 1 D and 1 F). The processes of PDS neurons run contralaterally and unidirectionally through the ventral nerve cord. While they do not form arborizations within all ganglia at early embryonic development (Figures 1 D and 1 F), three bilateral main branches sprout per ganglion at later stages. Extensive varicosities appear within the branched neurites of PDS neurons during further development as shown for the sixth abdominal ganglion (Figure 1 F).

Double stainings using a polyclonal rabbit antibody to PSK (Figure 2 A) and a monoclonal mouse antibody to octopamine (Figure 2 B) visualized the varicosities of PDS neurons as well as the four octopaminergic DUM neurons with their arborizations. Electron microscopical immunocytochemistry revealed two different axon profiles showing PSK-ir. Intense staining was observed in fibers without synaptic contacts (Figure 2 E). The other one is equipped with synaptic vesicles and displayed only moderate staining presumably due to cross-reactivity to RF-amide peptides (Figure 2 F). There is no direct innervation of the somata of DUM neurons by the PDS neurons (Figures 2 C and 2 D). However, in all preparations (n = 28) PSK-immunoreactivity (PSK-ir) appears within the extracellular matrix, the interface between the neuropile and the soma cell layer (Figure 3 A). Tiny extensions of this extracellular matrix penetrate the glial layer that surrounds the somata of neurons. This might attribute to the PSK-ir observed near the somata (Figures 2 C and 2 D).

FIGURE 2

Figure 2. Immunostaining to PSK and octopamine in the sixth AG. (A–C) Frontal slices of the posterior part of the sixth AG, displaying PSK-ir (A), octopamine-ir (B), and merged ir (C). (D) Horizontal slice with double staining to PSK (green) and octopamine (red). Note that PSK-ir fibers occur near the soma of the octopaminergic DUM neuron. Bar, 100 µm. (E, F) Electron micrograms of two immuno-gold stained axon profiles of the sixth abdominal ganglion. Note the strongly stained granules in E. In these fibers no synaptic contacts were observed. Synaptic contacts are present in fibers showing weak staining (F). Bars, 100 µm.

FIGURE 3

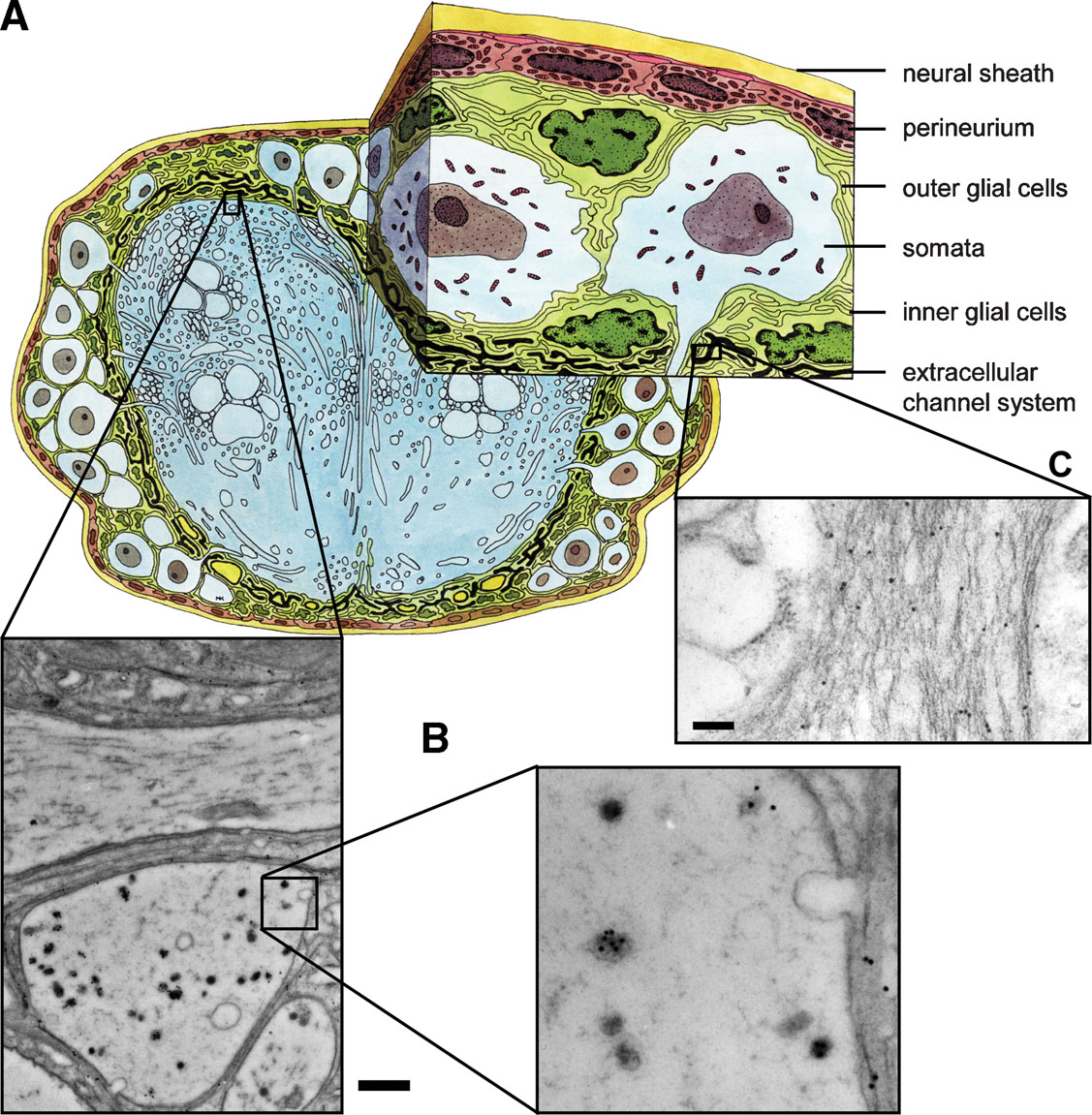

Figure 3. PSK immunostaining in the neuropile and the extracellular matrix. (A) Schematic drawing of a cross-section through the sixth AG. (B, C) PSK-ir shown by immuno-gold technique occurs in axons of the neuropile (B) and in the channel system of the extracellular matrix (C). Bars, 1 µm (B), 250 nm (C).

The presence of PSK within the extracellular matrix indicates that the peptide may be also secreted extrasynaptically as proposed in the concepts of volume transmission (Zoli and Agnati, 1996 ) or extrasynaptic transmission (Vizi et al., 2004 ). Using electron microscopy, we detected PSK-ir material within the extracellular matrix channel system (Figures 3 A and 3 C). Source of this immunoreactivity is probably peripheral axon terminals containing PSK-ir (Figure 3 B). Interestingly, there is also immuno-gold staining within the extracellular space surrounding these axons (Figure 3 C). These morphological features support the view that PSK may also act via volume transmission.

Molecular cloning and localization of the PSK receptor

Using a combined degenerated PCR and nested RACE strategy we obtained a 1945 bp cDNA of the PSKR (GenBank acc no. AY865608). This cDNA encodes a 1866-bp open-reading frame for a 622 amino acid protein with significant homology to two Drosophila (23.6% identity, 32.3% homology to AAF48875; 29.8% identity, 41.3% homology to AAF48879) and one Anopheles (41.9% identity, 51.4% homology to AAR28375) sulfakinin receptors. In addition, all typical structural features of a G-protein coupled receptor were identified, including seven transmembrane regions, an extracellular N-terminal region and a cytosolic C-terminus. One noticeable feature of all sulfakinin receptors is the large intracellular linker between TMS5 and TMS6.

A nested PCR approach was used to identify the expression of the PSKR in neuronal tissue. In brain and in thoracic and abdominal ganglia a prominent 362-bp PSKR PCR product was obtained (Figure 4 A), verified by sequencing. In addition, in 7 out of 10 isolated actin-positive DUM neurons a PCR signal was obtained (Figure 4 B), indicating a significant expression of PSKR in these cells.

FIGURE 4

Figure 4. RT-PCR and Western blot analysis of PSKR expression. (A) Nested RT-PCR analysis of the PSKR expression in brain and ganglia. A 362 bp PCR product was amplified in all neuronal samples tested. (B) Single-cell RT-PCR analysis of isolated DUM neurons. In 7 out of 10 DUM neurons a PSKR-specific band was found (upper panel). As an endogenous expression control an actin-specific RT-PCR was used (lower panel). M, marker pBR322 DNA BsuRI digested (two marker bands are indicated). (C) Western blot analysis of PSKR expression in nervous system (NS) and gut (G). A ∼68-kDa band was found in gut only but not in the nervous system. Protein marker bands are indicated in the left lane.

A Western blot analysis showed a prominent band at the expected molecular weight of 67.8 kD (arrow in Figure 4 C) in the membrane fraction of intestine tissue. In neuronal tissue no specific signal was found indicating that PSKR expression in neuronal tissue is low. This was confirmed by immunocytochemistry (Figure 5 ). Pronounced PSKR-immunostaining was seen both in midgut and hindgut (not shown). Within the nervous system we found very weak PSKR-ir. Only a few neuronal cell bodies such as those of the DUM neurons (Figure 5 B) showed any immunostaining, which was weak compared with that in the gut cells. Within the neuropile, commissural and longitudinal tracts showed PSKR-ir, presumably associated with axonal membranes (Figure 5 C). Interestingly, we also found immunostaining within the extracellular channel system surrounding the somata (cf. Figure 3 A).

FIGURE 5

Figure 5. PSKR-like immunostaining in the nervous system. (A) Transversal slice of the posterior part of the sixth abdominal ganglion. The arrow indicates a DUM neuron showing pronounced immunostaining. Bar, 50 µm. (B) Transversal slice of the sixth abdominal ganglion displaying immunostaining within the neuropile.

PSK affects spiking of DUM neurons by modulating ion currents

The presence of PSK-like ir nerve endings near the surface of the DUM neuron somata indicates a modulatory control of these octopaminergic cells by PSK-neurons. To test this we investigated the effect of PSK on endogenous spiking of isolated DUM neurons. The experiments revealed that PSK affected spiking at pico- to nanomolar concentrations in a biphasic manner. The highly variable early response observed up to 2 minutes after PSK application was characterized by an acceleration of spiking whereas the uniform late response was always a reduction in spike frequency (Figure 6 A). The time courses given in Figure 6 B for two cells illustrate the variability of the early response. There was an acceleration of spiking with slow relaxation (upper panel) or oscillations of spike frequencies (lower panel). To estimate the concentration dependence of PSK effects on spike frequency we normalized the maxima of early responses and the means of late responses at 5 minutes presence of PSK (Figure 6 C). Both the early and the late response were concentration dependent (EC₅₀ of 21 pM for the early response and 11 pM for the late response).

FIGURE 6

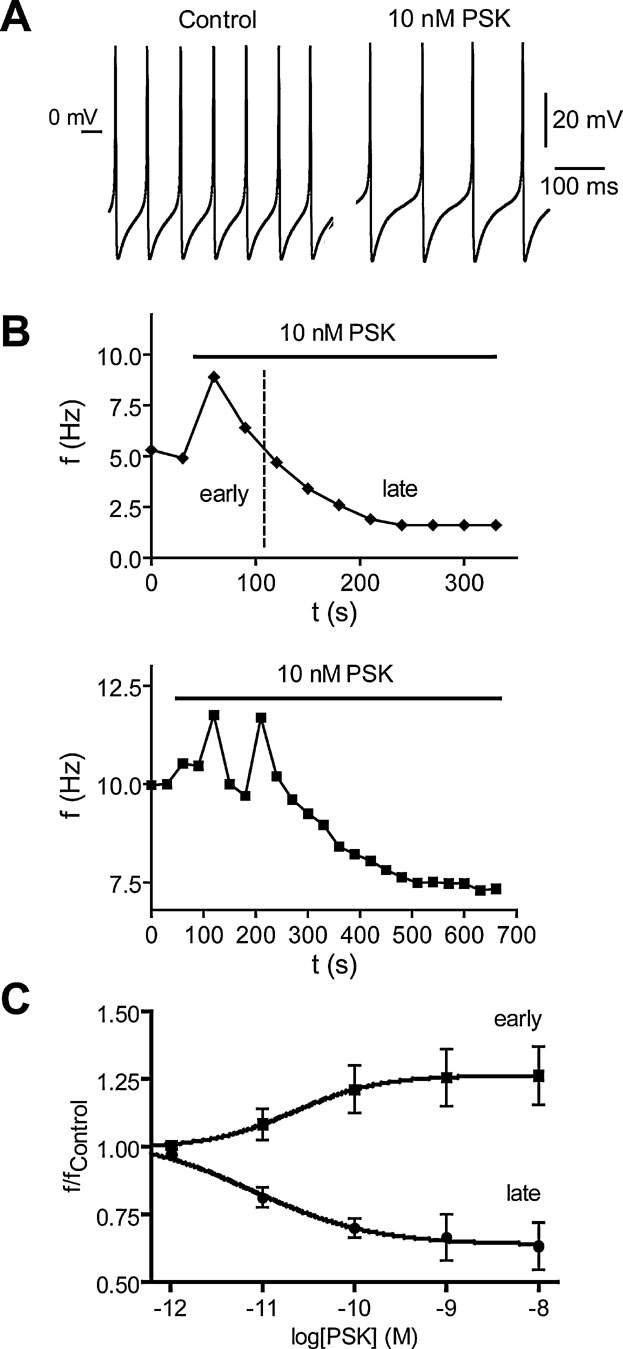

Figure 6. Effect of PSK on spiking of isolated DUM neurons of the sixth abdominal ganglion of Periplaneta. (A) Spike trains recorded under current-clamp conditions (no current injected) before and 4 minutes after application of 10 nM PSK. (B) Time courses of the biphasic PSK effect on spike frequency f for two different neurons. An early response is characterized by an acceleration of spiking (upper panel) which may involve oscillations in frequency (lower panel). In the late response the frequency decreases monotonously until reaching steady state. (C) Concentration dependence of early and late PSK effects on the normalized spike frequency. The early response curve contains frequency maxima recorded up to 3 minutes after PSK application, the late response curve contains frequencies recorded at the end of PSK application where relaxation was complete. Data, means of 6–9 cells; bars, SEM. Dose-response curves fitted to data are described by EC₅₀ of 21 and 11 pM as well as Hill coefficient of 0.94 and 0.72 for the early and the late response, respectively.

PSK had little effect on the shape of action potentials. While in some cases the overshoot was enhanced by up to 2 mV, the hyperpolarization was never changed. The only significant effect (t-test, p = 0.0093) we registered was a shift of action potential threshold from −28.5 ± 2.0 mV (n = 5) under control to −24.5 ± 1.7 mV in the presence of 10 nM PSK for 5 minutes.

The investigation of mechanisms responsible for the different effects of PSK on DUM neuron spiking was initially focused on the late response characterized by reduced pacemaker shift within the interspike interval. We thus tried to identify the pacemaker conductance that was down-regulated by PSK.

PSK attenuates the Ca²⁺ background current. One of the ion currents contributing to pacemaking in DUM neurons is a Ca²⁺ background current (Heine and Wicher, 1998 ). This voltage-independent current is constitutively active but negatively regulated by cAMP (Wicher et al., 2004 ). It is blocked by LOE908, an inhibitor of non-capacitative Ca²⁺ entry (Wicher et al., 2004 ), and by the TRP channel blocker 2-APB (Wicher et al., 2006a ). The channel conducting the Ca²⁺ background current is most probably composed of pTRPγ, an ortholog to the Drosophila TRPγ channel subunits which are involved in photoreception (Wicher et al., 2006a ). In voltage-clamp experiments with Ca²⁺ as the only membrane permeating cation, PSK (1 nM) reduced a current that was constitutively active in the voltage range between −60 and −120 mV (Figure 7 A). The PSK effect on the membrane current developed quickly after peptide application and saturated after 3 minutes. The recovery after washing off the peptide was ∼80% within 3 minutes (Figure 7 B).

FIGURE 7

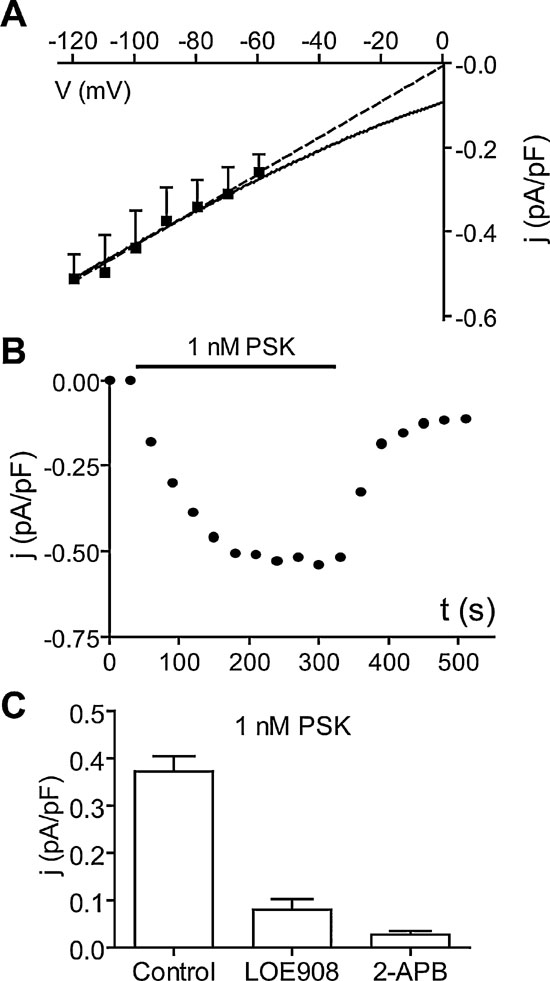

Figure 7. PSK reduces the Ca²⁺ background current. (A) Current density–Voltage (j–V) relationship of the current reduced by 1 nM PSK (difference current: Control −4 minutes PSK). Currents were measured at the end of 40 ms lasting voltage jumps from −120 mV to −60 mV (holding potential −50 mV) and normalized by membrane capacitance of cells. Data, means of six cells. Dashed line, linear approximation; solid curve, fit of GHK model for a Ca²⁺conductance. (B) Typical time course of the reduction of membrane current density upon application of 1 nM PSK and recovery upon washing off the peptide. (C) Current density of the current reduced by 1 nM PSK at −90 mV (obtained as in A) alone (Control) and after preincubation of cells LOE908 (10 µM) or 2-APB (100 µM). Data, means of six cells; bars, SEM.

A linear extrapolation of the PSK-sensitive current yielded a reversal potential around 0 mV yet the data are compatible with a Goldman–Hodgkin–Katz model for a Ca²⁺ conductance (Figure 7 A). When Ca²⁺ was replaced by Sr²⁺, PSK still reduced a resting current of comparable size (not shown). After preincubation of neurons with the Ca²⁺ background current blockers LOE908 or 2-APB, PSK failed to affect the membrane current (Figure 7 C).

PSK attenuates the Ca²⁺ background current by increasing the cAMP concentration. Since cAMP is known to exert an inhibitory control on the Ca²⁺ background current (Wicher et al., 2004 ) and on pTRPγ channels (Wicher et al., 2006a ) we tested whether the reduction of the Ca²⁺ background current by PSK might be mediated by an increase in the cAMP concentration.

Using an antibody raised against formaldehyde-fixed cAMP, the effect of PSK on the cAMP level was studied. Compared with control experiments (Figures 8 A and 8 C), pretreatment with 10 nM PSK increased cAMP-ir in DUM neuron cell bodies (fluorescence intensity: 25.8 ± 1.1, n = 31–35.5 ± 1.4, n = 19; Figures 8 A and 8 C, p < 0.001). After relaxation, which is complete after about 3 minutes, the cAMP concentration was stably enhanced within the tested time between 10 and 25 minutes of prolonged PSK incubation. By contrast, in the presence of anti-PSKR (1:100) incubation of DUM neurons with PSK (1 hours) did not result in an increased cAMP level (Figures 8 B and 8 C). These results confirm that PSK attenuates the Ca²⁺ background current via an elevation of the intracellular cAMP concentration.

FIGURE 8

Figure 8. PSK increases the cAMP level in DUM neurons. (A) Bright field images and cAMP immunostainings of isolated DUM neurons in the absence (left) and in the presence of 10 nM PSK (right). (B) cAMP immunostainings in cells incubated with antisera anti-PSKR in the absence (left) and in the presence of 10 nM PSK (right). (C) Histograms showing the intensity of immunofluorescence for the indicated conditions in the basal pole (square, see (A)) and in the cell body. A large increase in cAMP immunostaining intensity was observed in the cell body whereas but not at the basal pole (left). In DUM neurons preincubated with PSKR antisera cAMP immunostaining was not affected by PSK (right). ***Significantly different, p < 0.001, Student's t-test; ns, not significant. Scale bar, 30 µm.

PSK reduces the intracellular Ca²⁺ concentration. The Ca²⁺ background current not only plays a role in pacemaking but also affects the intracellular free Ca²⁺ concentration [Ca²⁺]_i of DUM neurons (Heine and Wicher, 1998 ; Messutat et al., 2001 ; Wicher et al., 2004 ). The reduction of the Ca²⁺ background current by PSK is thus expected to attenuate [Ca²⁺]_i. In order to confirm this we performed Ca²⁺ imaging experiments in isolated DUM neurons.

The [Ca²⁺]_i distribution under control conditions was not always homogeneous. At the basal pole, i.e., near the primary neurite, [Ca²⁺]_i was below 100 nM (Figure 9 D). This region is equipped with Na⁺ channels and responsible for the generation of action potentials in the cell body (Grolleau and Lapied, 2000 ). [Ca²⁺]_i at the apical pole was frequently somewhat enhanced, also hot spots were observed. Application of PSK (10 nM) caused an overall reduction of [Ca²⁺]_i. Within 10 minutes PSK reduced [Ca²⁺]_i from 139 ± 15 to 97 ± 11 nM (Figure 9 C).

FIGURE 9

Figure 9. Calcium imaging of the effect of 10 nM PSK on [Ca²⁺]_i in an isolated DUM neuron. (A) Distribution of [Ca²⁺]_i under control conditions. The primary neurite of the cell is directed upward, the apical pole is downward. (B) Distribution of [Ca²⁺]_i 8 minutes after application of PSK. Scale bar, 20 µm. The color scale gives [Ca²⁺] in nM. (C,D) Mean [Ca²⁺]_i in the absence (Control) and in the presence of 10 nM PSK. PSK causes a significant overall reduction of [Ca²⁺]_i (paired t-test; p < 0.01; C), yet in the basal part [Ca²⁺]_i was not significantly changed (D).

The results obtained from the investigations of long-lasting PSK effects on the level of ion currents and [Ca²⁺]_i support the view that the peptide reduces the Ca²⁺ background current which was previously shown to be involved in other neuro-modulatory processes (Wicher et al., 2001 ). The reduction of a current serving as pacemaker seems to be sufficient to explain the reduction of spike frequency by PSK in the late time domain. However, taken into account that the reduction of Ca²⁺ background current starts shortly after peptide application (Figure 7 B), it remains to be shown which mechanism is responsible for the early effect of PSK. The increase in spike frequency obviously requires an over-compensation of the peptide-induced attenuation of Ca²⁺ background current by another pacemaker conductance.

PSK neither affects Na⁺ nor K⁺ currents. Among the conductances capable of serving as pacemaker in DUM cells there is a sustained component of voltage-gated Na⁺ current (Grolleau and Lapied, 2000 ). Thus we asked whether PSK might potentiate this current. However, PSK applied at concentrations of 1 and 10 nM revealed that size and kinetics of voltage-gated Na⁺ currents were not affected (n = 4 and 6, respectively; not shown).

In DUM neurons, various types of K⁺ currents occur that not only contribute to action potential shaping but also to the control of pacemaking, as for example, the voltage-gated A-type current (Grolleau and Lapied, 2000 ). To test whether K⁺ currents might be affected by PSK, we investigated its effect on total outward currents obtained by depolarizations from −90 mV to potentials ranging from −80 to +40 mV. PSK, at concentrations of 1 and 10 nM, did not affect these currents within 2 minutes (n = 6, not shown). Similarly, when Na⁺ channels were blocked by TTX thereby inhibiting Na⁺-activated K⁺ currents, application of 10 nM PSK failed to significantly change size and kinetics of outward currents (n = 6, not shown).

PSK enhances a voltage-gated Ca²⁺ current component. The somata of DUM neurons are equipped with voltage-gated Ca²⁺ channels activating in the low voltage range (Grolleau and Lapied, 1996 ) and in the high voltage-range (Grolleau and Lapied, 1996 ; Wicher and Penzlin, 1994 ; Wicher and Penzlin, 1997 ). When investigating the effect of PSK on voltage-gated Ca²⁺ currents we recognized that PSK (10 nM) enhanced Ca²⁺ currents positive to −60 mV (Figures 10 A and 10 B) but it did not affect current kinetics (Figure 10 A). The I–V relationships for peak currents taken before and 2 minutes after PSK application (Figure 10 B) showed that the PSK effect is most pronounced in the lower voltage range whereas it is virtually absent positive to 0 mV.

FIGURE 10

Figure 10. Effect of PSK on voltage-gated Ca²⁺ currents. (A) Families of Ca²⁺ currents before and 2 minutes after application of 10 nM PSK. Currents were activated by stepping from a holding potential of −90 mV to voltages ranging from −60 to −20 mV in 10 mV increments. (B, C) I–V relationships (B) and G–V relationships (C) for Ca²⁺ peak currents before (Control) and 1 minute after application of PSK. Data, means of 5–8 cells; bars, SEM. Curves were fitted to the data according to the GHK equation. (D) I–V relationships for Sr²⁺ peak currents before (Control) and 1 minute after application of PSK. Data, means of five cells; bars, SEM. Curves were fitted to the data according to the GHK equation. (E) I–V relationships for the current produced by 10 nM PSK (1 minute) and the current blocked by 50 nM ω-AgaTx. Currents were normalized to the maximum of the I–V curve under control conditions. (F) Ca²⁺ current density produced by 10 nM PSK (1 minute) under control conditions and in the presence of 50 nM ω-AgaTx.

PSK shifted the midpoint of the G–V relationship towards more negative potentials and it increased the steepness of its slope (Figure 10 C). Fitting data with the Boltzmann equation yielded V_0.5 = −22.4 mV and S = 3.9 mV (Control) and V_0.5 = −26.8 mV and S = 3.0 mV (PSK). Ca²⁺ currents show most pronounced Ca²⁺-dependent inactivation in the voltage range between −30 and 0 mV, i.e., where PSK had the strongest effect on the Ca²⁺ conductance (Figure 10 A; cf. Wicher and Penzlin, 1997 ). Therefore, for a more detailed investigation of the PSK effect Sr²⁺ was used as charge carrier to avoid this Ca²⁺-dependent inactivation. However, PSK failed to significantly affect Sr²⁺ currents (Figure 10 D). The PSK effect on Ca²⁺ channels thus seems to rely on Ca²⁺ as charge carrier and is possibly related to Ca²⁺-induced inactivation.

Sr²⁺ currents activated positive to −70 mV and reached the maximum at −20 mV. Both potentials were ∼10 mV more negative than those for Ca²⁺ currents which may be accounted for by lower surface charge screening by Sr²⁺ (Hille, 1992 ). The I–V relationship for Sr²⁺ peak currents shows a continuous rise from activation threshold to maximum, and it can be well fitted with a GHK equation (Figure 10 D, cf. Materials and Methods). By contrast, the I–V relationship for Ca²⁺ peak currents increases only moderately on jumps ranging from the activation threshold to −40 mV. Positive to −40 mV there is, however, a steep increase in current amplitude with increasing depolarization. A simple GHK model fits this I–V relationship less well (Figure 10 B).

An explanation for the apparent difference between Ca²⁺ and Sr²⁺ currents may be that low voltage-activated (LVA) Ca²⁺ channels are down-regulated in the presence of extracellular Ca²⁺. The regulation of a LVA Ca²⁺ current in DUM neurons by the intracellular Ca²⁺ concentration has been reported (Grolleau and Lapied, 1996 ). Furthermore, the Ca²⁺ background current was shown to be involved in controlling [Ca²⁺]_i (Heine and Wicher, 1998 ). As described above, PSK attenuates the Ca²⁺ background current thereby reducing [Ca²⁺]_i (Figure 7 ).

That PSK affected Ca²⁺ currents preferentially in the lower voltage range might indicate a selectivity to distinct Ca²⁺ current component(s). PSK has the most pronounced effect on Ca²⁺ peak currents at −20 mV (Figure 10 E). At this potential the total current mainly results from a current component sensitive to the P∕Q-type Ca²⁺ channel blockers ω-conotoxin MVIIC and ω-agatoxin IVA (Wicher and Penzlin, 1997 ). In order to test whether PSK affects this component it was applied in the presence of ω-agatoxin IVA (ω-AgaTx). ω-AgaTx (50 nM, 2 minutes) blocked a current activating positive to −40 mV reaching a maximum at around −10 mV (Figure 10 E). Figure 10 F compares the increase in Ca²⁺ current density elicited by 10 nM PSK under control conditions with that in the presence of ω-AgaTx at −30 mV where the P∕Q-type current is rather low (cf. Figure 10 E) and at −20 mV where this current is predominant. At the latter potential, ω-AgaTx dramatically reduced the PSK effect (by ∼80%) whereas it did not significantly change PSK efficacy at −30 mV. The strong reduction of PSK effect by ω-AgaTx at −20 mV and more positive potentials (not shown) shows that PSK indeed affects the P∕Q-type current. However, the remaining PSK-induced Ca²⁺ current increase in the presence of ω-AgaTx indicates that PSK also enhances a LVA current. Thus, PSK does not specifically act on a distinct Ca²⁺ current component.

In the continuous presence of PSK (>2 minutes), we found a reduction of Ca²⁺ currents activated by voltage commands positive to −40 mV. At the peak of the I–V relationship there was a reduction by 17 ± 12% (n = 6). To exclude that this effect may result from run-down due to Ca²⁺ influx during measurements we repeated the experiments using Sr²⁺ as charge carrier. Under these conditions there was still a reduction by 15 ± 9% (n = 5). The reduction of voltage-gated Ca²⁺ current possibly explains the increase in action potential threshold observed in the presence of PSK for >2 minutes (cf. above) and it may contribute to the termination of spike frequency oscillations.

Discussion

Signaling systems involved in general regulation of physiological processes such as the noradrenergic system in vertebrates or the octopaminergic system in insects (Roeder, 2005 ) supply their messengers throughout the nervous system. The sulfakinin system in Periplaneta is similarly widespread as the projections of the PDS1-neuron run throughout the ventral nerve cord. The arborizations, as demonstrated in the sixth abdominal ganglion, are sufficient to supply the whole ganglion with PSK. Within ganglia, PSK is released both in synaptic as well as in extrasynaptic areas (Figure 3 ) indicating an important role of volume transmission (e.g., Vizi et al., 2004 ; Zoli and Agnati, 1996 ). In addition, since there are 24 PSK-producing neurons in the pars intercerebralis, which project to the corpora cardiaca, a neurohemal organ, a further role of PSK as a hormone is conceivable.

The expression of PSKR in efferent DUM neurons which are involved in the regulation of the animal's activity level (Roeder, 2005 ) indicates a general activity-regulating role of PSK. Electrophysiological experiments confirmed that PSK indeed modulates the performance of DUM neurons. We have seen that PSK attenuates the spike activity of DUM neurons, which is expected to reduce the octopamine release by these cells. The satiety messenger PSK, which reduces food intake (Maestro et al., 2001 ), may thus down-regulate the general level of activity. In the opposite physiological context, i.e., under energy-deficient conditions, AKHs are released to mobilize energy reserves. In parallel they up-regulate the activity level that involves stimulation of octopaminergic DUM neurons (Wicher et al., 2006b ; Wicher, 2007 ).

Since there are no synaptic contacts at the somata of insect neurons, the question arises how do chemical messengers approach their receptors localized in the cell body membrane? As the PSK-induced attenuation of the DUM cell spike frequency was observed in isolated somata, PSK receptors are surely present in the cell body membrane as previously reported for other ionotropic and metabotropic receptors such as cholinergic (Grolleau et al., 1996 ), glutamatergic (Washio, 2002 ), or peptidergic receptors (Wicher et al., 2006b ). Our electron microscopical immunocytochemistry revealed two axon types with differently intense PSK-ir, similar to the situation found in the corpora cardiaca. In both cases, we assume that the intense staining indicates the presence of PSK while the weak staining may result from RF-amide cross-reactivity which is in accordance with the ELISA results (cf. Materials and Methods). Furthermore, we obtained evidence for the localization of PSK-ir nerve endings near the extracellular matrix, and—most intriguingly—the presence of PSK-ir material within the extracellular matrix indicates that one way for PSK to reach the DUM cell bodies is a paracrine mechanism via volume transmission through this channel system which has extensions to the DUM surface (Figure 3 ). Alternatively, since PSK is stored in the corpora cardiaca (Figure 1 ), it is released into the circulation and may penetrate the neural sheath of the CNS to approach the DUM neurons as previously shown for the AKH (Wicher et al., 2006b ).

The persisting PSK effect leading to reduced spike activity was accomplished by down-regulation of the Ca²⁺ background current sensitive to cAMP, LOE908, and 2-APB. We have recently shown that up-regulation of this current by an AKH causes acceleration of spike activity (Wicher et al., 2006a ). This was accompanied by an increase in [Ca²⁺]_i at the apical pole of the DUM cell indicating that background channels and the signal transduction machinery are localized in this region (Wicher et al., 2004 ). Interestingly, PSK produced a reduction in [Ca²⁺]_i within the same region (Figure 9 ).

The early response to PSK involving transient acceleration of spiking was accompanied by an increase in voltage-gated Ca²⁺ currents. At least two types of currents were found to be affected, the P∕Q-type current and an LVA current. Since up-regulation of the Ca²⁺ background current in DUM neurons was seen to be responsible for a reduction in voltage-gated Ca²⁺ currents (Wicher, 2001b ), the down-regulation of the background current by PSK may simply remove a depressing effect on voltage- gated Ca²⁺ channels. That the amplitude of LVA and P∕Q-type currents are under control of Ca²⁺ has already been demonstrated (Grolleau and Lapied, 1996 and Wicher and Penzlin, 1997, respectively). Since LVA channels also contribute to pacemaking in DUM neurons, their up-regulation is expected to increase the firing rate of DUM neurons. The observed transient increase in spike frequency or its oscillation may thus result from the superposition of two contrary effects on pacemaking, namely the up-regulation of voltage-gated Ca²⁺ currents on the one hand and the down-regulation of the Ca²⁺ background current on the other.

An experimental analysis of the signal transduction of PSK signaling was beyond the scope of this study. However, two algorithms aimed at predicting the G-protein specificity of receptor coupling were applied to analyze the sequence of PSKR. G protein and receptor interaction feature finding system (GRIFFIN, Yabuki et al., 2005 ) predicted a coupling to G_s. Since this algorithm stops upon identifying the G_s-binding type it does not provide any information on possible other G protein coupling. The algorithm PRED-COUPLE (Sgourakis et al., 2005 ) which is also able to model promiscuous coupling predicted a further coupling of PSKR to G_q,11 and G_i,0. The regulation of the Ca²⁺ background current in DUM neurons by cAMP may be accomplished via different pathways including receptor coupling to G_s, G_i, and G_q or even by affecting the NO signaling system (Wicher et al., 2004 ). Activation of the Drosophila SKR heterologously expressed in mammalian cells most probably leads to G_q activation (Kubiak et al., 2002 ).

Conclusion

We have seen that the gut peptide PSK which also acts within the central nervous system thereby inhibiting feeding (Maestro et al., 2001 ; Wei et al., 2000 ) may be supplied throughout the nervous system and inhibits the activity of octopaminergic DUM neurons. This reduces the octopamine release and thus the general activity of animals (Roeder, 2005 ). Mammalian peptides mediating satiety signals such as CCK similarly act within the CNS (Nussdorfer et al., 2005 ). For example, CCK depolarizes rat vagal neurons by acting on background conductances (Peters et al., 2006 ). Thus the structurally related insect and mammalian neuropeptides PSK and CCK seem to have a similar function in the nervous system in that they down-regulate general activity. The additional involvement of both peptides in the midgut control (not shown) supports the view that various aspects of feeding regulation are evolutionary conserved between insects and mammals.

Under energy deficiency—the opposite physiological condition as PSK is released—insects mobilize energy reserves due to secretion of AKHs. Most intriguingly, AKHs enhance the activity of DUM neurons (Wicher et al., 2006b ) that are depressed by PSK. Moreover, not only the Ca²⁺ background channel is the common target of antagonistic modulation by AKH and PSK, also the cAMP level is regulated by both peptides in antagonistic manner.

Thus the peptidergic control of metabolism involves general regulatory principles conserved in evolution as well as special mechanisms transducing both the message of hunger or satiety.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgements

The authors thank S. Kaltofen, A. Roßner, and A. Schmidt (Jena), and the Center for Electron Microscopy of the Friedrich Schiller University Jena for technical assistance. The Deutsche Forschungsgemeinschaft (Wi 1422∕2–4,5) supported part of this work.
