Introduction: Influenza-associated pulmonary aspergillosis is associated with high mortality rates and limited treatment options. The current standard practice involves treating each pathogen separately. However, the use of antifungal drugs can lead to serious side effects, and the presence of triazole-resistant Aspergillus strains can complicate antifungal therapy. In addition, drug-resistant influenza viruses are becoming an increasing concern in clinics. A drug that affects fungal and viral propagation could overcome these disadvantages. Thus, we conducted a study to examine the antifungal and antiviral properties of ProcCluster® and procaine hydrochloride (HCl), which are prodrugs derived from the local anesthetic procaine.
Methods: Conidia of different A. fumigatus strains, A. flavus and A. terreus were treated with the test substances in a human cell-free system and antifungal properties were analyzed either by fluorescence microscopy or absorption measurements. Changes in metabolic activity and intracellular Ca2+ distribution during treatment of A. fumigatus with ProcCluster® were observed using fluorescence microscopy. In addition, antifungal and antiviral properties of ProcCluster® and procaine HCl were investigated during in vitro coinfection of lung epithelial cells with A. fumigatus and influenza A viruses (IAV). Analysis was performed by fluorescence microscopy, standard plaque assay and Western blot assay.
Results: Both substances inhibited the growth of the fungus, even when applied after germination or in the presence of purified IAV particles. ProcCluster® remained effective against triazole-resistant A. fumigatus strains. However, the addition of CaCl2 reversed the antifungal effect, indicating that ProcCluster® inhibited fungal growth by disrupting fungal Ca2+ homeostasis. Furthermore, in vitro studies showed that ProcCluster® and procaine HCl reduced the pathogen load of IAV and A. fumigatus during coinfection. Finally, the combination of ProcCluster® with the antiviral drug favipiravir exhibited increased antipathogenic activity, particularly against IAV replication.
Discussion: This research highlights ProcCluster® and procaine HCl as substances with anti-infective properties against various pathogens.
1 Introduction
Aspergillosis, most commonly caused by the species Aspergillus fumigatus, and to a lesser extent by A. flavus, A. terreus and A. nidulans, belongs to the most frequent fungal lung infection in humans. The opportunistic pathogen A. fumigatus typically occurs as a saprobe on decaying vegetation and soils, playing an important role in carbon and nitrogen recycling. By releasing its conidia into the air, A. fumigatus can reach the alveoli of the human lungs and, under certain conditions, cause invasive infections (Latge and Chamilos, 2019). In particular, immunocompromised patients, such as those undergoing hematopoietic stem cell or solid organ transplantation, are at high risk of developing invasive pulmonary aspergillosis (IPA) (Ledoux and Herbrecht, 2023). With mortality rates ranging between 25 and 60%, IPA remains a life-threatening disease in these high-risk groups (Neofytos et al., 2018; Pardo et al., 2019). In addition to neutropenia and other immunosuppressive conditions, IPA is known to complicate other diseases, such as influenza virus infections (van de Veerdonk et al., 2017; Schauwvlieghe et al., 2018).
Influenza viruses cause seasonal epidemics, resulting in 3–5 million severe cases and up to 650,000 fatalities annually worldwide (Iuliano et al., 2018). Influenza A viruses (IAV) in particular pose a major threat to public health because they are capable of causing pandemics that can result in millions of deaths, as seen for the Spanish flu in 1918/19 (Taubenberger and Morens, 2006). However, in most cases, patients recover easily from a flu and severe disease progression is often associated with secondary infections by bacteria or fungi. Coinfections with fungi are often related to species of the genus Aspergillus (van de Veerdonk et al., 2017; Schauwvlieghe et al., 2018; Bartley et al., 2022). To date, the molecular mechanisms of coinfections with influenza viruses and Aspergillus species have rarely been studied. Studies on mice revealed increased fungal burden, body weight loss and higher mortality in the presence of IAV and A. fumigatus compared to infection with either pathogen alone (Tobin et al., 2020; Seldeslachts et al., 2021a). Our own research, using an in vitro coinfection model, has shown that IAV-particles can bind to the surface of A. fumigatus and induce fungal growth (König et al., 2024). However, in the presence of A. fumigatus, viral titers of IAV and virus-related host cell responses were reduced (König et al., 2024). Nonetheless, clinical studies have demonstrated an increased mortality rate compared to that of pure influenza virus infection (Schauwvlieghe et al., 2018). Although early diagnosis and treatment of fungal infections can improve the outcome of influenza-associated pulmonary aspergillosis (IAPA) (van de Veerdonk et al., 2017), treatment options are limited.
So far, treating each pathogen individually seems to be the gold standard (Vanderbeke et al., 2018). The triazoles voriconazole and isavuconazole are recommended as first line therapies against IPA (Patterson et al., 2016; Ullmann et al., 2018). Triazoles inhibit the production of ergosterol, a component of the fungal cell membrane, resulting in growth inhibition. Although they are potent antimycotics with activity against various fungi, triazoles are associated with many adverse effects, including hepatotoxicity and cardiac complications (Wang et al., 2010; Chai et al., 2022). Triazoles also interact with cytochrome P450, an enzyme involved in the biotransformation of drugs, which can lead to drug-drug-interactions (Czyrski et al., 2021). Furthermore, serum concentrations of triazoles, especially voriconazole, can vary from patient to patient. Therefore, drug monitoring is recommended during triazole treatment (Ullmann et al., 2018). In addition to adverse events, resistance to available antifungal drugs may complicate IPA therapy (van der Linden et al., 2011; Lestrade et al., 2019).
Currently, three antiviral drug classes are described for the treatment of IAV infections: (I) neuraminidase inhibitors,(II) CAP-dependent endonuclease inhibitors and (III) M2-inhibitors (Duwe et al., 2021). However, reports of resistance to antiviral drugs are emerging and driving the development of new antiviral agents (Renaud et al., 2011; Abed and Boivin, 2017; Lampejo, 2020). One promising new drug is favipiravir, a polymerase inhibitor, which has already been approved in Japan (Furuta et al., 2017). However, substances that target viral structures are always at risk of inducing new resistances. To circumvent this problem, novel antiviral strategies focus on inhibiting virus-supportive cellular factors or enhancing antiviral defense mechanisms (Ludwig, 2009).
As eukaryotes, fungal and human cells share a number of similar cellular factors and signaling pathways. The most prominent example is the mitogen-activated protein kinase (MAPK) cascade, which is involved in various regulatory processes in fungi (May et al., 2005; Zhao et al., 2007). Another important process in cells is Ca2+ homeostasis. In A. fumigatus, activation of Ca2+-dependent pathways regulate fungal cell growth, virulence and stress tolerance (Cramer et al., 2008; de Castro et al., 2014; Li et al., 2024). Thus, substances that affect human cellular factors may also influence homologous factors in A. fumigatus.
Recently, we identified host-directed antiviral properties against SARS-CoV-2 and IAV for the ester-type local anesthetics (LAs) procaine prodrugs ProcCluster®, also known as procaine hydrogen carbonate, which is stabilized by NaCl, and procaine hydrochloride (HCl) (Häring et al., 2021, 2023, 2024). Both drugs have altered properties compared to procaine. In particular, ProcCluster® is characterized by an almost physiological pH and good water solubility, whereas procaine has a basic pH and is soluble in organic solvents. These improved properties enable multiple applications of ProcCluster®, such as inhalation or oral administration (Häring et al., 2024). ProcCluster® and procaine HCl reduce viral titers of IAV and SARS-CoV-2, for example, by inhibiting phospholipase activity or by affecting the release of progeny viruses (Häring et al., 2023, 2024). Furthermore, LAs are known for their antimicrobial functions and have been described to act as antifungal agents against Candida and Aspergillus species, probably by interfering with fungal Ca2+ homeostasis (Rodrigues et al., 2000, 2006).
Therefore, we investigated the antimycotic effects of ProcCluster® and procaine HCl against A. fumigatus and other Aspergillus species. Since both drugs are known to possess antiviral properties, we further analyzed their effects during coinfection with IAV and A. fumigatus in vitro.
2 Materials and methods
2.1 Conidia harvest
The following A. fumigatus strains were used: green fluorescent protein (GFP)-expressing A. fumigatus (parental strain: ATCC 46645) (Lother et al., 2014), A. fumigatus wild type (wt; ATCC 46645), A. fumigatus CEA10 (CBS 144.89), A. fumigatus Af293 and the azole-resistant strains C7-NRZ-2016-121 (C7) and C11-NRZ-2017-040 (C11). C7 and C11 are clinical isolates from IPA patients and are resistant to voriconazole, itraconazole and posaconazole (Barber et al., 2021). Azole-resistance of C7 is based on TR34/L98H resistance mechanism, while the genetic base of azole-resistance in C11 is unknown (Barber et al., 2021). In the following, the GFP-expressing A. fumigatus was used, unless otherwise stated. In addition to A. fumigatus, other Aspergillus species were tested, namely A. flavus (JMRC318) and A. terreus (i402). All A. fumigatus strains were grown in Sabouraud-2% dextrose broth (Sigma-Aldrich, Germany) at 37°C. After 7 days, the fungal mycelium with formed conidia was transferred to a fresh tube and vortexed together with phosphate-buffered saline (PBS) (Carl Roth, Germany) with 0.01% Tween20 (Carl Roth, Germany) (PBS-Tween20). The other Aspergillus species were grown on Sabouraud-2% glucose agar (Carl Roth, Germany) for 7 days at 37°C. The conidia were then detached from the mycelium using a cell scraper and PBS-Tween20. For all Aspergillus species and strains, the conidia-rich supernatant was filtered through a 30 µm strainer (Miltenyi Biotec, Germany), centrifuged (4,400 × g, 5 min), washed again and resuspended in PBS-Tween20.
2.2 Cell culture
The lung epithelial cell lines Cancer lung-3 (Calu-3, ATCC HTB-55™) and A549 cells (ATCC CCL-185™) were cultured in Dulbecco’s Modified Eagle’s Medium high glucose w/stable glutamine w/sodium pyruvate (DMEM; anprotec, Germany) supplemented with 10% fetal calf serum (FCS; anprotec, Germany) at 37°C and 5% CO2. Human bronchial epithelial primary cells (HBEpCs; PromoCell, Germany) were cultured in airway epithelial cell growth medium (EC; PromoCell, Germany) (37°C, 5% CO2) and used for up to five subcultures. Madin-Darby Canine Kidney (MDCK; ATCC CCL-34™) cells were cultured in Minimum Essential Medium w/Earle’s salts, w/L-glutamine (MEM; anprotec, Germany) supplemented with 10% FCS (37°, 5% CO2).
2.3 Virus culture
The influenza virus strain A/Puerto Rico/8/34 (H1N1, kind gift of Stephan Ludwig, Muenster, Germany) was propagated in MDCK cells with Panserin 401 (PAN-Biotech, Germany) supplemented with 0.25 µg ml-1 TPCK-Trypsin (Thermo Fisher Scientific™, USA) for 2 days (37°C, 5% CO2). Virus-rich supernatants were centrifuged (4,400 × g, 10 min, 4°C) and filtered through a 0.45 µm membrane (VWR®, USA). The virus harvest was either used in cell culture experiments or subjected to a purification process for use in host cell-free experiments. For the latter, 1500 µl virus suspension was applied to 400 µl of a 20% sucrose cushion and centrifuged for 90 min at 20,000 × g and 4°C. The supernatant was carefully removed and the pellet was resuspended in PBSINF (PBS supplemented with 1 mM MgCl2, 0.9 mM CaCl2 and 0.2% bovine serum albumin (BSA)).
2.4 Drugs
ProcCluster®, provided by the inflamed pharma GmbH (Germany), and procaine HCl (Chongqing Southwest No.2 Pharmaceutical Factory Co.,Ltd., China) were dissolved in H2O. Favipiravir (T-705) was purchased from Selleckchem (Germany) and voriconazole from Dr. Friedrich Eberth Arzneimittel (Germany). The latter two drugs were dissolved in dimethyl sulfoxide (DMSO; Sigma-Aldrich, Germany).
2.5 Quantitative measurement of fungal growth in a human cell-free environment
Conidia of A. fumigatus were seeded on coverslips in 24-well plates (5×106 ml-1) and were either treated with 0.31–10 mM of ProcCluster® or procaine HCl, solvent (H2O) or 0.2 µg ml-1 voriconazole for 10 h (37°C, 5% CO2) diluted in DMEM with 10% FCS. To examine the antifungal effect of ProcCluster® after germination of A. fumigatus, conidia were grown for 2–8 h (37°C, 5% CO2) and then treated with 2.5 mM ProcCluster®. The solvent was added at time 0. To investigate the effects of ProcCluster® during coincubation of A. fumigatus and IAV particles, conidia were treated with ProcCluster® (2.5 mM) or solvent in the presence or absence of purified IAV particles (5 × 107 IAV per sample). All samples were incubated for 10 h (37°C, 5% CO2). Subsequently, samples were fixed in 3.7% formaldehyde (Sigma-Aldrich, Germany) for 1 h at room temperature (RT) and coverslips were mounted (Dako, USA) on glass microscope slides. Images were taken with an Axio Observer Z1 (Zeiss, Germany) using a Plan Apochromat 20/0.8 objective lens (Zeiss, Germany), ApoTome.2 (Zeiss, Germany) and an Axiocam 503 mono (Zeiss, Germany). For image acquisition, Zen2.6 software (Zeiss, Germany) was used. Image processing and quantification of fungal size were performed using the software particle counter (https://www.github.com/chko90/particleCounter). The software measures the area of each GFP-expressing fungi shown in the image and was used in a previous study (König et al., 2023).
2.6 FUN™1 vital dye staining of A. fumigatus
FUN-1 staining was first invented to visualize the metabolic activity of yeasts, such as Saccharomyces cerevisiae, under fluorescent light (Millard et al., 1997). Several publications have shown that this fluorophore also works in other fungi, including A. fumigatus (Lass-Flörl et al., 2001; Balajee and Marr, 2002). FUN-1 is taken up by the fungus and diffuses as green-yellow dye throughout the cytoplasm. Due to metabolic action, the dye is transported into vacuoles and converted to red cylindrical intravacuolar structures (CIVS). Nonviable cells do not metabolize the dye. Therefore, the cells still appear as equally green-yellow-colored fungi (Millard et al., 1997). Because of its unique properties, FUN-1 is a suitable dye for investigating the antifungal efficacy of various substances (Lass-Flörl et al., 2001; Pina-Vaz et al., 2001; Balajee and Marr, 2002). To examine the cell viability of A. fumigatus, conidia of A. fumigatus wt were seeded on coverslips in 24-well plates (5×106 ml-1) and grown for 8 h (37°C, 5% CO2) in DMEM + 10% FCS. Subsequently, the hyphae were treated with 5 mM ProcCluster® or solvent and incubated for an additional 1.5 h. A. fumigatus was then incubated with 10 µM FUN™1 (Thermo Fisher Scientific, USA) together with 5 mM ProcCluster® or solvent diluted in water containing 2% glucose and 10 mM Na-HEPES (pH 7.2) for another 30 min (37°C, 5% CO2). Finally, the hyphae were fixed in 3.7% formaldehyde (30 min, RT) and the coverslips were wet-mounted on glass microscopy slides. Image acquisition was performed immediately. Information about image acquisition and processing can be found in section 2.5. As objective lens, Plan Apochromat 40/0.95 (Zeiss, Germany) was used.
2.7 Absorption measurements to analyze fungal growth after 48 h
The antimycotic effect of ProcCluster® and procaine HCl was also tested for a longer time period (48 h). For this purpose, conidia of various A. fumigatus isolates and other Aspergillus species were seeded in 96-well plates and treated with 0.31–10 mM inhibitor or solvent. Further, all A. fumigatus isolates were treated with 0.01–1 µg ml-1 voriconazole, to investigate their sensitivity to voriconazole. To examine the mechanism of action of ProcCluster® in more detail, conidia of A. fumigatus were treated with 10, 25 or 50 mM CaCl2 and 2 mM ProcCluster® or solvent or with 25 mM NaCl and KCl with or without 25 mM CaCl2 and 2 mM ProcCluster® or solvent. After 48 h (37°C, 5% CO2), absorption was measured at 620 nm using a plate reader (FLUOstar® Omega, BMG Labtech, Germany) (Kaiserer et al., 2003).
2.8 Intracellular Ca2+ staining and microscopy
The staining method used to investigate intracellular Ca2+ levels in filamentous fungi was previously described by Nair et al. and the protocol was adjusted to the requirements of the present study (Nair et al., 2011). Conidia of A. fumigatus wt were seeded on coverslips in 24-well plates (5×106 ml-1) and grown for 8 h (37°C, 5% CO2) in FluoroBrite™ DMEM (Thermo Fisher Scientific, USA) containing 10% FCS and 1 mM CaCl2. Subsequently, the hyphae were treated with 5 mM ProcCluster®, solvent or 0.2 µg ml-1 voriconazole and incubated for an additional hour. Then, A. fumigatus was stained with 5 µM Calbryte™ 520 AM (AAT Bioquest, USA) and 5 µg ml-1calcofluor white (Sigma-Aldrich, Germany), in the presence of 5 mM ProcCluster®, solvent or 0.2 µg ml-1 voriconazole and incubated again for 1 h. The fungi were washed twice with medium and then were fixed in 3.7% formaldehyde (30 min, RT). Finally, the coverslips were wet-mounted on glass microscopy slides, and images were acquired immediately. Information about image acquisition and processing can be found in section 2.5.
2.9 Coinfection of lung epithelial cells with IAV and conidia of A. fumigatus
Recently, we established a coinfection model to investigate the pathogen-host and pathogen-pathogen interaction between lung epithelial cells, IAV and A. fumigatus (König et al., 2024). This model was used here to investigate the effect of ProcCluster® and procaine HCl during coinfection. Calu-3 and A549 cells were grown on 12-well plates (for standard plaque assay and Western blot analysis) or on coverslips in 24-well plates (for microscopy studies). Calu-3 cells were seeded at a concentration of 0.5 × 106 cells per well (12-well plate) or 0.25 × 106 cells per well (24-well plate), 36 h prior to infection. A549 cells were seeded with a concentration of 0.25 × 106 cells per well (12-well plate) or 0.125 × 106 cells per well (24-well plate), 24 h prior to infection. Cells were washed with PBS and either infected with IAV diluted in PBSINF at a multiplicity of infection (MOI) of 0.5 or only with PBSINF (control) for 30 min (37°C, 5% CO2). Subsequently, the supernatant was removed and exchanged with fresh DMEMINF (DMEM supplemented with 1 mM MgCl2, 0.9 mM CaCl2, 0.2% BSA and 0,16 µg ml-1 TPCK-Trypsin) containing 2.5 mM ProcCluster®, procaine HCl or solvent. Simultaneously to drug treatment, cells were coinfected with conidia of A. fumigatus (10 MOI) or left uninfected. Samples were incubated for an additional 10 h (37°C, 5% CO2). HBEpCs were seeded on coverslips in 24-well plates (0.25 × 106 cells per well; 36 h prior to coinfection) and treated in the same way as described above, except for the use of 5 MOI IAV and ECINF (EC supplemented with 1 mM MgCl2, 0.9 mM CaCl2, 0.2% BSA and 0.16 µg ml-1 TPCK-Trypsin).
2.10 Combination treatment with ProcCluster® and favipiravir during IAV and A. fumigatus coinfection
Calu-3 cells were seeded on coverslips in 24-well plates (0.25 × 106 cells per well, 36 h prior to infection). Cells were washed with PBS and infected with IAV (0.5 MOI in PBSINF) for 30 min (37°C, 5% CO2). Subsequently, the supernatant was removed and exchanged with DMEMINF containing the indicated concentrations of ProcCluster® and favipiravir alone or in combination. Simultaneously to drug treatment, cells were coinfected with conidia of A. fumigatus (10 MOI). Samples were incubated for additional 10 h (37°C, 5% CO2). The supernatants were stored for standard plaque assay, which is described in the following section (2.11). To analyze fungal growth, samples were prepared and analyzed as described in section 2.5. Possible synergistic or additional effects were analyzed using the online tool SynergyFinder Version 3.0 (https://synergyfinder.fimm.fi) (Ianevski et al., 2022). The synergistic score was calculated using the zero interaction potency (ZIP) model (Ianevski et al., 2022).
2.11 Standard plaque assay
The supernatants of the experiments described in section 2.9 and 2.10 were used to determine infectious viral titers by standard plaque assay (Karakus et al., 2018). In brief, MDCK cells were seeded in 6-well plates (1.75 × 106 cells per well, 24 h prior to infection). Cells were washed with PBS, infected with serially diluted virus (diluted in PBSINF containing 0.5 µg ml-1 voriconazole) and incubated for 30 min at 37°C and 5% CO2. After adsorption, the supernatant was aspired and cells were covered with 2 ml of soft agar and incubated for 3 days (37°C, 5% CO2). Soft agar contains MEM (Gibco™, USA), 0.9% agar (Oxoid, UK), 0.01% DEAE-Dextran (Fine Chemicals, Sweden), 0.2% BSA (Carl Roth, Germany), 0.2% NaHCO3 (Gibco™, USA), 0.25 µg ml-1 TPCK-trypsin (Thermo Fisher Scientific, USA) and 0.5 µg ml-1 voriconazole. Plaque forming units (PFU) were determined by counting plaques upon neutral red-staining (Sigma-Aldrich, Germany).
2.12 Western blot analysis
Protein expression was investigated by Western blot analysis. For this purpose, cells were lysed with Triton lysis buffer (20 mM Tris-HCl (pH 7.4), 137 mM NaCl, 10% glycerol, 1% Triton-X-100, 2 mM EDTA, 50 mM glycerophosphate, 20 mM sodium pyrophosphate) containing proteinase inhibitors (0.2 mM Pefabloc® (Sigma-Aldrich, Germany), 5 µg ml-1 aprotinin (Carl Roth, Germany), 5 µg ml-1 leupeptin (Sigma-Aldrich, Germany), 1 mM sodium vanadate (Sigma-Aldrich, Germany) and 5 mM benzamidine (Sigma-Aldrich, Germany)) for 30 min at 4°C. Lysates were cleared via centrifugation (20,000 × g, 10 min, 4°C), adjusted equally by the Bradford method, supplemented with 5% Laemmli buffer (10% SDS, 50% glycerol, 25% 2-mercaptoethanol, 0.02% bromophenol blue, 312 mM Tris-HCl (pH 6.8)) and incubated for 10 min at 95°C. Samples (25 µl) and marker proteins (PageRuler prestained protein ladder, Thermo Fisher Scientific, USA) were loaded onto 10% SDS-PAGE. The separated proteins were blotted on 0.2 µm nitrocellulose-membranes. The membranes were then blocked for 1 h with 2% milk (Carl Roth, Germany) and incubated overnight with primary antibodies (1:1000): mouse anti-extracellular-signal regulated kinase (ERK2; sc-1647, Santa Cruz, USA), mouse anti-GFP (sc-9996, Santa Cruz, USA), rabbit anti-IAV H1N1 hemagglutinin (HA; PA5-20712, Thermo Fisher Scientific, USA) and rabbit anti-polymerase base 1 (PB1; GTX125923, GeneTex, USA). For visualization, horseradish peroxidase (HRP)-conjugated goat anti-mouse IgG (926-80010, LI-COR® Bioscience, Germany) or HRP-conjugated goat anti-rabbit IgG (926-80011, LI-COR® Bioscience, Germany) were used. Membranes were incubated in Pierce® ECL Western Blotting Substrate (Thermo Fisher Scientific, USA) and developed with the Fusion©FX6.Edge (Vilber Lourmat, Germany). Protein levels were quantified using the gel analysis software Bio-1D (version 15.08c; Vilber Lourmat, Germany). All signals were normalized to the ERK2 signal.
2.13 Fluorescence microscopy
Samples of the experiment described in section 2.9 were fixed in 3.7% formaldehyde for 1 h at RT, permeabilized with 0.01% Triton-X-100 for 20 min and blocked with 10% normal goat serum (Linaris, Germany) for another hour. Subsequently, mouse anti-IAV nucleoprotein (NP) primary antibodies (MCA400, Bio-Rad, USA) were added (1:200) for 1 h at RT. AlexaFluor®647-conjugated donkey anti-mouse IgG (A-31571, Invitrogen, USA) and bisbenzimide H33342 trihydrochloride (Hoechst 33342; 1:5000; BioLegend, USA) were added for another hour. Finally, the coverslips were mounted on glass microscope slides. For image acquisition, processing and quantification of fungal growth, refer to section 2.5.
2.14 Statistical analysis
Statistical analysis was performed using Prism 8 (Graphpad Software, USA). The following statistical assays were performed: (I) one-way analysis of variance (ANOVA) followed by Dunnett’s multiple comparison test, comparing the mean of all conditions with one control condition; (II) one-way ANOVA followed by Tukey’s multiple comparison, comparing the mean of all conditions to each other and (III) one sample t-test, comparing the mean of one condition to a hypothetical value, for example 100% or 1. The corresponding statistical test for each experiment is described in the figure legends.
3 Results
3.1 ProcCluster® inhibits the growth of A. fumigatus even after germination in a human cell-free environment
Antimicrobial activity had already been described for some LAs. Therefore, ProcCluster® and procaine HCl were initially investigated for their antifungal activity against A. fumigatus in a human cell-free system.
Conidia were grown in the presence of different concentrations of ProcCluster®, solvent or 0.2 µg ml-1 voriconazole (VCZ). After 10 h, the samples were fixed and analyzed by fluorescence microscopy. The area of the green fluorescent fungi was then quantified and displayed as the unit µm2 per fungus. Significantly reduced growth of A. fumigatus is already visible at concentrations higher than 0.62 mM. At a concentration of 2.5 mM, the fungal size decreased to less than 10% of the measured size of the solvent-treated fungi. Higher concentrations of ProcCluster® inhibited growth, which was comparable to that of the VCZ-treated samples (Figures 1A, B). Treatment with the same concentrations of procaine HCl resulted in similar but less pronounced reductions (Supplementary Figures 1A, B).

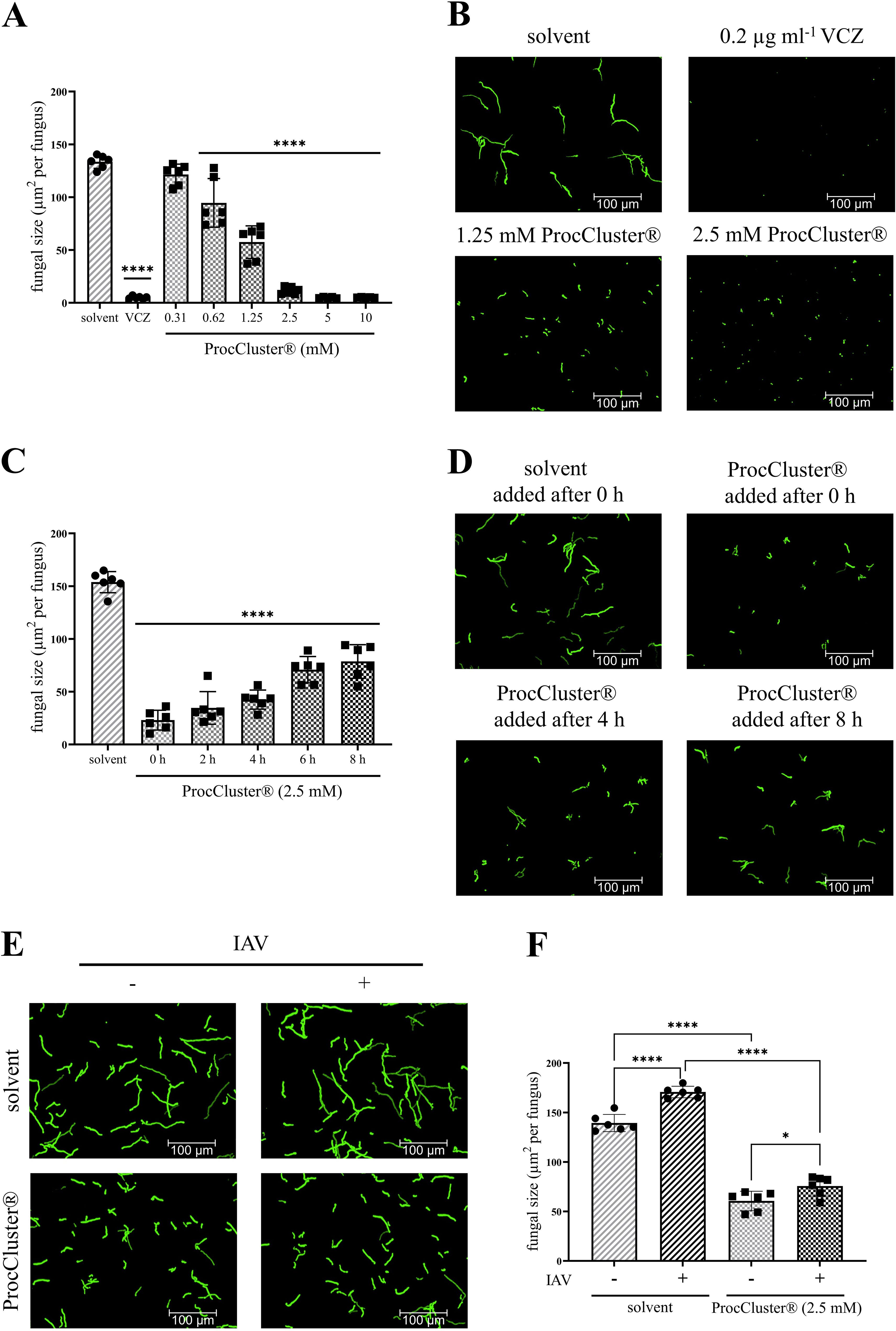

Figure 1. In the presence of ProcCluster® the growth of A. fumigatus is inhibited in a human cell-free environment. (A, B) Conidia of A. fumigatus were incubated with the indicated concentrations of ProcCluster®, solvent (H2O) or 0.2 µg ml-1 voriconazole (VCZ) for 10 h and growth of the fungus was quantified based on fluorescence microscopy. (A) The quantification of fungal size is given as µm2 per fungus. (B) Selected fluorescence images are shown as representative examples. (C, D) The effect of ProcCluster® to inhibit the progressive growth of A. fumigatus was tested for different addition times. (C) The graph shows the quantified fungal growth after a total incubation time of 10 h. ProcCluster® (2.5 mM) was added at the indicated time points and the solvent was added at time 0. (D) Fluorescence images show GFP-expressing fungi treated with solvent or with ProcCluster® after 0, 4 or 8 h of growth. (E, F) Finally, the antifungal effect of ProcCluster® was tested on influenza A virus (IAV)-induced hyphal growth. Therefore, the conidia of A. fumigatus were treated with 2.5 mM ProcCluster® or solvent. At the same time, purified IAV particles (5 × 107 IAV per sample) were added to the fungus. GFP-expressing A. fumigatus was visualized (E) by fluorescence microscopy and quantified (F). (B, D, E) All immunofluorescent images were taken using an Axio Observer.Z1 microscope (Zeiss) at 20 × magnification. Scale bars represent 100 µm. Images show one representative example of three independent experiments. (A, C, F) Diagrams show the mean (± SD) of the results of three independent experiments, including duplicates. Statistical significance was evaluated by one-way analysis of variance (ANOVA) followed by Dunnett’s multiple comparison test, comparing the mean of all samples to the solvent-treated sample (A, C), or by one-way ANOVA followed by Tukey’s multiple comparison, comparing the means of all samples to each other (F) (****p ≤ 0.0001, *p ≤ 0.05).
Next, A. fumigatus was treated with 2.5 mM ProcCluster® after 2, 4, 6 or 8 h of cultivation. Fungal growth was determined after a total incubation time of 10 h (Figures 1C, D). The later ProcCluster® was added, the higher the fungal growth. Nevertheless, fungal growth was significantly lower at each time point tested compared to the solvent-treated control. Even when ProcCluster® was added for the last 2 h of incubation (8 h), the fungal growth was reduced to almost half the size of the solvent-treated sample (Figure 1C).
As we have recently shown that IAV particles bind to the surface of A. fumigatus and thereby induce fungal growth, we also tested whether ProcCluster® can efficiently reduce the growth of A. fumigatus in the presence of IAV. Therefore, conidia were incubated for 10 h with or without purified IAV particles (5 × 107 IAV per sample) and 2.5 mM ProcCluster® or solvent. As expected, the presence of IAV particles in the solvent-treated control significantly increased the growth of A. fumigatus. However, ProcCluster® was still able to inhibit the fungal growth, regardless of the presence of the virus (Figures 1E, F).
In summary, ProcCluster® efficiently inhibited the growth of A. fumigatus, even when germination of the fungus had already begun or during IAV-induced fungal growth.
3.2 The viability of A. fumigatus is reduced in the presence of ProcCluster®
To analyze the effect of ProcCluster® on the metabolic activity of A. fumigatus wt, conidia were grown for 8 h without any inhibitor. Subsequently, 5 mM ProcCluster® or solvent were added for another 1.5 h. Finally, the fungus was incubated with FUN™1 and the inhibitor for the final half hour. After 8 h of growth and an additional 2 h of ProcCluster® treatment, most conidia germinated and formed hyphae (Figure 2). As shown in Figure 1C, the growth of A. fumigatus wt was reduced as a result of ProcCluster® treatment compared to the solvent-treated control. In the absence of the inhibitor, FUN™1 creates vacuoles and is condensed to red fluorescent CIVS in most of the indicated fungi. In the same fungi, the fluorescent intensity of the dye in the cytoplasm appears to be reduced compared to that in fungi that did not produce any CIVS (Figure 2 left panel). Therefore, it can be assumed that the majority of the solvent-treated fungi are viable and metabolically active. In contrast, treatment with ProcCluster® completely inhibited the formation of CIVS. Although vacuoles are visible in some fungi, they appear to be completely empty. At the same time, the cytoplasm of all hyphae glows in a bright green-yellow color (Figure 2 right panel).

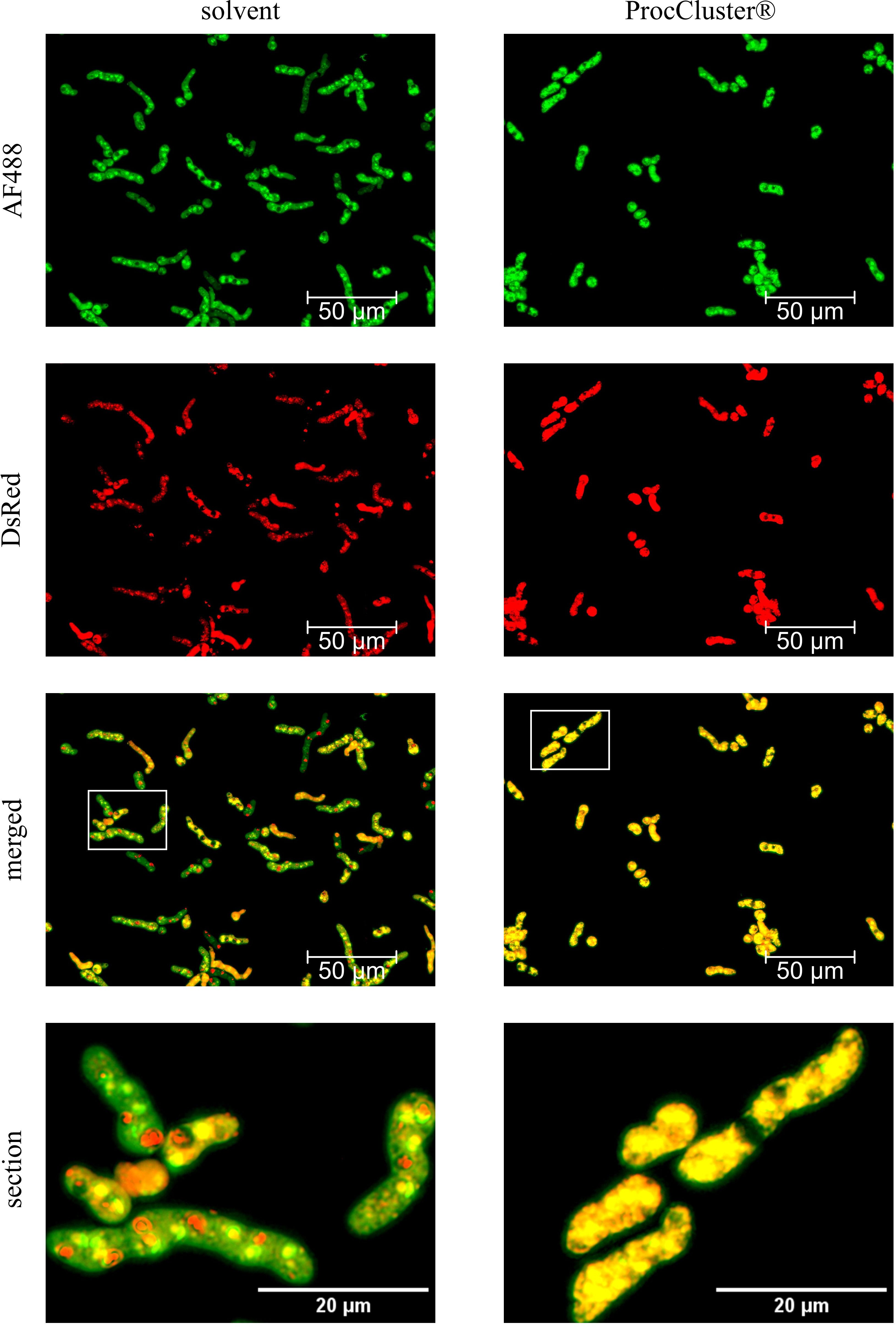

Figure 2. ProcCluster® treatment reduces the metabolic activity of A. fumigatus wt in a human cell-free environment. Conidia of A. fumigatus wt were grown for 8 h in the absence of any inhibitor. Subsequently, the fungus was treated with 5 mM ProcCluster® or solvent (H2O). After a further 1.5 h of incubation, A. fumigatus was stained with 10 µM FUN™1-solution and treated again with 5 mM ProcCluster® or solvent for another 30 min. FUN™1 diffuses as a green fluorophore through the fungal cytoplasm. In metabolically active cells, it is metabolized in vacuoles to form a red fluorescent cylindrical structure. Thus, the green fluorescent signal in the cytoplasm is reduced (solvent-treated samples). Metabolically inactive or dead cells retain the strong cytoplasmic staining, which appears yellow in the merged images (ProcCluster®-treated samples). All fluorescence images were taken using an Axio Observer.Z1 microscope (Zeiss) at 40 × magnification. Scale bars represent 50 µm (AF488, DsRed and merged) or 20 µm (section). The images show a representative example of three independent experiments.
In contrast to the solvent, the presence of ProcCluster® efficiently reduced the viability of A. fumigatus.
3.3 The antifungal effect of ProcCluster® is reversed by the addition of CaCl2
Our previous results show that ProcCluster® is an efficient antifungal agent against A. fumigatus. So far, the inhibitory effect has been analyzed after a maximum of 10 h. To investigate the antifungal effect over longer periods, conidia of A. fumigatus were seeded in 96-well plates and incubated with different concentrations of ProcCluster® (0.31 mM–10 mM) or solvent for 48 h. During this time, A. fumigatus forms a thick layer of mycelium that absorbs high amounts of light at 620 nm. The absorption correlated with the density of the mycelium. Notably, the absorption rate decreased with increasing concentrations of ProcCluster®. Although the inhibitory effect achieved after 48 h was weaker than that after 10 h (Figure 1A), 2.5 mM of the substance still reduced the growth of the fungus by 50% (Figure 3A). Procaine HCl excerted a similar effect under the same conditions (Supplementary Figure 2).

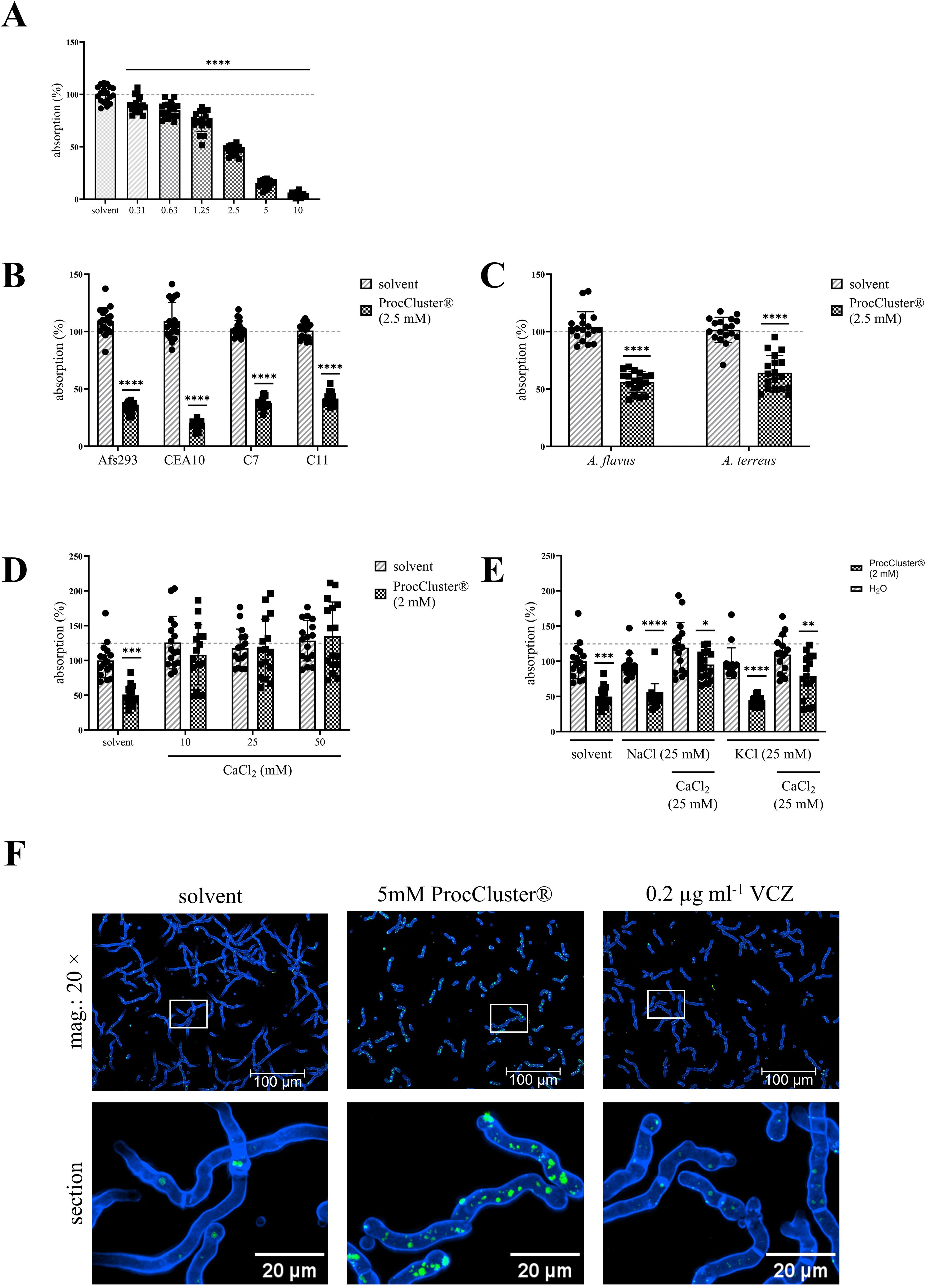

Figure 3. The addition of CaCl2 reverses the antifungal effect of ProcCluster® in a human cell-free environment. A. fumigatus (A, D, E), as well as the A. fumigatus strains (Af293, CEA10 and the azole-resistant isolates C7 and C11) (B), and other Aspergillus species (A. flavus and A. terreus) (C) were treated with the indicated concentrations of ProcCluster® or solvent (H2O) in a 96-well plate. After 48 h of incubation, absorption was measured at 620 nm. The absorption of the fungi growing in media without inhibitor or solvent was arbitrarily set to 100% (absorption in %). (D, E) To identify whether ProcCluster® inhibits the growth of A. fumigatus by influencing the ion flux in the fungi, conidia were additionally treated with different concentrations of CaCl2 (D) or 25 mM NaCl and KCl with or without 25 mM CaCl2 (E). Finally, A. fumigatus wt was stained for intracellular Ca2+. For this purpose, conidia were grown for 8 h and then treated with 5 mM ProcCluster®, solvent or 0.2 µg ml-1 VCZ for 1 h. Fungi were stained with Calbryte™ 520 AM (green) and calcofluor white (blue) and additionally treated with the tested substances for another hour. All fluorescent images were taken using an Axio Observer.Z1 microscope (Zeiss) at 20 × magnification. Scale bars represent 100 µm (mag.: 20 ×) and 20 µm (image section). Images show one representative example of three independent experiments (F). (A–E) Diagrams show the mean (± SD) of the results from three (A–C) or four (D, E) independent experiments including 6 (A–C) or 4 (D, E) technical replicates. Statistical significance was assessed by one-way ANOVA followed by Dunnett’s multiple comparison, comparing the mean of all samples to the solvent-treated control (A) or by a one sample t-test between the inhibitor and solvent-treated samples of each A. fumigatus strain (B) or Aspergillus species (C) or between ProcCluster®- and solvent-treated fungi (E) (****p ≤ 0.0001, ***p ≤ 0.001, **p ≤ 0.01, *p ≤ 0.05). mag., magnification.
To demonstrate a broad antifungal activity of ProcCluster®, its effect on the A. fumigatus strains Af293 and CEA10, as well as the azole-resistant isolates C7-NRZ-2016-121 (C7) and C11-NRZ-20147-040 (C11), were examined. The lower sensitivity of C7 and C11 to VCZ compared to the other tested A. fumigatus strains was confirmed (Supplementary Figure 3). Of particular note is the sensitivity of strain Af293 to VCZ, which shows a pattern similar to that of the azole-resistant strain C11. For both strains, fungal growth was reduced by only half after treatment with 0.1 µg ml-1 VCZ. In contrast, the same concentration had a much stronger inhibitory effect on the A. fumigatus strain, which was used in most of the experiments presented in this study, and on the CEA10 strain. However, regardless of azole sensitivity, 48 h of treatment with 2.5 mM ProcCluster® reduced the absorption rate of the mycelial layer of all A. fumigatus strains tested (Figure 3B). Although A. fumigatus is by far the most common species in invasive aspergillosis, other species, such as A. flavus and A. terreus, also have the potential to infect the human lungs. Therefore, growth inhibition by ProcCluster® was also observed for these species. Compared to the solvent-treated control, ProcCluster® reduced the growth of A. flavus and A. terreus to almost 50% (Figure 3C).
It has been indicated that LAs act antimycotic by interfering with the fungal Ca2+ homeostasis. Thus, A. fumigatus was treated with 2 mM ProcCluster® and the indicated concentrations of CaCl2, NaCl and/or KCl. Absorption measurements revealed that the addition of CaCl2 completely reversed the effect of ProcCluster®. After 48 h of incubation, ProcCluster® alone inhibited fungal growth as expected. In the presence of CaCl2 the inhibitor-treated fungi grew as fast as the solvent-treated ones (Figure 3D). In contrast, supplementation with NaCl or KCl alone did not affect the growth-inhibiting effect of ProcCluster®. However, when one of the salts was added to A. fumigatus along with CaCl2, the growth of the fungus was again unaffected or less affected by the tested inhibitor (Figure 3E). To study changes in intracellular Ca2+ levels during treatment with ProcCluster® in more detail, A. fumigatus was grown for 8 h and then treated with 5 mM ProcCluster®, solvent or 0.2 µg ml-1 VCZ for 1 h. Afterwards, fungi were stained with Calbryte™ 520 AM (green) and calcofluor white (blue) in the presence of the tested substances for an additional hour. After two washing steps with CaCl2-supplemented media, intracellular Ca2+ levels were analyzed by fluorescence microscope. The images show intensely green stained structures in the ProCluster®-treated fungi, indicating Ca2+ accumulation in the presence of this substance. In comparison, the treatment with solvent or VCZ alone resulted in mild green dyed structures that were present in smaller number (Figure 3F).
In summary, our results suggest that ProcCluster® inhibits the growth of A. fumigatus by interfering with fungal Ca2+ homeostasis.
3.4 ProcCluster® and procaine HCl lower viral titers and fungal growth in coinfection with IAV and A. fumigatus in vitro
Since our own results recently demonstrated antiviral activity of the two procaine prodrugs ProcCluster® and procaine HCl, their effects on IAV and A. fumigatus in vitro coinfections were of interest. To study this issue, Calu-3 cells (Figure 4), A549 cells (Supplementary Figure 4) or HBEpCs (Supplementary Figure 5) were infected with IAV, using a MOI of 0.5 (Calu-3 cells, A549 cells) or 5 (HBEpCs) for 30 min. Subsequently, the cells were treated with 2.5 mM of the tested drugs or solvent. At the same time, conidia of A. fumigatus (10 MOI) were added for the secondary infection and samples were incubated for further 10 h (Figure 4A).
Figure 4. ProcCluster® and procaine HCl have an antimicrobial effect on A. fumigatus and IAV during coinfection on Calu-3 cells. Calu-3 cells were infected with IAV (H1N1; 0.5 multiplicity of infection (MOI)) for 30 min or left uninfected and were subsequently infected with conidia of A. fumigatus (10 MOI) for further 10 h or left uninfected again. Concurrent with fungal infection, cells were treated with 2.5 mM ProcCluster®, procaine HCl or solvent (H2O). (A) Schematic representation of the experimental setup. (B) Immunofluorescence images showing IAV-infected cells in red (stained with mouse anti-IAV-NP antibody and AlexaFluor674-conjugated donkey anti-mouse antibody), Hoechst 33342-stained nuclei of Calu-3 cells in blue, and GFP-expressing A. fumigatus in green. All images were taken with an Axio Observer.Z1 microscope (Zeiss) at 20 × magnification. Scale bars represent 100 µm. The images show one representative example from three independent experiments. (C) Viral titers were analyzed using standard plaque assay. The graph shows the viral titer as plaque forming unit (PFU) ml-1. (D) Immunofluorescence images were also used to quantify the growth (µm2 per fungus) of A. fumigatus in the absence and presence of the tested drugs. (C, D) Graphs show the mean (± SD) of the results of three independent experiments, including duplicates. Statistical significance was assessed by one-way ANOVA followed by Tukey’s multiple comparison test. Statistical significance refers to the comparison between ProcCluster® or procaine HCl-treated samples and the corresponding solvent-treated control (****p ≤ 0.0001, **p ≤ 0.01).
First, immunofluorescence assays were performed by staining the nuclei of the host cells with Hoechst 33342 (blue) and the NP of IAV with a mouse anti-NP antibody and a donkey anti-mouse IgG Alexa Fluor™ 647 (red). GFP-expressing A. fumigatus is visible in green. During solvent treatment, more than half of the host cells were infected with IAV for both single- and coinfection. Furthermore, most conidia of A. fumigatus formed hyphae after 10 h of solvent treatment. In the presence of ProcCluster® and procaine HCl, the number of IAV-infected cells and the hyphal size of A. fumigatus was decreased significantly (Figure 4B; Supplementary Figures 4A, 5A). Further investigations revealed results to those obtained using immunofluorescence microscopy. Standard plaque assays were performed to determine the progeny viral titers of IAV in the presence or absence of the tested drugs. In particular, in Calu-3 cells, treatment with 2.5 mM ProcCluster® and procaine HCl resulted in a 99% reduction in virus titers, regardless of the presence of the fungus (Figure 4C). Comparable tests in A549 cells and HBEpCs revealed a smaller but significant reduction in IAV titers (Supplementary Figures 4B, 5B). Immunofluorescence assays were also used to quantify fungal growth. In Calu-3 cells, both drugs were able to reduce the growth of A. fumigatus to less than half of that of the solvent-treated fungi (Figure 4D). Similar results were observed in experiments performed in A549 cells or HBEpCs (Supplementary Figures 4C, 5D). As expected, in the solvent-treated control and under coinfective conditions, the growth of A. fumigatus was higher that during a single fungal infection. However, after treatment with an inhibitor, these differences disappeared (Figure 4D; Supplementary Figures 4C, 5C).
To analyze the effect of ProcCluster® and procaine HCl on viral protein expression, Western blot assays were performed after 10 h of coinfection (Figure 5A). As a result of inhibitor treatment, protein synthesis of IAV-PB1 and IAV-HA was significantly reduced. In line with the fungal size, GFP expression of A. fumigatus decreased during treatment with the tested drugs (Figure 5B).

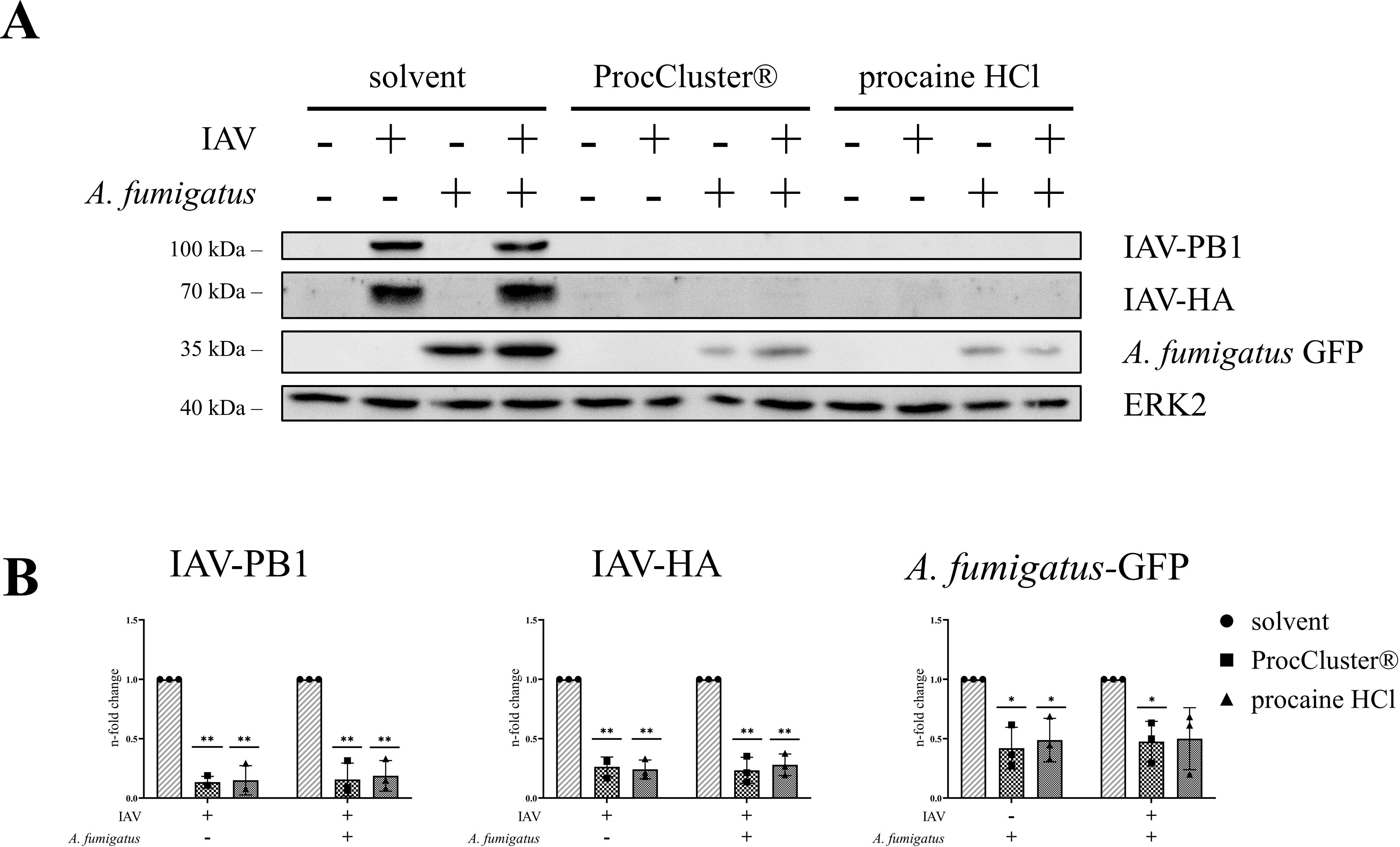

Figure 5. IAV protein expression levels are reduced in the presence of ProcCluster® and procaine HCl during coinfection of Calu-3 cells. Calu-3 cells were infected with IAV (H1N1; 0.5 MOI) for 30 min or left uninfected and were subsequently infected with conidia of A. fumigatus (10 MOI) for further 10 h or left uninfected. Concurrent with fungal infection, cells were treated with 2.5 mM ProcCluster®, procaine HCl or solvent (H2O). The antimicrobial effects of the drugs on the level of protein expression of IAV-PB1, IAV-HA, and A. fumigatus-GFP were examined by Western blot analysis. (A) Western blot images represent one example out of three independent experiments. (B) Western blot images were also used to quantify the levels of the aforementioned proteins. Protein signals were analyzed and normalized to the ERK2 signal. The solvent-treated single infection was arbitrarily set to one. Diagrams show the mean (± SD) of three independent experiments. Statistical significance was assessed by one sample t-test. Significances relate to the comparison between ProcCluster® or procaine HCl-treated samples and the appropriate solvent-treated control (**p ≤ 0.01, *p ≤ 0.05).
These data indicate that ProcCluster® and procaine HCl can reduce viral replication of IAV and simultaneously reduce the growth of A. fumigatus during coinfection with both pathogens in vitro.
3.5 Combination treatment with ProcCluster® and favipiravir enhances the inhibition of IAV replication during in vitro coinfection
Treatment with two or more medications is an alternative strategy for improving classic antiviral therapy. Here, we combined different concentrations of ProcCluster®, a substance with antiviral and antifungal properties, and favipiravir, an antiviral drug that inhibits viral polymerase activity, during 10 h of coinfection with IAV (0.5 MOI) and A. fumigatus (10 MOI). Determination of progeny IAV titers by standard plaque assay revealed that both drugs alone are already very effective antivirals (Figure 6A). In particular 10 µM favipiravir already inhibited almost 70% of the solvent-treated virus titers. The combination of the lowest concentration of ProcCluster® (312 µM) and favipiravir (10 µM) significantly increased the inhibitory effect, compared to the monotreatment with one of the tested substances (Figure 6B). However, the higher the concentration of one or both drugs, the smaller the differences between combination and monotherapy become (Figure 6A). Nevertheless, using the online tool SynergyFinder 3.0, the results indicate an additive antiviral effect for the combination of ProcCluster® and favipiravir, during coinfection with IAV and A. fumigatus in vitro (Supplementary Figure 6A).

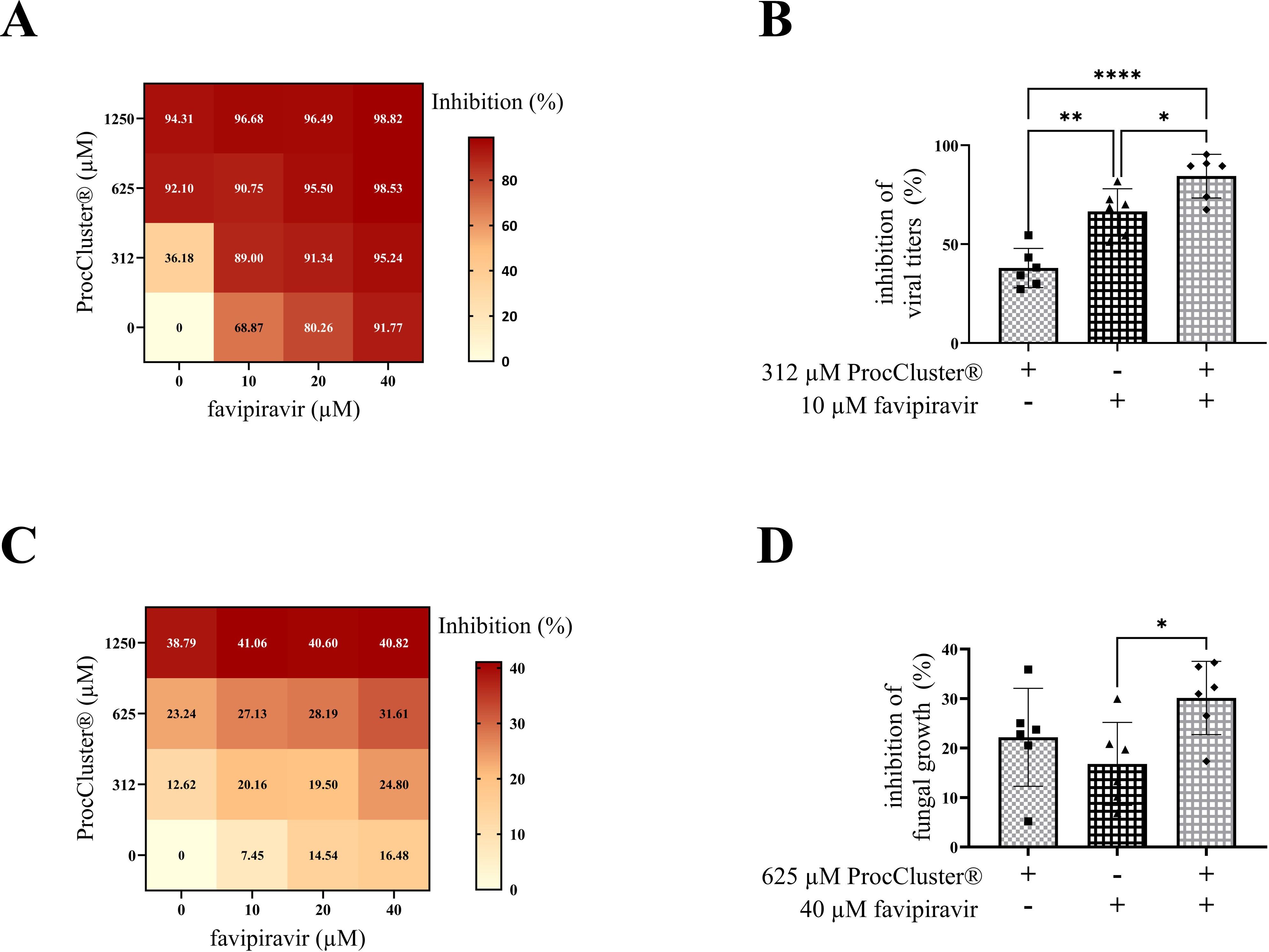

Figure 6. Combination treatment with ProcCluster® and favipiravir enhanced the inhibitory effect on IAV titers during coinfection on Calu-3 cells. Calu-3 cells were infected with IAV (H1N1; 0.5 MOI) for 30 min and subsequently infected with conidia of A. fumigatus (10 MOI) for further 10 h. Concurrent with fungal infection, cells were treated with different concentrations of ProcCluster® and/or favipiravir or with the indicated solvent (H2O and/or DMSO). The inhibitory effect of combination treatment with both drugs on IAV titers was analyzed by plaque assay (A, B) and fungal growth was analyzed by fluorescence microscopy (C, D). (A, C) Results were plotted as heatmaps, showing the mean inhibitory effect in %. (B, D) Graphs showing the inhibitory effects of 312 µM ProcCluster® and 10 µM favipiravir on viral propagation (B) and the inhibitory effects of 625 µM ProcCluster® and 40 µM favipiravir on the growth of A. fumigatus (D). Diagrams show the mean (± SD) of the results of three independent experiments, including duplicates. Statistical significance was evaluated by one-way ANOVA followed by Tukey’s multiple comparison test (****p ≤ 0.0001, **p ≤ 0.01, *p ≤ 0.05).
In addition, the effects of combination treatment with both drugs was also tested for the growth of A. fumigatus during coinfections. Again, fluorescence microscopy was used to determine fungal size. Surprisingly, treatment with favipiravir alone already had a small impact on the inhibition of fungal growth (Figure 6C). In the presence of ProcCluster®, the inhibitory effect was even increasing. However, the combination of 625 µM ProcCluster® and 40 µM favipiravir resulted in minor differences compared to the treatment with either of the tested drugs (Figure 6D). Although the combination of the two substances inhibited fungal growth to a lesser extent than the inhibition rates observed for IAV (Figures 6A, B), the synergy test still resulted in a slight additive effect (Supplementary Figure 6B).
Taken together, the combinatory treatment ProcCluster® and favipiravir resulted in an enhanced inhibitory effect, particularly against IAV replication during IAV and A. fumigatus coinfection in vitro. In addition, much lower concentrations of each drug are required to achieve high antiviral activity.
4 Discussion
IPA remains a life-threatening disease in high-risk patients and the number of cases is continuously increasing every year (Zilberberg et al., 2019). In addition to classical risk factors, such as neutropenia and hematologic malignancies (Ledoux and Herbrecht, 2023), other predispositions, such as severe viral lung infections, have also been identified as indicators of aspergillosis (van de Veerdonk et al., 2017; Schauwvlieghe et al., 2018). Coinfections with influenza viruses and Aspergillus species are known to affect both, immunocompromised as well as immunocompetent patients, and are associated with high mortality rates (van de Veerdonk et al., 2017; Schauwvlieghe et al., 2018). To date, there are no universal therapeutic approaches for treating IAPA. Although combating each pathogen individually seems obvious, one should consider how the antiviral or antifungal drug affects the other pathogen. Although murine models have shown that treatment of viral infections with oseltamivir or baloxavir marboxil reduces the fungal burden of A. fumigatus (Seldeslachts et al., 2021a, 2021), the effect of antifungals on viral infections is not fully understood. Interestingly, itraconazole, a drug of the antifungal triazole family, has been reported to inhibit influenza virus infection (Schloer et al., 2019). In contrast, amphotericin B, a polyene antifungal agent, appears to promote influenza virus replication by inhibiting interferon-induced transmembrane protein 3 (IFTIM3) in host cells (Roethl et al., 2011; Lin et al., 2013). An inhibitor that combines both antiviral and antifungal properties could overcome the risk of promoting the propagation of one pathogen while combating the other. Therefore, the search for drugs that target pathogen-supporting cellular functions of virus-infected human cells and fungal factors could be an alternative strategy. For example, aspirin, a nonsteroidal anti-inflammatory drug (NSAIDs), inhibits IAV propagation by downregulating the IκB kinase (IKK)/nuclear factor-κB (NF-κB) signaling pathways in host cells (Mazur et al., 2007). As an antifungal agent, aspirin inhibits biofilm formation of Candida species (Al-Bakri et al., 2009; Chan et al., 2021). Ibuprofen, another NSAID, also has antimicrobial properties that have been demonstrated against Aspergillus species (Obad et al., 2015). Furthermore, LAs such as lidocaine, bubivacaine, and procaine affect the growth of various fungi, including Candida and Aspergillus species (Rodrigues et al., 2000, 2006). In addition, LAs have been reported to have antiviral effects against herpes simplex viruses, influenza viruses and West-Nile viruses (Fuchs and Levanon, 1978; Bastos et al., 2020; Häring et al., 2021; Liu et al., 2023; Häring et al., 2024). However, none of these drugs have been tested during coinfection with IAV and A. fumigatus.
Here, we investigated the antifungal properties of the LA procaine prodrugs ProcCluster® and procaine HCl against A. fumigatus. Since we recently demonstrated antiviral activity against SARS-CoV-2 and influenza viruses for both drugs (Häring et al., 2021, 2023, 2024), we further analyzed whether these two drugs are effective against both pathogens during IAV and A. fumigatus coinfection in vitro.
Our results indicate that ProcCluster® and procaine HCl inhibit the growth of A. fumigatus after 10 h of treatment (Figures 1A, B; Supplementary Figure 1). In fact, ProcCluster® still reduced fungal growth, when added 8 h after incubation (Figures 1C, D). At that time, A. fumigatus had already developed short hyphae (Kwon-Chung and Sugui, 2013). Hyphal growth and lung invasion are hallmarks of IPA, and antifungal therapy is usually initiated at this growth stage (Latge and Chamilos, 2019). Thus, targeting germinating fungi should be an essential property of all antifungal drugs. Since hyphal growth is accelerated by direct interaction of IAV with the hyphae of A. fumigatus (König et al., 2023), we analyzed how ProcCluster® affects fungal growth during incubation with IAV particles. Notably, in the presence of ProcCluster® the virus-induced hyphal growth was reduced to a similar level as seen for the unstimulated and inhibitor-treated control (Figures 1E, F). To visualize ProcCluster®-mediated effects on the metabolic activity of the fungus, FUN™1 staining was performed. The red fluorescent CIVS, indicating metabolic action, are visible after only 1 h of staining. As expected, treatment with solvent did not affect fungal viability, whereas the addition of ProcCluster® mainly resulted in metabolically inactive fungi (Figure 2).
Since our results point to an antifungal property of ProcCluster® against A. fumigatus, its broad efficacy should be tested. Thus, the hyphal growth of other A. fumigatus strains, including azole-resistant strains, as well as other Aspergillus species was examined upon ProcCluster® treatment. The azole-resistant strains C7 and C11 are resistant against VCZ, itraconazole and posaconazole. Resistance of C7 is based on a mutation (TR34/L98H) in the cyp51a gene, which is the most common cause of azole-resistance (Barber et al., 2021). In European hospitals, azole-resistant A. fumigatus strains are an emerging problem (van der Linden et al., 2011; Lestrade et al., 2019) and are thought to be related to the widespread use of azole fungicides in the environment (van der Linden et al., 2015). Because triazoles are recommended as first-line treatment, patients infected with azole-resistant A. fumigatus strains have a worse disease outcome than those infected with an azole-susceptible strain (van der Linden et al., 2011; Lestrade et al., 2019). As a second-line treatment, amphotericin B is recommended. However, the polyene is related to severe side effects, especially nephrotoxicity, and the growing number of amphotericin B-resistant strains is concerning (Laniado-Laborin and Cabrales-Vargas, 2009). Therefore, the search for new antimycotics that are effective against resistant isolates remains relevant. The A. fumigatus strains tested in this study were all susceptible to ProcCluster® (Figures 3A, B), regardless of their azole susceptibility (Supplementary Figure 3). Although A. fumigatus causes the majority of invasive aspergillosis worldwide, A. flavus is the predominant cause of aspergillosis in Asian and Middle Eastern countries and can invade the lungs, the paranasal sinus and the central nervous system (Gregg and Kauffman, 2015; Rudramurthy et al., 2019). Infections with other Aspergillus species like A. terreus are rare but are associated with a poor course of disease (Lass-Florl et al., 2005; Lass-Flörl et al., 2021). Furthermore, A. flavus and A. terreus are intrinsically resistant to polyenes such as amphotericin B (Lass-Florl et al., 2005; Rudramurthy et al., 2019). Thus, triazoles like VCZ remain the main treatment option for infections caused by A. flavus or A. terreus. Moreover, triazoles are also associated with severe side effects and alternative antifungal drugs are required (Wang et al., 2010; Chai et al., 2022). Although A. flavus and A. terreus seem to be less sensitive to ProcCluster® than the A. fumigatus strains tested, growth was reduced to almost 50% after 48 h of treatment (Figure 3C).
Few publications have indicated that LAs act as antifungal agents by interfering with fungal Ca2+ homeostasis (Rodrigues et al., 2000, 2006). Our data point to a similar assumption. By adding high concentrations of CaCl2 to ProcCluster®-treated A. fumigatus, we were able to reverse the growth-inhibiting effect of the test substance (Figure 3D). In contrast, the addition of similar amounts of NaCl and KCl did not result in any changes (Figure 3E). Furthermore, intracellular staining revealed increased Ca2+ accumulation in A. fumigatus hyphae in the presence of ProcCluster® (Figure 3F). Ca2+ is an essential second messenger, not only in animal but also in fungal cells. Cytosolic Ca2+ concentrations are highly regulated and molecules involved in maintaining intracellular Ca2+ homeostasis in Aspergillus species are also suggested to regulate hyphal growth and the pathogenicity of the fungi (Cramer et al., 2008; de Castro et al., 2014; Li et al., 2024). The inhibition of these proteins represents a promising mechanism for the development of new antifungal drugs (Fox and Heitman, 2002; Pinchai et al., 2009). As intracellular Ca2+ ions are stored in organelles such as vacuoles, the endoplasmic reticulum and mitochondria (Tisi et al., 2016), our results indicate that ProcCluster® inhibits the Ca2+ release into the cytoplasm, probably by blocking Ca2+ channels, and by that interrupting Ca2+-dependent signaling pathways. As consequence, high extracellular Ca2+ concentrations can compensate for the lack of cytosolic Ca2+, thereby counteracting the antifungal properties of ProcCluster®. LAs are reported to act on different cellular targets in humans. Thus, they exhibit multiple properties, such as preventing or relieving pain, as well as anti-inflammatory or antitumor effects (Cassuto et al., 2006; Li et al., 2018, 2021). Procaine targets the MAPK pathway or DNA methylation in human cells (Li et al., 2018, 2021). Furthermore, our own studies have shown that ProcCluster® affects different parts of viral replication, probably by interacting with different cellular elements (Häring et al., 2023). Factors such as MAPKs are highly conserved in A. fumigatus and are involved in biofilm formation, stress tolerance, and virulence (Hagiwara et al., 2014; Manfiolli et al., 2018; Day and Quinn, 2019). In addition to the interference of fungal Ca2+ homeostasis, ProcCluster® may affect fungal growth by other mechanisms.
As mentioned, ProcCluster® and procaine HCl inhibit IAV replication in vitro (Häring et al., 2024). Because IAV and A. fumigatus infection leads to severe disease progression and treatment options are rare, the test substances were examined for their antimicrobial effects during IAV and A. fumigatus coinfection in vitro. Treatment with either LA efficiently reduced the viral titers of IAV and lowered the growth of A. fumigatus (Figures 4C, D, 5, Supplementary Figures 4, 5). Nevertheless, the treatment with antiviral drugs is still the first choice and the development of novel antiviral agents remains essential (Shin and Seong, 2019). Instead of replacing classical therapeutics, combining them with host-directed therapies could represent a promising option in clinics. Combination therapies for the treatment of influenza virus infections have synergistic or additive effects by acting on different parts of the replication cycle, reduce drug dosage and consequently drug toxicity and may reduce the risk of developing drug resistances (Koszalka et al., 2022; Batool et al., 2023). Therefore, we combined different concentrations of ProcCluster® and favipiravir to treat coinfected Calu-3 cells. Favipiravir is a broad-spectrum antiviral drug that inhibits the RNA-dependent polymerase of various RNA viruses, including influenza viruses, coronaviruses and ebolaviruses (Furuta et al., 2005; Nagata et al., 2015; Joshi et al., 2021). Compared to other antivirals, such as oseltamivir, favipiravir appears less vulnerable to the development of resistant influenza virus strains (Shiraki and Daikoku, 2020). As potent antiviral drugs, treatment with ProcCluster® and favipiravir alone resulted in high inhibition rates (Figure 6A). However, especially at lower concentrations, the combination of both drugs led to significantly stronger antiviral effects (Figures 6A, B). Thus, the combination of ProcCluster® and favipiravir has the potential to reduce the concentration of each drug by maintaining high antiviral property. Regarding fungal growth, combination therapy with the same drugs had only slight additive effects (Figures 6C, D). However, it was surprising to find that favipiravir alone reduced fungal growth. Similar results were reported when coinfected mice were treated with oseltamivir or baloxavir marboxil (Seldeslachts et al., 2021a, 2021). The authors explained these effects by the reduced number of alveolar macrophages in untreated, virus-infected mice but not in antiviral-treated mice. By reducing viral burden, the immune system can remain stable to fight secondary fungal infection (Seldeslachts et al., 2021a, 2021). However, our experimental setup did not contain any immune cells. As we have shown that the interaction of IAV with A. fumigatus results in enhanced hyphal growth (König et al., 2024), favipiravir probably inhibited this effect by blocking viral propagation, thereby reducing fungal growth.
It has already been discussed that the concentrations of ProcCluster® and procaine HCl used here exceed the tolerable serum concentrations of procaine (Häring et al., 2023). However, there are no publications on the administration levels of ProcCluster® in patients and using ProcCluster® along with other drugs could downregulate the required concentrations. For cell culture experiments, the nontoxic concentrations of ProcCluster® and procaine HCl were recently determined (Häring et al., 2023, 2024). Nonetheless, since this study was conducted under cell culture conditions, systemic factors, such as the involvement of the immune system or the surrounding tissue, are missing. Thus, further experiments and additional models, such as animal experiments, are needed to determine the clinical potential of ProcCluster® and procaine HCl as antimicrobial agents against viral and fungal infections.
Overall, ProcCluster® and procaine HCl inhibited growth of A. fumigatus and other Aspergillus species in a human cell-free environment. Even in in vitro-coinfection scenarios with IAV and A. fumigatus, both drugs effectively reduced viral and fungal propagation. In the future, the combination of ProcCluster® with classic antivirals or antifungals could reduce the effective dose of the drugs by maintaining high antimicrobial activity.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
Ethical approval was not required for the studies on humans in accordance with the local legislation and institutional requirements because only commercially available primary cells and established cell lines were used.
Author contributions
SK: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – original draft, Writing – review & editing. JS: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – original draft, Writing – review & editing. TH: Resources, Writing – review & editing. AAB: Resources, Writing – review & editing. BL: Writing – review & editing. BE: Resources, Writing – review & editing. CE: Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Project administration, Supervision, Validation, Writing – original draft, Writing – review & editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This study was supported by internal funding from the Jena University Hospital. We would also like to acknowledge the support of the Deutsche Forschungsgemeinschaft (DFG) SFB PolyTarget 1278 (B02: AAB, D02: CE and BL). Furthermore, BL and AAB are members of the DFG Cluster of Excellence ‘Balance of the Microverse’ (Project-ID 390713860, Gepris 2051). We acknowledge support by the German Research Foundation Projekt-Nr. 51648189 and the Open Access Publication Fund of the Thueringer Universitaets- und Landesbibliothek Jena.
Acknowledgments
We thank Stefanie Kynast, Jessica Lux and Heike Urban for their excellent laboratory assistance and cell cultivation. Figure 4A was created using biorender.com. The idea of this publication is part of the invention disclosure: EP4275681, which was submitted to the European Patent Office. New experiments were performed for this study and data shown in this manuscript are not part of the invention disclosure.
Conflict of interest
BE is employed by inflamed pharma GmbH.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be understood as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcimb.2024.1445428/full#supplementary-material
Supplementary Figure 1 | In the presence of procaine HCl, the growth of A. fumigatus is efficiently inhibited in a human cell-free environment. Conidia of A. fumigatus were incubated with the indicated concentrations of procaine HCl, solvent (H2O) or 0.2 µg ml-1 VCZ for 10 h and growth of the fungus was quantified by fluorescence microscopy. (A) Quantification is given as µm2 per fungus. The diagram shows the mean (± SD) of the results of three independent experiments, including duplicates. (B) Selected fluorescence images showing GFP-expressing fungi treated with solvent (H2O), 0.2 µg ml-1 VCZ, 1.25 mM or 2.5 mM procaine HCl. Fluorescence images show one representative example of three independent experiments. (A) Statistical significance was assessed by one-way ANOVA followed by Dunnett’s multiple comparison test, comparing the mean of all samples with the solvent-treated sample (****p ≤ 0.0001, **p ≤ 0.01, *p ≤ 0.05).
Supplementary Figure 2 | Procaine HCl treatment affects the growth of A. fumigatus after 48 h. Conidia of A. fumigatus were treated with different concentrations of procaine HCl in a 96-well plate. After 48 h of incubation, the absorption of the cultures was measured at 620 nm. The graph shows the absorption in %, while the absorption of A. fumigatus growing in medium without drug or solvent was set to 100%. Diagram shows the mean (± SD) of the results from three independent experiments including 6 technical replicates. Statistical significance was assessed by one-way ANOVA followed by Dunnett’s multiple comparison test, comparing the mean of all samples with the solvent-treated sample (A) (****p ≤ 0.0001, **p ≤ 0.01).
Supplementary Figure 3 | A. fumigatus strain C7 is less sensitive to voriconazole treatment than other strains tested. Conidia of A. fumigatus (the strain used for most of the experiments) (A) and the A. fumigatus strains: CEA10 (B), Af293 (C), C7 (D) and C11 (E) were treated with different concentrations of VCZ or solvent (DMSO) in a 96-well plate. After 48 h of incubation, the absorbtion of the cultures was measured at 620 nm. Graphs show the absorption in %, while the absorption of A. fumigatus growing in medium without drug or solvent was set to 100%. Diagrams show the mean (± SD) of three independent experiments including 6 technical replicates. Statistical significance was assessed by one-way ANOVA followed by Dunnett’s multiple comparison test, comparing the mean of all samples with the solvent-treated sample (A) (****p ≤ 0.0001, ***p ≤ 0.001).
Supplementary Figure 4 | ProcCluster® and procaine HCl have an antimicrobial effect on A. fumigatus and IAV during coinfection on A549 cells. (A–C) A549 cells were infected with IAV (H1N1; 0.5 MOI) for 30 min or left uninfected and were subsequently infected with conidia of A. fumigatus (10 MOI) for a further 10 h or left uninfected again. Concurrent the fungal infection, cells were treated with 2.5 mM ProcCluster®, procaine HCl or solvent (H2O). (A) Immunofluorescence images showing IAV-infected cells in red (stained with mouse anti-IAV-NP antibody and AlexaFluor674-conjugated donkey anti-mouse antibody), Hoechst 33342-stained nuclei of Calu-3 cells in blue and GFP-expressing A. fumigatus in green. All images were taken using an Axio Observer.Z1 microscope (Zeiss) at 20 × magnification. Scale bars represent 100 µm. The images show one representative example of three independent experiments. (B) Viral titers were analyzed using standard plaque assay. The graph shows the viral titer as PFU ml-1. (C) Immunofluorescence images were also used to quantify the growth (µm2 per fungus) of A. fumigatus in the presence and absence of the tested drugs. (B, C) Graphs show the mean (± SD) of the results of three independent experiments including duplicates. Statistical significance was assessed by one-way ANOVA followed by Tukey’s multiple comparison test. Statistical significances shown in (B, C) refer to the comparison between ProcCluster® or procaine HCl-treated samples and the corresponding solvent-treated control (****p ≤ 0.0001, *p ≤ 0.05).
Supplementary Figure 5 | ProcCluster® has an antimicrobial effect on A. fumigatus and IAV during coinfection on HBEpCs. HBEpCs were infected with IAV (H1N1; 5 MOI) for 30 min or left uninfected and were subsequently infected with conidia of A. fumigatus (10 MOI) for further 10 h or were left uninfected again. Concurrent with fungal infection, cells were treated with 2.5 mM ProcCluster® or with solvent (H2O). (A) Immunofluorescence images showing IAV-infected cells in red (stained with mouse anti-IAV-NP antibody and AlexaFluor674-conjugated donkey anti-mouse antibody), Hoechst 33342-stained nuclei of Calu-3 cells in blue and GFP-expressing A. fumigatus in green. All images were taken using an Axio Observer.Z1 microscope (Zeiss) at 20 × magnification. Scale bars represent 100 µm. The images show one representative example of three independent experiments. (B) Viral titers of IAV were analyzed using standard plaque assay. The graph shows the viral titer as PFU ml-1. (C) Immunofluorescence images were also used to quantify the growth (µm2 per fungus) of A. fumigatus in the presence and absence of the tested drugs. (B, C) Diagrams show the mean (± SD) of the results of three independent experiments, including duplicates. Statistical significance was evaluated by one-way ANOVA followed by Tukey’s multiple comparison test. Statistical significances shown in (B, C) refer to the comparison between ProcCluster® or procaine HCl-treated samples and the appropriate solvent-treated control (****p ≤ 0.0001, ***p ≤ 0.001, **p ≤ 0.01).
Supplementary Figure 6 | Combination treatment with ProcCluster® and favipiravir has slight additive inhibitory effects against IAV and A. fumigatus during coinfection in vitro. The raw data of IAV titers (A) and hyphal growth of A. fumigatus (B), shown in Figure 6 were further analyzed using SynergyFinder 3.0 with the synergy model zero interaction potency (ZIP) and are shown as 2D plots generated by SynergyFinder.
