Anna Dobrut1*
Dagmara Wójcik-Grzybek2
Agata Młodzińska3
Dorota Pietras-Ożga4
Katarzyna Michalak4Aleksander Tabacki5Urszula Mroczkowska6
Monika Brzychczy-Włoch1- 1Department of Molecular Medical Microbiology, Chair of Microbiology, Jagiellonian University Medical College, Krakow, Poland
- 2Department of Experimental Physiology, Chair of Physiology, Jagiellonian University Medical College, Krakow, Poland
- 3Bioidea Company, Warsaw, Poland
- 4Department of Epizootiology and Clinic of Infectious Diseases, University of Life Sciences, Lublin, Poland
- 5Omniwet Veterinary Clinic, Orzesze, Poland
- 6Egida Veterinary Clinic, Wizna, Poland
Introduction: Mastitis is a widespread mammary gland disease of dairy cows that causes severe economic losses to dairy farms. Mastitis can be caused by bacteria, fungi, and algae. The most common species isolated from infected milk are, among others, Streptococcus spp., and Escherichia coli. The aim of our study was protein detection based on both in silico and in vitro methods, which allowed the identification of immunoreactive proteins representative of the following species: Streptococcus uberis, Streptococcus agalactiae, and Escherichia coli.
Methods: The study group included 22 milk samples and 13 serum samples obtained from cows with diagnosed mastitis, whereas the control group constituted 12 milk samples and 12 serum samples isolated from healthy animals. Detection of immunoreactive proteins was done by immunoblotting, while amino acid sequences from investigated proteins were determined by MALDI-TOF. Then, bioinformatic analyses were performed on detected species specific proteins in order to investigate their immunoreactivity.
Results: As a result, we identified 13 proteins: 3 (molybdenum cofactor biosynthesis protein B, aldehyde reductase YahK, outer membrane protein A) for E. coli, 4 (elongation factor Tu, tRNA uridine 5-carboxymethylaminomethyl modification enzyme MnmG, GTPase Obg, glyceraldehyde-3-phosphate dehydrogenase) for S. uberis, and 6 (aspartate carbamoyltransferase, elongation factor Tu, 60 kDa chaperonin, elongation factor G, galactose-6-phosphate isomerase subunit LacA, adenosine deaminase) for S. agalactiae, which demonstrated immunoreactivity to antibodies present in serum from cows with diagnosed mastitis.
Discussion: Due to the confirmed immunoreactivity, specificity and localization in the bacterial cell, these proteins can be considered considered potential targets in innovative rapid immunodiagnostic assays for bovine mastitis, however due to the limited number of examined samples, further examination is needed.
1 Introduction
Bovine mastitis is a major disease that affects dairy cattle worldwide, generating millions of dollars in losses for cattle breeders (Hogeveen et al., 2011). Mastitis results from inflammation of the mammary glands, and depending on the nature of the causative pathogen and on the age, breed, immunological health, and lactation state of the animal, it can take the forms of subclinical, clinical, or chronic infections. The most common clinical symptoms of mastitis are visible and palpable signs of swelling, pain, and redness of the udder, reduced milk production, altered milk appearance, and increased temperature or fever (Wilson et al., 1997; Kulkarni and Kaliwal, 2013). The chronic form is the least frequent form and leads to persistent inflammation of the mammary gland. According to the literature, the frequency of the clinical form of mastitis varies among different countries and ranges from 12 to 30% (Kalińska et al., 2018). On the other hand, the subclinical form involves the highest costs associated with difficulties in detection due to the lack of visible symptoms (Yalçin, 2000). Mastitis leads to a reduction in the volume of obtained milk and deterioration of its quality. It also generates costs related to the treatment of sick animals as well as costs associated with the need for isolation of sick animals for the duration of treatment. Furthermore, isolated cows produce a reduced amount of milk, which significantly reduces financial profits (Hogeveen et al., 2011). It is estimated that the monthly economic losses generated by clinical mastitis can reach up to 76,000 USD/farm/month (He et al., 2020).
Currently, the most common method for rapid detection of mastitis is based on somatic cell count (SCC) in quarter milk, and 250 × 103 cells/ml is considered a critical value (Rushton et al., 2018). Undoubtedly, the most important advantage of this “gold standard” method is the possibility of rapid detection of mastitis in animals examined directly in the field. It leads to immediate isolation of the infected cow from the herd and allows the introduction of empirical antibiotic therapy. However, a significant limitation of the SCC test is the inability to identify the etiological factor that causes the infection (Naif Alhussien and Kumar Dang, 2018). Empirical therapy, which is introduced when the etiological agent responsible for the disease is not identified, can contribute to increased resistance to antibiotics. Therefore, the determination of the pathogen present in infected milk is crucial for the selection of targeted antibiotic therapy, which can lead to a decrease in this worldwide adverse phenomenon (Oliver and Murinda, 2012). Therefore, supported by the biotechnology industry, scientists have undertaken numerous studies, which are aimed at the development of innovative tests that allow the precise identification of bacterial species (Viguier et al., 2009).
Among infectious pathogenic species, the most frequent are Staphylococcus aureus, Corynebacterium bovis and Mycoplasma bovis, while the predominant environmental pathogens are Streptococcus uberis, Streptococcus dysgalactiae, Enterococcus spp., Escherichia coli, Klebsiella pneumoniae, and Enterobacter spp. Interestingly, in recent years, algae and fungi have been increasingly isolated from mastitic milk (Lassa et al., 2013; Dufour et al., 2019).
The most common method for the detection of the etiological agent causing mastitis in cows is cultivation in the appropriate cultivation medium. This inexpensive method not only allows identification of pathogens, but also allows the multiplication of bacteria for further, more specific, characterization, including the determination of the resistance profile, and does not require expensive or specialized equipment. On the other hand, the limitations include, being time-consuming, low sensitivity and specificity, frequent difficulty in unambiguous interpretation, and most of all, the inability to perform the analysis in non-laboratory conditions, which is a significant limitation factor for field veterinarians (Hogan et al., 1999; Koskinen et al., 2010).
In recent decades, molecular methods have gradually gained in popularity in bacteriological diagnostics, with particular emphasis on polymerase chain reaction (PCR) (Koskinen et al., 2010). In parallel, serological methods based on the antigen-antibody reaction, such as enzyme-linked immunosorbent assay (ELISA), have been developed. Their common advantages are high selectivity and specificity, as the waiting time for the results is shorter in comparison to classical cultivation. Nevertheless, its crucial limitation is the inability to perform the tests outside of the laboratory equipped with specialized equipment (Kano et al., 2016). A promising alternative to these methods, which does not demonstrate the limitation mentioned above, is the immunochromatographic assay (lateral flow assay, LFA). This rapid test allows the detection of pathogens in biological samples (milk, blood, stool) within a few minutes, and moreover, it does not require specialized equipment, it is easy to perform, and it is simple to interpret. But what is most important is that the lateral flow assay can be performed directly in the field – not only by the veterinarian, but also by the cattle breeders. Furthermore, the low costs, compared to other molecular and serological methods, make this technique more accessible (Koczula and Gallotta, 2016).
In this paper, our objective was to detect the immunoreactive protein particular for three species causing mastitis in cattle: E. coli, S. uberis, and S. agalactiae, which demonstrates the basis of which they can be considered as potential biomarkers in an innovative immunochromatographic assay for the rapid diagnosis of cattle mastitis.
2 Materials and methods
2.1 Sampling
The study group included 22 bovine milk samples (50 ml of each sample) from infected quarters, which were isolated from cattle with clinical symptoms of mastitis such as swelling, heat, hardness, redness or pain of the udder, watery appearance, flakes, clots or pus in milk, increased body temperature, and/or lack of appetite, in the course of the procedure of routine submission of milk from different regions of Poland: Omniwet Veterinary Clinic, Orzesze (south west) and Egida Veterinary Clinic, Wizna (north east). Cows included in the investigation came from different cowsheds – both stationary and free-standing cowsheds. Additionally, 13 blood samples for serum isolation were collected through a single jugular venipuncture during routine diagnostic tests to identify mastitis. Serum isolation was carried out according to Tuck et al. (Tuck et al., 2009). Blood samples were collected from the same cows from which the milk was collected. The aim of milk collection from infected cows, apart from obtaining bacterial strains for protein isolation, was identification of the etiological agent causing mastitis. This identification is the basis of which serum samples collected from the individual cow could be classified as EC-positive (serum sample obtained from a cow with diagnosed mastitis caused by E. coli), SU-positive (serum sample obtained from a cow with diagnosed mastitis caused by S. uberis), GBS-positive (serum sample obtained from a cow with diagnosed mastitis caused by S. agalactiae) and then used for detection of immunoreactive proteins representative for E. coli, S. uberis, and S. agalactiae. The sera studied had been pooled for either E. coli and S. uberis, whereas there was only one GBS-positive serum sample for S. agalactiae.
The control group constituted 12 milk samples and 12 serum samples obtained from 12 cows (Table 1), which were collected by veterinarians during routine examinations to determine typical biochemical parameters in healthy animals. The health status of the animals was determined on the basis of physical parameters, such as the absence of edema or redness of the udder, as well as biochemical parameters by determining the number of somatic cells (the average number of somatic cells among the animals included in the study was 160.000/ml). The studied herds were assessed by the Polish Federation of Cattle Breeders and Milk Producers, which requires monthly reporting of milk parameters, such as the number of somatic cells per milked animal. The purpose of milk collection from healthy animals was exclusion of ongoing infection, and on its basis, a classification of serum samples to control group was done. The aim of inclusion of serum samples from healthy animals was examination of protein specificity. Additionally, to exclude cross-reactivity among Streptococcus isolates, a milk sample (n=1) from a cow infected with S. dysgalactiae was subjected to investigation. Milk and serum samples were stored at -80˚C until further analyses. According to the opinion of 1st Local Ethics Committee for animal experimentation the consent for the research obtained for the project was not required.
Table 1 List of milk and serum samples included in the detection of immunoreactive proteins representative for Escherichia coli, Streptococcus uberis and Streptococcus agalactiae.
2.2 Bacterial culture and identification
100 µl of each milk sample, both positive and negative, was propagated on Columbia sheep blood agar (Difco) under aerobic conditions at 37°C for 24 h. Furthermore, bacterial isolates that were preliminarily classified as E. coli were grown on MacConkey agar (Oxoid) under aerobic conditions at 37°C for 24 h. Next, colonies with morphology corresponding to the species sought were isolated from the medium and subjected to further, more specific, analyses, including cultivation on Granada Agar (bioMérieux) dedicated to the detection of β-hemolytic S. agalactiae, CHROMagar™ Mastitis GP (CHROMagar™) for the diversification of the most common Gram-positive species in mastitis, Christie–Atkins–Munch-Peterson test (CAMP test), catalase test, analytical profile index (API test) and matrix assisted laser desorption and ionisation time-of-flight (MALDI-ToF) identification (Nonnemann et al., 2019).
2.3 Protein isolation and detection
The isolation of bacterial proteins was carried out according to the procedure of Park et al. (Park et al., 2020), whi.ch is the protocol described by Fang and Oliver (Fang and Oliver, 1999) with modifications, and included culture of bacterial isolates in Tryptic Soy Broth (TSB; Becton-Dickinson) at 37°C for 24 h. The bacterial culture was then centrifuged (30 min, 731 x g). Subsequently, the supernatant was removed and bacterial pellets were suspended in 3 ml of phosphate buffered saline (PBS; Thermo Fisher) and centrifuged for 20 minutes (731 x g). After repeating these steps three times, the wet mass of the bacteria was weighed and, for each 30 mg of the wet mass of cells, 100 µl of 0.2% sodium dodecyl sulphate (SDS; Sigma Aldrich) was added. The samples were incubated at 43°C for 1 h. The material was then centrifuged (20 min, 731 x g) and the supernatant of protein samples was collected. The remaining pellet was cultured in Columbia sheep blood agar medium (Difco) at 37°C for 18 h to confirm that the protein isolation procedure did not disrupt the bacterial cell wall. Therefore, bacteria grown on medium suggested that only cell surface-associated proteins were isolated. The concentration of the proteins was estimated using the Pierce™ BCA Protein Assay Kit (Thermo Fisher Scientific). The prepared protein samples were aliquoted and stored at −20 °C until use.
For protein separation, 10 µl of each sample was mixed with Laemmli buffer and applied to 4–20% gels (BIO-RAD) according to Laemmli (Laemmli, 1970). After sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE), which was performed at 80 V for 20 minutes, and then at 120 V for 40 minutes, the gels were washed three times in deionized water (diH2O) and stained with Coomassie Brilliant Blue (BIO-RAD) or directly transferred to a polyvinylidene difluoride membrane (Millipore) for immunoblotting. Protein transfer was carried out at 135 V for 90 minutes in the Mini-PROTEAN Tetra Cell apparatus (BIO-RAD). Afterward, the membranes were blocked in 1% bovine serum albumin (BSA; Thermo Fisher) in phosphate buffered saline with 0.05% Tween-20 (Thermo Fisher) at room temperature for 1 hour on an orbital shaker (50 RPM). Membranes were rinsed three times washing for 5 minutes in PBS-T, the membranes were then incubated with the serum samples diluted in PBS-T (1:1000) at 37°C for 2 h and washed three times for 5 minutes in PBS-T. Next, membranes were incubated with sheep anti-bovine IgG secondary antibodies conjugated with horseradish peroxidase (HRP; Novusbio) in a 1:10 000 dilution in PBS-T at room temperature for 1 h. After washing three times for 5 minutes in PBS-T, chemiluminescence was developed using Pierce™ ECL Western Blotting Substrate (Thermo Fisher Scientific) and measured using the C-DiGit® Blot Scanner (LI-COR, NE, USA). Subsequently, bands of interest (3 for E. coli, 4 for S. uberis, 6 for S. agalactiae), defined as common among individual species and not present (or barely reactive) among other species, were cut out from the gel and subjected to further analyses including protein identification
2.4 Protein identification
In order to identify proteins, which were cut from the electrophoretic gel, gel fragments were destained by methanol, reduced, and alkylated using dithiothreitol and iodoacetamide solutions. The gel fragments were then digested overnight with trypsin in 50 mM bicarbonate buffer at 37°C (Promega, Trypsin Gold, Mass Spectrometry Grade, Technical Bulletin). The resulting peptides were then extracted from the gel with water/acetonitrile/trifluoroacetic acid by triple elution (v:v 45:50:5). The peptide mixtures were purified and concentrated using C18 Zip-TIP pipette tips according to the manufacturer’s guidelines (Merck Chemicals, Billerica, MA, USA, PR 02358, Technical Note).To identify proteins, the purified peptide mixtures and the standard peptide solution were spotted on an Anchor Chip MALDI plate (Bruker, Bremen, Germany) and covered by 1 μL of α-cyano-4-hydroxycinnamic acid matrix (HCCA, Bruker, Bremen, Germany). Mass spectra were recorded in positive reflector mode within the 700–4000 m/z range using an Ultraflextreme MALDI TOF/TOF spectrometer (Bruker, Bremen, Germany) and the flexControl 3.3 software (Bruker, Bremen, Germany). The obtained spectra were smoothed and the baseline was corrected. The peak list generated in the flexAnalysis 3.0 software (Bruker, Bremen, Germany) for the signal-to-noise ratio greater than 3 was transferred to BioTools 3.2 (Bruker, Bremen, Germany), and compared to Mascot 2.2 software (Matrix Science, Boston, MA, USA) using the Swiss-Prot database (www.uniprot.org) restricted to the taxonomy ‘bacteria’ with a maximum error of 0.3 Da, carbamidomethylation of cysteine as an obligatory modification, and trypsin as a cutting enzyme. The spectra were compared due to their similarity to the peptide mass fingerprint, which is characteristic for individual proteins. In this case, the number of overlapping peptide signals formed after digestion was used to compare the data with those present in the annotated protein sequence database. The results with a Mascot score greater than 61 were considered statistically significant (p ≤ 0.05); otherwise, the fragment ion spectra of the chosen peptides were recorded in LIFT mode and combined with the objective of MALDI TOF/TOF identification. The protein score is -10*Log(P), where P is the probability that the observed match is a random event. The higher the score value, the better the identification made.
2.5 Bioinformatic analysis
In order to investigate the structure, function and immunogenicity of the predicted proteins, multiple bioinformatic analyses were performed, including prediction of subcellular localization, signal peptides, antigenicity, and classical and non-classical proteins. In addition, selected proteins were subjected to linear B-cell epitope identification, protein data bank (PDB) model search and identification of conformational B-cell epitopes. The subcellular localizations of the proteins were predicted with PsortB 3.0 (Yu et al., 2010) and the Bologna Unified Subcellular Component Annotator (BUSCA) server (http://busca.biocomp.unibo.it/), separately for Gram-positive and Gram-negative bacterial proteins. The subcellular localizations were labeled with gene ontology (GO) annotation, extracellular as GO: 0005615 and cytoplasm GO: 0005737. Prediction of protein functions included prediction of signal proteins [PRED-LIPO (Bagos et al., 2008)], classical secretory proteins [SignalP (Almagro Armenteros et al., 2019)] or non-classical secretory proteins: for Gram-positive species [Secretome (Bendtsen et al., 2004)] and Gram-negative species [PncsHub (Dai et al., 2022)]. The classical and non-classical proteins were predicted with a default setting score of 0.45 and 0.5, respectively. Classical secretory proteins are proteins that are secreted outside the cell by signal peptides. Non-classical secretory proteins are proteins without signal peptides with different pathways of secretion outside the cell. To identify the most highly antigenic proteins, the in silico prediction was performed with the use of the VaxiJen (Doytchinova and Flower, 2007) software. Antigenic prediction was adjusted with a default setting score of 0.4, and those proteins with a score ≥0.4 were considered antigenic proteins. B-cell epitopes of antigenic proteins were identified with the use of Antibody Epitope Prediction in the Immune Epitope Database (IEDB) (Vita et al., 2015). Conformational B-cell epitopes were identified with the following steps: for each protein sequence, the PDB template was identified with the use of the SWISS-MODEL Workspace (Kiefer et al., 2009) including PDB IDs, next, the best template (with the higher identity) was chosen to build the model. The selected PDB IDs were then used for prediction of linear and discontinuous conformational B-cell epitopes with ElliPro software (Ponomarenko et al., 2008).
3 Results
3.1 Bacterial identification
Among the milk samples isolated from cows with mastitis, the species or genus has been confirmed for 22 isolates (Table 1). The most common were Streptococcus spp. (n=15; 68.3%), followed by E. coli (n=4; 18.2%), Enterococcus cecorum (n=1; 4.5%), Aerococcus viridans (n=1; 4.5%) and Enterobacter cloacae (n=1; 4.5%). Among the Streptococcus genus, S. uberis dominated as it was present in 11 samples (73%), S. dysgalactiae was detected in two specimens (13%), while S. agalactiae was present in only one examined milk sample (7%). One Streptococcus isolate (7%) was not identified at the species level (Figure 1).

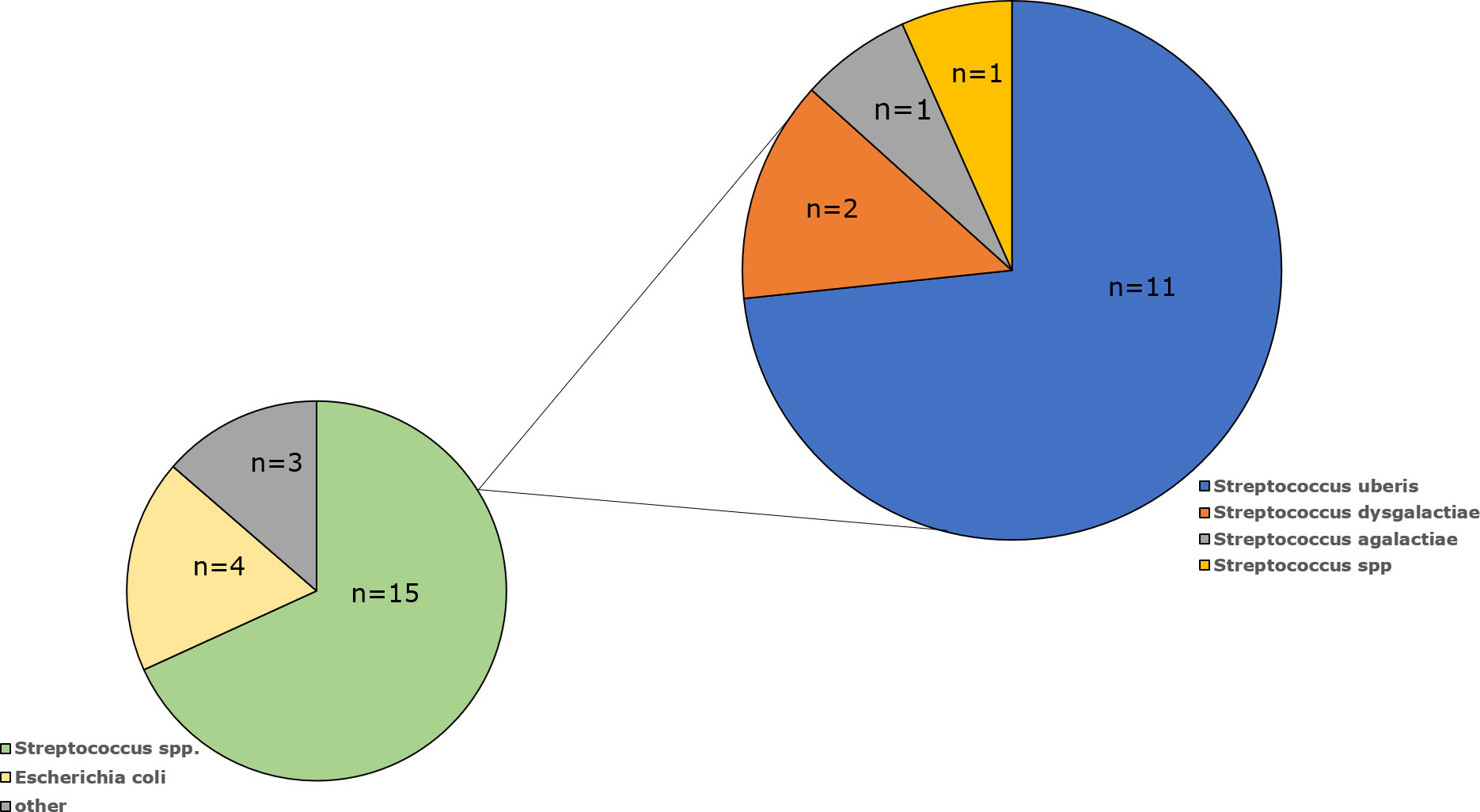

Figure 1 Percentage of bacterial isolates isolated from milk of cows diagnosed with mastitis by species.
3.2 Protein detection
Protein detection was carried out for three representative E. coli isolates, three S. uberis isolates, and one S. agalactiae isolates. Particular isolates were chosen randomly. Out of approx. 16 E. coli proteins immunoreactive with pooled EC-positive serum samples (no: 2, 3), three, with molecular masses of approx. 5 kDa (EC1), 18 kDa (EC2), and 35 kDa (EC3), were chosen for further analyses (Figure 2A). However, out of approx. 14 S. uberis proteins, which reacted with pooled SU-positive serum (no: 7, 9, 10), five bands were subjected to sequencing. Their molecular masses were as follows: approx. 19 kDa (SU4), 30 kDa (SU3), 41 kDa (SU5), 48 kDa (SU1), and 100 kDa (SU2) (Figure 2B). The lowest immunoreactivity of proteins was detected for S. agalactiae (group B streptococcus, GBS). Six proteins immunoreactive with GBS-positive serum (no: 16) with weights of: approx. 29 kDa (GBS1), 48 kDa (GBS2), 60 kDa (GBS3), 80 kDa (GBS8), 85 kDa (GBS4), and 100 kDa (GBS7) were subjected to further investigation (Figure 2C). Furthermore, the proteins mentioned above did not react or barely reacted with negative samples. We also did not observe cross-reactivity of most protein bands among the bacterial isolates obtained from the animals with confirmed mastitis caused by Streptococcus (S. uberis, S. agalactiae, S. dysgalactiae) (Figure 3).

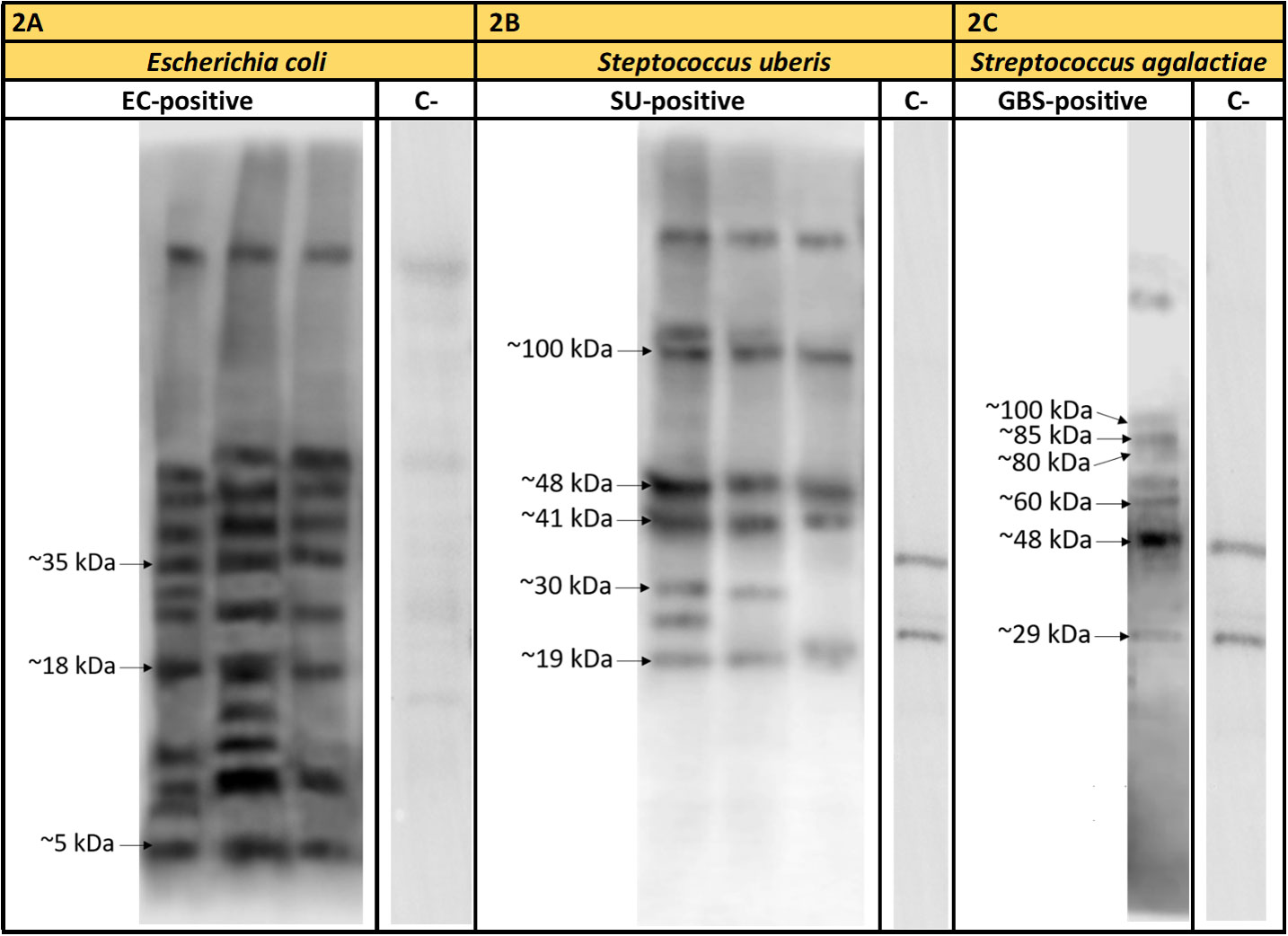

Figure 2 Exemplary results of immunodetection of proteins representative of Escherichia coli (strains no: 1, 2, 3) tested in the presence of sera from cows with diagnosed mastitis caused by Escherichia coli (EC-positive – sera no: 2, 3) (2A); Streptococcus uberis (strains no: 7, 8, 9) tested in the presence of sera from cows with diagnosed mastitis caused by S. uberis (SU-positive –sera no: 7, 9, 10) (2B) and Streptococcus agalactiae (strain no: 16) tested in the presence of sera from cows with diagnosed mastitis caused by S. agalactiae (GBS-positive – serum no: 16) (2C). Legend: C- – serum samples (sera no: 23, 29, 31) obtained from healthy animals.

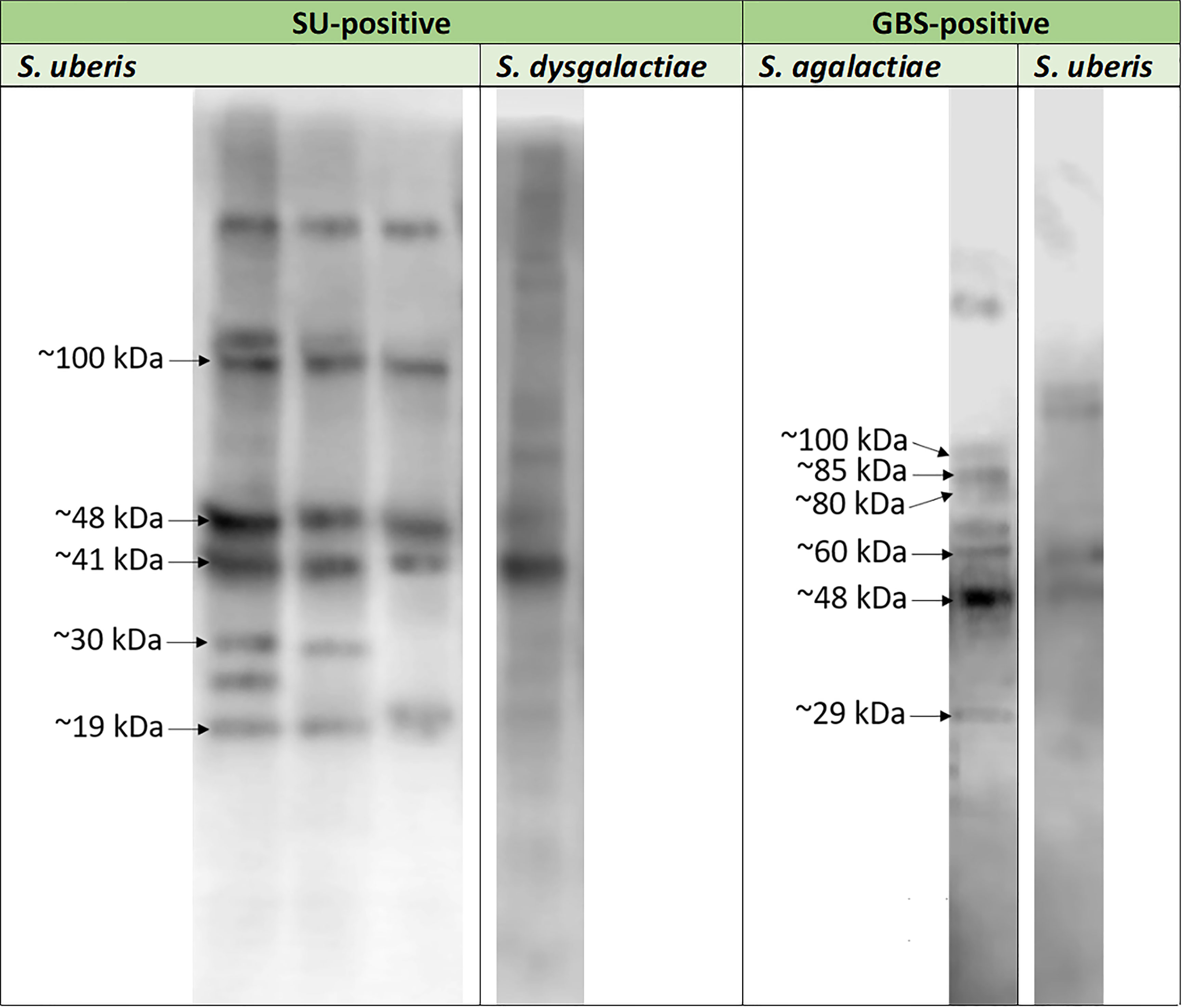

Figure 3 Exemplary results of the cross-reactivity detection among Streptococcus agalactiae (strain no: 16), Streptococcus uberis (strains no: 7, 8, 9) and Streptococcus dysgalactiae (strain no: 17) strains investigated in the presence of serum sample obtained from cow with diagnosed mastitis caused by Streptococcus agalactiae (GBS-positive; serum no: 16) and pooled serum samples isolated from animals with diagnosed mastitis caused by Streptococcus uberis (SU-positive; sera no: 7, 9, 10) bovine serum samples.
3.3 Protein identification
The mass spectra obtained for selected electrophoretic strips were collected, base line corrected, and compared with those of the Swiss-Prot database. During the protein identification, we obtained positive results that led to the assignment of 13 proteins with a significance threshold p ≤ 0.05, of which 6 were isolated from S. agalactiae: aspartate carbamoyltransferase (GBS 1), elongation factor Tu (GBS 2), 60 kDa chaperonin (GBS 3), elongation factor G (GBS 4), galactose-6-phosphate isomerase subunit LacA (GBS 7), and adenosine deaminase (GBS 8), 4 originated from S. uberis: elongation factor Tu (SU 1), tRNA uridine 5-carboxymethylaminomethyl modification enzyme MnmG (SU 3), GTPase Obg (SU 4), glyceraldehyde-3-phosphate dehydrogenase (SU 5), and 3 came from E. coli: molybdenum cofactor biosynthesis protein B (EC 1), aldehyde reductase YahK (EC 2), and outer membrane protein A (EC 3). Differences between the molecular weight of proteins and the weight resulting from electrophoretic gels may be caused by the presence of multiple protein forms, their modification, or partial protein breakdown.
3.4 Bioinformatic analysis
Thirteen proteins were subjected to bioinformatic analysis to determine their immunogenicity and functionality. In the first stage of the analysis, the proteins were classified in terms of their location within the cell. As a result, 12 proteins were found in the cytoplasm (GO: 000573) and 1 protein (EC 3) was located in the outer membrane (GO: 0019867) of the subcellular compartments. In the next step, classical and non-classical proteins were identified. As a result, only in the EC 3 protein structure (outer membrane), a Sec signal peptide was identified and its presence determined the classification of this protein as classical. In addition, 9/13 proteins have been classified as non-classical proteins (known as secretome proteins), including again the outer membrane protein EC 3 and several cytoplasmic proteins (GBS 1, GBS 2, GBS 3, GBS 4, SU 1, and SU 5). Moreover, proteins were classified according to their antigenicity, resulting in 12/13 proteins being labeled as antigens (Table 2). The structures of 13 proteins were analyzed to identify B-cell epitopes. As a result, epitopes were found in all proteins, ranging in number from 1 to 22. The presence of B epitopes allowed for further identification of conformational epitopes in all proteins. First, the most identical PDB (template) protein structure was identified and a protein-template model was built. The template identity was in the range of 32-100% with Global Model Quality Estimation in range 0.39-0.96. The constructed models were then used to identify linear and conformational epitopes. As a result of the analysis, 2-10 linear epitopes and 3-8 conformational epitopes were obtained (Table 3).

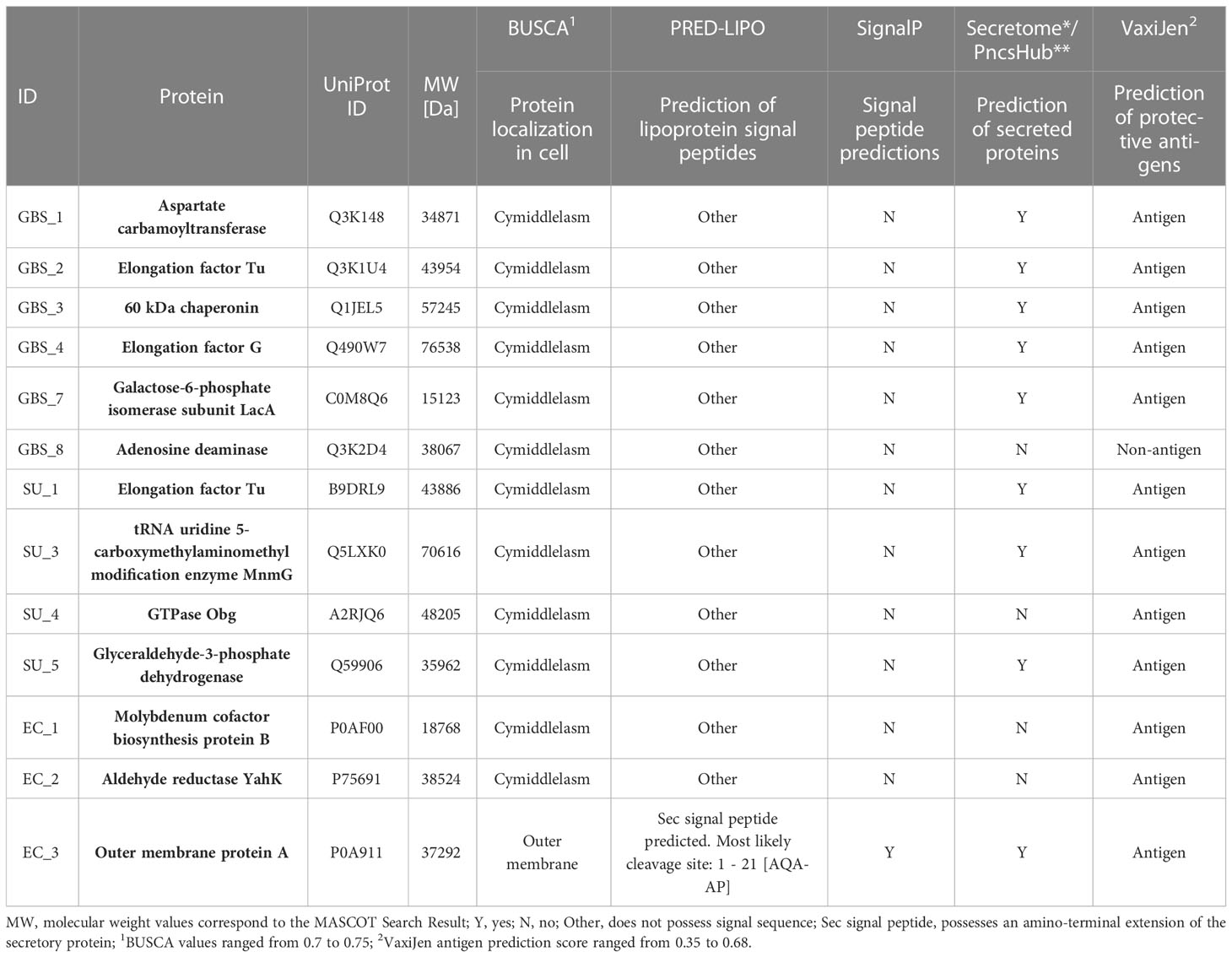

Table 2 Bioinformatic prediction of proteins’ cell localization (Busca database), detection of signal peptides (PRED-LIPO), classical (SignaIP) and non-classical (Secretome, PncsHub) proteins, and prediction of antigenicity (VaxiJen).

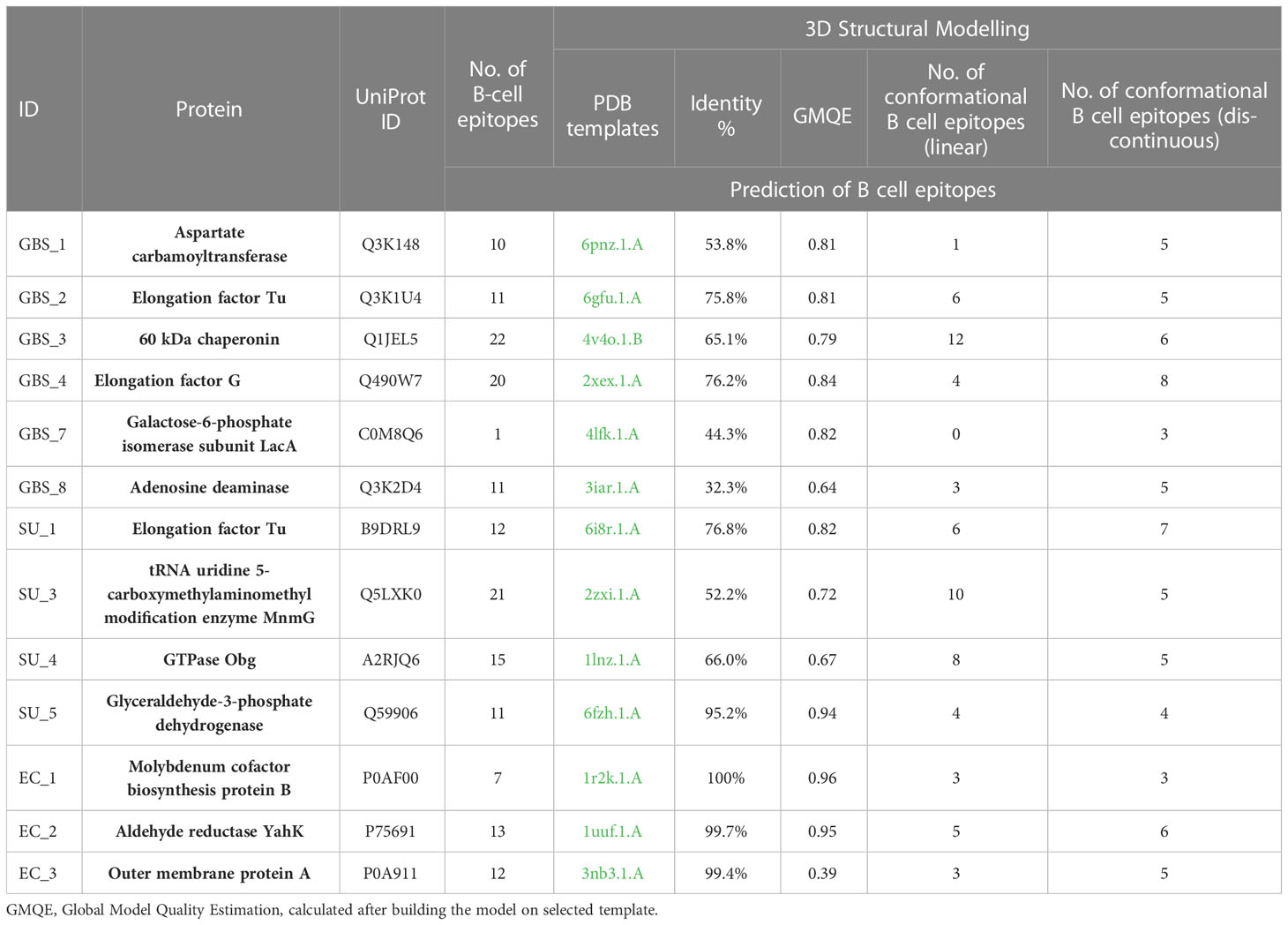

Table 3 Bioinformatic prediction of proteins, identification of linear B cell epitopes (IEDB tools), detection of 3D model in PDB database (SWISS-MODEL), and identification of conformational B cell epitopes (ElliPro).
4 Discussion
Bovine mastitis is a worldwide economic issue that has been studied in many aspects for years. The aim of this paper was the detection of potential markers, which can find application in rapid multiplex immunochromatographic assay. Promising candidates for targets detected by monoclonal antibodies should demonstrate the following features: they should be conservative among species – to avoid false negative results – and species-specific – to avoid false positive results. This investigation included three bacterial species – E. coli, S. uberis, and S. agalactiae (Lassa et al., 2013; Dufour et al., 2019).
In most of the clinical cases of mastitis in our study, were caused by Streptococcus spp. The obtained results corresponded to the investigation described by Al-harbi et al. (Al-harbi et al., 2021), as well as to the North American cattle population (Schukken et al., 2009; Levison et al., 2016). Among the genus Streptococcus, the most frequently isolated species was S. uberis, which constitutes 44% of all samples studied. S. uberis is classified as an environmental mastitis pathogen, however, it can also take a contagious form, which can potentially originate from milk machine contamination (Zadoks et al., 2003). The results obtained in this paper corresponded to Australian studies, in which S. uberis was the most commonly cultivated bacterial species collected from milk samples (Dyson et al., 2022). Al-harbi et al. also described S. uberis as the most common species of Streptococcus spp., however, the percentage was fourfold lower compared to our results (Al-harbi et al., 2021). In the European cattle population, S. uberis is also described as the most common agent causing mastitis (Tenhagen et al., 2006; Botrel et al., 2010). It is no different in Poland (Malinowski et al., 2006).
In this study, the second most frequent bacterial species was E. coli, which belongs to the Enterobacteriaceae family, and is also defined as one of the most common causes of clinical mastitis in dairy cows (Schabauer et al., 2018). Infections caused by this species often occur in early lactation, and the reason for this phenomenon is the immunosuppression caused by metabolic deficiencies, which is more common at that time than in later lactation (Suriyasathaporn et al., 2000; Burvenich et al., 2003). Infection caused by E. coli through activation of IκB/NF-κB signaling quickly elicits strong inflammatory reaction. This leads to predominantly acute infection which is easy to detect (Günther et al., 2017; Goulart and Mellata, 2022). E. coli infections are commonly related to the summer season, when the temperatures and humidity are high. Moreover, during the summer season, as a result of heat stress, animals’ immunity decreases, which leads to an increase in infections. Beyond the summer season mastitis caused by E. coli is observed in herds with poor hygiene conditions, which is common for environmental pathogens (Rakib et al., 2020). In the studied population, the prevalence of E. coli was found in 16% of the samples. The results obtained corresponded to the Nepalese cow population, in which 16.5% of the animals were diagnosed with mastitis caused by E. coli (Bhandari et al., 2021). Abed et al. showed the same prevalence, detecting E. coli in 16.4% of the samples (Abed et al., 2021). Botrel et al. demonstrated the presence of E. coli in 16% of the French cattle population (Botrel et al., 2010).
Another species detected among the investigated milk samples was S. agalactiae, which is responsible for cases of contagious mastitis (Al-harbi et al., 2021). In our studies, S. agalactiae was present in one milk sample and constituted 4.5% of the examined bacterial isolate collection. The prevalence of S. agalactiae has decreased in recent decades. However, in the 1980s, it was the main cause of mastitis, reaching almost 50% (Keefe, 1997, Keefe, 2012; Al-harbi et al., 2021). The reason for the notable decrease in incidence is an effect of the introduction of the mastitis control program (Myllys et al., 1998; Pitkälä et al., 2004). Also, in Poland the decrease in the incidence of S. agalactiae has been observed in cattle (Malinowski et al., 2006). However, Sztachańska et al. showed that subclinical cases of S. agalactiae isolated in infected quarters reached 15.6%, but the high percentage was explained by the low efficacy of dry cow therapy in some herds (Sztachańska et al., 2016). Malinowski et al. reported that mastitis caused by S. agalactiae occurs in 2-25% of cows per year (Malinowski and Gajewski, 2009). Even though this contagious pathogen is not the main cause of bovine mastitis today, it can lead to infection in humans, therefore monitoring the expansion of this bacterium within the herd is important.
Recently, the research on immunoreactive proteins has been developing. These proteins are being considered as, above all, future components of ELISA (Bu et al., 2015; Bu et al., 2017), immunochromatographic assays, but also components of vaccines against mastitis caused by the most common bacterial species (Dego et al., 2021). In this article, we have described 13 proteins and most of them were involved in energy metabolism and other cellular functions.
In our study, we identified four proteins representing S. uberis, among which elongation factor Tu (SU 1) and glyceraldehyde-3-phosphate dehydrogenase (SU 5) are the most frequently described immunoreactive proteins (Zadoks et al., 2005; Demon et al., 2013). They are also described as cytosolic proteins; however, recent studies have indicated their multifunctional role. Therefore, they can be also present on the surface of bacterial cells and participate in pathogenesis (Amblee and Jeffery, 2015; Dego et al., 2021). Other proteins described in the context of bovine mastitis were, among others: fructose-bisphosphate aldolase, lactoferrin binding protein, glutamine synthetase, and glutamine binding protein (Collado et al., 2016; Dego et al., 2021), and the results partially correspond to our observations. tRNA-5-carboxymethylaminomethyl-2-thiouridine synthesis protein MnmG (SU 3), also described as GidA, is a bacterial and mitochondrial conserve protein, which participate in tRNA modification (Moukadiri et al., 2009). MnmG is also known as a virulence factor (Silva et al., 2021) and, as Charbonneau et al. showed, it is crucial for in vitro Streptococcus equi growth (Charbonneau et al., 2017). It had been shown that this protein is also important for survival in other Streptococcus species: S. agalactiae and S. pyogenes (le Breton et al., 2015; Hooven et al., 2016). Moreover, it had been proved that deletion of genes coding MnmG and MnmE (another enzymatic protein, which forms heterotetrameric complex with MnmG) led to reduction in biofilm formation of up to 50% in Streptococcus mutans (Li et al., 2014) Silva et al., by using whole-genome sequencing method for S. uberis characteristics, demonstrated the presence of this protein in 80% of strains obtained from cows with mastitis (Silva et al., 2021). On the other hand, GTPase Obg (SU 4) is described as a protein crucial for bacterial growth and plays an important role in bacterial stress response, however, the mechanism is unknown (Kumar et al., 2017). Nothing is known about its role in immunoreactivity in S. uberis isolated from cows with bovine mastitis, which may indicate the pioneer nature of our discovery.
Immunoreactive proteins of S. agalactiae have been widely studied with particular emphasis on humans (newborns and GBS carriage) and a type of fish belonging to the Nile tilapia species. In our previous paper, we also described some of them for humans (Brzychczy-Wloch et al., 2013; Dobrut et al., 2018; Pyclik et al., 2018; Dobrut and Brzychczy-Włoch, 2022), and some of them, such as elongation factor Tu (GBS 2), were also detected in this study in cows. Apart from EF-Tu, another elongation factor – elongation factor G (GBS 4), had been identified in a mixture of immunoreactive proteins isolated from bovine S. agalactiae. Both EF-Tu and EF-G play an important role in prokaryotic protein synthesis, and while EF-Tu is involved in translation and in the elongation phase of protein synthesis, EF-G is responsible for catalyzing movement of RNA transfer as well as mRNA in ribosomes during the translocation step by using energy stored in GTP (Chen et al., 2016). Another identified protein, 60kDa chaperonin (GBS 3) belongs to the chaperonin family, as well as GroEL, which had been identified in our previous study (Dobrut et al., 2018). Its crucial role is the involvement in folding de novo emerging proteins. Chaperonins are also described as virulence factors (Dobrut and Brzychczy-Włoch, 2022). Moreover, the homologs of 60 kDa chaperonin demonstrated strong immunoreactivity for Mycobacterium tuberculosis (Kong et al., 1993). This result corresponds with the results obtained in our previous studies, in which GroEL showed significant immunoreactivity to antibodies present in umbilical cord blood (Dobrut et al., 2018). Proteins such as surface-associated proteins Sip, phosphoglycerate kinase (Pgk) and fibronectin (FbsA) of S. agalactiae have been studied as components of indirect ELISA for the diagnosis of bovine mastitis (Bu et al., 2017). These proteins have also been studied in the context of vaccines providing protection from bacterial infections (Zhai et al., 2021). There is not much data on the remaining proteins, which may encourage researchers to consider them in further proteomic studies on innovative biomarkers or components of subunit vaccine offering protection from bovine mastitis caused by S. agalactiae.
For E. coli, the immunoreactive protein most frequently described is the outer membrane protein A (ompA), which has been identified as protein no. EC 3 in our studies. OmpA is a major constituent of the outer membrane of this species and has been studied in the context of its immunoreactivity and the results correspond with the ones obtained in our investigation (Todhunter et al., 1991; Rainard et al., 2017; Chen et al., 2020). For its immunogenic role, another protein belonging to the omp family, the outer membrane protein F, has been described (Wang et al., 2017). Also, fimbrial adhesin factor, which belongs to the F17 family, has been described as a promising immunodominant antigen (Chen et al., 2017). The other two identified immunoreactive proteins, molybdenum cofactor biosynthesis protein B (EC 1) and aldehyde reductase YahK (EC 2), the former is responsible for the biosynthesis of molybdopterin, demonstrates an ability to bind GTP, has low GTPase activity (Eaves et al., 1997), catalyzes the reduction of reductases into an appropriate alcohol and is a major source of NADPH-dependent aldehyde reductase activity in E. coli (Pick et al., 2013). To our best knowledge, they have not been described in the context of their immunoreactivity to E. coli in bovine mastitis. That may also point to the innovative nature of our investigation.
In our paper, we aimed to detect surface proteins, which could be easily accessed to detect antibodies in the lateral flow assay, and thus perform the examination rapidly, directly in the cowshed. Undoubtedly, according to in vitro results followed by bioinformatic predictions, with particular emphasis on its predicted localization among the bacterial cell, the most promising protein out of all the examined species is ompA (EC 3) isolated from E. coli, however, the remaining proteins can also be included in further investigation, as both in vitro and in silico analyses allowed us to assume that all of the proteins described can be associated with bacterial protein surface. A culture of the pellet remaining after the protein isolation procedure showed bacterial growth in every examined isolate – even though determined qualitatively. Thus, it can be hypothesized that the protein isolation procedure based on SDS had not disrupted the bacterial cell wall, and only the cell surface-associated protein had been isolated. We are aware that culturing the bacterial cell pellet may not directly confirm that proteins subjected to further investigation were the only cell surface-associated ones. There is a possibility that, even though the protein isolation procedure according to which we obtained proteins for the experiments was dedicated to surface proteins, the bacterial membranes could have been disrupted. However, according to numerous publications, the identified proteins are described as multifunctional, and hence their localization among the bacterial cell can vary and they can be present both inside and outside the cell. Nevertheless, with no doubts, it requires further investigation such as experiments carried out with whole bacterial cells and monoclonal antibodies specific to the examined proteins.
While it is worth highlighting, the proteins mentioned above did not react or barely reacted with negative samples. It can be hypothesized that any reactivity may be connected with the fact that the animals, from which the blood samples were collected, had previously come into contact with the studied bacterial species and therefore, even though these bacteria were not present in milk samples and did not present any clinical signs of infection, some reactivity was noticed. To our best knowledge, most of the bacterial proteins identified and described in this article have not been described as immunoreactive with bovine isolates; thus, according to their confirmed immunoreactivity, both in vitro and in silico, and regarding their surface-associated localization, they can be considered as potential biomarkers in immunodiagnostic assays. We are aware of the limitations of the study in the form of the number of bacterial strains, which among others, may lead to difficulties in determination of protein conservativity for particular proteins; however, the results stem from the framework of the project according to which the research was carried out. We studied one to three samples, which originated from various animals, from different herds, and even from different geographical regions. We cannot disagree that the number of probes is not enough; however, the aim of the study was to present the potential candidates, which should be studied in further studies, on an extended number of samples, in the presence of defined, monoclonal antibodies, to confirm their statistically significant specificity and sensitivity in immunodiagnostic assay. However, we believe that, due to the lack of similar sufficient data, our results will deepen the knowledge in this area and encourage further investigation.
Data availability statement
The data presented in the study are deposited in the MassIVE repository, accession number MSV000091181.
Ethics statement
Ethical review and approval was not required for the animal study because In the opinion of 1 of the Local Ethics Committee for Animal Experiments, approval of the studies described in the manuscript is not required.
Author contributions
AD designed the concept of the study, obtained funds for research, coordinated the project, analyzed results, drafted the manuscript, DW-G carried out bacterial protein isolation, conducted detection of the immunoreactive proteins, AM carried out bioinformatic analyses, DP-O and KM carried out protein identification, AT collected milk and serum samples, UM collected milk samples, MB-W was a supervisor and helped to draft the manuscript. All authors read and approved the final manuscript.
Funding
This work was supported by the National Center for Research and Development [grant no: LIDER/9/0029/L-10/18/NCBR/2019].
Acknowledgments
Results described in this paper had been partially presented during the 32nd European Congress of Clinical Microbiology and Infectious Diseases in 2022 in Lisbon, Portugal under the title: “Bioinformatic prediction of highly specific surface bacterial proteins – potential biomarkers in a lateral flow assay for bovine mastitis diagnosis.” The Authors would like to thank Joanna Sobońska and Agnieszka Sroka-Oleksiak for the involvement in bacterial cultivation and phenotypical identification and Katarzyna Gąsior-Kulasiak for English language editing.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Abed, A. H., Menshawy, A. M. S., Zeinhom, M. M. A., Hossain, D., Khalifa, E., Wareth, G., et al. (2021). Microorganisms subclinical mastitis in selected bovine dairy herds in north upper Egypt: Assessment of prevalence, causative bacterial pathogens, antimicrobial resistance and virulence-associated genes. Microorganisms 9, 1175. doi: 10.3390/microorganisms
Al-harbi, H., Ranjbar, S., Moore, R. J., Alawneh, J. I. (2021). Bacteria isolated from milk of dairy cows with and without clinical mastitis in different regions of Australia and their AMR profiles. Front. Vet. Sci. 8. doi: 10.3389/fvets.2021.743725
Almagro Armenteros, J. J., Tsirigos, K. D., Sønderby, C. K., Petersen, T. N., Winther, O., Brunak, S., et al. (2019). SignalP 5.0 improves signal peptide predictions using deep neural networks. Nat. Biotechnol. 37, 420–423. doi: 10.1038/s41587-019-0036-z
Amblee, V., Jeffery, C. J. (2015). Physical features of intracellular proteins that moonlight on the cell surface. PLoS One 10, e0130575. doi: 10.1371/journal.pone.0130575
Bagos, P. G., Tsirigos, K. D., Liakopoulos, T. D., Hamodrakas, S. J. (2008). Prediction of lipoprotein signal peptides in gram-positive bacteria with a hidden Markov model. J. Proteome Res. 7, 5082–5093. doi: 10.1021/pr800162c
Bendtsen, J. D., Jensen, L. J., Blom, N., von Heijne, G., Brunak, S. (2004). Feature-based prediction of non-classical and leaderless protein secretion. Protein Engineering Design Selection 17, 349–356. doi: 10.1093/protein/gzh037
Bhandari, S., Subedi, D., Tiwari, B. B., Shrestha, P., Shah, S., Al-Mustapha, A. I. (2021). Prevalence and risk factors for multidrug-resistant escherichia coli isolated from subclinical mastitis in the western chitwan region of Nepal. J. Dairy Sci. 104, 12765–12772. doi: 10.3168/jds.2020-19480
Botrel, M. A., Haenni, M., Morignat, E., Sulpice, P., Madec, J. Y., Calavas, D. (2010). Distribution and antimicrobial resistance of clinical and subclinical mastitis pathogens in dairy cows in rhône-alpes, France. Foodborne Pathog. Dis. 7, 479–487. doi: 10.1089/fpd.2009.0425
Brzychczy-Wloch, M., Gorska, S., Brzozowska, E., Gamian, A., Heczko, P. B., Bulanda, M. (2013). Identification of high immunoreactive proteins from streptococcus agalactiae isolates recognized by human serum antibodies. FEMS Microbiol. Lett. 349, 61–70. doi: 10.1111/1574-6968.12292
Burvenich, C., van Merris, V., Mehrzad, J., Diez-Fraile, A., Duchateau, L. (2003). Severity of e. coli mastitis is mainly determined by cow factors. Vet. Res. 34, 521–564. doi: 10.1051/vetres:2003023
Bu, R. E., Wang, J. L., DebRoy, C., Wu, J. H., Xi, L. G. W., Liu, Y., et al. (2015). Development of an indirect ELISA for bovine mastitis using sip protein of streptococcus agalactiae. Iran J. Vet. Res. 16, 283–7. doi: 10.22099/ijvr.2015.3195
Bu, R. E., Wang, J. L., Wu, J. H., Xilin, G. W., Chen, J. L., Wang, H. (2017). Indirect enzyme-linked immunosorbent assay method based on streptococcus agalactiae rSip-Pgk-FbsA fusion protein for detection of bovine mastitis. Pol. J. Vet. Sci. 20, 355–362. doi: 10.1515/pjvs-2017-0043
Charbonneau, A. R. L., Forman, O. P., Cain, A. K., Newland, G., Robinson, C., Boursnell, M., et al. (2017). Defining the ABC of gene essentiality in streptococci. BMC Genomics 18, 426. doi: 10.1186/s12864-017-3794-3
Chen, C., Cui, X., Beausang, J. F., Zhang, H., Farrell, I., Cooperman, B. S., et al. (2016). Elongation factor G initiates translocation through a power stroke. Proc. Natl. Acad. Sci. U.S.A. 113, 7515–7520. doi: 10.1073/pnas.1602668113
Chen, W., Liu, Y., Yin, J., Deng, Y., Ali, T., Zhang, J., et al. (2017). Cloning, expression, and immunogenicity of fimbrial-F17A subunit vaccine against escherichia coli isolated from bovine mastitis. Biomed. Res. Int. 2017, 3248483. doi: 10.1155/2017/3248483
Chen, C., Wu, N., Rong, N., Kang, C., Chen, C., Wu, S., et al. (2020). Immunoprotective evaluation of escherichia coli outer membrane protein a against the main pathogens of animal mastitis. Trop. J. Pharm. Res. 19, 155–162. doi: 10.4314/tjpr.v19i1.23
Collado, R., Prenafeta, A., González-González, L., Pérez-Pons, J. A., Sitjà, M. (2016). Probing vaccine antigens against bovine mastitis caused by streptococcus uberis. Vaccine 34, 3848–3854. doi: 10.1016/J.VACCINE.2016.05.044
Dai, W., Li, J., Li, Q., Cai, J., Su, J., Stubenrauch, C., et al. (2022). PncsHub: A platform for annotating and analyzing non-classically secreted proteins in gram-positive bacteria. Nucleic Acids Res. 50, D848–D857. doi: 10.1093/nar/gkab814
Dego, O. K., Almeida, R., Ivey, S., Agga, G. E. (2021). Evaluation of streptococcus uberis surface proteins as vaccine antigens to control s. uberis mastitis in dairy cows. Vaccines (Basel) 9, 868. doi: 10.3390/vaccines9080868
Demon, D., Breyne, K., Schiffer, G., Meyer, E. (2013). Short communication: Antimicrobial efficacy of intramammary treatment with a novel biphenomycin compound against staphylococcus aureus, streptococcus uberis, and escherichia coli-induced mouse mastitis. J. Dairy Sci. 96, 7082–7087. doi: 10.3168/jds.2013-7011
Dobrut, A., Brzozowska, E., Górska, S., Pyclik, M., Gamian, A., Bulanda, M., et al. (2018). Epitopes of immunoreactive proteins of streptococcus agalactiae: Enolase, inosine 5′-monophosphate dehydrogenase and molecular chaperone GroEL. Front. Cell Infect. Microbiol. 8. doi: 10.3389/fcimb.2018.00349
Dobrut, A., Brzychczy-Włoch, M. (2022). Immunogenic proteins of group b streptococcus–potential antigens in immunodiagnostic assay for GBS detection. Pathogens 11, 43. doi: 10.3390/pathogens11010043
Doytchinova, I. A., Flower, D. R. (2007). VaxiJen: A server for prediction of protective antigens, tumour antigens and subunit vaccines. BMC Bioinf. 8, 4. doi: 10.1186/1471-2105-8-4
Dufour, S., Labrie, J., Jacques, M., Rasko, D., Roy, J.-P. (2019). The mastitis pathogens culture collection. Microbiol. Resour. Announc. 8, 133–152. doi: 10.1128/MRA.00133-19
Dyson, R., Charman, N., Hodge, A., Rowe, S. M., Taylor, L. F. (2022). A survey of mastitis pathogens including antimicrobial susceptibility in southeastern Australian dairy herds. J. Dairy Sci. 105, 1504–1518. doi: 10.3168/jds.2021-20955
Eaves, D. J., Palmer, T., Boxer, D. H. (1997). The product of the molybdenum cofactor gene mobB of escherichia coli is a GTP-binding protein. Eur. J. Biochem. 246, 690–697. doi: 10.1111/j.1432-1033.1997.t01-1-00690.x
Fang, W., Oliver, S. P. (1999). Identification of lactoferrin-binding proteins in bovine mastitis-causing streptococcus uberis. FEMS Microbiol. Lett. 176 91–6. doi: 10.1111/j.1574-6968.1999.tb13647.x
Goulart, D. B., Mellata, M. (2022). Escherichia coli mastitis in dairy cattle: Etiology, diagnosis, and treatment challenges. Front. Microbiol. 13. doi: 10.3389/fmicb.2022.928346
Günther, J., Petzl, W., Bauer, I., Ponsuksili, S., Zerbe, H., Schuberth, H. J., et al. (2017). Differentiating staphylococcus aureus from escherichia coli mastitis: S. aureus triggers unbalanced immune-dampening and host cell invasion immediately after udder infection. Sci. Rep. 7, 4811. doi: 10.1038/s41598-017-05107-4
He, W., Ma, S., Lei, L., He, J., Li, X., Tao, J., et al. (2020). Prevalence, etiology, and economic impact of clinical mastitis on large dairy farms in China. Vet. Microbiol. 242, 108570. doi: 10.1016/J.VETMIC.2019.108570
Hogan, J. S., Gonzalez, R. N., Harmon, R. J., Nickerson, S. C., Oliver, S. P., Pankey, J. W., et al. (1999). Laboratory handbook on bovine mastitis. 7th ed (Madison: National Mastitis Council Madison, WI).
Hogeveen, H., Huijps, K., Lam, T. J. G. M. (2011). Economic aspects of mastitis: New developments. N Z Vet. J. 59, 16–23. doi: 10.1080/00480169.2011.547165
Hooven, T. A., Catomeris, A. J., Akabas, L. H., Randis, T. M., Maskell, D. J., Peters, S. E., et al. (2016). The essential genome of streptococcus agalactiae. BMC Genomics 17, 406. doi: 10.1186/s12864-016-2741-z
Kalińska, A., Wójcik, A., Slósarz, J., Kruzińska, B., Michalczuk, M., Jaworski, S., et al. (2018). Occurrence and aetiology of staphylococcal mastitis – a review. Anim. Sci. Pap Rep. 36, 263–273.
Kano, R., Sato, A., Sobukawa, H., Sato, Y., Ito, T., Suzuki, K., et al. (2016). Short communication: ELISA system for screening of bovine mastitis caused by prototheca zopfii. J. Dairy Sci. 99, 6590–6593. doi: 10.3168/jds.2016-11168
Keefe, G. (2012). Update on control of staphylococcus aureus and streptococcus agalactiae for management of mastitis. Vet. Clinics North Am. - Food Anim. Pract. 28, 203–216. doi: 10.1016/j.cvfa.2012.03.010
Kiefer, F., Arnold, K., Künzli, M., Bordoli, L., Schwede, T. (2009). The SWISS-MODEL repository and associated resources. Nucleic Acids Res. 37, D387–D392. doi: 10.1093/nar/gkn750
Koczula, K. M., Gallotta, A. (2016). Lateral flow assays. Essays Biochem. 60, 111–120. doi: 10.1042/EBC20150012
Kong, T. H., Coates, A. R. M., Butcher, P. D., Hickman, C. J., Shinnick, T. M. (1993). Mycobacterium tuberculosis expresses two chaperonin-60 homologs. Proc. Natl. Acad. Sci. U.S.A. 90, 2608–2612. doi: 10.1073/pnas.90.7.2608
Koskinen, M. T., Wellenberg, G. J., Sampimon, O. C., Holopainen, J., Rothkamp, A., Salmikivi, L., et al. (2010). Field comparison of real-time polymerase chain reaction and bacterial culture for identification of bovine mastitis bacteria. J. Dairy Sci. 93, 5707–5715. doi: 10.3168/JDS.2010-3167
Kulkarni, A. G., Kaliwal, B. B. (2013). Bovine mastitis: A review. Int. J. Recent Sci. Res. 4, 543–548. doi: 10.24327/IJRSR
Kumar, V., Tomar, A. K., Sahu, V., Dey, S., Yadav, S. (2017). Structural insights of mycobacterium GTPase-obg and anti-sigma-F factor usfx interaction. J. Mol. Recognition 30. doi: 10.1002/jmr.2636
Laemmli, U. K. (1970). Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 227, 680–685. doi: 10.1038/227680a0
Lassa, H., Kubiak, J., Małkińska-Horodyska, M. (2013). Antibiotic susceptibility of the bacteria most often isolated from clinical mastitis in cows. Życie Weterynaryjne 88, 651.
le Breton, Y., Belew, A. T., Valdes, K. M., Islam, E., Curry, P., Tettelin, H., et al. (2015). Essential genes in the core genome of the human pathogen streptococcus pyogenes. Sci. Rep. 5, 9838. doi: 10.1038/srep09838
Levison, L. J., Miller-Cushon, E. K., Tucker, A. L., Bergeron, R., Leslie, K. E., Barkema, H. W., et al. (2016). Incidence rate of pathogen-specific clinical mastitis on conventional and organic Canadian dairy farms. J. Dairy Sci. 99, 1341–1350. doi: 10.3168/jds.2015-9809
Li, D., Shibata, Y., Takeshita, T., Yamashita, Y. (2014). A novel gene involved in the survival of streptococcus mutans under stress conditions. Appl. Environ. Microbiol. 80, 97–103. doi: 10.1128/AEM.02549-13
Malinowski, E., Gajewski, Z. (2009). Characteristics of cows mastitis caused by human foodborne pathogens. Życie Weterynaryjne 84, 4.
Malinowski, E., Lassa, H., Kłossowska, A., Smulski, S., Markiewicz, H., Kaczmarowski, M. (2006). Etiological agents of dairy cows’ mastitis in western part of Poland. Pol. J. Vet. Sci. 9, 191–194.
Moukadiri, I., Prado, S., Piera, J., Velázquez-campoy, A., Björk, G. R., Armengod, M. E. (2009). Evolutionarily conserved proteins MnmE and GidA catalyze the formation of two methyluridine derivatives at tRNA wobble positions. Nucleic Acids Res. 37, 7177–7193. doi: 10.1093/nar/gkp762
Myllys, V., Asplund, K., Brofeldt, E., Hirvelä-Koski, V., Honkanen-Buzalski, T., Junttila, J., et al. (1998). Bovine mastitis in Finland in 1988 and 1995 - changes in prevalence and antimicrobial resistance. Acta Vet. Scand. 39, 119–126. doi: 10.1186/BF03547813
Naif Alhussien, M., Kumar Dang, A. (2018). Milk somatic cells, factors influencing their release, future prospects, and practical utility in dairy animals: An overview. Vet. World. 11, 562–577. doi: 10.14202/vetworld.2018.562-577
Nonnemann, B., Lyhs, U., Svennesen, L., Kristensen, K. A., Klaas, I. C., Pedersen, K. (2019). Bovine mastitis bacteria resolved by MALDI-TOF mass spectrometry. J. Dairy Sci. 102, 2515–2524. doi: 10.3168/jds.2018-15424
Oliver, S. P., Murinda, S. E. (2012). Antimicrobial resistance of mastitis pathogens. Veterinary Clinics North America: Food Anim. Pract. 28, 165–185. doi: 10.1016/J.CVFA.2012.03.005
Park, H.-M., Almeida, R. A., Oliver, S. P. (2020) Identification of lactoferrin-binding proteins in streptococcus dysgalactiae subsp. dysgalactiae and streptococcus agalactiae isolated from cows with mastitis. FEMS Microbiol Lett 207, 87–90. doi: 10.1111/j.1574-6968.2002.tb11033.x
Pick, A., Rühmann, B., Schmid, J., Sieber, V. (2013). Novel CAD-like enzymes from escherichia coli K-12 as additional tools in chemical production. Appl. Microbiol. Biotechnol. 97, 5815–5824. doi: 10.1007/s00253-012-4474-5
Pitkälä, A., Haveri, M., Pyörälä, S., Myllys, V., Honkanen-Buzalski, T. (2004). Bovine mastitis in Finland 2001 - prevalence, distribution of bacteria, and antimicrobial resistance. J. Dairy Sci. 87, 2433–2441. doi: 10.3168/jds.S0022-0302(04)73366-4
Ponomarenko, J., Bui, H. H., Li, W., Fusseder, N., Bourne, P. E., Sette, A., et al. (2008). ElliPro: A new structure-based tool for the prediction of antibody epitopes. BMC Bioinf. 9, 514. doi: 10.1186/1471-2105-9-514
Pyclik, M., Górska, S., Brzozowska, E., Dobrut, A., Ciekot, J., Gamian, A., et al. (2018). Epitope mapping of streptococcus agalactiae elongation factor tu protein recognized by human sera. Front. Microbiol. 9. doi: 10.3389/fmicb.2018.00125
Rainard, P., Répé Rant-Ferter, M., Gitton, C., Gilbert, F. B., Germon, P. (2017). Cellular and humoral immune response to recombinant escherichia coli OmpA in cows. PLoS One 12, e0187369. doi: 10.1371/journal.pone.0187369
Rakib, M. R. H., Zhou, M., Xu, S., Liu, Y., Asfandyar Khan, M., Han, B., et al. (2020). Effect of heat stress on udder health of dairy cows. J. Dairy Res. 87, 315–321. doi: 10.1017/S0022029920000886
Rushton, J., Vosough Ahmadi, B., Henrique Hildebrand Grisi-Filho, J., de São Paulo, U., Alexis Delabouglise, B., Romero, J., et al. (2018). Assessing financial impacts of subclinical mastitis on Colombian dairy farms. Front. Vet. Sci. 5. doi: 10.3389/fvets.2018.00273
Schabauer, A., Pinior, B., Gruber, C. M., Firth, C. L., Käsbohrer, A., Wagner, M., et al. (2018). The relationship between clinical signs and microbiological species, spa type, and antimicrobial resistance in bovine mastitis cases in Austria. Vet. Microbiol. 227, 52–60. doi: 10.1016/j.vetmic.2018.10.024
Schukken, Y. H., Hertl, J., Bar, D., Bennett, G. J., González, R. N., Rauch, B. J., et al. (2009). Effects of repeated gram-positive and gram-negative clinical mastitis episodes on milk yield loss in Holstein dairy cows. J. Dairy Sci. 92, 3091–3105. doi: 10.3168/jds.2008-1557
Silva, N. C. C., Yang, Y., Rodrigues, M. X., Tomazi, T., Bicalho, R. C. (2021). Whole-genome sequencing reveals high genetic diversity of streptococcus uberis isolated from cows with mastitis. BMC Vet. Res. 17, 321. doi: 10.1186/s12917-021-03031-4
Suriyasathaporn, W., Heuer, C., Noordhuizen-stassen, E. N., Schukken, Y. H. (2000). Hyperketonemia and the impairment of udder defense: A review. Vet. Res. 31 (4), 397–412. doi: 10.1051/vetres:2000128
Sztachańska, M., Barański, W., Janowski, T., Pogorzelska, J., Zduńczyk, S. (2016). Prevalence and etiological agents of subclinical mastitis at the end of lactation in nine dairy herds in north-East Poland. Pol. J. Vet. Sci. 19, 119–124. doi: 10.1515/pjvs-2016-0015
Tenhagen, B. A., Köster, G., Wallmann, J., Heuwieser, W. (2006). Prevalence of mastitis pathogens and their resistance against antimicrobial agents in dairy cows in Brandenburg, Germany. J. Dairy Sci. 89, 2542–2551. doi: 10.3168/jds.S0022-0302(06)72330-X
Todhunter, D. A., Smith, K. L., Hogan, J. S. (1991). Antibodies to iron-regulated outer membrane proteins of coliform bacteria isolated from bovine intramammary infections. Vet. Immunol. Immunopathol. 28, 107–115. doi: 10.1016/0165-2427(91)90133-W
Tuck, M. K., Chan, D. W., Chia, D., Godwin, A. K., Grizzle, W. E., Krueger, K. E., et al. (2009). Standard operating procedures for serum and plasma collection: Early detection research network consensus statement standard operating procedure integration working group. J. Proteome Res. 8, 113–117. doi: 10.1021/pr800545q
Viguier, C., Arora, S., Gilmartin, N., Welbeck, K., O’Kennedy, R. (2009). Mastitis detection: current trends and future perspectives. Trends Biotechnol. 27, 486–493. doi: 10.1016/j.tibtech.2009.05.004
Vita, R., Overton, J. A., Greenbaum, J. A., Ponomarenko, J., Clark, J. D., Cantrell, J. R., et al. (2015). The immune epitope database (IEDB) 3.0. Nucleic Acids Res. 43, D405–D412. doi: 10.1093/nar/gku938
Wang, X., Teng, D., Guan, Q., Mao, R., Hao, Y., Wang, X., et al. (2017). Escherichia coli outer membrane protein f (OmpF): An immunogenic protein induces cross-reactive antibodies against escherichia coli and shigella. AMB Express 7, 155. doi: 10.1186/s13568-017-0452-8
Wilson, D. J., Gonzalez, R. N., Das, H. H. (1997). Bovine mastitis pathogens in new York and Pennsylvania: Prevalence and effects on somatic cell count and milk production. J. Dairy Sci. 80, 2592–2598. doi: 10.3168/JDS.S0022-0302(97)76215-5
Yalçin, C. (2000). Cost of mastitis in Scottish dairy herds with low and high subclinical mastitis problems. Turk J. Vet. Anim. Sci. 24, 465–472.
Yu, N. Y., Wagner, J. R., Laird, M. R., Melli, G., Rey, S., Lo, R., et al. (2010). Sequence analysis PSORTb 3.0: improved protein subcellular localization prediction with refined localization subcategories and predictive capabilities for all prokaryotes. Bioinformatics 26, 1608–1615. doi: 10.1093/bioinformatics/btq249
Zadoks, R. N., Gillespie, B. E., Barkema, H. W., Sampimon, O. C., Oliver, S. P., Schukken, Y. H. (2003). Clinical, epidemiological and molecular characteristics of Streptococcus uberis infections in dairy herds. Epidemiol. Infect. 130, 335–349. doi: 10.1017/S0950268802008221
Zadoks, R. N., Schukken, Y. H., Wiedmann, M. (2005). Multilocus sequence typing of streptococcus uberis provides sensitive and epidemiologically relevant subtype information and reveals positive selection in the virulence gene pauA. Epidemiol. Infect. 43, 2407–2417. doi: 10.1128/JCM.43.5.2407-2417.2005
Zhai, S.-L., Naif Alhussien, M., Díaz-Dinamarca, D. A., Suvorov, A., Wu, P., Chen, C., et al. (2021). The recombinant expression proteins FnBP and ClfA from staphylococcus aureus in addition to GapC and sip from streptococcus agalactiae can protect BALB/c mice from bacterial infection. Front. Veterinary Sci. 1. doi: 10.3389/fvets.2021.666098
Keywords: mastitis, cattle, immunogenic proteins, mastitis diagnostics, bioinformatic analysis, Escherichia coli, Streptococcus uberis, Streptococcus agalactiae
