Álvaro López-Valiñas1,2,3*
Marta Valle1,2,3Miaomiao Wang1,2,3Ayub Darji1,2,3Guillermo Cantero1,2,3
Chiara Chiapponi4
Joaquim Segalés2,3,5
Llilianne Ganges1,2,3,6
José I. Núñez1,2,3*- 1IRTA, Programa de Sanitat Animal, Centre de Recerca en Sanitat Animal (CReSA), Campus de la Universitat Autònoma de Barcelona (UAB), Barcelona, Spain
- 2Unitat mixta d’Investigació IRTA-UAB en Sanitat Animal, Centre de Recerca en Sanitat Animal (CReSA), Campus de la Universitat Autònoma de Barcelona (UAB), Barcelona, Spain
- 3WOAH Collaborating Centre for the Research and Control of Emerging and Re-Emerging Swine Diseases in Europe (IRTA-CReSA), Barcelona, Spain
- 4WOAH Reference Laboratory for Swine Influenza, Istituto Zooprofilattico Sperimentale della Lombardia ed Emilia-Romagna, Brescia, Italy
- 5Departament de Sanitat i Anatomia Animals, Universitat Autònoma de Barcelona, Barcelona, Spain
- 6WOAH Reference Laboratory for Classical Swine Fever, IRTA-CReSA, Barcelona, Spain
Influenza A viruses (IAVs) can infect a wide variety of bird and mammal species. Their genome is characterized by 8 RNA single stranded segments. The low proofreading activity of their polymerases and the genomic reassortment between different IAVs subtypes allow them to continuously evolve, constituting a constant threat to human and animal health. In 2009, a pandemic of an IAV highlighted the importance of the swine host in IAVs adaptation between humans and birds. The swine population and the incidence of swine IAV is constantly growing. In previous studies, despite vaccination, swine IAV growth and evolution were proven in vaccinated and challenged animals. However, how vaccination can drive the evolutionary dynamics of swine IAV after coinfection with two subtypes is poorly studied. In the present study, vaccinated and nonvaccinated pigs were challenged by direct contact with H1N1 and H3N2 independent swine IAVs seeder pigs. Nasal swab samples were daily recovered and broncho-alveolar lavage fluid (BALF) was also collected at necropsy day from each pig for swine IAV detection and whole genome sequencing. In total, 39 swine IAV whole genome sequences were obtained by next generation sequencing from samples collected from both experimental groups. Subsequently, genomic, and evolutionary analyses were carried out to detect both, genomic reassortments and single nucleotide variants (SNV). Regarding the segments found per sample, the simultaneous presence of segments from both subtypes was much lower in vaccinated animals, indicating that the vaccine reduced the likelihood of genomic reassortment events. In relation to swine IAV intra-host diversity, a total of 239 and 74 SNV were detected within H1N1 and H3N2 subtypes, respectively. Different proportions of synonymous and nonsynonymous substitutions were found, indicating that vaccine may be influencing the main mechanism that shape swine IAV evolution, detecting natural, neutral, and purifying selection in the different analyzed scenarios. SNV were detected along the whole swine IAV genome with important nonsynonymous substitutions on polymerases, surface glycoproteins and nonstructural proteins, which may have an impact on virus replication, immune system escaping and virulence of virus, respectively. The present study further emphasized the vast evolutionary capacity of swine IAV, under natural infection and vaccination pressure scenarios.
1 Introduction
Influenza A viruses (IAVs) are worldwide distributed pathogens whose natural hosts are many bird and mammal species including humans and pigs. IAVs genome is composed of 8 RNA negative sense strand segments which code for: two polymerases basic (PB1 and PB2) and one polymerase acidic (PA), the hemagglutinin (HA), the nucleoprotein (NP), the neuraminidase (NA), the matrix proteins (M) and the nonstructural proteins (NS1) (Breen et al., 2016). The evolution of IAVs, like other RNA viruses, is described under the quasispecies theory (Domingo et al., 2012; Domingo and Perales, 2019). On one hand, IAVs genome can rapidly accumulate point mutations along the whole genome, because of the low proofreading activity of their polymerases (Chen and Holmes, 2006; Shao et al., 2017), which could confer adaptative advantages to progeny. Also, the evolution of the surface glycoproteins, HA and NA, are constantly under immune pressure if the host has pre-existing immunity against swine IAV. Therefore, both segments, could achieve a new antigenic pattern after genetic diversification, avoiding pre-existing immunity (Carrat and Flahault, 2007). On the other hand, genomic segment reassortments between different IAVs subtypes generate higher levels of variability. This genetic mechanism can occur when a host is simultaneously coinfected by different IAVs and, as a result, new viruses could arise with different host range, antigenicity, and virulence properties. Historically, these reassortment events were responsible for the emergence of important flu pandemics such as the Asian flu in 1957 (H2N2) and the Hong Kong flu of 1968 (H3N2) (Scholtissek et al., 1978; Kawaoka et al., 1989; Belshe, 2005).
In 2009, a new pandemic influenza strain A(H1N1)pdm09 of swine origin quickly spread by human to human contact through more than 30 countries and it has been calculated that caused between 151,700 and 574,400 human deaths associated with the infection (Swine influenza - WOAH - World Organisation for Animal Health, n.d.; Smith et al., 2009). This new strain arose from the reassortment of two circulating swine IAVs, the H1N1 Eurasian “avian-like” (EA) swine strain and a previous circulating human-like H1N2 virus harboring avian, human and swine IAVs segments (Smith et al., 2009; Trifonov et al., 2009). This H1N2 strain arose in 1994 a consequence of reassortment between two strains circulating in pigs, H1N1 and H3N2 (Brown et al., 1998). Lately, in China, a new viral strain H1N1 named as G4 EA, with pandemic and triple reassortant segments, became predominant in the swine population. This strain is capable of infecting humans and, therefore, could pose an imminent pandemic risk (Sun et al., 2020). Hence, pigs play an important role in the generation of new IAVs strains with pandemic potential as they are considered “mixing vessels”, being susceptible to avian, human, and swine IAVs (Ito et al., 1998; Brown, 2000; Ma et al., 2009). Accordingly, pigs could serve as intermediaries in the adaptation of avian IAVs to humans and vice versa (Medina, 2018).
In the last decade, the most circulating subtypes among pig population on European farms have been EA swine H1N1, “human-like” swine H1N2, “human-like” reassortment swine H3N2 and A(H1N1) pdm09 viruses (Simon-Grifé et al., 2011; Torremorell et al., 2012; Kyriakis et al., 2013; Simon et al., 2014; Li and Robertson, 2021). The mortality rate caused by swine IAV in swine is usually low if no major co-infections do occur, but it is a highly contagious disease whose morbidity rate could reach 100% in exposed animals (Er et al., 2014; Li and Robertson, 2021). Both the high seroprevalence and the ever-increasing pig population make reassortment events possibilities being more feasible. Nowadays, biosecurity measures and trivalent vaccine application are the main strategies to avoid disease and reduce swine IAV prevalence (Thacker and Janke, 2008; Salvesen and Whitelaw, 2021), although vaccination is limitedly performed in Europe reaching only 10-20% of the pig population (Reeth et al., 2016). The most used trivalent vaccine against swine IAV in the EU includes H1N1, H3N2, and H1N2 subtypes in its formulation. It reduces virus spread and disease, although it does not generate sterilizing immunity in the host, allowing viral replication (Thacker and Janke, 2008; Ma and Richt, 2010). It is known that swine IAV breakthrough infections are common in pigs because virus evolution favors the escape to the host immunity (Murcia et al., 2012), this situation can promote the circulation of the virus in vaccinated pigs (Chamba Pardo et al., 2018). Previous studies suggest that the application of the trivalent vaccine can influence on the evolutionary dynamics of swine IAV viral populations, being different in vaccinated and nonvaccinated animals (López-Valiñas et al., 2021; López-Valiñas et al., 2022).Thus, the aim of the present study was to evaluate the evolutionary dynamics of swine IAV during a coinfection trial in pigs with EA swine H1N1 and “human-like” swine H3N2 strains in vaccinated and nonvaccinated pigs. Overall, our study retrieved by NGS 39 complete viral quasispecies collected from vaccinated and nonvaccinated pigs, finding different evolutionary patterns, and nonsynonymous substitutions that may play an important role in virulence and the evasion of the swine immune system.
2 Material and methodologies
2.1 Cells, viruses, and vaccine
Viral titration and production were performed using Madin-Darby Canine Kidney (MDCK, ATCC CCL-34). For cell culture, Dulbecco’s Modified Eagle Medium (DMEM) was used supplemented with fetal bovine serum (FBS) (10%), L-glutamine (1%) and penicillin/streptomycin (1%). The cell culture conditions were 37°C with 5% CO2 atmosphere in an incubator.
The A/Swine/Spain/01/2010 H1N1 and the A/Swine/Spain/SF32071/2007 H3N2 viruses were propagated in MDCK monolayer cell cultures at a multiplicity of infection (MOI) of 0.01 and harvested 48 hours later. Virus cell entry was facilitated by 10 µg/mL of porcine trypsin (Sigma-Aldrich, Madrid, Spain) addition. For both virus titrations, serial dilutions in MDCK cells were carried out to calculate the 50% tissue culture infection dose (TCID50) (Reed and Muench, 1938).
In the present study, the commercial inactivated swine IAV vaccine (RESPIPORC FLU3, IDT®, Dessau-Rosslau, Germany) was used. Vaccine formulation includes the H1N1 (Haselünne/IDT2617/2003), H3N2 (Bakum/IDT1769/2003), and H1N2 (Bakum/1832/2000) strains.
2.2 Experiment design
Twenty 5-week-old domestic pigs free from swine IAV and its antibodies were selected. Animals were equally distributed in two different boxes of the animal biosafety level 3 (aBSL3) facilities at IRTA-CReSA (Figure 1). In one box, seeder animals H1N1 (No. 1 and 2), seeder animals H3N2 (No. 5 and 6) and animals from group A (No. 9 to 14) were allocated. Seeders H1N1 (No. 3 and 4), seeders H3N2 (No. 7 and 8), and animals from group B (No. 15 to 20) were housed in the second box.
Figure 1 Experimental design and animal distribution. Vaccinated and nonvaccinated pigs are represented in blue and yellow figures, respectively. Seeders animals are represented in grey until the day of their challenge when pigs challenged with H1N1 are represented in red meanwhile those challenged with H3N2 are in green.
After an acclimation period of one week, animals from group A received the first dose of the commercial trivalent vaccine according to manufacturer’s instructions, administering 2 mL intramuscularly in the neck muscle. In parallel, animals from group B received 2 mL of phosphate buffered saline (PBS) in the same manner. Twenty-one days post-vaccination (21 dpv), animals from group A and B, received the second dose of the vaccine and PBS, respectively.
Three weeks after the second vaccination dose (42 dpv), animals 1 to 4 and 5 to 8 were challenged with A/swine/Spain/SF11131/2007 (H1N1) and A/Swine/Spain/SF32071/2007 (H3N2), respectively. For the inoculation, two administration routes, intranasal and endotracheal, were used with a viral concentration of 107 TCID50 in a final volume of 2 and 5 mL, respectively. For the intranasal administration, 1 mL of inoculum per nostril was administered with a diffuser device (MAD Nasal, Teleflex, Morrisville, NC, USA). On the other hand, for the endotracheal administration, animals were intubated. For both, a nose snare was used to restrain animals (López-Valiñas et al., 2021). Experimentally inoculated animals were separated from the rest by a physical barrier. One day post inoculation (1 dpi), barriers were lifted to allow direct contact.
After the challenge, animals were daily monitored for rectal temperature, clinical signs, and animal behavior in a blind manner by trained veterinarians. Clinical signs were scored as previously described (Galindo-Cardiel et al., 2013). Moreover, after the first day post-contact (1 dpc), the swine IAV load in nasal swab samples was daily measured by RTq-PCR (explained below). When viral loads started to drop, animals were euthanized.
Nasal swab samples were collected before first and second vaccinations, at day of challenge and daily from 1 dpc to animal euthanasia. Blood samples were collected at vaccinations, challenge, and euthanasia days. From each euthanized animal, lung, nasal turbinate (NT) and broncho-alveolar lavage fluid (BALF) were collected and stored at -80°C. BALF from each animal was collected after filling the right lung with 150 mL of PBS. By last, lung samples (apical, middle and cranial part of diaphragmatic lobes) was fixed by immersion in 10% buffered formalin.
Procedures were approved by the animal ethics committee from the Generalitat de Catalunya, under the project number 10856, following the Spanish and European regulations.
2.3 Evaluation of the humoral response against swine IAV
Antibody levels against influenza NP was performed by ID Screen®—influenza A Antibody Competition ELISA kit (ID VET, Grabels, France). The inhibition percentages were calculated according to the manufacturer’s instructions where values below 45% were considered positive, greater than 50% negative, and between both values doubtful.
Furthermore, the hemagglutination inhibition (HI) assay was performed in samples collected at day of seeders challenge and each pig euthanasia day as previously described (López-Serrano et al., 2021). All tested serum samples were first treated with RDE II Seiken (Denka Chemicals, Tokyo, Japan) at 37°C during 18 h and later inactivated at 56°C for 1 h. Unspecific hemadsorption inhibitors were removed by adding a volume of 50% chicken red blood cells (RBCs) and later diluted in PBS (1:10). Treated pig sera were two-fold diluted, in v-bottomed 96 well plates, with PBS up to the 1:1024 dilution. Subsequently, 25 µL of each viral isolates used on challenge diluted up to 4 Hemagglutination Units (HAU), were dispensed in each well in parallel and incubated during 1 h at room temperature. Afterward, 25 µL of 0.5% of chicken RBCs were dispensed and again incubated for 1 h at room temperature. The hemagglutination titer of each serum was established as the reciprocal dilution at which inhibition was complete. Titers ≥1/40 were considered protective.
2.4 Pathological analyses and immunohistochemistry in lung
The lung parenchyma was macroscopically examined during each animal necropsy. The percentage of lung-affected area was also determined through an image analysis as previously described (Sibila et al., 2014), using ImageJ® software (ImageJ, n.d.).
A sample from each lung section collected in formalin was subsequently dehydrated and embedded in paraffin wax. Later, two 3–5 μm thick sections were cut for both, hematoxylin-eosin (H&E) staining and immunohistochemistry (IHC), for light microscopy examination (Busquets et al., 2010; Sisteré-Oró et al., 2019). For IHC, the two-step polymer method (Envision TM) was conducted using a monoclonal one against influenza A virus (IAV) (Hb65 from the ATCC) and system + HRP-labeled polymer Anti-Mouse (K4001, Dako) as primary and secondary antibodies, respectively (Sabattini et al., 1998). The degree of lung lesion according to the number of airways affected and the amount of immunoreactivity were evaluated, on H&E and IHC examination, respectively, using a previously described semiquantitative scoring system (Detmer et al., 2013).
2.5 Swine IAV genome detection
Lung and NT were homogenized in brain heart infusion medium (10% weight/volume) with TissueLyser II (Qiagen, Düsseldorf, Germany). RNA from nasal swab, BALF, lung and NT samples were extracted using the MagAttract 96 Cador Pathogen kit ® (Qiagen, Düsseldorf, Germany) according to manufacturer’s instructions. To detect and quantify swine IAV RNA on each sample a RT-qPCR based on M segment amplification was performed in the Fast7500 equipment (Applied Biosystem) (Spackman et al., 2002). Samples with a cycle threshold (Ct) value under 40 were considered positive whereas no fluorescence detection were considered negative (Spackman et al., 2002; López-Valiñas et al., 2021).
2.6 Whole swine IAV genome sequencing
RNA from A/Swine/Spain/01/2010 H1N1 and A/Swine/Spain/SF32071/2007 H3N2 inocula, and RNA extracted from nasal swab and BALF samples with a Ct value lower than 35 were proposed for whole genome sequencing (Zhou et al., 2009; López-Valiñas et al., 2021). First, a whole swine IAV genome amplification was performed using 0.5 μL of each forward MBTuni-12 and reverse MBTuni-13 primers, both at 0.2 μM. Moreover, 0.5 μL of SuperScript® III One-Step RT-PCR System with Platinum™ Taq High Fidelity DNA Polymerase (Thermo Fisher Scientific, Waltham, MA, USA), 12.5 μL of reaction mix included in the kit, 8.5 μL of RNase free water and 2.5 μL of swine IAV RNA. In parallel, a second amplification was performed to enhance biggest swine IAV segments amplification replacing the forward primer by MBTuni12G, keeping the remaining conditions (Lycett et al., 2012). Only samples with whole swine IAV amplification were further selected (Zhou et al., 2009). For sequencing, a multiplexed sequencing library was prepared per sample following the Nextera-XT DNA Library Prep protocol (Illumina®, San Diego, CA, USA). Subsequently, the library sequencing was performed using Miseq Reagent Kit v2 in a 150-cycle paired-end run on Miseq Instrument (Illumina®, San Diego, CA, USA).
2.7 Bioinformatic workflow for quasispecies genomic and evolutionary analysis
In the present study, a bioinformatic workflow was developed to Illumina reads alignment and variant calling, with tools widely used for the study of viral quasispecies (Sobel Leonard et al., 2016; Borges et al., 2018; Cacciabue et al., 2020). First, Illumina adapters were automatically removed. Read quality was checked with FastQC (v 0.11.8) (Andrews, 2010) and low-quality reads (Phread < 30) were trimmed by Trimmomatic (v0.39) (Bolger et al., 2014). To determine swine IAV H1N1 and H3N2 inoculum consensus sequences, reads from both were aligned against the H1N1 (JX908038-45) (Martín-Valls et al., 2014) and H3N2 (HE774666-73) (Mussá et al., 2013) genome sequences using the Burrows-Wheeler alignment (BWA) tool mem function (v0.7.17) (Li and Durbin, 2009). After mapping, unmapped and low quality mapped (< 30) reads were removed from the analysis using Samtools (v.0.39) (Danecek et al., 2021). Moreover, PCR duplicates and reads recalibration were performed with the Picard “MArkDuplicatesSpark” and “BaseRecalibrator” options included in GATK4 (v4.1). Indeed, the sequence depth on each genome position was calculated with “-depth” function included on Samtools (v1.9) and plotted using ggplot2 library in Rstudio (RStudio | Open source & professional software for data science teams - RStudio, n.d.; Wickham, 2016). Subsequently, consensus sequences were generated using consensus option from Bcftools (v.1.9) (Danecek et al., 2021).
All samples were simultaneously aligned, against both inocula consensus, following the previous described workflow. Finally, each sample was again aligned, using only as a reference the segments that were present on each specific sample. In all samples, SNV reported because of misalignment reads due to the high percentage of similarity between H1N1 and H3N2 sequences, were parsed and eliminated using R (v.4.1.2) (RStudio | Open source & professional software for data science teams - RStudio, n.d.).
All variants found along the whole genome were noted using LoFreq software with default parameters (Wilm et al., 2012). Moreover, the effect of each substitution noted on variants was predicted with SnpEff software (v.4.3) (Cingolani et al., 2012). Previously, a database for both subtypes was created with “build–gtf22” function, using the previously annotated genomes (Mussá et al., 2013; Martín-Valls et al., 2014). The following requirements were considered to call a single nucleotide variant (SNV); p value <0.01 and at least 50 and 10 reads of depth and alternative base count respectively (López-Valiñas et al., 2021). Finally, the nucleotide diversity (π) per genomic segment per sample were calculated with SNPGenie software (Nelson et al., 2015).
2.8 Protein structure representation
Allocations of nonsynonymous substitutions with an allele frequency greater than 5% were pointed in each swine IAV protein. Lolliplot proteins representation was done with the trackViewer package from Bioconductor (Ou and Zhu, 2019). All protein domain delimitation was inferred as previously reported (Sriwilaijaroen and Suzuki, 2012; Hu et al., 2014; McAuley et al., 2019). Besides, HA and NA 3D protein representations were also performed with the PyMOL Molecular Graphics System (v.4.6).
2.9 Statistical analysis
The T-test was used to compare the distribution of the antibody levels against influenza NP on the day of the challenge, and Ct values from 4 to 9 dpi, between vaccinated and nonvaccinated animals. The Chi-squared test was used to study differences in proportions between the numbers of genomic segments detected and synonymous and nonsynonymous percentages in vaccinated and nonvaccinated pigs. Subsequently, the Bonferroni correction was applied. Finally, an analysis of variance (ANOVA) and subsequent post-hoc Kruskal-Wallis test by rank, were applied to compare π means between vaccinated and nonvaccinated animals on different dpi and in different segments.
3 Results
3.1 Humoral response against swine IAV
Competition percentage means of antibodies against NP were greater at all sampling days in vaccinated animals. From day of challenge until the end of the experiment, difference between groups were significant (p= 0.001881; t-test). At day of challenge, 2 out of 6 serum samples collected from vaccinated animals were considered positive, but in the whole group an increase in the antibody titers has been observed, indicating that an immune response has taken place (Figure 2).
Figure 2 Swine IAV NP antibody kinetics in serum samples represented in boxplots. The percentage of competition is expressed in the ordinate axis whereas the sampling day is indicated on the abscissas one. Blue boxplots show samples collected from vaccinated animals, whereas the yellow ones represent nonvaccinated ones, and the whiskers show quartile variability. Different shapes illustrate the ID number of each pig. Values above the red line (<45%), below the grey line (>50%) and between both lines are considered positive, negative, and doubtful respectively. *P < 0.05.
Regarding HI titers against strains used for the inoculation at the day of challenge showed no positive titers against H1N1 subtype in vaccinated pigs, while all sera had positive titers against H3N2 subtype (Table 1), even though the percentage of amino acid identity is similar between the vaccine viruses and the challenge viruses (96,47% for H3 and 95,76% for H1). Additionally, from the 50 positions involved in antigenic sites, only position 204 (antigenic site Ca1) shows different amino acids between vaccine and virus challenge (D and V, respectively). On the day of euthanasia, titers against H1N1 subtype were only detected in vaccinated animals, specifically in 3 out of 6 animals. On the other hand, positive titers against H3N2 were observed in all samples collected from vaccinated animals, whereas were only detected in nonvaccinated pig sera at 8 and 9 dpi with low titers.
Table 1 HI titers of sera samples collected from vaccinated and nonvaccinated animals against H1N1 (left) and H3N2 (right) strains used on the challenge.
3.2 Swine IAV genome was detected in both experimental groups after seeder contact
Swine IAV RNA was detected in nasal swab samples collected from seeders, vaccinated and nonvaccinated animals, from 2 dpi until the end of the experiment (Figure 3A; Supplementary Table S1). swine IAV was not detected in any nasal swab sample collected before the challenge (42 dpv) (Figure 3A). As average, lower Ct values were detected in samples collected from nonvaccinated animals in comparison with vaccinated ones, being this difference significant at 6 dpi (t-test; p=0.0186) with a mean Ct value of 24,23 ± 1,33 and 27,68 ± 2,51, respectively. In total, 32 out of 39 and 31 out of 40 nasal swab samples analyzed from vaccinated and nonvaccinated animals, respectively, were RT-qPCR swine IAV positive. Besides, 23 vaccinated and 26 nonvaccinated samples obtained Ct values lower than 35.
Figure 3 Swine IAV genome detection in samples collected from H1N1 and H3N2 seeders, vaccinated and nonvaccinated pigs (A) Daily swine IAV RNA detection in samples collected from nasal swabs. (B) Swine IAV genome detection in BALF, lung, and nasal turbinates collected on the euthanasia day. The Ct values are represented as a heat map where the maximum intense red colors represent higher viral loads and vice versa. RT-qPCR CT values greater than 40 were considered negative, represented in white. No sampling collected was represented as grey. The ID of each animal and the day at which each sample was collected are represented in ordinate and abscissa axes, respectively.
Regarding BALF, lung, and nasal turbinate samples, swine IAV was detected in all samples except in BALF from vaccinated animal No. 11 and lung from animal No. 2. No significative differences were observed between groups, showing similar mean Ct values (Figure 3B; Supplementary Table S1). All positive BALF samples had a Ct value lower than 35.
3.3 Pathological findings
On average, the lung affected area was greater in vaccinated animals, although statistical differences were not found. Vaccinated animals No. 9 and No. 10 had higher percentage of pneumonic lesions, 17.89 and 31.89% respectively. The remaining pigs did not exceed 6% of lung affected area (Table 2).
Table 2 Lung pathological results according to the percentage of total lung-affected area, and the semi-quantitative scoring for the degree of airways affectation and amount of immunoreactivity.
All pigs, irrespectively from their vaccination status, developed a mild-to-severe broncho-interstitial pneumonia, with scores ranging from 1.5 to 3. In vaccinated pigs, three animals had the highest histopathological scoring, whereas the remaining ones obtained the second highest score value, with 2.5. By contrast, an average lower microscopic lesion scores were detected in nonvaccinated pigs. Regarding immunohistochemistry, all lungs had scattered amount of immunoreactivity except nonvaccinated animals No. 16 and 19, with low amounts, and vaccinated pig No. 11, with no immunoreactivity.
3.4 Whole genome sequencing of inocula, nasal swab, and BALF collected from vaccinated and nonvaccinated animals
The whole swine IAV genome from inocula A/swine/Spain/SF11131/2007 (H1N1) and A/Swine/Spain/SF32071/2007 (H3N2) was sequenced (Figure 3A). From samples collected after contact challenge, 39 swine IAV genomes were obtained, 20 from vaccinated animals and 19 from nonvaccinated ones (Supplementary Table S1). After sequenced samples alignment, a total of 2.467.438 reads of swine IAV were obtained, 1.347.544 from vaccinated samples and 1.119.899 from nonvaccinated ones; 67% of these reads matched against the H1N1 genome whereas the remaining 33% did it against H3N2 subtype (Supplementary Table S2).
Regarding the depth per position and the coverage (Figure 4), 74.8% of H1N1 swine IAV whole genome positions sequenced were represented with a depth of more than 50 reads. On the other hand, the 6% of the H3N2 position sequenced were also represented by more than 50 reads. Those positions were selected for further variant analysis. In general, NS and M segments obtained the greatest median depth values (Figure 4), meanwhile, the biggest segments PA, PB1 and PB2 got the lowest values.
Figure 4 Illumina sequencing reads aligned against each subtype genomic profile. (A) Illumina sequencing profile of swine IAV H1N1 (plotted in red) and H3N2 (plotted in green) used as inocula. In the x axis each position per genomic segment is indicated whereas the depth of read is indicated in y axis in the logarithm scale. (B) Heat map of the median depth value obtained in all sequenced samples from vaccinated and nonvaccinated animals per H1N1 (left) and H3N2 (right) genomic segments. Genomic segments per subtype and samples are indicated in the x and y axes, respectively. The name of each sequenced sample indicates the origin and the day of its collection. BALF samples were collected at each pig necropsy.
A total of 1947 out of 2544 called variants were deleted because of misalignment reads due to the high percentage of similarity between H1N1 and H3N2 sequences (Supplementary Table S3). Hence, 597 SNVs were further analyzed.
3.5 Determination of H1N1 and H3N2 genomic segment per sample
In relation to the subtype segments profile per sample, in vaccinated animals we obtained 95 H1N1 segments, 18 H3N2 segments, and 41 segments where both subtypes were simultaneously found (Figure 5). Meanwhile, in nonvaccinated pigs, 42 H1N1, 50 H3N2, and 60 segments with both subtypes were found (Figure 5). The distribution of H1N1 and H3N2 segments was statistically different between groups (P = 0.0002, P = 0.000018, respectively; chi-squared), being greater the number of H1N1 segments in vaccinated animals and greater the number of H3N2 segments in nonvaccinated ones. Regarding the number of segments in which sequences from both subtypes were found, in vaccinated animals this number was lower than that of nonvaccinated ones, although this difference was not significant (P = 0.0587; chi-squared).
Figure 5 Profile subtype identification per genomic segment in each sequenced sample heatmap. H1N1 subtype segments are indicated in red cells, H3N2 ones are indicated in green cells and yellow ones indicate that both subtypes were simultaneously found. Genomic segments and samples collected from vaccinated and nonvaccinated animals are represented on the x and y axes respectively. The number of each sequenced sample indicate the animal from which each sample was collected. Sample collection day are also indicated as dpi in nasal swab samples; BALF samples were collected on the day of necropsy.
3.6 Variants detected in inocula and their evolution in samples sequenced from infected pigs
From both inocula, 14 and 9 SNV were detected from H1N1 and H3N2 sequences, respectively (Table 3). For H1N1 sequences, 8 out of 14 substitutions found were synonymous, whereas for H3N2 ones all SNV detected were nonsynonymous. Furthermore, most of the SNV detected in H1N1 sequences (12 out of 14) exceed the 5% of allele frequency whereas none of them did it for the H3N2 inoculum (Table 3).

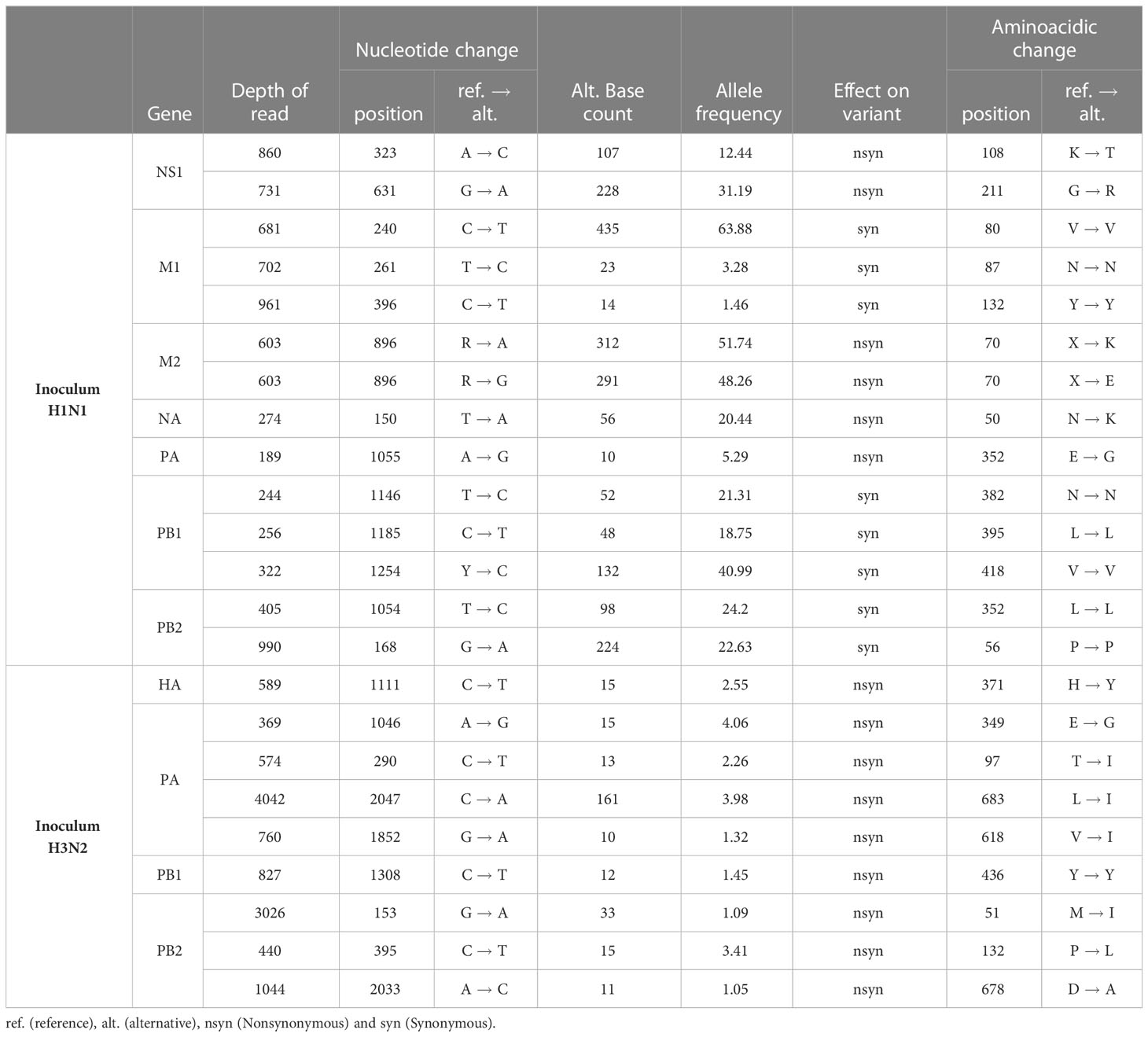

Table 3 SNV detected in H1N1 and H3N2 inoculum samples.
These SNV were later detected in samples collected from vaccinated and nonvaccinated animals in the HN1 inoculum (Figure 6). In most of the sequenced samples, the SNVs G211R (NS1), V80V (M1), X70E (M2), L395L, and V418 (PB1) increased their allele frequency over time. On the other hand, allele frequencies of NS1 K108T, M1 N87N and Y132Y, NA N50K, PA E325G, PB1 N382N, and PB2 substitutions tended to decrease until they were no longer detected, with some exceptions (Figure 6). Notably, all SNV detected in H3N2 inoculum were no later detected in sequenced samples.
Figure 6 Evolution of the allele frequencies of nonsynonymous substitutions detected in H1N1 inoculum and later in samples collected from both experimental groups. The day of variant detection and the allele frequency percentage is represented in ordinate and abscissa axes, respectively. The “In.” in x axis indicates the percentage obtained in the inoculum, whereas 4 to 9 numbers indicate the days post-inoculation. In each column, the different animals are represented while in each row NS1, M1, M2, NA, PA, PB1, and PB2 proteins are indicated. Each mutation is plotted in different colors.
3.7 De novo SNVs identification; synonymous and nonsynonymous proportion and allocation along swine IAV genome segments
A total of 313 SNVs were found in all analyzed samples, 187 in vaccinated animals and 126 in nonvaccinated ones (Figures 7 and 8). In vaccinated pigs, 172 were found in H1N1 and 15 in H3N2 subtypes, meanwhile, in nonvaccinated animals 67 and 59 were identified per subtype, respectively. Regarding SNVs per subtype, 239 were found in H1N1 and 74 in H3N2 (Figure 7).
Figure 7 De novo synonymous and nonsynonymous SNV proportion bars in samples from vaccinated and nonvaccinated animals at different allele frequencies. (A) SNV proportions found in the H1N1 subtype are represented in red bars (B) SNV proportions found in the H3N2 subtype are represented in green bars. The total number of SNV and its percentages are indicated in each bar. Dark and soft colors represent nonsynonymous and synonymous SNV, respectively.
Figure 8 De novo synonymous and nonsynonymous SNV with an allele frequency greater than 1% allocation along swine IAV genome. (A) SNVs found in the H1N1 subtype are represented in red circles. (B) SNV found in the H3N2 subtype are indicated in green circles. Nonsynonymous and synonymous substitutions are represented in dark and light colors, respectively. Circle size indicates the total number of SNV found per genomic segment and samples, in abscissa and ordinate axes respectively.
The proportions of the total synonymous and nonsynonymous de novo SNV were studied from 1 to 10% allele frequency in sequenced samples from vaccinated and nonvaccinated animals (Figure 7). Regarding the H1N1 subtype, the proportion of nonsynonymous variants was greater than synonymous ones for all allele frequencies analyzed in both experimental groups. This difference was greater in vaccinated animals although no statistical differences between groups were found (Figure 7A). In contrast, these proportions were very close to 50% in nonvaccinated animals, being this trend consolidated throughout the allele frequencies analyzed. For H3N2, the proportion of nonsynonymous SNVs was greater in both scenarios, specifically in samples from nonvaccinated animals (Figure 7B).
Considering those variants whose allele frequency was greater than 1%, SNV were allocated along the whole genome of both studied subtypes (Figure 8; Supplementary Table S4). In general, more substitutions were found in samples from vaccinated animals for the H1N1 subtype (Figure 8A). Specifically, a total of 54 de novo nonsynonymous variants were found in polymerase segments in samples from vaccinated animals, while only 14 were reported in nonvaccinated pigs. In the HA and NA segments, 12 and 13 nonsynonymous substitutions were reported from vaccinated animals while only 3 and 5 were found in the nonvaccinated ones, respectively. Regarding the NS, a total of 17 nonsynonymous variants were identified in vaccinated animals and 9 in nonvaccinated pigs. Lastly, segments in which the least nonsynonymous substitutions appeared were in the M and the NP proteins, with 6 and 7 in vaccinated and 4 and 2 in nonvaccinated pigs, respectively (Figure 8A). Regarding SNV found in the H3N2 subtype, only 8 nonsynonymous substitutions were found in vaccinated animals, 2 in PB2, 2 in PB1, 2 in M, and only 1 in NA and NS. Nevertheless, no nonsynonymous substitutions were reported in PA, HA, and NP (Figure 8B). On the other hand, in the nonvaccinated group, the largest number of nonsynonymous variants were also found in the polymerase segments, 11 in PA, 11 in PB1 and 8 in PB2. In the remaining segments, 4 nonsynonymous variants were detected in NS, 2 in M, and only one was reported in HA, NA, and NP (Figure 8B).
3.8 De novo nonsynonymous SNV with an allele frequency greater than 5% are allocated on protein domains
For the H1N1 subtype, the following nonsynonymous SNV exceeding the 5% of allele frequency were reported in vaccinated animals: NS1 (T91I and L146P), ion channel (M2) (I51N and G58D), NA (V394I), NP(A286T, T360A, S407N, and V456L), HA (E111K, N275S, S278P, T408A, V466I, and K467R), PA (T528I, V645A, and V645I), PA-X (E114K, R208K, and V218A), PB1 (R187G, A370V, F512C, C625G, S642N, W666L, and S720F), PB1-F2 (K29R and P33L), and PB2 (L77V, D195N, T364K, I394T, Q566L, and D671G). Meanwhile, in nonvaccinated animals, substitutions were allocated in NS1 (K66E, L79I, and F137Y), M2 (G58D), matrix protein (M1) (Q158L and E204V), NA (S90P and N209K), HA (V216I and V466I), PA (I407V and V505I), PA-X (R208K), PB1 (A370V and K388R), PB1-F2 (F57Y), and PB2 (D195N) (Figures 9 and 10).
Figure 9 Lolliplot representation of nonsynonymous SNV allocation on swine IAV proteins. Substitutions found in NS1 (A), NS2 (B), M1 (C), M2 (D), NP (E), PA (F), PA-X (G), PB2-F2 (H), PB1 (I) and PB2 (J) proteins with an allele frequency greater than 5%. In the ordinate axis, the allele frequency of each substitution is indicated. Substitutions noted in blue and yellow show substitutions found in vaccinated and nonvaccinated animals. Besides, the circle shape indicates that substitution was reported in H1N1 subtype, whereas substitutions found in H3N2 are represented by square shapes. The number inside each shape indicates the pig ID of each reported substitution. Figure legends indicate the most important domains of each protein.
Figure 10 Localization of nonsynonymous substitutions, with an allele frequency greater than 5%, found in HA and NA surface glycoproteins on 3D and lolliplot protein representation. (A) HA trimer structure (PDB accession no. 3LZG (Xu et al., 2010)) and domains representation by lolliplot. HA1 and HA2 domains are represented in different tones of blues and reds respectively. (B) NA tetramer structure (PDB accession no. 4B7Q (van der Vries et al., 2012)) and domains representation by lolliplot. In both 3D representations, substitutions are highlighted in blue, yellow and orange if it were found in samples from vaccinated, nonvaccinated and both, respectively. In the lolliplot representation, substitutions are plotted in blue and yellow (vaccinated or nonvaccinated groups, respectively), circle and squared shapes (H1N1 and H3N2 subtypes, respectively) and number on shapes indicate the animal in which each substitution was found. In the ordinate axis, the substitution allele frequency is indicated. The different surface glycoprotein domains are indicated in lolliplot legends.
Regarding substitutions found in the H3N2 subtype in vaccinated pigs, SNVs were noted in PB2 (N9D and P14S), PB1-F2 (H15L), and NA (S333G). On the other hand, in nonvaccinated animals substitutions found were allocated in NS1 (W102L and R211G), nuclear export protein (NS2) (T33I), HA (I351K), PA (I120L, G316E, W317L, S388G, Y393C, I407V and M561V), PB1 (T57S, Q202K. C625G, A652D, and F699L), PB1-F2 (H15L), and PB2 (N71T, T215P, N659I, L665R, and K702E) (Figures 9 and 10). All the substitutions found in the present study, including those with lower allele frequency, were noted in Supplementary Table 4.
3.9 Nucleotide diversity
Within the H1N1 subtype, the nucleotide diversity (π) values fluctuated over time in both experimental groups (Figure 11A). The π significantly increased in vaccinated animals from 5 to 6 dpi, and from 7 to 8 dpi (P = 0.03134 and 0.003948, respectively; Kruskal-wallis). However, π decreased at 5 and 7 dpi in comparison with each previous day, although this decrease is not significant. Within the H3N2 subtype, the π only significantly increased from 5 to 6 dpi (P = 0.000221; Kruskal-wallis). In general, π means were greater in vaccinated animals. However, the π mean in nonvaccinated animals was slightly higher at 7 dpi, and significantly higher at 9 dpi (P = 0.04804; Kruskal-wallis). On the other hand, within H3N2 subtype, higher levels of π were observed in samples from nonvaccinated pigs at 5, 6, and 8 dpi, whereas in vaccinated animals the highest levels of π were observed at 9 dpi.
Figure 11 Evolution of the nucleotide diversity (π) in H1N1 and H3N2 viral quasispecies in vaccinated and nonvaccinated animals over time (A) and per genomic segment (B). Dots in the boxplot indicates π in each genomic segment. Boxplots indicate means, lower and upper quartile, and standard deviation. The nucleotide diversity of H1N1 and H3N2 inocula, and samples collected from vaccinated and nonvaccinated animals are represented in red, green, blue, and yellow respectively. *P < 0.05 and **P < 0.001..
Regarding π per genomic segment per group, the diversity was higher within the H1N1 subtype in comparison with the H3N2 one (Figure 11B). A greater π mean was observed in all segments of the H1N1 subtype in vaccinated animals, except in M and NS segments. The highest π was found in the HA. No significant differences per genomic segment and group were observed.
4 Discussion
In this work, a commercial trivalent vaccine was applied to immunize animals from the vaccinated group. On the day of the seeders contact, higher levels of antibodies against NP swine IAV protein were detected in vaccinated animals, with the highest percentage of competition in pig No. 9. Regarding HI activity, before the challenge, only sera from vaccinated animals had hemagglutinating titers against H3N2 subtype. On the contrary, no sera had HI activity against H1N1 at the time of contact with seeders, although it was subsequently detected in vaccinated pigs No. 10, 11, and 12 at necropsy day. This is a common effect that the vaccine provides a priming effect, and a boost is observed when the virus challenge is inoculated. This has been widely described for influenza and other viruses (Ganges et al., 2008; Díaz et al., 2013; Tarradas et al., 2014; Kim et al., 2021; Pliasas et al., 2022). Thus, we consider that the vaccine against H1N1 has a limited specific immune effect. According to swine IAV detection, the virus was detected in seeders, vaccinated, and nonvaccinated animals. Hence, the reproduction of a direct contact infection with swine IAV was achieved. Besides, the Ct value means indicated that, from 4 to 9 dpi, the viral loads were greater in nonvaccinated animals, especially at 6 dpi when mean Ct value is 3,45 times lower than vaccinated ones. Therefore, the vaccine had an effect in terms of modestly reducing viral seeding, so selective pressure on virus genome is feasible to study due to humoral immunity caused by vaccination (Murcia et al., 2012; López-Valiñas et al., 2021; López-Valiñas et al., 2022).
On the contrary, the effect of the vaccine was not as effective regarding the pathological findings, as the percentage of lung affected area and histopathological score means were greater in vaccinated animals, meanwhile similar results between groups were observed in relation to the immunohistochemical score. In vaccinated animals, animals No. 9 and 10 had the highest percentage of lung lesions with 17.96 and 31.89%, respectively. The remaining animals had similar values to pigs from the nonvaccinated group. Hence, pigs No. 9 and 10 seemed to be considered outliers. It cannot be ruled out that those animals may be suffering from vaccine-associated enhanced respiratory disease (VAERD), that has been previously described for influenza immunization (Vincent et al., 2008; Gauger et al., 2011; Kimble et al., 2022) This adverse effect is produced when the inactivated vaccine and the infection strains are of the same subtypes but with heterologous antigenicity. In consequence, and overall, the vaccine worked in terms of viral shedding reduction, but it did not avoid the swine IAV clinical and pathological manifestations.
Herein, 41 swine IAV quasispecies were analyzed by NGS, including 2 inocula, 20 samples from vaccinated animals, and 19 from nonvaccinated ones. In samples from vaccinated animals, H1N1 segments alone were more widely detected in each genomic profile (95 times), meanwhile, H3N2 segments alone were barely detected (18 times). On the contrary, in the nonvaccinated group, the presence of both segments simultaneously found was the most frequent profile detected, followed by H3N2 alone. These results indicate that vaccination modified the proportion of viral populations, favoring the dominance of the H1N1 subtype, probably because of the absence of strong detectable specific immunity against this subtype. Such effect seemed to decrease the probability of two subtypes simultaneously coexistence, therefore resulting in a decreased probability of genomic reassortment. Contrary, because of the dominant presence of the H1N1 subtype in vaccinated pigs, a greater increase in swine IAV nucleotide diversity, and the greatest number of de novo SNVs (total of 170) were found. The reduction in the presence of H3N2 segments is also reflected in the number of de novo SNV in this subtype (total of 15). Thus, in this scenario, the application of the vaccine caused the H1N1 swine IAV prevailing over H3N2, which has an impact on its evolution. On one hand, the probability of reassortments was reduced in vaccinated pigs, as has been previously reported (Li et al., 2022). On the other hand, swine IAV H1N1 genetic variability increased in this group of animals. In the long term, this could allow viral genomic diversification and, in consequence, increasing the likelihood of immune escape mutants generation, as previously reported in IAV (Zharikova et al., 2005; Sitaras et al., 2014; Yasuhara et al., 2017; Park et al., 2020; Sitaras et al., 2020; Xu et al., 2022). The amino acid identity percentage matrix among HAs and NAs from both, challenge, and vaccine strains, are available in the Supplementary Table S5.
Regarding the SNV and the nucleotide diversity found in both inocula, the H1N1 strain used resulted more genetically diverse than the H3N2 one, since more SNVs were reported, and they were also represented with a higher allele frequency. Substitutions found in the H1N1 inoculum were also detected in samples collected from both experimental groups, although SNVs allele frequencies were later decreasing over time, or they were no longer detected. However, there were also some substitutions such as, PB2 P56P, PB1 V418V, M1 V80V, M2 X70K/E, and NS1 G211R, whose allele frequencies increased in some samples over time. These variants continue belonging to the viral population despite having suffered a bottleneck effect, as showed in Figure 11 where π decreased in viral samples recovered from infected pigs in comparison with the inoculum. As opposed to that observed for H3N2, the lack of a strong detectable neutralizing activity against H1N1 in vaccinated animals may support the higher genomic diversification of H1N1 subtype. Considering the quasispecies theory, these mutants could display a beneficial effect on virus fitness, since they were present in the initial viral population mutant spectrum, and they remained after a selection event, meanwhile the remaining disappeared. On the other hand, all SNVs detected in the inoculum H3N2 viral quasispecies spectrum were no longer detected in virus collected from any pig samples. All variants detected in both inocula were probably generated, and maintained over time, during virus passages in MDCK cells, because of virus adaptation to cells. Thus, the loss of these variants is probably due to the re-adaptation of the virus to its natural host.
The proportion of nonsynonymous and synonymous de novo SNV found may indicate that the viral quasispecies evolution is under selective pressure (Sobel Leonard et al., 2016). In the H1N1 subtype, in vaccinated animals the proportion is greater, indicating that viral evolution may be under positive selection in this scenario (Fitch et al., 1991; Li et al., 2011). However, neutral selection may be acting in nonvaccinated animals, as the same proportion of SNVs was detected (Frost et al., 2018). Therefore, in both scenarios, genetic diversification is occurring. Many of the new mutations generated in H1N1 subtype during the experimental trial probably play a neutral role in viral fitness, such as the synonymous variants, while others are generated because of the viral readaptation from cell culture to its natural host. However, a higher proportion of nonsynonymous substitutions were generated in vaccinated animals, which could be indicating that, additionally, the humoral immune pressure is acting as an evolutionary selection force. By contrast, in the H3N2 subtype, in nonvaccinated animals, the highest proportion of nonsynonymous mutations may be indicating that the virus is also under positive selection. Similar results have been previously found with the same strain; therefore, virions may be poorly adapted to swine hosts, probably because of the readaptation from cell culture (Sobel Leonard et al., 2016; López-Valiñas et al., 2022). In vaccinated animals, as previously mentioned, the viral shedding was greatly reduced and, consequently, not enough variants have been detected. Therefore, the main force that drives viral evolution in this scenario could not be inferred.
In this study, the rapid evolutionary capacity and plasticity of swine IAV are again evidenced (Murcia et al., 2012; Diaz et al., 2013; Diaz et al., 2015; López-Valiñas et al., 2021; López-Valiñas et al., 2022), since 313 de novo synonymous and nonsynonymous SNV were reported from all the quasispecies herein analyzed. During virus replication, many generated mutations are not able to generate virus progeny, so they are lost. However, those mutations that are beneficial for viral fitness are naturally selected and will increase their allelic representation in the viral quasispecies (Domingo and Perales, 2019). With this regard, in the present study, most of the substitutions were not detected with an allele frequency greater than 5%, so they do not pose an adaptive evolutionary advantage for the virus. For instance, in the H1N1 subtype in vaccinated animals, only 63% of all nonsynonymous SNVs found did not exceed the 5% of allele frequency. By contrast, 41 (H1N1) and 4 (H3N2) nonsynonymous substitutions with an allele frequency greater than 5% were found in viral samples from vaccinated animals. These substitutions were allocated in all swine IAV proteins, except M1 and NS2 ones. Regarding the polymerase segments (PB2, PB1, PA), 25 nonsynonymous substitutions were found in the H1N1 subtype of vaccinated animals. Single substitutions within these proteins have been related to an increase in IAV polymerase activity, increasing its virulence and facilitating host interspecies jump (Subbarao et al., 1993; Song et al., 2015; Yu et al., 2015; Cai et al., 2020). In the H1N1 NS1 protein, two substitutions were found in the effector binding domain, and both were detected in animal No. 9. Substitution T91I is allocated in the domain that recruits the host eukaryotic translation initiation factor 4G1 (eIF4G), favoring viral mRNA translation instead of host mRNA (de la Luna et al., 1995; Aragón et al., 2000). In addition, substitution L146P is allocated in the nuclear export signal; according to a previous study, leucine at this position is required for NS1 cytoplasmatic localization. Although such substitution was detected in the mentioned study, it was only found on day 5 dpi with an allele frequency of 13% (Li et al., 1998). In relation to the NP, 4 nonsynonymous substitutions were found in the H1N1 subtype, while none were identified in the H3N2 one. These results were detected in previous studies carried out in our group, where the evolutionary capacity of H1N1 and H3N2 subtypes was separately evaluated, and 6 nonsynonymous substitutions were detected in the H1N1 subtype and none in the H3N2 one (López-Valiñas et al., 2021; López-Valiñas et al., 2022).
Surface glycoproteins HA and NA proteins are highly immunogenic, constituting the main target to generate neutralizing antibodies by the host after IAV infection or vaccination (Li et al., 2011; Eichelberger and Wan, 2014; Ma, 2020). Thus, both proteins are under high immune pressure when a previously immunized host becomes infected with the virus, which triggers a greater genetic drift (Li et al., 2011; Krammer, 2019). The HA is a viral surface glycoprotein that attaches to sialic acid allocated in the swine host respiratory tract, allowing virus cell entry (Russell, 2021). In the present study, 6 de novo substitutions (E111K, N275S, S278P, T408A, V466I, and K467R) with an allele frequency greater than 5% were detected in vaccinated animals. The E111K in the vestigial esterase subdomain is allocated in a previously described epitope region of the protein(Eisenlohr et al., 1988; Yewdell, 2010). Substitutions N275S and S278P were found in the receptor binding domain (RBD) of the protein, where the main antigenic sites of the virus are allocated (Xu et al., 2010; Guo et al., 2018). It has been already described that single substitutions in this domain are related to the virus interspecies switch (Aytay and Schulze, 1991; Murcia et al., 2012; Thompson and Paulson, 2021). Notably, the N275S substitution was reported with a 97.58% of allele frequency in the vaccinated animal No. 9 at 4 dpi, although its allele frequency decreased to 5.58% in BALF at necropsy of this pig. Finally, the remaining 3 de novo substitutions, T408A, V466I, and K467R, were detected on the stalk domain of the protein. Two of these substitutions were also reported from animal No. 4, reaching 36.64% of allele frequency for K467R. In a previous similar experiment, substitutions in this domain were also found in the H3N2 subtype in vaccinated animals, finding exactly one substitution at position 467 (T467I) (López-Valiñas et al., 2022). Notably, relevant nonsynonymous substitutions in vaccinated animals were not found on the H3N2 HA protein.
NA is a surface glycoprotein that plays an important role in virion progeny realizing (McAuley et al., 2019). In vaccinated animals, only two nonsynonymous substitutions, whose allele frequency exceeded 5%, were reported, both in the head domain of the protein. These substitutions, S333G in NA of the H3N2 subtype and V394I in NA of the H1N1 one, were located on the exposed part of the protein. The first one is allocated in the epitopic region F’329–339 (Ge et al., 2022), while V394I is nearby to previously described epitopes(Wan et al., 2015; Jiang et al., 2016). Interestingly, V394I was also detected with 73.7% allelic frequency in viral samples from animal No. 9. Therefore, in this animal, 4 important substitutions have been detected in both surface glycoproteins. This pig, together with animal No. 10, had the highest gross pathological score. Therefore, in this animal, apart from the potential VAERD effect, these mutations may be affecting viral fitness, increasing its replicative capacity, and eventually its virulence. Altogether, all substitutions found in both HA and NA, may have an impact on evading the immune system by the virus, although further analyses with reverse genetic technology would be required (Li et al., 2021).
In conclusion, our findings support the wide capacity of evolution and adaptation to changing environments of swine IAV. In the present study, a lower probability of viral reassortment was observed in vaccinated animals, as has been recently reported (Li et al., 2022). However, the vaccine did not avoid the genetic diversification of swine IAV. Herein, nonsynonymous substitutions were found in viral quasispecies collected in vaccinated animals, and the role that they could play in the evasion of the immune system was hypothesized according to previous literature. Finally, the present study underlines the importance of performing surveillance and genomic studies of swine IAV, as well as increasing the vaccination rate in pigs, to reduce the circulation of the virus in the field as much as possible, reducing the reassortment events and minimizing the risk of pandemics in both, humans, and pigs.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: https://www.ncbi.nlm.nih.gov/, PRJNA902942.
Ethics statement
The animal study was reviewed and approved by Animal ethics committee from the Generalitat de Catalunya.
Author contributions
Conceptualization: JIN. Methodology: ÁL-V, MV, MW, JIN, LG, and JS. HTS libraries preparation: CC. Bioinformatic analysis: ÁL-V. Animal experiment: GC, JS, and JIN. Formal analysis: ÁL-V and JIN. Resources: AD and JIN. Writing—original draft preparation: ÁL-V. Writing—review and editing: ÁL-V, JS, LG, and JIN. Supervision: JIN. project administration: JIN. Funding acquisition: AD and JIN. All authors contributed to the article and approved the submitted version.
Funding
This research was funded by grants AGL2016–75280-R from Ministerio de Ciencia, Innovación y Universidades from the Spanish government. ÁL-V has a pre-doctoral fellowship FPI 2017, Ministerio de Ciencia, Innovación y Universidades from the Spanish government.
Acknowledgments
The authors would like to thank Laura Baioni for the sequencing libraries preparation. The authors also want to thank the IRTA-CReSA animal facilities staff for their work during the in vivo experiment. Lastly, we would like to thank Marta Pérez and all the people from CReSA who were involved in the experiment during the COVID-19 lockdowns.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcimb.2023.1111143/full#supplementary-material
