Blood-stage antiplasmodial activity and oocyst formation-blockage of metallo copper-cinchonine complex

In the fight against malaria, the key is early treatment with antimalarial chemotherapy, such as artemisinin-based combination treatments (ACTs). However, Plasmodium has acquired multidrug resistance, including the emergence of P. falciparum strains with resistance to ACT. The development of novel antimalarial molecules, that are capable of interfering in the asexual and sexual blood stages, is important to slow down the transmission in endemic areas. In this work, we studied the ability of the mettalo copper-cinchonine complex to interfere in the sexual and asexual stages of Plasmodium. The tested compound in the in vitro assay was a cinchonine derivative, named CinCu (Bis[Cinchoninium Tetrachlorocuprate(II)]trihydrate). Its biological functions were assessed by antiplasmodial activity in vitro against chloroquine-resistant P. falciparum W2 strain. The mice model of P. berghei ANKA infection was used to analyze the antimalarial activity of CinCu and chloroquine and their acute toxicity. The oocyst formation-blocking assay was performed by experimental infection of Anopheles aquasalis with P. vivax infected blood, which was treated with different concentrations of CinCu, cinchonine, and primaquine. We found that CinCu was able to suppress as high as 81.58% of parasitemia in vitro, being considered a molecule with high antiplasmodial activity and low toxicity. The in vivo analysis showed that CinCu suppressed parasitemia at 34% up to 87.19%, being a partially active molecule against the blood-stage forms of P. berghei ANKA, without inducing severe clinical signs in the treated groups. The transmission-blocking assay revealed that both cinchonine and primaquine were able to reduce the infection intensity of P. vivax in A. aquasalis, leading to a decrease in the number of oocysts recovered from the mosquitoes’ midgut. Regarding the effect of CinCu, the copper-complex was not able to induce inhibition of P. vivax infection; however, it was able to induce an important reduction in the intensity of oocyst formation by about 2.4 times. It is plausible that the metallo-compound also be able to interfere with the differentiation of parasite stages and/or ookinete-secreted chitinase into the peritrophic matrix of mosquitoes, promoting a reduction in the number of oocysts formed. Taken together, the results suggest that this compound is promising as a prototype for the development of new antimalarial drugs. Furthermore, our study can draw a new pathway for repositioning already-known antimalarial drugs by editing their chemical structure to improve the antimalarial activity against the asexual and sexual stages of the parasite.

Introduction

Malaria is a major health problem, especially in developing countries of Africa, Southeast Asia, and South America causing an estimated 241 million cases and 627.000 deaths in 2020 (World Health Organization, 2021). In the Americas, there was an increase in malarial cases due to the growth of transmission in Venezuela, even though Paraguay, El Salvador, and Argentina are now countries with a malaria-free country certificate. In Brazil, 139.023 malaria cases were registered in 2021; during the last decade malaria cases have reduced significantly (from 600.000 to 150.000 cases per year), however it is necessary to find alternative control strategies that support disease elimination (Tableu Public, 2022; World Health Organization, 2021). Five species of Plasmodium are capable of infecting humans (P. falciparum, P. vivax, P. malariae, P. ovale and P. knowlesi), with a recent report of human malaria in Brazil caused by Plasmodium simium (Brasil et al., 2017; World Health Organization, 2021). Plasmodium falciparum is the most prevalent in Africa and causes severe disease, while P. vivax is the most prevalent in other regions, such as South America, and is considered relatively benign. In Brazil, severe malaria had a significant decline, although an increase in P. vivax with severe clinical complications was registered (Tableu Public, 2022; Costa et al., 2012; Lacerda et al., 2012; Raposo et al., 2013).

Human malaria is initiated by the bite of infected Anopheles mosquitoes, injecting the sporozoites into the skin, which invade blood vessels. For this process to occur, the mosquito is required to ingest gametocytes that are circulating in the bloodstream of the infected host. In the mosquitoes’ midgut, the zygote is assembled and later transformed into a mobile ookinete, which is capable of migrating by peritrophic matrix, crosses the intestinal epithelial cells, and develops into oocysts in the basal lamina; later on, gives rise to sporogony and the presence of the sporozoites into salivary glands (Baton and Ranford-Cartwright, 2005; Angrisano et al., 2012).

Every year, efforts to prevent and control malaria intensify. The key is early treatment with antimalarial chemotherapy, like artemisinin-based combination treatments (ACTs) that have been effective in endemic areas, especially in Southeast Asia (Cui and Su, 2009; Valecha et al., 2010; Ashley et al., 2014; World Health Organization, 2018). However, Plasmodium has acquired multidrug resistance to several antimalarial drugs currently available, such as chloroquine (Moore and Lanier, 1961; Payne, 1987), sulfadoxine and pyrimethamine (Hurwitz, 1981), including the emergence of P. falciparum strains with resistance to ACT’s in Equatorial Guinea and Southeast Asia (Noedl et al., 2008; Dondorp et al., 2009; Yeung et al., 2009; Ashley et al., 2014; Lu et al., 2017). Most of the current antimalarial drugs are impaired with poor efficacy, high toxicity, and costs; in addition to the resistance occurring faster than the development of new drugs (Gardiner et al., 2009; Garcia-Bustos and Gamo, 2013).

Novel antimalarial molecules have to be capable of interfering in the asexual blood stages, treating the disease symptoms, and decreasing the resistance of parasites. In addition, blocking the transmission of gametocytes from the vertebrate host to the vectors (Anopheles mosquitoes) as well as preventing the development of gametes, oocysts, and/or ookinetes in the invertebrate host is important to slow down transmission intensity in endemic areas (Birkholtz et al., 2022). The majority of the antimalarials used nowadays are active only against the early stages of gametocytes but are inactive against the mature stages. Currently, only primaquine is recommended by the WHO and acts in the transmission-blocking of gametocyte mature stages. However, it is not extensively utilized due to its hemolytic toxicity issues in individuals with glucose-6-phosphate-dehydrogenase (G6PD) deficiency (World Health Organization, 2018).

Interest in drugs with therapeutic efficacy already known has grown among researchers, indicating that changes in the structure of these compounds can be useful (Murambiwaa et al., 2011). Based on this principle, several alkaloid molecules with antimalarial potential such as cinchonidine, quinine, cinchonine, and quinidine, derived from plants of the genus Cinchona of the Rubiaceae family, have been studied (Hofheinz and Merkli, 1984). These alkaloids belong to a broad group of natural heterocyclic compounds containing nitrogen. Cinchonine is a weak base and crosses the pH gradient of red blood cells to accumulate in the acid vacuoles of the parasites, an important mechanism in its antimalarial action (Weselucha-Birczynska, 2004). Furthermore, the metal coordination with pre-existing antimalarials and bio-organometallic compounds has shown promising efficacy during in vitro experiments against chloroquine-sensitive and resistant P. falciparum strains (Salas et al., 2013). Copper can be coordinated with several ligands, including cinchonine, and exhibits antiviral activity, treats inflammatory diseases, and microbial infections, and has antimalarial activity (Gokhale et al., 2003; Weselucha-Birczynska, 2004; Mohapatra et al., 2010; Stanila et al., 2011).

Given the interest in the search for new antimalarial treatments with the insertion of metallic compounds, this study aimed to test cinchonine in association with copper (II) to explore the antimalarial activity and its capacity to interfere in asexual and sexual stages in the vertebrate and invertebrate hosts.

Material and methods

Studied compound and chemical structure

The compound tested here was a cinchonine derivative synthesized in a previous study (Weselucha-Birczynska et al., 2001) at Jagiellonian University (Krakow, Poland). The asymmetric unit of the compound is formed from two CuCl₄-tetrahedra in Bis[Cinchoninium Tetrachlorocuprate(II)]trihydrate, here referred to as CinCu (Figure 1).

FIGURE 1

Figure 1 Chemical structures of CuCl₄-tetrahedra in Bis[Cinchoninium Tetrachlorocuprate(II)]trihydrate (CinCu). Projection of the unit cell along the c-axis at 100 K. The cages contain single molecules [(cinH₂) ²⁺ (CuCl₄)^2-]₂ ·3H₂O marked as 1-4 with two geometrically inequivalent (CuCl₄) ^2- anions marked by subscripts 1 and 2. The cages 1-2 and 3-4 form two-dimensional planes parallel to the ac-plane coupled by dispersive forces only. Nitrogens assigned numbers are 1 and 13; oxygen, number 12; carbons, the other numbers smaller than 23; and hydrogen, 23–44 Adapted with permission from {Inorg. Chem. 2001, 40, 18, 4526–4533 Publication Date:July 28, 2001 https://doi.org/10.1021/ic001402a}. Copyright {2001} American Chemical Society.

For in vivo assays, the compound was solubilized in DMSO (dimethylsulfoxide) and distilled water (1% final concentration). For in vitro assays, a stock solution was prepared by dissolving 1 mg of the compound in 1 mL of 1% DMSO.

Plasmodium falciparum maintenance and in vitro antimalarial assay

The in vitro antiplasmodial activity was performed using a chloroquine-resistant P. falciparum W2 strain, according to the modified Trager e Jensen method (Trager and Jensen, 1976; Andradre-Neto et al., 2003). The P. falciparum cultures were maintained in O+ human erythrocytes, with 3-5% of hematocrit and 2% parasitemia in RPMI 1640 medium (Sigma-Aldrich) supplemented with 0,5% Albumax I^® (Gibco) at 37°C in 5% CO₂, 5% O₂ and 90% nitrogen. For culture synchronization, 5% D-Sorbitol (w/v) (Sigma-Aldrich) solution was used consecutively at 48 h intervals, as previously described (Lambros and Vanderberg, 1979).

Plasmodium falciparum W2 strain synchronized culture suspension (at 1 to 1.5% parasitemia and 2.5% hematocrit) was seeded in all 96-well culture plates. CinCu stock solution was prepared in freshwater suspension in DMSO at 1% final concentration as an antimalarial drug; the chloroquine stock solution was prepared in distilled water only. For the tests, the stock solutions of CinCu and chloroquine were further diluted in a complete medium (RPMI 1640 supplemented with 0.5% Albumax I^®). The tested compound CinCu, chloroquine, and 1% DMSO were added to the wells in seven dilutions (1:3 dilution factor). For the seven concentrations of CinCu that were tested, in the lowest concentration of 0.04 ug/mL, the percentage of DMSO was approximately 0.0001% (v/v). Concentrations of 30; 10; 3.33; 1.11; 0.37; 0.12 and 0.04 μg/mL were performed for the CinCu; and concentrations of 2.5; 0.83; 0.27; 0.09; 0.03; 0.01 and 0.003 μg/mL were performed for chloroquine positive control and 1% DMSO for negative control.

The plates were cultured for 48 h at 37°C. Red blood cell smears stained with Giemsa were prepared from each well and observed under an optical microscope (Olympus CX22LED) to determine the IC₅₀ (concentration at which 50% inhibition of parasite growth is observed) (Andradre-Neto et al., 2003). Each treatment had two replicates, in independent experimental assays.

Cytotoxicity assay

The verification of cell viability was assessed by the reduction capacity of the cells on resazurin, the main component of AlamarBlue^® as previously described (Fields and Lancaster, 1993). The CinCu and chloroquine were previously diluted with 1% DMSO in culture medium in six concentrations from 200 to 6.25 μg/mL (in 1:2 dilution). For the assay, RAW 264.7 cell line and 2.5× 10⁵ cells per well were seeded in 96 wells plates. After 24 h of incubation at 37°C and 5% CO₂, the culture medium was removed and 100 μL of supplemented medium and 50 μL of the tested compounds were added; for negative control (NC), only supplemented medium was added. The cells were incubated for 24 h in the same conditions mentioned above. After incubation, 15 μL of AlamarBlue^® were added to each well; here, wells only with medium were used as blank, and wells with medium plus AlamarBlue^® (MAB) were used to calculate the correction factor. The plates were incubated for 4 h and the absorbance was measured at 570 ηm, and 600 ηm. The absorbance values obtained were applied in the equation to calculate the percentage of resazurin reduction (%RR) as follows: {[St570-(St600xCF)/[NC570-(NC600xCF)}x100, where St570 and St600 represent the mean absorbance obtained at 570 and 600 ηm for the samples incubated with the compounds; NC570 and NC600 represent the mean absorbance obtained at 570 and 600 ηm for the negative control. CF represents the correction factor, obtained considering the mean absorbances at 570 and 600 ηm, by the equation: [MAB570 - Blank570]/[MAB600-Blank600]. The data were normalized to express the percentage values, so the negative control values were expressed as 100%.

The test was performed in three replicates and the cytotoxic concentration (CC₅₀) values, cell viability, and selectivity index (SI) were calculated. The relative cytotoxicity to antiplasmodial activity for a determined compound was evaluated as a selectivity index (SI), where SI = CC₅₀(RAW 264.7 cell line)/IC₅₀(P. falciparum W2).

Animals and ethics statement

Healthy Swiss-webster female mice aged 6–8 weeks (25–30 g) were obtained from the central bioterium of the Federal University of Rio Grande do Norte. The mice were fed on a standard pellet diet and water, both given ad libitum. They were housed in clean and dry polypropylene cages and maintained with a 12 h light/dark cycle, at 22°C and 30-70% of air humidity, according to the Protocol Organization for Economic Cooperation and Development (OECD/OCDE 425, 2008) (revised OECD, 2022).

All animal tests were approved by the Animal Ethics Committee (CEUA/UFRN) under protocol number 041.048/2017.

Plasmodium berghei ANKA maintenance and antimalarial in vivo assay

The P. berghei ANKA strain (donated by GHTM – Global Health and Tropical Medicine, unit of the Nova University of Lisbon, Portugal) was maintained in vivo in Swiss mice by inoculation of 1x10⁶ infected red blood cells in phosphate-buffered saline (PBS) sterile solution by intraperitoneal injection every 7 days in naïve mice. The parasitemia was counted in an optical microscope using blood smears stained with Giemsa (Andrade-Neto, 2000).

To test in vivo efficacy of CinCu, the assay was performed as previously described (Bahia et al., 2010; Rios-Velásquez et al., 2013). Mice were randomly divided into three groups of 4 mice/group and received an intraperitoneal injection with 1x10⁶ red blood cells infected with P. berghei ANKA. Each group was treated according to the following conditions: (I) control group treated with water/DMSO (vehicle, 1% final volume); (II) treated with Bis[Cinchoninium Tetrachlorocuprate(II)]trihydrate (CinCu); (III) treated with chloroquine; Group II and III were treated at doses of 10 mg/kg, 20 mg/kg, 30 mg/kg and 60 mg/kg. The infected mice were treated daily by oral route (per gavage) for 4 consecutive days, starting at day 0 after infection. On the fifth and seventh days after infection, blood smears were prepared from the tail of each animal to determine the parasitemia and its suppression percentage as described by Krettli et al. (2001). Additionally, each mouse was observed daily to determine survival time. All tests were performed in three independent experiments.

Acute toxicity

Acute toxicity was performed according to the revised guidelines OECD (2022). Swiss female mice were randomly divided into groups containing 3 animals/group in the same conditions of the antimalarial in vivo assay. Each mouse, from the II and III groups, was treated per gavage with a single dose of 300 mg/kg body weight. The animals were monitored daily for 14 days for signs of illness such as piloerection, diarrhea, salivation, changes in the eyes and mucous membranes, behavior patterns, and somatomotor activity with special attention to tremors, convulsions, salivation, lethargy, sleep, coma, and weight loss. On day 14 or in case of suffering, the animals were euthanized with anesthesia lethal dose (xylazine/ketamine).

Transmission blocking of Plasmodium vivax in Anopheles aquasalis assay

Experiments were performed using Anopheles aquasalis adult females from the colony of the Laboratory of Infectious Disease Ecology in Amazon facility from Leônidas and Maria Deane Institute (ILMD-Fiocruz AM). Adult female mosquitoes were reared in cages kept in insectary conditions at 27°C and 80% relative humidity on a 12 h light/dark cycle and fed on 10% sucrose solution (Rios-Velásquez et al., 2013). For the experiments, it was used blood from adult patients over 18 years old, who agreed to participate in the project as volunteers and signed informed consent documents. The patients were infected with two crosses of parasitemia (501 – 10.000 parasites/μL) of P. vivax; the infection was diagnosed by thick blood smear method at the Dr. Heitor Vieira Dourado Tropical Medicine Foundation (FMT-HVD). For each patient, 3 mL of blood were collected in heparinized Vacutainer^® tubes. This procedure was approved by the Ethical Review Committee at FMT-HVD (CAAE 39706514.2.00000.0005).

Adult mosquito females, 3 – 5 days old, were sugar starved overnight prior to experimental infection via membrane feeding assay, as described by Rios-Velásquez et al. (2013) (Rios-Velásquez et al., 2013). Mosquitoes were separated into seven experimental groups, each one with 100 individuals, treated with different doses of cinchonine (Cin 1 µg/mL and 0.23 µg/mL); Copper-coordinated cinchonine (CinCu 0.78 µg/mL and 0.06 µg/mL); and primaquine (PQ 1 µg/mL and 10 µg/mL), all diluted in 1% DMSO. Untreated infected blood was used as control. Every assay was realized in biological triplicate.

After the infective blood meal, only fully engorged mosquitoes were transferred to rearing containers, fed with 10% sucrose ad libitum, and maintained in the insectary for the development of the parasite infection. On the seventh day after the infective blood meal, the midgut of the mosquitoes was dissected in phosphate-buffered saline, stained with 2% commercial Mercurochrome (Merbromin), covered with a coverglass, and examined for the presence of oocysts under an optical microscope at 20x magnification. The number of oocysts was quantified in every midgut dissected.

Statistical analysis

The differences between treated and control groups of the in vitro assays were analyzed with a two-tailed Student’s t-test or Simple Analysis of Variance (ANOVA) followed by Tukey test; with a significance level of 5%.

The inhibitory concentrations in antimalarial in vitro and cytotoxicity assay, IC₅₀ values were determined by non-linear regression with dose-response curves categorized into high activity (IC₅₀ ≤ 10 μg/ml); moderate activity (10< IC₅₀< 100 μg/ml); low activity (IC₅₀ > 100 μg/ml) (Meneguetti et al., 2014).

The infection rate of the mosquitoes in the transmission-blocking assay for each treatment was calculated by the number of individuals who had at least one oocyst divided by the number of dissected mosquitoes and multiplied by 100. Oocyst infection intensity was calculated by dividing the total number of oocysts by the total number of infected mosquitoes. The inhibition percentage of each compound was calculated as previously described (Fabbri et al., 2021). To evaluate the differences in the oocyst number among the groups was used Kurskal-Wallis test with Dunn’s multiple comparison test. All statistical tests were performed with GraphPad Prism 6.0.

Results

Antiplasmodial and cytotoxicity in vitro assays

The cytotoxicity assay revealed that both CinCu and chloroquine were able to maintain at least 50% of cell viability in four out of the six tested concentrations (Figure 2). The evaluation of CinCu antiplasmodial activity over a chloroquine-resistant P. falciparum W2 strain revealed that this molecule is able to induce a significant parasitemia suppression, as high as 81.58% of suppression in the highest concentration tested (30 μg/mL), and maintaining a suppression higher than 60% for the concentrations of 10 μg/mL, 3.33 μg/mL and 1.11 μg/mL (Figures 3A, C). In addition, the chloroquine treatment revealed a significant parasitemia suppression for the three first tested concentrations (2.5, 0.83, and 0.27 μg/mL), ranging from 95.8% to 82.8% (Figures 3B, D). According to the IC₅₀ values, the CinCu can be considered a molecule with high antiplasmodial activity (10< IC₅₀< 100 μg/mL) and low toxicity (SI=155.57 μg/mL) (Table 1).

FIGURE 2

Figure 2 In vitro cytotoxicity analysis of CinCu and chloroquine in RAW264.7 cell line. CQ: chloroquine; CinCu: Copper-coordinated cinchonine. Results are presented as mean ± SD of three replicates. The data displayed here represents the concentrations of compounds that guarantee at least 50% cell viability (CC50). ** p<0.01; * p<0.05.

FIGURE 3

Figure 3 In vitro antiplasmodial activity of the CinCu and chloroquine against P. falciparum W2 strain. The dose-dependent curve of the parasitemia of CinCu (A) and chloroquine (B). The parasitemia suppression of CinCu (C) and chloroquine (D), respectively. Results are presented as mean ± SD of two replicates in two independent experiments. Suppression of the parasite growth was calculated in relation to control cultures with no drugs.

TABLE 1

Table 1 In vitro analysis of antiplasmodial and cytotoxicity activity of Bis[Cinchoninium Tetrachlorocuprate(II)]trihydrate (CinCu) and chloroquine.

In vivo antimalarial activity

The results obtained showed significant parasitemia suppression of CinCu (superior to 30%) in all doses administered, being considered a partially active molecule. On the 5^th day, CinCu displayed higher parasitemia suppression when compared to chloroquine for the doses of 10, 20, and 60 mg/kg (Figures 4A, B, D). For the dose of 30 mg/Kg, CinCu was able to maintain a considerable parasitemia suppression, although lower than chloroquine (Figure 4C); the suppression activity of CinCu ranged from 34.69% on the 7^th day for the lower dose (10 mg/Kg) to 87.19% on the 5^th for the highest dose (60 mg/Kg) (Table 2). The chloroquine showed a parasitemia suppression ranging from 26.36% on the 5^th day to 84.59% on the 7^th day in the lower dose (10 mg/Kg) to 70.24% on the 5^th day to 90% on the 7^th day for the highest dose (60 mg/Kg) (Table 2).

FIGURE 4

Figure 4 In vivo analysis of the CinCu and chloroquine effect on parasitemia suppression of P. berghei ANKA infection. The parasitemia suppression activity was evaluated on the fifth and seventh days post-infection, after treatment with 10 mg/Kg (A), 20 mg/Kg (B), 30 mg/Kg (C), and 60 mg/Kg (D) of CinCu and chloroquine. Results are presented as mean ± SD of three independent experiments. * p<0.05; **** p<0.0001.

TABLE 2

Table 2 Antimalarial activity of CinCu and chloroquine in mice infected with Plasmodium berghei ANKA.

Figures 5A–D show the survival rate of mice infected with P. berghei Anka and treated with CinCu or chloroquine. Mice treated with CinCu in doses of 20 and 60 mg/Kg reached 50% mortality later than the untreated control group (Figures 5B, C, Table 2).

FIGURE 5

Figure 5 The survival rate of mice infected with P. berghei ANKA and treated with CinCu or Chloroquine. The survival rates of mice treated with 10 mg/Kg (A), 20 mg/Kg (B), 30 mg/Kg (C), and 60 mg/kg (D) were determined and analyzed by the Kaplan-Meier method with Log-rank (Mantel-Cox) test. (E) Body weight of mice before (day 0) and after (day 14) treatment with CinCu or CQ at 300 mg/Kg in the acute toxicity assay. Nt: non-treated group (control); CinCu: mice treated with CinCu; CQ: mice treated with chloroquine; DPI: days post-infection. **p<0.01; *p<0.05.

Acute toxicity in vivo

Mice treated with a 300 mg/Kg acute dose of CinCu and chloroquine were monitored for 14 days, and the clinical signs observed in the animals are displayed in Table 3. The only alteration observed was piloerection on the 4th day after treatment for both CinCu and chloroquine. At the end of the 14th day, all animals were alive and no weight loss was registered (Figure 5E).

TABLE 3

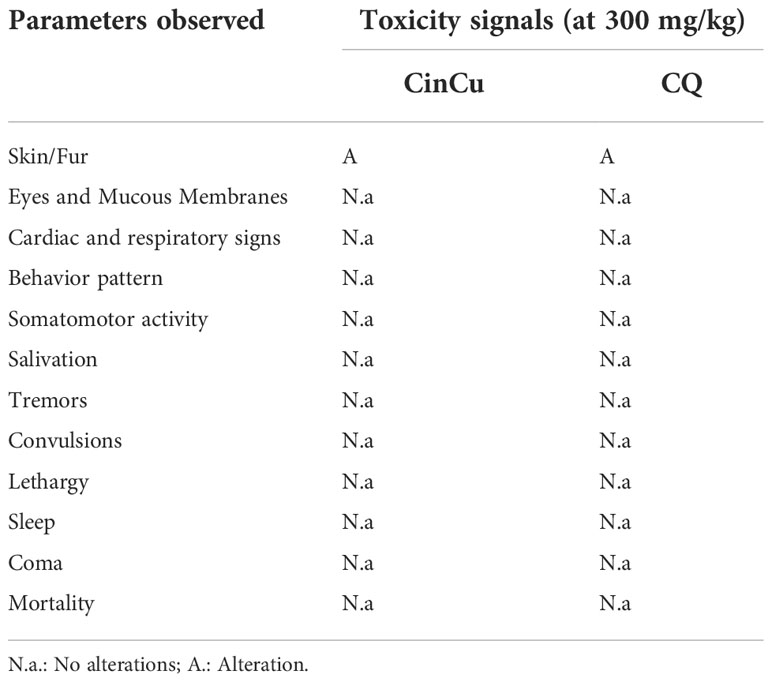

Table 3 Toxicity signals after treatment with CinCu and chloroquine (CQ) at 300 mg/kg dose.

Effects of CinCu in P. vivax transmission-blocking and oocyst formation in Anopheles aquasalis

In these experiments primaquine was used as a control because of its use as antimalarial medicine. The infection rate for P. vivax in A. aquasalis was high for all the compounds evaluated, except for primaquine 1 μg/mL and 10 μg/mL, and cinchonine 1 μg/mL; however, the difference was not significant among them (Table 4).

TABLE 4

Table 4 Effect of blood treatment with cinchonine, primaquine, and CinCu on P. vivax infection rate, oocyst intensity and oocyst inhibition in A. aquasalis.

The infection intensity, evaluated by the mean of oocysts per midgut (Figure 6A), was higher in the control and significantly lower in both concentrations used for primaquine and cinchonine, and CinCu at 0.78 μg/mL (Table 4, Figure 6B). These results showed that blood treatment with the evaluated concentrations of primaquine and cinchonine significantly reduced the oocyst formation. Primaquine (1 μg/mL and 10 μg/mL), and cinchonine (1 μg/mL) showed a high percentage of inhibition of the infection rates for P. vivax. The previous blood treatment with CinCu did not affect the inhibition of P. vivax, as observed in the mosquito’s infection rate; however, it was able to reduce the oocyst intensity (Table 4).

FIGURE 6

Figure 6 Oocyst infection intensity of P. vivax in A. aquasalis after feeding on blood treated with cinchonine, primaquine, and CinCu. (A) Representative image of P. vivax oocysts in the midgut of A. aquasalis; the slide was stained with 2% commercial Mercurochrome (Merbromin); scale bar: 250 µm. (B) Number of oocysts per midgut of A. aquasalis after blood meal. PQ 1: primaquine 1 µg/mL; PQ 10: primaquine 10 µg/mL; Cin 0.23: cinchonine 0.23 µg/mL; Cin 1: cinchonine 1 µg/mL; Cin+Cu 0.06: cinchonine in association with copper at 0.06 µg/mL; Cin+Cu 0,78: cinchonine in association with copper at 0.78 µg/mL NS: non-significant, ** p<0.01, *** p< 0.001.

Discussion

Due to widespread resistance to current antimalarial drugs, there is an urgent need for research on effective, safe, and affordable antimalarial compounds, since the main tool for malaria control is chemotherapy (Na-Bangchang and Karbwang, 2013; Fabbri et al., 2021). Furthermore, a drug must have both anti-recrudescence and blood schizontocidal activity, besides acting in gametocytes stages and/or sporogonic forms with minimal side effects.

Modifications of the alkaline skeleton of Cinchona derivatives have been one of the most successful strategies in the development of antimalarial drugs (Dinio et al., 2012). There are about 35 different alkaloids in the bark of the Cinchona tree, of which four: cinchonidine, quinine, cinchonine, and quinidine, occur in the largest amount, and differ in the substituents on the C19 carbon atom and the absolute configuration on the C8 and C9 stereogenic centers. Previous in vivo tests showed cinchonine as a compound with activity higher than quinine and cinchonidine. Tests performed on P. gallinaceum and P. berghei, showed that cinchonine and quinidine exhibited greater compatibility with the site of the high affinity of parasite uptake, ferriprotoporphyrin (Warhurst, 1981). Cinchonine is a weak base that crosses the pH gradient of red blood cells to accumulate in the acid vacuoles of the Plasmodium parasites and is selectively trapped inside the food vacuole in an ion-trapping mechanism (Weselucha-Birczynska, 2004).

To reduce the toxicity of knowing antimalarial drugs, promising approaches involving the use of transition metal complexes in chemotherapeutic agents are being studied (Warhurst, 1981; Sekhon and Bimal, 2012). Metal complexes have been used for a variety of diseases, including anti-parasitic agents, showing selectivity to parasitic cells (Orvig and Abrams, 1999; Crans and Meade, 2013). In this sense, the antimalarial properties of various metal complexes are being currently evaluated. The coordination of a pharmacological system with metals has shown results of superior activity of biodistribution, absorption, metabolism, minimized side effects, extending the time of drug in the organism, and reaching the biological target more precisely (Sanchez-Delgado and Anzellotti, 2004; Navarro et al., 2010).

Several copper complexes produce considerable antimalarial activity (Bahl et al., 2010; Weintraub et al., 2015; Medici et al., 2015). The use of Cu(II)/Cu(I) in antimalarial activity probably occurs due to oxidation-reduction reactions that interrupt mitochondrial respiration inducing reactive oxygen species (ROS) (Navarro et al., 2010). In our study, CinCu was able to suppress above 50% of parasitemia in vitro against the chloroquine-resistant P. falciparum W2 strain, in the first four concentrations tested. The non-protonated form of copper can pass through the vacuolar membrane, where it changes to a protonated form and becomes trapped (Olliaro, 2001). Copper homeostasis is necessary for the asexual phase for the growth of P. falciparum, therefore its disturbance by introducing additional copper ions may improve the antimalarial effect of CinCu (Asahi et al., 2016). This mode of action, in combination with cinchonine, acts on the food vacuole of Plasmodium enhancing the antimalarial activity. Studies showing the antiplasmodial activity of copper-coordinated complexes have been reported in the past years (Gokhale et al., 2006; Tapanelli et al., 2017). The analysis of copper(II) nanohybrid solids revealed the capacity of these compounds to induce parasitemia suppression of P. falciparum in vitro, an effect probably due to plasmepsin II inhibition (Mohapatra et al., 2010). Analysis of copper(II) complexes of pyridine-2-carboxamidrazones also showed efficient activity against P. falciparum in vitro (Gokhale et al., 2003). Based on these studies, it is plausible to assume the effect of copper-coordination on the enhancement of antimalarial activity seen in many compounds.

Experimental analysis of Fe(III), Cu(II), and Zn(II) complexes with quinine and mefloquine showed similar antimalarial activity in vivo, but expressive toxicity of the ligands or complexes in terms of the alkaline phosphatase activity level (Obaleye et al., 2009). A previous study showed the ability of two hexahydroquinolines complexes to reduce the parasitemia in vivo by 22% and 43% at 70 mg/Kg dose; and 65% and 91% at 100 mg/kg (Vanaerschot et al., 2017).

Here, we found that CinCu presented an antimalarial activity during experimental P. berghei murine infection being active at all doses tested; at the lowest dose, it was able to inhibit parasitemia in a range of 34-41%, while at the highest doses tested the suppression ranged from 40-87%, about twice as effective. These results are very consistent and promising for new prototypes of antimalarials. The approach used in this study, from the optimization of current drug regimens and/or modifications in old antimalarial agents, opens up interesting perspectives for the development of new compounds that can be used in chemotherapeutic combinations; as well as the discovery of new targets (Belete, 2020).

Transmission-blocking activity is an important result for drugs that also act in asexual blood phases of Plasmodium, being able to reduce or even interrupt the parasite cycle in the two hosts: the vertebrate and invertebrate (Wadi et al., 2019). The use of artesunate, quinine, and primaquine for transmission-blocking assays has been reported (Chotivanich et al., 2006), and primaquine is the only drug with transmission-blocking activity recommended by the WHO; however, its use is limited due to toxicity in individuals with G6PD deficiency (White et al., 2012; Wadi et al., 2019). In this sense, the intensification of the search for new compounds that display the ability to interfere with the parasite’s sexual stage is essential to block the transmission cycle. Based on the antiplasmodial activities, in vivo and in vitro, displayed here by CinCu, we tested the effect of this cinchonine-copper complex on the transmission of P. vivax to its vector, A. aquasalis. Results obtained by membrane feeding assays showed that primaquine and cinchonine are able to limit the infection rate in A. aquasalis infected with P. vivax. Despite the variability in the parasite infection rates, their reduction was expected because primaquine and cinchonine are used as antimalarial treatments. One important result is that all the studied compounds limited the oocyst infection intensity.

In a study performed by Vanaerschot et al. (2017), two hexahydroquinolines complexes were shown to reduce 97% and 57% of mosquito infection, whilst oocyst density per midgut was reduced by 21% in A. stephensi model (Vanaerschot et al., 2017). The presence of copper in antimalarials has shown a potent effect against asexual blood forms in in vitro tests with P. falciparum (Tapanelli et al., 2017). In addition, the antimalarial activity for CinCu complex might be associated with the four coordinated copper planar geometry that has been suggested to promote an easier internalization of the drug (Subczynski et al., 1987). Blood treatment with CinCu caused an important reduction in the infection intensity, indicating that higher concentrations could be used as transmission blockers. However, the analysis of the higher concentrations effect displayed here by the compounds will require the evaluation of the insecticide effect and, also, the effect on the mosquito salivary glands invasion.

Metal coordination of drugs represents an improvement in the research of new antimalarial drugs. The redox activity of copper ions along with the biogenicity, the stability of copper complex compounds in the bloodstream, the ability to penetrate the cell membrane and fluids much easier than the organic ligands, and the highly promising therapeutic results in vitro and in vivo prove the potential to become widely used in clinical practice (Salas et al., 2013). This approach allows the use of low doses of the drug considered toxic, reducing the risks to the patient and improving the drug efficiency on the target, decreasing the risk of developing resistance (Baird, 2005) as well as improving the selectivity index or making the metal more inert during its interaction with biomolecules (Krungkrai and Yutharvong, 1987; Sanchez-Delgado and Anzellotti, 2004).

The work reported here shows that the copper-cinchonine complex displays significant antimalarial activity when tested against the chloroquine-resistant Plasmodium falciparum strain with low in vitro cytotoxicity, followed by a satisfactory suppression of parasitemia in vivo. The same promising results are shown by CinCu displaying moderate activity over the oocyst intensity in A. aquasalis. Further research on the physical-chemical characteristics of copper metal complexes, in addition to improved methods of associating these metals with compounds, and their mechanisms of antiparasitic action need to be carried out, including research on the potential of these metallo-complexes in inhibiting the transmission of gametocytic forms to vector mosquitoes.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding authors.

Ethics statement

The procedure was approved by the Ethical Review Committee at FMT-HVD (CAAE 39706514.2.00000.0005). The patients/participants provided their written informed consent to participate in this study. All animal tests were approved by Animal Ethics Committee (CEUA/UFRN) under protocol number 041.048/2017.

Author contributions

CMGM, CMR-V, and VFA-N designed the study; CMGM and RMMB performed the experiments; AW-B was responsible for the chemical study and synthesis of the chemical compound; MK and MB-Z contributed to chemical studies and experiments; VSSP and RMMB were responsible for the maintenance of Plasmodium falciparum in vitro culture and contributed to the tests; JWP-S, AM, FACP, and CMR-V contributed to P. vivax transmission-blocking assays; CM and VFA-N wrote the first draft of the manuscript; CMGM, RMMB, AW-B, FACP, CMR-V, and VFA-N analyzed the data; CMMG, RMMB, CMR-V, AW-B, and VFA-N wrote the manuscript; VFA-N and CMR-V coordinated the study. All authors contributed to manuscript revision, read, and approved the submitted version.

Funding

The authors also would like to thank the Brazilian Research Support Agencies (CNPq, CAPES, FAPEAM, and PROEP ILMD Fiocruz Program) and AWB (subsidy from the Faculty of Chemistry of the Jagiellonian University in Krakó w, Poland). RMMB is the recipient of the Ph.D. scholarship and also would like to thank CAPES; VFA-N (Process # 306036/2019-3) and FACP (Process # 311726/2021-6) are thankful for the CNPq Research Productivity Fellowship.

Acknowledgments

The authors would like to thank Silvany G. Brito (Biological Sciences-UFRN/Scientific Initiation Student), Alison Michel S. de Oliveira, Sarah R. D. Batista, Karen M. Pereira (Biomedicine-UFRN/Scientific Initiation Students) for their support and logistics.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
