- 1College of Pharmacy, Hunan University of Chinese Medicine, Changsha, China
- 2College of Chinese Medicine, Hunan University of Chinese Medicine, Changsha, China
Background: This study investigated the effects of Baohe pill decoction on the diversity and community composition of lactase-producing bacteria in the intestinal contents of mice with diarrhea induced by high-fat and high-protein diet, which provided an experimental basis for the study on the therapeutic mechanism of Baohe pill decoction.
Materials and methods: The Traditional Chinese Medicine Systems Pharmacology (TCMSP), DisGeNET, UniProt, National Center for Biotechnology Information (NCBI), and GeneCards databases were used to collect the potential targets with active ingredients of Baohe pill decoction, diarrhea, and lactase, and then construct correlation networks. Fifteen Kunming mice were randomly divided into the control group (CN), natural recovery group (NR), and Baohe pill decoction treatment group (BHP), with five mice in each group. After constructing a mouse diarrhea model by HFHPD induction, BHP was gavaged with Baohe pill decoction, and the other groups were gavaged with distilled water of equal. The intestinal contents were collected from ileal to jejunal and analyzed using metagenomic sequencing to characterize the intestinal content of lactase-producing bacteria in mice.
Results: The core active ingredients related to diarrhea in Baohe pill decoction were quercetin, luteolin, kaempferol, forsythin, and wogonin. And there was no intersection between the potential targets with the active ingredient of Baohe pill, lactase, and diarrhea. After the intervention of Baohe pill decoction, the Observed species, Chao1 index, and Operational Taxonomic Units (OTU) number increased in BHP (P > 0.05), while the Pielous evenness and Shannon index decreased (P > 0.05). In Beta diversity, the community structure of the NR was significantly different from CN and BHP (P < 0.05), and the community structure of the CN was not significant difference from BHP (P > 0.05). Compared to NR, the relative abundance of Bifidobacterium and Amycolatopsis increased, while the relative abundance of Lachnoclostridium, Sinorhizobium, Cedecea, and Escherichia decreased in BHP, but none of the significant differences (P > 0.05).
Conclusion: The therapeutic effect of Baohe pill decoction on diarrhea induced by HFHPD does not appear to involve the body’s lactase gene targets directly, but is associated with the change of the construction of lactase-producing bacterial communities.
1 Introduction
With the development of animal husbandry and processing technology, the intake of high-fat, high-protein foods has been increasing yearly (Barber et al., 2020). Nevertheless, excessive fat and protein intake are not very beneficial to the human body. A high-fat diet increases the risk of diabetes, hyperlipidemia, and obesity (Stefan, 2020), and a high-protein diet is significantly associated with decrease renal function in patients with myocardial infarction (Esmeijer et al., 2020). Also, too much mono-diet can likewise affect intestinal flora and burden human health.
The intestinal flora is the most complex microbial system in the human body, which plays a vital role in host food digestion, metabolic cycle, and other physiological reactions. Studies have shown that the human body only encodes 17 digestion-related enzyme genes, while the rich enzyme-encoding genes in the intestinal flora complement the host’s ability to digest metabolism (Cantarel et al., 2012). The absence of some carbohydrate-producing active enzyme (CAZyme) strains (e.g. Prevotella) can also profoundly alter the absorption of different carbohydrates by the host, thus affecting the physiological or pathological state of the host (Aakko et al., 2020). Notably, other non-carbohydrates can also interfere with the activity of intestinal CAZyme by altering the intestinal flora, such as fat and protein (Ye et al., 2019). Under-digested fats and proteins can affect intestinal health through various pathways, including promoting the expression of pro-inflammatory factors, increasing intestinal mucosal permeability and bacterial translocation, and fermenting to produce toxic metabolites (H2S, indole, and ammonia) (Luo et al., 2019; Li et al., 2021; Cai et al., 2022). This further affects intestinal osmolality, causing an imbalance in intestinal homeostasis, decreasing intestinal immunity, and ultimately triggering or exacerbating diarrhea (Sakkas et al., 2020; Zhu et al., 2022). Animal experiments have demonstrated that HFHPD increased the abundance of conditionally pathogenic bacteria Helicobacter, Afipia, Clostridium, and Phocaeicola, while decreased the abundance of beneficial bacteria Lactobacillus in the intestinal mucosa (Zhu et al., 2022). Remarkably, a variety of intestinal enzyme activities were also significantly decreased after HFHPD intervention, including lactase, which is associated with diarrhea (Shao et al., 2022).
Lactase is an important CAZyme distributed in the intestinal contents and mucosa. If lactase activity is reduced or inhibited, the lactose ingested by the host cannot be metabolized efficiently, predisposing it to osmotic diarrhea. Also, excess lactose will be broken down and converted by intestinal bacteria, producing large amounts of gas and short-chain fatty acids, which can also lead to diarrhea, abdominal pain, and flatulence, clinically known as lactose intolerance (Facioni et al., 2020). Usually, lactase can be obtained by secretion from intestinal epithelial cells and lactase-producing microbes (e.g. Bifidobacterium, Lactobacillus, and Escherichia) or by exogenous lactase supplementation (He et al., 2017) Lactase-producing bacteria, characterized by fast reproduction and high enzyme production activity, are closely associated with lactase activity and diarrhea. A remarkable example is that adding Bifidobacterium and Lactobacillus to food alleviates lactose intolerant diarrhea (Oak and Jha, 2019; Popović et al., 2020). Additionally, in the previous studies, we found that antibiotic-induced diarrhea (AAD) not only reduced lactase activity, but also disrupted the community structure of lactase-producing bacteria (Long et al., 2017; Long et al., 2018). While Qiweibaizhu powder, the traditional Chinese medicine (TCM) compound, can treat AAD by regulating the abundance and community structure of lactase-producing bacteria (He et al., 2018; Long et al., 2018). Not only that, the alleviating effect of the probiotic Debaryomyces hansenii on AAD was also associated with the promotion of the growth of vital lactase-producing bacteria (He et al., 2019; Wu et al., 2020).
Baohe pill decoction is from the Danxi Xinfa written by Zhu Zhenheng, and is a classic TCM compound for diarrhea caused by improper diet and overeating. It is a combination of seven herbs, namely hawthorn (Crataegus pinnatifida Bge), pinellia (Pinellia ternata (Thunb.) Breit.), medicated leaven, poria cocos (Poria cocos (Schw.)Wolf), tangerine peel (Citrus reticulata Blanco), radish seeds (Raphanus sativus L.), and forsythia (Forsythia suspensa (Thunb.) Vahl), which pharmacologically have the effects of promoting gastric emptying, increasing gastric acid secretion, and anti-ulcer (He et al., 2020). Animal studies reported that Baohe pills could increase the number of Bifidobacteriales, Clostridiales, and Desulfovibrionales, while decrease the number of Bacteroidales, Bacillales, Lactobacillales, Aeromonadales, and Verrucomicrobiales, which in turn reduced the serum total cholesterol, low-density lipoprotein cholesterol, triglyceride levels in rats on high-fat diet (Li et al., 2018). In our previous study, we found that Baohe pill decoction could treat diarrhea induced by HFHPD by promoting the growth of probiotic bacteria Lactobacillus and inhibiting the growth of conditionally pathogenic bacteria Ralstonia in the intestinal mucosa of mice (Huang et al., 2022). Moreover, Baohe pill decoction can also normalize the activities of lactase rebounded after HFHPD stopped (Shao et al., 2022). The above example indicates that the Baohe pill decoction may regulate lactase activity by altering lactase-producing bacteria, which promotes the improvement of diarrhea symptoms. However, the current Baohe pill decoction and lactase study only focuses on the enzyme activity level.
Based on the microbial functional enzyme gene perspective, we investigated the effect of Baohe pill decoction on lactase-producing bacteria from intestinal contents in diarrhea induced by HFHPD mice. We also explore the relationship between the potential targets with active ingredients of Baohe pill, diarrhea, and lactase with the aid of the network pharmacology, to deeply analyze the mechanism of the efficacy of Baohe pill decoction and promote the clinical application of Baohe pill decoction.
2 Materials
2.1 Animals
Fifteen SPF-grade Kunming male mice, 18-22 g, were purchased from Hunan Slaccas Jingda Laboratory Animal Co., Ltd (License number: SCXK (Xiang) 2019-0004). Bred in the Animal Experiment Center of Hunan University of Chinese Medicine (relative humidity: 50%~70%, temperature: 23 °C~25 °C). All experiments and procedures involving animals were performed according to the protocols approved by the Institutional Animal Care and Use Committee of the Hunan University of Chinese Medicine.
2.2 Medicine
Baohe pill decoction consists of 18 g of Crataegus pinnatifida Bge. (Hebei), 6 g of medicated leaven (Sichuan), 9 g of Poria cocos (Schw.) Wolf (Hunan), 3 g of Citrus reticulata Blanco (Zhejiang), 9 g of Pineilia ternata (Thunb.) Breit. (Sichuan), 3 g of Raphanus sativus L. (Anhui), and 3 g of Forsythia suspensa (Thunb.) Vahl (Shanxi). The above herbs were purchased from the First Affiliated Hospital of Hunan University of Chinese Medicine. Put the above materials into a porcelain jar, add 300 mL of water, boil for 30 min, filter, collect the first filtrate, add 200 mL of water and continue to boil for 30 min, filter, combine the two filtrates, concentrate into a raw drug concentration of 0.28 g/mL of Baohe pill decoction, store at -4 °C for backup (Guo et al., 2022).
2.3 Diets
General feed (protein: 20%, fat: 4%) was provided by the Animal Experiment Center of Hunan University of Chinese Medicine. The high-fat and high-protein feeds were (Nestle, protein: 30%, lactose: 0%, fat: 20%), soybean flour (Huiyi, protein: 33%, fat:18%), flour (Huiyi, protein: 13%, fat: 2%), and meatloaf (AnhuiLizheng, 30% protein, 25% fat) were mixed in the ratio of 1:2:2:1. Vegetable oil (Golden Dragonfish). All the above ingredients are lactose free.
2.4 Reagents
Proteinase K, TE buffer, lysozyme, Tris-saturated phenol: chloroform: isoamyl alcohol (25:24:1), and acetone were purchased from Beijing Dingguo Biotechnology Co. 0.1 mol/L PBS buffer, 10% SDS, 5 mol/L NaCl, CTAB/NaCl, chloroform: isoamyl alcohol (24:1), 3 mol/L sodium acetate, and 70% anhydrous ethanol, etc. were configured by the laboratory.
3 Methods
3.1 Network pharmacology analysis of Baohe pill decoction-diarrhea-lactase
3.1.1 Collection of active ingredients and potential targets of Baohe pill decoction
We collected the active ingredients contained in pinellia, medicated leaven, poria cocos, tangerine peel, radish seeds, and forsythia in the TCMSP (http://tcmspw.com/index.php). The TCMSP does not contain entries for the common parts (pulp) of hawthorn and medicated leaven, but there are entries related to hawthorn leaves. According to the literature, the active ingredients of hawthorn leaves are similar to pulp and are often used as a substitute (Lin et al., 2020). Therefore, in this study, hawthorn leaves in the TCMSP were used as the collection target of hawthorn active ingredients, and medicated leaven active ingredients were collected according to the literature reports (Cao et al., 2017; Zhang et al., 2019; Liu et al., 2021). The obtained active ingredients were screened using the drug screening tool provided by TCMSP under the screening conditions of oral bioavailability (OB) ≥ 30% and drug-likeness (DL) ≥ 0.18, and the target proteins of the active ingredients were retrieved by TCMSP. The target proteins were then entered into the UniProt (https://www.uniprot.org/) database, and its protein-acting gene names were calibrated, with the population limited to “Homo sapiens”.
3.1.2 Collection of potential targets for diarrhea
We searched the DisGeNET database (https://www.disgenet.org/) and GeneCards database (https://www.genecards.org/) for relevant targets using the keyword “diarrhea”. After removing targets with a systematic score < 0.01 from the DisGeNET database and targets with a systematic score < 35 from the GeneCards database, the remaining targets were combined, de-duplicated, and unified in format to obtain potential targets for diarrhea.
3.1.3 Collection of potential targets for lactase
We searched the NCBI (https://www.ncbi.nlm.nih.gov/) database for relevant targets using the keyword “lactase”. The results were further screened under the “Homo sapiens” condition to obtain potential lactase targets.
3.1.4 Construction of the Baohe pill decoction-active ingredient-lactase-diarrhea correlation network
We imported the collected relevant targets with active ingredients of Baohe pill decoction, diarrhea, and lactase into R language (v4.1.1, https://www.r-project.org/) and Cytoscape (v3.9.1, https://cytoscape.org/). The Venn diagram was constructed using the Venn package in R, and the Baohe pill potential active ingredient-lactase-diarrhea network was constructed using Cytoscape.
3.2 Animal experimental process
15 mice were randomly divided into the control group (CN), natural recovery group (NR), and Baohe pill decoction treatment group (BHP) after 2 d of adaptive feeding. 5 mice in each group, 5 in 1 cage. The modeling method refers to literature (Shao et al., 2022), and the study flow is shown in Figure 1. NR and BHP mice were given HFHPD, and gavage with vegetable oil (0.4 mL/time, 2 times/d for 3 d) starting from the 4th day. During this period, CN were given a general diet and gavaged with distilled water instead of vegetable oil on d 4. After 6 d of HFHPD intervention, the modeling factor was stopped, BHW was gavage with Baohe pill decoction at a 6.63 g/(kg·d) dose twice a day for 3 d, and CN and NR were given gavage distilled water of equal amount.
3.3 Extraction of Intestinal content
All mice were sacrificed by the cervical dislocation method, and then the intestine was dissected under aseptic conditions. The contents of the jejunum to ileum segment were taken with sterile forceps, placed in centrifuge tubes, labeled and weighed, and stored at -80 ℃ for backup (Shao et al., 2020).
3.4 DNA extraction
After sample pretreatment, total bacterial DNA was obtained by acetone washing, lysozyme wall breaking, proteinase K denaturation, SDS lysis, CTAB treatment, and phenol/chloroform extraction, with detailed steps according to the reference (Hui et al., 2020).
3.5 PCR Amplification
Amplification using our previously reported lactase primers (Long et al., 2017), i.e., upstream primer: 5′-TRRGCAACGAATACGGSTG-3′ and downstream primer: 5′-ACCATGAARTTSGTGGTSARCGG-3′. PCR amplification system was as follows: 0.25 μL of Q5 high-fidelity DNA polymerase, 5 μL of 5 × Reaction Buffer, 5 μL of 5 × High GC Buffer, 0.5 μL of dNTP (10 mM), 1 μL of template DNA, 1 μL of upstream primer (10 uM), 1 μL of downstream primer (10 uM), and 11.25 μL of ultrapure water. After the above conditions were configured, the PCR instrument was pre-denatured at 98 °C for 30 s and entered the amplification cycle. Firstly, the template was kept at 98 °C for 15 s to denature fully, then kept at 46 °C for 30 s to anneal, and then kept at 72 °C for 30 s to fully extend the primers to form one cycle. The cycle was repeated 32 times, then extended for 5 min at 72 °C and stored at 4 °C. The sequencing was performed by Shanghai Personalbio Technology Co.
3.6 Bioinformatics analysis
3.6.1 OTU division and classification level annotations
The resulting sequences were spliced, de-duplicated, filtered, and divided into OTUs with a 97% similarity threshold using Vsearch (v2.13.4_linux_x86_64) and Cutadapt (v2.3) software. The divided OTU (Blaxter et al., 2005) representative sequences were compared with the NCBI database using blastn on Qiime2 (2019.4, https://qiime2.org/) software, and then The brocc.py script was called to obtain OTU species annotation information.
3.6.2 Alpha diversity analysis
Chao1, Observed species, Shannon, Simpson, Pielous evenness, Goods coverage index and Shannon rarefaction curves were calculated using Qiime2 and visualized with R (Li et al., 2019).
3.6.3 Beta diversity analysis
Beta diversity can represent the differences in the composition of different communities. Principal coordinate analysis (PCoA) and Non-metric multidimensional scaling (NMDS) were performed by Qiime2 to visualize community differences (Ramette, 2007), and the PERMANOVA (Permutational multivariate analysis of variance) test was used to represent the differences between communities, and P < 0.05 was considered significant.
3.7 Statistical analysis
The data were analyzed using IBM SPSS (v25.0) software, and the experimental results data were expressed as mean ± standard deviation, and one-way ANOVA or Kruskal-Wallis test was used according to whether the data were normally distributed and the variance was consistent. P < 0.05 was considered a significant difference.
4 Results
4.1 Active ingredients and corresponding potential targets of the Baohe pill decoction
After collecting the effective active ingredients of Baohe pill decoction by TCMSP search and literature search methods, 44 active ingredients meeting OB ≥ 30% and DL≥ 0.18 were obtained (Table 1). Among them, there were 2 hawthorn, 10 pinellia, 6 poria cocos, 14 forsythia, 4 tangerine peel, 1 radish seed, 1 medicated leaven, 1 total of pinellia and hawthorn, 1 total of pinellia and hawthorn, 1 total of tangerine peel, hawthorn and radish seed, 1 total of forsythia and medicated leaven, 2 total of forsythia, medicated leaven and hawthorn. The corresponding potential targets of each active ingredient were obtained in TCMSP, and a total of 273 potential target genes were obtained after comparison and de-duplication by the Uniprot database.
4.2 Diarrhea and lactase potential targets
The diarrhea targets obtained in the DisGeNET and GeneCards databases were 632 and 5721, respectively, and a total of 3399 potential targets were obtained after the screening, merging, and de-duplication. The number of lactase-potential targets obtained in the NCBI database was 1651, and 12 lactase targets were obtained after screening.
4.3 Baohe pill decoction-active ingredient-lactase-diarrhea network analysis
As seen in Figure 2, the intersection targets of Baohe pill decoction and diarrhea are 175, the intersection targets of diarrhea and lactase are 7, and the intersection targets of the three are 0. From the perspective of the total number of human lactase targets, this means that there is a relatively close correlation between lactase and diarrhea, but there is no direct interaction between the lactase targets and the active ingredient of Baohe pill decoction. The active ingredient of the Baohe pill decoction, lactase and diarrhea intersecting target, and Baohe pill decoction and diarrhea intersecting target were input into Cytoscape to obtain the Baohe pill decoction-active ingredient-lactase-diarrhea correlation network (Figure 3). There are 235 nodes and 774 edges in the network. The degree value of each node in the network was obtained by the network analysis tool in Cytoscape. The higher the degree value indicates that the more points the ingredient is connected to, the higher the possibility that the ingredient is a core ingredient. The five highest degree values among the active ingredients of the Baohe pill were quercetin (degree: 107, forsythia, medicated leaven, and hawthorn), luteolin (degree: 48, forsythia and medicated leaven), kaempferol (degree: 42, forsythia, medicated leaven, and hawthorn), phillyrin (degree: 42, forsythia, medicated leaven, and hawthorn), wogonin (degree: 35, forsythia), involving a total of 124 diarrhea targets. From the target point of view, the five targets with the highest degree values were PTGS2 (degree: 29), PTGS1 (degree: 22), SCN5A (degree: 21), F10 (degree: 15), and ADRB2 (degree: 16). It indicates that quercetin, luteolin, kaempferol, phillyrin, and wogonin are the most likely core ingredients of Baohe pill decoction for diarrhea.
Figure 2 Venn diagram of the active ingredient of Baohe pill decoction -lactase-diarrhea. Each circle represents a group, the overlapping area between the circles refers to the common targets between the groups, and the number of each block indicates the number of targets contained in the area.
Figure 3 Baohe pill-active ingredient-lactase-diarrhea correlation network. The light blue hexagon is the 7 herbs composed of Baohe pill, the purple square is the active ingredient, the yellow diamond is the potential target, the orange triangle is diarrhea, and the dark blue circle is lactase. The connection line between the nodes represents the corresponding relationship between the two.
4.4 General features
After 6 d of HFHPD intervention, CN mice had smooth and flat fur, good mental status, and brown wheat-shaped stools. NR and BHP mice had loose fur, reduced activity, soft texture of stool, easily deformed and stuck to the forceps when picked up with forceps, and half of the stool was in the form of a thick paste and stuck to the tail and perianal area. After 3 d gavage of Baohe pill decoction, the fur and mental condition of BHP mice gradually returned to normal, the texture of stool changed from thick paste or soft rotten to normal wheat grain shape, and the perianal area and tail were clean and free of foreign matter. NR also approached the condition of CN, but individual mice were still mentally lethargic and inactive.
4.5 Effect of Baohe pill decoction on the number of OTUs of lactase-producing bacteria in the intestinal contents of HFHPD mice
The number of totals and unique OTUs among different groups can be visualized by the Venn diagram. As shown in Figure 4, the number of OTUs unique to the CN, NR, and BHP groups was 82, 38, and 48, respectively, and the total OTUs was 37. The number of OTUs in NR was lower than that in CN, while compared with NR, the number of OTUs in BHP and the number of OTUs shared with CN were increased. The results indicated that HFHPD decreased the taxonomic units number of lactase-producing bacteria in the intestinal contents of mice, and the number rose after treatment with Baohe pill decoction.
Figure 4 (A) Venn diagram of the number of OTUs distribution of lactase-producing bacteria from the intestinal contents in each group. Each circle represents a group, the overlapping area between the circles refers to the common OTUs between the groups, and the number of each area indicates the number of OTUs contained in the area. (B) Rarefaction curve of the lactase-producing bacteria from the intestinal contents in each group. The smoothness of the rarefaction curve reflected the effect of sequencing depth on the diversity of observed samples. The flatter the curve, the more indicating that the sequencing results were sufficient to reflect the diversity contained in the current sample. CN, control group; NR, natural recovery group; BHP, Baohe pill decoction treatment group.
4.6 Effect of Baohe pill decoction on Alpha diversity of lactase-producing bacteria in the intestinal contents of HFHPD mice
Alpha diversity in microbial communities can be measured by indices such as Shannon, Chao1, and Simpson. The larger Chao1 and Observed specie indices, the greater the number of species and the higher the richness of the community. Simpson index size reflects the community’s diversity, and the larger the value, the higher the community’s diversity. Pielou eveness index focuses on the evenness of the community, and the higher the value, the more even the community. The Shannon index combines the richness and evenness of the community. The Goods coverage index is related to the species coverage of the detection results, and the higher the value, the higher the proportion of detected species in the total species of the sample.
The Shannon rarefaction curve (Figure 4B) shows that each sample’s species diversity and richness have leveled off with increasing depth, indicating that there is little gain from continuing to increase the sequencing depth. From Figure 5, The Goods coverage indexes of CN, NR, and BHP were all higher than 99.9%, indicating that the number of species covered by sequencing was sufficient and the sequencing results were all representative of the actual situation of the microbial communities in the samples. The results of the remaining 5 diversity indices showed that CN had the highest richness and diversity, followed by BHP and NR. Compared with NR, Observed species, Chao1 index increased in BHP, while Pielous evenness and Shannon index decreased. However, there was no significant difference (P > 0.05) in all data comparisons except in the Shannon index, where CN and BHP were significantly different (P < 0.05). The results showed that HFHPD-induced diarrhea reduced the diversity, richness, and evenness of lactase-producing bacteria, and Baohe pill decoction had a restoring effect on the richness of lactase-producing bacteria, but diversity and evenness did not improve.
Figure 5 Alpha diversity index of the lactase-producing bacteria from the intestinal contents in each group. (A): Chao1. (B): Simpson. (C): Shannon. (D): Pielous evenness. (E): Observed specie. (F): Goods coverage. Chao1 and Observed species indices represent community richness, Shannon and Simpson indices represent community diversity, Pielou’s evenness index represents community evenness, and Good’s coverage index represents the percentage of detected species in the sample. *: P < 0.05. CN, control group; NR, natural recovery group; BHP, Baohe pill decoction treatment group ns: P ≥ 0.05.
4.7 Effect of Baohe Pill decoction on Beta diversity of lactase-producing bacteria in the intestinal contents of HFHPD mice
Beta diversity analysis could quantify the differences in community structure among different samples. In NMDS analysis, the smaller the Stress value is, the more accurately it reflects the actual distribution of the sample data, and it is generally considered that the NMDS analysis results are more reliable when it is less than 0.2. In the NMDS (Figure 6A) analysis, the Stress value was 0.08, which indicates that the current analysis results are well represented. CN and BHP can be more clustered individually. CN is mainly distributed in the third quadrant, BHP is mainly distributed in the first quadrant, and NR is relatively chaotic. The results of the PCoA analysis (Figure 6B) were similar to the NMDS analysis. The PERMANOVA test showed the community structure of the NR was significantly different from CN and BHP (P < 0.05), and the community structure of the CN was not significant difference from BHP (P > 0.05). It indicates that HFHPD significantly changed the composition structure of lactase-producing bacteria in the intestinal contents of mice, and Baohe pill decoction significantly modulated the structure of lactase-producing bacteria in the intestinal contents of HFHPD mice.
Figure 6 Beta diversity of the lactase-producing bacteria from the intestinal contents in each group. (A) NMDS (Based on Jaccard distance). (B) PCoA (Based on Jaccard distance). By PERMANOVA test, the community structure of the NR was significantly different from CN and BHP (P < 0.05), and the community structure of the CN was not significant difference from BHP (P > 0.05). In the graph, each point represents a sample, and samples of the same color are from the same group. The greater the difference between every two points, the greater the difference between the two samples. FCM, control group; FMM, model group; CN, control group; NR, natural recovery group; BHP, Baohe pill decoction treatment group.
4.8 Effect of Baohe pill decoction on the taxonomic composition of lactase-producing bacteria in the intestinal contents of HFHPD mice
As seen in Figure 7A, Actinobacteria were the dominant phylum of lactase-producing bacteria in mouse intestinal contents, accounting for approximately 98% of lactase-producing bacteria in all groups of mice. In addition, Bacteroidetes were distributed only in CN, and Firmicutes were distributed only in CN and NR. At the genus level (Figure 7B and Table 2), the lactase-producing groups of CN mouse intestinal contents were mainly composed of Bifidobacterium (96.53%), Cedecea (1.69%), Amycolatopsis (0.34%), Escherichia (0.01%), unclassified (1.41%) and other low abundance taxa composition (0.02%). Compared to NR, the relative abundance of Amycolatopsis and Bifidobacterium increased, while Lachnoclostridium, Sinorhizobium, Cedecea, and Escherichia decreased in BHP (P > 0.05).
Figure 7 Taxonomic composition of the lactase-producing bacteria from the intestinal contents in each group. (A) Phylum level. (B) Genus level. CN, control group; NR, natural recovery group; BHP, Baohe pill decoction treatment group.
5 Discussion
By secreting abundant specific enzymes, intestinal flora can degrade and modify ingested substances and produce new biosignaling molecules, which in turn are involved in the pathological and physiological activities of the body systems (Zhou et al., 2019). For example, the human liver can inactivate the toxic active metabolite SN-38 produced by the anticancer drug irinotecan, converting it to the non-toxic SN-38-G. However, in the colon, microbial β-glucuronidase can reactivate SN-38-G to SN-38, triggering irinotecan dose-limiting diarrhea (Ervin et al., 2019). In TCM, sennosides, as precursor substances for rhubarb to exert diarrheal effects, also need to be transformed into their pharmacologically active form by the action of microbial reductases (Quan and Huan, 2021). Besides, the therapeutic mechanism of some TCM compounds for diarrhea is related to the regulation of lactase activity, but further studies on the relationship between drugs and microbial enzyme genes are relatively rare (Wu and Tan, 2021). Therefore, the analysis of lactase-producing enzyme strains is beneficial as biomarkers for in-depth dissection of disease pathological mechanisms, and is significant for the study of new potential targets for drug therapy.
In the network pharmacology section (Figure 3), we screened out five top active ingredients associated with diarrhea (quercetin, luteolin, kaempferol, phillyrin, and wogonin). Among them, quercetin could improve lactase activity and appears to be associated with lactase-producing bacteria. For example, an animal experiment showed that lactase activity of rat spleen increased by 58% after feeding quercetin (Chougala et al., 2012). Another animal experiment showed that quercetin significantly decreased the abundance of Escherichia coli in the cecum of broiler chickens, while significantly increased the abundance of Lactobacillus, Bifidobacterium. Moreover, in vitro experiment, quercetin damaged Escherichia coli cell wall, but the lactase activity produced by Escherichia coli was increased (Wang et al., 2018). Luteolin can modulate lipid metabolism disorders and reduce the elevated Lactobacillus and Prevotella_9 abundance in rats with ulcerative colitis (Li et al., 2021). Kaempferol alleviating effect on experimental colitis is associated with an increased Firmicutes/Bacteroidetes ratio and the abundance of beneficial bacteria Prevotellaceae and Ruminococcaceae (Qu et al., 2021). The above demonstrated that the main active ingredients of the Baohe pill decoction associated with diarrhea all have good modulating effects on the intestinal flora. More notably, the human lactase targets did not intersect with the active ingredient targets (Figure 2). This means that after entering the intestinal tract, the active ingredients of Baohe pill decoction did not directly affect the human body’s lactase gene target. It is more likely to regulate the level of lactase activity by affecting lactase-producing microbe or by conversion through other metabolic pathways. Based on these results, our mouse experiments further validated the effect of Baohe pill decoction on lactase-producing bacteria.
In the experimental results, the diversity and evenness of lactase-producing bacteria decreased, and the abundance increased after the treatment of Baohe pill decoction (Figure 5), which led to a greater difference in the abundance proportion among individual lactase-producing bacteria. This was also evidenced by the higher relative abundance of the dominant bacteria after the intervention of Baohe pill decoction. Moreover, the effect of both HFHPD and Baohe pill decoction on the Alpha diversity of lactase-producing bacteria was not significant (P > 0.05), which may be related to the gradual natural recovery of intestinal contents bacteria after the cessation of HFHPD. The Beta diversity showed that Baohe pill decoction recovered lactose-producing bacterial structure (P < 0.05). Microbial lactase has good functional gene diversity, leading to variability in microbial lactase activity from different sources, and the composition of different lactase-producing bacteria has a greater impact on lactase activity. Simultaneously, in our previous studies on lactase-producing bacteria from intestinal contents, the therapeutic effect of Qiweibaizhu powder is also mainly reflected in the promotion of specific lactase-producing bacteria (e.g. Acidovorax sp. KKs102), rather than affecting the diversity of lactase-producing bacteria (He et al., 2018). This means that the modulating effect on the structure of the lactase-producing bacterial community is a critical factor in the therapeutic efficacy of Baohe pill decoction.

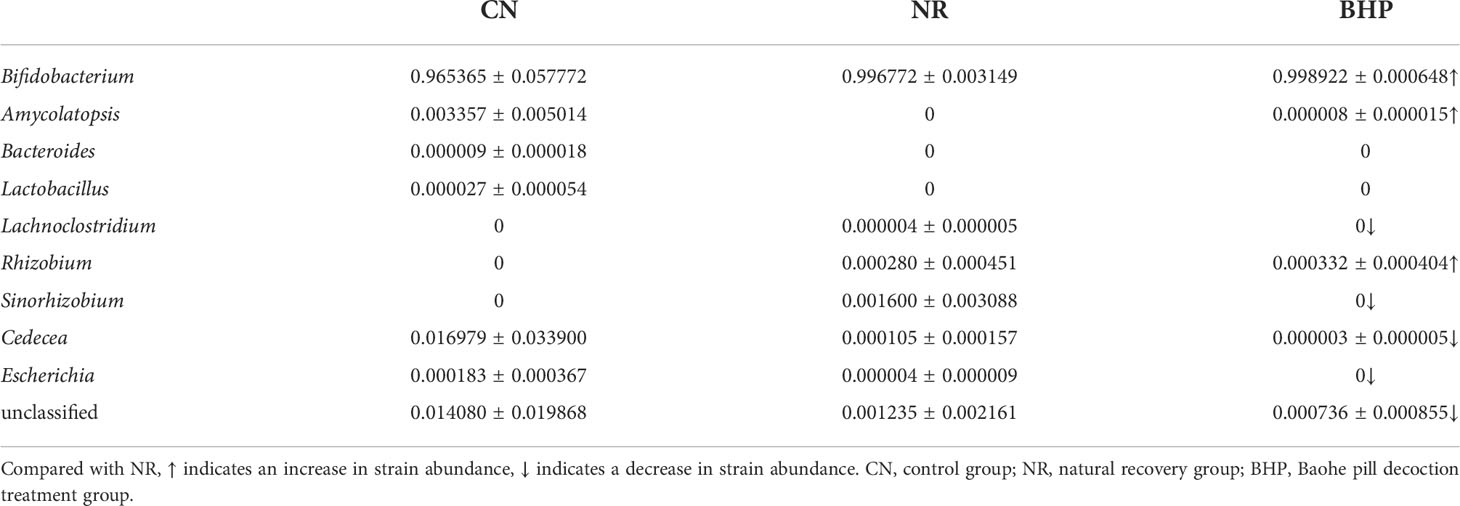

In the taxonomic composition (Table 2), the relative abundance of Bifidobacterium in the three groups was ranked as CN < NR < BHP. Bifidobacterium is a recognized probiotic in the intestine with an essential role in regulating immune function, maintaining intestinal homeostasis, and defending against inflammatory diseases. And which is also one of the main sources of microbial lactase (Lim and Shin, 2020). However, Brandao et al. (Brandao Gois et al., 2022) found a positive correlation between Bifidobacteria abundance with dairy intake and adverse effects in lactose intolerant patients. We speculate that the harmful fermentation products of high protein and the high fat-induced increase in endotoxin may have acted similarly to the effect of lactose in promoting the growth of Bifidobacterium, i.e., stimulating adaptive changes in the intestinal contents flora. Enzymes are proteins encoded by functional genes, and protein activity is closely related to their structure and modification. Lactase gene expression and protein modifications can be altered under different microcosmic environments (Vera et al., 2020). Meanwhile, enzyme activity is affected by pH, and HFHPD can also change intestinal pH (Wang et al., 2021; Shao et al., 2022), resulting in the normal expression of the lactase gene or activation of zymogen may be hindered by the deterioration of the intestinal environment caused by HFHPD. And the further increase in the relative abundance of Bifidobacterium by Baohe pill decoction appears to relate to the ameliorative effect on the intestinal environment. For instance, You et al. (2021) intervened the ulcerative colitis mice with Baohe pill decoction. They found that Baohe pill decoction could improve the abundance of immune regulatory flora and repair the damaged intestinal mucosa. Lactobacillus is one of the most widely used lactase-producing bacteria, and the decrease in the relative abundance of Lactobacillus in NR indicates the harmful effect of HFHPD on intestinal lactase-producing bacteria. Studies have shown that Baohe pill decoction promotes the abundance of Lactobacillus in the intestinal mucosa (Zhu et al., 2022), but Baohe pill decoction does not affect the abundance of Lactobacillus in the intestinal contents. The reason may be related to the differences in intestinal contents and mucosal flora function. For instance, it has been shown that the composition of the intestinal mucosal flora is more sensitive than the intestinal contents in repeated stress-related diarrhea (Zhang et al., 2021).
Finally, there are still some limitations in this study, such as the network pharmacology part is only based on database theory, and the experimental part needs further validation of lactase gene expression.
6 Conclusion
In this study, the effects of Baohe Pill decoction on disease-related microbial functional enzyme genes were investigated by network pharmacology and metagenomic sequencing, which will also provide a basis for further study the mechanism of therapeutic Baohe pill decoction at the gene level. The results show that the Baohe pill decoction does not appear to have direct effects on the body’s lactase targets, and its therapeutic effect on diarrhea induced by HFHPD was related to lactase-producing bacteria. Specifically, the Baohe pill decoction changed the community structure of lactase bacteria in intestinal contents and regulated the diversity and relative abundance of lactase bacteria to a certain extent.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: https://www.ncbi.nlm.nih.gov/, PRJNA861941
Ethics statement
The animal study was reviewed and approved by Animal Care and Use Committee of the Hunan University of Chinese Medicine.
Author contributions
KZ: data analysis and writing the original draft. ND and YC: review and editing. KZ and XY: performing animal experiments. MP and NX: project administration, review, and funding acquisition. All authors contributed to the article and approved the submitted version.
Funding
This research was financially supported by the Natural Science Foundation of Hunan Province (No. 2020JJ4468) and the Hunan Chinese Medicine First-Class Discipline Project (2018).
Acknowledgments
We thank the Natural Science Foundation of Hunan Province (No. 2020JJ4468) and the Hunan Chinese Medicine First-Class Discipline Project (2018) for the financial support of this study.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Aakko, J., Pietilä, S., Toivonen, R., Rokka, A., Mokkala, K., Laitinen, K., et al. (2020). A carbohydrate-active enzyme (CAZy) profile links successful metabolic specialization of Prevotella to its abundance in gut microbiota. Sci. Rep. 10, 12411. doi: 10.1038/s41598-020-69241-2
Barber, T. M., Kabisch, S., Pfeiffer, A. F. H., Weickert, M. O. (2020). The health benefits of dietary fibre. Nutrients. 12, 3209. doi: 10.3390/nu12103209
Blaxter, M., Mann, J., Chapman, T., Thomas, F., Whitton, C., Floyd, R. (2005). Defining operational taxonomic units using DNA barcode data. Philos. Trans. R Soc. Lond B Biol. Sci. 360, 1935–1943. doi: 10.1098/rstb.2005.1725
Brandao Gois, M. F., Sinha, T., Spreckels, J. E., Vich Vila, A., Bolte, L. A., Weersma, R. K., et al. (2022). Role of the gut microbiome in mediating lactose intolerance symptoms. Gut. 71, 215–217. doi: 10.1136/gutjnl-2020-323911
Cai, J., Chen, Z. X., Wu, W., Lin, Q. L., Liang, Y. (2022). High animal protein diet and gut microbiota in human health. Crit. Rev. Food Sci. Nutr. . 62, 6225–6237. doi: 10.1080/10408398.2021.1898336
Cantarel, B. L., Lombard, V., Henrissat, B. (2012). Complex carbohydrate utilization by the healthy human microbiome. PloS One 7, e28742. doi: 10.1371/journal.pone.0028742
Cao, M. J., Zhang, T. T., Xu, Z., Chen, Q., Tao, X., Cao, J. (2017). Ldentification of chemical component in SHEN QU based on NMR analysis. Mod Chin. Med. 19, 183–187. doi: 10.13313/j.issn.1673-4890.2017.2.004
Chougala, M. B., Bhaskar, J. J., Rajan, M. G., Salimath, P. V. (2012). Effect of curcumin and quercetin on lysosomal enzyme activities in streptozotocin-induced diabetic rats. Clin. Nutr. 31, 749–755. doi: 10.1016/j.clnu.2012.02.003
Ervin, S. M., Hanley, R. P., Lim, L., Walton, W. G., Pearce, K. H., BhaTTC, A. P., et al. (2019). Targeting regorafenib-induced toxicity through inhibition of gut microbial β-glucuronidases. ACS Chem. Biol. 14, 2737–2744. doi: 10.1021/acschembio.9b00663
Esmeijer, K., Geleijnse, J. M., de Fijter, J. W., Kromhout, D., Hoogeveen, E. K. (2020). Dietary protein intake and kidney function decline after myocardial infarction: the alpha omega cohort. Nephrol. Dial Transplant 35, 106–115. doi: 10.1093/ndt/gfz015
Facioni, M. S., Raspini, B., Pivari, F., Dogliotti, E., Cena, H. (2020). Nutritional management of lactose intolerance: the importance of diet and food labelling. J. Transl. Med. 18, 260. doi: 10.1186/s12967-020-02429-2
Guo, K. X., Yan, Y. W., Zeng, C. F., Shen, L., He, Y. S., Tan, Z. J. (2022). Study on baohe pills regulating intestinal microecology and treating diarrhea of high-fat and high-protein diet mice. BioMed. Res. Int. 2022, 6891179. doi: 10.1155/2022/6891179
He, L., Liu, Y. W., Guo, Y. F., Shen, K. J., Hui, H. Y., Tan, Z. J. (2018). Diversity of intestinal bacterial lactase gene in antibiotics-induced diarrhea mice treated with Chinese herbs compound qi wei bai Zhu San. 3 Biotech 8, 4. doi: 10.1007/s13205-017-1024-y
He, L., Long, C. X., Liu, Y. J., Hui, H. Y., Tan, Z. J. (2017). Research progress on microorganism lactase. Food Ferment Ind. 43, 268–273. doi: 10.13995/j.cnki.11-1802/ts.201706046
He, Y. S., Tang, Y., Peng, M. J., Xie, G. Z., Li, W. G., Tan, Z. J. (2019). Influence of Debaryomyces hansenii on bacterial lactase gene diversity in intestinal mucosa of mice with antibiotic-associated diarrhea. PloS One 14, e0225802. doi: 10.1371/journal.pone.0225802
He, Y. S., Tan, Z. J., Hui, H. Y. (2020). Progress in baohe pill research. Chin. Med. J. Res. Prac 34, 77–81. doi: 10.13728/j.1673-6427.2020.01.017
Huang, L. L., Zheng, T., Liu, Y. W., Guo, T., Tan, Z. J. (2022). Diarrheal mice induced by a high-fat and high-protein diet could be cured by bohe pill regulating intestinal mucosal bacteria. J. Food Nutr. Res. 10, 459–466. doi: 10.12691/jfmr-10-7-3
Hui, H. Y., Wu, Y., Zheng, T., Zhou, S. N., Tan, Z. J. (2020). Bacterial characteristics in intestinal contents of antibiotic-associated diarrhea mice treated with qiweibaizhu powder. Med. Sci. Monit. 26, e921771. doi: 10.12659/MSM.921771
Li, B. L., Du, P. L., Du, Y., Zhao, D. Y., Cai, Y., Yang, Q. R., et al. (2021). Luteolin alleviates inflammation and modulates gut microbiota in ulcerative colitis rats. Life Sci. 269, 119008. doi: 10.1016/j.lfs.2020.119008
Li, Y. D., He, K. X., Zhu, W. F. (2019). Correlation between invasive microbiota in margin-surrounding mucosa and anastomotic healing in patients with colorectal cancer. World J. Gastrointest Oncol. 11, 717–728. doi: 10.4251/wjgo.v11.i9.717
Li, Y. B., Ma, X. L., Li, Z. G., Jia, H. H., Liang, Y., Hao, G. M. (2018). Effects of baohe pills on blood lipid in SD rats with a high-fat diet on the basis of intestinal microbiota. World Chin Med 13, 2107–2110+2116. doi: 10.3969/j.issn.1673-7202.2018.09.003
Lim, H. J., Shin, H. S. (2020). Antimicrobial and immunomodulatory effects of Bifidobacterium strains: A review. J. Microbiol. Biotechnol. 30, 1793–1800. doi: 10.4014/jmb.2007.07046
Lin, D. B., Yang, H., Cheng, Y. W. (2020). Analysis of components and potential targets of hawthorn in the treatment of nonalcoholic fatty liver disease on the basis of network pharmacology. J. Basic Chin. Med. 26, 1787–1794.
Li, X. Y., Peng, X. X., Guo, K. X., Tan, Z. J. (2021). Bacterial diversity in intestinal mucosa of mice fed with dendrobium officinale and high-fat diet. 3 Biotech 11, 22. doi: 10.1007/s13205-020-02558-x
Liu, L. Y., Shen, A. L., Chen, X. P., Han, Y. Y., Wu, M. Z., Yao, M. Y., et al. (2021). Mechanism of refined baohe granules on inhibiting the growth of colorectal cancer based on network pharmacology. China J. Tradit Chin. Med. Pharm. 36, 3987–3993.
Long, C. X., He, L., Guo, Y. F., Liu, Y. W., Xiao, N. Q., Tan, Z. J. (2017). Diversity of bacterial lactase genes in intestinal contents of mice with antibiotics-induced diarrhea. World J. Gastroenterol. 23, 7584–7593. doi: 10.3748/wjg.v23.i42.7584
Long, C. X., He, L., Liu, Y. J., Hui, H. Y., Tan, Z. J., Li, D. D. (2017). Universal primer for analysis of the diversity of intestinal bacterial lactase gene. Chin. J. Appl. Environ. Biol. 23, 758–763. doi: 10.3724/SP.J.1145.2016.10008
Long, C. X., Liu, Y., He, L., Tan, Q. Q., Yu, Z. Z., Xiao, N. Q., et al. (2018). Bacterial lactase genes diversity in intestinal mucosa of mice with dysbacterial diarrhea induced by antibiotics. 3 Biotech 8, 176. doi: 10.1007/s13205-018-1191-5
Long, C. X., Liu, Y. W., He, L., Yu, R., Li, D. D., Tan, Z. J., et al. (2018). Bacterial lactase genes diversity in intestinal mucosa of dysbacterial diarrhea mice treated with qiweibaizhu powder. 3 Biotech 8, 423. doi: 10.1007/s13205-018-1460-3
Luo, Q. H., Cheng, D. J., Huang, C., Li, Y. F., Lao, C. G., Xia, Y., et al. (2019). Improvement of colonic immune function with soy isoflavones in high-fat diet-induced obese rats. Molecules. 24, 1139. doi: 10.3390/molecules24061139
Oak, S. J., Jha, R. (2019). The effects of probiotics in lactose intolerance: A systematic review. Crit. Rev. Food Sci. Nutr. 59, 1675–1683. doi: 10.1080/10408398.2018.1425977
Popović, N., Brdarić, E., Đokić, J., Dinić, M., Veljović, K., Golić, N., et al. (2020). Yogurt produced by novel natural starter cultures improves gut epithelial barrier in vitro. Microorganisms 8, 1586. doi: 10.3390/microorganisms8101586
Quan, J. J., Huan, Z. J. (2021). Research progress of drug therapy for chronic kidney disease based on intestinal flora. Chin. J. Clin. Pharmacol. 37, 2985–2988. doi: 10.13699/j.cnki.1001-6821.2021.21.029
Qu, Y. F., Li, X. Y., Xu, F. Y., Zhao, S. M., Wu, X. M., Wang, Y. Z., et al. (2021). Kaempferol alleviates murine experimental colitis by restoring gut microbiota and inhibiting the LPS-TLR4-NF-κB axis. Front. Immunol. 12. doi: 10.3389/fimmu.2021.679897
Ramette, A. (2007). Multivariate analyses in microbial ecology. FEMS Microbiol. Ecol. 62, 142–160. doi: 10.1111/j.1574-6941.2007.00375.x
Sakkas, H., Bozidis, P., Touzios, C., Kolios, D., Athanasiou, G., Athanasopoulou, E., et al. (2020). Nutritional status and the influence of the vegan diet on the gut microbiota and human health. Medicina (Kaunas) 56, 88. doi: 10.3390/medicina56020088
Shao, H. Q., He, L., Xiao, N. Q., Xie, G. Z., Tan, Z. J. (2022). Establishment of a mouse model of diarrhea with gastrointestinal food stagnation syndrome and the efficacy of baohe wan. Shih-chen Kuo I Kuo Yao. 33, 10–15. doi: 10.3969/j.issn.1008-0805.2022.01.03
Shao, H. Q., Zhang, C. Y., Xiao, N. Q., Tan, Z. J. (2020). Gut microbiota characteristics in mice with antibiotic-associated diarrhea. BMC Microbiol. 20, 313. doi: 10.1186/s12866-020-01999-x
Stefan, N. (2020). Causes, consequences, and treatment of metabolically unhealthy fat distribution. Lancet Diabetes Endocrinol. 8, 616–627. doi: 10.1016/S2213-8587(20)30110-8
Vera, C., Guerrero, C., Aburto, C., Cordova, A., Illanes, A. (2020). Conventional and non-conventional applications of β-galactosidases. Biochim. Biophys. Acta Proteins Proteom 1868, 140271. doi: 10.1016/j.bbapap.2019.140271
Wang, J., Yang, B. Y., Aygul, A., Zhang, S. J., Guo, X. F., Amerjan, O. (2021). Effect of dietary supplementation of sweet sorghum and alfalfa silage mitures on enzyme activity of digestive tract of karakul sheep. Chin. J. Anim. Sci. 57, 138–144. doi: 10.19556/j.0258-7033.20200108-04
Wang, S. G., Yao, J. Y., Zhou, B., Yang, J. X., Chaudry, M. T., Wang, M., et al. (2018). Bacteriostatic effect of quercetin as an antibiotic alternative in vivo and its antibacterial mechanism in vitro. J. Food Prot 81, 68–78. doi: 10.4315/0362-028X.JFP-17-214
Wu, Y., Tan, Z. J. (2021). Relationship between diarrhea and intestinal lactase activity. World Chin. J. Digestol 29, 571–576. doi: 10.11569/wcjd.v29.i11.571
Wu, Y., Tang, Y., Xiao, N. Q., Wang, C. H., Tan, Z. J. (2020). Bacterial lactase gene characteristics in intestinal contents of antibiotic-associated diarrhea mice treated with debaryomyces hansenii. Med. Sci. Monit 26, e920879. doi: 10.12659/MSM.920879
Ye, L., Das, P., Li, P., Ji, B., Nielsen, J. (2019). Carbohydrate active enzymes are affected by diet transition from milk to solid food in infant gut microbiota. FEMS Microbiol. Ecol. 95, fiz159. doi: 10.1093/femsec/fiz159
You, F. F., Yang, G. W., Tu, X. H., He, Y. M., Yu, L. J., Li, Y. T., et al. (2021). Effect of baohe pill on the change in intestinal probiotic a. muciniphila intestinal Mucosal barrier Mouse Model. ulcerative . Zhejiang J. Integr. Tradit Chin. West Med. 31, 303–307. doi: 10.3969/j.issn.1005-4561.2021.04.004
Zhang, C. Y., Peng, X. X., Shao, H. Q., Li, X. Y., Wu, Y., Tan, Z. J. (2021). Gut microbiota comparison between intestinal contents and mucosa in mice with repeated stress-related diarrhea provides novel insight. Front. Microbiol. 12. doi: 10.3389/fmicb.2021.626691
Zhang, H. R., Zhang, T. T., Xiu, F., Fu, M., Liu, Z. Y. (2019). NMR-based study of chemical constituents of Massa medicata fermentata. Chin. Tradit Herb Drugs 50, 3764–3768. doi: 10.7501/j.issn.0253-2670.2019.16.005
Zhou, Z. Y., Xu, X., Zhou, Y. (2019). Research progress on carbohydrate active enzymes of human microbiome. Hua Xi Kou Qiang Yi Xue Za Zhi 37, 666–670. doi: 10.7518/hxkq.2019.06.017
