Steven Knapp1
Clint Brodal
Jens Kreth
Justin Merritt- 1Department of Restorative Dentistry, Oregon Health and Science University, Portland, OR, USA
- 2Department of Pediatric Dentistry, Oregon Health and Science University, Portland, OR, USA
- 3Department of Microbiology and Immunology, University of Oklahoma Health Science Center, Oklahoma, OK, USA
- 4Department of Molecular Microbiology and Immunology, Oregon Health and Science University, Portland, OR, USA
The six Veillonella species found in the human oral cavity are among the most abundant members of the oral flora, occurring in both supra- and subgingival dental plaque as well as on the oral mucosa. Epidemiological data have also implicated these species in the development of the most common oral diseases. Despite their ubiquity, abundance, and ecological significance, surprisingly little is known about Veillonella biology, largely due to the difficulties associated with their genetic manipulation. In an effort to improve genetic analyses of Veillonella species, we isolated a collection of veillonellae from clinical plaque samples and screened for natural competence using a newly developed transformation protocol. Numerous strains of V. parvula were found to exhibit a natural competence ability that was highly influenced by growth medium composition. By exploiting this ability, we were able to utilize cloning-independent allelic exchange mutagenesis to identify the likely source of DNA uptake machinery within a locus homologous to type II secretion systems (T2SS). Interestingly, V. parvula natural competence was found to exhibit a clear hierarchy of preference for different sources of DNA (plasmid < PCR product < genomic DNA), which is unlike most naturally competent species. Genomic comparisons with other members of the Veillonellaceae family suggest that natural competence is likely to be widely distributed within this group. To the best of our knowledge, this study is the first demonstration of natural competence and targeted allelic exchange mutagenesis within the entire Veillonellaceae family and demonstrates a simple and rapid method to study Veillonella genetics.
Introduction
Of the 13 species in the genus Veillonella (Aujoulat et al., 2014), six are typically found in the oral cavities of humans (V. atypica, V. dispar, V. parvula, V. denticariosi, V. rogosae, and V. tobetsuensis), where they comprise significant fractions of the oral flora found within supra- and subgingival dental plaque as well as on the oral mucosa (Aas et al., 2005; Beighton et al., 2008; Haffajee et al., 2009; Zaura et al., 2009; Abusleme et al., 2013). Veillonellae are also among the most prevalent species detected in saliva and dental plaque (Keijser et al., 2008; Valm et al., 2011). The prevalence and abundance of these organisms in the oral cavity is a reflection of their prominent role within the microbial ecology of oral biofilms. Veillonellae are considered bridge species due to their diverse array of intergeneric coaggregation/coadhesion interactions as well as their ability to stimulate the growth of numerous organisms through metabolic complementation (Hughes et al., 1988; Palmer et al., 2006; Periasamy and Kolenbrander, 2009a,b, 2010; Zhou et al., 2016). For example, veillonellae likely play a crucial role in the removal of toxic organic acid metabolic waste products from biofilm communities, due to their unusual preference for organic acid carbon sources (Delwiche et al., 1985). Likewise, many fastidious periodontal pathogens have an obligate growth requirement for heme, which can be provided by the veillonellae through de novo synthesis (Zhou et al., 2016). This and the various other unusual aspects of Veillonella metabolism are presumably of particular importance to support the persistence of periodontopathogens before the onset of oral inflammatory disease (i.e., during oral health) (Palmer et al., 2006; Periasamy and Kolenbrander, 2009a,b, 2010; Zhou et al., 2016).
While Veillonella species (especially V. parvula) have been associated with the development of the most common oral diseases, such as caries (Becker et al., 2002; Kanasi et al., 2010; Tanner et al., 2011), endodontic infections (Sundqvist, 1992; Khemaleelakul et al., 2002), and periodontitis (Kamma et al., 1995; Tanner et al., 1996; Heller et al., 2012; Mashima et al., 2015), little is known at the molecular level about why these associations exist. One of the principal hindrances to progress in this area has come from the historical difficulties associated with the genetic manipulation of veillonellae. Veillonella was generally considered a genetically intractable genus until recently, as no targeted mutations had ever been successfully introduced into any of the Veillonella species. However, this changed several years ago, when the V. parvula strain PK1910 was demonstrated to be transformable via electroporation of isogenic genomic DNA (Liu et al., 2011). While this strain of V. parvula proved to be resistant to electrotransformation with all other sources of DNA, this was not the case for the V. atypica clinical isolate OK5, which was later used to develop the first Veillonella genetic system (Liu et al., 2012). More recently, the first targeted marked and unmarked mutations of Veillonella were introduced into strain OK5 using insertion duplication mutagenesis with a suicide vector (Zhou et al., 2015a,b, 2016). These studies have provided some of the first insights into Veillonella genetics and further demonstrated the feasibility of Veillonella genetic research.
Encouraged by these studies, we were curious whether the Veillonella genetic system could be further improved using natural competence, rather than electrotransformation. Natural competence offers distinct advantages over electrotransformation for genetic studies, as the DNA uptake machinery protects transforming DNA from restriction enzyme cleavage after import (Chen and Dubnau, 2003, 2004; Johnston et al., 2013), while cells that have entered the natural competence state also concurrently activate their recombination systems, conveniently further increasing the likelihood of obtaining the desired recombinant (Kidane et al., 2012; Straume et al., 2015). These features have made it possible to develop a variety of rapid and highly efficient cloning-independent mutagenesis and plasmid assembly techniques for some naturally competent species, such as Streptococcus mutans (Xie et al., 2011, 2013). Unfortunately, only a minority of species is known to be naturally competent. The principal difficulty in observing natural competence in new species is probably related to the highly disparate signals required to trigger competence gene expression. In most species, natural competence is transient and stringently regulated by secreted signal molecules and/or very specific environmental cues, such as chitin polymers in the case of Vibrio natural competence (Seitz and Blokesch, 2013; Fontaine et al., 2015; Matthey and Blokesch, 2016). While the signals triggering competence development can be highly species- and/or strain-specific, the competence machinery itself is quite similar among naturally competent bacteria, with most identified DNA uptake loci containing genes homologous to type II secretion systems (T2SS) as well as homologs of genes required for type IV pilin biogenesis (Averhoff and Friedrich, 2003; Chen and Dubnau, 2003, 2004). In the current study, we provide evidence that most veillonellae encode such competence loci and demonstrate how these systems may be exploitable for their facile genetic manipulation.
Materials and Methods
Bacterial Strains and Growth Conditions
Escherichia coli cultures were maintained at 37°C in Luria Bertani medium (LB; Difco, Sparks, MD) with aeration or grown aerobically on LB agar plates. All Veillonella cultures and agar plates were grown at 37°C in anaerobic conditions (85% nitrogen, 10% carbon dioxide, and 5% hydrogen) using either Todd Hewitt medium (Difco, Sparks, MD) supplemented with 0.3% wt/vol yeast extract (Fisher, Fair Lawn, NJ) and 0.6% sodium lactate (Spectrum Chemical, Gardena, CA) (together referred to as THL medium) or a novel medium referred to as SK medium. SK medium composition is as follows: 10 g L−1 tryptone (Fisher, Fair Lawn, NJ), 10 g l−1 yeast extract (Fisher, Fair Lawn, NJ), 0.4 g l−1 disodium phosphate (Fisher, Fair Lawn, NJ), 2 g l−1 sodium chloride (Fisher, Fair Lawn, NJ), and 10 ml l−1 60% (wt/vol) sodium lactate (Spectrum Chemical, Gardena, CA). For antibiotic selection, cultures and/or agar plates were supplemented with the following antibiotics: 150 μg ml−1 ampicillin (E. coli), 9 μg ml−1 tetracycline (Veillonella), and 350 μg ml−1 spectinomycin (Veillonella).
Isolation of Veillonella from Clinical Plaque Samples
Prior to the study, the clinical sample collection and strain isolation protocol were reviewed by the Oregon Health and Science University Institutional Review Board (IRB) and deemed not human subjects research. All clinical specimens were collected by clinicians in the OHSU Pediatric Dental clinic using material generated during routine treatment procedures. Specimens were removed of all Protected Health Information (PHI) identifiers as part of the collection protocol. Clinical specimens were derived from a pediatric cohort and consisted of 67 unique buccal molar plaque samples. Initially, Veillonella clinical isolates were obtained using a previously published protocol (Liu et al., 2012). Briefly, plaque samples obtained from the clinic were vortexed to disperse the cells and then 100 μl was plated onto TH plates containing a confluent lawn of S. mutans strain UA159 previously grown for 24 h. Plates were incubated anaerobically at 37°C for 48 h. before inspecting the plates for the presence of colonies forming on top of the S. mutans lawn. Cells from candidate colonies were observed by microscopy for the expected cellular morphology. Promising clones were restreaked and then further tested by 16S rRNA sequencing and, in some cases, rpoB PCR amplification. In an effort to improve the efficiency of Veillonella isolation, a new enrichment strategy was developed and implemented. For this approach, each unique clinical plaque sample was used to inoculate two separate 1 ml cultures of SK medium +15.6 μg ml−1 erythromycin as well as SK medium +0.5 μg ml−1 chloramphenicol. Antibiotic enrichment cultures were incubated until reaching stationary phase (typically 24 h) and then quadrant streaked onto SK agar plates. Cells from isolated colonies were observed by microscopy for the expected cellular morphology. Candidate clones were restreaked and then further tested by 16S rRNA sequencing and, in some cases, rpoB PCR amplification.
Veillonella Species Identification
All primers used in the study are listed in Table 1. Pure culture isolates of candidate Veillonella species were tested by amplifying the 16S rRNA gene using PCR and the primers 16S Uni F/R. The resulting PCR products were purified using the DNA Clean and Concentrator kit (Zymo, Irvine, CA) and then sequenced using the 16S Uni F/R primers. Species assignments were made by performing a BLASTN search of 16S sequence data in both the Human Oral Microbiome Database (www.homd.org) and the Green Genes database (greengenes.lbl.gov). In some cases, it was necessary to further verify species assignments using PCR amplification of the Veillonella rpoB gene (Igarashi et al., 2009). 5 unique rpoB forward primers (DENF, PARF, ROGF, ATYF, and DISF) were combined in a single PCR reaction with the Veillonella rpoB universal reverse primer VR. Based upon amplicon sizes, it was possible to determine the species of the tested isolates. All identified Veillonella clinical isolates are listed in Table 2.

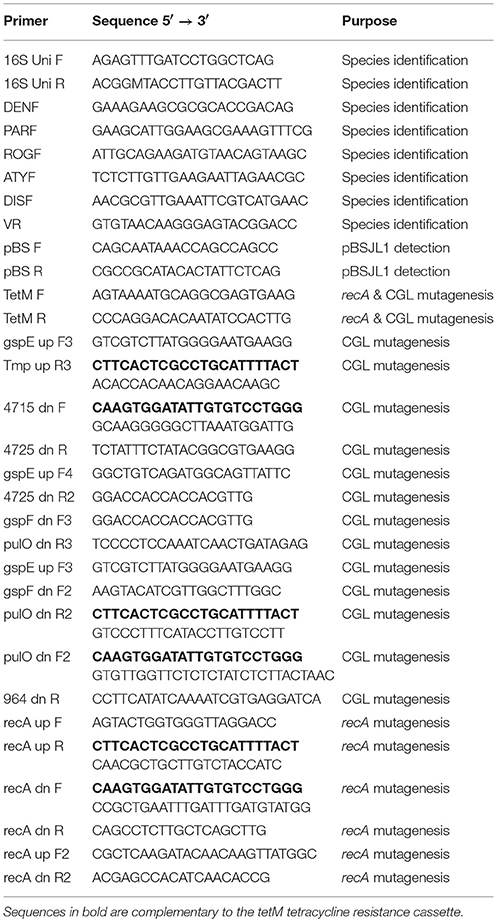

Table 1. Primers used in this study.

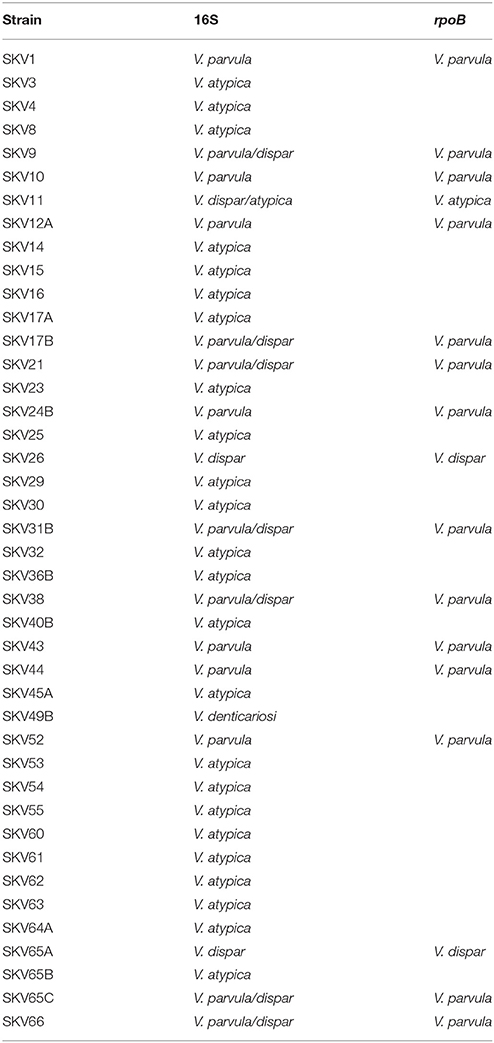

Table 2. Species identification of Veillonella clinical isolates.
Shuttle Plasmid pBSJL1 Transformation
V. parvula strains SKV17B and SKV38 were streaked onto both SK and THL plates and incubated anaerobically at 37°C for 48 h. Cells were scraped from each of the plates and resuspended in 1 ml of their respective liquid media (SK or THL) and then vortexed to disperse. The cell densities of the cultures were subsequently adjusted to OD600 0.4. Next, 10 μl of the cell suspensions was spotted onto the respective agar plates (SK or THL) and then immediately followed by adding an additional 800 ng of the E. coli-Veillonella shuttle plasmid pBSJL1 (dissolved in 3 μl TE buffer) (Liu et al., 2012) to the spots. Plates were allowed to dry in the anaerobic chamber before incubating anaerobically at 37°C for 48 h. Afterward, cells growing in the 10 μl spots were scraped from the plates and resuspended in 250 μl of their respective liquid media (SK or THL) and then vortexed to disperse. 10 μl of each cell suspension was spotted onto SK plates supplemented with tetracycline and incubated anaerobically at 37°C for an additional 48 h. Candidate pBSJL1 transformants of SKV17B and SKV38 were inoculated into SK medium supplemented with tetracycline and then tested for the presence of pBSJL1 using PCR and the primers pBS F/R.
Extraction of pBSJL1 from V. parvula
Plasmid extraction from V. parvula was performed using the typical alkaline lysis solutions I, II, and III (Green and Sambrook, 2016) with minor modifications as described below. 12 ml cultures of SK medium + tetracycline were inoculated with pBSJL1 transformants of V. parvula strains SKV17B and SKV38 and grown to stationary phase. Separate 12 ml non-selective SK medium cultures were also inoculated with wild-type plasmid-free SKV17B and SKV38 to serve as negative controls. The cultures were each divided into 3 × 4 ml aliquots and pelleted by centrifugation. Cells were resuspended in 250 μl of solution I containing 2.5 mg lysozyme and incubated in a 37°C water bath for 1.5 h. with shaking every 30 min. Next, 250 μl of solution II was added to lyse the cells followed by an additional 350 μl of solution III to neutralize the lysate. Cellular debris was pelleted by centrifugation at 16,000 × g for 8.5 min. and the cleared supernatants were collected. Supernatants were treated with phenol/chloroform solution, precipitated with 2-propanol, and resuspended in 70 μl of TE buffer. Purified pBSJL1 was used to retransform E. coli along with the negative control samples prepared from wild-type plasmid-free SKV17B and SKV38.
Construction of V. parvula recA and Competence Locus Deletion Mutants
All primers used for mutation construct assembly are listed in Table 1. All primers and mutagenesis constructs were designed using Serial Cloner software (https://serial-cloner.en.softonic.com). Allelic exchange mutation constructs were assembled using overlap extension PCR ligation (Xie et al., 2013) with Phusion DNA polymerase (New England Biolabs, New Ipswich, MA) and strain SKV38 chromosomal DNA and pBSJL1 as PCR templates. The recA construct was assembled by first amplifying the upstream and downstream homologous fragments from strain SKV38 using the primers recA up F/R and recA dn F/R. 0.5 μl of both resulting PCR amplicons was mixed with a PCR amplicon of the tetM tetracycline resistance cassette amplified using pBSJL1 as a template and the primers TetM F/R. Regions of complementarity between the recA homologous fragments and the tetM amplicon facilitated their subsequent PCR ligation using the primers recA up F/recA dn R. A similar strategy was used to assemble constructs creating both large and small deletions within the competence gene locus. For the large deletion, about 5.7 kb of the 8 kb locus was deleted. Primers used to amplify the upstream and downstream homologous fragments for this construct were gspE up F3/TMP up R3 and 4715 dn F/4725 dn R, respectively. For the small deletion, 1 kb was deleted from the middle of the locus. The upstream and downstream homologous fragments were amplified with the primers gspF dn F2/pulO dn R2 and pulO dn F2/964 dn R, respectively. 0.5 μl of the resulting PCR amplicons was mixed with a PCR amplicon of the tetM tetracycline resistance cassette amplified with the primers TetM F/R. Regions of complementarity between the competence locus homologous fragments and the tetM amplicon facilitated their subsequent PCR ligation using the primers gspE up F3/4725 dn R for the large deletion construct and gspF dn F2/964 dn R for the small deletion construct. The resulting PCR products were transformed into wild-type V. parvula strain SKV38 and selected on agar plates supplemented with tetracycline. Additional competence locus mutation constructs creating large deletions were assembled using template gDNA extracted from a confirmed competence gene locus large deletion mutant and amplifying with the primers gspE up F4/4725 dn R2 as well as gspE up F3/4725 dn R. These PCR products were subsequently transformed into wild-type V. parvula strain SKV38 and selected on agar plates supplemented with tetracycline. Additional competence locus mutation constructs creating small deletions were assembled using template gDNA extracted from a confirmed competence gene locus small deletion mutant and amplifying with the primers gspF dn F3/pulO dn R3 as well as gspE up F3/4725 dn R. These PCR products were subsequently transformed into wild-type V. parvula strain SKV38 and selected on agar plates supplemented with tetracycline.
Transformation of Allelic Exchange Mutagenesis Constructs and Spectinomycin Resistant Mutant Genomic DNA
The same natural transformation protocol described for pBSJL1 transformation was used to transform the allelic exchange mutagenesis constructs created by overlap extension PCR ligation. Transformation reactions both contained an equivalent molar ratio of a saturating amount of transforming DNA. For the recA construct 75 ng was transformed (7.5 μg ml−1 final concentration), while 145 ng of the competence locus construct was transformed (14.5 μg ml−1 final concentration). Transformants were selected on SK agar plates supplemented with tetracycline, confirmed via PCR, and finally tested for their natural competence abilities using the previously described natural transformation protocol. Wild-type and mutant strains were transformed with isogenic genomic DNA derived from a spontaneous spectinomycin resistant isolate of SKV38. The spectinomycin resistant mutant was isolated by plating 500 μl of a stationary phase culture of SKV38 onto SK agar plates supplemented with spectinomycin. 500 ng of spectinomycin resistant mutant genomic DNA (50 μg ml−1) was added to each transformation reaction and transformants were selected on SK agar plates supplemented with 350 μg ml−1 spectinomycin.
Comparison of Transformation Efficiencies using Plasmid, PCR Product, and Genomic DNA
The same previously described natural transformation protocol was used to transform wild-type SKV38 with either 300 ng pBSJL1, 145 ng of competence locus deletion PCR product, or 500 ng genomic DNA. To assess transformation efficiency, cells were plated on both non-selective and selective SK agar plates. Transformation efficiency is defined as the ratio of transformants to total CFU. Data are expressed as the average and standard deviations of at least three independent experiments performed in triplicate.
Transformation of V. parvula Strains with Genomic DNA
The same natural transformation protocol described for pBSJL1 transformation was used to transform a panel of wild-type V. parvula strains with 500 ng genomic DNA derived from a tetracycline resistant competence locus deletion mutant of strain SKV38. In some cases, it was necessary to transform gDNA derived from a spontaneous spectinomycin resistant mutant of strain SKV38 due to the inherent tetracycline resistance of the parent strain. In such cases, 500 ng of gDNA conferring spectinomycin resistance was transformed and the transformants were selected on agar plates supplemented with spectinomycin. Data are presented as the number of tetracycline resistant transformants generated from 10 μl of transformation reaction cell suspension. Data are expressed as the average and standard deviations of three independent experiments performed in triplicate.
Results
Identification of Naturally Competent V. parvula Strains from Clinical Plaque Samples
Recently, several mutations have been introduced into V. atypica strain OK5 using electrotransformation of the suicide vector pBST (Zhou et al., 2015a,b, 2016). These studies successfully demonstrated the potential genetic tractability of veillonellae. While this approach has proven to be a reliable mechanism to generate targeted mutations in strain OK5, the entire procedure can be laborious, and thus far, only single crossover insertion duplication mutations have been achieved despite previous attempts to create double crossover allelic exchange mutations (Zhou et al., 2015a). One of the principal benefits of allelic exchange mutagenesis is that the constructs can be easily assembled using solely PCR, circumventing the cloning requirement for suicide vector construction. This greatly increases the speed at which constructs can be assembled and avoids issues related to construct toxicity in E. coli. Since it was already established that allelic exchange mutagenesis is ineffective via electrotransformation of OK5, we were curious whether veillonellae might be naturally transformable, and thus, likely amenable to allelic exchange mutagenesis. To test this, we first isolated a collection of veillonellae from clinical plaque samples in a pediatric cohort from the OHSU pediatric dental clinic. In total, 67 unique buccal molar plaque specimens were collected from separate patients, resulting in a total of 43 unique Veillonella isolates. Initially, we employed a previously published Veillonella isolation technique in which strains are isolated on confluent lawns of S. mutans (Liu et al., 2012). While this approach did yield isolates, our success rate was lower than desired. Therefore, we developed a new simple and efficient protocol to improve the reliability of Veillonella isolation from plaque samples. As described in Materials and Methods, clinical specimens are first directly enriched for veillonellae by incubating in duplicate cultures of SK medium + chloramphenicol and SK medium + erythromycin. We found this single enrichment step to substantially increase the proportion of Veillonella in one or both cultures. Consequently, we were able to simply streak the enrichment cultures on non-selective plates and identify candidate veillonellae from the resulting colonies. Of the 43 unique isolates, we obtained multiple strains of the three most common Veillonella species found in dental plaque (V. atypica, dispar, and parvula) as well as a lone isolate of the less common species V. denticariosi (Table 2). Species assignments were based upon 16S rRNA sequence data. Since it was difficult to definitively distinguish between V. dispar and V. parvula using 16S rRNA sequences, each of these isolates was further confirmed by amplification of the rpoB gene (Igarashi et al., 2009). Next, each of the strains was tested for natural competence by transforming the E. coli-Veillonella shuttle vector pBSJL1 using an agar plate transformation approach with SK and THL media. Surprisingly, two strains of V. parvula (SKV17B and SKV38) yielded candidate transformants using SK medium, whereas no candidates were detected from any of the strains using THL medium (Figure 1A). Three candidates from the SKV17B and SKV38 transformations were further tested for the presence of pBSJL1 using plasmid-specific PCR primers and all appeared to contain the vector (Figure 1B). As a final confirmation, plasmid DNA was extracted from these transformants and then retransformed into E. coli, resulting in the expected acquisition of antibiotic resistance (Figure 1C).
Figure 1. V. parvula clinical isolates exhibit natural competence. (A) V. parvula strains SKV17B and SKV38 were transformed with the E. coli-Veillonella shuttle vector pBSJL1 in either SK medium (top row) or THL medium (bottom row). Ten microliters of the transformation reaction was spotted onto selective medium to isolate transformants. Samples from left to right are: SKV17B + pBSJL1, SKV17B (no DNA), SKV38 + pBSJL1, and SKV38 (no DNA). (B) Three CFU from the SKV17B and SKV38 transformation plates were tested for the presence of pBSJL1 using plasmid-specific primers. The untransformed parental strains were included as negative controls. (C) Plasmid extraction was performed on confirmed V. parvula transformants as well as the untransformed parental strains and then the resulting samples were transformed into E. coli. Plasmid samples from left to right were purified from the following sources: SKV17B + pBSJL1, SKV17B, SKV38 + pBSJL1, SKV38, and pBSJL1 purified from E. coli.
Allelic Replacement Mutagenesis Using Natural Competence
Given the success with pBSJL1 transformation, we were next curious to test whether the same procedure could be used for targeted mutagenesis of V. parvula via allelic exchange mutagenesis with PCR products. We were particularly interested to mutagenize genes potentially responsible for exogenous DNA uptake. In most naturally competent bacteria, the DNA uptake machinery is encoded by loci containing genes homologous to those of T2SS and genes involved in type IV pilin biogenesis (Averhoff and Friedrich, 2003; Chen and Dubnau, 2003, 2004). A candidate locus was identified in the sequence data for the V. parvula genome reference strain DSM2008 (VPAR_RS05490—5435) (Figure 2A). The 12 genes in the locus appeared to be organized into one or two polycistronic operons. The first two genes in the locus (VPAR_RS05490 and 5485) encode putative traffic NTPases resembling those of T2SS with the second gene product exhibiting homology to PilT proteins. Most bona fide T2SS do not encode a second traffic NTPase, whereas this is a common feature of type IV pilin biogenesis loci in both Gram positive and Gram negative bacteria (Chen and Dubnau, 2004; Giltner et al., 2012). In addition, a variety of the downstream open reading frames (ORFs) between VPAR_RS05465—5435 have features that are highly reminiscent of type IV prepilins (Figure 2A). The ORFs in this locus were further analyzed using the PilFind webserver (http://signalfind.org/pilfind.html) (Imam et al., 2011) and a canonical type IV prepilin leader sequence was detected in VPAR_RS05465. This ORF is also located directly adjacent to the putative prepilin peptidase (VPAR_RS05470) likely responsible for cleaving such leader peptides (Giltner et al., 2012) (Figure 2A). These features were all suggestive of a type IV pilin biogenesis locus, many of which serve as competence loci (Chen and Dubnau, 2004; Giltner et al., 2012), and thus it was targeted for mutagenesis. As a control, we also targeted recA for mutagenesis, since this mutant was expected to lose its natural transformability due to severe impairments in homologous recombination. Allelic exchange mutagenesis constructs were assembled via PCR and transformed into SKV38 using both SK and THL media. Once again, SK medium yielded substantially higher numbers of transformants compared to THL (Figure 2B), further confirming our previous observations. Antibiotic resistant transformants were subsequently tested via PCR and confirmed to exhibit the expected mutant genotypes for both the recA and competence gene locus deletions (Figure 2C). Next, we assayed the natural competence abilities of the two allelic exchange mutant strains. Since only one antibiotic resistance cassette is available for veillonellae, we transformed genomic DNA (gDNA) derived from a spontaneous spectinomycin resistant mutant of SVK38. These transformants could then be selected on plates supplemented with spectinomycin. To our surprise, the wild-type control yielded a large number of transformants far beyond what was anticipated based upon the previous transformations with either pBSJL1 or PCR products (Figure 2D). However, this was not the case for both the recA and competence gene locus deletion strains, as no transformants were detected from either (Figure 2D). Thus, both deletions resulted in a minimum of 3-log reductions in transformability.
Figure 2. Allelic replacement mutagenesis of recA and a putative competence gene locus. (A) Chromosome maps of regions targeted for allelic exchange mutagenesis. Open reading frames (ORFs) are all drawn to scale. Red arrows indicate the locations of primers used to amplify homologous fragments used for mutagenesis. For both loci, the region between the two primer sets was replaced with a tetM cassette. NCBI gene locus tags are written in blue with the final two digits of the locus tag listed directly below their respective ORFs. For the competence gene locus map, the bottom row (N methyl 2) indicates whether a putative A24 prepilin cleavage/N-terminal methylation motif is present within the ORF. This motif is commonly found among type IV-like prepilins. (B) V. parvula strain SKV38 was transformed using either SK medium (top row) or THL medium (bottom row) together with PCR products containing allelic exchange mutagenesis constructs for both recA and the competence gene locus (CGL). Ten microliters of the transformation reaction was spotted onto selective medium to isolate transformants. Samples from left to right are: SKV38 + ΔrecA PCR, SKV38 (no DNA), SKV38 + ΔCGL PCR, and SKV38 (no DNA). (C) Transformants from both the ΔrecA and ΔCGL transformations were tested via PCR to confirm the expected genotypes. Samples from left to right are: 1. wild-type gDNA + recA locus external primers (predicted size 2,846 bp); 2. wild-type gDNA + tetM primers (no predicted amplicon); 3. ΔrecA gDNA + recA locus external primers (predicted size 4,176 bp); 4. ΔrecA gDNA + recA locus upstream external primer/tetM reverse primer (predicted size 3,162 bp); 5. ΔrecA gDNA + tetM forward primer/recA locus external downstream primer (predicted size 3,086 bp); 6. wild-type gDNA + CGL external primers (predicted size 7,602 bp); 7. wild-type gDNA + tetM primers (no predicted amplicon); 8. ΔCGL gDNA + CGL external primers (predicted size 3,938 bp); 9. ΔCGL gDNA + CGL upstream external primer/tetM reverse primer (predicted size 2,992 bp); 10. ΔCGL gDNA + tetM forward primer/CGL external downstream primer (predicted size 3,018 bp). (D) Confirmed deletion mutants of recA and the competence gene locus were transformed with gDNA derived from a spontaneous spectinomycin resistant mutant of strain SKV38. Ten microliters of the transformation reaction and three consecutive serial dilutions were spotted onto selective medium to isolate transformants. Samples from left to right are: wild-type (WT), ΔrecA (recA), and ΔCGL (CGL).
Veillonella Natural Transformation Exhibits an Uptake Bias for the Source of DNA
Given the apparent disparities in the rates of transformation between PCR products and gDNA, we were curious to directly compare transformation efficiencies between the two sources of DNA. Typically, if the source of DNA strongly impacts its transformability, it is because the organism can distinguish foreign DNA through its methylation patterns (Kobayashi, 2001) and/or through the presence of DNA uptake sequences (DUS) (Smith et al., 1999; Chen and Dubnau, 2003, 2004; Mell and Redfield, 2014) Thus, we extracted gDNA from a confirmed competence gene locus deletion mutant and compared its transformation efficiency with that of a PCR product harboring the same mutation. As shown in Figure 3A, gDNA transformation was extremely efficient with transformants comprising >0.1% of the total population. However, we observed a ~2-log lower transformation efficiency with a PCR product, despite the fact that the copy number of the PCR product was higher than the gDNA. This confirmed our previous observations, as both the pBSJL1 and PCR product transformations were far less efficient than gDNA transformation (Figures 1A, 2B,D). Since both the PCR product and gDNA targeted the same region of the chromosome and had identical sequences, it seemed unlikely that the disparate transformation efficiencies could be attributed to a DUS. For example, in Haemophilus influenza, Neisseria meningitidis, and Neisseria gonorrhoeae, DUS occur at an average frequency of 1/kb and even a single DUS is sufficient to facilitate uptake of both long and short DNA fragments (Mell and Redfield, 2014). If V. parvula exhibited a similar bias for DUS throughout its genome, we would expect our mutagenesis construct to contain at least one DUS, since it contained nearly 2 kb of sequence identical to the chromosome. To exclude the possibility that construct design was the source of the lower transformation efficiencies of PCR products, we created a series of additional mutations within the competence gene locus using PCR products harboring either small (~0.9 kb) or large (>2.5 kb) homologous fragments and creating either small (~0.4 kb) or large (~5.7 kb) deletions within the locus. Interestingly, in all cases, the PCR products yielded significantly fewer transformants than their corresponding gDNAs with most constructs yielding similar 10-fold lower transformation efficiencies relative to gDNA, indicating that construct design had little impact on the results (Figure 3A). The only exception was the first construct, which contained both small homologous fragments and created a large chromosomal deletion. It yielded an additional 10-fold reduction in transformation efficiency. Thus, construct design could be a partial contributor to the exceptionally poor transformability of this specific construct. We also repeated this experiment using our recA deletion construct and observed a similar preference for gDNA, which indicated that this phenomenon is unlikely to be locus-specific (data not shown). Since construct design did not appear to be the primary source of the V. parvula preference for genomic DNA, we were next interested to test the role of DNA methylation. If methylation were indeed a factor, we would predict significantly higher rates of transformation from plasmids purified from V. parvula vs. E. coli, due to differences in host methylation patterns. However, there appeared to be no obvious difference in the transformation efficiencies using plasmids purified from either E. coli or V. parvula. We did note substantially lower overall transformation efficiencies for pBSJL1 transformations compared to PCR products and gDNA (Figure 3B). Thus, for unknown reasons, V. parvula natural competence exhibits a clear hierarchy of preference for the source/type of DNA with plasmids being the least efficiently transformed and genomic DNA being the most efficient.
Figure 3. Veillonella natural transformation exhibits a distinct uptake bias. (A) V. parvula SKV38 was transformed with both PCR product allelic exchange mutagenesis constructs targeting the competence gene locus as well as isogenic gDNAs derived from their respective mutant strains. Constructs contained various combinations of either large chromosomal deletions (LD) or small chromosomal deletions (SD) as well as large homologous fragments (LH) or small homologous fragments (SH). Construct designs are as follows. Red: large chromosomal deletion (~5.7 kb) and small homologous fragments (~0.9 kb), Orange: large chromosomal deletion (~5.7 kb) and large homologous fragments (>2.5 kb), Yellow: small chromosomal deletion (~0.4 kb) and large homologous fragments (>2.5 kb), and Green: small chromosomal deletion (~0.4 kb) and small homologous fragments (~0.9 kb). (B) V. parvula SKV38 was transformed with the E. coli—Veillonella shuttle vector pBSJL1 purified from either V. parvula or E. coli. All transformation efficiencies were determined by calculating the ratios of transformants to total CFU. The data are presented as the means ± standard deviations from at least three independent experiments performed in triplicate. *P < 0.01 as determined by unpaired two-tailed t test.
Putative Natural Competence Loci Are Widely Encoded in the Veillonellaceae Family
Given the relatively low efficiency of plasmid transformations in V. parvula, we decided to revisit our original natural competence screen of V. parvula isolates, as those transformations had utilized pBSJL1. Interestingly, when retesting these isolates using gDNA extracted from an SKV38 mutant, we were able to reliably transform more than half of our V. parvula isolates (Table 3). This suggested that natural competence is actually quite common among V. parvula strains, even when using low-passage clinical isolates. Consequently, we were curious whether similar competence gene loci might be found among other veillonellae. Indeed, this did prove to be the case, as the genes required for DNA uptake in V. parvula are widely conserved within the Veillonellaceae family. All of the putative competence loci found among these organisms exhibit synteny and encode two copies of traffic NTPases with the second copy bearing homology to pilT genes (Figure 4), which is highly suggestive of a similar role in DNA uptake.

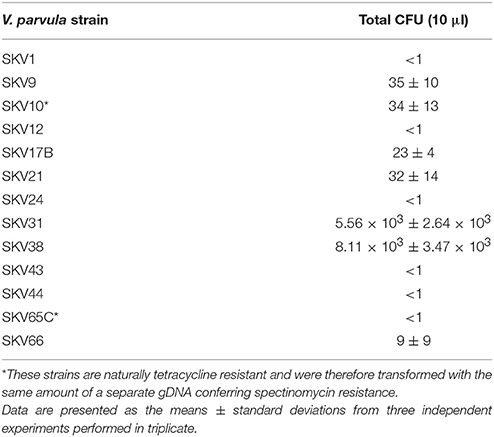

Table 3. Transformation of V. parvula strains with SKV38 mutant gDNA.

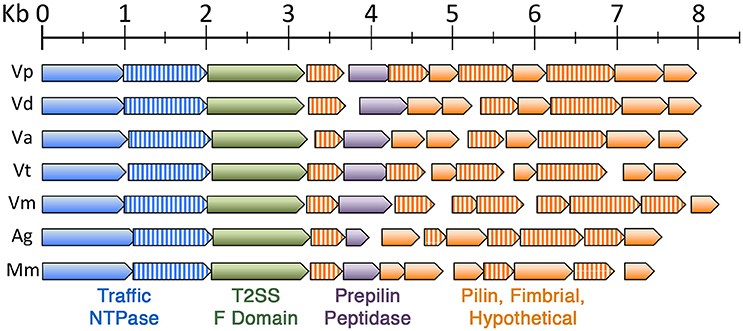

Figure 4. The V. parvula competence locus is highly conserved in the Veillonellaceae family. Chromosome maps of similar competence gene loci found among other members of the Veillonellaceae family. ORFs are all drawn to scale and are color coded as follows: blue (traffic NTPase), blue striped (PilT-type traffic NTPase), green (T2SS F domain protein), purple (prepilin peptidase), orange (pilin, fimbrial, or hypothetical), and orange striped (pilin, fimbrial, or hypothetical with a putative A24 prepilin peptidase cleavage/N-terminal methylation motif). The species and corresponding NCBI gene locus tags of putative competence gene loci are: Veillonella parvula (Vp, VPAR_RS05490—VPAR_RS05435), Veillonella dispar (Vd, VEIDISOL_RS04670—VEIDISOL_RS04725), Veillonella atypica (Va, HMPREF0870_00539—HMPREF0870_00528), Veillonella tobetsuensis (Vt, VEI_RS05560—VEI_RS05505), Veillonella montpellierensis (Vm, HMPREF0872_RS02280—HMPREF0872_RS02225), Anaeroglobus germinatus (Ag, HMPREF0080_RS06235—HMPREF0080_RS06175), and Megasphaera micronuciformis (Mm, HMPREF9429_RS07325—HMPREF9429_RS07270).
Discussion
For many years, Veillonella was considered to be a genetically intractable genus, as attempts to transform different veillonellae were unsuccessful. This changed several years ago when it was demonstrated that electrotransformation was possible in V. atypica strain OK5 (Liu et al., 2012), which was soon followed by reports of targeted mutagenesis in this strain (Zhou et al., 2015a,b, 2016). In the current study, we provide the first evidence of natural competence for any species within the Veillonellaceae family and illustrate how this ability can be exploited for genetic studies. The key hindrance for observing natural competence among new species lies in the transformation procedure itself, as it is extremely difficult to predict the appropriate growth conditions required to trigger competence gene expression in species unknown to be naturally competent. For V. parvula, we fortuitously discovered that the combination of SK medium and agar plate growth serves as a reliable approach to activate its natural competence ability. While this approach functioned well for more than half of our V. parvula clinical isolates, there was still a wide range of transformability among the strains with nearly all strains clustering into one of three distinct groups: high competence (SKV31 and 38), low competence (SKV9, 10, 17B, and 21), and undetectable (SKV1, 12, 24, 43, 44, and 65C) (Table 3). Strain SKV66 was the lone exception, falling somewhere between the low competence and undetectable groups. It is currently unclear whether these differences in transformability are due to inherent strain-specific discrepancies in the levels of competence gene expression, differences in the environmental cues required to trigger competence development, or some combination of both factors. Regardless, medium composition was shown to be one of the major components triggering V. parvula natural competence development (Figure 1A). One of the principal differences in medium composition between SK and THL media is the lack of glucose in SK medium. Given the consistently higher competence observed in SK medium, it would appear that glucose could be a major inhibitor of V. parvula competence development. In H. influenzae, natural competence gene expression is critically dependent upon sugar uptake through the fructose phosphoenolpyruvate phosphotransferase system (PTS) (Macfadyen et al., 1996). Even though Veillonella species are classified as asaccharolytic (Delwiche et al., 1985), they still encode a variety of putative PTS transporters, including a putative fructose PTS transporter (VPAR_RS08070). Thus, it is conceivable that glucose (and perhaps other sugars) could be transported into the cell and inhibit competence gene expression. Growth on agar plates seems to be another fundamental aspect of V. parvula competence development. An agar plate transformation approach is also used to trigger natural competence in Aggregatibacter actinomycetemcomitans (Wang et al., 2002). Likewise, we have observed agar plate growth to be similarly stimulatory for natural competence in multiple species of Streptococcus (unpublished observations). We speculate that the high cell density and surface attached growth conditions on agar plates probably mimics the biofilm environment, which is known to be a major trigger for competence development in a diverse array of bacteria (Li et al., 2001; Meibom et al., 2005; Antonova and Hammer, 2011; Nishikawa and Tanaka, 2013).
One of the major advantages of natural competence for the transformation of genetic constructs is that the import of transforming DNA is coupled with the nucleolytic degradation of one of its strands (Chen and Dubnau, 2004). This protects newly imported DNA from restriction enzyme cleavage, as these enzymes specifically target dsDNA substrates (Bickle and Kruger, 1993; Kobayashi, 2001). In contrast, electroporation injects double stranded DNA into the cell, making it much more susceptible to restriction. Upon entering the cell single-stranded, naturally transformed foreign DNA can then be recombined with the host chromosome, resulting in temporarily hemi-methylated DNA at the site of recombination. Hemi-methylated dsDNA is also resistant to restriction enzyme cleavage (Kobayashi, 2001; Johnston et al., 2013). For this reason, it was quite surprising to observe such a stark preference for isogenic gDNA vs. PCR products with V. parvula natural transformation. It is currently unclear why this bias exists. Studies from naturally competent Neisseria and Haemophilus species indicate that DUS result in >100-fold increase in DNA uptake bias (Mell and Redfield, 2014), which is far greater than the bias we observed with most of our mutagenesis constructs (Figure 3A). In addition, we screened the genomes of V. parvula strains DSM 2008 and UTDB1-3 to identify overrepresented sequences that might serve as potential DUS. There are no sequences ≥10 bp represented ≥100 times in the genome, suggesting that any potential DUS would be likely be 9 bp or smaller (data not shown). There are >800 9 bp sequences represented ≥100 times in the genome (data not shown). Thus, more detailed studies would be required to determine whether any of these might serve as a DUS to improve DNA uptake. Initially, we suspected that the DNA uptake bias could be simply due to differences recombination efficiency, since gDNA transformations contain larger regions of homology for recombination. However, construct design only seemed to affect the efficiency of one of the constructs and all constructs yielded much fewer clones compared to gDNA including both of the constructs containing large homologous fragments (Figure 3A). This led us to suspect differences in DNA methylation status, since PCR products are unmethylated unlike gDNA. Similar observations have been made for both Pseudomonas stutzeri (Berndt et al., 2003) and Helicobacter pylori (Humbert et al., 2011) and the mechanism involved is still the subject of debate. It was recently proposed that this could be due to the lethal self-action of restriction enzymes targeting transiently unmethylated segments of non-homologous DNA found within the mutagenesis constructs (i.e., antibiotic cassettes, reporter genes, etc.) (Johnston et al., 2013). However, in our case, the evidence does not support a role for methylation (Figure 3B). For V. parvula plasmid transformations, the structure of the transforming DNA may be an additional contributing factor to its much lower efficiency, as most plasmid DNA is circular, whereas PCR products and gDNA are both linear.
Given the apparent poor transformability of plasmid DNA in V. parvula (Figure 3B), we suspect that our original lack of observable transformants in V. atypica and V. dispar is probably a consequence of using pBSJL1 for competence screening, since both species likely encode the same DNA uptake machinery as V. parvula (Figure 4). Therefore, as a general rule, it is probably advisable to screen for natural competence in bacteria using gDNA rather than plasmids, perhaps with gDNA derived from a spontaneous antibiotic resistant mutant. Furthermore, unlike most veillonellae, we were unable to identify similar competence loci in the genomes of V. denticariosi and V. rogosae, so these species may lack natural competence machinery altogether. Alternatively, their competence gene loci may simply be missing from the partial genome data available for these species. Furthermore, we have observed very similar type IV pilin/competence loci like those of the veillonellae to be widely distributed amongst numerous distantly related Gram positive and Gram negative organisms (data not shown). Thus, it is possible that natural competence is far more common among bacteria than is currently appreciated. Many of these organisms are also medically significant species that are largely recalcitrant for genetic manipulation. The results in the current study may serve as a useful template for the exploration of natural competence in these organisms.
Author Contributions
Data collection was performed by SK, CB, and JP. Data analysis and manuscript preparation were performed by FQ, JK, and JM.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We would like to thank Dr. Rahul Raghavan and Jess Millar for creating the custom scripts to screen Veillonella genome data for the presence of repeat sequences. This work was supported by NIH-NIDCR grants DE018893 and DE022083 to JM, NIH-NIDCR grant DE021726 to JK, and NIH-NIDCR grant DE0199940 to FQ.
References
Aas, J. A., Paster, B. J., Stokes, L. N., Olsen, I., and Dewhirst, F. E. (2005). Defining the normal bacterial flora of the oral cavity. J. Clin. Microbiol. 43, 5721–5732. doi: 10.1128/JCM.43.11.5721-5732.2005
Abusleme, L., Dupuy, A. K., Dutzan, N., Silva, N., Burleson, J. A., Strausbaugh, L. D., et al. (2013). The subgingival microbiome in health and periodontitis and its relationship with community biomass and inflammation. ISME J. 7, 1016–1025. doi: 10.1038/ismej.2012.174
Antonova, E. S., and Hammer, B. K. (2011). Quorum-sensing autoinducer molecules produced by members of a multispecies biofilm promote horizontal gene transfer to Vibrio cholerae. FEMS Microbiol. Lett. 322, 68–76. doi: 10.1111/j.1574-6968.2011.02328.x
Aujoulat, F., Bouvet, P., Jumas-Bilak, E., Jean-Pierre, H., and Marchandin, H. (2014). Veillonella seminalis sp. nov., a novel anaerobic Gram-stain-negative coccus from human clinical samples, and emended description of the genus Veillonella. Int. J. Syst. Evol. Microbiol. 64, 3526–3531. doi: 10.1099/ijs.0.064451-0
Averhoff, B., and Friedrich, A. (2003). Type IV pili-related natural transformation systems: DNA transport in mesophilic and thermophilic bacteria. Arch. Microbiol. 180, 385–393. doi: 10.1007/s00203-003-0616-6
Becker, M. R., Paster, B. J., Leys, E. J., Moeschberger, M. L., Kenyon, S. G., Galvin, J. L., et al. (2002). Molecular analysis of bacterial species associated with childhood caries. J. Clin. Microbiol. 40, 1001–1009. doi: 10.1128/JCM.40.3.1001-1009.2002
Beighton, D., Clark, D., Hanakuka, B., Gilbert, S., and Do, T. (2008). The predominant cultivable Veillonella spp. of the tongue of healthy adults identified using rpoB sequencing. Oral Microbiol. Immunol. 23, 344–347. doi: 10.1111/j.1399-302X.2007.00424.x
Berndt, C., Meier, P., and Wackernagel, W. (2003). DNA restriction is a barrier to natural transformation in Pseudomonas stutzeri JM300. Microbiology 149, 895–901. doi: 10.1099/mic.0.26033-0
Chen, I., and Dubnau, D. (2003). DNA transport during transformation. Front. Biosci. 8, s544–s556. doi: 10.2741/1047
Chen, I., and Dubnau, D. (2004). DNA uptake during bacterial transformation. Nat. Rev. Microbiol. 2, 241–249. doi: 10.1038/nrmicro844
Delwiche, E. A., Pestka, J. J., and Tortorello, M. L. (1985). The veillonellae: gram-negative cocci with a unique physiology. Annu. Rev. Microbiol. 39, 175–193. doi: 10.1146/annurev.mi.39.100185.001135
Fontaine, L., Wahl, A., Flechard, M., Mignolet, J., and Hols, P. (2015). Regulation of competence for natural transformation in streptococci. Infect. Genet. Evol. 33, 343–360. doi: 10.1016/j.meegid.2014.09.010
Giltner, C. L., Nguyen, Y., and Burrows, L. L. (2012). Type IV pilin proteins: versatile molecular modules. Microbiol. Mol. Biol. Rev. 76, 740–772. doi: 10.1128/MMBR.00035-12
Green, M. R., and Sambrook, J. (2016). Preparation of plasmid DNA by alkaline lysis with sodium dodecyl sulfate: minipreps. Cold Spring Harb. Protoc. 2016:pdb prot093344. doi: 10.1101/pdb.prot093344
Haffajee, A. D., Teles, R. P., Patel, M. R., Song, X., Yaskell, T., and Socransky, S. S. (2009). Factors affecting human supragingival biofilm composition. II. Tooth position. J Periodont. Res. 44, 520–528. doi: 10.1111/j.1600-0765.2008.01155.x
Heller, D., Silva-Boghossian, C. M., Do Souto, R. M., and Colombo, A. P. (2012). Subgingival microbial profiles of generalized aggressive and chronic periodontal diseases. Arch. Oral Biol. 57, 973–980. doi: 10.1016/j.archoralbio.2012.02.003
Hughes, C. V., Kolenbrander, P. E., Andersen, R. N., and Moore, L. V. (1988). Coaggregation properties of human oral Veillonella spp.: relationship to colonization site and oral ecology. Appl. Environ. Microbiol. 54, 1957–1963.
Humbert, O., Dorer, M. S., and Salama, N. R. (2011). Characterization of Helicobacter pylori factors that control transformation frequency and integration length during inter-strain DNA recombination. Mol. Microbiol. 79, 387–401. doi: 10.1111/j.1365-2958.2010.07456.x
Igarashi, E., Kamaguchi, A., Fujita, M., Miyakawa, H., and Nakazawa, F. (2009). Identification of oral species of the genus Veillonella by polymerase chain reaction. Oral Microbiol. Immunol. 24, 310–313. doi: 10.1111/j.1399-302X.2009.00513.x
Imam, S., Chen, Z., Roos, D. S., and Pohlschroder, M. (2011). Identification of surprisingly diverse type IV pili, across a broad range of gram-positive bacteria. PLoS ONE 6:e28919. doi: 10.1371/journal.pone.0028919
Johnston, C., Polard, P., and Claverys, J. P. (2013). The DpnI/DpnII pneumococcal system, defense against foreign attack without compromising genetic exchange. Mob. Genet. Elements 3:e25582. doi: 10.4161/mge.25582
Kamma, J. J., Nakou, M., and Manti, F. A. (1995). Predominant microflora of severe, moderate and minimal periodontal lesions in young adults with rapidly progressive periodontitis. J. Periodont. Res. 30, 66–72. doi: 10.1111/j.1600-0765.1995.tb01254.x
Kanasi, E., Dewhirst, F. E., Chalmers, N. I., Kent, R. Jr., Moore, A., Hughes, C. V., et al. (2010). Clonal analysis of the microbiota of severe early childhood caries. Caries Res. 44, 485–497. doi: 10.1159/000320158
Keijser, B. J., Zaura, E., Huse, S. M., Van Der Vossen, J. M., Schuren, F. H., Montijn, R. C., et al. (2008). Pyrosequencing analysis of the oral microflora of healthy adults. J. Dent. Res. 87, 1016–1020. doi: 10.1177/154405910808701104
Khemaleelakul, S., Baumgartner, J. C., and Pruksakorn, S. (2002). Identification of bacteria in acute endodontic infections and their antimicrobial susceptibility. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endod. 94, 746–755. doi: 10.1067/moe.2002.129535
Kidane, D., Ayora, S., Sweasy, J. B., Graumann, P. L., and Alonso, J. C. (2012). The cell pole: the site of cross talk between the DNA uptake and genetic recombination machinery. Crit. Rev. Biochem. Mol. Biol. 47, 531–555. doi: 10.3109/10409238.2012.729562
Kobayashi, I. (2001). Behavior of restriction-modification systems as selfish mobile elements and their impact on genome evolution. Nucleic Acids Res. 29, 3742–3756. doi: 10.1093/nar/29.18.3742
Li, Y. H., Lau, P. C., Lee, J. H., Ellen, R. P., and Cvitkovitch, D. G. (2001). Natural genetic transformation of Streptococcus mutans growing in biofilms. J. Bacteriol. 183, 897–908. doi: 10.1128/JB.183.3.897-908.2001
Liu, J., Merritt, J., and Qi, F. (2011). Genetic transformation of Veillonella parvula. FEMS Microbiol. Lett. 322, 138–144. doi: 10.1111/j.1574-6968.2011.02344.x
Liu, J., Xie, Z., Merritt, J., and Qi, F. (2012). Establishment of a tractable genetic transformation system in Veillonella spp. Appl. Environ. Microbiol. 78, 3488–3491. doi: 10.1128/AEM.00196-12
Macfadyen, L. P., Dorocicz, I. R., Reizer, J., Saier, M. H. Jr., and Redfield, R. J. (1996). Regulation of competence development and sugar utilization in Haemophilus influenzae Rd by a phosphoenolpyruvate:fructose phosphotransferase system. Mol. Microbiol. 21, 941–952. doi: 10.1046/j.1365-2958.1996.441420.x
Mashima, I., Fujita, M., Nakatsuka, Y., Kado, T., Furuichi, Y., Herastuti, S., et al. (2015). The distribution and frequency of oral Veillonella spp. associated with chronic periodontits. Int. J. Curr. Microbiol. Appl. Sci. 4, 150–160.
Matthey, N., and Blokesch, M. (2016). The DNA-uptake process of naturally competent Vibrio cholerae. Trends Microbiol. 24, 98–110. doi: 10.1016/j.tim.2015.10.008
Meibom, K. L., Blokesch, M., Dolganov, N. A., Wu, C. Y., and Schoolnik, G. K. (2005). Chitin induces natural competence in Vibrio cholerae. Science 310, 1824–1827. doi: 10.1126/science.1120096
Mell, J. C., and Redfield, R. J. (2014). Natural competence and the evolution of DNA uptake specificity. J. Bacteriol. 196, 1471–1483. doi: 10.1128/JB.01293-13
Nishikawa, K., and Tanaka, Y. (2013). A simple mutagenesis using natural competence in Tannerella forsythia. J. Microbiol. Methods 94, 378–380. doi: 10.1016/j.mimet.2013.07.011
Palmer, R. J. Jr., Diaz, P. I., and Kolenbrander, P. E. (2006). Rapid succession within the Veillonella population of a developing human oral biofilm in situ. J. Bacteriol. 188, 4117–4124. doi: 10.1128/JB.01958-05
Periasamy, S., and Kolenbrander, P. E. (2009a). Aggregatibacter actinomycetemcomitans builds mutualistic biofilm communities with Fusobacterium nucleatum and Veillonella species in saliva. Infect. Immun. 77, 3542–3551. doi: 10.1128/IAI.00345-09
Periasamy, S., and Kolenbrander, P. E. (2009b). Mutualistic biofilm communities develop with Porphyromonas gingivalis and initial, early, and late colonizers of enamel. J. Bacteriol. 191, 6804–6811. doi: 10.1128/JB.01006-09
Periasamy, S., and Kolenbrander, P. E. (2010). Central role of the early colonizer Veillonella sp. in establishing multispecies biofilm communities with initial, middle, and late colonizers of enamel. J. Bacteriol. 192, 2965–2972. doi: 10.1128/JB.01631-09
Seitz, P., and Blokesch, M. (2013). Cues and regulatory pathways involved in natural competence and transformation in pathogenic and environmental Gram-negative bacteria. FEMS Microbiol. Rev. 37, 336–363. doi: 10.1111/j.1574-6976.2012.00353.x
Smith, H. O., Gwinn, M. L., and Salzberg, S. L. (1999). DNA uptake signal sequences in naturally transformable bacteria. Res. Microbiol. 150, 603–616. doi: 10.1016/S0923-2508(99)00130-8
Straume, D., Stamsas, G. A., and Havarstein, L. S. (2015). Natural transformation and genome evolution in Streptococcus pneumoniae. Infect. Genet. Evol. 33, 371–380. doi: 10.1016/j.meegid.2014.10.020
Sundqvist, G. (1992). Associations between microbial species in dental root canal infections. Oral Microbiol. Immunol. 7, 257–262. doi: 10.1111/j.1399-302X.1992.tb00584.x
Tanner, A. C., Mathney, J. M., Kent, R. L., Chalmers, N. I., Hughes, C. V., Loo, C. Y., et al. (2011). Cultivable anaerobic microbiota of severe early childhood caries. J. Clin. Microbiol. 49, 1464–1474. doi: 10.1128/JCM.02427-10
Tanner, A., Kent, R., Maiden, M. F., and Taubman, M. A. (1996). Clinical, microbiological and immunological profile of healthy, gingivitis and putative active periodontal subjects. J. Periodont. Res. 31, 195–204. doi: 10.1111/j.1600-0765.1996.tb00484.x
Valm, A. M., Mark Welch, J. L., Rieken, C. W., Hasegawa, Y., Sogin, M. L., Oldenbourg, R., et al. (2011). Systems-level analysis of microbial community organization through combinatorial labeling and spectral imaging. Proc. Natl. Acad. Sci. U.S.A. 108, 4152–4157. doi: 10.1073/pnas.1101134108
Wang, Y., Goodman, S. D., Redfield, R. J., and Chen, C. (2002). Natural transformation and DNA uptake signal sequences in Actinobacillus actinomycetemcomitans. J. Bacteriol. 184, 3442–3449. doi: 10.1128/JB.184.13.3442-3449.2002
Xie, Z., Okinaga, T., Qi, F., Zhang, Z., and Merritt, J. (2011). Cloning-independent and counterselectable markerless mutagenesis system in Streptococcus mutans. Appl. Environ. Microbiol. 77, 8025–8033. doi: 10.1128/AEM.06362-11
Xie, Z., Qi, F., and Merritt, J. (2013). Cloning-independent plasmid construction for genetic studies in streptococci. J. Microbiol. Methods 94, 77–82. doi: 10.1016/j.mimet.2013.05.005
Zaura, E., Keijser, B. J., Huse, S. M., and Crielaard, W. (2009). Defining the healthy “core microbiome” of oral microbial communities. BMC Microbiol. 9:259. doi: 10.1186/1471-2180-9-259
Zhou, P., Li, X., and Qi, F. (2015a). Establishment of a counter-selectable markerless mutagenesis system in Veillonella atypica. J. Microbiol. Methods 112, 70–72. doi: 10.1016/j.mimet.2015.03.010
Zhou, P., Li, X., and Qi, F. (2016). Identification and characterization of a heme biosynthesis locus in Veillonella. Microbiology 162, 1735–1743. doi: 10.1099/mic.0.000366
Keywords: oral bacteria, natural competence, Veillonella, natural transformation, type II secretion, DNA uptake, type IV pili
Citation: Knapp S, Brodal C, Peterson J, Qi F, Kreth J and Merritt J (2017) Natural Competence Is Common among Clinical Isolates of Veillonella parvula and Is Useful for Genetic Manipulation of This Key Member of the Oral Microbiome. Front. Cell. Infect. Microbiol. 7:139. doi: 10.3389/fcimb.2017.00139
Received: 25 January 2017; Accepted: 04 April 2017;
Published: 20 April 2017.
Edited by:
Matthew C. Wolfgang, University of North Carolina at Chapel Hill, USAReviewed by:
Vladimir Pelicic, Imperial College London, UKGena D. Tribble, University of Texas Health Science Center at Houston, USA
Copyright © 2017 Knapp, Brodal, Peterson, Qi, Kreth and Merritt. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Justin Merritt, bWVycml0dGpAb2hzdS5lZHU=
