Alpha/Beta Hydrolase Domain-Containing Protein 2 Regulates the Rhythm of Follicular Maturation and Estrous Stages of the Female Reproductive Cycle

Mammalian female fertility is defined by a successful and strictly periodic ovarian cycle, which is under the control of gonadotropins and steroid hormones, particularly progesterone and estrogen. The latter two are produced by the ovaries that are engaged in controlled follicular growth, maturation, and release of the eggs, i.e., ovulation. The steroid hormones regulate ovarian cycles via genomic signaling, by altering gene transcription and protein synthesis. However, despite this well-studied mechanism, steroid hormones can also signal via direct, non-genomic action, by binding to their membrane receptors. Here we show, that the recently discovered membrane progesterone receptor α/β hydrolase domain-containing protein 2 (ABHD2) is highly expressed in mammalian ovaries where the protein plays a novel regulatory role in follicle maturation and the sexual cycle of females. Ablation of Abhd2 caused a dysregulation of the estrous cycle rhythm with females showing shortened luteal stages while remaining in the estrus stage for a longer time. Interestingly, the ovaries of Abhd2 knockout (KO) females resemble polycystic ovary morphology (PCOM) with a high number of atretic antral follicles that could be rescued with injection of gonadotropins. Such a procedure also allowed Abhd2 KO females to ovulate a significantly increased number of mature and fertile eggs in comparison with their wild-type littermates. These results suggest a novel regulatory role of ABHD2 as an important factor in non-genomic steroid regulation of the female reproductive cycle.

Introduction

Female fertility is highly regulated by the hypothalamic–pituitary–gonadal axis of hormone secretion, which results in a balanced estrogen to progesterone signaling and, in turn, produces the cyclic nature of ovarian follicle development. In many placental mammals, this cycle is known as the estrous cycle, with the exception of primates which have a menstrual cycle. The estrous cycle is generally subdivided into four phases: proestrus, estrus, metestrus, and diestrus (Supplementary Figure 1). The first phase, proestrus, begins with the rapid growth of several ovarian follicles and can, in mice, last about 1 day. During this phase, the old corpus luteum (CL) degenerates, while the vaginal epithelium proliferates. Proestrus can be easily identified by the large number of non-cornified nucleated epithelial cells found in smears collected by vaginal lavage (Supplementary Figure 1). Steadily increasing levels of estrogen stimulate preovulatory follicles that undergo their final growth phase. The second phase, estrus, follows proestrus and is the stage that experiences the peak of gonadotropin secretion by the pituitary gland, resulting in maximal secretion of estrogens by the ovaries. Dominant follicles produce high levels of estradiol to inhibit the development of smaller antral follicles (Roy and Greenwald, 1987) and simultaneously promote ovulation through expression of the nuclear progesterone receptor and induction of progesterone secretion (Lydon et al., 1995; Hashimoto-Partyka et al., 2006). Ovulation occurs during the estrus stage, which together with proestrus comprise the follicular phase. The estrus stage can also be easily identified using vaginal smears that show presence of larger cornified epithelial cells (Supplementary Figure 1). Progesterone and its receptors are primarily needed during the subsequent luteal phase (metestrus and diestrus), which occurs immediately after ovulation, and results in the consequent development of CL from the ovulated follicle (Supplementary Figure 1). CL is the main producer of progesterone, which peaks during diestrus (Walmer et al., 1992), and if pregnancy is not obtained, the CL goes through luteolysis, which leads to reduced progesterone secretion and stimulates development of the immature follicles.

Progesterone is a powerful regulator of the ovarian cycle that occurs via genomic signaling mechanisms and results from progesterone binding to its nuclear receptors inside the cell, which leads to changes in gene transcription and protein synthesis. However, it has been known that progesterone may also signal via a non-genomic or direct pathway, by binding to its membrane receptors. The latter signaling pathway is required for frog oocyte maturation (Revelli et al., 1998), human sperm cell activation (Blackmore et al., 1990, 1991; Baldi et al., 1991), and likely triggers anesthesia in rodents (Poisbeau et al., 2014). Recently, by using transcriptionally silent spermatozoa as a model, we have identified the novel membrane progesterone receptor, the α/β hydrolase domain-containing protein 2 (ABHD2) as well as described the signaling pathway that is initiated by progesterone association with ABHD2 (Miller et al., 2016). Monoacylglycerol lipase ABHD2 is the first evolutionary conserved steroid-activating enzyme that hydrolyzes endocannabinoid 2-arachidonoylglycerol (Miller et al., 2016). Here, we show that ABHD2 is not only expressed in sperm but also displays high expression in ovaries, particularly in CL and stromal cells. To study this further, we have generated an Abhd2 KO mouse by using the highly efficient CRISPR Ribonucleoprotein Electroporation of Zygotes (CRISPR-EZ) technique (Chen et al., 2016; Modzelewski et al., 2018) and evaluated its fertility phenotype. We show that ABHD2 is needed to regulate the cyclic maturation of follicles, where ablation of Abhd2 gives rise to a phenotype similar to that of polycystic ovary morphology (PCOM) with irregular menstrual cycles and an increased number of atretic follicles, but without the fertility issues associated with polycystic ovary syndrome (PCOS).

Results

Abhd2 Expression in Ovarian Stromal Cells and Corpora Lutea

While ABHD2 has been described as an important regulator of sperm function (Miller et al., 2016), the function of ABHD2 in female reproduction was not known. Interestingly, unlike the male reproductive tissues, we found that ABHD2 is not detected in the female gametes but is predominantly expressed in the stromal cells surrounding the developing follicles (Figure 1a). The presence of both ABHD2 protein and mRNA was observed in pre-pubertal mouse ovaries, as shown here by immunohistochemical (IHC) staining and reverse transcriptase quantitative PCR (RT-qPCR; Figures 1b,c). Around 1 month after birth, when the ovulatory cycle begins, ABHD2 expression is further found in the lutein cells of CL (Figure 1a). In correlation with this, qPCR studies showed highest Abhd2 mRNA presence right after ovulation during the estrus stage (Figure 1c), and the expression levels are even further increased after induction of superovulation by gonadotropin injection (Figure 1c).

FIGURE 1

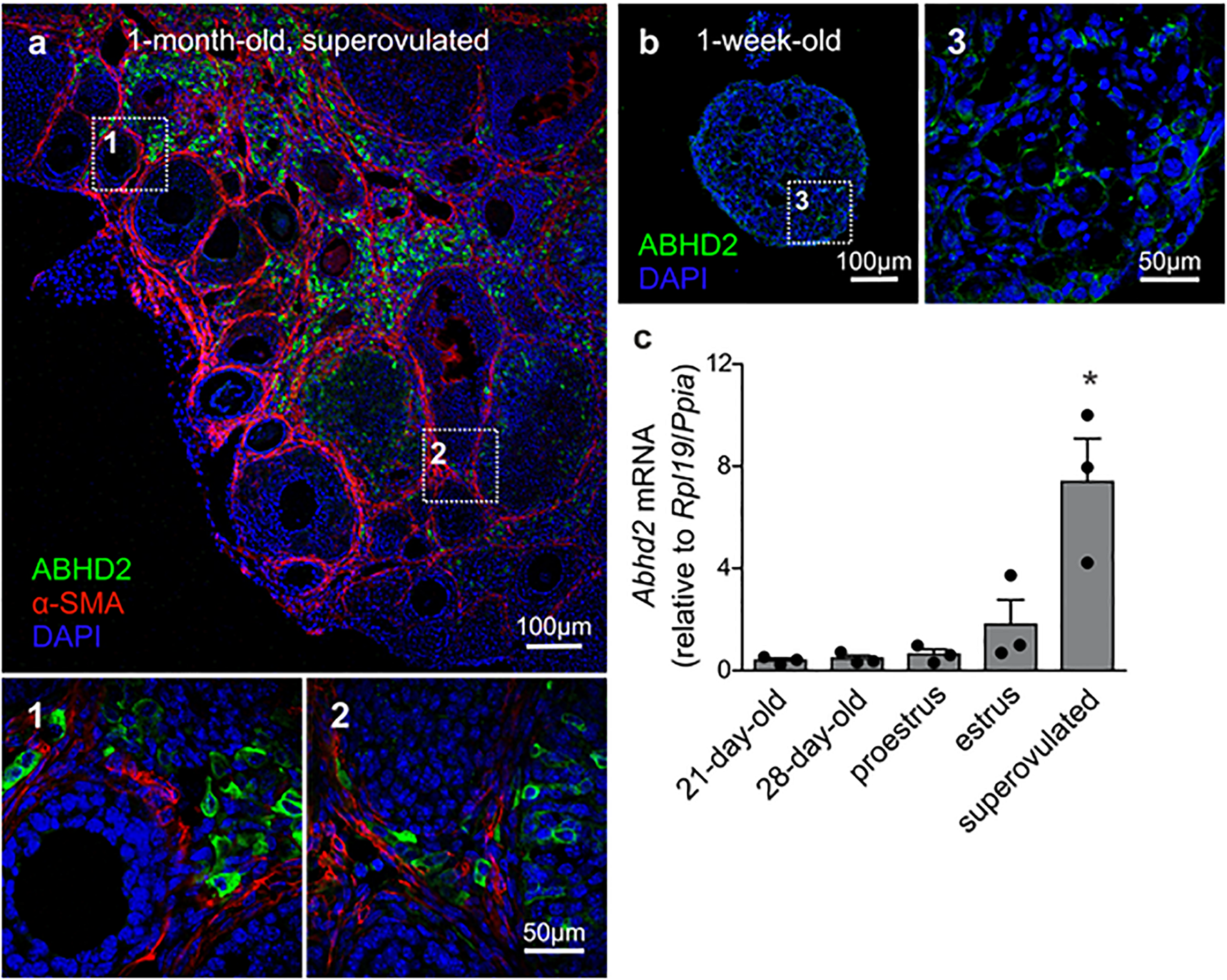

Figure 1. Expression of alpha/beta hydrolase domain-containing protein 2 (ABHD2) in the mouse ovary. (a) Immunohistochemical (IHC) staining of a 1-month-old superovulated wild-type mouse ovary shows ABHD2 in the stromal cells (1) and in cells of the corpus luteum (CL) (2), while the protein is not present in the granulosa cells and oocytes of developing follicles, demarcated by staining of the surrounding smooth muscle layer (b), and (3) Stromal cells of 1-week-old pre-pubertal mouse ovaries also display ABHD2 staining while (c) shows similar expression levels of Abhd2 before and after the first round of ovulation, as detected in 21- and 28-day-old mice ovaries. The expression levels increase after ovulation, as seen in ovaries at estrus and after superovulation. Samples (n = 3 for each timepoint) were collected from 3-month-old females in proestrus and estrus and 1-month-old superovulated females. Expression levels measured by qPCR were normalized to the expression of ribosomal protein L19 (Rpl19) and peptidylprolyl isomerase A (Ppia). Statistical significance was calculated using the unpaired t-test, and the significance of changes is indicated as follows: *p ≤ 0.05.

Generation of the Abhd2 Knockout Mouse Line

To study the role of ABHD2 in female reproduction, we have generated an Abhd2 KO mouse line by utilizing the CRISPR-EZ technique (Chen et al., 2016), where single guide RNA (sgRNA)/Cas9 complexes are delivered into mouse zygotes by electroporation. Cas9-mediated deletion of Abhd2 exon 6 was performed through intron-specific binding of two sgRNAs (Figure 2a). The deletion resulted in the removal of a serine (S208), the amino acid important for the catalytic function of ABHD2, and resulted in a frameshift and a premature stop codon in exon 7 (Supplementary Figure 2). Complete ablation of Abhd2 was further confirmed by genotyping PCR (Figure 2b), qPCR (Figure 2c), Western blotting (Figure 2d), and IHC analysis of the mouse ovary (Figures 2e,f). The KO mice were born at a Mendelian ratio when breeding heterozygous males with females. No obvious morphological or health phenotypes have been observed, and both homozygous and heterozygous females appeared fertile and healthy with similar body weight as their wild-type littermates (Supplementary Figure 3A).

FIGURE 2

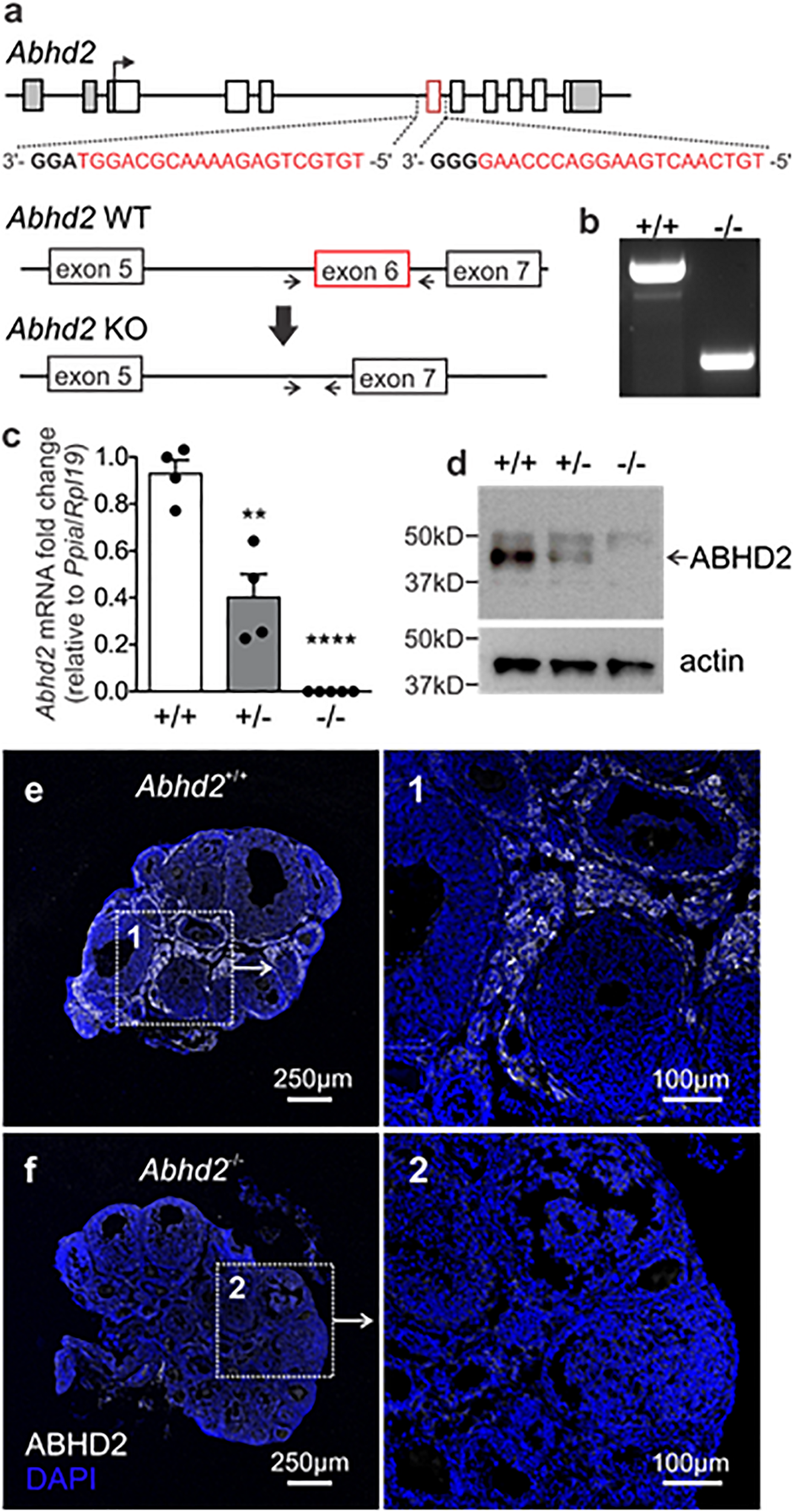

Figure 2. Generation of the Abhd2 KO mouse line. (a) Schematic picture of the Mus musculus Abhd2 gene with untranslated regions marked in gray. Deletion of exon 6 (in red) was performed by CRISPR/Cas9, targeting sequences in the surrounding introns. The sequences of the two sgRNAs are labeled in red and the PAM sequence in bold. (b) Genotyping of mice was performed using primers that bind outside the deleted sequence (arrows). The PCR product from a wild-type mouse (+/+) contains the exon 6 sequence while the full KO (-/-) lacks Abhd2 exon 6. Abhd2^+/– mice show a significant reduction of Abhd2 expression in both (c) qPCR and (d) western blot studies while the full KO Abhd2^–/– completely lacks expression of exon 6 and the protein. Expression levels detected by qPCR were normalized to the expression of ribosomal protein L19 (Rpl19) and peptidylprolyl isomerase A (Ppia). Statistical significance was calculated using the unpaired t-test and the significance of changes is indicated as follows: **p ≤ 0.01; ****p ≤ 0.0001. Abhd2^+/+ n = 4, Abhd2^+/– n = 4, and Abhd2^–/– n = 5. (e) The Abhd2^+/+ mouse ovary shows ABHD2 in the stromal cells surrounding the follicles. (f) No protein staining was detected in the Abhd2^–/– ovary.

Superovulation of Abhd2^+/– and Abhd2^–/– Females Gives Rise to an Increased Number of Ovulated Eggs

Both the litter size and birth rate of Abhd2^+/– and Abhd2^–/– females were not significantly different from that of wild-type mice (Table 1). In addition, spontaneous ovulation gave rise to similar numbers of eggs for all genotypes (Figure 3A). However, when injected with gonadotropins, pregnant mare serum gonadotropin (PMSG) and human chorionic gonadotropin (hCG)—a standard method to induce superovulation (Christenson and Eleftheriou, 1972), both the Abhd2^+/– and Abhd2^–/– females produced significantly higher numbers of ovulated eggs (Figure 3B). The phenotype was not a result of prematurely ovulated follicles, as in vitro fertilization (IVF) studies led to a similar success rate in formation of blastulae as when using eggs from wild-type females (Abhd2^+/+: 72.4% ± 11.3% n = 3, Abhd2^+/–: 81.5% ± 9.1%, Abhd2^–/–: 75.0% ± 8.3% fertilized eggs, n = 4 for both genotypes). The fertility of 7- to 8-month-old Abhd2^+/– and Abhd2^–/– females in normal breeding was similar to that of wild-type mice (Table 1). Superovulation of the older animals up to 15-month old resulted in a similar decline in the number of ovulated eggs, although some heterozygous and homozygous mice still showed numbers comparable with that of the much younger animals (Figure 3C).

TABLE 1

Table 1. Breeding efficiency of Abhd2^–/– females.

FIGURE 3

Figure 3. Abhd2^–/– female ovulation and estrous cycle. (A) Spontaneous ovulation gave rise to similar numbers of eggs for all genotypes (n = 3 for each genotype). (B) Abhd2 ablation caused significantly increased numbers of ovulated eggs after induction of superovulation, in both 1-month-old Abhd2^+/– (n = 8) and Abhd2^–/– (n = 7) females compared with Abhd2^+/+ mice (n = 8). Statistical significance was calculated using the unpaired t-test, and the significance of changes is indicated as follows: *p ≤ 0.05; ***p ≤ 0.001. (C) Age-dependent decline in the number of eggs obtained after superovulation of 1-month-old females [data from panel (B)], as well as 7- to 8-month-old (Abhd2^+/+ n = 5, Abhd2^+/– n = 7, and Abhd2^–/– n = 6) and 15-month-old females (n = 3 per genotype). Representative graphs of the estrous cycle of a (D) Abhd2^+/+ and (E) Abhd2^–/– female mouse where the Abhd2 KO female shows prolonged stages in estrus although displaying cyclical changes throughout the month. (F) The combined measurements of three mice of each genotype also showed a significantly altered distribution of days in the different estrous stages, in particular, the increased percentage of days in estrus and decreased percentage of days in proestrus of Abhd2^–/– females compared with Abhd2^+/+ mice (n = 3 for each genotype).

Abhd2 Ablation Results in a Dysregulated Estrous Cycle

Interestingly, when following the estrous cycle of virgin females for 1 month, the Abhd2^–/– females presented with a significantly higher percentage of days in estrus, while proestrus and diestrus were shortened compared with the wild-type females (Figures 3D-F and Supplementary Figure 4). Although the Abhd2^–/– mice showed a prolonged estrus, they cycled in a regular fashion (Abhd2^+/+: 4.75 ± 0.33 days/cycle, Abhd2^+/–: 4.8 ± 0.53 days/cycle, Abhd2^–/–: 4.43 ± 0.29 days/cycle) and gave rise to litters at a similar rate as Abhd2^+/+ females (Table 1). Previous studies have shown that altered estrogen and androgen levels during pregnancy can affect the estrous cycle of female pups (Abbott et al., 2006). To determine whether or not the maternal genotype influenced the observed phenotype, the estrous cycle of Abhd2^+/– females born from wild-type mothers who were mated with homozygous males or homozygous mothers mated with heterozygous males were compared. The month-long measurements showed a similar prolonged estrus in all females (Abhd2^+/– females born from Abhd2^+/+ mothers: 47.2% ± 3.7%; Abhd2^+/– mothers: 46.5% ± 6.1%; Abhd2^–/– mothers: 46.7% ± 1.9% of days in estrus), while wild-types had only 35.6% ± 5.6% of days in estrus. These results indicate that the observed phenotype was mainly due to the genotype of the pups and not due to epigenetic influence.

Increased Number of Atretic Antral Follicles in Abhd2^+/– and Abhd2^–/– Ovaries

To determine whether or not the increased number of ovulated eggs produced during superovulation was due to an altered follicular development, early antral and antral follicles and the corpora lutea of ovaries from Abhd2^+/+, Abhd2^+/–, and Abhd2^–/– littermate females in proestrus were counted. There was a significant decrease in the number of early antral follicles of both Abhd2^+/– and Abhd2^–/– ovaries compared with those of Abhd2^+/+ mice (Figure 4a). Instead, the females showed an increased number of antral, pre-ovulatory, follicles, and, in the case of Abhd2^+/– females, a higher number of corpora lutea (Figure 4a). However, these differences did not lead to an altered weight of the ovaries when comparing the different genotypes (Supplementary Figure 3B). Hematoxylin staining of the ovary showed a difference in atretic versus healthy, living follicles, with a larger number of atretic follicles present in Abhd2^+/– and Abhd2^–/– ovaries compared with those of Abhd2^+/+ mice (Figures 4b,c). This was further confirmed by terminal deoxynucleotidyl transferase dUTP nick-end labeling (TUNEL) staining, where follicles going through atresia showed increased labeling of granulosa cells (Figures 4d,e). When counting only the healthy antral follicles, no genotype-specific difference in follicle number was observed. Although the Abhd2^+/– mice displayed increased follicle atresia compared with the wild-type mice, the number of healthy antral follicles was comparable with that of Abhd2^+/+ ovaries (Figure 4b).

FIGURE 4

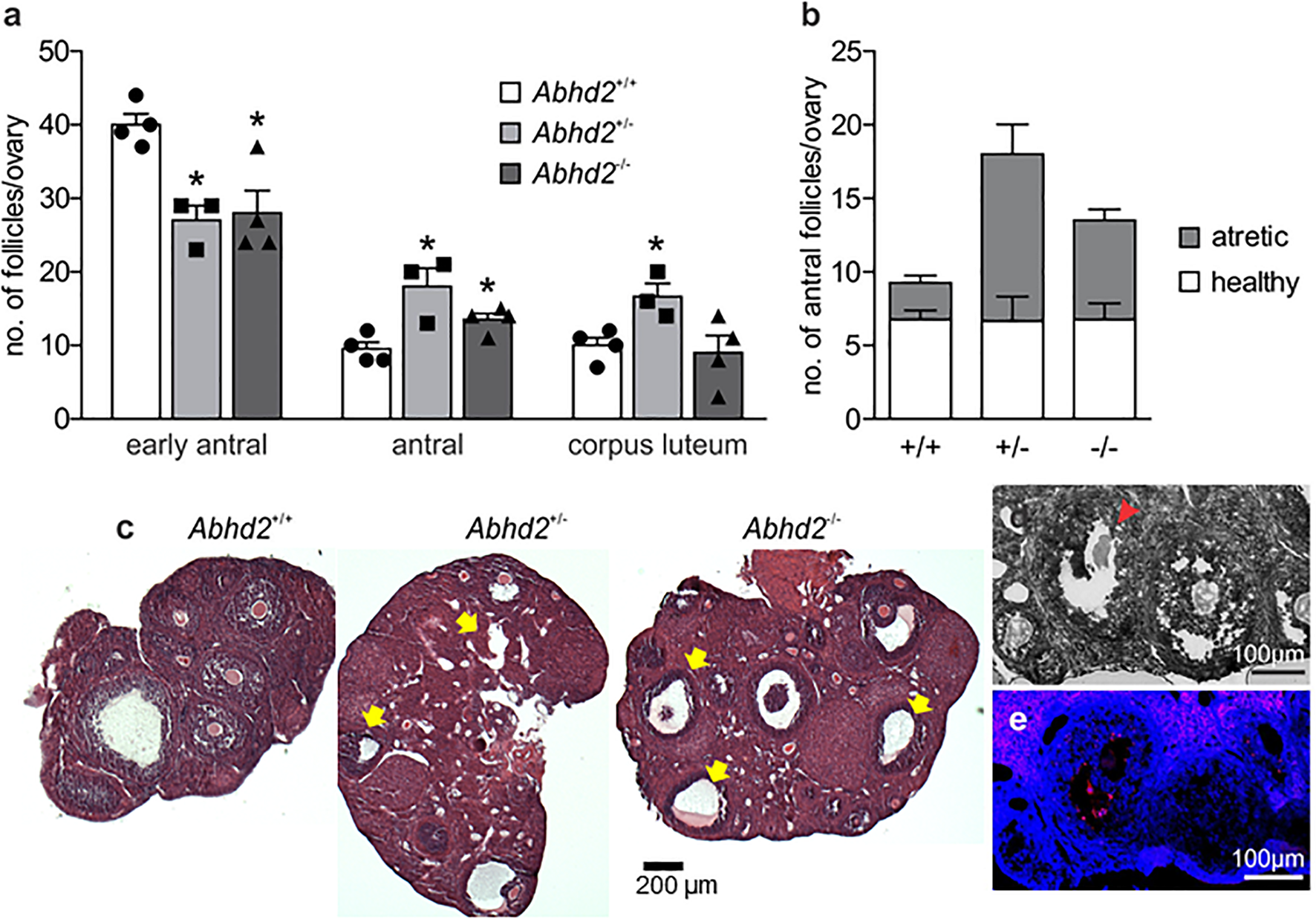

Figure 4. Follicle count of the proestrus ovary. (a) Ovaries of 3.5-month-old Abhd2^+/– (n = 3) and Abhd2^–/– (n = 4) mice showed significantly lower numbers of early antral follicles, while the antral follicle number was increased compared with the Abhd2^+/+ females (n = 4). (b) However, although hematoxylin staining of Abhd2^+/– and Abhd2^–/– ovaries displayed a higher number of atretic antral follicles compared with the wild-type ovaries, the total number of healthy follicles was similar between genotypes. (c) Representative images of Abhd2^+/+, Abhd2^+/–, and Abhd2^–/– ovaries with apoptotic antral follicles marked by arrows. (d,e) TUNEL staining confirmed the follicles as apoptotic by labeling the granulosa cells of the atretic follicles. Statistical significance was calculated using the unpaired t-test and the significance of changes is indicated as follows: *p ≤ 0.05. Abhd2^+/+ n = 4, Abhd2^+/– n = 3, and Abhd2^–/– n = 4, for all analyses.

Alpha/Beta Hydrolase Domain-Containing Protein 2 Is Dispensable for in vitro Follicle Culture and Ovulation

The increased transition from early antral to antral follicles after Abhd2 ablation could account for the observed phenotype of superovulated Abhd2^+/– and Abhd2^–/– females. However, as progesterone is needed to initiate the signaling pathways leading to ovulation, in vitro follicle culture was performed to determine the role of ABHD2 in this process. Follicles from immature mice were collected and cultured for 4 days, after which ovulation was induced by the addition of hCG to the culture media (Figures 5A–C). The percentage of ovulated follicles was similar between Abhd2^+/+ and Abhd2^–/– females (Figure 5A). However, as the initial number of large follicles (240 ± 10 μm in diameter) collected from the Abhd2^–/– ovaries was higher than that from the wild-type ovaries, the total number of ovulated follicles was increased in cultures from the Abhd2^–/– females (Figure 5B). These results are similar to the higher number of ovulated eggs observed after superovulation of Abhd2^–/– mice. In conclusion, Abhd2 ablation does not appear to affect the ovulation process directly but rather gives rise to an increased number of mature follicles, possibly by shortening the timing of diestrus and proestrus.

FIGURE 5

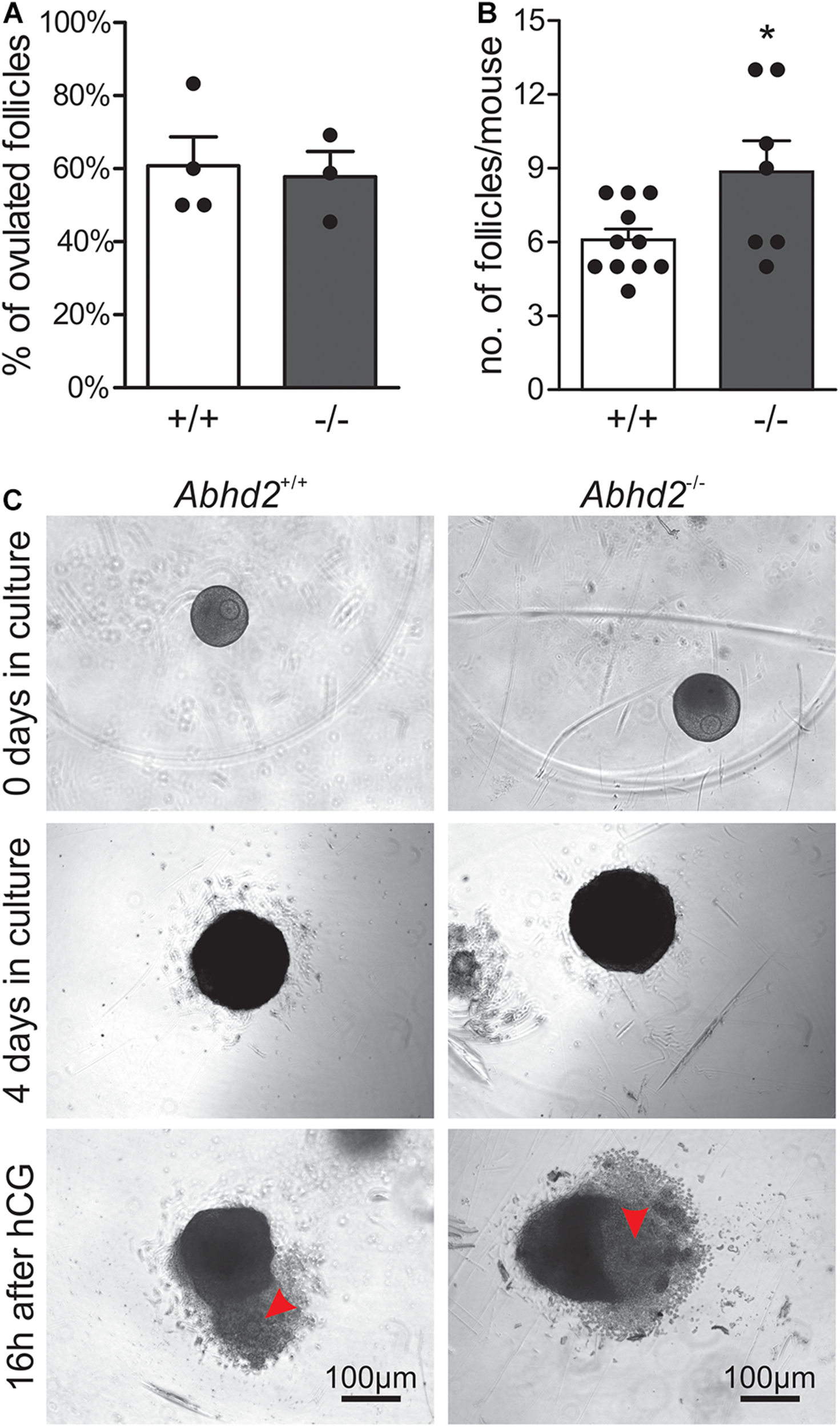

Figure 5. In vitro ovulation. Follicles collected from immature mouse ovaries (Abhd2^+/+ n = 11 and Abhd2^–/– n = 7) were cultured to antral stage, after which ovulation was induced by incubation with hCG. (A) No difference in ovulation efficiency was observed between Abhd2^+/+ and Abhd2^–/– mice although (B) the ovaries of Abhd2^–/– mice contained a higher number of large follicles. (C) Representative image of in vitro ovulation of an Abhd2^+/+ and an Abhd2^–/– follicle. Statistical significance was calculated using the unpaired t-test and the significance of changes is indicated as follows: *p ≤ 0.05. Using 2–3 mice each time, in vitro ovulation was performed four times for Abhd2^+/+ follicles and three times for follicles collected from Abhd2^–/– mice.

Changes in Ovarian Gene Expression After Abhd2 Ablation

The observed changes in follicle development and estrous cycle of Abhd2^–/– females might not only result from an altered progesterone signaling but could also be influenced by a change in hormone synthesis. Ovarian hormone production is mainly governed by gonadotropins released by the pituitary gland. Although mRNA of Abhd2 has been detected in different brain regions, we have not been able to show the presence of the ABHD2 protein in areas other than the epithelial cells of the choroid plexus (Supplementary Figure 5), thus, making it unlikely that the observed ovarian phenotype would be caused by changes in neuronal function. To study the effect of Abhd2 ablation on steroidogenesis in the ovaries, qPCR was performed to detect expression levels of enzymes involved in hormone synthesis. Ovaries of superovulated Abhd2^–/– females showed no difference in expression of the follicle-stimulating hormone receptor (Fshr), a protein vital for follicle development and hormone synthesis, compared with ovaries of Abhd2^+/+ mice (Figure 6A). Neither was there a difference in the expression of cytochrome P450 family members (Cyp11a1, Cyp17a1, or Cyp19a1), the enzymes required for synthesis of progesterone, androgens, and estrogens, respectively. Since increased vascularization of the ovary precedes ovulation, the expression of vascular endothelial growth factor A (Vegfa), the factor required for vascular endothelial proliferation was also determined. However, no difference in expression between Abhd2^–/– and Abhd2^+/+ was detected (Figure 6A). The expression of nerve growth factor (Ngf) and its receptor [nerve growth factor receptor (Ngfr)] that are involved in ovulation and in the estrous cycle, were not different between Abhd2^–/– and Abhd^+/+ females. However, the expression of the NGF receptor neurotrophic receptor tyrosine kinase 1 [Ntrk1, previously known as tropomyosin receptor kinase A (TrkA)] was significantly increased in KO ovaries compared with those of wild-type mice (Figure 6B). It is interesting to note that the expression of NGF in stromal cells of the rodent ovary resembles that of ABHD2 (Dissen et al., 1996). Furthermore, increased NGF levels caused the mice to remain in the estrus stage even though they are still cycling (Dissen et al., 2009; Wilson et al., 2014). NGF signaling is also elevated in women with PCOS (Dissen et al., 2009; Gulino et al., 2016), while increased NGF signaling causes mice to show signs of PCOM, with a higher number of atretic antral follicles, without displaying cyst formation—the phenotype we also observed in Abhd2^–/– females.

FIGURE 6

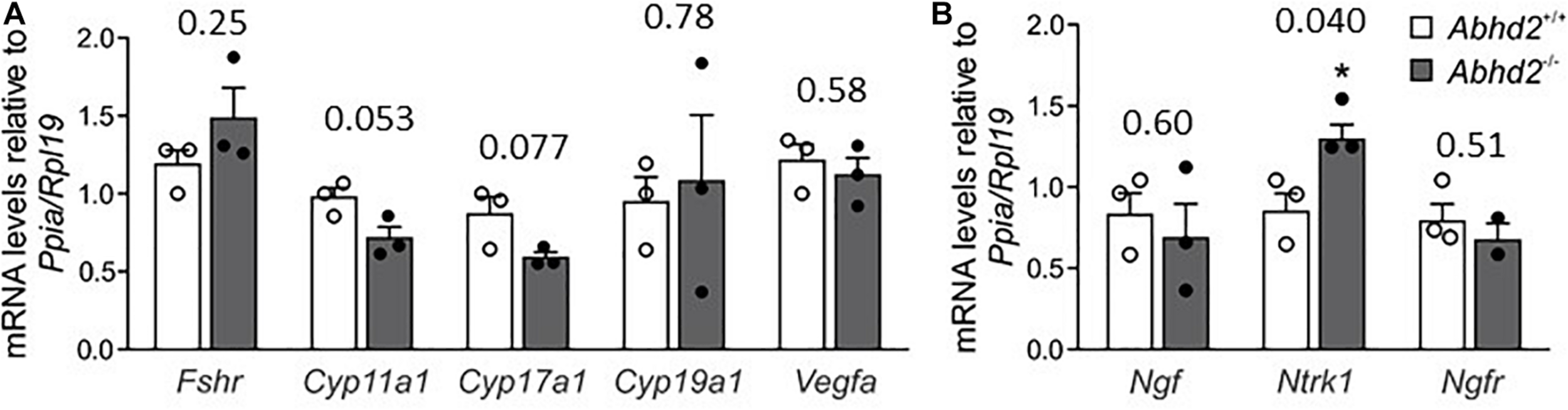

Figure 6. Ovarian gene expression. Relative expression levels of genes involved in steroid synthesis, follicle development and ovulation were measured by qPCR using ovaries of three Abhd2^+/+ and three Abhd2^–/– 1-month old superovulated mice. (A) Expression levels were normalized to the expression of ribosomal protein L19 (Rpl19) and peptidylprolyl isomerase A (Ppia). Follicle stimulating hormone receptor (Fshr), cytochrome P450 family 11 subfamily A member 1 (Cyp11a1), cytochrome P450 family 17 subfamily A member 1 (Cyp17a1), cytochrome P450 family 19 subfamily A member 1 (Cyp19a1), vascular endothelial growth factor A (Vegfa), and (B) nerve growth factor (Ngf), neurotrophic receptor tyrosine kinase 1 (Ntrk1), and nerve growth factor receptor (Ngfr). Statistical significance was calculated using the unpaired t-test, with p-values above columns and the significance of changes indicated as: *p ≤ 0.05.

Discussion

The data presented here show a novel regulatory role for the membrane progesterone receptor ABHD2 in follicle development and the sexual cycle of females. ABHD2 is already present in pre-pubertal ovaries, and the expression remains high in older animals, with localization of the protein to stromal cells surrounding the developing follicles and in corpora lutea. Abhd2 ablation caused a dysregulation of the estrous cycle rhythm with females remaining in the estrus stage for a longer time while also displaying an increased transition of early antral follicles into pre-ovulatory antral follicles. Injection of PMSG and hCG [which function in a similar manner as the endogenously produced follicle-stimulating hormone (FSH) and luteinizing hormone (LH), respectively, (Engmann et al., 1999)] allowed the follicles to develop fully and resulted in the Abhd2^–/– mice ovulating a high number of mature eggs. However, in the native state, the antral follicles displayed signs of atresia, and the Abhd2^–/– females ovulated a similar number of eggs as their wild-type littermates. ABHD2 was further shown to only regulate follicle maturation and not influence ovulation directly, by in vitro culture, where follicles from Abhd2^–/– ovaries responded to hormones in a similar way as those from Abhd2^+/+ mice.

Interestingly, the phenotype of Abhd2^–/– mice resembled that of women with PCOM, where the increased number of anovulatory antral follicles can be rescued through administration of FSH (Engmann et al., 1999; Swanton et al., 2010). Although PCOS is associated with ovarian PCOM, many women display cyst formation without the fertility issues of PCOS. Women who are diagnosed with PCOM may have irregular menstrual cycles with higher numbers of atretic follicles, but can still be fertile (Rosenfield, 2015). The hormone serum concentrations of these women also lie in between those of healthy women and women with PCOS, the latter having significantly higher androgen levels (Rosenfield et al., 2012). Several animal models have been developed to explain the mechanism behind PCOS, for example, administration of high levels of androgens to female mice gives rise to a similar, although more severe, dysregulation of ovarian functions as that observed in Abhd2^–/– females. Injection of dehydroepiandrosterone (DHEA) to BALBc females for 20 days caused increased serum levels of both estrogen and progesterone that resulted in the animals remaining in a constant stage of estrus while being unable to ovulate (Luchetti et al., 2004; Sander et al., 2006). Other mouse models with PCOS also showed anovulation but with the mice estrous cycle remaining in diestrus instead of estrus. Injection of dihydrotestosterone (DHT) to C57Bl/6J females for 90 days led to significantly lower levels of progesterone and a fixed cycle at a so-called pseudo-diestrus stage (Caldwell et al., 2014). Balanced steroid secretion and signaling is, thus, what causes the transition from one stage of the estrous cycle to the next and would implicate a lack in hormone balance of Abhd2^–/– mice. However, the Abhd2^–/– mice did not display a fully developed PCOS, but rather a PCOM phenotype as they were able to ovulate, showed similar fertility as wild-type mice in normal mating, but had an increased number of atretic follicles. Furthermore, the fertility rate would indicate that there were no major changes in luteal function or progesterone levels, as the developing embryos were able to implant and mature to full-term. In addition, Abhd2^–/– females still showed estrous cycles with the only differences being a prolonged estrus, and shortened diestrus and proestrus. Excess androgen exposure during fetal development can also lead to a PCOS phenotype in rodents and results in disrupted estrous cycles of the pups (Sullivan and Moenter, 2004). However, we could not detect any difference in estrous cycles when comparing heterozygous mice born from Abhd2^+/+, Abhd2^+/–, or Abhd2^–/– females, further indicating that the hormone levels of the Abhd2^–/– mothers would not be altered in such a way that it could affect the fertility of their offspring. In both rodents and humans, PCOS is often accompanied by a change in insulin resistance and increased body mass index (Sirmans and Pate, 2013; van Houten and Visser, 2014). However, Abhd2^–/– females showed regular reduction in glucose levels in glucose tolerance tests, and their body weight was not increased compared with the Abhd2^+/+ females (Supplementary Figures 3A,C,D). In regard to hormone production, there was no significant increase or decrease in the expression of enzymes regulating steroid production in Abhd2^–/– ovaries after superovulation, which further supports a PCOM phenotype of mildly altered or normal steroid levels in Abhd2^–/– mice.

The only detected difference in gene expression after superovulation of wild-type and Abhd2^–/–mice was an increased expression of the NGF receptor Ntrk1. As previously mentioned, the expression of NGF in stromal cells of the rodent ovary resembles that of ABHD2 (Dissen et al., 1996). However, similar to ABHD2, NGF signaling does not only regulate the function of the interstitial cells but can also affect the maturation of granulosa cells, as seen in a mouse model with excess expression of Ngf. The Ngf overexpressors present with increased antral formation and apoptosis of granulosa cells, which leads to a PCOM phenotype without the formation of ovarian cysts (Dissen et al., 2009; Wilson et al., 2014). However, an additional, mild increase in LH levels caused cysts to form, which would indicate that increased NGF signaling could promote the formation of PCOS (Dissen et al., 2009). Thus, further studies are needed to determine if a change in pituitary hormone secretion could lead to a more prominent phenotype of Abhd2^–/– mice.

The estrous cycle of mice also changes during aging, with fertile animals spending more time in estrus than older animals who usually become acyclic and remain in diestrus (Nelson et al., 1982). This was shown in a mouse model of premature ovarian failure where the tumor necrosis receptor type I (Tnfr1) was ablated. Younger Tnfr1 KO females, similar to the Abhd2^–/– mice, displayed a stronger ovulatory response to hormone injections than wild-type females. Young animals also showed a longer period in estrus, which was similar to estrous cycles of 6-month-old females (Roby et al., 1999). The phenotype was caused by a premature sexual maturity, which led to an early onset of senescence at 6 months of age with lower number of litters produced and a disruption in estrous cyclicity (Roby et al., 1999). Similarly, a mouse model with granulosa cell-specific ablation of neuregulin 1 (Nrg1) showed signs of early ovarian failure where the estrous cycle stayed in a continuous, so-called, weak estrus (Umehara et al., 2017). These mice also displayed increased fibrosis of ovarian stroma and lower numbers of progeny, a phenotype similar to that of older animals (Umehara et al., 2017). The premature ovarian aging of both Nrg1 and Tnfr1 KO females is related to a reduced response to FSH and LH (Roby et al., 1999; Umehara et al., 2017). Although Abhd2^–/– females show a prolonged estrus at around 3 months of age, this did not lead to a premature decline in fertility at 8 months of age, as was determined by breeding data from Abhd2^+/– and Abhd2^–/– females. In addition, there was no observed early depletion in ovulated follicles due to the increased number of antral follicles of Abhd2 KO females. This was shown after superovulation of older Abhd2^+/– and Abhd2^–/– females which still produced similar number of eggs compared with wild-type mice of similar age. It is more likely that the transition from early antral to antral follicle differentiation was altered, as the higher number of antral follicles correlated with a similar decrease in number of early antral follicles. Such a transition might not be enough to give rise to depletion of the ovarian follicular reserve. Instead, we propose that the increased number of anovulatory antral follicles at proestrus could cause the prolonged estrus stage observed in Abhd2^–/– females. The mice would remain in estrus until the follicles have gone through apoptosis and would thereafter proceed toward the next stage of the estrous cycle. The lack of membrane progesterone receptor (ABHD2) in stromal cells at diestrus, the stage with highest progesterone production (MacDonald et al., 2014), could then cause the cycle to move rapidly into the follicular phase.

In humans, downregulation of ABHD2 expression resulted in anoikis resistance in high-grade serous ovarian cancer (Yamanoi et al., 2016). The phenotype was attributed to an increased phosphorylation of p38MAPK and MAPK3/1, the signaling pathways which have previously been shown to regulate anoikis resistance (Carduner et al., 2014; Cai et al., 2015; Yamanoi et al., 2016). In healthy ovaries, MAPK3/1 (also known as ERK1/2) signaling is needed for multiple steps in follicle maturation. In early antral follicles, MAPK3/1 phosphorylation inhibits proliferation and induces differentiation of granulosa cells, while in antral follicles, it stimulates cumulus cell expansion and ovulation (Fan et al., 2009). Considering the phenotype of Abhd2^–/– mice, an increased MAPK3/1 signaling could cause the observed increase in antral follicle differentiation while further activation through LH signaling could give rise to ovulation of the mature follicles.

In conclusion, Abhd2 ablation caused an altered follicle maturation, which led to a higher number of antral follicles with an atretic phenotype. In addition, a change in estrous cyclicity was observed with mice spending longer times in estrus. Future studies will focus on the functional role of ABHD2 in this process, which could affect several progesterone signaling pathways in the ovary, including phosphorylation of MAPK/ERK. Furthermore, because of a phenotype resembling PCOM and the known expression of ABHD2 in human ovaries, continued studies of the role of ABHD2 in human follicle maturation and the menstrual cycle could be vital to explain the process of PCOM.

Materials and Methods

Generation of Abhd2 KO Mice Using CRISPR Ribonucleoprotein Electroporation of Zygotes

The CRISPR-EZ method, where single guide RNA (sgRNA)/Cas9 complexes are delivered into mouse zygotes by electroporation, was developed by Chen et al. (2016) and Modzelewski et al. (2018).

SgRNAs to target the introns flanking Abhd2 exon 6 were designed as previously described. Briefly, we utilized the Gene Perturbation Platform (Doench et al., 2016), Chop-Chop (Montague et al., 2014), and CRISPR Design (Hsu et al., 2013) algorithms to design sgRNAs for the target sequence. The obtained 20-nt sequences were incorporated into a DNA oligonucleotide template containing a T7 promoter and a sgRNA scaffold by overlapping PCR using Phusion high fidelity DNA polymerase (New England Biolabs, M0530). The primer sequences for overlapping PCR were as previously described (Chen et al., 2016) including the designed sgRNA sequences; sgRNA1: 5′-TGTGCTGAGAAAACGCAGGT-3′ and sgRNA2: 5′-TGTCAACTGAAGGACCCAAG-3′) The template sequence was transcribed into RNA using a T7 RNA polymerase (New England Biolabs, E2040S) after which the DNA template was removed by treatment with RNase-Free DNaseI (New England Biolabs, M0303S). The produced sgRNAs were further purified by allowing them to bind to SeraMeg Speedbeads magnetic carboxylate-modified particles (GE Healthcare, 65152105050250). After washing the bead/RNA pellets with 80% ethanol the sgRNAs were eluted in nuclease-free water (Ambion, AM9937) and stored at −80°C until use.

To form a ribonucleoprotein complex, the Cas9 protein (QB3 Macrolab, University of California at Berkeley) was incubated with the two sgRNAs in a solution containing 20 mM HEPES (Sigma, H7523), pH 7.5, 150 mM KCl (Fisher Chemical, P217), 1 mM MgCl₂ (Sigma, 68475), 10% glycerol, (Sigma, G2025), and 1 mM reducing agent DL-dithiothreitol (Sigma, D0632), to a final molar ratio of 1:2. The ribonucleoprotein mixture was prepared at 37°C for 10 min immediately before electroporation. To obtain zygotes, 4-week-old C57Bl/6N (Charles River) female mice were superovulated by intraperitoneal injection (i.p.) of 5 IU (PMSG, Sigma, G4877), and 48 h later, 5 IU (hCG, Millipore, 230734), after which they were immediately put in mating with fertile 2- to 4-month-old C57Bl/6N males. Twelve hours post coitum, females with a plug were euthanized, and the one-cell zygotes were collected from the ampulla of the oviduct. The cumulus cells surrounding the fertilized eggs were removed by hyaluronidase treatment (Life Global Group, LGHY-010), and the zona pellucida was weakened by incubation in acidic Tyrode’s solution (Sigma, T1788) as previously described (Chen et al., 2016). For delivery of the sgRNA/Cas9 complex, ∼40 zygotes were pooled in Opti-MEM reduced serum media (Gibco, 31985-070) containing the preformed Cas9/sgRNA ribonucleoproteins and loaded into a 1-mm electroporation cuvette (BioRad, 165-2089). Electroporation was performed using the GenePulser Xcell (BioRad, 1652660) with six pulses at 30 V for 3 ms, separated by a 100-ms interval. Immediately after electroporation, the zygotes were washed in KSOM + AA media (KCl-enriched simplex optimization medium with amino acid supplement, Zenith Biotech, ZEKS-050) supplemented with 4 mg/ml bovine serum albumin (BSA, Sigma, A9647), and cultured overnight in KSOM/BSA at 37°C, 5% CO₂. The following day, the embryos that had developed into two-cell stage were implanted into pseudopregnant CD-1 females (Envigo) at ∼10 embryos per oviduct by the UC Berkeley Cancer Research Laboratory, Gene Targeting Facility. The resulting progeny was genotyped using EmeraldAmp GT PCR Master Mix (Takara, RR310) and primers flanking the deleted region of Abhd2, Abhd2 Fw: 5′-AGGGCTTAACTCTTGCTGGT-3′, Abhd2 Rev: 5′-ACTCAGACACGATCCGAGAC-3′, Tm: 56°C. Each mouse, positive for the deleted region of Abhd2, was placed in breeding with a C57Bl/6N mouse of the opposite gender. The heterozygous progeny of these matings were further bred to produce Abhd2^–/– mice and the control Abhd2^+/+ littermates. All mice were kept in the Animal Facility of the University of California, Berkeley, fed with standard chow diet (PicoLab Rodent diet 20, #5053, LabDiet) and hyper-chlorinated water ad libitum in a room with controlled light (14-h light, 10-h darkness) and temperature (23 ± 0.5°C).

Breeding Efficiency and Spontaneous Ovulation

To determine the breeding efficiency of Abhd2^+/+, Abhd2^+/–, and Abhd2^–/– female mice, 2-month-old females of each genotype were placed in breeding with either Abhd2^+/+ males (Abhd2^+/+ and Abhd2^–/– females) or Abhd2^+/– males (Abhd2^+/– and Abhd2^–/– females) for ∼6 months. Two or more breeding pairs of each genotype combination were used to determine the average number of offspring per litter and the birth rate of female mice. Furthermore, to detect the number of spontaneously ovulated eggs, 2- to 3-month-old females in proestrus were placed in breeding with fertile Abhd2^+/+ male mice. When a copulatory plug was detected, the females were euthanized, and the fertilized zygotes were collected from the oviduct ampulla in Dulbecco’s phosphate-buffered saline (DPBS, Gibco, 14190-144) and counted.

Superovulation and in vitro Fertilization

Sperm from the cauda epididymides of 2-month-old C57Bl/6N male mice were allowed to swim out in Embryomax Human Tubal Fluid medium (HTF, Millipore, MR-070-D) and incubated for capacitation, 1 h at 37°C, 5% CO₂. To collect eggs from seven Abhd2^+/+, eight Abhd2^+/–, and seven Abhd2^–/– females, superovulation of 3.5- to 4-week-old mice was performed using i.p. injection of PMSG and hCG as described above. Thirteen hours after hCG injection, the females were euthanized, and the cumulus–oocyte complexes were collected from the oviduct ampulla in HTF medium and counted. IVF was performed as previously described (Navarrete et al., 2015) using 300,000 sperm/ml HTF medium. After fertilization, the zygotes were washed in KSOM + AA media, supplemented with 4 μl of BSA and divided into ∼15 zygotes/10 μl of KSOM/BSA for culture at 37°C, 5% CO₂. Three and a half days following IVF, the number of fertilized eggs was determined as the percentage of embryos that had reached morula or blastula stage.

Evaluation of the Mouse Estrous Cycle

Each stage of the mouse estrous cycle was determined in the afternoon by cytological assessment of vaginal smear samples. Samples were collected from 2.5-month-old Abhd2^+/+, Abhd2^+/–, and Abhd2^–/– mice, three females of each genotype, every day for 1 month. DPBS was used to collect samples of each mouse, using the methods previously described (McLean et al., 2012). Samples were separately placed on glass slides and examined under an Olympus IX-75 inverted light microscope for cellular contents. Visual representation of each estrous cycle phase indicated by Zenclussen et al. (2014) was used as a reference.

Ovarian Follicle Count

To count the total number of follicles in Abhd2^+/+, Abhd2^+/–, and Abhd2^–/– ovaries, 3- to 4 3.5-month-old female mice of each genotype were euthanized at proestrus stage, and the ovaries were dissected out and weighed. The larger of the two ovaries was fixed in 4% paraformaldehyde (Electron Microscopy Sciences, 15714), embedded in optimal cutting temperature compound (OCT, Sakura, 4583), frozen on dry ice, and stored at −80°C until use. The ovaries were sectioned through, and every fifth section of 8 μm was mounted on glass slides and stained with hematoxylin 1 (Fisher HealthCare, 220-101) using standard procedures. Images of each ovarian section were taken at ×50 magnification and organized sequentially for follicle counting. Using this method, we were able to only count each follicle once, even though the larger follicles were present in several sections. Each follicle was categorized as early antral, antral, or CL based on their morphology. Early antral follicles were identified by the presence of segmented cavities between multiple layers of granulosa cells surrounding the oocyte. Antral follicles were identified by the presence of a large continuous antral cavity, and CL by the absence of oocytes. Atretic antral follicles were defined by a thinning of the granulosa cell layer, which displayed many pyknotic cells, and the additional lack of a clear cumulus cell layer surrounding the oocyte. The morphology of the atretic antral follicles were further confirmed by comparing hematoxylin and TUNEL stainings.

In vitro Ovulation

Ovaries were retrieved from 11 20- to 21-day-old wild-type (C57Bl/6N) and seven Abhd2^–/– female mice as described previously (Xu et al., 2006; Skory et al., 2015). Briefly, ovaries were placed in dissection media [L15 media (Gibco, 11415-064), 0.5% PenStrep (Fisher Scientific, 15140-122), and 1% fetal bovine serum (FBS, X&Y Cell Culture, FBS-500-HI)], and the bursal sac and any excess material were removed. Each ovary was halved and incubated in collagenase media [Minimum essential medium alpha (αMEM, Gibco, 12561-056), 0.5% PenStrep, 0.8% type I collagenase (Worthington, LS004194), and 1% DNase I (Fisher Scientific, EN0521)] at 37°C and 5% CO₂ for 40 min. Preantral follicles were mechanically isolated using 28-gauge insulin needles in dissection media. Only intact follicles that were 240 ± 10 μm in diameter were isolated and incubated at 37°C and 5% CO₂ in maintenance media (αMEM, 0.5% PenStrep, and 1% FBS) for 2 h before encapsulation. Follicles were encapsulated in 0.7% alginate and cultured as previously described (Xu et al., 2006; Skory et al., 2015), with slight modifications. The encapsulated follicles were placed individually in a 96-well plate (Fisher Scientific, 08-772-53) and cultured for 4 days in 100 μl of growth media [αMEM, 3 mg/ml of BSA, 1 mg/ml of bovine fetuin (Sigma, F3385), 0.01 IU/ml of recombinant human FSH (NHPP, Dr. Parlow), 5 μg/ml of insulin, 5 μg/ml of transferrin, and 5 ng/ml of selenium (Sigma, I1884)]. At day 2 of culture, half of the growth media were exchanged. After 4 days in culture, the alginate was removed by incubating the follicles in alginate lyase media [αMEM, 0.5% PenStrep, 1% FBS, and 1 mg/ml of alginate lyase (Sigma, A1603)] at 37°C and 5% CO₂ for 30 min. Thereafter, antral follicles larger than 330 ± 15 μm in diameter were washed in ovulation media [αMEM, 10% FBS, 5 ng/ml of EGF (Sigma, E4127), 1.5 IU/ml of hCG, 5 μg/ml of insulin, 5 μg/ml of transferrin, and 5 ng/ml of selenium] and placed individually in a 96-well plate containing 100 μl of ovulation media per well. After 16 h at 37°C and 5% CO₂, the percentage of successful ovulation was calculated as the number of follicles with a clear visual evidence of follicle rupture and oocyte extrusion compared with the total follicle number.

Western Blotting

To detect ABHD2 protein in ovaries and different brain regions, 3.5- to 4-week-old Abhd2^+/+, Abhd2^+/–, and Abhd2^–/– superovulated mice and a 2.5-month-old Abhd2^+/+ female, respectively, were euthanized, the tissue dissected and snap frozen, and protein was isolated using standard procedures. The samples were analyzed by Western blotting, using a rabbit polyclonal anti-ABHD2 antibody (1:10,000 dilution, Proteintech Group, 14039-1-AP) and a peroxidase-conjugated anti-rabbit secondary antibody (1:15,000 dilution, Abcam, ab6721). To ensure equal sample loading, the membrane was stripped by incubation with 1 Min Plus Strip (GM Biosciences, GM6011) according to the instructions of the manufacturer. Thereafter, the membrane was re-hybridized with a mouse monoclonal anti-actin antibody (1:5,000 dilution, Abcam, ab3280-500) and a peroxidase-conjugated goat anti-mouse secondary antibody (1:15,000 dilution, EMD-Millipore, AP181P).

Immunohistochemistry

Ovaries of superovulated 3.5- to 4-week-old Abhd2^+/+ and Abhd2^–/– mice were fixed overnight at 4°C in 4% PFA, and the ovary of a 1-week-old Abhd2^+/+ female was fixed for 4 h after which they went through a sucrose gradient (10−20−30% sucrose/PBS) and were frozen in OCT. To detect localization of ABHD2 in the ovary, 8-μm sections were placed on charged slides and immediately used for staining, according to standard procedures. In brief, for antigen retrieval, the sections were incubated in 1% SDS solution for 5 min, blocked in 5% BSA for 1 h at room temperature, and incubated overnight at 4°C with rabbit polyclonal anti-ABHD2 (1:300) and mouse monoclonal anti-α-actin (1:500, sc-32251, Santa Cruz Biotechnology). The antibody–antigen complexes were visualized by incubation for 1 h at room temperature with 1:2,000 Alexa Fluor 488-conjugated goat anti-rabbit (Molecular Probes A11008/Jackson ImmunoResearch, 111-485-144) and Cy5-conjugated donkey anti-mouse (Jackson ImmunoResearch, 715-175-150) or anti-rabbit (Jackson ImmunoResearch, 711-015-152) antibodies. The sections were mounted using ProLong Gold antifade reagent with DAPI (Invitrogen, P36935) and imaged using confocal laser scanning microscopy (Olympus Fluoview FV1000).

Reverse Transcriptase and Quantitative RT-PCR

For analysis of gene expression, 21- and 28-day-old Abhd2^+/+ mice were euthanized, and the ovaries were dissected out and snap frozen. Samples from superovulated 1- to 2-month-old mice at proestrus and estrus were similarly collected and frozen. Total RNA was isolated from the tissues using TRIzol reagent according to the instructions of the manufacturer (Ambion, 15596018). For reverse transcription, 1 μg of total RNA was treated with DNaseI and reverse-transcribed by using the RevertAid H Minus RT enzyme (Fisher Scientific, EP0451). The cDNA was diluted 1:50–1:100 for qPCR. qPCR was performed using the DyNAmo HS SYBR Green qPCR Master Mix (Fisher Scientific, F-410). All samples were run in triplicate reactions. For analysis of Abhd2 expression at different time points in wild-type mice ovaries primers binding to exon 3 and exon 4 were used (Abhd2 e3 Fw and Abhd2 e4 Re). To determine expression of the deleted exon 6 in Abhd2, KO mice primers binding in exon 5 and exon 6 were used (Abhd2 e5 Fw and Abhd2 e6 Re). Ribosomal protein L19 (Rpl19) and peptidylprolyl isomerase A (Ppia) were used as endogenous controls to equalize for the amounts of RNA in the ovaries. Primer sequences for Rpl19, Ppia, and cytochrome P450 family 19 subfamily A member 1 (Cyp19a1) were as previously described (Björkgren et al., 2012; Hakkarainen et al., 2015). Primer sequences and qPCR conditions for analyzing the expression of Abhd2, Fshr, cytochrome P450 family 11 subfamily A member 1 (Cyp11a1), cytochrome P450 family 17 subfamily A member 1 (Cyp17a1), Vegfa, Ngf, Ntrk1, and Ngfr are described in Supplementary Table 1.

Intraperitoneal Glucose Tolerance Test

To detect the effect of Abhd2 ablation on glucose uptake, 2.5-month-old Abhd2^+/+ (n = 5), Abhd2^+/– (n = 7), and Abhd2^–/– (n = 6) female mice were fasted overnight (16 h). Blood glucose levels were measured as mmol/L by tail vein sampling using Contour Next ONE meter (Ascensia Diabetes Care) and Contour Next blood glucose test strips (Ascensia Diabetes Care). Immediately after baseline measurement (0 min), the mice were given an i.p. injection of 2 g/kg glucose (20% solution), and blood glucose levels were measured at 15, 30, 60, and 120 min after injection.

Statistical Analyses

For statistical analyses of fertility efficiency, ovulation number, days in estrus, follicle numbers, and gene expression levels, the GraphPad Prism 5 software (GraphPad Software, Inc., La Jolla, CA, United States) was used. Unpaired t-test was used to determine statistical significance, assigning p ≤ 0.05 as the limit. All results are shown with standard error of mean.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Ethics Statement

The animal study was reviewed and approved by the Animals were humanely killed according to ACUC guidelines with every effort made to minimize suffering. All experiments were performed in accordance with NIH Guidelines for Animal Research and approved by the UC Berkeley Animal Care and Use Committee (AUP 2015-07-7742).

Author Contributions

IB and PL conceived the project, designed the experiments, and wrote the manuscript. IB performed or assisted in the completion of all studies, data acquisition, and analysis for the manuscript. DHC collected the samples for estrous stage analysis, determined the follicle count, and performed in vitro follicle culture. SM and NP assisted in the maintenance of the mouse colony and performing molecular biology analysis. LG-K and NP assisted in performing the in vitro fertilization studies. AM provided assistance in designing the sgRNAs and assisted with performing the zygote electroporation. LH helped with CRISPR-EZ by providing essential reagents and support. All authors discussed the results and commented on the manuscript.

Funding

This work was supported by R01GM111802, the Pew Biomedical Scholars Award, and the Packer Wentz Endowment Will and the GCRLE grant from Global Consortium for Reproductive Longevity and Equality at the Buck Institute, made possible by the Bia-Echo Foundation (to PL). Publication made possible in part by support from the Berkeley Research Impact Initiative (BRII) sponsored by the UC Berkeley Library.

Conflict of Interest

LH is an inventor on patents of an electroporation-based CRISPR technology for mouse genome engineering and is a co-founder of a company to further develop this technology for mammalian genome editing.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We thank S. Chen (Department of Molecular and Cell Biology, University of California, Berkeley) for preparation of the SeraMeg SpeedBeads for sgRNA purification and A. Shikanov (Department of Biomedical Engineering, University of Michigan) for providing the protocol for in vitro follicle culture.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcell.2021.710864/full#supplementary-material

Supplementary Figure 1 | Estrous cycle of mice. Smears from vaginal lavage of mice show the distinct cell types of different estrous stages. Proestrus shows multiple nucleated cells (arrows) while the estrus sample only displays cornified epithelial cells. When the mouse enters the luteal phase, leukocytes start to appear and at diestrus they are the dominant cell type in the smear. At proestrus the antral follicle is formed, as depicted in the drawing. The mature oocyte is ovulated at estrus after which the remaining follicle goes through luteinization and forms corpus luteum (CL). Active secretion of progesterone from CL peaks at diestrus followed by luteolysis of the CL cells and resumption of proestrus.

Supplementary Figure 2 | CRISPR-EZ results. (A) Genotyping of the 17 mice born after implantation of 78 CRISPR-EZ treated 2-cell stage embryos showed seven pups with a deletion of Abhd2 exon 6. Two of the mice, marked in red, were chosen for further phenotypic analysis. (B,D) Sequencing of the shorter Abhd2 KO product, obtained after genotyping PCR of the founder mice, showed a deletion of exon 6 starting in the surrounding introns. The chromatograms correspond to the sequence marked in red, with arrows pointing to the ligation site of the two introns. (C,E) Superovulation results from pups born from the two founder mouse lines display similar increase in number of ovulated eggs.

Supplementary Figure 3 | Abhd2 ablation does not alter the weight or the glucose uptake of mice. (A,B) The weight of 2-4-month-old female mice and ovaries from 3 to 4-month-old mice in proestrus did not differ between genotypes. (C) Average values of glucose tolerance test of 2.5-month-old female mice, fasted overnight and thereafter given an intraperitoneal injection of 2 g/kg glucose. (D) The individual measurements of the mice used for the glucose tolerance test in panel (C). No statistical difference was detected in glucose uptake when comparing Abhd2^+/+, Abhd2^+/–, and Abhd2^–/– mice.

Supplementary Figure 4 | Estrous cycle of Abhd2^–/– mice. The estrous cycle measured for 1 month in mice used for the analysis in Figure 3F.

Supplementary Figure 5 | ABHD2 in different brain regions of mice. ABHD2 was detected in lateral (LCP) and 4th ventricle choroid plexus (4thCP) by Western blot, while the main olfactory bulb (OB), the cerebral cortex (CTX), the hippocampus (HIP) and the cerebellum (CB) of female mice only show background staining. Samples were collected from a 2.5-month-old Abhd2^+/+ female mouse.
