On the Wrong Track: Alterations of Ciliary Transport in Inherited Retinal Dystrophies

  • 1Departament de Genètica, Microbiologia i Estadística, Universitat de Barcelona, Barcelona, Spain
  • 2Institute of Biomedicine (IBUB-IRSJD), Universitat de Barcelona, Barcelona, Spain
  • 3CIBERER, ISCIII, Universitat de Barcelona, Barcelona, Spain

Ciliopathies are a group of heterogeneous inherited disorders associated with dysfunction of the cilium, a ubiquitous microtubule-based organelle involved in a broad range of cellular functions. Most ciliopathies are syndromic, since several organs whose cells produce a cilium, such as the retina, cochlea or kidney, are affected by mutations in ciliary-related genes. In the retina, photoreceptor cells present a highly specialized neurosensory cilium, the outer segment, stacked with membranous disks where photoreception and phototransduction occurs. The daily renewal of the more distal disks is a unique characteristic of photoreceptor outer segments, resulting in an elevated protein demand. All components necessary for outer segment formation, maintenance and function have to be transported from the photoreceptor inner segment, where synthesis occurs, to the cilium. Therefore, efficient transport of selected proteins is critical for photoreceptor ciliogenesis and function, and any alteration in either cargo delivery to the cilium or intraciliary trafficking compromises photoreceptor survival and leads to retinal degeneration. To date, mutations in more than 100 ciliary genes have been associated with retinal dystrophies, accounting for almost 25% of these inherited rare diseases. Interestingly, not all mutations in ciliary genes that cause retinal degeneration are also involved in pleiotropic pathologies in other ciliated organs. Depending on the mutation, the same gene can cause syndromic or non-syndromic retinopathies, thus emphasizing the highly refined specialization of the photoreceptor neurosensory cilia, and raising the possibility of photoreceptor-specific molecular mechanisms underlying common ciliary functions such as ciliary transport. In this review, we will focus on ciliary transport in photoreceptor cells and discuss the molecular complexity underpinning retinal ciliopathies, with a special emphasis on ciliary genes that, when mutated, cause either syndromic or non-syndromic retinal ciliopathies.

Introduction

The retina is a highly organized neurosensory tissue that covers the eye’s inner surface and is responsible for visual perception (den Hollander et al., 2010). In vertebrates, it consists of six major neural cell types that are arranged in laminar microcircuits necessary for the correct integration and processing of light signals. Photoreceptor cells, which occupy the outermost retinal layer, are light-sensitive neurons that capture photons and transduce light stimuli into an electrical signal, thereby triggering the phototransduction cascade. Phototransduction finishes when the electric signal is transmitted to the visual centers in the brain by the optic nerve, formed by the axons of ganglion cells (Wässle, 2004; Swaroop et al., 2010; Khanna, 2015). Two types of photoreceptor cells exist, rods and cones, the latter being outnumbered by approximately 20-fold in most mammalian species (Masland, 2001; Swaroop et al., 2010). Rods are responsible for dim light vision due to their high sensitivity to light, which enable them to capture even a single photon. In contrast, cones are less sensitive and are responsible for daytime vision and visual acuity. Cones also confer color perception because of the existence of several cone subtypes that selectively respond to photons in different wavelengths of the visible spectrum (Roorda and Williams, 1999; Deeb, 2006; Hoon et al., 2014).

Vertebrate photoreceptors are highly polarized and specialized neurons whose unique morphology includes a distinct compartment where photoreception and phototransduction occur: the outer segment. The outer segment is a specialized sensory cilium optimized for photon capture and efficient phototransduction. It contains membranous disks ordered in stacks filled with photoreceptive pigments (opsins), and is distinct between rods and cones in both structure and protein composition. However, the outer segment is devoid of protein synthesis and metabolism machinery, hence, these cellular functions occur in the inner segment and the components are transported to the distal outer segment by a microtubule ciliary gate, named connecting cilium (Khanna, 2015; Bujakowska et al., 2017). The tips of the outer segment are physically in contact with the retinal pigment epithelium, which constitutes the outermost blood-retina barrier and is involved in nourishment through the choroidal blood vessels, maintenance of photoreceptors, and mediation of the visual cycle (Strauss, 2005). Alterations, by either genetic or external factors in such a morphologically and functionally organized structure, can lead to photoreceptor dysfunction, eventually resulting in retinal degeneration and blindness (Wright et al., 2010).

The Specialized Primary Cilium of Photoreceptor Cells

Cilia are microtubule-based organelles that project from the apical plasma membrane and play crucial roles in the development and function of adult organs in vertebrates. They are conventionally classified as motile or non-motile cilia. Motile cilia beat rhythmically to produce a driving force that either propel cells or move extracellular fluids across membrane surfaces (Ishikawa and Marshall, 2017; Viswanadha et al., 2017). Non-motile cilia, or primary cilia, act as cellular antennae that concentrate specific signaling receptors necessary for triggering signal transduction in response to external cues, such as morphogens, mechanical stimulation and light (Fliegauf et al., 2007; Goetz and Anderson, 2010). Photoreceptors possess highly specialized primary cilia that develop exceptional characteristics to carry out photoreception and phototransduction. Mutations in ciliary genes can compromise photoreceptor cilia structure, biogenesis and/or function, leading to retinal ciliopathies, which cover approximately one fourth of inherited retinal dystrophies (Chen et al., 2019; Wheway et al., 2019).

Structure and Composition

Motile and primary cilia share a common structural composition and architecture, comprising three main distinct sub-compartments: the basal body, transition zone, and axoneme (Figure 1). Overall, their main difference resides in the axonemal microtubule organization. On one hand, motile cilia usually present 9 + 2 axonemes, with nine peripheral doublet microtubules and two central single microtubules. Furthermore, they possess additional associated components powering the ciliary movement, such as dynein arms, nexin links, and radial spokes (Viswanadha et al., 2017). In contrast, non-motile cilia axonemes typically lack the central pair of microtubules, the dynein arms, nexin links and radial spokes, being described as 9 + 0 axonemes (Figure 1). However, this classification is a simplification, as non-motile 9 + 2 and motile 9 + 0 cilia are also present in human cells (Fliegauf et al., 2007).

FIGURE 1
www.frontiersin.org

Figure 1. Structure of motile, non-motile, and photoreceptor cilia. The left diagram depicts a prototypic cilium with its main compartments: the axoneme (Ax), transition zone (TZ) with its Y-links, periciliary membrane (PCM) and the basal body (BB). The right diagram depicts a rod photoreceptor, which in addition, displays photoreceptor-specific cellular structures: the outer segment (OS), comprising the membranous disks (D) and the axoneme; the connecting cilium (CC), analogous to the transition zone in primary cilia; and the inner segment (IS), which contains the basal body and most cellular organelles. Cross-sections through the ciliary compartments of both motile and non-motile cilia are shown: the basal body triplet microtubules with their transition fibers, shared by motile cilia, non-motile cilia and photoreceptor primary cilia; the transition zone of motile and non-motile cilia and the analogous connecting cilium in photoreceptors; the axonemal microtubule doublets, decorated with dynein arms, radial spokes and nexin links in motile cilia; and finally, the axonemal microtubule singlets characteristic of photoreceptor primary cilia. (Figure created with BioRender.com).

The primary cilium originates from the basal body, which is derived from the mother centriole and functions as the primary microtubule organizing center (MTOC), projecting also microtubules into the inner segment and cell body (Muresan et al., 1993; Petry and Vale, 2015). The basal body is composed of nine triplet microtubules, subdistal appendages and nine distal appendages, also known as transition fibers, which anchor the basal body to the periciliary membrane (Figure 1). The periciliary membrane corresponds to the border between the ciliary membrane and the cytoplasmatic membrane. The periciliary region surrounds the basal body and is a hot spot for endocytosis of ciliary membrane proteins. Together with transition fibers, the periciliary region serves as a docking station for proteins destined to the cilium (Reiter and Leroux, 2017; Seo and Datta, 2017). Furthermore, the basal body of primary cilia nucleates the ciliary rootlet. In photoreceptors, both the basal body and the ciliary rootlet anchor their exceptionally large cilium to the inner segment, providing long-term stability and structural integrity to this microtubule-based structure (Figure 1) (Yang et al., 2005; May-Simera et al., 2017). Ciliary rootlets are composed of rootletin fibers, encoded by the CROCC gene, which polymerize into thick filaments that are attached to the basal body by CEP250, mutations of which have been associated with Usher syndrome (USH) and retinitis pigmentosa (RP) (Yang et al., 2002, 2006; Khateb et al., 2014; De Castro-Miró et al., 2016).

The photoreceptor connecting cilium, equivalent to the transition zone in primary cilia, is localized to the junction between the basal body and the axoneme, linking the inner and outer segments of photoreceptor cells (Figure 1). It acts as a diffusion barrier, preventing abnormal mixing of ciliary and cytosolic components, and probably as a ciliary gate, regulating protein influx and efflux from the cilium. The connecting cilium possesses a different microtubule organization, and changes from triplets at the basal body to microtubule doublets (de Robertis, 1956; Cohen, 1965; Bachmann-Gagescu and Neuhauss, 2019), the latter being cross-linked to the surrounding plasma membrane by Y-link structures (Gilula and Satir, 1972). Interactome analysis in primary cilia have allowed to identify several protein complexes specific of the transition zone, which have been later described in photoreceptor connecting cilium. For instance, the Y-linker residing protein CEP290 (Rachel et al., 2015) associates into the NPHP module (RPGRIP1, RPGRIP1L, NPHP1, and NPHP4) and the MKS module (CC2D2A, B9D1, B9D2, MKS1, AHI1, TCTNs, and TMEMs). Mutations altering NPHP and MKS protein complexes cause syndromic ciliopathies (see section “Retinal ciliopathies and defects in ciliary transport”). The inversin compartment (INVS, NEK8, NPHP3, ANKS3, and ANKS6) localizes immediately distal from the transition zone and interacts through INVS with the MKS and NPHP complexes, establishing a link between the three of them (Braun and Hildebrandt, 2017; Garcia-Gonzalo and Reiter, 2017). Interestingly, mutations in components of the distinct protein modules NPHP, MKS or inversin result in dissimilar clinical phenotypes, which discloses the separated identities of each complex and the importance of their different roles in ciliary function.

The axoneme is the cytoskeleton backbone of the cilia. In photoreceptors, axonemal microtubules extend from the connecting cilium microtubule doublets to the outer segment, and become singlets near the tip in opposition to prototypic primary cilium axoneme, characterized by a doublet microtubule structure (Figure 1) (Cohen, 1965). Even though the axoneme is very stable, the distal (plus) ends of microtubules are constantly turned over and require a continuous delivery of tubulin to maintain axonemal length (Rosenbaum and Witman, 2002). The axoneme serves as railways for intraflagellar transport (IFT), which is responsible for the active bidirectional transport of many outer segment components along photoreceptor cilia, thus playing an essential role in cilium biogenesis, maintenance and function (Li et al., 2016).

Photoreceptor outer segments are packed with proteins involved in the phototransduction cascade, such as opsins (which belong to the family of G-protein coupled receptors, GPCRs), cGMP phosphodiesterases and cGMP-gated channels, but also with proteins that guarantee the maintenance of the particular architecture of the membranous disks, including PRHP2 and ROM-1 (Wensel et al., 2016). RP1, a photoreceptor-specific protein, associates with axonemal microtubules and is required for proper stacking of membranous disks. Mutations in RP1 cause autosomal dominant RP (Liu et al., 2002, 2003, 2004). Surrounding the axoneme, there is the ciliary membrane, which is continuous with the plasma membrane. Protein and lipid content of the photoreceptor ciliary membrane are different from those of the surrounding plasma membrane in order to confer the ideal characteristics for an efficient signaling (Garcia et al., 2018).

Finally, the cilium is a highly organized structure comprising distinct functional modules required for its proper function. Mutations in ciliary genes can result in protein disfunction and mislocalization. Thus, considering the extremely complex cilium of photoreceptor cells, mutations in these genes can potentially compromise photoreceptor cilium structure, biogenesis, function and maintenance, leading to retinal ciliopathies (Figure 2).

FIGURE 2
www.frontiersin.org

Figure 2. Proteins associated with retinal ciliopathies and their reported localization at the photoreceptor structures. Ciliary proteins can localize to unique ciliary subcompartments (names in black), several ciliary subcompartments (highlighted in purple) or other cellular compartments in addition to the cilium (in blue). The localization of ARSG, KCNJ13, and TUBB4B has not been determined yet (in gray). (Figure created with BioRender.com).

Ciliogenesis

In undifferentiated progenitor photoreceptor cells, the first step of outer segment formation is ciliogenesis, followed by disk morphogenesis. In contrast to other organelles, cilia biogenesis and cell division are mutually exclusive in vertebrates. This is due to the intimate connection between cilia and centrosomes, which need to be released from the plasma membrane to operate during cell division, entailing ciliary resorption. Therefore, in replicative cells, ciliogenesis is highly coordinated with the cell cycle and requires a finely tuned regulation (Quarmby and Parker, 2005; Ishikawa and Marshall, 2011). However, many cells, including photoreceptors, do not undergo this cilium assembly disassembly cycle but grow instead a cilium after escaping cell cycle and entering into quiescence or differentiation (Toulis and Marfany, 2020).

It is well established that in primary cilia, ciliogenesis starts with the maturation of a mother centriole into a basal body due to the recruitment of the five distal appendage proteins. Therefore, even though the basal body consists of the mother and daughter centrioles, only the mother centriole, displaying distal and subdistal appendages, is further remodeled to enable cilium formation (Pearring et al., 2013). Rab8-carrying vesicles, derived from the Golgi and the recycling endosome, attach to the distal appendages of the mother centriole. SNAP29, a SNARE regulator of membrane fusion, promotes vesicular assembly that induces the conversion of small ciliary vesicles into a larger vesicle on the distal end of the mother centriole (Lu et al., 2015). The basal body migrates toward the apical end of the inner segment, where it docks to the cell membrane via the ciliary vesicle (Sánchez and Dynlacht, 2016). Then, microtubule doublets emanate from the basal body and form the proximal axoneme where the transition zone complexes tether, resulting in the assembly of the connecting cilium. The growth of the axoneme causes the invagination of the ciliary vesicle and its fusion with the plasma membrane, terminating in the emergence of the cilium, enclosed by the ciliary membrane, to the extracellular space (May-Simera et al., 2017). Tubulin subunits are actively transported via anterograde IFT into the ciliary compartment, leading to further extension of the axoneme by its distal end. Thus, complete extension of the axoneme relies on the IFT machinery to traffic ciliary components to the cilium tip forth and back, as well as the availability of soluble tubulin and axonemal precursors.

Disk Morphogenesis and Renewal

The photoreceptor outer segment displays ordered stacks of tightly packed membranous disks. So far, two hypotheses have been postulated to explain outer segment disk morphogenesis in rod photoreceptors. The first proposed model is the evagination model. It postulates that disks are generated from outgrowths of the ciliary membrane at the outer segment base, which then extend away from the axoneme and appear as open disks, exposed to the extracellular milieu. Next, the basal membrane of an older evagination and the apical membrane of the adjacent younger evagination fuse at the disk hairpin-like rims, at the opposite side of the axoneme, resulting in the formation of a new enclosed disk (Steinberg et al., 1980). The alternative model, the vesicular targeting model, proposes that disk morphogenesis is caused by the repeated fusion of endocytic vesicles at the outer segment base and the following flattening of the primitive disk sacs to generate the mature disks. Vesicles may be derived either from the plasma membrane of the outer segment or from transport vesicles shipped from the inner segment through the connecting cilium (Chuang et al., 2007). Recent publications have provided strong evidence supporting the evagination model for the formation of vertebrate photoreceptors (Farjo et al., 2006; Burgoyne et al., 2015; Goldberg et al., 2016).

Efforts have been made to identify key molecules involved in disk morphogenesis, and defects in this process lead to non-syndromic retinal degeneration. In vertebrate photoreceptors, filamentous actin (F-actin) is mostly present in the inner segment as a submembrane network whereas outer segment seems to be deficient in an actin cytoskeleton except for the basal part of the outer segment (Chaitin et al., 1984; Lewis et al., 1995). There, F-actin and actin-associated proteins appear to be required for initiation of the evagination of the ciliary membrane but not for the continued growth of new evaginations (Williams et al., 1988; Hale et al., 1996; Corral-Serrano et al., 2020). Peripherin-2 (PRPH2/RDS) is a transmembrane glycoprotein and a key element for outer segment morphogenesis. PRPH2/RDS strongly interacts with ROM-1, which is also found in disk rims (Bascom et al., 1992; Moritz and Molday, 1996). PRPH2/RDS homomeric complexes are required for membrane geometry of disk rims, whereas PRPH2/ROM-1 complexes are involved in the proper stabilization and structuration of the outer segment. ROM-1 is not essential for outer segment morphogenesis but it is needed for photoreceptor viability (Stuck et al., 2017). Prominin-1 (PROM1) is a transmembrane protein that probably participates in disk morphogenesis regulation, maintaining the open structure of photoreceptor disks (Han et al., 2012). Finally, rhodopsin is the most abundant protein in rod outer segments, comprising almost 50% of the outer segment membrane mass. Consequently, in addition to being the photon receptor and activating the G protein cascade of phototransduction, rhodopsin is considered to have a structural role, serving as an indispensable element for the architecture of the rod outer segment membrane (Wensel et al., 2016).

The process of membranous disk morphogenesis remains after outer segment development and maturation due to the fact that it is continuously regenerated to minimize the accumulation of damaged molecular components due to photooxidative stress. Thus, outer segment length is maintained by the balance between basal disk formation and distal disk shedding. This ongoing renewal is a unique characteristic of photoreceptors and, 8–10% of the more distal disks are phagocytosed by the retinal pigment epithelium, and renewed on a daily basis (Young, 1967).

Clearly, outer segment renewal requires a high rate of delivery of freshly synthesized proteins to nascent disks, hence the critical role of ciliary transport not only for photoreceptor development but also for photoreceptor survival.

Ciliary Transport in Photoreceptors

Several studies have been conducted to unravel protein sorting and transport to the primary cilium. On the other hand, the photoreceptor outer segment has shown to be a prolific model for the investigation of protein targeting to cilia due to its highly elevated rate of continuous renewal. Consequently, photoreceptor outer segment is the region with the highest demand for protein, yet all protein synthesis occurs in the inner segment. Thus, all components required for outer segment formation, maintenance and function must be transported from the IS to the outer segment through the connecting cilium. This transport demands stringently regulated mechanisms to enable efficient trafficking of selected proteins for the establishment and maintenance of photoreceptor identity. Any alteration in either cargo delivery to the cilium or ciliary transport compromises photoreceptor function and survival leading to retinal degeneration.

In photoreceptors, delivery of proteins to the outer segment can be conducted by different mechanisms. Ciliary trafficking powered by the IFT machinery is instrumental for opsin delivery to the outer segment, but chaperone-assisted transport and diffusion also play a relevant role in protein transport and delivery to the photoreceptor outer segment.

Transport of Membrane Proteins With Cilia-Targeting Motifs: The Paradigm of Rhodopsin

Rhodopsin transport to the cilium has been extensively studied as it is the main cilia-targeted cargo protein in rods, with approximately 1000 rhodopsin molecules being trafficked through the connecting cilium per second (Besharse, 1986). Most of what is currently known of the transport and targeting of proteins to the photoreceptor outer segment stems from rhodopsin studies.

Similar to other membrane proteins, rhodopsin is transported by a conventional secretory pathway regulated by small GTPases, which function as molecular switches. Rhodopsin is synthesized at the rough endoplasmic reticulum and transported to the Golgi apparatus, where it is glycosylated. Then, rhodopsin exits the Golgi complex and reaches the trans-Golgi network (TGN), where it is specifically targeted and trafficked to the cilium (Deretic, 1998). In contrast to membrane transport between the endoplasmic reticulum and the Golgi mediated by the COPI and COPII coat proteins, rhodopsin transport from the TGN to the cilia is mediated by a different system (Lee et al., 2004).

Rhodopsin possesses a highly conserved VxPx motif in its C-terminus that is sufficient for its targeting to the OS (Chuang and Sung, 1998; Tam et al., 2000). This motif is also present in other ciliary proteins, such as polycystins 1 and 2, and the nucleotide-gated olfactory channel CNGB1b subunit (Geng et al., 2006; Jenkins et al., 2006; Ward et al., 2011). Rhodopsin contains an additional ciliary targeting signal in the cytoplasmic helix H8, the FR motif, which is also found in several other GPCRs (Corbit et al., 2005; May-Simera et al., 2017).

At the TGN and after maturation, rhodopsin is incorporated into rhodopsin transport carriers (RTCs) and a ciliary targeting module is formed. First, a member of the Arf family of G-proteins that regulate membrane transport, Arf4-GTP, binds the VxPx motif, and the Arf GTPase activating protein (GAP) ASAP1 recognizes the FR motif. Next, FIP3 and Rab11-GTP are recruited to the complex by ASAP1, forming the ciliary targeting module. FIP3 is a dual Arf/Rab11 effector that may function as a coordinator of Arf4 and Rab11 activities while Rab11 is a small GTPase. ASAP1 induces membrane deformation through its BAR domain and, at the same time, mediates GTP hydrolysis of Arf4, resulting in the release of Arf4-GDP from the complex (Figure 3A) (Mazelova et al., 2009a; Deretic and Wang, 2012).

FIGURE 3
www.frontiersin.org

Figure 3. Transport of ciliary proteins in photoreceptor cells. (A) Rhodopsin is transported from the trans-Golgi network (TGN) to the rod outer segment by a conventional secretory pathway regulated by small GTPases. Many ciliary protein complexes are involved in this process, performing different roles in trafficking that enable rhodopsin docking and transport through the connecting cilium to the ciliary membrane. Note the location of the USH protein complex formed by USH1G, USH2D, USH2A, and USH2C subunits. (B) The proposed model for the cycle of the IFT complexes in photoreceptors is based on flagella and primary cilium as well as cryo-EM structural models (Liang et al., 2014; Roberts, 2018; Toropova et al., 2019). IFT-B trains (responsible for anterograde trafficking) are assembled at the base of the cilium and move along the outer segment axoneme to the tip, where they are disassembled. Then, IFT-A trains are assembled at the tip and enable retrograde trafficking until they reach the base of the cilium, where they are disassembled to begin another trafficking cycle. Numbers in each panel indicate the sequence of transport steps. In all images, only selected proteins are represented, for the sake of clarity. (C) Transport and delivery of lipidated proteins from the endoplasmic reticulum (ER) to the outer segment is assisted by trafficking chaperones (PDE6D and UNC119b) and regulated by small GTPases (e.g., ARL3). (Figure created with BioRender.com).

Once Arf4 exits the ciliary targeting module, the rhodopsin C-terminal cytoplasmic tail is free to bind the dynein light chain Tctex-1. Then, cytoplasmic dynein carries RTCs from the Golgi to the base of the cilium along the microtubules, which nucleate from the basal body, toward their minus ends (Tai et al., 1999).

Along the vesicle’s route toward the basal body, ASAP1 recruits the small GTPase Rab8-GDP and its guanine nucleotide exchange factor (GEF), Rabin8, to the complex (Figure 3A). Rabin8 then promotes nucleotide exchange on Rab8-GDP, thus becoming Rab8-GTP (Deretic and Wang, 2012; Pearring et al., 2013). Interestingly, in addition to Rabin8, photoreceptors present a supplementary Rab8 GEF, Retinitis Pigmentosa GTPase Regulator (RPGR), located at the connecting cilium. RPGR facilitates Rab8 GDP/GTP exchange at a slightly slower rate than that of Rabin8, and mutations that disrupt its GEF activity cause X-linked RP. The existence of two Rab8 GEFs implies that the OS may need additional levels of Rab8 control to maintain its elevated level of vesicular ciliary traffic, as activated Rab8 plays a critical role in docking and fusion of the RTCs at the periciliary membrane (Murga-Zamalloa et al., 2010). Activated Rab8 binds to the exocyst complex subunit SEC15, which then interacts with SEC10. SEC10 is associated with the rest of the exocyst complex. This results in bringing RTCs to the base of the cilium. The exocyst complex is placed there by the small GTPase Cdc42, and tethers to the periciliary membrane (Lobo et al., 2017; Malicki and Johnson, 2017). Vesicle fusion with the periciliary membrane is mediated by SNARE protein complexes, specifically Syntaxin 3 and SNAP25, by bridging the opposing membranes and bringing them into proximity (Mazelova et al., 2009b).

Other connecting cilium proteins have been observed to modulate Rab8 ciliary localization, such as CC2D2A and RPGRIP1 (Bachmann-Gagescu et al., 2011; Raghupathy et al., 2017). Most probably, CC2D2A provides a specific docking point for ciliary-targeting vesicles at the base of the cilium by organizing the vesicle fusion machinery at the periciliary membrane. First, Rab8, which is coating the RTCs, binds to MICAL3, which in turn associates with the centrosomal protein NINL. NINL also interacts with the cytoplasmic dynein complex, linking the carrier vesicles and the motor that is responsible for the movement along the microtubules. Then, NINL binds CC2D2A at the base of the connecting cilium, conferring the specificity of the docking station. Concurrently, CC2D2A localization to the connecting cilium is needed for proper positioning of SNAP25 to the periciliary membrane. Finally, MICAL3 redox activity induces the remodeling of the complex and results in vesicle fusion and cargo release into the periciliary membrane (Grigoriev et al., 2011; Bachmann-Gagescu et al., 2015b; Ojeda Naharros et al., 2017).

Furthermore, it has been proposed that IFT20 may indirectly bind Rab8 or interact with Rabin8, thus participating in the transport and delivery of ciliary membrane proteins, including rhodopsin, from the Golgi apparatus to the ciliary base. There, IFT20 and the protein cargo would engage with the rest of the IFT complex in order to transport the targeted proteins through the connecting cilium and into the photoreceptor outer segment via ciliary trafficking, which will be further explained below in section “IFT- and BBSome-Mediated Trafficking” (Sedmak and Wolfrum, 2010; Crouse et al., 2014; Wang and Deretic, 2014).

Rhodopsin molecules are further transported through the connecting cilium, within the ciliary membrane, to the site of disk morphogenesis. This transport may probably be conducted by the motor proteins kinesin-II, a microtubule-dependent anterograde IFT subunit, and myosin VIIa, an actin-dependent motor molecule (Figure 3A) (Liu et al., 1999; Wolfrum and Schmitt, 2000; Williams, 2002; Chadha et al., 2019). Recently, USH syndrome protein network at the periciliary region has been linked to anterograde IFT by direct interaction between USH1G (SANS) and the IFT-B complex subunits, further elucidating the role of USH protein complex in ciliary transport. The periciliary transmembrane proteins USH2A and USH2C (the latter also known as GPR98, VLGR1, or ADGRV1) bind to USH2D by their intracellular domains, and USH2D, in turn, interacts with USH1G in the cytoplasm of the inner segment (Figure 3A) (Maerker et al., 2008). USH1G had been previously associated with rhodopsin cargo vesicles by its interaction with cytoplasmic dynein (Papal et al., 2013) and a recent study showed that the USH protein complex would transfer cargos from the cytoplasmic dynein transport module to the ciliary transport machinery propelled by myosin VIIa and/or kinesin-II motors (Sorusch et al., 2019).

Additionally, an alternative or complementary molecular model was described for ciliary transport of membrane cargos, such as rhodopsin, through the connecting cilium. In this model, ciliary transport is mediated by a non-vesicular ternary import complex comprised by transportin1 (TNPO1), Rab8-GDP and the ciliary membrane cargo, localized to the periciliary membrane. First, Rab8-GDP binds the ciliary targeting signal of the targeted protein and this further recruits TNPO1 to the complex. Next, the ternary import complex translocates across the membrane diffusion barrier that represents the connecting cilium, this process being facilitated by TNPO1. After translocation, cilium-localized GEFs exchange GDP for GTP on Rab8, resulting in the disassembly of the ternary complex and the release of the cargo to the ciliary membrane (Madugula and Lu, 2016).

Therefore, it is plausible to think that the interplay and cooperation between discrete and dynamic protein complexes, which accomplish slightly distinct roles in ciliary transport, may culminate in the docking and transport of selected proteins along photoreceptor cilia.

Transport of Membrane Proteins Lacking Cilia-Targeting Motifs

It was hypothesized the VxPx motif was a general ciliary targeting signal for membrane proteins in photoreceptors. Nevertheless, it has only been described for the photoreceptor-specific retinol dehydrogenase (prRDH), apart from the opsins (Luo et al., 2004). Thus, alternative motifs and transport pathways seem to be responsible for ciliary protein cargo delivery at the outer segment.

Unlike the nucleotide-gated olfactory channel CNGB1b subunit, the visual CNGB1a subunit lacks a VxPx motif and its transport to the outer segment is directed by Ankyrin-G, a membrane adaptor that directly binds the C-terminus of CNGB1a (Jenkins et al., 2006; Kizhatil et al., 2009).

Several outer segment proteins without ciliary targeting sequences are co-transported in a complex with rhodopsin. This is the case of the progressive rod-cone degeneration protein (PRCD), whose function is unknown, and guanylate cyclase-1 (GC-1), a critical component of the phototransduction machinery (Pearring et al., 2015; Spencer et al., 2016). In bovine retinal extracts, co-immunoprecipitation assays detected IFT-cargo complexes containing rhodopsin, GC1 and the chaperone proteins MRJ and HSC70. Both chaperones interact with IFT88, loading the protein cargo into the IFT-B trains for transport through the connecting cilium, as well as delivery to the nascent disks of photoreceptors (Bhowmick et al., 2009).

The abundant outer segment protein PRPH2 is mainly transported via an unconventional secretory pathway that bypasses the Golgi apparatus and, although its C-terminus is important for ciliary targeting, no targeting motif has been characterized so far, and no proteins capable of recognizing PRPH2 C-terminus have been described (Tian et al., 2014).

IFT- and BBSome-Mediated Trafficking

First described in Chlamydomonas flagella (Kozminski et al., 1993), intraflagellar transport (IFT) is a conserved transport mechanism in a diversity of motile and non-motile cilia in eukaryotic organisms, including photoreceptor cells. This process is defined as the bidirectional motor-dependent cargo transport along the axonemal microtubules from the base to the tip of the cilia, known as anterograde IFT, and back to the base, called retrograde IFT. It is critical for cilia development, maintenance and length-control, as it guarantees the assembly and the molecular turnover of ciliary components (Sedmak and Wolfrum, 2010; Khanna, 2015).

Composition of IFT Trains

Intraflagellar transport particles are organized into two large multimeric protein complexes: IFT-A, which is responsible for retrograde transport and is powered by kinesin-2 motors, and IFT-B, which is responsible for anterograde transport and is carried by dynein-2 (Cole, 2003). IFT trains are formed by more than 20 central components, arranged in subcomplexes, and the BBSome. Therefore, cargo molecules that are transported via IFT comprise the IFT machinery itself, axonemal building blocks – including tubulin and signaling molecules – and the BBSome (Prevo et al., 2017).

IFT-B complex is divided into the core (IFT-B1) subcomplex, comprising ten subunits (IFT22, 25, 27, 46, 52, 56, 70, 74, 81, and 88) and the peripheral (IFT-B2) subcomplex, composed of six subunits (IFT20, 38, 54, 57, 80, and 172). IFT52, IFT88, IFT38, and IFT57 interactions connect both subcomplexes (Taschner et al., 2016; Nakayama and Katoh, 2018). IFT-B motors are members of the kinesin-2 family and are found in heterotrimeric and homodimeric forms. The heterotrimeric kinesin-2 is composed by two motor subunits, KIF3A and either KIF3B or KIF3C, and an accessory non-motor subunit, KAP3. KIF3B and KIF3C bind KIF3A but not each other and, unlike in other tissues, they have partially redundant functions in photoreceptor cilia (Malicki and Besharse, 2012). The homodimeric kinesin-2 consists of KIF17 and it seems to be involved in distal microtubule singlet assembly in vertebrate photoreceptors as it accumulates at the distal tip of the outer segment (Bader et al., 2012).

IFT-A complex consists of the core subcomplex (IFT122, 140, and 144) that interacts with the IFT43–IFT121 dimer via IFT122. IFT139 and TULP3 are positioned on opposite sides of the IFT-A complex, IT139 interacting with the IFT43–IFT121 dimer and TULP3 interacting with the core subcomplex (Nakayama and Katoh, 2018). IFT-A is powered by dynein-2, which comprises three types of light chain shared with other dyneins (DYNLRB, DYNLL, and DYNLT) and five specific components: the motor-domain-containing heavy chain (DYNC2H1), a light chain (TCTEX1D2), a light intermediate chain (DYNC2LI1) and two intermediate chains (WDR34 and WDR60) (Toropova et al., 2019).

The BBSome

The BBSome is a stable complex that includes eight proteins (BBS1, 2, 4, 5, 7, 8, 9, and 18), encoded by causative genes of Bardet–Bield Syndrome (BBS), and the small GTPase ARL6/BBS3, which connects the complex with the ciliary membrane by its interaction with BBS1 (Jin et al., 2010; Prevo et al., 2017).

Bardet–Bield Syndrome proteins are essential for both rod and cone photoreceptor structure, function and survival (Dilan et al., 2018). The BBSome functions as an adaptor between cargo and the IFT complex, being specially required for retrograde protein ciliary trafficking and generally dispensable for protein transport into the photoreceptor outer segment (Datta et al., 2015; Liu and Lechtreck, 2018).

Furthermore, it acts as a ciliary gatekeeper in photoreceptors by preventing accumulation of non-ciliary protein in the outer segment, ensuring the compartmentalized protein distribution in photoreceptors (Hsu et al., 2017). The BBSome is negatively regulated by LZTFL1, which binds the complex to the cytoplasm and prevents its entry into the cilium, thereby regulating ciliary transport (Seo et al., 2011).

On the other hand, GPCRs and other unwanted ciliary proteins are tagged with ubiquitin chains, which are then recognized by the BBSome and removed from cilia, as has been recently reported in mammalian photoreceptors and Chlamydomonas reinhardtii (Shinde et al., 2020). Additionally, the BBSome has also been suggested to have a role in photoreceptor synaptogenesis and axonal targeting in neurons (Hsu et al., 2020).

The IFT Cycle

In broad terms, the IFT cycle can be split into four phases: first, cargo is assembled onto IFT trains near the basal body of photoreceptor cilia; next, anterograde transport to the tip of the cilia takes place; then, the IFT-B particle is disassembled, cargo is exchanged and the IFT-A train is assembled; finally, retrograde transport, back to the basal body occurs (Pearring et al., 2013).

The photoreceptor periciliary region, near the basal body, is rich in IFT proteins where they may cooperate with elements of the BBSome, to sort and deliver the ciliary membrane proteins. There, the IFT-B complex assembles and active kinesin-2 motor drives the anterograde train through the transition zone and along axonemal acetylated microtubules to the ciliary tip (Nachury et al., 2010; Sedmak and Wolfrum, 2010). The IFT-B subunit IFT74 is required for the assembling of IFT-A and IFT-B into IFT trains (Brown et al., 2015). As shown in Chlamydomonas flagella, dephosphorylation of the KIF3B subunit results in the incorporation of active kinesin-2 motor into anterograde IFT particles whereas KIF3B phosphorylation disrupts the interaction between kinesin-2 and IFT particles, leading to IFT train dissociation and cargo release (Figure 3B) (Liang et al., 2014).

Inhibited dynein-2 is transported to the ciliary tip as a passive cargo of IFT-B. According to cryo-EM structural studies, disassembly of the anterograde IFT train at the ciliary tip results in the destruction of the binding site for inhibited dynein-2, which uncovers an activating binding site for the IFT-A motor and enables its reconfiguration for retrograde transport. Then, IFT subunits are reassembled into retrograde trains, which carry the IFT-B complex with inactive kinesin-2 as a passive cargo, and move toward the base of the cilium, where they are disassembled to start another cycle of transport (Figure 3B) (Roberts, 2018; Toropova et al., 2019). Recent studies in BBSome-defective cells have shown that the BBSome is required for retrograde trafficking and/or ciliary exit of GPCRs, whereas defects in this complex do not impair anterograde transport (Nakayama and Katoh, 2018; Nozaki et al., 2018).

In the conventional IFT pathway, the IFT cargo is transported all along the axoneme and delivered at the ciliary tip. In photoreceptors, however, the cargo is delivered and incorporated into the growing disks, which means that the IFT machinery is only required for cargo transport from the basal body to the base of the outer segment (Figure 3A). Then, IFT trains move beyond the outer segment base to permit the switch from kinesin to dynein motors at the axoneme tip. The ensuing return of the IFT complex to the basal body via retrograde transport enable the recycling of the IFT components (Pearring et al., 2013).

Delivery of Lipidated Proteins to the Outer Segment

Lipid modifications enable the association of many outer segment signaling proteins with disk membranes. Transport and delivery of lipidated cargo proteins to the photoreceptor outer segment is assisted by lipid-binding proteins that function as trafficking chaperones, and enable the diffusion of lipidated proteins through the photoreceptor cytoplasm by protecting the lipid fraction within a hydrophobic pocket (Pearring et al., 2013). In photoreceptors, two trafficking chaperones, PDE6D and UNC119b, have been identified. PDE6D (also known as PrBP/δ, originally thought to be the δ-subunit of the cGMP phosphodiesterase PDE) interacts with prenylated proteins such as PDE6, and farnesylated proteins like GRK1 (Zhang et al., 2007). UNC119b is an acyl-binding protein that interacts with the α-subunit of transducin, Gαt (Zhang et al., 2011).

After synthesis, lipidated proteins remain transiently associated with the endoplasmic reticulum where they are post-translationally modified. There, the trafficking chaperones UNC119b and PDE6D bind their respective cargoes and exit the endoplasmic reticulum in a soluble, diffusible complex toward the cilium (Constantine et al., 2012; Hanke-Gogokhia et al., 2016). Next, ARL3-GTP, which has been previously activated by its GEF, ARL13B, in the outer segment, is recruited to the complex (Gotthardt et al., 2015). Consequently, lipidated cargo leaves the complex and associates with the ciliary membrane (Fansa et al., 2016; Hanke-Gogokhia et al., 2016). In fact, binding of both small GTPases ARL3 and ARL2 can release cargo from PDE6D, whereas only ARL3 can bind and release protein cargo from UNC119b (Ismail et al., 2011, 2012). RP2, which is localized to the basal body, interacts with the complex comprised by the trafficking chaperone and ARL3-GTP, and functions as a GAP, inducing ARL3 GTPase activity. GTP hydrolysis results in complex dissociation and the trafficking chaperones and ARL3-GDP exit the cilium to begin another transport cycle (Figure 3C) (Wright et al., 2011; Gotthardt et al., 2015).

Light-Dependent Translocation of Signaling Proteins Into the Outer Segment

As mentioned, different mechanisms are used to transport proteins to the photoreceptor outer segment. Signaling proteins that depend on the light-dark cycle are translocated to the outer segment by mediated-diffusion. The base of the outer segment might not act as a selective barrier for soluble proteins according to studies with transgenic animals expressing GFP, in which soluble proteins quickly equilibrated between the outer segment and the inner segment by free diffusion through the connecting cilium (Calvert et al., 2010). Interestingly, further research revealed that this passive diffusion of soluble proteins is conditioned by steric volume exclusion. This phenomenon postulates that the three-dimensional conformation of a given molecule and the architecture of the aqueous space differently reduces the aqueous volume available to the protein and, consequently, regulates its entrance to distinct cellular compartments (Najafi and Calvert, 2012; Najafi et al., 2012).

Due to the cytoplasmic thickness between disks, which is equivalent to the size of average proteins, the phenomenon of steric volume exclusion is remarkable in photoreceptor outer segment. This effect is particularly relevant for the light-dependent translocation of signaling proteins such as recoverin, transducin, and arrestin (Najafi and Calvert, 2012; Pearring et al., 2013). However, diffusion alone cannot justify the directionality of phototransduction protein translocation as it would result in equilibration of these soluble proteins throughout the whole cytoplasm of photoreceptors, which is not the case. Consequently, their translocation is the product of the combination of diffusion and a mechanism of light-dependent retention in particular subcellular compartments, which differs from the conventional ciliary trafficking pathway involving the IFT complex (Pearring et al., 2013).

Recoverin is a Ca2+-binding protein with dual functions: in the outer segment it regulates the activity of rhodopsin kinase (RK), whereas in the synaptic terminals it modulates photoreceptor synaptic output (Klenchin et al., 1995; Sampath et al., 2005; Chen et al., 2012). In dark-adapted rods, recoverin is distributed along all subcellular compartments (Figure 4A). Sustained illumination induces its translocation from the outer segment to synaptic terminals, while other compartments remain almost unaltered (Strissel et al., 2005). The proposed mechanism that explains recoverin light-dependent redistribution is that, upon illumination, Ca2+ levels decrease in the outer segment and recoverin changes its conformation from the Ca2+-bound form – which possesses high membrane affinity – to its soluble Ca2+-free configuration. This would result in its dissociation from disk membranes, its diffusion through the connecting cilium and its re-association with membranes in cellular subcompartments where Ca2+ concentration is higher (Figure 4A) (Pearring et al., 2013).

FIGURE 4
www.frontiersin.org

Figure 4. Light-dependent translocation of signaling proteins. (A) In dark-adapted rods (top panel), recoverin is bound to Ca2+ and distributed along all subcellular compartments; in the outer segment, recoverin sequesters rhodopsin kinase. After light exposure (bottom panel), Ca2+ levels decrease in the outer segment and recoverin modifies its conformation to a Ca2+-free soluble form. This results in recoverin dissociation from disk membranes and its diffusion from the outer segment through the connecting cilium to other cellular compartments with higher Ca2+ concentrations, where it binds the cytoplasmic membrane. (B) In dark conditions (top panel), transducin subunits Gαt-GDP and Gβtγt are transported by the trafficking chaperones UNC119a and PDE6D, respectively, to the outer segment. There, the heterotrimer transducin binds to disk membranes. In light conditions (bottom panel), photoexcited rhodopsin induces GPD/GTP exchange in the Gαt subunit, resulting in heterotrimer dissociation and diffusion to the inner segment. Gαt translocation is assisted by phosducin. Once in the inner segment, GTP is hydrolyzed, causing Gαt-GdP and Gβtγt re-association and binding to the cytoplasmic membrane. (C) In dark conditions (top panel), arrestin is mostly found at the inner segment and the small fraction contained within the outer segment is sequestered by BBS5. Upon light exposure (bottom panel), activated arrestin can follow two independent pathways to interact with activated rhodopsin (pathways “a” and “b”). One pathway involves photoexcited rhodopsin interacting and activating phospholipase (PLC), which in turn activates protein kinase C (PKC). Activated PKC then phosphorylates BBS5, resulting in the release of arrestin, which can now diffuse freely and interact with activated rhodopsin (“1a” to “5a” steps). Alternatively, arrestin diffuses from the inner segment into the outer segment and binds to photoexcited rhodopsin (“1b” to “3b” steps). Numbers in each panel indicate the sequence of transport steps. In all images, only selected proteins are represented, for the sake of clarity. (Figure created with BioRender.com).

Transducin is a G protein that mediates visual signaling between photoexcited rhodopsin (R) and the photoreceptor phosphodiesterase (PDE6), which is the central effector enzyme in the phototransduction cascade, and helps rods to yield considerably amplified photoresponses (Arshavsky and Wensel, 2013). In the dark, transducin translocation to the outer segment is assisted by the trafficking chaperones UNC119a and PDE6D. There, heterotrimeric transducin binds to disk membranes with high affinity thanks to lipid modifications (Figure 4B) (Constantine et al., 2012). Light exposure causes rhodopsin photoexcitation that binds to transducin and induces its activation by means of the separation of the GTP-bound Gαt subunit from the non-dissociable Gβtγt subunit. This reduces the membrane affinity of transducin subunits and leads to the dissociation of both Gαt and Gβtγt from disk membranes. Then, transducin translocation from rod outer segment to other cellular subcompartments is facilitated by dephosphorylated phosducin (Sokolov et al., 2004). Once in the inner segment and synaptic terminals, Gαt is converted into the GDP-bound state, associates with Gβtγt and the heterotrimer binds to the cytoplasmic membrane (Figure 4B) (Constantine et al., 2012).

Arrestin follows the opposite movement to that of transducin and it contributes to photoresponse deactivation by interacting with R and thereby ceasing transducin activation (Broekhuyse et al., 1985). In dark-adapted outer segments, arrestin is mainly found at the inner segment and only a small fraction is contained within the outer segment (Figure 4C). Light-induced translocation to the outer segment is proposed to be triggered by an intracellular signal downstream from the phototransduction cascade, which releases arrestin from its low affinity binding sites in the IS and results in its subsequent equilibration between the photoreceptor IS and outer segment by diffusion (Pearring et al., 2013). Activation of phospholipase C (PLC) and protein kinase C (PKC) downstream of rhodopsin appears to start arrestin translocation (Orisme et al., 2010). Furthermore, arrestin was found to directly interact with BBS5, retaining outer segment arrestin along the axoneme and preventing its function. Upon light exposure, PKC phosphorylates BBS5, which then releases arrestin and enables its free diffusion to bind activated rhodopsin (Figure 4C) (Smith et al., 2013).

Retinal Ciliopathies and Defects in Ciliary Transport

Defects in ciliary genes can cause dysfunction of the cilium resulting in ciliopathies, a broad group of genetically and phenotypically heterogeneous inherited disorders. Retinal disease is a frequent phenotype due to the highly specialized neurosensory cilium that photoreceptors possess (Table 1). Retinopathies can be developed as a consequence of incorrect ciliogenesis or defective ciliary transport of signaling or structural proteins, and the existence of many causative genes for retinal ciliopathies highlights the diversity of protein functions necessary for normal photoreceptor functioning.

TABLE 1
www.frontiersin.org

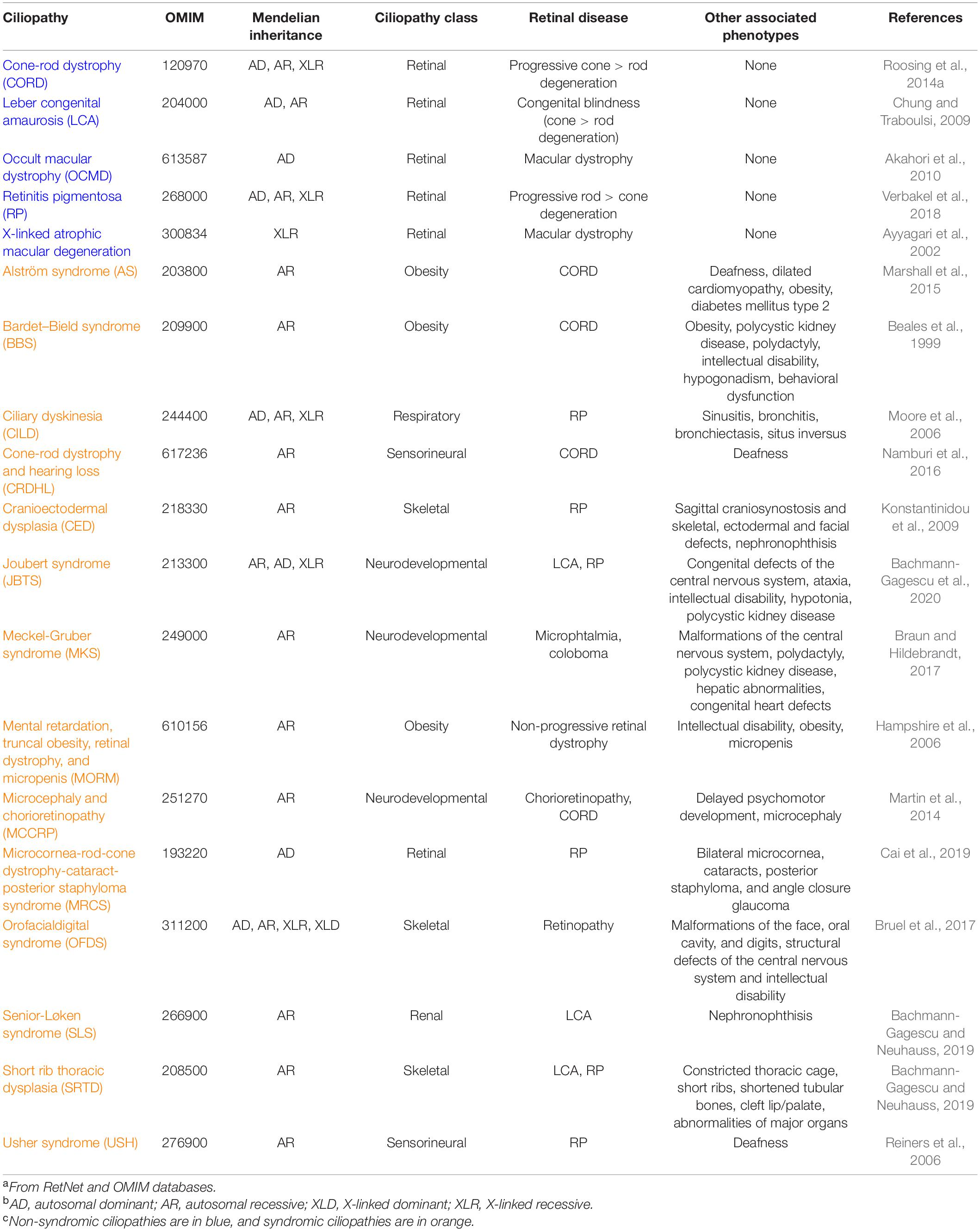

Table 1. Inherited ciliopathies with retinal involvementa,b,c.

To date, mutations in more than 100 ciliary genes have been associated with retinal dystrophies (Supplementary Table 1 and Figure 2), accounting for almost 25% of retinal disease (Chen et al., 2019). At least, half of the ciliary genes related to retinal disease are involved in ciliary transport, probably due to the high protein demand of photoreceptor outer segments, which requires efficient import and export of proteins. Depending on the function of the gene product, the mutation type, the site of mutation within the gene, and even genetic modifiers, retinal ciliopathies can present different phenotypic manifestations that are classified into two groups: non-syndromic retinal ciliopathies – in which only retinal degeneration is described because functional defects are exclusively confined to photoreceptor cilia – and syndromic retinal ciliopathies – which are accompanied with phenotypes in other tissues due to a broader range of ciliary disruption. In this section, we are going to focus exclusively on genes that are related to ciliary transport.

Non-syndromic Retinal Ciliopathies

Some mutations in ciliary genes appear to exclusively disrupt photoreceptor function and compromise its survival, thus causing non-syndromic retinal ciliopathies. Depending on the photoreceptor type that is primarily affected, non-syndromic retinal ciliopathies present different clinical manifestations.

Retinitis Pigmentosa

Retinitis pigmentosa (RP, MIM 268000) is the most common inherited retinal dystrophy with a worldwide prevalence of 1:4,000 in its non-syndromic form (Verbakel et al., 2018). It is characterized by the primary degeneration of rod photoreceptors and the secondary loss of cone photoreceptors. Consequently, patients initially develop night blindness and difficulty with dark adaptation, which further progress to peripheral and dim light visual defects in dim light and a gradual reduction of central vision when cones start being affected (Verbakel et al., 2018).

Retinitis pigmentosa can follow all patterns of Mendelian inheritance and its severity correlates with its type of inheritance, autosomal dominant RP presenting the best long-term prognosis whereas X-linked RP has the most severe degenerating process (Hamel, 2006; Verbakel et al., 2018).

It has been estimated that ciliary genes represent near 40% of RP genetic causes. Mutations in many of these genes can also result in syndromic ciliopathies with RP as one of the characteristic clinical features, as it is the case in Usher and Bardet–Biedl syndromes (Estrada-Cuzcano et al., 2012b). For instance, mutations in USH2A are one of the most frequent causes of autosomal recessive RP but can also result in Usher syndrome (Lenassi et al., 2015). Other important ciliary genes in RP are RP1, associated with autosomal dominant RP, and RPGR and RP2, both causative genes of X-linked RP (Sullivan et al., 1999; Megaw et al., 2015).

RPGR is mutated in 70–90% of X-linked RP patients, accounting for 10–20% of all RP cases (Megaw et al., 2015). Mutations in RPGR have also been associated with cone-rod dystrophy (CORD) and X-linked atrophic macular degeneration (Ayyagari et al., 2002; Shu et al., 2007). Rpgr mutant mice have been generated as a model of X-linked RP and they recapitulate the progressive degeneration of photoreceptor. This phenotype is due to defects in ciliary transport. RPGR-defective mouse retinas exhibit mislocalization of cone opsins and reduced rhodopsin levels in rods, evidencing the role of the connecting cilium protein RPGR in the maintenance of the polarized protein distribution by regulating directional protein transport and/or cargo sorting (Hong et al., 2000; Brunner et al., 2010; Thompson et al., 2012). Interestingly, an early onset cone-rod degeneration was observed in the mutant individuals of the BALB/c line, which suggests the existence of genetic modifiers. This mutant strain is a model for cone-rod degeneration due to RPGR mutations (Brunner et al., 2010).

Rp2 knockout mice also mimic X-linked RP. Their photoreceptors have a constantly high concentration of hyperactive ARL3-GTP as RP2 is not present to induce ARL3 GTPase activity and, consequently, its inactivation. The hyperactive ARL3-GTP promotes PDE6D closed conformation, preventing the trafficking chaperone to interact with its cargo and, thereby, hampering ciliary import of lipidated proteins such as GRK1 and PDE6 (Baehr, 2014; Zhang et al., 2015). Additionally, it has been recently proposed that in cones, RP2 may modulate the availability of proteins that are implicated in shedding of cone outer segments by controlling their ciliary import (Li et al., 2019).

Cone-Rod Dystrophy (CORD, MIM 120970)

Cone-rod dystrophy (MIM 120970) is a progressive cone degenerating disorder (prevalence of 1:30,000–1:40,000, Estrada-Cuzcano et al., 2012b). It is characterized by the primary loss of cone photoreceptors, closely followed by or simultaneous with rod degeneration (Hamel, 2007). Clinical symptoms become noticeable during primary school years and comprise photo aversion, diminished visual acuity, color vision defects and reduced sensitivity of the central visual field. As rod photoreceptors become also affected, patients may also display night blindness and loss of peripheral vision (Estrada-Cuzcano et al., 2012b). CORD can follow all types of Mendelian inheritance and appear as an isolated disorder or forming part of a syndromic case (Roosing et al., 2014b). So far, mutations in 14 ciliary genes have been identified in CORD patients, the most relevant ones being C8orf37, RPGR, and RPGRIP1, and many of them are involved in ciliary transport (Gill et al., 2019). In this context, it is remarkable that one Rpgr mutation has been reported to cause different retinal dystrophies (either RP or CORD) depending on the mouse genetic background, thus implying the existence of specific genetic modifiers with an impact on ciliary transport in different photoreceptor cell types (Brunner et al., 2010).

Leber Congenital Amaurosis

Leber congenital amaurosis (LCA, MIM 204000) is the most severe retinal dystrophy, since patients suffering from profound vision impairment before their first year of age (prevalence 1:30,000 and 1:81,000) and it generally follows an autosomal recessive Mendelian pattern of inheritance (Koenekoop, 2004; den Hollander et al., 2008).

Based on genetics and ocular phenotypes, LCA is classified in thirteen different types. Mutations in ciliary genes represent around 25% of disease-causing genes. In fact, mutations in CEP290, a key element of the ciliary diffusion barrier at the transition zone, are the most common causes of LCA in some populations (Chung and Traboulsi, 2009; Estrada-Cuzcano et al., 2012b). LCA5 is also an important LCA causative gene and it encodes the connecting cilium protein lebercilin, which participates in IFT transport. Leberlicin has been reported to interact with IFT complexes and when mutated, ciliary trafficking is perturbed (den Hollander et al., 2007; Boldt et al., 2011).

In Lca5 mutant mice, photoreceptors display partial mislocalization of opsins and reduction of light-induced translocation of arrestin to the outer segments. Defective ciliary trafficking due to the inability of lebercilin to interact with the IFT machinery results in early onset photoreceptor degeneration in Lca5 mutant mice, mimicking the LCA phenotype (Boldt et al., 2011). In a recent study, lca5–/– zebrafish photoreceptors presented an abnormal distribution of Ift88, which is in agreement with lebercilin interacting with the IFT machinery (Qu et al., 2019).

Mutations in RPGRIP1 can cause RP, CORD, and LCA in humans. In mouse photoreceptors, RPGRIP1 localizes predominantly to the connecting cilium and it is required for rod outer segment development and ciliary targeting of RPGR, NPHP4, and SDCCAG8, all of them associated with retinal ciliopathies (Won et al., 2009; Patil et al., 2012). Rpgrip1 mutant mice show deficient rod outer segment morphogenesis whereas cone outer segments initially form but degenerate rapidly, which suggests that the role of RPGRIP1 in outer segment development is different between cones and rods (Won et al., 2009). rpgrip1 null zebrafish exhibit similar phenotypes to those observed in juvenile RP patients and LCA. rpgrip–/– photoreceptors display mislocalization of opsins and, interestingly, also of Rab8, a key player in rhodopsin-carrying vesicle transport. Thus, at least in zebrafish, Rpgrip1 is also necessary for Rab8 localization to the cilium and, consequently, rhodopsin transport (Raghupathy et al., 2017).

Mutations in IFT38, a component of the IFT-B complex, are also associated with LCA in humans. Ift38 knockout mice are embryonically lethal due to loss of primary cilia, which resulted in disruption oft Sonic hedgehog signaling during embryonic development (Pasek et al., 2012). In zebrafish, ift38 mutants exhibit normal development of photoreceptor cells, followed by progressive photoreceptor degeneration caused by alterations in ciliogenesis, a phenotype that resembles the LCA phenotype in humans much more than the embryonic lethality in mutant mice (Lee et al., 2014).

Macular Dystrophy

Mutations in two ciliary genes (RPGR and RP1L1), both localized in the connecting cilium, have been described in patients with macular dystrophies.

RP1L1 is a structural component of the ciliary axoneme required for proper organization and structure of the photoreceptor outer segments (Yamashita et al., 2009). Defects in RP1L1 cause occult macular dystrophy (OCMD, MIM 613587), an autosomal dominant macular dystrophy. OCMD is characterized by a gradual decrease in visual acuity due to the progressive loss of macular function even though ophthalmoscopic appearance is normal (Akahori et al., 2010; Fujinami et al., 2016).

Regarding RPGR, 3% of mutations in this ciliary gene have been associated with X-linked atrophic macular degeneration (MIM 300834) (Ayyagari et al., 2002; Shu et al., 2007). Patients with X-linked atrophic macular degeneration show progressive central vision loss with minimal peripheral visual impairment even in advancing age (Ayyagari et al., 2002).

Syndromic Retinal Ciliopathies

Retinal degeneration is a frequent phenotype of an extensive variety of syndromic ciliopathies in which multiple cell types and tissues are affected due to ciliary dysfunction. Many ciliopathies have overlapping phenotypes and there is no clear genotype–phenotype correlation in most of them, as mutations in the same gene can cause different syndromes. Therefore, it exists an underlying complexity between a ciliary gene and associated ciliopathies.

Alström Syndrome

Alström syndrome (AS, MIM 203800) is a rare, autosomal recessive disorder (prevalence 1:1,000,000–9:1,000,000) caused by mutations in ALMS1, a broadly expressed gene whose gene product is a component of the centrosome and has been proposed to be involved in ciliary transport and cell cycle regulation (Collin et al., 2002; Hearn et al., 2002, 2005; Marshall et al., 2015; Hearn, 2019). AS patients present progressive vision loss due to CORD, sensorineural hearing loss, childhood obesity and diabetes mellitus type 2 (Marshall et al., 2005, 2007). Even though there is one causative gene, the ocular phenotype is quite variable and different ocular cell types may be affected, which suggests that cilia are crucial for multiple aspects of visual function (May-Simera et al., 2017).

ALMS1 seems to have multiple functions, which would explain the phenotypic complexity of AS. Alms1 mutant mice mimicked AS patients’ phenotypes. In ALMS1-deficient photoreceptors, rhodopsin partly mislocalizes and vesicles accumulate in the inner segment, which indicates that ALMS1 participates in the shift from vesicular transport to intraciliary trafficking at the base of the connecting cilium (Collin et al., 2005; Hearn, 2019).

Bardet–Biedl Syndrome

Bardet–Biedl syndrome (BBS, MIM 209900) is an autosomal recessive cilia-related disorder characterized by CORD, renal abnormalities, obesity, polydactyly, hypogonadism, intellectual disability, and behavioral dysfunction (Beales et al., 1999). It has a prevalence of approximately 1:100,000 in Europe and North America, but it is more frequent in particular isolated communities (Forsythe et al., 2018). BBS is caused by mutations in more than 20 identified genes that lead to defects in the assembly, composition or localization of the BBSome, thus resulting in the loss or anomalous accumulation of ciliary proteins due to deficient ciliary trafficking (Nachury et al., 2007; Forsythe et al., 2018; Liu and Lechtreck, 2018).

Most BBS model organisms that present retinal phenotypes show aberrant localization of rhodopsin to the inner segment, outer segment disorganization and progressive photoreceptor degeneration. Animal models deficient for any BBS protein share a similar retinal degeneration phenotype. As shown in a Lztfl1 mutant mouse model, this photoreceptor degeneration is probably due to the mislocalization and accumulation of non-outer segment proteins in the outer segment, pointing to the loss of compartmentalization, rather than defects in protein import to the outer segment. Therefore, these results further support that the BBSome is a ciliary gatekeeper or participates in retrograde protein trafficking (Datta et al., 2015).

Joubert Syndrome

Joubert syndrome (JBTS, MIM 213300), a recessive developmental disorder with a high clinical and genetic variability, is caused by mutations in more than 30 genes (prevalence 1:50,000–1:100,000). It is characterized by congenital defects of the central nervous system, ataxia, intellectual disability, hypotonia, neonatal breathing difficulties and abnormal eye movements. Less frequently, patients may present in addition retinal degeneration and renal anomalies (Dilan et al., 2019; Bachmann-Gagescu et al., 2020). The molecular function of JBTS proteins is diverse, some proteins localizing to the ciliary axoneme, others to the transition zone or the basal body, but all of them are involved in ciliogenesis or ciliary function (Hua et al., 2017). Most mutations causing JBTS affect genes that belong to the MKS module of the transition zone, including TMEM67, CC2D2A, and AHI1 (Bachmann-Gagescu et al., 2015a; Vilboux et al., 2017).

Ahi1 null mice show cilium-specific vesicular defects probably caused by a reduction of Rab8a levels in photoreceptor cells, indicating that Ahi1 is important for its stabilization. Ahi1–/– mice present retinal degeneration that is consistent with the ocular phenotype of JBTS patients (Westfall et al., 2010). Animal models of TMEM67 and CC2D2A will be explained in the following section as the manifested phenotypes are more in association with MKS.

Meckel–Gruber Syndrome

Meckel–Gruber syndrome (MKS, MIM 249000), the human ciliopathy presenting the most severe clinical manifestations, is an autosomal recessive developmental condition that frequently leads to embryonic or perinatal lethality due to dysfunction of primary cilia during early embryogenesis. It shows an extensive clinical heterogeneity and some of the main symptoms include malformations of the central nervous system, cystic renal disease, hepatic abnormalities, congenital heart defects, polydactyly and ocular alterations (MacRae et al., 1972; Braun and Hildebrandt, 2017). Currently, 13 different causative genes have been identified and most of the proteins that are associated with MKS are found at the transition zone (Garcia-Gonzalo et al., 2011; Sang et al., 2011; Szymanska et al., 2015). Mutations in TMEM67 are responsible for 16% of all MKS cases, being the most common cause of this ciliopathy, followed by MKS1 mutations, which account for 7% of MKS cases (Hartill et al., 2017). Both MKS1 and TMEM67, which are reciprocal interactors, have been found to be required for ciliogenesis and work together with the BBSome to assist ciliary trafficking of particular transmembrane receptors (Dawe et al., 2007; Goetz et al., 2017). Tmem67 mouse mutants display abnormal photoreceptor outer segments that lack rhodopsin due to alterations in the movement of ciliary proteins through the connecting cilium. TMEM67-deficient photoreceptor cells degenerate early and rapidly and mutant mice develop features similar to the retinal phenotype in MKS patients (Collin et al., 2012).

Mutations in CC2D2A can cause non-syndromic RP and CORD or syndromic ciliopathies such as JBTS, MKS and COACH. Cc2d2a–/– mice mimic Meckel syndrome phenotype, being embryonically lethal and exhibiting multiorgan defects due to defective ciliogenesis (Veleri et al., 2014). In cc2d2a–/– zebrafish, photoreceptors suffer from cilium-specific vesicle fusion defects due to the loss of SNAP25, Syntaxin3 and Exoc4, resulting in the accumulation of vesicles carrying opsin. In contrast to Cc2d2a knockout mice, cc2d2a–/– fish do not present defects in ciliogenesis (Ojeda Naharros et al., 2017).

Orofaciodigital Syndrome

Orofaciodigital syndrome (OFDS, 311200) comprises a group of conditions characterized by malformations of the face, oral cavity and digits. Some patients also show structural defects of the central nervous system and intellectual disability (Adams et al., 2007). OFDS type 1 (OFD1, MIM 311200) is an X-linked dominant ciliopathy caused by mutations in OFD1 gene, involved in ciliogenesis and cilia length regulation, and it is distinguished from other OFDS subtypes by adult-onset cystic kidney disease in addition to its inheritance pattern (Ferrante et al., 2001; Singla et al., 2010). Interestingly, a deep intronic mutation in OFD1 has been identified as causative of non-syndromic RP (Webb et al., 2012).

Senior–Løken Syndrome

Senior–Løken syndrome (SLS, MIM 266900), or renal–retinal dysplasia, refers to the syndromic association of juvenile NPHP (MIM 256100), an autosomal recessive cystic kidney disease with early onset retinal involvement (Braun and Hildebrandt, 2017). Usually, all patients develop ocular alterations by the age of 10 years, among them RP, which is the most frequent extra-renal phenotype of NPHP-related ciliopathies (Adams et al., 2007). As in MKS and JBTS, most SLS proteins are found at the ciliary transition zone (Ronquillo et al., 2012). Mutations in NPHP5 are the most common cause of SLS (Otto et al., 2005). NPHP5 is a centrosomal and transition zone protein which forms a distinct complex with CEP290, also reported to be mutated in SLS patients (Sayer et al., 2006; Barbelanne et al., 2013). Together, they regulate BBsome integrity and trafficking of the complex and its cargo (Barbelanne et al., 2015).

In Nphp5–/– mice, photoreceptors do not fully develop the connecting cilium and are unable to form outer segments, thus resulting in complete photoreceptor degeneration at 1 month of age (Ronquillo et al., 2016). Absence of NPHP5 results in mislocalization of BBS2 and BBS5, consequently compromising the integrity of the BBSome in hTert-RPE1 cells. Since the BBSome is dysfunctional, the IFT-dependent elongation of the axoneme is also perturbed, hence the late ciliogenesis alterations (Barbelanne et al., 2015; Ronquillo et al., 2016).

The retinal phenotype in Nphp5 mutants resembles LCA and is compatible with SLS. However, other clinical manifestations characteristic of SLS, such as kidney disease, are absent in Nphp5–/– mice, thus not fully recapitulating this human disorder. This phenomenon has also been observed in other knockout mouse models of NPHP1, NPHP4, and NPHP6, where the only conserved disease phenotype was retinal degeneration (Ronquillo et al., 2016).

Short-Rib Thoracic Dysplasia

Short-rib thoracic dysplasia (SRTD, MIM 208500), with or without polydactyly, comprises a group of autosomal recessive skeletal ciliopathies characterized by short ribs, shortened tubular bones and constricted thoracic cage, which leads to respiratory insufficiency that usually causes death in new-borns. Other non-skeletal phenotypes are cleft lip/palate, retinal degeneration and abnormalities of major organs including the brain, heart, liver, kidneys, pancreas, intestines, and genitalia. It encompasses Jeune syndrome or asphyxiating thoracic dystrophy, short rib-polydactyly syndrome, Mainzer-Saldino syndrome and Ellis-van Creveld syndrome (Huber and Cormier-Daire, 2012). Many SRTD patients present mutations in genes encoding elements of the IFT machinery. Approximately, 17 causative genes have been identified and, interestingly, mutations in some of them have also been associated with non-syndromic RP, as it is the case with IFT172 and IFT140, components of the IFT-B and IFT-A complexes, respectively (Bujakowska et al., 2015, 2017; Xu et al., 2015; Bifari et al., 2016).

Several animal models have been generated to study the pathological mechanisms due to defects in IFT proteins. In zebrafish, mutations in ift172 result in mislocalization of opsins and retinal degeneration. Photoreceptors are unable to form outer segments suggesting that ift172 plays a crucial role in the initiation of outer segment formation (Sukumaran and Perkins, 2009). In rod-specific Ift172 knockout mice, loss of IFT172 causes rapid degeneration of the retina, with abnormal localization of outer segment proteins such as rhodopsin, IFT139 and RP1, overall indicating alterations in ciliary trafficking that seriously compromise photoreceptor survival (Gupta et al., 2018).

Usher Syndrome

Usher syndrome (USH, MIM 276900) is a group of autosomal recessive disorders characterized by congenital, bilateral deafness and progressive RP. It is divided into three groups of decreasing severity and later progression of the symptoms and onset time: USH1, USH2, and USH3 (Reiners et al., 2006).

USH is the most common cause of combined hereditary deafness and blindness and it is caused by genes encoding proteins belonging to different functional families. Consequently, USH proteins have miscellaneous molecular functions, including actin-based transport, cellular adhesion, and signal transduction (May-Simera et al., 2017). Some USH proteins relevant in the retina are Myosin VII, which is the most studied USH protein in this tissue, and the periciliary membrane USH2 complex, consisting of USH2A, USH2C, and USH2D proteins (Mathur and Yang, 2015). Although USH mouse models faithfully recapitulate hearing disease, they do not mimic the retinal phenotype observed in USH patients, probably due to species-specific differences of the USH complex. In fact, only mice with mutations in Ush1c, Ush2a, or Ush2d have shown retinal degeneration (El-Amraoui and Petit, 2014).

Molecular and Genetic Complexity Underlying Retinal Ciliopathies

The molecular cause of ciliopathies is remarkably complex and, although cilia are rather ubiquitously found in mammalian cells, not all mutations in ciliary genes that cause retinal degeneration are also associated with pleiotropic pathologies in other ciliated organs and vice versa (Supplementary Table 1).

Transcriptional Regulation in Non-syndromic Retinal Ciliopathies

The adult human retina presents a great transcript diversity and part of this heterogenity can be explained by the “switch-like” splicing pattern that photoreceptors display, resulting in higher inclusion levels of exons that are not found in transcripts outside the retina (Farkas et al., 2013; Murphy et al., 2016). Interestingly, many genes associated with retinal ciliopathies have retina-specific isoforms, among them transcripts encoding photoreceptor ciliary proteins (Mellough et al., 2019). Whether these retina-specific isoforms are also involved in ciliary transport or in other cellular or ciliary pathways remains to be investigated.

A very good example is TTC8/BBS8, which is mutated in BBS and presents a photoreceptor-specific isoform that includes a cassette exon, named exon 2a. When this exon is mutated, patients present non-syndromic RP. Other cell types do not express this isoform, and therefore, remain unaffected (Riazuddin et al., 2010; Murphy et al., 2015).

Mutations in ARL6/BBS3 result in BBS syndrome. However, it presents a retina-specific splice variant, named BBS3L, originated by the inclusion of an extra 13 bp exon near the 3′ end, which shifts the open reading frame, producing a different C-terminus of the protein. The BBS3L transcript is specifically needed for correct retinal function and organization and, consequently, patients with mutations exclusively affecting this isoform would be expected to develop non-syndromic RP (Pretorius et al., 2010).

RPGR also has a retina-specific transcript, which includes a large 3′ terminal exon (ORF15) that is mutated in 60% of X-linked RP patients, which highlights the functional relevance of RPGR in the retina (Vervoort et al., 2000; Megaw et al., 2015).

Secondary ciliary dysfunction can also arise as a consequence of genetic variants in spliceosomal proteins, but the effect of splicing on ciliogenesis and ciliary function genes is out of the scope of this review.

Post-translational Regulation in Retinal Ciliopathies and Ciliogenesis

Ciliary defects can also be caused by mutations in genes not directly involved in ciliary function, structure or biogenesis but in its regulation. More than 100 proteins involved in sensory cilia have been found to be controlled by ubiquitin and small ubiquitin-like modifier (SUMO) post-translational modifications, pointing that genes belonging to the ubiquitin-proteasome system (UPS) might contribute to ciliary structure and function in photoreceptors (Toulis and Marfany, 2020). Recently, Atxn3 loss of function in zebrafish and mouse models has been reported to cause retinal ciliogenesis dysregulation and photoreceptor dysfunction (Toulis et al., 2020).

So far, mutations in two UPS genes, both encoding E3 ubiquitin ligases, have been unequivocally determined as causative genes for inherited retinal ciliopathies in humans: TOPORS, causative of non-syndromic autosomal dominant RP, and TRIM32/BBS11, causative of syndromic autosomal recessive BBS (Chiang et al., 2006; Chakarova et al., 2011). These proteins localize to the basal body. While TRIM32 regulates the stability of NPHP7 (Ramachandran et al., 2014), the retinal substrate of TOPORS is yet to be determined although physical association with dynactin subunits suggests that it might regulate ciliary transport (Chakarova et al., 2011).

Interestingly, together with RP1, TOPORS is one of the only two ciliary genes associated with autosomal dominant RP (Sullivan et al., 1999; Chakarova et al., 2007). Mutations in TOPORS cause premature protein truncation and, therefore, haploinsufficiency has been proposed as the pathogenic cause. As ciliary proteins work in multiprotein complexes, haploinsufficiency due to the disruption of one allele might be partially compensated by a different member of the complex. Therefore, for most proteins of the complex, phenotypes would be recessive and require mutations of the two alleles. Conversely, mutations in different genes of the same complex (e.g., BBSome and NPHP-JBTS-MKS complexes) may cause overlapping or highly similar phenotypes (Estrada-Cuzcano et al., 2012b). However, these two ciliary proteins seem to be particularly critical in photoreceptors as defects in only one allele highly compromise retinal function while other ciliated organs remain unaffected.

Ciliopathy Severity by Different Type or Combination of Genetic Mutations

In some cases disease severity can be explained by the primary disease-causing mutation or the position of a mutation within the gene, resulting in null, hypomorph or dominant-negative alleles that alter functional modules in different ways and even in different cell types. According to this, it would be expected that loss-of-function variants had a higher impact on the retina – as a highly sensitive tissue – than in other ciliated tissues, explaining why mutations in ciliary genes can cause non-syndromic retinal ciliopathies. On the other hand, gain-of-function variants or dominant-negative alleles would greatly disrupt ciliary function and result in cilia dysfunction in most ciliated tissues. However, these expectations are not fulfilled in many cases, and therefore, establishing genotype-phenotype correlations in retinal ciliopathies is often difficult. Nevertheless, ciliopathy genes are good candidates to cause inherited retinopathies and, currently, multigene panels for molecular diagnosis of inherited retinal dystrophies include ciliopathy genes in the mutational screening.

Furthermore, animal models have demonstrated that combinations of ciliopathy alleles are not necessarily associated with more severe phenotypes, revealing that ciliary proteins establish intricate relationships. For example, mouse Dync2h1 mutants had milder phenotypes when harboring heterozygous loss of Ift172. Dync2h1 is involved in retrograde IFT while Ift172 participates in anterograde IFT, thus suggesting that the equilibrium was partially restored due to the neutralization or compensation of two opposite dysfunctions. However, knockdown of Ift122, which is part of the IFT-A complex, was also able to rescue the Dync2h1 phenotype, reinforcing the idea of complexity in the interactions of ciliary proteins (Ocbina et al., 2011). Another study also found that heterozygous disruption of Mkks, a BBS chaperonin protein, in Cep290rd16/rd16 mice ameliorated the sensory cilia defects, and vice versa (Rachel et al., 2012).

Indeed, the same mutation in the same gene can result in a heterogeneity of disorders, from different syndromic ciliopathies to isolated forms of retinal ciliopathies, implying there are more players involved in the phenotype. Cases in which cis-acting regulators of expression or trans-acting epistatic modifier alleles may be the origin of phenotypic variation are reported for BBS1 and IFT172. The BBS1 p.M390R variant was found in homozygosis in RP and BBS patients as well as in unaffected parents of BBS patients and in a control proband. The study proposed that different promoter or enhancer polymorphisms could lead to distinct levels of transcriptional expression of the mutated alleles, thus resulting in less or more severe phenotypes (Estrada-Cuzcano et al., 2012a). Additionally, epistatic effects of other alleles were also proposed to modulate the phenotypes associated with IFT172 mutations, as the functional analysis could only partially explain milder phenotypes (Bujakowska et al., 2015).

Concluding Remarks

In spite of sharing common molecular mechanisms with primary cilia, the photoreceptor neurosensory cilium undergoes a highly refined specialization. Ciliary protein trafficking is essential for ciliogenesis and photoreceptor function, as reflected by the existence of non-syndromic and syndromic retinal ciliopathies associated with mutations in proteins involved in ciliary transport. Indeed, the cilium is a key structure in photoreceptor function and survival and, consequently, all ciliary genes and their regulators are potentially plausible candidates for non-syndromic and syndromic retinal dystrophies. It is possible that non-syndromic mutations in syndrome-associated genes have not been reported yet, and vice versa. Further elucidation of common and photoreceptor-specific ciliary protein networks and functional interactions are needed to understand the pleiotropy of phenotypes that arise from mutations in ciliary genes, which alter ciliary structure and/or function. Deciding whether therapy should target rearing ciliary structures, reinstating ciliary trafficking, or both will be key to devise efficient treatments for retinal ciliopathies.

Author Contributions

LS-B and VT wrote a draft and contributed to figures. GM provided the idea, the funding, and has supervised the work. All the authors have contributed to the writing and revision of the manuscript.

Funding

LS-B received a research initiation contract (IBUB, 2019) and now is recipient of the FI-DGR grant (Generalitat de Catalunya). This research was supported by grants SAF2016-80937-R (Ministerio de Economía y Competitividad/FEDER) and PID2019-108578RB-I00 (Ministerio de Ciencia e Innovación/FEDER), 2017 SGR 738 (Generalitat de Catalunya) to GM.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We are grateful to the associations of patients affected of retinal dystrophies for their constant support. We also acknowledge past and present members of our research group for helpful discussions.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcell.2021.623734/full#supplementary-material

References

Abad-Morales, V., Navarro, R., Burés-Jelstrup, A., and Pomares, E. (2020). Identification of a novel homozygous ARSG mutation as the second cause of Usher syndrome type 4. Am. J. Ophthalmol. Case Rep. 19:100736. doi: 10.1016/j.ajoc.2020.100736

PubMed Abstract | CrossRef Full Text | Google Scholar

Adams, N. A., Awadein, A., and Toma, H. S. (2007). The retinal ciliopathies. Ophthalmic Genet. 28, 113–125. doi: 10.1080/13816810701537424

PubMed Abstract | CrossRef Full Text | Google Scholar

Akahori, M., Tsunoda, K., Miyake, Y., Fukuda, Y., Ishiura, H., Tsuji, S., et al. (2010). Dominant mutations in RP1L1 are responsible for occult macular dystrophy. Am. J. Hum. Genet. 87, 424–428. doi: 10.1016/j.ajhg.2010.08.009

PubMed Abstract | CrossRef Full Text | Google Scholar

Arshavsky, V. Y., and Wensel, T. G. (2013). Timing is everything: GTPase regulation in phototransduction. Investig. Ophthalmol. Vis. Sci. 54, 7725–7733. doi: 10.1167/iovs.13-13281

PubMed Abstract | CrossRef Full Text | Google Scholar

Ayyagari, R., Demirci, F. Y., Liu, J., Bingham, E. L., Stringham, H., Kakuk, L. E., et al. (2002). X-linked recessive atrophic macular degeneration from RPGR mutation. Genomics 80, 166–171. doi: 10.1006/geno.2002.6815

PubMed Abstract | CrossRef Full Text | Google Scholar

Bachmann-Gagescu, R., Dempsey, J. C., Bulgheroni, S., Chen, M. L., D’Arrigo, S., Glass, I. A., et al. (2020). Healthcare recommendations for Joubert syndrome. Am. J. Med. Genet. 182A, 229–249. doi: 10.1002/ajmg.a.61399

PubMed Abstract | CrossRef Full Text | Google Scholar

Bachmann-Gagescu, R., Dempsey, J. C., Phelps, I. G., O’Roak, B., Knutzen, D., Rue, T., et al. (2015a). Joubert syndrome: a model for untangling recessive disorders with extreme genetic heterogeneity. J. Med. Genet. 52, 514–522. doi: 10.1136/jmedgenet-2015-103087

PubMed Abstract | CrossRef Full Text | Google Scholar

Bachmann-Gagescu, R., Dona, M., Hetterschijt, L., Tonnaer, E., Peters, T., de Vrieze, E., et al. (2015b). The ciliopathy protein CC2D2A associates with NINL and functions in RAB8-MICAL3-regulated vesicle trafficking. PLoS Genet. 11:e1005575. doi: 10.1371/journal.pgen.1005575

PubMed Abstract | CrossRef Full Text | Google Scholar

Bachmann-Gagescu, R., and Neuhauss, S. C. (2019). The photoreceptor cilium and its diseases. Curr. Opin. Genet. Dev. 56, 22–33. doi: 10.1016/j.gde.2019.05.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Bachmann-Gagescu, R., Phelps, I. G., Stearns, G., Link, B. A., Brockerhoff, S. E., Moens, C. B., et al. (2011). The ciliopathy gene cc2d2a controls zebrafish photoreceptor outer segment development through a role in Rab8-dependent vesicle trafficking. Hum. Mol. Genet. 20, 4041–4055. doi: 10.1093/hmg/ddr332

PubMed Abstract | CrossRef Full Text | Google Scholar

Bader, I., Decker, E., Mayr, J. A., Lunzer, V., Koch, J., Boltshauser, E., et al. (2016). MKS1 mutations cause Joubert syndrome with agenesis of the corpus callosum. Eur. J. Med. Genet. 59, 3836–3891. doi: 10.1016/j.ejmg.2016.06.007

PubMed Abstract | CrossRef Full Text | Google Scholar

Bader, J. R., Kusik, B. W., and Besharse, J. C. (2012). Analysis of KIF17 distal tip trafficking in zebrafish cone photoreceptors. Vis. Res. 75, 37–43. doi: 10.1016/j.visres.2012.10.009

PubMed Abstract | CrossRef Full Text | Google Scholar

Baehr, W. (2014). Membrane protein transport in photoreceptors: the function of PDEδ. Investig. Ophthalmol. Vis. Sci. 55, 8653–8666. doi: 10.1167/iovs.14-16066

PubMed Abstract | CrossRef Full Text | Google Scholar

Barbelanne, M., Hossain, D., Chan, D. P., Peränen, J., and Tsang, W. Y. (2015). Nephrocystin proteins NPHP5 and Cep290 regulate BBSome integrity, ciliary trafficking and cargo delivery. Hum. Mol. Genet. 24, 2185–2200. doi: 10.1093/hmg/ddu738

PubMed Abstract | CrossRef Full Text | Google Scholar

Barbelanne, M., Song, J., Ahmadzai, M., and Tsang, W. Y. (2013). Pathogenic NPHP5 mutations impair protein interaction with Cep290, a prerequisite for ciliogenesis. Hum. Mol. Genet. 22, 2482–2494. doi: 10.1093/hmg/ddt100

PubMed Abstract | CrossRef Full Text | Google Scholar

Bascom, R. A., Manara, S., Collins, L., Molday, R. S., Kalnins, V. I., and Mclnnes, R. R. (1992). Cloning of the CDNA for a novel photoreceptor membrane protein (rom-1) identifies a disk rim protein family implicated in human retinopathies. Neuron 8, 1171–1184. doi: 10.1016/0896-6273(92)90137-3

CrossRef Full Text | Google Scholar

Beales, P. L., Elcioglu, N., Woolf, A. S., Parker, D., and Flinter, F. A. (1999). New criteria for improved diagnosis of Bardet-Biedl syndrome: results of a population survey. J. Med. Genet. 36, 437–446. doi: 10.1136/jmg.36.6.437

CrossRef Full Text | Google Scholar

Beck, B. B., Phillips, J. B., Bartram, M. P., Wegner, J., Thoenes, M., Pannes, A., et al. (2014). Mutation of POC1B in a severe syndromic retinal ciliopathy. Hum. Mutat. 35, 1153–1162. doi: 10.1002/humu.22618

PubMed Abstract | CrossRef Full Text | Google Scholar

Besharse, J. C. (1986). “Photosensitive membrane turnover: differentiated membrane domains and cell-cell interaction,” in The Retina: A Model for Cell Biology Studies, eds R. Adler and D. Farber (New York: Academic Press), 297–352.

Google Scholar

Bhowmick, R., Li, M., Sun, J., Baker, S. A., Insinna, C., and Besharse, J. C. (2009). Photoreceptor IFT complexes containing chaperones, guanylyl cyclase 1, and rhodopsin. Traffic 10, 648–663. doi: 10.1111/j.1600-0854.2009.00896.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Bifari, I. N., Elkhamary, S. M., Bolz, H. J., and Khan, A. O. (2016). The ophthalmic phenotype of IFT140-related ciliopathy ranges from isolated to syndromic congenital retinal dystrophy. Br. J. Ophthalmol. 6, 829–833. doi: 10.1136/bjophthalmol-2015-307555

PubMed Abstract | CrossRef Full Text | Google Scholar

Biswas, P., Duncan, J. L., Ali, M., Matsui, H., Naeem, M. A., Raghavendra, P. B., et al. (2017). A mutation in IFT43 causes non-syndromic recessive retinal degeneration. Hum. Mol. Genet. 26, 4741–4775. doi: 10.1093/hmg/ddx356

PubMed Abstract | CrossRef Full Text | Google Scholar

Bizet, A. A., Becker-Heck, A., Ryan, R., Weber, K., Filhol, E., Krug, P., et al. (2015). Mutations in TRAF3IP1/IFT54 reveal a new role for IFT proteins in microtubule stabilization. Nat. Commun. 6:8666. doi: 10.1038/ncomms9666

PubMed Abstract | CrossRef Full Text | Google Scholar

Boldt, K., Mans, D. A., Won, J., Van Reeuwijk, J., Vogt, A., Kinkl, N., et al. (2011). Disruption of intraflagellar protein transport in photoreceptor cilia causes Leber congenital amaurosis in humans and mice. J. Clin. Invest. 121, 2169–2180. doi: 10.1172/JCI45627

PubMed Abstract | CrossRef Full Text | Google Scholar

Booth, K. T., Azaiez, H., Kahrizi, K., Simpson, A. C., Tollefson, W. T. A., Sloan, C. M., et al. (2015). PDZD7 and hearing loss: more than just a modifier. Am. J. Med. Genet. Part A 167, 2957–2965. doi: 10.1002/ajmg.a.37274

PubMed Abstract | CrossRef Full Text | Google Scholar

Braun, D. A., and Hildebrandt, F. (2017). Ciliopathies. Cold Spring Harb. Perspect. Biol. 9:a028191. doi: 10.1101/cshperspect.a028191

PubMed Abstract | CrossRef Full Text | Google Scholar

Broekhuyse, R. M., Tolhuizen, E. F. J., Janssen, A. P. M., and Winkens, H. J. (1985). Light induced shift and binding of s-antigen in retinal rods. Curr. Eye Res. 4, 613–618. doi: 10.3109/02713688508999993

PubMed Abstract | CrossRef Full Text | Google Scholar

Brown, J. M., Cochran, D. A., Craige, B., Kubo, T., and Witman, G. B. (2015). Assembly of IFT trains at the ciliary base depends on IFT74. Curr. Biol. 25, 1583–1593. doi: 10.1016/j.cub.2015.04.060

PubMed Abstract | CrossRef Full Text | Google Scholar

Bruel, A. L., Franco, B., Duffourd, Y., Thevenon, J., Jego, L., Lopez, E., et al. (2017). Fifteen years of research on oral-facial-digital syndromes: from 1 to 16 causal genes. J. Med. Genet. 54, 371–380. doi: 10.1136/jmedgenet-2016-104436

PubMed Abstract | CrossRef Full Text | Google Scholar

Brunner, S., Skosyrski, S., Kirschner-Schwabe, R., Knobeloch, K. P., Neidhardt, J., Feil, S., et al. (2010). Cone versus rod disease in a mutant RPGR mouse caused by different genetic backgrounds. Investig. Ophthalmol. Vis. Sci. 51, 1106–1115. doi: 10.1167/iovs.08-2742

PubMed Abstract | CrossRef Full Text | Google Scholar

Bujakowska, K. M., Liu, Q., and Pierce, E. A. (2017). Photoreceptor cilia and retinal ciliopathies. Cold Spring Harb. Perspect. Biol. 9, 1–28. doi: 10.1101/cshperspect.a028274

PubMed Abstract | CrossRef Full Text | Google Scholar

Bujakowska, K. M., Zhang, Q., Siemiatkowska, A. M., Liu, Q., Place, E., Falk, M. J., et al. (2015). Mutations in IFT172 cause isolated retinal degeneration and Bardet-Biedl syndrome. Hum. Mol. Genet. 24, 230–242. doi: 10.1093/hmg/ddu441

PubMed Abstract | CrossRef Full Text | Google Scholar

Burgoyne, T., Meschede, I. P., Burden, J. J., Bailly, M., Seabra, M. C., and Futter, C. E. (2015). Rod disc renewal occurs by evagination of the ciliary plasma membrane that makes cadherin-based contacts with the inner segment. Proc. Natl. Acad. Sci. U.S.A. 112, 15922–15927. doi: 10.1073/pnas.1509285113

PubMed Abstract | CrossRef Full Text | Google Scholar

Cai, X. B., Wu, K. C., Zhang, X., Lv, J. N., Jin, G. H., Xiang, L., et al. (2019). Whole-exome sequencing identified ARL2 as a novel candidate gene for MRCS (microcornea, rod-cone dystrophy, cataract, and posterior staphyloma) syndrome. Clin. Genet. 96, 61–71. doi: 10.1111/cge.13541

PubMed Abstract | CrossRef Full Text | Google Scholar

Calvert, P. D., Schiesser, W. E., and Pugh, E. N. (2010). Diffusion of a soluble protein, photoactivatable GFP, through a sensory cilium. J. Gen. Physiol. 135, 173–196. doi: 10.1085/jgp.200910322

PubMed Abstract | CrossRef Full Text | Google Scholar

Cantagrel, V., Silhavy, J. L., Bielas, S. L., Swistun, D., Marsh, S. E., Bertrand, J. Y., et al. (2008). Mutations in the cilia gene ARL13B lead to the classical form of joubert syndrome. Am. J. Hum. Genet. 83, 170–179. doi: 10.1016/j.ajhg.2008.06.023

PubMed Abstract | CrossRef Full Text | Google Scholar

Chadha, A., Volland, S., Baliaouri, N. V., Tran, E. M., and Williams, D. S. (2019). The route of the visual receptor rhodopsin along the cilium. J. Cell Sci. 132:jcs229526. doi: 10.1242/jcs.229526

PubMed Abstract | CrossRef Full Text | Google Scholar

Chaitin, M. H., Schneider, B. G., Hall, M. O., and Papermaster, D. S. (1984). Actin in the photoreceptor connecting cilium: immunocytochemical localization to the site of outer segment disk formation. J. Cell Biol. 99, 239–247. doi: 10.1083/jcb.99.1.239

PubMed Abstract | CrossRef Full Text | Google Scholar

Chakarova, C. F., Khanna, H., Shah, A. Z., Patil, S. B., Sedmak, T., Murga-Zamalloa, C. A., et al. (2011). TOPORS, implicated in retinal degeneration, is a cilia-centrosomal protein. Hum. Mol. Genet. 20, 975–987. doi: 10.1093/hmg/ddq543

PubMed Abstract | CrossRef Full Text | Google Scholar

Chakarova, C. F., Papaioannou, M. G., Khanna, H., Lopez, I., Waseem, N., Shah, A., et al. (2007). Mutations in TOPORS cause autosomal dominant retinitis pigmentosa with perivascular retinal pigment epithelium atrophy. Am. J. Hum. Genet. 81, 1098–1103. doi: 10.1086/521953

PubMed Abstract | CrossRef Full Text | Google Scholar

Chaki, M., Airik, R., Ghosh, A. K., Giles, R. H., Chen, R., Slaats, G. G., et al. (2012). Exome capture reveals ZNF423 and CEP164 mutations, linking renal ciliopathies to DNA damage response signaling. Cell 150, 533–548. doi: 10.1016/j.cell.2012.06.028

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, C. K., Woodruff, M. L., Chen, F. S., Chen, Y., Cilluffo, M. C., Tranchina, D., et al. (2012). Modulation of mouse rod response decay by rhodopsin kinase and recoverin. J. Neurosci. 32, 15998–16006. doi: 10.1523/JNEUROSCI.1639-12.2012

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, H. Y., Welby, E., Li, T., and Swaroop, A. (2019). Retinal disease in ciliopathies: recent advances with a focus on stem cell-based therapies. Transl. Sci. Rare Dis. 4, 97–115. doi: 10.3233/trd-190038

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, X., Sheng, X., Sun, X., Zhang, Y., Jiang, C., Li, H., et al. (2016). Next-generation sequencing extends the phenotypic spectrum for LCA5 mutations: novel LCA5 mutations in cone dystrophy. Sci. Rep. 6:24357. doi: 10.1038/srep24357

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, X., Wang, X., Jiang, C., Xu, M., Liu, Y., Qi, R., et al. (2018). IFT52 as a novel candidate for ciliopathies involving retinal degeneration. Investig. Ophthalmol. Vis. Sci. 59, 4581–4589. doi: 10.1167/iovs.17-23351

PubMed Abstract | CrossRef Full Text | Google Scholar

Chiang, A. P., Beck, J. S., Yen, H. J., Tayeh, M. K., Scheetz, T. E., Swiderski, R. E., et al. (2006). Homozygosity mapping with SNP arrays identifies TRIM32, an E3 ubiquitin ligase, as a Bardet-Biedl syndrome gene (BBS11). Proc. Natl. Acad. Sci. U.S.A. 103, 6287–6292. doi: 10.1073/pnas.0600158103

PubMed Abstract | CrossRef Full Text | Google Scholar

Chuang, J. Z., and Sung, C. H. (1998). The cytoplasmic tail of rhodopsin acts as a novel apical sorting signal in polarized MDCK cells. J. Cell Biol. 142, 1245–1256. doi: 10.1083/jcb.142.5.1245

PubMed Abstract | CrossRef Full Text | Google Scholar

Chuang, J.-Z., Zhao, Y., and Sung, C.-H. (2007). SARA-regulated vesicular targeting underlies formation of the light-sensing organelle in mammalian rods. Cell 130, 1–20. doi: 10.1016/j.cell.2007.06.030

PubMed Abstract | CrossRef Full Text | Google Scholar

Chung, D. C., and Traboulsi, E. I. (2009). Leber congenital amaurosis: clinical correlations with genotypes, gene therapy trials update, and future directions. J. AAPOS 13, 587–592. doi: 10.1016/j.jaapos.2009.10.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Cogné, B., Latypova, X., Senaratne, L. D. S., Martin, L., Koboldt, D. C., Kellaris, G., et al. (2020). Mutations in the kinesin-2 motor KIF3B cause an autosomal-dominant ciliopathy. Am. J. Hum. Genet. 106, 893–904. doi: 10.1016/j.ajhg.2020.04.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Cohen, A. I. (1965). New details of the ultrastructure of the outer segments and ciliary connectives of the rods of human and macaque retinas. Anat. Rec. 152, 63–79. doi: 10.1002/ar.1091520108

PubMed Abstract | CrossRef Full Text | Google Scholar

Cole, D. G. (2003). The intraflagellar transport machinery of Chlamydomonas reinhardtii. Traffic 4, 435–442. doi: 10.1034/j.1600-0854.2003.t01-1-00103.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Collin, G. B., Cyr, E., Bronson, R., Marshall, J. D., Gifford, E. J., Hicks, W., et al. (2005). Alms1-disrupted mice recapitulate human Alström syndrome. Hum. Mol. Genet. 14, 2323–2333. doi: 10.1093/hmg/ddi235

PubMed Abstract | CrossRef Full Text | Google Scholar

Collin, G. B., Marshall, J. D., Ikeda, A., So, W. V., Russell-Eggitt, I., Maffei, P., et al. (2002). Mutations in ALMS1 cause obesity, type 2 diabetes and neurosensory degeneration in Alström syndrome. Nat. Genet. 31, 74–78. doi: 10.1038/ng867

PubMed Abstract | CrossRef Full Text | Google Scholar

Collin, G. B., Won, J., Hicks, W. L., Cook, S. A., Nishina, P. M., and Naggert, J. K. (2012). Meckelin is necessary for photoreceptor intraciliary transport and outer segment morphogenesis. Investig. Ophthalmol. Vis. Sci. 53, 967–974. doi: 10.1167/iovs.11-8766

PubMed Abstract | CrossRef Full Text | Google Scholar

Constantine, R., Zhang, H., Gerstner, C. D., Frederick, J. M., and Baehr, W. (2012). Uncoordinated (UNC)119: coordinating the trafficking of myristoylated proteins. Vis. Res. 75, 26–32. doi: 10.1016/j.visres.2012.08.012

PubMed Abstract | CrossRef Full Text | Google Scholar

Corbit, K. C., Aanstad, P., Singla, V., Norman, A. R., Stainier, D. Y. R., and Reiter, J. F. (2005). Vertebrate Smoothened functions at the primary cilium. Nature 437, 1018–1021. doi: 10.1038/nature04117

PubMed Abstract | CrossRef Full Text | Google Scholar

Corral-Serrano, J. C., Lamers, I. J. C., van Reeuwijk, J., Duijkers, L., Hoogendoorn, A. D. M., Yildirim, A., et al. (2020). PCARE and WASF3 regulate ciliary F-actin assembly that is required for the initiation of photoreceptor outer segment disk formation. Proc. Natl. Acad. Sci. U.S.A. 117, 9922–9931. doi: 10.1073/pnas.1903125117

CrossRef Full Text | Google Scholar

Corral-Serrano, J. C., Messchaert, M., Dona, M., Peters, T. A., Kamminga, L. M., Van Wijk, E., et al. (2018). C2orf71a/pcare1 is important for photoreceptor outer segment morphogenesis and visual function in zebrafish. Sci. Rep. 8, 1–10. doi: 10.1038/s41598-018-27928-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Crouse, J. A., Lopes, V. S., Sanagustin, J. T., Keady, B. T., Williams, D. S., and Pazour, G. J. (2014). Distinct functions for IFT140 and IFT20 in opsin transport. Cytoskeleton 71, 302–310. doi: 10.1002/cm.21173

PubMed Abstract | CrossRef Full Text | Google Scholar

Datta, P., Allamargot, C., Hudson, J. S., Andersen, E. K., Bhattarai, S., Drack, A. V., et al. (2015). Accumulation of non-outer segment proteins in the outer segment underlies photoreceptor degeneration in Bardet-Biedl syndrome. Proc. Natl. Acad. Sci. U.S.A. 5, E4400–E4409. doi: 10.1073/pnas.1510111112

PubMed Abstract | CrossRef Full Text | Google Scholar

Davidson, A. E., Schwarz, N., Zelinger, L., Stern-Schneider, G., Shoemark, A., Spitzbarth, B., et al. (2013). Mutations in ARL2BP, encoding ADP-ribosylation-factor-like 2 binding protein, cause autosomal-recessive retinitis pigmentosa. Am. J. Hum. Genet. 93, 321–329. doi: 10.1016/j.ajhg.2013.06.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Dawe, H. R., Smith, U. M., Cullinane, A. R., Gerrelli, D., Cox, P., Badano, J. L., et al. (2007). The Meckel-Gruber Syndrome proteins MKS1 and meckelin interact and are required for primary cilium formation. Hum. Mol. Genet. 16, 173–186. doi: 10.1093/hmg/ddl459

PubMed Abstract | CrossRef Full Text | Google Scholar

De Bruijn, S. E., Verbakel, S. K., De Vrieze, E., Kremer, H., Cremers, F. P. M., Hoyng, C. B., et al. (2018). Homozygous variants in KIAA1549, encoding a ciliary protein, are associated with autosomal recessive retinitis pigmentosa. J. Med. Genet. 55, 705–712. doi: 10.1136/jmedgenet-2018-105364

PubMed Abstract | CrossRef Full Text | Google Scholar

De Castro-Miró, M., Tonda, R., Escudero-Ferruz, P., Andrés, R., Mayor-Lorenzo, A., Castro, J., et al. (2016). Novel candidate genes and a wide spectrum of structural and point mutations responsible for inherited retinal dystrophies revealed by exome sequencing. PLoS One 11:e0168966. doi: 10.1371/journal.pone.0168966

PubMed Abstract | CrossRef Full Text | Google Scholar

de Robertis, E. (1956). Electron microscope observations on the submicroscopic organization of the retinal rods. J. Biophys. Biochem. Cytol. 2, 319–330. doi: 10.1083/jcb.2.3.319

PubMed Abstract | CrossRef Full Text | Google Scholar

Deeb, S. S. (2006). Genetics of variation in human color vision and the retinal cone mosaic. Curr. Opin. Genet. Dev. 16, 301–307. doi: 10.1016/j.gde.2006.04.002

PubMed Abstract | CrossRef Full Text | Google Scholar

den Hollander, A. I., Black, A., Bennett, J., and Cremers, F. P. M. (2010). Lighting a candle in the dark: advances in genetics and gene therapy of recessive retinal dystrophies. J. Clin. Invest. 120, 3042–3053. doi: 10.1172/JCI42258

PubMed Abstract | CrossRef Full Text | Google Scholar

den Hollander, A. I., Koenekoop, R. K., Mohamed, M. D., Arts, H. H., Boldt, K., Towns, K. V., et al. (2007). Mutations in LCA5, encoding the ciliary protein lebercilin, cause Leber congenital amaurosis. Nat. Genet. 39, 889–895. doi: 10.1038/ng2066

PubMed Abstract | CrossRef Full Text | Google Scholar

den Hollander, A. I., Roepman, R., Koenekoop, R. K., and Cremers, F. P. M. (2008). Leber congenital amaurosis: genes, proteins and disease mechanisms. Prog. Retin. Eye Res. 27, 391–419. doi: 10.1016/j.preteyeres.2008.05.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Deretic, D. (1998). Post-Golgi trafficking of rhodopsin in retinal photoreceptors. Eye 12, 526–530. doi: 10.1038/eye.1998.141

PubMed Abstract | CrossRef Full Text | Google Scholar

Deretic, D., and Wang, J. (2012). Molecular assemblies that control rhodopsin transport to the cilia. Vis. Res. 75, 5–10. doi: 10.1016/j.visres.2012.07.015

PubMed Abstract | CrossRef Full Text | Google Scholar

Dharmat, R., Liu, W., Ge, Z., Sun, Z., Yang, L., Li, Y., et al. (2017). IFT81 as a candidate gene for nonsyndromic retinal degeneration. Investig. Ophthalmol. Vis. Sci. 58, 2483–2490. doi: 10.1167/iovs.16-19133

PubMed Abstract | CrossRef Full Text | Google Scholar

Dilan, T. L., Moye, A. R., Salido, E. M., Saravanan, T., Kolandaivelu, S., Goldberg, A. F. X., et al. (2019). ARL13B, a Joubert Syndrome-associated protein, is critical for retinogenesis and elaboration of mouse photoreceptor outer segments. J. Neurosci. 39, 1347–1364. doi: 10.1523/JNEUROSCI.1761-18.2018

PubMed Abstract | CrossRef Full Text | Google Scholar

Dilan, T. L., Singh, R. K., Saravanan, T., Moye, A., Goldberg, A. F. X., Stoilov, P., et al. (2018). Bardet-Biedl syndrome-8 (BBS8) protein is crucial for the development of outer segments in photoreceptor neurons. Hum. Mol. Genet. 27, 283–294. doi: 10.1093/hmg/ddx399

PubMed Abstract | CrossRef Full Text | Google Scholar

Duran, I., Taylor, S. P., Zhang, W., Martin, J., Forlenza, K. N., Spiro, R. P., et al. (2016). Destabilization of the IFT-B cilia core complex due to mutations in IFT81 causes a spectrum of short-rib polydactyly syndrome. Sci. Rep. 6:34232. doi: 10.1038/srep34232

PubMed Abstract | CrossRef Full Text | Google Scholar

El Shamieh, S., Neuillé, M., Terray, A., Orhan, E., Condroyer, C., Démontant, V., et al. (2014). Whole-exome sequencing identifies KIZ as a ciliary gene associated with autosomal-recessive rod-cone dystrophy. Am. J. Hum. Genet. 94, 625–633. doi: 10.1016/j.ajhg.2014.03.005

PubMed Abstract | CrossRef Full Text | Google Scholar

El-Amraoui, A., and Petit, C. (2014). The retinal phenotype of Usher syndrome: pathophysiological insights from animal models. Comptes Rendus Biol. 337, 167–177. doi: 10.1016/j.crvi.2013.12.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Estrada-Cuzcano, A., Koenekoop, R. K., Senechal, A., De Baere, E. B. W., De Ravel, T., Banfi, S., et al. (2012a). BBS1 mutations in a wide spectrum of phenotypes ranging from nonsyndromic retinitis pigmentosa to bardet-biedl syndrome. Arch. Ophthalmol. 130, 1425–1432. doi: 10.1001/archophthalmol.2012.2434

PubMed Abstract | CrossRef Full Text | Google Scholar

Estrada-Cuzcano, A., Roepman, R., Cremers, F. P. M., Hollander, A. I. D., and Mans, D. A. (2012b). Non-syndromic retinal ciliopathies: translating gene discovery into therapy. Hum. Mol. Genet. 21, R111–R124. doi: 10.1093/hmg/dds298

PubMed Abstract | CrossRef Full Text | Google Scholar

Fansa, E. K., Kösling, S. K., Zent, E., Wittinghofer, A., and Ismail, S. (2016). PDE6δ-mediated sorting of INPP5E into the cilium is determined by cargo-carrier affinity. Nat. Commun. 7:11366. doi: 10.1038/ncomms11366

PubMed Abstract | CrossRef Full Text | Google Scholar

Farjo, R., Skaggs, J. S., Nagel, B. A., Quiambao, A. B., Nash, Z. A., Fliesler, S. J., et al. (2006). Retention of function without normal disc morphogenesis occurs in cone but not rod photoreceptors. J. Cell Biol. 173, 59–68. doi: 10.1083/jcb.200509036

PubMed Abstract | CrossRef Full Text | Google Scholar

Farkas, M. H., Grant, G. R., White, J. A., Sousa, M. E., Consugar, M. B., and Pierce, E. A. (2013). Transcriptome analyses of the human retina identify unprecedented transcript diversity and 3.5 Mb of novel transcribed sequence via significant alternative splicing and novel genes. BMC Genomics 14:486. doi: 10.1186/1471-2164-14-486

PubMed Abstract | CrossRef Full Text | Google Scholar

Ferrante, M. I., Giorgio, G., Feather, S. A., Bulfone, A., Wright, V., Ghiani, M., et al. (2001). Identification of the gene for oral-facial-digital type 1 syndrome. Am. J. Hum. Genet. 68, 569–576. doi: 10.1086/318802

PubMed Abstract | CrossRef Full Text | Google Scholar

Fliegauf, M., Benzing, T., and Omran, H. (2007). When cilia go bad: cilia defects and ciliopathies. Nat. Rev. Mol. Cell Biol. 8, 880–893. doi: 10.1038/nrm2278

PubMed Abstract | CrossRef Full Text | Google Scholar

Forsythe, E., Kenny, J., Bacchelli, C., and Beales, P. L. (2018). Managing Bardet-Biedl syndrome-now and in the future. Front. Pediatr. 6:23. doi: 10.3389/fped.2018.00023

PubMed Abstract | CrossRef Full Text | Google Scholar

Franco, B., and Thauvin-Robinet, C. (2016). Update on oral-facial-digital syndromes (OFDS). Cilia 5:12. doi: 10.1186/s13630-016-0034-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Fujinami, K., Kameya, S., Kikuchi, S., Ueno, S., Kondo, M., Hayashi, T., et al. (2016). Novel RP1L1 variants and genotype-photoreceptor microstructural phenotype associations in cohort of Japanese patients with occult macular dystrophy. Investig. Ophthalmol. Vis. Sci. 57, 4837–4846. doi: 10.1167/iovs.16-19670

PubMed Abstract | CrossRef Full Text | Google Scholar

Garcia, G., Raleigh, D. R., and Reiter, J. F. (2018). How the ciliary membrane is organized inside-out to communicate outside-in. Curr. Biol. 28, R421–R434. doi: 10.1016/j.cub.2018.03.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Garcia-Gonzalo, F. R., Corbit, K. C., Sirerol-Piquer, M. S., Ramaswami, G., Otto, E. A., Noriega, T. R., et al. (2011). A transition zone complex regulates mammalian ciliogenesis and ciliary membrane composition. Nat. Genet. 43, 776–784. doi: 10.1038/ng.891

PubMed Abstract | CrossRef Full Text | Google Scholar

Garcia-Gonzalo, F. R., and Reiter, J. F. (2017). Open Sesame: how transition fibers and the transition zone control ciliary composition. Cold Spring Harb. Perspect. Biol. 9, 1–20. doi: 10.1101/cshperspect.a028134

PubMed Abstract | CrossRef Full Text | Google Scholar

Geng, L., Okuhara, D., Yu, Z., Tian, X., Cai, Y., Shibazaki, S., et al. (2006). Polycystin-2 traffics to cilia independently of polycystin-1 by using an N-terminal RVxP motif. J. Cell Sci. 119, 1383–1395. doi: 10.1242/jcs.02818

PubMed Abstract | CrossRef Full Text | Google Scholar

Gill, J. S., Georgiou, M., Kalitzeos, A., Moore, A. T., and Michaelides, M. (2019). Progressive cone and cone-rod dystrophies: clinical features, molecular genetics and prospects for therapy. Br. J. Ophthalmol. 103, 711–720. doi: 10.1136/bjophthalmol-2018-313278

PubMed Abstract | CrossRef Full Text | Google Scholar

Gilula, N. B., and Satir, P. (1972). The ciliary necklace a ciliary membrane specialization. J. Cell Biol. 53, 494–509. doi: 10.1083/jcb.53.2.494

PubMed Abstract | CrossRef Full Text | Google Scholar

Girisha, K. M., Shukla, A., Trujillano, D., Bhavani, G. S., Hebbar, M., Kadavigere, R., et al. (2016). A homozygous nonsense variant in IFT52 is associated with a human skeletal ciliopathy. Clin. Genet. 90, 536–539. doi: 10.1111/cge.12762

PubMed Abstract | CrossRef Full Text | Google Scholar

Goetz, S. C., and Anderson, K. V. (2010). The primary cilium: a signalling centre during vertebrate development. Nat. Rev. Genet. 11, 331–344. doi: 10.1038/nrg2774

PubMed Abstract | CrossRef Full Text | Google Scholar

Goetz, S. C., Bangs, F., Barrington, C. L., Katsanis, N., and Anderson, K. V. (2017). The Meckel syndrome-associated protein MKS1 functionally interacts with components of the BBSome and IFT complexes to mediate ciliary trafficking and hedgehog signaling. PLoS One 12:e0173399. doi: 10.1371/journal.pone.0173399

PubMed Abstract | CrossRef Full Text | Google Scholar

Goldberg, A. F. X., Moritz, O. L., and Williams, D. S. (2016). Molecular basis for photoreceptor outer segment architecture. Prog. Retin. Eye Res. 55, 52–81. doi: 10.1016/j.preteyeres.2016.05.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Gotthardt, K., Lokaj, M., Koerner, C., Falk, N., Gießl, A., and Wittinghofer, A. (2015). A G-protein activation cascade from Arl13B to Arl3 and implications for ciliary targeting of lipidated proteins. eLife 4:e11859. doi: 10.7554/elife.11859

PubMed Abstract | CrossRef Full Text | Google Scholar

Gray, J. M., Orlans, H. O., Shanks, M., Clouston, P., and MacLaren, R. E. (2018). Slowly progressive retinitis pigmentosa caused by two novel mutations in the MAK gene. Ophthalmic Genet. 39, 508–511. doi: 10.1080/13816810.2018.1474369

PubMed Abstract | CrossRef Full Text | Google Scholar

Grigoriev, I., Yu, K. L., Martinez-Sanchez, E., Serra-Marques, A., Smal, I., Meijering, E., et al. (2011). Rab6, Rab8, and MICAL3 cooperate in controlling docking and fusion of exocytotic carriers. Curr. Biol. 21, 967–974. doi: 10.1016/j.cub.2011.04.030

PubMed Abstract | CrossRef Full Text | Google Scholar

Gupta, P. R., Pendse, N., Greenwald, S. H., Leon, M., Liu, Q., Pierce, E. A., et al. (2018). Ift172 conditional knock-out mice exhibit rapid retinal degeneration and protein trafficking defects. Hum. Mol. Genet. 27, 2012–2024. doi: 10.1093/hmg/ddy109

PubMed Abstract | CrossRef Full Text | Google Scholar

Hale, I. L., Fisher, S. K., and Matsumoto, B. (1996). The actin network in the ciliary stalk of photoreceptors functions in the generation of new outer segment discs. J. Comp. Neurol. 376, 128–142.

Google Scholar

Hamel, C. (2006). Retinitis pigmentosa. Orphanet J. Rare Dis. 1:40. doi: 10.1186/1750-1172-1-40

PubMed Abstract | CrossRef Full Text | Google Scholar

Hamel, C. P. (2007). Cone rod dystrophies. Orphanet J. Rare Dis. 2:7. doi: 10.1186/1750-1172-2-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Hampshire, D. J., Ayub, M., Springell, K., Roberts, E., Jafri, H., Rashid, Y., et al. (2006). MORM syndrome (mental retardation, truncal obesity, retinal dystrophy and micropenis), a new autosomal recessive disorder, links to 9q34. Eur. J. Hum. Genet. 14, 543–548. doi: 10.1038/sj.ejhg.5201577

PubMed Abstract | CrossRef Full Text | Google Scholar

Han, Z., Anderson, D. W., and Papermaster, D. S. (2012). Prominin-1 localizes to the open rims of outer segment lamellae in Xenopus laevis rod and cone photoreceptors. Investig. Ophthalmol. Vis. Sci. 53, 361–373. doi: 10.1167/iovs.11-8635

PubMed Abstract | CrossRef Full Text | Google Scholar

Hanke-Gogokhia, C., Wu, Z., Gerstner, C. D., Frederick, J. M., Zhang, H., and Baehr, W. (2016). Arf-like protein 3 (ARL3) regulates protein trafficking and ciliogenesis in mouse photoreceptors. J. Biol. Chem. 291, 7142–7155. doi: 10.1074/jbc.M115.710954

PubMed Abstract | CrossRef Full Text | Google Scholar

Hartill, V., Szymanska, K., Sharif, S. M., Wheway, G., and Johnson, C. A. (2017). Meckel-Gruber syndrome: an update on diagnosis, clinical management, and research advances. Front. Pediatr. 5:244. doi: 10.3389/fped.2017.00244

PubMed Abstract | CrossRef Full Text | Google Scholar

Hearn, T. (2019). ALMS1 and Alström syndrome: a recessive form of metabolic, neurosensory and cardiac deficits. J. Mol. Med. 97, 1–17. doi: 10.1007/s00109-018-1714-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Hearn, T., Renforth, G. L., Spalluto, C., Hanley, N. A., Piper, K., Brickwood, S., et al. (2002). Mutation of ALMS1, a large gene with a tandem repeat encoding 47 amino acids, causes Alström syndrome. Nat. Genet. 31, 79–83. doi: 10.1038/ng874

PubMed Abstract | CrossRef Full Text | Google Scholar

Hearn, T., Spalluto, C., Phillips, V. J., Renforth, G. L., Copin, N., Hanley, N. A., et al. (2005). Subcellular localization of ALMS1 supports involvement of centrosome and basal body dysfunction in the pathogenesis of obesity, insulin resistance, and type 2 diabetes. Diabetes Metab. Res. Rev 54, 1581–1587. doi: 10.2337/diabetes.54.5.1581

PubMed Abstract | CrossRef Full Text | Google Scholar

Hong, D. H., Pawlyk, B. S., Shang, J., Sandberg, M. A., Berson, E. L., and Li, T. (2000). A retinitis pigmentosa GTPase regulator (RPGR)-deficient mouse model for X-linked retinitis pigmentosa (RP3). Proc. Natl. Acad. Sci. U.S.A. 97, 3649–3654. doi: 10.1073/pnas.97.7.3649

CrossRef Full Text | Google Scholar

Hoon, M., Okawa, H., Della Santina, L., and Wong, R. O. L. (2014). Functional architecture of the retina: development and disease. Prog. Retin. Eye Res. 42, 44–84. doi: 10.1016/j.preteyeres.2014.06.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Hsu, Y., Garrison, J. E., Kim, G., Schmitz, A. R., Searby, C. C., Zhang, Q., et al. (2017). BBSome function is required for both the morphogenesis and maintenance of the photoreceptor outer segment. PLoS Genet. 13:e1007057. doi: 10.1371/journal.pgen.1007057

PubMed Abstract | CrossRef Full Text | Google Scholar

Hsu, Y., Garrison, J. E., Seo, S., and Sheffield, V. C. (2020). The absence of BBSome function decreases synaptogenesis and causes ectopic synapse formation in the retina. Sci. Rep. 10:8321. doi: 10.1038/s41598-020-65233-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Hua, K., Bourgeois, J. R., and Ferland, R. J. (2017). “Joubert syndrome,” in Reference Module in Neuroscience and Biobehavioral Psychology, eds R. J. Ferland and C. A. Walsh (Amsterdam: Elsevier Science Ltd), 249–256.

Google Scholar

Huber, C., and Cormier-Daire, V. (2012). Ciliary disorder of the skeleton. Am. J. Med. Genet. Part C Semin. Med. Genet. 160C, 165–174. doi: 10.1002/ajmg.c.31336

PubMed Abstract | CrossRef Full Text | Google Scholar

Ishikawa, H., and Marshall, W. F. (2011). Ciliogenesis: building the cell’s antenna. Nat. Rev. Mol. Cell Biol. 12, 222–234. doi: 10.1038/nrm3085

PubMed Abstract | CrossRef Full Text | Google Scholar

Ishikawa, H., and Marshall, W. F. (2017). Intraflagellar transport and ciliary dynamics. Cold Spring Harb. Perspect. Biol. 9:a021998. doi: 10.1101/cshperspect.a021998

PubMed Abstract | CrossRef Full Text | Google Scholar

Ismail, S. A., Chen, Y. X., Miertzschke, M., Vetter, I. R., Koerner, C., and Wittinghofer, A. (2012). Structural basis for Arl3-specific release of myristoylated ciliary cargo from UNC119. EMBO J. 31, 4085–4094. doi: 10.1038/emboj.2012.257

PubMed Abstract | CrossRef Full Text | Google Scholar

Ismail, S. A., Chen, Y. X., Rusinova, A., Chandra, A., Bierbaum, M., Gremer, L., et al. (2011). Arl2-GTP and Arl3-GTP regulate a GDI-like transport system for farnesylated cargo. Nat. Chem. Biol. 7, 942–949. doi: 10.1038/nchembio.686

PubMed Abstract | CrossRef Full Text | Google Scholar

Jacobson, S. G., Cideciyan, A. V., Huang, W. C., Sumaroka, A., Roman, A. J., Schwartz, S. B., et al. (2014). TULP1 mutations causing early-onset retinal degeneration: preserved but insensitive macular cones. Investig. Ophthalmol. Vis. Sci. 55, 5354–5364. doi: 10.1167/iovs.14-14570

PubMed Abstract | CrossRef Full Text | Google Scholar

Jauregui, R., Thomas, A. L., Liechty, B., Velez, G., Mahajan, V. B., Clark, L., et al. (2019). SCAPER-associated nonsyndromic autosomal recessive retinitis pigmentosa. Am. J. Med. Genet. Part A 179, 312–316. doi: 10.1002/ajmg.a.61001

PubMed Abstract | CrossRef Full Text | Google Scholar

Jenkins, P. M., Hurd, T. W., Zhang, L., McEwen, D. P., Brown, R. L., Margolis, B., et al. (2006). Ciliary targeting of olfactory CNG channels requires the CNGB1b subunit and the kinesin-2 motor protein, KIF17. Curr. Biol. 16, 1211–1216. doi: 10.1016/j.cub.2006.04.034

PubMed Abstract | CrossRef Full Text | Google Scholar

Jin, H., White, S. R., Shida, T., Schulz, S., Aguiar, M., Gygi, S. P., et al. (2010). The conserved Bardet-Biedl syndrome proteins assemble a coat that traffics membrane proteins to cilia. Cell 141, 1208–1219. doi: 10.1016/j.cell.2010.05.015

PubMed Abstract | CrossRef Full Text | Google Scholar

Kanie, T., Abbott, K. L., Mooney, N. A., Plowey, E. D., Demeter, J., and Jackson, P. K. (2017). The CEP19-RABL2 GTPase complex binds IFT-B to initiate intraflagellar transport at the ciliary base Tomoharu. Dev. Cell 42, 139–148. doi: 10.1016/j.physbeh.2017.03.040

PubMed Abstract | CrossRef Full Text | Google Scholar

Khanna, H. (2015). Photoreceptor sensory cilium: traversing the ciliary gate. Cells 4, 674–686. doi: 10.3390/cells4040674

PubMed Abstract | CrossRef Full Text | Google Scholar

Khateb, S., Zelinger, L., Mizrahi-Meissonnier, L., Ayuso, C., Koenekoop, R. K., Laxer, U., et al. (2014). A homozygous nonsense CEP250 mutation combined with a heterozygous nonsense C2orf71 mutation is associated with atypical Usher syndrome. J. Med. Genet. 51, 460–469. doi: 10.1136/jmedgenet-2014-102287

PubMed Abstract | CrossRef Full Text | Google Scholar

Kizhatil, K., Baker, S. A., Arshavsky, V. Y., and Bennett, V. (2009). Ankyrin-G promotes cyclic nucleotide-gated channel transport to rod photoreceptor sensory cilia. Science 323, 1614–1617. doi: 10.1126/science.1169789

PubMed Abstract | CrossRef Full Text | Google Scholar

Klenchin, V. A., Calvert, P. D., and Bownds, M. D. (1995). Inhibition of rhodopsin kinase by recoverin. Further evidence for a negative feedback system in phototransduction. J. Biol. Chem. 270, 16147–16152. doi: 10.1074/jbc.270.27.16147

PubMed Abstract | CrossRef Full Text | Google Scholar

Kobayashi, A., Higashide, T., Hamasaki, D., Kubota, S., Sakuma, H., An, W., et al. (2000). HRG4 (UNC119) mutation found in cone-rod dystrophy causes retinal degeneration in a transgenic model. Investig. Ophthalmol. Vis. Sci. 41, 3268–3277.

Google Scholar

Koenekoop, R. K. (2004). An overview of leber congenital amaurosis: a model to understand human retinal development. Surv. Ophthalmol. 49, 379–398. doi: 10.1016/j.survophthal.2004.04.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Konstantinidou, A. E., Fryssira, H., Sifakis, S., Karadimas, C., Kaminopetros, P., Agrogiannis, G., et al. (2009). Cranioectodermal dysplasia: a probable ciliopathy. Am. J. Med. Genet. Part A 149, 2206–2211. doi: 10.1002/ajmg.a.33013

PubMed Abstract | CrossRef Full Text | Google Scholar

Kozminski, K. G., Johnson, K. A., Forscher, P., and Rosenbaum, J. L. (1993). A motility in the eukaryotic flagellum unrelated to flagellar beating. Proc. Natl. Acad. Sci. U.S.A. 90, 5519–5523. doi: 10.1073/pnas.90.12.5519

PubMed Abstract | CrossRef Full Text | Google Scholar

Kubota, D., Gocho, K., Kikuchi, S., Akeo, K., Miura, M., Yamaki, K., et al. (2018). CEP250 mutations associated with mild cone-rod dystrophy and sensorineural hearing loss in a Japanese family. Ophthalmic Genet. 39, 500–507. doi: 10.1080/13816810.2018.1466338

PubMed Abstract | CrossRef Full Text | Google Scholar

Lambacher, N. J., Bruel, A. L., Van Dam, T. J. P., Szymaska, K., Slaats, G. G., Kuhns, S., et al. (2016). TMEM107 recruits ciliopathy proteins to subdomains of the ciliary transition zone and causes Joubert syndrome. Nat. Cell Biol. 18, 122–131. doi: 10.1038/ncb3273

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, C., Wallingford, J. B., and Gross, J. M. (2014). Cluap1 is essential for ciliogenesis and photoreceptor maintenance in the vertebrate eye. Investig. Ophthalmol. Vis. Sci. 55, 4585–4592. doi: 10.1167/iovs.14-14888

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, M. C. S., Miller, E. A., Goldberg, J., Orci, L., and Schekman, R. (2004). Bi-directional protein transport betwen the ER and the Golgi. Annu. Rev. Cell Dev. Biol. 20, 87–123. doi: 10.1146/annurev.cellbio.20.010403.105307

PubMed Abstract | CrossRef Full Text | Google Scholar

Lenassi, E., Vincent, A., Li, Z., Saihan, Z., Coffey, A. J., Steele-Stallard, H. B., et al. (2015). A detailed clinical and molecular survey of subjects with nonsyndromic USH2A retinopathy reveals an allelic hierarchy of disease-causing variants. Eur. J. Hum. Genet. 23, 1318–1327. doi: 10.1038/ejhg.2014.283

PubMed Abstract | CrossRef Full Text | Google Scholar

Lewis, G. P., Matsumoto, B., and Fisher, S. K. (1995). Changes in the organization and expression of cytoskeletal proteins during retinal degeneration induced by retinal detachment. Investig. Ophthalmol. Vis. Sci. 36, 2404–2416.

Google Scholar

Li, C., Jensen, V. L., Park, K., Kennedy, J., Garcia-Gonzalo, F. R., Romani, M., et al. (2016). MKS5 and CEP290 dependent assembly pathway of the ciliary transition zone. PLoS Biol. 14:e1002416. doi: 10.1371/journal.pbio.1002416

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, L., Rao, K. N., and Khanna, H. (2019). Structural but not functional alterations in cones in the absence of the retinal disease protein retinitis pigmentosa 2 (RP2) in a cone-only retina. Front. Genet. 10:323. doi: 10.3389/fgene.2019.00323

PubMed Abstract | CrossRef Full Text | Google Scholar

Liang, Y., Pang, Y., Wu, Q., Hu, Z., Han, X., Xu, Y., et al. (2014). FLA8/KIF3B phosphorylation regulates kinesin-II interaction with IFT-B to control IFT entry and turnaround. Dev. Cell 30, 585–597. doi: 10.1016/j.devcel.2014.07.019

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, P., and Lechtreck, K. F. (2018). The Bardet–Biedl syndrome protein complex is an adapter expanding the cargo range of intraflagellar transport trains for ciliary export. Proc. Natl. Acad. Sci. U.S.A. 115, E934–E943. doi: 10.1073/pnas.1713226115

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Q., Lyubarsky, A., Skalet, J. H., Pugh, E. N., and Pierce, E. A. (2003). RP1 is required for the correct stacking of outer segment discs. Investig. Ophthalmol. Vis. Sci. 44, 4171–4183. doi: 10.1167/iovs.03-0410

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Q., Zhou, J., Daiger, S. P., Farber, D. B., Heckenlively, J. R., Smith, J. E., et al. (2002). Identification and subcellular localization of the RP1 protein in human and mouse photoreceptors. Investig. Ophthalmol. Vis. Sci. 43, 22–32.

Google Scholar

Liu, Q., Zuo, J., and Pierce, E. A. (2004). The retinitis pigmentosa 1 protein is a photoreceptor microtubule- associated protein. J. Neurosci. 24, 6427–6436. doi: 10.1523/JNEUROSCI.1335-04.2004

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, X., Udovichenko, I. P., Brown, S. D. M., Steel, K. P., and Williams, D. S. (1999). Myosin VIIa participates in opsin transport through the photoreceptor cilium. J. Neurosci. 19, 6267–6274. doi: 10.1523/jneurosci.19-15-06267.1999

PubMed Abstract | CrossRef Full Text | Google Scholar

Lobo, G. P., Fulmer, D., Guo, L., Zuo, X., Dang, Y., Kim, S. H., et al. (2017). The exocyst is required for photoreceptor ciliogenesis and retinal development. J. Biol. Chem. 292, 14814–14826. doi: 10.1074/jbc.M117.795674

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, Q., Insinna, C., Ott, C., Stauffer, J., Pintado, P. A., Rahajeng, J., et al. (2015). Early steps in primary cilium assembly require EHD1- and EHD3- dependent ciliary vesicle formation. Nat. Cell Biol. 17, 228–240. doi: 10.1038/ncb3109

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo, F., and Tao, Y. H. (2018). Nephronophthisis: a review of genotype–phenotype correlation. Nephrology 23, 904–911. doi: 10.1111/nep.13393

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo, W., Marsh-Armstrong, N., Rattner, A., and Nathans, J. (2004). An outer segment localization signal at the C terminus of the photoreceptor-specific retinol dehydrogenase. J. Neurosci. 24, 2562–2632. doi: 10.1523/JNEUROSCI.5302-03.2004

PubMed Abstract | CrossRef Full Text | Google Scholar

Luscan, R., Mechaussier, S., Paul, A., Tian, G., Gérard, X., Defoort-Dellhemmes, S., et al. (2017). Mutations in TUBB4B cause a distinctive sensorineural disease. Am. J. Hum. Genet. 101, 1006–1012. doi: 10.1016/j.ajhg.2017.10.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Mackay, D. S., Ocaka, L. A., Borman, A. D., Sergouniotis, P. I., Henderson, R. H., Moradi, P., et al. (2011). Screening of SPATA7 in patients with Leber congenital amaurosis and severe childhood-onset retinal dystrophy reveals disease-causing mutations. Investig. Ophthalmol. Vis. Sci. 52, 3032–3038. doi: 10.1167/iovs.10-7025

PubMed Abstract | CrossRef Full Text | Google Scholar

MacRae, D. W., Howard, R. O., Albert, D. M., and Hsia, Y. E. (1972). Ocular manifestations of the meckel syndrome. Arch. Ophthalmol. 88, 106–113. doi: 10.1001/archopht.1972.01000030108028

PubMed Abstract | CrossRef Full Text | Google Scholar

Madugula, V., and Lu, L. (2016). A ternary complex comprising transportin1, Rab8 and the ciliary targeting signal directs proteins to ciliary membranes. J. Cell Sci. 129, 3922–3934. doi: 10.1242/jcs.194019

PubMed Abstract | CrossRef Full Text | Google Scholar

Maerker, T., van Wijk, E., Overlack, N., Kersten, F. F. J., Mcgee, J., Goldmann, T., et al. (2008). A novel Usher protein network at the periciliary reloading point between molecular transport machineries in vertebrate photoreceptor cells. Hum. Mol. Genet. 17, 71–86. doi: 10.1093/hmg/ddm285

PubMed Abstract | CrossRef Full Text | Google Scholar

Malicki, J., and Besharse, J. C. (2012). Kinesin-2 family motors in the unusual photoreceptor cilium. Vis. Res. 75, 33–36. doi: 10.1016/j.visres.2012.10.008

PubMed Abstract | CrossRef Full Text | Google Scholar

Malicki, J. J., and Johnson, C. A. (2017). The Cilium: cellular antenna and central processing unit. Trends Cell Biol. 27, 126–140. doi: 10.1016/j.tcb.2016.08.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Marshall, J. D., Beck, S., Maffei, P., and Naggert, J. K. (2007). Alström syndrome. Eur. J. Hum. Genet. 15, 1193–1202. doi: 10.1038/sj.ejhg.5201933

PubMed Abstract | CrossRef Full Text | Google Scholar

Marshall, J. D., Bronson, R. T., Collin, G. B., Nordstrom, A. D., Maffei, P., Paisey, R. B., et al. (2005). New Alström syndrome phenotypes based on the evaluation of 182 cases. Arch. Intern. Med. 165, 675–683. doi: 10.1001/archinte.165.6.675

PubMed Abstract | CrossRef Full Text | Google Scholar

Marshall, J. D., Muller, J., Collin, G. B., Milan, G., Kingsmore, S. F., Dinwiddie, D., et al. (2015). Alström syndrome: mutation spectrum of ALMS1. Hum. Mutat. 36, 660–668. doi: 10.1002/humu.22796

PubMed Abstract | CrossRef Full Text | Google Scholar

Martin, C. A., Ahmad, I., Klingseisen, A., Hussain, M. S., Bicknell, L. S., Leitch, A., et al. (2014). Mutations in PLK4, encoding a master regulator of centriole biogenesis, cause microcephaly, growth failure and retinopathy. Nat. Genet. 46, 1283–1292. doi: 10.1038/ng.3122

PubMed Abstract | CrossRef Full Text | Google Scholar

Masland, R. H. (2001). The fundamental plan of the retina. Nat. Neurosci. 4, 877–886. doi: 10.1038/nn0901-877

PubMed Abstract | CrossRef Full Text | Google Scholar

Mathur, P., and Yang, J. (2015). Usher syndrome: hearing loss, retinal degeneration and associated abnormalities. Biochim. Biophys. Acta - Mol. Basis Dis. 1852, 406–420. doi: 10.1016/j.bbadis.2014.11.020

PubMed Abstract | CrossRef Full Text | Google Scholar

May-Simera, H., Nagel-Wolfrum, K., and Wolfrum, U. (2017). Cilia - The sensory antennae in the eye. Prog. Retin. Eye Res. 60, 144–180. doi: 10.1016/j.preteyeres.2017.05.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Mazelova, J., Astuto-Gribble, L., Inoue, H., Tam, B. M., Schonteich, E., Prekeris, R., et al. (2009a). Ciliary targeting motif VxPx directs assembly of a trafficking module through Arf4. EMBO J. 28, 183–192. doi: 10.1038/emboj.2008.267

PubMed Abstract | CrossRef Full Text | Google Scholar

Mazelova, J., Ransom, N., Astuto-Gribble, L., Wilson, M. C., and Deretic, D. (2009b). Syntaxin 3 and SNAP-25 pairing, regulated by omega-3 docosahexaenoic acid, controls the delivery of rhodopsin for the biogenesis of cilia-derived sensory organelles, the rod outer segments. J. Cell Sci. 122, 2003–2013. doi: 10.1242/jcs.039982

PubMed Abstract | CrossRef Full Text | Google Scholar

Megaw, R. D., Soares, D. C., and Wright, A. F. (2015). RPGR: its role in photoreceptor physiology, human disease, and future therapies. Exp. Eye Res. 138, 32–41. doi: 10.1016/j.exer.2015.06.007

PubMed Abstract | CrossRef Full Text | Google Scholar

Méjécase, C., Hummel, A., Mohand-Saïd, S., Andrieu, C., El Shamieh, S., Antonio, A., et al. (2019). Whole exome sequencing resolves complex phenotype and identifies CC2D2A mutations underlying non-syndromic rod-cone dystrophy. Clin. Genet. 95, 329–333. doi: 10.1111/cge.13453

PubMed Abstract | CrossRef Full Text | Google Scholar

Mellough, C. B., Bauer, R., Collin, J., Dorgau, B., Zerti, D., Dolan, D. W. P., et al. (2019). An integrated transcriptional analysis of the developing human retina. Development 146:dev169474. doi: 10.1242/dev.169474

PubMed Abstract | CrossRef Full Text | Google Scholar

Moore, A., Escudier, E., Roger, G., Tamalet, A., Pelosse, B., Marlin, S., et al. (2006). RPGR is mutated in patients with a complex X linked phenotype combining primary ciliary dyskinesia and retinitis pigmentosa. J. Med. Genet. 43, 326–333. doi: 10.1136/jmg.2005.034868

PubMed Abstract | CrossRef Full Text | Google Scholar

Moritz, O. L., and Molday, R. S. (1996). Molecular cloning, membrane topology, and localization of bovine rom-1 in rod and cone photoreceptor cells. Investig. Ophthalmol. Vis. Sci. 37, 352–362.

Google Scholar

Muresan, V., Joshl, H. C., and Besharse, J. C. (1993). γ-Tubulin in differentiated cell types: localization in the vicinity of basal bodies in retinal photoreceptors and ciliated epithelia. J. Cell Sci. 3, 1229–1237.

Google Scholar

Murga-Zamalloa, C. A., Atkins, S. J., Peranen, J., Swaroop, A., and Khanna, H. (2010). Interaction of retinitis pigmentosa GTPase regulator (RPGR) with RAB8A GTPase: implications for cilia dysfunction and photoreceptor degeneration. Hum. Mol. Genet. 19, 3591–3598. doi: 10.1093/hmg/ddq275

PubMed Abstract | CrossRef Full Text | Google Scholar

Murphy, D., Cieply, B., Carstens, R., Ramamurthy, V., and Stoilov, P. (2016). Musashi 1 controls the splicing of photoreceptor-specific exons in the vertebrate retina. PLoS Genet. 12:e1006256. doi: 10.1371/journal.pgen.1006256

PubMed Abstract | CrossRef Full Text | Google Scholar

Murphy, D., Singh, R., Kolandaivelu, S., Ramamurthy, V., and Stoilov, P. (2015). Alternative splicing shapes the phenotype of a mutation in BBS8 to cause nonsyndromic retinitis pigmentosa. Mol. Cell. Biol. 35, 1860–1870. doi: 10.1128/mcb.00040-15

PubMed Abstract | CrossRef Full Text | Google Scholar

Nachury, M. V., Loktev, A. V., Zhang, Q., Westlake, C. J., Peränen, J., Merdes, A., et al. (2007). A core complex of BBS proteins cooperates with the GTPase Rab8 to promote ciliary membrane biogenesis. Cell 129, 1201–1213. doi: 10.1016/j.cell.2007.03.053

PubMed Abstract | CrossRef Full Text | Google Scholar

Nachury, M. V., Seeley, E. S., and Jin, H. (2010). Trafficking to the ciliary membrane: how to get across the periciliary diffusion barrier? Annu. Rev. Cell Dev. Biol. 26, 59–87. doi: 10.1146/annurev.cellbio.042308.113337

PubMed Abstract | CrossRef Full Text | Google Scholar

Najafi, M., and Calvert, P. D. (2012). Transport and localization of signaling proteins in ciliated cells. Vis. Res. 75, 11–18. doi: 10.1016/j.visres.2012.08.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Najafi, M., Maza, N. A., and Calvert, P. D. (2012). Steric volume exclusion sets soluble protein concentrations in photoreceptor sensory cilia. Proc. Natl. Acad. Sci. U.S.A. 109, 203–208. doi: 10.1073/pnas.1115109109

PubMed Abstract | CrossRef Full Text | Google Scholar

Nakayama, K., and Katoh, Y. (2018). Ciliary protein trafficking mediated by IFT and BBSome complexes with the aid of kinesin-2 and dynein-2 motors. J. Biochem. 163, 155–164. doi: 10.1093/jb/mvx087

PubMed Abstract | CrossRef Full Text | Google Scholar

Namburi, P., Ratnapriya, R., Khateb, S., Lazar, C. H., Kinarty, Y., Obolensky, A., et al. (2016). Bi-allelic truncating mutations in CEP78, encoding centrosomal protein 78, cause cone-rod degeneration with sensorineural hearing loss. Am. J. Hum. Genet. 99, 777–784. doi: 10.1016/j.ajhg.2016.07.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Nguyen, T. M. T., Hull, S., Roepman, R., Van Den Born, L. I., Oud, M. M., De Vrieze, E., et al. (2017). Missense mutations in the WD40 domain of AHI1 cause non-syndromic retinitis pigmentosa. J. Med. Genet. 54, 624–632. doi: 10.1136/jmedgenet-2016-104200

PubMed Abstract | CrossRef Full Text | Google Scholar

Nishiguchi, K. M., Tearle, R. G., Liu, Y. P., Oh, E. C., Miyake, N., Benaglio, P., et al. (2013). Whole genome sequencing in patients with retinitis pigmentosa reveals pathogenic DNA structural changes and NEK2 as a new disease gene. Proc. Natl. Acad. Sci. U.S.A. 110, 16139–16144. doi: 10.1073/pnas.1308243110

PubMed Abstract | CrossRef Full Text | Google Scholar

Niwa, S. (2016). The nephronophthisis-related gene ift-139 is required for ciliogenesis in Caenorhabditis elegans. Sci. Rep. 6:31544. doi: 10.1038/srep31544

PubMed Abstract | CrossRef Full Text | Google Scholar

Noel, N. C. L., and MacDonald, I. M. (2020). RP1L1 and inherited photoreceptor disease: a review. Surv. Ophthalmol. 65, 725–739. doi: 10.1016/j.survophthal.2020.04.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Nozaki, S., Katoh, Y., Kobayashi, T., and Nakayama, K. (2018). BBS1 is involved in retrograde trafficking of ciliary GPCRs in the context of the BBSome complex. PLoS One 13:e0195005. doi: 10.1371/journal.pone.0195005

PubMed Abstract | CrossRef Full Text | Google Scholar

Ocbina, P. J. R., Eggenschwile, J. T., Moskowitz, I. P., and Anderson, K. V. (2011). Complex interactions between genes controlling trafficking in primary cilia. Nat. Genet. 43, 547–553. doi: 10.1038/ng.832

PubMed Abstract | CrossRef Full Text | Google Scholar

Ojeda Naharros, I., Gesemann, M., Mateos, J. M., Barmettler, G., Forbes, A., Ziegler, U., et al. (2017). Loss-of-function of the ciliopathy protein Cc2d2a disorganizes the vesicle fusion machinery at the periciliary membrane and indirectly affects Rab8-trafficking in zebrafish photoreceptors. PLoS Genet. 13:e1007150. doi: 10.1371/journal.pgen.1007150

PubMed Abstract | CrossRef Full Text | Google Scholar

Orisme, W., Li, J., Goldmann, T., Bolch, S., Wolfrum, U., and Smith, W. C. (2010). Light-dependent translocation of arrestin in rod photoreceptors is signaled through a phospholipase C cascade and requires ATP. Cell. Signal. 22, 447–456. doi: 10.1016/j.cellsig.2009.10.016

PubMed Abstract | CrossRef Full Text | Google Scholar

O’Toole, J. F., Otto, E. A., Frishberg, Y., and Hildebrandt, F. (2006). Retinitis pigmentosa and renal failure in a patient with mutations in INVS. Nephrol. Dial. Transplant. 21, 1989–1991. doi: 10.1093/ndt/gfl088

PubMed Abstract | CrossRef Full Text | Google Scholar

Otto, E. A., Loeys, B., Khanna, H., Hellemans, J., Sudbrak, R., Fan, S., et al. (2005). Nephrocystin-5, a ciliary IQ domain protein, is mutated in Senior-Loken syndrome and interacts with RPGR and calmodulin. Nat. Genet. 37, 282–288. doi: 10.1038/ng1520

PubMed Abstract | CrossRef Full Text | Google Scholar

Papal, S., Cortese, M., Legendre, K., Sorusch, N., Dragavon, J., Sahly, I., et al. (2013). The giant spectrin βV couples the molecular motors to phototransduction and Usher syndrome type I proteins along their trafficking route. Hum. Mol. Genet. 22, 3773–3788. doi: 10.1093/hmg/ddt228

PubMed Abstract | CrossRef Full Text | Google Scholar

Pasek, R. C., Berbari, N. F., Lewis, W. R., Kesterson, R. A., and Yoder, B. K. (2012). Mammalian Clusterin associated protein 1 is an evolutionarily conserved protein required for ciliogenesis. Cilia 1:20. doi: 10.1186/2046-2530-1-20

PubMed Abstract | CrossRef Full Text | Google Scholar

Patil, H., Tserentsoodol, N., Saha, A., Hao, Y., Webb, M., and Ferreira, P. A. (2012). Selective loss of RPGRIP1-dependent ciliary targeting of NPHP4, RPGR and SDCCAG8 underlies the degeneration of photoreceptor neurons. Cell Death Dis. 3:e355. doi: 10.1038/cddis.2012.96

PubMed Abstract | CrossRef Full Text | Google Scholar

Pearring, J. N., Salinas, R. Y., Baker, S. A., and Arshavsky, V. Y. (2013). Protein sorting, targeting and trafficking in photoreceptor cells. Prog. Retin. Eye Res. 0, 24–51. doi: 10.1016/j.preteyeres.2013.03.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Pearring, J. N., Spencer, W. J., Lieu, E. C., and Arshavsky, V. Y. (2015). Guanylate cyclase 1 relies on rhodopsin for intracellular stability and ciliary trafficking. eLife 4:e12058. doi: 10.7554/eLife.12058

PubMed Abstract | CrossRef Full Text | Google Scholar

Petry, S., and Vale, R. D. (2015). Microtubule nucleation at the centrosome and beyond. Nat. Cell Biol. 17, 1089–1093. doi: 10.1038/ncb3220

PubMed Abstract | CrossRef Full Text | Google Scholar

Pretorius, P. R., Baye, L. M., Nishimura, D. Y., Searby, C. C., Bugge, K., Yang, B., et al. (2010). Identification and functional analysis of the vision-specific BBS3 (ARL6) long isoform. PLoS Genet. 6:e1000884. doi: 10.1371/journal.pgen.1000884

PubMed Abstract | CrossRef Full Text | Google Scholar

Prevo, B., Scholey, J. M., and Peterman, E. J. G. (2017). Intraflagellar transport: mechanisms of motor action, cooperation and cargo delivery. FEBS J. 284, 2905–2931. doi: 10.1111/febs.14068

PubMed Abstract | CrossRef Full Text | Google Scholar

Qu, Z., Yimer, T. A., Xie, S., Wong, F., Yu, S., Liu, X., et al. (2019). Knocking out lca5 in zebrafish causes cone-rod dystrophy due to impaired outer segment protein trafficking. Biochim. Biophys. Acta Mol. Basis Dis. 1865, 2694–2705. doi: 10.1016/j.bbadis.2019.07.009

PubMed Abstract | CrossRef Full Text | Google Scholar

Quarmby, L. M., and Parker, J. D. K. (2005). Cilia and the cell cycle? J. Cell Biol. 169, 707–710. doi: 10.1083/jcb.200503053

PubMed Abstract | CrossRef Full Text | Google Scholar

Rachel, R. A., Li, T., and Swaroop, A. (2012). Photoreceptor sensory cilia and ciliopathies: focus on CEP290, RPGR and their interacting proteins. Cilia 1, 1–15. doi: 10.1186/2046-2530-1-22

PubMed Abstract | CrossRef Full Text | Google Scholar

Rachel, R. A., Yamamoto, E. A., Dewanjee, M. K., May-Simera, H. L., Sergeev, Y. V., Hackett, A. N., et al. (2015). CEP290 alleles in mice disrupt tissue-specific cilia biogenesis and recapitulate features of syndromic ciliopathies. Hum. Mol. Genet. 24, 3775–3791. doi: 10.1093/hmg/ddv123

PubMed Abstract | CrossRef Full Text | Google Scholar

Radhakrishnan, P., Nayak, S. S., Shukla, A., Lindstrand, A., and Girisha, K. M. (2019). Meckel syndrome: clinical and mutation profile in six fetuses. Clin. Genet. 96, 560–565. doi: 10.1111/cge.13623

PubMed Abstract | CrossRef Full Text | Google Scholar

Raghupathy, R. K., Zhang, X., Liu, F., Alhasani, R. H., Biswas, L., Akhtar, S., et al. (2017). Rpgrip1 is required for rod outer segment development and ciliary protein trafficking in zebrafish. Sci. Rep. 7:16881. doi: 10.1038/s41598-017-12838-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Ramachandran, H., Schäfer, T., Kim, Y., Herfurth, K., Hoff, S., Lienkamp, S. S., et al. (2014). Interaction with the Bardet-Biedl gene product TRIM32/BBS11 modifies the half-life and localization of Glis2/NPHP7. J. Biol. Chem. 289, 8390–8401. doi: 10.1074/jbc.M113.534024

PubMed Abstract | CrossRef Full Text | Google Scholar

Reiners, J., Nagel-Wolfrum, K., Jürgens, K., Märker, T., and Wolfrum, U. (2006). Molecular basis of human Usher syndrome: deciphering the meshes of the Usher protein network provides insights into the pathomechanisms of the Usher disease. Exp. Eye Res. 83, 97–119. doi: 10.1016/j.exer.2005.11.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Reiter, J. F., and Leroux, M. R. (2017). Genes and molecular pathways underpinning ciliopathies. Nat. Rev. Mol. Cell Biol. 18, 533–547. doi: 10.1038/nrm.2017.60

PubMed Abstract | CrossRef Full Text | Google Scholar

Riazuddin, S. A., Iqbal, M., Wang, Y., Masuda, T., Chen, Y., Bowne, S., et al. (2010). A splice-site mutation in a retina-specific exon of BBS8 causes nonsyndromic retinitis pigmentosa. Am. J. Hum. Genet. 86, 805–812. doi: 10.1016/j.ajhg.2010.04.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Riera, M., Abad-Morales, V., Navarro, R., Ruiz-Nogales, S., Méndez-Vendrell, P., Corcostegui, B., et al. (2020). Expanding the retinal phenotype of RP1: from retinitis pigmentosa to a novel and singular macular dystrophy. Br. J. Ophthalmol. 104, 173–181. doi: 10.1136/bjophthalmol-2018-313672

PubMed Abstract | CrossRef Full Text | Google Scholar

Roberson, E. C., Dowdle, W. E., Ozanturk, A., Garcia-Gonzalo, F. R., Li, C., Halbritter, J., et al. (2015). TMEM231, mutated in orofaciodigital and Meckel syndromes, organizes the ciliary transition zone. J. Cell Biol. 209, 129–142. doi: 10.1083/jcb.201411087

PubMed Abstract | CrossRef Full Text | Google Scholar

Roberts, A. J. (2018). Emerging mechanisms of dynein transport in the cytoplasm versus the cilium. Biochem. Soc. Trans. 46, 967–982. doi: 10.1042/BST20170568

PubMed Abstract | CrossRef Full Text | Google Scholar

Romani, M., Micalizzi, A., Kraoua, I., Dotti, M. T., Cavallin, M., Sztriha, L., et al. (2014). Mutations in B9D1 and MKS1 cause mild Joubert syndrome: expanding the genetic overlap with the lethal ciliopathy Meckel syndrome. Orphanet. J. Rare Dis. 9:72. doi: 10.1186/1750-1172-9-72

PubMed Abstract | CrossRef Full Text | Google Scholar

Ronquillo, C. C., Bernstein, P. S., and Baehr, W. (2012). Senior-Løken syndrome: a syndromic form of retinal dystrophy associated with nephronophthisis. Vis. Res. 75, 88–97. doi: 10.1016/j.visres.2012.07.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Ronquillo, C. C., Hanke-Gogokhia, C., Revelo, M. P., Frederick, J. M., Jiang, L., and Baehr, W. (2016). Ciliopathy-associated IQCB1/NPHP5 protein is required for mouse photoreceptor outer segment formation. FASEB J. 30, 3400–3412. doi: 10.1096/fj.201600511R

PubMed Abstract | CrossRef Full Text | Google Scholar

Roorda, A., and Williams, D. R. (1999). The arrangement of the three cone classes in the living human eye. Nature 397, 520–522. doi: 10.1038/17383

PubMed Abstract | CrossRef Full Text | Google Scholar

Roosing, S., Cremers, F. P. M., Riemslag, F. C. C., Zonneveld-Vrieling, M. N., Talsma, H. E., Klessens-Godfroy, F. J. M., et al. (2017). A rare form of retinal dystrophy caused by hypomorphic nonsense mutations in CEP290. Genes 8:208. doi: 10.3390/genes8080208

PubMed Abstract | CrossRef Full Text | Google Scholar

Roosing, S., Lamers, I. J. C., De Vrieze, E., Van Den Born, L. I., Lambertus, S., Arts, H. H., et al. (2014a). Disruption of the basal body protein poc1b results in autosomal-recessive cone-rod dystrophy. Am. J. Hum. Genet. 95, 131–142. doi: 10.1016/j.ajhg.2014.06.012

PubMed Abstract | CrossRef Full Text | Google Scholar

Roosing, S., Thiadens, A. A. H. J., Hoyng, C. B., Klaver, C. C. W., den Hollander, A. I., and Cremers, F. P. M. (2014b). Causes and consequences of inherited cone disorders. Prog. Retin. Eye Res. 42, 1–26. doi: 10.1016/j.preteyeres.2014.05.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Rosenbaum, J. L., and Witman, G. B. (2002). Intraflagellar transport. Nat. Rev. Mol. Cell Biol. 3, 813–825. doi: 10.1038/nrm952

PubMed Abstract | CrossRef Full Text | Google Scholar

Sacristan-Reviriego, A., Le, H. M., Georgiou, M., Meunier, I., Bocquet, B., Roux, A. F., et al. (2020). Clinical and functional analyses of AIPL1 variants reveal mechanisms of pathogenicity linked to different forms of retinal degeneration. Sci. Rep. 10:17520. doi: 10.1038/s41598-020-74516-9

CrossRef Full Text | Google Scholar

Sampath, A. P., Strissel, K. J., Elias, R., Arshavsky, V. Y., McGinnis, J. F., Chen, J., et al. (2005). Recoverin improves rod-mediated vision by enhancing signal transmission in the mouse retina. Neuron 46, 413–420. doi: 10.1016/j.neuron.2005.04.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Sánchez, I., and Dynlacht, B. D. (2016). Cilium assembly and disassembly. Nat. Cell Biol. 18, 711–717. doi: 10.1038/ncb3370

PubMed Abstract | CrossRef Full Text | Google Scholar

Sang, L., Miller, J. J., Corbit, K. C., Giles, R. H., Brauer, M. J., Otto, E. A., et al. (2011). Mapping the NPHP-JBTS-MKS protein network reveals ciliopathy disease genes and pathways. Cell 145, 513–528. doi: 10.1016/j.cell.2011.04.019

PubMed Abstract | CrossRef Full Text | Google Scholar

Sayer, J. A., Otto, E. A., O’Toole, J. F., Nurnberg, G., Kennedy, M. A., Becker, C., et al. (2006). The centrosomal protein nephrocystin-6 is mutated in Joubert syndrome and activates transcription factor ATF4. Nat. Genet. 38, 674–681. doi: 10.1038/ng1786

PubMed Abstract | CrossRef Full Text | Google Scholar

Scheidecker, S., Etard, C., Haren, L., Stoetzel, C., Hull, S., Arno, G., et al. (2015). Mutations in TUBGCP4 alter microtubule organization via the γ-tubulin ring complex in autosomal-recessive microcephaly with chorioretinopathy. Am. J. Hum. Genet. 96, 666–674. doi: 10.1016/j.ajhg.2015.02.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Sedmak, T., and Wolfrum, U. (2010). Intraflagellar transport molecules in ciliary and nonciliary cells of the retina. J. Cell Biol. 189, 171–186. doi: 10.1083/jcb.200911095

PubMed Abstract | CrossRef Full Text | Google Scholar

Seo, S., and Datta, P. (2017). Photoreceptor outer segment as a sink for membrane proteins: hypothesis and implications in retinal ciliopathies. Hum. Mol. Genet. 26, R75–R82. doi: 10.1093/hmg/ddx163

PubMed Abstract | CrossRef Full Text | Google Scholar

Seo, S., Zhang, Q., Bugge, K., Breslow, D. K., Searby, C. C., Nachury, M. V., et al. (2011). A novel protein LZTFL1 regulates ciliary trafficking of the BBSome and smoothened. PLoS Genet. 7:e1002358. doi: 10.1371/journal.pgen.1002358

PubMed Abstract | CrossRef Full Text | Google Scholar

Sergouniotis, P. I., Davidson, A. E., Mackay, D. S., Li, Z., Yang, X., Plagnol, V., et al. (2011). Recessive mutations in KCNJ13, encoding an inwardly rectifying potassium channel subunit, cause leber congenital amaurosis. Am. J. Hum. Genet. 89, 183–190. doi: 10.1016/j.ajhg.2011.06.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Sheikh, S. A., Sisk, R. A., Schiavon, C. R., Waryah, Y. M., Usmani, M. A., Steel, D. H., et al. (2019). Homozygous variant in ARL3 causes autosomal recessive cone rod dystrophy. Investig. Ophthalmol. Vis. Sci. 60, 4811–4819. doi: 10.1167/iovs.19-27263

PubMed Abstract | CrossRef Full Text | Google Scholar

Shinde, S. R., Nager, A. R., and Nachury, M. V. (2020). Ubiquitin chains earmark GPCRs for BBSome-mediated removal from cilia. J. Cell Biol. 219:e202003020. doi: 10.1083/jcb.202003020

PubMed Abstract | CrossRef Full Text | Google Scholar

Shu, X., Black, G. C., Rice, J. M., Hart-Holden, N., Jones, A., O’Grady, A., et al. (2007). RPGR mutation analysis and disease: an update. Hum. Mutat. 28, 322–328. doi: 10.1002/humu.20461

PubMed Abstract | CrossRef Full Text | Google Scholar

Singla, V., Romaguera-Ros, M., Garcia-Verdugo, J. M., and Reiter, J. F. (2010). Ofd1, a human disease gene, regulates the length and distal structure of centrioles. Dev. Cell 18, 410–424. doi: 10.1016/j.devcel.2009.12.022

PubMed Abstract | CrossRef Full Text | Google Scholar

Smith, T. S., Spitzbarth, B., Li, J., Dugger, D. R., Stern-schneider, G., Sehn, E., et al. (2013). Light-dependent phosphorylation of Bardet Biedl syndrome 5 in photoreceptor cells modulates its interaction with arrestin1. Cell. Mol. Life Sci. 70, 1–24. doi: 10.1007/s00018-013-1403-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Soens, Z. T., Li, Y., Zhao, L., Eblimit, A., Dharmat, R., Li, Y., et al. (2016). Hypomorphic mutations identified in the candidate Leber congenital amaurosis gene CLUAP1. Genet. Med. 18, 1044–1051. doi: 10.1038/gim.2015.205

PubMed Abstract | CrossRef Full Text | Google Scholar

Sokolov, M., Strissel, K. J., Leskov, I. B., Michaud, N. A., Govardovskii, V. I., and Arshavsky, V. Y. (2004). Phosducin facilitates light-driven transducin translocation in rod photoreceptors: evidence from the phosducin knockout mouse. J. Biol. Chem. 279, 19149–19156. doi: 10.1074/jbc.M311058200

PubMed Abstract | CrossRef Full Text | Google Scholar

Sorusch, N., Yildirim, A., Knapp, B., Janson, J., Fleck, W., Scharf, C., et al. (2019). SANS (USH1G) molecularly links the human Usher syndrome protein network to the intraflagellar transport module by direct binding to IFT-B proteins. Front. Cell Dev. Biol. 7:216. doi: 10.3389/fcell.2019.00216

PubMed Abstract | CrossRef Full Text | Google Scholar

Spencer, W. J., Pearring, J. N., Salinas, R. Y., Loiselle, D. R., Skiba, N. P., and Arshavsky, V. Y. (2016). Progressive rod-cone degeneration (PRCD) protein requires N-terminal S-acylation and rhodopsin binding for photoreceptor outer segment localization and maintaining intracellular stability. Biochemistry 55, 5028–5037. doi: 10.1021/acs.biochem.6b00489

PubMed Abstract | CrossRef Full Text | Google Scholar

Steinberg, R. H., Fisher, S. K., and Anderson, D. H. (1980). Disc morphogenesis in vertebrate photoreceptors. J. Comp. Neurol. 190, 501–518. doi: 10.1002/cne.901900307

PubMed Abstract | CrossRef Full Text | Google Scholar

Strauss, O. (2005). The retinal pigment epithelium in visual function. Physiol. Rev. 85, 845–881. doi: 10.1152/physrev.00021.2004

PubMed Abstract | CrossRef Full Text | Google Scholar

Strissel, K. J., Lishko, P. V., Trieu, L. H., Kennedy, M. J., Hurley, J. B., and Arshavsky, V. Y. (2005). Recoverin undergoes light-dependent intracellular translocation in rod photoreceptors. J. Biol. Chem. 280, 29250–29255. doi: 10.1074/jbc.M501789200

PubMed Abstract | CrossRef Full Text | Google Scholar

Stuck, M. W., Conley, S. M., and Naash, M. I. (2017). PRPH2/RDS and ROM-1: historical context, current views and future considerations. Prog. Retin. Eye Res. 52, 47–63. doi: 10.1016/j.preteyeres.2015.12.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Sukumaran, S., and Perkins, B. D. (2009). Early defects in photoreceptor outer segment morphogenesis in zebrafish ift57, ift88 and ift172 Intraflagellar Transport mutants. Vision Res. 49, 479–489. doi: 10.1016/j.visres.2008.12.009

PubMed Abstract | CrossRef Full Text | Google Scholar

Sullivan, L. S., Heckenlively, J. R., Bowne, S. J., Zuo, J., Hide, W. A., Gal, A., et al. (1999). Mutations in a novel retina-specific gene cause autosomal dominant retinitis pigmentosa. Nat. Genet. 22, 255–259. doi: 10.1038/10314

PubMed Abstract | CrossRef Full Text | Google Scholar

Suspitsin, E. N., and Imyanitov, E. N. (2016). Bardet-Biedl syndrome. Mol. Syndromol. 7, 62–71. doi: 10.1159/000445491

PubMed Abstract | CrossRef Full Text | Google Scholar

Suzuki, T., Miyake, N., Tsurusaki, Y., Okamoto, N., Alkindy, A., Inaba, A., et al. (2016). Molecular genetic analysis of 30 families with Joubert syndrome. Clin. Genet. 90, 526–535. doi: 10.1111/cge.12836

PubMed Abstract | CrossRef Full Text | Google Scholar

Swaroop, A., Kim, D., and Forrest, D. (2010). Transcriptional regulation of photoreceptor development and homeostasis in the mammalian retina. Nat. Rev. Neurosci. 11, 563–576. doi: 10.1038/nrn2880

PubMed Abstract | CrossRef Full Text | Google Scholar

Szymanska, K., Hartill, V., and Johnson, C. (2015). Unraveling the genetics of Joubert and Meckel-Gruber syndromes. J. Pediatr. Genet. 3, 065–078. doi: 10.3233/pge-14090

PubMed Abstract | CrossRef Full Text | Google Scholar

Tai, A. W., Chuang, J. Z., Bode, C., Wolfrum, U., and Sung, C. H. (1999). Rhodopsin’s carboxy-terminal cytoplasmic tail acts as a membrane receptor for cytoplasmic dynein by binding to the dynein light chain Tctex-1. Cell 97, 877–887. doi: 10.1016/S0092-8674(00)80800-4

CrossRef Full Text | Google Scholar

Tam, B. M., Moritz, O. L., Hurd, L. B., and Papermaster, D. S. (2000). Identification of an outer segment targeting signal in the COOH terminus of rhodopsin using transgenic Xenopus laevis. J. Cell Biol. 151, 1369–1380. doi: 10.1083/jcb.151.7.1369

PubMed Abstract | CrossRef Full Text | Google Scholar

Taschner, M., Weber, K., Mourão, A., Vetter, M., Awasthi, M., Stiegler, M., et al. (2016). Intraflagellar transport proteins 172, 80, 57, 54, 38, and 20 form a stable tubulin-binding IFT-B2 complex. EMBO J. 35, 773–790. doi: 10.15252/embj.201593164

PubMed Abstract | CrossRef Full Text | Google Scholar

Tatour, Y., and Ben-yosef, T. (2020). Syndromic inherited retinal diseases: genetic, clinical and diagnostic aspects. Diagnostics 10:779. doi: 10.3390/diagnostics10100779

CrossRef Full Text | Google Scholar

Thompson, D. A., Khan, N. W., Othman, M. I., Chang, B., Jia, L., Grahek, G., et al. (2012). Rd9 is a naturally occurring mouse model of a common form of retinitis pigmentosa caused by mutations in RPGR-ORF15. PLoS One 7:e35865. doi: 10.1371/journal.pone.0035865

PubMed Abstract | CrossRef Full Text | Google Scholar

Tian, G., Ropelewski, P., Nemet, I., Lee, R., Lodowski, K. H., and Imanishi, Y. (2014). An unconventional secretory pathway mediates the cilia targeting of Peripherin/rds. J. Neurosci. 34, 992–1006. doi: 10.1523/JNEUROSCI.3437-13.2014

PubMed Abstract | CrossRef Full Text | Google Scholar

Tong, H., Yue, Z., Sun, L., Chen, H., Wang, W., and Wang, H. (2013). Clinical features and mutation of NPHP5 in two Chinese siblings with Senior-Løken syndrome. Nephrology 18, 838–842. doi: 10.1111/nep.12156

PubMed Abstract | CrossRef Full Text | Google Scholar

Toropova, K., Zalyte, R., Mukhopadhyay, A. G., Mladenov, M., Carter, A. P., and Roberts, A. J. (2019). Structure of the dynein-2 complex and its assembly with intraflagellar transport trains. Nat. Struct. Mol. Biol. 26, 823–829. doi: 10.1038/s41594-019-0286-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Toulis, V., García-Monclús, S., de la Peña-Ramírez, C., Arenas-Galnares, R., Abril, J. F., Todi, S. V., et al. (2020). The deubiquitinating enzyme ataxin-3 regulates ciliogenesis and phagocytosis in the retina. Cell Rep. 33:108360. doi: 10.1016/j.celrep.2020.108360

PubMed Abstract | CrossRef Full Text | Google Scholar

Toulis, V., and Marfany, G. (2020). “By the tips of your cilia: ciliogenesis in the retina and the ubiquitin-proteasome system,” in Proteostasis and Disease. Advances in Experimental Medicine and Biology, eds R. Barrio, J. Sutherland, and M. Rodriguez (Cham: Springer), 303–310.

Google Scholar

Valente, E. M., Logan, C. V., Mougou-Zerelli, S., Lee, J. H., Silhavy, J. L., Brancati, F., et al. (2010). Mutations in TMEM216 perturb ciliogenesis and cause Joubert, Meckel and related syndromes. Nat. Genet. 42, 619–625. doi: 10.1038/ng.594

PubMed Abstract | CrossRef Full Text | Google Scholar

Van De Weghe, J. C., Giordano, J. L., Mathijssen, I. B., Mojarrad, M., Lugtenberg, D., Miller, C. V., et al. (2021). TMEM218 dysfunction causes ciliopathies, including Joubert and Meckel syndromes. Hum. Genet. Genomics Adv. 2:100016. doi: 10.1016/j.xhgg.2020.100016

CrossRef Full Text | Google Scholar

Van De Weghe, J. C., Rusterholz, T. D. S., Latour, B., Grout, M. E., Aldinger, K. A., Shaheen, R., et al. (2017). Mutations in ARMC9, which Encodes a Basal Body protein, cause joubert syndrome in humans and ciliopathy phenotypes in Zebrafish. Am. J. Hum. Genet. 101, 23–36. doi: 10.1016/j.ajhg.2017.05.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Veleri, S., Manjunath, S. H., Fariss, R. N., May-Simera, H., Brooks, M., Foskett, T. A., et al. (2014). Ciliopathy-associated gene Cc2d2a promotes assembly of subdistal appendages on the mother centriole during cilia biogenesis. Nat. Commun. 5:4207. doi: 10.1038/ncomms5207

PubMed Abstract | CrossRef Full Text | Google Scholar

Verbakel, S. K., van Huet, R. A. C., Boon, C. J. F., den Hollander, A. I., Collin, R. W. J., Klaver, C. C. W., et al. (2018). Non-syndromic retinitis pigmentosa. Prog. Retin. Eye Res. 66, 157–186. doi: 10.1016/j.preteyeres.2018.03.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Vervoort, R., Lennon, A., Bird, A. C., Tulloch, B., Axton, R., Miano, M. G., et al. (2000). Mutational hot spot within a new RPGR exon in X-linked retinitis pigmentosa. Nat. Genet. 25, 462–466. doi: 10.1038/78182

PubMed Abstract | CrossRef Full Text | Google Scholar

Vig, A., Poulter, J. A., Ottaviani, D., Tavares, E., Toropova, K., Tracewska, A. M., et al. (2020). DYNC2H1 hypomorphic or retina-predominant variants cause nonsyndromic retinal degeneration. Genet. Med. 22, 2041–2051. doi: 10.1038/s41436-020-0915-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Vilboux, T., Doherty, D. A., Glass, I. A., Parisi, M. A., Phelps, I. G., Cullinane, A. R., et al. (2017). Molecular genetic findings and clinical correlations in 100 patients with Joubert syndrome and related disorders prospectively evaluated at a single center. Genet. Med. 19, 875–882. doi: 10.1038/gim.2016.204

PubMed Abstract | CrossRef Full Text | Google Scholar

Viswanadha, R., Sale, W. S., and Porter, M. E. (2017). Ciliary motility: regulation of axonemal dynein motors. Cold Spring Harb. Perspect. Biol. 9:a018325. doi: 10.1101/cshperspect.a018325

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, J., and Deretic, D. (2014). Molecular complexes that direct rhodopsin transport to primary cilia. Prog. Retin. Eye Res. 38, 1–19. doi: 10.1016/j.preteyeres.2013.08.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, X., Wang, H., Cao, M., Li, Z., Chen, X., Patenia, C., et al. (2011). Whole-exome sequencing identifies ALMS1, IQCB1, CNGA3, and MYO7A mutations in patients with Leber congenital amaurosis. Hum. Mutat. 32, 1450–1459. doi: 10.1002/humu.21587

PubMed Abstract | CrossRef Full Text | Google Scholar

Ward, H. H., Brown-Glaberman, U., Wang, J., Morita, Y., Alper, S. L., Bedrick, E. J., et al. (2011). A conserved signal and GTPase complex are required for the ciliary transport of polycystin-1. Mol. Biol. Cell 22, 3289–3305. doi: 10.1091/mbc.E11-01-0082

PubMed Abstract | CrossRef Full Text | Google Scholar

Wässle, H. (2004). Parallel processing in the mammalian retina. Nat. Rev. Neurosci. 5, 747–757. doi: 10.1038/nrn1497

PubMed Abstract | CrossRef Full Text | Google Scholar

Webb, T. R., Parfitt, D. A., Gardner, J. C., Martinez, A., Bevilacqua, D., Davidson, A. E., et al. (2012). Deep intronic mutation in OFD1, identified by targeted genomic next-generation sequencing, causes a severe form of X-linked retinitis pigmentosa (RP23). Hum. Mol. Genet. 21, 3647–3654. doi: 10.1093/hmg/dds194

PubMed Abstract | CrossRef Full Text | Google Scholar

Wensel, T. G., Zhang, Z., Anastassov, I. A., Gilliam, J. C., He, F., Schmid, M. F., et al. (2016). Structural and molecular bases of rod photoreceptor morphogenesis and disease. Prog. Retin. Eye Res. 55, 32–51. doi: 10.1016/j.preteyeres.2016.06.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Westfall, J. E., Hoyt, C., Liu, Q., Hsiao, Y. C., Pierce, E. A., Page-McCaw, P. S., et al. (2010). Retinal degeneration and failure of photoreceptor outer segment formation in mice with targeted deletion of the Joubert syndrome gene, Ahi1. J. Neurosci. 30, 8759–8768. doi: 10.1523/JNEUROSCI.5229-09.2010

PubMed Abstract | CrossRef Full Text | Google Scholar

Whatley, M., Francis, A., Ng, Z. Y., Khoh, X. E., Atlas, M. D., Dilley, R. J., et al. (2020). Usher syndrome: genetics and molecular links of hearing loss and directions for therapy. Front. Genet. 11:565216. doi: 10.3389/fgene.2020.565216

CrossRef Full Text | Google Scholar

Wheway, G., Lord, J., and Baralle, D. (2019). Splicing in the pathogenesis, diagnosis and treatment of ciliopathies. Biochim. Biophys. Acta Gene Regul. Mech. 1862:194433. doi: 10.1016/j.bbagrm.2019.194433

PubMed Abstract | CrossRef Full Text | Google Scholar

Wiegering, A., Rüther, U., and Gerhardt, C. (2018). The ciliary protein Rpgrip1l in development and disease. Dev. Biol. 442, 60–68. doi: 10.1016/j.ydbio.2018.07.024

PubMed Abstract | CrossRef Full Text | Google Scholar

Williams, D. S. (2002). Transport to the photoreceptor outer segment by myosin VIIa and kinesin II. Vis. Res. 42, 455–462. doi: 10.1016/S0042-6989(01)00228-0

CrossRef Full Text | Google Scholar

Williams, D. S., Linberg, K. A., Vaughan, D. K., Fariss, R. N., and Fisher, S. K. (1988). Disruption of microfilament organization and deregulation of disk membrane morphogenesis by cytochalasin D in rod and cone photoreceptors. J. Comp. Neurol. 272, 161–176. doi: 10.1002/cne.902720202

PubMed Abstract | CrossRef Full Text | Google Scholar

Wolfrum, U., and Schmitt, A. (2000). Rhodopsin transport in the membrane of the connecting cilium of mammalian photoreceptor cells. Cell Motil. Cytoskeleton 46, 95–107. doi: 10.1002/1097-0169(200006)46:2<95::AID-CM2<3.0.CO;2-Q

CrossRef Full Text | Google Scholar

Won, J., Gifford, E., Smith, R. S., Yi, H., Ferreira, P. A., Hicks, W. L., et al. (2009). RPGRIP1 is essential for normal rod photoreceptor outer segment elaboration and morphogenesis. Hum. Mol. Genet. 18, 4329–4339. doi: 10.1093/hmg/ddp385

PubMed Abstract | CrossRef Full Text | Google Scholar

Wright, A. F., Chakarova, C. F., Abd El-Aziz, M. M., and Bhattacharya, S. S. (2010). Photoreceptor degeneration: genetic and mechanistic dissection of a complex trait. Nat. Rev. Genet. 11, 273–284. doi: 10.1038/nrg2717

PubMed Abstract | CrossRef Full Text | Google Scholar

Wright, K. J., Baye, L. M., Olivier-Mason, A., Mukhopadhyay, S., Sang, L., Kwong, M., et al. (2011). An ARL3-UNC119-RP2 GTPase cycle targets myristoylated NPHP3 to the primary cilium. Genes Dev. 25, 2347–2360. doi: 10.1101/gad.173443.111

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, M., Yang, L., Wang, F., Li, H., Wang, X., Wang, W., et al. (2015). Mutations in human IFT140 cause non-syndromic retinal degeneration. Hum. Genet. 134, 1069–1078. doi: 10.1007/s00439-015-1586-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, Y., Guan, L., Xiao, X., Zhang, J., Li, S., Jiang, H., et al. (2016). ALMS1 null mutations: a common cause of Leber congenital amaurosis and early-onset severe cone-rod dystrophy. Clin. Genet. 89, 442–447. doi: 10.1111/cge.12617

PubMed Abstract | CrossRef Full Text | Google Scholar

Yamada, M., Uehara, T., Suzuki, H., Takenouchi, T., Fukushima, H., Morisada, N., et al. (2019). IFT172 as the 19th gene causative of oral-facial-digital syndrome. Am. J. Med. Genet. 179A, 2510–2513. doi: 10.1002/ajmg.a.61373

PubMed Abstract | CrossRef Full Text | Google Scholar

Yamashita, T., Liu, J., Gao, J., LeNoue, S., Wang, C., Kaminoh, J., et al. (2009). Essential and synergistic roles of RP1 and RP1L1 in rod photoreceptor axoneme and retinitis pigmentosa. J. Neurosci. 29, 9748–9760. doi: 10.1523/JNEUROSCI.5854-08.2009

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, J., Adamian, M., and Li, T. (2006). Rootletin interacts with C-Nap1 and may function as a physical linker between the pair of centrioles/basal bodies in cells. Mol. Biol. Cell 17, 1033–1040. doi: 10.1091/mbc.E05-10-0943

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, J., Gao, J., Adamian, M., Wen, X.-H., Pawlyk, B., Zhang, L., et al. (2005). The ciliary rootlet maintains long-term stability of sensory cilia. Mol. Cell. Biol. 25, 4129–4137. doi: 10.1128/mcb.25.10.4129-4137.2005

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, J., Liu, X., Yue, G., Adamian, M., Bulgakov, O., and Li, T. (2002). Rootletin, a novel coiled-coil protein, is a structural component of the ciliary rootlet. J. Cell Biol. 159, 431–440. doi: 10.1083/jcb.200207153

PubMed Abstract | CrossRef Full Text | Google Scholar

Young, R. W. (1967). The renewal of photoreceptor cell outer segments. J. Cell Biol. 33, 61–72. doi: 10.1083/jcb.33.1.61

PubMed Abstract | CrossRef Full Text | Google Scholar

Zenteno, J. C., García-Montaño, L. A., Cruz-Aguilar, M., Ronquillo, J., Rodas-Serrano, A., Aguilar-Castul, L., et al. (2020). Extensive genic and allelic heterogeneity underlying inherited retinal dystrophies in Mexican patients molecularly analyzed by next-generation sequencing. Mol. Genet. Genomic Med. 8:e1044. doi: 10.1002/mgg3.1044

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, H., Constantine, R., Vorobiev, S., Chen, Y., Seetharaman, J., Huang, Y. J., et al. (2011). UNC119 is required for G protein trafficking in sensory neurons. Nat. Neurosci. 14, 874–880. doi: 10.1038/nn.2835

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, H., Hanke-Gogokhia, C., Jiang, L., Li, X., Wang, P., Gerstner, C. D., et al. (2015). Mistrafficking of prenylated proteins causes retinitis pigmentosa 2. FASEB J. 29, 932–942. doi: 10.1096/fj.14-257915

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, H., Li, S., Doan, T., Rieke, F., Detwiler, P. B., Frederick, J. M., et al. (2007). Deletion of PrBP/δ impedes transport of GRK1 and PDE6 catalytic subunits to photoreceptor outer segments. Proc. Natl. Acad. Sci. U.S.A. 104, 8857–8862. doi: 10.1073/pnas.0701681104

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, W., Taylor, S. P., Ennis, H. A., Forlenza, K. N., Duran, I., Li, B., et al. (2018). Expanding the genetic architecture and phenotypic spectrum in the skeletal ciliopathies. Hum. Mutat. 39, 152–166. doi: 10.1002/humu.23362

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: ciliopathy, inherited retinal dystrophies, intraflagellar transport, sensory cilium, photoreceptor, ciliary transport

Citation: Sánchez-Bellver L, Toulis V and Marfany G (2021) On the Wrong Track: Alterations of Ciliary Transport in Inherited Retinal Dystrophies. Front. Cell Dev. Biol. 9:623734. doi: 10.3389/fcell.2021.623734

Received: 30 October 2020; Accepted: 09 February 2021;
Published: 05 March 2021.

Edited by:

Francesc R. Garcia-Gonzalo, Autonomous University of Madrid, Spain

Reviewed by:

Sashko Damjanovski, Western University, Canada
Ruxandra Bachmann, University of Zurich, Switzerland

Copyright © 2021 Sánchez-Bellver, Toulis and Marfany. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Gemma Marfany, gmarfany@ub.edu

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
