End-stage liver fibrosis is common to all chronic liver diseases. Since liver transplantation has several limitations, including lack of donors, immunological rejection, and high medical costs, therapeutic alternatives are needed. The administration of mesenchymal stromal cells (MSCs) has been proven effective in tissue regeneration after damage. However, the risk of uncontrolled side effects, such as cellular rejection and tumorigenesis, should be taken into consideration. A safer alternative to MSC transplantation is represented by the MSC secretome, which retains the same beneficial effect of the cell of origin, without showing any considerable side effect. The paracrine effect of MSCs is mainly carried out by secreted particles in the nanometer range, known as extracellular vesicles (EVs) that play a fundamental role in intercellular communication. In this review, we discuss the current literature on MSCs and MSC-EVs, focusing on their potential therapeutic action in liver fibrosis and on their molecular content (proteins and RNA), which contributes in reverting fibrosis and prompting tissue regeneration.
Introduction
Chronic liver disease (CLD) may be caused by different types of injury (viral infection, alcohol abuse, NASH, ischemic injury, chemical compounds, autoimmune and genetic diseases, etc.), and it is one of the major global health problems that causes about 2 million deaths per year worldwide (Asrani et al., 2019; Roehlen et al., 2020). Fibrosis is the main characteristic of CLD and is due to an excessive ECM accumulation, which compromises the normal morphology and function of the liver. Excessive ECM deposition is due to a persistent activation of myofibroblasts that proliferate and produce different matrix components (type I and III collagen, fibronectin, laminin, and proteoglycans) (Roehlen et al., 2020).
Hepatocytes are proliferative cells that support the physiological renewal of liver parenchyma. In case of injury, proliferation is due to the activation of resident HpSCs, which are quiescent during physiological turnover of the organ (Ibrahim et al., 2018). Different studies have observed only a marginal contribution of these resident progenitor cells in ameliorating the damage in several models of hepatocellular injury. In particular, the HpSCs are not able to totally regenerate the hepatocytes damaged in CLD, especially in the presence of a massive destruction of the liver tissue (Español-Suñer et al., 2012). For this reason, an exogenous treatment that supports the regeneration of the altered tissue is demanded.
A possible therapeutic option is the use of MSCs that can be isolated from various adult tissues, such as bone marrow (BM), adipose tissue, muscle, periosteum, umbilical cord, blood, and liver (Puglisi et al., 2011). MSCs were originally described as a rare population of cells in the BM with fibroblast-like morphology (Friedenstein et al., 1974) and a characteristic pattern of cell-surface antigens (Pittenger et al., 1999). Besides their self-replicating ability, MSCs can differentiate in mesenchymal (osteoblasts, chondrocytes, adipocytes, and myocytes) and non-mesenchymal cells (cardiac, neural, renal, and hepatic cells) (Krause, 2002; Alhadlaq and Mao, 2004). These peculiar properties combined with the immunoregulatory activity of MSCs make these cells ideal candidates for regenerative therapy of various diseases, including liver fibrosis (Eom et al., 2015; Han et al., 2019).
In this review, we summarize recent findings in the field of MSCs application as anti-fibrotic strategy and on molecular pathways modulated by MSCs and their secretome, in particular by EVs.
Cells and Molecular Pathways Involved in Hepatic Fibrosis
Different types of hepatic cells contribute to fibrosis development. Hepatocyte death is the initial event in liver diseases that conducts to damage progression. Dead hepatocytes release different molecules (intracellular proteins, ATP, nucleic acids, mitochondrial or nucleic compounds) collectively named DAMPs (Mihm, 2018). These intracellular compounds negatively influence the neighboring cells, such as HSCs and Kupffer cells, favoring cell activation and fibrosis development. Moreover, a pro-fibrogenic signal can be triggered by apoptosis of hepatocytes by the activation of Fas death receptor (Feldstein et al., 2003) and by the release of apoptotic bodies. These can be absorbed by Kupffer cells and by HSCs to activate pro-fibrogenic signals (Canbay et al., 2003; Zhan et al., 2006).
Hepatic stellate cells are the key players in hepatic fibrosis development, since they represent the major source of myofibroblast precursors. In physiological conditions, HSCs are perisinusoidal non-proliferating cells characterized by numerous lipid droplets containing vitamin A in the cytoplasm. Different types of injury may induce HSC activation. In this case, HSCs start to proliferate, acquire a contractile myofibroblast phenotype, express α-SMA, and produce ECM components and pro-inflammatory cytokines (Mederacke et al., 2013). Other important sources of myofibroblasts may be portal fibroblasts (Wells et al., 2004), BM-derived cells (Forbes et al., 2004), and cells derived from hepatocytes or cholangiocytes by EMT (Zeisberg et al., 2007). In addition, the production of pro-inflammatory cytokines induces the recruitment and the activation of other important cells in fibrosis development, such as platelets, endothelial cells, and infiltrating immune cells that may amplify the pro-fibrogenic environment and contribute to support HSC and myofibroblast activation state. Hepatic macrophages, which can be liver resident (Kupffer cells) or monocyte-derived (Krenkel and Tacke, 2017), play a central role in this fibrosis development. Macrophages may be classified into pro-inflammatory macrophages (M1) and immunoregulatory macrophages (M2). Hepatic macrophages may shift from M1 to M2 phenotypes in response to different stimuli, and different macrophage subpopulations may coexist and contribute to different phases of fibrosis (Sun et al., 2017).
A complex network of cytokines and pathways is responsible for HSC activation and for induction of fibrogenic alterations. The most important growth factors and pathways involved in fibrogenesis are the PDGF, the TGF-β, the inflammasome NLRP3–caspase-1, and the Wnt/β-catenin signaling pathway (Dewidar et al., 2019; Roehlen et al., 2020). Moreover, resident immune cells produce under stimulation the TNF-α, the interleukins (IL-6 and IL-1α), and the CCL2, that trigger the activation of Kupffer cells and the recruitment of monocyte-derived macrophages from blood (Roehlen et al., 2020). In physiological conditions, PDGF is produced by platelets. Different types of liver injury induce the production of PDGF also by Kupffer cells, endothelial cells, and activated HSCs, and PDGF receptor is expressed by HSCs (Campbell et al., 2005; Hayes et al., 2014). The binding of PDGF to its receptor triggers the activation of several signaling pathways, including the PI3K/Akt, the JAK/STAT, and the Ras/Raf system. These different pathways regulate downstream the expression levels of the key pro-fibrotic genes, such as type I collagen α1 chain, MMPs, tissue inhibitors of metalloproteinases (TIMPs), and also apoptosis regulators (Bcl-2) that favor the survival and proliferation of myofibroblasts (Ying et al., 2017). Endothelial cells, macrophages, and hepatocytes can synthesize TGF-β, as a latent precursor. The inactive form of TGF-β, bound to the latency-associated protein, is stored in the ECM. TGF-β becomes active when cleaved by a specific protease. The active form binds to TGF-β receptor type II, which recruits the TGF-β receptor type I, with downstream activation of SMAD proteins. In particular, the activation of SMAD3 by phosphorylation at its C-terminus is considered the main fibrogenic pathway (Liu et al., 2006; Fabregat et al., 2016). Furthermore, the activation of the SMAD3-dependent TGF-β signaling pathway in hepatocytes contributes to fibrosis development, especially in NASH, by inducing hepatocyte death and lipid accumulation. SMAD6 and SMAD7, which negatively regulate TGF-β signaling, are considered as anti-fibrotic factors (Yang et al., 2014).
Another important pathway involved in hepatic fibrosis development is the Wnt/β-catenin signaling. β-Catenin is an adhesion molecule that can also act as a transcription factor. After activation, Wnt binds the receptor Frizzled and forms a complex, which inhibits β-catenin degradation causing its translocation to the nucleus that activates target genes transcription by recruiting cyclic AMP-response element binding (CREB) protein (Nishikawa et al., 2018). In hepatic damage, the Wnt signaling pathway is activated in the HSCs and may contribute to fibrosis development by upregulating α-SMA and collagen expression (Berg et al., 2010).
Despite the increasing number of studies deeply investigating the molecular mechanisms of liver fibrosis development, an approved drug to counteract liver fibrosis is still missing. Anti-fibrotic therapies have to focus on different mechanisms of action: hepatocyte protection, the inhibition of HSC activation, the consequent deposition of fibrotic molecules, and the modulation of inflammation.
MSC Treatment Counteracts Liver Fibrosis Development
Several studies demonstrated that the injection of MSCs improved liver fibrosis and enhanced liver functionality by reducing hepatocyte apoptosis, prompting hepatocyte regeneration, and regulating inflammatory responses in different animal models of CLD (Table 1). In particular, numerous published results demonstrated the reduction of TGF-β1 and α-SMA gene expression in liver tissue after treatment with MSCs (Rabani et al., 2010; Jang et al., 2014; Winkler et al., 2014; Idriss et al., 2018; Fathy et al., 2020; Sun et al., 2020).
Table 1. Anti-fibrotic effect of MSCs from different sources in chronic liver injury.
In the CCl4-induced CLD model, the administration of murine BM-derived-MSCs reduced fibrosis, ameliorated the hypoxic liver microenvironment, and improved liver function. These beneficial effects were correlated with a modulation of the TGF-β1/SMADs signaling pathway in liver cells. In particular, BM-MSCs reduced TGF-β1 and SMAD3 expression and increased SMAD7 expression (Zhang et al., 2015, 2019). SMAD7 can be regulated by different stimuli, including TGF-β, IFN-γ, and TNF-α. The downregulation of SMAD7 expression is associated with both tissue fibrosis and inflammatory disease; instead, its over-expression antagonizes TGF-β-mediated fibrosis and inflammation (Yan et al., 2009).
Another aspect that characterizes in a distinctive manner liver fibrosis is the induction of collagen deposition, with a consequent complete remodeling of the ECM. The interstitial ECM is mainly composed of structural fibrils of type I and type III collagen and in a minor quantity of type V collagen (Karsdal et al., 2020). The analysis of gene expression profile of ECM in MSC-treated fibrotic animals indicated the reduction of the deposition of collagen in the area of injury. The pro-collagen gene expression significantly decreased when MSCs were administrated in liver fibrosis models generated by the injection of CCl4 and of TAA chemical drugs (Jang et al., 2014; Farouk et al., 2018), especially when the transplantation of cells occurred via the portal vein rather than by the tail vein (Truong et al., 2016). Besides, IL-6 stimulates the activation of STAT3 and increases collagen mRNA expression in HSCs; the phosphorylation of STAT3 activates the TGF-β cascade through SMAD3 activation (O’Reilly et al., 2014). In this framework, Zhang et al. (2019) demonstrated that BM-MSCs reduced fibrosis by modulating the TGF-β1/SMADs signaling. Yuan et al. (2019) showed that the low amount of collagen deposition was related to low IL-6 mRNA levels and the reduction was evident especially for type III collagen α1. Several studies reported the involvement of IL-17A in liver fibrosis (Zepeda-Morales et al., 2016), since the IL-17 receptor complex IL-17RA/IL-17RC induced in HSC the activation of STAT3, which led to increased collagen mRNA expression. After MSC transplantation, the expression of fibrogenic type I collagen α1 mRNA decreased in liver tissue. Moreover, a gradual reduction of the mRNA expression of IL-17a, IL-17f, and IL-17ra and IL-17rc receptors was observed in the BM-MSC-treated group (Farouk et al., 2018).
The reduction in pro-collagen gene expression often correlates with increased secretion of collagen-degrading MMPs (Rengasamy et al., 2017; Du et al., 2018). In fact, the administration of MSCs induces the reduction of fibrosis by increasing the expression of MMP-9, which degrades the ECM (Tanimoto et al., 2013) and modulates genes involved in matrix remodeling, such as MMP-2 and TIMP-1 (Zhao et al., 2012; Rengasamy et al., 2017; Du et al., 2018; Khalifa et al., 2019; Iwanaka et al., 2020).
Mesenchymal stromal cells can influence the fibrosis development indirectly through the reduction of the hepatic inflammatory state. In fact, MSCs display an immunoregulatory activity by preventing the maturation of immune cells. In particular, they inhibit the proliferation of dendritic, T helper-1, and natural killer cells and induce the activation of M2 macrophages through the production of PGE2, IDO, and NO and secretion of anti-inflammatory ILs, such as IL-10 (Aggarwal and Pittenger, 2005). Anti-inflammatory effects of MSCs in liver tissue were evaluated by measuring the expression levels of pro-inflammatory cytokines in different animal models of CLD, such as HFD, MCDD, CCl4 infusion, and TAA administration (Zhao et al., 2012; Nasir et al., 2013; Idriss et al., 2018; Bruno et al., 2019). These studies demonstrated that TNF-α, IL-6, and other pro-inflammatory cytokines [IL-1β, TGF-β1, INF-γ, and monocyte chemoattractant protein-1 (MCP-1)] were downregulated in the liver of treated mice (Zhao et al., 2012; Nasir et al., 2013; Idriss et al., 2018; Bruno et al., 2019; Choi et al., 2019; Kojima et al., 2019). Moreover, treatment with MSCs increased the production of the anti-inflammatory IL-10 that may modulate the expression of α-SMA, collagen I, and TGF-β in target cells both in vitro and in vivo (Rabani et al., 2010; Idriss et al., 2018; Choi et al., 2019).
Although MSC transplantation has shown beneficial effects in liver fibrosis, several issues must be carefully considered, including the injected cell dose and the timing of treatment. The anti-fibrotic effect of MSCs seems to be dose-dependent: in fact, compared with lower doses, higher cell doses showed a significant reduction in collagen release (Hong et al., 2014). Furthermore, the anti-fibrotic effect of MSCs in the liver is more evident when MSCs are administered in the earlier stages of injury (Zhao et al., 2005), whereas no beneficial effects are observed when MSCs are injected after long-term injury (Popp et al., 2007; Carvalho et al., 2008).
MSC Engraftment and Differentiation Into Liver Tissue
A few studies support the idea of the engraftment and differentiation of MSCs in the damaged tissue (di Bonzo et al., 2008; Stock et al., 2014; Iwanaka et al., 2020). In a model of intoxication of the liver caused by a sub-lethal dose of acetaminophen (APAP) and treated with human MSCs differentiated into hepatocyte-like cells in vitro (hMSC-HCs), the engrafted cells were detected in liver section after long-term transplantation (7 weeks after treatment). In particular, hMSC-HCs were localized in the periportal areas of the liver damaged by APAP, expressing both human albumin and HepPar1, a mitochondrial antigen of hepatocytes, indicating an in situ differentiation of hMSC-HCs into hepatic precursors. The engraftment of hMSC-HCs did not cause an increment in the collagen content with respect to untreated APAP animals (Stock et al., 2014). Recently, also in CCl4-injured liver, it was reported that the hepatic regeneration is due to in situ differentiation of the transplanted hDPSCs. The regenerative effect was correlated with the reduced gene expression of α-SMA, collagen 1, and other fibrosis-related genes and proteins, such as MMP-2, MMP-3, TIMP-1, TIMP-2, and TGF-β (Iwanaka et al., 2020).
In contrast, some authors have reported that, after in vivo injection, BM-MSCs can differentiate into myofibroblasts, thus contributing to the progression of liver fibrosis (di Bonzo et al., 2008; Baertschiger et al., 2009). di Bonzo et al. (2008) demonstrated that human BM-MSCs were able not only to engraft around the portal tract of both normal and CCl4-injured liver of NOD/SCID mice but also to differentiate into hepatic cells in the in vivo acute liver injury model (di Bonzo et al., 2008). In the chronic liver injury model, the percentage of cells expressing the human leukocyte antigen (HLA)-I was significantly higher than in the acute setting; however, a significant number of human cells co-expressed markers of myofibroblast-like cells (α-SMA or glial fibrillary acidic protein) and were located around fibrotic areas, indicating a pro-fibrotic effect of MSCs. These evidences correlated in part with the results obtained by Baertschiger et al. (2009) in a murine model of partial hepatectomy associated with the inhibition of endogenous liver regeneration by retrorsine treatment. Following intrasplenic injection of BM-MSCs, the engraftment of these cells was not achieved in the liver. However, after intrahepatic injection, BM-MSCs permanently engrafted into the liver and might contribute to fibrosis by differentiating into myofibroblasts (Baertschiger et al., 2009). Besides, by comparing the in vivo effect of adult BM-MSCs with the effect of pediatric BM-MSCs, no difference in MSC engraftment and no evidence of MSC differentiation into hepatocytes were observed (Baertschiger et al., 2009). Whether the transplanted MSCs have a positive or negative effect on resident liver cell populations (HSCs, immune cells, hepatocytes) is an important aspect that needs to be considered (Kallis and Forbes, 2009). Further studies are required to better understand those mechanisms that could induce MSCs or resident liver cells to produce scar or ECM-degrading substances.
Anti-Fibrotic and Anti-Inflammatory Effects of MSC Secretome
In addition to direct differentiation of MSCs into liver cells, MSCs exert pro-regenerative and anti-fibrotic effects in liver tissue by inducing the proliferation of resident mature hepatocytes or of progenitor cells through the secretion of paracrine factors. Analysis of gene expression of different sources of MSC revealed that MSCs produce several molecules that can inhibit the activation of HSCs in vitro, such as IL-10, VEGF-A, and HGF (Aggarwal and Pittenger, 2005). In particular, HGF promotes hepatic regeneration and exerts anti-fibrotic effects by enhancing hepatocyte proliferation and inhibiting apoptosis (Lee et al., 2018). It has been demonstrated that the stable expression of HGF in BM-MSCs improved cell homing capacity and differentiation into liver cells, thus alleviating CCl4-induced liver fibrosis in rats (Sun et al., 2020). Therefore, the release of HGF in the parenchyma of damaged livers could be associated with the ability of MSCs to reverse the progression of liver fibrosis.
The MSC secretome has been proven to be safer and equally effective in liver regeneration (Driscoll and Patel, 2019). In fact, the secretome obtained by UC-MSCs, either undifferentiated or committed into hepatocyte-like cells, improved hepatic fibrosis both in vivo and in vitro. In particular, the UC-MSC secretome was enriched in the milk factor globule EGF 8 (MFGE8), an anti-fibrotic protein, which expression is reduced in fibrotic or cirrhotic livers. The MFGE8-containing secretome reduced the ECM deposition and suppressed the activation of HSCs by downregulating α-SMA expression and the TGF-β signaling pathway (An et al., 2017). A similar anti-fibrotic effect was also observed in vitro on TGF-β-activated HSCs, using conditioned medium derived from AMSCs (Fu et al., 2018) and from BM-MSCs (Huang et al., 2016). Interestingly, in a CCl4-induced fibrosis murine model, the BM-MSC secretome also showed immunosuppressive properties, by reducing inflammatory infiltration, and pro-regenerative effects, by enhancing hepatocyte proliferation and promoting HSC apoptosis (Huang et al., 2016). Taken together, these findings suggest that the anti-fibrogenic effect of MSCs can be mediated through the release of paracrine factors, which include soluble factors and EVs.
Extracellular vesicles are small membrane particles delimited by a lipid bilayer membrane that are secreted by virtually all cells into the extracellular microenvironment and can be isolated from all biological fluids. EVs display great heterogeneity in size and molecular cargo, and since specific markers to distinguish one vesicle subpopulation from another are still lacking, EVs are currently classified based on their size and biogenesis in exosomes, ectosomes, and apoptotic bodies (Meldolesi, 2018; Bruno et al., 2020a).
Exosomes (30–120 nm) are small EVs that arise from the inward invagination of the membrane of endosomal structures, known as MVBs. Exosomes are released into the extracellular space upon fusion between MVBs and the plasma membrane. This process, called exocytosis, is principally coordinated by the ESCRT machinery (Meldolesi, 2018) and by other ESCRT-associated proteins, such as ALIX that contributes to cargo packaging into vesicles and triggers exosome formation (Baietti et al., 2012; Hurley and Odorizzi, 2012). Besides, an ESCRT-independent mechanism has been described in exosome formation and secretion (Stuffers et al., 2009). Among the proteins participating in this process, the tetraspanins CD63, CD81, and CD9 coordinate the specific sorting of cargo into exosomes (Chairoungdua et al., 2010; Nazarenko et al., 2010; van Niel et al., 2011; Perez-Hernandez et al., 2013), whereas the Rab GTPases Rab11, 27a, 27b, and 35 are involved in vesicle budding, transport along the cytoskeleton, and fusion with the plasma membrane (Savina et al., 2005; Stenmark, 2009; Hsu et al., 2010; Ostrowski et al., 2010; Bobrie et al., 2012; Zhen and Stenmark, 2015). Furthermore, exosome release can be controlled by calcium signaling (Savina et al., 2003), cytoskeleton rearrangements (Granger et al., 2014), and ceramide synthesis (Trajkovic et al., 2008).
Extracellular vesicles generated by the direct outward budding of the plasma membrane are defined as ectosomes or microvesicles (100–1,000 nm). The modifications in the plasma membrane curvature result from changes in protein interactions, which involve the ARRDC1 and the late endosomal protein TSG101 (Nabhan et al., 2012), and from the calcium-dependent activation of enzymes, such as flippases, floppases, scramblases, and calpain, which alter the lipidic composition of the plasma membrane (van Niel et al., 2018). As for exosomes, the process of ectosomes vesiculation and release also relies on cytoskeleton rearrangements, controlled by the ROCK (Li et al., 2012) and the signaling cascade of Ras-related GTPase ARF6 (Muralidharan-Chari et al., 2009). Lastly, fragments of dead cells that are released through the plasma membrane blebbing of apoptotic cells are defined as apoptotic bodies (1,000–5,000 nm) (Hristov et al., 2004).
At present, EVs are considered as important mediators of intercellular communication (Lee et al., 2011; Lawson et al., 2017). In fact, the EV cargo includes proteins, lipids, and nucleic acids that can be transferred between cells protected from degradation, thus eliciting their intracellular uptake by endocytosis. The specific molecular content of EVs usually depends on the tissue of origin, but it can also be genetically modified to allow EVs to carry the desired therapeutic molecules (Varderidou-Minasian and Lorenowicz, 2020). Once internalized by target cells, EVs can modulate a number of physiological and pathophysiological processes, including metabolism, immune responses, tumor progression, and metastasis (Lou et al., 2017a).
MSC-EV Effects in Liver Fibrosis
Recently, the role of EVs in tissue repair and regeneration has been extensively studied. In particular, MSC-derived EVs have shown a pro-regenerative effect in several tissues, including heart, lung, bone, skin, brain, kidney, and liver (Fiore et al., 2018; Varderidou-Minasian and Lorenowicz, 2020). As reported for MSCs, also MSC-EVs exhibit therapeutic effects in several preclinical models of hepatic fibrosis (Table 2). In a context of liver fibrosis, MSC-EVs act by modulating different molecular pathways into hepatocytes, activated HSCs and immune cells (Figure 1).

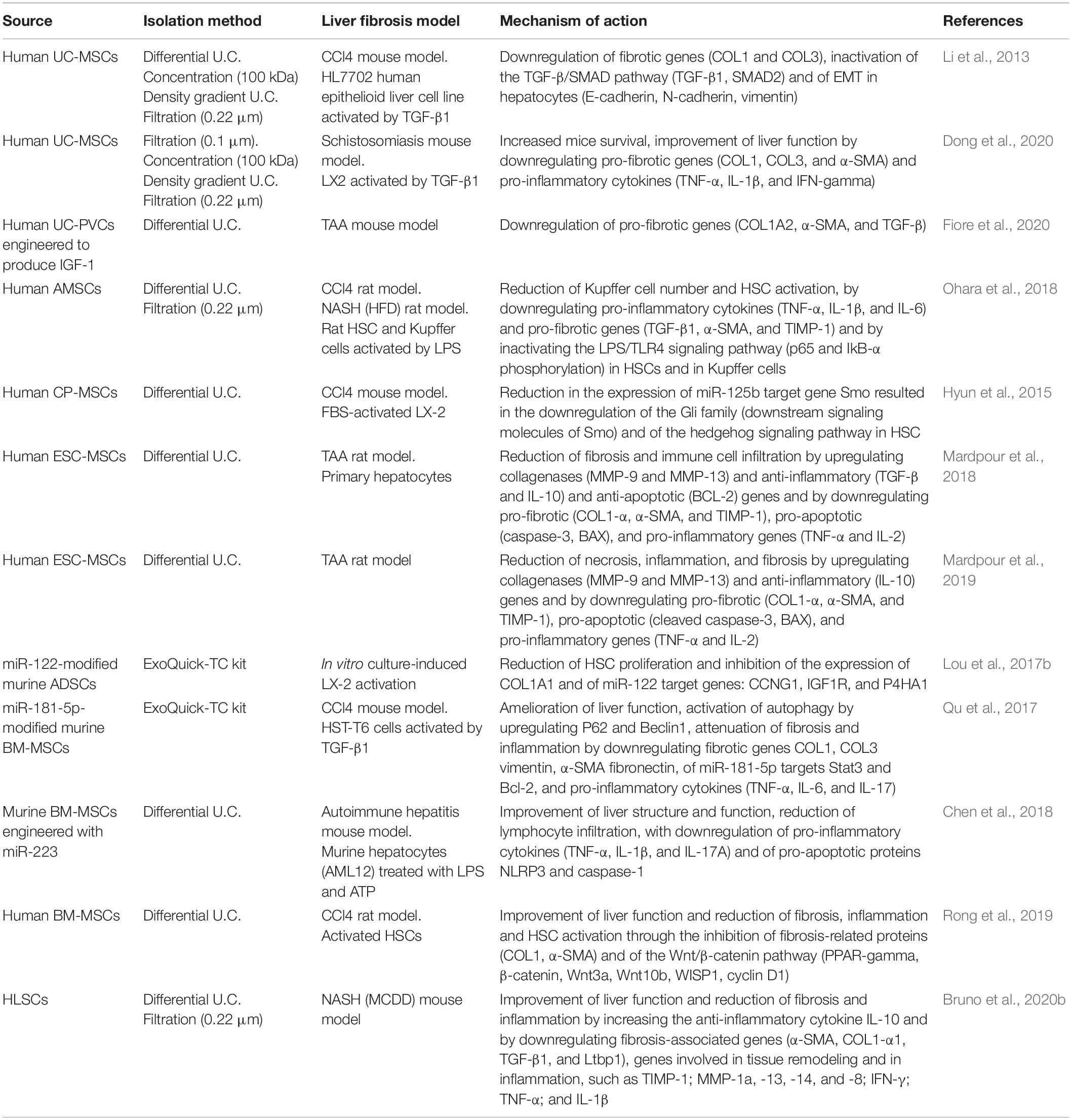

Table 2. Anti-fibrotic effect of MSC-EVs in different models of chronic liver injury.
Figure 1. Effects of EVs derived from MSCs on inflammatory cells, Kupffer cells, hepatic stellate cells (HSCs), and hepatocytes during liver fibrosis. EVs from MSCs derived from different sources can modulate various molecular pathways in target cells by reducing inflammation, Kupffer cell activation, HSC activation and fibrogenesis, and hepatocyte apoptosis and EMT.
The first evidence that MSC-EVs were able to alleviate liver fibrosis came from Li et al. (2013). In a mouse model of CCl4-induced liver fibrosis, they showed that EVs derived from UC-MSCs ameliorated hepatic inflammation and collagen deposition. Moreover, in vitro UC-MSC-EV administration suppressed both the EMT and the TGF-β/SMAD signaling pathway through the inhibition of SMAD2 phosphorylation and the reduction of type I and III collagen and TGF-β transcripts expression in hepatocytes. The therapeutic effect of UC-MSC-EVs has been also demonstrated in schistosomiasis, a parasitic disease that leads to serious chronic liver inflammation (Dong et al., 2020). In vivo administration of UC-MSC-EVs in Schistosoma japonicum-infected mice alleviated hepatic fibrosis by downregulating the expression of α-SMA and types I and III collagen. The consequent inhibition of HSC activation was also confirmed in vitro on HSCs. In addition, UC-MSC-EVs reduced the mRNA expression of pro-inflammatory cytokines TNF-α, IL-1β, and IFN-gamma in schistosome-infected liver tissue. Also, EVs obtained from UC-PVCs can effectively reduce both fibrosis and inflammation in a TAA-induced model of chronic liver injury (Fiore et al., 2020). Interestingly, EVs derived from UC-PVCs that were transduced by an adenovirus vector to produce human IGF-1 exhibited a stronger anti-fibrotic effect with respect to their green fluorescent protein (GFP)-transfected counterpart. In vitro experiments demonstrated that treatment with IGF-1-containing UC-PVC-EVs reduced the activation of HSCs by downregulating the expression of type I collagen, α-SMA, and TGF-β1. Furthermore, IGF-1-containing UC-PVC-EVs converted pro-fibrogenic hepatic macrophages into anti-inflammatory phagocytes by increasing arginase-1 and downregulating iNOS, TNF-α, and IL-6 expression levels.
Another embryonic-derived source of MSCs is the amnion. In two different models of CLD, Ohara et al. (2018) have demonstrated the anti-inflammatory and anti-fibrotic effects of EVs obtained from AMSCs. In a rat model of NASH, induced by a HFD, AMSC-EVs downregulated the expression of pro-inflammatory cytokines TNF-α, IL-1β, and IL-6 and reduced the activation of pro-inflammatory M1 macrophages (Kupffer cells) in liver tissue. In CCl4-induced hepatic fibrosis, treatment with AMSCs attenuated fibrosis by reducing the expression of α-SMA and the number of Kupffer cells. In vitro, AMSCs treatment reduced the expression of TNF-α in both HSCs and Kupffer cells activated by LPS and reduced the NF-kB transcriptional activity induced by LPS, through the inhibition of the phosphorylation of IkB-α and p65. Since AMSC-EVs did not affect NF-kB transcriptional activity induced by TRAF, one could speculate that AMSC-EVs might suppress the earlier steps of the LPS/TLR4 signaling pathway. Interestingly, another research study on a rat model of CCl4-induced liver fibrosis demonstrated that EVs released by CP-MSCs were able to transfer miR-125b between MSCs and HSCs. The inhibition of miR-125b targets smo, resulting in the suppression of Hedgehog signaling with consequent amelioration of hepatic fibrosis (Hyun et al., 2015).
Recently, ESCs have been identified as an alternative source of MSCs. In a rat model of TAA-induced chronic liver injury, (Mardpour et al., 2018) reported the hepatoprotective effect of EVs obtained from human ESC-derived MSCs. In TAA animals, the ESC-MSC-EVs improved hepatocyte viability and reduced both apoptosis and the expression of pro-fibrotic molecules, such as collagen, α-SMA, and TIMP-1, while increasing the expression of collagenases, such as matrix metalloproteinase MMP-9 and -13. In addition, ESC-MSC-EVs exhibited immunomodulatory properties by reducing immune cell infiltration and modulating the expression of inflammatory cytokines, with a decrease in TNF-α and IL-2 levels and an increase in TGF-β and IL-10 levels. Interestingly, the anti-inflammatory effect of the ESC-MSC-EVs resulted to be stronger than the one of other somatic tissue-derived MSC secretome, such as BM-MSCs and ADSCs (Mardpour et al., 2018). However, the efficiency of EV treatments might be reduced by a rapid clearance of EVs from the target organ. To extend the bioavailability of the EVs in the liver, the use of ESC-MSC-EVs encapsulated in polyethylene glycol macromeres has been proven to be effective in a TAA rat model of hepatic fibrosis. Once injected into the peritoneum cavity, the hydrogel-released EVs were gradually swollen upon biodegradation and progressively released over 1 month, resulting in liver accumulation. Histological and molecular analysis have pointed out that, compared with freely injected EVs, the hydrogel-released EVs had stronger anti-fibrotic, anti-apoptotic, and anti-inflammatory effects in fibrotic liver tissue (Mathieu et al., 2019).
Adipose tissue-derived MSC have also shown therapeutic effects in hepatic fibrosis (Lou et al., 2017b; Qu et al., 2017). Qu et al. (2017) demonstrated that the transient over-expression of miR-181-5p in ADSCs increased their therapeutic potential in a CCl4-induced fibrosis model. In addition, the miR-181-5p over-expressing ADSC-EVs induced autophagy in HSCs by inhibiting the STAT3/Bcl-2/Beclin pathway and suppressed HSC activation induced by TGF-β through the reduction of fibrosis-related genes, such as fibronectin and type I and III collagen (Qu et al., 2017). Another study showed that the engineering of ADSCs with a miR-122 over-expressing lentiviral vector made the ADSC-EVs more effective against liver fibrosis than their non-transfected counterpart. In fact, ADSC-EVs efficiently transfer miR-122 to HSCs, inhibiting cell cycle progression and suppressing miR-122-target genes CCNG1, IGF1R, and P4HA1, which regulate proliferation and collagen maturation in HSCs (Lou et al., 2017b).
Extracellular vesicle engineering has been proven effective against liver fibrosis also for MSC-EVs derived from other sources, such as the bone marrow. In a murine model of autoimmune hepatitis, EVs derived from BM-MSCs improved liver function by downregulating the expression of inflammasome and apoptosis-related genes NLRP3 and caspase-1. The lentivirus-driven upregulation of miR-223 in BM-MSCs improved the anti-inflammatory and cytoprotective properties of BM-MSC-EVs, both in vitro and in vivo, whereas the specific inhibition of miR-223 completely abrogated the therapeutic effect of BM-MSC-EVs (Chen et al., 2018). Besides, the administration of BM-MSC-EVs in CCl4-induced liver fibrosis suppressed the Wnt signaling pathway in activated HSCs by downregulating the expression of β-catenin, Wnt3a, Wnt10b, and PPAR-gamma (Rong et al., 2019).
Recently, our group has investigated the therapeutic effect of EVs released by HLSCs in CLD (Bruno et al., 2020b). HLSCs are stem cell populations resident in human adult liver that have MSC-like features (phenotype, gene expression profile, multilineage differentiation, and immunoregulatory capacities). Moreover, HLSCs showed commitment toward hepatic lineage and contributed to tissue regeneration in different experimental animal models of liver injury (Herrera et al., 2006; Bruno et al., 2019). In a murine model of liver fibrosis, HLSC-EVs improved liver function and morphology through the reduction of fibrosis and inflammation. Molecular analyses revealed that HLSC-EV administration downregulated most of the fibrosis-associated genes, such as type I collagen, α-SMA, TGF-β, and the gene latent-TGF-β-binding protein 1 (Ltbp1), which expression was increased by MCDD. The HLSC-EVs treatment also reverted the expression of genes involved in tissue remodeling (MMP-1a, -8, -13, and -14 and TIMP-1) and in inflammation (IFN-gamma, IL-1β, and TNF-α). Furthermore, the increase of IL-10 expression levels and the reduction of inflammatory infiltrations in the liver confirmed the anti-inflammatory potential of HLSC-EVs. Interestingly, proteomic analyses of HLSC-EV cargo revealed a number of anti-inflammatory proteins that might contribute to the improvement of liver fibrosis.
Conclusion
Mesenchymal stromal cells treatment can reduce fibrosis by downregulating gene expression levels of different transcripts fundamental for fibrosis development, such as α-SMA, TGF-β, and collagens. In liver, the regression of fibrosis could be also attributed to the enhanced levels of MMPs secreted by MSCs that degrade and remodel the fibrotic matrix. Immunomodulatory capacities of MSCs could also be implicated in anti-fibrotic effects by coordinating the recruitment and the polarization of inflammatory cells and the production of cytokines, thus regulating the pro-fibrotic environment. However, it is still debated whether MSCs could engraft into the liver and whether, once engrafted, MSCs could differentiate into hepatocytes, thus participating in liver regeneration, or into pro-fibrotic cells, thus getting worse both liver function and morphology. To avoid the differentiation of MSCs into pro-fibrotic cells, the use of the MSC secretome would be preferable over the MSC treatment. Several research articles indicated that secretome could mimic the effects of cell injection and exert similar anti-fibrotic effects. Among the paracrine factors produced by MSCs, EVs emerge as a valid and alternative tool to cell treatment. Compared with cell-based approach, the EV treatment shows some benefits, such as the possibility of avoiding cell misdifferentiation and the consequent aggravation of liver fibrosis. In fact, to our knowledge, no evidence of fibrogenic potential of MSC-EVs has been reported. In addition, the use of MSC-EVs has a higher efficacy profile than MSC therapy since, once injected in vivo, the EVs pass through the biological barriers and shuttle different molecules (proteins, RNAs, and lipids) to target cells and tissues. Interestingly, in the context of CLD, MSC-EVs have been proven to regulate different molecular pathways in liver cells, such as the TGF-β/SMAD, the LPS/TLR4, the STAT3/Bcl-2/Beclin, and the Wnt signaling pathway.
Despite the promising results obtained in CLD preclinical studies with MSC-EVs, many problems need to be solved prior to clinical EV applications. Currently, EV purification is a challenging topic: several protocols have been proposed for EV isolation, and most of them can be combined to achieve higher purity of the EV sample by removing cell debris, protein aggregates, and vesicles of non-endosomal origin, such as lipoproteins (Mathieu et al., 2019). Differential ultracentrifugation represents the “gold standard” for EV purification (Théry et al., 2006), but long times, possible EV damage and contamination by non-EV particles hamper the clinical application of this technology. An alternative approach to isolate distinct EV subtypes is density gradient centrifugation, which consists in an iodixanol gradient able to separate different EV populations based on their density (Iwai et al., 2016). Moreover, the density gradient ultracentrifugation may be combined with floating to separate vesicles from contaminant proteins (Kowal et al., 2016). Immunoaffinity capture technology takes advantage of EV-associated molecules, such as tetraspanins and ESCRT proteins, but the lack of specific EV subpopulation markers makes it difficult to distinguish one type of vesicle from another (Lozano-Andrés et al., 2019). The majority of these techniques are suitable for research but limited to application for scalable production of EVs for therapeutic purposes. Membrane filtration is potentially applicable to large volumes of conditioned medium. This technique has been proven to be effective in separating EV subpopulations based on their density and hydrodynamic properties (Heinemann et al., 2014). Tangential flow filtration has been also proposed for scalable production of EVs from large volumes of conditioned medium (Busatto et al., 2018). Similarly, size exclusion chromatography has revealed one of the most rapid EV isolation techniques, particularly indicated for exosome purification (Blans et al., 2017). Even if EVs appeared more stable and resistant for long-term storage than MSCs, further studies on pharmacological and pharmacodynamic properties are needed to clarify whether the use of MSC-EVs is suitable for clinical application.
