ORIGINAL RESEARCH article

Front. Cardiovasc. Med. , 25 February 2025

Sec. Cardiovascular Surgery

Volume 12 - 2025 | https://doi.org/10.3389/fcvm.2025.1448310

Single-dose modified bloodless del Nido cardioplegia for minimally invasive cardiac surgery

\r\nHeemoon Lee,&#x;Heemoon Lee1,†Jihoon Kim,&#x;Jihoon Kim2,†Jae Suk Yoo
&#x;\r\nJae Suk Yoo1*
  • 1Department of Thoracic and Cardiovascular Surgery, Bucheon Sejong Hospital, Bucheon, Republic of Korea
  • 2Department of Thoracic and Cardiovascular Surgery, Kangnam Sacred Heart Hospital, Hallym University Medical Center, Hallym University College of Medicine, Seoul, Republic of Korea

Background: Recent studies demonstrated satisfactory results of del Nido cardioplegia in minimally invasive cardiac surgery (MICS). We aimed to evaluate the efficacy of our modified “bloodless” del Nido cardioplegia in MICS compared to the histidine-tryptophan-ketoglutarate (HTK) solution.

Methods: We retrospectively reviewed 471 patients who underwent minimally invasive cardiac surgery (MICS) in our institution between January 2015 and September 2022. Patients were divided into HTK (n = 96) and bloodless del Nido (n = 375) groups. Using propensity score matching, we matched 72 patients with bloodless del Nido to 72 patients with HTK, based on demographic and operative information.

Results: There were no significant differences in the baseline characteristics and operative data after matching. The early mortality and morbidities did not differ significantly between the two groups. Freedom from overall mortality did not differ significantly during the follow-up period (97.2% in HTK vs. 98.6 in bloodless del Nido at 2 years, P = 0.56). The two groups had no difference in postoperative lactate levels at 6 and 24 h. Various statistical methods consistently indicated that bloodless del Nido cardioplegia did not increase risks for overall mortality.

Conclusions: The modified bloodless del Nido cardioplegia showed comparable postoperative outcomes in MICS compared with the HTK solution, suggesting its potential as an alternative option for MICS.

Introduction

Blood cardioplegia has been acknowledged as a highly effective method for myocardial protection in cardiac surgery (13). Despite its benefits, multidose administration requires large solution volumes that can disrupt surgery and increase operation time (4, 5). On the other hand, the histidine-tryptophan-ketoglutarate (HTK) solution provides over two hours of myocardial protection with a single dose yielding favorable clinical outcomes. However, administration of HTK solution may disturb blood homeostasis, resulting in hyponatremia and hemodilution (68).

Meanwhile, minimally invasive cardiac surgery (MICS) has become increasingly popular in various cardiac surgeries (912). However, myocardial protection during MICS can be particularly challenging due to the limited operative field (13). Administering multiple doses of cardioplegia can be difficult, so “single-dose cardioplegia” is preferred in MICS to avoid repeated adjustments to the surgical field, minimize disruptions to the ongoing procedure, and reduce aortic cross-clamp (ACC) time. As a result, HTK solution has emerged as the gold standard for myocardial protection in MICS and has been shown to produce satisfactory clinical outcomes (1315).

The del Nido cardioplegia, introduced in the 1990s as a single-dose blood cardioplegic solution initially for congenital and pediatric heart surgeries, has demonstrated a secure window of myocardial protection lasting over 90 min (16, 17). Afterward, the del Nido cardioplegia has also been used in various adult cardiac surgeries and showed favorable outcomes (1820). Furthermore, recent studies also demonstrated satisfactory results of del Nido cardioplegia in MICS (21, 22). In addition, modifications of del Nido cardioplegia already suggested in several studies and showed favorable results (2325).

At our institution, adapting the del Nido solution for pediatric cases, we have deliberately excluded blood mixing in pursuing low-volume cardioplegia. Drawing from our accumulating positive institutional experiences, we have seamlessly expanded the use of this “bloodless” del Nido cardioplegia to adults. The objective of the present study is to evaluate the efficacy of our modified bloodless del Nido cardioplegia in MICS compared with the HTK solution.

Materials and methods

Study population

We retrospectively reviewed 471 patients who underwent MICS in our institution between January 2015 and September 2022. The median age was 63.0 [53.0–74.0] years, and 230 (48.8%) were female. The median EuroSCORE II value was 1.4 [0.8–3.0]%. Patients were classified into two groups based on the cardioplegic solution: bloodless del Nido (n = 375) and HTK (n = 96). Performing propensity score matching based on demographic and operative information, we matched 72 patients in the bloodless del Nido group with 72 patients in the HTK group. The study protocol was approved by the Bucheon Sejong Hospital Institutional Review Board, which waived the requirement for patient consent (IRB No. 2023-08-002, approval date September 13, 2023).

Operative techniques and myocardial protection strategies

All patients underwent cardiac surgery with a minimally invasive approach (right mini-thoracotomy, right anterior thoracotomy, and partial sternotomy). The surgical and cardiopulmonary bypass (CPB) strategies for MICS were described previously (13, 26, 27). Operations were performed under mild hypothermia. Myocardial protection was achieved with cardioplegic arrest. Modified ultrafiltration was performed before decannulation to remove excess fluid and metabolic waste from the blood following cardiac surgery.

HTK solution

HTK solution was used as the commercially available product (Custodiol®, Köhler Chemie GmbH, Germany). The composition of the HTK solution is described in Table 1. The initial dose of HTK solution was 2000 ml. The cardioplegia was delivered in antegrade fashion into the aortic root for over 7 min with a 4℃ infusion temperature. When ACC time exceeded 120–180 min, an additional dose (half of the initial) was administered.

Table 1
www.frontiersin.org

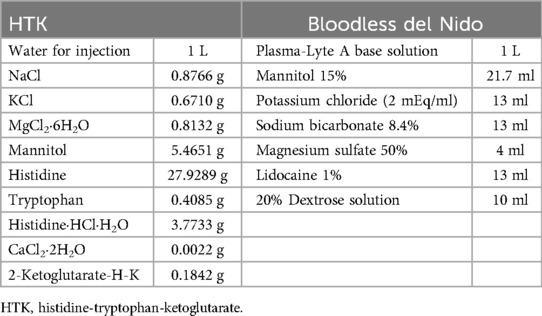

Table 1. Composition of cardioplegic solutions.

Modified bloodless del Nido cardioplegia

The bloodless del Nido cardioplegic solution contains nearly the same components as the original del Nido solution, with the exception that 15% mannitol is used instead of 20% (Table 1). Unlike the original solution, blood was not mixed during cardioplegia infusion. Instead, 10 ml of 20% Dextrose solution was included as an energy substrate. The cardioplegia was infused antegrade into the aortic root at a temperature of 4℃. The initial dose was 600 ml/m2 of body surface area, and if the ACC time exceeded 90 min, an additional dose (half of the initial) was administered every 60 min.

Endpoints

The primary endpoint of the study was all-cause mortality. The secondary endpoints were postoperative low cardiac output syndrome requiring mechanical circulatory support, postoperative left ventricular ejection fraction (LVEF), postoperative lactate levels, and spontaneous sinus rhythm recovery after ACC release.

Statistical analysis

Descriptive statistics for the total study population were obtained. Categorical variables were reported as numbers and percentages, while continuous variables were presented as means and standard deviations or median [Q1–Q3]. The inter-group differences were assessed using the t-test (or the Mann–Whitney test when the normality assumption was in doubt) and Chi-square test (or Fisher's exact test when the expected cell frequency was <5). Propensity score matching was conducted to reduce differences in baseline characteristics between the groups. The propensity score was obtained by multiple logistic regression, based on the preoperative baseline characteristics (age, sex, New York Heart Association class 3–4, hypertension, diabetes mellitus, dialysis, atrial fibrillation, LVEF ≤40%) and operative data (ACC time, aortic valve replacement, mitral valve replacement, mitral valve repair, tricuspid valve repair, maze operation, aortic surgery). A total of 72 bloodless del Nido group patients were matched to 72 HTK group patients, using nearest-neighbor matching without replacement, and a matching tolerance (caliper) of 0.2. The paired t-test and McNemar test were performed after matching. Survival curves were constructed by applying the Kaplan–Meier estimator, and the survival rates were compared between the two groups and subgroups using the log-rank test. The Cox proportional hazards model analysis was utilized to estimate the treatment effect of the two groups on long-term clinical outcomes. The hazard ratios of late clinical outcomes between the two groups were compared using both the original unmatched data and the matched data. Due to the small number of events, we applied Firth's penalized logistic regression. The rates of missingness for data in our models were <1%, and no imputation was performed for missing data. Statistical significance was set at P < 0.05. Statistical analysis was carried out using R 4.3.1 (R Foundation for Statistical Computing, Vienna, Austria).

Results

Baseline characteristics and operative data

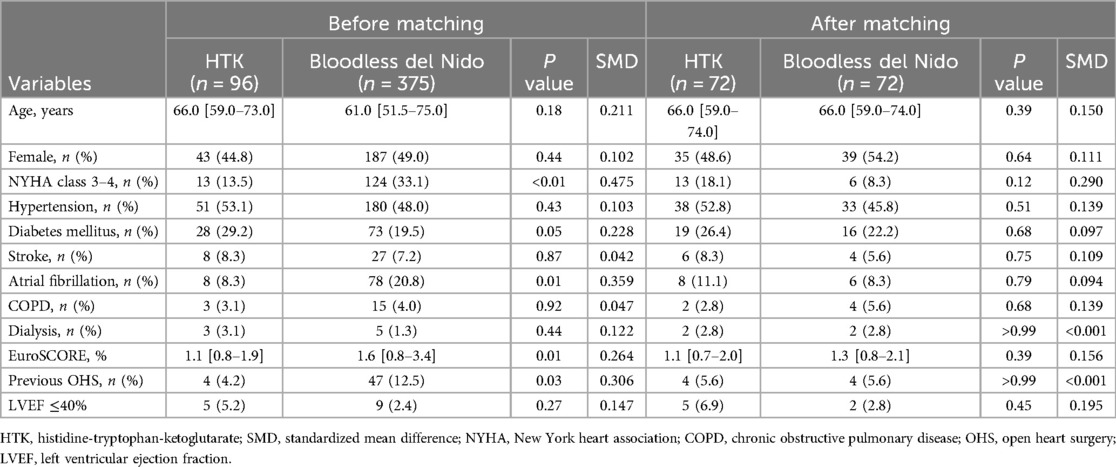

Table 2 summarizes the baseline characteristics of the patients. Before matching, patients in the bloodless del Nido group had a higher prevalence of New York Heart Association class 3–4 (HTK vs. bloodless del Nido; 13.5% vs. 33.1%, P < 0.01), atrial fibrillation (8.3% vs. 20.8%, P = 0.01), previous open heart surgery (4.2% vs. 12.5%, P = 0.03) and higher EuroSCORE [1.1 [0.8–1.9]% vs. 1.6 [0.8–3.4]%, P = 0.01]. However, no differences in demographic data were observed between the groups after propensity score matching.

Table 2
www.frontiersin.org

Table 2. Baseline characteristics.

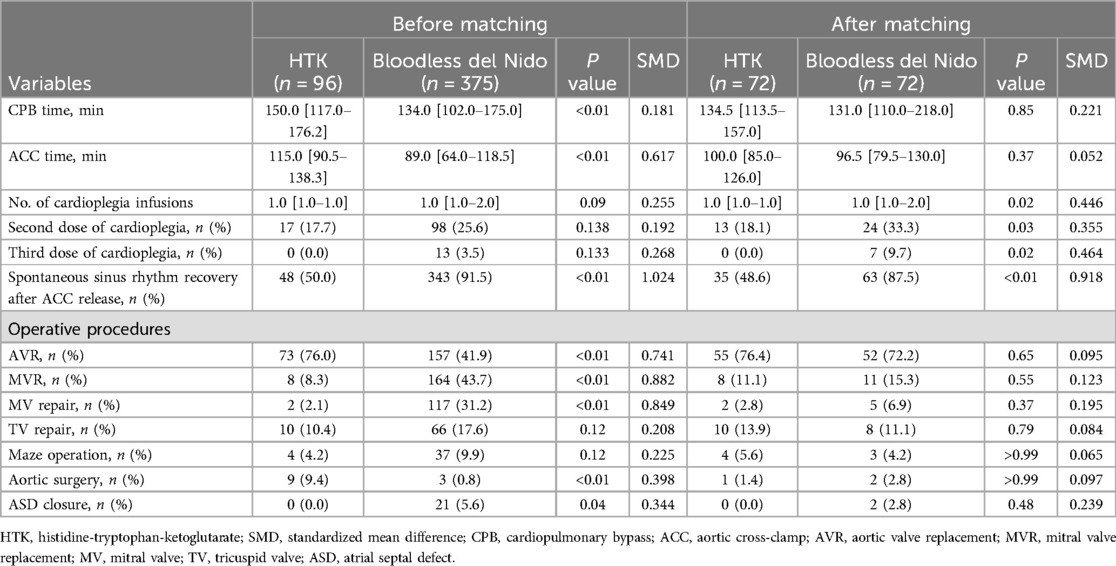

Operative data are described in Table 3. CPB time, ACC time, and operative procedures did not differ between the two groups after matching.

Table 3
www.frontiersin.org

Table 3. Operative data.

The number of cardioplegia infusions was significantly higher in the bloodless del Nido group (P = 0.02). The requirement for second and third doses of cardioplegia was also higher in the bloodless del Nido group (P = 0.03 and 0.02, respectively). The spontaneous sinus rhythm recovery rate after ACC release was significantly higher in the bloodless del Nido group (P < 0.01).

Outcomes

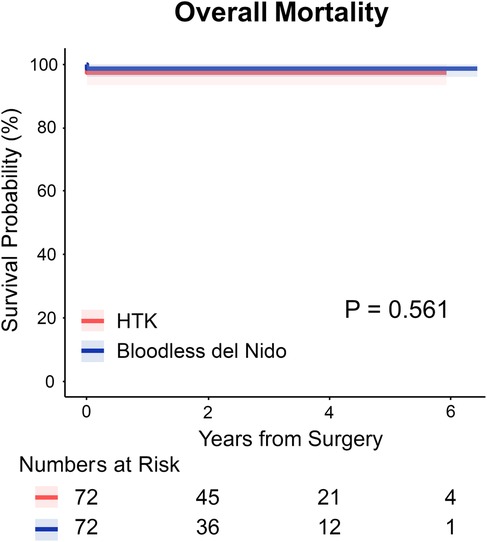

Figure 1 shows Kaplan–Meier survival curves for overall mortality. Freedom from overall mortality did not differ significantly between the two groups (97.2% in HTK vs. 98.6% in bloodless del Nido at 2 years, P = 0.56).

Figure 1
www.frontiersin.org

Figure 1. Kaplan–meier survival curves for overall survival in HTK and bloodless del Nido group. HTK, histidine-tryptophan-ketoglutarate.

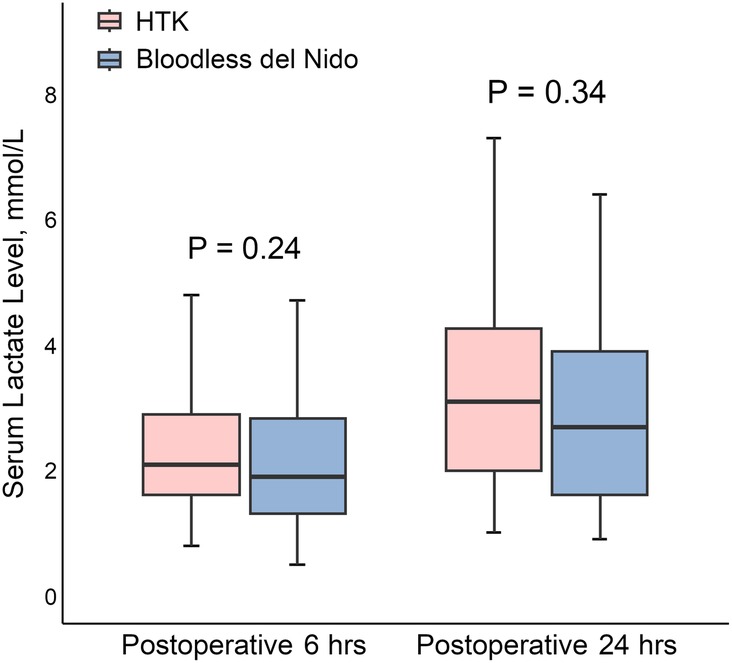

Postoperative lactate levels at 6 and 24 h are shown in Figure 2. The HTK group exhibited higher lactate levels than the bloodless del Nido group at both time points; however, the differences were not statistically significant (HTK vs. bloodless del Nido at 6 h: 2.1 [1.6–3.2] vs. 1.9 [1.3–2.9] mmol/L, P = 0.24; at 24 h: 3.4 [2.0–4.4] vs. 2.8 [1.6–4.2] mmol/L, P = 0.34).

Figure 2
www.frontiersin.org

Figure 2. Postoperative lactate levels at 6 and 24 h after surgery. HTK, histidine-tryptophan-ketoglutarate.

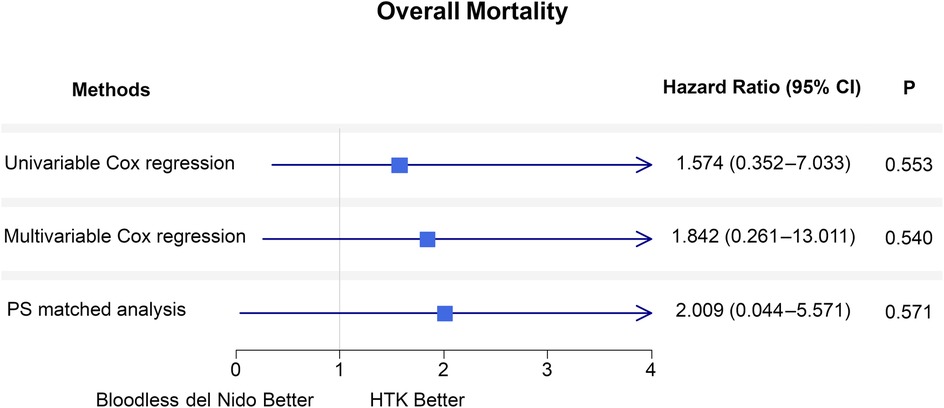

Figure 3 summarizes the hazard ratios for overall mortality between the two groups. Various statistical methods consistently indicated that bloodless del Nido cardioplegia did not increase risks for overall mortality. The results of univariable and multivariable Cox regression analysis was demonstrated in Supplementary Table S1. Firth's penalized logistic regression yielded consistent results (Supplementary Table S2).

Figure 3
www.frontiersin.org

Figure 3. Forest plot of hazard ratios for overall mortality comparing the HTK and bloodless del nido groups during the follow-up period using the Cox proportional hazard models. Analyses are performed with univariable, multivariable Cox regression, and propensity score-matched analysis. CI, confidence interval; PS, propensity score; HTK, histidine-tryptophan-ketoglutarate.

The two groups (HTK vs. bloodless del Nido) did not differ significantly in early mortality (2.8% vs. 1.4%, P > 0.99), low cardiac output syndrome requiring mechanical circulatory support (2.8% vs. 2.8%, P > 0.99), postoperative LVEF [58.0 [50.0–60.0] vs. 58.0 [52.0–60.0]%, P = 0.79], and other early morbidities.

Although the amount of intraoperative red blood cell (RBC) transfusion was significantly greater in the HTK group, the amount of postoperative RBC transfusion did not differ between the two groups. The duration of mechanical ventilation was longer in the HTK group. The initial postoperative serum Na+ level was significantly lower in the HTK group. There were no significant differences in the lengths of stay in the intensive care unit between the two groups (Table 4).

Table 4
www.frontiersin.org

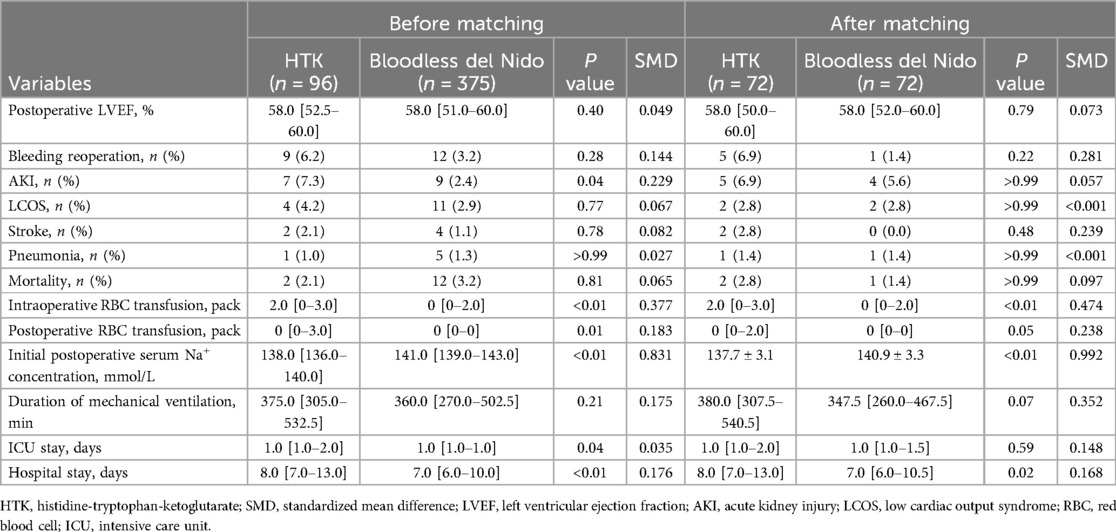

Table 4. Early outcomes.

Discussion

Our study showed that modified bloodless del Nido cardioplegia in MICS had acceptable outcomes compared to the HTK solution. The two groups had no significant difference in early mortality, overall mortality, or postoperative lactate levels.

Adequate myocardial protection in MICS can be challenging due to limited working space with small incisions and longer ACC times. Administering multiple doses of cardioplegia in these situations can be difficult and risky, potentially prolonging ACC times. Thus, single-dose cardioplegia is often the preferred choice (13).

The HTK solution, a single-dose cardioplegia, offers extended myocardial protection for up to 180 min and is widely utilized in MICS. Several studies have shown favorable results associated with the HTK solution for MICS. Savini et al. described 49 patients who underwent minimally invasive mitral valve surgery (MIMVS) with HTK solution, showing no significant rise in cardiac enzymes and no occurrences of in-hospital mortality or low cardiac output syndromes (14). Matzelle et al. studied 100 patients who underwent MIMVS compared to 113 sternotomy cases. In MIMVS, at 6 h post-surgery, only 12% required continuous inotropic support, and 2 patients needed intra-aortic balloon pump assistance. The median peak troponin-I level within the first 24 h, excluding cryoablation cases, was 5.1 µg/L (range: 0.8–40 µg/L), and there were no instances of early or one-year mortality (15).

On the other hand, del Nido cardioplegia was initially developed as a single-dose cardioplegic solution for congenital and pediatric cardiac procedures (16, 17), and its usage in adult cardiac surgeries has been growing. Moreover, there have been reports of favorable outcomes using the del Nido cardioplegia in MICS. For instance, Gerber et al. reported on matched patients who underwent MIMVS, with 38 receiving the del Nido solution and 38 receiving HTK. The study demonstrated similar outcomes for the del Nido and HTK solutions, including no instances of mortality or myocardial infarction, comparable levels of cardiac enzymes, similar durations of intensive care unit stay, ventilation time, perioperative red blood cell use, and hemoglobin levels (21). In another study, Malvindi et al. described matched 110 patients who underwent MIMVS (55 HTK vs. 55 del Nido). There was no in-hospital mortality. Postoperative cardiac enzyme levels did not differ significantly between the two groups (22). Our study also demonstrated similar outcomes in the bloodless del Nido group compared with the HTK group in MICS. Postoperative lactate level was not significantly different between the two groups.

Earlier research indicated that the del Nido and HTK solutions provide similar myocardial protection. Nonetheless, the del Nido cardioplegia offers distinct advantages over the HTK solution, such as a reduced cardioplegic solution volume, mitigating hemodilution, an increased likelihood of spontaneous rhythm recovery, and cost-effectiveness (28). Our study also demonstrated that the spontaneous sinus rhythm recovery rate after ACC release was significantly higher in the bloodless del Nido group. The initial postoperative serum Na+ concentration was significantly lower in the HTK group, suggesting hemodilution (P < 0.01). However, the absolute serum Na+ value in the HTK group was 137.7 ± 3.1 mmol/L, which may not have clinical significance. Additionally, in our institution, modified ultrafiltration is routinely performed during adult cardiac surgery, which may also affect electrolyte levels.

The length of myocardial protection with a single-dose administration is a key consideration in cardioplegia. Guim et al. suggested that the duration of myocardial protection with del Nido cardioplegia lasts up to 120 min (29). In the study by Ong et al., the authors recommended additional administration 60–90 min after the initial dose (30). At our institution, a second dose of bloodless del Nido cardioplegia was administered 90 min after the initial dose, which was shorter than the administration interval for HTK solution (120–180 min). Although the need for the second or third dose was significantly higher in the bloodless del Nido group in our study, CPB and ACC times were not significantly different between the two groups. Therefore, the administration of a second or third dose does not appear to disrupt the procedures. Additionally, clinical impact may not be significant, as the incidence of low cardiac output syndrome and postoperative lactate levels did not differ significantly between the two groups.

The original del Nido cardioplegia solution includes blood, which provides several theoretical advantages, such as buffering properties, improved coronary perfusion, enhanced oxygen delivery, and reduced ischemic stress and reperfusion injury (31). However, several investigations have proposed that crystalloid cardioplegia, such as the HTK solution, can achieve comparable outcomes to blood cardioplegia (32, 33). In our institution, a modified bloodless cardioplegia has been employed since the early 2000 s for congenital heart surgery. Following its successful outcomes in congenital heart surgery (34), it was integrated into adult cardiac surgery in 2014. Our study also revealed that the modified bloodless del Nido cardioplegia in MICS produced favorable results compared to the HTK solution. Consequently, we posit that the inclusion of blood components may not be imperative for del Nido cardioplegia.

The modified bloodless del Nido cardioplegia also offers specific advantages in particular scenarios. For instance, it could be beneficial in the case of small neonates, infants, or even small adults, where incorporating the patient's blood into the cardioplegia can pose challenges. It is a valuable option in situations with a shortage of blood products or when equipment for mixing blood with cardioplegia is unavailable. Moreover, the cost of the del Nido solution is significantly lower than that of the HTK solution (1 L del Nido: $8 vs. 1 L HTK: $105), rendering it a more financially accessible choice.

Our study has several limitations. First, it is a retrospective, non-randomized study conducted at a single institution, where the selection of cardioplegia was based on the surgeon's preference and clinical conditions. Although PS matching was performed to adjust for potential biases in patient selection, the impact of unaccounted confounding factors on our results cannot be ruled out. Additionally, the relatively small sample size (72 patients per group after PS matching) and the follow-up duration of 28.9 [14.5–49.9] months may limit the ability to detect clinically meaningful differences and assess long-term outcomes. Second, data on cardiac markers such as troponin I and creatine kinase-muscle/brain were unavailable due to the absence of routine testing at our institution, except in coronary artery bypass grafting cases. Moreover, our study did not include other parameters that may indirectly suggest myocardial injury, such as the incidence of postoperative ventricular fibrillation, atrial fibrillation, inotropic support, and the dose of inotropic agents. Postoperative lactate levels were used as an indirect indicator of postoperative low cardiac output state instead of these markers; however, the precise effects of cardioplegias on myocardial function remain unclear. Finally, although bloodless del Nido cardioplegia is less costly than the HTK solution, an analysis of resource utilization and cost-effectiveness was not performed in this study. Taken together, multi-center randomized controlled trials with larger patient populations and longer follow-up durations are needed to substantiate our findings.

Conclusion

The modified bloodless del Nido cardioplegia demonstrated comparable postoperative outcomes in MICS compared to the HTK solution. It is a potential alternative for MICS procedures and offers particular advantages, especially in smaller patients or under resource-constrained conditions. However, larger multi-center randomized controlled trials are needed to further validate these initial findings.

Data availability statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Ethics statement

The studies involving humans were approved by Bucheon Sejong Hospital Institutional Review Board. The studies were conducted in accordance with the local legislation and institutional requirements. The Ethics Committee/institutional review board waived the requirement of written informed consent for participation from the participants or the participants' legal guardians/next of kin because The study is retrospective study.

Author contributions

HL: Data curation, Formal analysis, Methodology, Resources, Writing – original draft, Writing – review & editing. JK: Conceptualization, Investigation, Validation, Visualization, Writing – original draft, Writing – review & editing. JY: Conceptualization, Methodology, Project administration, Resources, Validation, Writing – original draft, Writing – review & editing.

Funding

The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or fina ncial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcvm.2025.1448310/full#supplementary-material
