- 1Department of Pediatrics, King Faisal Specialist Hospital and Research Centre, Riyadh, Saudi Arabia
- 2College of Medicine, Qassim University, Unaizah, Al-Qassim, Saudi Arabia
Introduction: The lipid profiles of patients aged <15 years who have been diagnosed with homozygous familial hypercholesterolemia (HoFH) at King Faisal Specialist Hospital & Research Center (Riyadh) were examined.
Methods: The total cholesterol and low-density lipoprotein cholesterol (LDL-C) levels of 17 patients were measured on initial presentation and compared with the levels measured after pharmacological treatment and then again after liver transplantation.
Results: At the end of the pharmacological treatment, the total cholesterol levels decreased by an average of 3.79 mmol/L (reduced by 15.40%) (P < 0.001), and LDL-C levels decreased on average by 2.73 mmol/L (reduced by 13.46%) (P = 0.014). However, in two patients, LDL-C levels increased by 5.42% and 9.03% after pharmacological treatment. Conversely, the lipid values measured after liver transplantation decreased significantly nearly to within normal and borderline limits. The post-transplant total cholesterol and LDL-C levels declined by a mean of 19.96 mmol/L (reduced by 81.04%) and 17.47 mmol/L (reduced by 84.27%), respectively (P < 0.001 for both).
Discussion: These findings suggest that liver transplantation provides a more effective means to reduce elevated total cholesterol and LDL-C levels in patients with HoFH. Although liver transplantation is considered a better treatment for FHoH, risks, complications, and donor organ shortage may present problems.
1 Introduction
Pediatric patients with homozygous familial hypercholesterolemia (HoFH) present with signs and symptoms at a very early age. They suffer from this disorder from birth and have unusually high lipid levels, which are not discovered early unless an index case is identified or incidentally found in the blood test. HoFH usually results from autosomal-dominant inheritance of genetic aberrations in the coding region for low-density lipoprotein receptors (LDLRs) (1). Similar inherited disorders that may affect pediatric patients can produce similar phenotypes having mutations in the genetic material for apolipoprotein B100 (apoB100), proprotein convertase subtilisin/kexin type 9 (PCSK9), and autosomal recessive hypercholesterolemia due to LDLRAP1 mutations (1, 2).
HoFH results from the same mutation in both LDLR alleles, whereas the heterozygous form only has a mutation in one allele. Individuals with different mutations in both LDLR alleles are considered compound heterozygotes (1, 2). These children will require early interventions from a young age to control and manage their cholesterol and low-density lipoprotein cholesterol (LDL-C) levels before worsening conditions develop.
The incidence of atherosclerosis in children has increased over the last two decades, particularly in the Middle East because of changes in lifestyle, dietary habits, and environmental and genetic factors. In the Middle East, the exact prevalence of HoFH is unknown; however, it may be higher than in other parts of the world because of the high incidence of consanguineous marriages (3). According to global estimates for HoFH, this disease may affect 1 in 1 million individuals; however, the prevalence of this lipid abnormality varies from one country to another (3). The negative effect of this disease could be more serious for pediatric patients in the Middle East because some treatments may be unavailable and access barriers in some countries.
In 2001, El-Hazmi and Warsy examined lipid abnormalities in 2,914 Saudi children aged 1–15 years (4). The participants were randomly selected from a national household screening program and divided into 14 groups according to age. The cholesterol and triglyceride levels of the children were measured. The participant’s cholesterol results were evaluated using Kuiterovich’s reference ranges, that is, the desirable, borderline, and high-risk cholesterol levels were <4.36, 4.36–4.88, and ≥5.13 mmol/L, respectively. The desirable, borderline, and high-risk triglyceride levels were <0.825, 0.825–1.089, and ≥1.1 mmol/L, respectively. The cholesterol findings from this study indicated that 7.72% and 1.55% of Saudi children had borderline and high-risk levels, respectively. Regarding triglycerides, 1.4% and 0.55% of Saudi children had borderline and high-risk levels, respectively (4). These findings suggest sufficient cholesterol and triglyceride monitoring in Saudi children. Dietary factors such as the consumption of low-fat food and more vegetables can provide some benefits for children (5).
The criteria for the diagnosis of HoFH are usually based on a combination of several clinical observations: the initial presentation may be a child with skin lesions, LDL-C level of 650–1,000 mg/dl (6), and serum fasting cholesterol level of >13 mmol/L (>500 mg/dl) (7, 8), and positive mutation in LDLR, apoB100, PCSK9, or LARD gene.
Patients usually exhibit the physical signs and symptoms of the disease, such as xanthomas, corneal arcus, and/or atherosclerosis at an early age (within the first decade of life) (8). Children with the homozygous form usually present with severe symptoms and are seriously ill at a young age. Without proper treatment to lower plasma cholesterol levels before the development of coronary artery disease, these children have a poor prognosis.
Many modalities have been used for the treatment of patients with familial hypercholesterolemia including diet, drugs, plasmapheresis, and portocaval shunts (9). These therapeutic regimens have shown limited effectiveness in reducing the total cholesterol and LDL-C levels in the plasma (9). Additionally, particularly for patients with HoFH, these treatments only provide temporary solutions for patients with hypercholesterolemia who may still experience symptoms of atherosclerotic cardiovascular disease (9).
Plasma lipoprotein apheresis (LDL apheresis) provides an option in combination with medical therapy, which has been shown to reduce circulating LDL-C levels by up to ≥60% (9). Treatment using plasma lipoprotein apheresis may be difficult because it may only be offered at a few facilities, is expensive, and may not be available for certain ages. This procedure must be performed weekly week or biweekly, which requires a significant amount of time regularly (1–3, 7, 8).
Portocaval shunt surgery has demonstrated limited success in reported cases where the LDL-C level was reduced by ≥25% in approximately 80% of the patients (10). This treatment method intends to decrease the production rates of LDL-C and apoB100. Portocaval shunts have limited capacity to increase the fractional rate of clearance of these lipids; therefore, plasma lipid concentrations remain high (10).
A previous study demonstrated that liver transplantation (LT) was a highly effective means to lower the LDL-C level up to ≥80% in recipients (9–11). The transplanted liver provides normal LDLR activity, which leads to a decrease in the production rates of LDL-C and apoB100 while increasing the fractional catabolic rate (9–11). Because patients with HoFH were also found to be more responsive to medication therapy after LT, LT was considered a better treatment than portocaval shunt surgery for these patients (10). Thus, this study aimed to compare the effectiveness of LT with drug therapy in reducing total cholesterol and LDL-C levels. The findings could have significant value for Saudi children suffering from HoFH who are not able to benefit from other treatments.
2 Methods
A retrospective study was conducted to review the treatment outcomes of 17 patients diagnosed with HoFH who had undergone LT between 2018 and 2019.
The study included pediatric patients aged 14 years and younger who were diagnosed with HoFH and followed at the Pediatric Endocrine Clinic at King Faisal Specialist Hospital in Riyadh, Saudi Arabia. Patients who did not undergo LT were excluded.
The pharmacological treatment consisted of Ezetimibe initiated as early as 4 years (dose: 10 mg once per day orally), followed by Atorvastatin (Lipitor) after the age of 6 years (dose: 10–40 mg once per day orally depending on patient age and weight).
The levels of total cholesterol (reference: normal <5.2 mmol/L; borderline high 5.2–6.2 mmol/L; high ≥6.2 mmol/L) and LDL-C (normal <2.59 mmol/L; low risk 2.59–3.34 mmol/L; borderline high 3.37–4.12 mmol/L; high 4.14–4.90 mmol/L; very high ≥4.92 mmol/L) were measured before and after drug therapy. Subsequently, all 17 patients had undergone LT. Similarly, total cholesterol and LDL-C levels were evaluated before and after LT.
Statistical data analysis was performed using STATA version 18 to examine the effectiveness of each treatment modality on lipid levels using the paired t-test due to normality assumption by the Shapiro–Wilk test. A p-value of <0.05 was considered significant. Figures were generated using Microsoft Excel 2016.
This study was cleared and approved by the Ethics Committee at King Faisal Specialist Hospital and Research Center (No. 2245271). A waiver of consent was granted from the ethics committee, given the retrospective nature of the study.
3 Results
A total of 17 patients were included in the study, comprising 9 males (52.94%) and 8 females (47.06%), aged between 10 months and 3 years. A positive family history of HoFH and consanguinity were reported in 100% and 94.12% of the cases, respectively (Table 1).
At baseline, all patients had total cholesterol levels exceeding 20 mmol/L and LDL-C levels exceeding 16 mmol/L. Thirteen patients were on pharmacological treatment, and their LDL-C levels were examined before and after drug treatment. The patients’ LDL-C levels dropped by an average of 2.73 mmol/L with an SD of 3.45 after pharmacological treatment, except for 2 patients whose LDL-C levels increased by 5.42% and 9.03%, respectively. Overall, the LDL-C levels decreased by 13.46% after pharmacological treatment (P = 0.014) (see Table 2 and Figure 1a). Furthermore, the patients' total cholesterol levels decreased by an average of 3.79 mmol/L (reduced by 15.40%) (p < 0.001) after pharmacological treatment (Figure 2a).
Figure 1. Mean low-density lipoprotein cholesterol (LDL-C) levels (mmol/L) before and after different treatment modalities. (a) Comparing LDL-C before and after drug therapy. (b) Comparing LDL-C before and after liver transplant.

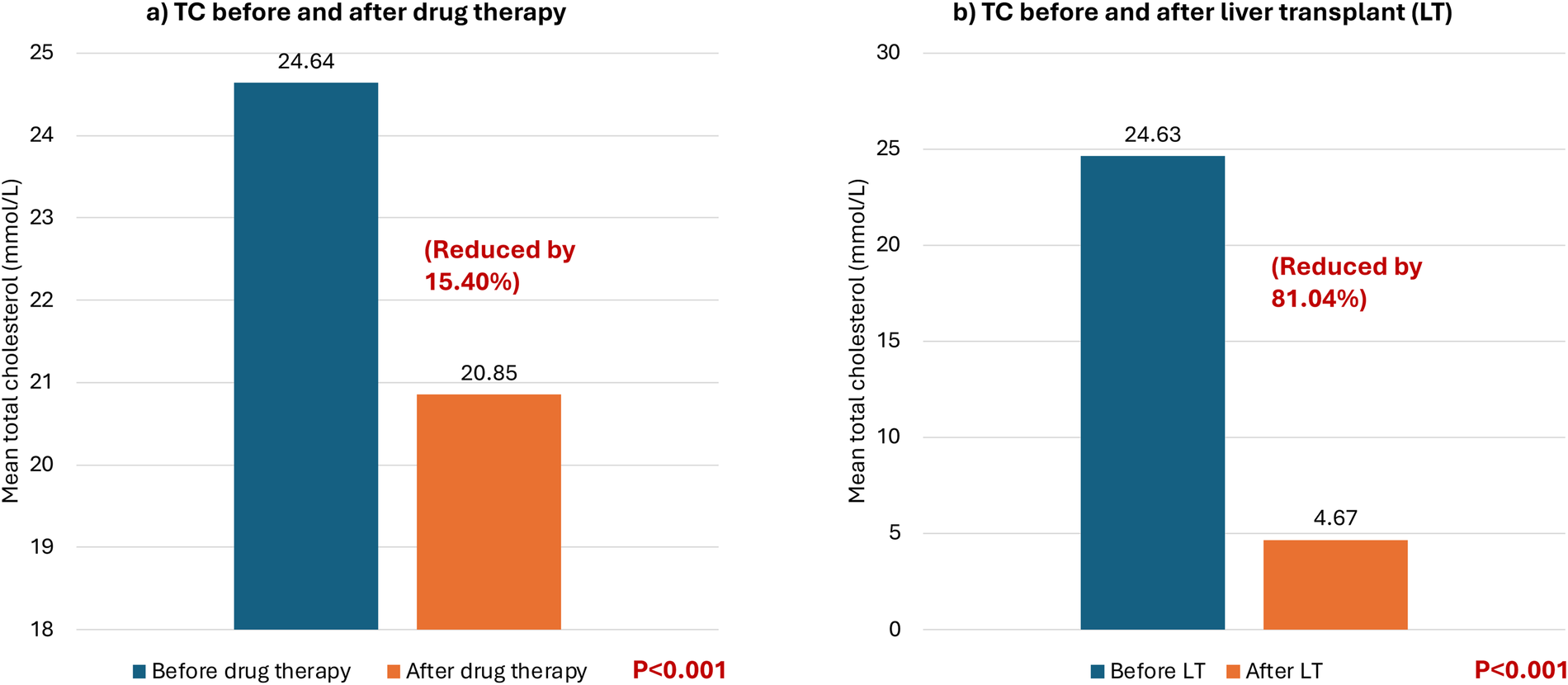

Figure 2. Mean total cholesterol levels (mmol/L) before and after different treatment modalities. Mean total cholesterol levels (TC) (mmol/L) before and after different treatment modalities. (a) TC before and after drug therapy. (b) TC before and after liver transplant.
All seventeen patients subsequently received liver transplantation which caused a significant decrease by 81.04% in total cholesterol in all patients with a mean decrease of 19.96 mmol/L (pre-transplantation: 24.63 mmol/L vs. post-transplantation: 4.67 mmol/L) (p < 0.001) (see Figure 2b). Additionally, the LDL-C decreased in all patients by approximately 84.27% with an average reduction of 17.47 mmol/L (pre-transplantation: 20.73 mmol/L (very high reference: ≥4.92 mmol/L) vs. post-transplantation: 3.26 mmol/L (low risk 2.59–3.34 mmol/L) (p < 0.001) (see Figure 1b).
Thus, the post-LT total cholesterol level declined to within normal limits (<5.2 mmol/L) in most patients (76.47%) (13/17). While the post-LT LDL-C decreased to within normal to borderline limits (≤4.12 mmol/L) in the majority of cases (88.23%) (15/17) (see Table 2).
All our patients are alive and attending regular follow-up visits at the liver transplantation outpatient clinic with an average follow-up period of 14.2 years and SD of 4.4. Their families are satisfied with their overall progress.
4 Discussion
This study revealed the efficacy of LT in reducing total cholesterol and LDL-C levels in patients with HoFH. Previous studies have reported similar cases of HoFH displaying remarkable results (12, 13). Because approximately 70% of damaged LDLRs are located in the liver, LT presents an effective means to replace the defective LDLRs with normally functioning ones (12, 14). LT helped restore the total cholesterol and LDL-C levels to within or near normal ranges in the majority of patients.
These patients with HoFH all had high plasma levels of LDL-C because the LDLRs were unable to function normally in the removal of LDL particles, and biochemically, apoB could have caused atherosclerosis (14, 15). Atherosclerosis in young patients with HoFH may cause such severe coronary artery disease and valvular disease, so they may not have survived much longer than their second decade of life (15).
When comparing post-LT lipid levels to those of a healthy pediatric population, it’s important to note that healthy children typically maintain normal total cholesterol and LDL-C levels (4). In contrast, pediatric patients with HoFH exhibit much higher baseline levels due to a genetic inability to process cholesterol properly (1). Although the post-LT lipid levels in our study significantly improved, may still be slightly higher than those in a healthy pediatric population. This difference can be attributed to the fact that while LT addresses the primary metabolic defect, other factors such as pre-existing vascular damage and the body’s adaptation to the transplanted liver may influence lipid levels (16).
A similar study by Page et al. investigated LT outcomes in 9 HoFH patients with ages ranging from 3 to 26 years. The baseline LDL-C levels were 23 ± 4.1 mmol/L without treatment. Under medical therapy, including maximal statin use, ezetimibe, and LDL-apheresis (LA) in some patients, the mean LDL-cholesterol decreased to 11 ± 5.7 mmol/L (p < 0.001). Post-LT, the mean LDL-cholesterol further dropped to 2.6 ± 0.9 mmol/L (p = 0.004), with three patients remaining on statins and none on LA. One patient died from acute myocardial infarction three years post-LT, and two others required aortic valve replacements over ten years later. The remaining six patients remained asymptomatic after 8–21 years of follow-up. Thus, LT for HoFH patients was very effective in reducing LDL-C levels in all cases (17).
Several factors may influence the degree of success of LT as a treatment for HoFH. The size of the graft transplanted represents the number of normal receptors available for the recipient, and the cholesterol level of the donor may be a contributing factor to treatment success (18). Although slightly variable results may occur under different circumstances, for most recipients with HoFH, the total cholesterol and LDL-C levels will decline to near-normal levels (19). The risk of complications and side effects does exist for LT patients. Under optimal circumstances, if suitable donor organs are available for transplantation, pediatric patients would undergo LT before acquiring cardiovascular disease (20).
In cases where donor organs are unavailable, family members such as a parent may meet the criteria for living-related LT (20). Living relatives may provide a viable option for pediatric patients in need of LT when a shortage of organ donors exists. Other issues for LT patients could involve the risk of organ rejection and/or side effects of immunosuppressive drug therapy (21). Patients with HoFH have been shown to qualify as donors for Domino LT for other recipients in need of liver grafts (22).
The effect of drug therapy on the total cholesterol and LDL-C levels was examined in this study. Drug therapy reduced the levels of both total cholesterol and LDL-C in Saudi pediatric patients before LT. It lowered the levels of circulating total cholesterol in 12 of 13 patients and LDL-C in 11 of 13 patients only by 10%–15%. A previous study indicated the limited success of medications such as statins, bile acid sequestrants, and fibrates (21). Evinacumab was considered for our patients, but it was approved by the FDA “Food and Drug Administration” later in 2021 to be used for children aged 5 years and above with HoFH (23). Furthermore, newer pharmacological treatment regimens are being explored, such as antisense oligonucleotides to apoB that restrict mRNAs (mipomersen), and a molecule that blocks apoB production via the microsomal triglyceride transfer protein mechanism of action (lomitapide) (21). While lomitapide remains experimental for pediatric use, a recent phase 3 trial demonstrated its potential by achieving significant and clinically meaningful LDL cholesterol reduction. These findings suggest that lomitapide could serve as an effective, LDL receptor-independent treatment option for pediatric patients with HoFH (24).
In the present study, the drug therapy was observed much less effective than LT in lowering plasma lipid levels. However, this is a retrospective single-center study; more advanced investigations are needed to develop improved pharmacological treatments for patients with HoFH.
5 Conclusion
The drug therapy had a much smaller reduction effect on both total cholesterol and LDL-C levels. Although it lowered the total cholesterol level on average more than the LDL-C level (3.79 vs. 2.73 mmol/L), the overall benefit of drug therapy was much less than that of LT. Additionally, the lipid levels in two patients increased after the initiation of drug therapy. Although the findings from the drug therapy analysis suggest a greater effect on total cholesterol overall, patients’ total cholesterol levels after treatment were still extremely high. Similarly, for LDL-C, the LDL-C levels after drug therapy continued to be unacceptably high in all 17 Saudi patients.
The observed decline in post-LT lipid levels to near-normal limits in HoFH patients is a significant clinical improvement and brings them closer to the lipid profiles seen in healthy children. These findings support LT as the superior method of treatment for young Saudi patients. However, the residual elevation in some cases reflects the ongoing need for careful monitoring and potentially adjunctive lipid-lowering therapies to achieve optimal cardiovascular outcomes.
Additionally, the risks of LT cannot be overlooked because complications such as organ rejection, infections, and immunosuppressive drugs could affect patient outcomes. Thus, the benefits of LT must be weighed against the risks for young patients. The risk of cardiovascular disease must also be assessed for each patient, and early interventions may be necessary before the onset of atherosclerosis symptoms.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving humans were approved by The Ethics Committee at King Faisal Specialist Hospital and Research Center (No. 2245271). The studies were conducted in accordance with the local legislation and institutional requirements. The ethics committee/institutional review board waived the requirement of written informed consent for participation from the participants or the participants’ legal guardians/next of kin because of the retrospective nature of the study.
Author contributions
AA-A: Conceptualization, Formal Analysis, Writing – original draft. SA-M: Data curation, Methodology, Writing – original draft. MA-S: Investigation, Methodology, Writing – original draft. TA-G: Data curation, Investigation, Writing – review & editing. DB: Data curation, Investigation, Writing – review & editing. RA: Formal Analysis, Methodology, Writing – review & editing.
Funding
The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Raal FJ, Santos RD. Homozygous familial hypercholesterolemia: current perspectives on diagnosis and treatment. Atherosclerosis. (2012) 223:262–8. doi: 10.1016/j.atherosclerosis.2012.02.019
2. Kolovou GD, Kostakou PM, Anagnostopoulou KK. Familial hypercholesterolemia and triglyceride metabolism. Int J Cardiol. (2011) 147:349–58. doi: 10.1016/j.ijcard.2010.08.009
3. Al-Ashwal A, Alnouri F, Sabbour H, Al-Mahfouz A, Al-Sayed N, Razzaghy-Azar M, et al. Identification and treatment of patients with homozygous familial hypercholesterolaemia: information and recommendations from a Middle East advisory panel. Curr Vasc Pharmacol. (2015) 13:759–70. doi: 10.2174/1570161113666150827125040
4. El-Hazmi MAF, Warsy AS. Prevalence of plasma lipid abnormalities in Saudi children. Ann Saudi Med. (2001) 21:21–5. doi: 10.5144/0256-4947.2001.21
5. Knuiman J, Westenbrink S, van der Heyden L, West CE, Burema J, De Boer J, et al. Determinants of total and high density lipoprotein cholesterol in boys from Finland, The Netherlands, Italy, the Philippines and Ghana with special reference to diet. Hum Nutr Clin Nutr. (1983) 37:237–54.6643128
6. Daniels SR, Gidding SS, de Ferranti SD. National lipid association expert panel on familial hypercholesterolemia. Pediatric aspects of familial hypercholesterolemias: recommendations from the national lipid association expert panel on familial hypercholesterolemia. J Clin Lipidol. (2011) 5:S30–S37. doi: 10.1016/j.jacl.2011.03.453
7. Hemphill LC. Familial hypercholesterolemia: current treatment options and patient selection for low-density lipoprotein apheresis. J Clin Lipidol. (2010) 4:346–9. doi: 10.1016/j.jacl.2010.08.013
8. Santos RD. What are we able to achieve today for our patients with homozygous familial hypercholesterolaemia, and what are the unmet needs? Atheroscler Suppl. (2014) 15:19–25. doi: 10.1016/j.atherosclerosissup.2014.07.003
9. Hoeg JM, Starzl TE, Brewer HB. Liver transplantation for treatment of cardiovascular disease: comparison with medication and plasma exchange in homozygous familial hypercholesterolemia. Am J Cardiol. (1987) 59:705–7. doi: 10.1016/0002-9149(87)91199-4
10. Bilheimer DW. Portacaval shunt and liver transplantation in treatment of familial hypercholesterolemia. Arteriosclerosis. (1989) 9:I158–63.2643427
11. East C, Grundy SM, Bilheimer DW. Normal cholesterol levels with lovastatin (Mevinolin) therapy in a child with homozygous familial hypercholesterolemia following liver transplantation. JAMA. (1986) 256:2843–8. doi: 10.1001/jama.1986.03380200081026
12. Kawagishi N, Satoh K, Enomoto Y, Akamatsu Y, Sekiguchi S, Fujimori K, et al. Two cases in one family of living donor liver transplantation for homozygous familial hypercholesterolemia. J Gastroenterol. (2006) 41:501–2. doi: 10.1007/s00535-006-1765-6
13. Page MM, Ekinci EI, Jones RM, Angus PW, Gow PJ, O’Brien RC. Liver transplantation for the treatment of homozygous familial hypercholesterolaemia in an era of emerging lipid-lowering therapies. Intern Med J. (2014) 44:601–4. doi: 10.1111/imj.12444
14. Schmidt HH-J, Tietge UJF, Buettner J, Barg-Hock H, Offner G, Schweitzer S, et al. Liver transplantation in a subject with familial hypercholesterolemia carrying the homozygous p.W577R LDL-receptor gene mutation. Clin Transplant. (2008) 22:180–4. doi: 10.1111/j.1399-0012.2007.00764.x
15. Shirahata Y, Ohkohchi N, Kawagishi N, Syouji M, Tsukamoto S, Sekiguchi S, et al. Living-donor liver transplantation for homozygous familial hypercholesterolemia from a donor with heterozygous hypercholesterolemia. Transpl Int. (2003) 16:276–9. doi: 10.1007/s00147-002-0534-6
16. Gabrielli F, Golfieri L, Nascimbeni F, Andreone P, Gitto S. Metabolic disorders in liver transplant recipients: the state of the art. J Clin Med. (2024) 13(4):1014. doi: 10.3390/jcm13041014
17. Page MM, Hardikar W, Alex G, Bates S, Srinivasan S, Stormon M, et al. Long-term outcomes of liver transplantation for homozygous familial hypercholesterolaemia in Australia and New Zealand. Atherosclerosis. (2023) 387:117305. doi: 10.1016/j.atherosclerosis.2023.117305
18. Küçükkartallar T, Yankol Y, Kanmaz T, Topaloğlu S, Acarli K, Kalayoglu M. Liver transplantation as a treatment option for three siblings with homozygous familial hypercholesterolemia. Pediatr Transplant. (2011) 15:281–4. doi: 10.1111/j.1399-3046.2010.01469.x
19. Revell SP, Noble-Jamieson G, Johnston P, Rasmussen A, Jamieson N, Barnes ND. Liver transplantation for homozygous familial hypercholesterolaemia. Arch Dis Child. (1995) 73:456–8. doi: 10.1136/adc.73.5.456
20. Khalifeh M, Faraj W, Heaton N, Rela M, Sharara AI. Successful living-related liver transplantation for familial hypercholesterolemia in the Middle East. Transpl Int. (2005) 17:735–9. doi: 10.1007/s00147-004-0791-7
21. Marais AD, Blom DJ. Recent advances in the treatment of homozygous familial hypercholesterolaemia. Curr Opin Lipidol. (2013) 24:288–94. doi: 10.1097/MOL.0b013e32836308bc
22. Popescu I, Dima SO. Domino liver transplantation: how far can we push the paradigm? Liver Transpl. (2012) 18:22–8. doi: 10.1002/lt.22443
23. Patel N, Parmar M, Patel P. Evinacumab. (Updated 2023 October 28). In: StatPearls. Treasure Island (FL): StatPearls Publishing (2024). Available online at: https://www.ncbi.nlm.nih.gov/books/NBK597342/ (accessed October 5, 2024).
24. Masana L, Zambon A, Schmitt CP, Taylan C, Driemeyer J, Cohen H, et al. Lomitapide for the treatment of paediatric patients with homozygous familial hypercholesterolaemia (APH-19): results from the efficacy phase of an open-label, multicentre, phase 3 study. Lancet Diabetes Endocrinol. (2024):S2213–8587. doi: 10.1016/S2213-8587(24)00233-X
Keywords: homozygous, familial hypercholesterolemia, cholesterol, LDL-C, liver transplant
Citation: Al-Ashwal A, Al-Mansour S, Al-Shagrani M, Al-Gofi T, Broering D and Alhuthil R (2024) The effectiveness of liver transplantation in reducing lipid levels in Saudi children with homozygous familial hypercholesterolemia. Front. Cardiovasc. Med. 11:1454638. doi: 10.3389/fcvm.2024.1454638
Received: 7 July 2024; Accepted: 28 October 2024;
Published: 15 November 2024.
Edited by:
Kailash Gulshan, Cleveland State University, United StatesReviewed by:
Ravi Kumar Alluri, Cleveland Clinic, United StatesGerald F. Watts, University of Western Australia, Australia
Saurabh Mishra, Cleveland Clinic, United States
Copyright: © 2024 Al-Ashwal, Al-Mansour, Al-Shagrani, Al-Goufi, Broering and Alhuthil. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Abdullah Al-Ashwal, alashwal@kfshrc.edu.sa
