S. Boskovic
V. Ciobanu2
M. Velten- 1Department of Anesthesiology and Intensive Care Medicine, University Hospital Bonn, Bonn, Germany
- 2Department of Cardiac Surgery, University Hospital Bonn, Bonn, Germany
Introduction
In 1969 Shapiro et al. described a specific triad, consisting of episodic hypothermia, hyperhidrosis, and corpus callosum agenesis (1). Less than 80 cases have been reported till today and the pathophysiological mechanism of this rare disorder remains to be elucidated. Hypothermic episodes differ in duration, frequency, and most important severity between patients. Current expert opinions on the topic involve a dysregulation of the hypothalamic body “thermostat”. The initial drop from base line of 37°C (98.6°F) to a lower degree results in hyperhidrosis. Commonly, patients experience chills as the body temperature rises during recovery to regular body temperature (2). Other than the typical triad, a wide variety of different symptoms including headaches, hypoglycemia, or changes in blood counts have been reported (3–5).
Core body temperature is one of patient’s vital signs that is closely monitored during anesthesia. Hypothermia, being defined as a core body temperature below 36°C (96.8°F), occurs in 20%–70% of all patients during surgical procedures, potentially leading to arrhythmias, blood clotting disturbances, changes in pharmacokinetics of drugs, and many more complications (6).
Herein, we report a case of a patient with known Shapiro syndrome, undergoing endoscopic aortic valve replacement for aortic stenosis.
Case report
A 59-year-old woman (59 kg, 163 cm) with severe aortic stenosis presented to the authors’ institution for elective minimally invasive, endoscopic aortic valve replacement surgery. Cardiac assessment revealed a sclerotic aortic valve with a high-grade stenosis, a valve area of 0.55 cm2, and peak velocity of 3.85 m/s, without regurgitation or dilatation of the ascendence aorta. Left ventricular function was preserved with an ejection fraction of 64% and a minimal mitral valve regurgitation was observed.
The Shapiro syndrome was diagnosed two years prior to the scheduled cardiac surgery as the patient experienced an episode of hypothermia with a reported body core temperature of 30.7°C (87.26°F) resulting in ventricular fibrillation and cardiac arrest that was treated by cardiopulmonary resuscitation (CPR). After recovery, the patient received an implantable cardioverter-defibrillator (ICD Medtronic Miro VR) and a drug therapy with 200 mg clonidine daily was initiated as a prophylactic measure to which the patient responded well with no further occurrences of hypothermia since then. Going through detailed patients’ medical history it was revealed that she had so called episodes of low body temperature all her life, sometimes as low as 29°C (84.2°F) with profuse sweating, vomiting, and diarrhea, followed by chills as the body temperature rose back to 37°C (98.6°F). She personally had contributed these episodes to psychological disturbances and did not seek medical advice. The diagnostic following CPR revealed an aortic valve stenosis of 1.1 cm2. Neither the electrocardiogram (ECG), nor cardiac magnetic resonance imaging (MRI) revealed further pathologies. There were signs of a mild coronary artery disease, hypoplasia of the left vertebral artery, essential hypertension, and fibromyalgia. The brain MRI revealed a pathological contact between the acoustic nerve and a small blood vessel on the left side with no clinical correlation and no further pathological changes. Prior to surgery her body mass index was 22.2 with a body surface area of 1.63 m2. There were no abnormalities in laboratory findings. The patient is a smoker and married.
She had progression of her aortic valve stenosis through regular close follow ups. Two years after the initial diagnosis the indication for an aortic valve replacement and decision for a minimally invasive surgery procedure were made.
As a precautionary measure the patient was placed on a full underbody air warming blanket (Mock) upon arrival in the operating room (OR) for potential perioperative temperature control if needed. Prior to induction of general anesthesia, the patients’ body temperature was 37°C (98.6°F) and an arterial line (Vygon) was introduced for invasive blood pressure monitoring. Following general anesthesia induction with 100 μg remifentanil, 70 mg propofol, and 50 mg rocuronium the patient was intubated using a 7.5 mm [ID] endotracheal tube. Ultrasound guided internal jugular vein cannulated was performed, a four-lumen central venous line (Arrow) and a 9Fr sheath introducer (Arrow) were introduced, a urinary catheter with a temperature sensor (Resch) and a second rectal temperature probe (Resch TeleFlex) were placed for a more comprehensive temperature monitoring. Anesthesia was maintained using sevoflurane and a continuous infusion of remifentanil. Further monitoring consisted of ECG, capnography, peripheral oxygen saturation, central venous pressure, near-infrared spectroscopy (Medtronic), bispectrality index (Medtronic), and transesophageal echocardiography (GE Healthcare). The operating theater thermostat was set at 22°C (71.6°F), preventing temperature loss.
The procedure was started after pre-surgical TEE confirming of the diagnosis. Peripheral canulation was performed through the right femoral artery and vein. Bypass was initiated after TEE confirmation of venous canula positioning in the superior vena cava. Surgical approach to the aortic valve was through an anterolateral thoracotomy 6 cm in length. Before initiating CPB the patient's body temperature gradually reduced from 37°C (98.6°F) at the beginning of anesthesia induction to 36.8°C (98.24°F) over the course of 87 min and therefore no active warming was initiated. During CPB the patient was actively warmed through the by-pass machine (Stocking S5) to a body temperature of 37.0⁰C (98.96°F). During CPB the patient required high vasopressors dosages (up to 1.7 μg/kg/min noradrenalin and 4 U/h vasopressin) to establish a perfusion pressure above 65 mmHg. As prophylactic measure due to an anticipated strong systemic inflammatory response syndrome the patient received 100 mg of hydrocortisone and to shorten the ischemic and reperfusion time a biological, sutureless, self-expanding Percival Plus M size replacement aortic valve was implanted. The left atrial auricule was closed with a 35 mm AtriClip. Overall CBP time was 104 min with 59 min cross-clamp and 11 min reperfusion duration (Figure 1).

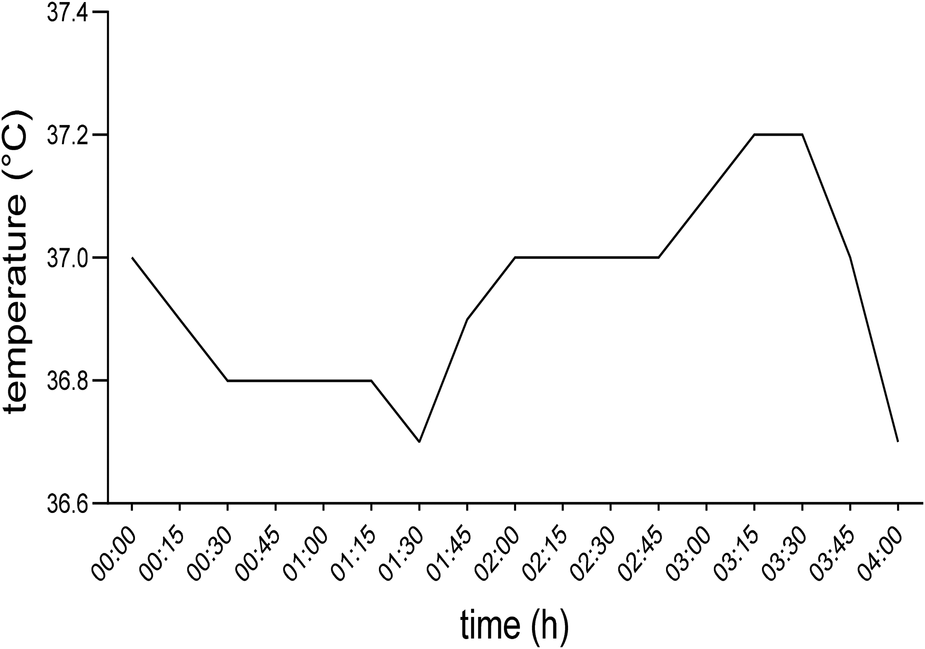

Figure 1. Body core temperature of the patient during surgery. 00:00 timestamp indicating the first measurement before inducing general anesthesia.
After the patient was weaned from cardiopulmonary bypass her hemodynamic state was gradually recovering, while she slightly cooled down and over the course of 45 min reached a body temperature of 36.7°C (98.06°F). Prior to the end of the surgery, the patient received 7 mg piritramide, 1,000 mg metamizole as postoperative analgesia, 50 µg clonidine and 4 mg ondansetron as postoperative nausea and vomiting prophylaxis, according to institutional standards. Following uncomplicated extubation, 17 min after suturing, the patient was transferred to the intensive care unit (ICU) on low dose noradrenalin (0.05 µg/kg/min) (Figure 1).
On the first evening after the surgery the patient started experiencing fevers peaking at 38.5°C (101.3°F) and therefore remained on ICU observation. Elevated body temperature continued on the second postoperative day and the patient experienced an asthma attack from which she quickly recovered. Other than flatulence the patient had no other complaints during the postoperative course and as her vital signs stabilized with body temperature normalizing, she was transferred to the ward on the fourth postoperative day. On the sixth postoperative day the patient was discharged to further outpatient care with a body temperature of 36.5°C (96.8°F) and without any complications. During her entire hospital stay the patient had no episodes of hypothermia (Figure 2).

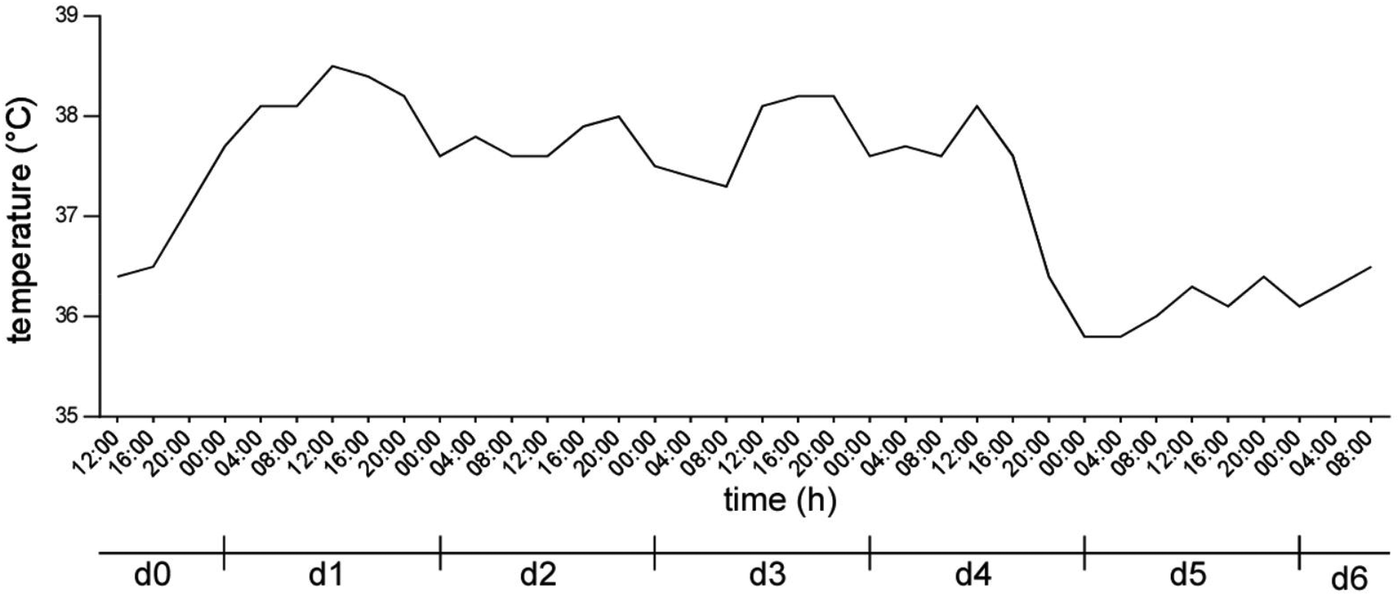

Figure 2. Body core temperature of the patient after surgery. d0 indicating the day of surgery, d1 to d6 indicating the first to sixth postoperative day.
At her scheduled 1 month and 3 months post-op follow-up the patient was feeling well and had no occurrences of hypothermia. Echocardiography showed a preserved ejection fraction of 64.1%, no evidence of paravalvular leakage and a good quality function of the implanted aortic valve with Vmax. of 2.3 m/s.
Discussion
Shapiro Syndrome is an extremely rare medical condition and through our extensive research of the available literature up until our case report there have only been 78 cases reported with just one during general anesthesia and none during cardiac surgery.
Our patient was diagnosed with Shapiro Syndrome after an incident of ventricular fibrillation and CPR. Atrial and ventricular dysrhythmias are a common life-threatening complication of hypothermia. In approximately 20,000 cases in the UK and 25,000 cases in the USA hypothermia was either the leading or an attributing cause of death annually (7, 8).
The typical triad of Shapiro Syndrome is episodic hypothermia, hyperhidrosis, and agenesis of corpus callosum. In the extensive diagnostics post cardiac arrest, our patient lacked the absence of corpus callosum agenesis, but 50% of all patients with Shapiro syndrome have no corpus callosum abnormalities, 40% have a complete agenesis, and 10% have other anatomical changes in the region. Her episodes of hypothermia were followed by gastrointestinal disturbances which occurs in around 14% of patients with Shapiro Syndrome (9).
Body temperature drops in Shapiro Syndrome patients are related to an disbalance between the anterior and posterior hypothalamus centers. The first being heat-dissipating and the second being heat conserving. There are various theories for this disbalance (degenerating, irritating, neurochemical, epileptical) but none are conclusive as to why the hypothalamus temperature set point is altered (10). General anesthesia damps thermoregulatory responses such as shivering or vasoconstriction caused by hypothermia and with non-shivering thermogenesis having little role in adults, patients become somewhat poikilothermic during surgery (11). Our case report showed that general anesthesia for cardiac surgery and CBP does not trigger hypothermic episodes in a Shapiro Syndrome patient.
An inflammatory response to CPB is well documented and increases in interleukin-6 have been reported (12). It is believed that this activation of the immune system is being generated as a result of its’ contact with the artificial surface of the CPB machine, as well as genetic factors, which also play a major role (13, 14). Clinically, our high vasopressor dosage requirement during CPB potentially resulted from a strong inflammatory response during CPB and our patient was given glucocorticoids, with a good outcome and a fast reversal of vasoplegia, although their role in preventing or damping the inflammatory response during CBP remains questionable (15).
The anterolateral thoracotomy approach was chosen for our patient as newer studies have shown that the inflammatory response to CBP is lower in using this approach rather than median sternotomy (16). This approach is also linked to a shorter ICU and hospital stay, reduced infection rate and less blood loss (17). The cross-clamp time was shortened using a sutureless self-expanding prosthesis. Although self-expanding prosthesis are linked to a higher incident of postoperative permanent pace maker implantation, our patient already had an implanted ICD (18). Minimal invasive endoscopic aortic valve replacement is very suitable for middle-aged patients with preserved ejection fraction, which is the case regarding our patient (19).
Postoperative hyperthermia after surgery occurs in more than 25% of patients after major surgery which peaks at approximately 12 h after surgery and is associated with elevated levels of interleukin-6, which through inflammatory responses sets a new value of the thalamic thermostat set-point (20, 21). Our case report showed that patients suffering from Shapiro Syndrome react to inflammatory interleukins similar to what is described in the literature (20, 21) and that although the thalamic thermostat episodically sets to a new low point it is possible to be set to a new high point through inflammation.
Clonidine medication was not paused preoperatively, with the patient taking her medication as per usual on the morning of surgery and continued immediately after surgery as well as the patient receiving a small dose of 50 µg clonidine prior to extubation. With such a rare disorder as Shapiro Syndrome there is an obvious lack of guidelines for treatment. Most commonly, patients are treated with cyproheptadine, clonidine, or carbamazepine. Patients treated with clonidine show either a full recovery with no new episodes of hypothermia or a drastic reduction of instances and duration of symptoms (2).
Up until our case report, to the best of our knowledge, there has been only one case of a patient with Shapiro Syndrome undergoing surgery and general anesthesia. The patients’ body temperature regulation reacted similar to other patients undergoing the same surgical procedure (22).
Conclusion
This case report shows that Shapiro syndrome patients need to be closely monitored during the peri operative period, and investigate all the options to support the temperature homeostasis. Our case demonstrates this is doable and successful through close monitoring. More studies are needed though to understand temperature homeostasis.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Ethics statement
Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
VC, FB, and MV were in charge of the peri- operative strategy, discussed it with the patient, and obtained informed consent. SB, VC, and MV managed the intraoperative period. NT, FB, and VC managed the ICU treatment. SB collected all clinical data. SB, FB, and MV drafted the manuscript. SB, VC, NT, FB, and MV read, corrected, and approved the final version. All authors contributed to the article and approved the submitted version.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Shapiro WR, Williams GH, Plum F. Spontaneous recurrent hypothermia accompanying agenesis of the corpus callosum. Brain. (1969) 92(2):423–36. doi: 10.1093/brain/92.2.423
2. Gramont B, Labouré J, Soulier H, Cathébras P. Spontaneous periodic hypothermia syndrome: a systematic review of the literature. Rev Med Interne. (2021) 42(10):686–93. doi: 10.1016/j.revmed.2021.04.001
3. Aubignat M, Tir M, Krystkowiak P, Andriuta D. Episodic headache with spontaneous hypothermia reveal shapiro’s syndrome variant with effectiveness of clonidine therapy. J Headache Pain. (2021) 22(1):30. doi: 10.1186/s10194-021-01245-3
4. Lewis C, Freeman N, Gupta N. Hypoglycemia as a manifestation of shapiro syndrome. Cureus. (2022) 14(3):e23120–e23120. doi: 10.7759/cureus.23120
5. Garg J, Arun P, Sawal N. Shapiro syndrome presenting with catatonia and thrombocytopenia. Neurol India. (2019) 67(2):576–80. doi: 10.4103/0028-3886.258035
6. Ruetzler K, Kurz A. Consequences of perioperative hypothermia. Handb Clin Neurol. (2018) 157:687–97. doi: 10.1016/B978-0-444-64074-1.00041-0
7. Mattu A, Brady WJ, Perron AD. Electrocardiographic manifestations of hypothermia. Am J Emerg Med. (2002) 20(4):314–26. doi: 10.1053/ajem.2002.32633
9. Tambasco N, Belcastro V, Prontera P, Nigro P, Donti E, Rossi A, et al. Shapiro’s syndrome: defining the clinical spectrum of the spontaneous paroxysmal hypothermia syndrome. Eur J Paediatr Neurol. (2014) 18(4):453–7. doi: 10.1016/j.ejpn.2014.02.001
10. Kloos RT. Spontaneous periodic hypothermia. Medicine (Baltimore). (1995) 74(5):268–80. doi: 10.1097/00005792-199509000-00004
11. Sessler DI. Temperature monitoring and perioperative thermoregulation. Anesthesiology. (2008) 109(2):318–38. doi: 10.1097/ALN.0b013e31817f6d76
12. Hilbert T, Duerr GD, Hamiko M, Frede S, Rogers L, Baumgarten G, et al. Endothelial permeability following coronary artery bypass grafting: an observational study on the possible role of angiopoietin imbalance. Crit Care. (2016) 20(1):51. doi: 10.1186/s13054-016-1238-0
13. Laffey JG, Boylan JF, Cheng DCH. The systemic inflammatory response to cardiac surgery: implications for the anesthesiologist. Anesthesiology. (2002) 97(1):215–52. doi: 10.1097/00000542-200207000-00030
14. Durandy Y. Minimizing systemic inflammation during cardiopulmonary bypass in the pediatric population. Artif Organs. (2014) 38(1):11–8. doi: 10.1111/aor.12195
15. Whitlock RP, Devereaux PJ, Teoh KH, Lamy A, Vincent J, Pogue J, et al. Methylprednisolone in patients undergoing cardiopulmonary bypass (SIRS): a randomised, double-blind, placebo-controlled trial. Lancet. (2015) 386(10000):1243–53. doi: 10.1016/S0140-6736(15)00273-1
16. Paparella D, Rotunno C, Guida P, Travascia M, de Palo M, Paradiso A, et al. Minimally invasive heart valve surgery: influence on coagulation and inflammatory response. Interact Cardiovasc Thorac Surg. (2017) 25(2):225–32. doi: 10.1093/icvts/ivx090
17. Stoliński J, Plicner D, Grudzień G, Wąsowicz M, Musiał R, Andres J, et al. A comparison of minimally invasive and standard aortic valve replacement. J Thorac Cardiovasc Surg. (2016) 152(4):1030–9. doi: 10.1016/j.jtcvs.2016.06.012
18. Dalén M, Biancari F, Rubino AS, Santarpino G, Glaser N, de Praetere H, et al. Aortic valve replacement through full sternotomy with a stented bioprosthesis versus minimally invasive sternotomy with a sutureless bioprosthesis. Eur J Cardiothorac Surg. (2016) 49(1):220–7. doi: 10.1093/ejcts/ezv014
19. Nguyen TC, Thourani VH, Pham JQ, Zhao Y, Terwelp MD, Balan P, et al. Traditional sternotomy versus minimally invasive aortic valve replacement in patients stratified by ejection fraction. Innovations (Phila). (2017) 12(1):33–40. doi: 10.1097/imi.0000000000000338
20. Frank SM, Kluger MJ, Kunkel SL. Elevated thermostatic setpoint in postoperative patients. Anesthesiology. (2000) 93(6):1426–31. doi: 10.1097/00000542-200012000-00014
21. Abe K, Miyamoto Y, Ohnishi K. Hyperthermia after cardiac surgery. Can J Anaesth. (1997) 44(6):662–5. doi: 10.1007/BF03015452
Keywords: temperature management, minimal invasive aortic valve replacement surgery, spontaneous periodic hypothermia, shapiro syndrome, temperature
