Introduction: Mechanical circulatory support (MCS) can help to maintain hemodynamic stability, improve cardiac function, reduce cardiac load, and is an important method for the treatment of advanced heart failure. However, traditional MCS systems [IABP, Impella, TandemHerat, veno-arterial extracorporeal membrane oxygenation (VA-ECMO)] are associated with limitations including trauma, a high rate of complications (hemolysis, bleeding) and require complex care from nurses.
Case summary: We report a case of left heart failure resulting from dilated cardiomyopathy in a 24 years-old man. A catheter was placed through the right jugular vein and a drainage tube was positioned under ultrasound guidance through the superior vena cava, right atrium, atrial septum, to the left atrium, and returned to the axillary artery using an extracorporeal magnetic levitation ventricular assist device (VAD). The patient was successfully supported for 10 days and bridged to heart transplant.
Discussion: To the best of our knowledge, this is the first report of the use of an extracorporeal magnetic levitation VAD for MCS via a percutaneous approach. Our findings support the wider use of this strategy for patients awaiting myocardial recovery or who require heart bridging or transplantation.
Introduction
In China, common treatments for temporary mechanical circulatory support (MCS) in patients with cardiogenic shock (CS) include intra-aortic balloon pump (IABP) and veno-arterial extracorporeal membrane oxygenation (VA-ECMO). Although the IABP is simple to operate, the results of the SHOCK-II clinical trial showed that IABP had no clear effect on improving survival in patients with CS (1); Similarly, although VA-ECMO increases systemic flow and pressure and reduces venous congestion in pulmonary circulation without unloading the left side of the heart (2), it can lead to major complications including pump thrombosis, bleeding, ischemic limbs, and harlequin syndrome (3). Therefore, more options for MCS and more suitable implantation strategies are needed to improve prognosis in patients with CS.
The extracorporeal magnetic levitation ventricular assist device (VAD) uses a magnetic levitation rotor that can rotate without friction or wear, with less blood stagnation, turbulence or hemolysis, compared with ECMO and almost no mechanical failure (4). In our previous report, we treated a patient who developed CS following coronary artery bypass surgery for 9 days until discharge using magnetic levitation extra-VAD (5). However, this device needs to be inserted by median sternotomy, which is highly invasive and inconvenient for patients. We modified our approach and performed percutaneous left VAD placement through the right internal jugular vein, with cannulation of the axillary artery for 10 days to successfully bridge the patient to heart transplantation. This method was well-tolerated and associated with less trauma and simplified operation compared with CentriMag, which maximizes patient benefits.
Case report
A 24 years-old man (height: 185 cm; weight: 78 kg) with a history of dilated cardiomyopathy, pulmonary hypertension, severe mitral insufficiency, and moderate tricuspid insufficiency was admitted with a New York Heart Association (NYHA) cardiac function rating of IV and a left ventricular ejection fraction of 20%. He received extensive medical treatment to increase myocardial contractility, reduce pulmonary hypertension and control heart rate. Unfortunately, the patient developed persistent systemic hypoperfusion with CS. He was given temporary left ventricular assist using a magnetic levitation extra-VAD device. Before implantation, ultrasound examination showed left ventricular dilatation (left ventricular end-diastolic diameter 9.5 cm), systolic dysfunction [left ventricular ejection fraction 13%; arterial blood pressure 80/60 mmHg; N-terminal pro-B-type natriuretic peptide (NT-proBNP) 2,910 pg/ml], and pulmonary artery systolic blood pressure of 57 mmHg.
To circumvent the difficulties of atrial septal puncture through the jugular vein, puncture through the femoral vein was performed. A guide wire was inserted through the right femoral vein puncture to achieve right heart catheterization under the guidance of ultrasound and digital subtraction angiography (DSA) (Figure 1A, and a snare was placed in the right atrium along the femoral vein guide wire (Figure 1B). The catheter was delivered through the right jugular vein, captured by a snare, and placed into the left atrium along the femoral vein guide wire (Figure 1C). A drainage tube was placed using the guide wire approach to establish a drainage path through the jugular vein, superior vena cava, right atrium, and atrial septum to the left atrium (Figure 1D). Finally, the axillary artery was exposed and blocked under the right clavicle, an 8 mm artificial blood vessel was anastomosed end-to-side, and the outflow tube was inserted to establish left atrium-extra-VAD-axillary artery circulation assistance. The pump flow was set at approximately 3 L/min and the speed was 2,500 rpm.
Figure 1. Percutaneous intubation procedure. (A) Atrial septal puncture. (B) Insertion of the snare. (C) Jugular guide wire creates a passage in the left atrium. (D) Drainage tube placement.
Hemodynamic and hematological parameters were monitored throughout extra-VAD implantation, and indicated good recovery. No hemolysis-related complications occurred (Figure 2A), and liver and kidney function were unaffected (Table 1). Heparin was used for anticoagulation therapy to maintain the target activated coagulation time (ACT) between 180 and 220 s and maintain the target activated partial thromboplastin time (APTT) between 40 and 55 s (Figure 2B). High-sensitivity troponin I reached 2,985.1 ng/L postoperatively and rapidly decreased to 647.7 ng/L on the second postoperative day. Similarly, lactic acid levels decreased to 0.6 mmol/L the day after surgery and remained between 0.4 and 1.0 mmol/L thereafter. These results indicated a rapid improvement in cardiac function. The extra-VAD device was removed 10 days later, and ultrasound results showed a left ventricular end-diastolic diameter of 7.6 cm. The patient subsequently underwent a successful heart transplant.
Figure 2. Lab rest results during extra- ventricular assist device (VAD) support. (A) Blood compatibility. PLT, platelet; RBC, red blood cell; WBC, white blood cell. (B) Anticoagulation management. ACT, active clotting time (s); APTT, activated partial thromboplastin time (s); D-Dimer (mg/L).

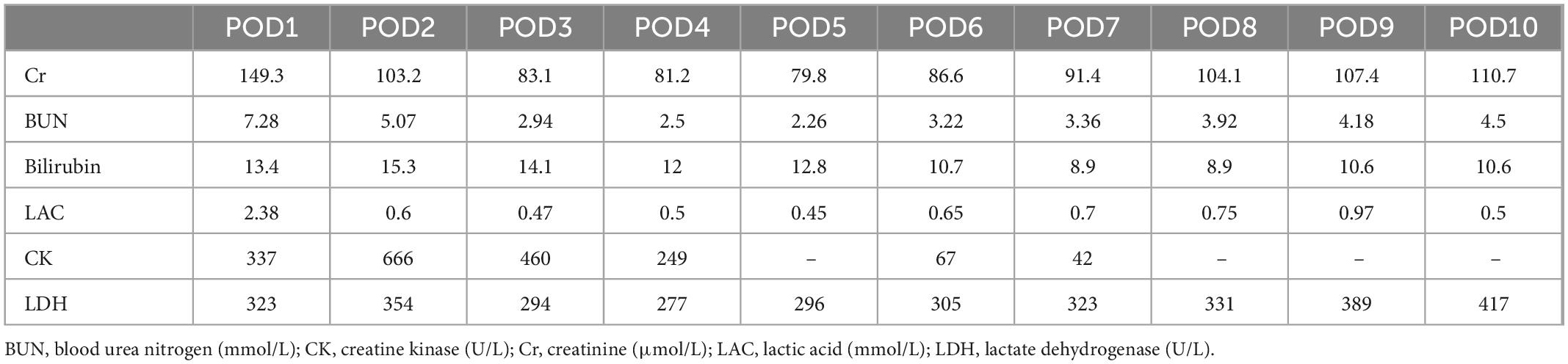

Table 1. Lab rest results during extra- ventricular assist device (VAD) support.
Discussion
Cardiogenic shock is a recognized cause of death in patients with heart failure due to low cardiac output resulting in severe hypoperfusion of vital organs, with a short-term mortality rate of more than 50% (6). MCS can quickly stabilize hemodynamic parameters, ensure effective perfusion of organs, and improve cardiac function. In recent years, clinicians have increasingly used short-term MCS to improve adverse outcomes in patients with CS (7).
Traditional short-term MCS units such as Impella, TandemHerat, and VA-ECMO use mechanical bearing axial flow pumps. In contrast, the magnetic levitation centrifugal pump increases blood compatibility and reduces the incidence of pump thrombosis, hemolysis, and gastrointestinal bleeding, thereby minimizing blood loss, the need for blood transfusion, and postoperative inflammation (8, 9). In addition, reduced thrombosis minimizes the amount of anticoagulation required to prevent thrombosis; therefore, postoperative anticoagulation management is simpler compared with VA-ECMO.
In addition, only CentriMag can offer full circulatory support; the rest of the device such as Impella CP with up to 4.3 L/min, Impella 5.5 with 5.5 L/min (Axial pump may overestimate the flow rate due to the number are not directly reading from ultrasonic flow sensor) and TandemHeart with 4 L/min can only provide partial support. In life threatening end stage heart failure patient, the support average flow range is from approximately 3.5–6.0 L/min (10). In these cases, impella or TandemHeart may not provide sufficient flow for the patients. Therefore, ECMO and Impella (ECPELLA) are combined to treat cardiogenic shock (11). However, combining two different mechanical circulatory support systems will potentially increase complications.
No bleeding or thrombotic complications and no hemolysis were observed during the entire course of circulatory support, which is consistent with our previous report (5). While our method of extra-VAD is designed for short-term use (≤30 days), we have found it to be well-tolerated over longer periods of time.
In addition, we modified the conventional method of median sternotomy and re-cannulation to a percutaneous approach. To our knowledge, this is the first time this surgical method has been reported in the literature and suggests that minimally invasive, short-term and mid-term external magnetic levitation artificial heart implantation should be considered for widespread use.
Percutaneous left VAD reduces left ventricular volume, wall stress, and myocardial oxygen consumption whilst increasing cardiac output and coronary perfusion to minimize myocardial ischemia and hemodynamic failure in high-risk patients with heart failure. This minimally invasive method greatly reduces patient trauma and avoids the risks associated with complicated thoracotomy (12).
Additionally, the percutaneous approach reduces blood loss and potential coagulation disorders, which simplifies postoperative care (13). With transjugular intubation, patients may walk early after surgery, which can accelerate postoperative activity and rehabilitation and reduce the occurrence of postoperative bed rest complications such as deep vein thrombosis and pulmonary infection (14). In addition to clinical benefits, this minimally invasive approach can significantly shorten the length of hospital stay, restore cardiac function more rapidly and greatly reduce medical costs compared with established approaches (15).
In conclusion, we propose a novel, minimally invasive and easy-to-care mode of extracorporeal ventricular assistance using an extracorporeal magnetic levitation VAD via jugular vein intubation. This model avoids unnecessary surgeries and is associated with fewer complications than existing methodologies. Further clinical data are necessary to evaluate the advantages of this model over traditional MCS strategies.
