Stereotactic Radiotherapy Ablation and Atrial Fibrillation: Technical Issues and Clinical Expectations Derived From a Systematic Review

Aim: The purpose of this study is to collect available evidence on the feasibility and efficacy of stereotactic arrhythmia radio ablation (STAR), including both photon radiotherapy (XRT) and particle beam therapy (PBT), in the treatment of atrial fibrillation (AF), and to provide cardiologists and radiation oncologists with a practical overview on this topic.

Methods: Three hundred and thirty-five articles were identified up to November 2021 according to preferred reporting items for systematic reviews and meta-analyses criteria; preclinical and clinical studies were included without data restrictions or language limitations. Selected works were analyzed for comparing target selection, treatment plan details, and the accelerator employed, addressing workup modalities, acute and long-term side-effects, and efficacy, defined either by the presence of scar or by the absence of AF recurrence.

Results: Twenty-one works published between 2010 and 2021 were included. Seventeen studies concerned XRT, three PBT, and one involved both. Nine studies (1 in silico and 8 in vivo; doses ranging from 15 to 40 Gy) comprised a total of 59 animals, 12 (8 in silico, 4 in vivo; doses ranging from 16 to 50 Gy) focused on humans, with 9 patients undergoing STAR: average follow-up duration was 5 and 6 months, respectively. Data analysis supported efficacy of the treatment in the preclinical setting, whereas in the context of clinical studies the main favorable finding consisted in the detection of electrical scar in 4/4 patients undergoing specific evaluation; the minimum dose for efficacy was 25 Gy in both humans and animals. No acute complication was recorded; severe side-effects related to the long-term were observed only for very high STAR doses in 2 animals. Significant variability was evidenced among studies in the definition of target volume and doses, and in the management of respiratory and cardiac target motion.

Conclusion: STAR is an innovative non-invasive procedure already applied for experimental treatment of ventricular arrhythmias. Particular attention must be paid to safety, rather than efficacy of STAR, given the benign nature of AF. Uncertainties persist, mainly regarding the definition of the treatment plan and the role of the target motion. In this setting, more information about the toxicity profile of this new approach is compulsory before applying STAR to AF in clinical practice.

Introduction

Atrial fibrillation (AF) is one of the most common cardiac arrhythmias, with an estimated number 8.8 million of affected subjects in Europe. As the prevalence of AF increases with age, it is expected to affect approximately 18 million in the European Union by 2060 (1) and more than 8 million people in the United States by 2050 (2). In addition, the incidence of AF increases in patients with cancer having an incidence of 3.7 per 1,000 person year, also due to medical oncology treatments (3).

Despite being benign in nature, AF represents a well-recognized independent risk factor for stroke (4) and has been associated with potentially severe medical conditions including heart disease (5) and chronic kidney disease (6). Moreover, a substantial proportion of eligible patients are undertreated with medical therapy (7) and 74.6% of the patients (5) are symptomatic despite ongoing medical therapy. Drugs can also have significant side effects such as an increased risk of bleeding; all these features determine a worsened quality of life in patients with AF (8). Based on the presentation, duration, and spontaneous termination of AF episodes, five types of AF can be distinguished: first diagnosed, paroxysmal (self-terminating, in most cases within 48 h), persistent, long-standing persistent (continuous AF lasting for ≥1 year), and permanent AF (AF that is accepted by the patient and physician) (9). As AF frequently originates from an electric trigger located in the pulmonary veins, this site is the main therapeutic target of an ablation procedure defined as “pulmonary veins isolation” (PVI) (10). Based on further empirical evidence, the left-posterior atrial wall has been added to this target (11). A wide variety of approaches for PVI, including point-by-point radiofrequency ablation or cryoballoon ablation (9), has been described. Recently, pulsed-field ablation has been introduced as an innovative technique for the ablation of AF. It is based on the induction of cell death by the electric field (electroporation), has shown good preliminary results in terms of safety and efficacy (12, 13). Overall, the efficacy of these procedures reaches 70% in patients with paroxysmal AF and 50% in those with persistent AF (14), while the percentage of severe related complications approximates 3.5% (15). In addition, a significant proportion of patients require more than one procedure to achieve the permanent restoration of sinus rhythm (SR) (16).

While alternative techniques are available, including ethanol, needle, and bipolar ablation, they are not without disadvantages or side effects, including the uncertainty of properly and completely damaging the target (17), cardiac perforation and tamponade (18), or the inability to appropriately hit deep and large substrates (19).

Other than the well-known applications in cancer, radiation therapy has been used for the treatment of benign medical conditions, showing both satisfactory efficacy and a good safety profile (20–22).

In the last 5 years, multiple studies have investigated the potential of stereotactic arrhythmia radio ablation (STAR): most of the literature is about the treatment of recurrent ventricular tachycardia (VT) and involves both conventional linear accelerator (CLA) (23, 24) and radiosurgery Cyberknife^® (CK, Accuray, Sunnyvale, CA, United States) accelerator (25–27). The safety and efficacy of this new therapeutic opportunity seem to be good in both cases. Moreover, some preclinical studies (28, 29) have used particle beam therapy (PBT) for cardiac ablation: being able to selectively spare the most critical structures is a clear advantage and might arguably open up to the future possibility of re-irradiations.

An increasing body of literature has focused on intracardiac malignancies undergoing stereotactic radiosurgery, and on its possible related side effects (30–32). Similarly, dosimetric studies on heart irradiation have been published in the last years (33, 34). A significant issue of cardiac radiosurgery may be the long-term effects of radiation on myocardial, conduction, valvular, and other cardiac tissues. These concerns can be at least partially addressed by the study of long-term toxicity in lymphoma (35) and centrally located lung treatment (36).

Although photons are the most known form of energy in radiation therapy, PBT (both heavy ions and protons) are an emerging alternative to conventional treatments. Advantages of this form of radiotherapy are the favorable physical characteristics and the major relative biological effectiveness (RBE), especially when referring to carbon ion radiotherapy (37). As a consequence, studies favoring the role of stereotactic PBT have been developed (38) over the last couple of years.

Given the lack of comparable works, this article aims to review the current evidence on the feasibility and efficacy of external beam radiotherapy for AF and to provide radiation oncologists and cardiologists with a practical overview of this theme.

Materials and Methods

In compliance with the preferred reporting items for systematic reviews and meta-analyses (PRISMA) (39, 40), literature research was performed in November 2021.

Articles were researched in multiple database sources: NCBI PubMed, EMBASE, PMID, and Scopus. The strings of research employed and the PRISMA’s checklist are available in Supplementary Material 1. The PRISMA flow diagram for article selection is illustrated in Figure 1.

FIGURE 1

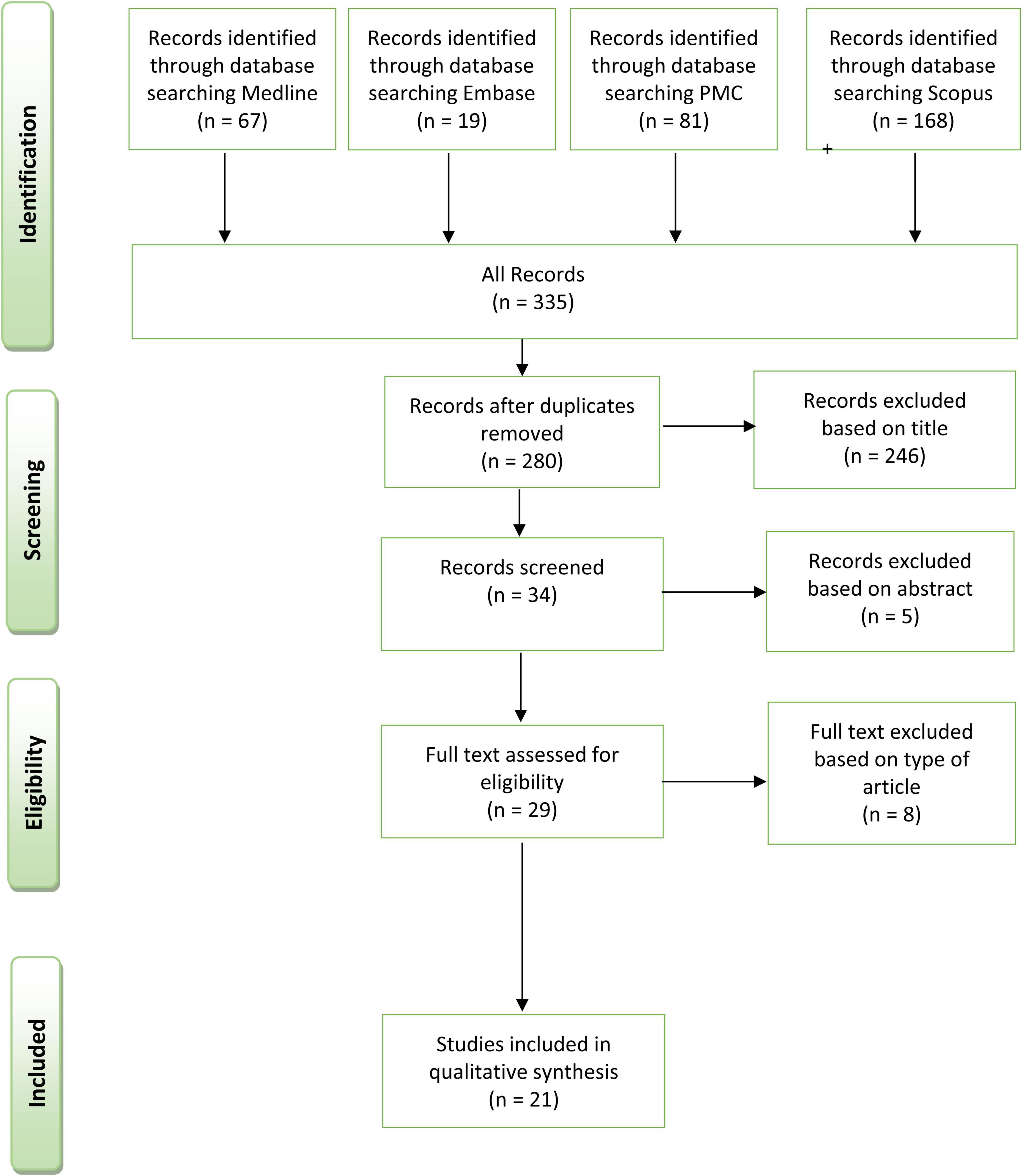

Figure 1. Preferred reporting items for systematic reviews and meta-analyses flow-chart.

Both preclinical and clinical studies were considered; no data restrictions or language limitations were applied. The inclusion of gray literature was allowed. Studies whose focus were other forms of arrhythmias (i.e., ventricular and nodal) were considered out of the scope of this work and were therefore excluded.

An independent re-assessment was performed by a second reviewer; in case of any disagreement, a third reviewer was engaged. Selected works were independently screened by two reviewers; whenever disagreement occurred regarding the inclusion criteria, a third reviewer was called to resolve the discrepancy.

Summary and definition of the radiation oncology-related terms are available in Supplementary Material 2.

Results

Following reviewing and duplicate removal, a total of 21 articles presented from 2010 to 2021 was included in the analysis.

They consisted of one and 8 preclinical studies on treatment plans for animals and humans treatments, respectively, 8 preclinical studies on animal models, and 4 clinical studies on human subjects. Here follows an overview of selected articles, categorized according to the above-mentioned criteria.

Preclinical Studies

Animals Subjects

The first study on the in vivo cardio ablation for AF was performed in 2010 by Sharma et al. (41). Overall, preclinical studies were conducted on healthy animals subjects, with 26 mini-pigs; in only 3 studies also canines were considered (42–44), for a total number of 27 cases (Table 1). Average or median doses could not be calculated for preclinical works due to a lack of information in some of the included studies.

TABLE 1

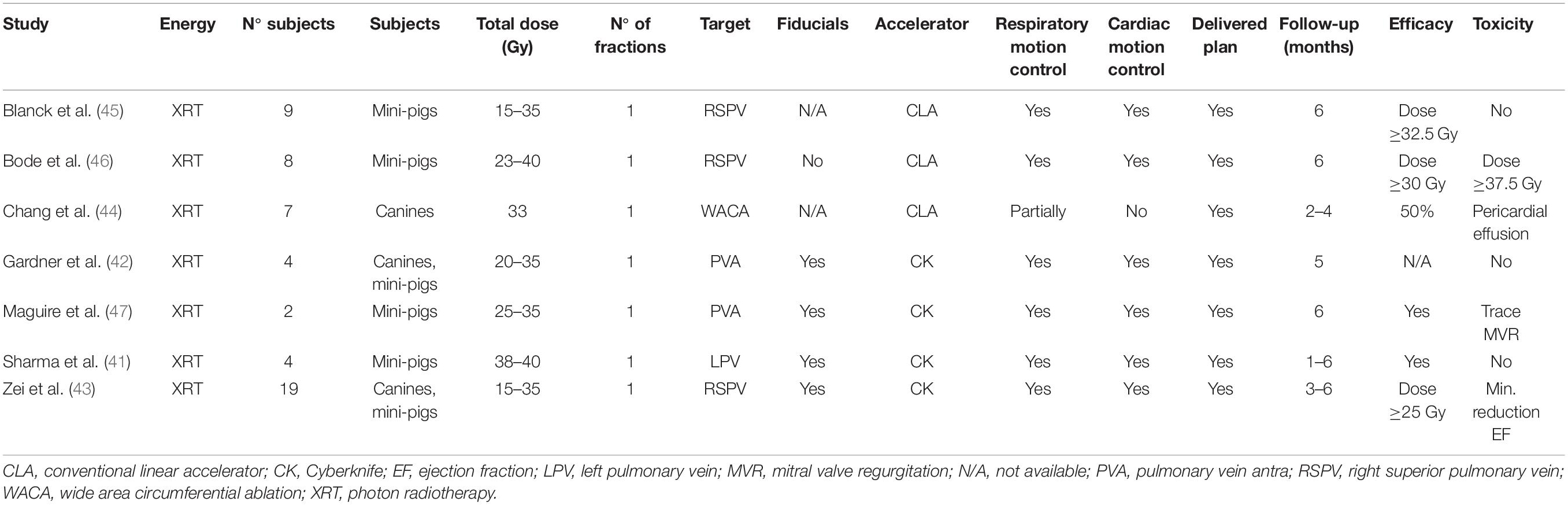

Table 1. Main characteristics of the preclinical studies on animals included in the analysis.

In most cases, animals underwent general anesthesia and received ablation in a single fraction delivered by CK. For treatments delivered by CK, fiducials (both gold seeds and catheter tips) were necessary to evaluate target motion. A CLA was used in 3 cases (44–46). In almost all the articles, both cardiac and respiratory motions were considered, except for Chang et al. (44) who acquired four-dimensional computed tomography (4DCT) only in case of the large respiratory amplitude of the animal, a single phase scan was considered and performed in others. The same authors tried to use masks in 2 dogs and had to change immobilization systems to a vacuum cushion during simulation CT.

The target of the procedure was different across the studies: some works evaluated either left pulmonary veins alone (41) or the right pulmonary veins (43, 45, 46), while 3 studies considered both targets (42, 47). Zei et al. considered only the right superior pulmonary vein as a target because of the excessive respiratory motion of the left superior pulmonary vein in the canine model (43). The follow-up ranged between 1 and 6 months. Efficacy of radiotherapy ablation was generally confirmed at doses up to about 25–30 Gy; side effects (i.e., bronchial-mediastinal fistula with pneumonia and sepsis) were observed in one mini-swine 1 month after irradiation when the delivered dose exceeded 37.5 Gy (46). Moreover, one animal experienced a myocardial infection following fiducial marker placement (43) and another pericardial effusion (44). Mild side effects were mitral valve regurgitation after the procedure in one case (42), one mild reduction of ejection fraction (43), and electrocardiographic, self-limiting abnormalities on T wave after anesthesia (4 animals) (43). On the other hand, one animal died due to pericarditis after electrophysiological study (45). Findings in animal studies were usually evaluated by means of electroanatomic mapping, MRI (46), or anatomopathological study after sacrificing the subjects.

A different approach was chosen by Gardner et al. (42), where the implantable metal oxide semiconductor field-effect transistor (MOSFET) dose verification system and the thermoluminescent dosimetry in pulmonary vein antra (PVA) isolation through CK technology were compared. The authors observed that the implantation method adopted for the MOSFET system shows a better concordance than thermoluminescent dosimetry since it appears not to be affected by body fluids. However, the difference between the measured and the predicted doses in the MOSFET system still accounts for almost 10% when the acceptance threshold has been set at 5% by previous studies (48, 49). The authors hypothesized that a degree of uncertainty might derive from the impossibility to track the dose verification system during treatment delivery.

Dosimetric Studies

In the category of dosimetric studies, a total of 122 treatment plans on both photon radiotherapy (XRT) and PBT were considered, with a median dose of 25 Gy (Table 2).

TABLE 2

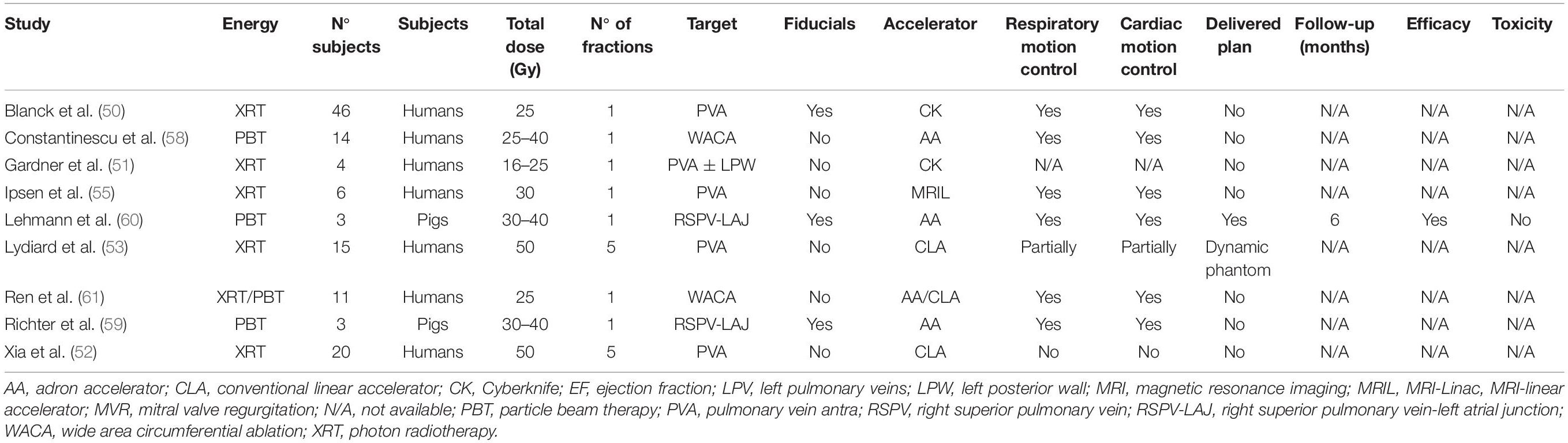

Table 2. Main characteristics of the dosimetric photon and particle beam-based studies included in the analysis.

A dosimetric study is a preclinical work in which subjects undergo simulation CT without experiencing radiation treatment or in which the treatment plan is delivered to a phantom. These permit the evaluation of dosimetry in the target region and organs at risk, avoiding any toxicity.

Meanly treatment plans consisted of one single fraction and were delivered with CK in 2 cases (50, 51). Conversely, in the other studies, a greater dose was planned with a CLA: 50 Gy in 5 fractions (10 Gy/fraction), according to the biological effective dose (BED) (52, 53). According to Xia et al. (52), a radiobiological modeling study (54) was used for BED calculation with an alpha/beta ratio of 3 Gy; in the second study, Lydiard et al. (53) did not explain how BED was evaluated and which alpha/beta ratio considered. The prescription dose was delivered to a dynamic phantom only in the study by Lydiard et al. (53). Specifically, the authors registered the respiratory profiles of 3 healthy patients and subsequently associated the recorded profiles to the phantom to deliver plans differing in complexity. The first was created using a dynamic conformal arc and a 3 mm target volume (TV) margin expansion, one using volumetric modulated arc therapy (VMAT) plan, a restricted number of monitor unit and a 3-mm TV margin expansion, the other VMAT plans with TV margin expansions of 0, 3, and 5 mm, respectively. All dynamic plans were compared with the static ones, and the superiority of multileaf collimator (MLC) tracking over tracking without MLC was demonstrated, with a minor failure percentage appreciated through a gamma failure rate, and a better TV dose coverage.

Only Ipsen et al. (55) involved MRI-linear accelerator (MRI-Linac) in their work: they evaluated the role of real-time MRI target localization and efforted the treatment planning for cardiac radiosurgery with MRI-Linac on 6 male volunteers.

The above-described preclinical studies considered PVA as the only target of irradiation. Only Gardner et al. (51) compared 2 different target extensions: PVA and PVA plus left posterior wall (LPW); the last one was optimized to spare mitral valve annulus, right coronary, and circumflex arteries. Better compliance with radiation therapy oncology group limits was observed in the second target set, with the purpose to reduce the dose to the ventricles where most cardiac adverse events after radiation therapy would originate (56).

Overall, fiducials were implanted only by Blanck et al. (50); in this work, the authors compared a spectrum of different tracking systems: the partially invasive one, such as a catheter in the right atrial septum (temporary fiducials), CK marker-less tracking system for lung tumors (XSight^® Lung, Accuray) or ultrasound tracking (50). In the same article, Blanck et al. (50) described a prevalidation, contouring study comprising a series of 133 patients’ CT scans: esophagus segmentation revealed that in 50% of the cases the organ is directly in contact with the target, similarly to transcatheter ablation (57).

Particle Beam Therapy

Four studies focused on PBT, and carbon ions were used in all cases: 2 works were dosimetric (58, 59) and one reported on in vivo dosimetry on animals (60). The last one (61) compared intensity-modulated proton therapy with XRT delivered through VMAT and helical tomotherapy.

Constantinescu et al. (58) evaluated 9 and 5 CT scans of complete respiratory and cardiac cycles, respectively: they planned 25–40 Gy single fraction carbon ion treatments involving intensity-modulated particle therapy (IMPT). Authors defined the importance of respiratory and heartbeat motions with a lesion displacement of, respectively, ≤2 cm and <6 mm; in this last case a worsening in dose coverage (V95 < 90%) was registered. Carbon ion beam rescanning was used to improve dose coverage.

The same rescanning technique was employed also by Lehmann et al. (60) to reduce the interference between the scanning motion of the beam and the target motion, the so-called “interplay.” In their work, carbon ion irradiation in different TV was evaluated: a 30–40 Gy single fraction treatment was delivered on the right superior pulmonary vein-left atrial junction (RSPV-LAJ) of 3 pigs; one of the 3 animals was irradiated with a lower dose of 30 Gy to spare esophagus (due to specifical anatomy of the animal), the others with 40 Gy. All the treatments were delivered with in-beam positron emission tomography (PET) to verify the correct deposition of carbon ions during irradiation. In the end, they evaluated apoptotic markers employing the Western blot technique with anti-caspase-3, antitubuline, and horseradish peroxidase-conjugated secondary antibodies. As a result, they found that an increase of these markers occurred 3 months after the irradiation, but 6 months after the treatment all the markers turned negative. With the same dataset, Richter et al. (59) evaluated 17 treatment plans (3 on RSPV-LA, 14 on other targets) with ECG-based-4D-dose reconstruction, showing higher safety with respect to cardiac structures and efficient dose verification.

The most recent article included on PBT, Ren et al. (61), evaluated dosimetric properties of intensity-modulated proton therapy in comparison with VMAT and tomotherapy treatment planning; the prescription dose was 25 Gy in all plans. The proton-based technique resulted in a significantly reduce dose in surrounding tissues, compared to photon-based ones, in patients with AF.

Clinical Studies

Three of the selected studies considered human subjects, with a total number of 6 patients (Table 3). The first clinical work is a case report by Monroy et al. (62) on a 59-year-old man with symptomatic AF suffering from adverse effects caused by antiarrhythmic drugs and an ischemic stroke in oral anticoagulant therapy. The need of performing catheter manipulation within the left atrium, which is required by classical PVI, was judged as a contraindication to a catheter-based procedure. Therefore, a radio ablation was proposed by the cardiologist, and the patient underwent radiosurgery, delivered by CK in a single fraction, with a prescription dose to pulmonary veins of 25 Gy to the 71% isodose line. Details on the use of fiducials were not reported, and the details of cardiac motion control. Respiratory motion was compensated by synchrony image guidance during the whole course of treatment delivery. Six months after the procedure the patient developed a permanent AF requiring him to restart the medical therapy. An MRI was performed 1 year the after procedure and a late enhancement was recorded at the radio-ablated structure, which may correspond to the development of a scar.

TABLE 3

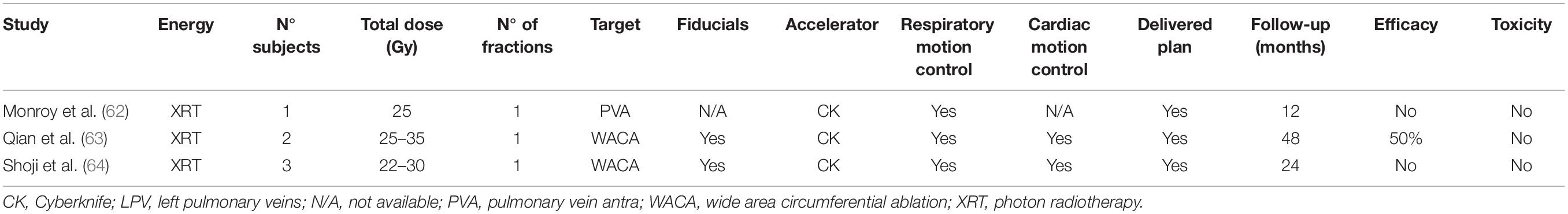

Table 3. Main characteristics of the clinical studies included in the analysis.

A second study [Qian et al. (63)] involved 2 patients with symptomatic AF who had refused a catheter procedure and had agreed to an experimental non-invasive ablation. Both had undergone a fiducial placement and a subsequent simulation contrast-enhanced CT scan. A prescription dose of 25 Gy was delivered through a CK accelerator in both cases. Patients were followed for 24 months (patient 1) and 48 months (patient 2), showing the absence of any significant treatment-related side effects. Six months after irradiation, patient 1 developed persistent AF, leading to permanent medical therapy. Conversely, the second patient had no AF recurrences during the entire follow-up. Only the second patient performed a pre- and post-ablation MRI, showing evidence of a scar at the radiosurgery site after 1 year.

The most recent article in the clinical area has been published by Shoji et al. (64): 3 oncologic patients with refractory AF were treated with a target dose of 25–30 Gy in a single fraction delivered by CK. The TV was represented by a “box” lesion set including a circumferential wide-area ablation (WACA) set around pulmonary veins and the maximum follow-up was 24 months. One patient died 4 days after the procedure due to oncologic disease. The autopsy revealed evidence of fibroblasts and fibrogenesis in the region of radio-ablated tissues. On the other two patients, who remained in AF, clear evidence of clinical efficacy cannot be found: authors encountered some limitations as a consequence of the second patient’s refusal to undergo electrograms of LPW recorded from the esophagus. However, the third patient underwent this exam and no atrial potentials were seen from the esophageal electrogram recordings after radio ablation. This evidence suggests an electrical block, which is the clinical goal of the procedure. No acute or late effects were registered during follow-up.

Gray Literature

Two of all the articles selected were gray literature: the first was the preclinical study of Rahimian et al. (65) which included 3 patients’ treatment plans for a 25 Gy single fraction therapy. The most recent study, Gregucci et al. (66) is currently enrolling patients, and results are not yet available. All the studies considered PVA as TV. No information about efficacy or toxicity is now available from all this literature but it suggests the increasing interest in this particular topic.

Discussion

Main Evidence

Results from our work show the application of STAR for AF. A prescription dose of at least 25 Gy in a single fraction is necessary to have good efficacy despite an acceptable toxicity profile.

The major cause of failure of traditional catheter ablation of AF is incomplete circumferential vein isolation (9). It is worth considering that, according to the existing literature on catheter ablation, the choice of the target (11) and the circumferential scar (67) is essential to obtain an effective procedure. Target selection appears to have the same importance in non-invasive cardio-ablation procedures, as confirmed by target heterogeneity among considered studies (see section “Results”).

Target motion control, involving fiducials or other simulation strategies (4DCT and cardio-CT or electroanatomic mapping) is deemed necessary to improve the accuracy of the procedure.

It is worth saying that, despite the interest in the topic, a limited number of humans has currently undergone STAR for AF and only 2 articles including more than one patient have been published (63, 64). In the study of Quian et al. (63), efficacy was observed in one of 2 treated patients, but no detail on treatment plan features was provided by the authors; moreover, 2 different pathways of preprocedural and follow-up exams were applied, which cannot be considered as being completely comparable. The absence of toxicity was the only shared feature between the patients included. In the study of Shoji et al. (64), no acute or late effects were observed; nevertheless, the choice to select oncologic patients makes it more difficult to evaluate the endpoint of efficacy. Even if clinical efficacy on human subjects is difficult to be defined in a limited sample, fibrosis (63, 64), or electrical block (64) was observed in the radio-ablated area in both studies. A similar finding, obtained by an MRI exam, was recorded in the case report (62). All the above-mentioned evidence may be interpreted as the confirmation of the radio-ablation lesion.

In conclusion, available evidence reports acceptable tolerability of the cardio-ablation treatment on humans; further analyses, together with the newest results coming from the current “gray literature,” however, are deemed necessary to reach the highest level of efficacy.

Validation of Stereotactic Arrhythmia Radio Ablation With Regard to Different Experimental Settings

We observed a prevalence of preclinical studies, the majority of which involved mini pigs. This choice can be explained by their relative growth stability and the consequent capability of weight maintenance during follow-up. Three of the analyzed studies also considered a canine model (42–44). However, regardless of the chosen animal models (68), transferability concerns for clinical applications in humans exist. Significant examples may be the incomplete pericardium of dogs (47) or the different cardiac chambers anatomy and number of pulmonary veins in humans and canines (44). Specifically, these anatomical peculiarities could affect respiratory and cardiac target motions, which are essential parameters in treatment planning.

When evaluating the preclinical studies on animals it has been shown that the efficacy is higher when mini pigs (41, 47) are treated as compared with canines (44) or mixed samples (42).

Total prescription doses in the considered works ranged from 15 to 50 Gy/fraction and the minimum dose threshold for efficacy was 25 Gy. Most of the studies encompassed stereotactic radiosurgery delivered in a single fraction except for few articles describing 5-fraction treatments with a dose of 10 Gy/fraction (total dose: 50 Gy). This comparability is based on the BED which was calculated by the authors (52) using a radiobiological model to avoid the overestimation of the total dose resulting from the linear-quadratic BED calculation when the dose is greater than 8–10 Gy (69). Of note, even if BEDs were considered comparable, the heart tissue is a late responder and its alpha/beta ratio is about 3 Gy (31, 52) with the consequence that the effect may be superior with higher doses delivered in a single fraction than with lower fractionated doses.

A discrete number of studies based on the treatment plan evaluation or delivery of the treatment on a dynamic phantom can be found in the literature: even if they appear to be more acceptable from the ethical standpoint, someone may question if the evidence acquired from these studies are comparable, in terms of efficacy and safety, with those acquired from the clinical setting; in some cases (53), authors started from a study of cardiac and respiratory montions on healthy patients, raising the question whether the respiratory and cardiac motions are really comparable in healthy patients with AF, as discussed below.

Role of the Target Motion

The role of the target motion was furthermore discussed in almost all studies. This topic gains importance since the natural motion of the organs influences not only the myocardial or the conduction tissue around the target but also the other organs at risk, the most important one appearing to be the esophagus. The problem of organ motion was solved by some authors (50, 59, 60) by adopting different fiducials such as seeds or catheters, whereas other ones did not (46, 51–53). The presence of fiducials makes the tracking useful in the positioning of the patient and in the reduction of the margin of error due to cardiac and respiratory motion, but it implies the use of tools that are against the peculiar nature of the procedure in terms of non-invasiveness.

Grimm et al. (70) and Abelson et al. (71) faced the problem of organs at risk doses by reviewing literature and patients’ data, respectively, and elaborated dosimetric tables as references for the colleagues’ work.

In the end, it is important to remember how it is possible that a dilated heart with AF appears to have less movement than a healthy one (61, 72): so, it is also possible that all dosimetric studies on healthy subjects are not completely suitable for the patients with real-AF and more investigations could be necessary.

At last, it is worth noticing the interesting application of MRI to approach the problem of target motion (55, 73): on the one hand, by quantifying target motion ranges on MRI, on the other hand by analyzing the dosimetric benefits of margin reduction assuming the application of real-time motion compensation.

Supporting this hypothesis, a recent article by Lydiard et al. (74), not included in the selection, investigated the feasibility of non-invasive MRI-guided tracking of cardiac-induced target motion in AF cardiac radio ablation by comparing a direct tracking method and 2 indirect tracking methods (tracking indirect left atrial or other targets). They suggested the applicability of non-invasive MRI-guided tracking, showing a potential improvement in treatment efficacy.

Particle Beam Therapy: Pros and Prospectives

Both XRT and PBT involve ionizing radiations, but the second one can deliver its maximum dose at a specific depth (Bragg peak, Figure 2) to the TV while no dose in the surrounding tissues (75).

FIGURE 2

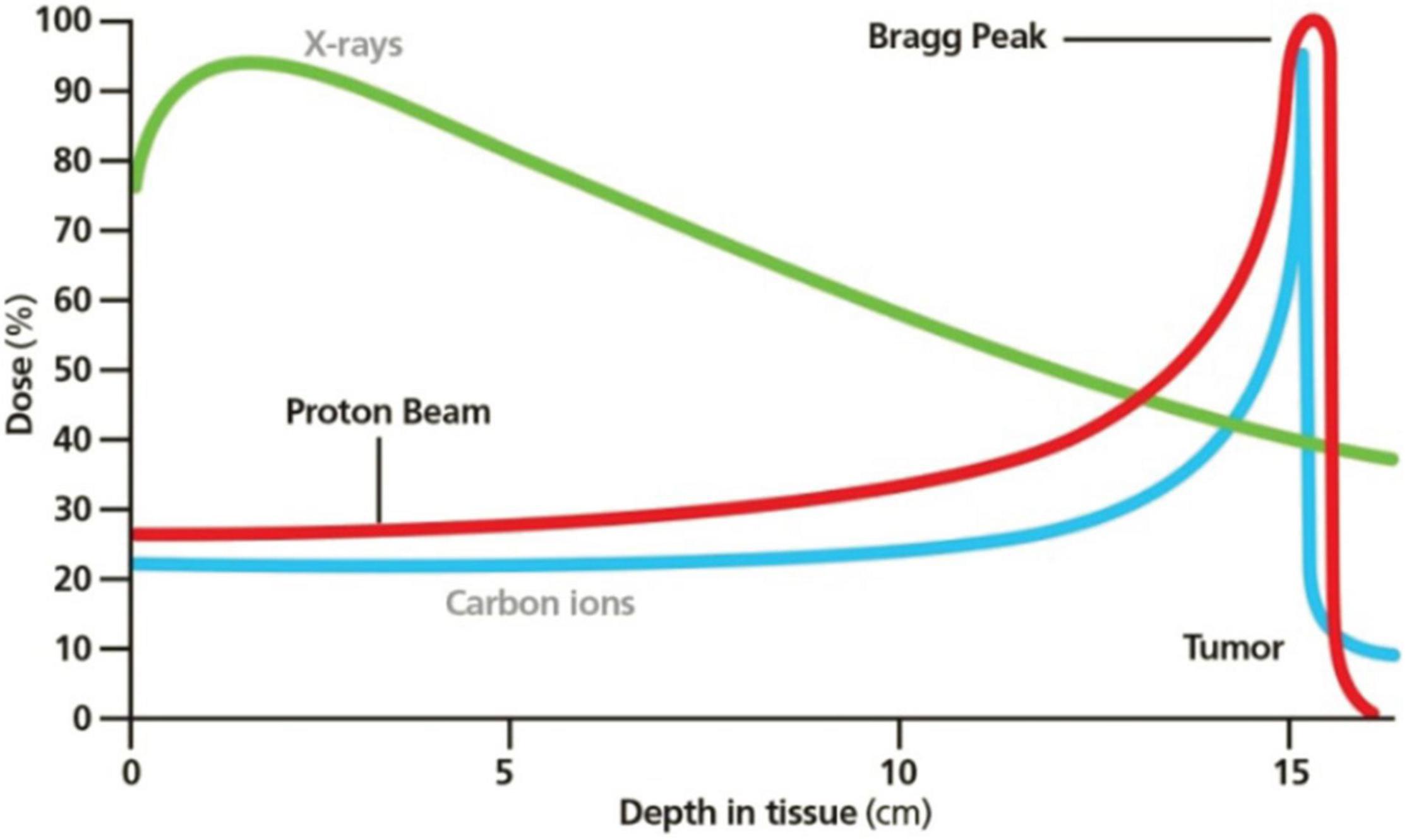

Figure 2. Bragg peak in PBT. Reprinted from Mustapha et al. (81) with the permission of AIP Publishing.

Carbon ion should be particularly indicated for the aim of cardio ablation because of the favorable RBE (three times as much as the photons’ one) and the possibility of smaller beam foci and less lateral scattering.

In the included articles, pencil beams were used to better modulate the beam on the TV; the limit of these thin rays is a major sensibility to motion and setup errors, then the correct position of the beam’s distal edge remains unknown (75). Ren et al. (61) decided to study this phenomenon in their work using a cardiac motion scan from a patient case. Nevertheless, beam rescanning and 4D dose calculation (58) or the use of in-beam PET can reduce the problem (60).

An interesting biological hypothesis about the effectiveness of carbon ions in arrhythmia ablation was formulated by Amino et al. (76): they studied the role of the upregulation of connexin-43, a protein expressed during myocardial remodeling in myocardial infarction or cardiac hypertrophy. This remodeling effect on gap junctions may reduce the conduction of the arrhythmia through myocardial tissue.

Although photons and carbon ions are so different, according to the articles selected, the time to detect a scar in an anatomopathological analysis is similar and it spans from weeks to months. As further evidence, the process of fibrosis and scar creation starts after the activation of the apoptotic cascade (77, 78), according to Lehmann et al.’s results (60).

Use of Stereotactic Arrhythmia Radio Ablation in Atrial Fibrillation Versus Ventricular Tachycardia

During the evaluation of the efficacy and safety of STAR in AF, some considerations about the comparison between AF and VT are necessary. First, it is worth underlying that specific peculiarities characterize the anatomical and structural substrate for AF as for VT, which reflect in different treatment approaches and need to safeguard surrounding healthy structures. For these reasons, some assumptions that have been preliminarily validated in the field of VT may not be true for AF. Ventricular arrhythmias, that may deserve STAR, are usually life-threatening; patients present with recurrent and/or refractory VTs and are not eligible for conventional approaches or these have proven ineffective. In this clinical setting, STAR represents a promising option, thus more risks, even unknown ones, are allowed. To the best of our knowledge, in literature few severe adverse events, definitely correlated to STAR, are reported. In particular, one patient died of esophagopericardial fistula after 9 months from STAR: of note, the patient had previous bypass surgery with a gastroepiploic artery that might have contributed to this severe adverse event (79); few clinically relevant or symptomatic radiation-induced pericarditis and pericardial effusion and a gastropericardial fistula 2 years after STAR were recorded (80).

Being AF a benign arrhythmia, more attention to the safety rather than the efficacy of STAR is mandatory.

In this setting, more information about the toxicity profile of this new approach is compulsory before applying STAR to AF in clinical practice; this is also the reason why not many clinical articles are available in the literature so far.

Strengths and Limitations

All the above-mentioned works and other already published reviews discuss every type of tachydysrhythmias without a specific focus on AF. The strength of this review is the specificity of the topic treated: stereotactic radio ablation of AF through both XRT and PBT. In this regard, we would like to underline once again that these considerations do not necessarily apply to other patients’ conditions (e.g., non-oncological patients).

The main limitations of this work are the relative paucity of works, which is in line with the novelty of the field, and the low evidence of available literature. Moreover, given the nature of our work (qualitative rather than quantitative synthesis), and the relative paucity of studies, it was not possible to fully estimate publication bias—if any—through a funnel plot. To at least account for such potential weakness, gray literature was also included. As a matter of fact, while these works are not peer-reviewed, good-quality gray literature is a source of up-to-date information on ongoing clinical efforts.

Conclusion

Stereotactic radio ablation is an innovative non-invasive procedure already in use for ventricular cardiac arrhythmias. Radio ablation of AF, with a prescription dose at least of 25 Gy, might be considered among the future therapeutic option for AF, especially when an interventional ablation procedure is contraindicated or proved ineffective.

Carbon ions are a highly promising radiation technique due to their TV coverage and, at the same time, their greater capability to spare organs at risk; this may be a strong point to achieve an effective safer alternative application for the heart.

Essential issues, such as:

– duration of AF before treatment,

– target definition and motion, and

– doses delivered to the target and organs at risk,

deserve further evaluation to define proper indications and modalities to benefit the most from the use of STAR in patients with AF.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

JF contributed to conception of the study and wrote the first draft of the manuscript. SV wrote the first draft of the manuscript and was the third reviewer of the literature. VC performed the literature research and contributed to write the first draft of the manuscript. CP was the first reviewer of the literature. EC, GP, and FC contributed to write sections of the manuscript. MP designed and prepared the tables. AMC was the second reviewer of the literature. DA and CT critically revised the final version. BAJ-F contributed to conception of the study and critically revised the final version. CC designed the study and contributed to wrote the first draft of the manuscript and the final revision. All authors contributed to manuscript revision, read, and approved the submitted version.

Funding

SV was partially supported by the Italian Ministry of Health with Progetto di Eccellenza. SV was a Ph.D. student at the European School of Molecular Medicine (SEMM), Milan. CP was supported by a research grant from the Fondazione IEO-CCM entitled “STereotactic Radio Ablation by Multimodal Imaging for Ventricular Tachycardia (STRA-MI-VT)” and by a research grant from the AIRC entitled “Phase I/II clinical trial on single fraction ablative preoperative radiation treatment for early-stage breast cancer.” The institutions IEO IRCCS and CCM IRCCS are partially supported by the Italian Ministry of Health with 5 × 1,000 funds and Ricerca Corrente (RC 2019—EF 5A—ID2754331 to Centro Cardiologico Monzino IRCCS). The sponsors did not play any role in the study design, collection, analysis, and interpretation of data, in the writing of the manuscript, or in the decision to submit the manuscript for publication.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcvm.2022.849201/full#supplementary-material

Abbreviations

4DCT, four-dimensional computed tomography; AF, atrial fibrillation; BED, biological effective dose; CK, Cyberknife; CLA, conventional linear accelerator; IMPT, intensity-modulated proton therapy; LPW, left posterior wall; MOSFET, metal oxide semiconductor field effect transistor; MRI, magnetic resonance imaging; MRI-Linac, MRI-linear accelerator; PBT, particle beam therapy; PET, positron emission tomography; PRISMA, preferred reporting items for systematic reviews and meta-analyses; PVA, pulmonary vein antra; PVI, pulmonary vein isolation; RBE, relative biological effectiveness; RSPV-LAJ, right superior pulmonary vein-left atrial junction; SR, sinus rhythm; STAR, stereotactic arrhythmia radio ablation; TV, target volume; VMAT, volumetric modulated arc therapy; VT, ventricular tachycardia; WACA, wide-area circumferential ablation; XRT, photon radiotherapy.
