Mingyan Ding†
Dandan Sun
Fang Zhu- Department of Cardiovascular Function, People's Hospital of China Medical University, People's Hospital of Liaoning Province, Shenyang, China
Total anomalous systemic venous drainage (TASVD) is a rare congenital heart malformation. Here, we report a case of a 40-year-old male patient who had a total anomalous systemic venous drainage. It was diagnosed as the TASVD for the first time through multimodal imaging combined Transthoracic (TTE), transesophageal (TEE) and three-dimensional (3D-TTE) echocardiography, contrast echocardiography and computed tomography angiography (CTA). We review 15 published reports on TASVD and summarize the ultrasonographic characteristics. After intracardiac repair through ectopic venous drainage in cardiac surgery, the patient's cyanosis symptoms were alleviated greatly. Echocardiography was the first-line examination for TASVD. Multimodal imaging combined TTE, TEE, 3D TEE, contrast echocardiography and CTA was necessary for confirmed diagnosis of TASVCD.
Introduction
Anomalous systemic venous drainage is a rare type of congenital heart malformation and has a 5% incidence rate among all congenital heart diseases (1). It is divided into partial systemic venous return anomalies and total anomalous systemic venous drainage (TASVD). The definition is that the drainage of all systemic veins (SVC, IVC, and the coronary sinus) to the LA. TASVD may also be part of heterotaxy syndrome (2). We report a case of TASVD diagnosed by multimodal imaging and was successfully corrected by surgery.
Case Report
A 40-year-old male reporting “thirty years chest pain and palpitation after exercise, which got worsened for five days” was admitted to our hospital. Echocardiography revealed atrial septal defect in 2009, but it was untreated. Electrocardiogram revealed (1) sinus bradycardia, (2) high voltage in chest leads, and (3) flat T waves in leads I, III, and aVL. His physical examination revealed stunted growth, cyanosis of lips, 53.4 mmHg partial pressure of oxygen, and 88.6% blood oxygen saturation level. A loud, soft pan systolic murmur could be heard over the cardiac apex. His past medical history included cerebral infarction and migraine. 1 month before hospitalization, the patient had acute cerebellar infarction that improved after medical treatment. Biochemical parameters were within normal limits.
Transthoracic (TTE), transesophageal (TEE) and three-dimensional (3D-TTE) echocardiography revealed (1) coronary sinus dilatation and a complete coronary sinus atrial septal defect (ASD) (Figure 1A, Supplementary Videos 1, 2), (2) an anomalous conduit enters left atrium (LA) at its roof (Figure 1B), and (3) the inferior vena cava (IVC) opens into LA (Figure 1C) (4) the superior vena cava (SVC) is not connected with the right atrium (RA). Contrast echocardiography revealed (1) saline microbubbles injected to the left elbow vein expressed first in the LA and then in the RA and right ventricle (RV) (Supplementary Video 3); (2) saline microbubbles injected into the right elbow vein expressed almost simultaneously in the LA and RA (Figure 1D, Supplementary Video 4); (3) saline microbubbles injected into the lower limb vein expressed first in the LA and left ventricle (LV) and then in the RA and RV (Figure 1E, Supplementary Videos 5, 6). Arch was normal. Accordingly, these were diagnosed as complete coronary sinus ASD, persistent ectopic venous draining from the left SVC to the LA, ectopic venous draining from the IVC to the LA, and ectopic venous draining from the right SVC to the LA. Hepatic veins were draining into the IVC, and pulmonary veins were draining into the LA. ECG-gated computed tomography angiography (CTA) demonstrated complete coronary sinus ASD, persistent left SVC draining into the LA (Figure 1F), right SVC draining into the LA (Figures 1G–I), and IVC draining into the LA (Figure 1F). A contrast medium was injected in the left elbow vein. Finally, it was diagnosed as total anomalous systemic venous drainage (TASVD) through cardiac surgery, and was consistent with the multimodal imaging (TTE, TEE, 3D TEE, contrast echocardiography and CTA).

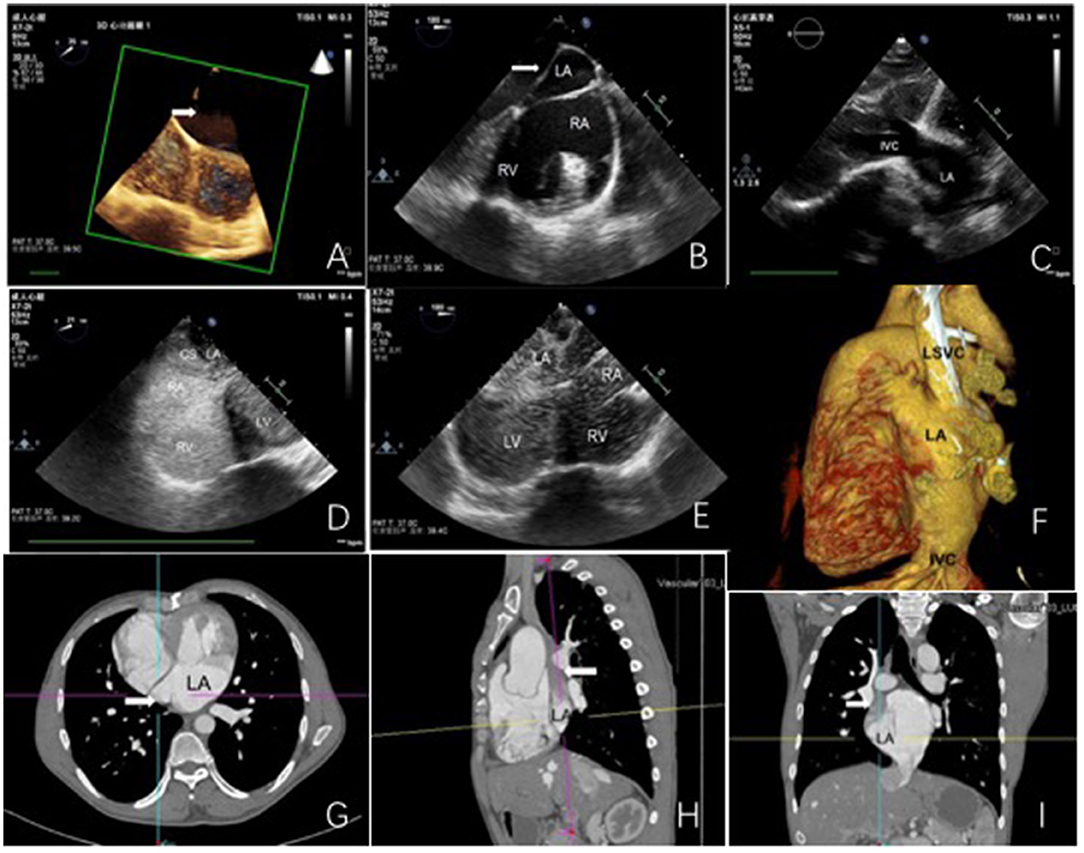

Figure 1. Echocardiography and computed tomography angiography. (A) complete coronary sinus atrial septal defect (white arrowheads). (B) white arrowheads show an abnormal conduit. (C) A connection between the inferior vena cava and the left atrium. (D) saline microbubbles injected into the lower limb vein expressed first in the LA and left ventricle (LV), and then in the RA and RV. (E) saline microbubbles injected into the right elbow vein expressed almost simultaneously in the LA and RA. (F) CT shows the left superior vena cava and the inferior vena cava draining into the LA. (G–I) CT shows the superior vena cava (white arrowheads) draining into the.
During the cardiac surgery, we saw a complete coronary sinus atrial septal defect, the right superior vena cava being slightly thinner and draining into the coronary sinus opening in the right atrium, persistent left superior vena cava draining into the left atrium, which opened between the left atrial appendage and the left superior pulmonary vein, and the inferior vena cava opening between the mitral valve and the right inferior pulmonary vein. Both atrial appendages were normal in morphology. Thus, we performed a repair of the atrial septal defect and an intracardiac repair through ectopic venous drainage.
After the operation, the patient recovered well: his face and lip color was normal; his partial pressure of oxygen was 97.7 mmHg, and his blood oxygen saturation level was 97.8%. 3 months after the operation, TTE revealed that his cardiac size returned to normal. At 1-year follow-up, the man was doing well and had normal oxygen saturation and unobstructed systemic venous drainage.
Discussion
TASVD is a rare type of congenital heart malformation. TASVD drainage requires the presence of a left-to-right shunt (PDA, ASD, or VSD) to allow the systemic venous return to reach the pulmonary circulation (3). Functional drainage of systemic venous blood into the left atrium across an atrial septal defect has been described. The mechanisms is that TASVD probably results from the sinus venosus being incorporated into the LA (4) or that the right valve of the systemic venous sinus fails to regress (5). There are three subsets of TASVD based on the type of vena cava cannulation (2). In type I, the IVC is not interrupted and conventional cardiopulmonary bypass can be performed. In type II, the IVC is interrupted, and single cannulation of the SVC would suffice for venous drainage. In type III, the IVC drains to an accessory chamber like coronary sinus. According to the above classifications, our case belongs to type I. Electronic databases including Pubmed, Web of Science, and Medline were searched to identify TASVD, from inception to May 2021. We reviewed 13 published reports on TASVC and summarized the ultrasonographic characteristics in Table 1.

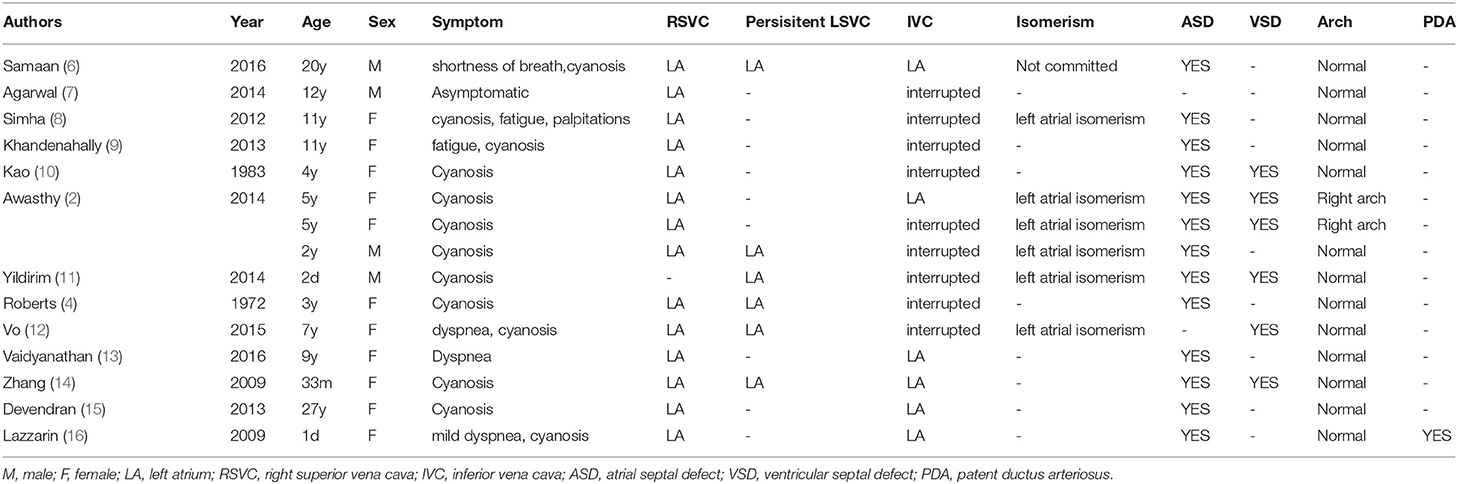

Table 1. Ultrasonographic characteristics of the 15 cases of total anomalous systemic venous drainage.
Because of individual differences and lack of specific laboratory tests, medical diagnosis of TASVD is usually challenging. Up to now, echocardiography is still the most common clinical examination. In this case, multimodal imaging was performed to diagnose TASVD. Echocardiography manifestations are as follows: (1) two-dimensional echocardiography shows that the LA is significantly enlarged and that the right heart system is relatively small; (2) communication between the SVC and the LA was not seen in the conventional ultrasound view of two-dimensional transthoracic echocardiography; (3) two-dimensional transesophageal echocardiography clearly shows that the SVC and the IVC are not communicating with the RA; (4) right heart contrast echocardiography can help assess the connection between veins and atriums effectively, and the communication between the SVC, the IVC, and the LA; (5) three-dimensional transesophageal echocardiography can directly display the communication between the abnormal duct and the LA. TTE, TEE, and 3D TEE are considered useful approaches to help observe the hind and inside of heart structures. Contrast echocardiography can help assess the connection between veins and atriums effectively. CTA examination is an invasive and reliable way to examine congenital heart diseases and can provide more comprehensive and three-dimensional cardiovascular imaging. Through CTA examination, the connection between pericardia great vessel system and heart chambers can be assessed. The main advantage of CT is its high-resolution tridimensionality, and a 3D image could add an interesting view of the cardiac anomaly. This case was finally diagnosed and compressively expressed by multimodal imaging (TTE, TEE, 3D TEE, contrast echocardiography, and CTA). Noninvasive examinations such as MRI can be used to assess defects of cardiovascular walls or help observe flow signals from vein to the LA without using contrast media, especially in pediatric populations with congenital heart disease because of lack of ionizing radiation (17).
TASVD is a rare and usually hard to detect congenital heart malformation. As the first diagnostic examination, ultrasound examination has its unique advantages in TASVD diagnosis. In the face of cases of complex anomalous cardiac venous system connection, we need to perform multimodal imaging to confirm the diagnosis of TASVD.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.
Ethics Statement
Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author Contributions
MD, HZ, NJ, and DS: study concept, acquisition of data and figures, and writing of the manuscript. QL and FZ: study concept and critical revision of the manuscript for intellectual content. All the authors cared for the patient and contributed to the writing of the report.
Funding
This study was supported by the Liaoning Province Xingliao Talents Plan Project (XLYC2005007) and Science and Technology Fund of Liaoning Province (20180530109).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We thank the doctors of the Department of Cardiovascular Function and Cardiac Surgery.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcvm.2022.786278/full#supplementary-material
Supplementary Videos 1, 2. Coronary sinus dilatation and complete coronary sinus atrial septal defect (ASD).
Supplementary Video 3. Saline microbubbles injected to left elbow vein expressed first in LA, and then in RA and right ventricle.
Supplementary Video 4. Saline microbubbles injected into right elbow vein expressed almost simultaneously in LA and RA.
Supplementary Videos 5, 6. Saline microbubbles injected into lower limb vein expressed first in LA and left ventricle (LV), and then in RA and RV.
Abbreviations
LA, left atrium; IVC, inferior vena cava; RA, right atrium; RV, right ventricle; LV, left ventricle; CS, coronary sinus; LSVC, left superior vena cava.
References
1. Leval MRde, Ritter DG, McGoon DC, Danielson GK. Anomalous systemic venous connection. surgical considerations. Mayo Clin Proc. (1975) 50:599–610.
2. Awasthy N, Radhakrishnan S, Kaushal S, Sharma R. Total anomalous systemic venous drainage to the left atrium: an entity reviewed and investigated. Ann Pediatr Cardiol. (2014) 7:98–102. doi: 10.4103/0974-2069.132476
3. Maillis MS, Cheng TO, Meyer JF, Crawley IS, Lindsay J. Jr. Cyanosis in patients with atrial septal defect due to systemic venous drainage into the left atrium Am J Cardiol. (1974) 33:674–8. doi: 10.1016/0002-9149(74)90261-6
4. Roberts KD, Edwards JM, Astley R. Surgical correction of total anomalous systemic venous drainage. J Thorac Cardiovasc Surg. (1972) 64:803–10. doi: 10.1016/S0022-5223(19)40855-6
5. van Ledden-Klok M, Mol Ade, Backx A. Images in congenital heart disease. Symptomatic divided right atrium in a newborn. Cardiol Young. (2007) 17:110. doi: 10.1017/S1047951106001478
6. Samaan AA, Abdelsalam S. Total anomalous systemic venous drainage in an adult. Eur Heart J Cardiovasc Imaging. (2016) 17:1127. doi: 10.1093/ehjci/jew125
7. Agarwal N., Agrawal S., Patra, Manjunath C.N. Total anomalous systemic venous drainage to coronary sinus. BMJ Case Rep. 2014 (2014):1493. doi: 10.1136/bcr-2013-201493
8. Simha PP, Patel MD, Jagadeesh AM. Anesthetic implications of total anomalous systemic venous connection to left atrium with left isomerism. Ann Card Anaesth. (2012) 15:134–7. doi: 10.4103/0971-9784.95077
9. Khandenahally RS, Deora S, Math RS. Total anomalous systemic venous drainage in left heterotaxy syndrome. Cardiol Young. (2013) 23:284–6. doi: 10.1017/S1047951112000819
10. Kao CT, Ban T, Sakata R, Soeda K. Surgical correction of total anomalous systemic venous drainage with ventricular septal defect and pulmonary stenosis–report of a case. Nihon Geka Hokan. (1983) 52:256–62.
11. Yildirim A, Kosger P, Ozdemir G, Ucar B, Kilic Z. Total anomalous systemic venous drainage with heterotaxia syndrome: a rare case. Case Rep Cardiol. (2014) 2014:392841. doi: 10.1155/2014/392841
12. Vo AT, Cao KD, Le KM, Nguyen DH. Left isomerism syndrome with total anomalous systemic connection. Asian Cardiovasc Thorac Ann. (2017) 25:58–61. doi: 10.1177/0218492315618507
13. Vaidyanathan S, Kothandam S, Kumar R, Pradhan PM, Agarwal R. Unusual presentation of total anomalous systemic venous connection. Asian Cardiovasc Thorac Ann. (2017) 25:453–6. doi: 10.1177/0218492316644355
14. Zhang ZW, Duan QJ, Gao Z, Ru W, Ying LY. Total anomalous systemic venous drainage to the left atrium. Ann Thorac Surg. (2009) 87:1599–601. doi: 10.1016/j.athoracsur.2008.09.025
15. Devendran V, Varghese R, Gudeboyana K, Jessudian V. Isolated total anomalous systemic venous drainage in an adult: case report. Pediatr Cardiol. (2013) 34:1918–21. doi: 10.1007/s00246-012-0458-6
16. Lazzarin O., Rossl RD. Total anomalous systemic venous drainage. a case report surgical considerations. Revista Argentina De Cardiologla. (2009) (77):404–7.
