Pulmonary vascular resistance (PVR) plays a major role in congenital heart management and critical decision. The impact of pulmonary vascular disease in the early and late morbidity and mortality after cardiac surgery and interventional catheterization in congenital heart defect (CHD) highlights the importance of critical evaluation for PVR. Currently, PVR is evaluated with invasive cardiac catheterization for hemodynamic data collection, processing, and analysis. Despite the limitation of hemodynamic evaluation in the setting of CHD, accurate data analysis, and interpretation have significant impact on clinical outcome and procedure success. This article reviews the basic calculation of PVR in the setting of congenital heart disease with diagrammatic illustration for easy understanding of the hemodynamic.
Introduction
The pulmonary vascular resistance (PVR) is a good surrogate for pulmonary vascular disease at a certain level in patient with congenital heart disease. The surgical planning, risk of the procedure, and clinical decision are aligned with the presence or absence of significant pulmonary vascular disease (1). Although several clinical and noninvasive procedures give valuable data of hemodynamic condition of the patient with congenital heart defect (CHD), such as using Doppler echocardiography, which is a commonly implemented method for non-invasive measurement of pulmonary arterial pressure; however, Doppler echocardiography on the whole has a weakness in quantitative measurement because of limited acoustic window especially for evaluation of pulmonary circulation and the operator dependency for data acquisition (2, 3). In the current era, phase-contrast magnetic resonance imaging (MRI) is counted as an added non-invasive method for assessment of hemodynamics of pulmonary or systemic circulation (4, 5). These techniques offer the prospect for precise estimation of pulmonary circulation parameters, and their measurements were more accurate and reproducible than Doppler echocardiography (6, 7). Despite that nonetheless invasive right and left heart cardiac catheterization remains to be the gold-standard procedure of calculation PVR in the CHD field (8). The PVR calculation is based on the hydraulic version of Ohm's law (9). In this review, we will explain the hemodynamics of the cardiac lesion with diagrams showing the relation of different components of hemodynamics.
Operability of Congenital Heart Disease
The current recommendation for operability in most of the guidelines for congenital heart disease with biventricular repair is PVR below 4–6 wood units per m2, whereas 4–8 wood units per m2 in gray zone need more clinical evaluation and case-based decision and >8 wood units per m2 nonoperable case (8–11).
Hemodynamic Equation in Use for Vascular Resistant Evaluation
The major determinants of vascular resistance are transitional and muscular arterioles, which contain smooth muscle cell in their wall and allow for the vasoreactivity that serves to regulate pulmonary blood flow (12–14).
The PVR calculation is driven from the hydraulic version of Ohm's law: I = V/R I = current, V = voltage, R = resistance. PVR = MPAP−LAP or PCWP/Qp, Qp = pulmonary flow, MPAP = mean pulmonary artery pressure, PCWP = pulmonary capillary wedge pressure, LAP = mean left atrium pressure. Despite that the Ohm's law can be used for parallel or serial resistance, the complexity of congenital heart disease, which has a different flow and resistance, limits its uses for every lesion. Another consideration in operability is the amount of shunt and pulmonary flow, which uses modified Fick method and oxygen consumption tables (15–17). Qp: Qs = (arterial oxygen saturation—mixed venous oxygen saturation)/pulmonary venous oxygen saturation—pulmonary artery oxygen saturation Pulmonary flow (Qp) = oxygen consumption/Δ oxygen content difference of pulmonary venous and arterial blood.
PVR in Normal Heart
The normal pulmonary flow unequally distributed to the left and right lungs, which qualify them for parallel resistance but are always considered as one unit, which will continue until we have a great, feasible tool to measure the flow of both lungs separately (Figure 1A). The cardiac MRI can be this tool, but until most of the issues related to expense, compatibility, and space occupation are resolved, the assumption of one unit will stay (14). Unlike the adult right heart catheterization, thermodilution used for cardiac output measurement in children is limited and replaced by modified Fick method with assumed oxygen consumption (15, 16). The indication for right heart catheterization with normal heart is most of the time related to pulmonary hypertension or preliver transplant.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/607104/fcvm-08-607104-HTML/image_m/fcvm-08-607104-g001.jpg)

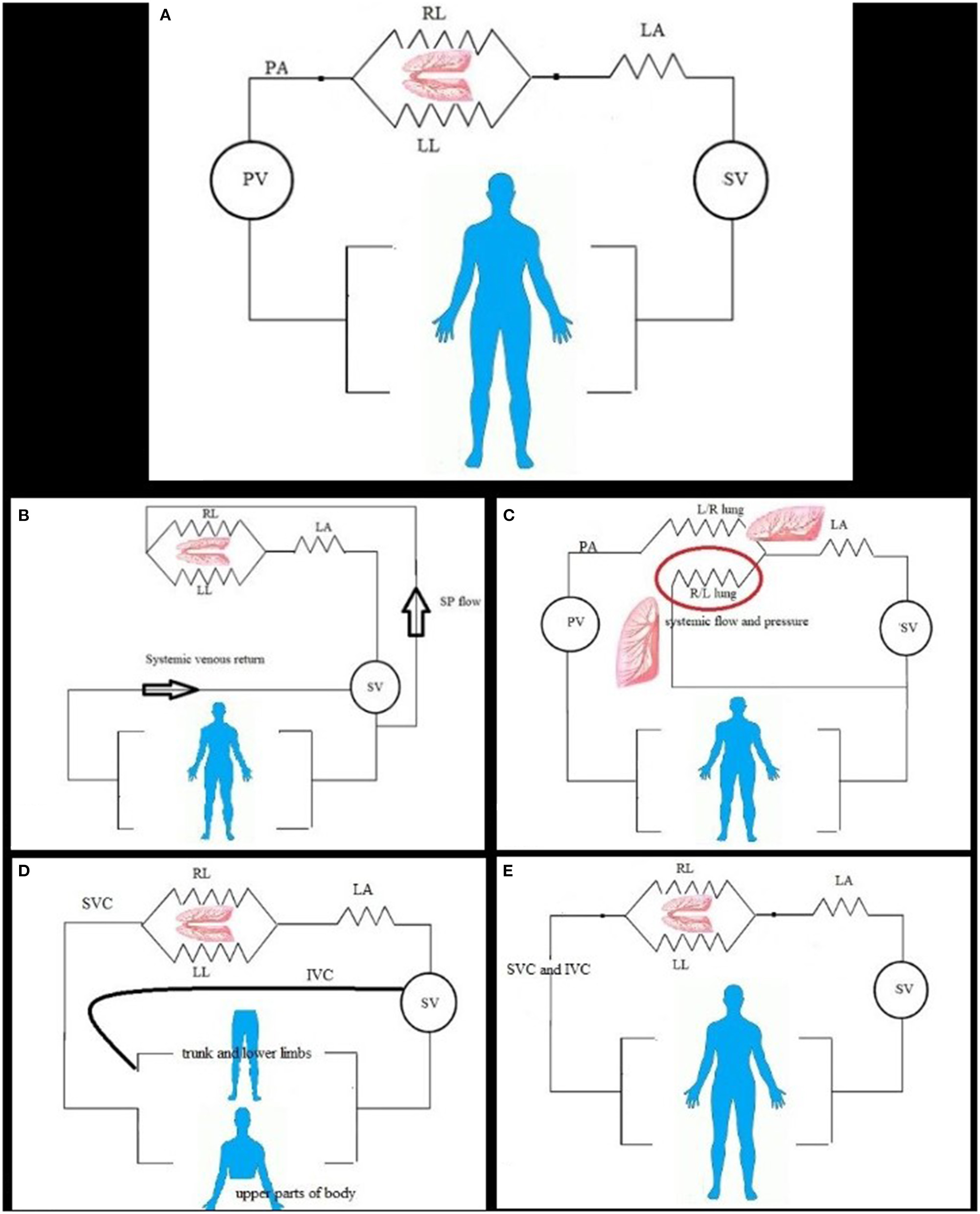

Figure 1. (A) In normal and simple shunt condition, the pulmonary flow is constant, and flow divided to the left (LL) and right (RL) lung, and then connected to the left atrium (LA); both lungs to the left atrium create flow resistance for calculation. Systemic (SV) and pulmonic (PV) ventricles work as pump and force generator. (B) In pulmonary flow from systemic, the pulmonary flow depends on the size of connection and systemic pressure and flow. The resistance can be calculated by direct measurement of pulmonary artery pressure and left atrium or wedge mean pressure and calculated pulmonary flow. The two lungs can be considered as one unit; no significant pulmonary artery stenosis and reduced flow to one lung. (C) Disconnected lung, the pulmonic ventricle (PV) ejects blood (pulmonary flow) to one lung (right or left lung R/L). The other lung is disconnected lung (red circle) and can have systemic blood supply from systemic ventricle (SV) via shunt or patent ductus arteriosus or major aortopulmonary collaterals and has parallel resistance with other systemic organs. (D) In the bidirectional cavopulmonary anastomosis, the upper part of the body venous return is the main blood supply for the lung; the PVR is calculated as in series resistance. The lower part of the body has venous return to the heart directly. (E) In total cavopulmonary anastomosis, the pulmonary artery is connected to systemic venous return and received total cardiac output flow.
PVR With Simple Shunt
The simple cardiac shunt includes atrial and ventricular septal defect, partial anomalous pulmonary venous return, and patent ductus arteriosus, calculated with modified Fick method (15). The calculation with usual equation applies the guidelines for closure (Figure 1A).
PVR With Exclusive Pulmonary Flow From the Aorta
When the congenital heart disease complex needs repair after a certain age, most of the time diagnostic cardiac catheterization with hemodynamic evaluation comes before the next stage. The pulmonary blood flow can be solely from the systemic blood in the following conditions: [1]. Pulmonary atresia with patent ductus or post–systemic-to-pulmonary shunt or major aortopulmonary collateral [2]. Truncus arteriosus [3]. Post–Norwood procedure stage 1 with systemic to pulmonary shunt In these cases, there is a complete mix of systemic and pulmonary venous blood at a ventricular level, so the pulmonary arterial oxygen saturation is equal to the systemic (arterial) oxygen saturation for flow and shunt calculation (Figure 1B). The PVR can be calculated in all by pressure measurement and flow calculation except for the lung with multiple blood supplies as major aortopulmonary collaterals where pulmonary pressure and differential segmental perfusion are significantly heterogeneous (17, 18). The hemodynamic results are determinate for the next surgical step as a single ventricle vs. biventricular repair.
PVR With Single-Lung Supply by Systemic Shunt
In this setting of pathology, one lung taking the whole cardiac output and calculated resistance will be for that lung, whereas the second one supplied by systemic blood and exposed to systemic pressure needs to be calculated as separate flow and resistance. After surgical connection to the other lung, the flow will depend on the resistance at that lung and future evolution of pulmonary vascular changes (19) (Figure 1C). The PVR = mean PAP—mean LA pressure/flow to the connected lung Whereas, the disconnected lung has its own blood flow from arterial blood and systemic pressure, calculation of resistance by modified Fick method of oxygen consumption in this lung has a high rate of false error as the pulmonary artery and pulmonary venous oxygen saturation difference is minimal with overestimation of flow and underestimation of resistance (20). In such condition, cardiac MRI for the flow measurement of the disconnected lung gives accurate flow measurement and accurate resistance calculation (21).
PVR With Cavopulmonary Anastomosis
The single-ventricle setting started with variable physiology with each stage of palliation. The usual first-stage palliation is maintaining adequate pulmonary flow by systemic-to-pulmonary shunt or control flow by pulmonary artery banding, whereas the second-stage palliation is bidirectional cavopulmonary anastomosis with significant flow reduction to the lung, as well as the volume load of the sub-systemic ventricle (22). The pulmonary blood flow depends on the venous return of the upper part of the body, which changes with the growth of body and decreases with time, without systemic augmentation of blood flow to the lung; the pulmonary blood flow is usually less than systemic flow (Qp:Qs <1) (23). In the current era, few studies showed that single-ventricle patients not requiring an intervention can undertake successful Fontan completion, depending on Cardiac MRI and echocardiography examinations only, with analogous short-term outcomes to those who underwent diagnostic catheterization, avoiding an invasive test, and exposure to radiation. Cardiac MRI can add information in a significant number of patients, it can be superior to catheterization in measuring aortopulmonary collaterals, but the catheterization definitely added more value in occlusions of venovenous collaterals that usually open after the second stage of a single ventricle palliation.
The final stage of palliation is total cavopulmonary anastomosis, and the pulmonary flow will be almost equal to systemic (Figures 1D,E). The success of the bidirectional anastomosis depends on low pulmonary resistance and mean pulmonary arterial pressure of <16 mmHg to have equilibrium between osmotic and hydrostatic pressure and low PVR of <2.5 w.u.m2 (24, 25). The calculation of PVR may underestimate the value as the cardiac output below the normal for age with absence of the subpulmonic ventricle (26).
PVR Calculations in Parallel Circulations
As the calculation of the pulmonary resistance depends on the calculation of the pulmonary blood flow, which in most cases of the parallel circulation, such as transposition of great arteries, will not give an accurate result due to high pulmonary artery saturation, in such cases it is better to use other modalities such as cardiac MRI.
Another point that affects the vascular resistance calculation is in conditions when the small artery provides three smaller arterioles, each parallel to the other. The total resistance (Rx) for the three parallel arterioles comprising the segment would be as follows:
1/Rx = 1/R1 + 1/R2 +1/R3
R1 = resistance in arteriole 1, R2 = resistance in arteriole 2, R3 = resistance in arteriole 3
This proves the principles about the parallel arrangement of blood vessels:
The overall resistance of a network of parallel vessels is less than the resistance of the vessel having the lowest resistance. Once there are numerous parallel vessels, changing the resistance of a small number of these vessels will have a slight impact on the total resistance for the segment.
Conclusion
The variable anatomic substrate of congenital heart disease and hemodynamic variation during clinical and invasive evaluation require a comprehensive understanding of all substrates of the blood circuit and appropriate calculation methods.
Author Contributions
OT and MM contribute to idea, drawing, writing, and review equally.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
This review was supported by King Fahad Medical City, Research Center. The authors thank the Research Center for all the help and support.
