Skip to main content

ORIGINAL RESEARCH article

Front. Built Environ.
Sec. Construction Materials
Volume 10 - 2024 | doi: 10.3389/fbuil.2024.1468703
This article is part of the Research Topic Sustainable Building Materials from Recycled Cement/Concrete and Recycled Industrial Wastes View all articles

The Inhibitory Influence of Rice Husk Ash on the Alkali Leaching and Efflorescence Extents of Alkali Activated Granulated Blast Furnace Slag

Provisionally accepted
Joseph Nseke Joseph Nseke 1Gunvor Marie Kirkelund Gunvor Marie Kirkelund 2Thandiwe Sithole Thandiwe Sithole 1*
  • 1 University of Johannesburg, Johannesburg, South Africa
  • 2 Department of Civil Engineering, Technical University of Denmark, Kongens Lyngby, Denmark

The final, formatted version of the article will be published soon.

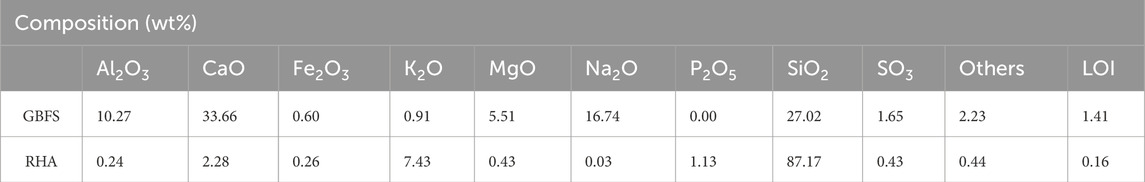

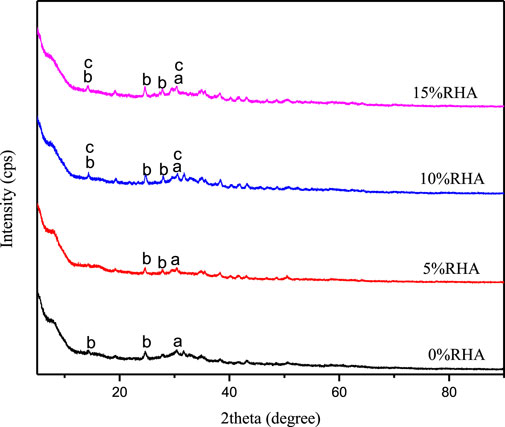

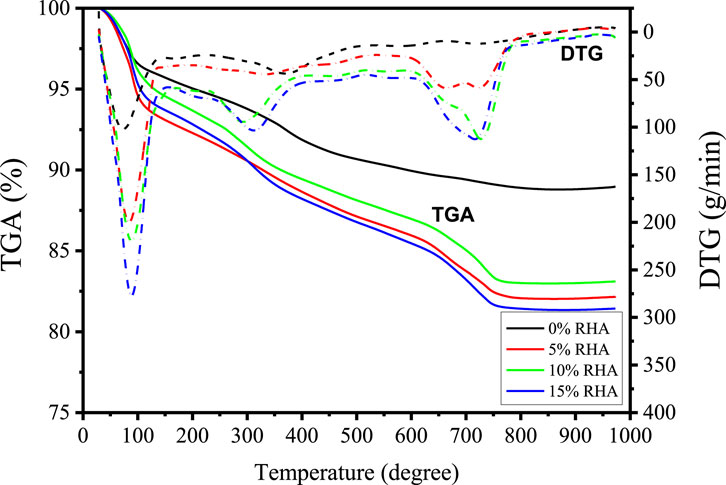

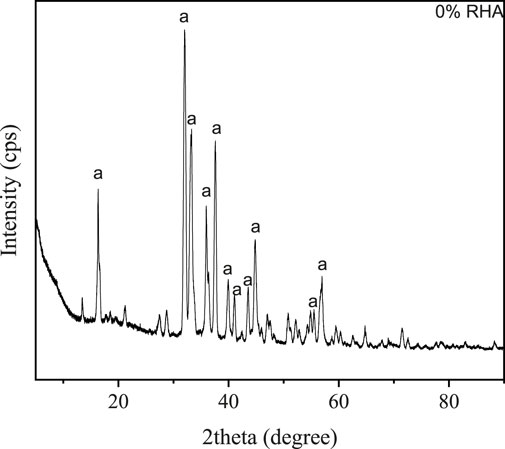

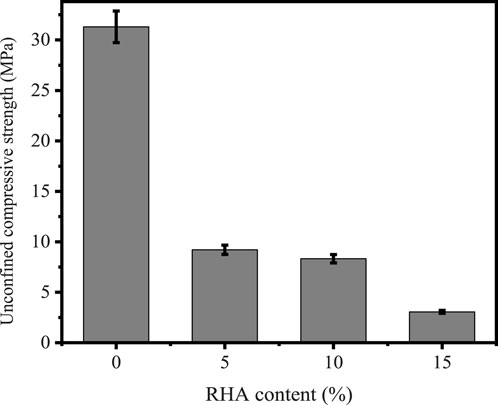

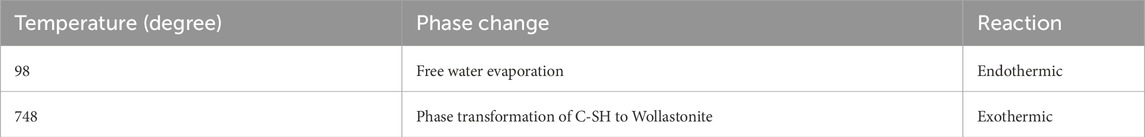

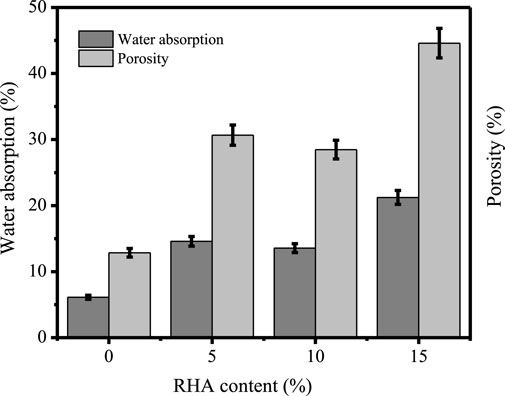

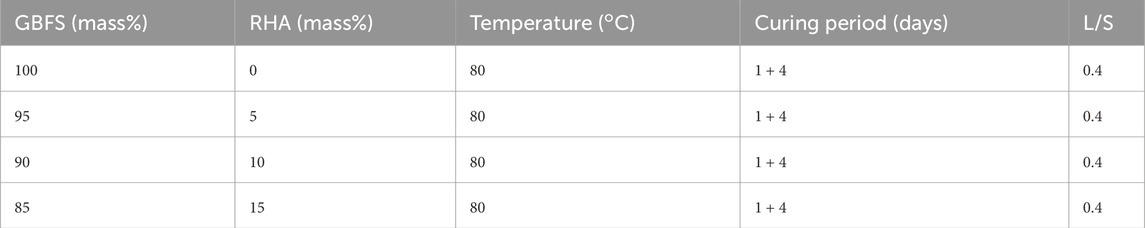

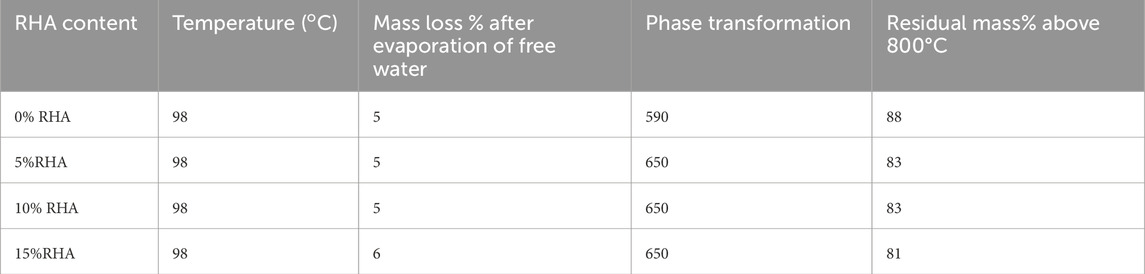

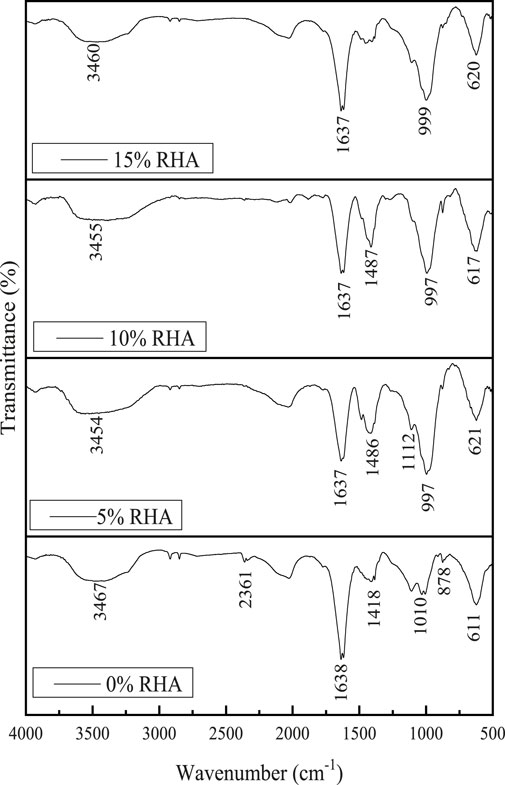

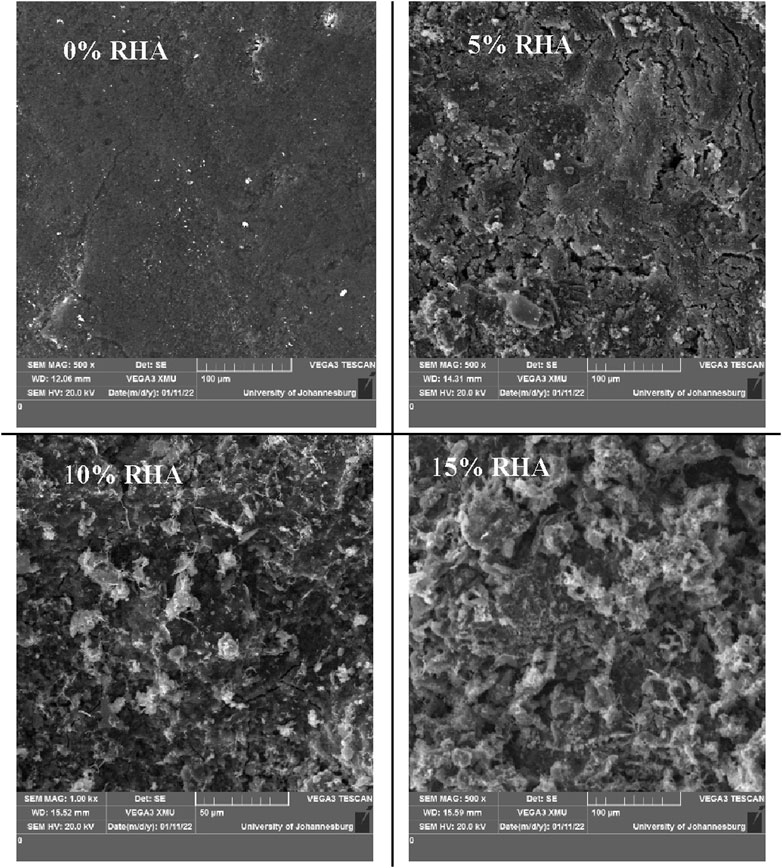

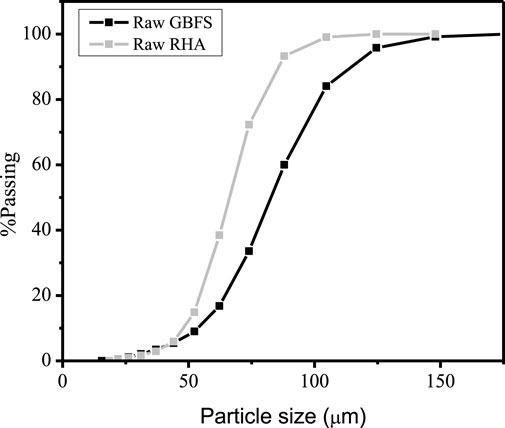

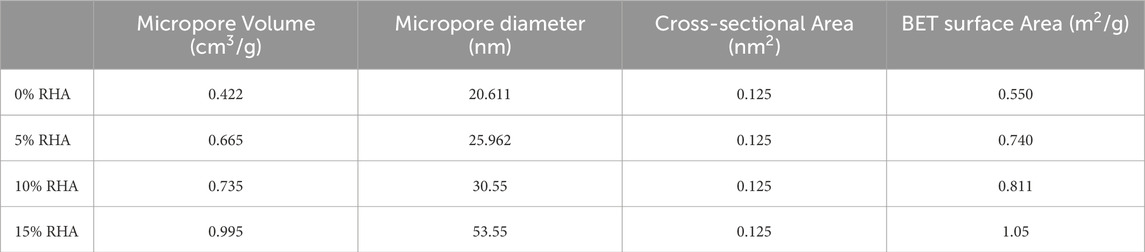

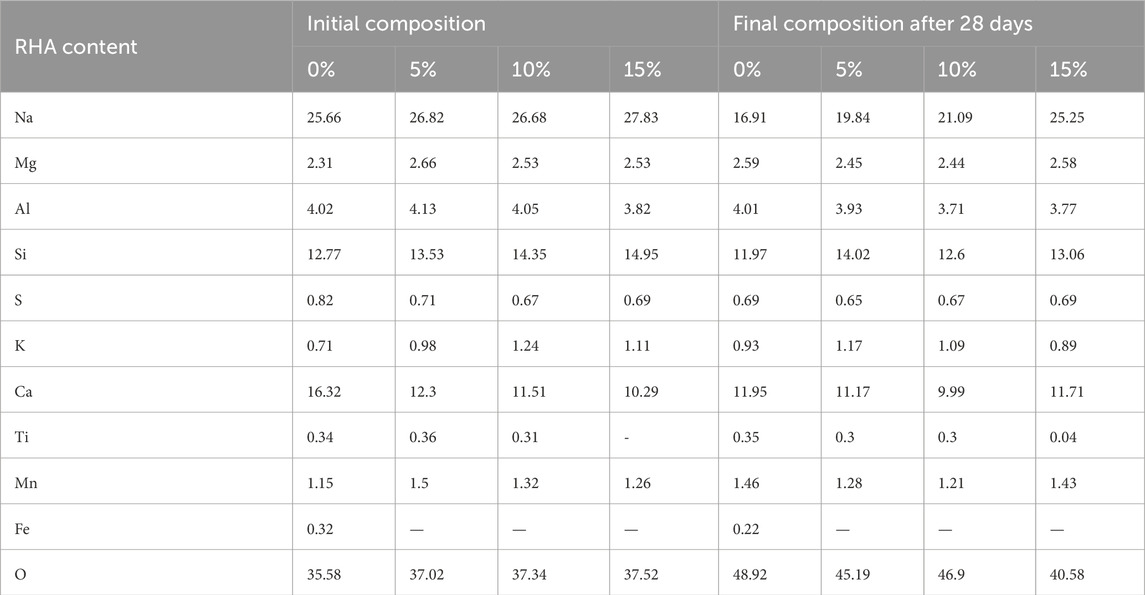

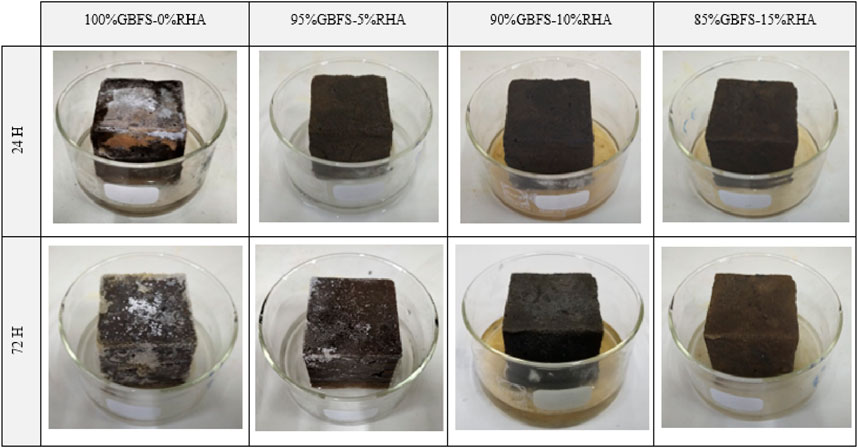

    This study investigates the inhibitory effect of rice husk ash (RHA) on the efflorescence and leaching of alkali-activated granulated blast furnace slag (GBFS). RHA consists of about 90% of microporous amorphous silica and possesses similar pozzolanic characteristics to silica fume and nano-SiO2. The specific surface area of RHA varies between 20 to 200m 2 /g. RHA-GBFSbased specimens were mainly characterised through Fourier transform infrared spectroscopic (FTIR), X-ray diffraction spectrometry (XRD), thermal analyses, as well as scanning electron microscope (SEM) and energy dispersive spectrometric (EDS) analyses. Results showed that efflorescence decreases with the rise in RHA content due to the increase in the degree of reaction. The optimal RHA content was 15%. Specimen consisting of 15%RHA and 85%GBFS yielded the lowest extent of total alkali leaching, equivalent to 9.41%, while sample consisting of 100%GBFS yielded the highest degree of alkali leaching, equivalent to 29.9%. EDS analysis of 15% of specimens before and after leaching indicates a smaller decrease in Na + ions from 27.83% to 25.25% by weight. However, the addition of RHA does not permanently inhibit alkali leaching but retard the extent of alkali leaching over time. With the increase of up to 15% RHA, CO 3-peaks are nearly suppressed based on FTIR analysis, indicating that the increase in RHA mitigates the effect of efflorescence. XRD of specimens containing 10% and 15% RHA \indicate the possible formation of hydrosodalite and sodium-calcium aluminium hydrate gel, which control the mobility of Na+ ions; consequently, Na+ ions are less prone to reach out.

    Keywords: rice husk ash, Granulated blast furnace slag, Efflorescence, Alkali leaching, Alkali activated material

    Received: 22 Jul 2024; Accepted: 14 Nov 2024.

    Copyright: © 2024 Nseke, Kirkelund and Sithole. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

    * Correspondence: Thandiwe Sithole, University of Johannesburg, Johannesburg, South Africa

    Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
