Muna Salameh ^1* Basim Touqan ²

• ¹ Department of Architecture, College of Architecture, Art and Design, Ajman University, Ajman, United Arab Emirates
• ² Department of Electromechanical Engineering, College of Engineering and IT, British University in Dubai, Dubai, United Arab Emirates

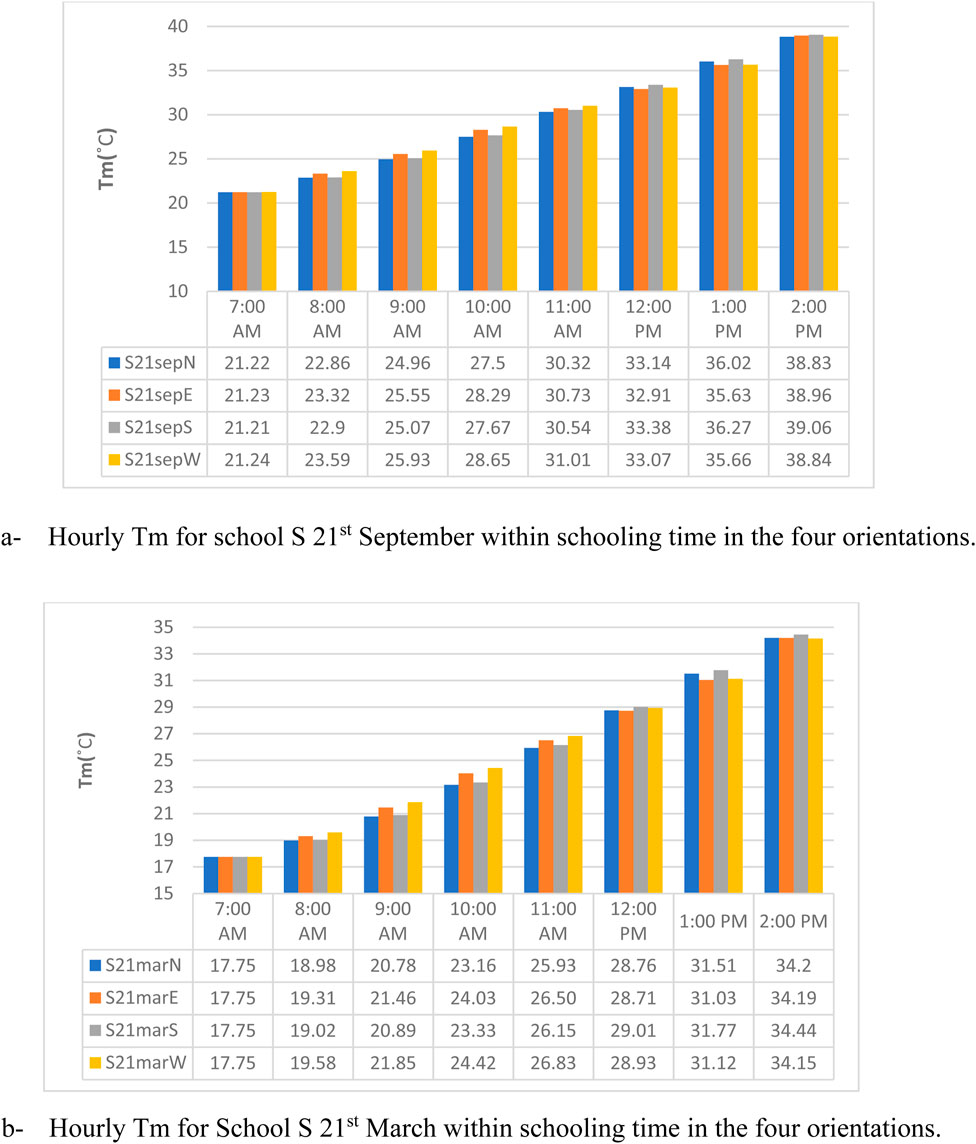

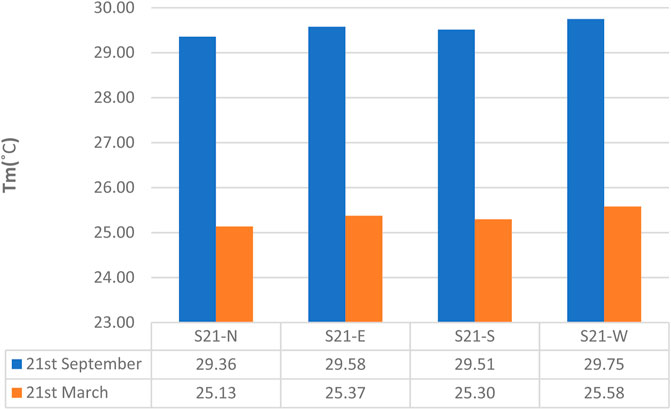

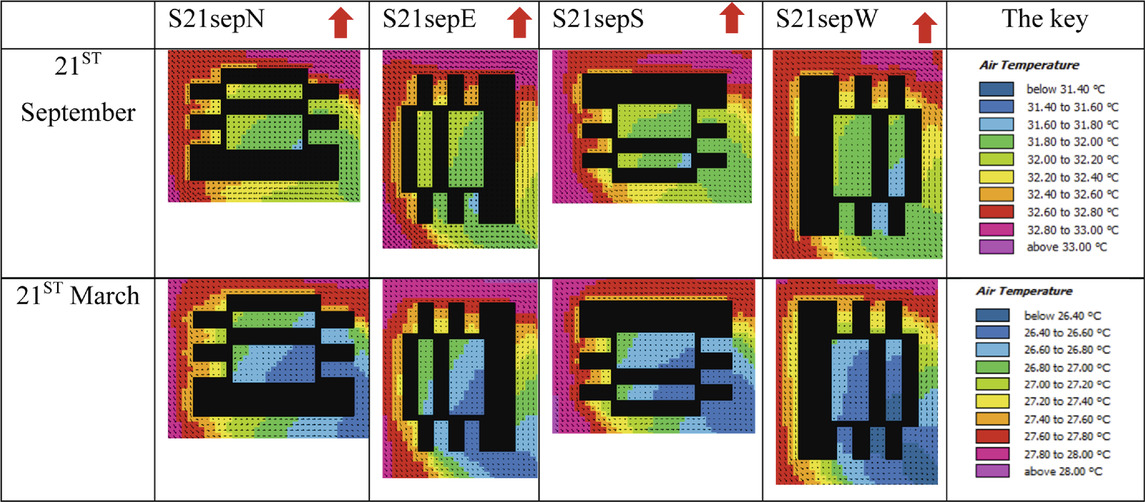

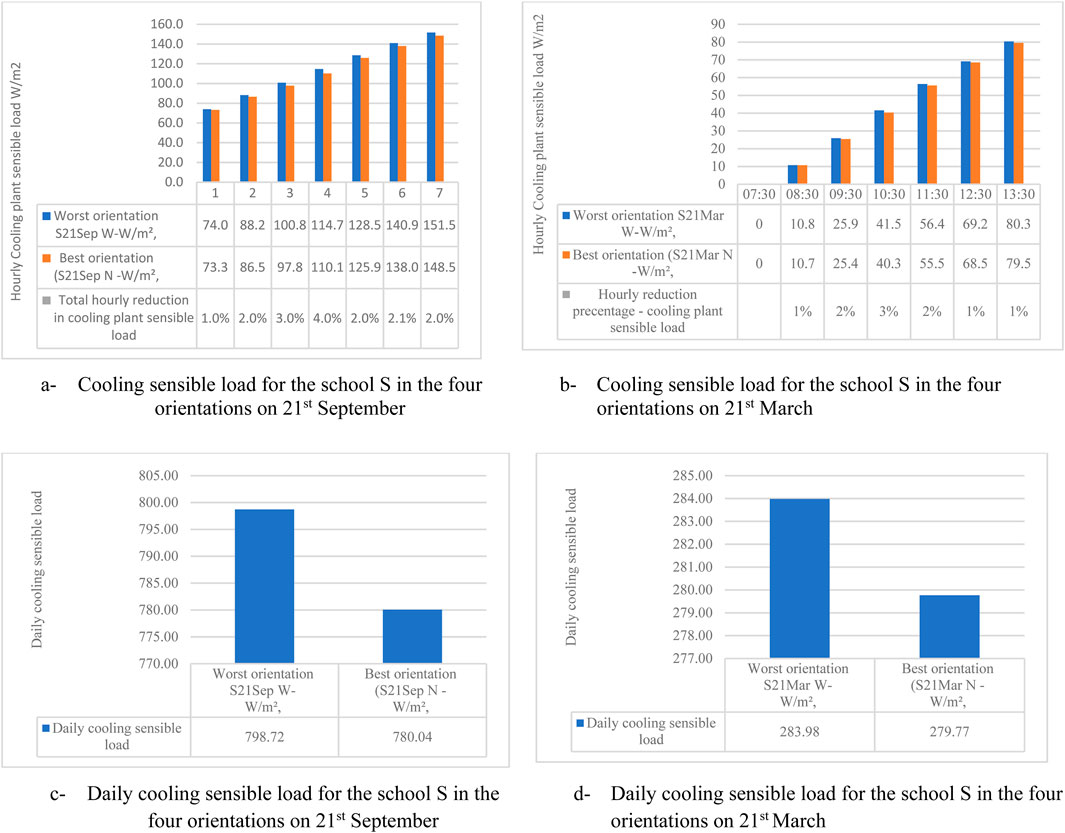

Sustainable school design is becoming increasingly important worldwide, particularly in the UAE, where schools are significant energy consumers. This study explores the impact of courtyard orientation on microclimate and energy consumption in UAE schools, utilizing a standardized template applied across 70 existing schools. By employing advanced simulation tools, ENVI-met and IES-ve software, the research provides a comprehensive analysis of air temperature and energy use related to different courtyard orientations, specifically on key dates of September 21st and March 21st, representing seasonal variations. The results indicate that North-facing courtyards consistently provide cooler microclimates compared to other orientations. Specifically, North-facing courtyards showed temperature reductions of 1.31°C in September and 1.9°C in March compared to the least favorable orientations. This orientation recorded the lowest average mass temperatures of 29.36°C in September and 25.13°C in March, surpassing the West-facing orientation by 0.39°C and 0.45°C, respectively. The primary factor for this improvement is the reduced solar radiation exposure on East-West aligned courtyards, which significantly lowers the heat gain. Additionally, the study assessed Physiologically Equivalent Temperature (PET) readings and cooling demands, both of which were found to be lower in North-facing courtyards. Cooling load reductions varied between 1% and 4%, depending on the day, further emphasizing the efficiency of this orientation. These findings suggest that strategic courtyard orientation is a critical design consideration for enhancing thermal comfort and energy efficiency in school buildings. The implications of this research are significant for sustainable design and construction practices. By highlighting the benefits of optimal courtyard orientation, this study offers practical solutions for reducing energy consumption and improving the indoor and outdoor thermal environments of schools. These insights contribute to the broader goal of developing greener, more sustainable educational facilities, particularly in hot climates like the UAE. This research not only informs architects and urban planners but also supports policymakers in implementing effective sustainability strategies in the educational sector.
