Phenomenological rate-independent uniaxial hysteretic models: A mini-review

A great variety of phenomenological models has been proposed over the years to model rate-independent hysteretic forces in structural mechanics. The classification of such models is usually based on the type of equation that needs to be solved to evaluate the output variable. In particular, we distinguish among algebraic, transcendental, differential and integral models. For algebraic (transcendental) models, an algebraic (a transcendental) equation needs to be solved to compute the output variable; conversely, differential equations are employed for differential models, whereas equations expressed in integral form characterize integral models. This paper provides a mini-review of the most adopted phenomenological rate-independent uniaxial hysteretic models. Such models are selected in order to provide a complete overview of the four types of previously mentioned models, currently available in the literature. In particular, we illustrate the fundamental characteristics of each model and discuss their peculiarities in terms of 1) number of adopted parameters and variables, 2) physical interpretation of parameters and related calibration procedures, 3) type of hysteresis loop shapes that can be simulated.

1 Introduction

The mathematical modeling of hysteresis phenomena is a challenging problem addressed during the years by different authors by means of different models. The main aim of the various authors was to obtain accurate and computationally efficient models based on a small number of parameters (Vaiana et al., 2019b). The model proposed in the literature can be classified into four main categories based on the type of equation that need to be solved to compute the output variable (Vaiana et al., 2018; Vaiana et al., 2021b). In particular, we have: 1) algebraic, 2) transcendental, 3) differential, 4) integral models.

2 Algebraic models

2.1 Ramberg-Osgood model

The Ramberg-Osgood model is an algebraic model formulated by Ramberg and Osgood (1943). In this model, generally used for simulating the behavior of steel, the generalized displacement u is assumed as the output variable and is expressed as the sum of two terms:

$u=u_e+u_p,(1)$

an elastic and a plastic generalized displacement indicated, respectively, as u_e and u_p. In particular, the generalized displacement is evaluated in a closed-form as:

$u=\frac{f}{E}+K{\left(\frac{f}{E}\right)}^n,(2)$

where E is the elastic modulus, K and n are constants that depend on the considered material. The first term on the right-hand side of Eq. 2 is equal to the elastic part of the generalized displacement, whereas the second term accounts for the plastic part. The parameters K and n describe the hardening behavior of the material. Introducing the generalized yield force of the material f_y, and defining a new parameter α as:

$\alpha =K{\left(\frac{f}{E}\right)}^{n-1},(3)$

it is possible to rewrite the general expression as follows:

$u=\frac{f}{E}+\alpha \frac{f}{E}{\left(\frac{f}{f_y}\right)}^{n-1}.(4)$

Since Eq. 4 defines the skeleton curve, it is necessary to adopt the Masing rule (Masing and Mauksch, 1926) in order to simulate an entire hysteresis loop.

2.2 Giuffrè-Menegotto-Pinto model

As reported in Carreño et al. (2020), the model was first developed by Giuffrè (1970), and was based on the nonlinear stress-strain relation proposed by Goldberg and Richard (1963) and incorporates the effect of plastic deformations on the Bauschinger effect observed in steel tested experimentally. The formulation was further improved by Menegotto and Pinto (1973) and subsequently used by multiple authors due to its simplicity and accuracy in predicting the response of reinforcing steel. Filippou et al. (1983) later incorporated the effect of isotropic hardening into the constitutive law. The formulation proposed by Filippou is often preferred in the modeling of reinforced concrete systems given the consistent response and limited failures in convergence observed in the nonlinear analysis of large structural models. The constitutive relation of the model is:

$f=\left[E_h+\frac{E-E_h}{{\left(1+{\left|\frac{u}{u_y}\right|}^r\right)}^{\frac{1}{r}}}\right]u,(5)$

where E is the elastic modulus, E_h is the post-elastic stiffness, u_y is the yield generalized displacement and r is a parameter which controls the rate of variation of the tangent stiffness from E to E_h. In particular, the expression for the evaluation of the parameter r is:

$r=r_0-\frac{a_1\frac{u}{u_y}}{a_2+\frac{u}{u_y}}.(6)$

Since Eq. 5 defines the skeleton curve, as done for the Ramberg-Osgood model, it is necessary to adopt the Masing rule in order to simulate an entire hysteresis loop.

2.3 Algebraic model

The model proposed by Vaiana et al. (2019a) is a uniaxial phenomenological model which can simulate hysteresis loops limited by two parallel straight lines or curves by adopting a set of only five parameters easy to calibrate (Sessa et al., 2020). Furthermore, the model allows one to evaluate the output variable by means of a closed form expression having an algebraic nature.

In particular, the generalized force f, during the generic loading phase $(\dot{u}>0)$, can be evaluated as:

$f\left(u,u_j^{+}\right)=\left\{\begin{array}{cc}{c}^{+}\left(u,u_j^{+}\right)\hfill & \text{if}u<u_j^{+}\hfill \\ c_u\left(u\right)\hfill & \text{if}u>u_j^{+},\hfill \end{array}\right.(7)$

whereas, during the generic unloading phase $(\dot{u}<0)$, it can be computed as:

$f\left(u,u_j^{-}\right)=\left\{\begin{array}{cc}{c}^{-}\left(u,u_j^{-}\right)\hfill & \text{if}u>u_j^{-}\hfill \\ c_l\left(u\right)\hfill & \text{if}u<u_j^{-}.\hfill \end{array}\right.(8)$

In Eqs. 7 and 8, c⁺ and c⁻ represent, respectively, the generic loading and unloading curves whose expressions are:

$c^{+}\left(u,u_j^{+}\right)={\beta }_1{u}^3+{\beta }_2{u}^5+k_{b}u+f_0+\frac{k_a-k_b}{1-\alpha }\left[{\left(1+u-u_j^{+}+2u_0\right)}^{1-\alpha }-{\left(1+2u_0\right)}^{1-\alpha }\right],(9)$

$c^{-}\left(u,u_j^{-}\right)={\beta }_1{u}^3+{\beta }_2{u}^5+k_{b}u-f_0+\frac{k_a-k_b}{\alpha -1}\left[{\left(1-u+u_j^{-}+2u_0\right)}^{1-\alpha }-{\left(1+2u_0\right)}^{1-\alpha }\right],(10)$

whereas c_u and c_l are, respectively, the upper and lower limiting curves having expressions:

$c_u\left(u\right)={\beta }_1{u}^3+{\beta }_2{u}^5+k_{b}u+f_0,(11)$

$c_l\left(u\right)={\beta }_1{u}^3+{\beta }_2{u}^5+k_{b}u-f_0.(12)$

The internal variable $u_j^{+}$ $(u_j^{-})$, characterizing the generic loading (unloading) phase, is given by:

$u_j^{+}=1+u_P+2u_0-{\left\{\frac{1-\alpha }{k_a-k_b}\left[f_P-{\beta }_1{u}_P^3-{\beta }_2{u}_P^5-k_b{u}_P-f_0+\left(k_a-k_b\right)\frac{{\left(1+2u_0\right)}^{1-\alpha }}{1-\alpha }\right]\right\}}^{\frac{1}{1-\alpha }},(13)$

$u_j^{-}=-1+u_P-2u_0+{\left\{\frac{\alpha -1}{k_a-k_b}\left[f_P-{\beta }_1{u}_P^3-{\beta }_2{u}_P^5-k_b{u}_P+f_0+\left(k_a-k_b\right)\frac{{\left(1+2u_0\right)}^{1-\alpha }}{\alpha -1}\right]\right\}}^{\frac{1}{1-\alpha }},(14)$

where u_P and f_P are the coordinates of the initial point of c⁺ (c⁻).

The internal model parameters u₀ and f₀ can be expressed in terms of the parameters k_a, k_b, and α as follows:

$u_0=\frac{1}{2}\left[{\left(\frac{k_a-k_b}{{\delta }_k}\right)}^{\frac{1}{\alpha }}-1\right],(15)$

$f_0=\frac{k_a-k_b}{2\left(1-\alpha \right)}\left[{\left(1+2u_0\right)}^{1-\alpha }-1\right],(16)$

where δ_k is the difference between the two different values assumed by the transverse tangent stiffness at $u_j^{+}$ $(u_j^{-})$. However, the authors suggests, based on the results of several numerical tests (Vaiana et al., 2020; Vaiana et al., 2021a; Pellecchia et al., 2022), to set δ_k = 10^–20.

3 Transcendental models

3.1 Kikuchi-Aiken model

The transcendental model proposed by Kikuchi and Aiken (1997) was formulated with the purpose of accurately predicting the response of elastomeric bearings (Losanno et al., 2019; Losanno et al., 2022a; Losanno et al., 2022b; Losanno et al., 2022c).

The generalized force f is expressed as the sum of two terms:

$f\left(u\right)=f_1\left(u\right)+f_2\left(u\right),(17)$

where

$f_1\left(u\right)=\frac{1}{2}\left(1-\frac{f_u}{f_m}\right)f_m\left[u+\text{sgn}\left(u\right)|u{|}^n\right],(18)$

and

$f_2\left(u\right)=\left\{\begin{array}{cc}{f}_u\left\{1-2e^{-a\left(1+\frac{u}{u_m}\right)}+b\left(1+\frac{u}{u_m}\right)e^{-c\left(1+\frac{u}{u_m}\right)}\right\}\hfill & \text{if}\dot{u}>0\hfill \\ -f_u\left\{1-2e^{-a\left(1-\frac{u}{u_m}\right)}+b\left(1-\frac{u}{u_m}\right)e^{-c\left(1-\frac{u}{u_m}\right)}\right\}\hfill & \text{if}\dot{u}<0.\hfill \end{array}\right.(19)$

In particular, f_u is the generalized force at zero generalized displacements, f_m is the generalized peak force on the skeleton curve, u_m is the generalized peak displacement on the skeleton curve and the parameter n specifies the stiffening phenomenon. The model parameters a, b, and c are obtained by imposing the following expressions:

$\frac{1-e^{-2a}}{a}=1-\frac{\pi h_{eq}{f}_m}{2f_u},(20)$

$b=c^2\left\{\frac{\pi h_{eq}{f}_m}{f_u}-\left[2+\frac{2}{a}\left(e^{-2a}-1\right)\right]\right\},(21)$

where h_eq is the equivalent viscous damping ratio, evaluated from an empirical formula as a function of the generalized force, which is determined from the results of tests performed on individual bearings. Both Eqs. 20 and 21 are derived assuming that the analytical hysteresis loop area matches the experimental one.

Eq. 19 are derived for application to steady-state hysteresis behaviors for elastomeric bearings. Masing rule is applied to fully define the generalized force under a randomly-varying displacement, and Eq. 19 are replaced by:

$f_2\left(u\right)=\left\{\begin{array}{cc}{f}_{2i}+f_u\left\{2-2e^{-a\left(\frac{u-u_i}{u_m}\right)}+b\left(\frac{u-u_i}{u_m}\right)e^{-c\left(\frac{u-u_i}{u_m}\right)}\right\}\hfill & \text{if}\dot{u}>0\hfill \\ f_{2i}-f_u\left\{2-2e^{a\left(\frac{u-u_i}{u_m}\right)}-b\left(\frac{u-u_i}{u_m}\right)e^{c\left(\frac{u-u_i}{u_m}\right)}\right\}\hfill & \text{if}\dot{u}<0,\hfill \end{array}\right.(22)$

where

$f_{2i}=f_i-f_1,(23)$

and (u_i, f_i) is the most recent point of load reversal.

3.2 Vaiana-Rosati model

The model proposed by Vaiana and Rosati (2023) is a new uniaxial phenomenological model which can simulate a great number of rate-independent hysteretic responses characterized by symmetric, asymmetric, pinched, S-shaped, flag-shaped hysteresis loops or by a combination of them. The model is based on two sets of eight parameters controlling the loading and unloading phase in a separate way. Furthermore, the model allows one to evaluate the output variable by means of a closed form expression having an exponential nature.

In particular, the generalized force f, during the generic loading phase $(\dot{u}>0)$, can be evaluated as:

$f\left(u,u_j^{+}\right)=\left\{\begin{array}{cc}{c}^{+}\left(u,u_j^{+}\right)\hfill & \text{if}u<u_j^{+}\hfill \\ c_u\left(u\right)\hfill & \text{if}u>u_j^{+},\hfill \end{array}\right.(24)$

whereas, during the generic unloading phase $(\dot{u}<0)$, it can be computed as:

$f\left(u,u_j^{-}\right)=\left\{\begin{array}{cc}{c}^{-}\left(u,u_j^{-}\right)\hfill & \text{if}u>u_j^{-}\hfill \\ c_l\left(u\right)\hfill & \text{if}u<u_j^{-}.\hfill \end{array}\right.(25)$

In Eqs. 24 and 25, c⁺ and c⁻ represent, respectively, the generic loading and unloading curves whose expressions are:

$c^{+}\left(u,u_j^{+}\right)={\beta }_1^{+}{e}^{{\beta }_2^{+}u}-{\beta }_1^{+}+\frac{4{\gamma }_1^{+}}{1+e^{-{\gamma }_2^{+}\left(u-{\gamma }_3^{+}\right)}}-2{\gamma }_1^{+}+k_b^{+}u+f_0^{+}-\frac{1}{{\alpha }^{+}}\left[e^{-{\alpha }^{+}\left(+u-u_j^{+}+{\bar{u}}^{+}\right)}-e^{-{\alpha }^{+}{\bar{u}}^{+}}\right],(26)$

$c^{-}\left(u,u_j^{-}\right)={\beta }_1^{-}{e}^{{\beta }_2^{-}u}-{\beta }_1^{-}+\frac{4{\gamma }_1^{-}}{1+e^{-{\gamma }_2^{-}\left(u-{\gamma }_3^{-}\right)}}-2{\gamma }_1^{-}+k_b^{-}u-f_0^{-}+\frac{1}{{\alpha }^{-}}\left[e^{-{\alpha }^{-}\left(-u+u_j^{-}+{\bar{u}}^{-}\right)}-e^{-{\alpha }^{-}{\bar{u}}^{-}}\right],(27)$

whereas c_u and c_l are, respectively, the upper and lower limiting curves having expressions:

$c_u\left(u\right)={\beta }_1^{+}{e}^{{\beta }_2^{+}u}-{\beta }_1^{+}+\frac{4{\gamma }_1^{+}}{1+e^{-{\gamma }_2^{+}\left(u-{\gamma }_3^{+}\right)}}-2{\gamma }_1^{+}+k_b^{+}u+f_0^{+},(28)$

$c_l\left(u\right)={\beta }_1^{-}{e}^{{\beta }_2^{-}u}-{\beta }_1^{-}+\frac{4{\gamma }_1^{-}}{1+e^{-{\gamma }_2^{-}\left(u-{\gamma }_3^{-}\right)}}-2{\gamma }_1^{-}+k_b^{-}u-f_0^{-}.(29)$

The internal variable $u_j^{+}$ $(u_j^{-})$, characterizing the generic loading (unloading) phase, is given by:

$u_j^{+}=u_P+{\bar{u}}^{+}+\frac{1}{{\alpha }^{+}}\ln \left\{+{\alpha }^{+}\left[{\beta }_1^{+}{e}^{{\beta }_2^{+}{u}_P}-{\beta }_1^{+}+\frac{4{\gamma }_1^{+}}{1+e^{-{\gamma }_2^{+}\left(u_P-{\gamma }_3^{+}\right)}}-2{\gamma }_1^{+}+k_b^{+}{u}_P+f_0^{+}+\frac{1}{{\alpha }^{+}}{e}^{-{\alpha }^{+}{\bar{u}}^{+}}-f_P\right]\right\},(30)$

$u_j^{-}=u_P-{\bar{u}}^{-}-\frac{1}{{\alpha }^{-}}\ln \left\{-{\alpha }^{-}\left[{\beta }_1^{-}{e}^{{\beta }_2^{-}{u}_P}-{\beta }_1^{-}+\frac{4{\gamma }_1^{-}}{1+e^{-{\gamma }_2^{-}\left(u_P-{\gamma }_3^{-}\right)}}-2{\gamma }_1^{-}+k_b^{-}{u}_P-f_0^{-}-\frac{1}{{\alpha }^{-}}{e}^{-{\alpha }^{-}{\bar{u}}^{-}}-f_P\right]\right\},(31)$

where u_P and f_P are the coordinates of the initial point of c⁺ (c⁻).

4 Differential models

4.1 Bouc-Wen model

The Bouc-Wen model is a uniaxial rate-independent hysteretic model, having a differential nature, that has been originally formulated by Bouc (1967) and subsequently extended by Wen (1976). The model is capable of simulating symmetric generalized force-displacement hysteresis loops (Visintin, 2013; Carboni et al., 2018). In the formulation of the model proposed by Wen (1980), the differential equation that defines the model and that needs to be solved is:

$\dot{f}=-\beta \dot{u}{\left|f\right|}^n-\gamma \left|\dot{u}\right|{\left|f\right|}^{n-1}f+A\dot{u},(32)$

where β, γ, A and n influence the generalized force-displacement hysteresis loop shape. In particular, parameters γ and β control the shape of the hysteresis loop, A the restoring force amplitude, and n the rate of variation between the initial and the asymptotic tangent stiffness, a large value of n corresponds to an almost bilinear hysteresis loop.

4.2 Ozdemir model

The model was proposed by Ozdemir (1976) and illustrated in more detail in Graesser and Cozzarelli (1991). The model proposed by Ozdemir is a modified form of the Bouc-Wen model. This model is general enough to include a variety of different types of hysteretic behavior. In addition, the material model is linked to experimental studies of the properties of a nickel-titanium shape-memory alloy (SMA). The equations that describe the model are:

$\left\{\begin{array}{cc}\dot{f}\hfill & =E\left[\dot{u}-\left|\dot{u}\right|{\left(\frac{f-\beta }{Y}\right)}^n\right]\hfill \\ \dot{\beta }\hfill & =\alpha E\left|\dot{u}\right|{\left(\frac{f-\beta }{Y}\right)}^n,\hfill \end{array}\right.(33)$

where f is the generalized force, u is the generalized displacement, β is the generalized back-force, E is the elastic modulus, Y is the generalized force correspondent to the point obtained as the intersection of the upper limiting straight line and the tangent line to the origin, n is a constant parameter controlling the rate of variation of the tangent stiffness from E to the asymptotic value E_y, and α is a constant controlling the tangent stiffness of the hysteresis loop and is given by:

$\alpha =\frac{E_y}{E-E_y}.(34)$

5 Integral models

5.1 Preisach model

The Preisach model, first derived in Preisach (1935) and than described in Kuczmann (2010) and Mayergoyz (1986), is an integral model given by:

$f\left(t\right)={\iint }_{\alpha \ge \beta }\mu \left(\alpha ,\beta \right)\gamma \left(\alpha ,\beta ,u\left(t\right)\right)d\alpha d\beta .(35)$

The model is obtained considering an infinite set of simplest hysteresis operators γ. These operators can be represented by rectangular loops on the input-output plane. Numbers α and β correspond to up and down switching values of input. The outputs of these operators may assume only two values, + 1 and −1.

Along with the set of operators γ, the model considers an arbitrary weight function μ(α, β). To determine μ(α, β), the set of first order reversal curves should be experimentally found. This can be done by bringing first the input to such a value that outputs of all operators γ are equal to −1. Now if we gradually increase the input value, then we will follow along a limiting ascending branch. The notation f_α will be used for the output value on this branch corresponding to the input u = α. The notation f_αβ will be used for the output value on the transition curve attached to the limiting ascending branch at the point f_α. This output value corresponds to the input u = β. At this point we can define the function:

$F\left(\alpha ,\beta \right)=\frac{f_{\alpha }-f_{\alpha \beta }}{2}.(36)$

Finally it can be proved that:

$\mu \left(\alpha ,\beta \right)=\frac{{\partial }^{2}F\left(\alpha ,\beta \right)}{\partial \alpha \partial \beta }.(37)$

6 Discussion

In this review, we made an overview of some celebrated and recently formulated models to illustrate their fundamental characteristics with particular attention to the number of parameters that need to be set (Table 1) and, if present, their physical interpretation. We also show the different kinds of hysteresis loop shapes, shown in Figure 1, that can be simulated by using the different models.

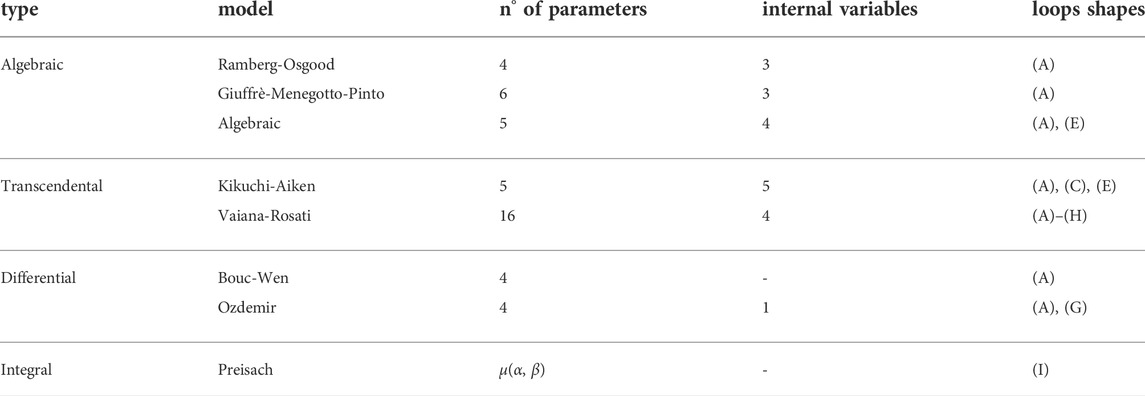

TABLE 1

TABLE 1. Uniaxial phenomenological models.

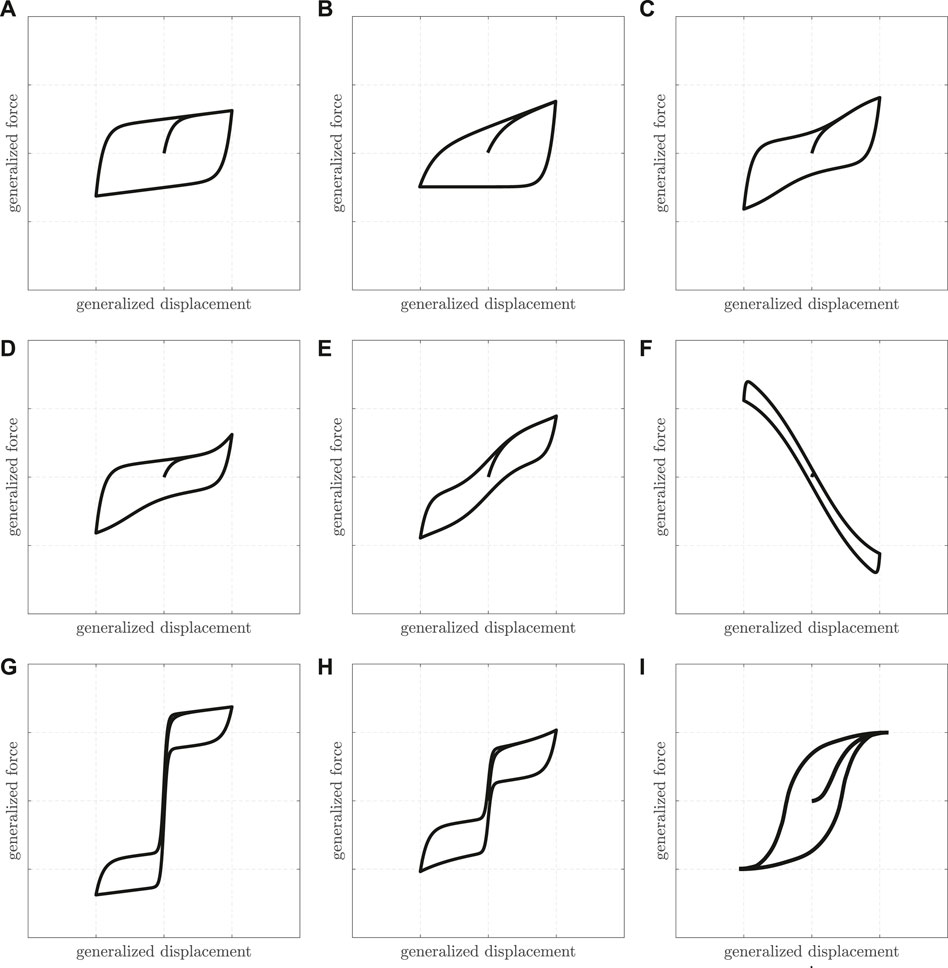

FIGURE 1

FIGURE 1. Hysteresis loops shapes.

In particular, from Table 1 it can be noted that:

• differential models require a small number of parameters but can simulate only simple hysteresis loops shape;

• models such as the algebraic Ramberg-Osgood, the Giuffrè-Menegotto-Pinto, and the transcendental Kikuchi-Aiken, define only the skeleton curve of a loop. Therefore, it is necessary to use the Masing rule to simulate an entire hysteresis loop, which involves the addition of a series of internal variables;

• the Vaiana-Rosati model, despite the number of parameters, allows for the simulation of the vast majority of hysteresis loop shapes through closed-form expressions;

• the hysteresis loop shape in Figure 1I, typical of the magnetic hysteresis, can be simulated only by the Preisach model, which presents significant difficulties in the evaluation of the output variable.
