Passive Design Strategies for Energy Efficient Buildings in the Arabian Desert

This study aims to assess passive design features through the extensive modifications of building envelopes to affect the energy efficiency of residential buildings in hot arid climates. In support of the aim of this research, the annual electric energy bill of a typical residential building in Sharurah was collected and analyzed. Then, the DesignBuilder simulation program was used to investigate how different modifications of building envelopes could affect the energy consumption of the residential buildings under common scenarios. Varied thermal insulation, different types of glass, shading devices, and green roof were investigated with this perspective. The simulation results show that thermal insulation can significantly reduce annual energy consumption by as high as 23.6%, followed by green roofs. In contrast, shading devices and glazing system types were fewer superiors. The results also indicate that the effective combination of certain strategies can reduce total energy consumption by 35.4% relative to the base case (BC) of this research.

Introduction

The hot desert region is facing destructive environmental impacts, such as global warming, climate change and pollution, due to the rapid use of fossil fuels to generate energy, which is then used to enhance the indoor environment of buildings. These challenges have encouraged designers and engineers in the region to adopt passive design strategies to reduce energy consumption, thus helping to reduce the negative environmental impacts. In the last few decades, energy-efficient envelope design strategies have increasingly attracted the attention of researchers around the world (Asfour, 2020). The Kingdom of Saudi Arabia (KSA) has an area of more than 2 million km², a population of 34.2 million and a density of 15.3 inhabitants per km². It is one of the fastest-growing countries in the world, with a rate exceeding 2.1% (GAS, 2019; GAStat, 2019). The annual economic growth rate of KSA is 6.8%. According to the available data for the period between 1980 and 2014 from the Saudi Electricity Company (EIA. Independent, 2014; ECRA, 2014), the annual primary energy consumption per capita of KSA has substantially increased from 3.88 to 9.14 MWh, which can be attributed to addressing national needs, especially the growing residential sector. The country has a hot arid climate; consequently, the rapid development and urbanisation of the construction industry have contributed to a national total electricity demand of 77 GW and a total desalinated water demand of 1,912 million m³ in 2014 (ECRA, 2014; GAS, 2019). Nevertheless, studies on energy efficiency in general and energy efficiency in buildings, in particular, have not received much attention in KSA compared with those in similar countries (Taleb and Sharples, 2011; Al-Tamimi, 2017). Studies that have applied the performance-based design approach in hot climates have illustrated that 37% in annual energy consumption can be achieved when proper envelope systems are implemented (Al-Saadi and Budaiwi, 2007; Taleb and Sharples, 2011). The residential sector in KSA consumes half of the total sold electricity, of which 70% can be attributed to airconditioning systems to be able to maintain acceptable thermal comfort (SEEC, 2015). Residential consumption dominates all Saudi operating districts, reaching a maximum of 67% of the total electricity consumption in the Southern Operating District (Figure 1) where this study is carried out (ECRA, 2014).

FIGURE 1

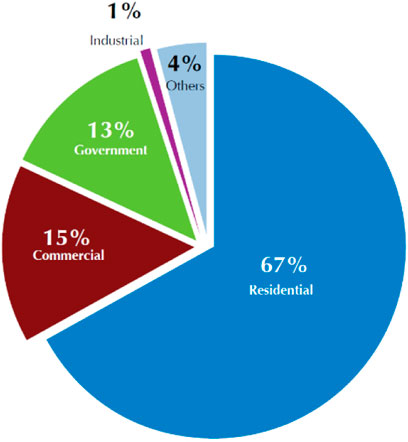

FIGURE 1. End-use sector distribution of annual electricity consumption in the southern district of KSA.

Common knowledge dictates that avoiding heat gain is the first approach in designing building envelopes, especially in the desert climate of KSA. This approach can help to reduce the transfer of heat from the external harsh environment, especially direct solar radiation and high outdoor temperatures, to the internal spaces of buildings (Alaidroos and Krarti, 2015; Al kanani et al., 2017; El-Darwish and Gomaa, 2017). This study aims to improve the thermal performance and reduce the energy consumption of residential buildings as a result of the envelope’s ability to decrease thermal transmittance and solar heat gains. The scope of this work is limited to the evaluation of the influence of building envelope modification on energy consumption of residential buildings in the hot arid climate of Sharurah City, KSA.

This paper describes an investigation of the effect of four passive design strategies, namely, insulation, glazing type, shading devices, and green roof, on the annual energy consumption on a typical residential building being developed and constructed recently in Saudi Arabia. A detailed energy analysis was performed to determine an optimum design for the residential envelope system in Sharurah City, which is located at the edge of the Empty Quarter desert. The paper begins with a general overview of the climate of Sharurah city and then reviews previous research into the use of passive design strategies on residential buildings in similar climates. The model used to simulate the four suggested strategies is then described in the research methodology section, followed by the results and conclusions of the investigation.

Climatic Condition of Sharurah

The town of Sharurah lies at 17°47′ N latitude and 47°08′ E longitude in the Empty Quarter desert near the Yemeni border at 727 m above sea level. According to the Saudi Meteorological Authority (KACARE, Summary Report, 2014), the climate of Sharurah is characterised by extreme heat and aridity (Figure 2). During summer, the average temperature ranges from 27.8°C to 46.1°C. The lowest recorded temperature in Sharurah was −2.2°C in January. Annual relative humidity ranges from 9.3 to 39.4%. As a desert climate, Sharurah has virtually no rainfall during the year. The average annual rainfall is 70.29 mm (Almazroui, 2011). Moreover, amongst KSA cities, Sharurah has the highest daily solar radiation at more than 6.7 kwh/m²/day (Zell et al., 2015). This heat transfers greatly into the city buildings’ internal spaces due to poor thermal performance of building envelopes. This phenomenon produces unacceptable comfort conditions, leading to the increase in airconditioning systems as a means of improving the thermal comfort level of the buildings’ users.

FIGURE 2

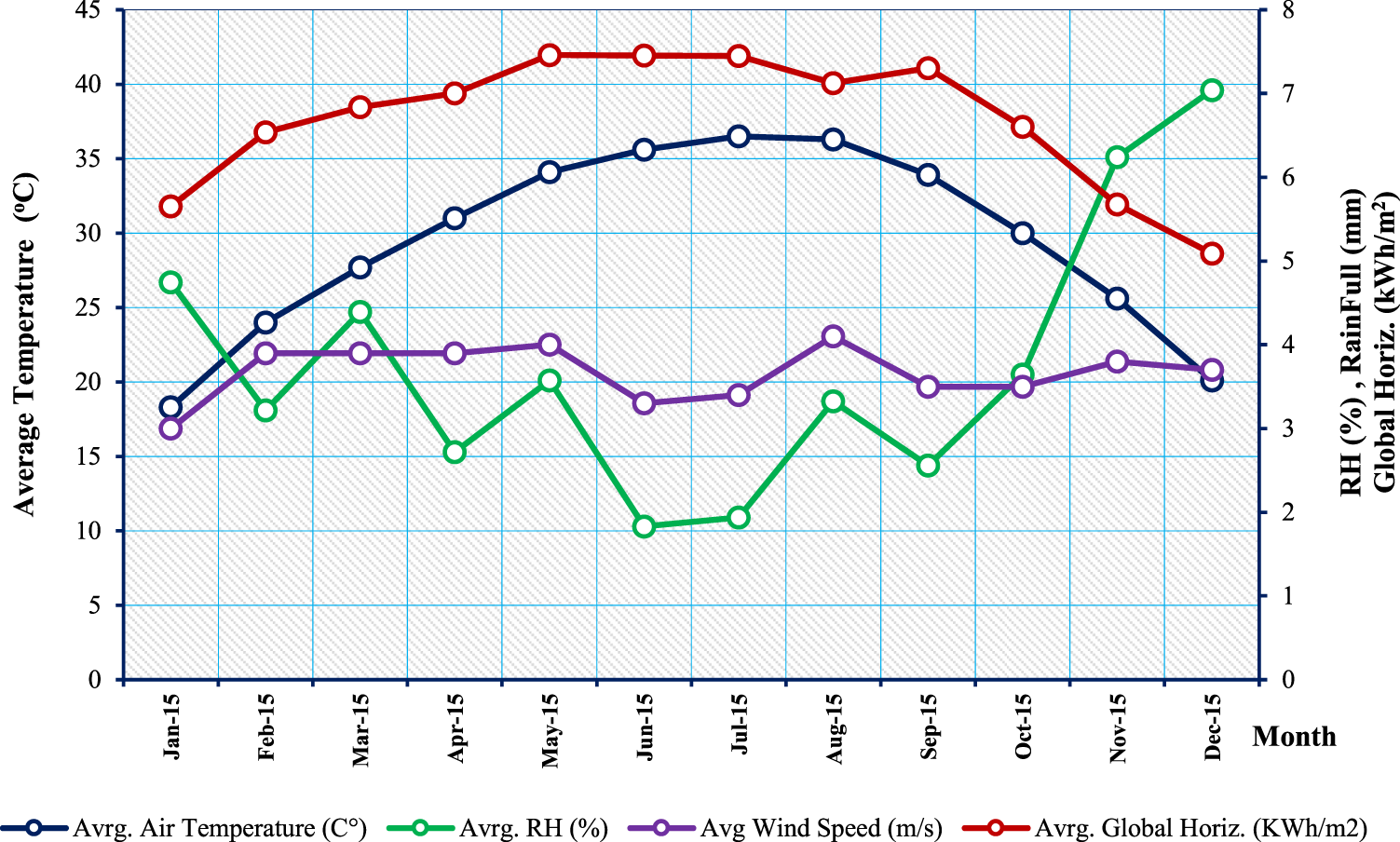

FIGURE 2. Sharurah climatic data.

Previous Studies

Gaps in energy efficiency of existing buildings have been raised as common issue around the globe. The energy efficiency framework seems to be a good solution to upgrade the environmental performance of the building sector (Far and Far, 2019). Many studies have investigated the influence of passive design strategies on energy conservation for residential buildings, mainly in hot regions. The literature review in this section covers many studies that had investigated optimum thermal insulation, window glazing, window shading and green roof concepts applied mainly in hot countries.

Most of the related studies have concluded that applying thermal insulation under optimised conditions is an effective approach to energy conservation (Çomaklı and Yüksel, 2003; Dombaycı et al., 2006; Ucar and Balo, 2010; Yarbrough, 2012; Al-Sanea et al., 2016; Alsayed and Tayeh, 2019). Huge energy can be saved when a building envelope is properly insulated. Applying thermal insulation on outer surfaces of building envelopes can also significantly reduce annual cooling loads and peak demands. Moreover, the past results also indicate that optimum thickness and payback period depend on climatic conditions regardless of the insulation type. A previous study (Alrashed and Asif, 2014) investigated some of the factors associated with energy consumption in residential buildings, including climatic conditions, housing types, building envelopes and airconditioning systems. The research was based on an analysis of the actual electricity consumption of 115 houses in Dhahran, KSA. The investigated buildings included 62 apartments, 28 villas and 25 traditional houses. The results showed that 50 and 75% of the apartments and traditional houses were not thermally insulated, respectively. The average electricity consumption of the dwellings with thermal insulation was approximately 32% lower than those without thermal insulation. A study (Al-Tamimi, 2021) evaluated the impact of thermal insulation type and its thickness on reducing the energy consumption of a typical villa located in three Saudi cities. The study used DesignBuilder simulation tool to calculate the efficiency of the insulation layers based on the life cycle cost model. The results showed that applying any type of thermal insulation to the walls and ceiling leads to a significant reduction in the total costs. In addition, the highest value for the recovery period was varied between 4.7 and 8.8 years based on the climate condition. Alaidroos et al. (Alaidroos and Krarti, 2015) investigated the impact of building envelope components on the energy saving of residential buildings in five cites in the KSA by using the Energy Plus software. The building envelope measures in the study were walls and roof insulation, window wall ratio, type of glazing, shading devices and thermal mass. Their results showed that significant energy reduction could be obtained for the subsidised energy cost case. The reductions were 39.5, 33.7, 35, 32.7 and 22.7% for the buildings located in Riyadh, Jeddah, Dhahran, Tabuk and Abha, respectively. A study (Gondal et al., 2019) conducted to improve the energy efficiency of the buildings by employing passive design strategies and alternative energy resources. MATLAB and TOPSIS software have been employed for this optimization. The study indicated that passive design measures of the building envelope can reduce energy consumption by as much as 33%. Another study (Aldossary et al., 2014) analyzed the energy consumption patterns in the hot-humid climate of Jeddah. The selected case studies included three typical houses and three typical flats. The collected data were based on monthly electricity bills, user behaviour through interviews and energy simulation, and the IES-VE software was utilised. The aim of the study had been to investigate the impact of shading devices, window glazing and domestic photovoltaic energy sources on energy conservation. On the basis of the simulation results, the past study found that applying design strategies could lead to a reduction in energy consumption in the range of 21–37%. Moreover, the actual data showed that the annual energy consumption in Saudi houses varied between 109 and 185.4 kWh/m².

Currently, single clear glazing with poorly insulated frames are used in many regions around the world, in which the U-values vary between 4.5 and 5.6 W/m²-K (El-Darwish and Gomaa, 2017). In recent years, major efforts have been adopted to improve the thermal behaviour of glazed windows by using various technologies, such as double glazing, low-emissivity coatings, low-conductivity frames and inert gas fill to be used in residential buildings. According to many studies conducted in hot tropical regions, this approach could reduce the annual cooling load by 7.2%, with a high significant reduction on the peak cooling load reaching 36% (Al-Tamimi and Fadzil, 2012; Sbar et al., 2012; Aboulnaga et al., 2016; Yu et al., 2020). Another study (Aboulnaga et al., 2016) was conducted by means of retrofitting approach to improve energy performance and mitigate CO₂ emission in educational buildings in the hot climate of Cairo, Egypt. The DesignBuilder energy simulation software was used to assess several parameters of the building, including upgrading the glazing with a shading coefficient from 0.81 to 0.35, a wall of thermal insulation of the building’s envelope from 4.8 to 1.15 W/K m² and a green roof. The past results showed that applying those retrofitting measures could reduce energy use by 27% relative to the base case. A study (Hamid et al., 2016) examined the efficiency of the system called extensive green roof to reduce cooling energy consumption in residential buildings in Riyadh in contrast to the concrete roof system. The past results showed that the use of the green roof system could reduce the energy consumption of airconditioning by 12–33%. Another study (Goussous et al., 2015) was conducted in a residential building in Jordan to investigate the impact of green roof technology for energy saving. Thermal calculations and computer simulation methods were conducted to compare the regular roof setup with the green roof technology and explore the impact of green roof materials on the thermal transmittance and energy consumption of HVAC systems. Their results showed that 17% of HVAC energy consumption could be saved with the simplest application of the green roof system.

Generally speaking, previous studies have focused only on a particular envelope component in houses and commercial buildings in moderate, cold or hot humid climates. There is a lack of comparative study of the relative efficiency and impact of passive design strategies. However, the above studies provided resources for this research, such as input parameters and benchmarks for validations that are hard to obtain otherwise. The contribution of this study is merely related to the fact that there have not been similar studies on the specific city located at the Empty Quarter desert, and this work provides a general methodological framework for designing residential buildings. In this sense, the study could be a design template for other residential buildings with similar climate areas in Saudi and Gulf countries.

Research Methodology

Reducing heat gain in buildings located in hot climates is one of the most important approaches to energy reduction. This approach is particularly useful for airconditioning spaces, especially in the summer months. In this study, four passive design strategies in which heat gain affects building envelopes are considered. The four aspects used as basis for the strategies are thermal insulation, glazing type, external shading device and green roof.

Building Characteristics

The residential building considered in this study comprises two stories and four apartments. Each apartment has a floor area of 192 m². Figures 3, 4 illustrates the floor plans and main elevation of the building. The obtained data of the base case (BC) include information related to building material and construction characteristics, schedules of occupancy, house appliances and specifications of the HVAC and the lighting systems used in this building are summarised in Table 1.

FIGURE 3

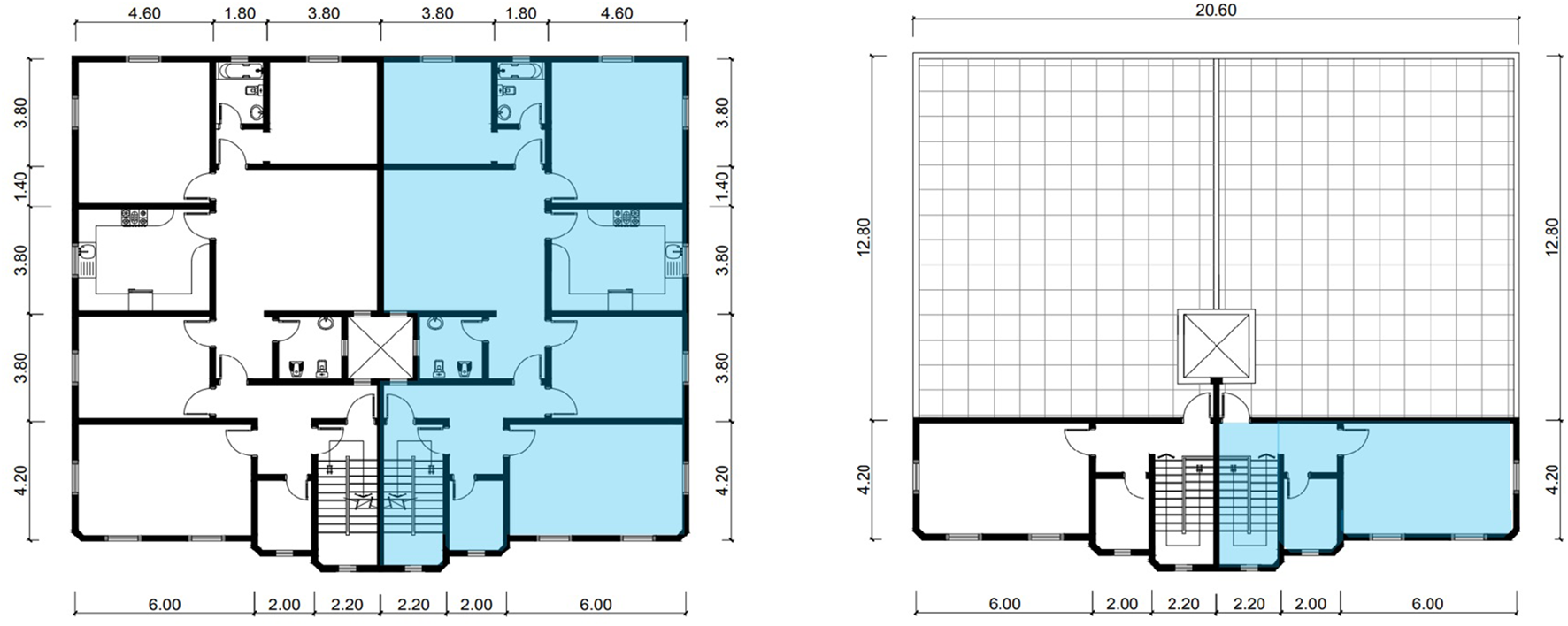

FIGURE 3. First and second floor plans of the simulated apartment (Author, 2018).

FIGURE 4

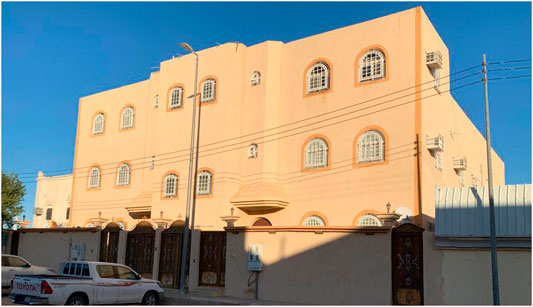

FIGURE 4. Main elevation of the base case (Author, 2018).

TABLE 1

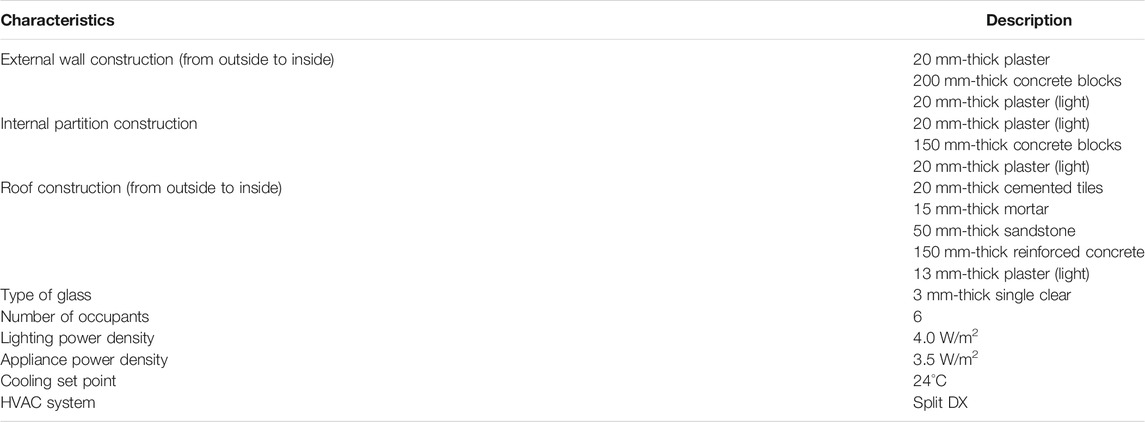

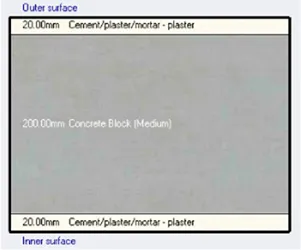

TABLE 1. Building construction, HVAC and lighting systems specifications of the case study.

Building Simulation Tool “DesignBuilder”

Computer-based simulation is a technology used to model accurately design and usage changes (Muller, 2001; Grote and Wang, 2002). In the current research, the rendering of energy models for the prototype was conducted using an hourly building simulation tool called DesignBuilder, which is based on the state-of-the-art building performance simulation software called EnergyPlus (Software, 2016). Figure 5 shows the base case model rendered using the DesignBuilder software. The collected data shows that the total annual energy consumption of the actual BC is 28,730 kWh, which corresponds to an energy use intensity (EUI) of 149.6 kWh/m2/y. Accordingly, the BC is simulated under the weather file of Sharurah city. A comparison of values between gathered monthly life energy consumption and DesignBuilder DB simulated case was made as shown in Figure 6. After the calibration procedure, the annual energy consumption of the simulated building was 30,180 kWh which corresponds to an (EUI) of 157.19 kWh/m2/y. Thus, the simulated data from the building energy stock model show a good agreement with the actual data with relative errors of approximately 4.8%.

FIGURE 5

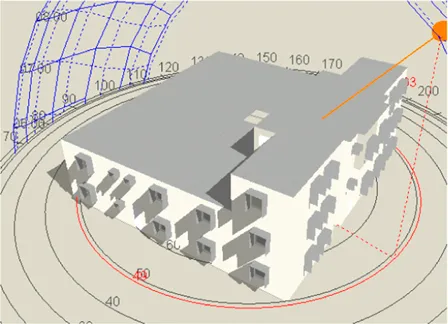

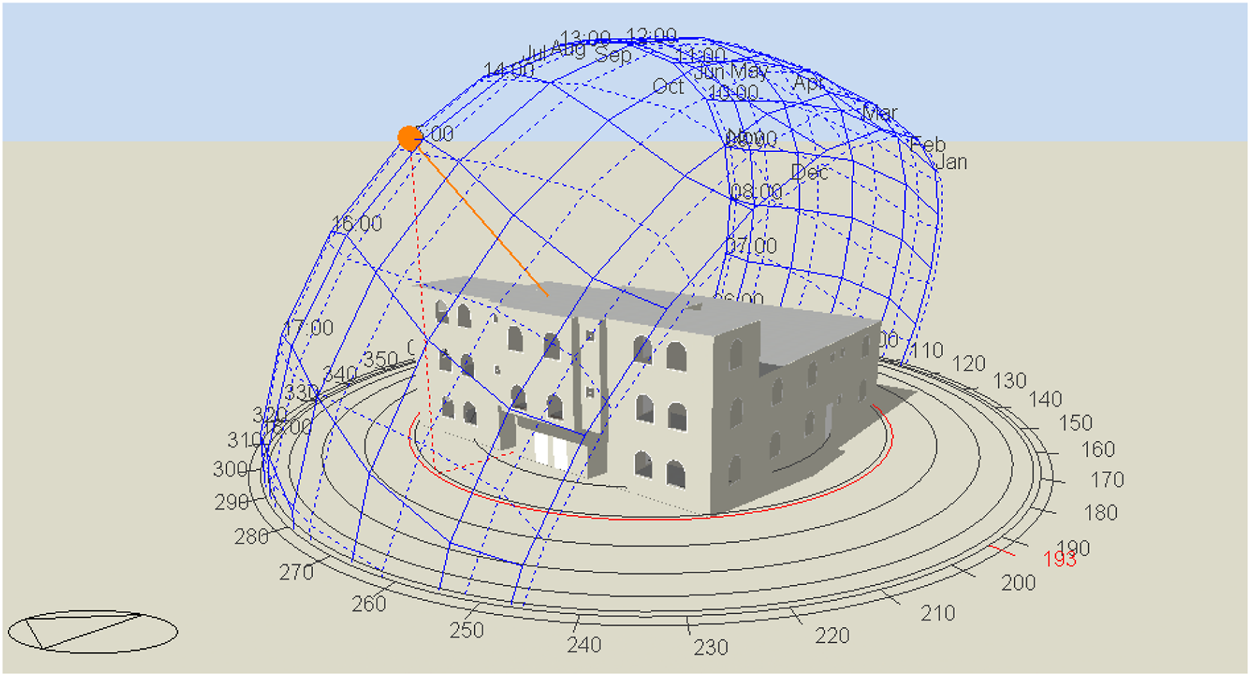

FIGURE 5. Rendering of the base case model (DesignBuilder v. 6.1.4).

FIGURE 6

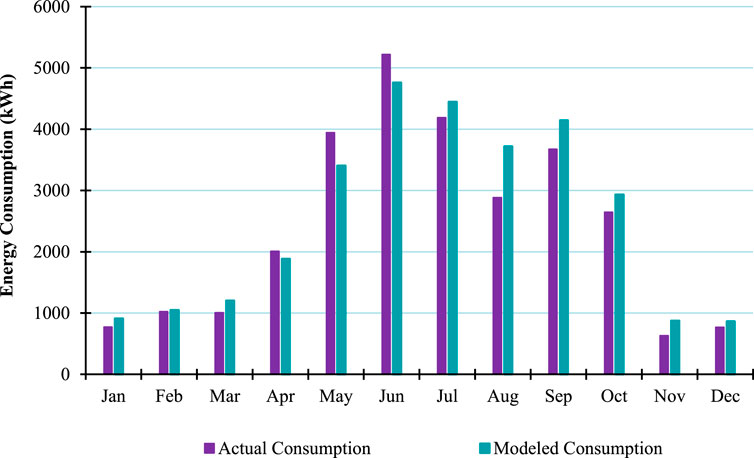

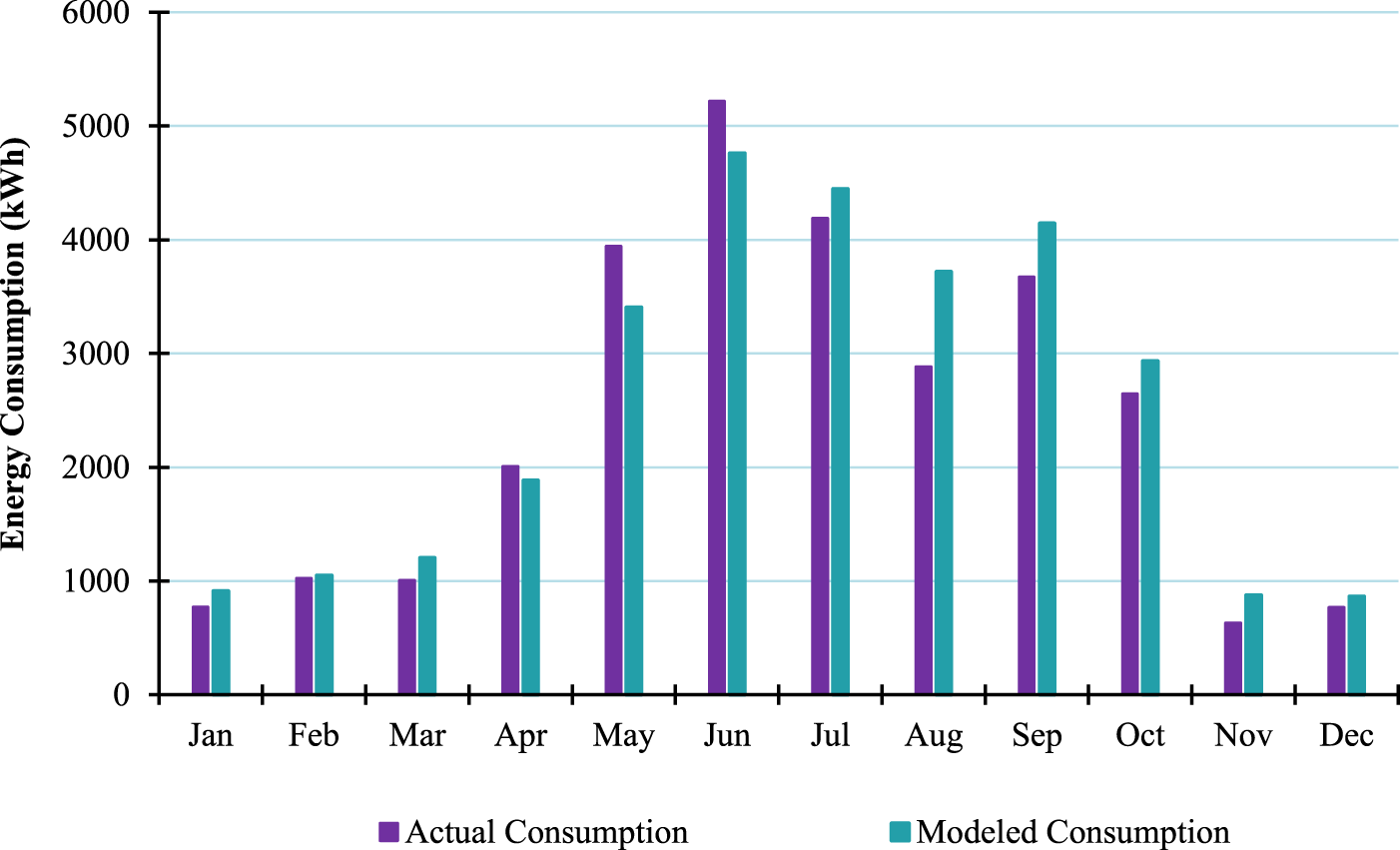

FIGURE 6. Comparison between actual and simulated monthly energy consumption of the base case.

Simulated Cases

In this paper, the adopted design approach covered four passive design strategies. These strategies aim to enhance energy efficiency in the base case. The effects of each strategy are studied separately. Meaning that when studying the effect of thermal insulation on reducing energy consumption, the rest of the envelope components were fixed to their original state in the base case and so on. However, in the case of the combined alternative, the parameters were selected based on the best results from among the building envelope options presented in each strategy. The subsections below describe strategies adopted according to local climatic conditions.

⁃ Thermal insulation

Thermal insulation materials, such as extruded polystyrene (XPS), has achieved great development in recent years and since has been widely used in insulating the building envelopes of new constructions as part of energy-saving building design requirements (Yu et al., 2008). Table 2 lists the layers of the external walls and the roof, dimensions and characteristics of the thermal insulation materials used in the simulated case study. The influence of thermal insulation thickness on energy saving was evaluated by increasing the thickness of the XPS insulation material in steps ranging from 25 mm to a maximum thickness of 100 mm for the walls and the roof.

⁃ Category of glazed windows

TABLE 2

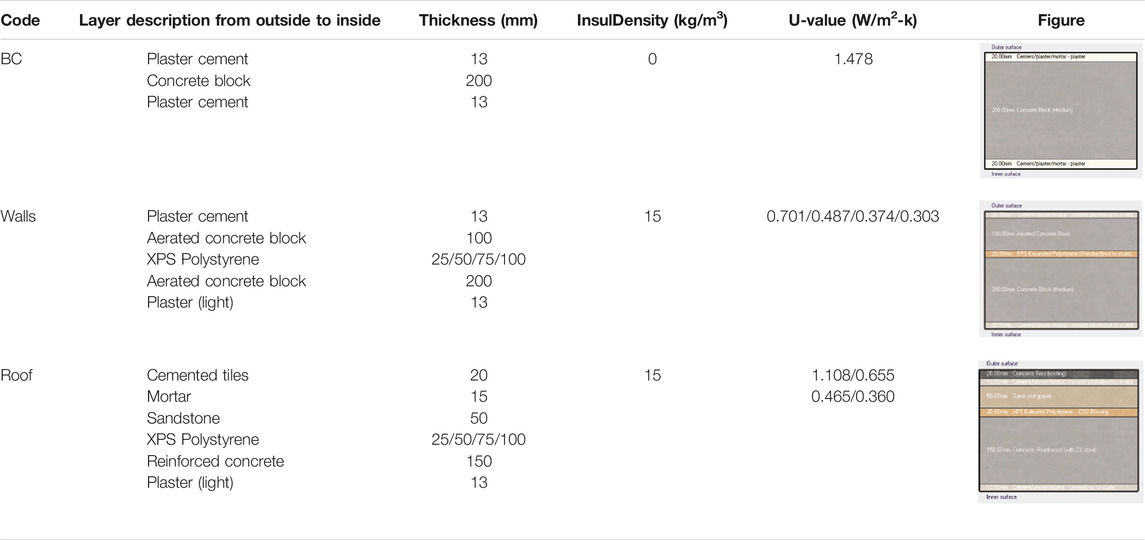

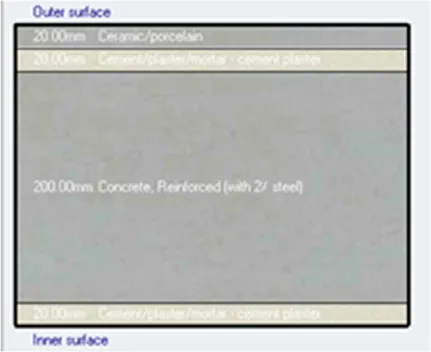

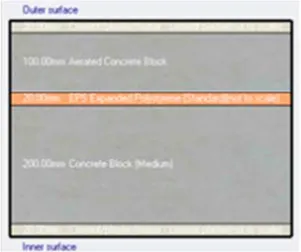

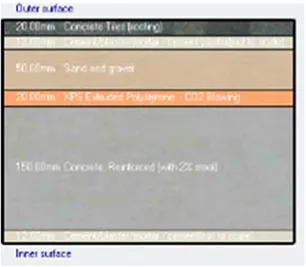

TABLE 2. External wall and roof composition with insulation inside the structure.

Energy-saving windows can help to reduce the use of electricity in buildings. In terms of design, choosing the right glass is extremely vital for buildings located in hot arid climates. Many types of glass are currently available in the Saudi market. In this study, the glazing of the base case model was 3 mm of single clear glass. In addition, five different types of the glazing system were investigated in view of assessing their respectively influence on energy conservation. The glass parameters applied in the DesignBuilder simulation tool and included in the evaluation were glazing thickness, U-value and shading coefficients (Table 3).

⁃ Shading Devices

TABLE 3

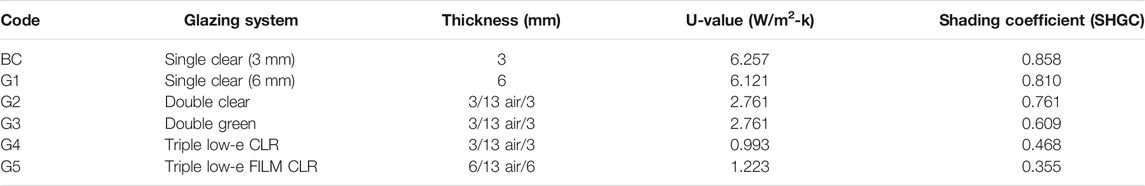

TABLE 3. Alternative window compositions.

Shading devices are one of the most important principles of environmental design in hot climates with high solar intensity and clear sky. The proper application of shading devices can lead to a substantial reduction in the cooling energy requirements of buildings. The proposed shading devices in this study were a combination of overhangs and fins shading. The length of the horizontal overhang and the vertical fins were set as 60 mm (Table 4).

⁃ Green roof

TABLE 4

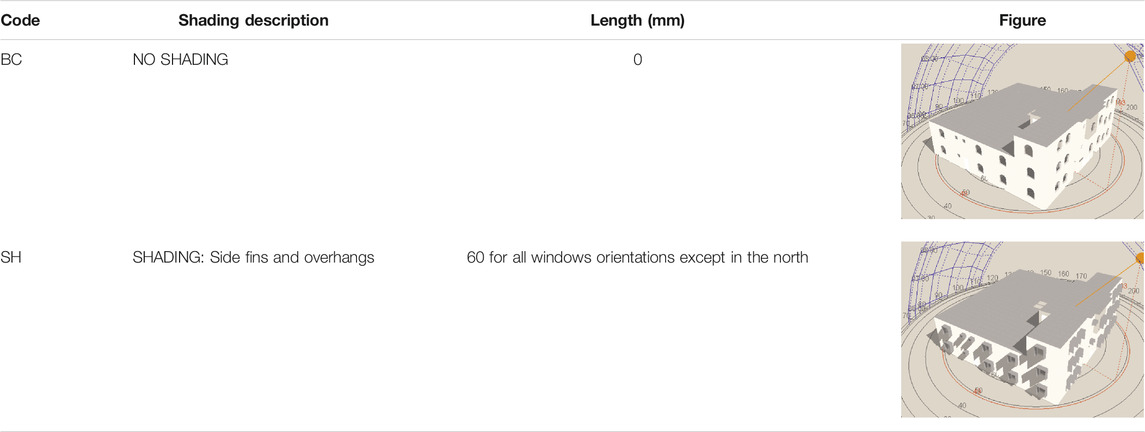

TABLE 4. Specification of the modelled shading device.

With a horizontal extension, the roof is one of the main solar heat acquisition points in building (Taleb, 2014). Green roof is a passive strategy that can be regarded a useful solution in different climates owing to their positive contributions in reducing heat gain/loss, thus saving energy consumption in buildings (Goussous et al., 2015; Silva et al., 2016; Khan and Asif, 2017). However, the performance of the green roof depends mainly on the climatic conditions, the building function, the level of insulation of the building envelope and the type of the green roof itself (Hamid et al., 2015). The original roof was composed of traditional construction layers that included a non-insulated roof with a U-value of 3.437 W/m² K. A green roof was implemented on the roofs of the first floor and on the roof of the attached room on the second floor to act as a heat insulator and to take advantage of its ability to lower air temperatures and minimise the airconditioning system requirements. An extensive green roof used to adapt the current roof has a U-value of 0.317 W/m² K, which supported by the current roof structure. Compared with the base case roof, Table 5 shows the layer description of the investigated green roof.

TABLE 5

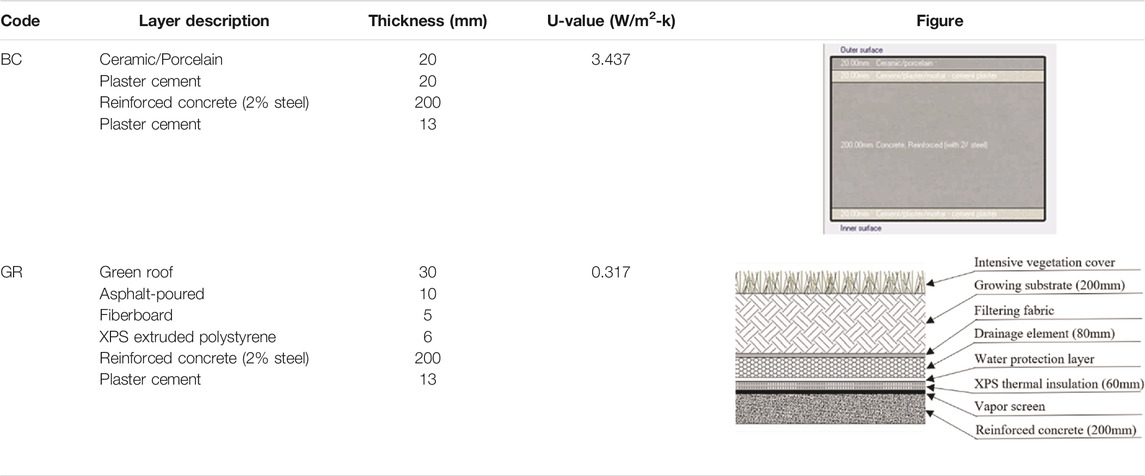

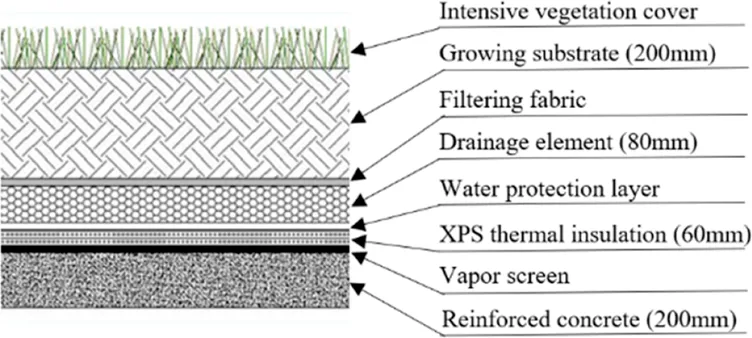

TABLE 5. Specification of the modelled green roof.

Results and Discussion

Influence of Thermal Insulation in Energy Conservation

Figure 7 illustrates the influence of thermal insulation thickness on energy conservation when XPS thermal insulation materials are added inside walls and roof (i.e. see Table 3). The figure shows the decrease in annual energy consumption (kWh/m²/y) and percentage of conserved energy. Installing a 25 mm-thick insulation in the middle of the walls and inside the roof layers can significantly reduce the annual energy consumption by 14.4%. Moreover, changing the thickness from 25 mm to 50 and 75 mm can reduce the annual energy consumption by 20.3 and 22.8%, respectively. Consequently, a maximum reduction of 23.6% on annual energy consumption can be achieved by adding 100 mm of XPS to the main building envelope components (i.e. walls and roof). The results indicate that using thermal insulation thicker than 75 mm in the hot arid climate of Sharurah is not economical, and extra insulation beyond 75 mm is ineffective. The best option for the thermal insulation strategy is glazing i.e. application of triple low-e film CLR, as heat transfer is indirectly related to the surface area and inversely related to insulation thickness.

FIGURE 7

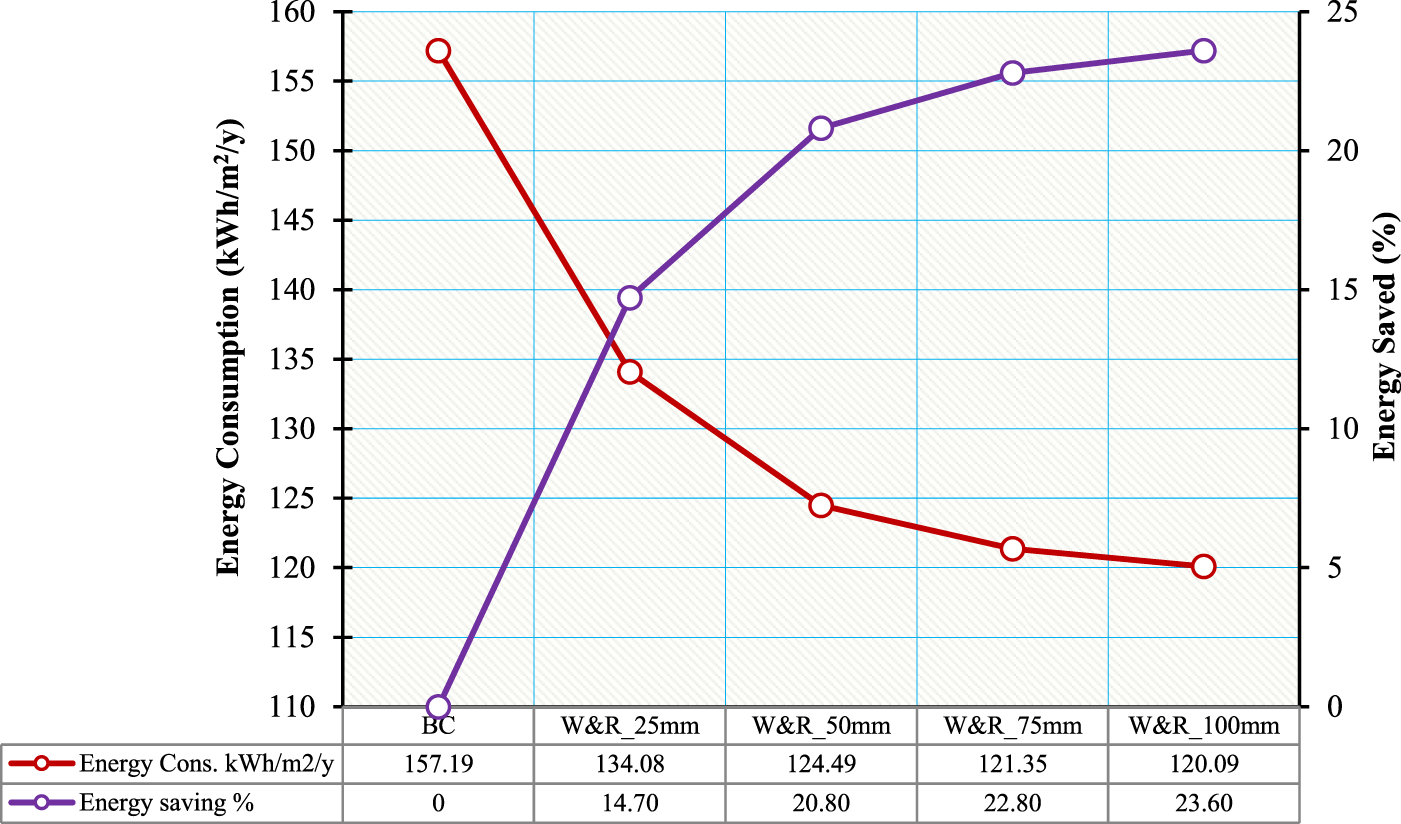

FIGURE 7. Influence of insulation thickness on energy consumption.

Influence of Glazed Window in Energy Conservation

Figure 8 illustrates the influence of solar heat gain coefficient (SHGC) and U-value on the annual energy consumption and percentage of saved energy for the modelled apartment. The performance of the five investigated types (i.e., see Table 2) were also compared with the base-case glazing with 3 mm of single clear glass. Low SHGC glazing can reduce solar heat gains, which is desirable in the hot climate of KSA. Meanwhile, low U-value glazing can reduce the cooling loads for indoor spaces. The results show that when the thickness of the glass in single layer is doubled, i.e. from 3 to 6 mm, the change in energy saving is negligible. However, when the clear glazed window is doubled, it can reduce the heat conduction coefficient, and its energy consumption is lower than that of the single clear glazing by 1.2%. The maximum reduction in the annual energy consumption can reach 5.2% when the BC glazing system is replaced with triple low-e film glass. Moreover, when the layers of the glass are increased, the energy reduction effect also increases regardless of the level of glass transparency.

FIGURE 8

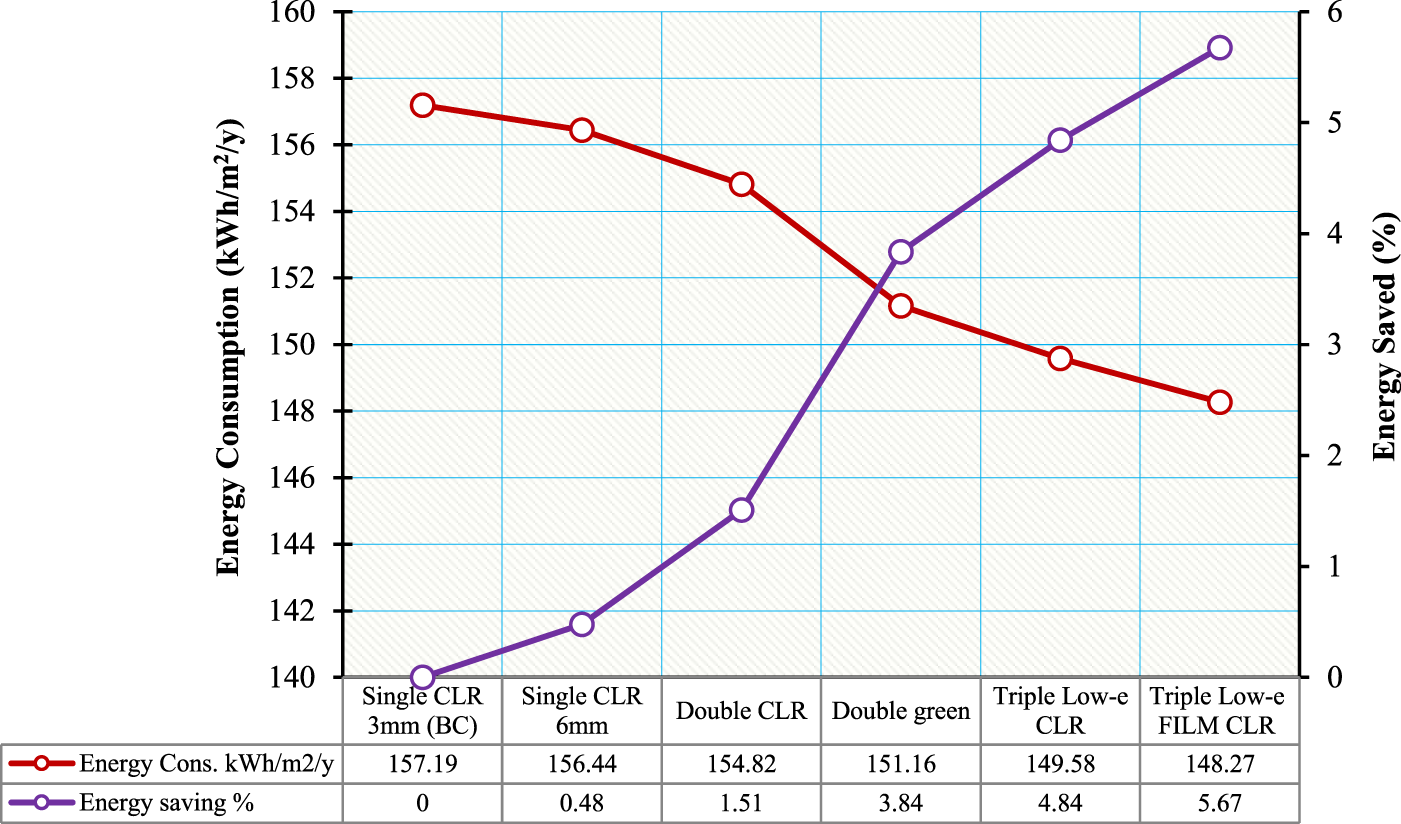

FIGURE 8. Influence of glazing types on energy consumption.

Influence of Shading Devices in Energy Conservation

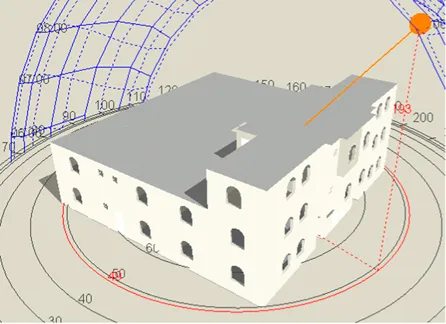

Shading devices plays a major role in reducing the energy consumption of buildings, especially in the desert climate where global radiation is high. However, exterior shading requires more thought and innovative design because of the unlimited choices of materials, types, shapes, dimensions, orientation, external visualisation and performance at varying Sun angles. According to the efficient shading devices mentioned in the literature, one of the options was simulated in this research to assess the performance of the external shading device. In the selected option, an aluminium material with vertical fins and horizontal overhang at a depth of 60 cm was assessed. The simulation results indicate the considerable effect of shading devices on energy consumption. The shading devices could reduce the annual energy consumption from 157.19 to 146.86 kWh/m²/y, with a reduction rate of approximately 6.57%. As previously shown in Figure 3, the climatic data used in the analysis presented an average global solar radiation of 7.5 and 5.1 kW/m² in summer and winter, respectively. Sharurah experiences high solar radiation, leading to high solar heat gains penetrating through glazed windows. In this study, the influence of the shading devices was not significant in general because of the low window-to-wall ratio of 6.4%. However, this reduction can be considered high when the impact of shading devices on cooling loads only is considered.

Influence of Green Roof Materials in Energy Conservation

On hot days, green roofs can reduce heat flux in indoor space and airconditioning energy usage (Jim, 2014). The green roof strategy in this study was used to simulate the amount of reduction in annual energy consumption. The results indicate that green roofs in hot arid climate can considerably reduce the annual energy consumption from 157.19 to 144.80 kWh/m²/y, with a reduction of approximately 7.88%. In a hot desert climate, the water content in green roofs can significantly reduce the transferred heat to the interior space, yet it represents high structural loads and requires continuous operational cost and maintenance. From this standpoint and on the basis of the simulation results, the percentage of reduced energy consumption by means of the green roof strategy is ineffective. However, the green roof strategy’s impact at the environmental level and its capability to improve air quality, enhance relative humidity and reduce carbon dioxide emissions render it an extremely important endeavour. Thus, green roofs should be designed properly based on the characteristics of the climatic condition, as location, temperature, humidity, precipitation rate, availability of water and wind will affect the design of green roofs.

Influence of Combination Strategy in Energy Conservation

The parameters of building envelope design were evaluated to analyze the impact of individual design replacements and the combined effect of envelope design parameters on annual total energy consumption. In Influence of Thermal Insulation in Energy Conservation, Influence of Glazed Window in Energy Conservation, Influence of Shading Devices in Energy Conservation, Influence of Green Roof Materials in Energy Conservation, the impact of thermal insulation, glazing type, shading device and green roof strategies on energy consumption have been studied separately. In view of providing a thermally comfortable environment, sound combinations of certain variables (Table 6) need to be determined. The design alternatives were selected on the basis of the best results amongst the building envelope options presented in the previous sections. However, the green roof strategy was excluded in the combination solution due to its high cost of installation, maintenance and continuous monitoring vis the level of its performance in reducing energy consumption; this strategy was replaced accordingly by another roofing system with a layer of 75 mm of XPS thermal insulation. The simulation results indicate that a maximum of 35.39% of annual energy consumption can be achieved when the combination strategy is applied.

TABLE 6

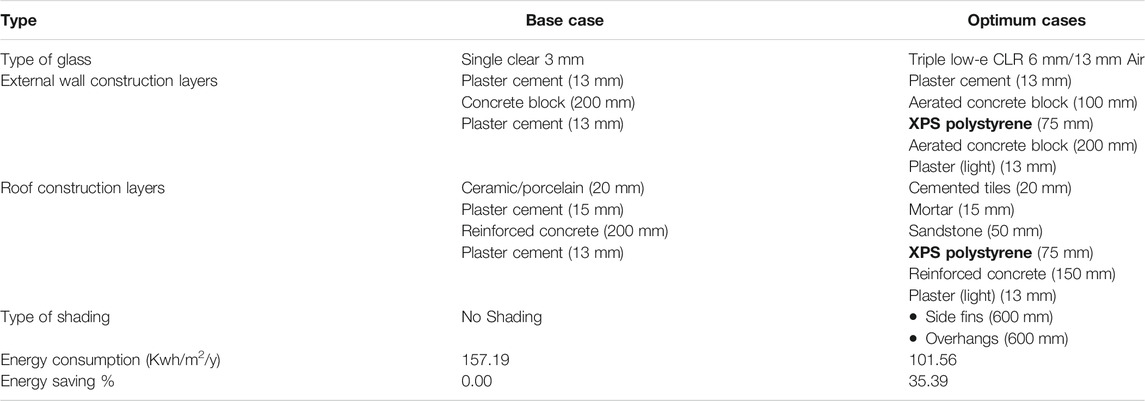

TABLE 6. Alternative designs for the combination case compared with the base case.

Conclusion

Information about the selected case study was collected to study the energy performance of residential buildings in the south region of KSA. The DesignBuilder simulation tool was used to model the case. The energy efficiency enhancement of the building envelope was assessed by changing the glazing type, applying different types of thermal insulations and evaluating the green roof strategy and using shading devices. On the basis of the analytical results of this research, the following conclusion are drawn for the energy-efficient design of existing homes and for newly designed or constructed residential buildings:

⁃ Amongst the other investigated glass types, this study recommends the use of triple low-e FILM CLR mm/13 mm/6 mm glass for the glazed windows of residential buildings. This type has good light transmission with a low U-value of 1.22 W/m²-k, and it can reduce the energy usage in residential buildings by 5.15%

⁃ This research highly recommends the use of a 25 mm-thick thermal insulation layer to effectively reduce the annual energy consumption by at least 14.7%.

⁃ Shading devices have a remarkable impact on energy saving. Aluminium devices in vertical and horizontal forms with 60 cm depth can lead to 6.6% reduction in energy consumption, as these materials can avoid solar radiation from varying Sun angles.

⁃ The green roof strategy is slightly more effective than the other strategies except for the thermal insulation strategy in the hot–dry climate of Sharurah. Green roofs can reduce annual energy consumption by 7.9%. However, the maintenance of the required waterproofing membranes is complicated. A green roof system requires complete coverage of its membrane, yet leaks can still occur at the joints. Regular maintenance inspections should be scheduled as part of the standard roof installation.

⁃ A combination of different passive design strategies can help to significantly reduce annual energy consumption by 35.4%.

⁃ The proper design of building envelopes can considerably improve the thermal performance of residential buildings. Therefore, designers and developers are highly encouraged to use this study when applying a combination of passive design elements to residential building envelope components in countries with hot arid climates, thus enabling them to achieve energy-efficient designs.
