Robust Optimal Damper Placement of Nonlinear Oil Dampers With Uncertainty Using Critical Double Impulse

A new robust method for optimal damper placement is presented for building structures under the critical double impulse. Oil dampers are treated here as representative supplemental dampers to control the seismic response of high-rise buildings. Such oil dampers usually obey a bi-linear force-velocity relation in controlling the maximum damping force through a relief mechanism to avoid the occurrence of excessive design forces in surrounding frames. The influence of uncertainty in characteristics of those bi-linear oil dampers on building structural safety is investigated. For the efficient evaluation of dynamic performance, the resonant critical double impulse is used as the base input instead of actual earthquake ground motions. Since the critical double impulse is determined to maximize the input energy to the objective building by changing the second impulse timing, uncertainties in input ground motions can be taken into account in a robust manner. To consider these various uncertainties, the robustness function based on the Info-Gap model is used in the robust optimization to assess structural performance variations caused by various uncertainties in the structural design phase. In this paper, a new innovative objective function in the robust optimal damper placement problem is proposed to enhance the robustness of structural performance under the variation of structural parameters by comparing the robustness function of the robust design with that of an ordinary optimal damper placement without considering uncertainties. Numerical examples of the robust optimal design of linear and bi-linear oil damper placements are shown for 10-story and 20-story planar building frame models. Structural performances of the robust optimal design to the conventional design earthquake ground motions are examined to investigate the validity of using the critical double impulse in the structural design under uncertainties.

Introduction

As characteristics of earthquake ground motions are clarified rapidly, e.g., large-amplitude ground motions, long-period long-duration ground motions, design methods for building structures with supplemental dampers have entered into a new era in the earthquake-prone countries. The smart building structural design using such supplemental dampers is aimed at efficiently improving the structural damping performance under specified constraints, e.g., a constant cost constraint on dampers, the maximum local response constraints. In the evaluation of dynamic performances of building structures to earthquake ground motions, the maximum dynamic response, such as the maximum interstory drift, is usually used to clarify the structural safety. In order to satisfy such structural performance requirements, various researches and practical applications have been conducted so far. Examples are the development of high-performance damping systems using nonlinear dampers and their installation as shown in Hahn and Sathiavageeswaran (1992), Lopez and Soong (2002), Martinez-Rodrigo and Romero (2003), Silvestri et al. (2010), Pnevmatikos (2012), Adachi et al. (2013), Lang et al. (2013), Lavan and Avishur (2013), Fujita et al. (2014), Hatzigeorgiou and Pnevmatikos (2014), Palermo et al. (2017), Parcianello et al. (2017), Pollini et al. (2017), Akcelyan et al. (2018), De Domenico and Ricciardi (2019), De Demenico et al. (2019), and Idels and Lavan (2020). These researches on the design theory for efficient damper placement can be categorized as the optimal damper allocation problem. However, the design goals of most optimal damper allocation studies have been focused on minimizing the specified maximum structural performance without considering uncertainties in input excitations and damping performances.

It is well known that damper performances or properties, such as rubber isolators for base-isolation and oil dampers for structural control, can be varied due to various uncertainties such as temperature dependency, aging deterioration and manufacturing error, etc. In order to investigate the influence of these structural uncertainties on the seismic structural performance, many researches on uncertainty analysis methods have been accumulated, e.g., Ben-Haim and Elishakoff (1990), Elishakoff and Ohsaki (2010), Takewaki and Ben-Haim (2005), Henriques et al. (2008), Fujita and Takewaki (2011), and Fujita et al. (2017). The uncertainty analysis can be defined as a method for deriving the upper bound of responses for a given uncertainty model and some efficient methods have been proposed to estimate the upper and lower bounds of objective functions. For examples, the interval analysis method is one of the traditional uncertain analysis methods where uncertain variables are assumed to be given in terms of interval parameters with lower and upper boundaries. Historically various interval analysis techniques have been proposed based on the interval arithmetic algorithm (Dong and Shah, 1987; Rao and Berke, 1997; Chen et al., 2002; Qiu, 2003; Chen et al., 2003; Chen and Wu, 2004; Moens and Vandepitte, 2004; Chen et al., 2009; Moens and Hanns, 2011).

In order to enhance the robustness of structures to uncertainties and develop the structural design methodology considering such robustness, a robust optimization problem has been proposed where the design objective is to minimize the variability of the structural performance caused by input and structural uncertainties. For evaluating the robustness of structural performance, Ben-Haim (2001) has introduced the robustness function based on the Info-Gap decision theory. In the Info-Gap model, uncertain parameters are defined by a non-probabilistic model and are called interval parameters. Fujita and Takewaki (2012) compared the robustness of building structures with various passive damper placements based on the evaluation of robustness functions using the uncertainty analysis called the URP method.

In this paper, a new robust method for optimal damper placement is presented for building structures with linear and bi-linear oil dampers. The nominal structural performance evaluated by the response analysis without considering uncertainties is a general goal of the ordinary structural optimization. However, it is concerned whether this nominal structural performance may become worse at the expense of enhancing the robustness compared with the conventional ordinary optimal design without considering uncertainties. The proposed robust optimization method is aimed at not only increasing the robustness of structural performance with respect to the uncertainty level but also preventing the deterioration of the nominal structural performance. The objective function of the robust optimization is defined by comparing the robustness function of the robust design with that of the ordinary optimal design. The damping properties, i.e., the damping coefficients of linear oil dampers and the maximum allowable damping forces of bi-linear oil dampers, and the story shear stiffnesses are assumed to be uncertain. Numerical examples of the proposed robust optimal damper design are presented for 10-story and 20-story planar building frame models.

Evaluation of Robustness Using Uncertainty Analysis

In a conventional structural design, it is needed to satisfy structural performance demands under a specified design loading such as equivalent static forces corresponding to earthquake ground motions. In this case, structural uncertainties, e.g., variations of stiffness and damping coefficients of structural members, are often neglected. However, a certain variability of performance characteristics exists in vibration control components, such as various dampers and base isolators, installed to buildings to reduce the input energy transition to structural members. An evaluation index is needed to consider the influence of these structural uncertainties on the performance variation in the structural design. The robustness in the building structural design is one of such evaluation indices, and can be defined as the insensitivity of the structural performance with respect to input and structural uncertainties.

In order to evaluate the robustness of the structural performance quantitatively, the robustness function has been proposed based on the info-gap model (Ben-Haim, 2001) where the variations of parameters are usually given by upper and lower bounds known as interval parameters. In this paper, we assume that the interval parameter ${\mathit{X}}^I$ known as a non-probabilistic uncertainty model with $N_I$ uncertain characteristics is applied to uncertain variables. The interval parameter ${\mathit{X}}^I$ is defined as

${\mathit{X}}^I\left(\alpha \right)=\left\{X_i^I|\left[\left(1-\alpha \Delta X_i^L\right){\tilde{X}}_i,\left(1+\alpha \Delta X_i^U\right){\tilde{X}}_i\right],i=1,\cdots ,N_I\right\}(1)$

where ${\tilde{X}}_i$, $\Delta X_i^L$, and $\Delta X_i^U$ denote the nominal value, i.e., the standard design value without uncertainty, and the specified variation degrees in lower and upper directions of the i-th interval parameter, respectively. Furthermore, $\alpha$ is a positive scalar coefficient representing the level of uncertainty, i.e., the upper and lower bounds of interval parameters can be varied depending on the value of $\alpha$.

According to the info-gap model, the robustness function $\widehat{\alpha }$ with the specified performance criterion $f_c$ can be defined as

$\widehat{\alpha }\left(\tilde{\mathit{X}},f_c\right)=\max \left\{\alpha |\max \left\{f|f\in U\left(\tilde{\mathit{X}},\alpha \right)\right\}\le f_c\right\}(2)$

where $f$ denotes the objective function that should be determined with priority in the structural safety assessment, e.g., the maximum interstory drift in the seismic design. In addition, $U\left(\tilde{\mathit{X}},\alpha \right)$ represents the possible structural response domain for the nominal design $\tilde{\mathit{X}}$ with uncertainty $\alpha$. The robustness function $\widehat{\alpha }$ can be interpreted that $\widehat{\alpha }$ is determined by the maximum allowable uncertainty degree so that the worst combination of uncertain parameters to maximize the objective function just satisfies the performance criterion. Figure 1 shows the diagram of the robustness function determined by the performance criterion. As shown in Figure 1, by comparing the robustness function values at the specified performance criterion for different designs A and B, the robust design can be determined. For example, when the specified performance criterion is relaxed from $f_{c1}$ to $f_{c2}$, the design A can become more robust than the design B. This is because the robustness function value increases, which means that greater variability can be allowed in the design A. Therefore, it is important to determine how much uncertainty is taken into account in the robustness evaluation as shown in hatched area in Figure 1. Furthermore, since the performance criterion at $\widehat{\alpha }=0$ correspond to the nominal performance without uncertainty, it is also desirable that the nominal performance does not deteriorate so much even in the robust design.

FIGURE 1

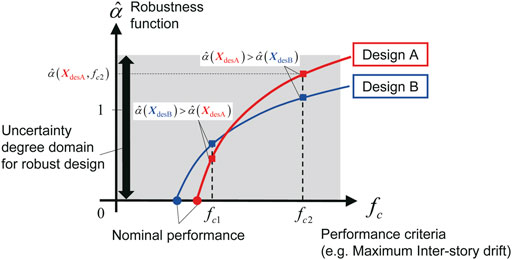

FIGURE 1. Comparison of robustness functions for different designs.

For the efficient evaluation of the robustness function, we solve the following anti-optimization problem with various variations represented by the uncertainty coefficient $\alpha$ instead of specifying the performance criterion $f_c$ for various design demands.

$\begin{array}{l}\text{Find}\mathit{X}\\ \text{so}\text{as}\text{to}\text{maximize}f\left(\mathit{X}\right)\\ \text{subject}\text{to}\left(1-\alpha \Delta X_i^L\right){\tilde{X}}_i\le X_i\le \left(1+\alpha \Delta X_i^L\right){\tilde{X}}_i,i=1,\cdots ,N_I\end{array}(3)$

In the constraint of the optimization problem expressed by Eq. 3, the interval domain of uncertain parameters is varied by $\alpha$. The anti-optimization problem in Eq. 3 aims to search for the worst combination of uncertain parameters to maximize the structural response under the lower and upper bounds of the interval parameters. In authors’ previous works (Fujita and Takewaki, 2011), the uncertainty analysis called the URP (Updated Reference Point) method has been applied to evaluate the robustness function in the same scheme described in Eq. 3, where the uncertain parameters are updated sequentially based on the estimation of response variation by the Taylor series expansion.

Figure 2 shows the flowchart and diagram for evaluating the robustness function. First, the discrete degree $\Delta \alpha$ of the uncertainty and the upper bound of the level of uncertainty are needed to be determined. By applying the optimization algorithm to the problem expressed by Eq. 3, the upper bound of the structural performance can be derived for the given interval of uncertain parameters. Adding $\Delta \alpha$ to the level of uncertainty and solving the optimization problem iteratively, the upper bound of the structural response can be derived. Finally, by regarding the upper bound of the structural response as the performance criterion, the corresponding level of uncertainty is the robustness function value. A highly accurate robustness function can be obtained by increasing the number of discretization for $\alpha$. However, it takes a long computational time to evaluate the continuous variation of the robustness function. Therefore, it is necessary to limit the number of iterations applied to the level of uncertainty considering the robust optimization procedure. In the numerical examples, the continuous robustness function is estimated by a polynomial approximation from the discrete uncertainty analysis results. In the numerical examples, we apply the improved URP method (NURP method) proposed by Fujita and Yasuda (2016) for evaluation of the robustness function. In the NURP method, the variation of responses due to the uncertainty of design parameters is predicted by the cubic curve fitting based on the comparison with actual responses. Application examples and the outline of the NURP algorithm can be found in Okada et al. (2016).

FIGURE 2

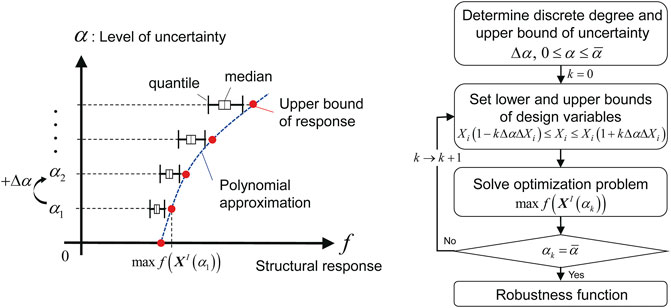

FIGURE 2. Schematic diagram and flowchart for evaluation of robustness function.

Ordinary and Robust Optimal Damper Design Problems

Ordinary Optimization Problem of Damper Placement for Linear Oil Damper

In order to solve a general optimization problem, we need to define an objective function to be minimized and constraint conditions. The ordinary optimal damper design problem for the damped building is to find the damping coefficients of dampers so as to minimize the maximum interstory drift for a specified sum of damping coefficients of dampers. The optimal damper design problem using linear oil dampers can be described as

$\begin{array}{l}\mathrm{Find}{\mathit{c}}_{\text{d}}\\ \text{so as to minimize}{\delta }_{\max }=\underset{i,t}{\max }\left|{\delta }_i\left({\mathit{c}}_{\text{d}},t\right)\right|\\ \text{subject}\text{to}{\displaystyle \sum c_{\text{d}i}}=\text{const}\text{.}{\text{and c}}_{\text{d}i}\ge 0\end{array}(4)$

where ${\mathit{c}}_{\text{d}}$, ${\delta }_i$, and ${\delta }_{\max }$ represent the damping coefficient vector as the design parameter, the maximum interstory drift at the i-th floor, and its maximum value, respectively. In addition, the lower bounds of damping coefficients are needed to be nonnegative.

In the structural design process, the structural response demand as the design goal is usually given first. Therefore, in order to obtain the suitable optimal damping coefficients for satisfying this design demand, it is necessary to change the value of the total damping coefficient under the constraint condition in Eq. 4. On the other hand, by exchanging the objective function and the constraint condition, the ordinary optimal damper placement for linear oil dampers without considering uncertainties can be derived by solving the following problem defined as

$\begin{array}{l}\mathrm{Find}{\mathit{c}}_{\text{d}}\\ \text{so as to minimize}{\displaystyle \sum c_{\text{d}i}}\\ \text{subject}\text{to}{\delta }_{\max }\le {\delta }_{\text{des}}\text{,}{\text{c}}_{\text{d}i}\ge 0\end{array}(5)$

where ${\delta }_{\text{des}}$ is the design demand of the maximum interstory drift. Compared with Eq. 4, by specifying the design demand directly in the constraint condition, the sum of damping coefficients is optimized in a manner similar to the optimization problem to minimize the cost function for the given performance criterion.

Ordinary Damper Optimization Problem for Bi-linear Oil Damper

It is known that the damping force of oil dampers is usually limited so that the damping force does not exceed a certain level by the relief mechanism. When the interstory velocity exceeds the relief velocity, the damping coefficient decreases. In the modeling of non-linear oil dampers with the relief mechanism, the damping force characteristics are usually analyzed by using the bi-linear model. Since the cost of non-linear oil dampers depends on the maximum allowable damping force rather than the damping coefficient, the objective function in the optimization problem for bi-linear oil dampers is to minimize the sum of the maximum allowable damping forces. The ordinary optimal damper placement problem for bi-linear oil dampers can be defined as

$\begin{array}{l}\mathrm{Find}\left\{{\mathit{F}}_{\max },{\mathit{v}}_{\text{R}}\right\}\\ \text{so as to minimize}{\displaystyle \sum F_{\max i}}\\ \text{subject}\text{to}{\delta }_{\max }\le {\delta }_{\text{des}},0\le F_{\max i}\le {\overline{F}}_{\max },\underset{¯}{v}{}_{\text{R}}\le v_{\text{R}i}\le \overline{v}{}_{\text{R}}\end{array}(6)$

where ${\mathit{F}}_{\max },{\mathit{v}}_R$ are the maximum allowable damping force vector and the relief velocity vector, respectively. ${\overline{F}}_{\max },{\underset{¯}{v}}_{\text{R}},{\overline{v}}_{\text{R}}$ are the upper bound of the maximum allowable damping force, the lower and upper bounds of the relief velocity. The values of these boundaries in design variables are given by referring to the damper’s product catalog. Table 1 shows an example of the property list of general bi-linear oil dampers used to control the building seismic and wind vibrations, where the maximum allowable velocity is 0.3[m/s]. As shown in Table 1, the lower bound of the relief velocity is 0.018[m/s] regardless of the maximum allowable damping force. On the other hand, the maximum relief velocity is 0.128[m/s] for $F_{\max }\le 1500\left[\text{kN}\right]$, but $v_{\text{R}}=0.128\left[\text{m/s}\right]$ is allowed for the maximum allowable velocity 0.25[m/s] in the case of $F_{\max }=2000\left[\text{kN}\right]$. Since the maximum allowable velocity is the limit velocity for which the damping performance of the oil damper is guaranteed, it is necessary to confirm that the maximum velocity of dampers installed to the building is smaller than the maximum allowable velocity. This constraint can be considered in the optimization problem. The relief force ${\mathit{F}}_R$ is 0.8 times the maximum allowable damping force ${\mathit{F}}_{\max i}$. Therefore, the first and second damping coefficients $c_i^{\left(1\right)}$, $c_i^{\left(2\right)}$ in each story can be determined by ${\mathit{F}}_{\max i},{\mathit{v}}_{\text{R}i}$ as

$c_i^{\left(1\right)}=\frac{0.8F_{\max i}}{v_{\text{R}i}},c_i^{\left(2\right)}=\frac{0.2F_{\max i}}{0.3-v_{\text{R}i}}$(7a, b)

TABLE 1

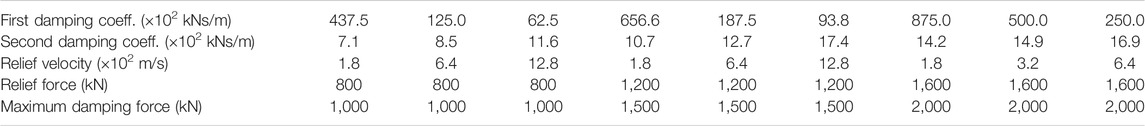

TABLE 1. Example of bi-linear oil damper property.

Conventional Damper Optimization Problem and Multi-Objective Robust Damper Optimization Problem

Conventional robust optimization problems for seismic design may be generally aimed at minimizing the structural performance variability under the consideration of various uncertainties, e.g., variability in input ground motion characteristics and structural parameters, etc. Applying the robustness function for assessing the degree of performance variability to the robust optimization problem, it is natural to assume that increasing the value of the robustness function is one of the objective functions in the optimization. However, since the robustness function $\widehat{\alpha }\left(\tilde{\mathit{X}},f_c\right)$ defined in Eq. 2 represents how much variation can be allowed in the current design set $\tilde{\mathit{X}}$ depending on the performance criterion $f_c$, it is needed to specify an appropriate performance criterion for evaluation of the robustness function value in the optimization. Furthermore, it is concerned that the nominal structural response corresponding to the performance criterion at $\widehat{\alpha }=0$ may deteriorate in the optimization procedure to maximize the robustness function at the specified performance criterion. This is because the nominal structural response without consideration of uncertainties corresponds to the objective function in the ordinary optimization problem and there may be a trade-off relationship between the ordinary optimal design and the robust optimal design. Figure 3A shows the conceptual diagram of the conventional robust optimization problem aimed at maximizing the robustness function.

FIGURE 3

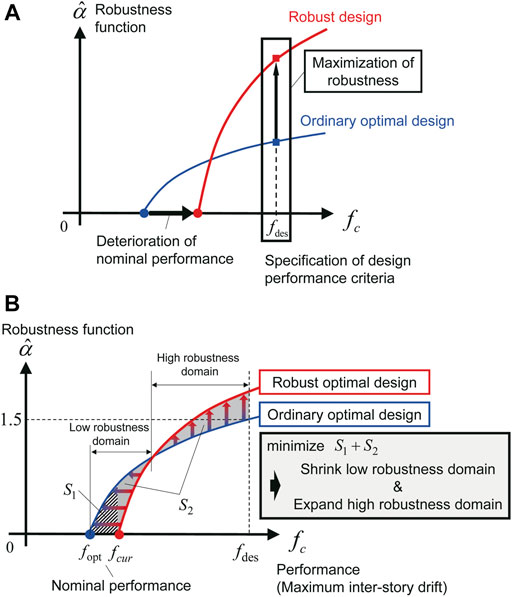

FIGURE 3. Conventional and proposed robust optimization problems, (A) Conventional robust optimization problem: Maximization of robustness function, (B) Proposed robust optimization problem: Multi-objective optimization.

In order to prevent the deterioration of the nominal structural response, corresponding to $\widehat{\alpha }=0$, in the robust optimal solution, a new objective function taking into account the multi-objective optimization is proposed for the robust optimization problem in this paper. Since the specification of the performance criterion is an arbitrary index that can affect the stability of the optimal solution, the area of robustness function calculated by the integration of the robustness function over a wide-range of the performance criterion is introduced. Figure 3B shows the comparison of robustness functions for two different designs where one is the optimal damper placement solved by the ordinary optimization problem in Eq. 5 or Eq. 6 and the other is the non-optimal damper placement derived in the process of the robust optimization. If the global optimal design is derived correctly in the ordinary optimization problem, the nominal structural response of other design groups derived in the robust optimization procedure should not decrease in the case of considering the constant cost constraints, i.e., the sum of damping coefficients for linear oil dampers and the sum of the maximum allowable damping forces for bi-linear oil dampers.

As shown in Figure 3B, the robustness function value of the robust optimal solution should be larger in the part of the performance criterion domain compared with the robustness function value of the ordinary optimal solution. Therefore, there should be intersections where the robustness function values are the same in the comparison of the ordinary optimal design and the robust optimal design. From the viewpoint of performance comparison with the ordinary optimal design, a difference domain of the robustness functions can be defined as an objective function for the robust optimization problem using linear oil dampers or non-linear oil dampers described as

$\begin{array}{l}\mathrm{Find}\{\begin{array}{c}{\mathit{c}}_{\text{d}}\left(\text{Linear}\text{oil}\text{damper}\right)\\ {\mathit{F}}_{\max },{\mathit{v}}_{\text{R}}\left(\text{Non}-\text{linear}\text{oil}\text{damper}\right)\end{array}\\ \text{so as to minimize}{S}_1+S_2\equiv {\displaystyle {\int }_{f_{\text{opt}}}^{f_{cur}\left({\mathit{X}}_{cur}\right)}\left(\widehat{\alpha }\left({\mathit{X}}_{\text{opt}}^I,f_c\right)\right)d{f}_c}\\ +{\displaystyle {\int }_{f_{cur}\left({\mathit{X}}_{cur}\right)}^{f_{\text{des}}}\left(\widehat{\alpha }\left({\mathit{X}}_{\text{opt}}^I,f_c\right)-\widehat{\alpha }\left({\mathit{X}}_{cur}^I,f_c\right)\right)d{f}_c}\\ \text{subject}\text{to}\{\begin{array}{c}{\text{c}}_{\text{d}i}\ge 0,{\displaystyle \sum c_{\text{d}i}}={\displaystyle \sum c_{\text{d}i}^{\text{opt}}}\left(\text{Linear}\text{oil}\text{damper}\right)\\ 0\le F_{\max i}\le {\overline{F}}_{\max },\underset{¯}{v}{}_{\text{R}}\le v_{\text{R}i}\le \overline{v}{}_{\text{R}},{\displaystyle \sum F_{\max i}}={\displaystyle \sum F_{\max i}^{\text{opt}}}\left(\text{Non}-\text{linear}\text{oil}\text{damper}\right)\end{array}\end{array}(8)$

where $f_{\text{opt}}$, $f_{cur}$ are the nominal performance criterion of the ordinary optimal solution corresponding to the optimal performance in the ordinary optimization problem, and that for the current design in the robust optimization problem. $f_{\text{des}}$ is the upper bound of integration of the objective function. In this paper, $f_{\text{des}}$ is determined so that the robustness function value $\widehat{\alpha }$ of the ordinary optimal design is 1.5. ${\mathit{X}}_{\text{opt}}^I,{\mathit{X}}_{cur}^I$ are the interval parameters of the ordinary optimal solution and the current uncertain parameters for the robust optimization problems. $c_{\text{d}i}^{\text{opt}}$, $F_{\text{max}i}^{\text{opt}}$ represent the optimal damping coefficient for linear oil dampers and the optimal maximum damping force for non-linear oil dampers in the ordinary optimization problem, respectively. Since the ordinary optimal solution of damper placement has already been derived, ${\mathit{X}}_{\text{opt}}^I$,$c_{\text{d}i}^{\text{opt}}$ and $F_{\text{max}i}^{\text{opt}}$ are fixed in the robust optimization procedure. However, ${\mathit{X}}_{cur}^I$ varies depending on the design variables on the damper parameters considering uncertainties. Furthermore, the interval parameters as the uncertain variables can be defined independently of the design variables to be optimized.

In this paper, the variation of elastic shear stiffness induced by model uncertainties is also considered along with damping characteristics uncertainties. As for the uncertainties of oil damper, it is assumed that the maximum damping force of both linear and bi-linear oil dampers varies due to the variation of product as shown in Figure 4. For linear oil dampers, the damping coefficient ${\mathit{c}}_{\text{d}}$ is the uncertain parameter as shown in Figure 4A. On the other hand, the maximum damping force ${\mathit{F}}_{\text{max}}$ is varied in the bi-linear oil dampers and this affects the variation of the first and second damping coefficients. As shown in Figure 4B, the relief velocity ${\mathit{v}}_R$ of the bi-linear oil dampers is assumed to be fixed in the uncertainty analysis.

FIGURE 4

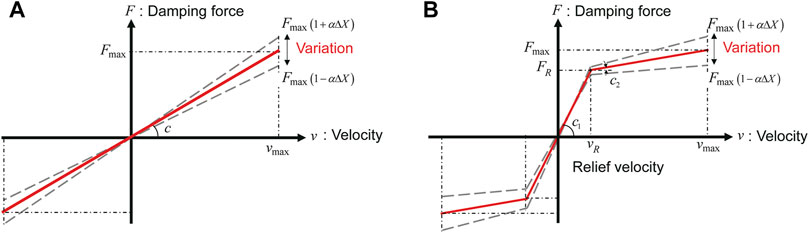

FIGURE 4. Uncertainty in maximum damping force of oil dampers, (A) Linear oil damper, (B) Bi-linear oil damper.

Figure 5 shows the flowchart of the proposed robust optimization problem. First, the ordinary optimal damper design for a specified structural performance is derived. By applying the uncertainty analysis to the ordinary optimal damper design, the robustness function $\widehat{\alpha }\left({\mathit{X}}_{opt}^I\right)$ of the ordinary optimal design can be derived. In the next step, we need to set up the initial design and constraint conditions for the optimization procedure. The initial design of damper characteristics is given by the ordinary optimal solution. This is because we expect to be able to easily obtain the appropriate robust optimal design with smaller decrease of the nominal performance.

FIGURE 5

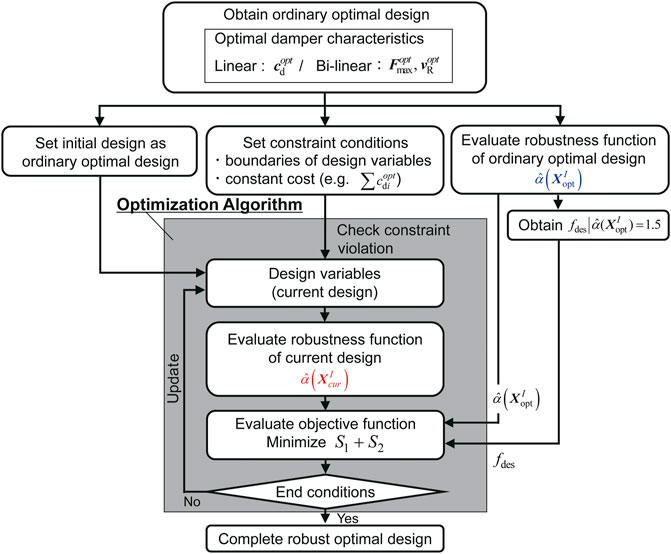

FIGURE 5. Flowchart for solving proposed robust optimization problem.

Numerical Examples

In this section, the proposed robust optimal design method of nonlinear dampers is applied to 10-story and 20-story building models. Numerical examples are presented according to the flowchart shown in Figure 6. In Figure 6, a summary of the results for each analysis is also provided.

FIGURE 6

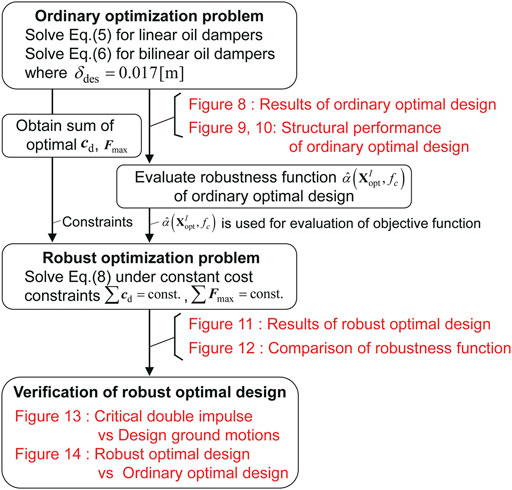

FIGURE 6. Flowchart for numerical example and presented results for each analysis.

Building Models

Since the evaluation of the robustness function for planar frame models needs much time, simplified lumped-mass shear building models, i.e., $n$ degree-of-freedom model ($n$-DOF), are introduced for numerical examples. For a 20-story model (20-DOF), the building frame model was designed as a vibration controlled building as shown in Figure 7A and the equivalent shear stiffness distribution shown in Figure 7B (right one) was derived from the static analysis of the 20-story frame building model. On the other hand, a 10-story model (10-DOF) was introduced to investigate the effect of the shear stiffness distribution and the shear stiffness distribution shown in Figure 7B (left one) was given to be an inverse trapezoidal shape. The fundamental natural period of the 10-DOF model is 0.8[s].

FIGURE 7

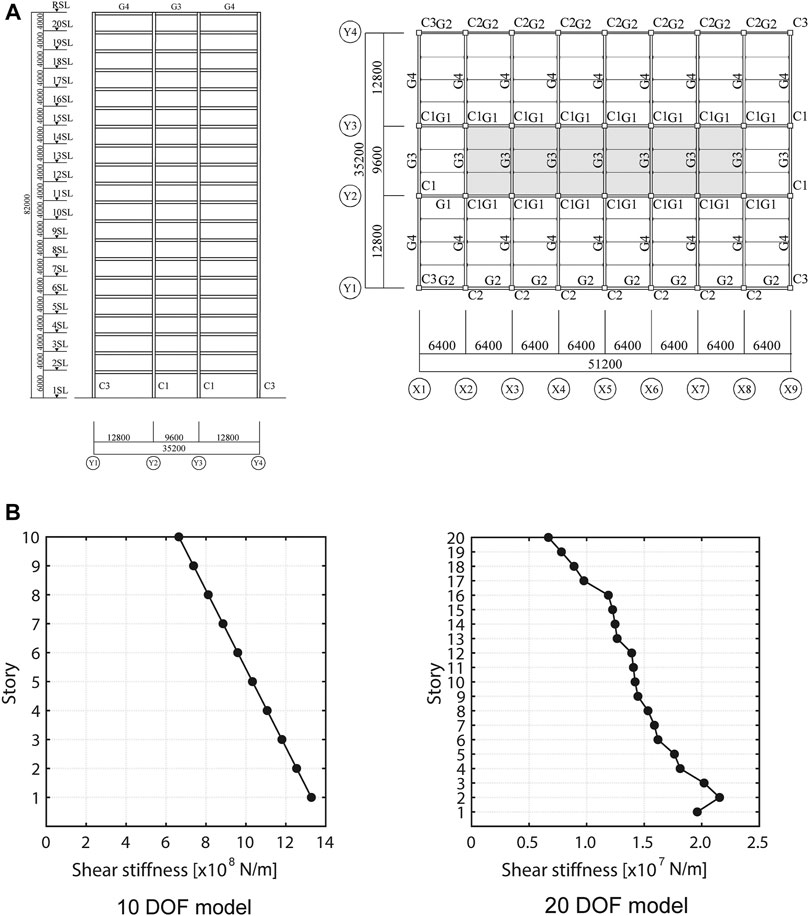

FIGURE 7. Example building frame, (A) Plan and elevation of 20-story building frame, (B) Story shear stiffness distributions of 10 DOF and 20 DOF building models.

Determination of Amplitude of Critical Double Impulse

The critical double impulse consisting of two inversely-directed impulses with the same velocity amplitude has been proposed by Kojima and Takewaki (2015) for the evaluation of the upper bound of elastic-plastic building responses under pulse-type ground motions. This can be easily used as the input excitation to MDOF building models in the time-history response analysis, since it is also easy to find the critical impulse timing (Akehashi and Takewaki, 2019; Tamura et al., 2019; Akehashi and Takewaki, 2020). Compared with conventional design earthquake ground motions such as actually recorded earthquake ground motions and artificial seismic waves, the input critical to building structures is used in this critical double impulse. Since the second impulse timing of the critical double impulse can be automatically determined so that the input energy to the building is maximized, the input uncertainties can be implicitly taken into account. This is because the critical double impulse as a substitute for near-fault ground motions can be regarded as the critical excitation to the objective building. In this paper, instead of using specific design earthquake ground motions, the critical double impulse is used for evaluating the seismic structural performance. In order to discuss the relationship of the input amplitude between the critical double impulse and the design ground motions, the velocity amplitude of impulse is evaluated by referring to the seismic response of the objective building without damper subjected to the design ground motions. By changing the velocity amplitude $V$ of the critical double impulse, the design amplitude is determined so that the maximum interstory drift of MDOF models without damper is the same as the maximum value of those calculated for the design ground motions.

El Centro NS (1940), Taft EW (1952), Hachinohe NS (1968) are adopted as the design ground motions. The maximum velocity amplitude of these design ground motions is scaled to 0.25[m/s] as specified as the design ground motions of level 1 in the Building Standard Law in Japan. In this case, the maximum interstory drift angle should be smaller than 1/200. Following the above-mentioned criterion, the velocity amplitudes of the critical double impulses are set to 0.414[m/s] for the 10-DOF model, and to 0.339[m/s] for the 20-DOF model, respectively.

Ordinary Optimal Damper Placement

As shown in the ordinary problem of optimal damper placement defined in Eqs. 5, 6, the sum of damping coefficients of linear oil dampers and the sum of the maximum damping forces in bi-linear oil dampers are minimized without the variability of damper properties for the given performance criterion. The seismic performance criterion ${\delta }_{\text{des}}$ in the constraints of the ordinary optimization problem are given so that the maximum interstory drift angle of MDOF models subjected to the critical double impulse is smaller than 1/230 in this paper. This value is 1/1.15 times the limit value 1/200. In order to take into account the structural variation and redundancy to various uncertainties, it is desirable to set the target design constraint more severe than the design standard. The determination of the design constraint values depends on the structural designers.

Figure 8 shows the distributions of damping coefficients of linear oil dampers, and the maximum allowable damping force and relief velocity distributions of bi-linear oil dampers in the ordinary optimal damper placement problem without considering uncertainties. The optimization solver based on the quadratic programming algorithm provided by MATLAB® is applied for the optimization procedure in this paper.

FIGURE 8

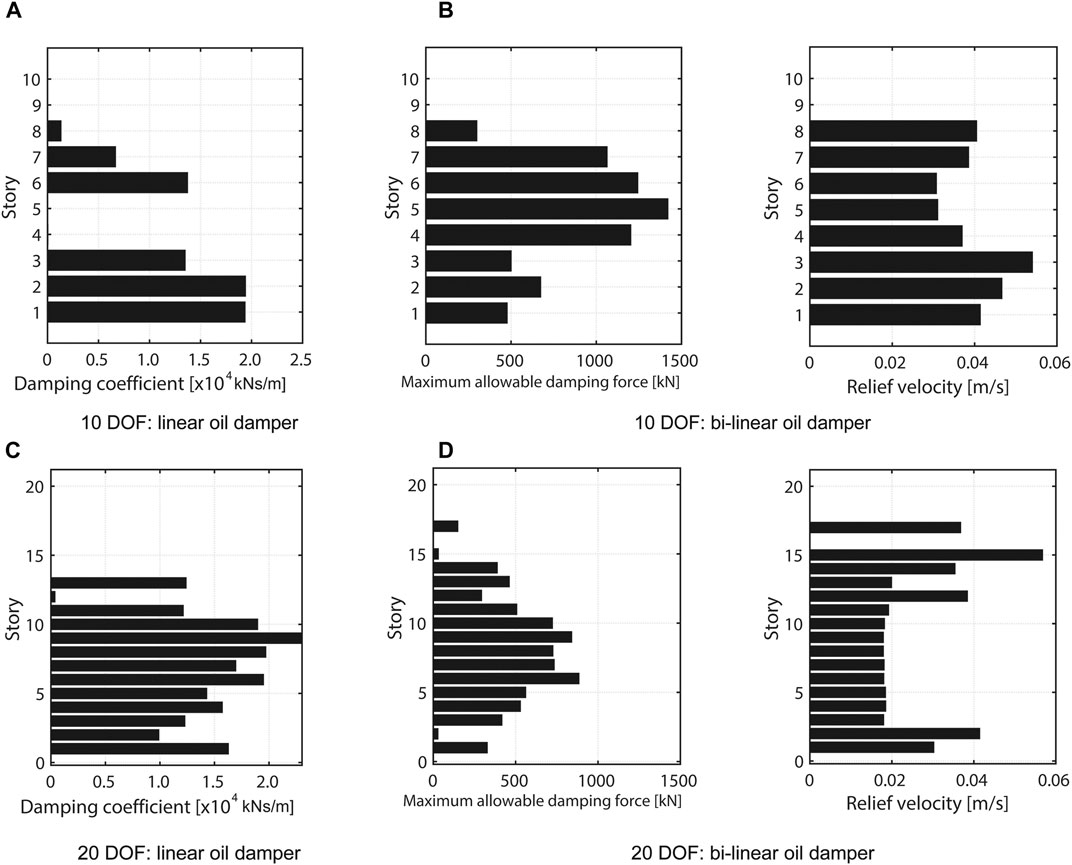

FIGURE 8. Optimal damper characteristics for ordinary problem without uncertainties (Damping coefficient for linear oil damper, Maximum allowable damping force and relief velocity for bi-linear oil damper).

Figure 9 presents the maximum interstory drift distribution for linear and bi-linear oil dampers and includes the comparison with the response of the frame without damper. It can be confirmed that the maximum interstory drifts at several floors coincide with the constraint limit ${\delta }_{\text{des}}=0.017\left[\text{m}\right]$ in the optimal designs. The comparison of the interstory drift-damping force relation for linear and bi-linear oil dampers is shown Figure 10. In Figure 10, the circle and triangle markers represent the timing of the first and second impulses. Since the impulse input causes the sudden interstory velocity change in the first story, the amplitude of the damping force changes drastically after the action of the second impulse excitation especially in the lower stories for the case of linear oil dampers. It can be found that the energy consumptions in dampers are distributed over many floors in the case of bi-linear oil dampers. This is because the maximum damping force is limited by $F_{\max }$ which is derived in Figures 8B,D in the bi-linear oil dampers.

FIGURE 9

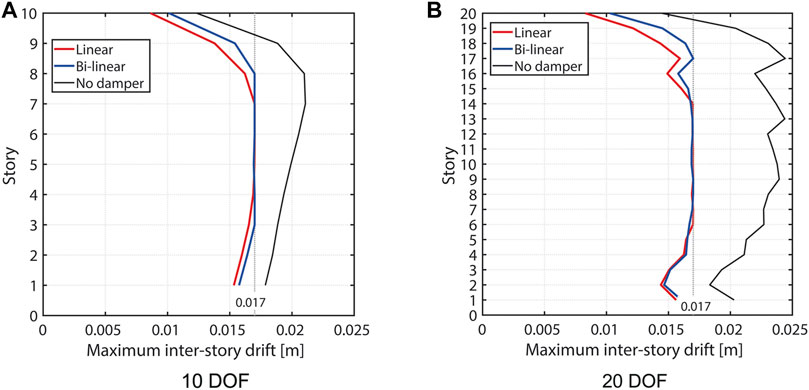

FIGURE 9. Maximum interstory drift distribution.

FIGURE 10

FIGURE 10. Damping force-interstory drift relations of models designed for linear oil damper and bi-linear oil damper using ordinary optimal design method.

Robust Optimal Damper Placement

The variability of damping coefficients of oil dampers is officially allowable in the Building Standard Law in Japan. As explained in Conventional Damper Optimization Problem and Multi-Objective Robust Damper Optimization Problem, the damping force variability can occur in both linear and bi-linear oil dampers due mainly to randomness of realization. On the other hand, we assume that the variability of shear stiffness corresponds mainly to the modelling error between the actual building and the planar frame model. Therefore, the structural uncertainties in the robust design problem are considered in both the damper characteristics and the story shear stiffnesses of the main frame. For the mathematical formulation, the uncertain parameters are given by interval variables as shown in Eq. 1. When the degree of uncertainty $\alpha$ is $1.0$, the variation ratios of the maximum damping force and shear stiffness are set to $\pm 10\%$ and $\pm 5\%$ to the nominal values, respectively. The robustness function of the maximum interstory drift is derived by applying the uncertainty analysis method called the NURP method (Fujita and Yasuda, 2016; Okada et al., 2016). For the comparison of optimization solver in the robust optimization, we use the sequential quadratic programming algorithm (SQP) provided by MATLAB® and the genetic algorithm (GA)-based heuristic searching algorithm MOGA-II provided by modeFRONTIER®.

Since the issue on the initial design that affects the optimization convergence exists in the SQP method, the ordinary optimal damper placements derived in Figure 8 are used as the initial design in the robust optimization using the SQP method. On the other hand, the initial design set in the GA is randomly generated considering lower and upper bounds of design variables. However, since the sum of damping coefficients or the sum of the maximum allowable damping forces is limited in the constraint of the robust optimization, it is difficult to generate the initial design set automatically. Furthermore, when the nominal performances of the initial design set are worse than $f_{\text{des}}$ that can be determined by referring the robustness function of the ordinary optimal design (Figure 3B), the objective function defined in Eq. 8 does not change any more. This causes the optimization to fail in the GA. Therefore, the initial design set in the GA has been generated manually by referring the ordinary optimal design. The number of individuals in each generation is 24 for the 10 DOF model and 48 for the 20 DOF model. The number of generations is 200.

Figure 11 shows the robust optimal damper characteristics derived in the proposed multi-objective robust optimization problem for linear and bi-linear oil dampers formulated in Eq. 8. Since the sum of damping coefficients for the linear oil dampers or the sum of the maximum allowable damping forces for the bi-linear oil damper is the same as that for the ordinary optimal damper placement shown in Figure 8, the optimum value in the robust optimal design increases or decreases in each story compared to the normal optimal design. In the robust optimal design of 20 DOF models with bi-linear oil dampers, the difference of the robust optimal design value from that of the ordinary optimal design is small. This is probably because the optimization end constraints on the change in the objective function were relaxed compared with other cases from the view point of reducing the computational time.

FIGURE 11

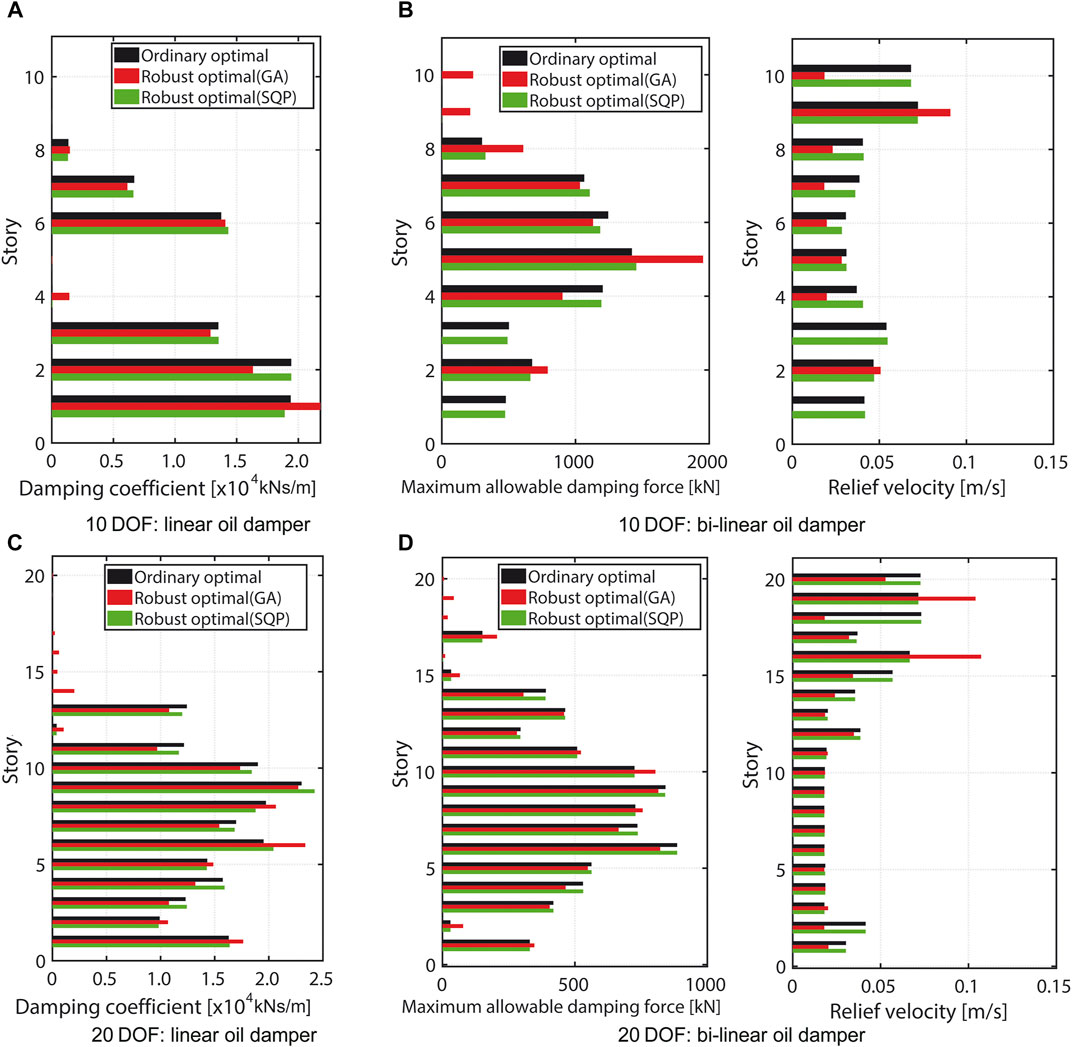

FIGURE 11. Ordinary optimal damper distribution and robust optimal damper distribution for 10 and 20-story buildings (Damping coefficient for linear oil damper, Maximum allowable damping force and relief velocity for bi-linear oil damper).

In order to evaluate the difference of the robustness function of the target building model with that of the optimal damper placements, the robustness functions of the ordinary optimal damper placement and the robust optimal damper placement derived by the SQP method and GA are compared in Figure 12. In these figures, the black circle, red rhombus and blue square markers represent the actual response evaluation values by uncertainty analysis. The robustness function of each design has been derived by the polynomial approximation, and the difference of the robustness functions is used as the objective function of the robust optimization. As seen in these figures, the proposed robust damper placements have higher robustness than the ordinary optimal solutions. In addition, the deterioration of the performance value at $\widehat{\alpha }=0$ for the robust optimal design is extremely small. Similar results can be seen regardless of whether it is a linear or bi-linear oil damper. However, in the heuristic searching using GA, the nominal performance is worse compared with the results of the SQP. This may be resolved by increasing the number of generations. It can be concluded that the proposed robust design method is valid in obtaining the robust optimal damper placement under the critical double impulse.

FIGURE 12

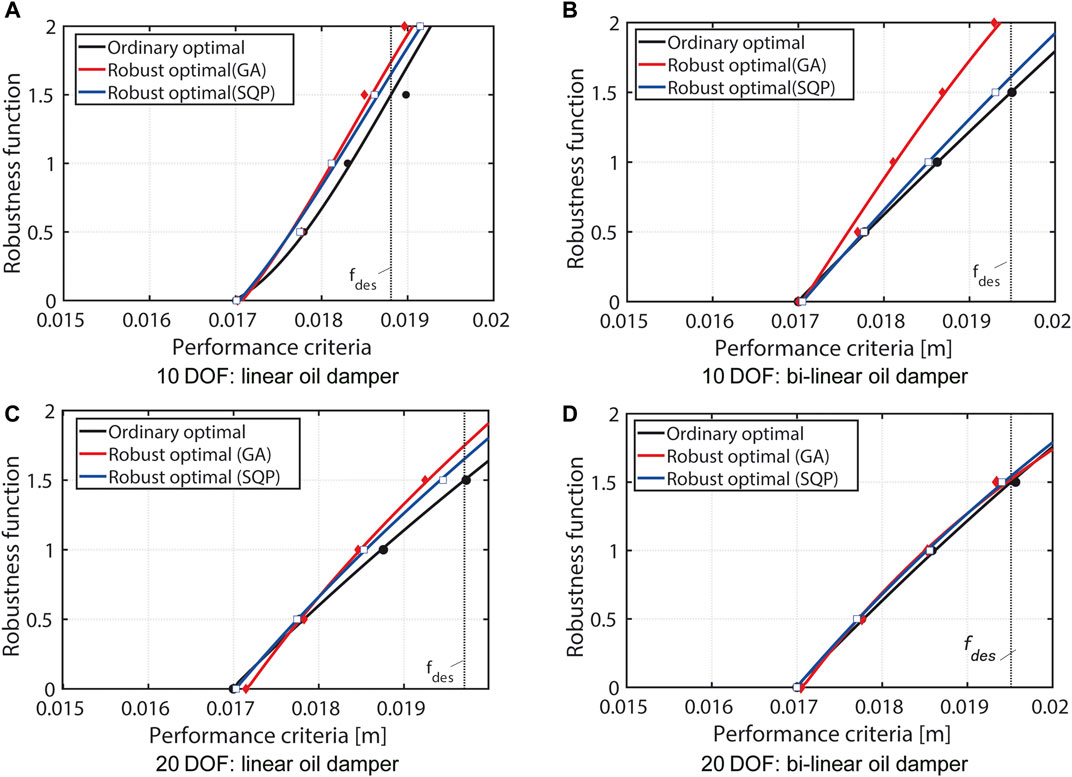

FIGURE 12. Comparison of robustness functions for robust optimal damper placement with that for ordinary optimal damper placement.

Verification of Proposed Robust Optimal Damper Placement to Design Ground Motions

In this paper, the critical double impulse was used in the optimization procedure instead of specified design ground motions. In this section, in order to investigate the validity of the proposed robust optimal damper placement using the critical double impulse for various design ground motions, the robustness functions for the optimal damper placement under the design ground motions are investigated. These robustness functions were derived by the SQP method as shown in Figure 12. The robustness functions can be derived by replacing the critical double impulse with the design ground motions.

Figure 13 shows the comparison of the robustness functions for the ordinary optimal designs without considering uncertainties and those for the robust optimal designs. The amplitudes of the critical double impulse were determined so that the maximum interstory drift of the frame without dampers (See Determination of Amplitude of Critical Double Impulse) was the same as that to the design ground motions. It can be confirmed that the design demands on the interstory drift are satisfied for most of design earthquake ground motions by optimizing the damper placement for the critical double impulse.

FIGURE 13

FIGURE 13. Comparison of robustness functions for ordinary optimal damper placement and robust optimal damper placement under critical double impulse and design ground motions.

Figure 14 presents a comparison of the damping force characteristics of the damper at $\widehat{\alpha }=0$ and $\widehat{\alpha }=1.5$ in the robust and ordinary optimal designs. A large difference can be observed in the improvement of robustness compared to Figure 12. It can be confirmed that the location of the story where the maximum interstory drift occurs has changed when the uncertainties of oil dampers are taken into account. In the robust optimal design, the dampers are allocated appropriately to allow the change in the location of the story where the maximum interstory drift occurs.

FIGURE 14

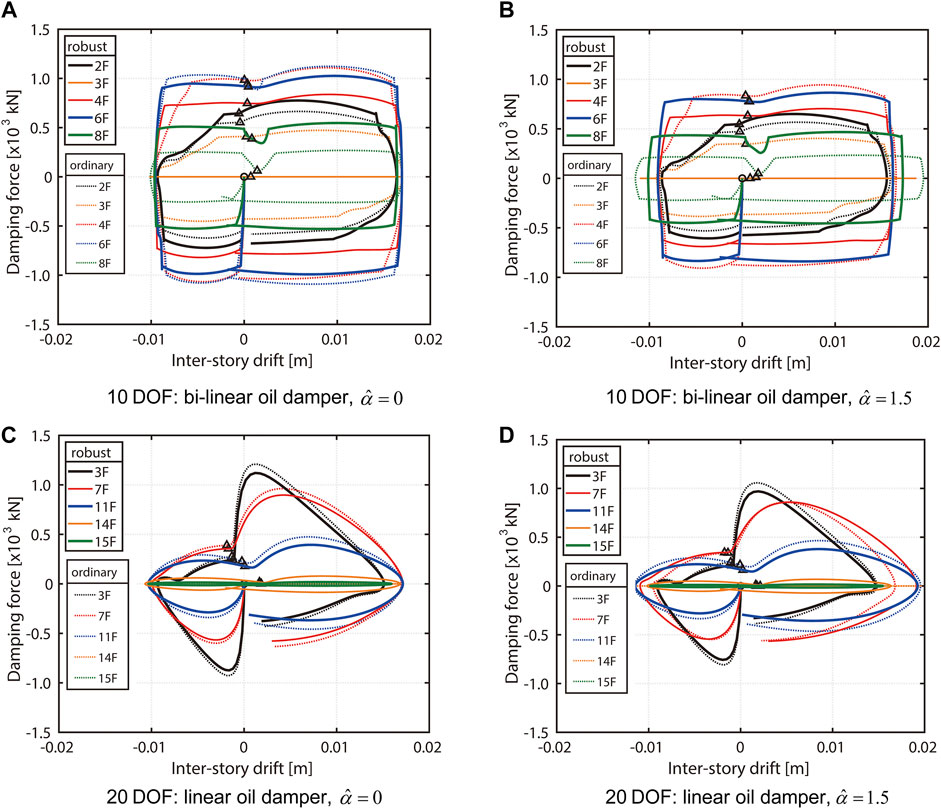

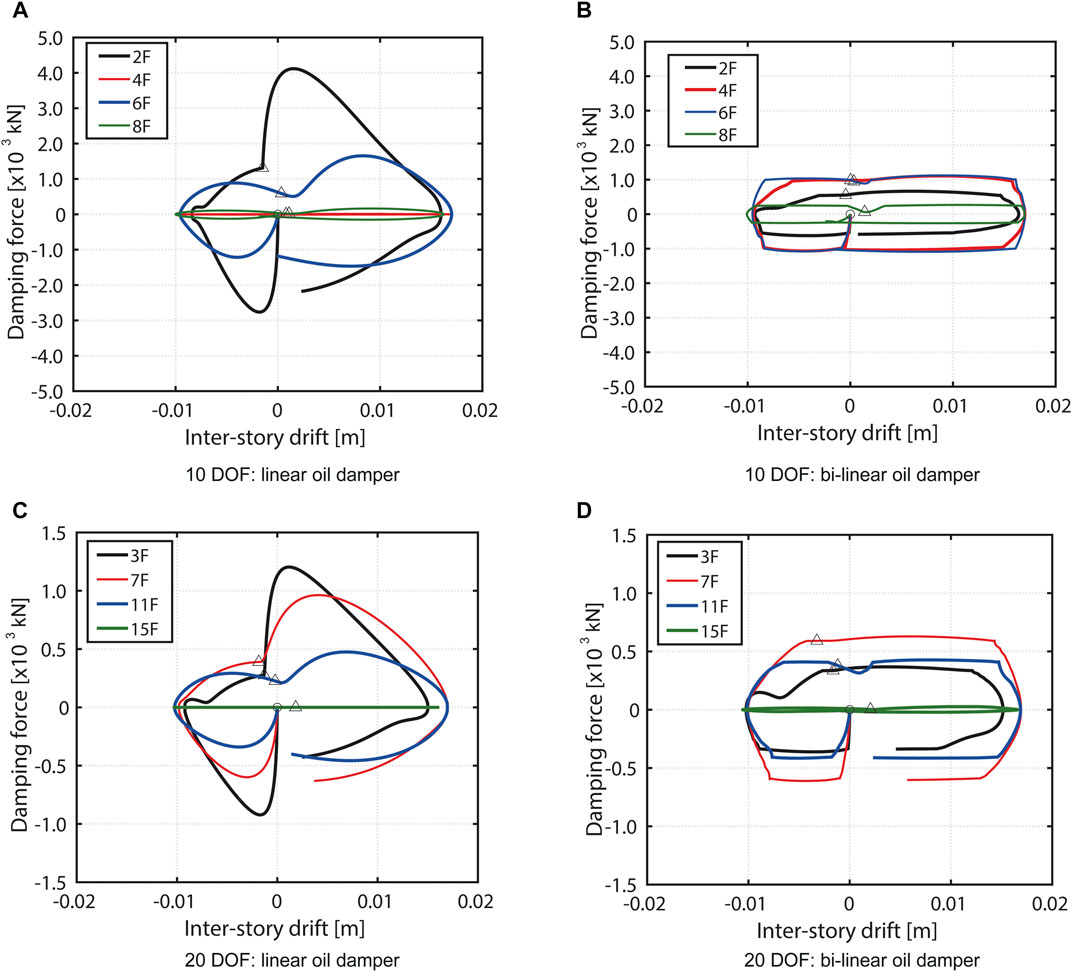

FIGURE 14. Damping force-interstory drift relations of models designed for linear oil damper and bi-linear oil damper using proposed robust optimal design method (case without uncertainty $\widehat{\alpha }=0$ and case with uncertainty $\widehat{\alpha }=1.5$).

Conclusion

The robust optimal design of linear and bi-linear oil dampers has been presented based on the robustness function for building structures under the uncertainties of structural parameters. The uncertainties in damper characteristics of linear and bilinear oil dampers and stiffness of the building frame have been dealt with in this paper. A method using the robustness function derived by the sequential uncertainty analysis was applied to evaluate the robustness of the building frame with linear and bilinear supplemental dampers under various uncertainties, e.g., shear stiffness and damping coefficient of supplemental oil dampers. The robust design has been obtained by maximizing the proposed objective function where the difference is treated as a principal parameter between the robustness function of the target design and that of the ordinary optimal design without considering uncertainties. The robust design approach presented in this paper was aimed not only at enhancing the robustness of structural performances but also preventing the deterioration of the nominal structural performance.

The critical double impulse as the excitation to buildings has been used to evaluate the maximum interstory drift in the worst-case scenario. The critical double impulse has overcome a difficulty in computational loads. The worst-case scenario can be automatically set in the structural response of nonlinear supplemental dampers and it has been confirmed through numerical examples that the optimal design is valid for other ordinary seismic inputs. The amplitude of the double impulse was determined by calculating the maximum seismic response of the bare building model without damper subjected to actual design earthquake ground motions.

Comparative studies on the robust optimal damper placement using linear and bilinear oil dampers have been investigated through numerical examples for 10-story and 20-story planer building frames. Since the robust optimal design problem has two aspects; one is the minimization of the seismic response such as the interstory drift and another is to find the worst variation of uncertain parameters that maximizes the seismic response, the computational load of the robust optimization is too heavy for the models with large degree of freedom such as building frame models. Equivalent multi-degree-of-freedom shear building models have then been used for the robust optimization. It has been shown that the robustness of the structural performance can be improved in the proposed robust optimal damper placement compared with the ordinary optimal damper placement without considering uncertainties.

For future work, it is needed to discuss how to determine the actual positioning of dampers in two-dimensional or three-dimensional frame structures from the results of the optimal design derived by using the equivalent simplified shear model.
