Commentary: Fatigue Life Assessment Method for Prestressed Concrete Sleepers

A commentary on

Fatigue Life Assessment Method for Prestressed Concrete Sleepers
by You, R., Li, D., Ngamkhanong, C., Janeliukstis, R., and Kaewunruen, S. (2017). Front. Built Environ. 3:68. doi: 10.3389/fbuil.2017.00068

We have closely read with interest the paper published by You et al. (2017) about the fatigue life assessment method for prestressed concrete sleepers. This article shows that there is a possibility that the assessment method, which is commonly used to evaluate the fatigue life of the reinforcing bar and prestressed steel for railway concrete structures, is also applicable to the prestressed steel of the concrete sleepers. Establish of the assessment method for the prestressed steel on the concrete sleepers can be benefit when it comes to maintenance (e.g., replacement cycles and priority of replacement locations, etc.).

However, in the experiments conducted by Parvez (2015) and Parvez and Foster (2017) to verify the applicability of the assessment method for the prestressed steel of prestressed concrete sleepers, the upper limit of the cyclic load was set to 240 kN to make sure that the prestressed steel fractures. The use of this load shows that very heavy vehicles with severely flat wheels may run repeatedly on poorly maintained tracks. In Japan, the ballasted track, in which prestressed concrete sleeper is a vital component, is selected under the assumption of regular maintenance (Railway Technical Research Institute, 2014). Hence, such a high load which makes prestressed concrete sleepers cracked rarely occurs. For this reason, it should be discussed whether fatigue fracture of a prestressed steel can occur in the actual environment during the service life of prestressed concrete sleepers.

In the design of Japanese prestressed concrete sleepers, as shown Table 1, dynamic wheel load for the serviceability limit state is specified as twice as high as the static wheel load. The concrete stress of the prestressed concrete sleeper is normally needed to be in compressive region against that dynamic load, which is called full prestress design (Antoine, 2012). In addition, the event probability of the dynamic load is estimated to be about 0.1% or less (Wakui and Okuda, 1999). Therefore, it is rare that cracks on prestressed concrete sleepers will occur. Even if high load over that dynamic force is added to the tracks, it is easy to imagine that the number of the occurrences is limited within design service life of the prestressed concrete sleepers. In evidence, there are no reports that a sleeper has broken due to fatigue fracture of the prestressed steel. Thus, the check about fatigue fracture of prestressed steels of the prestressed concrete sleeper is almost omitted in the design of Japanese prestressed concrete sleepers.

TABLE 1

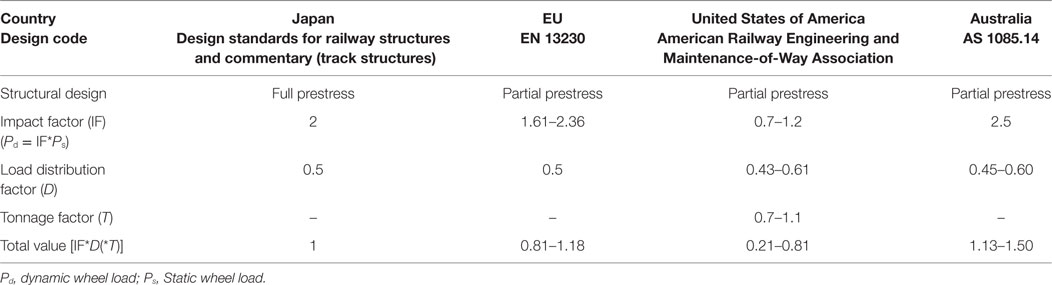

Table 1. Comparison of design methods among countries.

On the other hand, when focusing on prestressed concrete sleepers in service, some of them exceed the design service life which is generally set to 50 years (Railway Technical Research Institute, 2014). The fatigue life of prestressed steels may be an important indicator for determining the appropriate replacement time of prestressed concrete sleepers. In other countries, the importance of this indicator increases because prestressed concrete sleepers are normally designed with partial prestress design (FIP Commission on Prefabrication, 1987; Antoine, 2012) which allows generation of tension stress on sleeper’s concrete when train load is added as shown Table 1. Therefore, developing fatigue life assessment method for prestressed steels of prestressed concrete sleepers will become more important in the future.

To assess the fatigue life of prestressed concrete sleepers on service tracks more accurately and reasonably, it is necessary to establish fatigue life assessment method according to the situation of the individual service line. Figure 1 shows the image of the assessment method. First of all, it is important to obtain the relationship between wheel load acting to tracks and the probability. Secondly, the relationship is needed to be converted to the relationship between bending moment of the prestressed concrete sleeper and the probability. At the same time, it is also important to ascertain the between the wheel load and the stress of prestressed steel. And then, by multiplying these, expectation about the stress of prestressed steel per a passing wheel is calculated through modified Miner’s law (Miner, 1945). In addition, taking into account the number of passing wheel and modified Goodman’s diagram (Nordby, 1958), expectation value about the tensile fatigue strength of prestressed steel at certain period can be calculated. Finally, the expected value is compared to the limit value for fatigue fracture of prestressed steel (Wakui and Okuda, 1999; Goto et al., 2012, 2017). In that time, it is necessary to sufficiently grasp the influence of each parameter (Watanabe et al., 2016) which is concerning the track and the vehicle condition on expectation value of the tensile fatigue strength of prestressed steel.

FIGURE 1

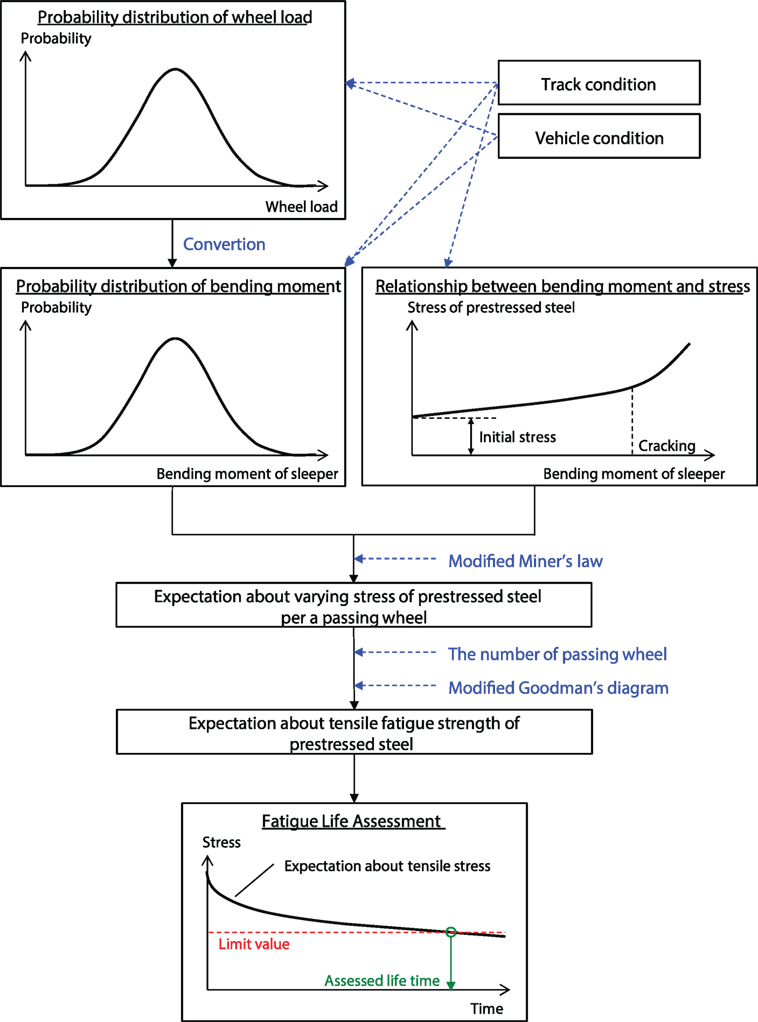

Figure 1. Fatigue life assessment method for prestressed concrete sleepers.
