ORIGINAL RESEARCH article
Front. Bioeng. Biotechnol.
Sec. Biomaterials
Volume 13 - 2025 |
doi: 10.3389/fbioe.2025.1536957
This article is part of the Research Topic Advanced Technologies for Oral and Craniomaxillofacial Therapy View all 6 articles
The Impact of Jawbone regions (molar area, premolar area, anterior area) and bone density on the Accuracy of Robot-Assisted Dental Implantation: A Preliminary Study
Provisionally accepted- 1 Ruijin Hospital, School of Medicine, Shanghai Jiao Tong University, Shanghai, Beijing, China
- 2 Minhang Hospital, Fudan University, Shanghai, Shanghai Municipality, China
- 3 Inner Mongolia Fourth Hospital, Hohhot, Inner Mongolia Autonomous Region, China
- 4 Shanghai Ninth People’s Hospital, School of Medicine, Shanghai Jiao Tong University, Shanghai, China

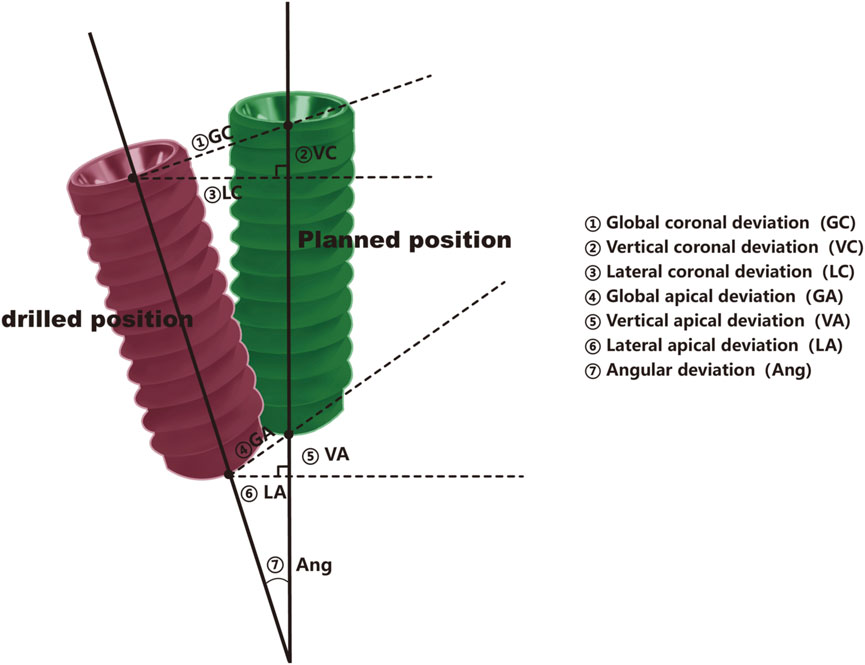

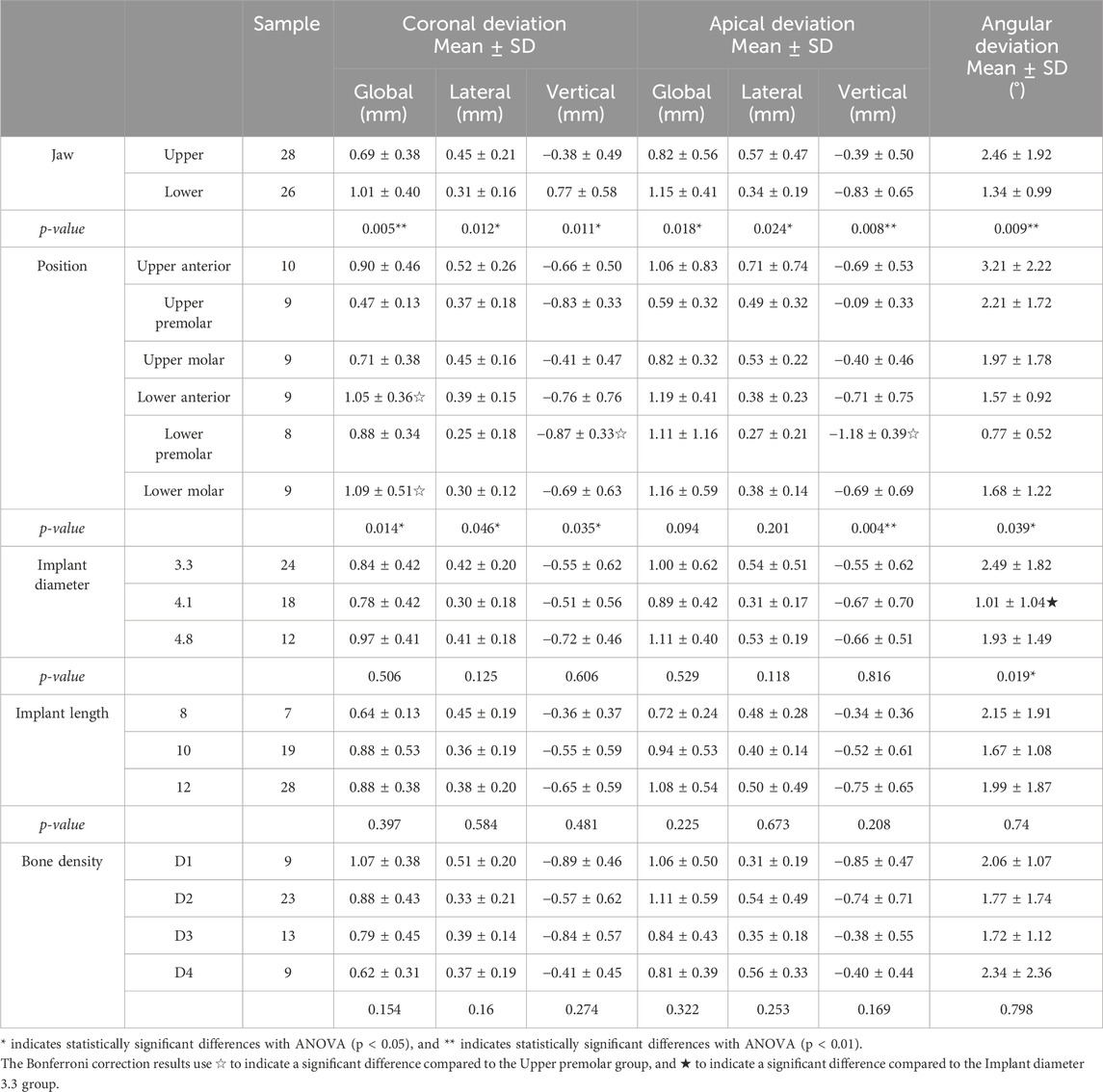

Robotic-assisted dental implantation represents a transformative innovation in modern dentistry, offering enhanced surgical precision and reduced variability. Despite its clinical adoption, the impact of anatomical and bone-related factors on placement accuracy remains underexplored. This retrospective study evaluated 54 implants placed in 30 patients using cone-beam computed tomography (CBCT) and virtual planning software to analyze deviations in crown position, apex position, and angulation.Significant regional variations in accuracy were observed, with higher angular deviations in the anterior maxilla (mean ± SD: 3.21°±2.22°) and greater positional deviations in the posterior mandible (1.09 mm ±0.51 mm) (p < 0.05). Implant diameter significantly influenced global deviation (p = 0.019), while implant length and bone density (classified by Misch's system) showed no significant effects (p > 0.05).However, denser bone types (D1) exhibited a trend toward increased deviations, potentially due to insertion resistance. These findings underscore the need for region-specific and bone-quality considerations in robotic-assisted implantation. Refining robotic navigation and feedback mechanisms is critical to optimizing accuracy, particularly in anatomically complex regions.
Keywords: Robot-assisted, implantation, accuracy, Bone Density, Jawbone
Received: 29 Nov 2024; Accepted: 04 Feb 2025.
Copyright: © 2025 Miadli, Li, Zhang, Ruan, Liu, Zhang and Gao. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
