Screw pull-out force predictions in porcine radii using efficient nonlinear µFE models including contact and pre-damage

Pia Stefanek ^1* Juan Silva-Henao ^1,2 Victoria Fiedler ² Andreas G. Reisinger ^1,2 Dieter H. Pahr ¹ Alexander Synek ¹

• ¹ Institute of Lightweight Design and Structural Biomechanics, Faculty of Mechanical and Industrial Engineering, Vienna University of Technology, Vienna, Austria
• ² Division of Biomechanics, Department of Anatomy and Biomechanics, Karl Landsteiner University of Health Sciences, Krems an der Donau, Lower Austria, Austria

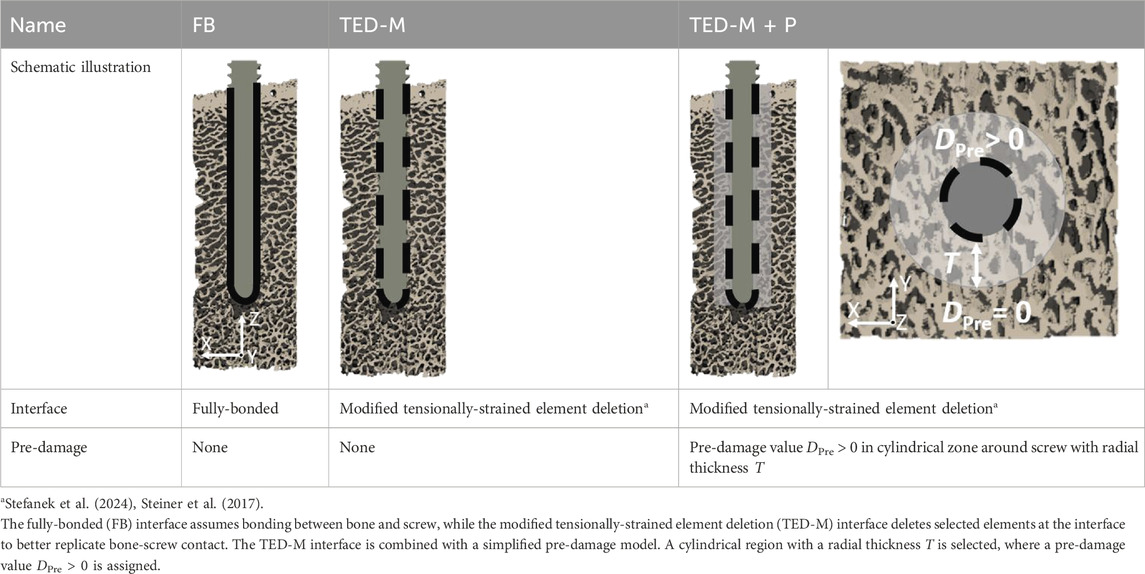

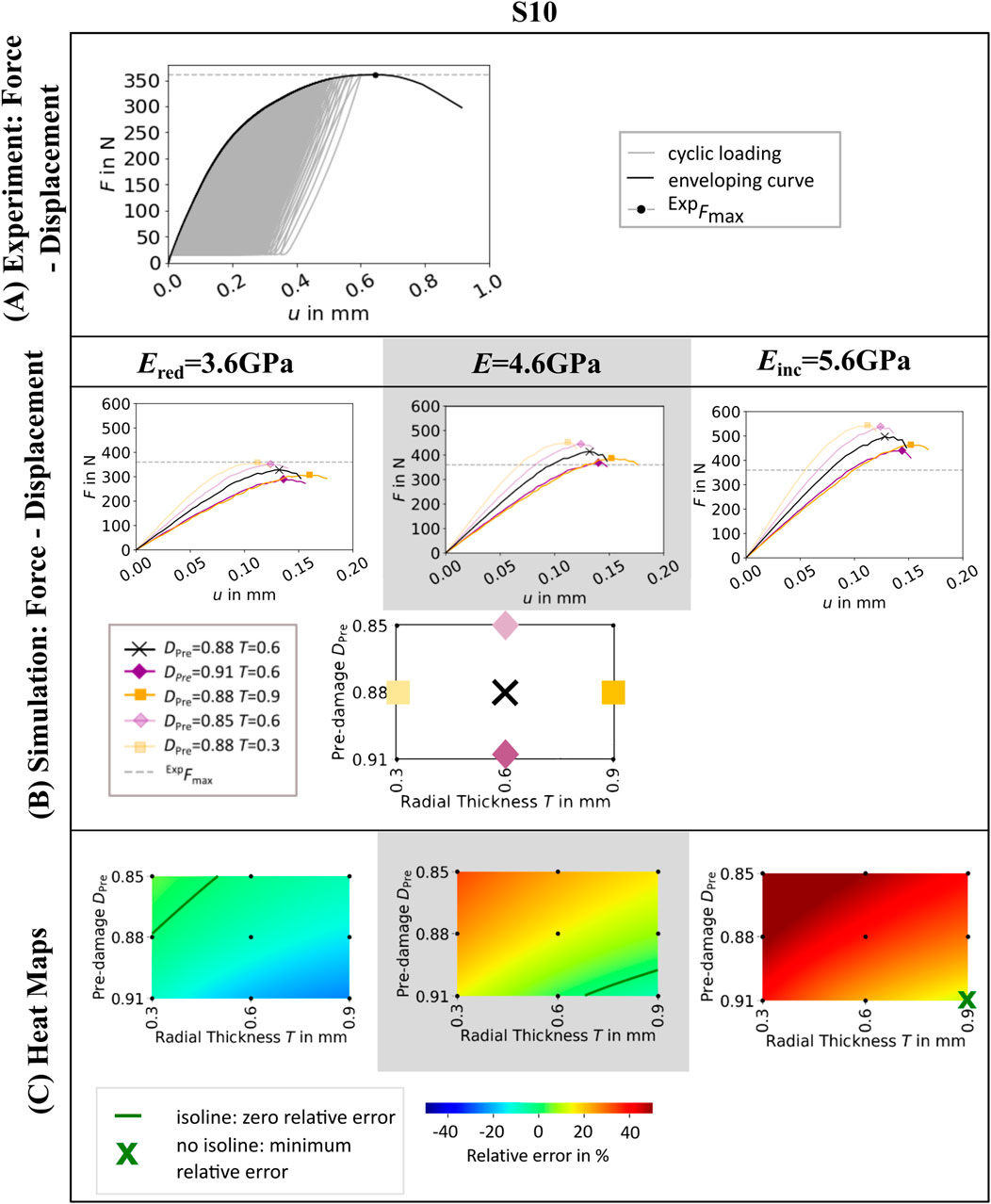

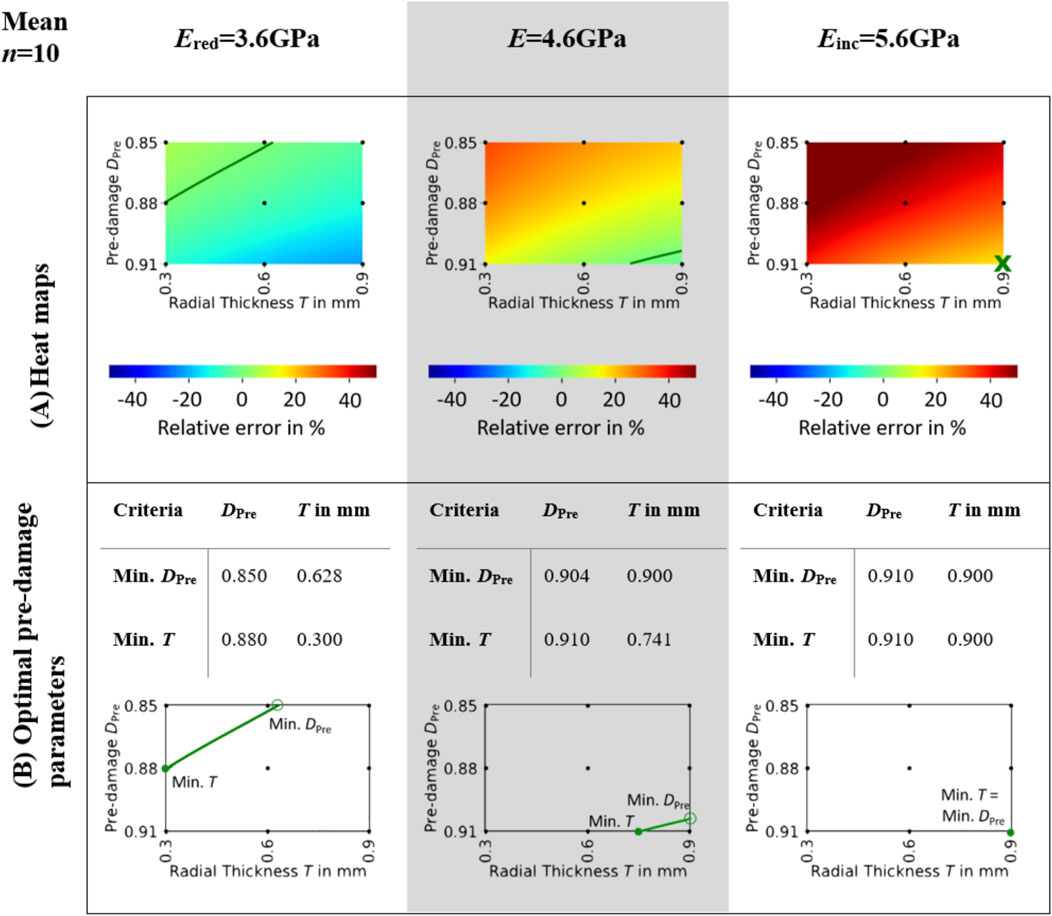

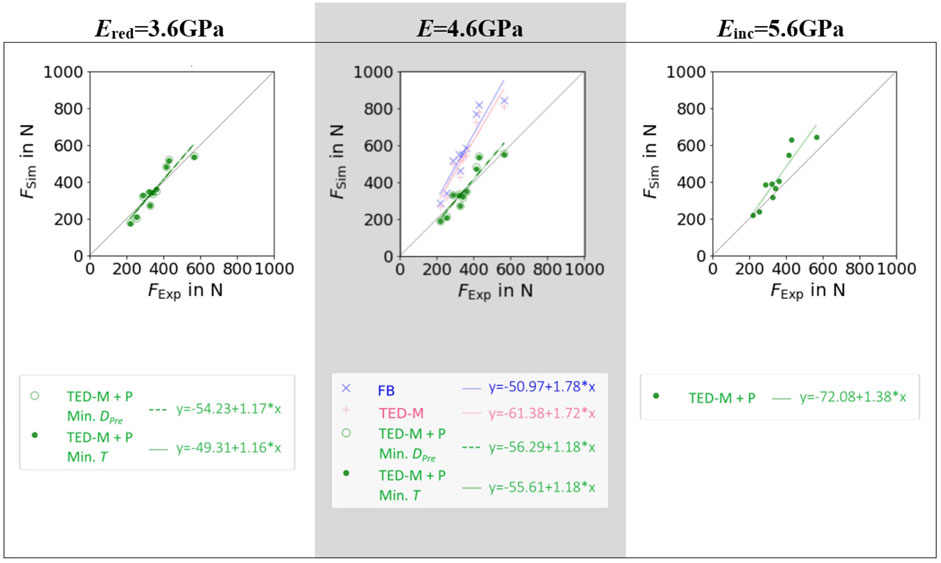

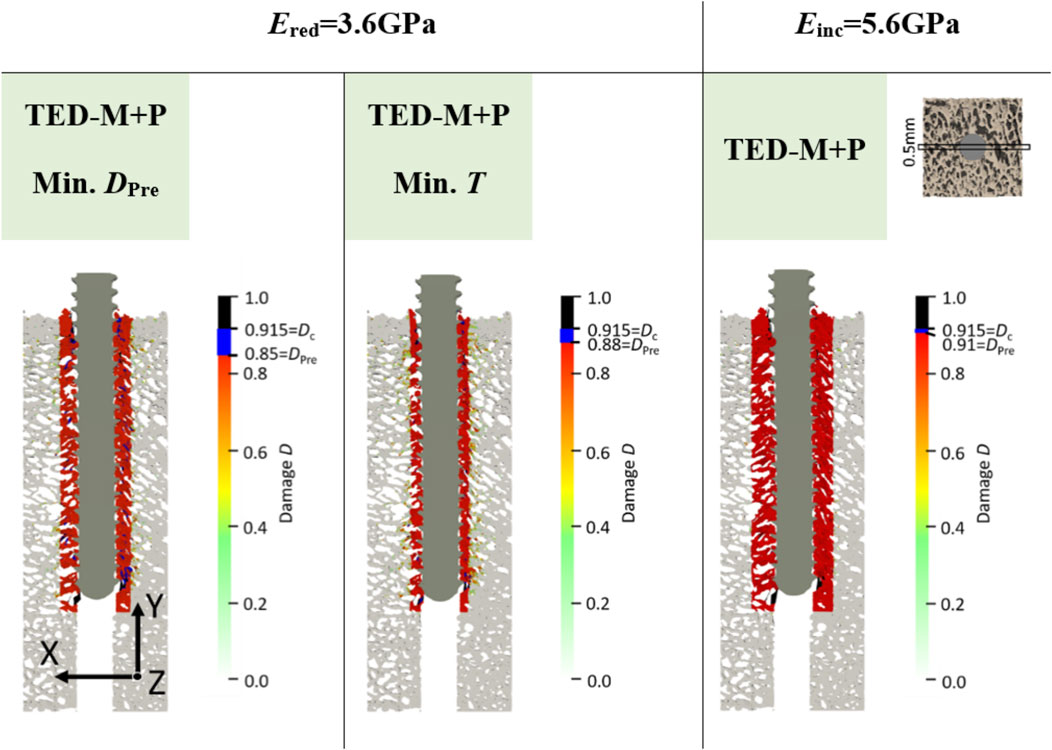

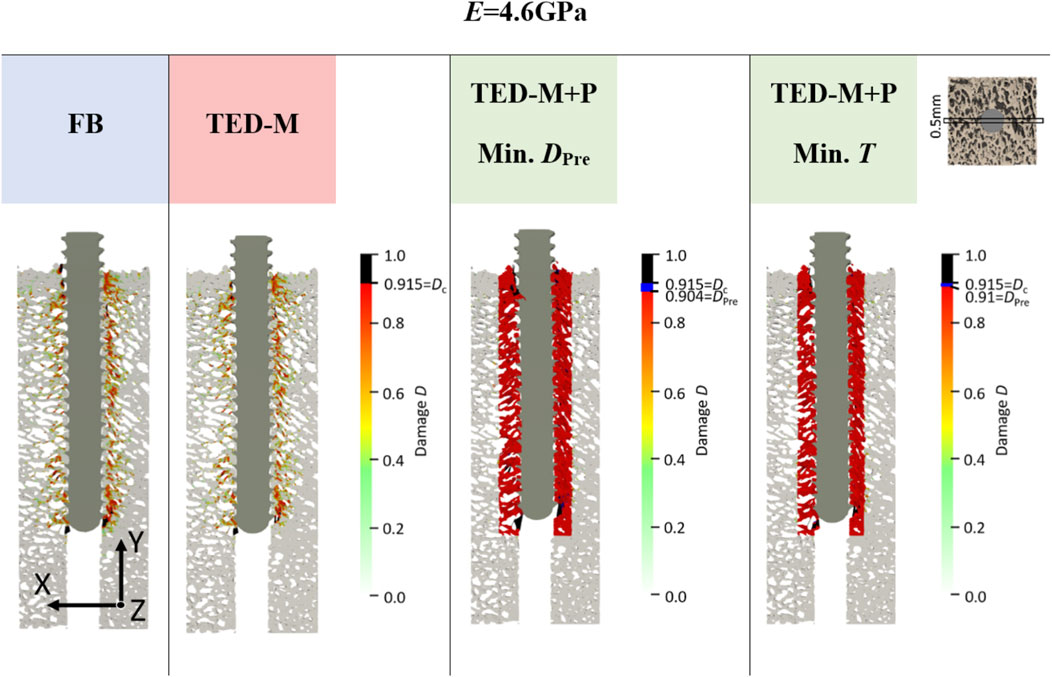

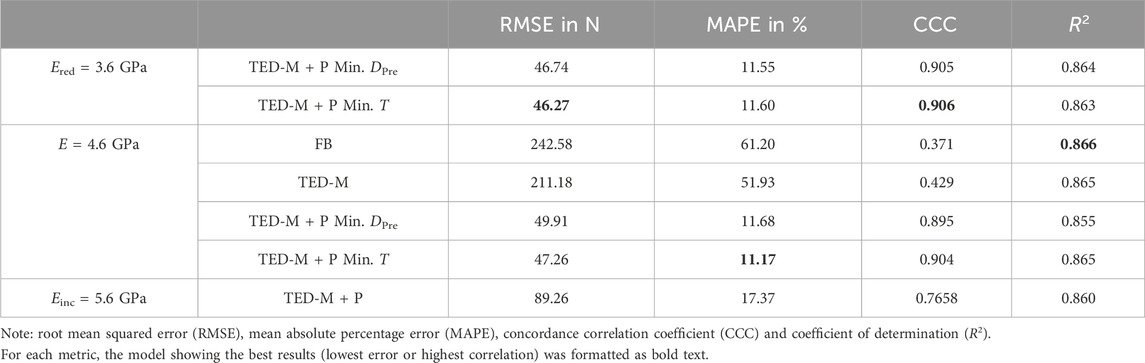

Nonlinear micro finite element (µFE) models have become the gold-standard for accurate numerical modeling of bone-screw systems. However, the detailed representation of bone microstructure, along with the inclusion of nonlinear material and contact, and pre-damage due to pre-drilling and screwinsertion, constitute significant computational demands and restrict model sizes. The goal of this study was to evaluate the agreement of screw pull-out predictions of computationally efficient, materially nonlinear µFE models with experimental measurements, taking both contact interface and pre-damage into account in a simplified way. Screw pull-out force was experimentally measured in ten porcine radius biopsies, and specimen-specific, voxel-based µFE models were created mimicking the experimental setup. µFE models with three levels of modeling details were compared: Fully bonded interface without pre-damage (FB), simplified contact interface without pre-damage (TED-M), and simplified contact interface with pre-damage (TED-M+P). In the TED-M+P models, the influence of pre-damage parameters (damage zone radial thickness and amount of damage) was assessed and optimal parameters were identified. The results revealed that pre-damage parameters highly impact the pull-out force predictions, and that the optimal parameters are ambiguous and dependent on the chosen bone material properties. Although all µFE models demonstrated high correlations with experimental data (R² > 0.85), they differed in their 1:1 correspondence. The FB and TED-M models overestimated maximum force predictions (mean absolute percentage error (MAPE) > 52%), while the TED-M+P model with optimized pre-damage parameters improved the predictions (MAPE < 17%). In conclusion, screw pull-out forces predicted with computationally efficient, materially nonlinear µFE models showed strong correlations with experimental measurements. To achieve quantitatively accurate results, precise coordination of contact modeling, pre-damage representation, and material properties is essential.
