Wendi Guo
Hongbin Dong1,2,3- 1Department of Prosthodontics and Implant Dentistry, The First Affiliated Hospital of Xinjiang Medical University, Urumqi, China
- 2Affiliated Stomatological Hospital of Xinjiang Medical University, Urumqi, China
- 3Stomatology Research Institute of Xinjiang Uygur Autonomous Region, Urumqi, China
Periodontal disease is the most common type of oral disease. Periodontal bone defect is the clinical outcome of advanced periodontal disease, which seriously affects the quality of life of patients. Promoting periodontal tissue regeneration and repairing periodontal bone defects is the ultimate treatment goal for periodontal disease, but the means and methods are very limited. Hydrogels are a class of highly hydrophilic polymer networks, and their good biocompatibility has made them a popular research material in the field of oral medicine in recent years. This paper reviews the current mainstream types and characteristics of hydrogels, and summarizes the relevant basic research on hydrogels in promoting periodontal tissue regeneration and bone defect repair in recent years. The possible mechanisms of action and efficacy evaluation are discussed in depth, and the application prospects are also discussed.
1 Introduction
Periodontal disease is a prevalent condition that significantly impacts both dental health and overall wellbeing. Periodontal bone defects, known as a serious consequence of periodontal disease, are challenging to repair, leading to significant impacts on patients’ chewing function, aesthetics, and quality of life (Sedghi et al., 2021). Conventional periodontal bone grafting or bone substitute implantation surgery comprises the transplantation of bone or substitute materials to address alveolar bone defects resulting from periodontitis. These surgeries aim to stimulate new bone formation, repair bone defects, restore the anatomical shape of the alveolar bone, and achieve optimal periodontal tissue regeneration (Gao et al., 2024a). Nevertheless, this method is subject to numerous influencing factors and may not consistently yield satisfactory outcomes in periodontal tissue regeneration and bone defect repair. Some bone defects cannot be perfectly repaired. Hydrogels are a new type of functional polymer material that has emerged in recent years. They are cross-linked three-dimensional hydrophilic polymer networks with properties superior to traditional materials, including softness, non-deformability, strong water absorption capacity, intelligence, high drug utilization rate, safety, and convenience (Li et al., 2022a; Li et al., 2024). However, single-component hydrogels have relatively simple structures, generally low mechanical strength, and only basic hydrogel properties, which cannot fully meet the needs of complex applications and have certain limitations. In recent years, the basic research and clinical applications of hydrogels have become increasingly rich, with great potential and unique therapeutic plasticity in promoting periodontal tissue regeneration and repairing bone defects. Firstly, hydrogels can provide a microenvironment similar to the extracellular matrix, allowing periodontal tissues and bone cells to adhere, proliferate, and differentiate. Secondly, hydrogels can serve as drug release carriers, exerting anti-inflammatory and antibacterial effects, and promoting periodontal tissue regeneration. Additionally, hydrogels can also carry specific bioactive factors such as stromal cell-derived factor-1 (SDF-1) and bone morphogenetic proteins (BMPs), inducing them to differentiate into osteoblasts, thereby accelerating periodontal bone tissue regeneration. Hydrogels are currently one of the hottest research materials, and are expected to provide a new perspective for promoting periodontal tissue regeneration and repairing periodontal bone defects. Therefore, based on the latest literature on hydrogels, this article provides a review of the molecular mechanisms and efficacy evaluation of promoting periodontal tissue regeneration and repairing periodontal bone defects, and looks forward to their clinical application prospects.
2 Periodontal disease and bone defect
Periodontitis is a chronic inflammatory disease affecting the supporting tissues of the teeth, leading some patients to suffer from varying degrees of periodontal bone defects, significantly impacting their physical and mental wellbeing (Dannewitz et al., 2021). The treatment for periodontitis aims not only to remove causative factors and halt disease progression but also to restore damaged periodontal tissues to their original structure and function, achieving the ideal goal of periodontal tissue regeneration. The surgical treatment to promote periodontal tissue regeneration is called regenerative surgery, which mainly includes bone grafting and guided tissue regeneration, or the combination of the two can be used (Bee and Hamid, 2022). Bone grafting is among the most effective methods to repair bone defects caused by periodontitis, traditionally using materials such as autogenous bone, allograft bone, and xenogeneic bone, among others (Smeets et al., 2022). While the efficacy of the mentioned bone graft materials in bone defect repair cannot be entirely dismissed, there are also drawbacks. For instance, autogenous bone necessitates the use of the patients’ own bone, resulting in a secondary wound at the donor site, increasing the risk of postoperative complications such as infection, wound dehiscence, and increased bleeding. Additionally, postoperative unpredictable bone resorption may hinder the repair effect and prevent reaching the optimal state. Allogeneic bone carries the risk of immune rejection and requires strict donor screening and immunosuppressive therapy. Xenogeneic bone, due to species differences, has weaker biological activity and mechanical support capabilities (Ajlan et al., 2024). Thus, the clinical demand for bone repair materials with superior biological properties has grown increasingly urgent.
3 Overview of hydrogel
3.1 Basic composition of hydrogel
Hydrogels are three-dimensional hydrophilic polymer networks formed by the crosslinking of hydrophilic polymer chains through various interactions, such as chemical bonds, hydrogen bonds, and van der Waals forces (Hameed et al., 2024). Furthermore, the presence of hydrophilic groups in hydrogels enables rapid water absorption, high water retention capacity, and swelling without dissolution. This unique structure provides hydrogels with flexibility, enabling them to mimic the body’s tissue environment. They offer structural support to the defect site, facilitating repair of bone defects through intrinsic healing mechanisms (Li et al., 2022b; Ho et al., 2022; Zhang et al., 2023). The high water content of hydrogels, similar to the permeability of the extracellular matrix, facilitates the transport of oxygen and nutrients (Siddiqui et al., 2021). Owing to their excellent biocompatibility, biodegradability, high water content, adjustable properties, and similarities to the natural extracellular matrix, hydrogels are increasingly recognized as exceptional biomimetic tissue engineering scaffold materials. They are considered the optimal carriers for cells, bioactive factors, and controlled release drugs. It's important to note that injectable hydrogel materials, with their in situ cross-linking nature, can fully adapt to and restore the irregular geometric shape of the original bone defect, achieving minimally invasive repair of bone defects (Chen et al., 2022). The relatively low adhesion of hydrogels to proteins and cells ensures that hydrogels in contact with tissues do not interfere with the metabolic processes of living organisms. Additionally, tissue metabolites can easily penetrate the hydrogel (Luo et al., 2022). The scheme illustrating the general composition of hydrogel is displayed in Figure 1.

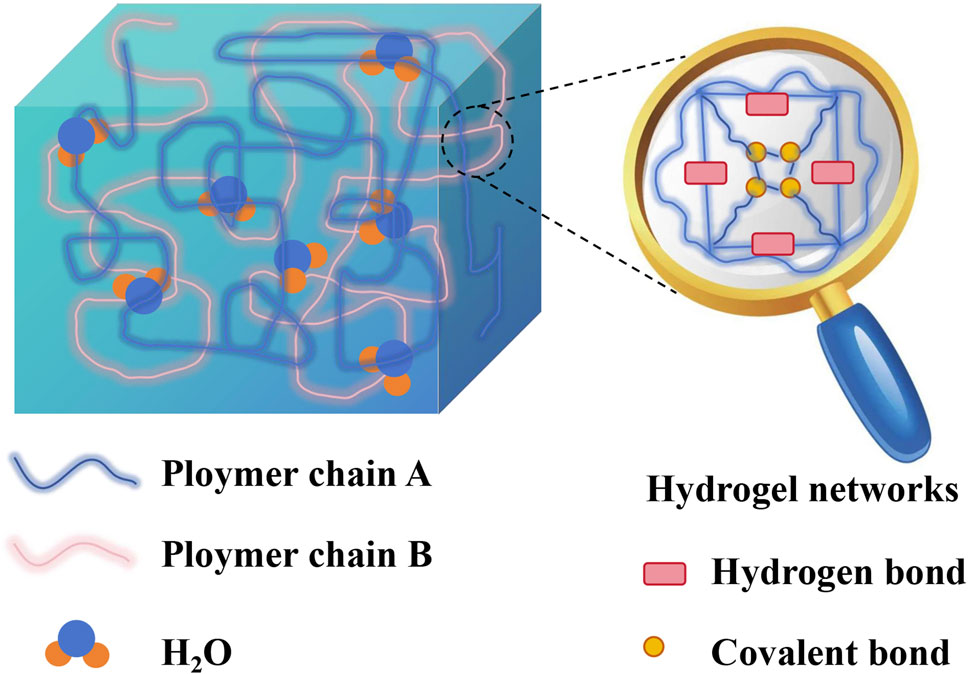

Figure 1. The general composition of hydrogel.
3.2 Basic physical and chemical properties of hydrogel
3.2.1 Biocompatibility
After the material interacts with the organism, biocompatibility is primarily reflected in two aspects. The material must withstand organismic systems without rejection or damage, and the reactions generated during this process should be non-inflammatory and non-carcinogenic (Crawford et al., 2021). Biocompatibility is crucial for the successful use of hydrogel scaffolds in tissue engineering and regenerative medicine in clinical practice (Zor et al., 2019). Researchers often utilize methods such as synthetic conjugated polymers and the addition of ions to enhance tissue reconstruction and repair and address the poor biocompatibility of hydrogels (Zhang et al., 2022a).
3.2.2 Biodegradability
The biodegradability of hydrogel materials is a significant advantage. The biodegradability of hydrogel involves the gradual decomposition of the material in the body through processes such as dissolution, enzymatic digestion, and cell engulfment. Upon tissue repair, the implanted material is completely replaced by the repaired tissue, without leaving any residual material during the tissue healing process (Xia et al., 2021). Ideally, hydrogel materials should exhibit controllable biodegradability, matching the growth of cells and tissue repair rate. Excessive degradation can result in a loss of mechanical integrity before complete tissue regeneration, whereas slow degradation can lead to delayed tissue healing (Fatahian et al., 2022). Therefore, determining the appropriate degradation rate is a crucial consideration in hydrogel design. Fortunately, there has been significant recent progress by researchers, including the utilization of surface modification, polymer blending, and incorporation of alkaline particles to enhance biodegradability (Gupta et al., 2024).
3.2.3 Mechanical performance
The hydrogel exhibits mechanical properties at both macroscopic and microscopic levels. On the macroscopic scale, the hydrogel scaffold offers stability and volume maintenance (Belgodere et al., 2023). On the microscopic level, cells adhered to the hydrogel matrix can sense mechanical stimuli, converting them into biochemical signals to regulate crucial physiological processes (Li et al., 2022c). Hydrogels offer extensive application potential in bone tissue engineering. Enhancing the mechanical performance of hydrogels is crucial for improving the effectiveness of bone defect repair (Zhao et al., 2022). Inadequate mechanical properties of the hydrogel material can cause the repaired defect to deform easily and fail to offer early-stage support. In order to improve the mechanical performance of hydrogels, researchers have employed diverse methods to enhance the mechanical performance of hydrogels, such as constructing double network structures (Guo et al., 2021), utilizing composite nano-technology (Cui et al., 2019), introducing conductive materials (Arambula-Maldonado et al., 2023), and reinforcing fiber networks (Brusentsev et al., 2023). Studies have demonstrated that biomaterials with mechanical properties matching those of bone can stimulate bone cell proliferation and mineralization, and effectively facilitate bone growth.
4 Classification of polymer-based hydrogels
Polymer-based hydrogels can be classified into two main categories based on their source of materials (Ur Rehman et al., 2020). Naturally derived polymer-based hydrogels are primarily sourced from animals, plants, and microorganisms, exhibiting excellent biocompatibility and biodegradability. Examples include chitosan, sodium alginate, and hyaluronic acid (Sun et al., 2021). Synthetic polymer-based hydrogels are predominantly derived from common chemical raw materials, offering not only good biocompatibility but also enhanced mechanical properties. Common materials used in the preparation of synthetic polymer-based hydrogels include polyethylene glycol (PEG), polyvinyl alcohol (PVA) and polyacrylic acid (PAA). Based on their response to external stimuli, hydrogels can also be classified as traditional hydrogels and responsive hydrogels, the latter also known as intelligent responsive hydrogels. Intelligent responsive hydrogels exhibit reversible responses to environmental stimuli, with their shape, mechanical, optical, permeation rate, and recognition properties showing acute responses to changes in the surrounding microenvironment (such as temperature, pH, light, and magnetic fields), and reversible changes with the stimulating factors. It is worth mentioning that composite hydrogels, represented by clay hydrogels, have emerged as a new type of hydrogel in recent years. This composite system enhances overall mechanical properties, biocompatibility, and processability through the complementary advantages of different materials. We briefly introduce some representative hydrogel systems and their applications as followed. The main classification of hydolgel is summarized in Figure 2.

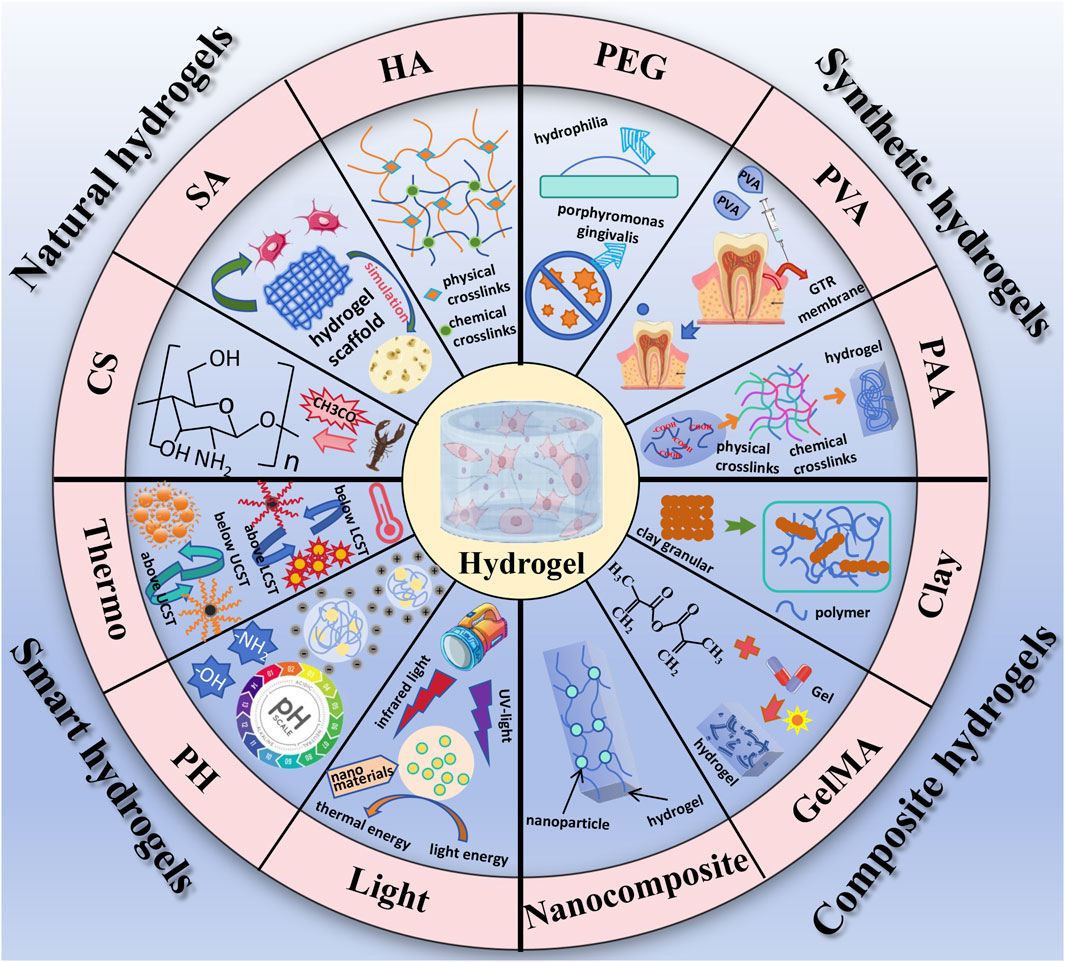

Figure 2. The main classification of hydolgel.
4.1 Natural polymer-based hydrogels
4.1.1 Chitosan-based hydrogel
Chitin is usually extracted from natural shells of shrimp, crabs and insects, and part of the acetyl group is removed to obtain chitosan. Chitosan is the sole naturally occurring alkaline polysaccharide that contains free amino groups (Atia et al., 2022). Chitosan-based materials have the capacity to form chemical and physical cross-linked hydrogels through processes like exposure to ultraviolet light, pH alteration, and temperature adjustment (Yu et al., 2016). Its primary characteristic is the capacity to introduce specific functional groups with reactive properties, yielding a range of chitosan derivatives via chemical modification. Chitosan-based hydrogel systems exhibit outstanding biocompatibility, degradability, anti-inflammatory effects, broad-spectrum antibacterial properties, as well as the ability to facilitate cell adhesion, proliferation, and differentiation (Ma et al., 2022). Gu et al. (2024) used forty-eight male Wistar rats to establish a periodontitis model to detect the effects of chitosan/β-sodium glyceropylate (β-GP)/glycolic acid (GA) hydrogel carrying erythropoietin and FK506 (EPO-FK506-CS/β-GP/GA). The results showed that the hydrogel had drug stability and slow release, could significantly enhance new bone formation in the bone defect area, and had obvious bone induction properties. EPO-FK506-CS/β-GP/GA hydrogel could promote periodontal tissue regeneration. Eshwar et al. (2023) investigated an alginate-chitosan hydrogel, and clinical randomized trials indicated that the hydrogel enhanced the clinical attachment levels and fostered human bone regeneration, thus augmenting its potential in the field of tissue engineering.
4.1.2 Sodium alginate-based hydrogel
Derived from marine algae cell walls and intercellular spaces, sodium alginate is a linear natural anionic polysaccharide (Liu et al., 2023). It is a natural high molecular weight polymer created by linking β-1, 4-D-mannuronic acid (M segment) and α-1, 4-L-guluronic acid (G segment) via (α-1, 4) glycosidic bonds. Due to its non-toxicity, low cost, good biocompatibility, low immunogenicity, and its capability to form gels through crosslinking with divalent or multivalent cations, it has extensive potential applications in oral tissue engineering (Sanchez-Ballester et al., 2021). The three-dimensional network structure of sodium alginate hydrogel offers a novel environment for cell adhesion and proliferation, mimicking the microenvironment of human bone tissue. Furthermore, sodium alginate hydrogel holds significant promise as a scaffold material for bone tissue engineering. It not only offers suitable physical support and biocompatibility but also guides cell proliferation to form specific tissues (Suo et al., 2023). Presently, researchers have started blending sodium alginate with other high molecular weight materials to facilitate cell growth (Ouyang et al., 2024). This blending technique offers a novel approach to develop biomedical materials with outstanding performance and is anticipated to be pivotal in the realm of tissue engineering.
4.1.3 Hyaluronic acid-based hydrogel
One of the main components of the extracellular matrix is hyaluronic acid (HA), which is synthesized into HA hydrogels through physical or chemical crosslinking methods. It has good biocompatibility, does not easily cause immune reactions, and the HA hydrogel has good degradability, gradually degrading into metabolites that exist in the body without burdening the human body (Marinho et al., 2021). HA hydrogels exhibit good biocompatibility and biological activity, which have made them widely used in various fields. In bone tissue repair, HA hydrogels can provide a scaffold structure similar to the bone microenvironment to promote the differentiation of stem cells into bone cells, and promote bone regeneration through the release of growth factors and other bioactive substances (Wang et al., 2021). In tissue engineering, HA hydrogels can serve as cell carriers, providing a suitable environment to support cell adhesion, proliferation, and differentiation, thus achieving tissue regeneration and repair (Fujioka-Kobayashi et al., 2016). Despite the advantages of hyaluronic acid hydrogels including non-toxicity, biodegradability, and biocompatibility, their extremely high water absorption and enzyme degradation make them prone to corrosion and degradation in the body. Thus, combining hyaluronic acid with other smart hydrogels can yield new, environmentally friendly materials with enhanced performance (Liu et al., 2022a). The classification of natural polymer-based hydrogels is summarized in Table 1.

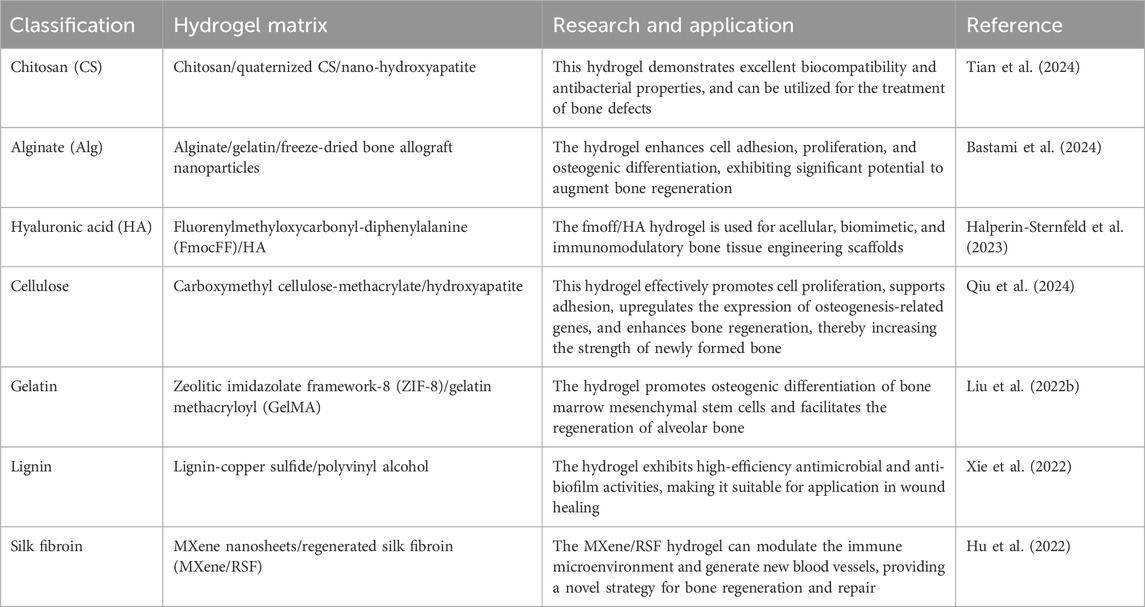

Table 1. Classification of natural polymer-based hydrogels.
4.2 Synthetic polymer-based hydrogels
4.2.1 Polyethylene glycol-based hydrogels
Polyethylene glycol (PEG) is a linear, neutral polyether polymer that possesses excellent biocompatibility, biodegradability, low immunogenicity, and affordability, making it an important biomaterial in the field of biomedicine. Merrill et al. (1982) first investigated PEG and polyethylene oxide (PEO) as hydrophilic biomaterials, and the results showed that the adsorption of proteins on glass surfaces could be effectively inhibited by the presence of PEO. Since then, various types of PEG have been utilized for different purposes, such as protein surface modification to confer resistance and enhance surface biocompatibility. Fraser and Benoit (2022) found that the presentation of RGD and GFOGER peptides in PEG hydrogels enhanced the functionality of periodontal ligament cells (PDLCs), and this hydrogel system effectively controlled the function and activity of PDLCs, promoting periodontal tissue regeneration. Liu et al. (2021a) studied an intelligent gingival protease-responsive hydrogel loaded with SDF-1 (PEGPD@SDF-1) and observed that the PEGPD@SDF-1 hydrogel exhibited good biocompatibility, promoting the proliferation, migration, and differentiation of periodontal ligament stem cells. Moreover, this hydrogel inhibited the proliferation of porphyromonas gingivalis, creating a low-inflammatory environment and inducing osteogenesis, thus possessing the ability to promote in situ regeneration of periodontal tissues.
4.2.2 Polyvinyl alcohol-based hydrogel
Polyvinyl alcohol-based hydrogels, after crosslinking and swelling, form three-dimensional network-like colloidal dispersion. They possess high water absorption, degradability, good biocompatibility, and mechanical properties, making them widely applied in various medical fields (Rivera-Hernández et al., 2021). Due to the relatively simple structure and limited functionality of PVA, reinforcing components and functional materials are often incorporated into PVA hydrogel networks to improve and modify the overall performance of the hydrogel. Xiang et al. (2022) prepared a polyvinyl alcohol/hydroxyapatite/tannic acid (PVA/HA/TA) composite hydrogel, which exhibited high water content, porous structure, and good mechanical properties. In vitro cell experiments demonstrated excellent cell compatibility of the PVA/HA/TA composite hydrogel, promoting cell growth and adhesion, making it a promising material for bone tissue engineering. Zhou et al. (2020) developed a novel guided tissue regeneration (GTR) membrane using a composite hydrogel of polyvinyl alcohol (PVA) and fish collagen (Col). By adjusting the ratio of PVA/Col, they achieved control over the adhesion and proliferation of human periodontal ligament fibroblasts (HPDLFs) and human gingival fibroblasts (HGFs). The PVA/Col composite hydrogel exhibited unlimited potential as a GTR membrane for guiding periodontal tissue regeneration.
4.2.3 Polyacrylic acid-based hydrogel
PAA is a type of synthetic polymer with high hydrophilicity and a large number of carboxyl groups. It can form hydrogels through physical or chemical crosslinking. Wen et al. (2023) prepared a novel composite mineral matrix PAA-CMC-TDM hydrogel using amorphous calcium phosphate (ACPs), PAA, carboxymethyl chitosan (CMC), and dentin matrix (TDM) as the matrix. The hydrogel exhibited good biocompatibility and degradability, and its mechanical properties could be adjusted without affecting the functional activity of TDM. The experimental results showed that the hydrogel significantly improved the differentiation ability of mesenchymal stem cells into tooth or bone, and could repair irregular hard tissue defects in situ. Fan et al. (2023) combined PAA and sodium alginate (SA) to obtain a double polymer network hydrogel, in which ion crosslinking and SiO2 nanoparticles were introduced as dual reinforcement materials. Compared with standard PAA hydrogel, the hydrogel exhibited enhanced adhesion and shape memory properties, and further improved biocompatibility and osteogenic potential. SA-PAA-SiO2 has great potential in bone tissue engineering. The classification of synthetic polymer-based hydrogels is summarized in Table 2.

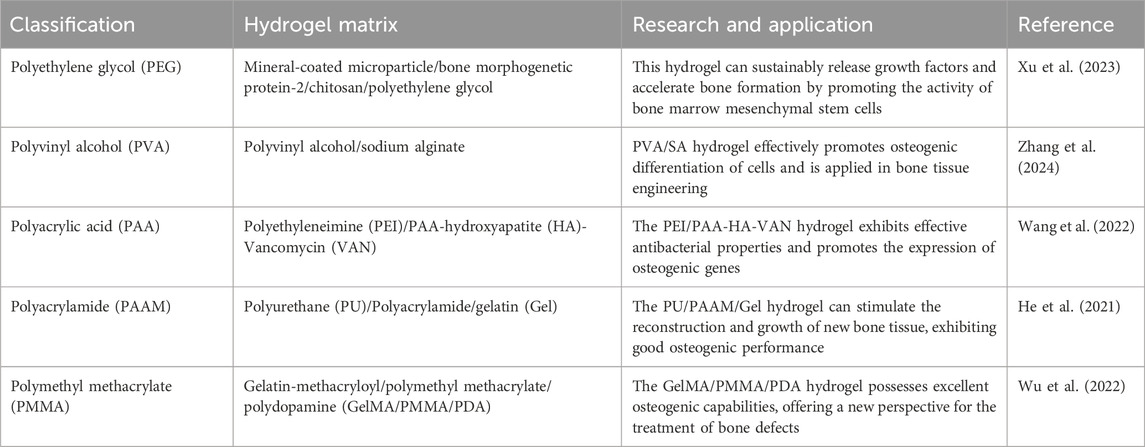

Table 2. Classification of synthetic polymer-based hydrogels.
4.3 Smart hydrogels
4.3.1 Temperature-responsive hydrogels
Temperature-responsive hydrogels, also known as thermoresponsive hydrogels or temperature-sensitive hydrogels, are hydrogel materials with both hydrophilic and hydrophobic groups on their polymer chains. They exhibit temperature-responsive phase transition properties. When the temperature reaches a certain critical point, the affinity of the thermoresponsive hydrogel towards the solvent changes, leading to a swelling-shrinking transition. This temperature transition point is referred to as the lowest critical solution temperature (LCST) or utmost critical solution temperature (UCST). Injecting thermoresponsive hydrogels into periodontal pockets, they undergo an in situ sol-gel transition response under the stimulation of oral temperature. Xu et al. (2019) developed a thermosensitive hydrogel composed of chitosan (CS), sodium glycerophosphate (β-GP), and gelatin, which can sustainably release aspirin and erythropoietin (EPO) when injected. The study demonstrated that CS/β-GP/gelatin hydrogel is a novel drug carrier with easy preparation and excellent biocompatibility. The loaded aspirin/EPO in CS/β-GP/gelatin hydrogel exhibited significant anti-inflammatory and periodontal tissue regeneration-promoting effects. This hydrogel holds promise as a potential candidate for the clinical treatment of periodontitis.
4.3.2 pH-responsive hydrogels
pH-responsive hydrogels are a type of hydrogel material that undergoes swelling or shrinking in response to changes in pH. These hydrogels contain specific acidic groups (such as carboxyl groups) or basic groups (such as amino groups). The physicochemical properties of pH-responsive hydrogels largely depend on the charge changes within the material at different pH values and the interactions between charges. Yu et al. (2022) developed a dual-crosslinked gel system with a polyhedral oligomeric silsesquioxane (POSS) matrix, surrounded by a shell of six dithiol-linked PEG and two 2-ureido-4[1H]-pyrimidinone (UPy) groups. The thiol-disulfide exchange reaction exhibited pH-responsive “on/off” functionality, allowing for controlled structure of the hydrogel. The results showed that the hydrogel improved mechanical strength and had a positive effect on the proliferation, adhesion, and osteogenic ability of periodontal ligament stem cells (PDLSCs). In summary, pH-responsive hydrogels hold great potential for various applications, including drug delivery, tissue engineering, and biomedical devices, due to their ability to respond to changes in pH and provide controlled release and targeted therapy.
4.3.3 Light-responsive hydrogels
Light-responsive hydrogels are a type of hydrogel that undergo changes in their morphology, crosslinking density, and other properties under different light conditions, such as ultraviolet light, near-infrared light, or visible light. There are two different response mechanisms for light-responsive hydrogels: firstly, due to the presence of photosensitive functional groups (such as spiropyran, azobenzene, and other groups) within the hydrogel itself, the properties of the hydrogel change when it absorbs a certain amount of photon energy; secondly, by introducing nanomaterials with photothermal effects (such as gold nanoparticles, graphene oxide, etc.) into thermosensitive hydrogels, the light energy of the nanomaterials is converted into heat energy under light conditions using the photothermal effect, raising the temperature of the hydrogel and thus regulating its properties (Liu et al., 2021b). Zhai et al. (2021) studied a clay-based nanocomposite hydrogel using 4-acryloylmorpholine as a monomer. After exposure to ultraviolet light, the hydrogel exhibited good biocompatibility and mechanical properties. Additionally, animal experimental results demonstrated that the hydrogel had the ability to promote osteoblast differentiation, providing a new clinical approach for bone defect repair. Magalhães et al. (2022) prepared a nanocomposite hydrogel using laponite and polyethylene glycol diacrylate (PEGDA) and utilized ultraviolet radiation to enhance its bone regeneration ability, showcasing its potential application value in the field of bone regeneration. The classification of smart hydrogels is summarized in Table 3.

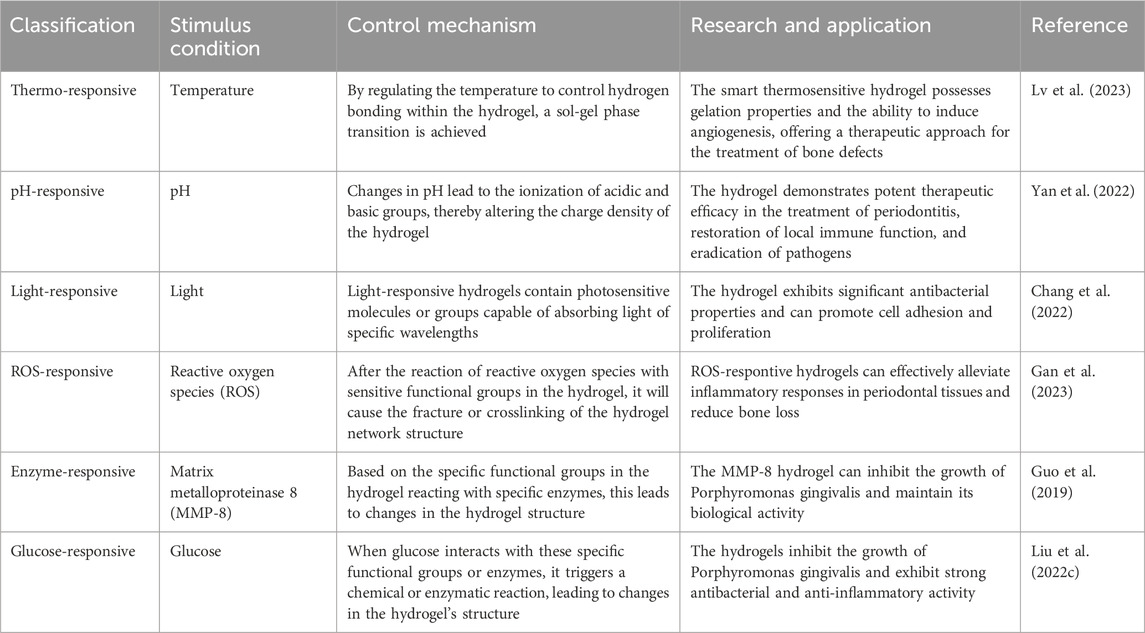

Table 3. Classification of smart hydrogels.
4.4 Composite hydrogels
Composite hydrogels refer to the incorporation of one or several polymers into a composition consisting of two or more different types or components of polymers, forming a composite system with specific structure and functionality through hydrogen bonding and electrostatic interactions. Clay hydrogels have been representative examples of composite hydrogels in recent years. Dong et al. (2021) uniformly mixed laponite nanoclay with methacrylic acid gelatin to obtain a composite hydrogel. The addition of nanoclay improved the rheological properties, degradation stability, and mechanical strength of the hydrogel. This composite hydrogel scaffold exhibited high proliferation and osteogenic differentiation capacity, making it a promising candidate for bone tissue regeneration biomaterials. Hakimi et al. (2023) developed a novel organic-mineral nanofiber hydrogel composed of chitosan-polyethylene oxide (CS-PEO)/nanoclay-alginate (NC-ALG). The inclusion of NC particles in the hydrogel improved its biocompatibility and promoted bone tissue regeneration. Zhang et al. (2022b) designed a chitosan/polyaniline/lithium polysaccharide (COL) hydrogel, in which aluminum silicate clay material laponite (LAP) was incorporated. This composite hydrogel exhibited good biocompatibility and degradability. Furthermore, the LAP-loaded composite hydrogel demonstrated excellent osteogenic differentiation capacity and could be used for bone defect repair.
5 Application value of hydrogel in promoting periodontal tissue regeneration
The application research of hydrogels in periodontal tissue regeneration has continuously achieved breakthroughs. Early studies mainly focused on the antibacterial activity of hydrogels themselves, aiming to inhibit the development of infection and inflammation by adding antibacterial agents (Chen et al., 2016). However, with further research, it has been found that the effect of a single antibacterial agent is limited. To overcome these problems, researchers have begun to explore the use of hydrogels as carriers for loading different antibacterial drugs. This loading system can provide a more long-lasting antibacterial effect while reducing the amount of drugs used (Wang et al., 2020). In recent years, hydrogels can be used as carriers for carrying and releasing bioactive molecules, such as growth factors and anti-inflammatory factors. These bioactive molecules can promote tissue regeneration and repair, accelerating the healing process of periodontal tissues (Kuroda et al., 2019). Some studies have also focused on loading growth factors and antibacterial drugs together in hydrogels. This dual-functional hydrogel can not only control infection and inflammation, but also promote the regeneration and repair of periodontal tissues. The potential mechanisms employed by hydrolgel in promoting periodontal tissue regeneration are demonstrated in Figure 3. Tan et al. (2023) prepared a chitosan-based thermosensitive hydrogel loaded with β-tricalcium phosphate, which confirmed the three-dimensional network structure of the hydrogel and demonstrated significant biocompatibility with pre-osteoblastic cells MC3T3-E1 and human gingival fibroblasts, showing great potential in periodontal tissue regeneration. Ammar et al. (2018) incorporated freeze-dried platelet concentrate (FDPC) into chitosan/β-glycerophosphate lipid hydrogel, both showing sustained release of transforming growth factor and platelet-derived growth factors, significantly improving the viability of periodontal ligament stem cells, conducive to periodontal tissue regeneration, and providing essential growth factors and progenitor cells for periodontal tissue regeneration. Fawzy El-Sayed et al. (2015) used gingival-margin-derived stem/progenitor cells (G-MSCs) and hyaluronic acid-synthesized extracellular matrix (HA-sECM) hydrogel loaded with IL-1ra to explore its potential for periodontal regeneration. The results showed that this hydrogel significantly improved periodontal attachment levels, connective tissue adhesion, and alveolar bone regeneration, demonstrating significant periodontal tissue regeneration capability when used in combination with G-MSCs and IL-1-loaded HA-sECM hydrogel. Momose et al. (2016) evaluated the use of collagen hydrogel combined with fibroblast growth factor-2 (FGF2) for healing periodontal defects in beagle dogs. The results showed that periodontal tissues, periodontal ligament-like tissues, and Sharpey’s fibers in beagle dogs were repaired, and FGF2-loaded collagen hydrogel guided periodontal regeneration, restoring the function of periodontal tissues.

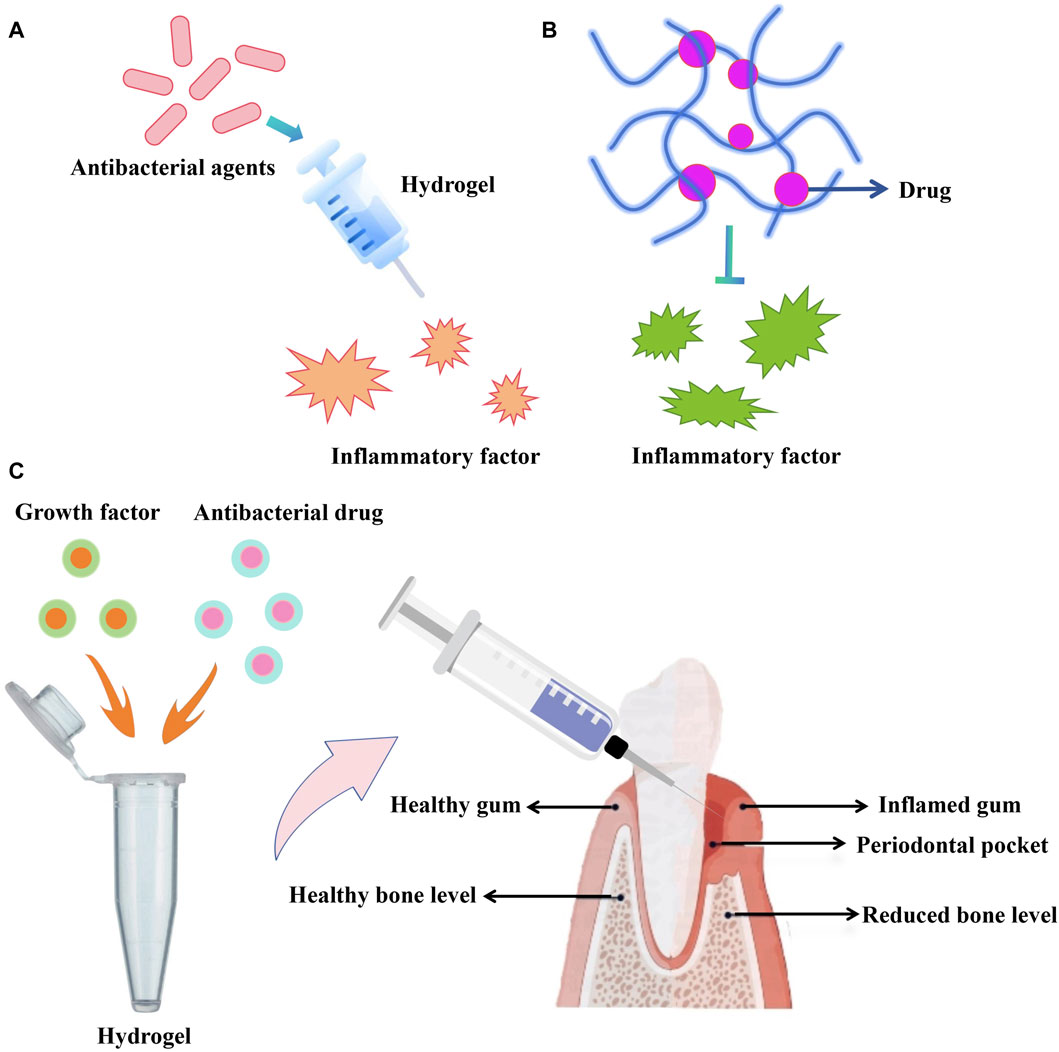

Figure 3. (A,B) Antibacterial agents or drugs can be integrated with hydrogel to suppress inflammatory factor. (C) Growth factor-loaded hydrogel to promote periodontal tissue regeneration.
Currently, hydrogels have enormous potential in the treatment of periodontal tissue regeneration. However, most related research is still at the stage of animal experiments, requiring further exploration of its clinical efficacy and translational applications. With in-depth research on hydrogels and continuous technological improvement, it is believed that their application in the field of periodontal tissue regeneration will be further expanded. We can look forward to hydrogels providing new solutions for the treatment of periodontal tissue diseases, bringing more benefits to periodontal health.
6 Bone defect repair strategy based on hydrogel
Part of periodontitis patients have bone defects, promoting bone regeneration in the area to restore normal chewing function is particularly important for patients with periodontitis combined with bone defects (Li et al., 2023). The repair and regeneration of bone defects is a challenging and highly demanding research.
6.1 Hydrogels act as carrier to promote bone defect repair
Researchers are constantly exploring new methods to improve the effectiveness of bone defect repair. Hydrogels can encapsulate cells and/or growth factors, effectively protecting them from external environmental influences and maintaining their biological activity. When the hydrogel comes into contact with the site of the bone defect, it selectively transports the encapsulated cells and/or growth factors, thus promoting the proliferation and differentiation of bone cells, accelerating the regeneration and repair of bone tissue (Santos et al., 2023). In addition, hydrogels can also regulate the release rate of cells and growth factors, achieving sustained and controlled release, further enhancing the repair effectiveness (Arpornmaeklong et al., 2021). Tan et al. (2019) prepared a supermolecular hydrogel assembly of NapFFY with SDF-1 and BMP-2 for the treatment of periodontal bone defects in rats, with a bone regeneration rate as high as 56.7%. Both in vitro and in vivo results indicated that these two bioactive factors were released synchronously and continuously from the hydrogel under ideal conditions, effectively promoting the regeneration and reconstruction of periodontal bone tissue. It is expected that the SDF-1/BMP-2/NapFFY hydrogel may soon replace clinical bone transplantation for the repair of periodontal bone defects. Parisi et al. (2020) introduced adaptors of fibronectin into hyaluronic acid/polyethylene glycol-based hydrogel, evaluating its ability to promote osteogenesis in rats. The hydrogel was found to support osteoblast adhesion, accelerate platelet aggregation and activation, and promote postoperative new bone formation. Chien et al. (2018) applied an injectable thermosensitive chitosan/collagen/glycerophosphate hydrogel to provide a suitable environment for the transplantation of stem cells and enhance their delivery and implantation. In an animal model of maxillary molar defects, the iPSCs-BMP-6 hydrogel-treated group exhibited significant mineralization, increased bone volume, number and thickness of bone trabeculae, and promoted new periodontalligament regeneration as well as the formation of bone and cementum. These findings indicate that the combination of hydrogel-encapsulated iPSCs with BMP-6 provides a new strategy for enhancing periodontal bone regeneration.
6.2 Hydrogels act as scaffold to promote bone defect repair
In recent years, bone tissue engineering (BTE) has played an important role in the treatment of periodontal bone defects (Gao et al., 2024b). The three important elements in BTE include scaffold materials, seed cells, and growth factors. BTE requires the integration of scaffold materials with different types of bioactive substances, including cells, drugs, proteins, and other bioactive molecules, to enhance bone formation effectiveness. Hydrogels, as scaffold materials, provide a living environment for bone cells, which is conducive to bone tissue regeneration (Peng et al., 2023). Hydrogels can simulate the extracellular matrix environment of the human body, providing structural support for new bone formation and enabling bone tissue repair, thus possessing unique advantages. Sowmya et al. (2017) achieved complete regeneration of hard tissues (alveolar bone and tooth bone) at the site of periodontal defect using a three-layered nanocomposite hydrogel scaffold loaded with growth factors. The results demonstrated complete healing of the periodontal bone defect and the formation of new trabecular-like tissue. Histological and immunohistochemical analysis further confirmed the formation of new tooth bone and alveolar bone, with distinct bone trabeculae. Wang et al. (2023) prepared a porous hydrogel scaffold using chitosan and oxidized chondroitin sulfate (OCS) as the matrix, which carried periodontal ligament stem cells (PDLSCs) or gingival mesenchymal stem cells (GMSCs). In a rat model of periodontal defect, the PDLSC and GMSC hydrogels induced bone tissue repair, offering another possibility for clinical application. Kato et al. (2015) investigated the application of bone morphogenetic protein (BMP)/collagen hydrogel scaffold implantation for periodontal bone defect in dogs. The results showed that bone-like tissue was significantly formed after receiving BMP/collagen hydrogel scaffold, and the hydrogel enhanced the regeneration of tooth bone and alveolar bone.
7 Conclusion
The hydrogel is a three-dimensional polymer network characterized by both rigidity and flexibility. Being a rapidly advancing functional polymer material, it possesses distinct advantages that traditional materials lack. It shows significant potential for application in periodontal tissue regeneration and repairing bone defects. Subsequent research should concentrate on enhancing the performance of hydrogels, identifying types with superior performance, and delving deeper into their mechanisms of action. With advancements in medicine, technology, and ongoing research, the utilization of hydrogels in periodontal tissue regeneration and bone defect repair is anticipated to expand new possibilities.
Author contributions
WG: Conceptualization, Data curation, Formal Analysis, Investigation, Writing–original draft. HD: Data curation, Investigation, Writing–original draft. XW: Conceptualization, Project administration, Supervision, Writing–review and editing.
Funding
The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Ajlan, S. A., AlHamdan, K. S., and AlQahtani, D. A. (2024). Peri-implant mucosal fenestration and histologic observation of bone xenograft material 7 years after implant installation: a case report. J. Oral Implantol. 50, 18–23. doi:10.1563/aaid-joi-d-23-00038
Ammar, M. M., Waly, G. H., Saniour, S. H., and Moussa, T. A. (2018). Growth factor release and enhanced encapsulated periodontal stem cells viability by freeze-dried platelet concentrate loaded thermo-sensitive hydrogel for periodontal regeneration hydrogel for periodontal regeneration. Saudi Dent. J.;30(4):355–364. doi:10.1016/j.sdentj.2018.06.002
Arambula-Maldonado, R., Liu, Y., Xing, M., and Mequanint, K. (2023). Bioactive and electrically conductive GelMA-BG-MWCNT nanocomposite hydrogel bone biomaterials. Biomater. Adv.;154:213616. doi:10.1016/j.bioadv.2023.213616
Arpornmaeklong, P., Sareethammanuwat, M., Apinyauppatham, K., and Boonyuen, S. (2021). Characteristics and biologic effects of thermosensitive quercetin-chitosan/collagen hydrogel on human periodontal ligament stem cells ligament stem cells. J. Biomed. Mater Res. B Appl. Biomater.;109(10):1656–1670. doi:10.1002/jbm.b.34823
Atia, G. A. N., Shalaby, H. K., Zehravi, M., Ghobashy, M. M., Attia, H. A. N., Ahmad, Z., et al. (2022). Drug-loaded chitosan scaffolds for periodontal tissue regeneration. Polym. (Basel) 14 (15), 3192. doi:10.3390/polym14153192
Bastami, F., Safavi, S. M., Seifi, S., Nadjmi, N., and Khojasteh, A. (2024). Addition of bone-marrow mesenchymal stem cells to 3D-printed alginate/gelatin hydrogel containing freeze-dried bone nanoparticles accelerates regeneration of critical size bone defects. Macromol. Biosci. 24 (3), e2300065. doi:10.1002/mabi.202300065
Bee, S. L., and Hamid, Z. A. A. (2022). Asymmetric resorbable-based dental barrier membrane for periodontal guided tissue regeneration and guided bone regeneration: a review. J. Biomed. Mater Res. B Appl. Biomater. 110 (9), 2157–2182. doi:10.1002/jbm.b.35060
Belgodere, J. A., Lassiter, H. R., Robinson, J. T., Hamel, K. M., Rogers, E. L., Mohiuddin, O. A., et al. (2023). Biomechanical and biological characterization of XGel, a human-derived hydrogel for stem cell expansion and tissue engineering engineering. Adv. Biol. (Weinh). ;7(8):e2200332. doi:10.1002/adbi.202200332
Brusentsev, Y., Yang, P., King, A. W. T., Cheng, F., Cortes Ruiz, M. F., Eriksson, J. E., et al. (2023). Photocross-linkable and shape-memory biomaterial hydrogel based on methacrylated cellulose nanofibres. Biomacromolecules;24(8):3835–3845. doi:10.1021/acs.biomac.3c00476
Chang, K. C., Chiu, K. C., Chen, W. C., Lan, W. C., Hsia, S. M., et al. (2022). Effects of temoporfin-based photodynamic therapy on the in vitro antibacterial activity and biocompatibility of gelatin-hyaluronic acid cross-linked hydrogel membranes. Pharmaceutics 14 (11), 2314. doi:10.3390/pharmaceutics14112314
Chen, X., Wu, G., Feng, Z., Dong, Y., Zhou, W., Li, B., et al. (2016). Advanced biomaterials and their potential applications in the treatment of periodontal disease. Crit. Rev. Biotechnol. 36 (4), 760–775. doi:10.3109/07388551.2015.1035693
Chen, Y., Sheng, W., Lin, J., Fang, C., Deng, J., Zhang, P., et al. (2022). Magnesium oxide nanoparticle coordinated phosphate-functionalized chitosan injectable hydrogel for osteogenesis and angiogenesis in bone regeneration phosphate-functionalized chitosan injectable hydrogel for osteogenesis and angiogenesis in bone regeneration. ACS Appl. Mater Interfaces. ;14(6):7592–7608. doi:10.1021/acsami.1c21260
Chien, K. H., Chang, Y. L., Wang, M. L., Chuang, J. H., Yang, Y. C., Tai, M. C., et al. (2018). Promoting induced pluripotent stem cell-driven biomineralization and periodontal regeneration in rats with maxillary-molar defects using injectable BMP-6 hydrogel injectable BMP-6 hydrogel. Sci. Rep.;8(1):114. doi:10.1038/s41598-017-18415-6
Crawford, L., Wyatt, M., Bryers, J., and Ratner, B. (2021). Biocompatibility evolves: phenomenology to toxicology to regeneration. Adv. Healthc. Mater 10 (11), e2002153. doi:10.1002/adhm.202002153
Cui, Z. K., Kim, S., Baljon, J. J., Wu, B. M., Aghaloo, T., and Lee, M. (2019). Microporous methacrylated glycol chitosan-montmorillonite nanocomposite hydrogel for bone tissue engineering. Nat. Commun. 10 (1), 3523. doi:10.1038/s41467-019-11511-3
Dannewitz, B., Holtfreter, B., and Eickholz, P. Parodontitis – Therapie einer Volkskrankheit Periodontitis-therapy of a widespread disease. Bundesgesundheitsblatt Gesundheitsforsch. Gesundheitsschutz. 2021;64(8):931–940. doi:10.1007/s00103-021-03373-2
Dong, L., Bu, Z., Xiong, Y., Zhang, H., Fang, J., Hu, H., et al. (2021). Facile extrusion 3D printing of gelatine methacrylate/Laponite nanocomposite hydrogel with high concentration nanoclay for bone tissue regeneration. Int. J. Biol. Macromol. 188, 72–81. doi:10.1016/j.ijbiomac.2021.07.199
Eshwar, S., Konuganti, K., Manvi, S., Bharadwaj, A. N., Sajjan, S., Boregowda, S. S., et al. (2023). Evaluation of osteogenic potential of fucoidan containing chitosan hydrogel in the treatment of periodontal intra-bony defects—a randomized clinical trial containing chitosan hydrogel in the treatment of periodontal intra-bony defects-A randomized clinical trial. Gels.;9(7):573. doi:10.3390/gels9070573
Fan, W., Jensen, L. R., Dong, Y., Deloria, A. J., Xing, B., Yu, D., et al. (2023). Highly stretchable, swelling-resistant, self-healed, and biocompatible dual-reinforced double polymer network hydrogels. ACS Appl. Bio Mater 6 (1), 228–237. doi:10.1021/acsabm.2c00856
Fatahian, S. A., Motavalizadehkakhky, A., Hosseiny, M., Nouri, S. M. M., Zhiani, R., Sohrabpour, M., et al. (2022). Upregulation of biochemical and biophysical properties of cell-laden microfiber, silk-hyaluronic acid composite. Int. J. Biol. Macromol. 211, 700–710. doi:10.1016/j.ijbiomac.2022.05.080
Fawzy El-Sayed, K. M., Mekhemar, M. K., Beck-Broichsitter, B. E., Bähr, T., Hegab, M., Receveur, J., et al. (2015). Periodontal regeneration employing gingival margin-derived stem/progenitor cells in conjunction with IL-1ra-hydrogel synthetic extracellular matrix synthetic extracellular matrix. J. Clin. Periodontol.;42(5):448–457. doi:10.1111/jcpe.12401
Fraser, D., and Benoit, D. (2022). Dual peptide-functionalized hydrogels differentially control periodontal cell function and promote tissue regeneration. Biomater. Adv. 141, 213093. doi:10.1016/j.bioadv.2022.213093
Fujioka-Kobayashi, M., Schaller, B., Kobayashi, E., Hernandez, M., Zhang, Y., and Miron, R. Hyaluronic acid gel-based scaffolds as potential carrier for growth factors: an in vitro bioassay on its osteogenic potential. J. Clin. Med. 2016;5(12):112. doi:10.3390/jcm5120112
Gan, Z., Xiao, Z., Zhang, Z., Li, Y., Liu, C., Chen, X., et al. (2023). Stiffness-tuned and ROS-sensitive hydrogel incorporating complement C5a receptor antagonist modulates antibacterial activity of macrophages for periodontitis treatment. Bioact. Mater 25, 347–359. doi:10.1016/j.bioactmat.2023.01.011
Gao, P., Kajiya, M., Motoike, S., Ikeya, M., and Yang, J. (2024a). Application of mesenchymal stem/stromal cells in periodontal regeneration: opportunities and challenges. Jpn. Dent. Sci. Rev. 60, 95–108. doi:10.1016/j.jdsr.2024.01.001
Gao, X., Ruzbarsky, J. J., Layne, J. E., Xiao, X., and Huard, J. (2024b). Stem cells and bone tissue engineering. Life (Basel) 14 (3), 287. doi:10.3390/life14030287
Gu, Z., Qiu, C., Chen, L., and Wang, X. (2024). Injectable thermosensitive hydrogel loading erythropoietin and FK506 alleviates gingival inflammation and promotes periodontal tissue regeneration. Front. Bioeng. Biotechnol. 11, 1323554. doi:10.3389/fbioe.2023.1323554
Guo, H., Huang, S., Yang, X., Wu, J., Kirk, T. B., Xu, J., et al. (2021). Injectable and self-healing hydrogels with double-dynamic bond tunable mechanical, gel-sol transition and drug delivery properties for promoting periodontium regeneration in periodontitis. ACS Appl. Mater Interfaces 13 (51), 61638–61652. doi:10.1021/acsami.1c18701
Guo, J., Sun, H., Lei, W., Tang, Y., Hong, S., Yang, H., et al. (2019). MMP-8-Responsive polyethylene glycol hydrogel for intraoral drug delivery. J. Dent. Res. 98 (5), 564–571. doi:10.1177/0022034519831931
Gupta, P., Sharma, S., Jabin, S., and Jadoun, S. (2024). Chitosan nanocomposite for tissue engineering and regenerative medicine: a review. Int. J. Biol. Macromol. 254 (Pt 1), 127660. doi:10.1016/j.ijbiomac.2023.127660
Hakimi, F., Jafari, H., Hashemikia, S., Shabani, S., and Ramazani, A. (2023). Chitosan-polyethylene oxide/clay-alginate nanofiber hydrogel scaffold for bone tissue engineering: preparation, physical characterization, and biomimetic mineralization. Int. J. Biol. Macromol. 233, 123453. doi:10.1016/j.ijbiomac.2023.123453
Halperin-Sternfeld, M., Pokhojaev, A., Ghosh, M., Rachmiel, D., Kannan, R., Grinberg, I., et al. (2023). Immunomodulatory fibrous hyaluronic acid-Fmoc-diphenylalanine-based hydrogel induces bone regeneration. J. Clin. Periodontol. 50 (2), 200–219. doi:10.1111/jcpe.13725
Hameed, H., Faheem, S., Paiva-Santos, A. C., Sarwar, H. S., and Jamshaid, M. (2024). A comprehensive review of hydrogel-based drug delivery systems: classification, properties, recent trends, and applications. AAPS PharmSciTech 25 (4), 64. doi:10.1208/s12249-024-02786-x
He, M., Hou, Y., Zhu, C., Jiang, Y., Feng, G., et al. (2021). 3D-Printing biodegradable PU/PAAM/gel hydrogel scaffold with high flexibility and self-adaptibility to irregular defects for nonload-bearing bone regeneration. Bioconjug Chem. 32 (8), 1915–1925. doi:10.1021/acs.bioconjchem.1c00322
Ho, T. C., Chang, C. C., Chan, H. P., Chung, T. W., Shu, C. W., Chuang, K. P., et al. (2022). Hydrogels: properties and applications in biomedicine. Molecules;27(9):2902. doi:10.3390/molecules27092902
Hu, Z. C., Lu, J. Q., Zhang, T. W., Liang, H. F., Yuan, H., Su, D. H., et al. (2022). Piezoresistive MXene/Silk fibroin nanocomposite hydrogel for accelerating bone regeneration by Re-establishing electrical microenvironment. Bioact. Mater 22, 1–17. doi:10.1016/j.bioactmat.2022.08.025
Kato, A., Miyaji, H., Ishizuka, R., Tokunaga, K., Inoue, K., Kosen, Y., et al. (2015). Combination of root surface modification with BMP-2 and collagen hydrogel scaffold implantation for periodontal healing in beagle dogs. Open Dent. J.;9:52–59. doi:10.2174/1874210601509010052
Kuroda, Y., Kawai, T., Goto, K., and Matsuda, S. (2019). Clinical application of injectable growth factor for bone regeneration: a systematic review. Inflamm. Regen. 39, 20. doi:10.1186/s41232-019-0109-x
Li, J., Lv, Y., Chen, Z., Zhao, J., and Wang, S. (2024). Citric acid loaded hydrogel-coated stent for dissolving pancreatic duct calculi. Gels 10 (2), 125. doi:10.3390/gels10020125
Li, M., Lv, J., Yang, Y., Cheng, G., Guo, S., Liu, C., et al. (2022a). Advances of hydrogel therapy in periodontal regeneration-A materials perspective review. Gels 8 (10), 624. doi:10.3390/gels8100624
Li, T., Liang, B., Ye, Z., et al. An integrated and conductive hydrogel-paper patch for simultaneous sensing of Chemical-Electrophysiological signals. Biosens. Bioelectron. 2022c 15:113855. doi:10.1016/j.bios.2021.113855
Li, T., Zeng, X., Zou, S., Xu, Y., and Duan, P. Recent advances in horizontal alveolar bone regeneration. Biomed. Mater. 2023;18, 052004. doi:10.1088/1748-605x/acd6725).
Li, Z., Li, G., Xu, J., Li, C., Han, S., Zhang, C., et al. (2022b). Hydrogel transformed from nanoparticles for prevention of tissue injury and treatment of inflammatory diseases. Adv. Mater 34 (16), e2109178. doi:10.1002/adma.202109178
Liu, J., Liu, H., Jia, Y., Tan, Z., Hou, R., Lu, J., et al. (2022c). Glucose-sensitive delivery of tannic acid by a photo-crosslinked chitosan hydrogel film for antibacterial and anti-inflammatory therapy. J. Biomater. Sci. Polym. Ed. 33 (13), 1644–1663. doi:10.1080/09205063.2022.2068948
Liu, S., Lu, S., Sun, S., Hai, J., Meng, G., and Wang, B. (2021b). NIR II light-response Au nanoframes: amplification of a pressure- and temperature-sensing strategy for portable detection and photothermal therapy of cancer cells. Anal. Chem. 93 (42), 14307–14316. doi:10.1021/acs.analchem.1c03486
Liu, S., Wang, Y. N., Ma, B., Shao, J., Liu, H., and Ge, S. (2021a). Gingipain-responsive thermosensitive hydrogel loaded with SDF-1 facilitates in situ periodontal tissue regeneration. ACS Appl. Mater Interfaces 13 (31), 36880–36893. doi:10.1021/acsami.1c08855
Liu, X., Wang, Y., Liang, Z., Lian, X., Huang, D., Hu, Y., et al. (2023). Progress in preparation and application of sodium alginate microspheres. Sheng Wu Yi Xue Gong Cheng Xue Za Zhi 40 (4), 792–798. doi:10.7507/1001-5515.202211048
Liu, Y., Li, T., Sun, M., Cheng, Z., Jia, W., Jiao, K., et al. (2022b). ZIF-8 modified multifunctional injectable photopolymerizable GelMA hydrogel for the treatment of periodontitis. Acta Biomater. 146, 37–48. doi:10.1016/j.actbio.2022.03.046
Liu, Z., Lin, W., and Liu, Y. (2022a). Macrocyclic supramolecular assemblies based on hyaluronic acid and their biological applications. Acc. Chem. Res. 55 (23), 3417–3429. doi:10.1021/acs.accounts.2c00462
Luo, F. Q., Xu, W., Zhang, J. Y., Liu, R., Huang, Y. C., Xiao, C., et al. (2022). An injectable nanocomposite hydrogel improves tumor penetration and cancer treatment efficacy. Acta Biomater. 147, 235–244. doi:10.1016/j.actbio.2022.05.042
Lv, Z., Hu, T., Bian, Y., Wang, G., Wu, Z., Li, H., et al. (2023). A MgFe-ldh nanosheet-incorporated smart thermo-responsive hydrogel with controllable growth factor releasing capability for bone regeneration. Adv. Mater 35 (5), e2206545. doi:10.1002/adma.202206545
Ma, S., Lu, X., Yu, X., Du, Y., Xu, S., Li, M., et al. (2022). An injectable multifunctional thermo-sensitive chitosan-based hydrogel for periodontitis therapy. Biomater. Adv. 142, 213158. doi:10.1016/j.bioadv.2022.213158
Magalhães, LSSM, Andrade, D. B., Bezerra, R. D. S., Morais, A. I. S., Oliveira, F. C., Rizzo, M. S., et al. (2022). Nanocomposite hydrogel produced from PEGDA and laponite for bone regeneration. J. Funct. Biomater. 13 (2), 53. doi:10.3390/jfb13020053
Marinho, A., Nunes, C., and Reis, S. (2021). Hyaluronic acid: a key ingredient in the therapy of inflammation. Biomolecules 11 (10), 1518. doi:10.3390/biom11101518
Merrill, E. W., Salzman, E. W., Wan, S., Mahmud, N., Kushner, L., Lindon, J. N., et al. (1982). Platelet-compatible hydrophilic segmented polyurethanes from polyethylene glycols and cyclohexane diisocyanate. Trans. Am. Soc. Artif. Intern Organs 28, 482–487.
Momose, T., Miyaji, H., Kato, A., Sugaya, T., Kawanami, M., Nishida, E., et al. (2016). Collagen hydrogel scaffold and fibroblast growth factor-2 accelerate periodontal healing of class II furcation defects in dog dog. Open Dent. J. ;10:347–359. doi:10.2174/1874210601610010347
Ouyang, Y., Su, X., Zheng, X., Zhang, L., Chen, Z., Yan, Q., et al. (2024). Mussel-inspired "all-in-one" sodium alginate/carboxymethyl chitosan hydrogel patch promotes healing of infected wound. Int. J. Biol. Macromol. 261 (Pt 2), 129828. doi:10.1016/j.ijbiomac.2024.129828
Parisi, L., Rivara, F., Costa, C. A., Abuna, R. P., Palioto, D. B., and Macaluso, G. M. Aptamers recognizing fibronectin confer improved bioactivity to biomaterials and promote new bone formation in a periodontal defect in rats. Biomed. Mater. 2020;16(1):015016. doi:10.1088/1748-605x/abb6b2
Peng, G., Li, W., Peng, L., Li, R., Wang, Z., Zhou, Y., et al. (2023). Multifunctional DNA-based hydrogel promotes diabetic alveolar bone defect reconstruction. Small 20, e2305594. doi:10.1002/smll.202305594
Qiu, H., Wang, J., Hu, H., Song, L., Liu, Z., Xu, Y., et al. (2024). Preparation of an injectable and photocurable carboxymethyl cellulose/hydroxyapatite composite and its application in cranial regeneration. Carbohydr. Polym. 333, 121987. doi:10.1016/j.carbpol.2024.121987
Rivera-Hernández, G., Antunes-Ricardo, M., Martínez-Morales, P., and Sánchez, M. L. (2021). Polyvinyl alcohol based-drug delivery systems for cancer treatment. Int. J. Pharm. 600, 120478. doi:10.1016/j.ijpharm.2021.120478
Sanchez-Ballester, N. M., Bataille, B., and Soulairol, I. Sodium alginate and alginic acid as pharmaceutical excipients for tablet formulation: structure-function relationship. Carbohydr Polym. 2021;270:118399. doi:10.1016/j.carbpol.2021.118399
Santos, M. S., Dos Santos, A. B., and Carvalho, M. S. (2023). New insights in hydrogels for periodontal regeneration. J. Funct. Biomater. 14 (11), 545. doi:10.3390/jfb14110545
Sedghi, L. M., Bacino, M., and Kapila, Y. L. (2021). Periodontal disease: the good, the bad, and the unknown. Front. Cell. Infect. Microbiol. 11, 766944. doi:10.3389/fcimb.2021.766944
Siddiqui, Z., Sarkar, B., Kim, K. K., Kadincesme, N., Paul, R., Kumar, A., et al. (2021). Angiogenic hydrogels for dental pulp revascularization. Acta Biomater.;126:109–118. doi:10.1016/j.actbio.2021.03.001
Smeets, R., Matthies, L., Windisch, P., Gosau, M., Jung, R., Brodala, N., et al. (2022). Horizontal augmentation techniques in the mandible: a systematic review. Int. J. Implant Dent. 8 (1), 23. doi:10.1186/s40729-022-00421-7
Sowmya, S., Mony, U., Jayachandran, P., Reshma, S., Kumar, R. A., Arzate, H., et al. (2017). Tri-layered nanocomposite hydrogel scaffold for the Concurrent regeneration of cementum, periodontal ligament, and alveolar bone. Adv Healthc. Mater;6. doi:10.1002/adhm.2016012517).
Sun, X., Liang, Y., Ye, L., and Liang, H. (2021). An extremely tough and ionic conductive natural-polymer-based double network hydrogel. J. Mater Chem. B 9 (37), 7751–7759. doi:10.1039/d1tb01458g
Suo, L., Wu, H., Wang, P., Xue, Z., Gao, J., and Shen, J. (2023). The improvement of periodontal tissue regeneration using a 3D-printed carbon nanotube/chitosan/sodium alginate composite scaffold D-printed carbon nanotube/chitosan/sodium alginate composite scaffold. J. Biomed. Mater Res. B Appl. Biomater. 111 (1), 73–84. doi:10.1002/jbm.b.35133
Tan, J., Zhang, M., Hai, Z., Wu, C., Lin, J., Kuang, W., et al. (2019). Sustained release of two bioactive factors from supramolecular hydrogel promotes periodontal bone regeneration. ACS Nano 13, 5616–5622. doi:10.1021/acsnano.9b00788
Tan, N., Sabalic-Schoener, M., Nguyen, L., and D’Aiuto, F. (2023). β-Tricalcium phosphate-loaded chitosan-based thermosensitive hydrogel for periodontal regeneration. Polym. (Basel). ;15(20):4146. doi:10.3390/polym15204146
Tian, Y., Cui, Y., Ren, G., Fan, Y., Dou, M., Li, S., et al. (2024). Dual-functional thermosensitive hydrogel for reducing infection and enhancing bone regeneration in infected bone defects. Mater Today Bio 25, 100972. doi:10.1016/j.mtbio.2024.100972
Ur Rehman, W., Asim, M., Hussain, S., Khan, S. A., and Khan, S. B. (2020). Hydrogel: a promising material in pharmaceutics. Curr. Pharm. Des. 26 (45), 5892–5908. doi:10.2174/1381612826666201118095523
Wang, B., Booij-Vrieling, H. E., Bronkhorst, E. M., Shao, J., Kouwer, P. H., Jansen, J. A., et al. (2020). Antimicrobial and anti-inflammatory thermo-reversible hydrogel for periodontal delivery. Acta Biomater. 116, 259–267. doi:10.1016/j.actbio.2020.09.018
Wang, L., Nan, X., Hou, J., Xia, Y., Guo, Y., Meng, K., et al. (2021). Retracted: preparation and biological properties of silk fibroin/nano-hydroxyapatite/hyaluronic acid composite scaffold. Biomed. Mater 16, 045045. doi:10.1088/1748-605x/ac08aa
Wang, W., Wang, A., Hu, G., Bian, M., Chen, L., Zhao, Q., et al. (2023). Potential of an aligned porous hydrogel scaffold combined with periodontal ligament stem cells or gingival mesenchymal stem cells to promote tissue regeneration in rat periodontal defects regeneration in rat periodontal defects. ACS Biomater. Sci. Eng.;9(4):1961–1975. doi:10.1021/acsbiomaterials.2c01440
Wang, X., Fang, X., Gao, X., Wang, H., Li, S., Li, C., et al. (2022). Strong adhesive and drug-loaded hydrogels for enhancing bone-implant interface fixation and anti-infection properties. Colloids Surf. B Biointerfaces 219, 112817. doi:10.1016/j.colsurfb.2022.112817
Wen, B., Dai, Y., Han, X., Huo, F., Xie, L., Yu, M., et al. (2023). Biomineralization-inspired mineralized hydrogel promotes the repair and regeneration of dentin/bone hard tissue. NPJ Regen. Med. 8 (1), 11. doi:10.1038/s41536-023-00286-3
Wu, Y., Zhang, X., Tan, B., Shan, Y., Zhao, X., and Liao, J. (2022). Near-infrared light control of GelMA/PMMA/PDA hydrogel with mild photothermal therapy for skull regeneration. Biomater. Adv. 133, 112641. doi:10.1016/j.msec.2022.112641
Xia, L., Wang, S., Jiang, Z., Chi, J., Yu, S., Li, H., et al. (2021). Hemostatic performance of chitosan-based hydrogel and its study on biodistribution and biodegradability in rats. Carbohydr. Polym. 264, 117965. doi:10.1016/j.carbpol.2021.117965
Xiang, C., Zhang, X., Zhang, J., Chen, W., Li, X., Wei, X., et al. (2022). A porous hydrogel with high mechanical strength and biocompatibility for bone tissue engineering. J. Funct. Biomater. 13 (3), 140. doi:10.3390/jfb13030140
Xie, Y., Gan, C., Li, Z., Liu, W., Yang, D., and Qiu, X. (2022). Fabrication of a lignin-copper sulfide-incorporated PVA hydrogel with near-infrared-activated photothermal/photodynamic/peroxidase-like performance for combating bacteria and biofilms. ACS Biomater. Sci. Eng. 8 (2), 560–569. doi:10.1021/acsbiomaterials.1c01406
Xu, H., Luo, H., Chen, J., Chen, G., Yu, X., and Ye, Z. (2023). BMP-2 releasing mineral-coated microparticle-integrated hydrogel system for enhanced bone regeneration. Front. Bioeng. Biotechnol. 11, 1217335. doi:10.3389/fbioe.2023.1217335
Xu, X., Gu, Z., Chen, X., Shi, C., Liu, C., Liu, M., et al. (2019). An injectable and thermosensitive hydrogel: promoting periodontal regeneration by controlled-release of aspirin and erythropoietin. Acta Biomater. 86, 235–246. doi:10.1016/j.actbio.2019.01.001
Yan, N., Xu, J., Liu, G., Bao, L., Cong, Y., et al. (2022). Penetrating macrophage-based nanoformulation for periodontitis treatment. ACS Nano 16 (11), 18253–18265. doi:10.1021/acsnano.2c05923
Yu, M. C., Chang, C. Y., Chao, Y. C., Jheng, Y., Yang, C., Lee, N., et al. (2016). pH-responsive hydrogel with an anti-glycation agent for modulating experimental periodontitis. J. Periodontol. 87 (6), 742–748. doi:10.1902/jop.2016.150542
Yu, T., Zhang, L., Dou, X., Bai, R., Wang, H., Deng, J., et al. (2022). Mechanically robust hydrogels facilitating bone regeneration through epigenetic modulation. Adv. Sci. (Weinh) 9 (32), e2203734. doi:10.1002/advs.202203734
Zhai, X., Ruan, C., Shen, J., Zheng, C., Zhao, X., Pan, H., et al. (2021). Clay-based nanocomposite hydrogel with attractive mechanical properties and sustained bioactive ion release for bone defect repair. J. Mater Chem. B 9 (10), 2394–2406. doi:10.1039/d1tb00184a
Zhang, G., Wang, X., Meng, G., Xu, T., Shu, J., Zhao, J., et al. (2024). Enzyme-Mineralized PVASA hydrogels with combined toughness and strength for bone tissue engineering. ACS Appl. Mater Interfaces 16 (1), 178–189. doi:10.1021/acsami.3c14006
Zhang, L., He, G., Yu, Y., Zhang, Y., Li, X., and Wang, S. (2022b). Design of biocompatible chitosan/polyaniline/laponite hydrogel with photothermal conversion capability. Biomolecules 12 (8), 1089. doi:10.3390/biom12081089
Zhang, Q., Wang, X., Kang, Y., Yao, C., Li, X., and Li, L. (2022a). Conjugated molecule-assisted supramolecular hydrogel with enhanced antibacterial and antibiofouling properties. ACS Appl. Bio Mater 5, 3107–3114. doi:10.1021/acsabm.2c00385
Zhang, Z., Bi, F., and Guo, W. (2023). Research advances on hydrogel-based materials for tissue regeneration and remineralization in tooth. Gels 9 (3), 245. doi:10.3390/gels9030245
Zhao, Y., Cui, J., Qiu, X., Yan, Y., Zhang, Z., Fang, K., et al. (2022). Manufacturing and post-engineering strategies of hydrogel actuators and sensors: from materials to interfaces. Adv. Colloid Interface Sci.;308:102749. doi:10.1016/j.cis.2022.102749
Zhou, T., Zheng, K., Sui, B., Boccaccini, A. R., and Sun, J. (2020). In vitro evaluation of poly (vinyl alcohol)/collagen blended hydrogels for regulating human periodontal ligament fibroblasts and gingival fibroblasts. Int. J. Biol. Macromol. 163, 1938–1946. doi:10.1016/j.ijbiomac.2020.09.033
